Model Electrolux R30NW2 RANGE – Common Parts & Diagrams

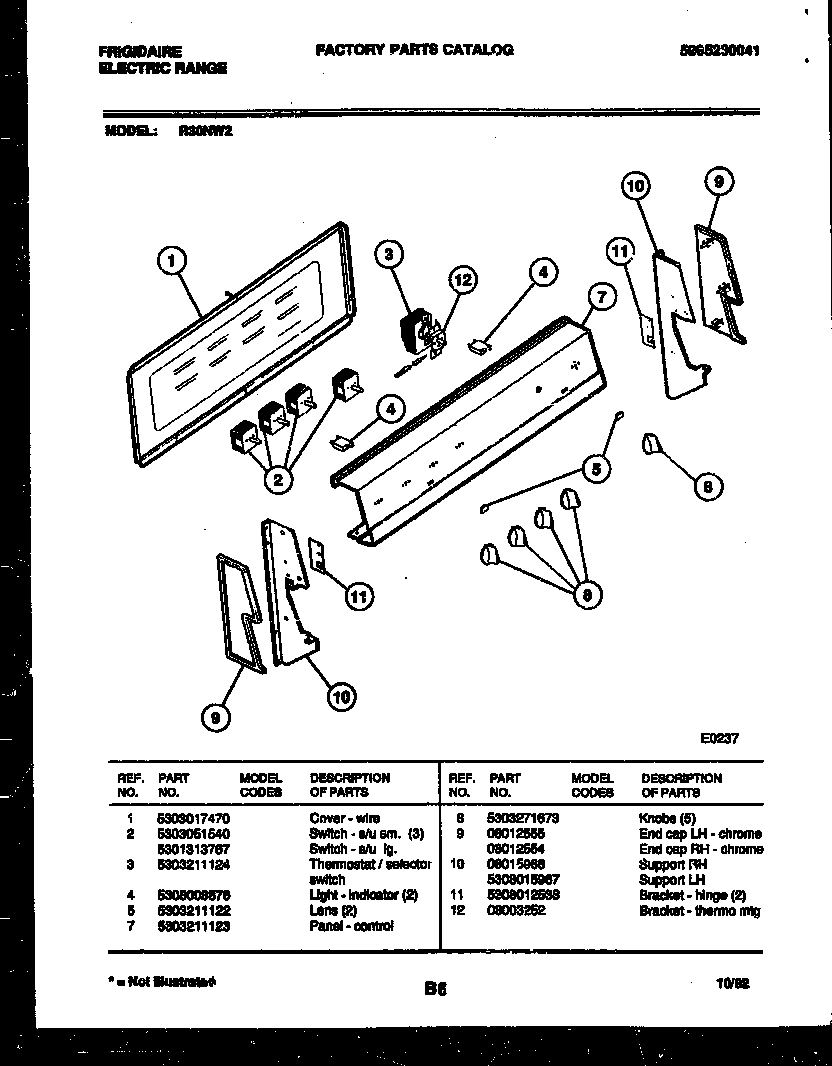

02 - CONTROL PANEL

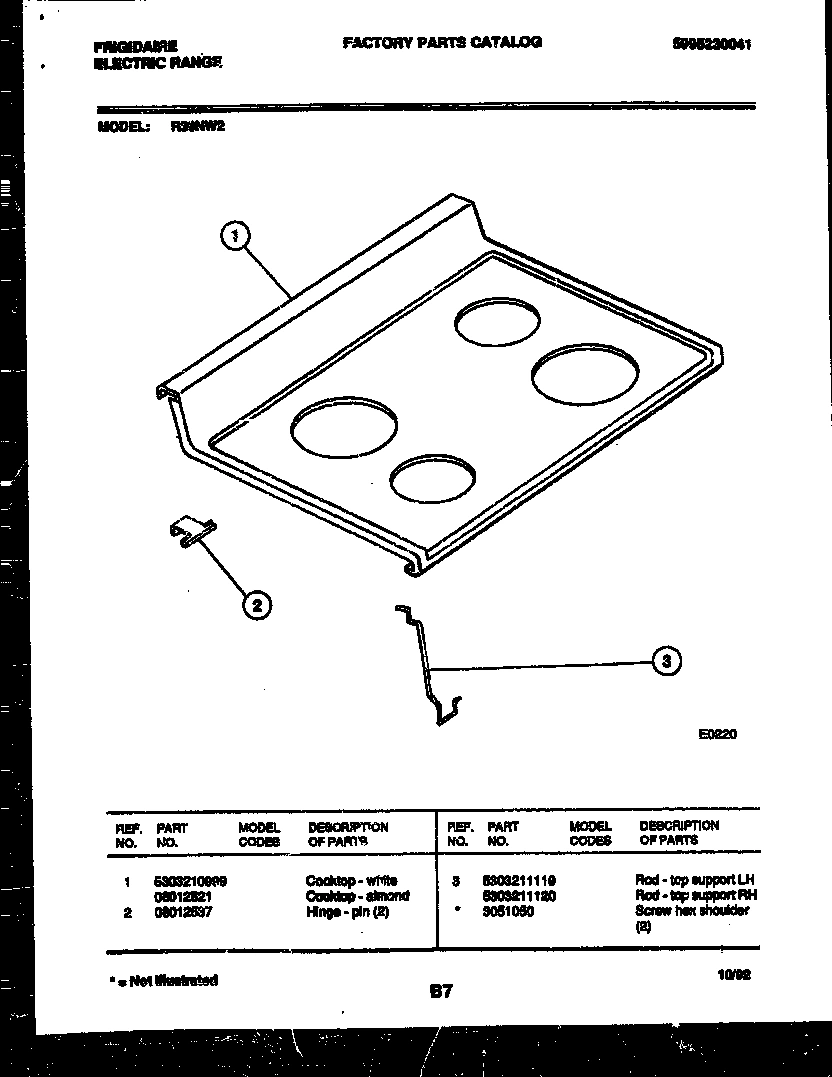

03 - COOKTOP PARTS

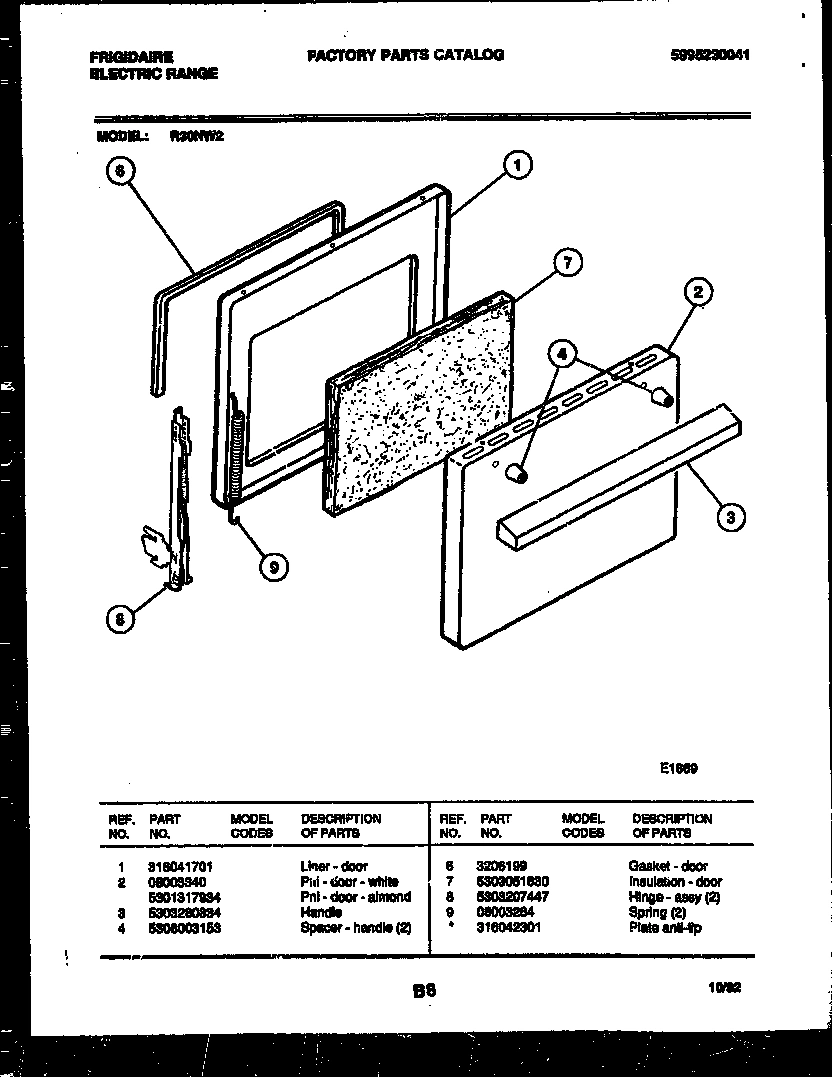

04 - DOOR PARTS

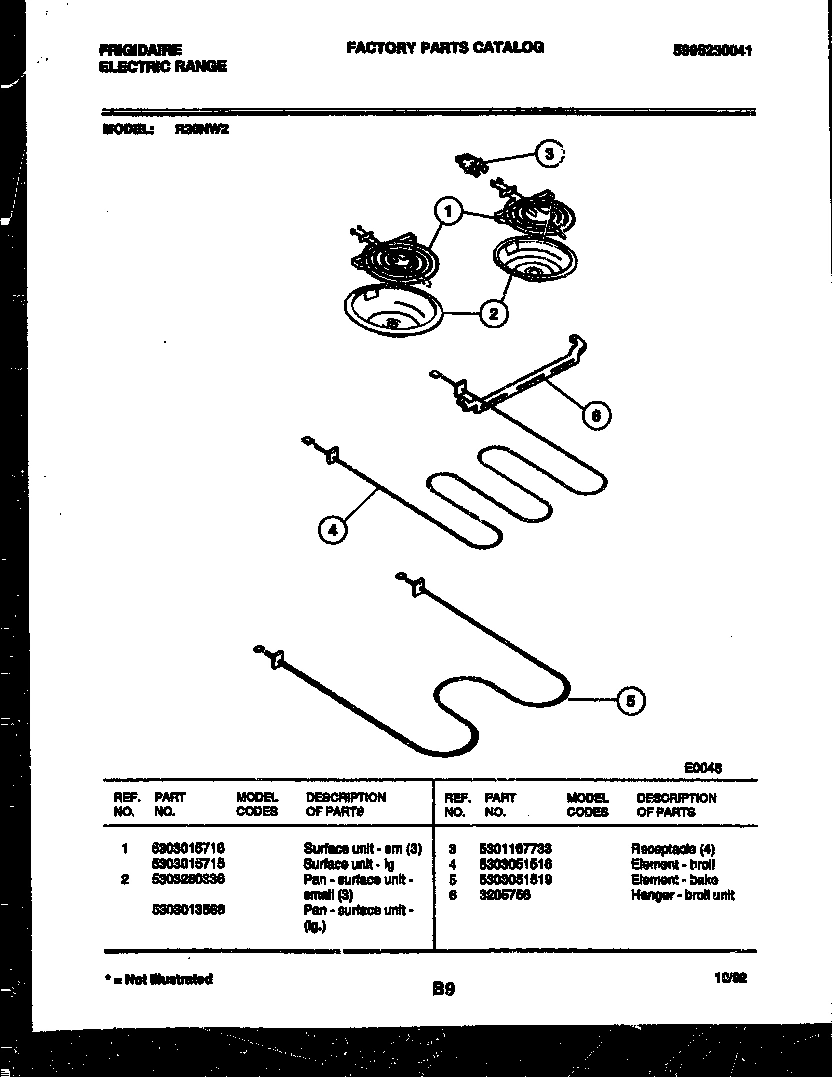

05 - BROILER PARTS

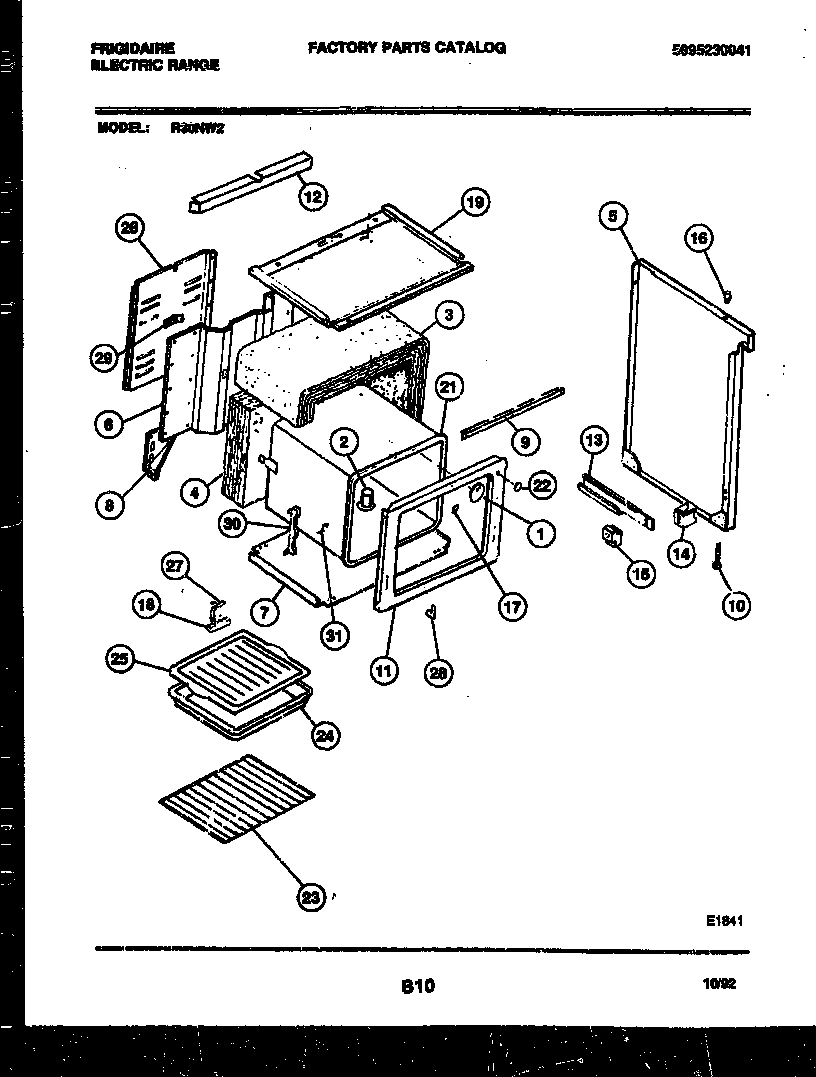

06 - BODY PARTS

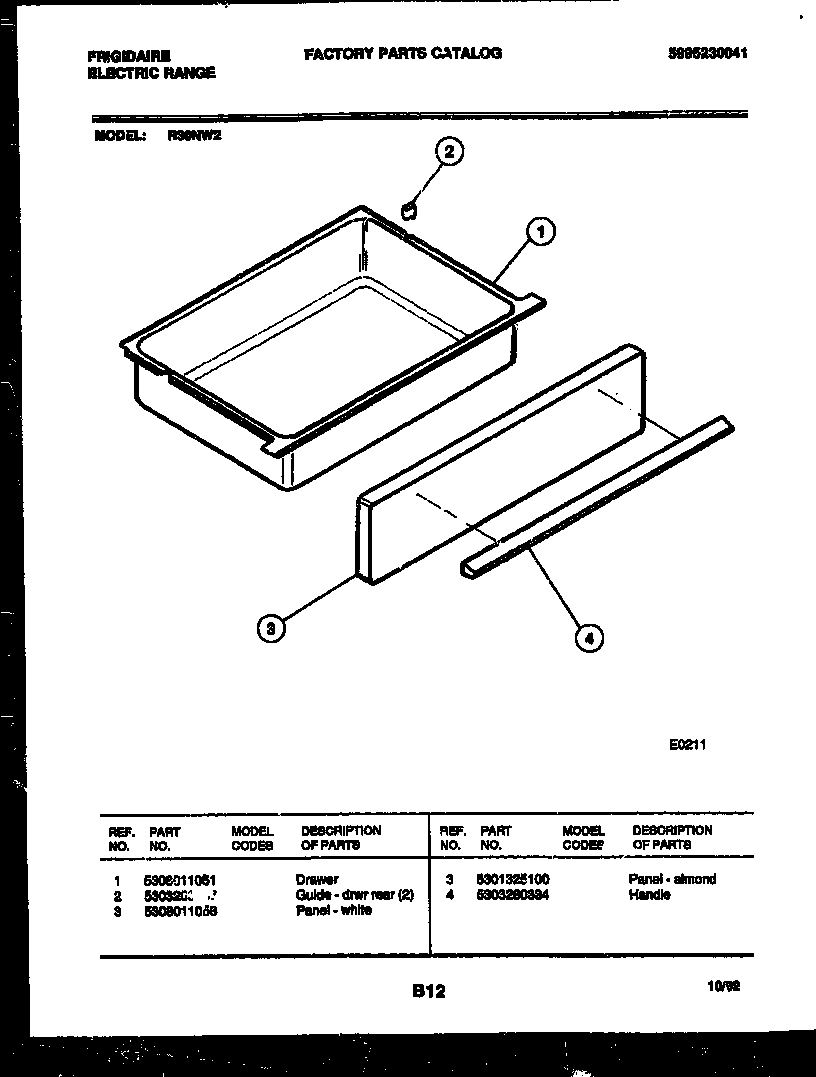

07 - DRAWER PARTS
Common parts from model Electrolux R30NW2 RANGE
*69255
SCREW HEX SHOULDER (2) WCI 3051050 Contact Us For Availability
*69256
PLATE ANTI-TIP WCI 316042301 Contact Us For Availability
*69260
WCI 19100210093 WCI 19100210093 Contact Us For Availability
*69260
WCI 3934063 WCI 3934063 Contact Us For Availability
1
COOKTOP-WHITE WCI 5303210999 Contact Us For Availability
1
LINER - DOOR WCI 316041701 Contact Us For Availability
1
COVER - OVEN IT HOLE WCI 3017576 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
2
HINGE - PIN (2) WCI 08012537 Contact Us For Availability
2
WCI 08003340 WCI 08003340 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
ROD - TOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3A
ROD - TOP SUPPORT RH WCI 5303211120 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
WCI 5308003153 WCI 5308003153 Contact Us For Availability
4
WCI 5303274967 WCI 5303274967 Contact Us For Availability
5
WCI 5308012527 WCI 5308012527 Contact Us For Availability
5A
WCI 5308012528 WCI 5308012528 Contact Us For Availability
6
GASKET-DOOR WCI 3206199 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
PANEL - CONTROL WCI 5303211123 Contact Us For Availability
7
INSULATION-DOOR WCI 5303051630 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
WCI 5303271673 WCI 5303271673 Contact Us For Availability
8
WCI 5303207447 WCI 5303207447 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
END CAP LH - CHROME WCI 08012555 Contact Us For Availability
9
WCI 08003264 WCI 08003264 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
9A
END CAP RH - CHROME WCI 08012554 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
FRONT - OVEN WCI 316042103 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 3206095 WCI 3206095 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
COVER-DRUM SEAM WCI 3202082 Contact Us For Availability
19
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
21
LINER-OVEN WCI 5303292686 Contact Us For Availability
22
BUTTON-PLUG WCI 3204817 Contact Us For Availability
24
WCI 5303292688 WCI 5303292688 Contact Us For Availability
25
WCI 5303293176 WCI 5303293176 Contact Us For Availability
26
WCI 5303051856 WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
WCI 3019063 WCI 3019063 Contact Us For Availability
29
WCI 3016281 WCI 3016281 Contact Us For Availability
30
CHANNEL-HINGE (2) WCI 3201631 Contact Us For Availability
31
WCI 3201632 WCI 3201632 Contact Us For Availability
× ![]()
