Model Electrolux R30NW1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

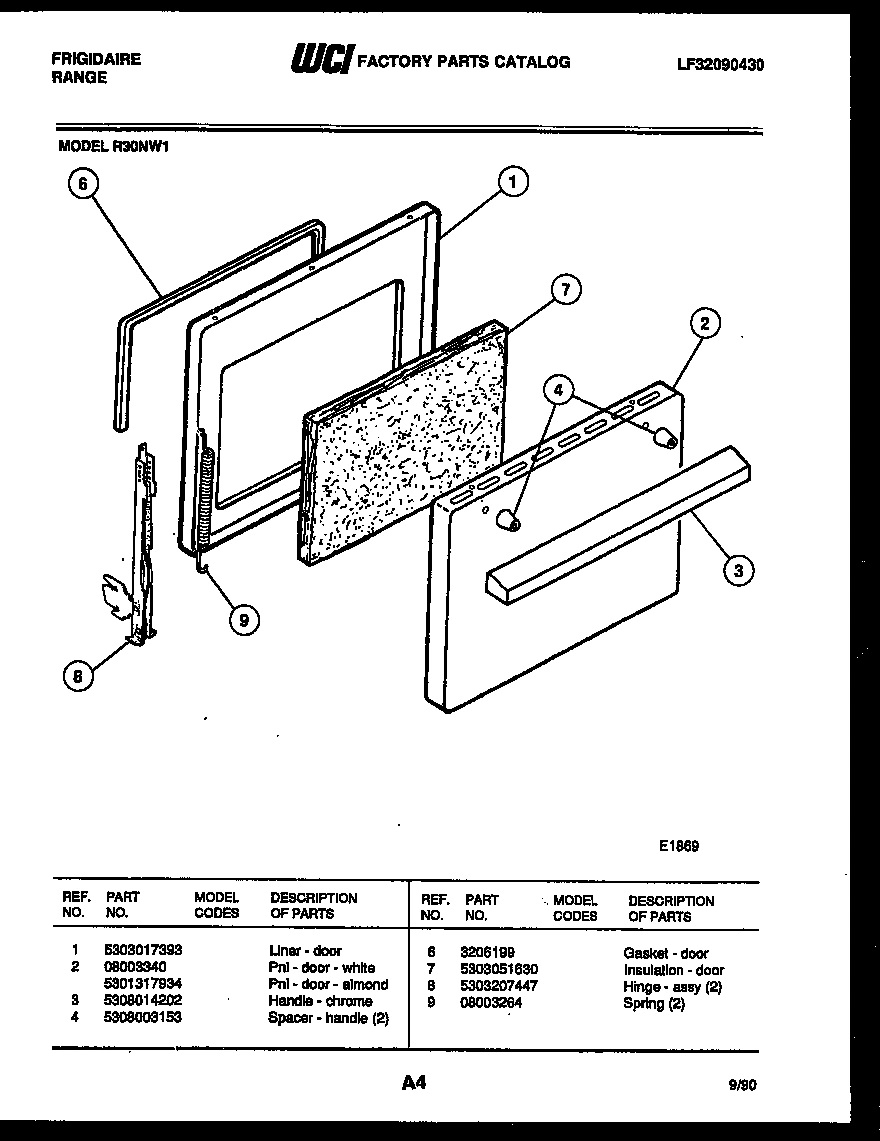

04 - DOOR PARTS

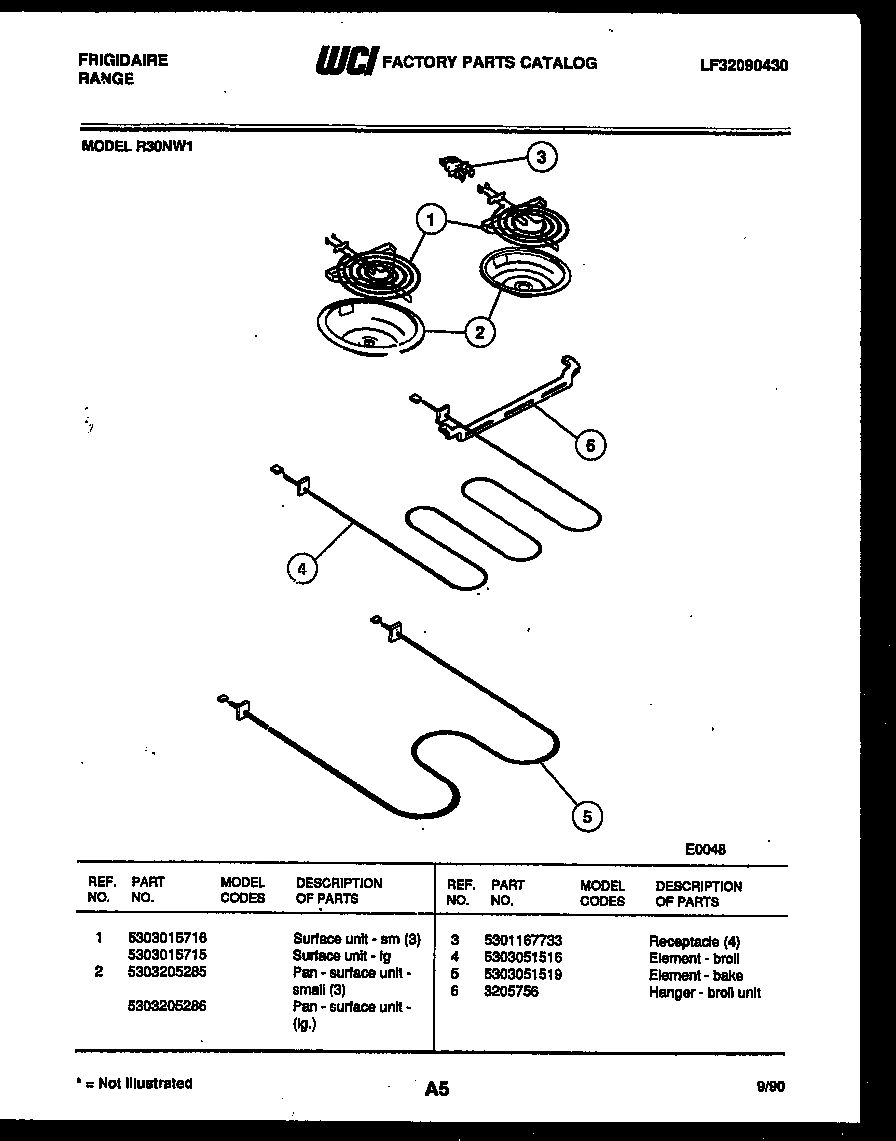

05 - BROILER PARTS

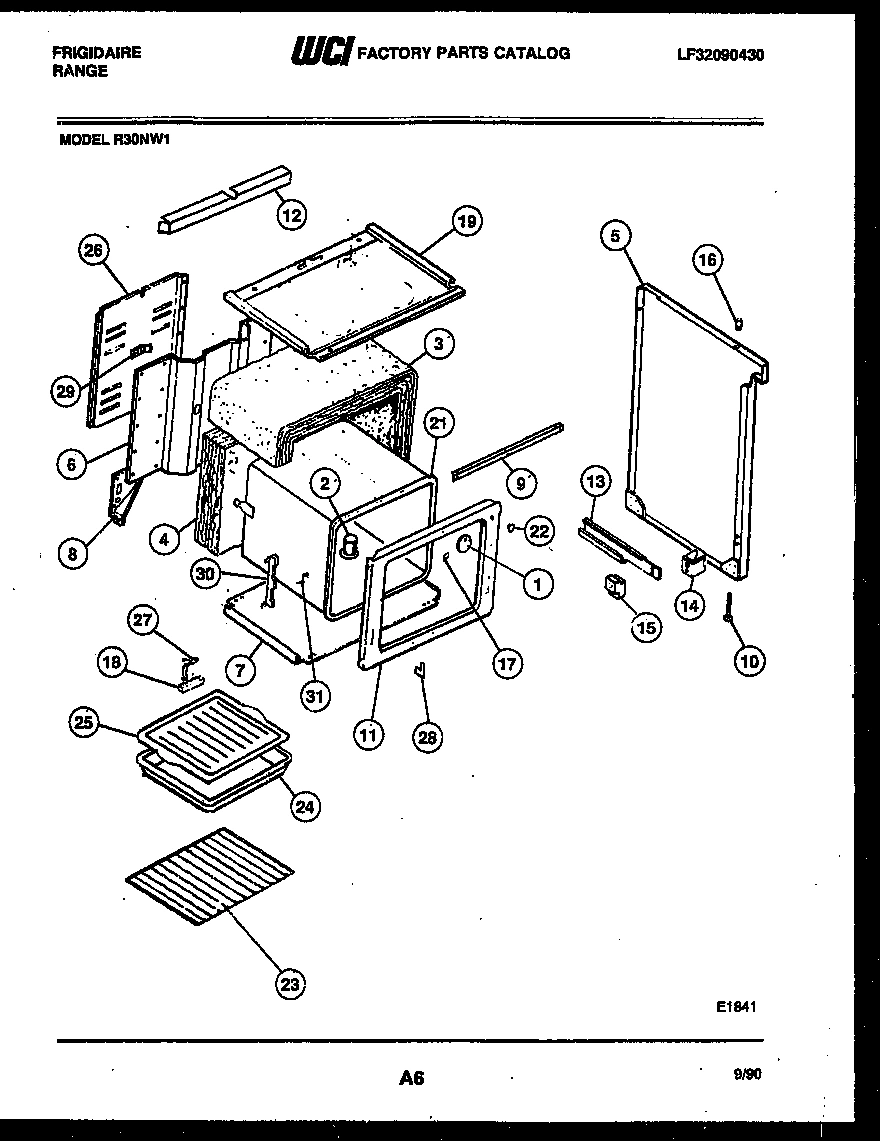

06 - BODY PARTS

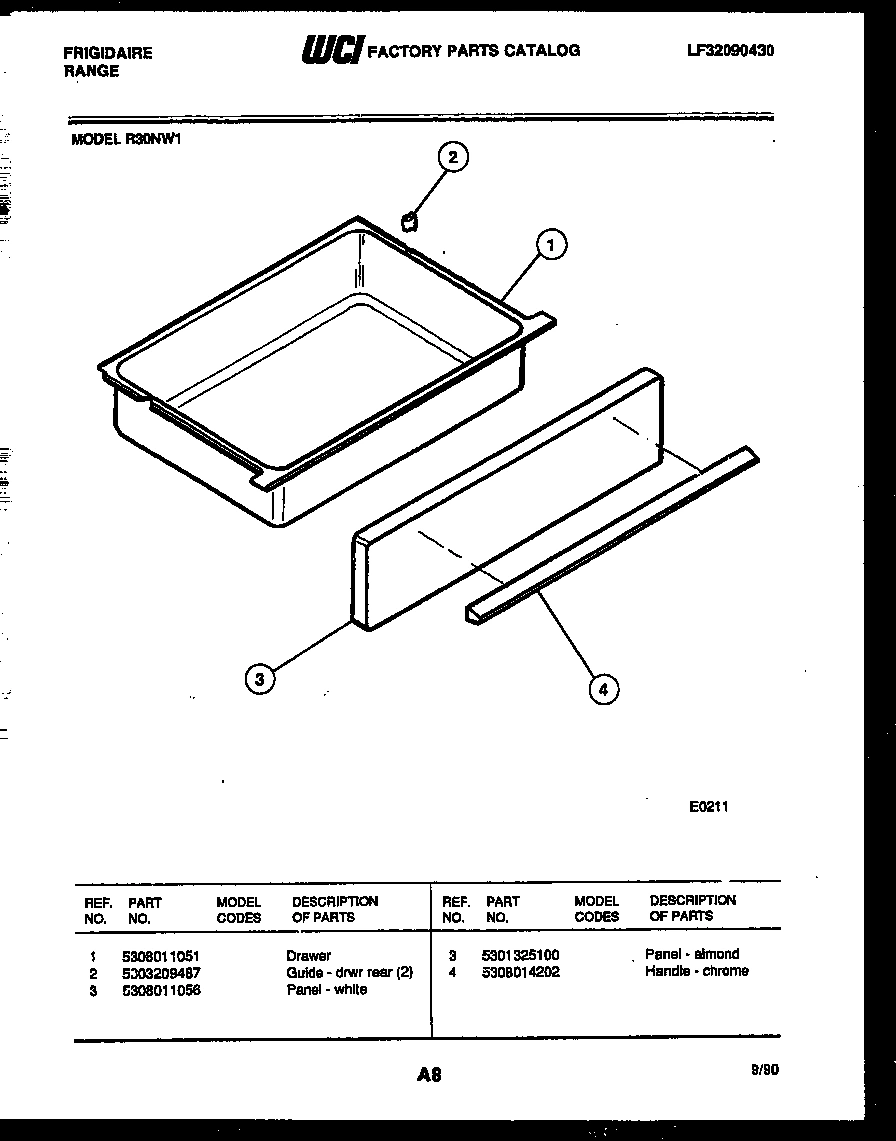

07 - DRAWER PARTS
Common parts from model Electrolux R30NW1 RANGE
*35448
SCREW HEX SHOULDER (2) WCI 3051050 Contact Us For Availability
*35452
WCI 3934063 WCI 3934063 Contact Us For Availability
*35453
WCI 5300009126 WCI 5300009126 Contact Us For Availability
1
COOKTOP-WHITE WCI 5303210999 Contact Us For Availability
1
LINER, DOOR WCI 5303017393 Contact Us For Availability
1
COVER - OVEN LT HOLE WCI 3017576 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
2
HINGE - PIN (2) WCI 08012537 Contact Us For Availability
2
WCI 08003340 WCI 08003340 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
ROD - TOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3A
ROD - TOP SUPPORT RH WCI 5303211120 Contact Us For Availability
4
WCI 5308003153 WCI 5308003153 Contact Us For Availability
4
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
5
WCI 5303211122 WCI 5303211122 Contact Us For Availability
5
WCI 5308012527 WCI 5308012527 Contact Us For Availability
5A
WCI 5308012528 WCI 5308012528 Contact Us For Availability
6
GASKET-DOOR WCI 3206199 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
PANEL - CONTROL WCI 5303211123 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
WCI 5303210413 WCI 5303210413 Contact Us For Availability
8
WCI 5303207447 WCI 5303207447 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 08003264 WCI 08003264 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
10A
WCI 53008015967 WCI 53008015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 5303207446 WCI 5303207446 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 3206095 WCI 3206095 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
16
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
17
COVER-DRUM SEAM WCI 3202082 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
BUTTON-PLUG WCI 3204817 Contact Us For Availability
24
WCI 3205539 WCI 3205539 Contact Us For Availability
25
WCI 3206091 WCI 3206091 Contact Us For Availability
26
WCI 5303051856 WCI 5303051856 Contact Us For Availability
27
WCI 5301145190 WCI 5301145190 Contact Us For Availability
28
WCI 3019063 WCI 3019063 Contact Us For Availability
29
WCI 3016281 WCI 3016281 Contact Us For Availability
30
CHANNEL-HINGE (2) WCI 3201631 Contact Us For Availability
31
WCI 3201632 WCI 3201632 Contact Us For Availability
× ![]()
