Model Electrolux R30BCH2 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

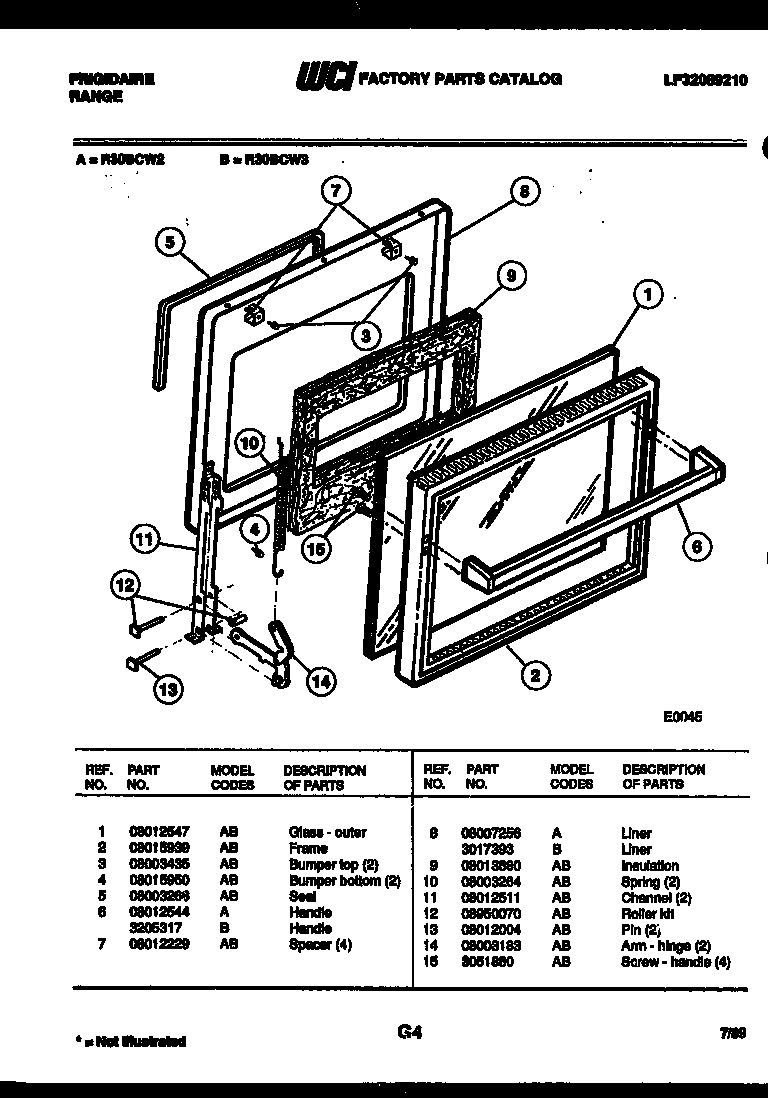

04 - DOOR PARTS

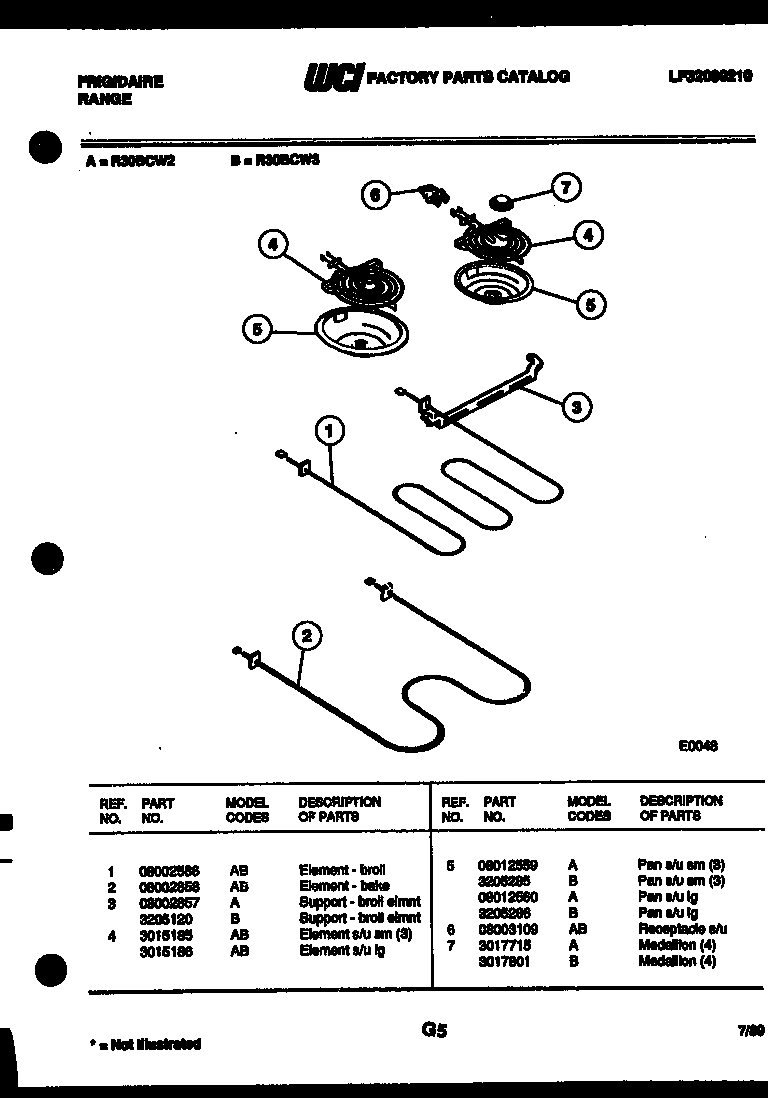

05 - BROILER PARTS

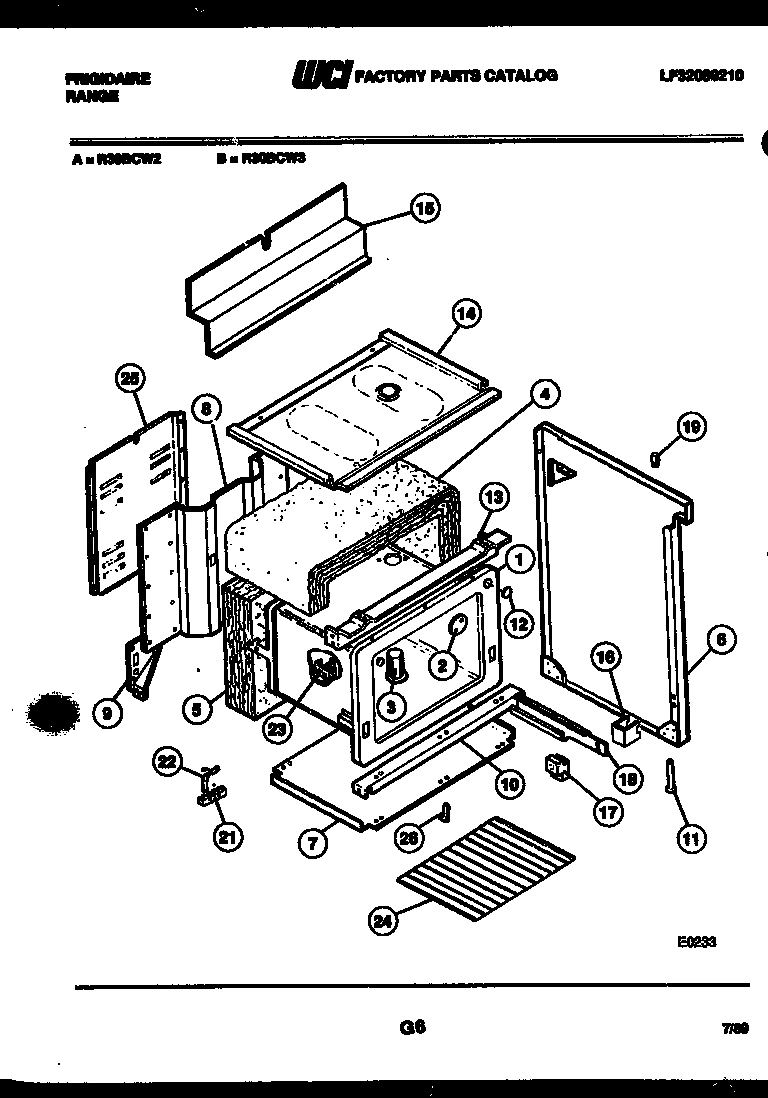

06 - BODY PARTS

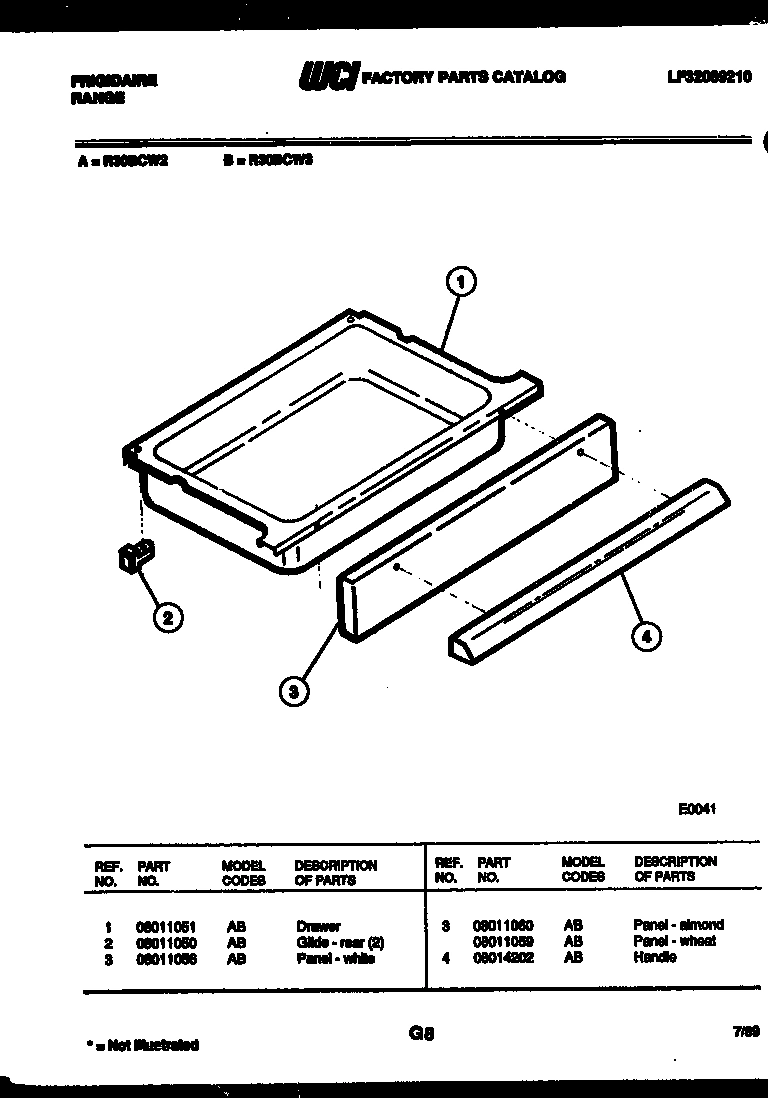

07 - DRAWER PARTS
Common parts from model Electrolux R30BCH2 RANGE
1
WCI 08012513 WCI 08012513 Contact Us For Availability
1
WCI 08012520 WCI 08012520 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
WCI 08002586 WCI 08002586 Contact Us For Availability
1
BODY-OVEN WCI 08012237 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
2
WCI 08008829 WCI 08008829 Contact Us For Availability
2
HINGE - PIN (2) WCI 08012537 Contact Us For Availability
2
FRAME WCI 08015939 Contact Us For Availability
2
WCI 3017576 WCI 3017576 Contact Us For Availability
2
GLIDE-REAR (2) WCI 08011050 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
WCI 08003435 WCI 08003435 Contact Us For Availability
3
WCI 08002857 WCI 08002857 Contact Us For Availability
3
WCI 08012541 WCI 08012541 Contact Us For Availability
3
PANEL, WHEAT WCI 08011059 Contact Us For Availability
4
WCI 08008876 WCI 08008876 Contact Us For Availability
4
WCI 08003079 WCI 08003079 Contact Us For Availability
4
WCI 08015950 WCI 08015950 Contact Us For Availability
4
INSULATION-OVEN WRAP WCI 3008109 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
4A
LIGHT - PILOT OVEN WCI 08012515 Contact Us For Availability
5
LENS WCI 08012578 Contact Us For Availability
5
SEAL WCI 08003268 Contact Us For Availability
5
WCI 3008960 WCI 3008960 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
WCI 08012544 WCI 08012544 Contact Us For Availability
6
WCI 08012536 WCI 08012536 Contact Us For Availability
6A
PNL - END RH (WHEAT) WCI 08012535 Contact Us For Availability
7
WCI 08016470 WCI 08016470 Contact Us For Availability
7
SPACER (4) WCI 08012229 Contact Us For Availability
7
WCI 08016482 WCI 08016482 Contact Us For Availability
8
WCI 08015741 WCI 08015741 Contact Us For Availability
8
LINER WCI 08007256 Contact Us For Availability
8
PANEL-BACK WCI 08015749 Contact Us For Availability
9
WCI 08012557 WCI 08012557 Contact Us For Availability
9
INSULATION WCI 08013680 Contact Us For Availability
9
WCI 08015976 WCI 08015976 Contact Us For Availability
9A
WCI 08012556 WCI 08012556 Contact Us For Availability
9A
WCI 08015977 WCI 08015977 Contact Us For Availability
10
SUPPORT RH WCI 08012539 Contact Us For Availability
10
WCI 08003264 WCI 08003264 Contact Us For Availability
10
CHANNEL - OVEN SPRT WCI 08002872 Contact Us For Availability
10A
SUPPORT LH WCI 08012540 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI 08012511 WCI 08012511 Contact Us For Availability
11
WCI 08003583 WCI 08003583 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
WCI 08950070 WCI 08950070 Contact Us For Availability
12
WCI 3051784 WCI 3051784 Contact Us For Availability
13
PIN (2) WCI 08012004 Contact Us For Availability
13
CHNL-OVEN SPRT TOP WCI 08011092 Contact Us For Availability
14
WCI 08003183 WCI 08003183 Contact Us For Availability
14
WCI 08012542 WCI 08012542 Contact Us For Availability
15
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
15
SHEILD - WIRE WCI 08015738 Contact Us For Availability
16
SPCR - DRWR GLIDE (2) WCI 08011055 Contact Us For Availability
17
WCI 08003103 WCI 08003103 Contact Us For Availability
18
RAIL - DRWR RH WCI 08015746 Contact Us For Availability
19
BUMPER (4) WCI 08003107 Contact Us For Availability
22
PLATE-GROUNDING WCI 08003146 Contact Us For Availability
23
BRKT-THERMO BULB WCI 08002854 Contact Us For Availability
25
WCI 08015750 WCI 08015750 Contact Us For Availability
26
WCI 3019063 WCI 3019063 Contact Us For Availability
× ![]()
