Model Electrolux R30AL3 RANGE – Common Parts & Diagrams

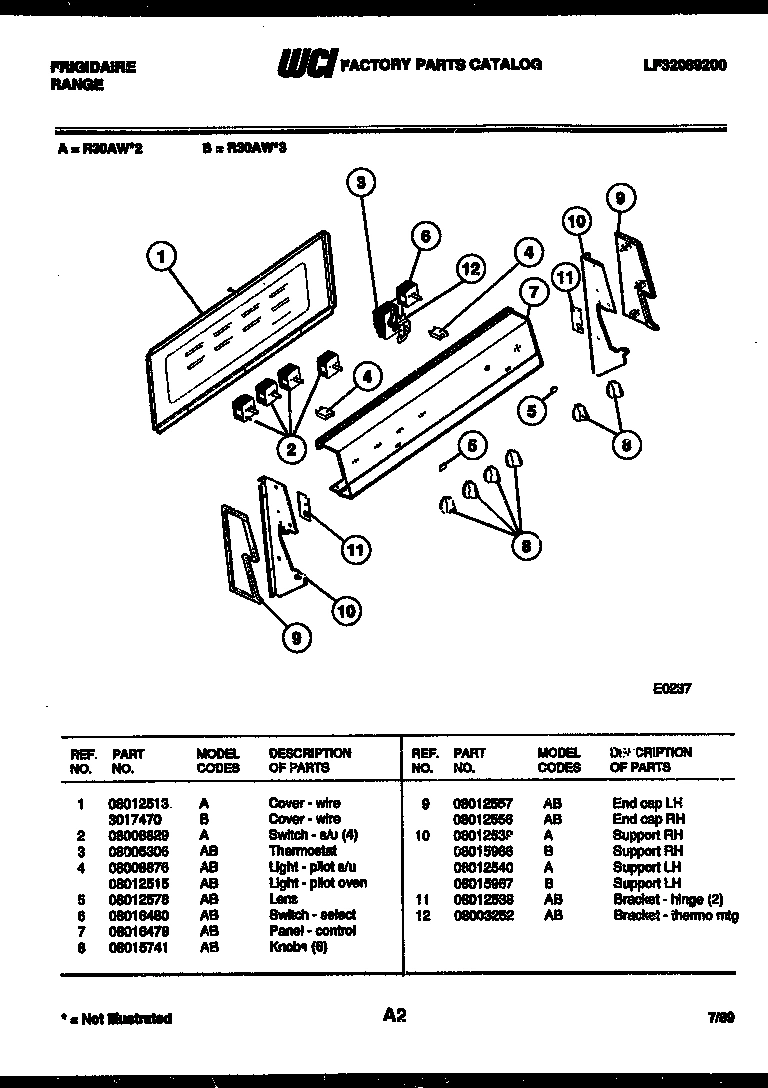

02 - CONTROL PANEL

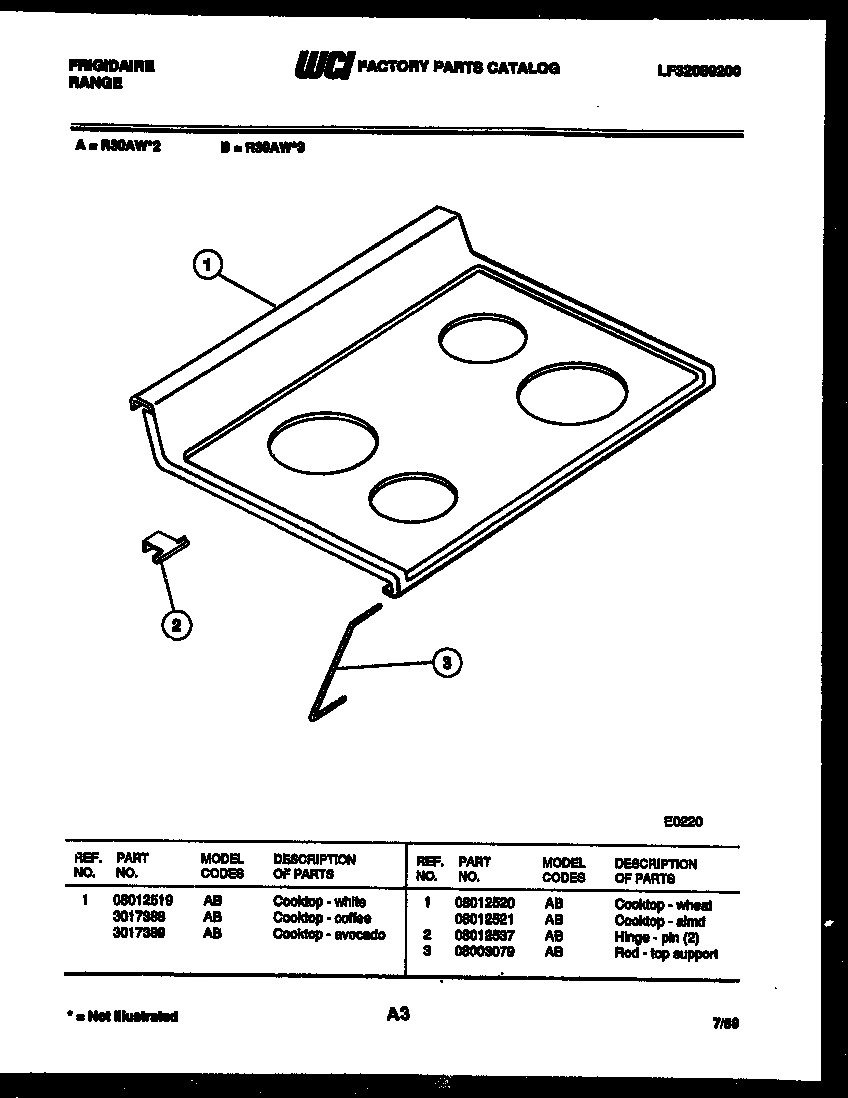

03 - COOKTOP PARTS

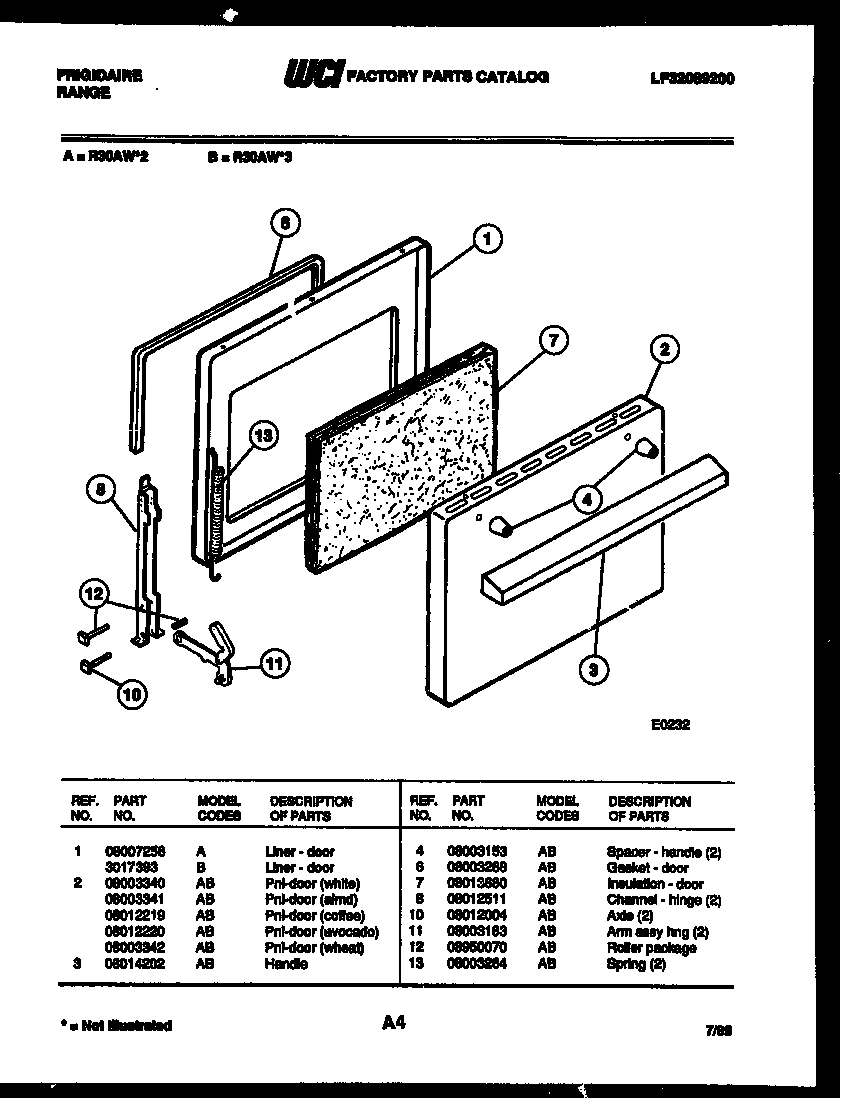

04 - DOOR PARTS

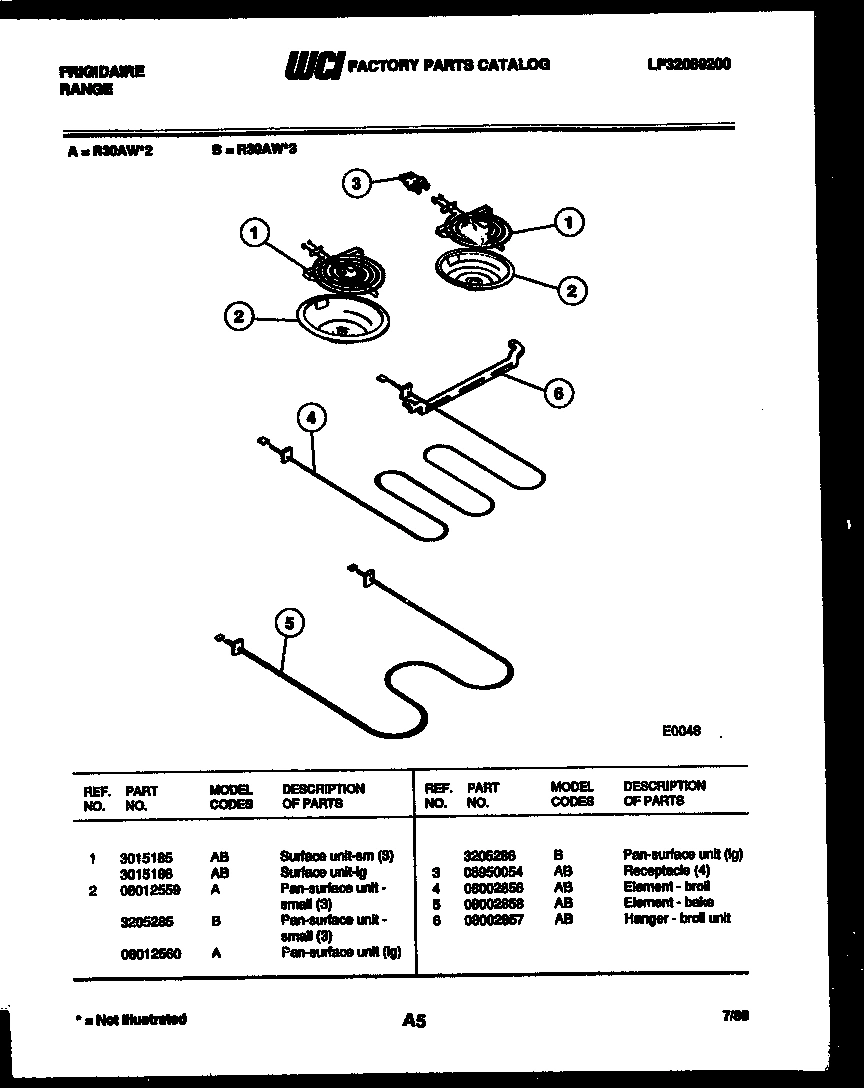

05 - BROILER PARTS

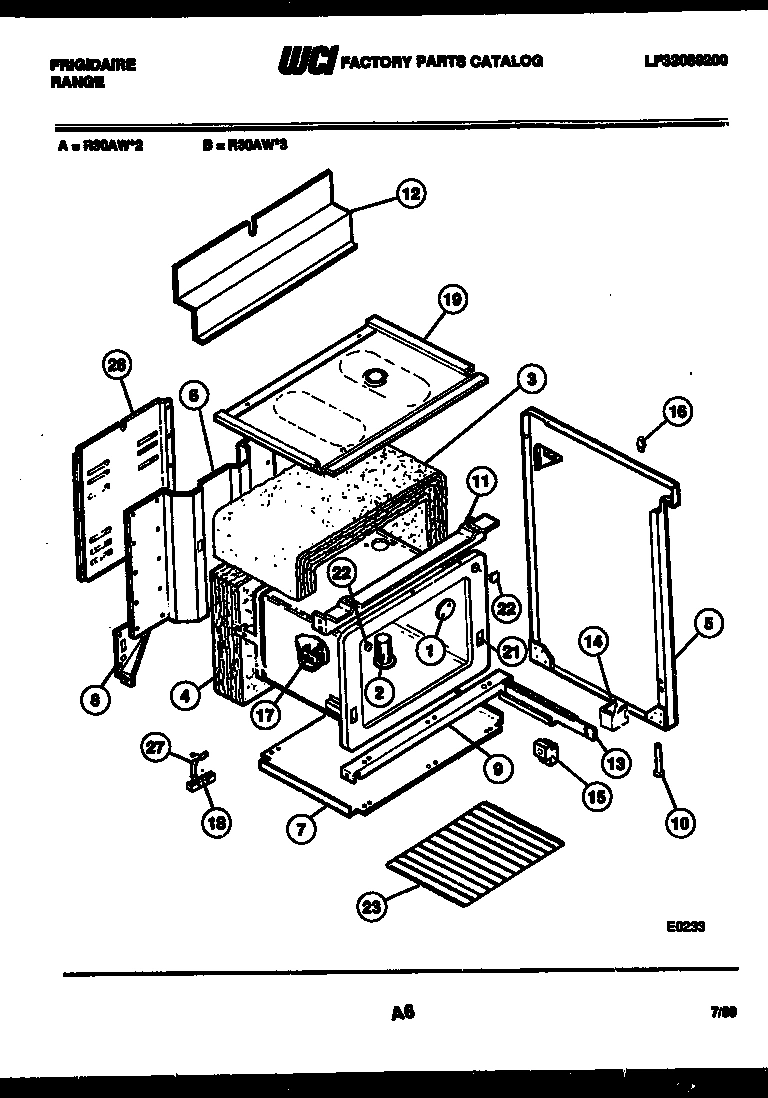

06 - BODY PARTS

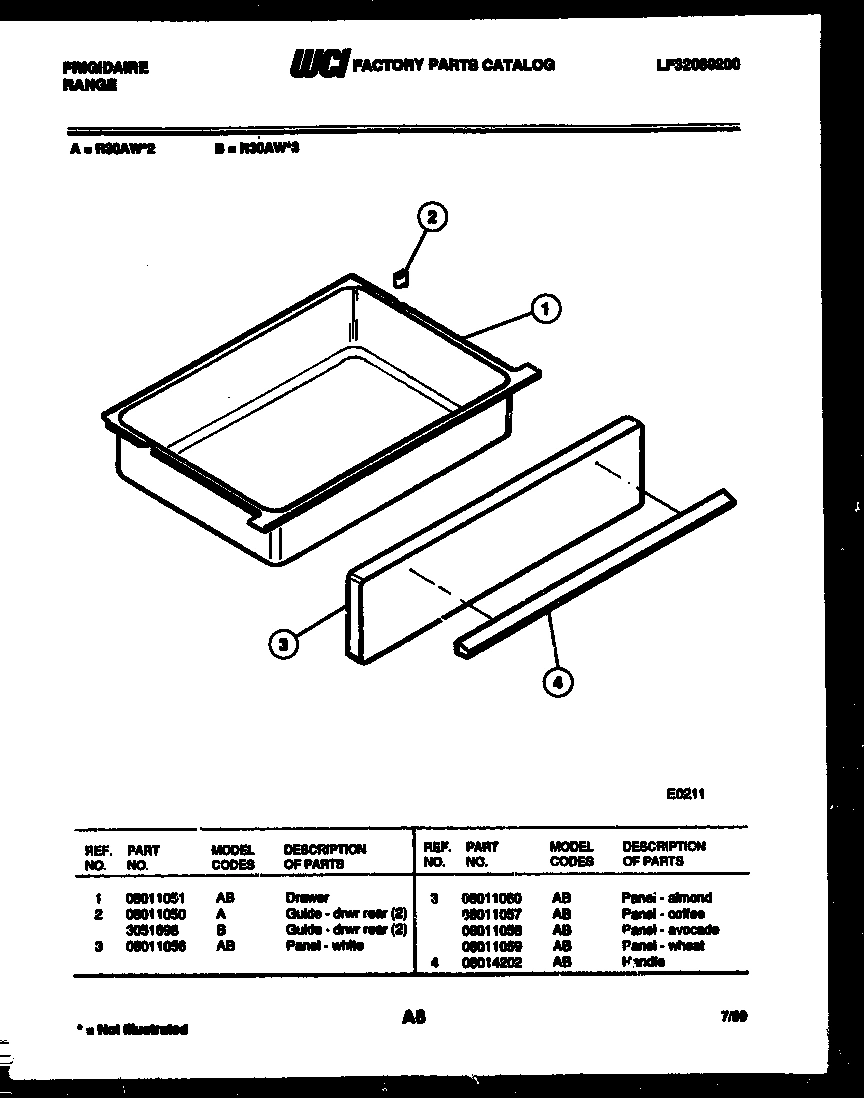

07 - DRAWER PARTS
Common parts from model Electrolux R30AL3 RANGE
*22352
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
COOKTOP - ALMD WCI 08012521 Contact Us For Availability
1
WCI 3017393 WCI 3017393 Contact Us For Availability
1
WCI 08012236 WCI 08012236 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
2
HINGE - PIN (2) WCI 08012537 Contact Us For Availability
2
WCI 08003341 WCI 08003341 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 3051698 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
WCI 08003079 WCI 08003079 Contact Us For Availability
3
INSULATION-OVEN WRAP WCI 3008109 Contact Us For Availability
3
PANEL, ALMOND WCI 08011060 Contact Us For Availability
4
WCI 08008876 WCI 08008876 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
4
WCI 08003153 WCI 08003153 Contact Us For Availability
4
WCI 3008960 WCI 3008960 Contact Us For Availability
4A
LIGHT - PILOT OVEN WCI 08012515 Contact Us For Availability
5
LENS WCI 08012578 Contact Us For Availability
5
PNL-SIDE RH ALMD WCI 08012529 Contact Us For Availability
5A
PNL-SIDE LH ALMD WCI 08012530 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
GASKET - DOOR WCI 08003268 Contact Us For Availability
6
WCI 08002857 WCI 08002857 Contact Us For Availability
6
WCI 3017575 WCI 3017575 Contact Us For Availability
7
WCI 08016478 WCI 08016478 Contact Us For Availability
7
INSULATION - DOOR WCI 08013680 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
WCI 08015741 WCI 08015741 Contact Us For Availability
8
CHANNEL - HINGE (2) WCI 08012511 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
WCI 08012557 WCI 08012557 Contact Us For Availability
9
WCI 3200927 WCI 3200927 Contact Us For Availability
9A
WCI 08012556 WCI 08012556 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
AXLE (2) WCI 08012004 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
SUPPORT LH WCI 08015967 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI 08003183 WCI 08003183 Contact Us For Availability
11
WCI 3200926 WCI 3200926 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
ROLLER PACKAGE WCI 08950070 Contact Us For Availability
12
WCI 08015738 WCI 08015738 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
WCI 08015747 WCI 08015747 Contact Us For Availability
14
WCI 08011055 WCI 08011055 Contact Us For Availability
15
WCI 08003103 WCI 08003103 Contact Us For Availability
16
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
17
WCI 08002854 WCI 08002854 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
21
WCI 3204603 WCI 3204603 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
26
COVER - WIRE WCI 3051856 Contact Us For Availability
27
WCI 08013146 WCI 08013146 Contact Us For Availability
× ![]()
