Model Electrolux R30AF2 RANGE – Common Parts & Diagrams

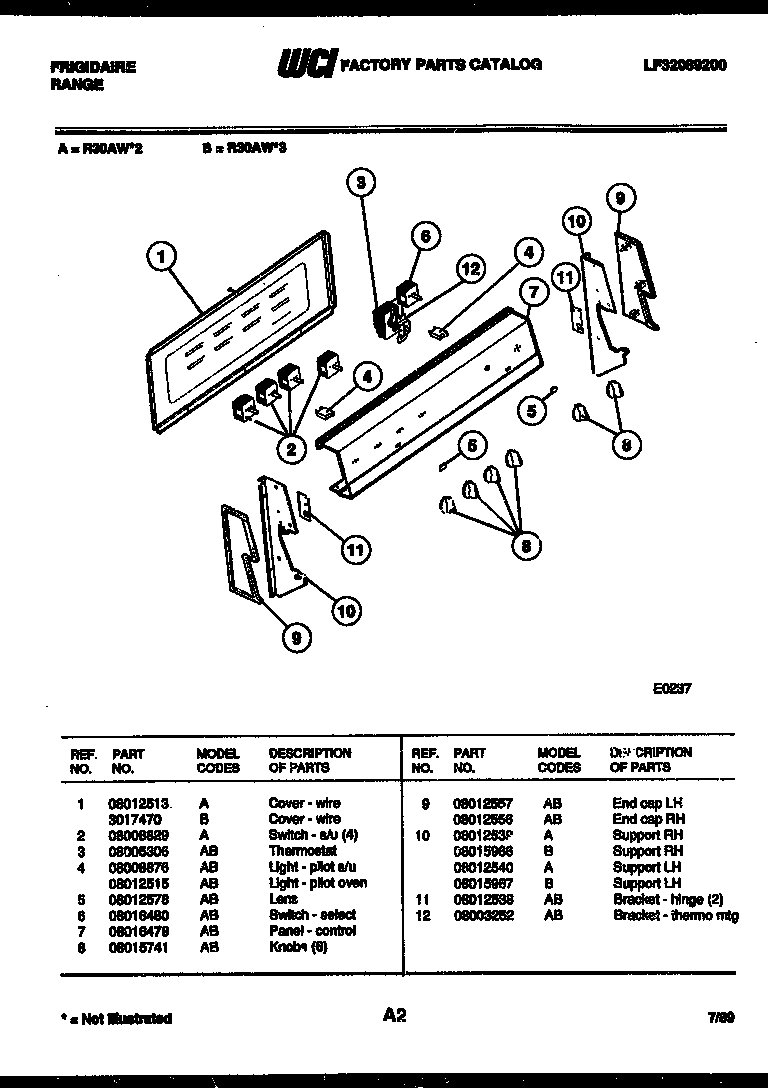

02 - CONTROL PANEL

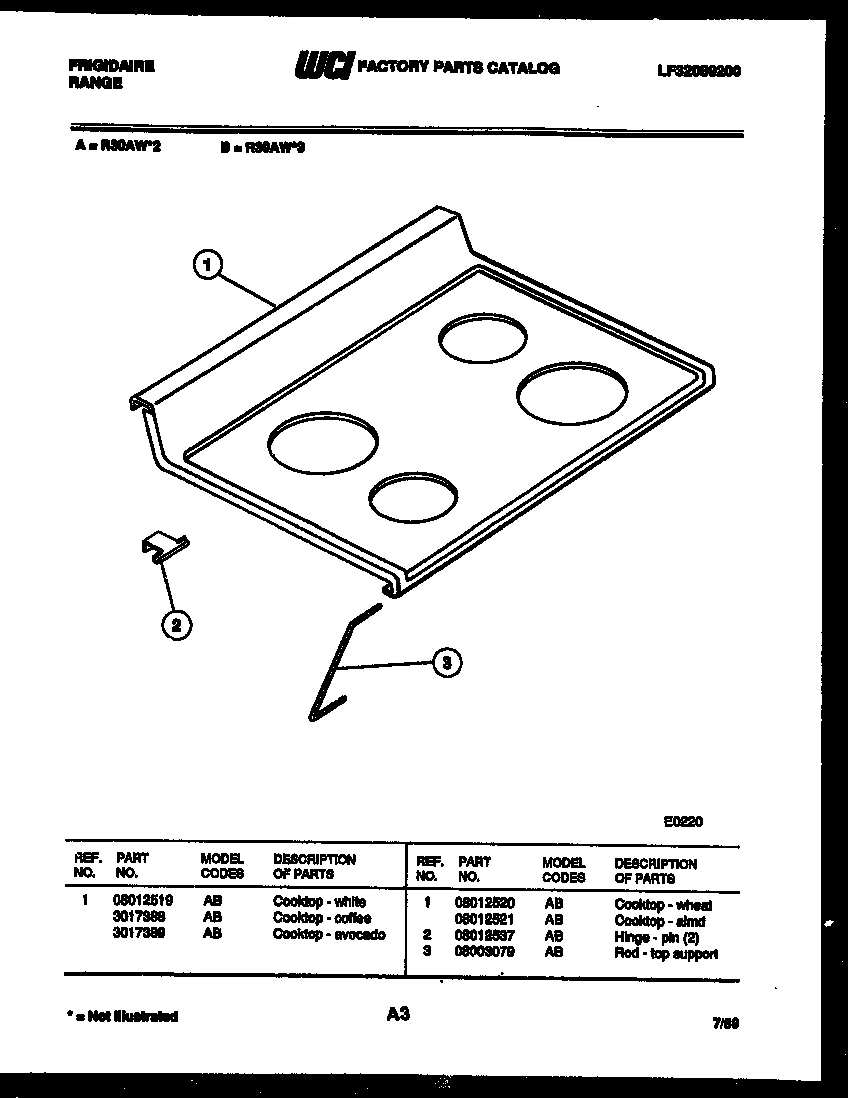

03 - COOKTOP PARTS

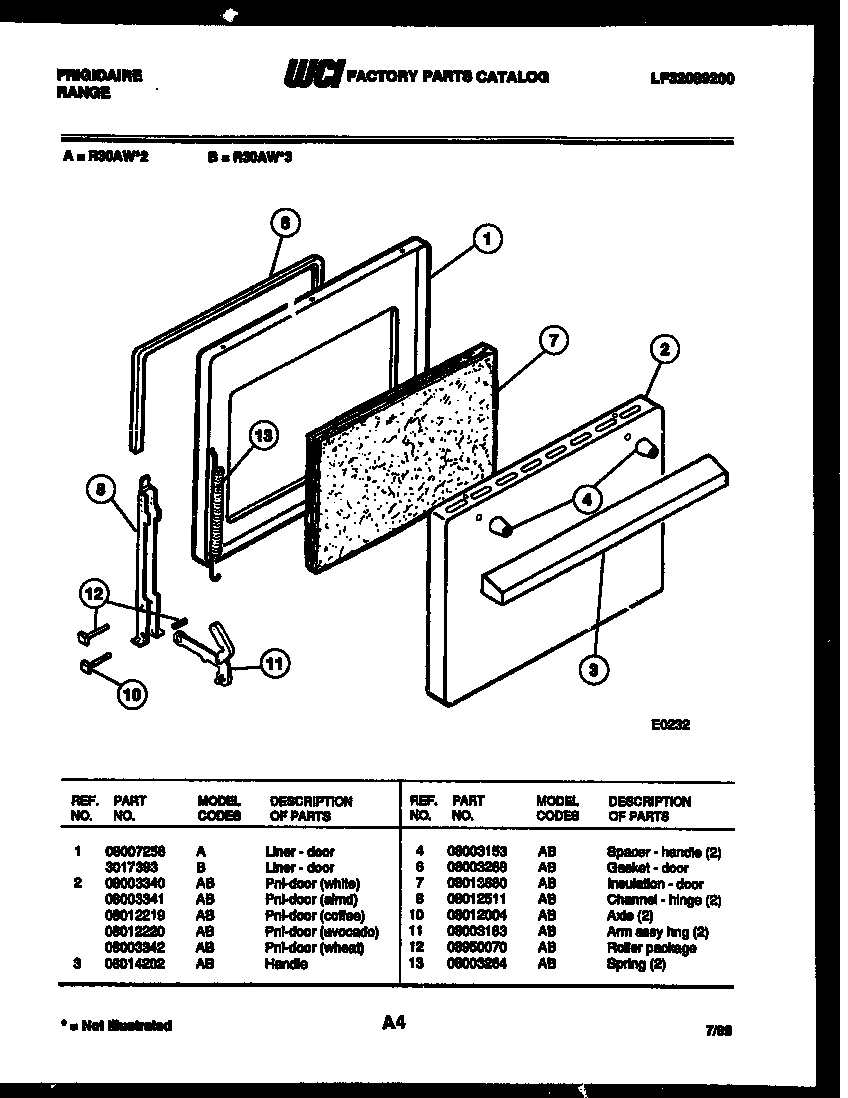

04 - DOOR PARTS

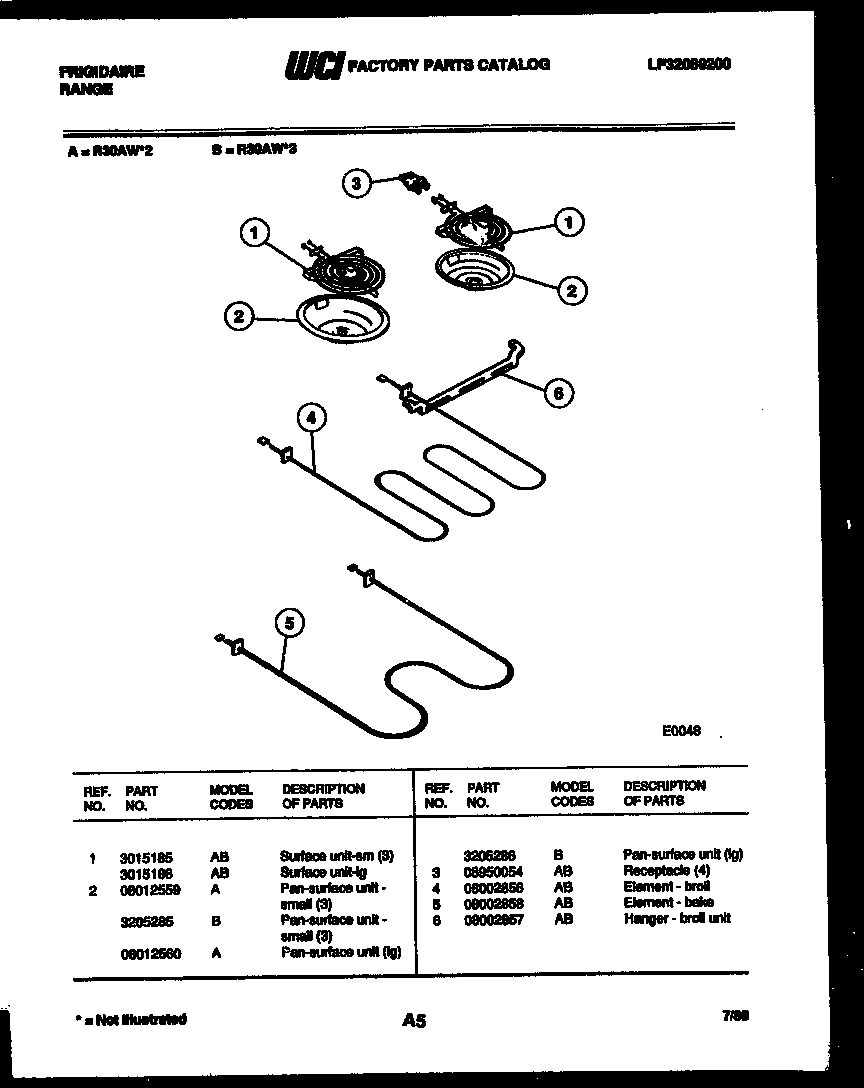

05 - BROILER PARTS

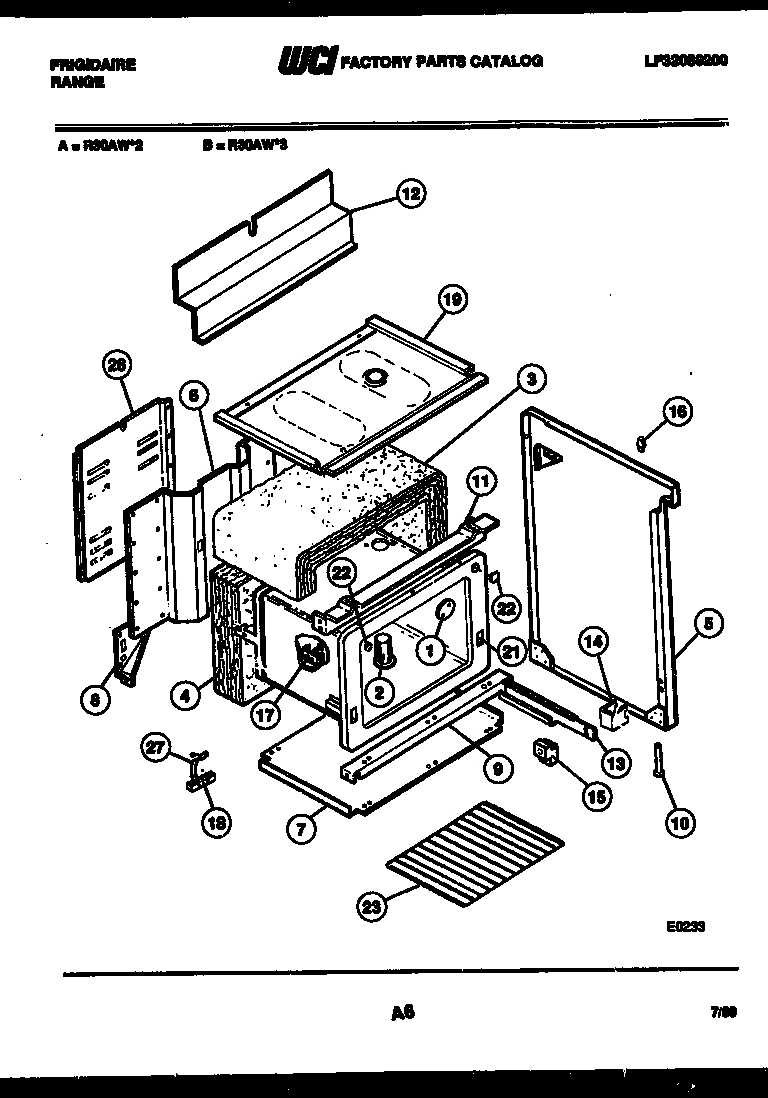

06 - BODY PARTS

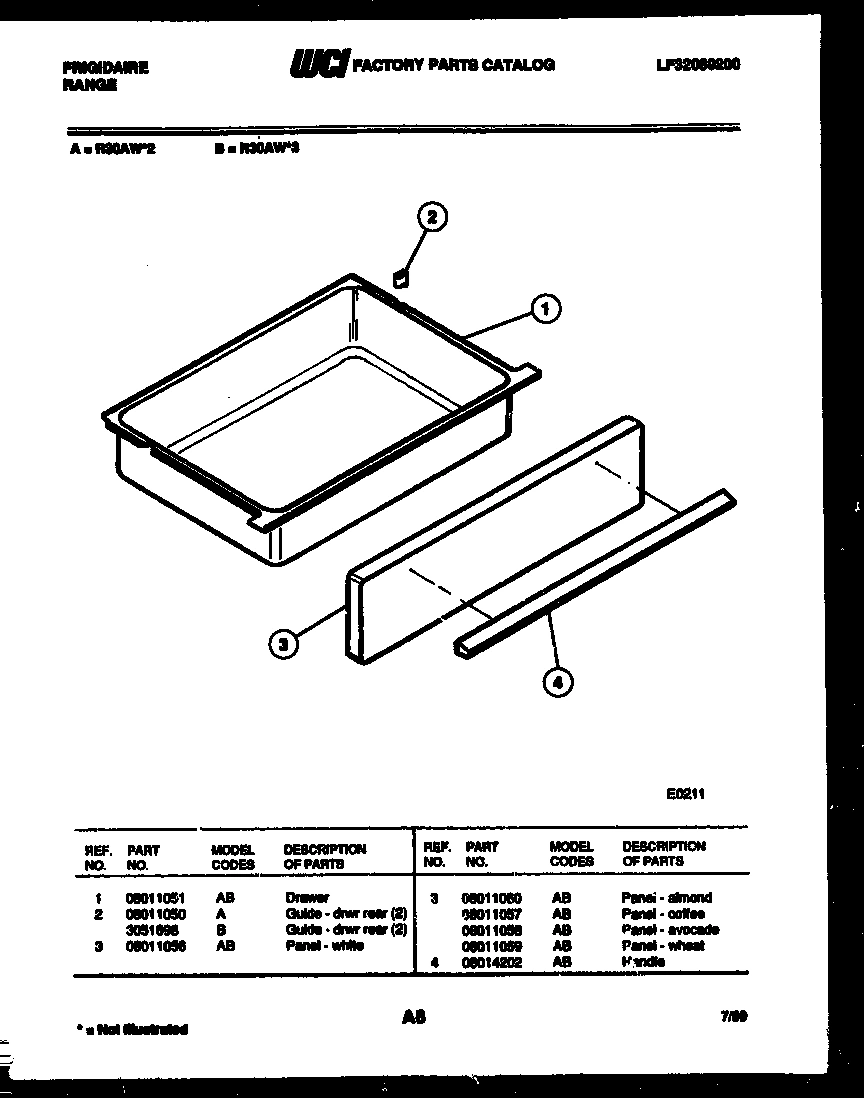

07 - DRAWER PARTS
Common parts from model Electrolux R30AF2 RANGE
1
WCI 08012513 WCI 08012513 Contact Us For Availability
1
WCI 3017388 WCI 3017388 Contact Us For Availability
1
WCI 08007256 WCI 08007256 Contact Us For Availability
1
WCI 08012236 WCI 08012236 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
2
WCI 08008829 WCI 08008829 Contact Us For Availability
2
HINGE - PIN (2) WCI 08012537 Contact Us For Availability
2
WCI 08012219 WCI 08012219 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2
WCI 08011050 WCI 08011050 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
WCI 08003079 WCI 08003079 Contact Us For Availability
3
INSULATION-OVEN WRAP WCI 3008109 Contact Us For Availability
3
PANEL-COFFEE WCI 08011057 Contact Us For Availability
4
WCI 08008876 WCI 08008876 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
4
WCI 08003153 WCI 08003153 Contact Us For Availability
4
WCI 3008960 WCI 3008960 Contact Us For Availability
4A
LIGHT - PILOT OVEN WCI 08012515 Contact Us For Availability
5
LENS WCI 08012578 Contact Us For Availability
5
PNL-SIDE RH COFFEE WCI 08012531 Contact Us For Availability
5A
PNL-SIDE LH COFFEE WCI 08012532 Contact Us For Availability
6
SWITCH - SELECT WCI 08016480 Contact Us For Availability
6
GASKET - DOOR WCI 08003268 Contact Us For Availability
6
WCI 08002857 WCI 08002857 Contact Us For Availability
6
WCI 08015749 WCI 08015749 Contact Us For Availability
7
WCI 08016478 WCI 08016478 Contact Us For Availability
7
INSULATION - DOOR WCI 08013680 Contact Us For Availability
7
WCI 08016482 WCI 08016482 Contact Us For Availability
8
WCI 08015741 WCI 08015741 Contact Us For Availability
8
CHANNEL - HINGE (2) WCI 08012511 Contact Us For Availability
8
WCI 08015976 WCI 08015976 Contact Us For Availability
8A
WCI 08015977 WCI 08015977 Contact Us For Availability
9
WCI 08012557 WCI 08012557 Contact Us For Availability
9
WCI 08002872 WCI 08002872 Contact Us For Availability
9A
WCI 08012556 WCI 08012556 Contact Us For Availability
10
SUPPORT RH WCI 08012539 Contact Us For Availability
10
AXLE (2) WCI 08012004 Contact Us For Availability
10
WCI 08003583 WCI 08003583 Contact Us For Availability
10A
SUPPORT LH WCI 08012540 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI 08003183 WCI 08003183 Contact Us For Availability
11
WCI 08011092 WCI 08011092 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
ROLLER PACKAGE WCI 08950070 Contact Us For Availability
12
WCI 08015738 WCI 08015738 Contact Us For Availability
13
WCI 08003264 WCI 08003264 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
WCI 08015747 WCI 08015747 Contact Us For Availability
14
WCI 08011055 WCI 08011055 Contact Us For Availability
15
WCI 08003103 WCI 08003103 Contact Us For Availability
16
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
17
WCI 08002854 WCI 08002854 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
21
WCI 08012237 WCI 08012237 Contact Us For Availability
22
WCI 08002852 WCI 08002852 Contact Us For Availability
26
WCI 08015750 WCI 08015750 Contact Us For Availability
27
WCI 08013146 WCI 08013146 Contact Us For Availability
× ![]()
