Model Electrolux R24CW2 RANGE – Common Parts & Diagrams

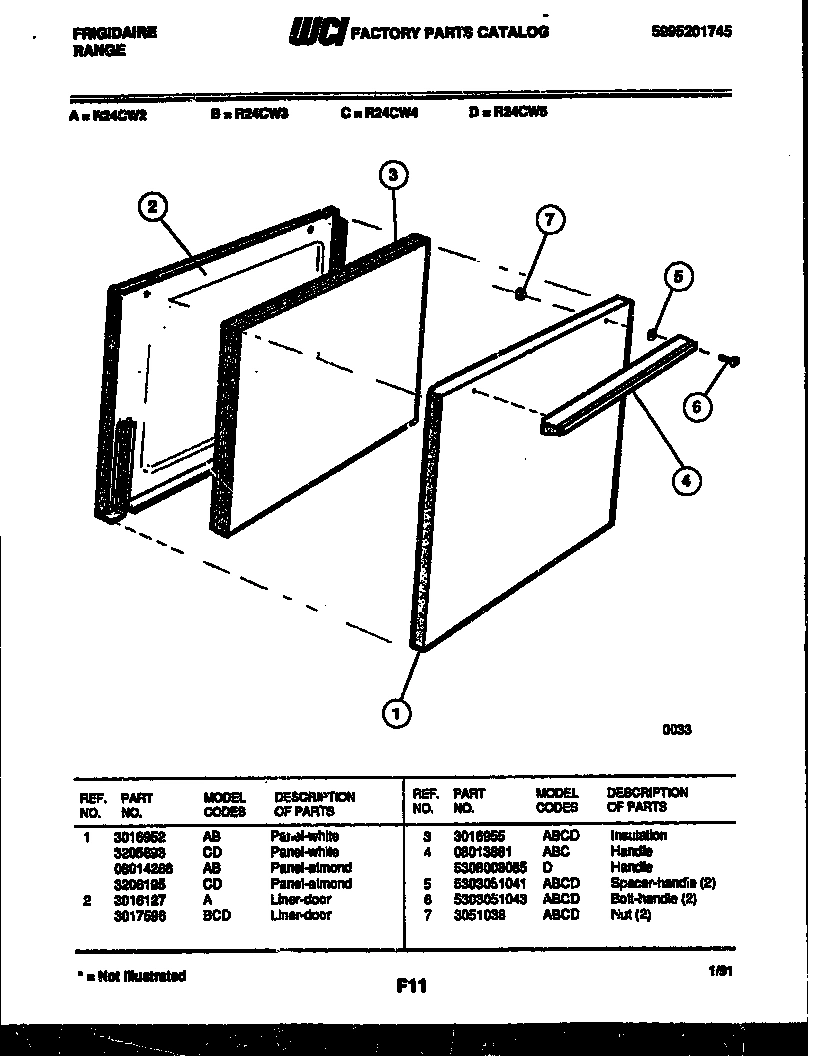

02 - DOOR PARTS

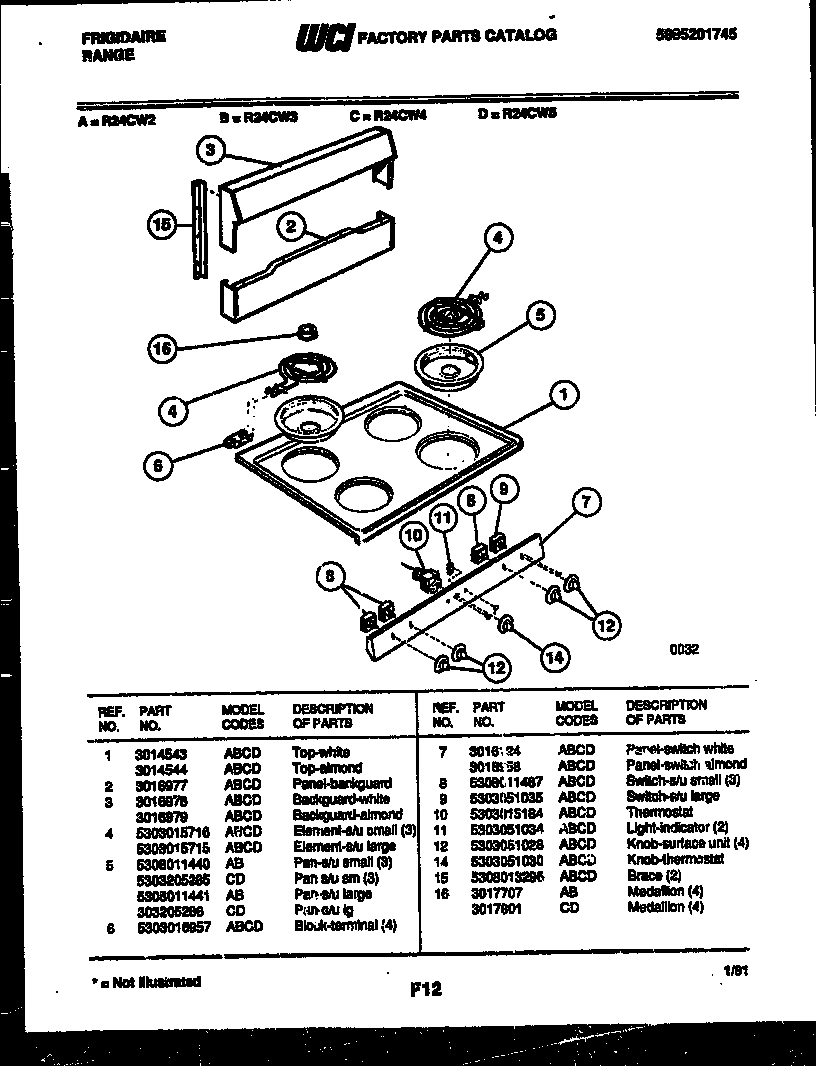

03 - BACKGUARD AND COOKTOP PARTS

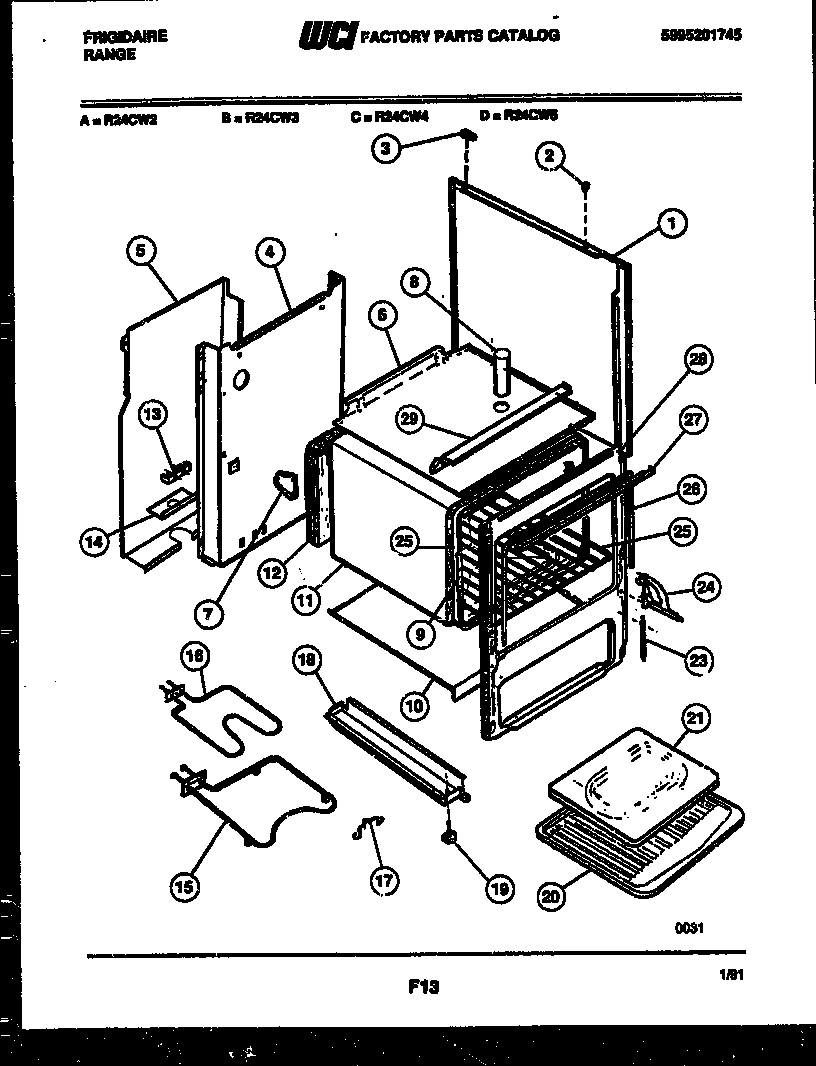

04 - BODY PARTS

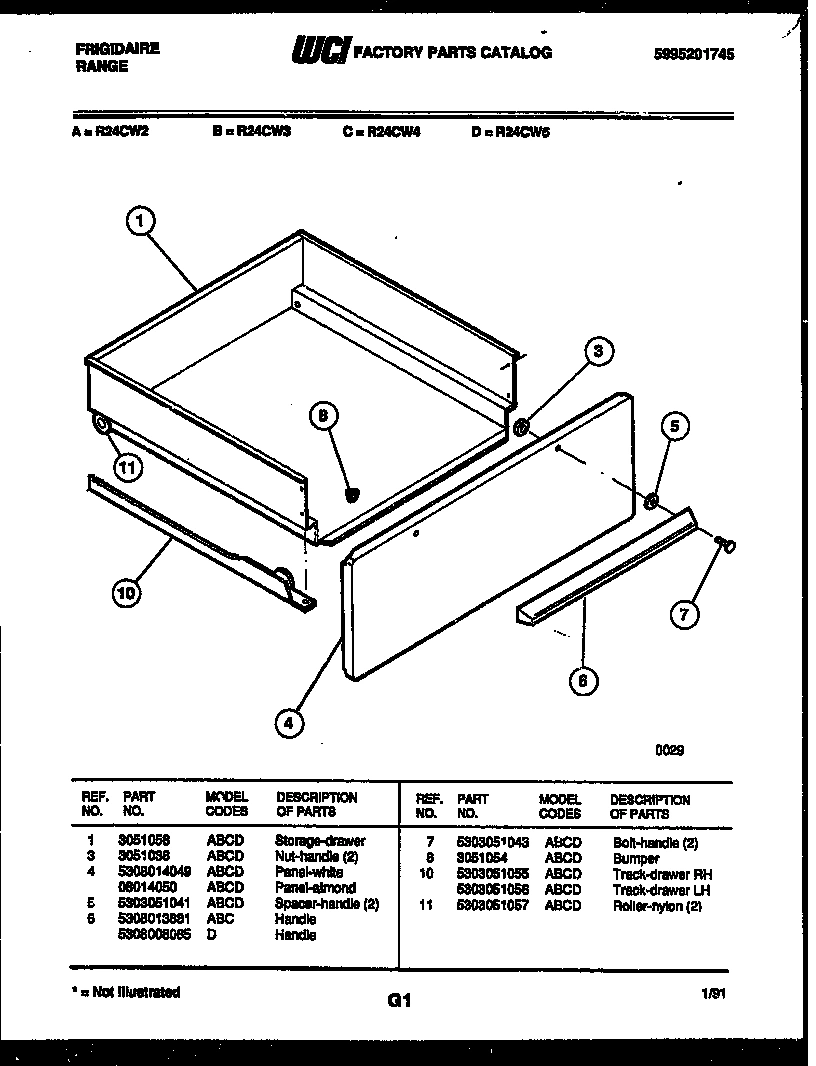

05 - DRAWER PARTS
Common parts from model Electrolux R24CW2 RANGE
*80358
WCI 5301145190 WCI 5301145190 Contact Us For Availability
*80360
WCI 19100210113 WCI 19100210113 Contact Us For Availability
1
TOP-WHITE WCI 3014543 Contact Us For Availability
1
PANEL-SIDE LH & RH WHITE (2) WCI 5303051061 Contact Us For Availability
1
WCI 3051058 WCI 3051058 Contact Us For Availability
2
WCI 3016127 WCI 3016127 Contact Us For Availability
2
WCI 3016977 WCI 3016977 Contact Us For Availability
2
WCI 3051063 WCI 3051063 Contact Us For Availability
3
INSULATION WCI 3016955 Contact Us For Availability
3
BACKGUARD-WHITE WCI 3016978 Contact Us For Availability
3
GROMMET (2) WCI 5303016129 Contact Us For Availability
4
WCI 08013881 WCI 08013881 Contact Us For Availability
4
WCI 3016944 WCI 3016944 Contact Us For Availability
4
PANEL-WHITE WCI 5308014049 Contact Us For Availability
5
WCI 5303051041 WCI 5303051041 Contact Us For Availability
5
COVER-MAIN BACK WCI 08013952 Contact Us For Availability
6
BURNER-BOX WCI 3016943 Contact Us For Availability
6
WCI 5308013881 WCI 5308013881 Contact Us For Availability
7
PANEL-SWITCH WHITE WCI 3016124 Contact Us For Availability
7
SUPPORT REAR OVEN (2) WCI 3051096 Contact Us For Availability
8
WCI 3057064 WCI 3057064 Contact Us For Availability
8
BUMPER WCI 3051054 Contact Us For Availability
9
WCI 08013977 WCI 08013977 Contact Us For Availability
9A
WCI 08013978 WCI 08013978 Contact Us For Availability
9B
WCI 08013987 WCI 08013987 Contact Us For Availability
9C
WCI 08013968 WCI 08013968 Contact Us For Availability
9D
WCI 08013973 WCI 08013973 Contact Us For Availability
10
WCI 5303015184 WCI 5303015184 Contact Us For Availability
10
PAN-BOTTOM WCI 3016945 Contact Us For Availability
10
WCI 5303051055 WCI 5303051055 Contact Us For Availability
10A
WCI 5303051056 WCI 5303051056 Contact Us For Availability
11
WCI 5303051034 WCI 5303051034 Contact Us For Availability
11
WCI 3016946 WCI 3016946 Contact Us For Availability
11
ROLLER-NYLON (2) WCI 5303051057 Contact Us For Availability
12
WCI 5303051028 WCI 5303051028 Contact Us For Availability
12
WCI 3016947 WCI 3016947 Contact Us For Availability
14
WCI 5303051030 WCI 5303051030 Contact Us For Availability
14
WCI 3051097 WCI 3051097 Contact Us For Availability
15
BRACE (2) WCI 5308013296 Contact Us For Availability
15
WCI 5303009292 WCI 5303009292 Contact Us For Availability
16
MEDALLION (4) WCI 3017707 Contact Us For Availability
16
WCI 5303009293 WCI 5303009293 Contact Us For Availability
17
WCI 5303009445 WCI 5303009445 Contact Us For Availability
18
BASE-RAIL WCI 3051081 Contact Us For Availability
19
LEG-LEVELING (4) WCI 5303051080 Contact Us For Availability
20
WCI 08011542 WCI 08011542 Contact Us For Availability
21
GRILLE WCI 08008077 Contact Us For Availability
23
WCI 08011485 WCI 08011485 Contact Us For Availability
24
HINGE-ASSEMBLY RH WCI 5303204670 Contact Us For Availability
25
WCI 5303016128 WCI 5303016128 Contact Us For Availability
26
WCI 5308013916 WCI 5308013916 Contact Us For Availability
27
SUPPORT-CONTROL PNL WCI 3016950 Contact Us For Availability
28
WCI 08014060 WCI 08014060 Contact Us For Availability
28A
WCI 3016951 WCI 3016951 Contact Us For Availability
× ![]()
