Model Electrolux R2000DL0 RANGE – Common Parts & Diagrams

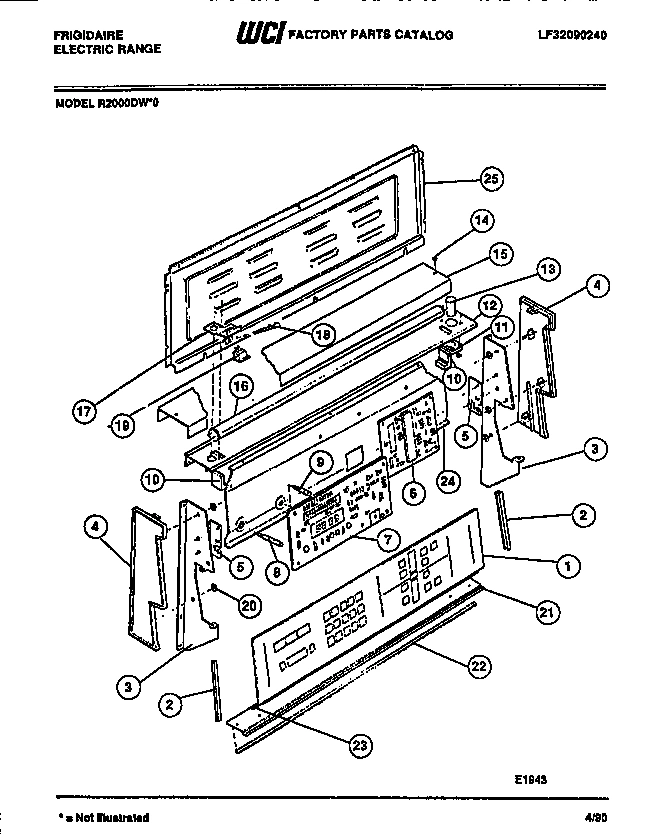

02 - CONTROL PANEL, COOK-MASTER, SWITCHE

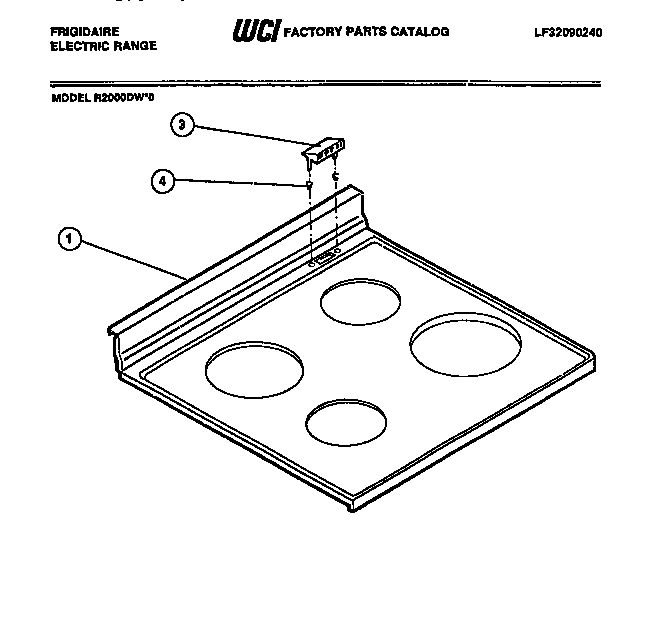

03 - COOK TOP

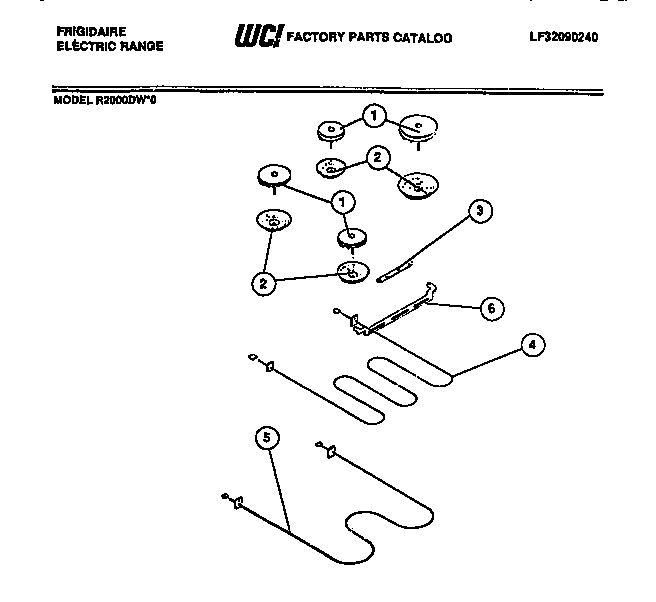

04 - BAKE & BROIL ELEMENTS

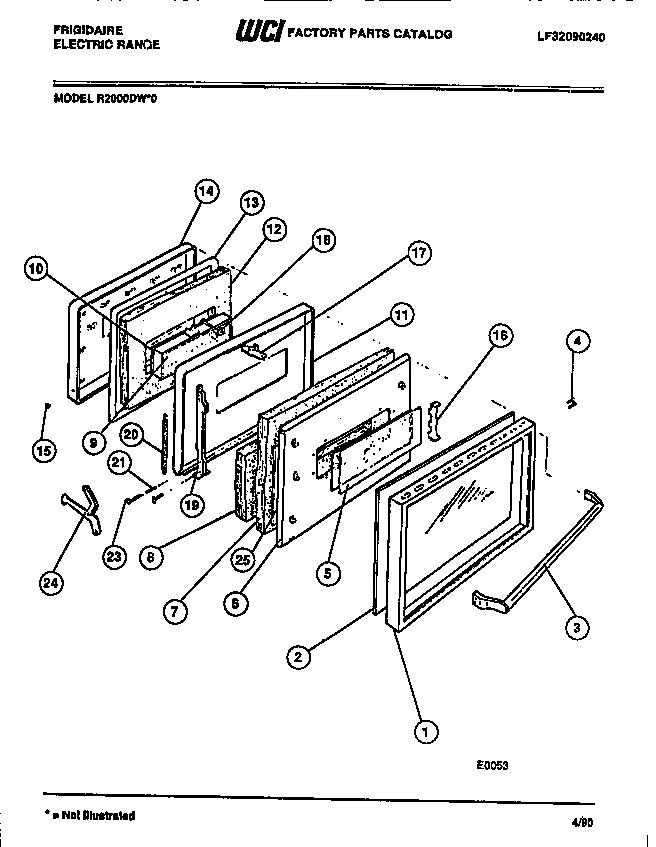

05 - OVEN DOOR PANELS

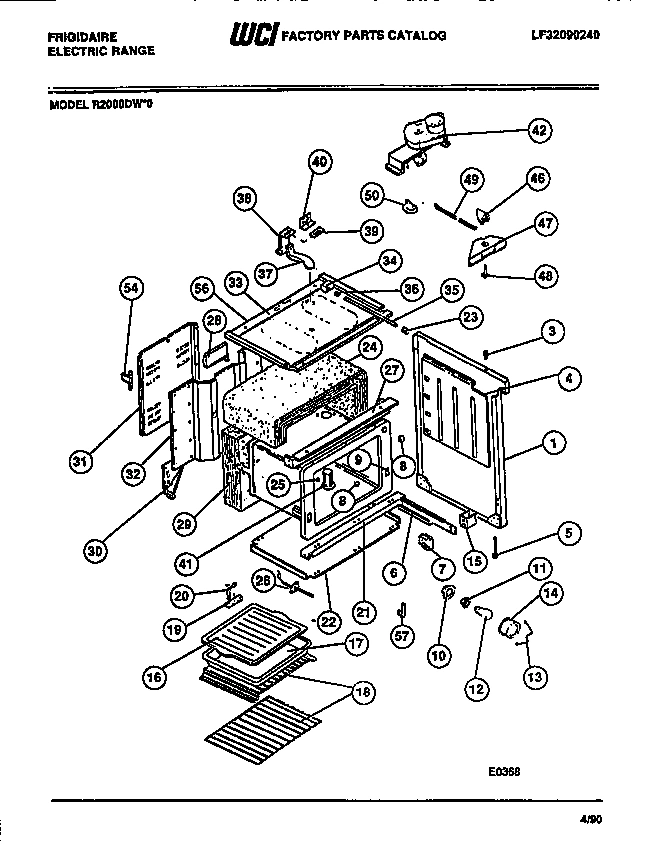

06 - OVEN LINER, SIDE PANELS

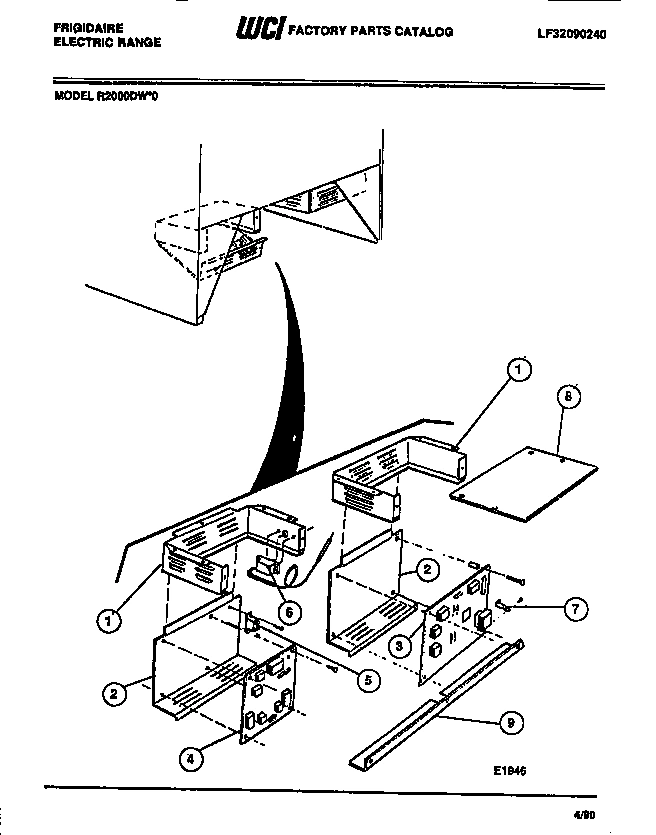

07 - RELAY, PC BOARDS

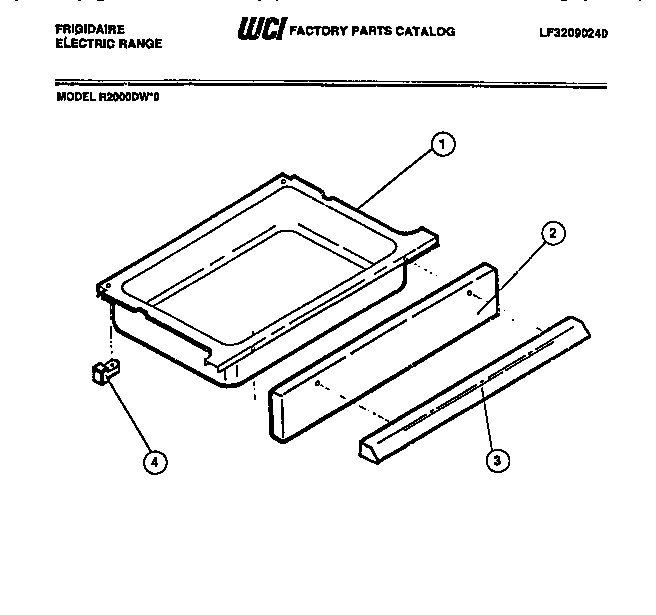

08 - DRAWER
Common parts from model Electrolux R2000DL0 RANGE
1
SURFACE UNIT SM (2) WCI 5308014249 Contact Us For Availability
1
FRAME WCI 5308015938 Contact Us For Availability
1
WCI 5303209689 WCI 5303209689 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
WCI 08014246 WCI 08014246 Contact Us For Availability
1A
SURFACE UNIT LARGE WCI 5308014263 Contact Us For Availability
1B
SURFACE UNIT, MED. WCI 5303015206 Contact Us For Availability
1B
SIDE PANEL, RH ALMOND WCI 5308012529 Contact Us For Availability
1C
SIDE PANEL, LH ALMOND WCI 5308012530 Contact Us For Availability
2
PAN, SM (2) WCI 5303051662 Contact Us For Availability
2
WCI 5308012546 WCI 5308012546 Contact Us For Availability
2
WCI 5303209690 WCI 5303209690 Contact Us For Availability
2A
WCI 5305129602 WCI 5305129602 Contact Us For Availability
2A
PANEL, ALMOND WCI 08011060 Contact Us For Availability
2B
PAN, MED WCI K5129601 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 5303051716 WCI 5303051716 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
WCI 3205845 WCI 3205845 Contact Us For Availability
3
HANDLE WCI K1317834 Contact Us For Availability
4
SCREW (4) WCI 5303051860 Contact Us For Availability
4
WCI 5300009126 WCI 5300009126 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
4
WCI 5303209691 WCI 5303209691 Contact Us For Availability
4
GLIDE (2) WCI K001324091 Contact Us For Availability
5
WCI 5303051713 WCI 5303051713 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
5
WCI 5303209692 WCI 5303209692 Contact Us For Availability
6
WCI 3205847 WCI 3205847 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6
WCI 3051712 WCI 3051712 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6
WCI 5303209693 WCI 5303209693 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 3205846 WCI 3205846 Contact Us For Availability
7
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
7
WCI 5303209694 WCI 5303209694 Contact Us For Availability
8
WCI 5303209648 WCI 5303209648 Contact Us For Availability
8
WCI 3008677 WCI 3008677 Contact Us For Availability
8
PLUG, BUTTON 3/4`` (2) WCI 3204817 Contact Us For Availability
8
WCI 5303209732 WCI 5303209732 Contact Us For Availability
9
WCI 5303209649 WCI 5303209649 Contact Us For Availability
9
GLASS, PACKAGE WCI 3205235 Contact Us For Availability
9
WCI 3205272 WCI 3205272 Contact Us For Availability
9
WCI 08015994 WCI 08015994 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
LAMPHOLDER, FLU. (2) WCI 08012748 Contact Us For Availability
10
SEAL WINDOW WCI 3051706 Contact Us For Availability
11
WCI 08015992 WCI 08015992 Contact Us For Availability
11
WCI 3017530 WCI 3017530 Contact Us For Availability
12
WCI 5303209653 WCI 5303209653 Contact Us For Availability
12
WCI 3008673 WCI 3008673 Contact Us For Availability
13
SEAL, DOOR WCI 5303051704 Contact Us For Availability
13
WCI 3017795 WCI 3017795 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 5303209655 WCI 5303209655 Contact Us For Availability
14
LINER, SHIELD WCI 3017634 Contact Us For Availability
15
WCI 5308016520 WCI 5308016520 Contact Us For Availability
15
WCI 3051807 WCI 3051807 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
LIGHT, FLUOR. WCI 5308012712 Contact Us For Availability
16
RETAINER, GLASS (2) WCI 3204652 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI 5303209741 WCI 5303209741 Contact Us For Availability
17
WCI 5301167830 WCI 5301167830 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
18
WCI 5303209650 WCI 5303209650 Contact Us For Availability
18
WASHER, PADDED WCI 3051785 Contact Us For Availability
19
WCI 5303209652 WCI 5303209652 Contact Us For Availability
19
WCI 3051565 WCI 3051565 Contact Us For Availability
20
WCI 53050366601 WCI 53050366601 Contact Us For Availability
20
SPRING (2) WCI 5308003186 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 08015987 WCI 08015987 Contact Us For Availability
21
ROLLER KIT (2) WCI 08950070 Contact Us For Availability
21
CHANNEL, OVEN SUPPORT COVER WCI 3200927 Contact Us For Availability
22
WCI 5303209730 WCI 5303209730 Contact Us For Availability
22
WCI 08015969 WCI 08015969 Contact Us For Availability
23
WCI 08005554 WCI 08005554 Contact Us For Availability
23
COVER, ROD END WCI 3051251 Contact Us For Availability
24
HINGE ARM ASSEMBLY (2) WCI 5308003183 Contact Us For Availability
24
WCI 5303209658 WCI 5303209658 Contact Us For Availability
25
COVER, WIRE. WCI 5303017470 Contact Us For Availability
25
WCI 3051862 WCI 3051862 Contact Us For Availability
25
PLUG, BUTTON, THERM BULB HOLE WCI 3051796 Contact Us For Availability
26
WCI 5303209695 WCI 5303209695 Contact Us For Availability
27
CHANNEL, OVEN SUPPORT UPPER WCI 3203178 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
WCI 3205259 WCI 3205259 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 3051645 WCI 3051645 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
VEN, TUBE UPPER WCI 3051655 Contact Us For Availability
38
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
39
GASKET, OVEN VENT TUBE WCI 3051666 Contact Us For Availability
40
BRACKET, DOOR LATCH SWITCH WCI 3051643 Contact Us For Availability
41
VENT TUBE WCI 3205683 Contact Us For Availability
42
MOTOR, LATCH WCI 5303016242 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH, LOWER, & UPPER (2) WCI 3202430 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
56
CHANNEL, SUB TOP WCI 3205257 Contact Us For Availability
57
WCI 3051810 WCI 3051810 Contact Us For Availability
57A
PLATE, CONDUIT MTG (NI) WCI 3203574 Contact Us For Availability
57B
ANTI, TIP KIT (NI) WCI 3934063 Contact Us For Availability
57C
BRACKET, THERMO BULB (NI) WCI 3051550 Contact Us For Availability
× ![]()
