Model Whirlpool PYET344AYW ELECTRIC DRYER – Common Parts &amp; Diagrams

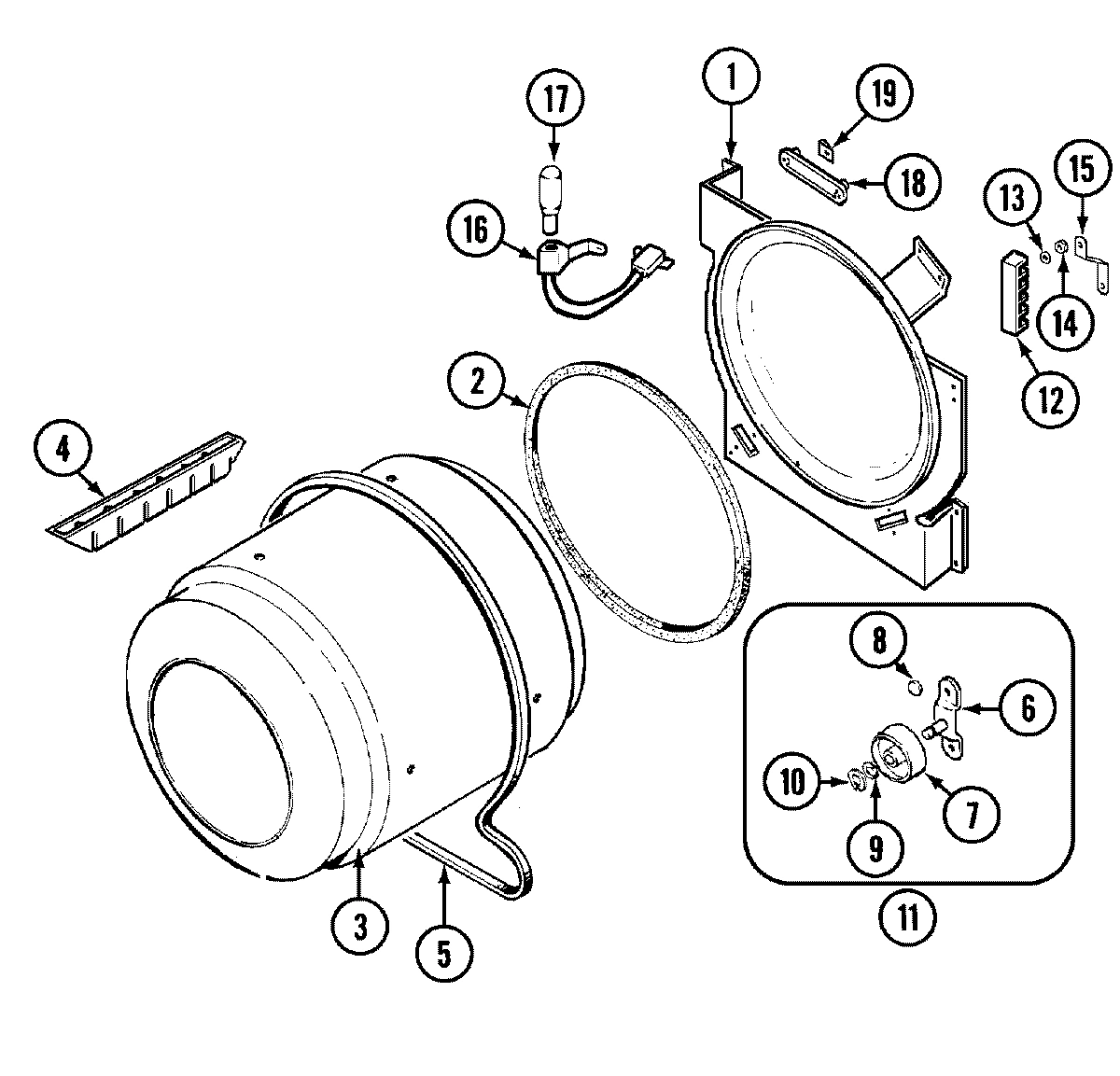

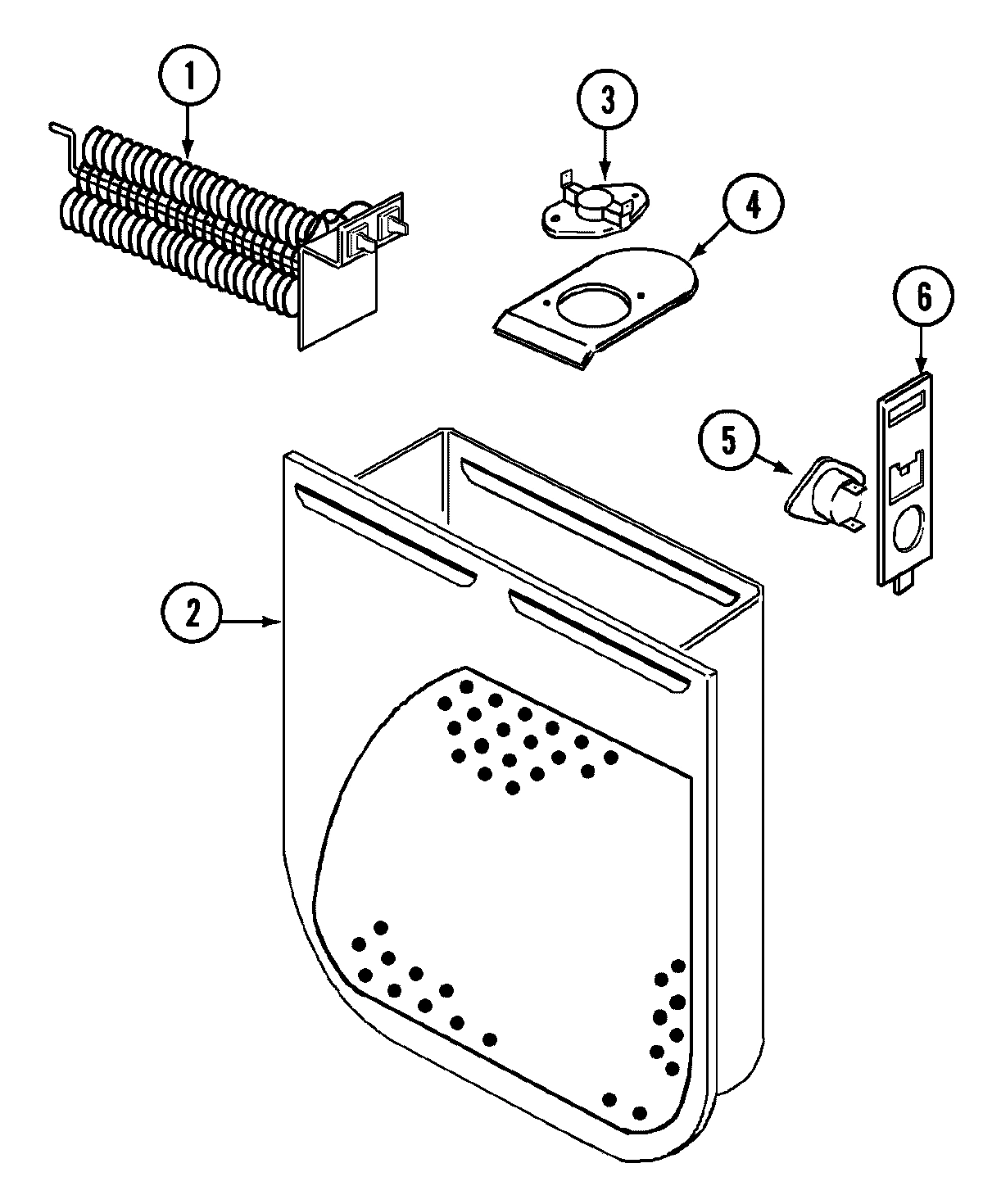

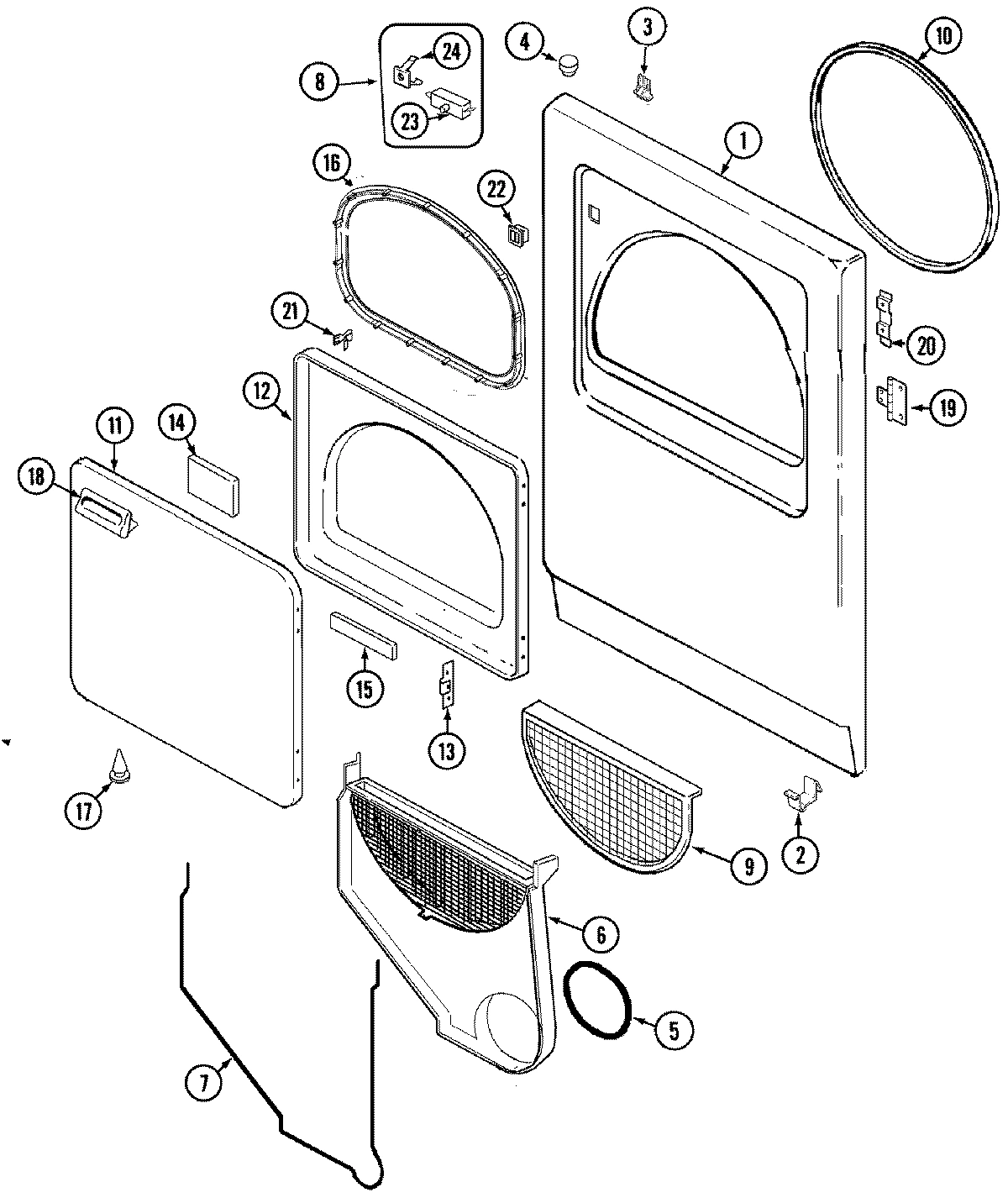

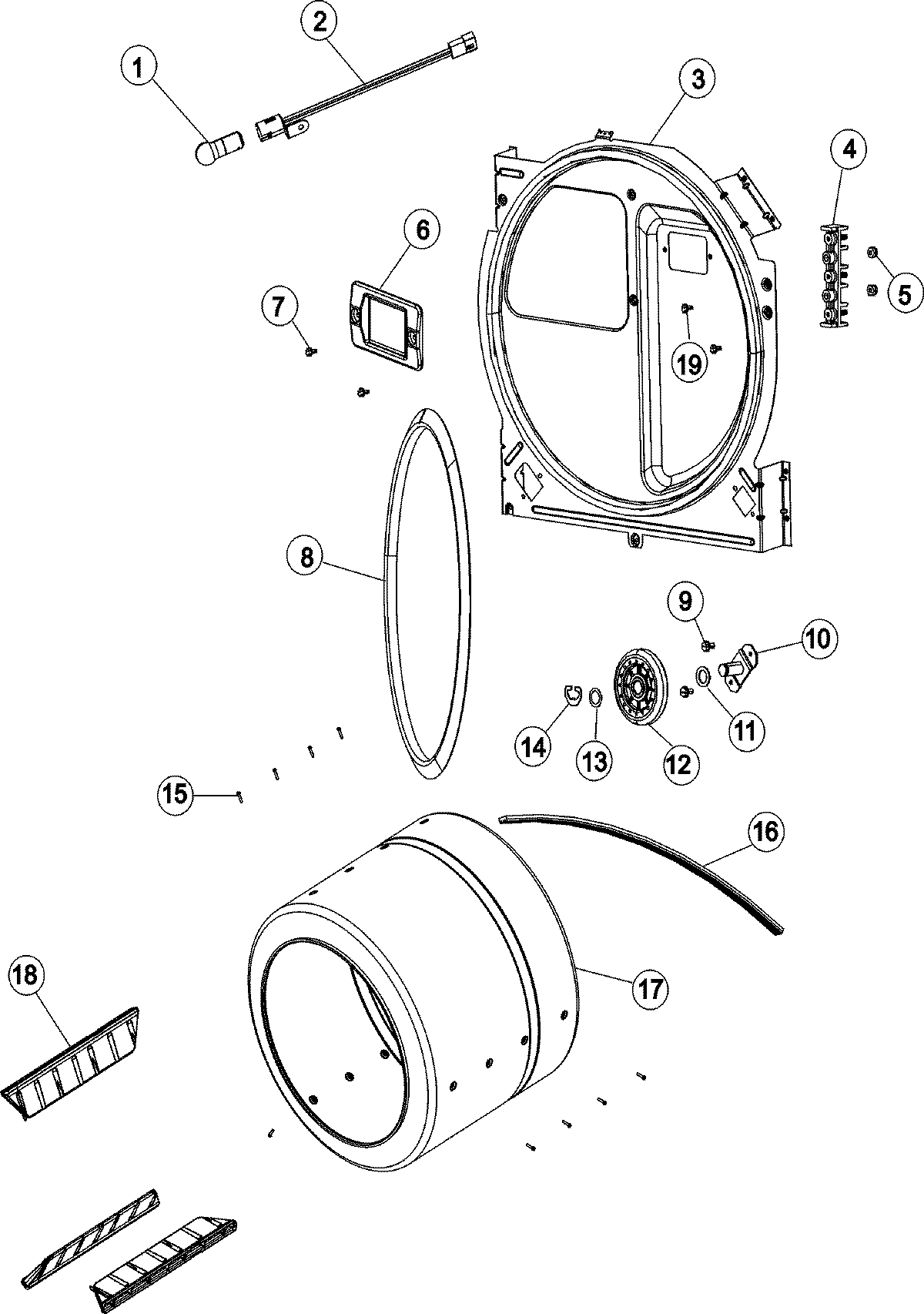

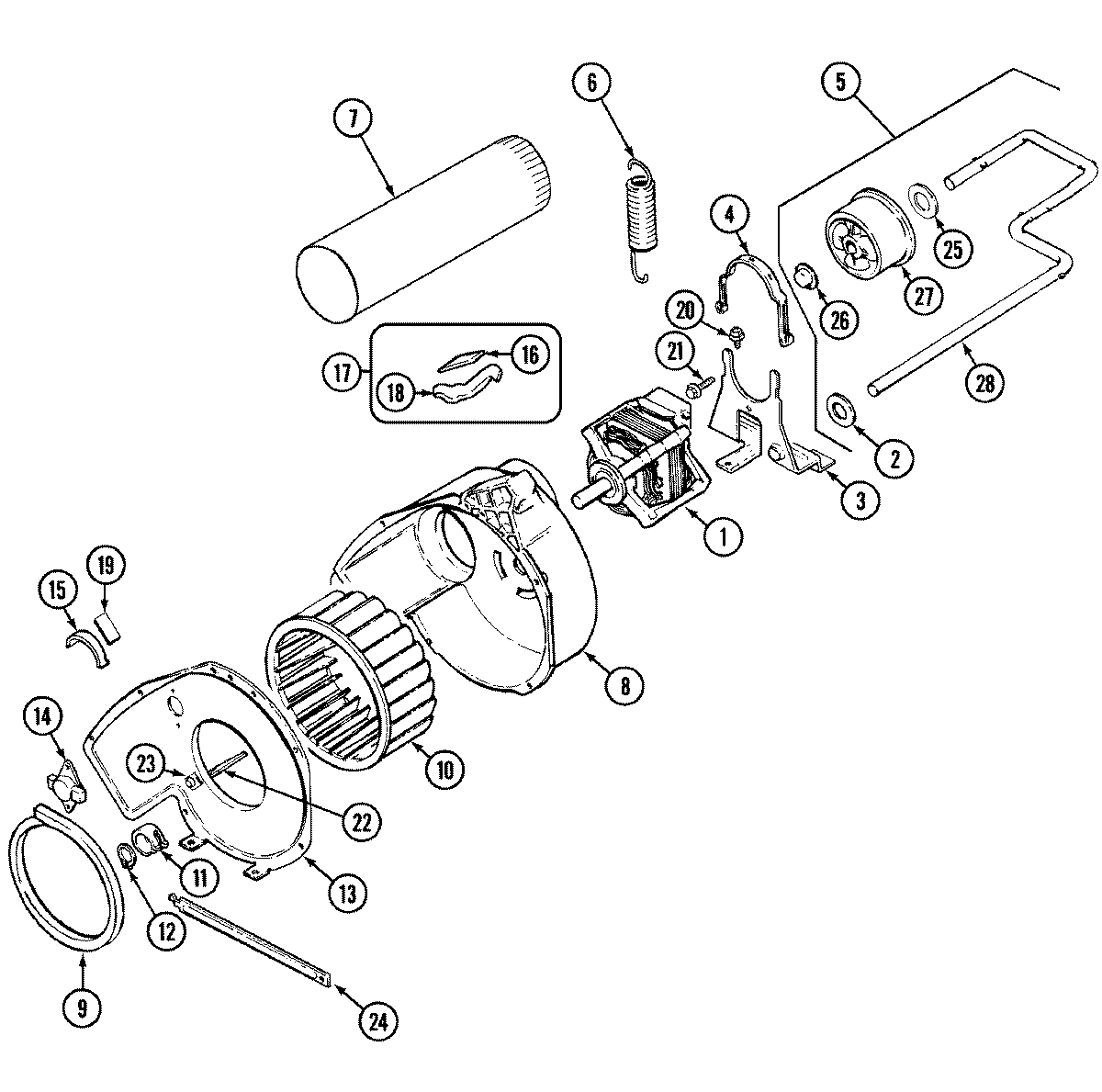

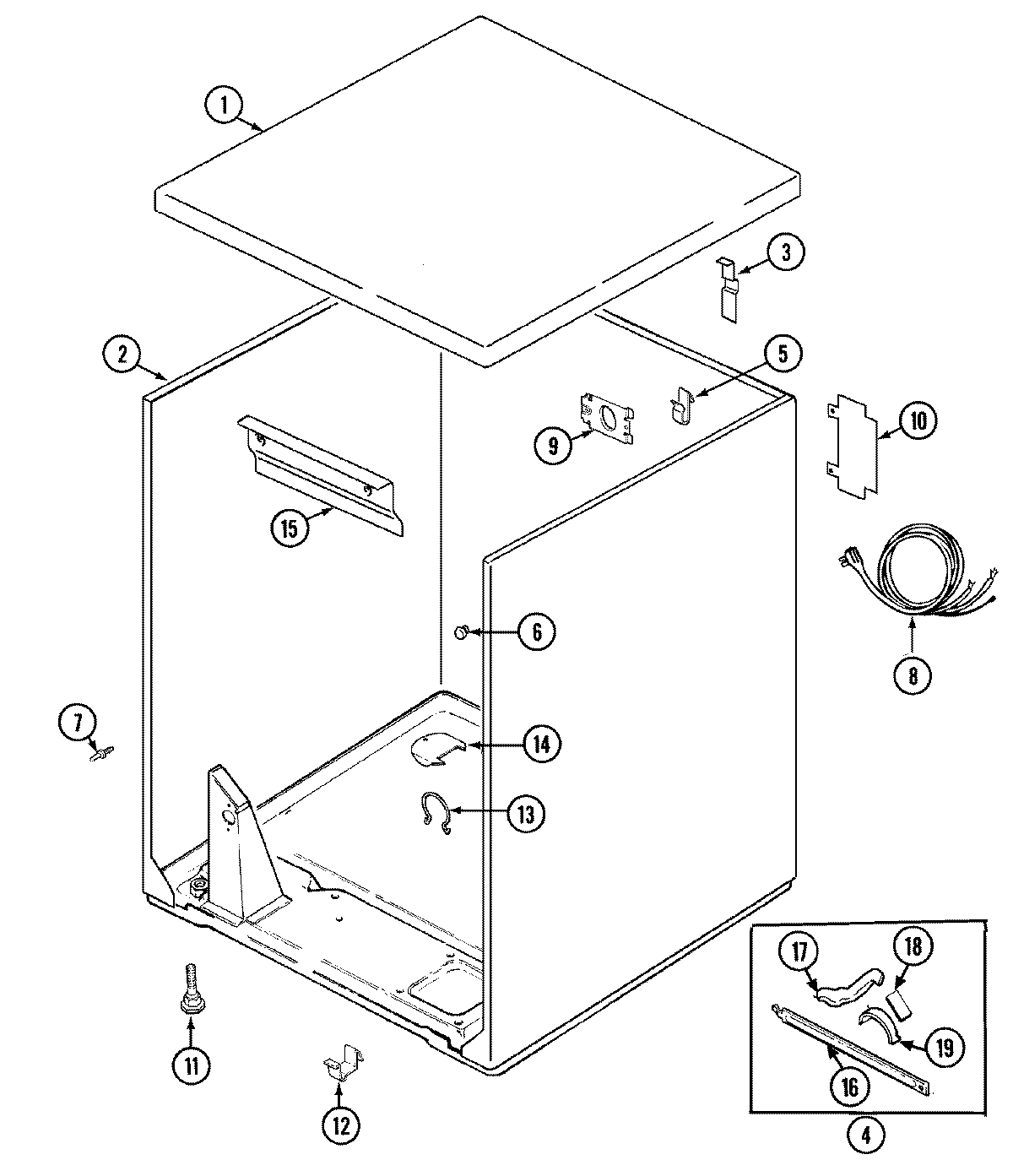

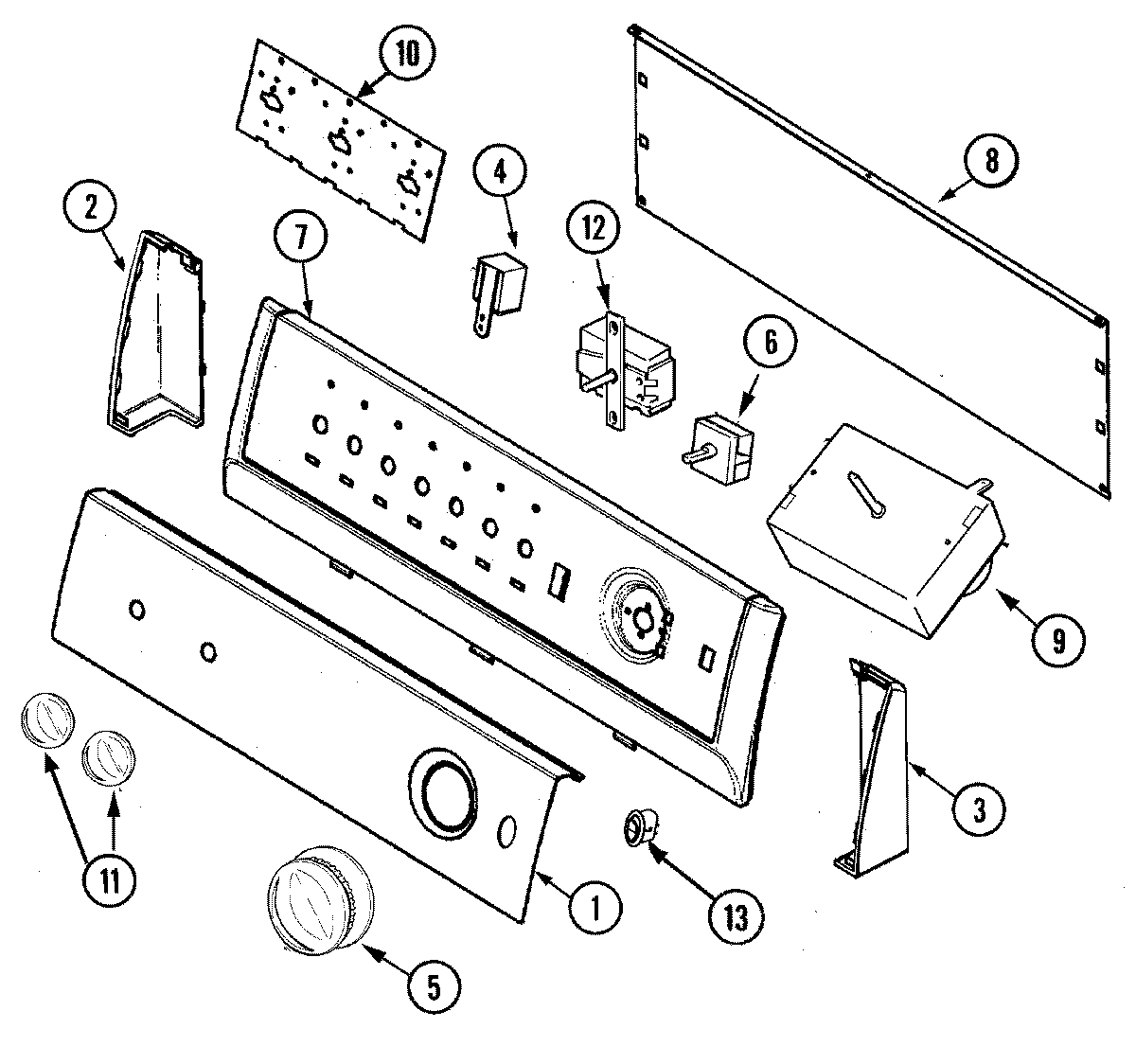

1

WP31001535 Whirlpool Pulley Motor In Stock WPL WP31001535 $53.10

1

MANUAL, SRVC DRYER-NO REFUND WPL 16008334 Contact Us For Availability

1

MANUAL, USE & CARE WPL 534343 Contact Us For Availability

1

PANEL, CONTROL WPL 31001549 Contact Us For Availability

1

SCREW WPL 257741 Contact Us For Availability

1

DRYER BULKHEAD KIT WPL LA1054 Contact Us For Availability

1

DAMPER, CABINET WPL 31001220 Contact Us For Availability

1

TOP, CABINET (WHT) WPL 31001423 Contact Us For Availability

1

BULB, CYLINDER LIGHT WPL 31001575 Contact Us For Availability

1

PANEL, FRONT (WHT) WPL 530726 Contact Us For Availability

2

ENDCAP (WHT-LT) WPL 21001519 Contact Us For Availability

2

CABINET & BASE ASM (WHT) WPL 31001714 Contact Us For Availability

2

CABINET & BASE ASM (WHT) WPL 532559 Contact Us For Availability

2

CLIP, FRONT PANEL WPL 530120 Contact Us For Availability

2

RECEPTACLE ASM, CLYINDER LIGHT WPL 31001579 Contact Us For Availability

3

4389248 Whirlpool Refrigerator Thermostat Backorder WPL 4389248 $132.09

3

LOCK, TOP WPL 31001526 Contact Us For Availability

3

ENDCAP (WHT-RT) WPL 21001523 Contact Us For Availability

3

SCREW WPL 253092 Contact Us For Availability

3

PAD, HINGE WPL 354128 Contact Us For Availability

3

HINGE, CABINET TOP WPL 635712 Contact Us For Availability

3

BULKHEAD WITH SEAL WPL 31001581 Contact Us For Availability

4

12002126 Whirlpool Dryer Reinforcement Brace Backorder WPL 12002126 $57.06

4

SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability

4

BRACKET, THERMOSTAT WPL 530285 Contact Us For Availability

4

WIRE KIT (HERRIN LAUNDRY) WPL 12002417 Contact Us For Availability

4

BUZZER ASSY. WPL 531639 Contact Us For Availability

4

CLAMP, MOTOR WPL 530214 Contact Us For Availability

4

BLOCK, TERMINAL WPL 531518 Contact Us For Availability

4

BUMPER, CABINET WPL 332653 Contact Us For Availability

5

WP37001184 Whirlpool Timer Knob Backorder WPL WP37001184 $37.11

5

FUSE KIT, THERMAL WPL LA1053 Contact Us For Availability

5

IDLER ASSY. WPL 532287 Contact Us For Availability

5

SEAL, BLOWER/COLLECTOR DUCT WPL 31001541 Contact Us For Availability

5

WASHER, FLAT WPL 253122 Contact Us For Availability

5

NUT (No.10-32) WPL 250027 Contact Us For Availability

5

CLIP, WIRING WPL 253034 Contact Us For Availability

6

12001324 Whirlpool Collector Duct Backorder WPL 12001324 $110.88

6

BRACKET, THERMAL FUSE WPL 531181 Contact Us For Availability

6

SWITCH, TWO POSITION ROTARY WPL 31001190 Contact Us For Availability

6

SPRING, IDLER WPL 31001465 Contact Us For Availability

6

LENS, CYLINDER LIGHT WPL 31001585 Contact Us For Availability

7

FRAME, CONTROL PANEL (WHT) WPL 21002005 Contact Us For Availability

7

DUCT, EXHAUST WPL 530134 Contact Us For Availability

7

POST, LOCATING WPL 21001829 Contact Us For Availability

7

SCREW, 6-32 HEX WASHER HEAD WPL 31001580 Contact Us For Availability

7

SEAL WPL 530204 Contact Us For Availability

8

WP31001747 Whirlpool Seal Assembly Backorder WPL WP31001747 $16.07

8

SHIELD, REAR (BACK PANEL) WPL 21001527 Contact Us For Availability

8

HOUSING, BLOWER WPL 531801 Contact Us For Availability

8

SPACER WPL 257813 Contact Us For Availability

8

SWITCH KIT (INCL. 23 & 24) WPL LA1005 Contact Us For Availability

8

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

9

WP31001513 Whirlpool Timer Backorder WPL WP31001513 $218.17

9

RESISTOR ASM (DOMESTIC/TIMER) WPL 31001484 Contact Us For Availability

9

SCREW WPL 257101 Contact Us For Availability

9

SCREW, No.10 TORQ LIMITING WPL 257828 Contact Us For Availability

9

SUPPORT, POWER CORD WPL 530135 Contact Us For Availability

9

FILTER, LINT WPL 530918 Contact Us For Availability

W11497304 Whirlpool Blower Wheel In Stock WPL W11497304 $47.33

SHIELD, CONTROL (3 POS.) WPL 21001603 Contact Us For Availability

PAD, SHIELD WPL 31001193 Contact Us For Availability

SEAL ASSY (WHITE) WPL 530281 Contact Us For Availability

SUPPORT ASSY.-CYLINDER REAR WPL 530197 Contact Us For Availability

SCREW WPL 257857 Contact Us For Availability

COVER, TERMINAL WPL 530284 Contact Us For Availability

KNOB, SELECTOR (WHT) WPL 21001954 Contact Us For Availability

CLAMP WPL 257823 Contact Us For Availability

ROLLER WPL LA1008 Contact Us For Availability

LEG, LEVELING WPL 635519 Contact Us For Availability

SPACER, ROLLER WPL 31001583 Contact Us For Availability

SCREW, 8-18X3/8 TYAB BUT WPL 257752 Contact Us For Availability

PANEL, OUTER DOOR (WHT) WPL 530154 Contact Us For Availability

SWITCH, TEMPERATURE WPL 31001447 Contact Us For Availability

RESISTOR ASM TEMPERATURE WPL 31001483 Contact Us For Availability

RESISTOR ASM TEMPERATURE WPL 31001704 Contact Us For Availability

SWITCH, TEMPERATURE WPL 534395 Contact Us For Availability

RING, RETAINING WPL 257855 Contact Us For Availability

ROLLER (REAR) WPL 31001096 Contact Us For Availability

PANEL, INNER DOOR (WHT) WPL 530912 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.07

WP74010226 Whirlpool RO Switch Backorder WPL WP74010226 $41.02

SCREW WPL 257807 Contact Us For Availability

COVER, BLOWER HOUSING WPL 531934 Contact Us For Availability

WASHER WPL 257814 Contact Us For Availability

CLIP, HINGE WPL 530119 Contact Us For Availability

WP31001192 Whirlpool Thermostat Backorder WPL WP31001192 $69.84

LEAD ASSEMBLY (GROUND) WPL 21001978 Contact Us For Availability

HARNESS, WIRE WPL 31001488 Contact Us For Availability

LEAD ASSEMBLY (SIGNAL) WPL 31001557 Contact Us For Availability

LEAD ASSEMBLY (BUZZER) WPL 31001559 Contact Us For Availability

HARNESS, WIRING WPL 534450 Contact Us For Availability

SCREW WPL 252134 Contact Us For Availability

THERMOSTAT, CONTROL WPL 31001088 Contact Us For Availability

SCREW WPL 257733 Contact Us For Availability

RING, RETAINING WPL 257854 Contact Us For Availability

SHIELD, WIRING WPL 531921 Contact Us For Availability

DOOR PAD WPL 531490 Contact Us For Availability

SCREW, SEMS WPL 253457 Contact Us For Availability

SCREW WPL 257759 Contact Us For Availability

STRAP, GROUND WPL 530965 Contact Us For Availability

SHIELD, HEAT WPL 530133 Contact Us For Availability

DOOR PAD WPL 531491 Contact Us For Availability

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.23

WP31001529 Whirlpool Door Seal Backorder WPL WP31001529 $61.02

BRACE, TUMBLER SUPPORT WPL 531625 Contact Us For Availability

BLADE-FAN WPL 531580 Contact Us For Availability

LA-1006 Whirlpool Dryer Right Hand Glide Kit In Stock WPL LA-1006 $10.39

WP31001469 Whirlpool Glide Assembly Backorder WPL WP31001469 $36.92

CYLINDER (W/BAFFLE) WPL 531250 Contact Us For Availability

CYL LIGHT BULB WPL 530570 Contact Us For Availability

PLUG BUTTON WPL 257889 Contact Us For Availability

WP31001356 Whirlpool Glide Pad Backorder WPL WP31001356 $35.11

BAFFLE, WHITE WPL 531249 Contact Us For Availability

LENS, BULB WPL 530174 Contact Us For Availability

SCREW 8-18X1/2 TRUSS H WPL 257810 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 530927 Contact Us For Availability

WP31001470 Whirlpool Glide Assembly Backorder WPL WP31001470 $35.80

SCREW WPL 257952 Contact Us For Availability

CLIP, PUSH-ON WPL 253562 Contact Us For Availability

SCREW, No.6-20 1/2 FLTHD TORX WPL 257809 Contact Us For Availability

HINGE, DRYER DOOR WPL 531492 Contact Us For Availability

20

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.60

20

SCREW WPL 257963 Contact Us For Availability

20

TWIN NUT WPL 530121 Contact Us For Availability

21

STRIKE, DOOR WPL 532364 Contact Us For Availability

22

GUIDE, VANE INLET WPL 531026 Contact Us For Availability

22

CATCH, DOOR WPL 530187 Contact Us For Availability

23

SWITCH, DOOR WPL 31001732 Contact Us For Availability

23

SWITCH, DOOR WPL 530148 Contact Us For Availability

24

WP31001319 Whirlpool Clip Backorder WPL WP31001319 $0.49

24

CLIP, SWITCH WPL 31001733 Contact Us For Availability

25

WASHER WPL 257815 Contact Us For Availability

26

PUSHNUT WPL 257957 Contact Us For Availability

27

WP31001344 Whirlpool Idler Pulley In Stock WPL WP31001344 $30.15

28

ARM, IDLER WPL 532250 Contact Us For Availability

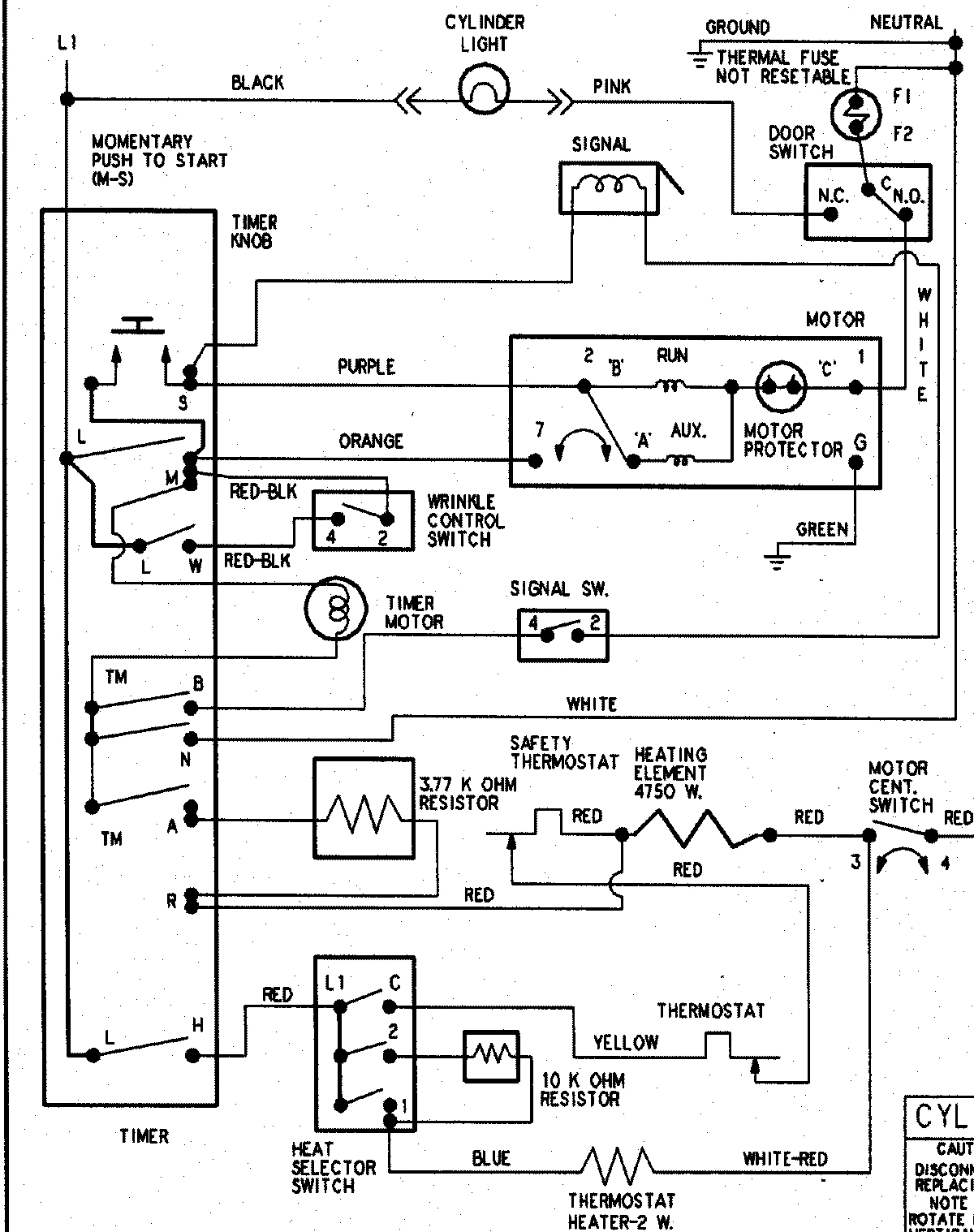

NI

WIRING INFORMATION WPL 15003266 Contact Us For Availability

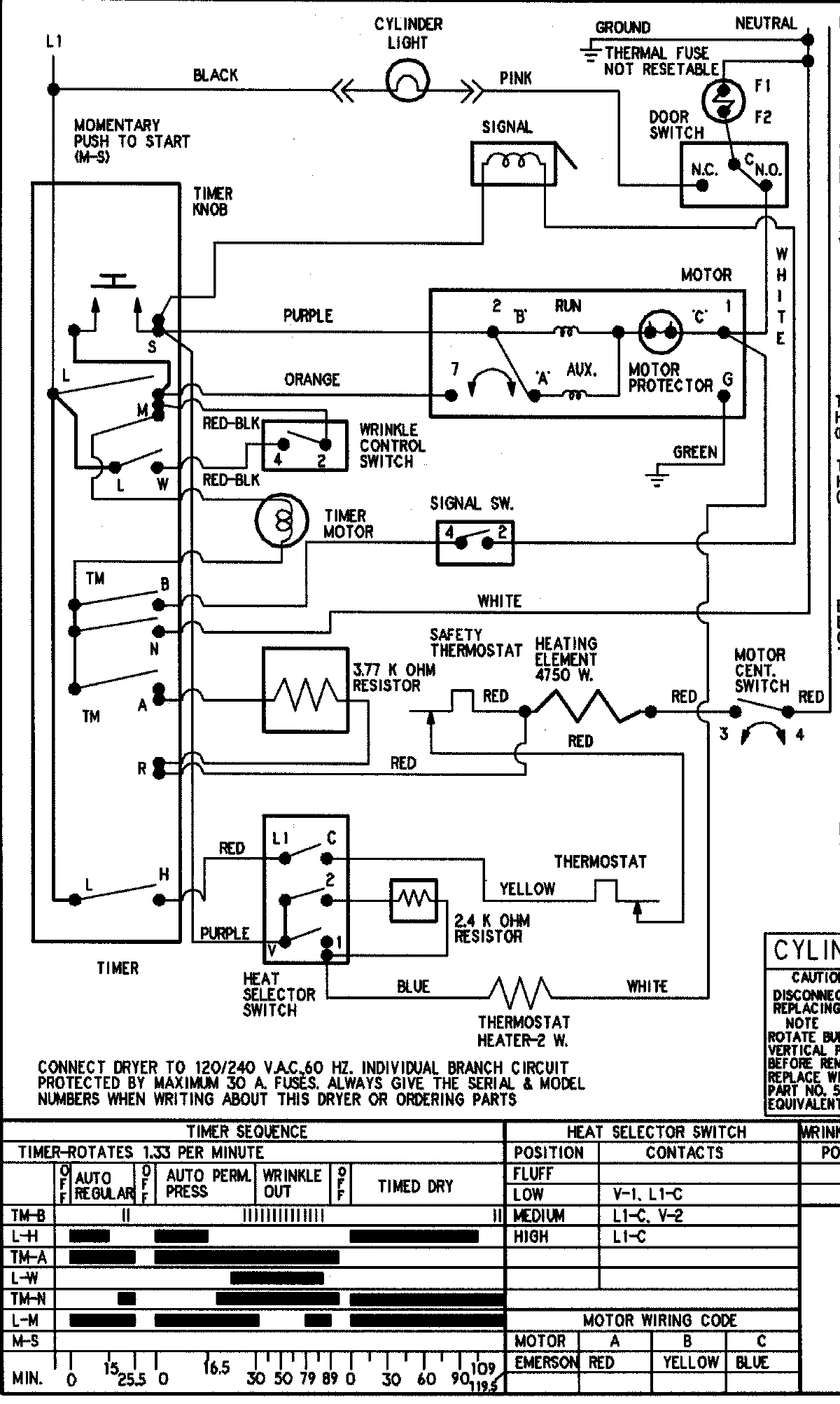

NI

WIRING INFORMATION WPL 15003591 Contact Us For Availability
