PT7550EH1ES

Model PT7550EH1ES – Common Parts & Diagrams

Common parts from model PT7550EH1ES

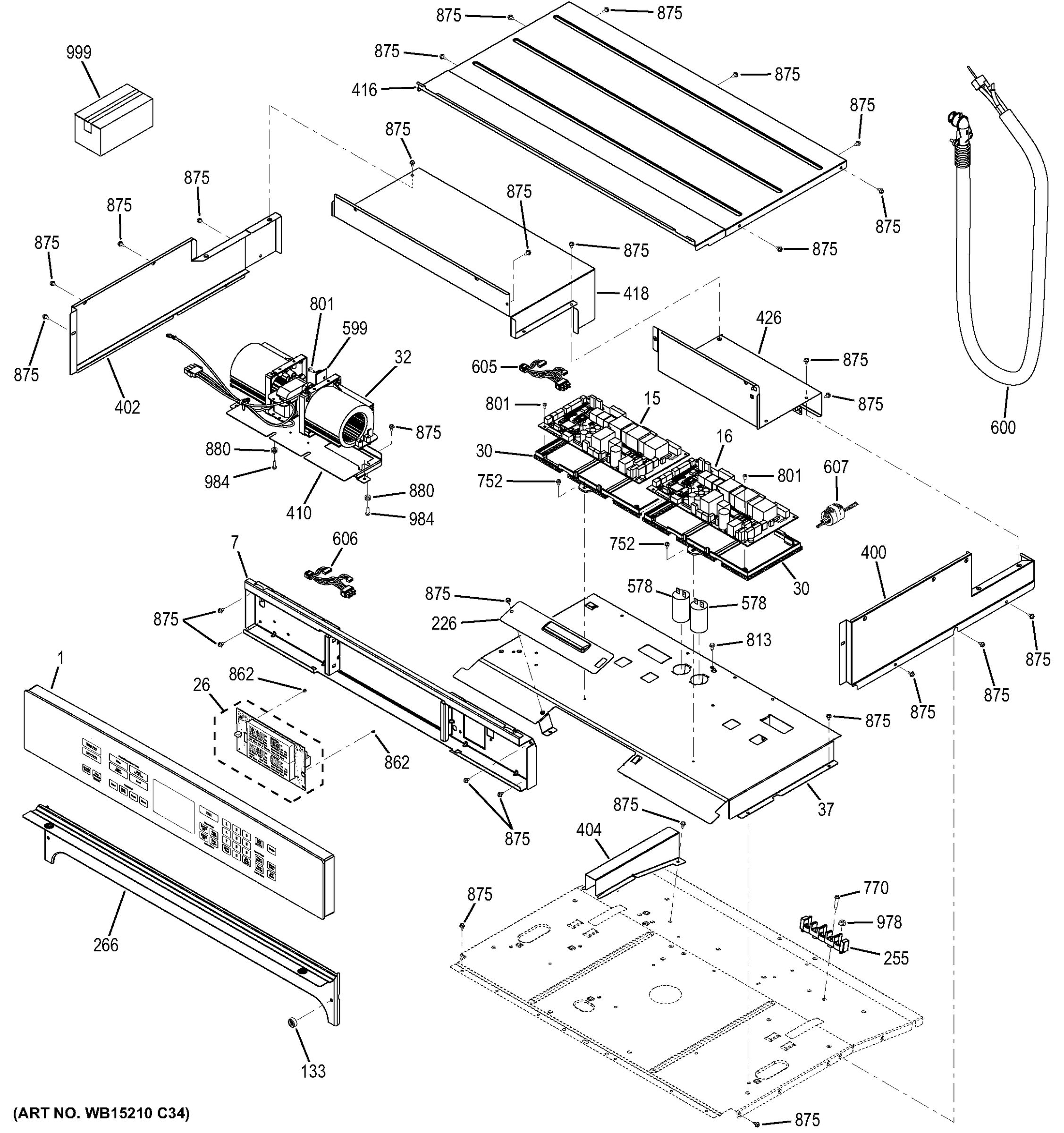

WB27X22886 GE Oven Control Panel Glass Assemb

WB27X22886 GE Oven Control Panel Glass Assemb Out of Stock GEN WB27X22886 $355.94

WB27X25552 GE Oven Board Machine Control

WB27X25552 GE Oven Board Machine Control In Stock GEN WB27X25552 $174.77

WB27X29601 GE Oven Control Board and Overlay

WB27X29601 GE Oven Control Board and Overlay Out of Stock GEN WB27X29601 $162.74

WB26X35088 GE Cooling Fan Lower

WB26X35088 GE Cooling Fan Lower In Stock GEN WB26X35088 $80.85

WB26T10066 GE Oven Cooling Fan

WB26T10066 GE Oven Cooling Fan In Stock GEN WB26T10066 $85.82

WB02T10598 GE Oven Blade Fan Convection

WB02T10598 GE Oven Blade Fan Convection Out of Stock GEN WB02T10598 $24.95

WB02T10589 GE Range Nameplate Badge Gray

WB02T10589 GE Range Nameplate Badge Gray Out of Stock GEN WB02T10589 $7.81

WB63X32818 GE Oven Door Liner Kit

WB63X32818 GE Oven Door Liner Kit Out of Stock GEN WB63X32818 $102.46

WB34X31516 GE Door Insulation Retainer

WB34X31516 GE Door Insulation Retainer Out of Stock GEN WB34X31516 $24.59

WB03T10341 GE Oven Bumper Door

WB03T10341 GE Oven Bumper Door Out of Stock GEN WB03T10341 $5.00

WB15X27281 GE Oven Handle and Endcap Assembly

WB15X27281 GE Oven Handle and Endcap Assembly Out of Stock GEN WB15X27281 $45.94

WB02T10603 GE Oven Support Handle

WB02T10603 GE Oven Support Handle Out of Stock GEN WB02T10603 $7.76

WB34T10142 GE Oven Deflector Oven Door

WB34T10142 GE Oven Deflector Oven Door Out of Stock GEN WB34T10142 $52.92

HIGH LIMIT SWITCH

HIGH LIMIT SWITCH In Stock GEN WB24X46906 $5.94

HIGH LIMIT SWITCH

HIGH LIMIT SWITCH Out of Stock GEN WB24X46907 $4.50

WB34T10140 GE Oven Divider Air Double Oven

WB34T10140 GE Oven Divider Air Double Oven Out of Stock GEN WB34T10140 $60.86

WB34X21910 GE Oven Channel Rear LT

WB34X21910 GE Oven Channel Rear LT Out of Stock GEN WB34X21910 $31.19

WB34T10136 GE Cover Upper Rear Duct

WB34T10136 GE Cover Upper Rear Duct Out of Stock GEN WB34T10136 $43.85

WB48X21765 GE Oven Guide Oven Rack RT

WB48X21765 GE Oven Guide Oven Rack RT Out of Stock GEN WB48X21765 $48.76

WB48X21766 GE Oven Guide Rack LT

WB48X21766 GE Oven Guide Rack LT Out of Stock GEN WB48X21766 $48.76

WB48X21764 GE Oven Rack Slide Assembly

WB48X21764 GE Oven Rack Slide Assembly Out of Stock GEN WB48X21764 $230.64

WB44X21667 GE Oven Hidden Bake Element Kit

WB44X21667 GE Oven Hidden Bake Element Kit In Stock GEN WB44X21667 $50.49

WB44T10128 GE Oven Element Broil Assembly

WB44T10128 GE Oven Element Broil Assembly In Stock GEN WB44T10128 $55.07

WB21X10165 GE Oven Sensor

WB21X10165 GE Oven Sensor In Stock GEN WB21X10165 $13.61

WB44X23640 GE Oven Element Broil Assembly

WB44X23640 GE Oven Element Broil Assembly Out of Stock GEN WB44X23640 $75.71

WB01T10107 GE Oven Bolt Retainer

WB01T10107 GE Oven Bolt Retainer Out of Stock GEN WB01T10107 $5.11

WB25T10102 GE Oven Wall Oven Halogen Top-Moun

WB25T10102 GE Oven Wall Oven Halogen Top-Moun In Stock GEN WB25T10102 $9.83

WB25X20199 GE Oven Lamp Halogen Assembly

WB25X20199 GE Oven Lamp Halogen Assembly Out of Stock GEN WB25X20199 $63.40

WB34T10145 GE Oven Lens Oven Light

WB34T10145 GE Oven Lens Oven Light Out of Stock GEN WB34T10145 $20.03

WB07X21783 GE Oven Trim Vent Lower

WB07X21783 GE Oven Trim Vent Lower Out of Stock GEN WB07X21783 $42.53

WB07T10797 GE Oven Trim Vent Upper (BK)

WB07T10797 GE Oven Trim Vent Upper (BK) Out of Stock GEN WB07T10797 $24.77

WB07T10761 GE Oven Trim Bottom Small Cabinet

WB07T10761 GE Oven Trim Bottom Small Cabinet Out of Stock GEN WB07T10761 $48.20

WB07T10788 GE Oven Trim Bottom Cabinet

WB07T10788 GE Oven Trim Bottom Cabinet Out of Stock GEN WB07T10788 $50.27

WB20T10024 GE Oven Probe Thermistor

WB20T10024 GE Oven Probe Thermistor In Stock GEN WB20T10024 $43.29

WB10X21740 GE Oven Hinge Door Right

WB10X21740 GE Oven Hinge Door Right Out of Stock GEN WB10X21740 $97.07

WB10X21741 GE Oven Hinge Door Left

WB10X21741 GE Oven Hinge Door Left Out of Stock GEN WB10X21741 $32.13

WB44X21671 GE Oven Element Convection

WB44X21671 GE Oven Element Convection Out of Stock GEN WB44X21671 $43.67

WB49X21652 GE Oven Hinge Bracket Assembly Kit

WB49X21652 GE Oven Hinge Bracket Assembly Kit Out of Stock GEN WB49X21652 $17.01

WB56T10351 GE Oven Glass Oven Window

WB56T10351 GE Oven Glass Oven Window Out of Stock GEN WB56T10351 $51.79

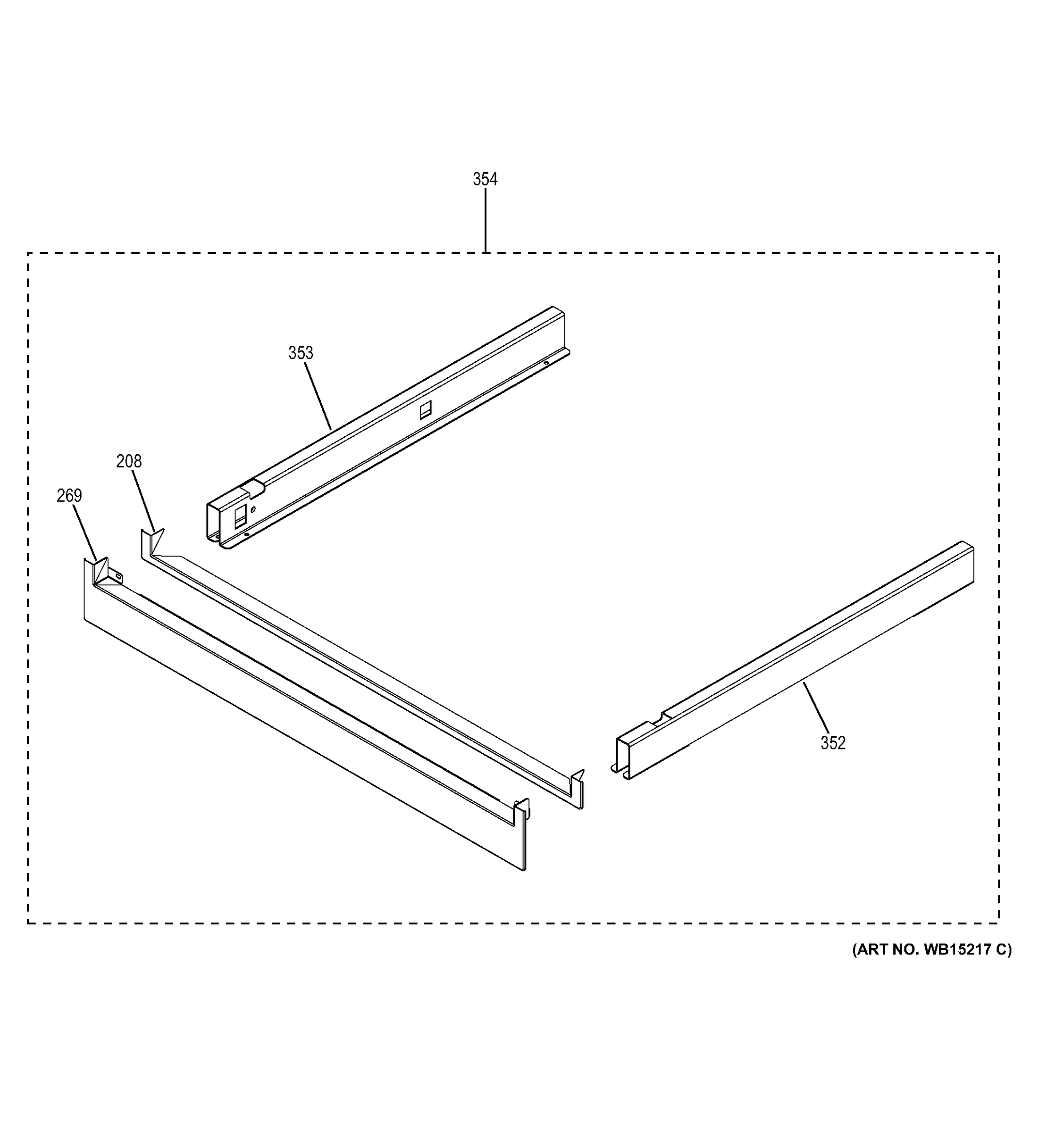

WB37T10028 GE Oven Channel Pedestal Right

WB37T10028 GE Oven Channel Pedestal Right Out of Stock GEN WB37T10028 $36.67

WB37T10029 GE Oven Channel Pedestal Left

WB37T10029 GE Oven Channel Pedestal Left Out of Stock GEN WB37T10029 $40.27

WB44T10126 GE Oven Cover Top Left Edge

WB44T10126 GE Oven Cover Top Left Edge Out of Stock GEN WB44T10126 $17.21

WB56X43352 GE Cover Bottom Air Duct

WB56X43352 GE Cover Bottom Air Duct Out of Stock GEN WB56X43352 $37.62

WB55T10197 GE Oven Cover Hidden Bake

WB55T10197 GE Oven Cover Hidden Bake Out of Stock GEN WB55T10197 $67.55

WB26X44167 GE Convection Motor Kit

WB26X44167 GE Convection Motor Kit Out of Stock GEN WB26X44167 $58.26

WB37T10024 GE Oven Plate Top Oven

WB37T10024 GE Oven Plate Top Oven Out of Stock GEN WB37T10024 $51.98

WB37T10023 GE Cover Convection Fan

WB37T10023 GE Cover Convection Fan Out of Stock GEN WB37T10023 $51.03

WB27T10662 GE Oven Capacitor

WB27T10662 GE Oven Capacitor Out of Stock GEN WB27T10662 $5.00

WB27T11463 GE Oven Board Fan Sensor

WB27T11463 GE Oven Board Fan Sensor In Stock GEN WB27T11463 $48.01

WB18T10573 GE Oven Conduit Wire Assembly

WB18T10573 GE Oven Conduit Wire Assembly Out of Stock GEN WB18T10573 $63.21

WB18T10580 GE Oven Optional 6 FT Conduit

WB18T10580 GE Oven Optional 6 FT Conduit Out of Stock GEN WB18T10580 $151.52

WB08T10050 GE Meat Probe and Harness

WB08T10050 GE Meat Probe and Harness Out of Stock GEN WB08T10050 $29.30

WB01X21270 GE Oven Rack Guide Nut

WB01X21270 GE Oven Rack Guide Nut Out of Stock GEN WB01X21270 $5.11

WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2

WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2 Out of Stock GEN WD02X10129 $5.11

WB01T10131 GE Oven Screw 10-32 T20 2 1/2 In

WB01T10131 GE Oven Screw 10-32 T20 2 1/2 In Out of Stock GEN WB01T10131 $5.00

WB01T10132 GE Oven Screw 10-32 Hex 1 3/4 In

WB01T10132 GE Oven Screw 10-32 Hex 1 3/4 In Out of Stock GEN WB01T10132 $5.11

WB02T10608 GE Oven Nut Hex

WB02T10608 GE Oven Nut Hex In Stock GEN WB02T10608 $5.11

WB02T10303 GE Lubricant Cleaner

WB02T10303 GE Lubricant Cleaner Out of Stock GEN WB02T10303 $35.53

WB01T10008 GE Oven Screw 10-32 TR

WB01T10008 GE Oven Screw 10-32 TR In Stock GEN WB01T10008 $5.11
