Model GE PSS93YP5FS Electric Range – Common Parts & Diagrams
CONTROL PANEL

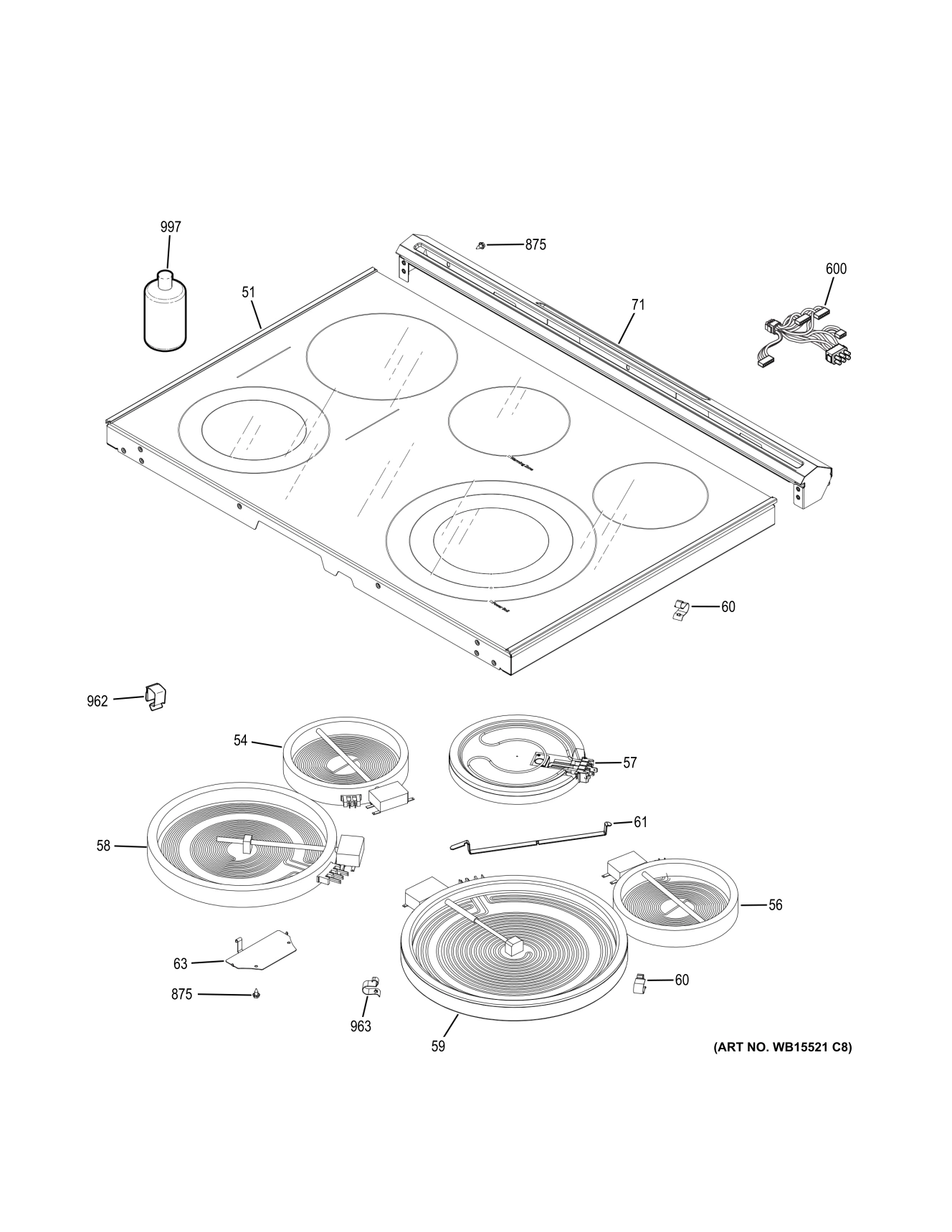

COOKTOP

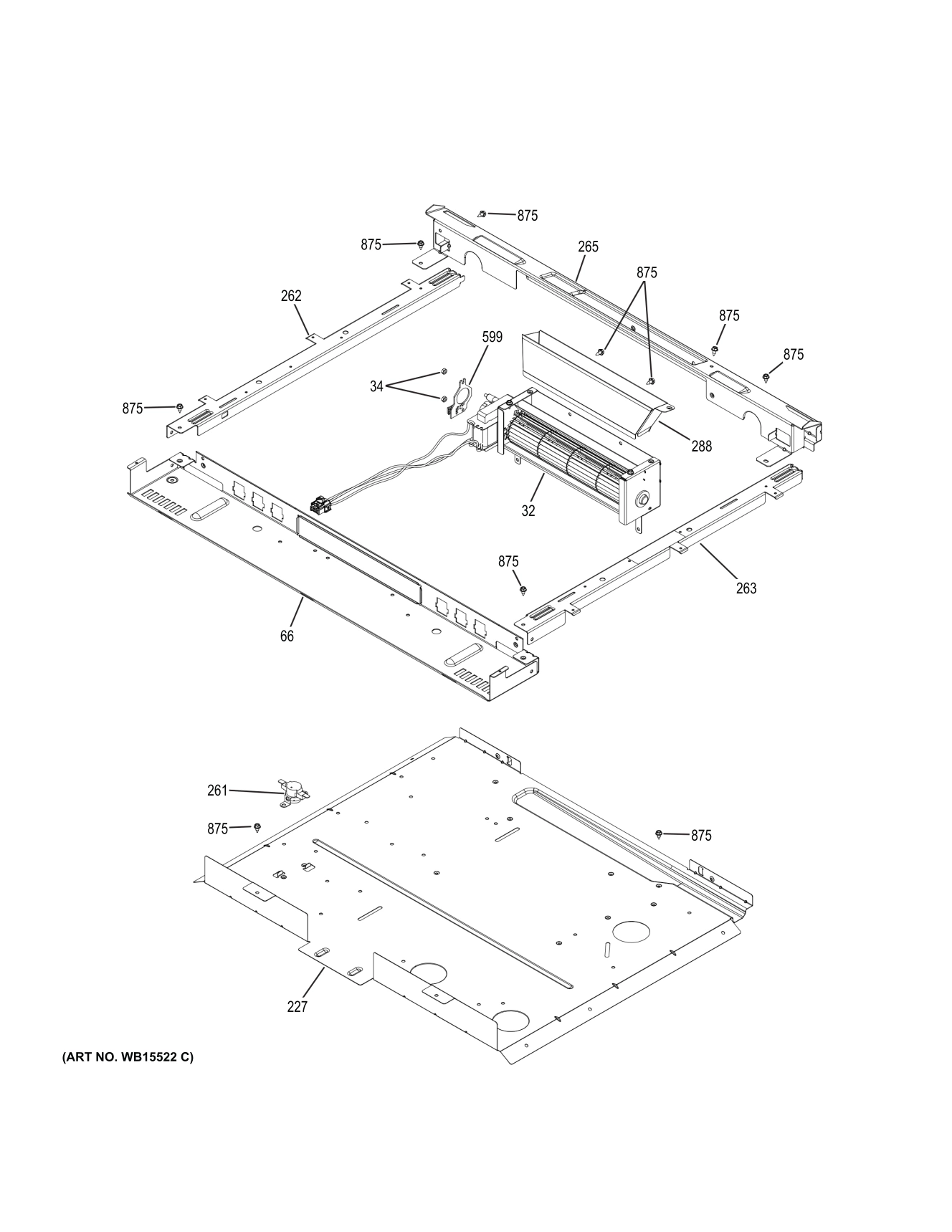

COOLING FAN

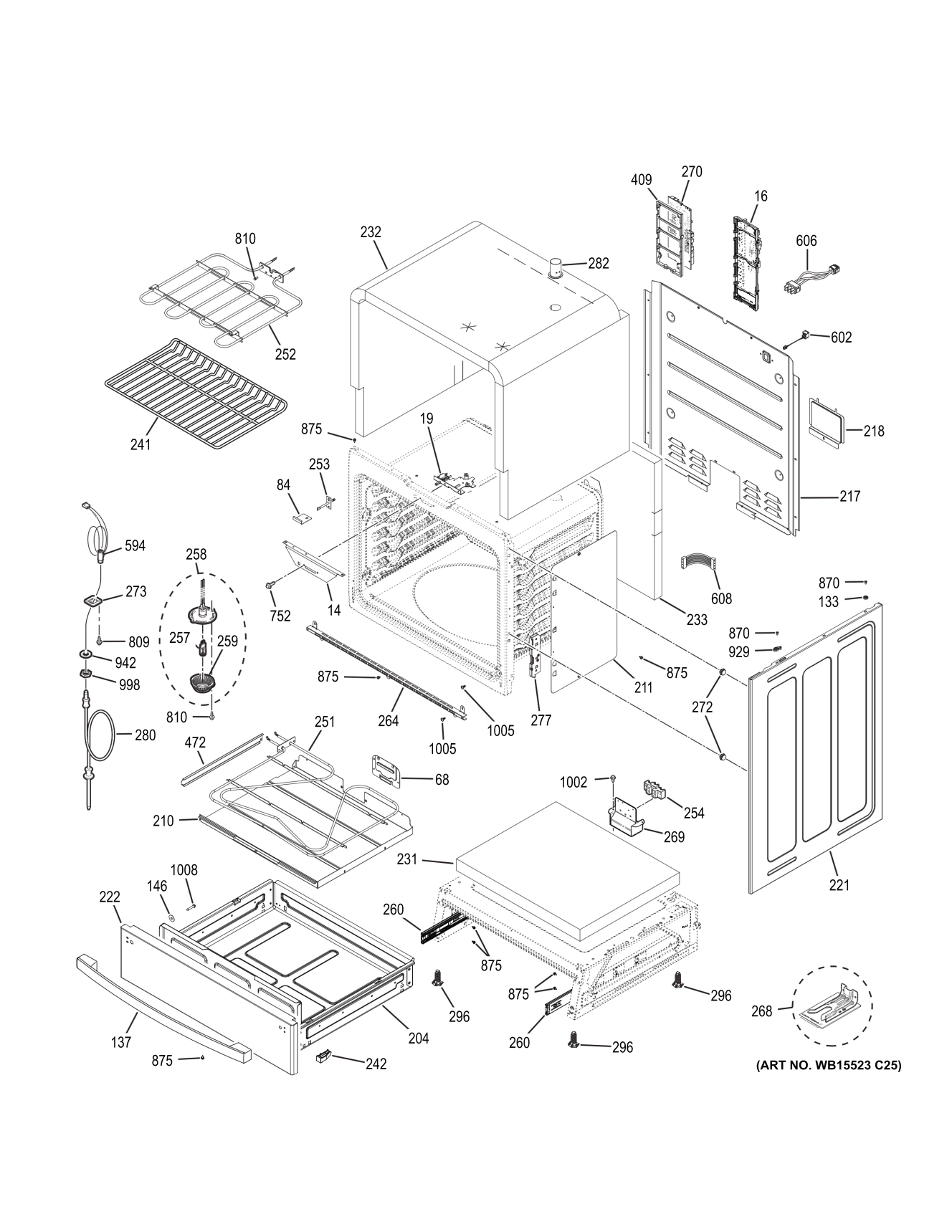

BODY PARTS

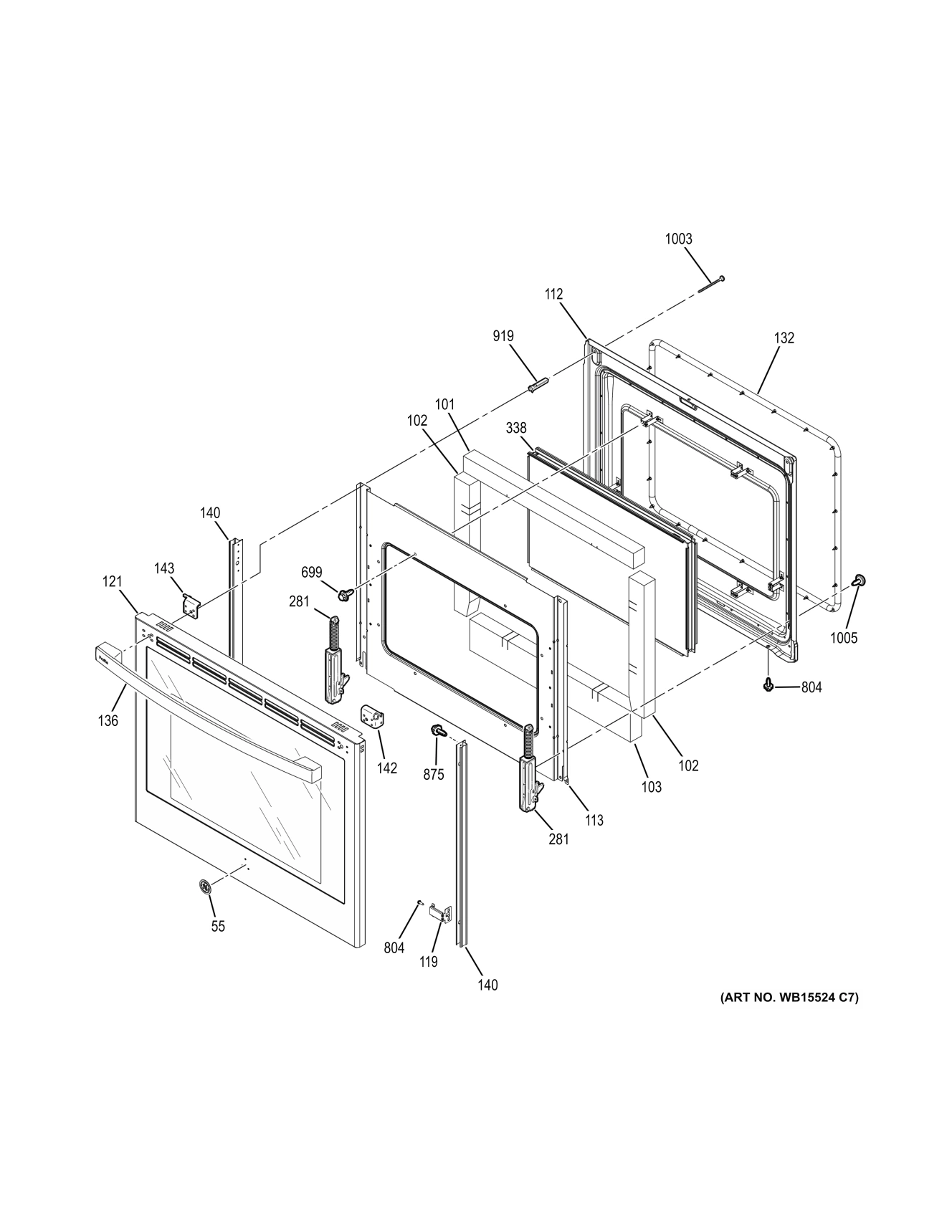

DOOR

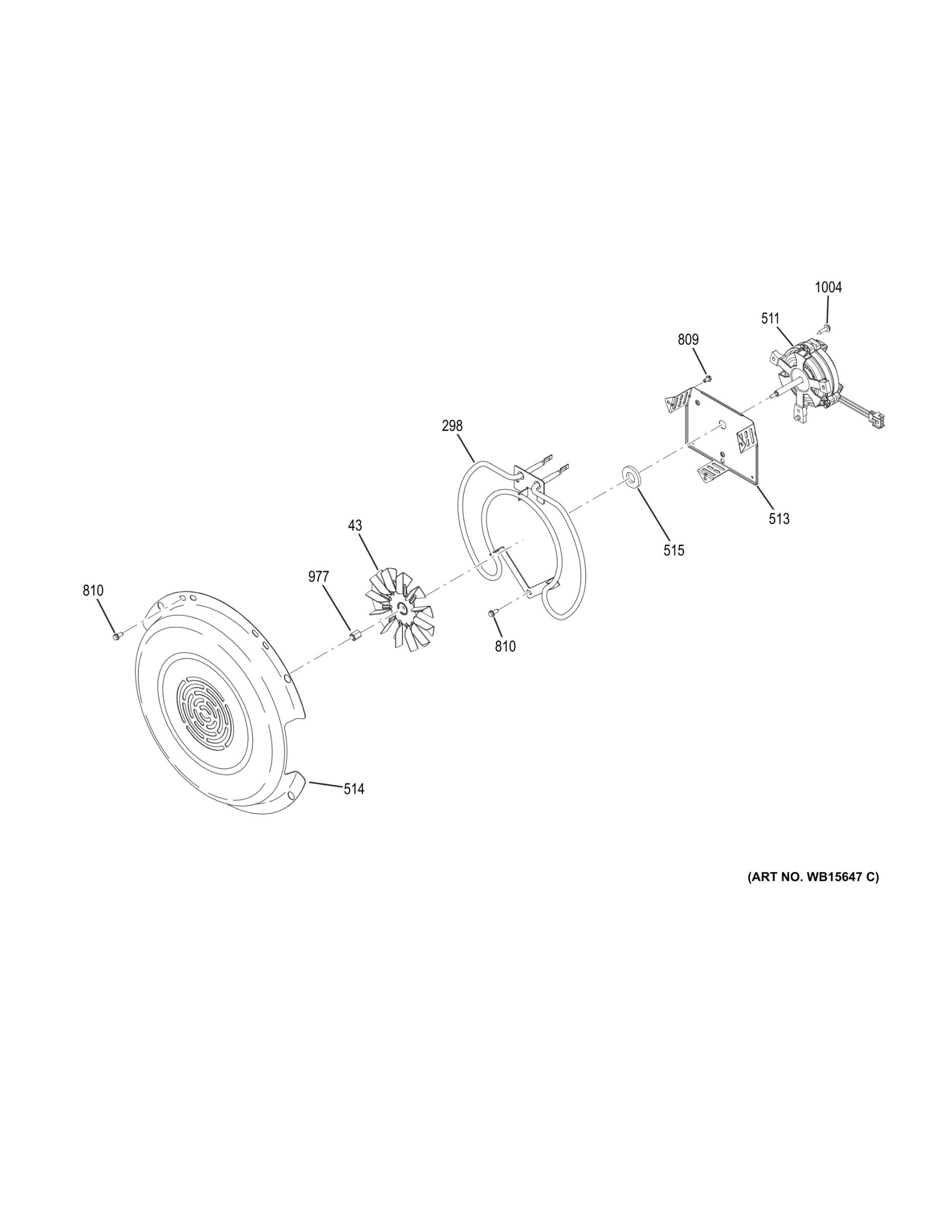

CONVECTION FAN
Common parts from model GE PSS93YP5FS Electric Range
5
CONTROL LIGHTS GUIDE GEN WB63X29528 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB35X29473 Contact Us For Availability
32
COOLING FAN ASM GEN WB26X29468 Contact Us For Availability
43
CONVECTION FAN BLADE GEN WB02X26501 Contact Us For Availability
55
FLAT BADGE ASM GEN WB02X29479 Contact Us For Availability
57
ELEMENT WARMER LOW PRF GEN WB30X10035 Contact Us For Availability
60
SPRING RADIANT ELEMENT GEN WB09X40389 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10134 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10135 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
132
OVEN DOOR GASKET GEN WB35X30048 Contact Us For Availability
143
BRACKET OVN HDL VNT TRM (RH) GEN WB34X25221 Contact Us For Availability
204
DRAWER BODY AND SLIDES ASM GEN WB63X29521 Contact Us For Availability
217
MAIN WIRE COVER GEN WB34X29069 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10560 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
222
STAINLESS DRAWER PANEL GEN WB56X36449 Contact Us For Availability
242
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
254
BLOCK TERMINAL ASM GEN WB17X38438 Contact Us For Availability
260
DRAWER SLIDE AND BRACKET ASM GEN WB63X29185 Contact Us For Availability
270
MACHINE CONTROL RELAY BOARD GEN WB27X29202 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
288
COOLING FAN DUCT GEN WB34X29483 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
511
CONVECTION MOTOR GEN WB26X29157 Contact Us For Availability
513
CONVECTION MOTOR BRACKET GEN WB02X29181 Contact Us For Availability
514
BLACK CONVECTION FAN COVER GEN WB34X31766 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
599
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
804
SCREW-BLK GEN WB1K5157 Contact Us For Availability
810
SCREW GEN WB01M10002 Contact Us For Availability
828
INSERT PLUG GEN WB01X29474 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
962
CLIP CABLE GEN WB02X25982 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
