Model Maytag PSD265LGES REFRIGERATOR – Common Parts & Diagrams

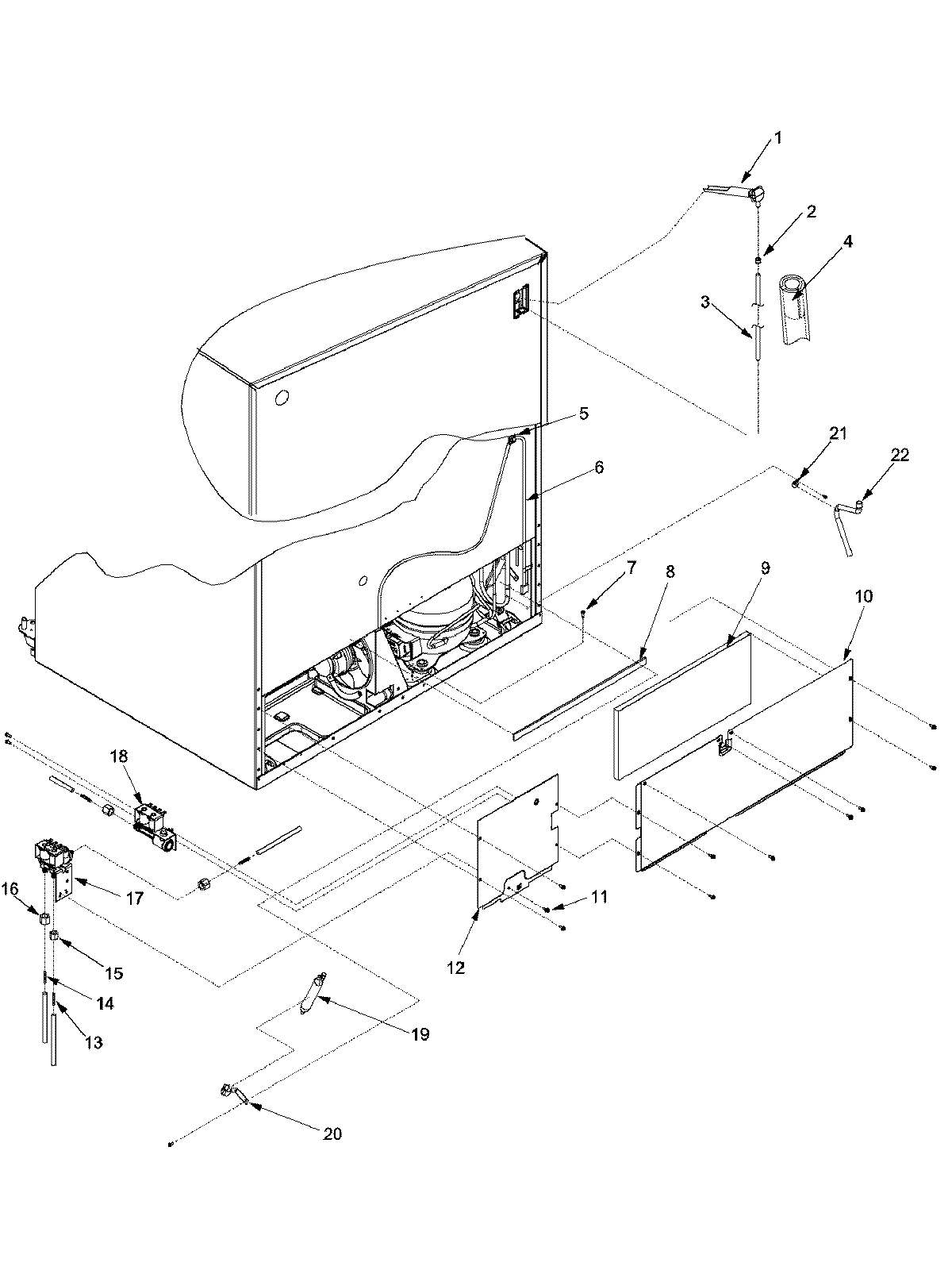

01 - CABINET BACK
02 - COMPRESSOR

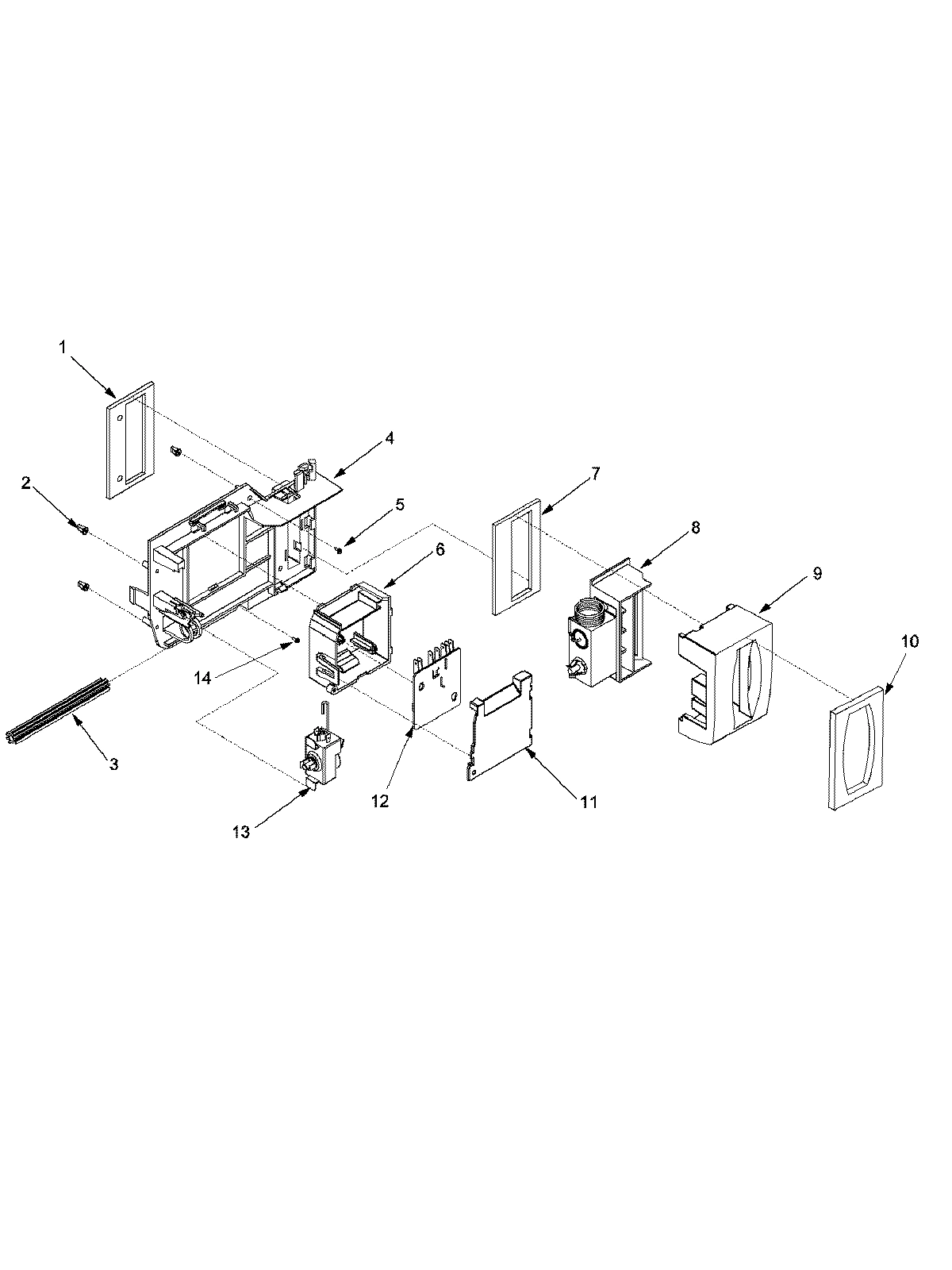

03 - CONTROLS

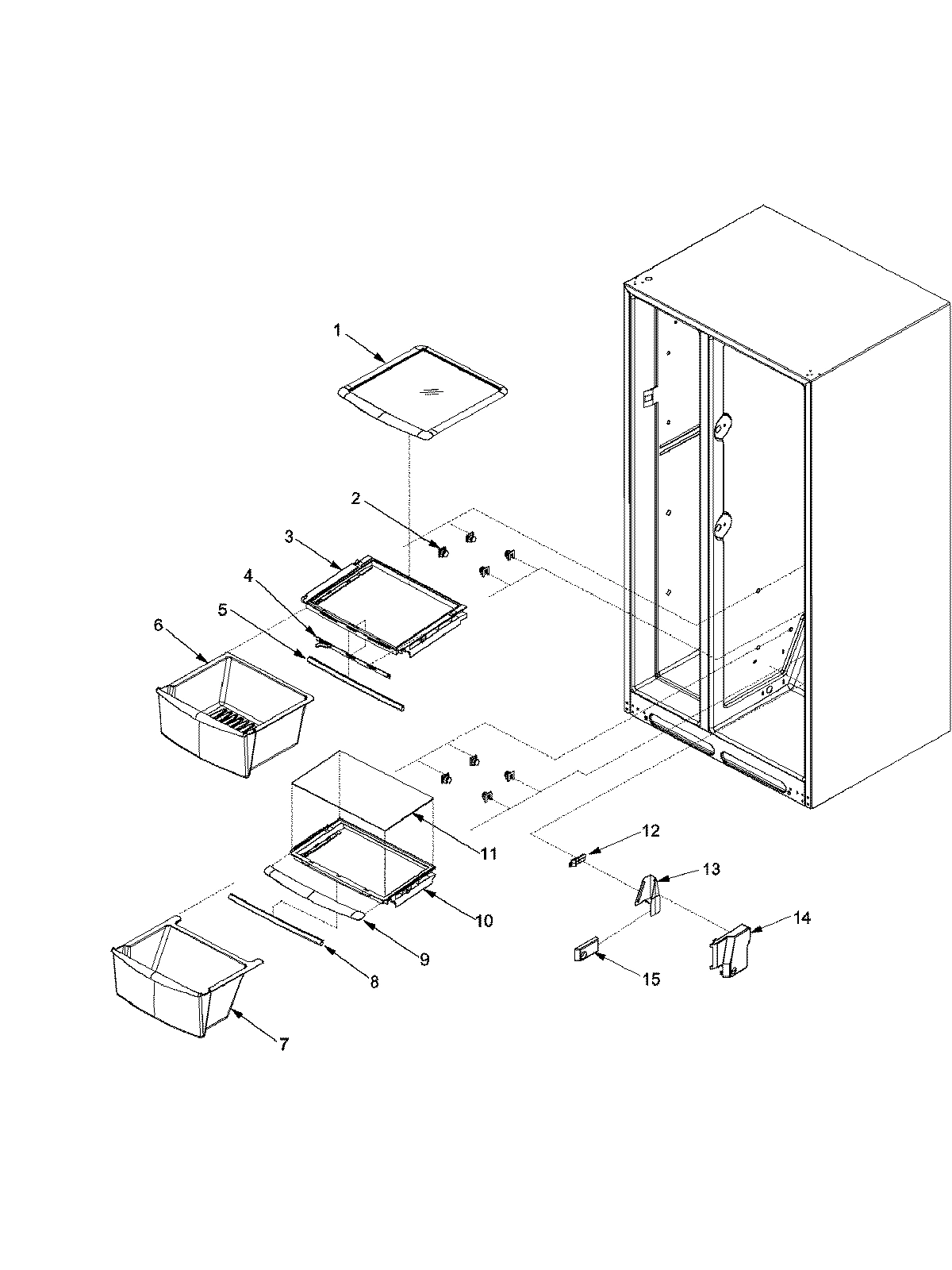

04 - CRISPER ASSY

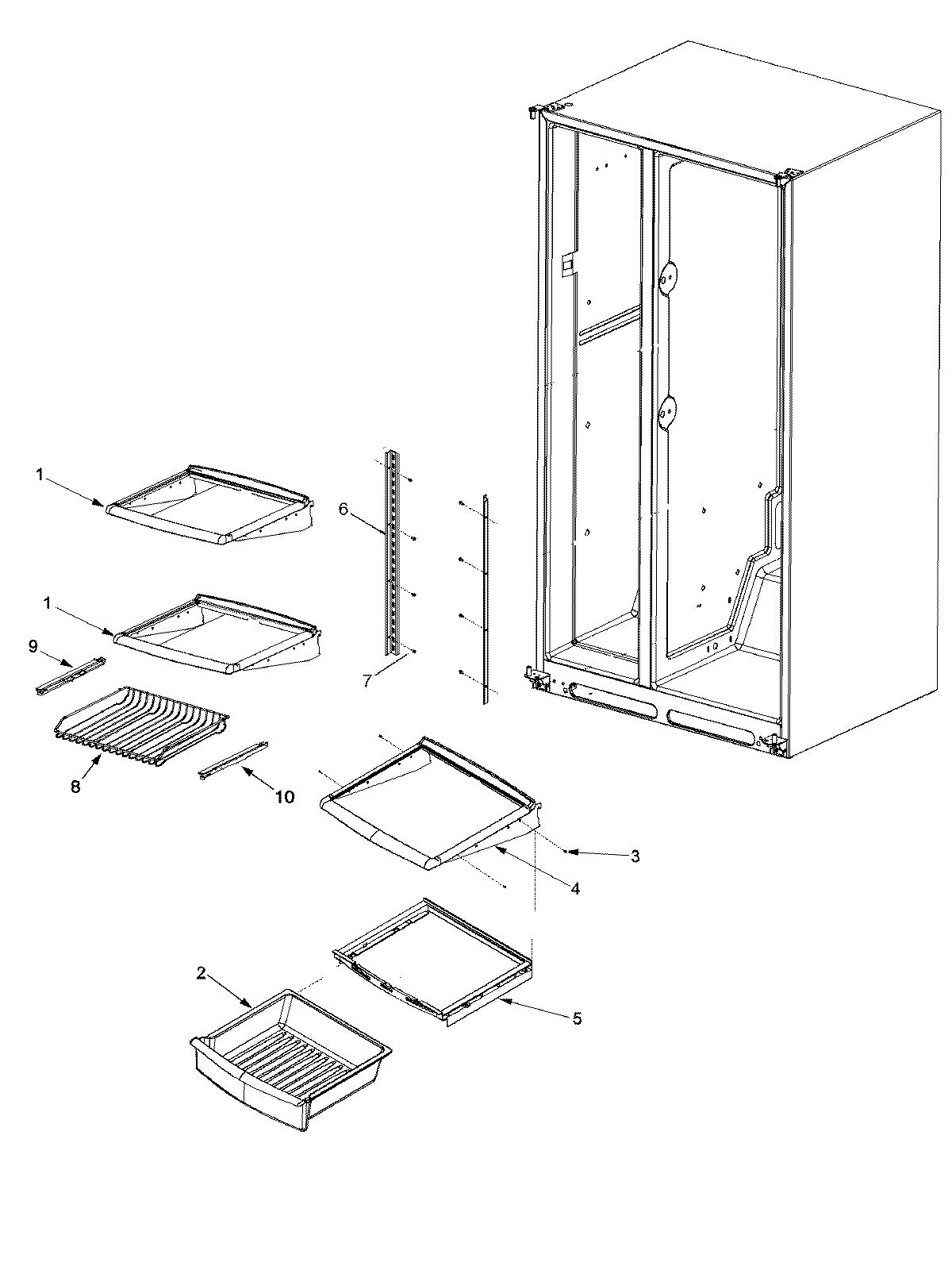

05 - DELI AND REF SHELF

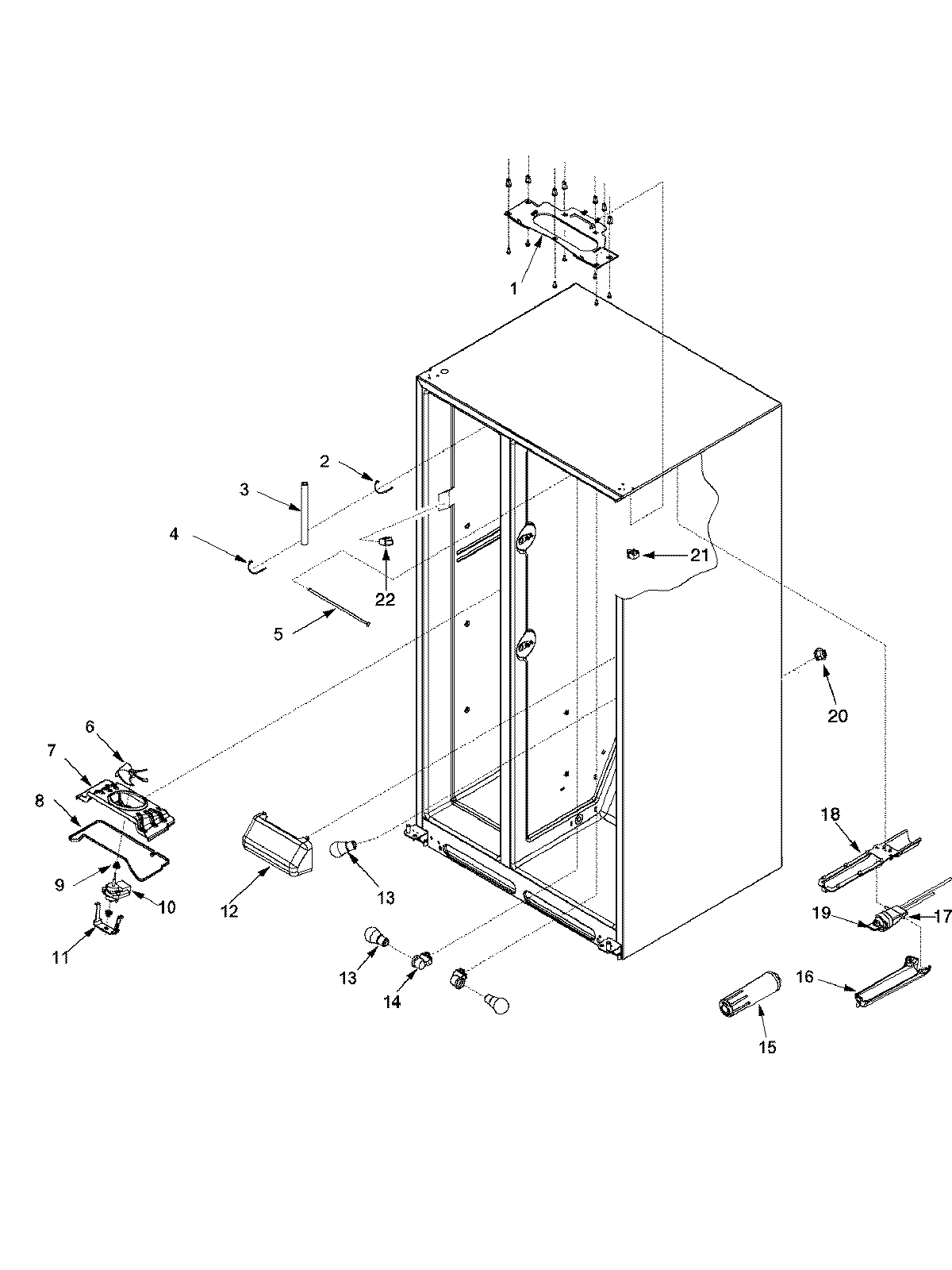

06 - EVAP FAN ASSY AND LIGHTS

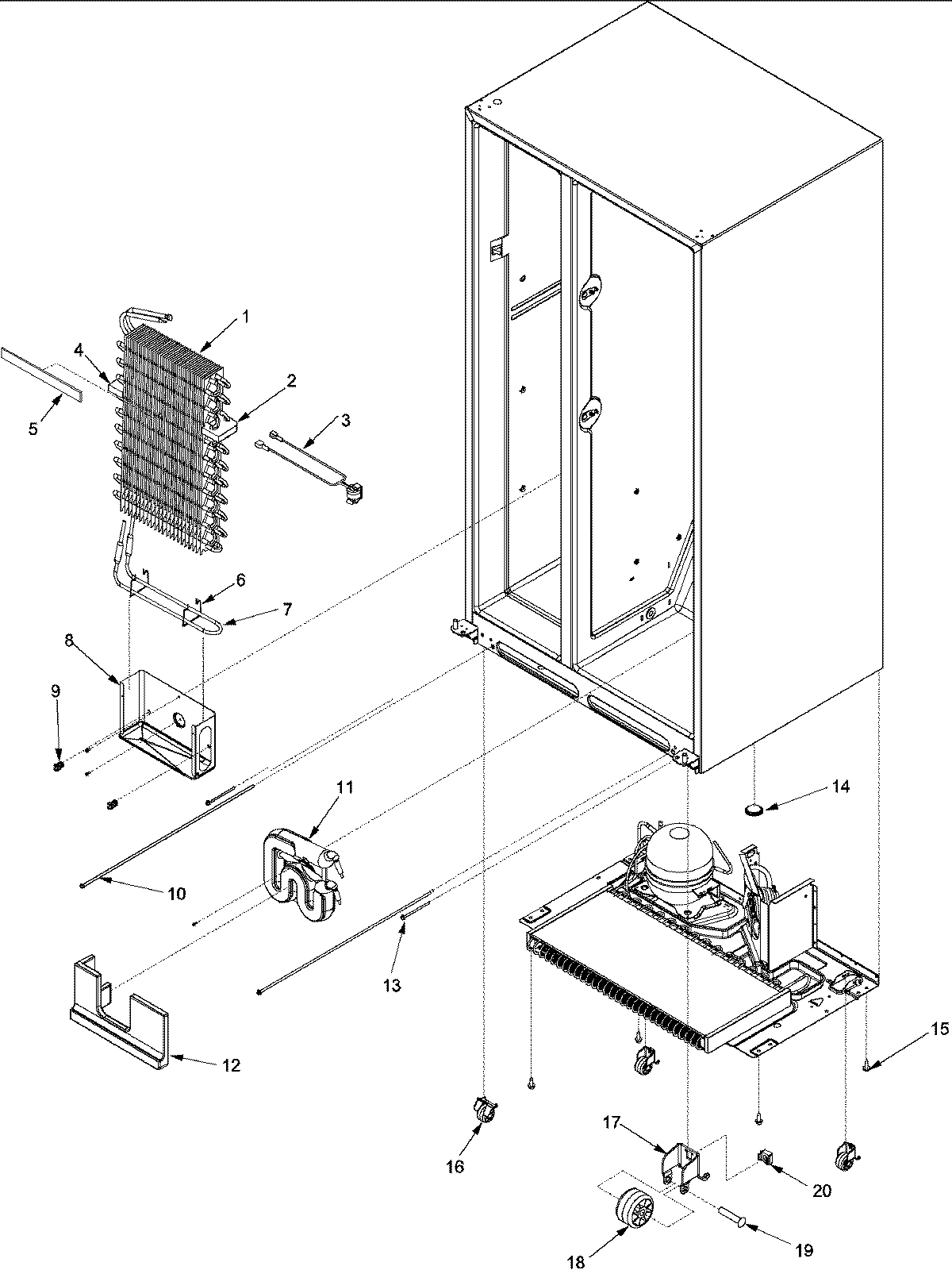

07 - EVAPORATOR ASSY AND ROLLERS

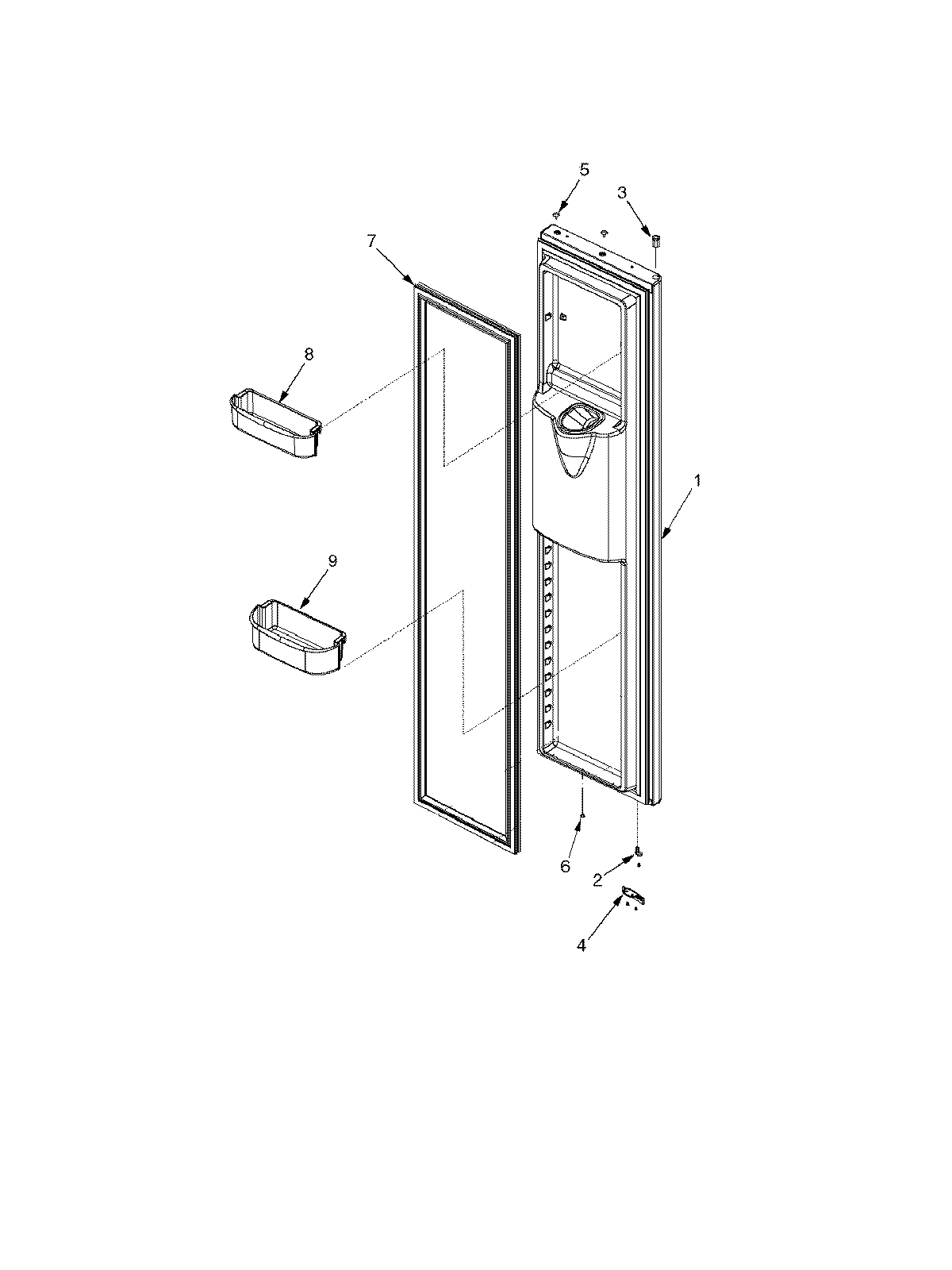

08 - FREEZER DOOR

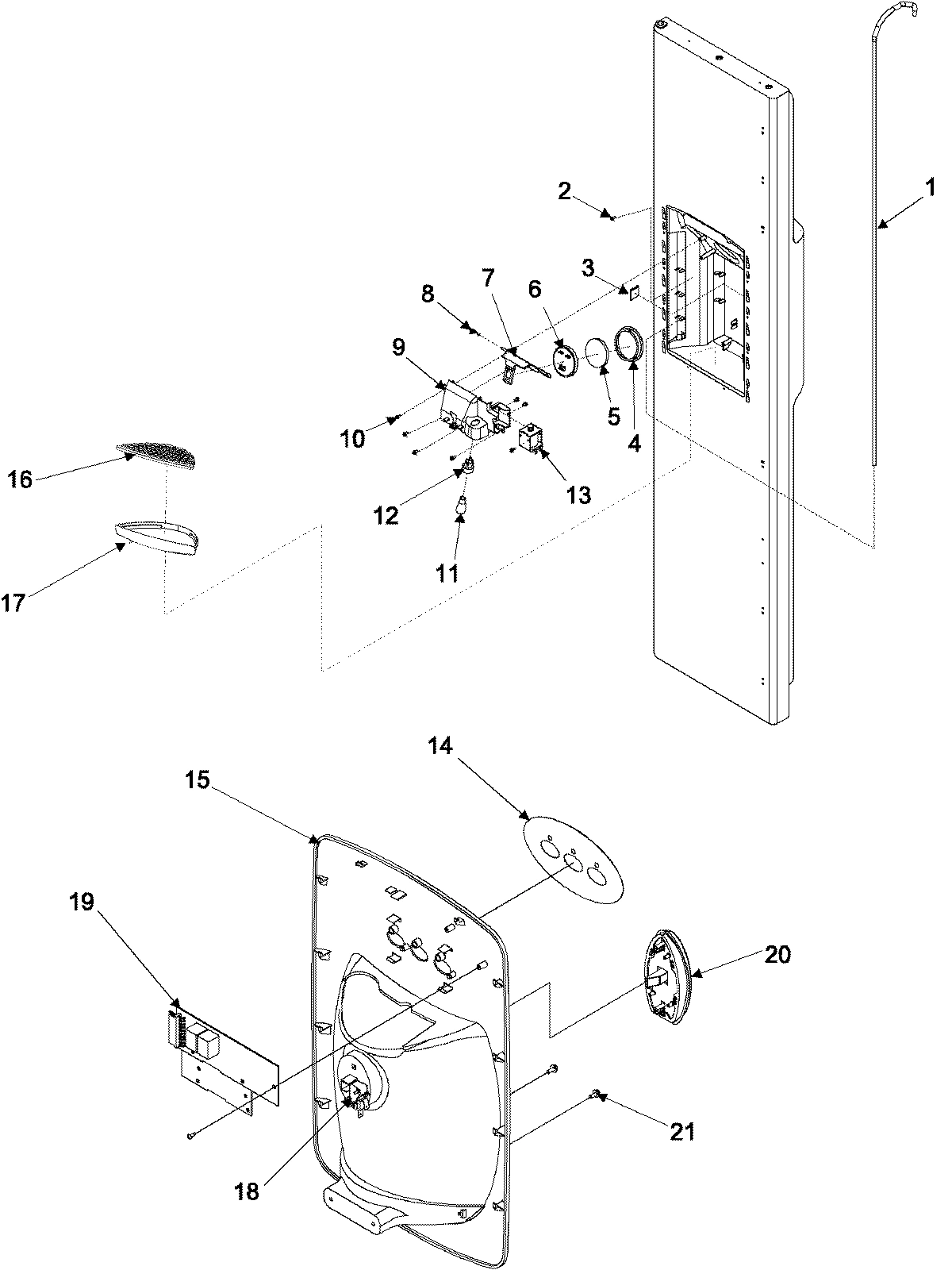

09 - FZ DOOR AND FACADE

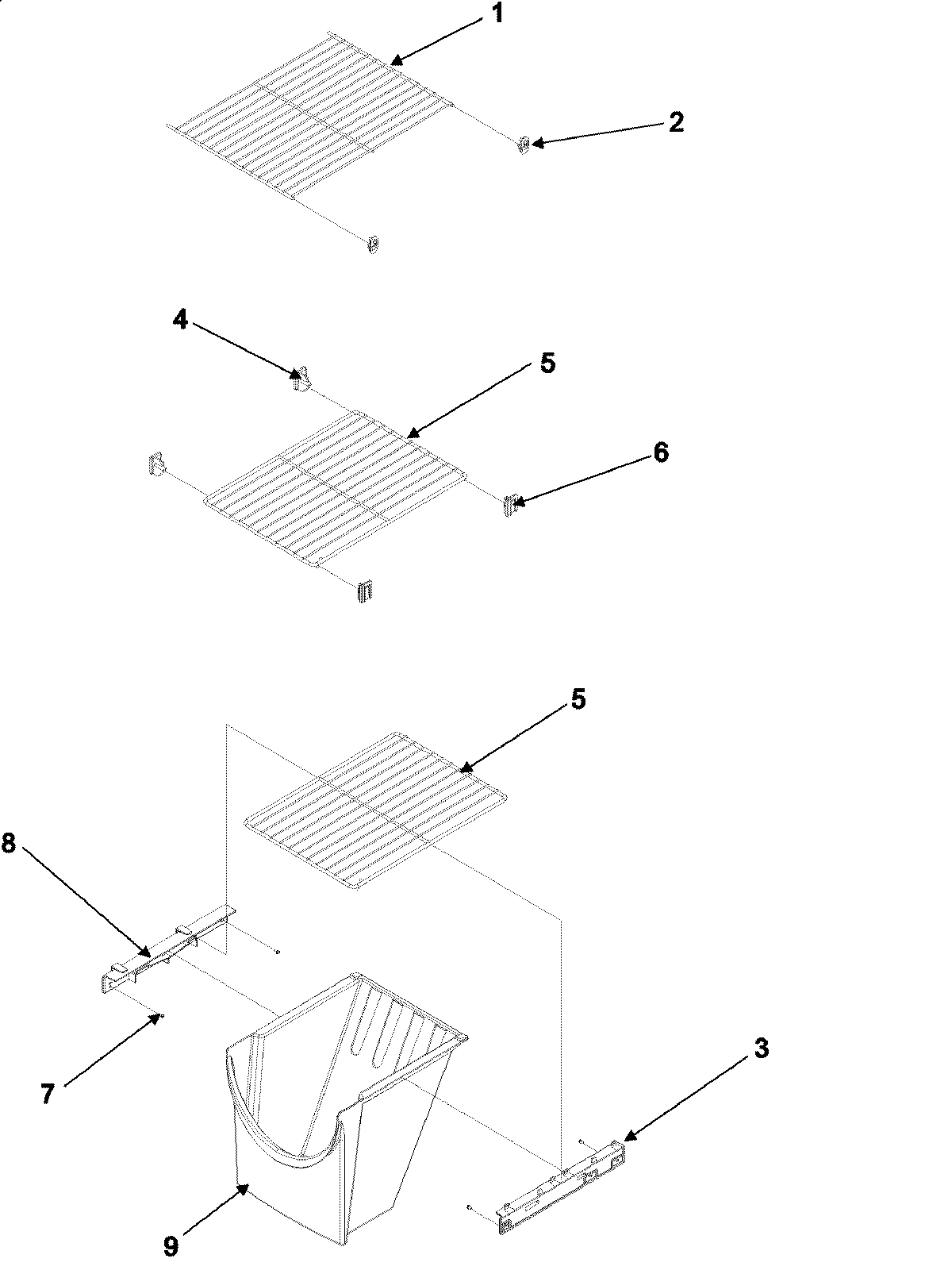

10 - FZ SHELF

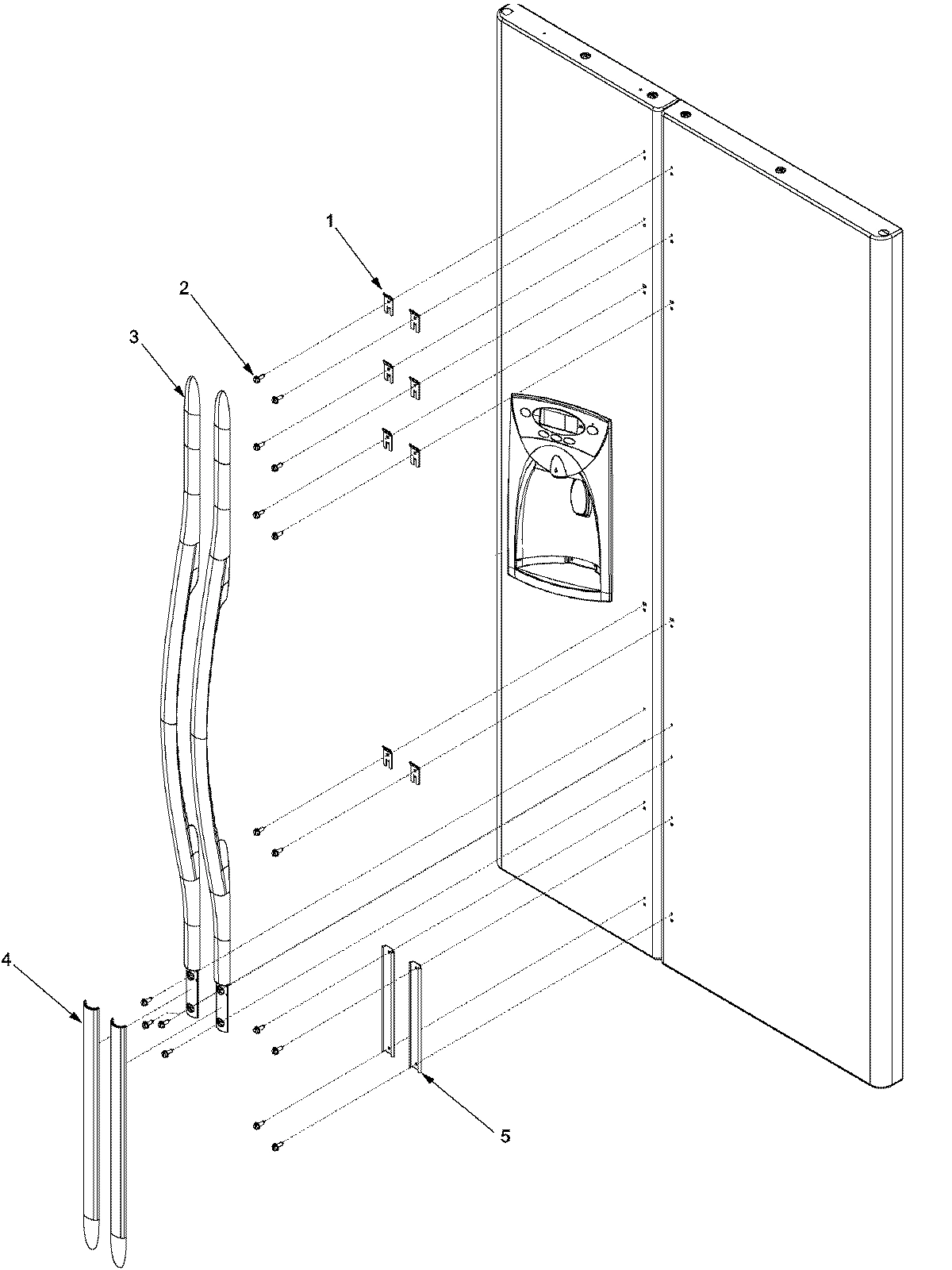

11 - HANDLES AND TRIM

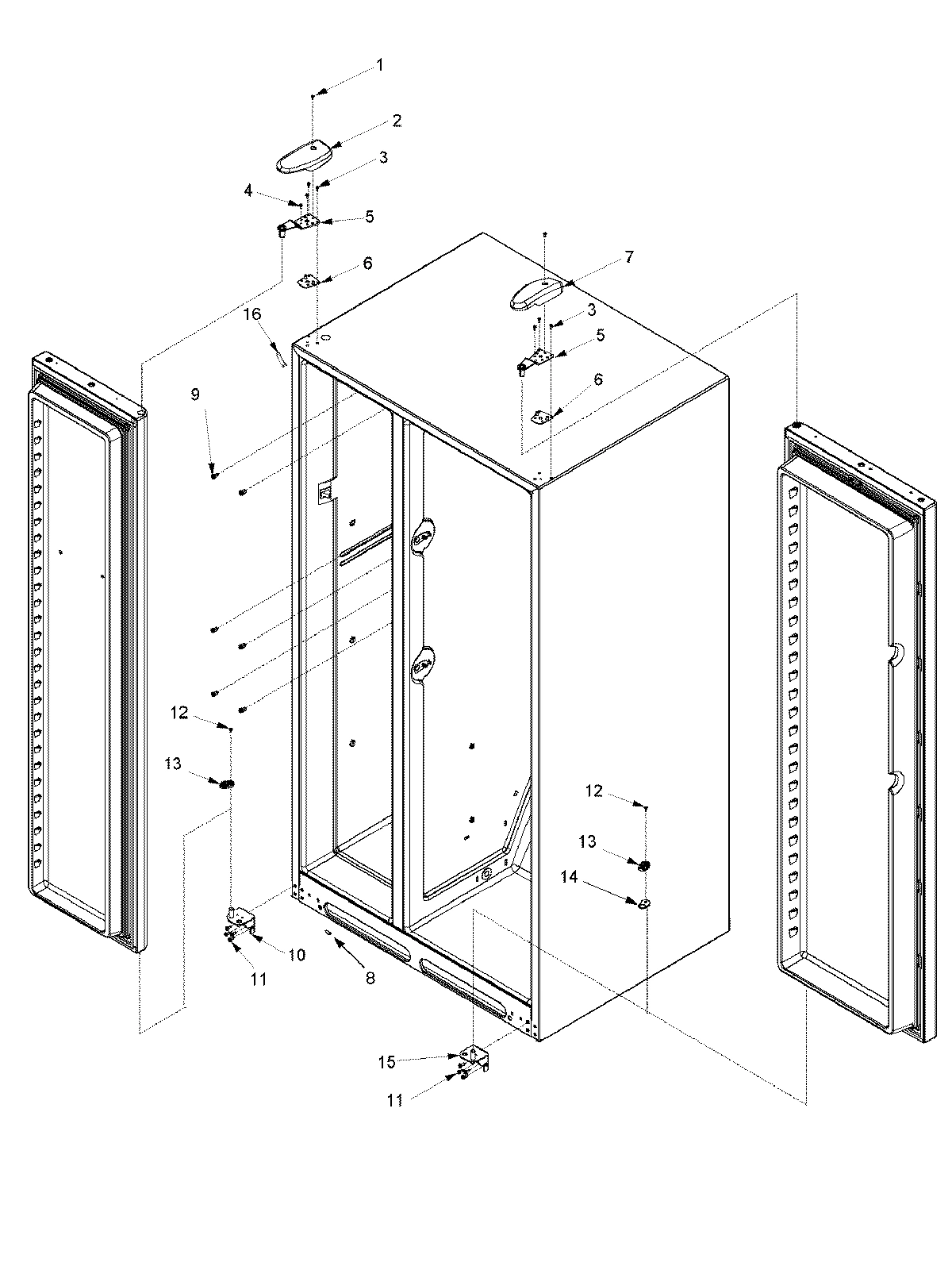

12 - HINGES

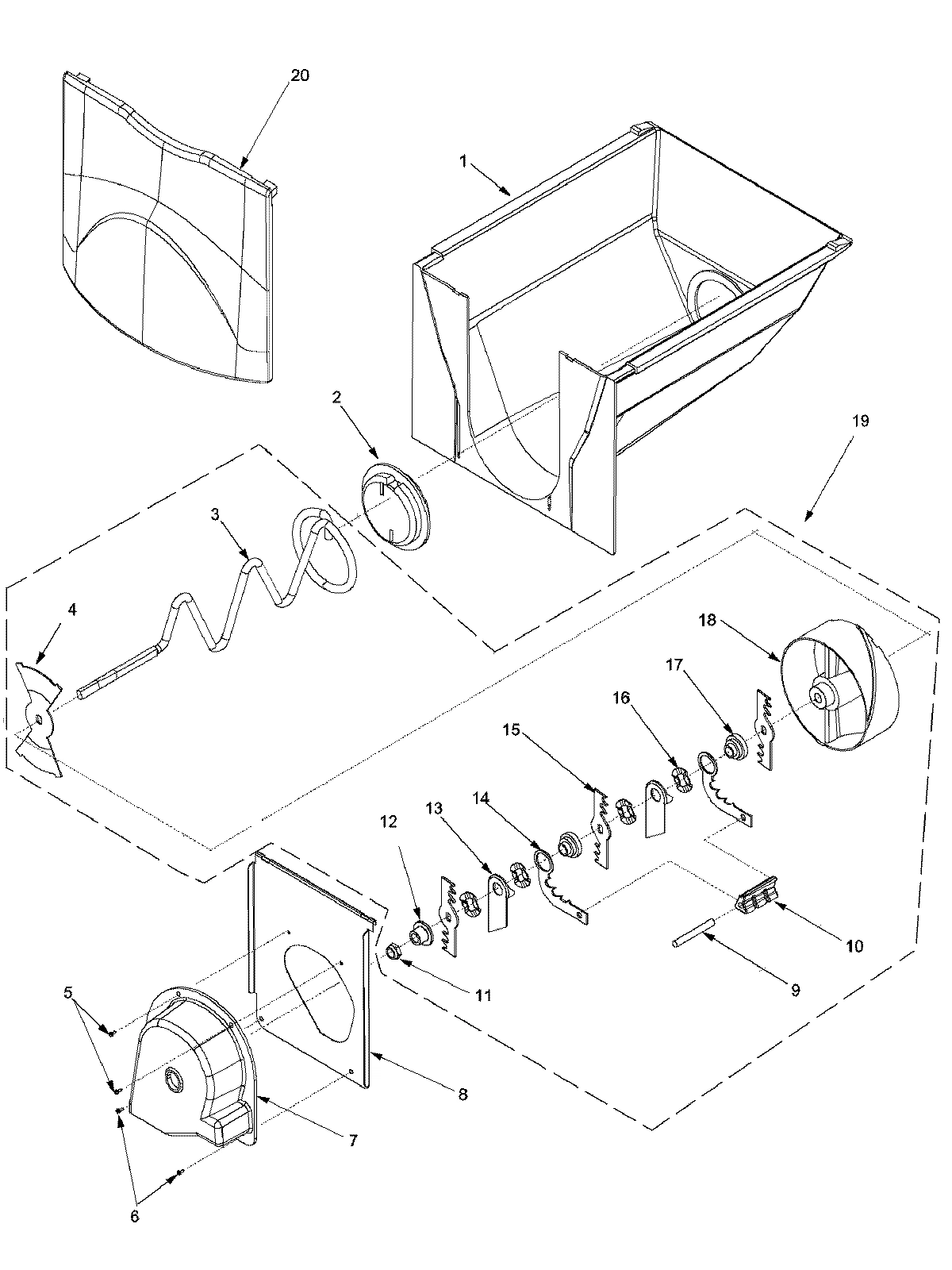

13 - ICE BUCKET ASSY
14 - ICE MAKER

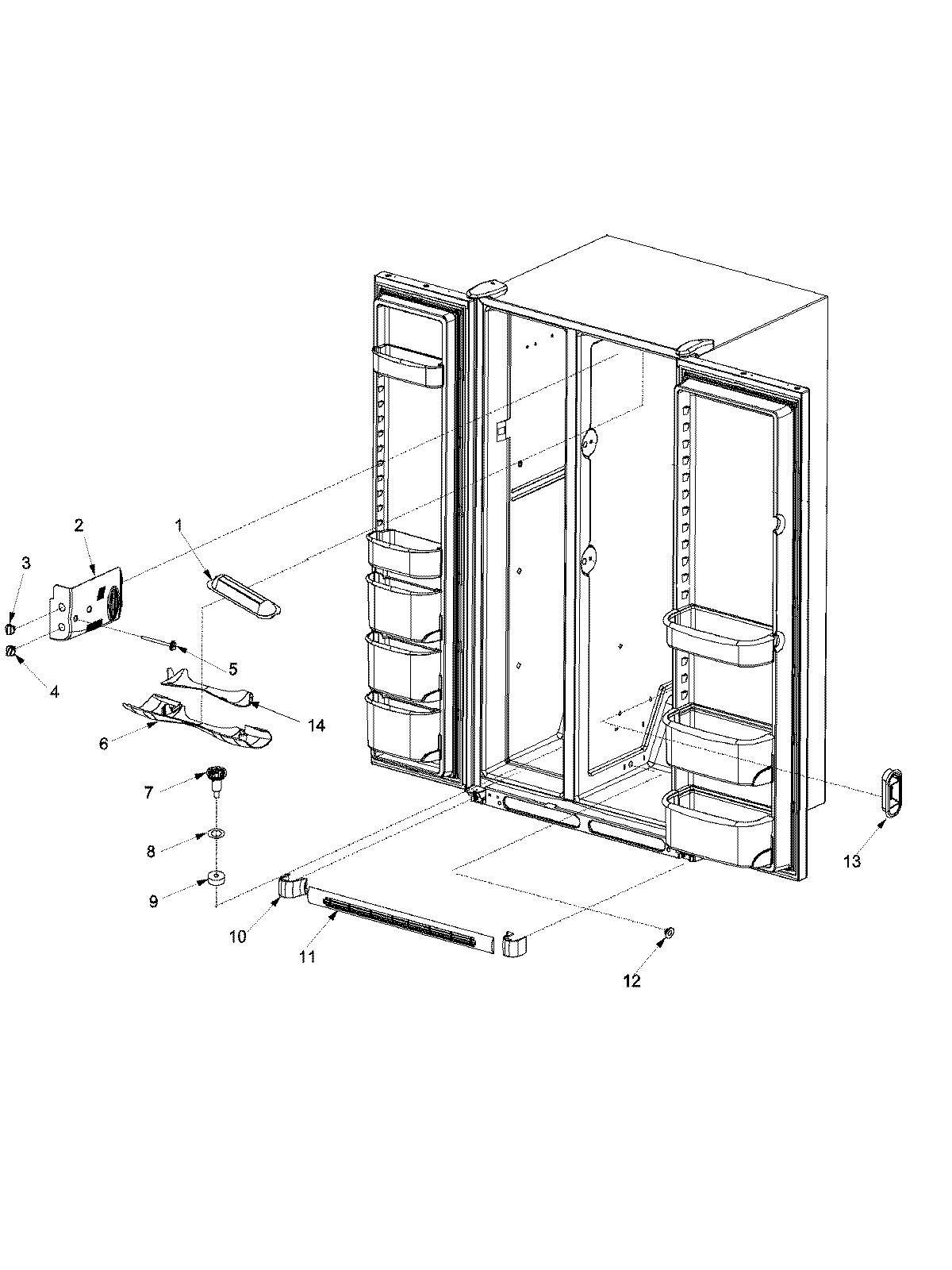

15 - LIGHT COVERS AND TOE GRILLE

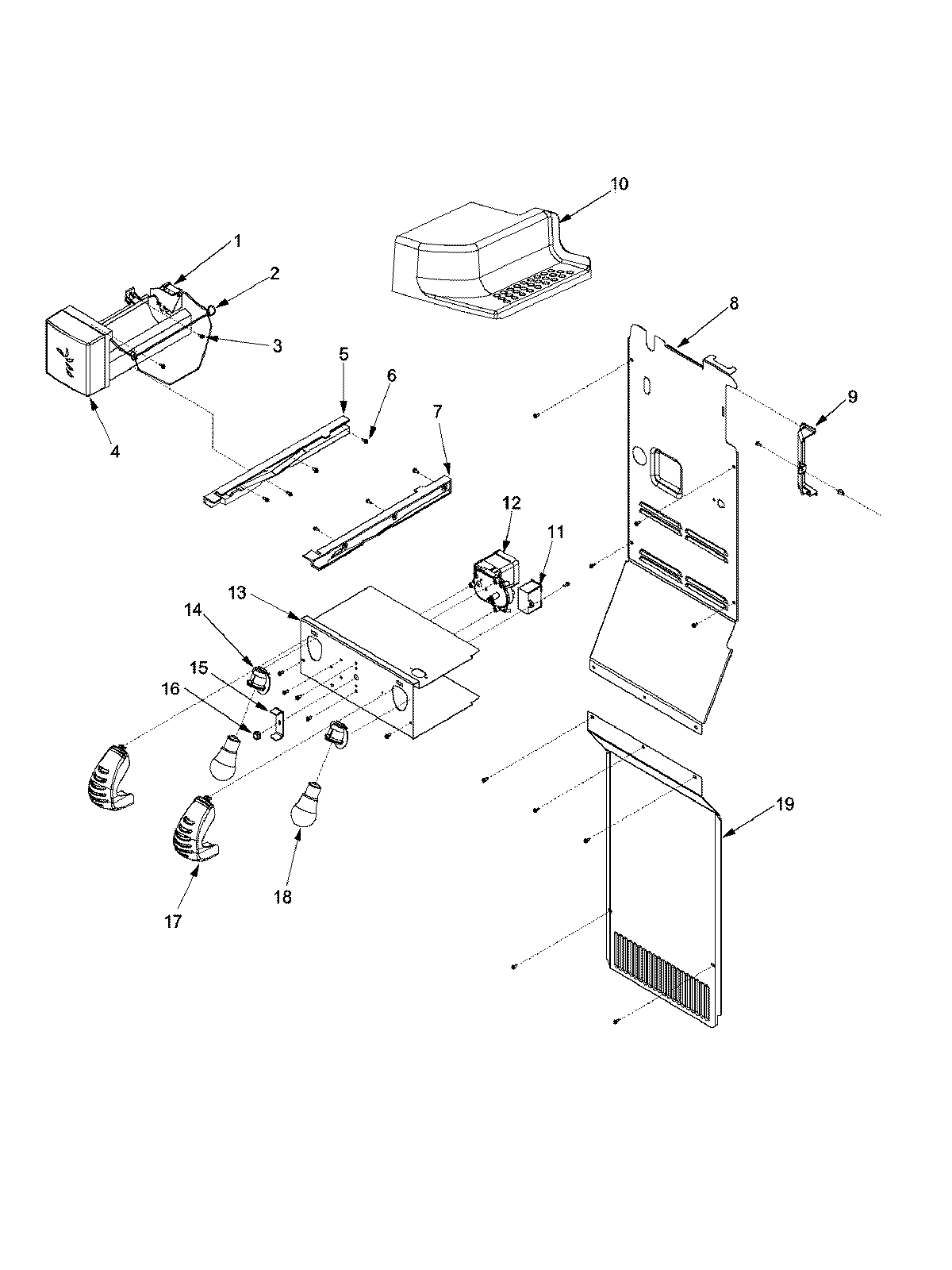

16 - LIGHTS AND ICE MAKER

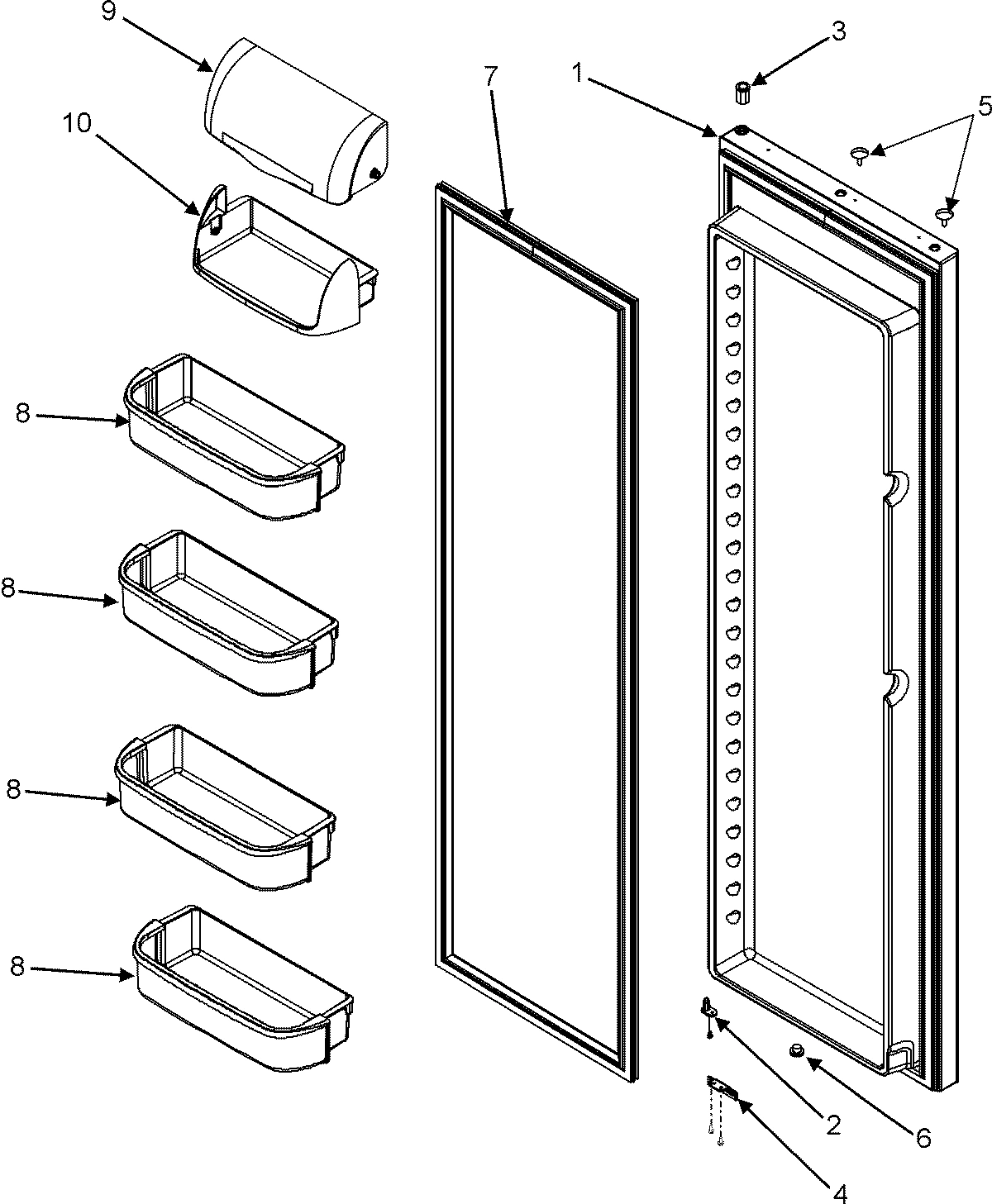

17 - REFRIGERATOR DOOR
18 - SUPPLEMENTAL INFORMATION

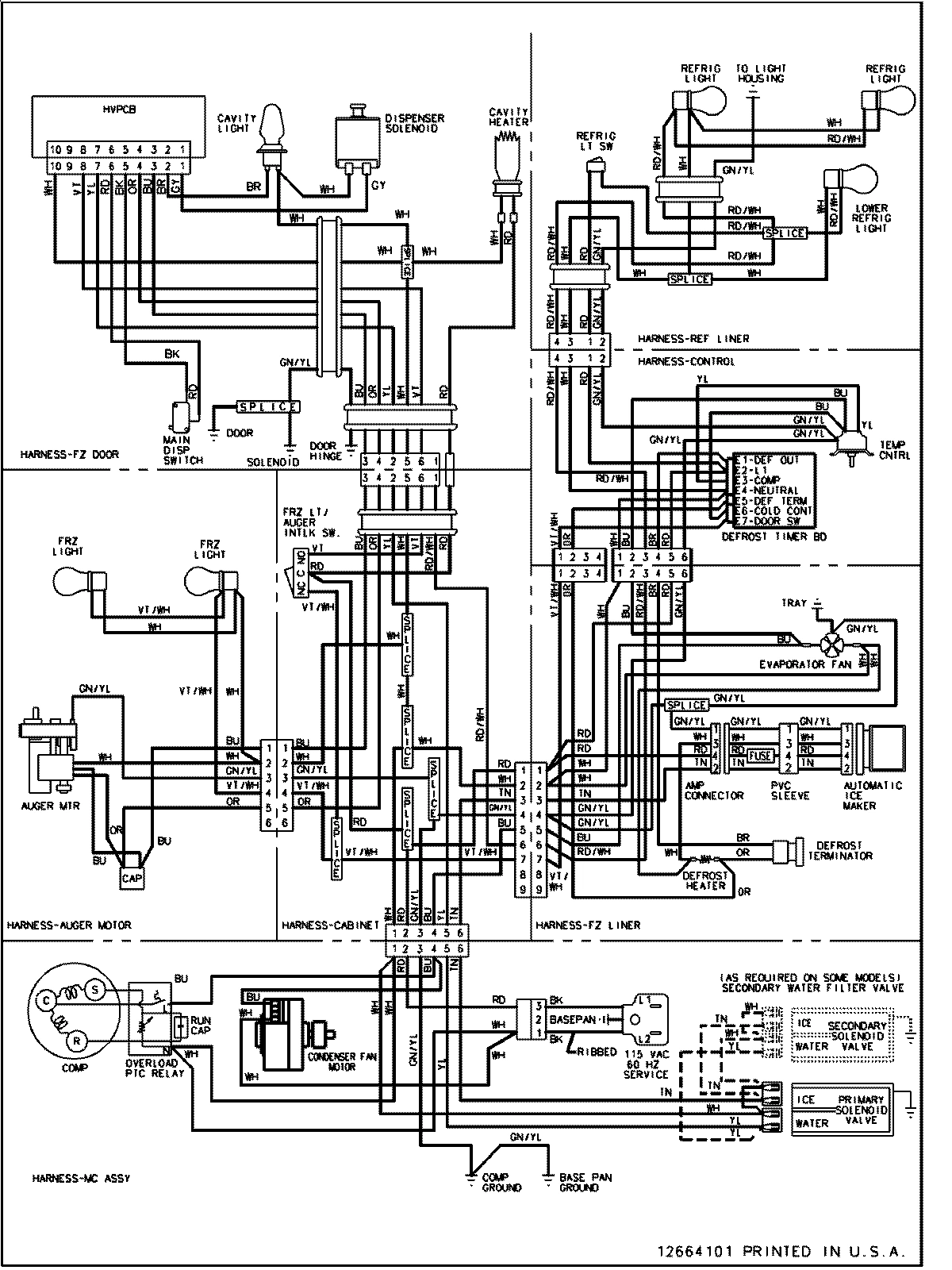

19 - WIRING INFORMATION
Common parts from model Maytag PSD265LGES REFRIGERATOR
1
MAY 10383201 MAY 10383201 Contact Us For Availability
1
MAY 12559701 MAY 12559701 Contact Us For Availability
1
MAY M0214931 MAY M0214931 Contact Us For Availability
1
MAY 12666201 MAY 12666201 Contact Us For Availability
1
MAY M0580007 MAY M0580007 Contact Us For Availability
1
MAY 67003285 MAY 67003285 Contact Us For Availability
1
MAY 12570601 MAY 12570601 Contact Us For Availability
1
MAY 12576403 MAY 12576403 Contact Us For Availability
1
MAY 67002825 MAY 67002825 Contact Us For Availability
1
MAY 12584706S MAY 12584706S Contact Us For Availability
1
MAY 12591319 MAY 12591319 Contact Us For Availability
2
MAY 67001505 MAY 67001505 Contact Us For Availability
2
MAY M0322202 MAY M0322202 Contact Us For Availability
2
BLOCK, AIR COIL (RT) MAY 12590102 Contact Us For Availability
2
MAY 12571301B MAY 12571301B Contact Us For Availability
2
MAY M0220432 MAY M0220432 Contact Us For Availability
2
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
2
COVER, TOP HINGE (LT-BLK) MAY 12684201B Contact Us For Availability
2
MAY D7749401 MAY D7749401 Contact Us For Availability
2
MAY 67003489 MAY 67003489 Contact Us For Availability
2
MAY 12671401 MAY 12671401 Contact Us For Availability
2
MAY 12113204 MAY 12113204 Contact Us For Availability
2
MAY 67003514 MAY 67003514 Contact Us For Availability
3
MAY M0104102 MAY M0104102 Contact Us For Availability
3
MAY 67003232 MAY 67003232 Contact Us For Availability
3
MAY 12571801 MAY 12571801 Contact Us For Availability
3
MAY 67002219 MAY 67002219 Contact Us For Availability
3
BUSHING, DOOR (BLK) MAY 12395501B Contact Us For Availability
3
MAY 12603201 MAY 12603201 Contact Us For Availability
3
MAY 67001657 MAY 67001657 Contact Us For Availability
3
MAY M0238731 MAY M0238731 Contact Us For Availability
3
MAY 10114401 MAY 10114401 Contact Us For Availability
3
MAY 12581102 MAY 12581102 Contact Us For Availability
3
MAY M0211019 MAY M0211019 Contact Us For Availability
3
MAY 10961002 MAY 10961002 Contact Us For Availability
3
MAY 67003520 MAY 67003520 Contact Us For Availability
4
MAY 12665101 MAY 12665101 Contact Us For Availability
4
MAY 12636401B MAY 12636401B Contact Us For Availability
4
MAY 67002981 MAY 67002981 Contact Us For Availability
4
MAY M0211018 MAY M0211018 Contact Us For Availability
4
MAY 12562601U MAY 12562601U Contact Us For Availability
4
MAY 67003183 MAY 67003183 Contact Us For Availability
4
MAY M0321210 MAY M0321210 Contact Us For Availability
4
BLOCK, AIR COIL (LT) MAY 12590101 Contact Us For Availability
4
MAY 12015002 MAY 12015002 Contact Us For Availability
4
MAY 12575901B MAY 12575901B Contact Us For Availability
4
BAR, CRSH ICE BUCKET MAY 10113801 Contact Us For Availability
4
MAY 12581101 MAY 12581101 Contact Us For Availability
4
COVER, ICE MAKER MAY 12582501 Contact Us For Availability
5
MAY M0216539 MAY M0216539 Contact Us For Availability
5
MAY 67002900 MAY 67002900 Contact Us For Availability
5
MAY 12617601 MAY 12617601 Contact Us For Availability
5
MAY 67002226 MAY 67002226 Contact Us For Availability
5
MAY M0311607 MAY M0311607 Contact Us For Availability
5
MAY 12563401 MAY 12563401 Contact Us For Availability
5
MAY 12570501 MAY 12570501 Contact Us For Availability
5
MAY 12273808 MAY 12273808 Contact Us For Availability
5
MAY M0231704 MAY M0231704 Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
5
MAY 95108-1 MAY 95108-1 Contact Us For Availability
5
MAY M0231426 MAY M0231426 Contact Us For Availability
6
MAY 12624801 MAY 12624801 Contact Us For Availability
6
MAY 67001178 MAY 67001178 Contact Us For Availability
6
MAY 12217201 MAY 12217201 Contact Us For Availability
6
MAY A3080001 MAY A3080001 Contact Us For Availability
6
SCREW, SM MAY M0238642 Contact Us For Availability
6
MAY 10941102 MAY 10941102 Contact Us For Availability
6
MAY 12695601 MAY 12695601 Contact Us For Availability
6
MAY 12602910 MAY 12602910 Contact Us For Availability
7
MAY 67002271 MAY 67002271 Contact Us For Availability
7
MAY 12582801 MAY 12582801 Contact Us For Availability
7
MAY M0211016 MAY M0211016 Contact Us For Availability
7
MAY 12590001 MAY 12590001 Contact Us For Availability
7
MAY 12049801 MAY 12049801 Contact Us For Availability
7
MAY 12563201 MAY 12563201 Contact Us For Availability
7
COVER, TOP HINGE (RT-BLK) MAY 12684202B Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
7
MAY 12456901 MAY 12456901 Contact Us For Availability
7
MAY D7849907 MAY D7849907 Contact Us For Availability
8
MAY 10115001 MAY 10115001 Contact Us For Availability
8
MAY 12571701 MAY 12571701 Contact Us For Availability
8
MAY 12589104 MAY 12589104 Contact Us For Availability
8
MAY 12565901 MAY 12565901 Contact Us For Availability
8
MAY 67001508 MAY 67001508 Contact Us For Availability
8
TRAY, EVAP DRIP MAY 12558101WD Contact Us For Availability
8
MAY M0224416 MAY M0224416 Contact Us For Availability
8
MAY 12556901 MAY 12556901 Contact Us For Availability
8
MAY 12603101 MAY 12603101 Contact Us For Availability
8
SEAL, O RING MAY M0500703 Contact Us For Availability
8
MAY 12403304 MAY 12403304 Contact Us For Availability
9
GROMMET, SCREW MAY M0580205 Contact Us For Availability
9
MAY 12604201 MAY 12604201 Contact Us For Availability
9
MAY 12562301 MAY 12562301 Contact Us For Availability
9
MAY 12579602 MAY 12579602 Contact Us For Availability
9
MAY 12619301 MAY 12619301 Contact Us For Availability
9
MAY 10623003 MAY 10623003 Contact Us For Availability
9
MAY 12557501 MAY 12557501 Contact Us For Availability
9
MAY 12663301 MAY 12663301 Contact Us For Availability
9
MAY 12596501 MAY 12596501 Contact Us For Availability
9
MAY M0581003 MAY M0581003 Contact Us For Availability
9
MAY M1200108 MAY M1200108 Contact Us For Availability
9
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
9
MAY 12583101 MAY 12583101 Contact Us For Availability
9
MAY 67001325 MAY 67001325 Contact Us For Availability
10
COVER, LWR HINGE (BLK) MAY 12561901B Contact Us For Availability
10
MAY 12582901 MAY 12582901 Contact Us For Availability
10
MAY 67002822 MAY 67002822 Contact Us For Availability
10
MAY 12579601 MAY 12579601 Contact Us For Availability
10
MAY 10093313 MAY 10093313 Contact Us For Availability
10
MAY 12570905ED MAY 12570905ED Contact Us For Availability
10
MAY 10114101 MAY 10114101 Contact Us For Availability
10
MAY 12582102 MAY 12582102 Contact Us For Availability
10
MAY 67002304 MAY 67002304 Contact Us For Availability
11
MAY 12627302 MAY 12627302 Contact Us For Availability
11
MAY 12624901 MAY 12624901 Contact Us For Availability
11
MAY 12204811 MAY 12204811 Contact Us For Availability
11
MAY 67003490 MAY 67003490 Contact Us For Availability
11
MAY 12217805 MAY 12217805 Contact Us For Availability
11
MAY 67003184 MAY 67003184 Contact Us For Availability
11
MAY M0241508 MAY M0241508 Contact Us For Availability
11
CAPACITOR MAY C8931612 Contact Us For Availability
12
MAY 67001512 MAY 67001512 Contact Us For Availability
12
MAY 12586201U MAY 12586201U Contact Us For Availability
12
SHIELD, CRISPER LIGHT MAY 67001507 Contact Us For Availability
12
MAY 67002275 MAY 67002275 Contact Us For Availability
12
MAY 12617501 MAY 12617501 Contact Us For Availability
12
MAY M0220431 MAY M0220431 Contact Us For Availability
12
MAY 10113901 MAY 10113901 Contact Us For Availability
12
MAY 67003018 MAY 67003018 Contact Us For Availability
12
MAY M0226528 MAY M0226528 Contact Us For Availability
12
MAY 67002789 MAY 67002789 Contact Us For Availability
13
MAY 12576801 MAY 12576801 Contact Us For Availability
13
MAY 12351006 MAY 12351006 Contact Us For Availability
13
MAY 12586101 MAY 12586101 Contact Us For Availability
13
MAY 12575401 MAY 12575401 Contact Us For Availability
13
MAY 12431302 MAY 12431302 Contact Us For Availability
13
MAY 10275201 MAY 10275201 Contact Us For Availability
13
MAY 12634801 MAY 12634801 Contact Us For Availability
13
MAY 12561701 MAY 12561701 Contact Us For Availability
14
BLOCK-EPS COND MAY 67002235 Contact Us For Availability
14
MAY 12586001 MAY 12586001 Contact Us For Availability
14
MAY 12679501 MAY 12679501 Contact Us For Availability
14
MAY Y12570701 MAY Y12570701 Contact Us For Availability
14
MAY 67003488 MAY 67003488 Contact Us For Availability
14
MAY 10361806 MAY 10361806 Contact Us For Availability
14
MAY 10114601 MAY 10114601 Contact Us For Availability
15
MAY 67003195 MAY 67003195 Contact Us For Availability
15
MAY 12672901 MAY 12672901 Contact Us For Availability
15
MAY 12664201 MAY 12664201 Contact Us For Availability
15
MAY 67001510 MAY 67001510 Contact Us For Availability
15
MAY 67002773 MAY 67002773 Contact Us For Availability
15
MAY 12570906ED MAY 12570906ED Contact Us For Availability
15
BLADE, ROTATING MAY 10114501 Contact Us For Availability
15
DRIVER (ICE MAKER) MAY 10114901 Contact Us For Availability
16
SHROUD, CONDENSER FAN MAY 67001090 Contact Us For Availability
16
MAY 67002908 MAY 67002908 Contact Us For Availability
16
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
16
MAY 12593901B MAY 12593901B Contact Us For Availability
16
MAY 12587702B MAY 12587702B Contact Us For Availability
16
WASHER, WAVED MAY 10275101 Contact Us For Availability
17
MAY 67002909 MAY 67002909 Contact Us For Availability
17
MAY 67002378 MAY 67002378 Contact Us For Availability
17
MAY 12593801B MAY 12593801B Contact Us For Availability
17
WASHER STEPPED MAY 10114301 Contact Us For Availability
17
MAY 12583001 MAY 12583001 Contact Us For Availability
18
WHEEL, CRSH ICE MAY 67002052 Contact Us For Availability
18
MAY 12628801 MAY 12628801 Contact Us For Availability
18
MAY A0282803 MAY A0282803 Contact Us For Availability
18
MAY 12688501 MAY 12688501 Contact Us For Availability
18
MAY 10450602 MAY 10450602 Contact Us For Availability
19
MAY M0238616 MAY M0238616 Contact Us For Availability
19
MAY 67003146 MAY 67003146 Contact Us For Availability
19
MAY M1205302 MAY M1205302 Contact Us For Availability
19
MAY 12559203 MAY 12559203 Contact Us For Availability
19
MAY R0156803 MAY R0156803 Contact Us For Availability
19
MAY 12403401 MAY 12403401 Contact Us For Availability
20
MAY 12571606 MAY 12571606 Contact Us For Availability
20
MAY 12628701 MAY 12628701 Contact Us For Availability
20
MAY M0286708 MAY M0286708 Contact Us For Availability
20
MAY 12593203B MAY 12593203B Contact Us For Availability
21
MAY 67003096 MAY 67003096 Contact Us For Availability
22
MAY 67002808 MAY 67002808 Contact Us For Availability
22
SWITCH, LIGHT MAY 12466103 Contact Us For Availability
NI
MAY 15003291 MAY 15003291 Contact Us For Availability
× ![]()
