Model Electrolux PLEB27T8ACA WALL OVEN – Common Parts & Diagrams

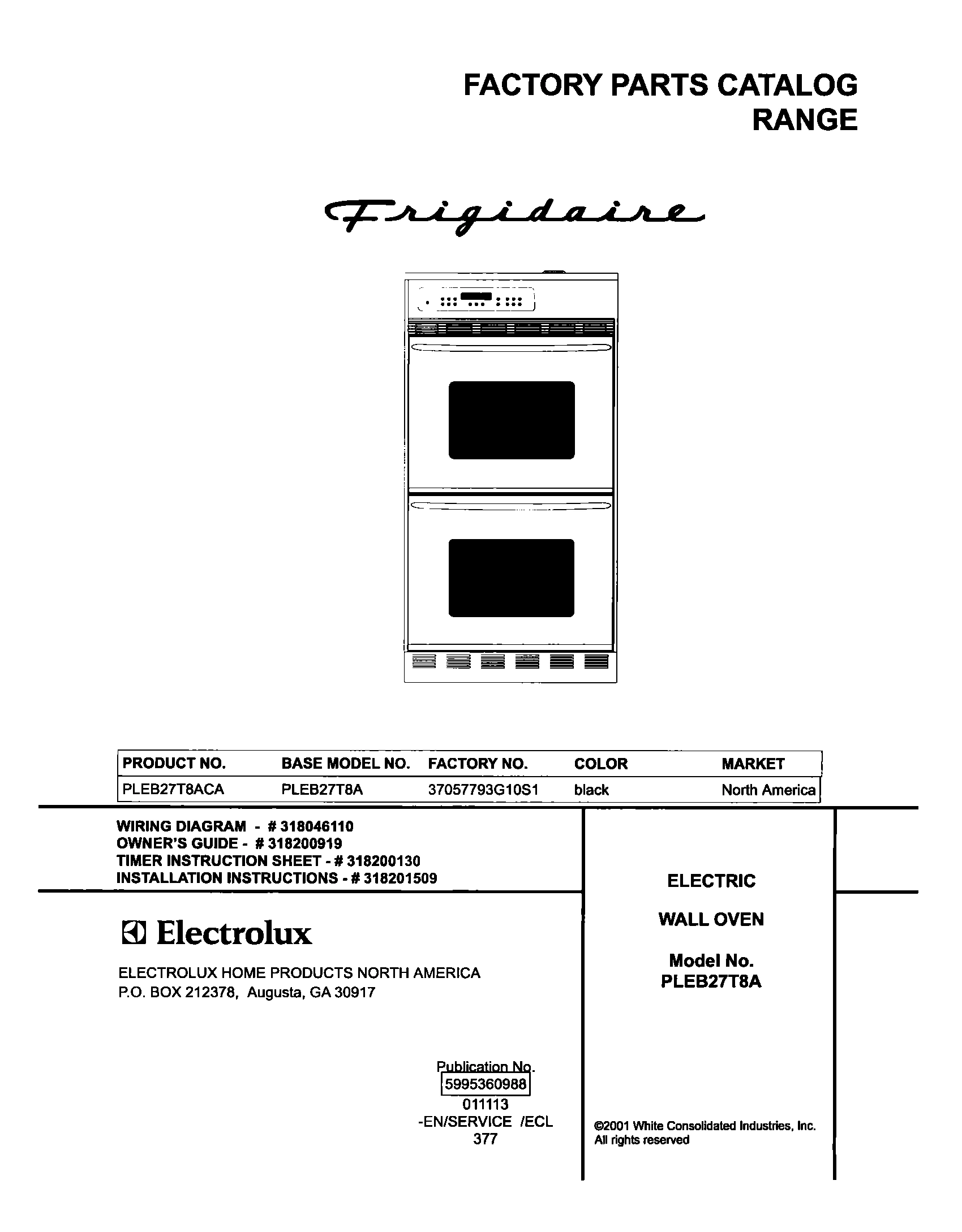

01 - COVER
03 - CONTROL PANEL

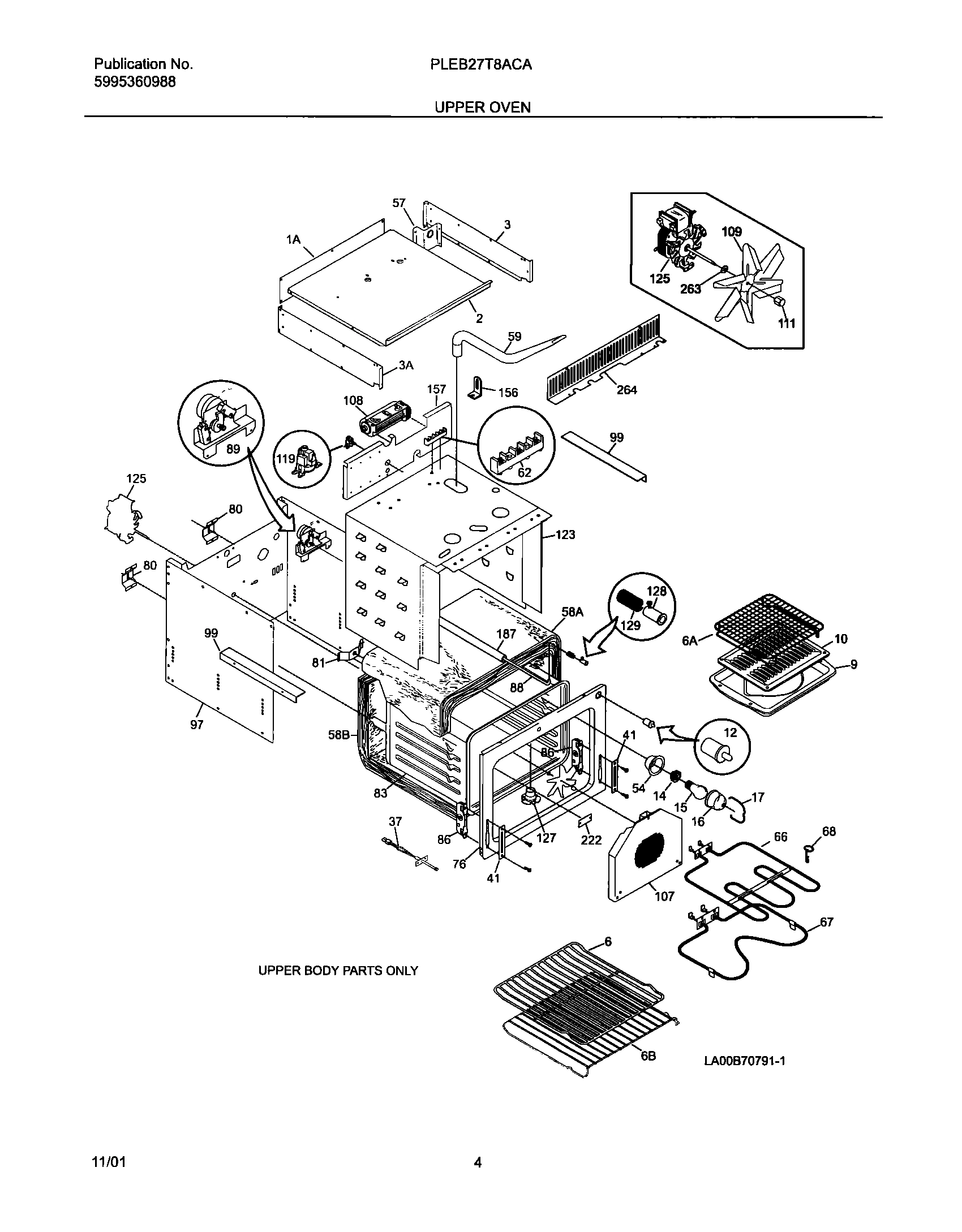

05 - UPPER OVEN

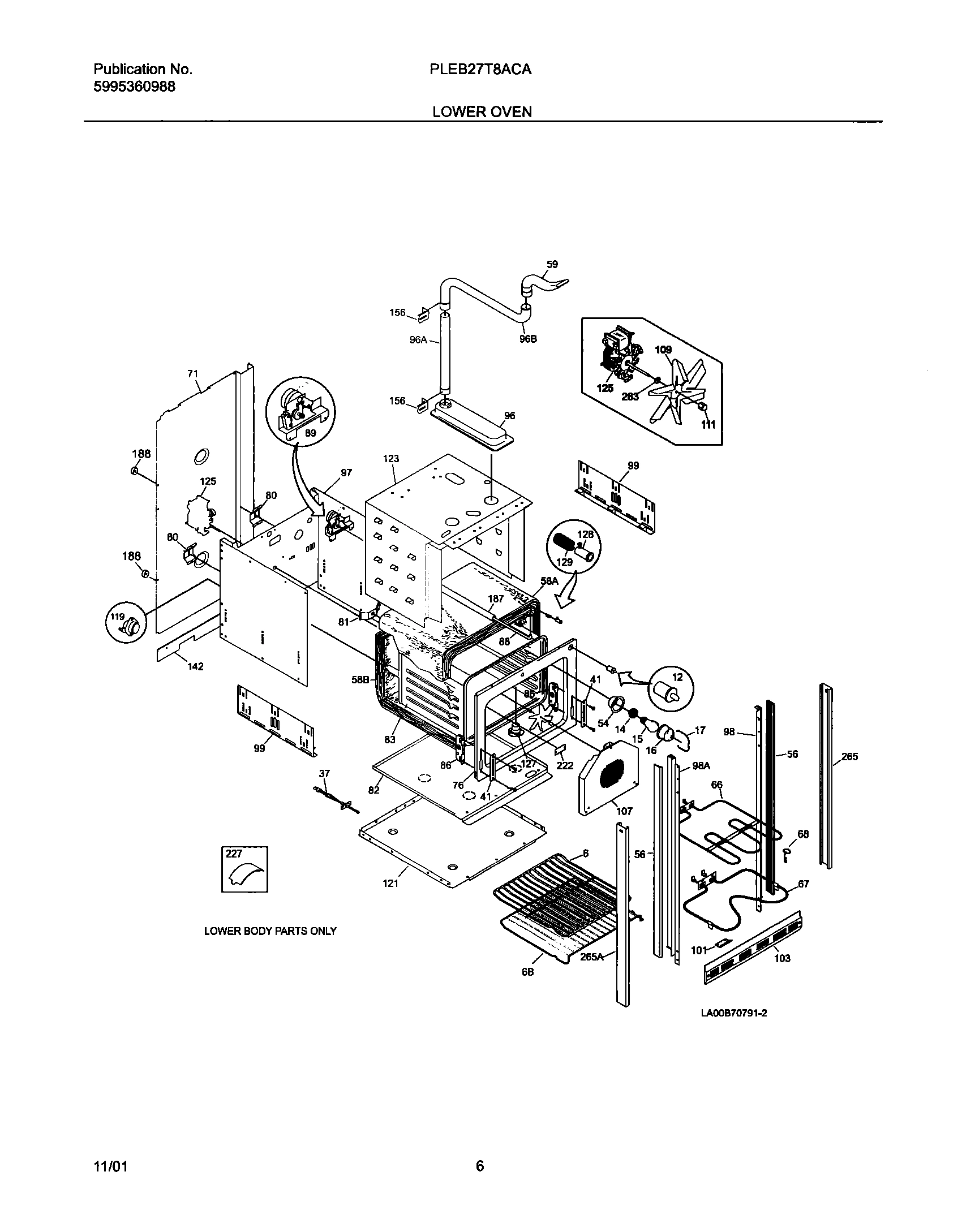

07 - LOWER OVEN

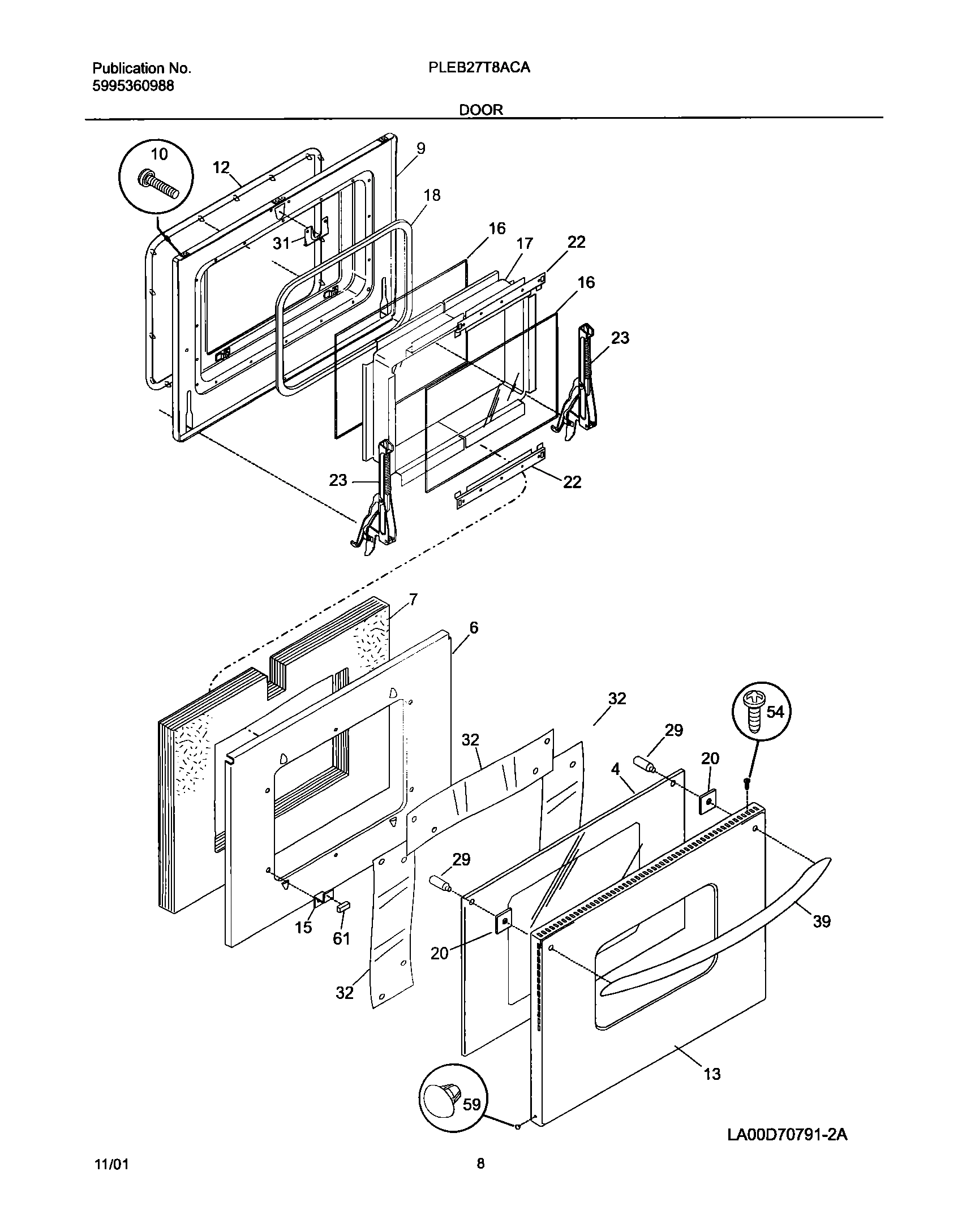

09 - DOOR

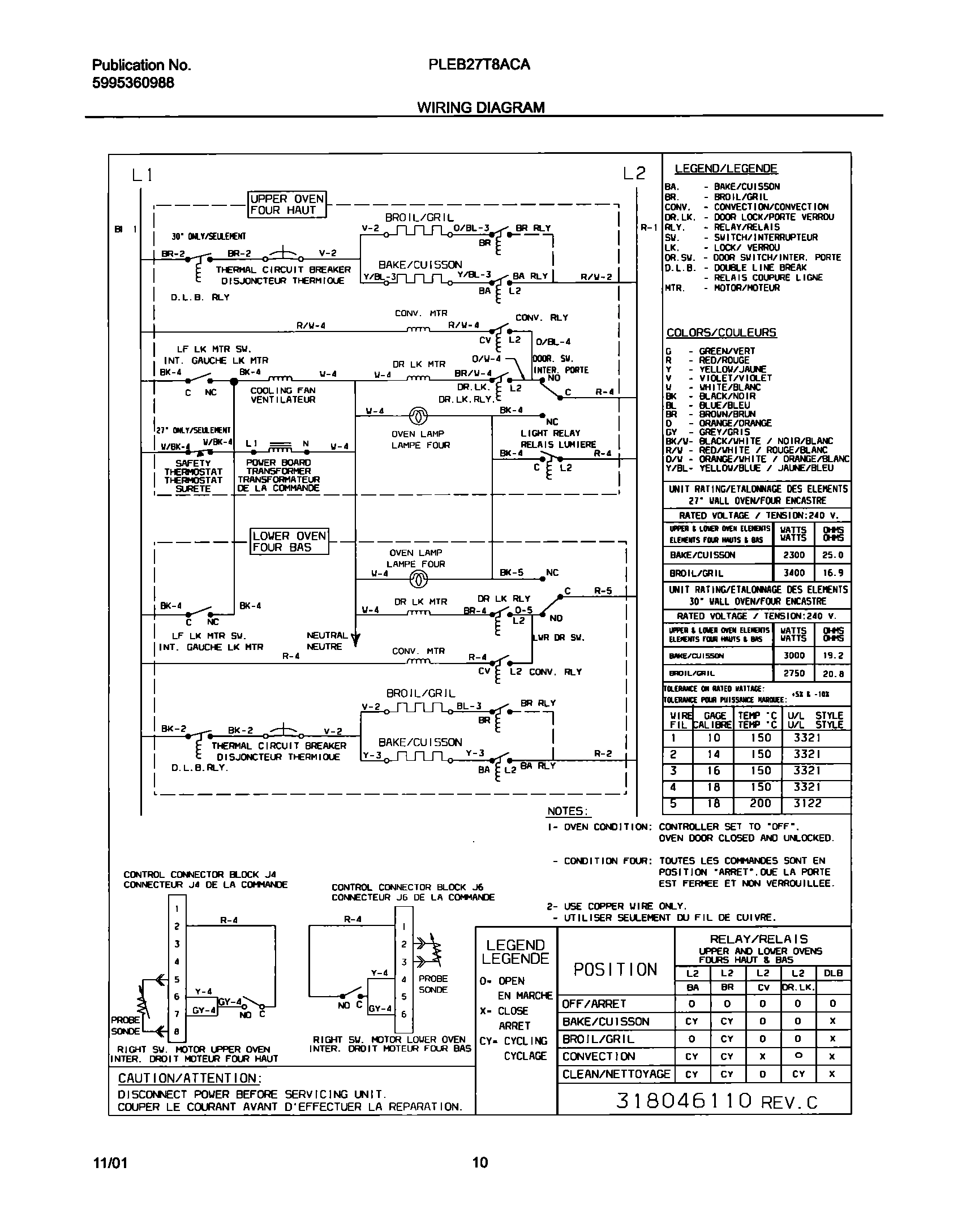

10 - WIRING DIAGRAM
Common parts from model Electrolux PLEB27T8ACA WALL OVEN
4
WCI 318210701 WCI 318210701 Contact Us For Availability
6
WCI 318025300 WCI 318025300 Contact Us For Availability
6
WCI 318073500 WCI 318073500 Contact Us For Availability
6B
WCI 318025200 WCI 318025200 Contact Us For Availability
7
WCI 318133751 WCI 318133751 Contact Us For Availability
9
WCI 318048501 WCI 318048501 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
12
WCI 318053100 WCI 318053100 Contact Us For Availability
13
WCI 318009201 WCI 318009201 Contact Us For Availability
15
WCI 318091101 WCI 318091101 Contact Us For Availability
16
WCI 318042300 WCI 318042300 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
WCI 318042000 WCI 318042000 Contact Us For Availability
18
WCI 318053000 WCI 318053000 Contact Us For Availability
19
WCI 318030214 WCI 318030214 Contact Us For Availability
20
WCI 318010501 WCI 318010501 Contact Us For Availability
20
WCI 318086020 WCI 318086020 Contact Us For Availability
22
WCI 5303310511 WCI 5303310511 Contact Us For Availability
23
WCI 5303320452 WCI 5303320452 Contact Us For Availability
29
WCI 318014400 WCI 318014400 Contact Us For Availability
31
WCI 318065102 WCI 318065102 Contact Us For Availability
32
WCI 318056703 WCI 318056703 Contact Us For Availability
39
WCI 318197900 WCI 318197900 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 5303310514 WCI 5303310514 Contact Us For Availability
56
WCI 318145515 WCI 318145515 Contact Us For Availability
57
WCI 318072100 WCI 318072100 Contact Us For Availability
58A
WCI 5303311218 WCI 5303311218 Contact Us For Availability
58A
WCI 318133750 WCI 318133750 Contact Us For Availability
58B
WCI 5303311219 WCI 5303311219 Contact Us For Availability
58B
WCI 318133749 WCI 318133749 Contact Us For Availability
59
WCI 318072511 WCI 318072511 Contact Us For Availability
59
Tube,oven vent WCI 3016331 Contact Us For Availability
59
Plug,button WCI 3202113 Contact Us For Availability
61
Foam seal,(3) WCI 5303316982 Contact Us For Availability
71
WCI 318071120 WCI 318071120 Contact Us For Availability
76
WCI 318056104 WCI 318056104 Contact Us For Availability
80
WCI 5303301261 WCI 5303301261 Contact Us For Availability
81
WCI 318022002 WCI 318022002 Contact Us For Availability
81
WCI 5303320846 WCI 5303320846 Contact Us For Availability
82
WCI 5303304699 WCI 5303304699 Contact Us For Availability
83
WCI 318089519 WCI 318089519 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
96A
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
96B
DUCT-VENT PIPE WCI 3016327 Contact Us For Availability
97
WCI 318066500 WCI 318066500 Contact Us For Availability
97
WCI 318066604 WCI 318066604 Contact Us For Availability
98
WCI 318029310 WCI 318029310 Contact Us For Availability
98A
WCI 318029311 WCI 318029311 Contact Us For Availability
99
WCI 318055200 WCI 318055200 Contact Us For Availability
101
WCI 318039501 WCI 318039501 Contact Us For Availability
103
WCI 5303316773 WCI 5303316773 Contact Us For Availability
107
WCI 5303318711 WCI 5303318711 Contact Us For Availability
108
WCI 318073012 WCI 318073012 Contact Us For Availability
109
WCI 5303311203 WCI 5303311203 Contact Us For Availability
119
WCI 318005200 WCI 318005200 Contact Us For Availability
121
WCI 318145002 WCI 318145002 Contact Us For Availability
123
SHIELD-INSULATION,TOP & SIDES WCI 318071441 Contact Us For Availability
127
WCI 318072801 WCI 318072801 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
142
WCI 318054900 WCI 318054900 Contact Us For Availability
156
WCI 318024100 WCI 318024100 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
157
WCI 318071601 WCI 318071601 Contact Us For Availability
187
WCI 318013501 WCI 318013501 Contact Us For Availability
222
WCI 318080000 WCI 318080000 Contact Us For Availability
227
WCI 5303323955 WCI 5303323955 Contact Us For Availability
264
WCI 318143811 WCI 318143811 Contact Us For Availability
265
WCI 318029502 WCI 318029502 Contact Us For Availability
265
WCI 318029503 WCI 318029503 Contact Us For Availability
NI
WCI 08002868 WCI 08002868 Contact Us For Availability
NI
WCI 318078501 WCI 318078501 Contact Us For Availability
NI
Switch,cooktop shutoff WCI 318120710 Contact Us For Availability
NI
CLIP-WIRE WCI 3015722 Contact Us For Availability
NI
WCI 5303302745 WCI 5303302745 Contact Us For Availability
NI
WCI 5303311528 WCI 5303311528 Contact Us For Availability
NI
WCI 5304407813 WCI 5304407813 Contact Us For Availability
× ![]()
