Model Maytag PGR4100BDW GAS RANGE – Common Parts & Diagrams

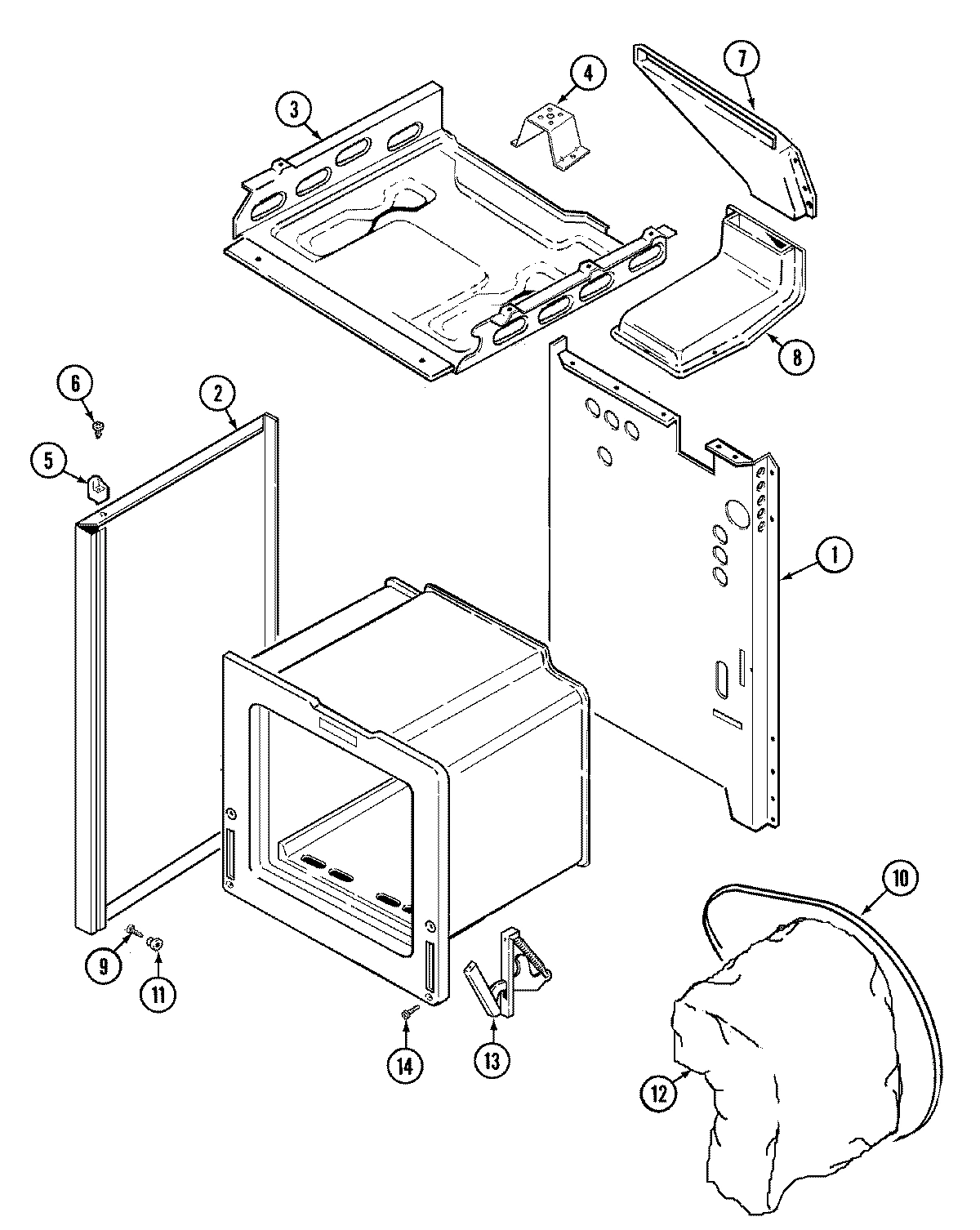

01 - BODY

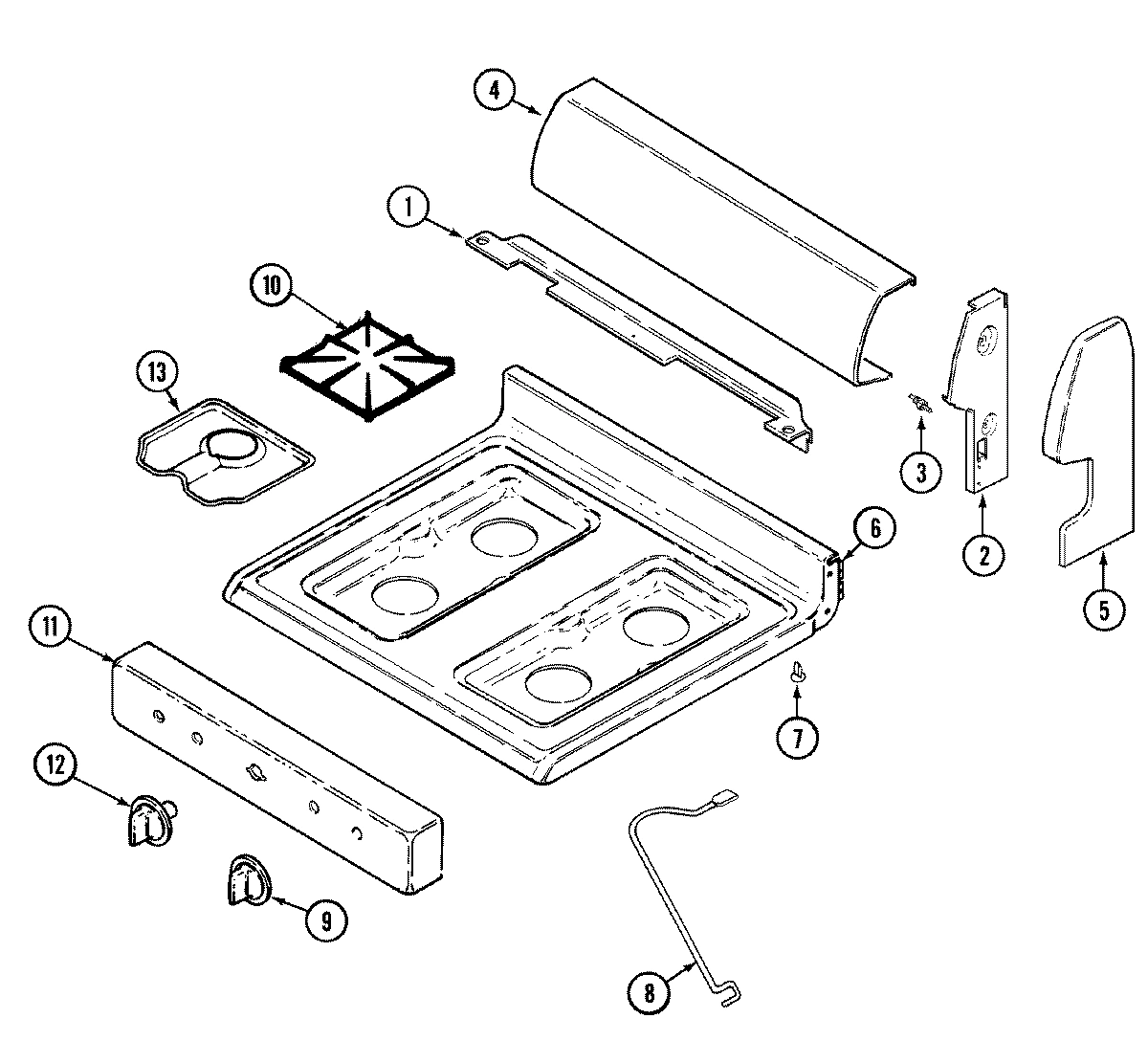

02 - CONTROL PANEL/TOP ASSEMBLY

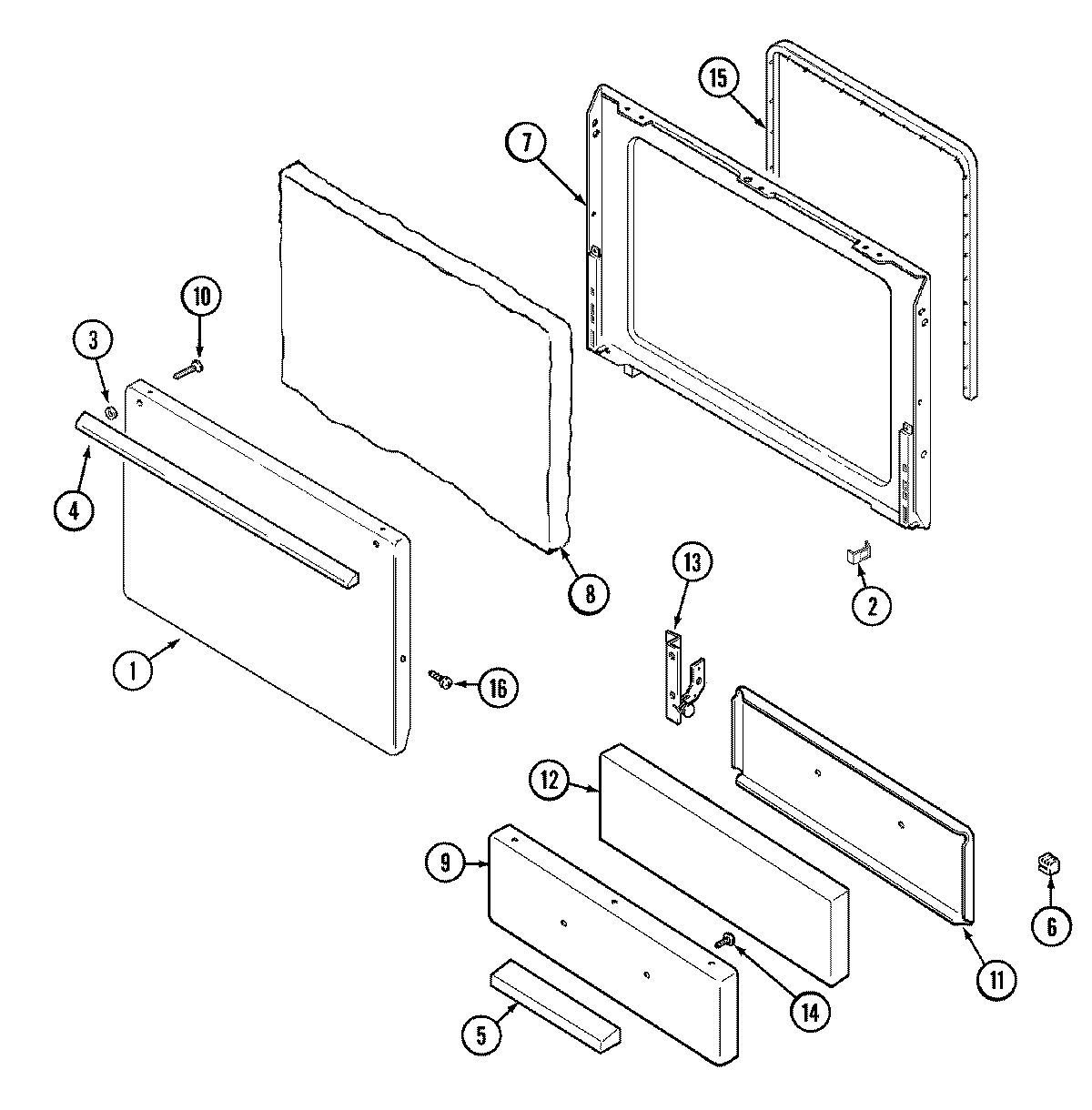

03 - DOOR/DRAWER

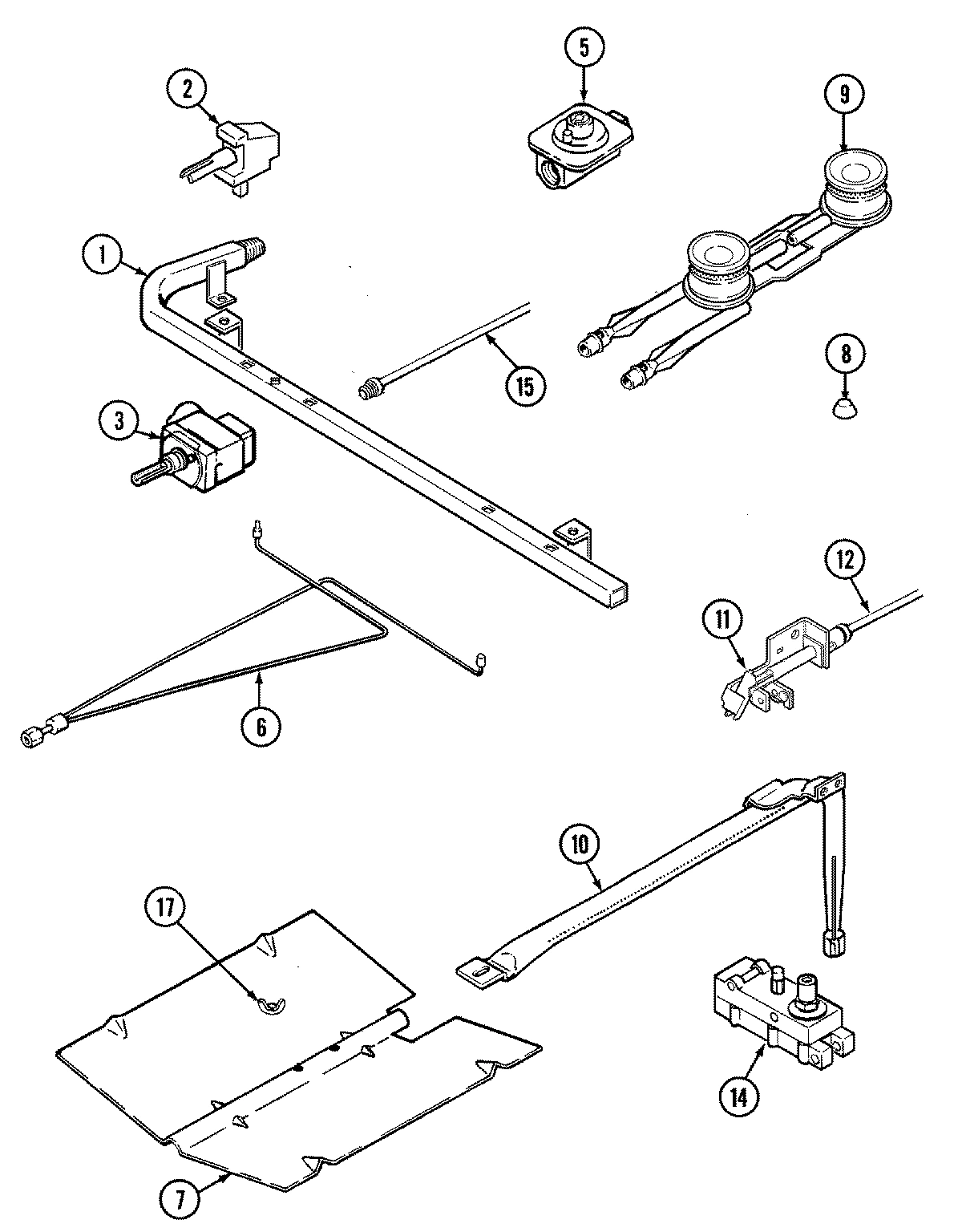

04 - GAS CONTROLS

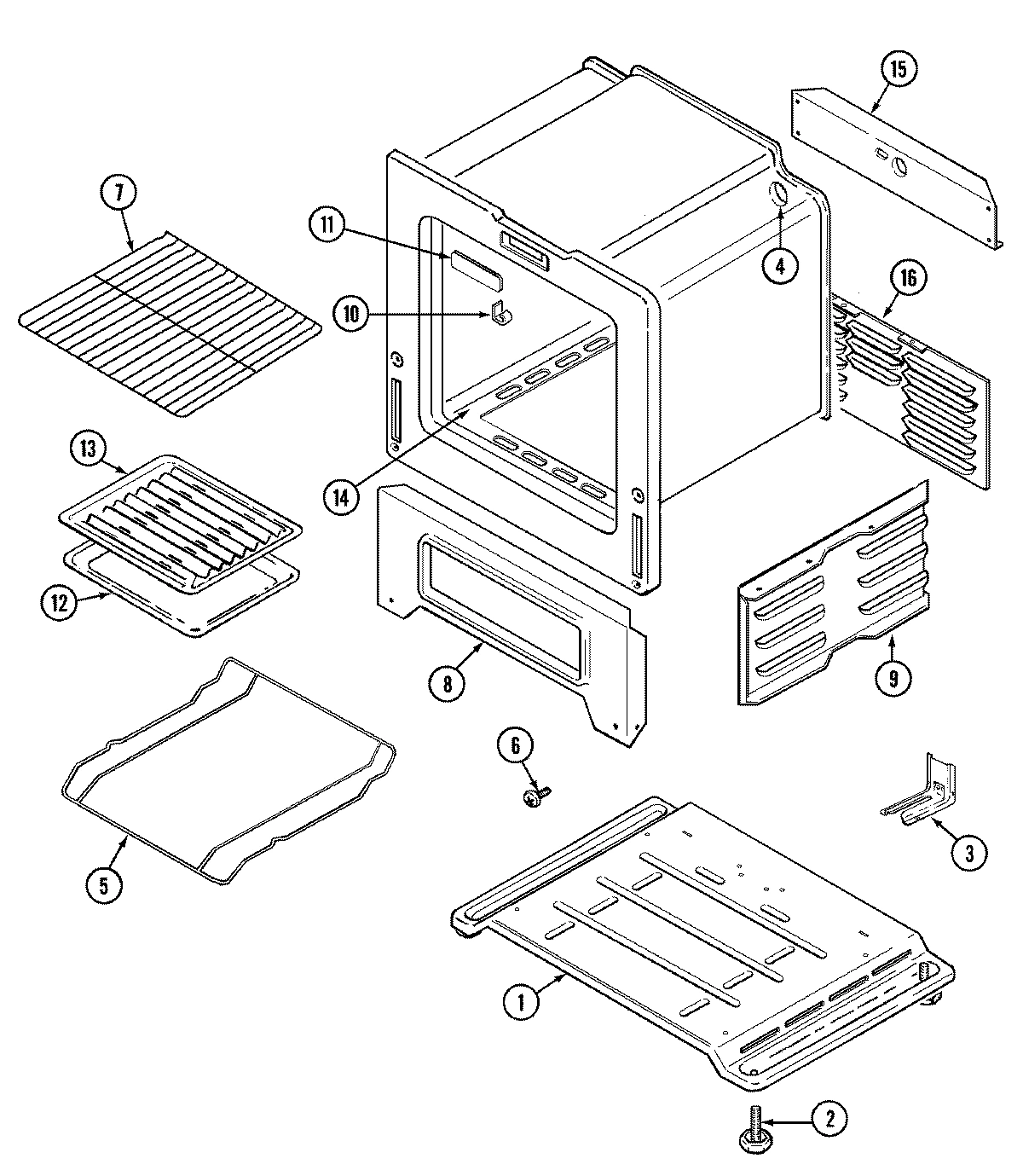

05 - OVEN/BASE
Common parts from model Maytag PGR4100BDW GAS RANGE
1
MAY 74002409 MAY 74002409 Contact Us For Availability
1
MAY 74005319 MAY 74005319 Contact Us For Availability
1
PANEL, DOOR (WHT) MAY 2401F096-71 Contact Us For Availability
1
MAY 74002424 MAY 74002424 Contact Us For Availability
1
MAY 74005215 MAY 74005215 Contact Us For Availability
2
MAY 74002402 MAY 74002402 Contact Us For Availability
2
MAY 74002403 MAY 74002403 Contact Us For Availability
2
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
2
MAY 74002383 MAY 74002383 Contact Us For Availability
3
MAY 74002404 MAY 74002404 Contact Us For Availability
3
MAY 7101P010-60 MAY 7101P010-60 Contact Us For Availability
3
MAY 74006182 MAY 74006182 Contact Us For Availability
4
MAY 74006180 MAY 74006180 Contact Us For Availability
4
NUT, WING MAY 7103P030-60 Contact Us For Availability
4
MAY 74002380 MAY 74002380 Contact Us For Availability
5
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
5
MAY 74002438 MAY 74002438 Contact Us For Availability
5
MAY 74002439 MAY 74002439 Contact Us For Availability
5
MAY 74002451 MAY 74002451 Contact Us For Availability
5
MAY 2411F003-71 MAY 2411F003-71 Contact Us For Availability
5
MAY 74007088 MAY 74007088 Contact Us For Availability
5
MAY 7510P002-60 MAY 7510P002-60 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 74002410 MAY 74002410 Contact Us For Availability
6
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
6
MAY 7103P128-60 MAY 7103P128-60 Contact Us For Availability
6
MAY 74002426 MAY 74002426 Contact Us For Availability
6
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
7
MAY 74002412 MAY 74002412 Contact Us For Availability
7
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
7
MAY 74003240 MAY 74003240 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
8
MAY 74002367 MAY 74002367 Contact Us For Availability
8
MAY 74004084 MAY 74004084 Contact Us For Availability
8
MAY 4804F050-60 MAY 4804F050-60 Contact Us For Availability
8
MAY 74002435 MAY 74002435 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
9
MAY 74003332 MAY 74003332 Contact Us For Availability
9
MAY 74002497 MAY 74002497 Contact Us For Availability
9
MAY 74001449 MAY 74001449 Contact Us For Availability
9
MAY 74001729 MAY 74001729 Contact Us For Availability
9
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74002369 MAY 74002369 Contact Us For Availability
11
MAY 74006183 MAY 74006183 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
11
MAY 74006181 MAY 74006181 Contact Us For Availability
11
MAY 74002397 MAY 74002397 Contact Us For Availability
11
MAY 74007553 MAY 74007553 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 74002496 MAY 74002496 Contact Us For Availability
12
MAY 74002370 MAY 74002370 Contact Us For Availability
12
MAY 74002634 MAY 74002634 Contact Us For Availability
12
MAY 74001814 MAY 74001814 Contact Us For Availability
12
MAY 74006184 MAY 74006184 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 5401A433-60 MAY 5401A433-60 Contact Us For Availability
13
MAY 74002398 MAY 74002398 Contact Us For Availability
13
MAY 74006185 MAY 74006185 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 16008701 MAY 16008701 Contact Us For Availability
14
MAY 74002579 MAY 74002579 Contact Us For Availability
14
MAY 74002746 MAY 74002746 Contact Us For Availability
14
MAY 74005911 MAY 74005911 Contact Us For Availability
14
MAY 74002428 MAY 74002428 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 16010161 MAY 16010161 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
× ![]()
