Model Whirlpool PER5750QCQ ELECTRIC RANGE – Common Parts & Diagrams

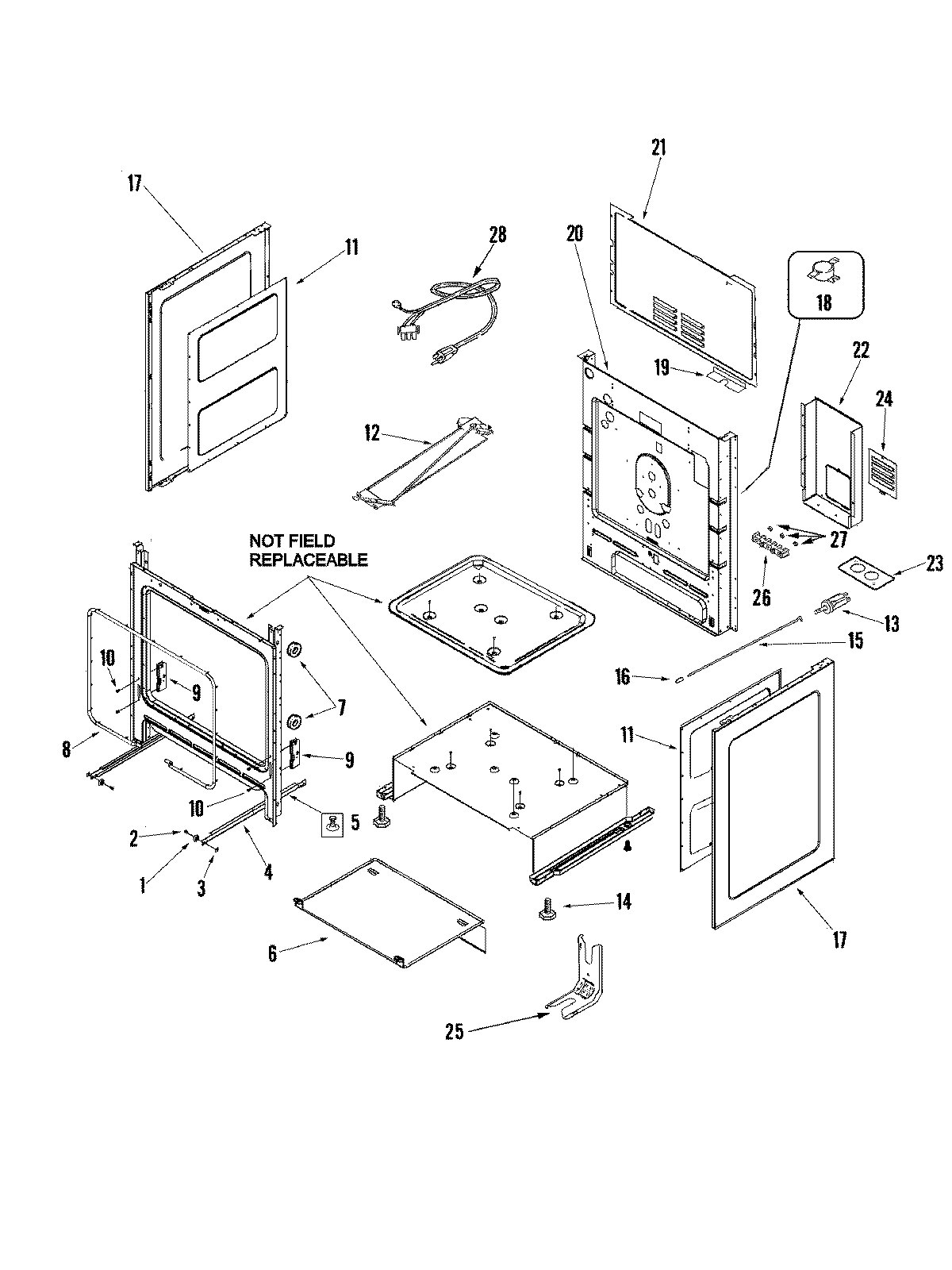

01 - CABINET

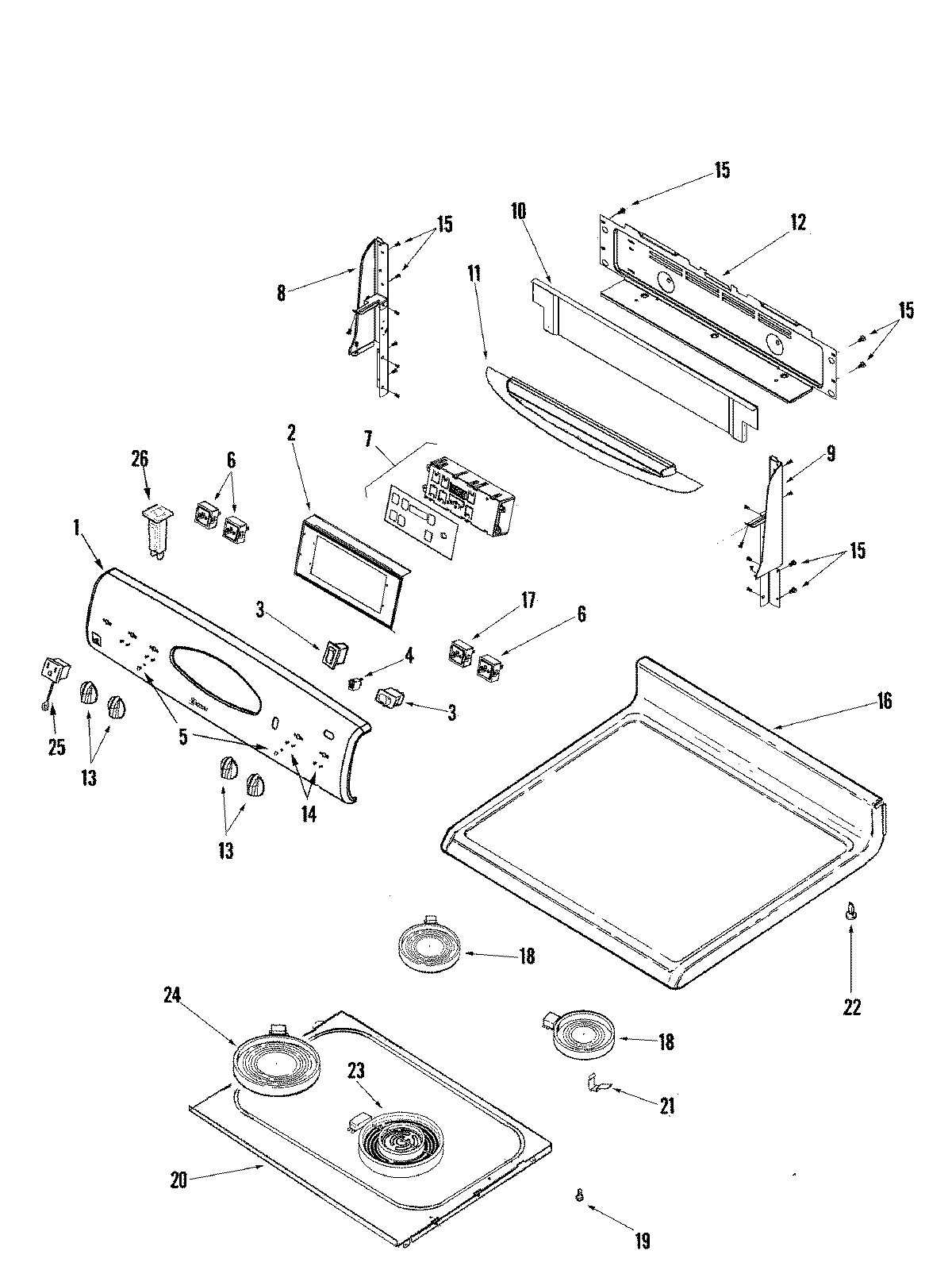

03 - CONTROL PANEL/TOP ASSEMBLY
05 - SUPPLEMENTAL INFORMATION

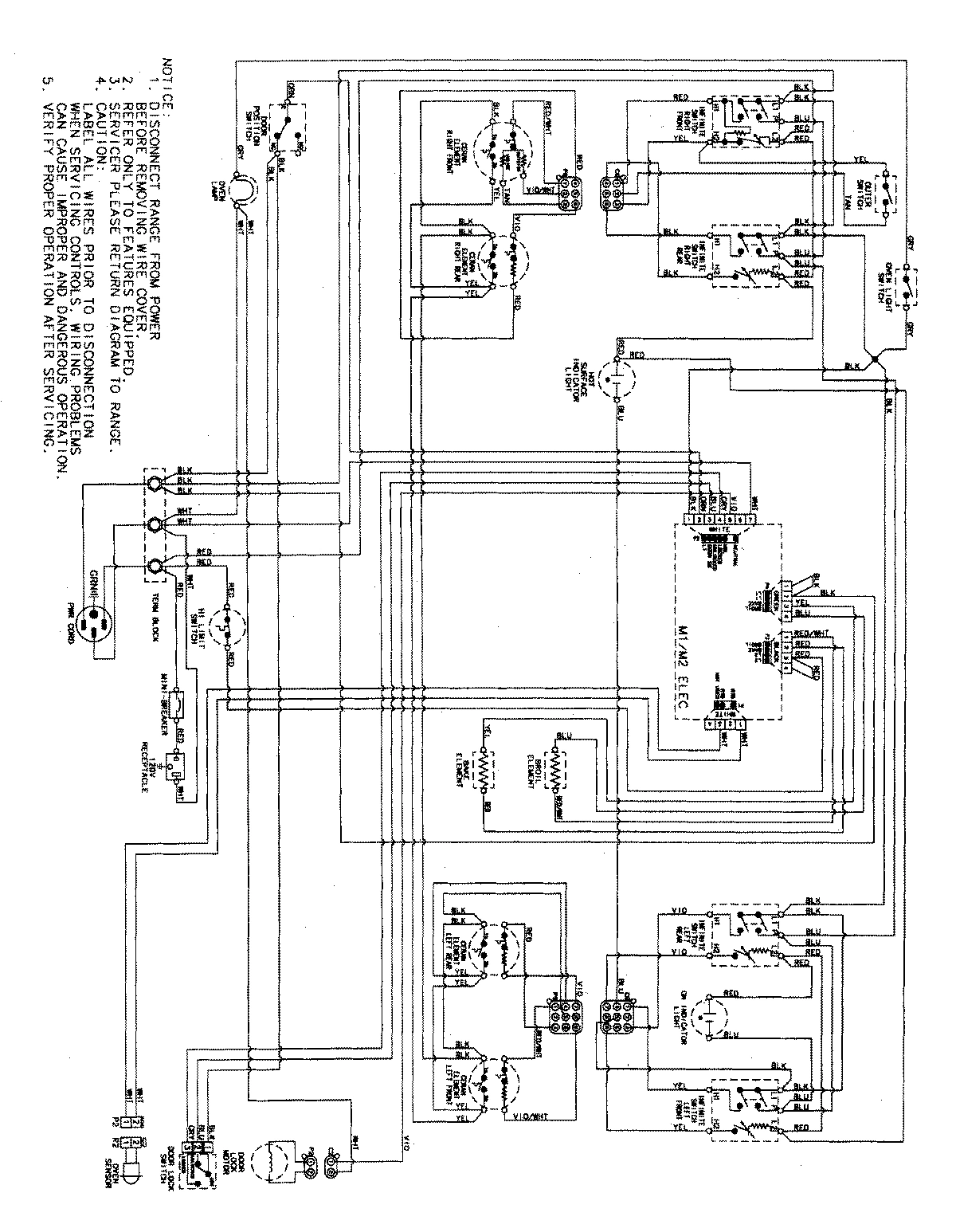

06 - WIRING INFORMATION

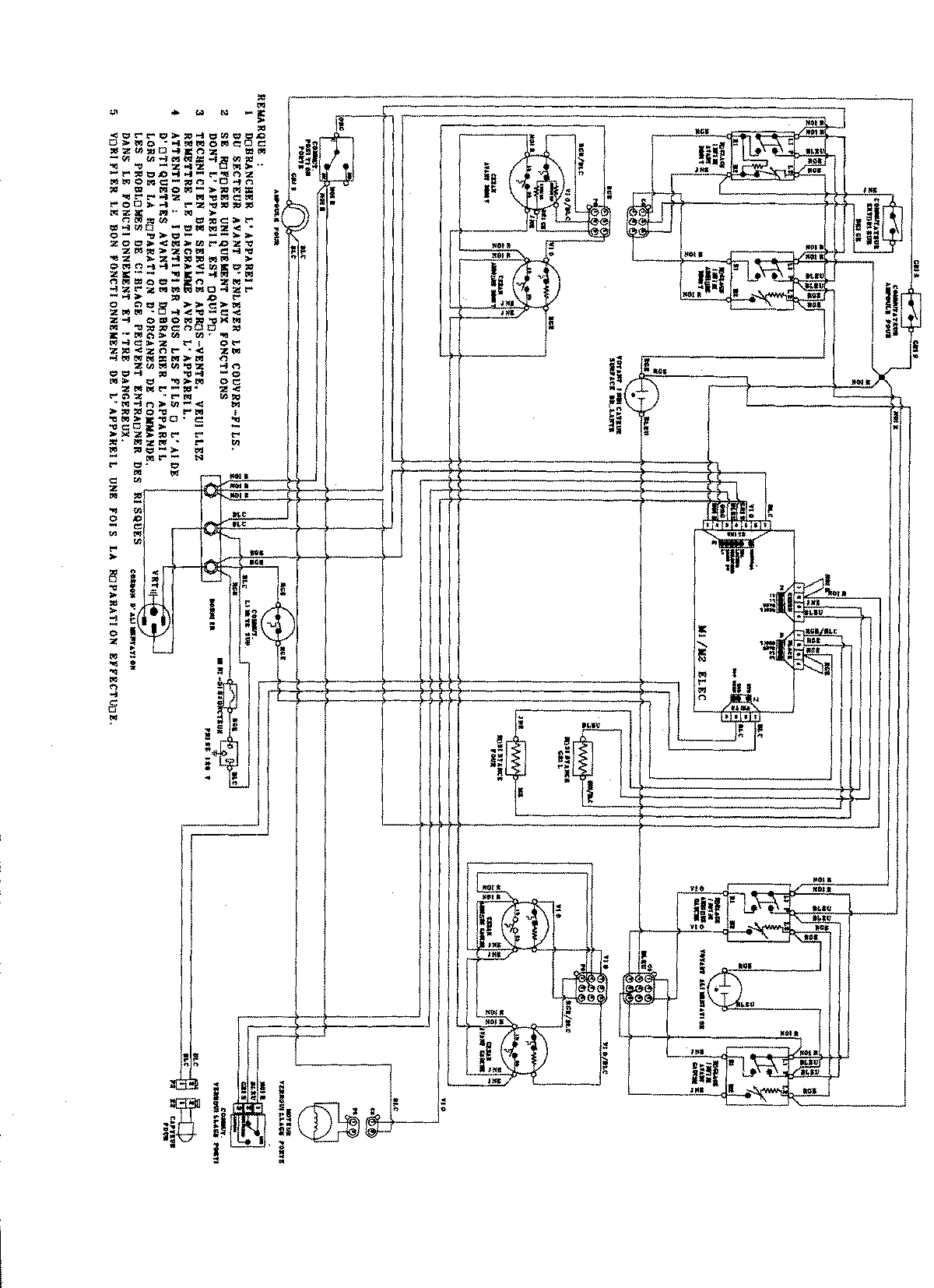

07 - WIRING INFORMATION

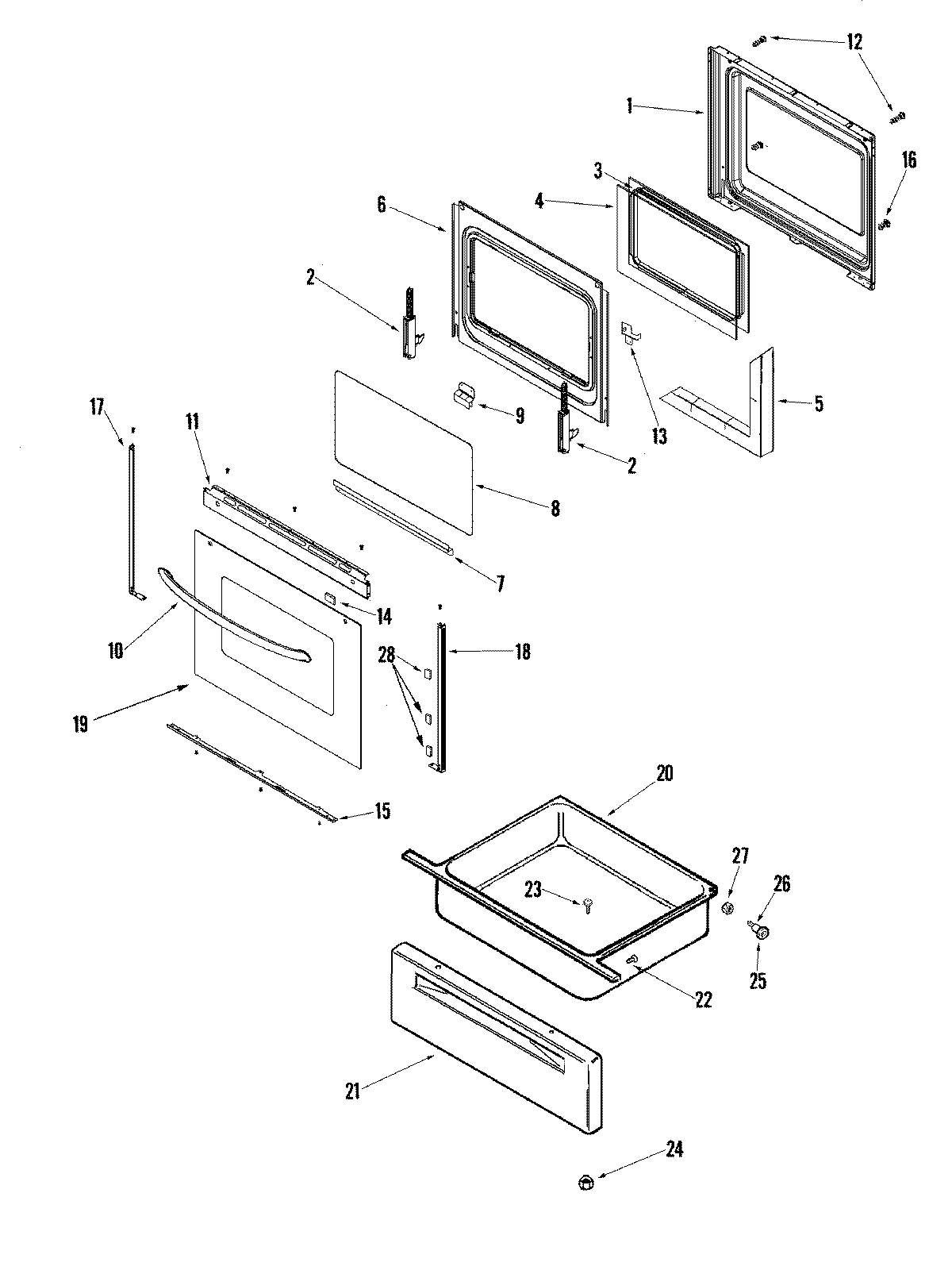

04 - DOOR/DRAWER

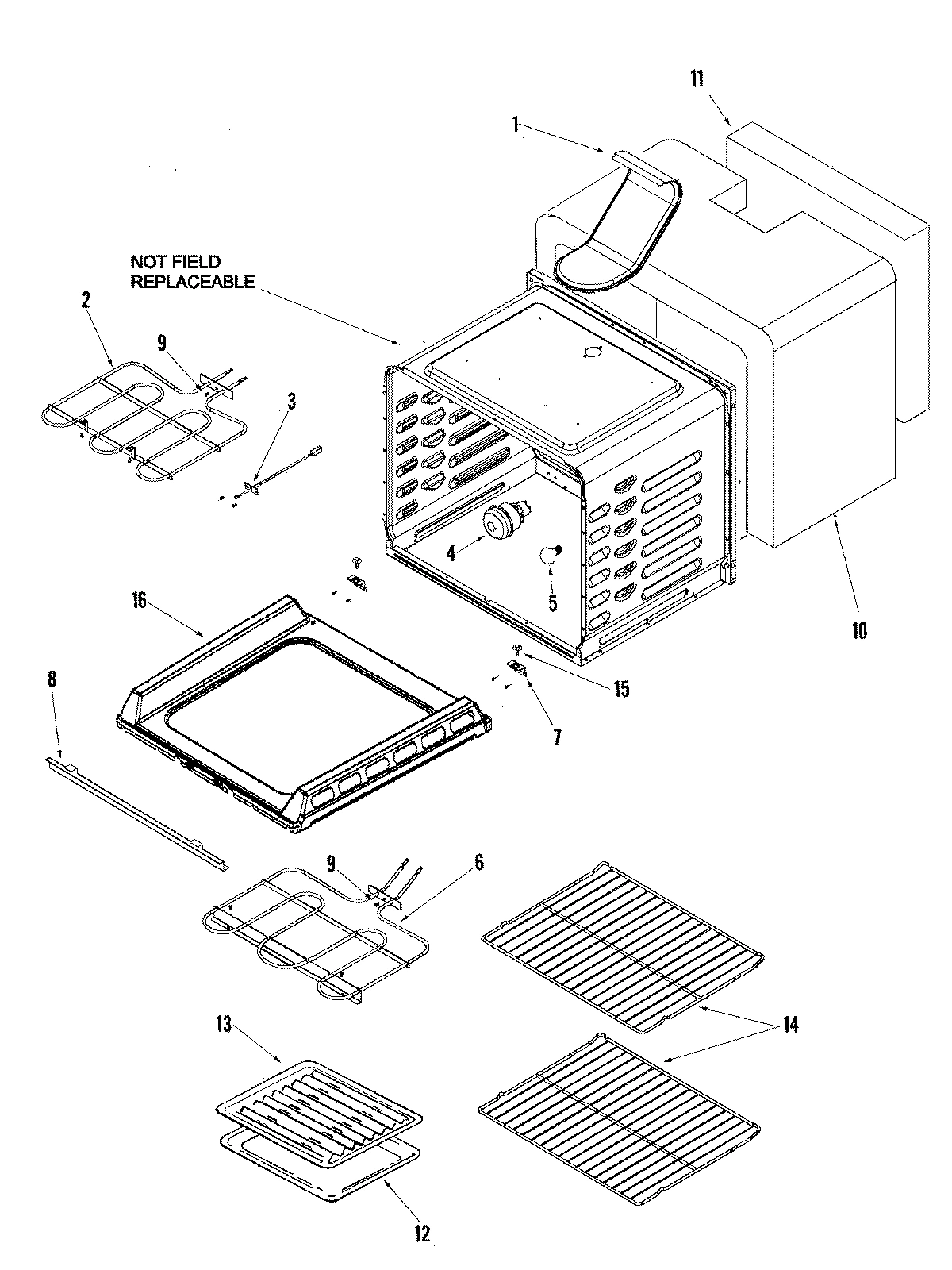

02 - CAVITY
Common parts from model Whirlpool PER5750QCQ ELECTRIC RANGE
1
PANEL, BACKGUARD (BSQ) WPL 74009357 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P39560 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8113P58360 Contact Us For Availability
1
WIRING INFORMATION (FRC) WPL 15003383 Contact Us For Availability
1
LINING, DOOR WPL 74008926 Contact Us For Availability
1
VENT, OVEN WPL 74008691 Contact Us For Availability
2
BRACKET, CLOCK WPL 74009052 Contact Us For Availability
2
HARNESS, INF. SWITCH (RT) WPL 74009344 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
HARNESS, INF.SW.TO ELEM.(LT) WPL 74009327 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
4
HARNESS, MAIN WPL 74009340 Contact Us For Availability
4
HARNESS, MAIN (CANADIAN) WPL 74009937 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74009358 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
5
BULB-OVEN WPL 7407P10360 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
CLOCK/OVERLAY (BSQ) WPL 74009230 Contact Us For Availability
7
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) WPL 74008745 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
8
END CAP (RT-BSQ) WPL 74009078 Contact Us For Availability
8
GLASS, DOOR WPL 74003649 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
9
END CAP (LT-BSQ) WPL 74009080 Contact Us For Availability
9
RETAINER, DOOR GLASS (UPR) WPL 74008746 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
10
SHIELD, VENT (BSQ) WPL 74009207 Contact Us For Availability
10
HANDLE, DOOR (BSQ) WPL 74009185 Contact Us For Availability
10
HANDLE, DOOR (BSQ) WPL 74011107 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
INSULATION, SIDE BAFFLE WPL 74009956 Contact Us For Availability
11
SHIELD, HEAT VISOR (BSQ) WPL 74009204 Contact Us For Availability
11
TRIM, TOP (BSQ) WPL 74008933 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
12
COVER, BACKGUARD WIRE WPL 74009335 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
KNOB (BSQ) WPL 74009189 Contact Us For Availability
13
BRACKET, HANDLE (LT) WPL 74008749 Contact Us For Availability
13
BRACKET, HANDLE (RT) WPL 74008750 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE NO LONGER SUPPL WPL W10124350 Contact Us For Availability
13
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
14
SCREW WPL 7101P30960 Contact Us For Availability
14
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
15
TRIM, BOTTOM (BSQ) WPL 74008758 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
TOP ASSEMBLY (BSQ) WPL 74008531 Contact Us For Availability
16
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (BSQ) WPL 74008708 Contact Us For Availability
17
TRIM, SIDE (BSQ-LT) WPL 74008754 Contact Us For Availability
18
TRIM, SIDE (BSQ) WPL 74010562 Contact Us For Availability
18
TRIM, SIDE (BSQ-RT) WPL 74008752 Contact Us For Availability
19
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
19
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
19
GLASS, DOOR (BSQ) WPL 74008682 Contact Us For Availability
20
BACK, MAIN WPL 74008699 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
20
DRAWER, STORAGE WPL 74008333 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
PANEL, DRAWER (BSQ) WPL 74008756 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
24
NUT, LOCK WPL 7103P13960 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
25
RECEPTACLE, OUTLET (BSQ) WPL 74005144 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
26
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
26
BREAKER, CIRCUIT (BSQ) WPL 74009346 Contact Us For Availability
26
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
27
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
27
NUT WPL 7103P08260 Contact Us For Availability
28
CORD, POWER WPL 7402P05060 Contact Us For Availability
28
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003382 Contact Us For Availability
× ![]()
