Model Maytag PER5750QAS ELECTRIC RANGE – Common Parts & Diagrams

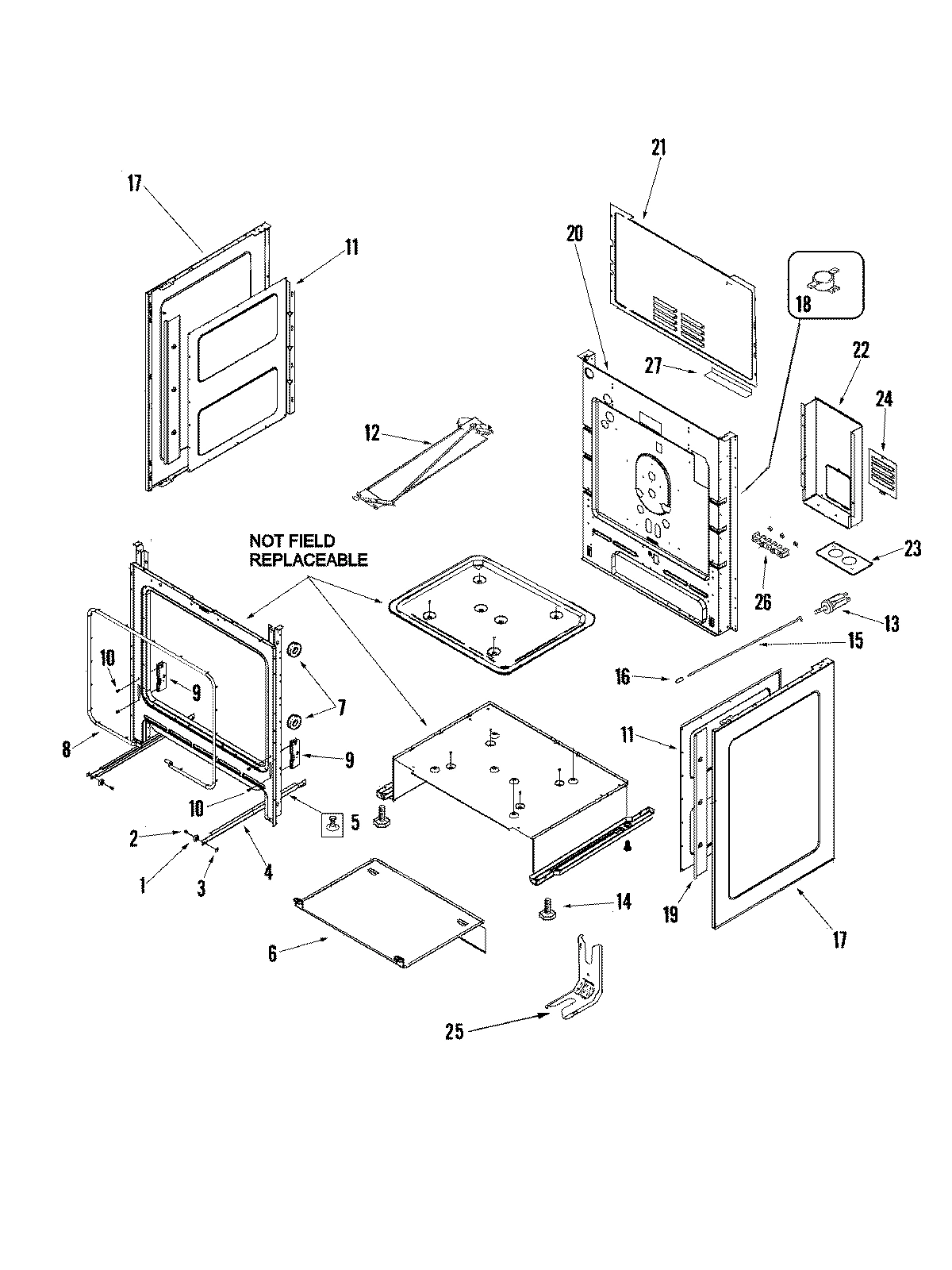

01 - CABINET

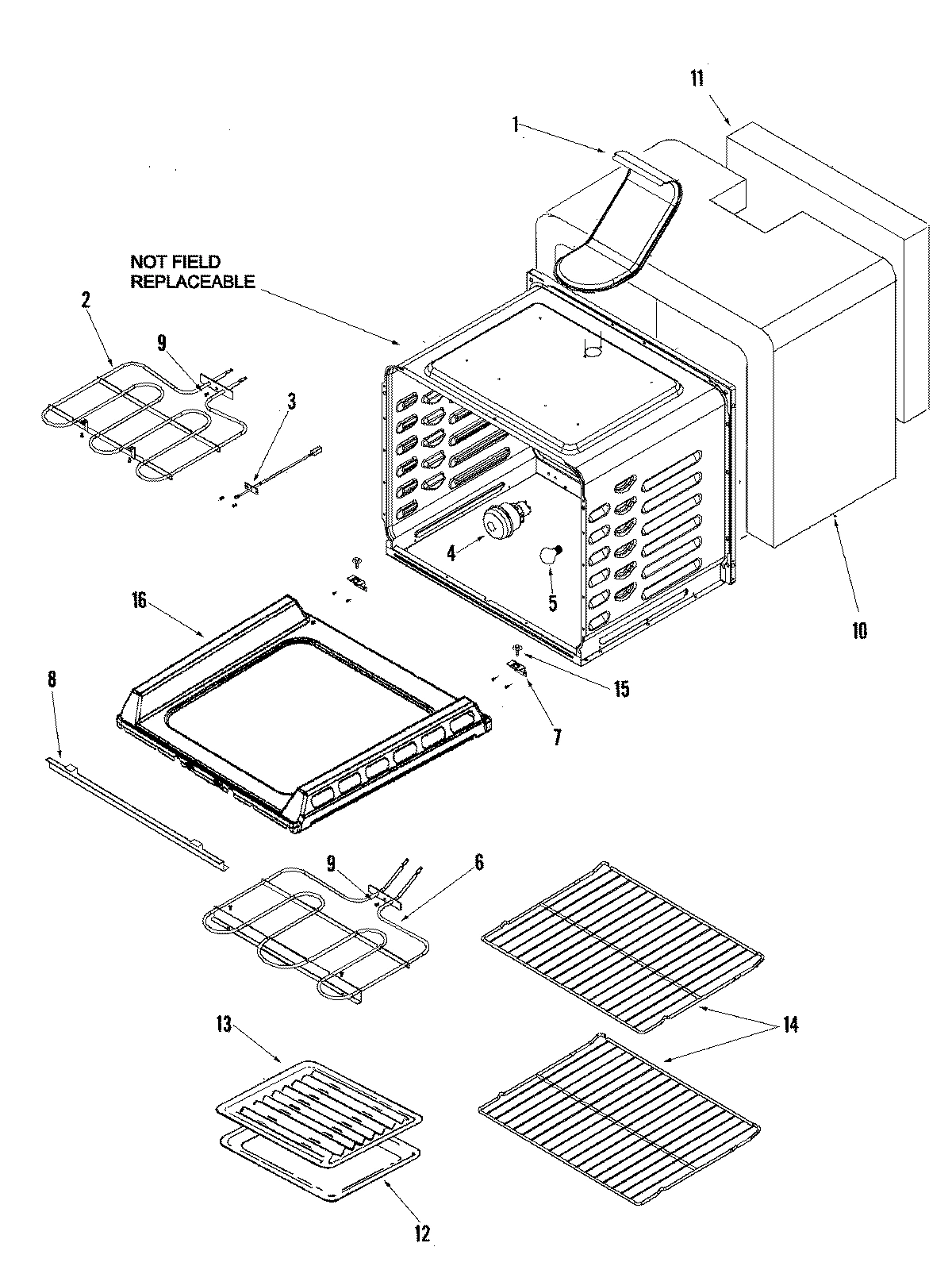

02 - CAVITY

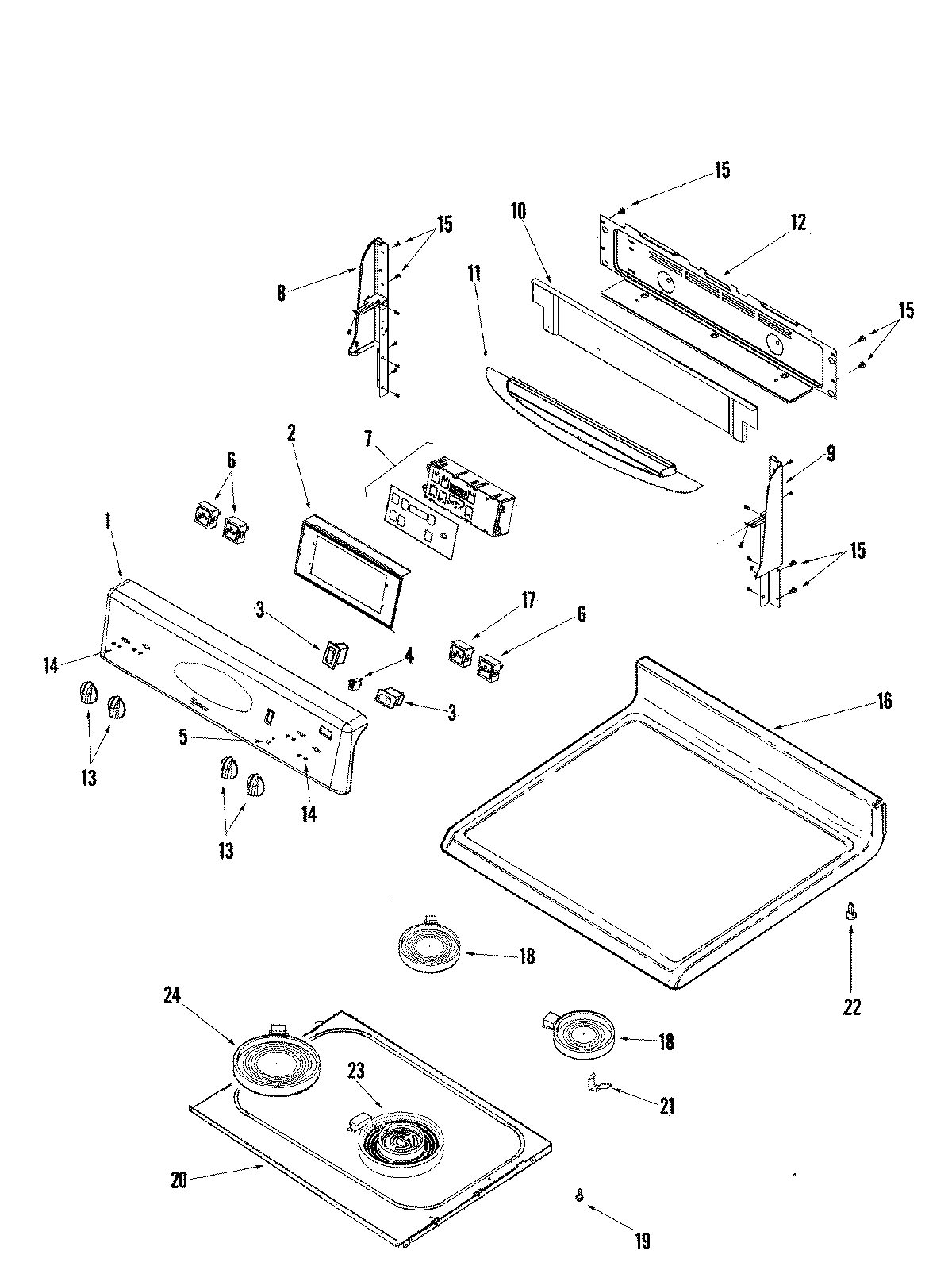

03 - CONTROL PANEL/TOP ASSEMBLY

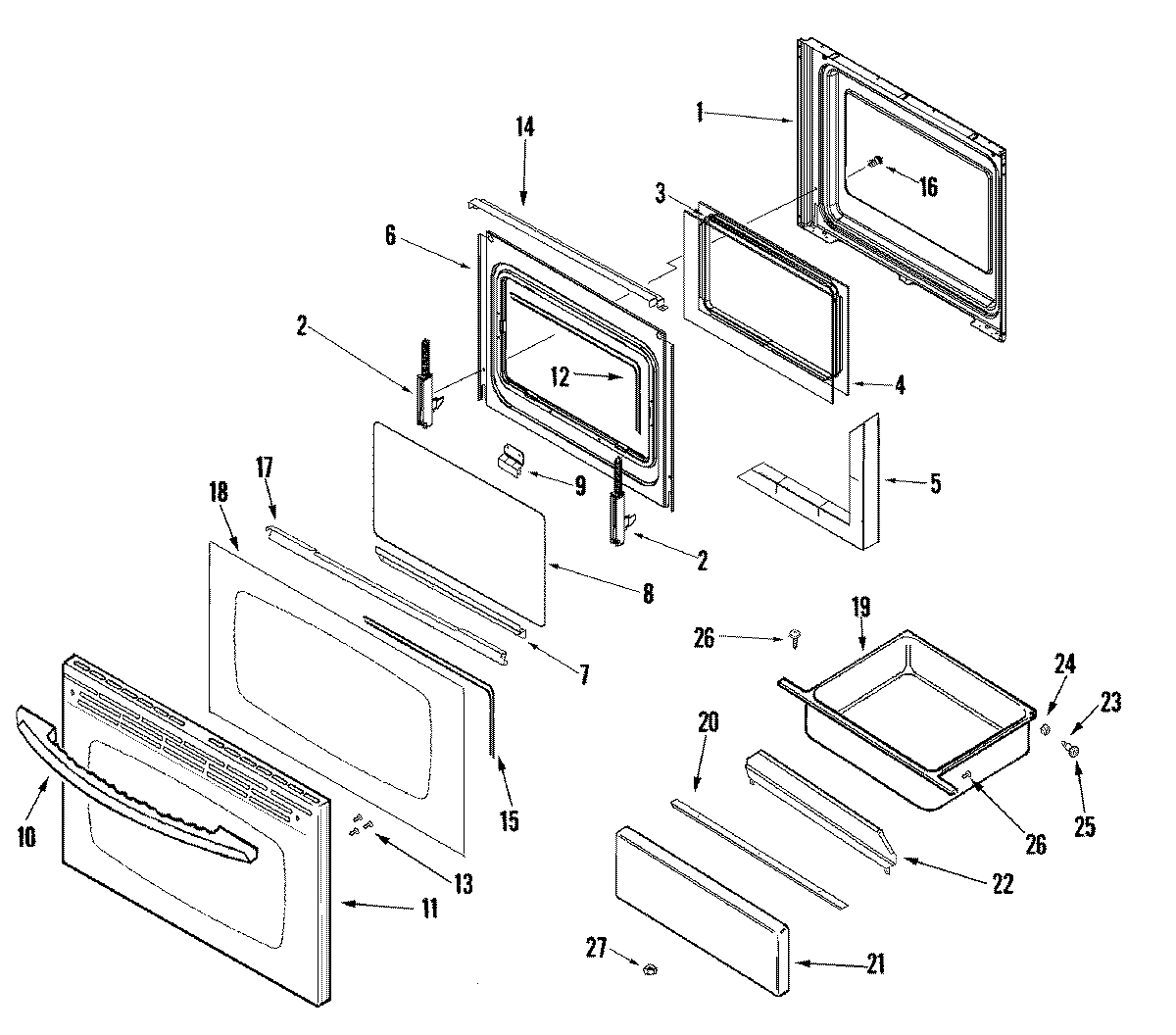

04 - DOOR/DRAWER (STL)
05 - SUPPLEMENTAL INFORMATION

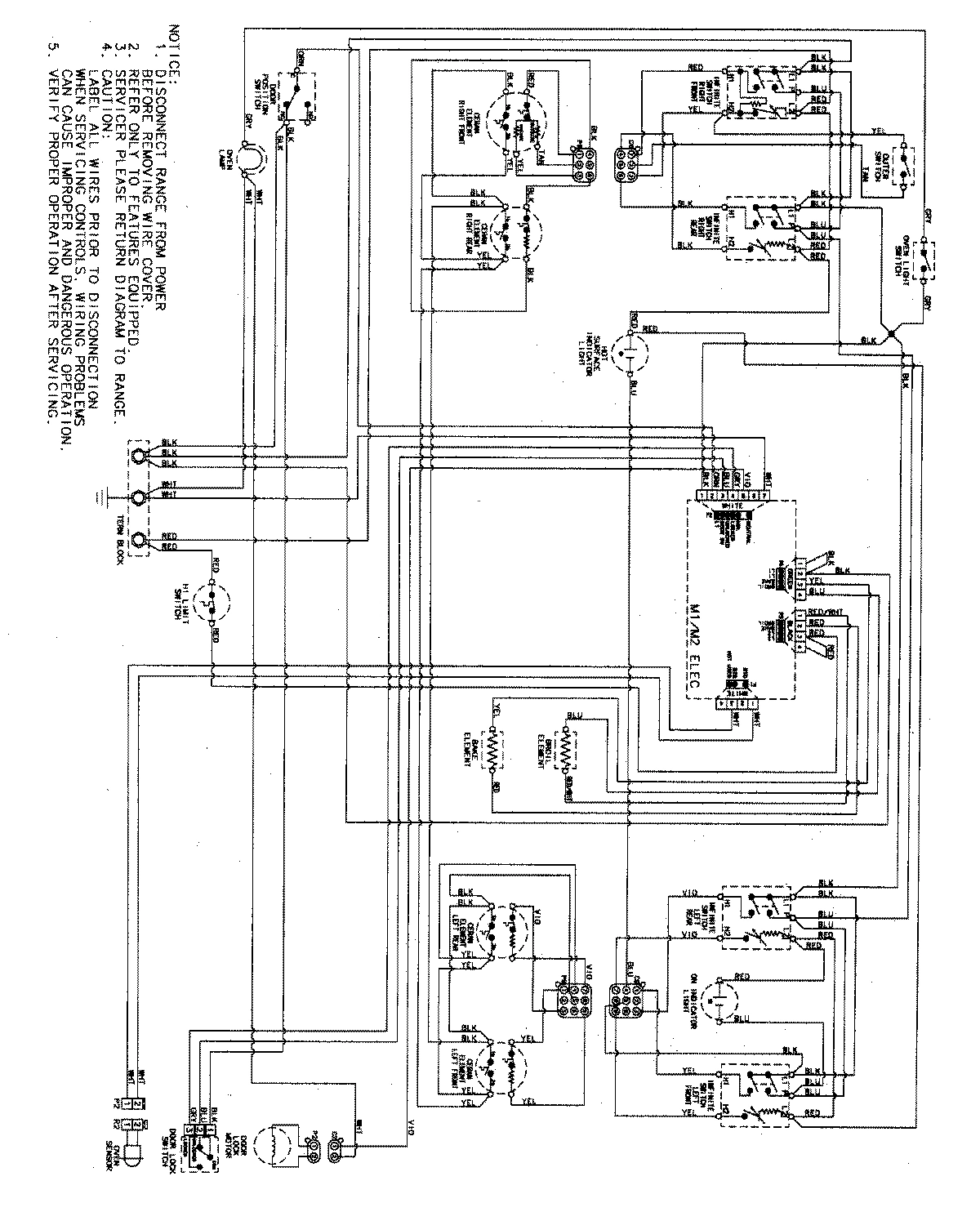

06 - WIRING INFORMATION
Common parts from model Maytag PER5750QAS ELECTRIC RANGE
1
MAY 74008691 MAY 74008691 Contact Us For Availability
1
MAY 74009183 MAY 74009183 Contact Us For Availability
1
MAY 74008926 MAY 74008926 Contact Us For Availability
1
MAY 8113P395-60 MAY 8113P395-60 Contact Us For Availability
1
MAY 8113P583-60 MAY 8113P583-60 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED-BR MAY W10124350 Contact Us For Availability
2
BRACKET, CLOCK MAY 74009052 Contact Us For Availability
2
MAY 74008935 MAY 74008935 Contact Us For Availability
3
FRAME, GLASS MAY 74003644 Contact Us For Availability
3
MAY 74009030 MAY 74009030 Contact Us For Availability
4
MAY 71001867 MAY 71001867 Contact Us For Availability
4
MAY 74009058 MAY 74009058 Contact Us For Availability
5
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
5
MAY 74009190 MAY 74009190 Contact Us For Availability
6
MAY 74008744 MAY 74008744 Contact Us For Availability
6
MAY 74009931 MAY 74009931 Contact Us For Availability
7
MAY 74009229 MAY 74009229 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) MAY 74008694 Contact Us For Availability
7
RETAINER, DOOR GLASS (LWR) MAY 74008745 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) MAY 74008695 Contact Us For Availability
8
END CAP (RT-BLK) MAY 74009022 Contact Us For Availability
8
GLASS, DOOR MAY 74003649 Contact Us For Availability
9
END CAP (LT-BLK) MAY 74009023 Contact Us For Availability
9
MAY 74008746 MAY 74008746 Contact Us For Availability
10
INSULATION, WRAPPER MAY 74008700 Contact Us For Availability
10
MAY 74008725 MAY 74008725 Contact Us For Availability
10
MAY 74009205 MAY 74009205 Contact Us For Availability
10
MAY 74009186 MAY 74009186 Contact Us For Availability
10
MAY 74011123 MAY 74011123 Contact Us For Availability
11
MAY 74008698 MAY 74008698 Contact Us For Availability
11
MAY 74008891 MAY 74008891 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) MAY 74009202 Contact Us For Availability
11
MAY 74008951 MAY 74008951 Contact Us For Availability
12
MAY 74008702 MAY 74008702 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
12
MAY 74008730 MAY 74008730 Contact Us For Availability
12
MAY 74008836 MAY 74008836 Contact Us For Availability
12
MAY 74008917 MAY 74008917 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 74009027 MAY 74009027 Contact Us For Availability
16
MAY 71001394 MAY 71001394 Contact Us For Availability
16
MAY 74009193 MAY 74009193 Contact Us For Availability
16
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
17
MAY 74009028 MAY 74009028 Contact Us For Availability
18
MAY 74008855 MAY 74008855 Contact Us For Availability
19
DRAWER, STORAGE MAY 74008333 Contact Us For Availability
20
MAY 74008900 MAY 74008900 Contact Us For Availability
20
MAY 74008909 MAY 74008909 Contact Us For Availability
21
SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability
21
MAY 74008912 MAY 74008912 Contact Us For Availability
23
SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability
27
BOTTOM, WIRE COVER MAY 74008762 Contact Us For Availability
NI
MAY 15003695 MAY 15003695 Contact Us For Availability
× ![]()
