Model Maytag PER5515BCW ELECTRIC RANGE – Common Parts &amp; Diagrams

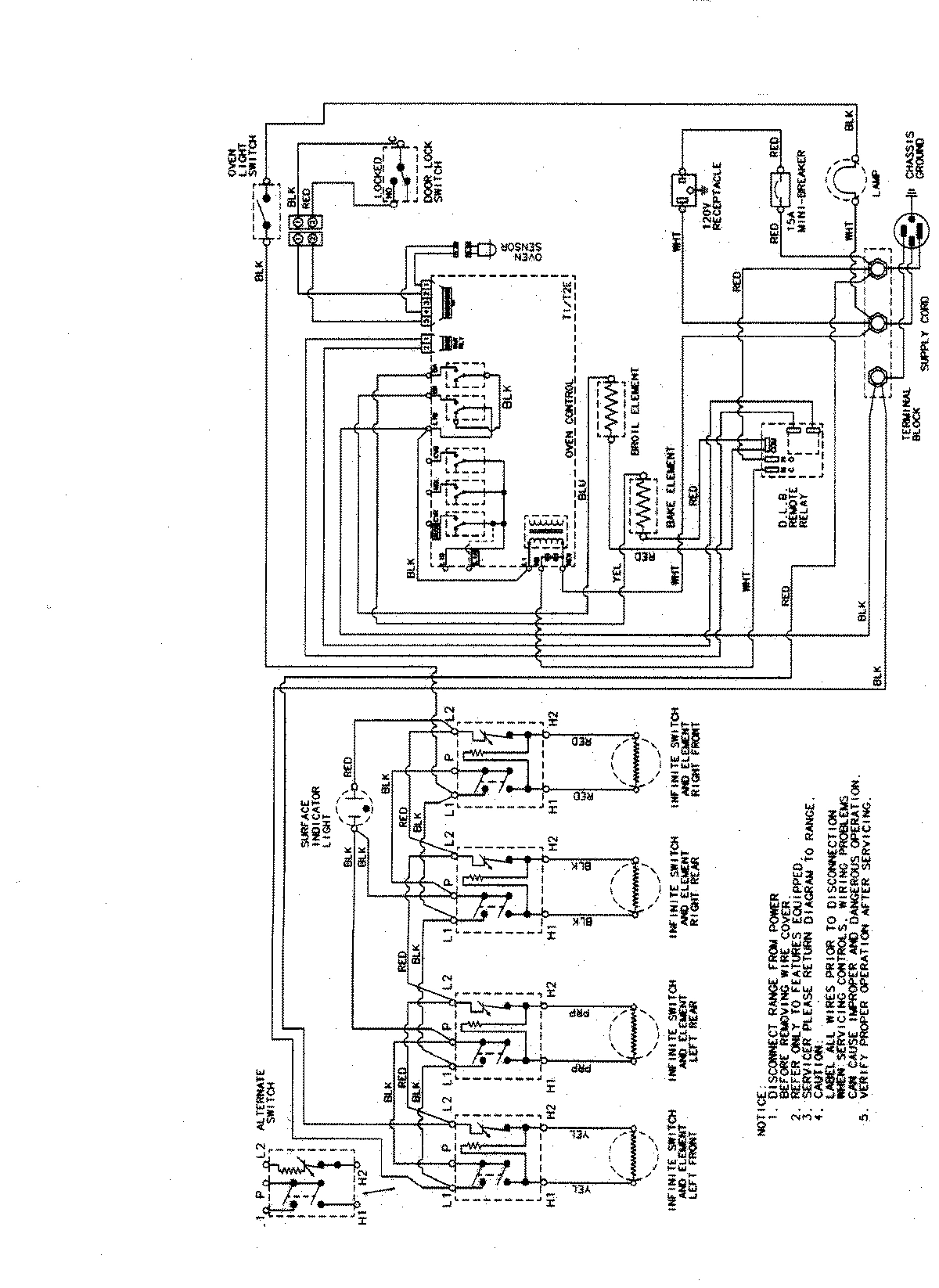

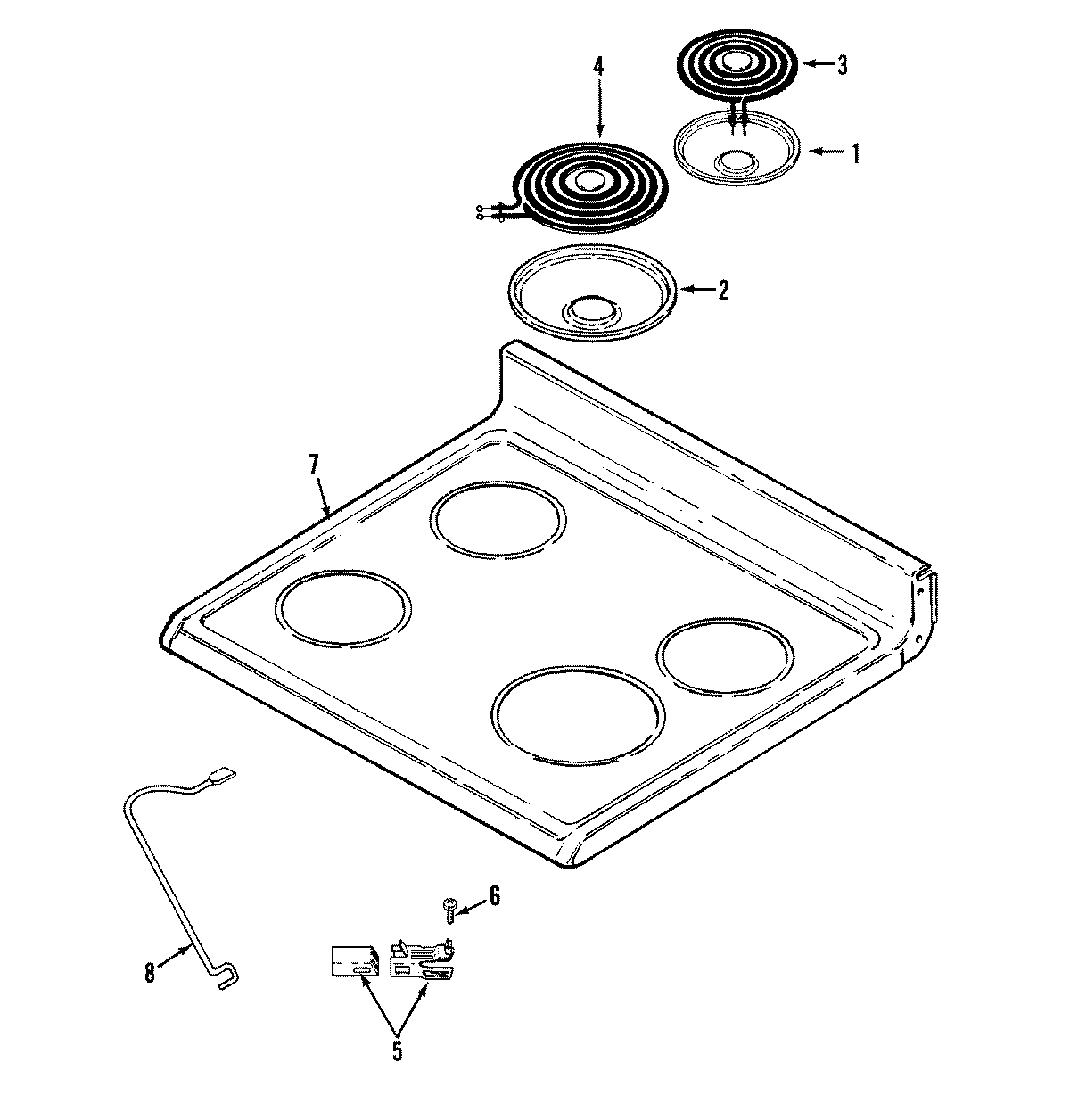

1

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $3.71

1

MAY 74006368 MAY 74006368 Contact Us For Availability

1

MAY 74003469 MAY 74003469 Contact Us For Availability

2

MAY 74005510 MAY 74005510 Contact Us For Availability

2

NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability

2

NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability

2

MAY 74003643 MAY 74003643 Contact Us For Availability

2

LINING, OVEN DOOR MAY 74004972 Contact Us For Availability

2

SUPPORT, BROIL ELEMENT MAY 74003386 Contact Us For Availability

2

MAY Y04100393 MAY Y04100393 Contact Us For Availability

3

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

3

WPW10259868 Whirlpool Surface Heating Element In Stock WPL WPW10259868 $60.38

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $67.86

3

MAY 7101P348-60 MAY 7101P348-60 Contact Us For Availability

3

MAY 74004913 MAY 74004913 Contact Us For Availability

3

MAY 74004090 MAY 74004090 Contact Us For Availability

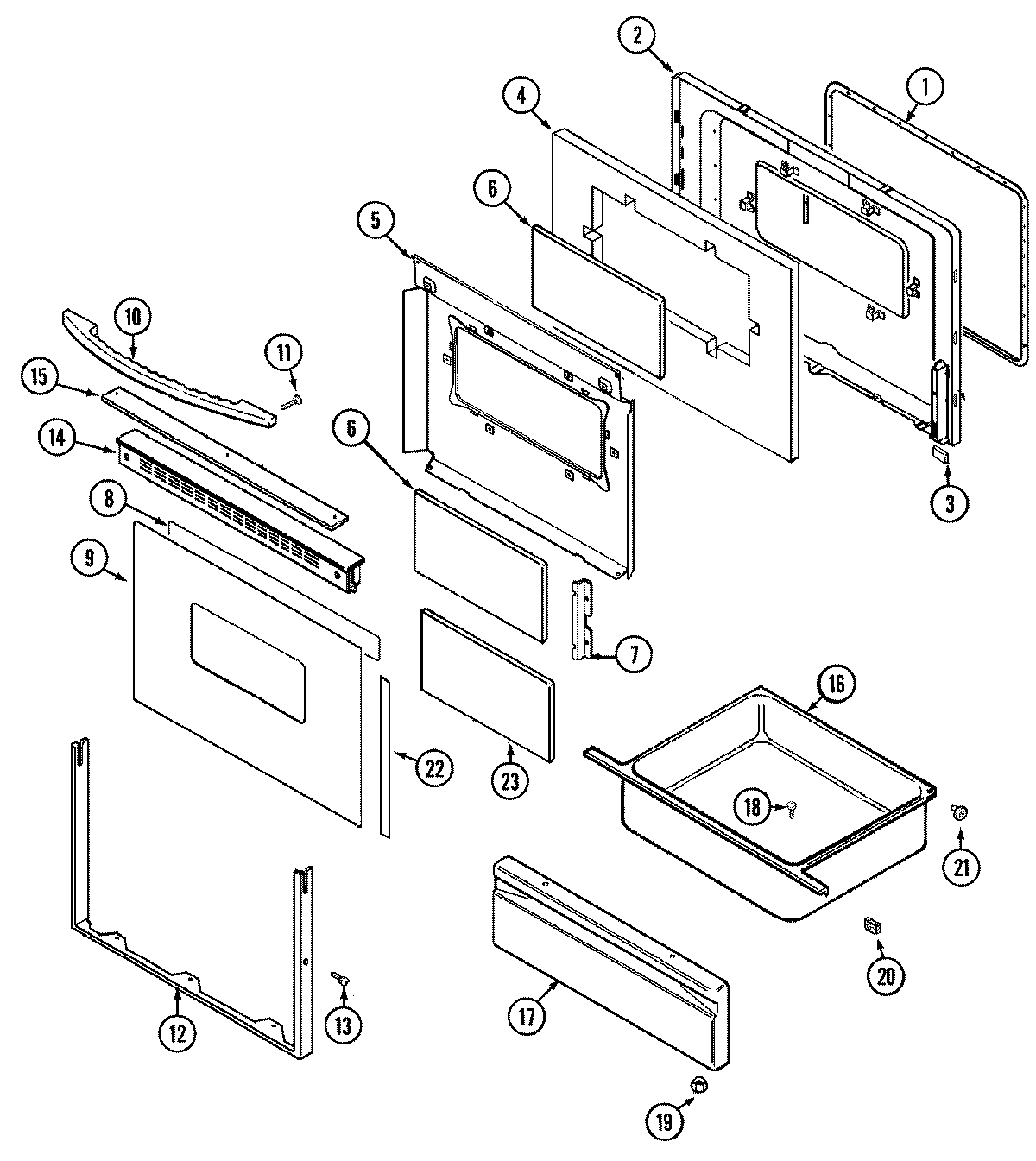

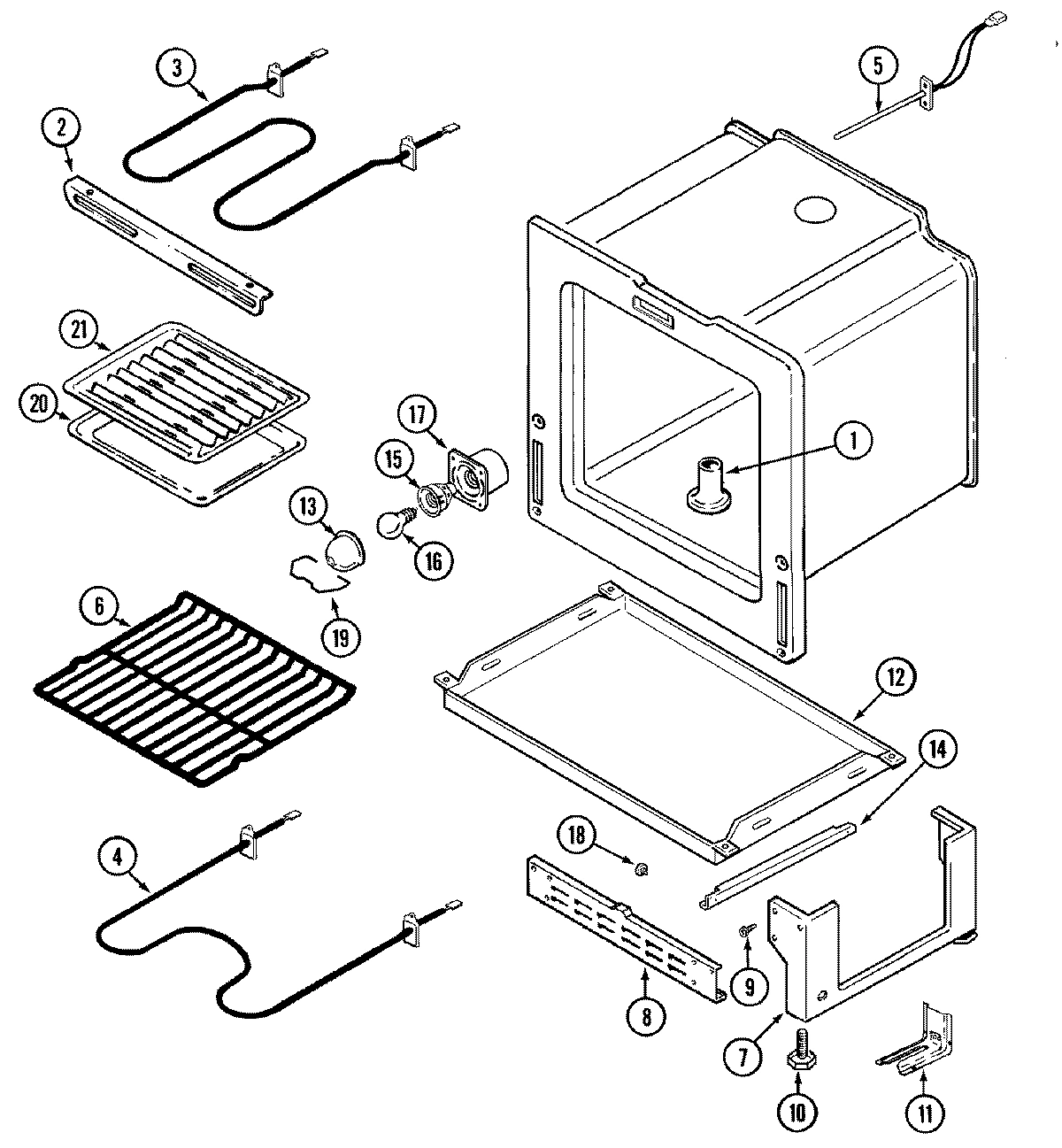

4

WP7101P309-60 Whirlpool Screw In Stock WPL WP7101P309-60 $2.51

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $21.05

4

WP7403P238-60 Whirlpool Infinite Switch Small In Stock WPL WP7403P238-60 $24.38

4

WP7403P239-60 Whirlpool Oven Switch In Stock WPL WP7403P239-60 $20.40

4

WPW10345410 Whirlpool Surface Element In Stock WPL WPW10345410 $83.24

4

MAY 74001842 MAY 74001842 Contact Us For Availability

4

MAY 74004089 MAY 74004089 Contact Us For Availability

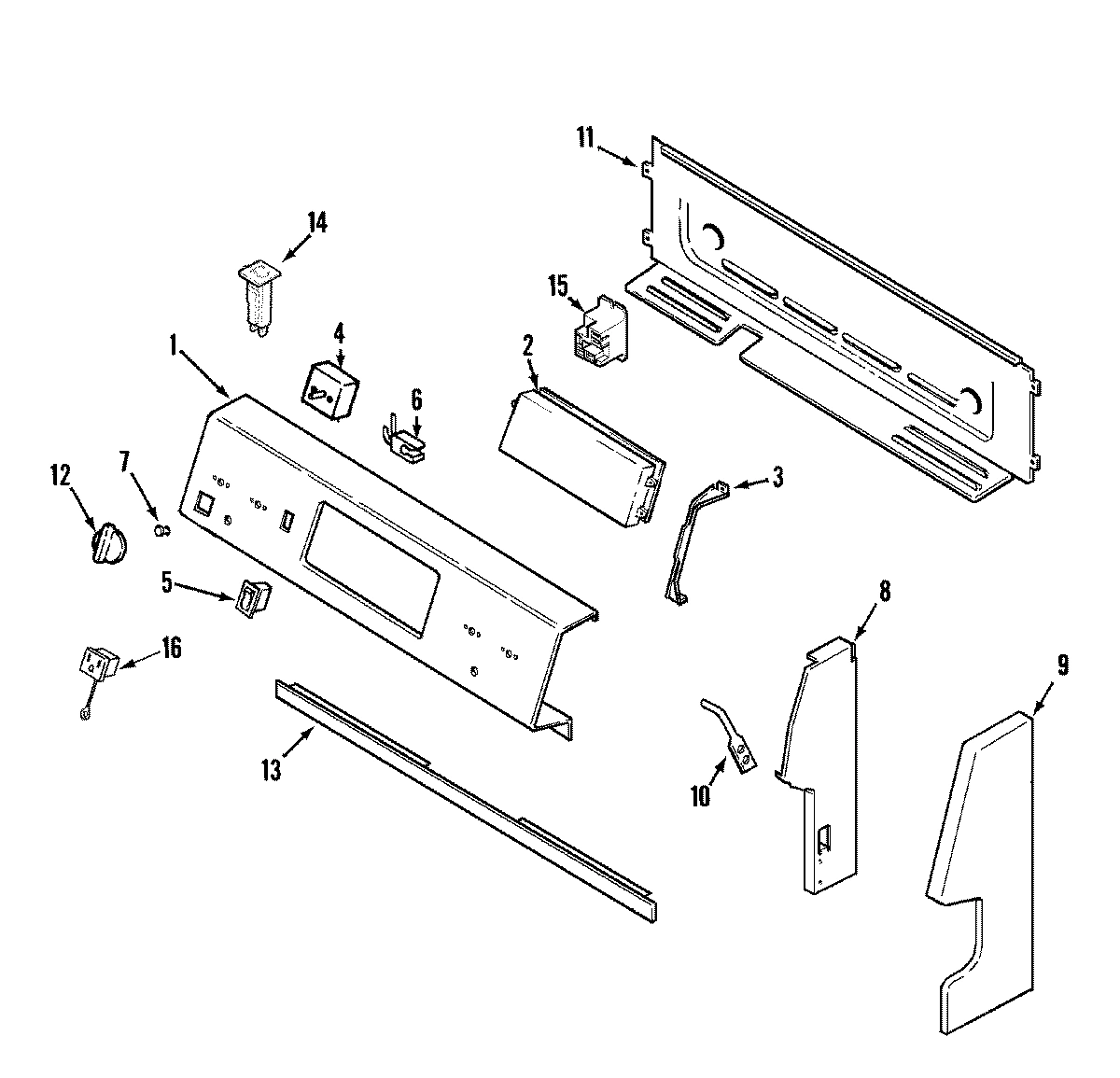

5

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

5

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $32.39

5

MAY 74001843 MAY 74001843 Contact Us For Availability

5

MAY 1430306K MAY 1430306K Contact Us For Availability

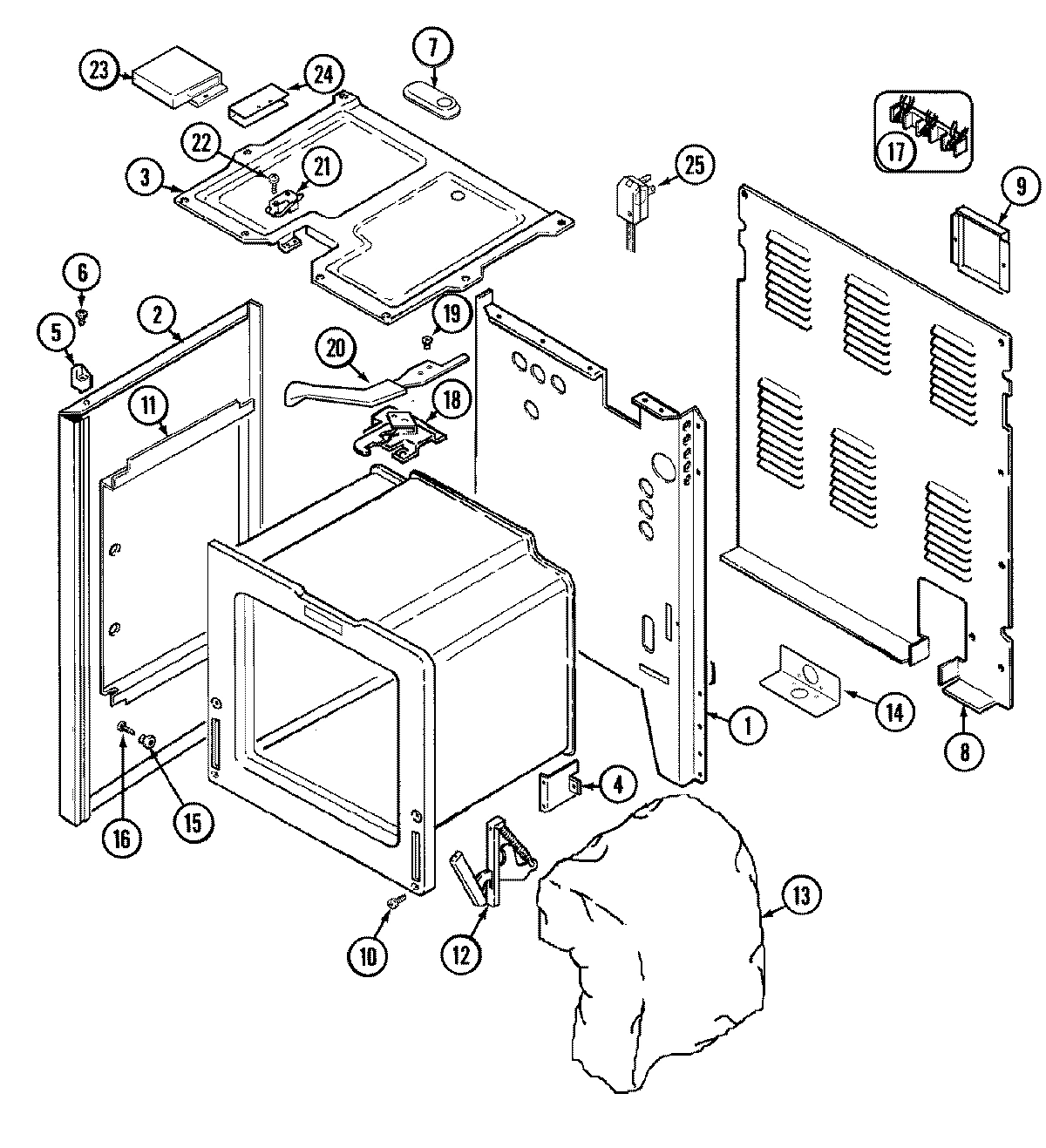

6

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $41.71

6

GLASS, INNER MAY 74003320 Contact Us For Availability

6

MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability

7

WP7730P011-60 Whirlpool Indicator Lens Backorder WPL WP7730P011-60 $2.85

7

MAY 74003428 MAY 74003428 Contact Us For Availability

7

MAY 74001844 MAY 74001844 Contact Us For Availability

7

MAY 74003393 MAY 74003393 Contact Us For Availability

8

MAY 74003365 MAY 74003365 Contact Us For Availability

8

MAY 74003366 MAY 74003366 Contact Us For Availability

8

TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability

8

MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability

8

MAY 74004084 MAY 74004084 Contact Us For Availability

9

MAY 74003370 MAY 74003370 Contact Us For Availability

9

MAY 74003369 MAY 74003369 Contact Us For Availability

9

MAY 74002451 MAY 74002451 Contact Us For Availability

9

MAY 74006395 MAY 74006395 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.59

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

MAY 74003371 MAY 74003371 Contact Us For Availability

MAY 74006381 MAY 74006381 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

WP7101P485-60 Whirlpool Anchor Tip Backorder WPL WP7101P485-60 $13.62

MAY 74004550 MAY 74004550 Contact Us For Availability

MAY 74001521 MAY 74001521 Contact Us For Availability

MAY 74006394 MAY 74006394 Contact Us For Availability

12

WP74003373 Whirlpool Knob Switch Backorder WPL WP74003373 $9.46

12

MAY 7706P310-60 MAY 7706P310-60 Contact Us For Availability

12

MAY 74005250 MAY 74005250 Contact Us For Availability

13

SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability

13

MAY 74003374 MAY 74003374 Contact Us For Availability

13

MAY 74003389 MAY 74003389 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.71

MAY 71003070 MAY 71003070 Contact Us For Availability

MAY 74003864 MAY 74003864 Contact Us For Availability

RUNNER, DRAWER MAY 74003565 Contact Us For Availability

WP74003482 Whirlpool Auxiliary Relay Backorder WPL WP74003482 $61.68

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.64

MAY 74003387 MAY 74003387 Contact Us For Availability

MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability

MAY 7728P094-60 MAY 7728P094-60 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

MAY 74001449 MAY 74001449 Contact Us For Availability

MAY 71003069 MAY 71003069 Contact Us For Availability

MAY 71003042 MAY 71003042 Contact Us For Availability

WP7103P027-60 Whirlpool Nut In Stock WPL WP7103P027-60 $2.51

SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability

MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability

MAY 74003399 MAY 74003399 Contact Us For Availability

MAY 74003388 MAY 74003388 Contact Us For Availability

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

SHAFT, STORAGE DRAWER ROLLER MAY 74005231 Contact Us For Availability

MAY 12001943 MAY 12001943 Contact Us For Availability

MAY 74001084 MAY 74001084 Contact Us For Availability

MAY 74003139 MAY 74003139 Contact Us For Availability

MAY 74003380 MAY 74003380 Contact Us For Availability

MAY 12001323 MAY 12001323 Contact Us For Availability

MAY 5195D082-60 MAY 5195D082-60 Contact Us For Availability

MAY 74003375 MAY 74003375 Contact Us For Availability

MAY 74003480 MAY 74003480 Contact Us For Availability

WPW10131078 Whirlpool Nut Assembly Backorder WPL WPW10131078 $2.91

SCREW, LEVER MAY 7101P230-60 Contact Us For Availability

MAY 74005906 MAY 74005906 Contact Us For Availability

MAY 74003391 MAY 74003391 Contact Us For Availability

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

MAY 74002973 MAY 74002973 Contact Us For Availability

MAY 16010161 MAY 16010161 Contact Us For Availability

MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability

21

MAY 74003383 MAY 74003383 Contact Us For Availability

21

MAY 74003566 MAY 74003566 Contact Us For Availability

21

MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability

22

MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability

22

MAY 74003660 MAY 74003660 Contact Us For Availability

23

MAY 74002002 MAY 74002002 Contact Us For Availability

23

MAY 74003479 MAY 74003479 Contact Us For Availability

24

MAY 74003630 MAY 74003630 Contact Us For Availability

25

MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability

NI

MAY 15002855 MAY 15002855 Contact Us For Availability
