Model Whirlpool PER4305BAH ELECTRIC RANGE – Common Parts &amp; Diagrams

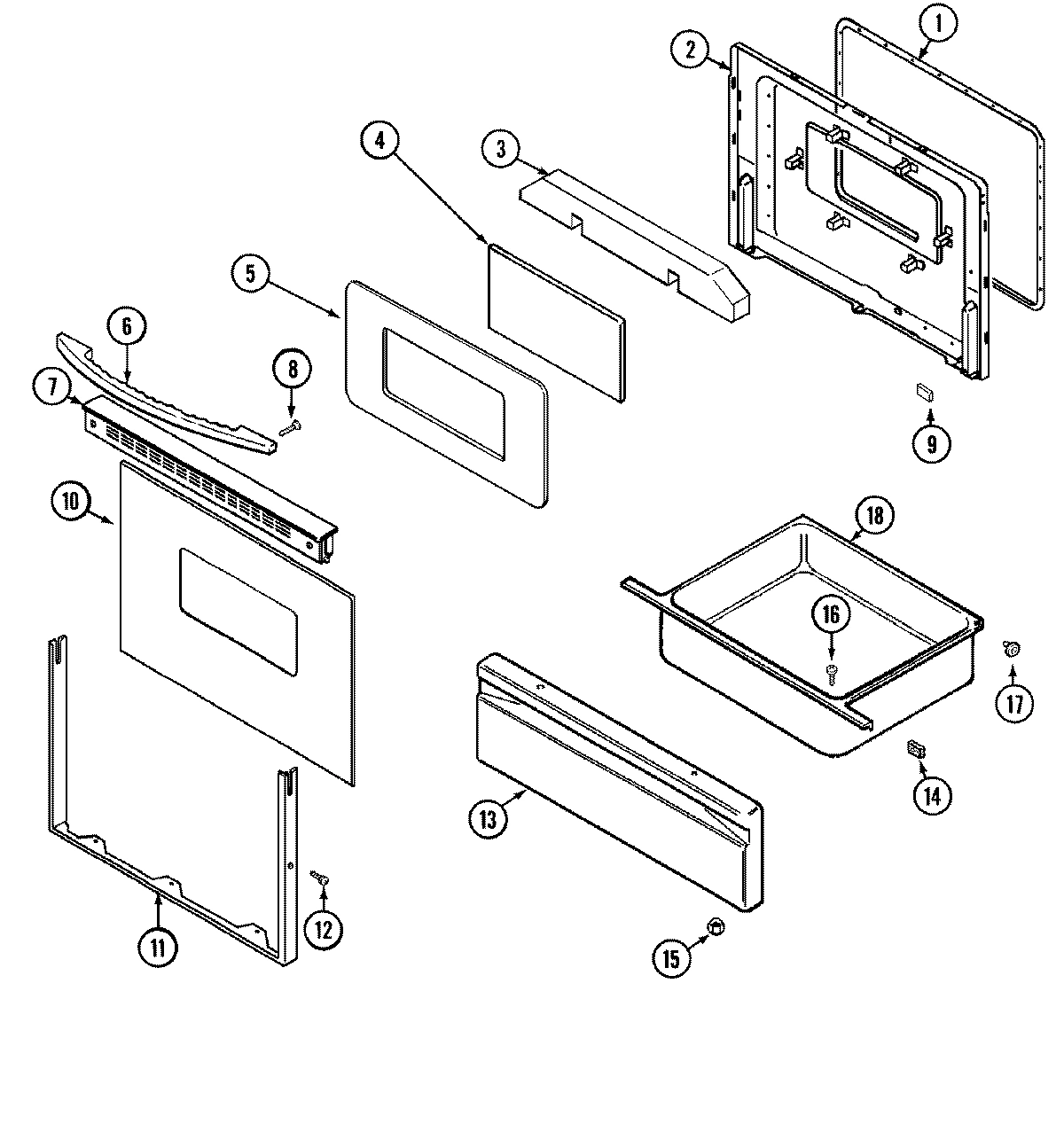

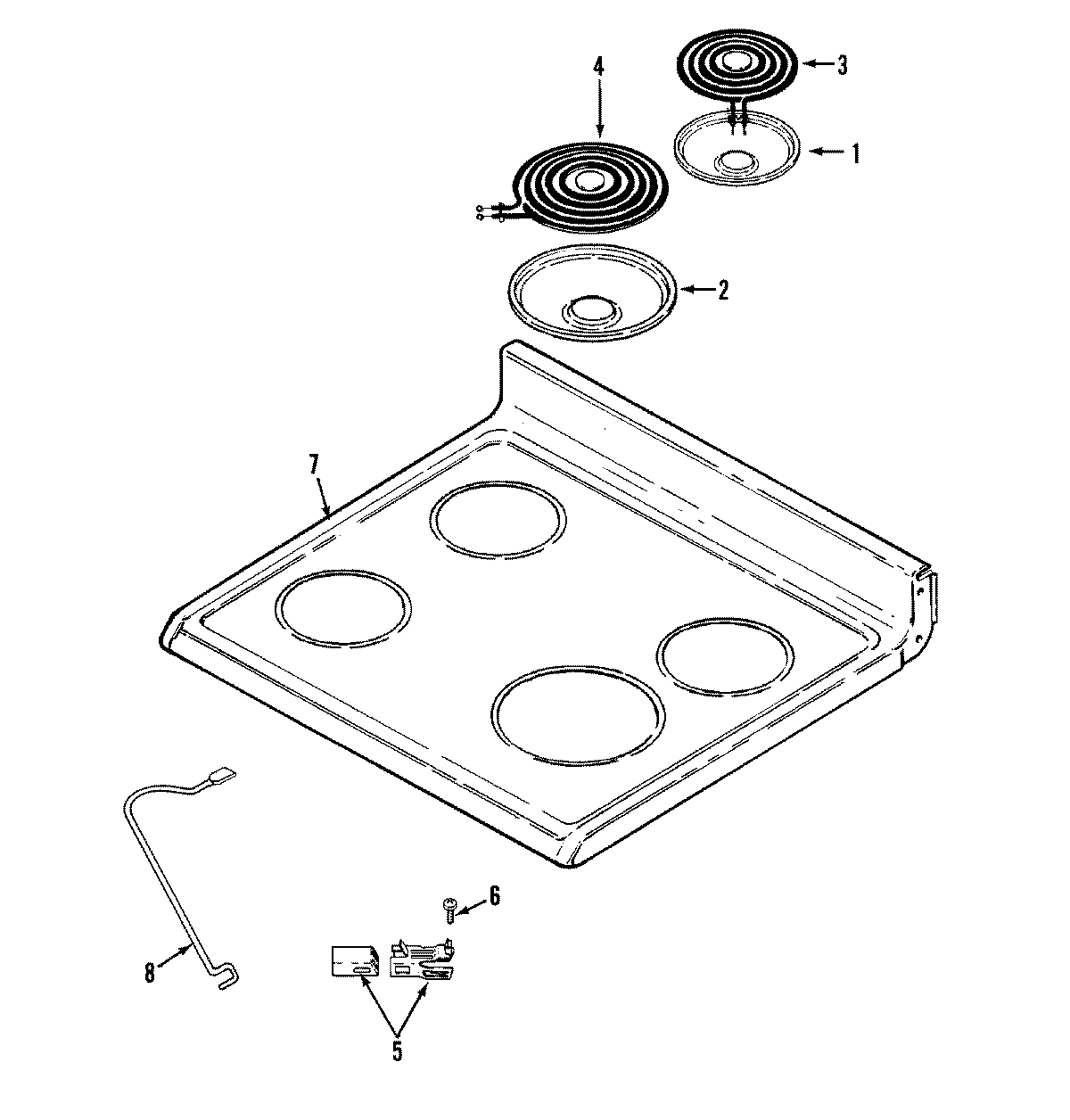

1

TUBE, VENT WPL 8026P01960 Contact Us For Availability

1

BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability

1

SEAL, DOOR WPL 7212P04360 Contact Us For Availability

1

PANEL, CONTROL (BLK) WPL 74006284 Contact Us For Availability

1

SCREW, METAL GROUNDING WPL 7101P28760 Contact Us For Availability

1

BACK, MAIN WPL 74001772 Contact Us For Availability

1

SHIELD, WIRE WPL 74002334 Contact Us For Availability

2

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

2

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

2

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

2

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

2

NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability

2

LINING, DOOR WPL 74003244 Contact Us For Availability

2

CLOCK (BLK) WPL 74006285 Contact Us For Availability

2

PANEL, SIDE (WHT) WPL 74003236 Contact Us For Availability

3

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $45.23

3

WPW10310249 Whirlpool Broil Element In Stock WPL WPW10310249 $70.99

3

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $70.84

3

WPY04000036 Whirlpool Surface Element Backorder WPL WPY04000036 $57.46

3

INSULATION, DOOR WPL 74002458 Contact Us For Availability

3

SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability

3

BRACKET, CLOCK WPL 74003426 Contact Us For Availability

3

BOX, BURNER WPL 4011F23919 Contact Us For Availability

4

WP74010750 Whirlpool Oven Bake Element In Stock WPL WP74010750 $23.48

4

WPY04000035 Whirlpool Surface Element In Stock WPL WPY04000035 $62.90

4

GLASS, DOOR (INNER) WPL 74002459 Contact Us For Availability

4

SCREW WPL 7101P30960 Contact Us For Availability

4

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

4

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

4

SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability

5

12001676 Whirlpool Range Surface Burner Recep In Stock WPL 12001676 $8.93

5

CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability

5

SCREW (BLK) WPL 7101P27660 Contact Us For Availability

5

BAFFLE, DOOR WPL 74002461 Contact Us For Availability

5

SWITCH, ROCKER (BLK) WPL 74003363 Contact Us For Availability

5

SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability

5

SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability

6

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

6

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.76

6

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

6

SCREW WPL 7118P01360 Contact Us For Availability

6

HANDLE, DOOR (BLK) WPL 74006286 Contact Us For Availability

7

PEDESTAL, SIDE WPL 74003393 Contact Us For Availability

7

TOP, MAIN (WHT) WPL 74003428 Contact Us For Availability

7

TRIM, DOOR TOP (BLK) WPL 74003889 Contact Us For Availability

7

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

7

COVER, VENT WPL 4005F43245 Contact Us For Availability

8

PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability

8

PROP ROD WPL 74004084 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (RT) WPL 74003365 Contact Us For Availability

8

SUPPORT, CONTROL PANEL (LT) WPL 74003366 Contact Us For Availability

8

COVER, MAIN BACK WIRE WPL 74003241 Contact Us For Availability

9

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.28

9

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $2.68

9

END CAP, CONTROL PNL (RT-BLK) WPL 74003367 Contact Us For Availability

9

END CAP, CONTROL PNL (LT-BLK) WPL 74003368 Contact Us For Availability

9

COVER, ACCESS WPL 4005F42751 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.75

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $10.49

GLASS, OUTER DOOR (BLK) WPL 74006287 Contact Us For Availability

HINGE, MAIN TOP (ROD) WPL 74003371 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

SCREW WPL 7101P35260 Contact Us For Availability

FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability

HOUSING, CONTROL PANEL WPL 74003372 Contact Us For Availability

STRAP, INSULATION WPL 74003385 Contact Us For Availability

12

W10876639 Whirlpool Door Hinge Assembly Backorder WPL W10876639 $84.42

12

SCREW (1/2``) WPL 7101P04060 Contact Us For Availability

12

KNOB, INFINITE SWITCH (BLK) WPL 74003427 Contact Us For Availability

PLUG, LOCK SLOT WPL 74003406 Contact Us For Availability

PANEL, DRAWER (WHT) WPL 74003399 Contact Us For Availability

SHIELD, SIGHT WPL 74003374 Contact Us For Availability

INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability

INSULATION, WRAP WPL 74003112 Contact Us For Availability

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.80

WP74005019 Whirlpool Range Thermostat In Stock WPL WP74005019 $114.06

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability

SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability

PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability

RECEPTACLE, BULB WPL 74003387 Contact Us For Availability

NUT WPL 7103P08260 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability

SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.24

BULB-OVEN WPL 7407P10360 Contact Us For Availability

MANUAL, USE & CARE WPL 74005904 Contact Us For Availability

SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

HOUSING, BULB WPL 74003388 Contact Us For Availability

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

MANUAL, SRVC ELEC/GAS RANGE WPL 16010161 Contact Us For Availability

SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

18

ROLLER, DRAWER WPL 74003566 Contact Us For Availability

18

DRAWER, STORAGE WPL 71003042 Contact Us For Availability

18

CLAMP, WIRE WPL 7111P02060 Contact Us For Availability

19

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

NI

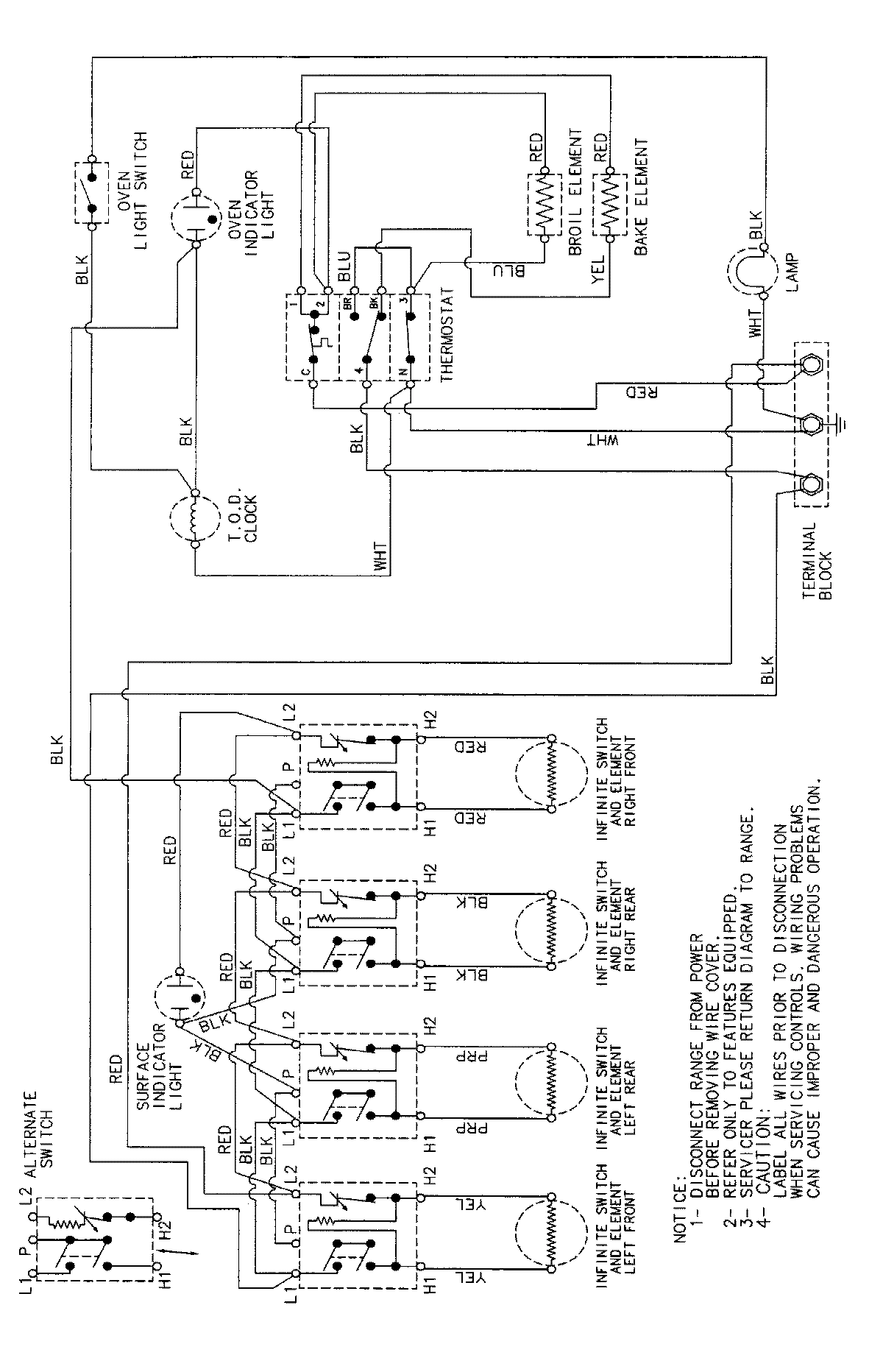

WIRING INFORMATION WPL 15002214 Contact Us For Availability
