Model Electrolux PCWS3080AFA WALL OVEN, ELECTRIC, SINGLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

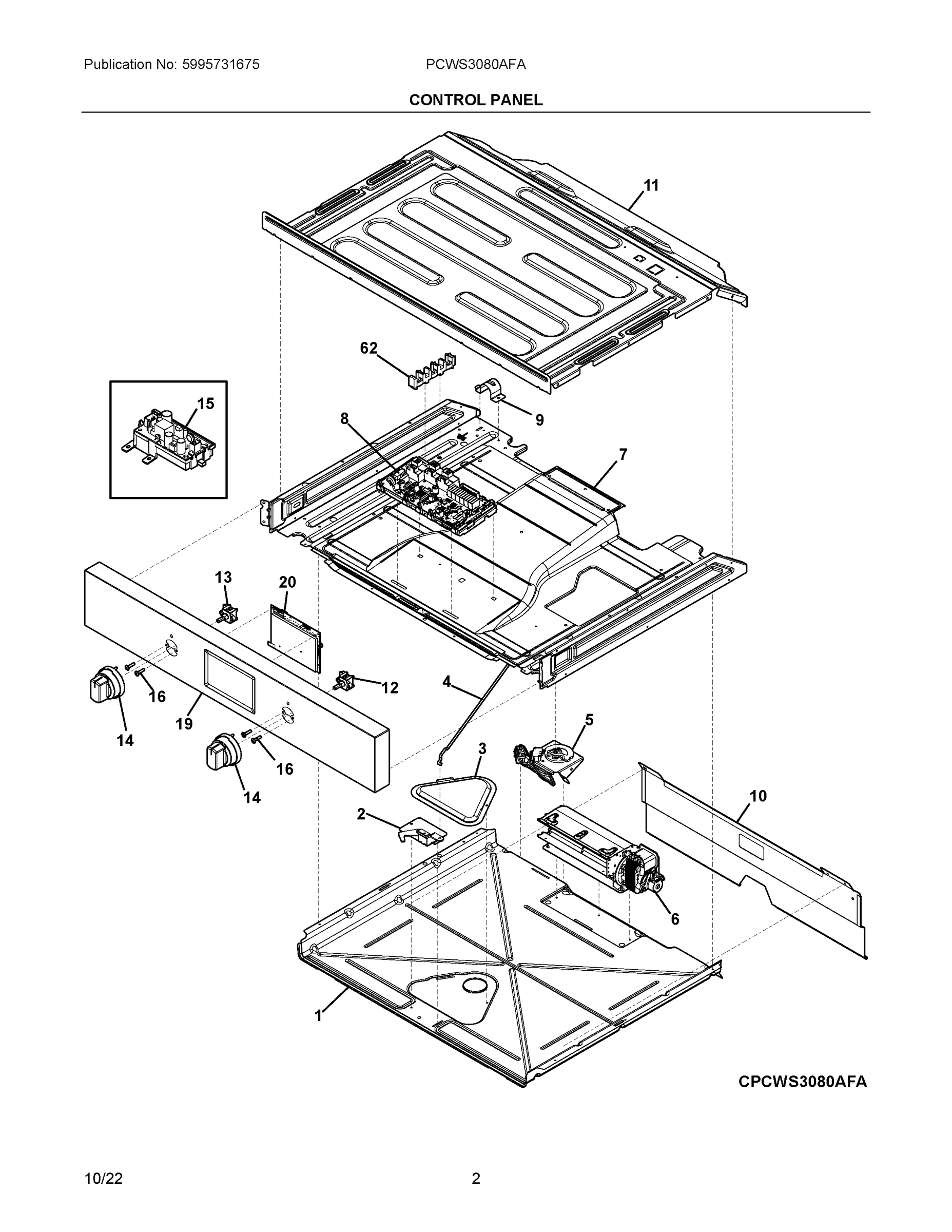

02 - CONTROL PANEL
03 - BODY
04 - DOOR
05 - WIRING DIAGRAM
Common parts from model Electrolux PCWS3080AFA WALL OVEN, ELECTRIC, SINGLE, 30 INCH
3
COVER, VENT WCI 5304526366 Contact Us For Availability
3
BADGE, FRIGIDAIRE PRO WCI 809108704 Contact Us For Availability
4
ROD, LATCH WCI 5304526368 Contact Us For Availability
4
DOOR ASSEMBLY, OUTER, STEEL/GLASS, STAINLESS WCI 5304532097 Contact Us For Availability
5
MOTOR ASSEMBLY, DOOR LATCH/LOCK WCI 5304526552 Contact Us For Availability
5
BRACKET, DOOR PROTECTION, LOWER WCI 5304530443 Contact Us For Availability
6
RACK, HANDLED, FLAT WCI 5304532107 Contact Us For Availability
6
SHIELD, WOOL, DOOR WCI 5304526282 Contact Us For Availability
6A
RACK ASSEMBLY, GLIDE WCI 5304530447 Contact Us For Availability
6B
FRIG AIR FRY TRAY PEREGRINE WCI FRIGPEREAFT Contact Us For Availability
7
CARRIER PLATE, ASSEMBLY, W/DUCT WCI 5304526538 Contact Us For Availability
7
TRAY, HIDDEN BAKE WCI 5304528326 Contact Us For Availability
7
INSULATION, DOOR, TOP WCI 5304526656 Contact Us For Availability
7A
INSULATION, DOOR, BOTTOM WCI 5304526655 Contact Us For Availability
7B
INSULATION, FOIL, DOOR WCI 5304526530 Contact Us For Availability
8
GLASS, DOOR, INNER, SHR, PF WCI 5304526387 Contact Us For Availability
9
BRACKET, CONDUIT MTG. WCI 5304530364 Contact Us For Availability
9
LINER, OVEN DOOR, MIDNIGHT BLACK WCI 5304530464 Contact Us For Availability
10
SHIELD, INSULATION, REAR, UPPER WCI 5304530427 Contact Us For Availability
11
SHIELD, TOP COVER WCI 5304532474 Contact Us For Availability
11
SEAL, OVEN DOOR, CHARCOAL WCI 5304526242 Contact Us For Availability
13
POTENTIOMETER, MODE SELECT, OVEN WCI 808843110 Contact Us For Availability
14
KNOB, SELECTOR, STAINLESS WCI 5304532090 Contact Us For Availability
15
PC BOARD, ASSEMBLY, BACKLIT KNOBS, W/HOUSING WCI 5304534050 Contact Us For Availability
15
LAMP ASSEMBLY, HALOGEN, G9, 40W, 120V WCI 5304530343 Contact Us For Availability
17
BRACKET, GLASS PACK, VERTICAL WCI 5304526284 Contact Us For Availability
17A
BRACKET, GLASS PACK, HORIZONTAL WCI 5304526285 Contact Us For Availability
19
CONTROL PANEL, ASSEMBLY, STAINLESS WCI 5304532088 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
37
PROBE, OVEN SENSOR WCI 5304526310 Contact Us For Availability
39
HANDLE, DOOR, STAINLESS WCI 5304530408 Contact Us For Availability
54
RECEPTACLE, MEAT PROBE WCI 5304534015 Contact Us For Availability
56
SCREW, M4, 2 X 10, SHEET METAL, BLACK WCI 5304526234 Contact Us For Availability
58
INSULATION, OVEN, WRAPPER WCI 5304530429 Contact Us For Availability
58A
INSULATION, OVEN, REAR WCI 5304530428 Contact Us For Availability
59
TUBE, VENT CATALYST WCI 5304526450 Contact Us For Availability
70
PANEL, SIDE, EXTERIOR WCI 5304526314 Contact Us For Availability
71
SHIELD, REAR WIRE WCI 5304526329 Contact Us For Availability
72
COVER, CONVECTION MTR WCI 5304526588 Contact Us For Availability
83
BRACKET, BASE PANEL, MOUNT WCI 5304530453 Contact Us For Availability
86
HINGE, DOOR, PURPLE WCI 5304530348 Contact Us For Availability
86A
HINGE, DOOR, PURPLE, 2 SPRING WCI 5304530349 Contact Us For Availability
107
COVER, FAN, MIDNIGHT BLACK, CONVECTION WCI 5304526365 Contact Us For Availability
109
BLADE, FAN, CONVECTION WCI 5304525455 Contact Us For Availability
111
NUT, FAN BLADE WCI 561231207 Contact Us For Availability
125
MOTOR, CONVECTION FAN WCI 5304526375 Contact Us For Availability
161
ELEMENT, CONVECTION, 3800W, 240V, RECTANGULAR WCI 5304526565 Contact Us For Availability
NI
HARNESS, WIRING, POTENTIOMETERS WCI 5304528462 Contact Us For Availability
NI
HARNESS ASSEMBLY, BACKLIT KNOBS, W/2 SWITCHES WCI 5304528730 Contact Us For Availability
NI
HARNESS, WIRING, WALL OVEN, MACS WCI 5304532099 Contact Us For Availability
NI
SCREW, 4.2 X 10 WCI 387856311 Contact Us For Availability
NI
ANTI TIP, KIT WCI 5304530450 Contact Us For Availability
NI
HARNESS, WIRING, UPPER OVEN, MAIN WCI 5304532103 Contact Us For Availability
NI
HARNESS, WIRING, UPPER OVEN, DS WCI 5304532105 Contact Us For Availability
NI
HARNESS, WIRING, TACH-MDL-TEMP WCI 5304533451 Contact Us For Availability
NIA
SCREW, M4, 2 X 10, BLACK, W/WASHER WCI 387872717 Contact Us For Availability
NIB
NUT, HEX FLANGE, 3/8 10-32 WCI 316205500 Contact Us For Availability
NIB
SCREW, HI WCI 5304526532 Contact Us For Availability
NIC
SCREW, T20, 8-18 X .79 WCI 5304528293 Contact Us For Availability
× ![]()
