Model Hotpoint NVL333GY0WW Dryer Gas – Common Parts & Diagrams

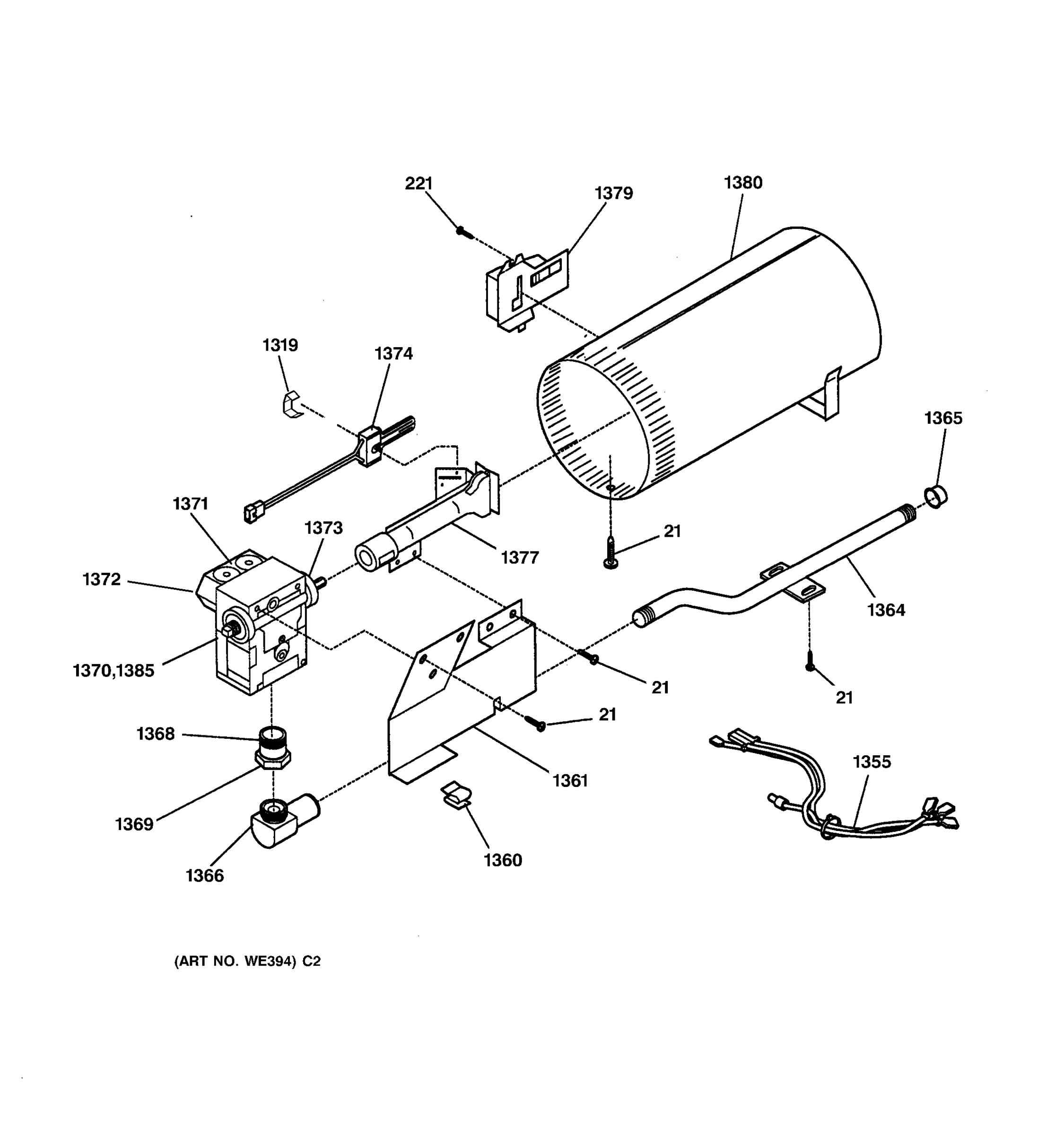

BURNER

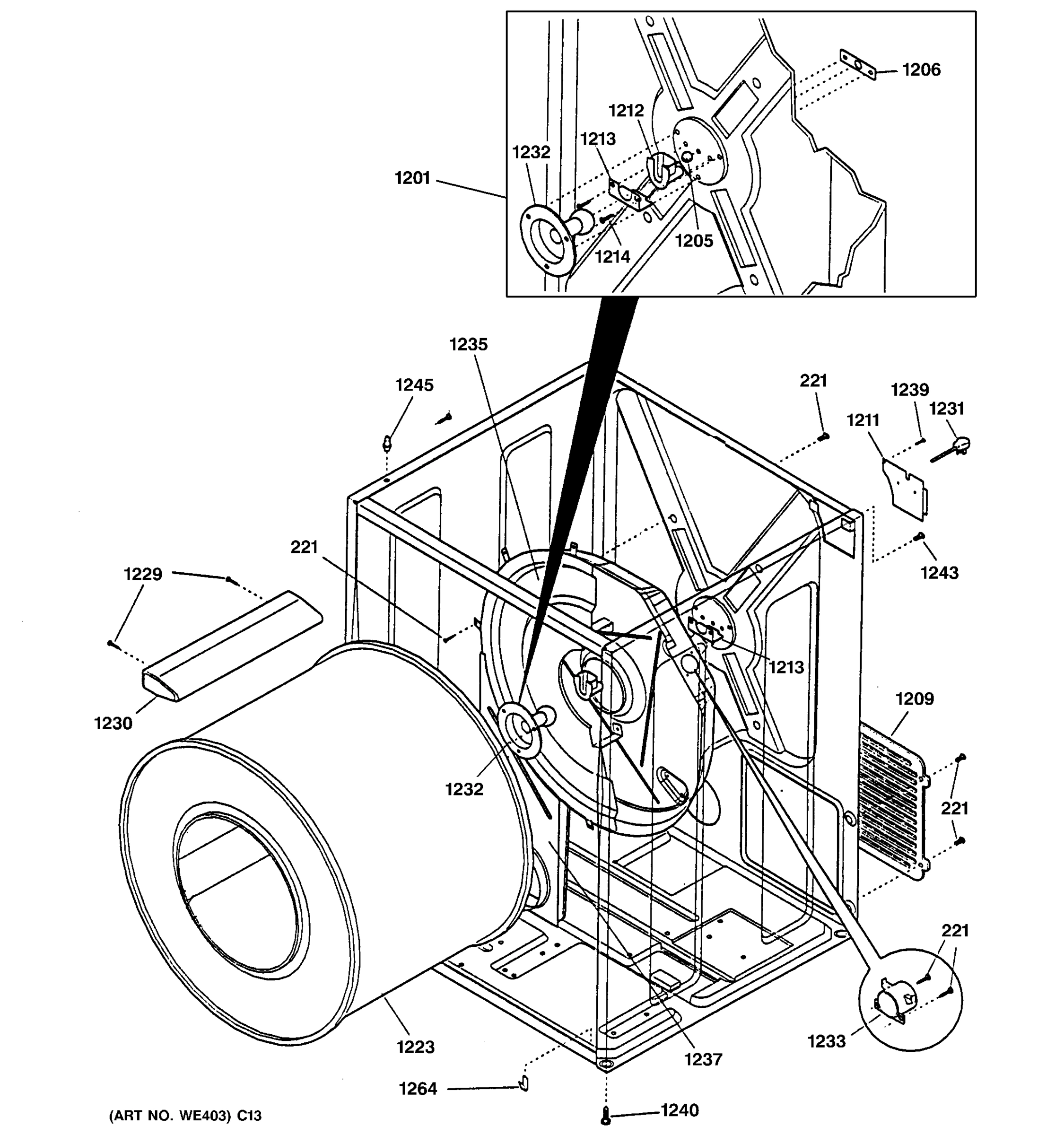

CABINET & DRUM

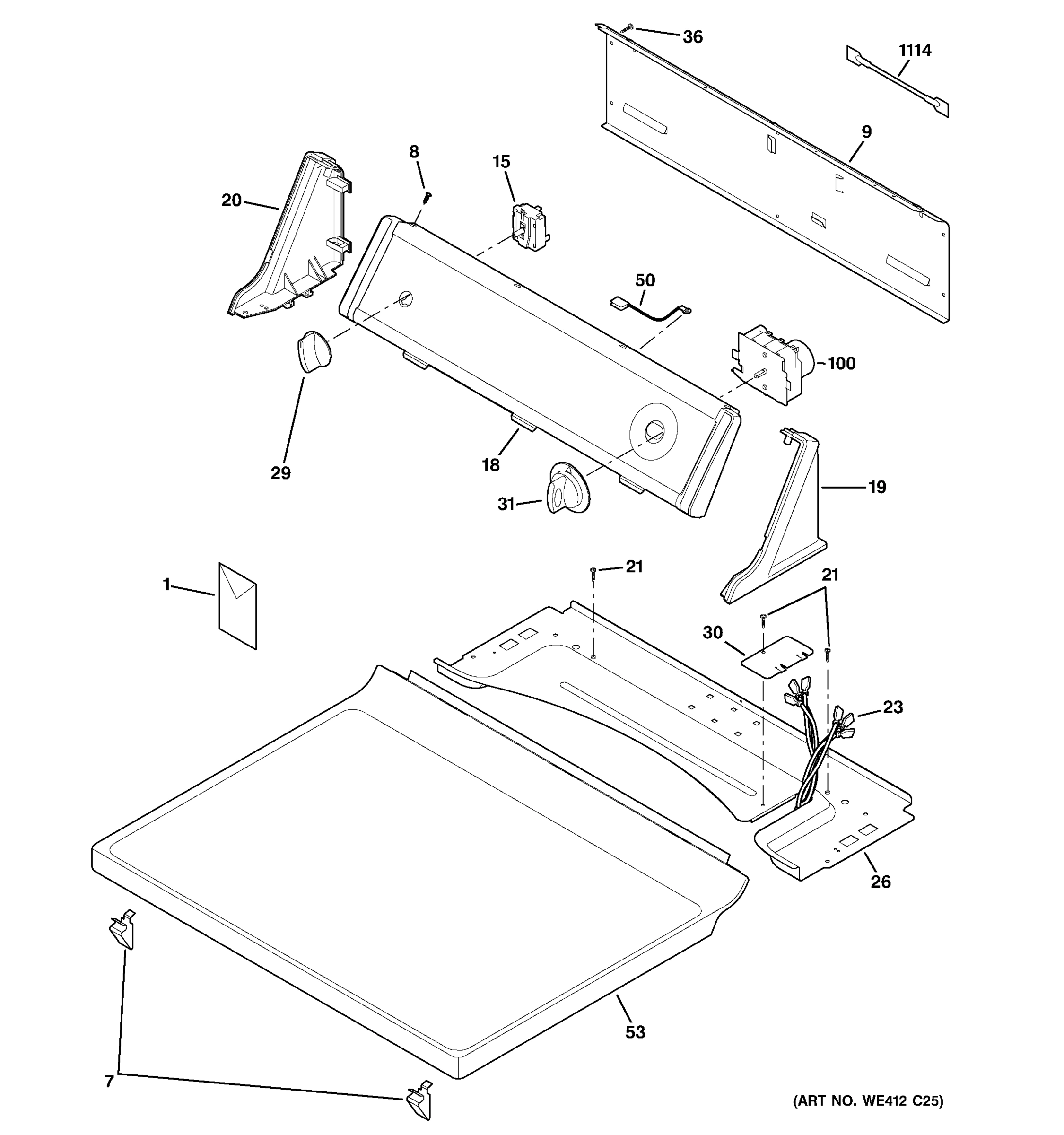

CONTROLS & TOP PANEL

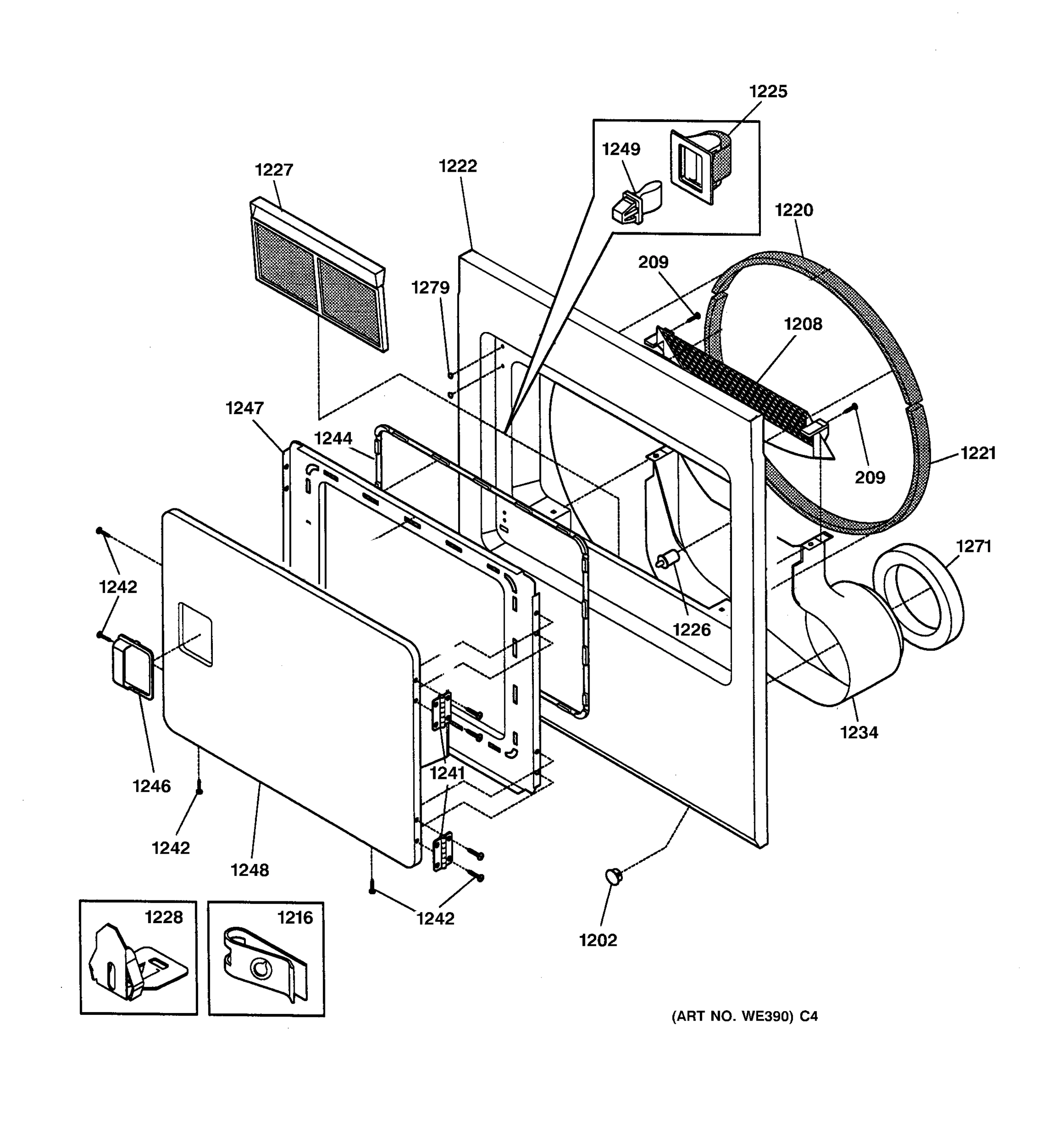

FRONT PANEL & DOOR

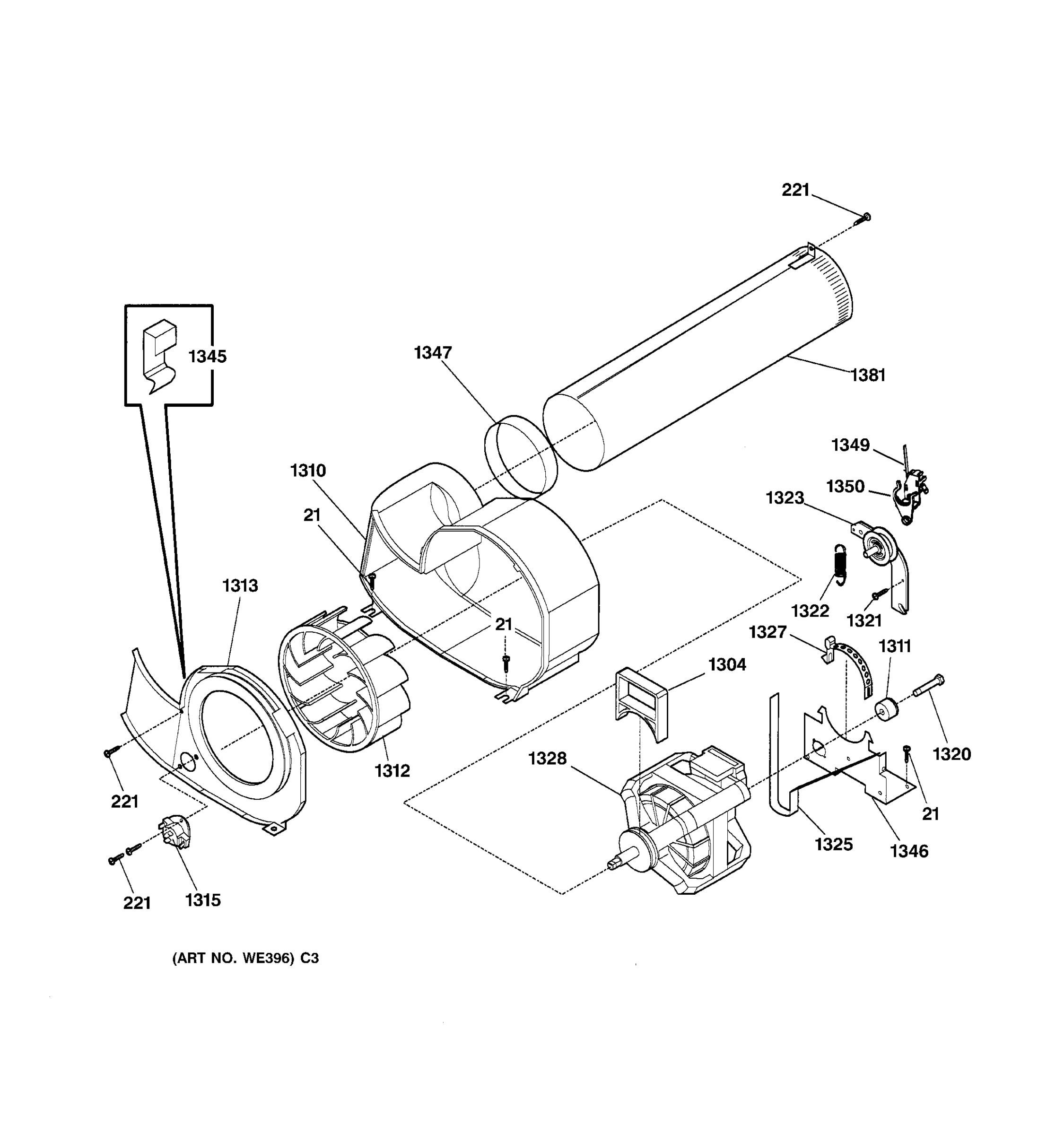

MOTOR
Common parts from model Hotpoint NVL333GY0WW Dryer Gas
1
GEN 31-15407 GEN 31-15407 Contact Us For Availability
1
GEN 49-9996 GEN 49-9996 Contact Us For Availability
7
CLIP-TOP FRONT/PANEL GEN WE02X10009 Contact Us For Availability
8
SCR 8-18 X .50 FLT HD/SN GEN WE02X10021 Contact Us For Availability
9
GEN WE20X10010 GEN WE20X10010 Contact Us For Availability
18
GEN WE19X10032 GEN WE19X10032 Contact Us For Availability
19
GEN WE19X10020 GEN WE19X10020 Contact Us For Availability
20
GEN WE19X10022 GEN WE19X10022 Contact Us For Availability
21
GEN WR02X9494 GEN WR02X9494 Contact Us For Availability
23
HARNESS- MAIN GEN WE08X10008 Contact Us For Availability
26
GEN WE19X10023 GEN WE19X10023 Contact Us For Availability
29
KNOB SELECTOR WH GEN WE01X10047 Contact Us For Availability
30
GEN WE01X10034 GEN WE01X10034 Contact Us For Availability
31
GEN WE01X10048 GEN WE01X10048 Contact Us For Availability
36
GEN WH02X10013 GEN WH02X10013 Contact Us For Availability
50
GEN WE08X10006 GEN WE08X10006 Contact Us For Availability
53
GEN WE20X10011 GEN WE20X10011 Contact Us For Availability
100
GEN WE04X10038 GEN WE04X10038 Contact Us For Availability
209
GEN WH02X10009 GEN WH02X10009 Contact Us For Availability
221
GEN WH01X10004 GEN WH01X10004 Contact Us For Availability
1114
GEN WE04X10035 GEN WE04X10035 Contact Us For Availability
1202
GEN WE01X10010 GEN WE01X10010 Contact Us For Availability
1208
GEN WE18X10001 GEN WE18X10001 Contact Us For Availability
1213
GEN WE13X10009 GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1216
GEN WE02X10010 GEN WE02X10010 Contact Us For Availability
1220
GEN WE03X0073 GEN WE03X0073 Contact Us For Availability
1221
GEN WE09X0105 GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10012 GEN WE20X10012 Contact Us For Availability
1225
GEN WE01X10023 GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10034 GEN WE04X10034 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
GEN WE02X10007 GEN WE02X10007 Contact Us For Availability
1234
GEN WE14X10005 GEN WE14X10005 Contact Us For Availability
1237
GEN WE14X10017 GEN WE14X10017 Contact Us For Availability
1239
GEN WE02X10011 GEN WE02X10011 Contact Us For Availability
1240
GEN WE02X10012 GEN WE02X10012 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
GEN WH02X10038 GEN WH02X10038 Contact Us For Availability
1244
GEN WE09X0107 GEN WE09X0107 Contact Us For Availability
1245
GEN WE01X10035 GEN WE01X10035 Contact Us For Availability
1246
GEN WE01X10013 GEN WE01X10013 Contact Us For Availability
1247
GEN WE10X10008 GEN WE10X10008 Contact Us For Availability
1248
GEN WE10X10009 GEN WE10X10009 Contact Us For Availability
1249
GEN WE01X1158 GEN WE01X1158 Contact Us For Availability
1264
GEN WE02X10013 GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10002 GEN WE09X10002 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
LOCKFAN HOUSING GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10008 GEN WE14X10008 Contact Us For Availability
1311
GEN WE01X10029 GEN WE01X10029 Contact Us For Availability
1312
GEN WE16X10001 GEN WE16X10001 Contact Us For Availability
1313
GEN WE14X10009 GEN WE14X10009 Contact Us For Availability
1315
GEN WE04X10018 GEN WE04X10018 Contact Us For Availability
1320
GEN WE02X10014 GEN WE02X10014 Contact Us For Availability
1321
GEN WE02X10022 GEN WE02X10022 Contact Us For Availability
1322
SPRING-IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10037 GEN WE01X10037 Contact Us For Availability
1327
GEN WE01X10003 GEN WE01X10003 Contact Us For Availability
1328
GEN WE17X10002 GEN WE17X10002 Contact Us For Availability
1345
GEN WE02X10015 GEN WE02X10015 Contact Us For Availability
1346
GEN WE13X10006 GEN WE13X10006 Contact Us For Availability
1347
SEALEXHAUST TUBE GEN WE09X10003 Contact Us For Availability
1349
SWITCH-BELT GEN WE04X10030 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1371
GEN WE04X10020 GEN WE04X10020 Contact Us For Availability
1373
GEN WE01X10022 GEN WE01X10022 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
× ![]()
