Model Alliance NTT45L Dryer – Common Parts & Diagrams

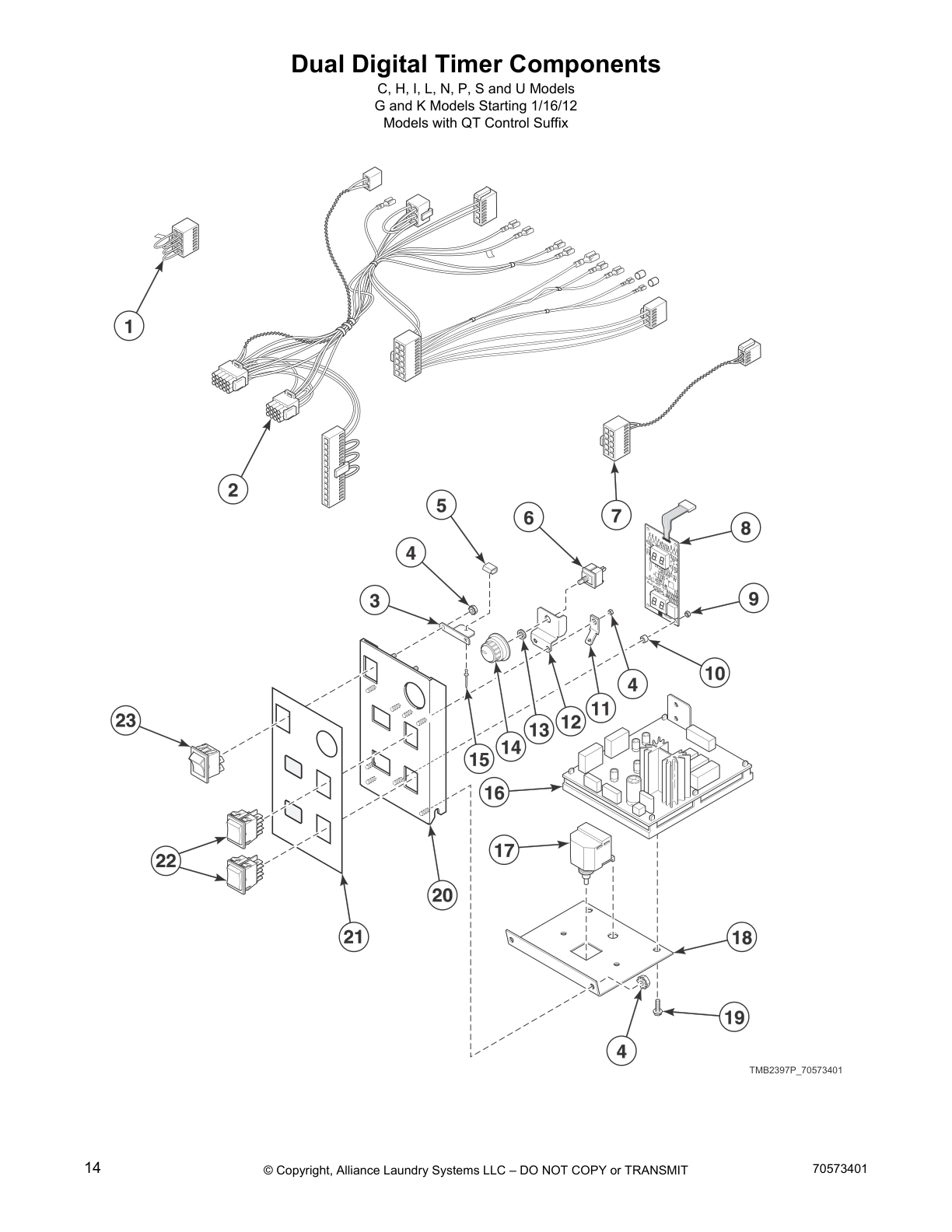

Dual Digital Timer Components

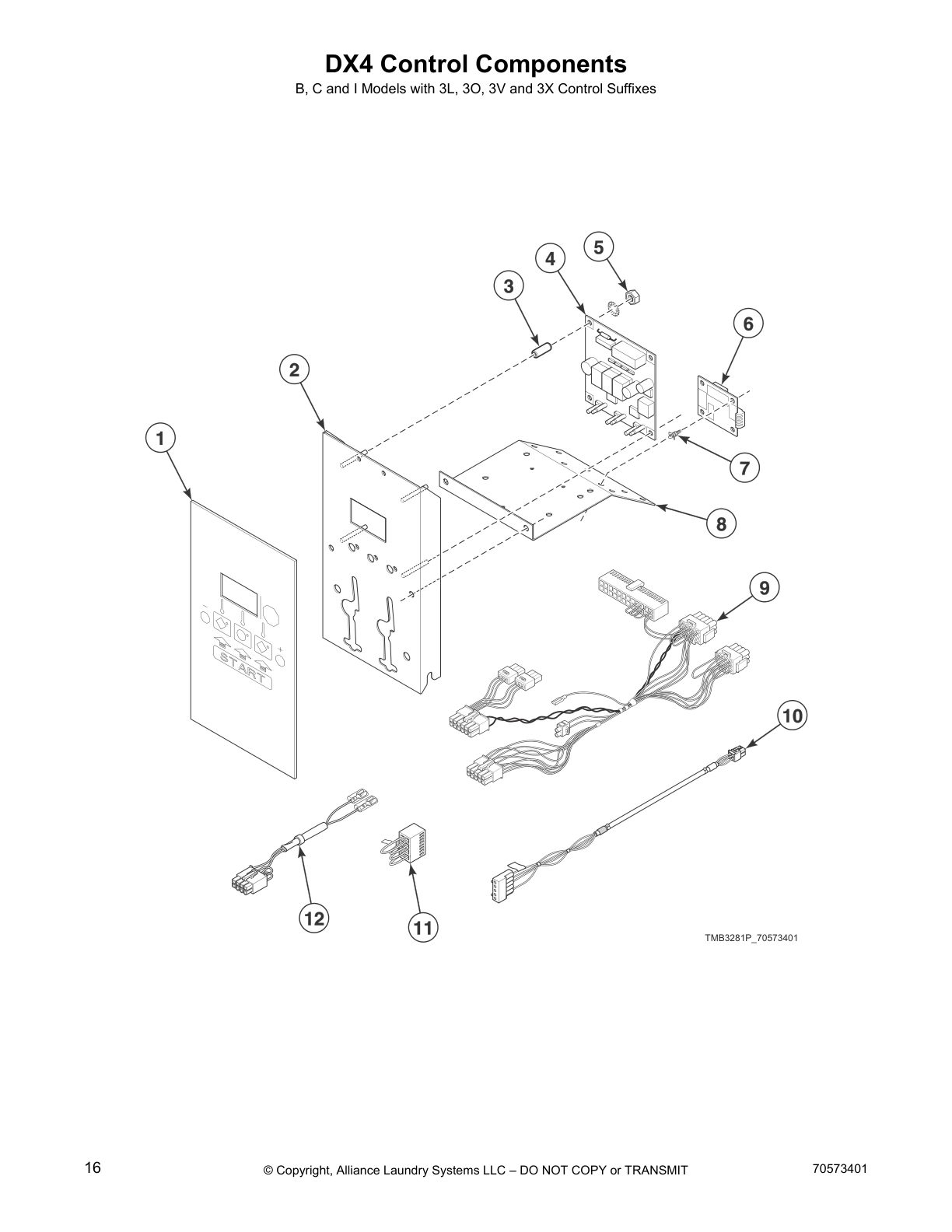

DX4 Control Components

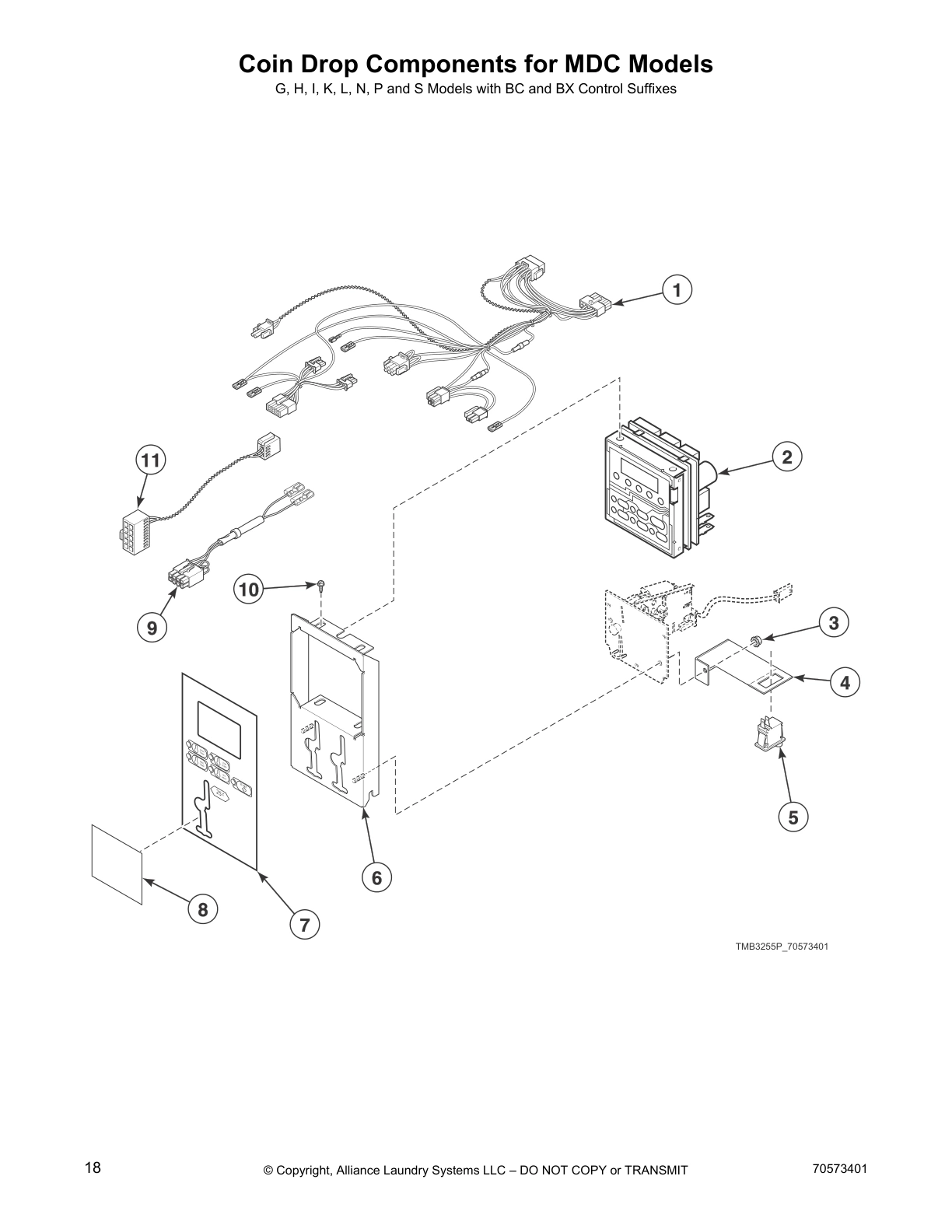

Coin Drop Components for MDC Models

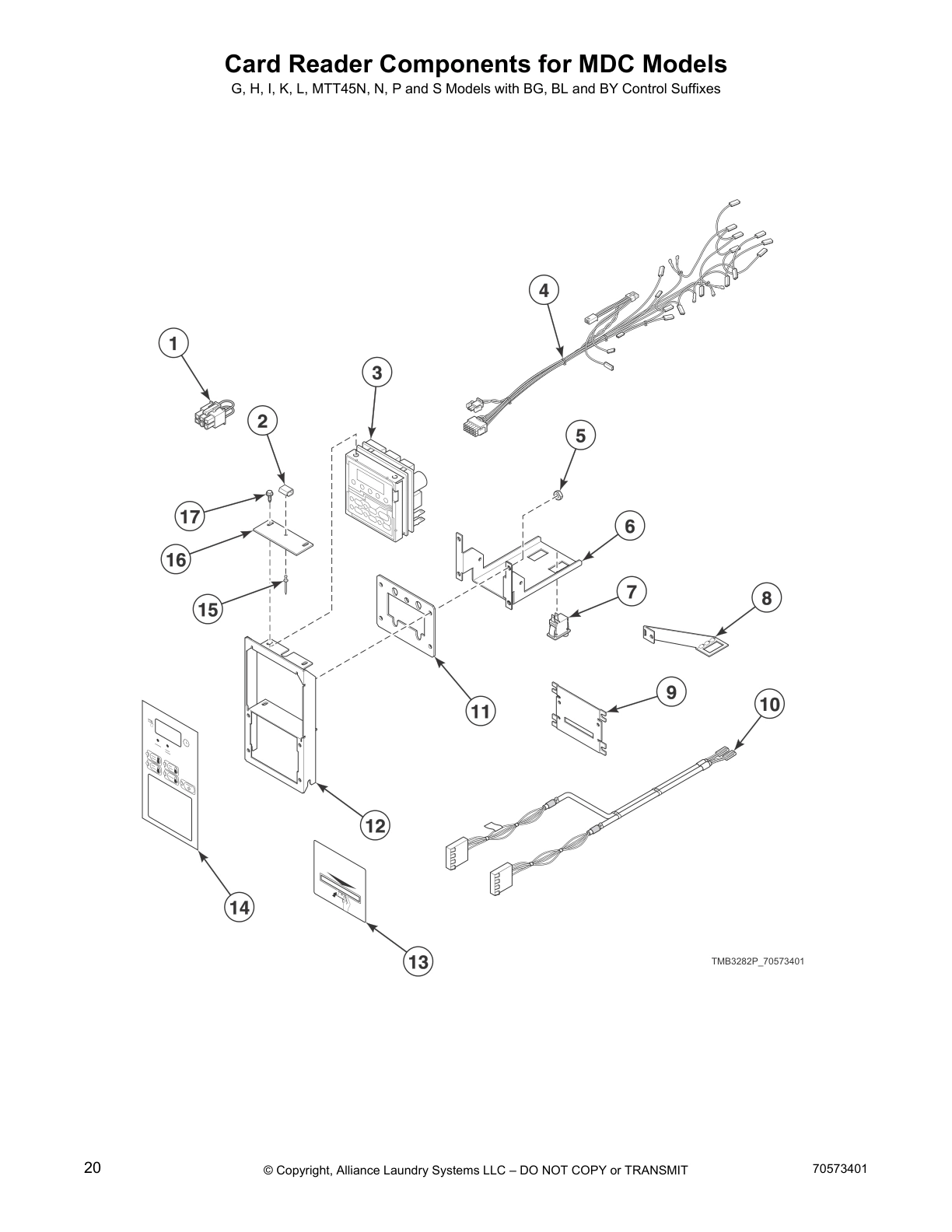

Card Reader Components for MDC Models

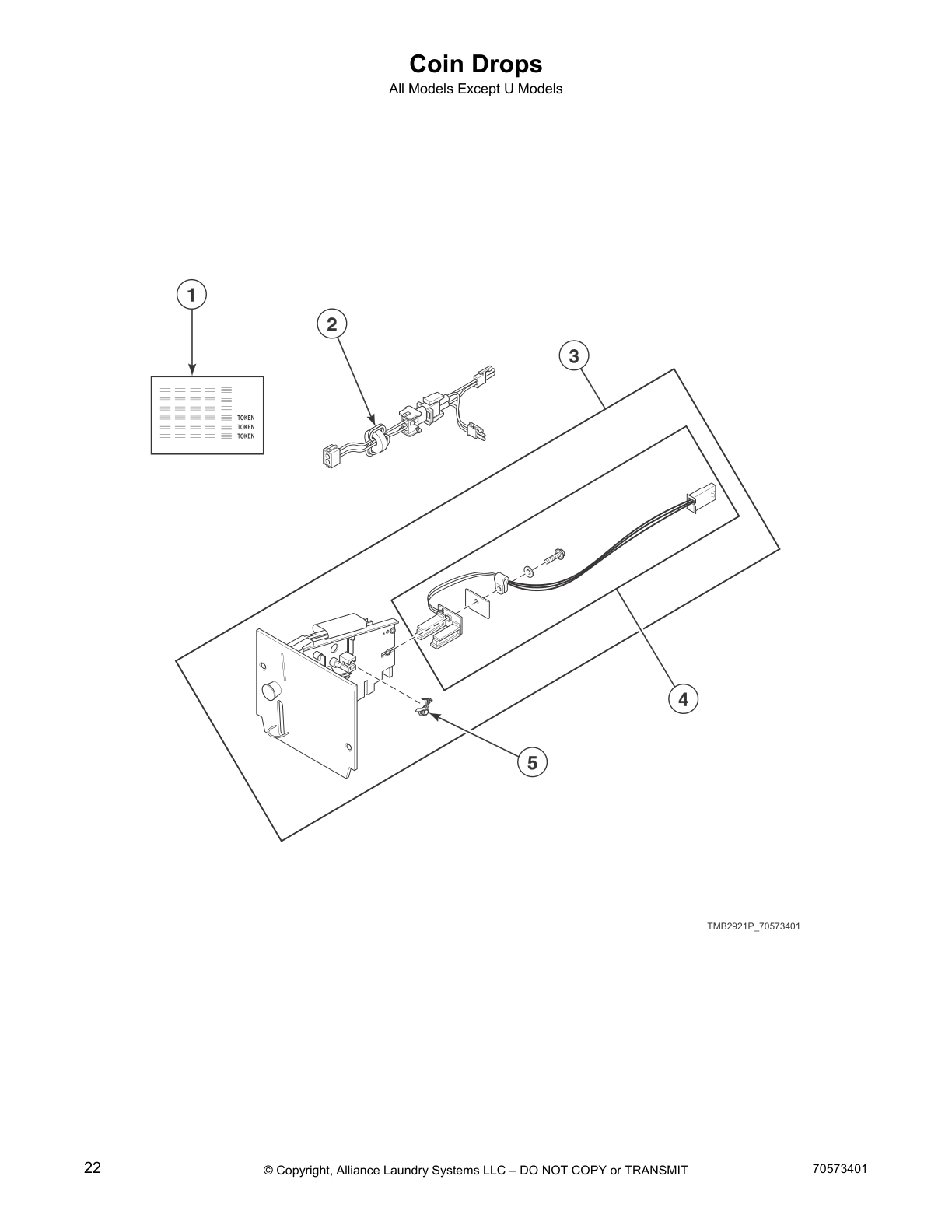

Coin Drops

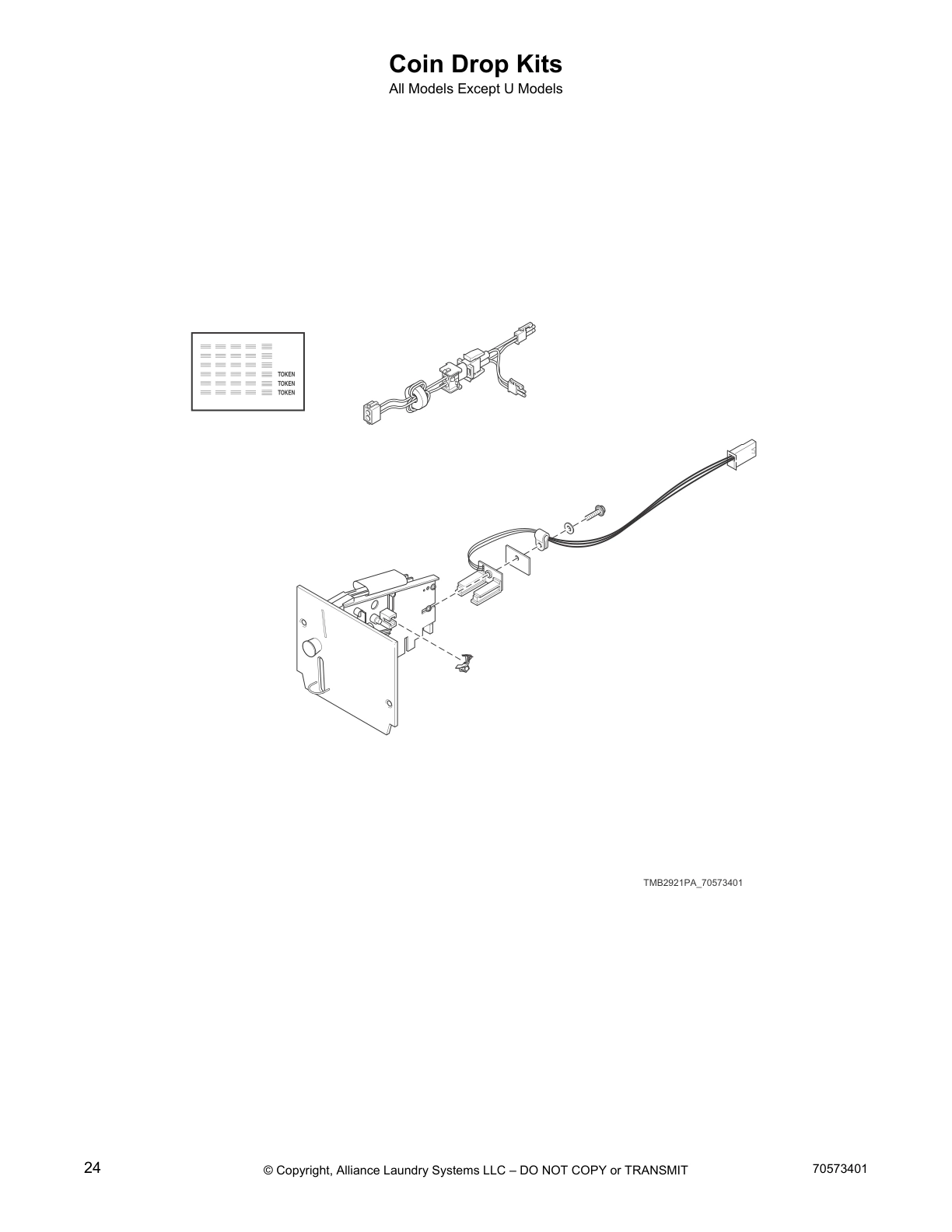

Coin Drop Kits

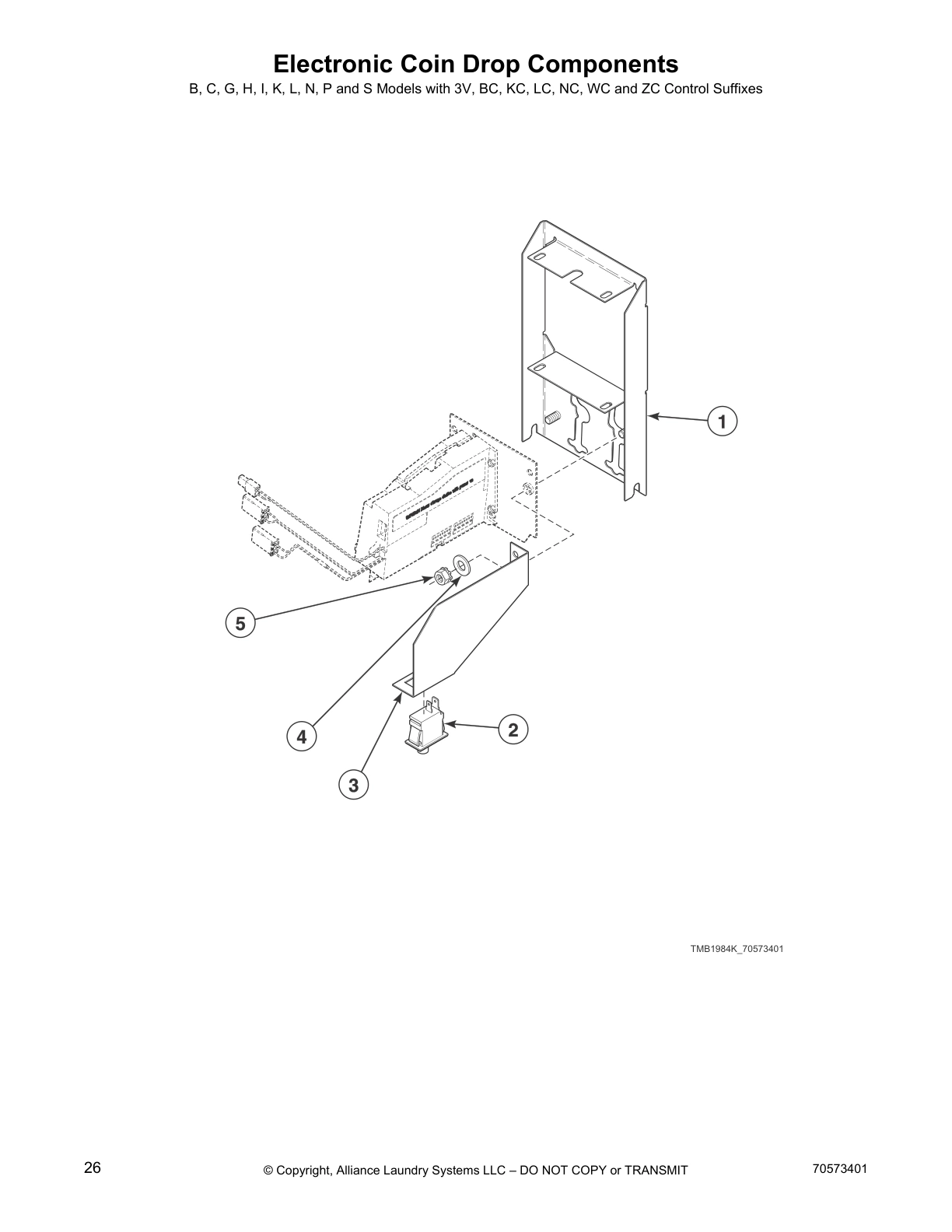

Electronic Coin Drop Components

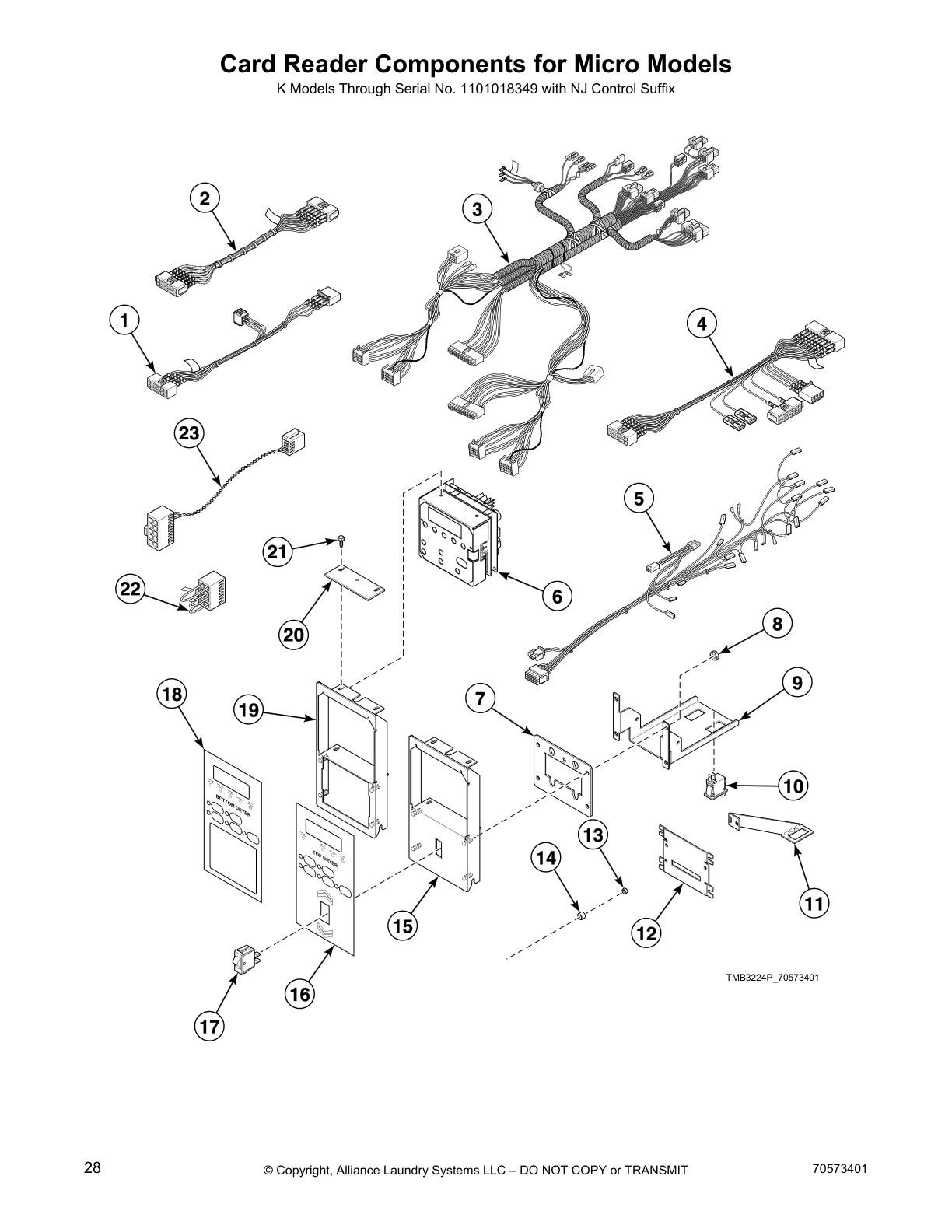

Card Reader Components for Micro Models

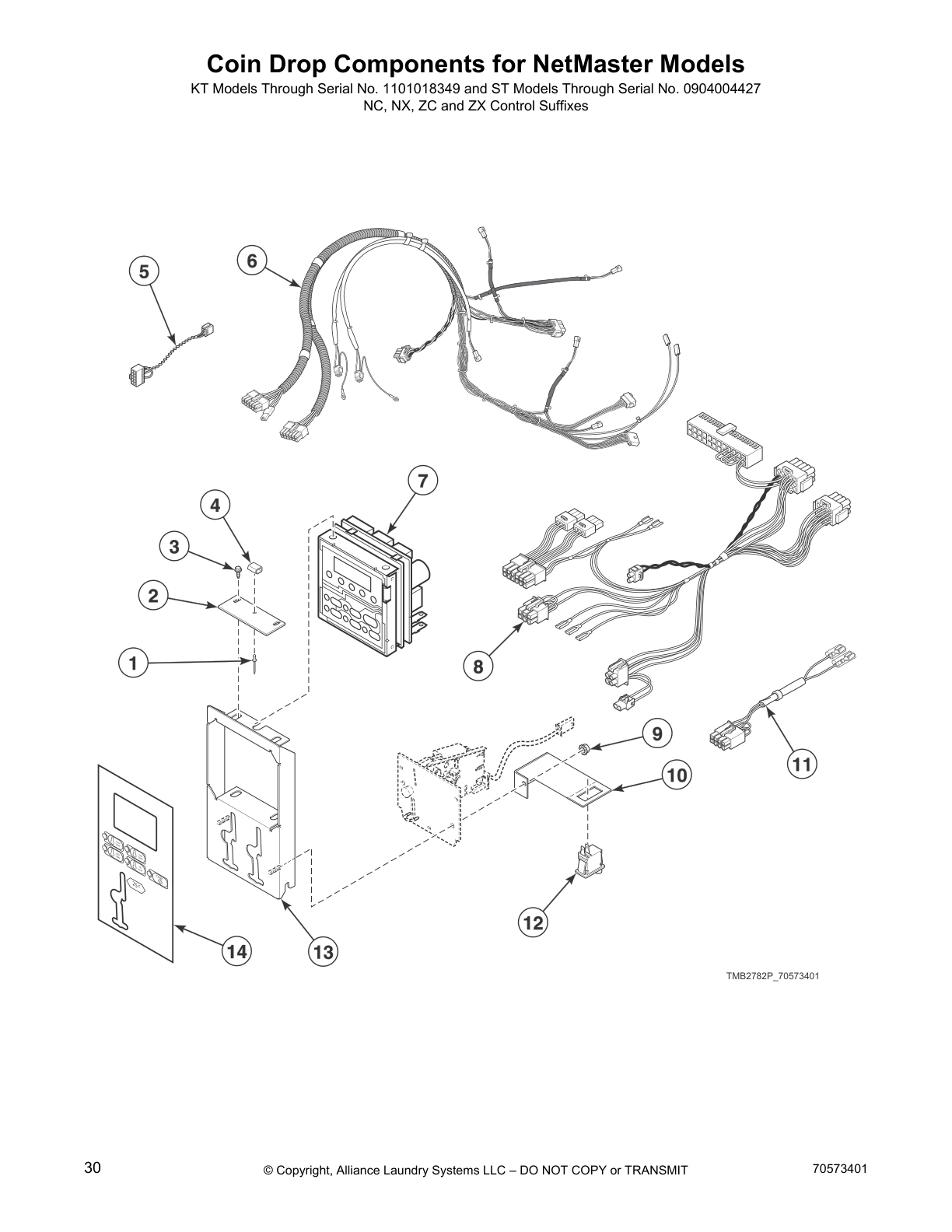

Coin Drop Components for NetMaster Models

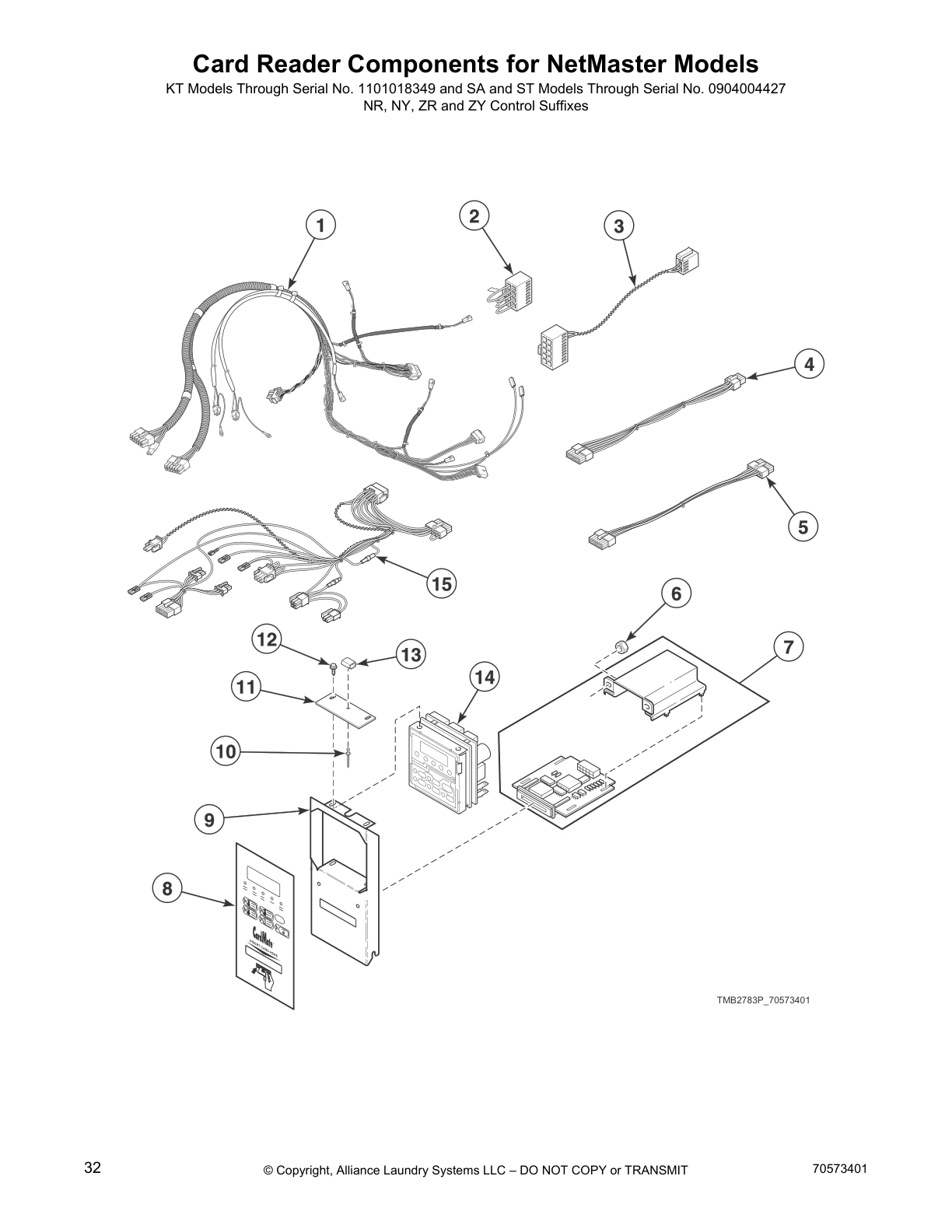

Card Reader Components for NetMaster Models

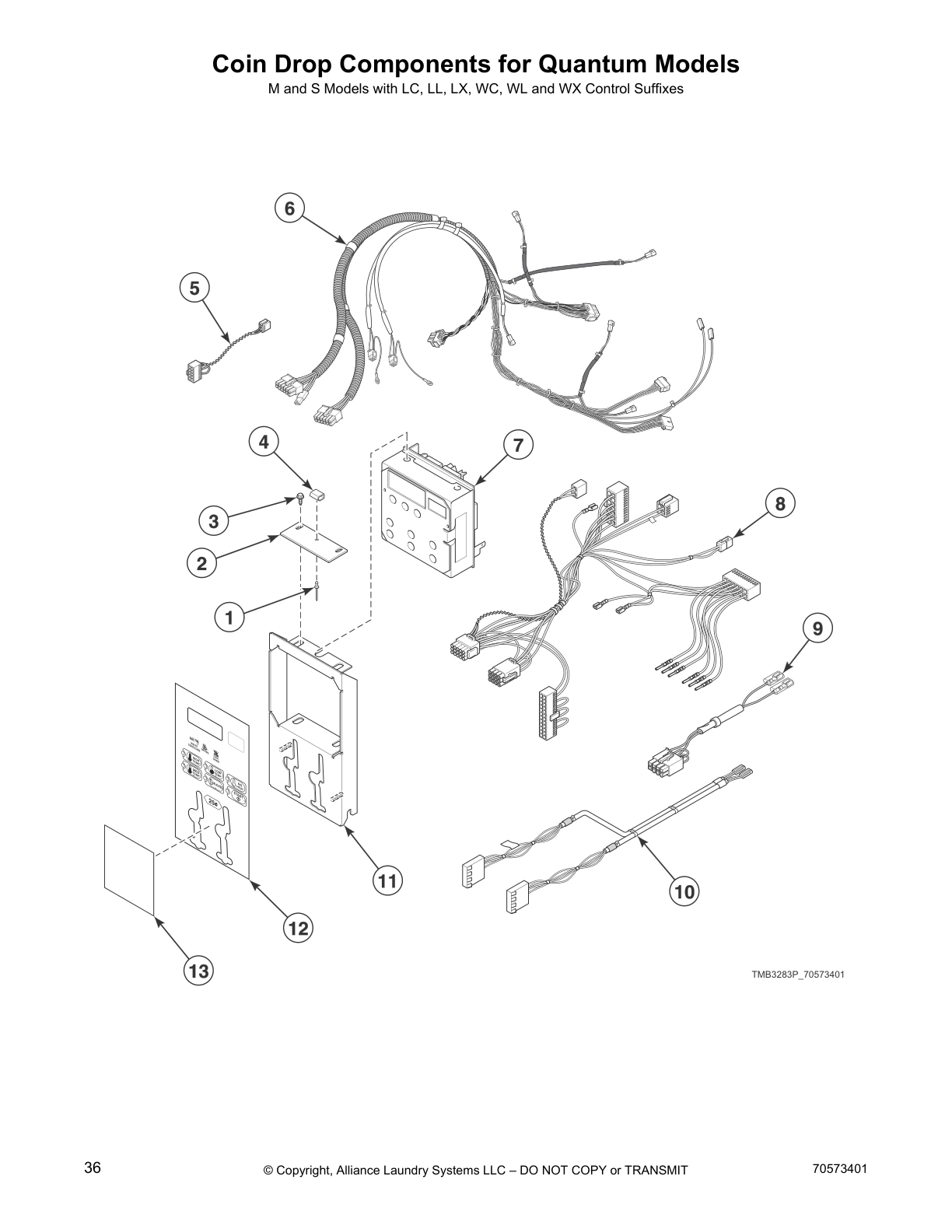

Coin Drop Components for Quantum Models

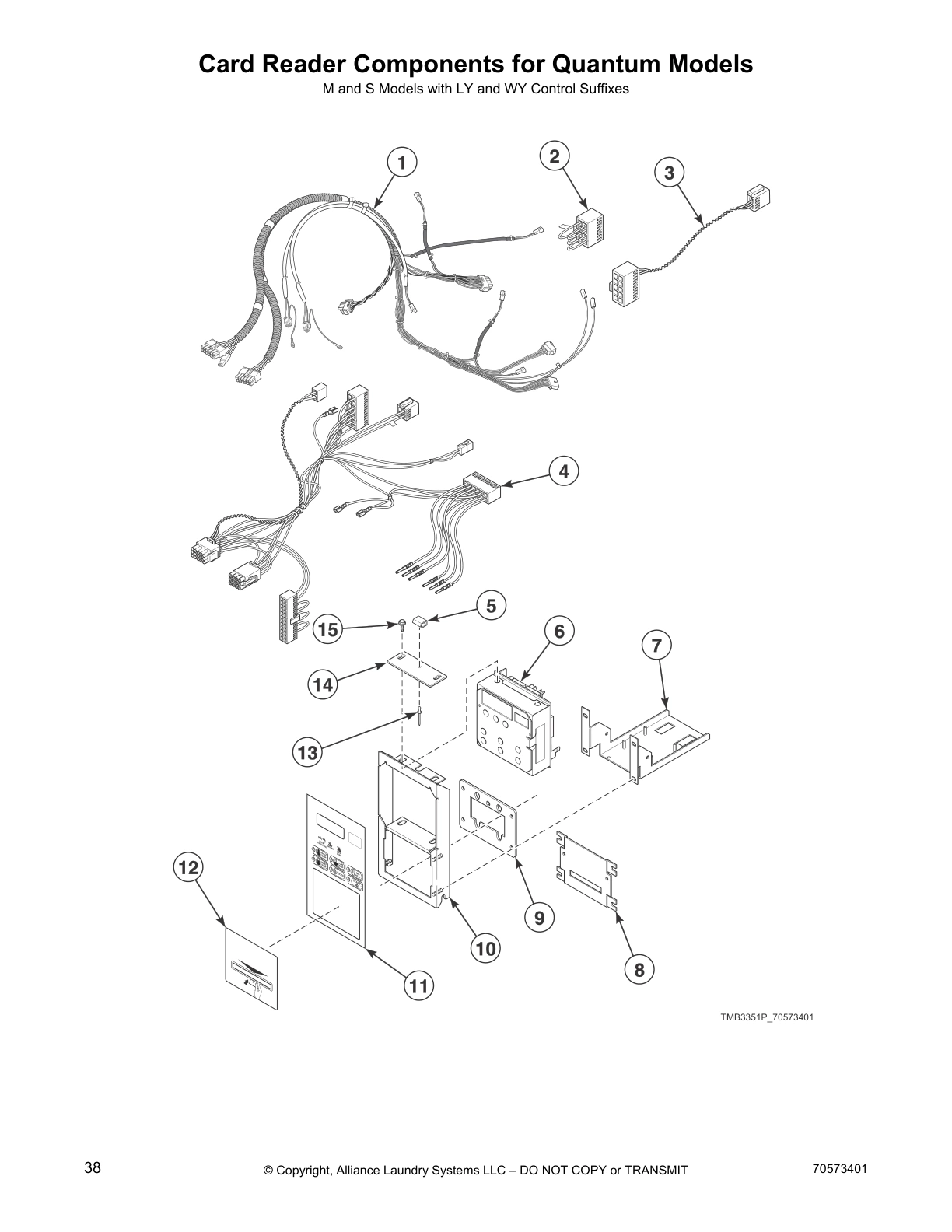

Card Reader Components for Quantum Models

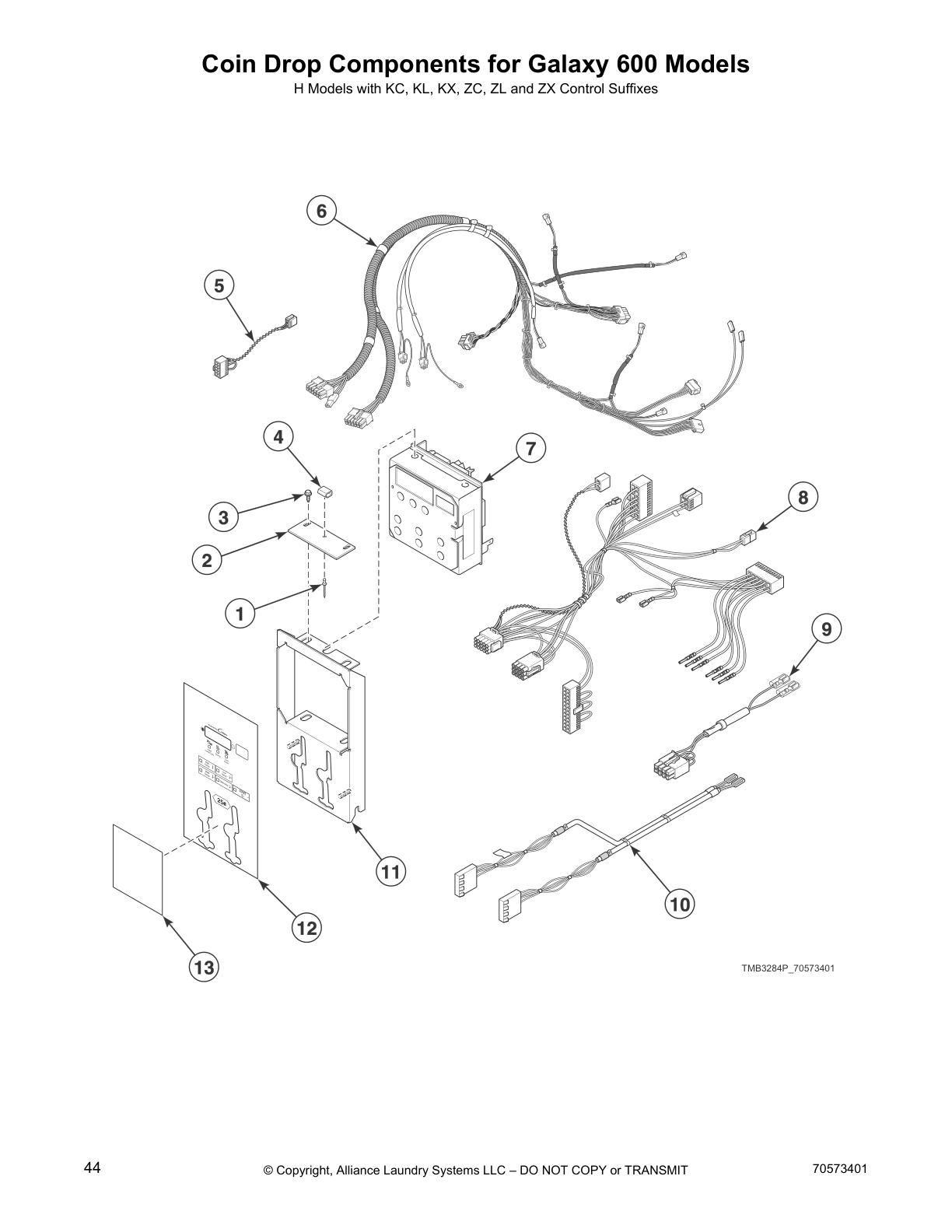

Coin Drop Components for Galaxy 600 Models

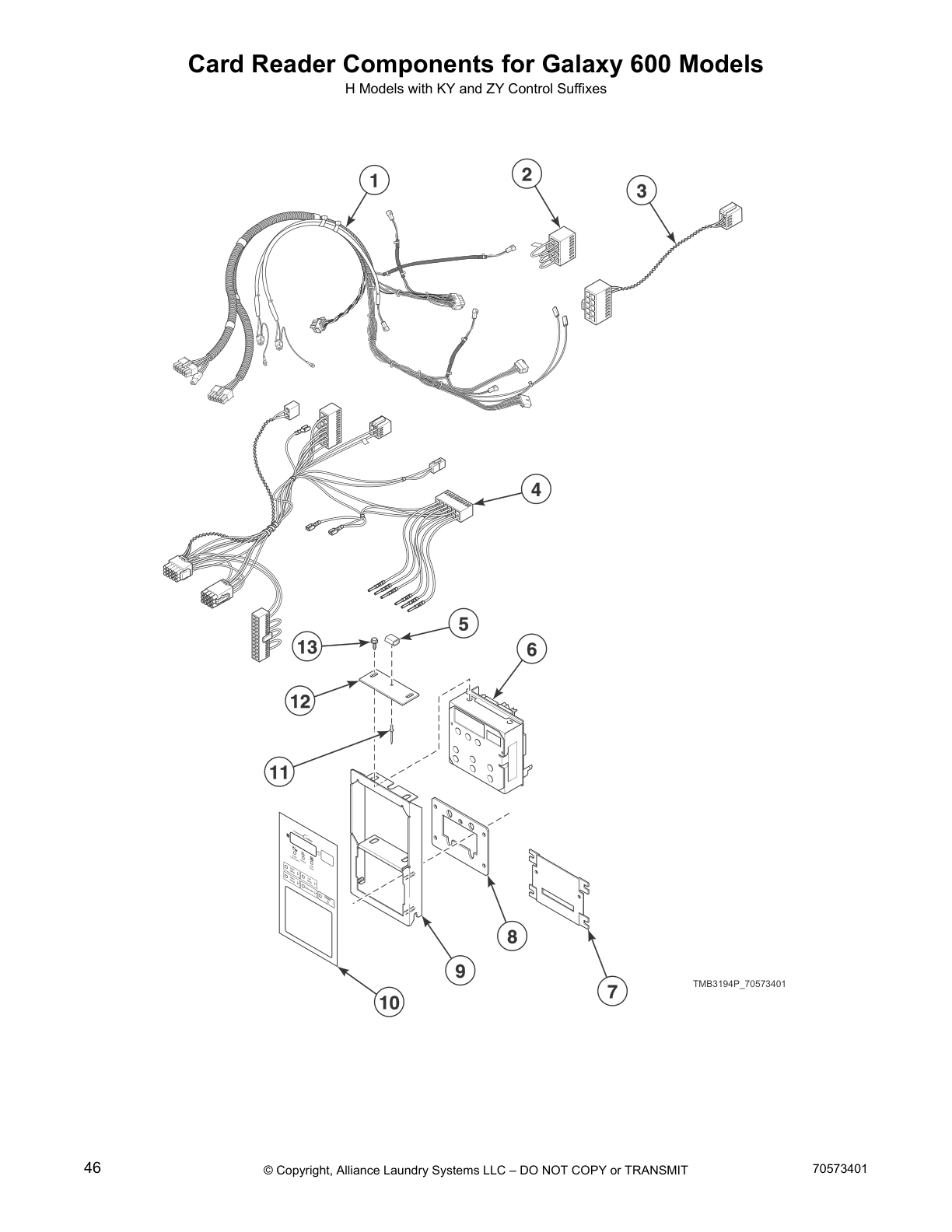

Card Reader Components for Galaxy 600 Models

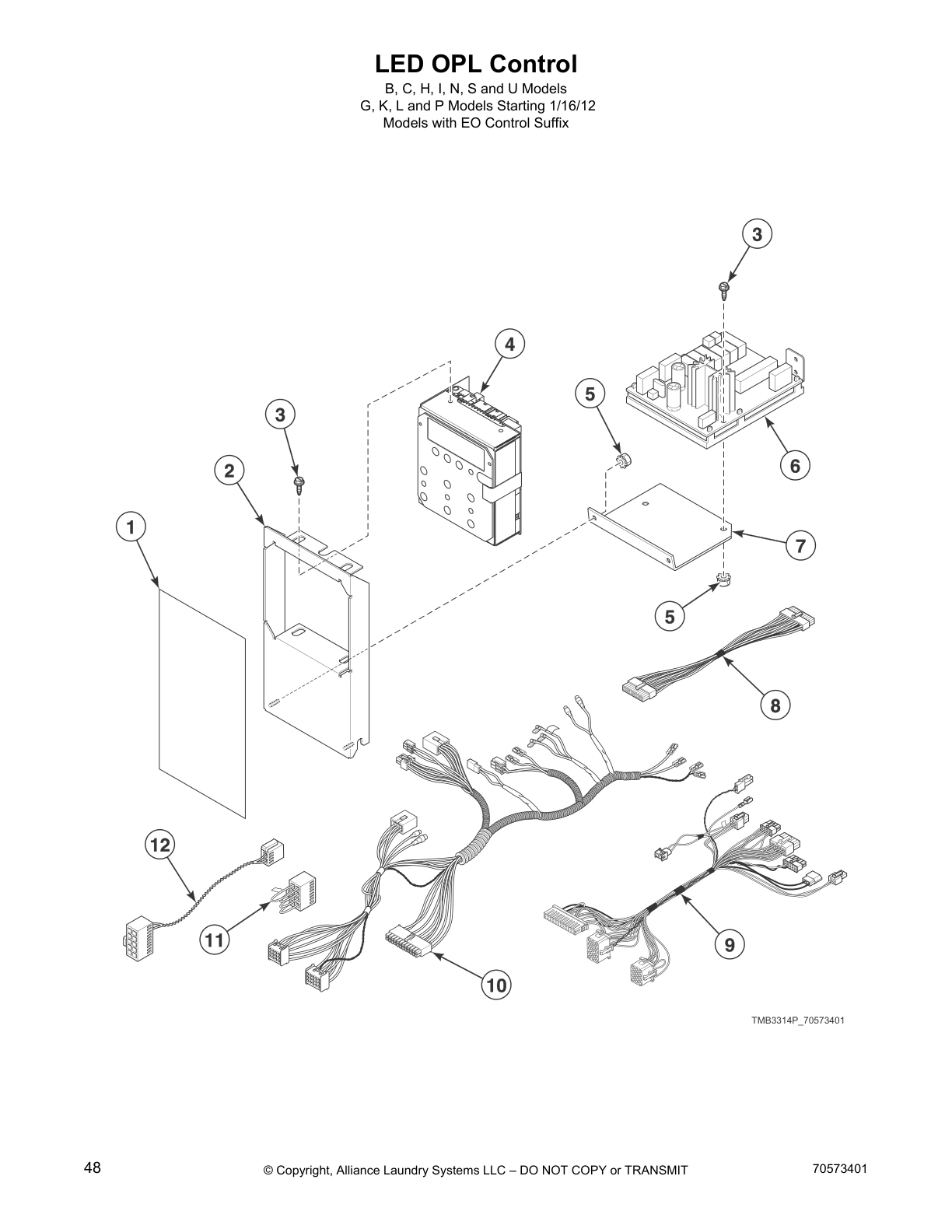

LED OPL Control

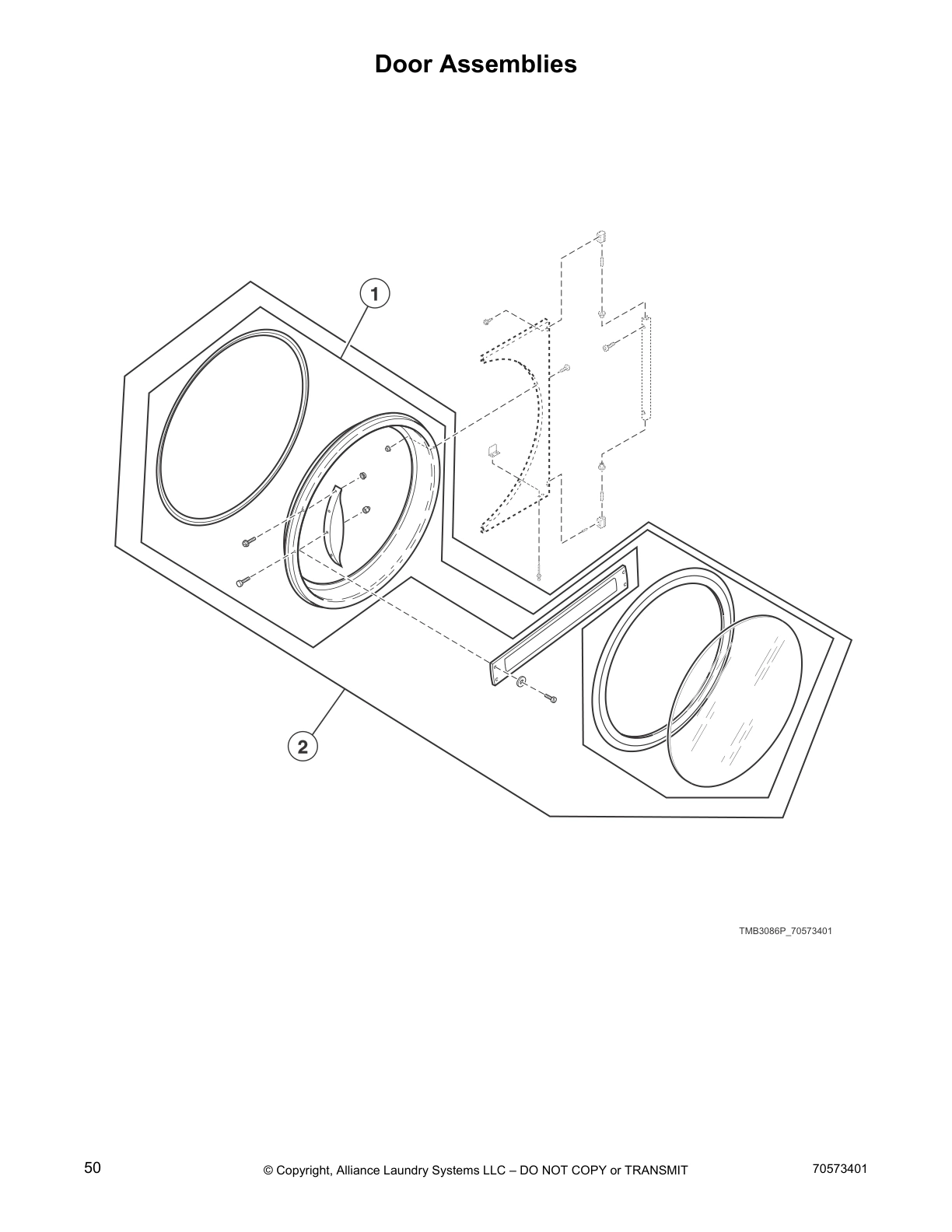

Door Assemblies

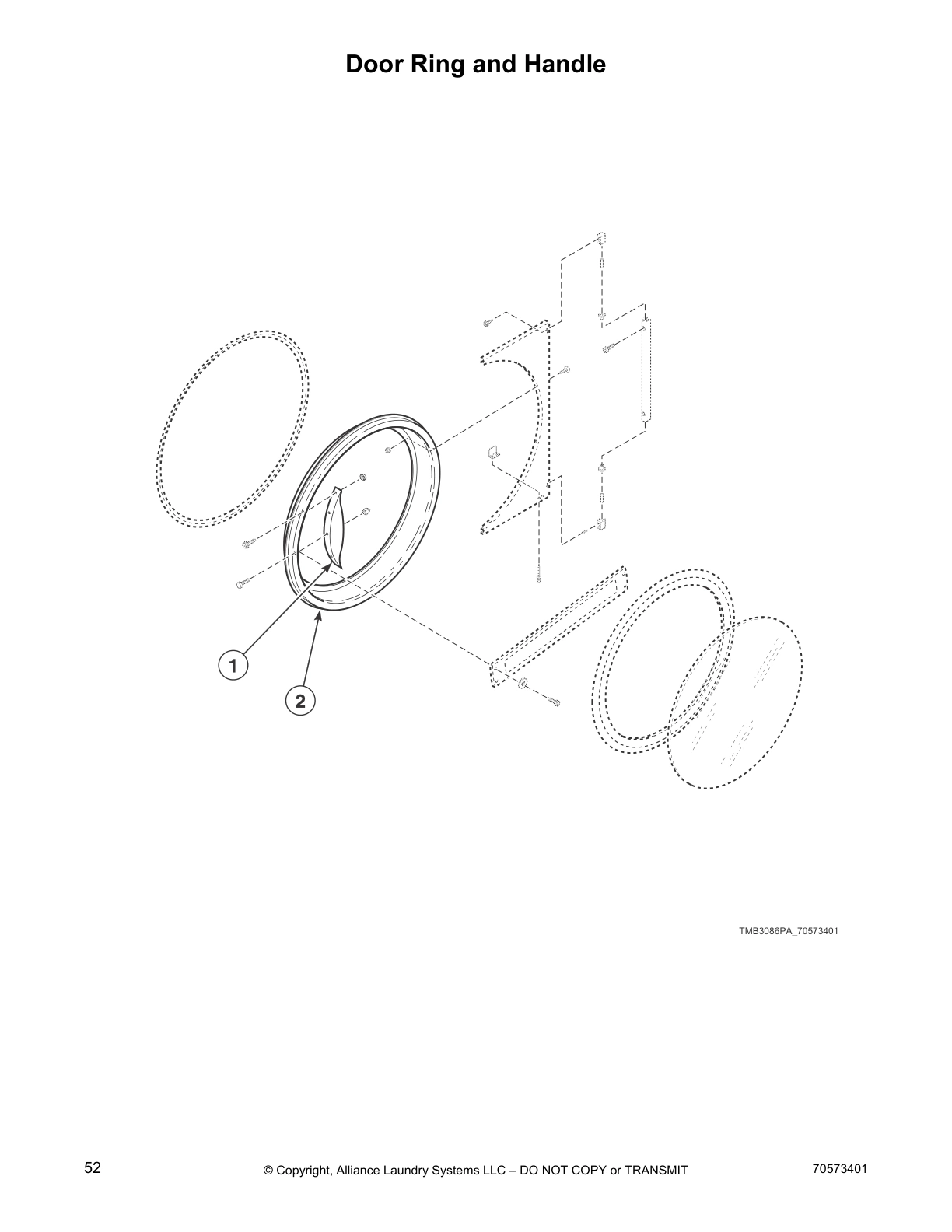

Door Ring and Handle

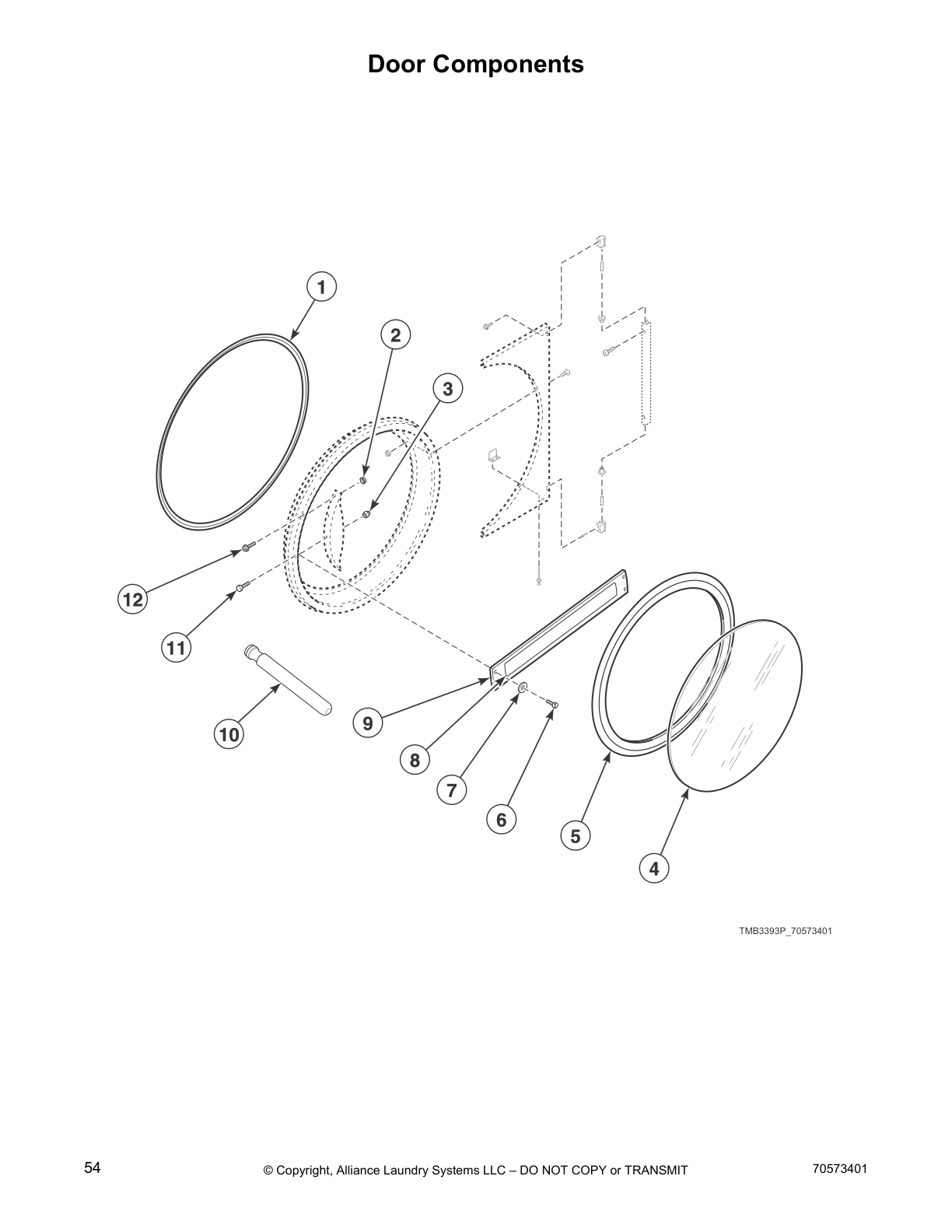

Door Components

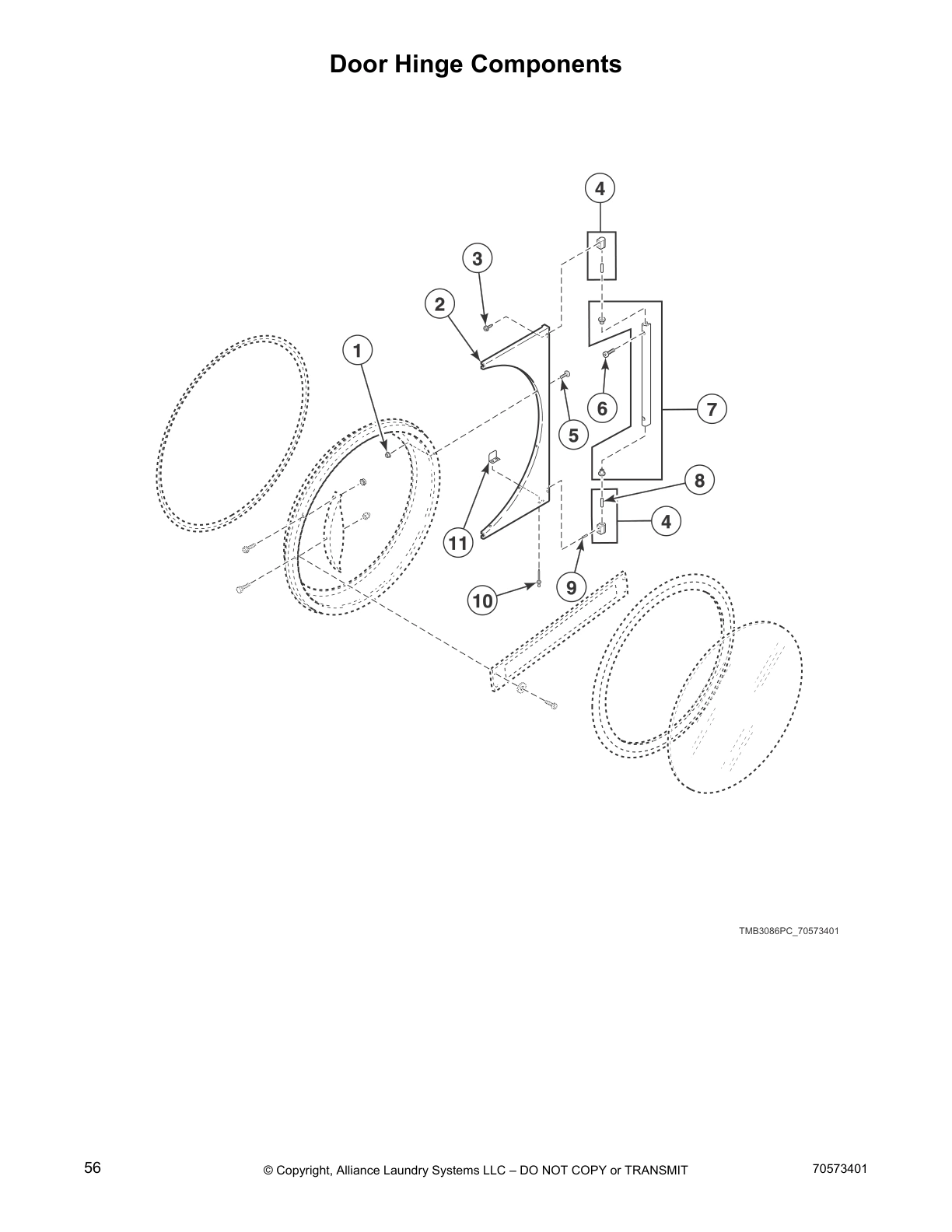

Door Hinge Components

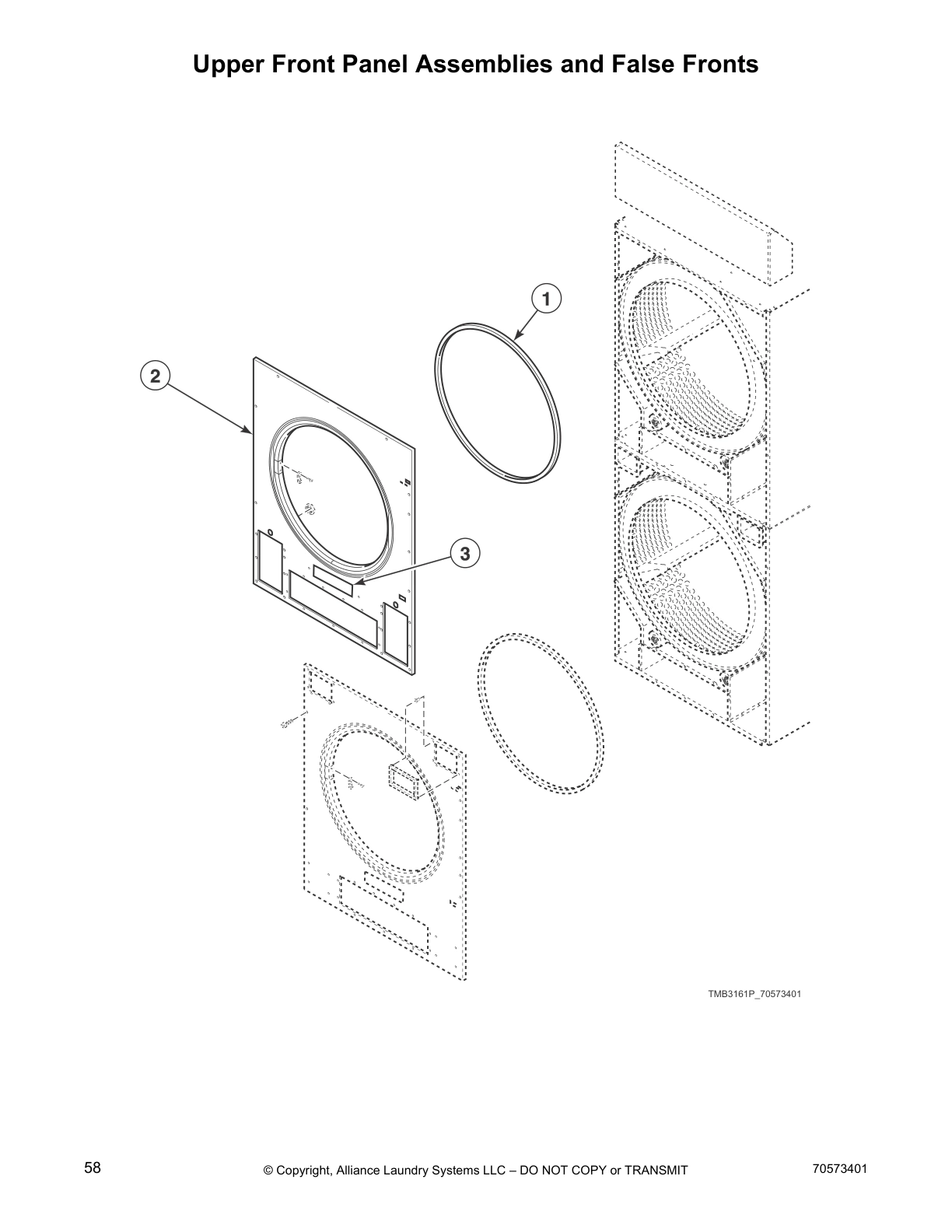

Upper Front Panel Assemblies and False Fronts

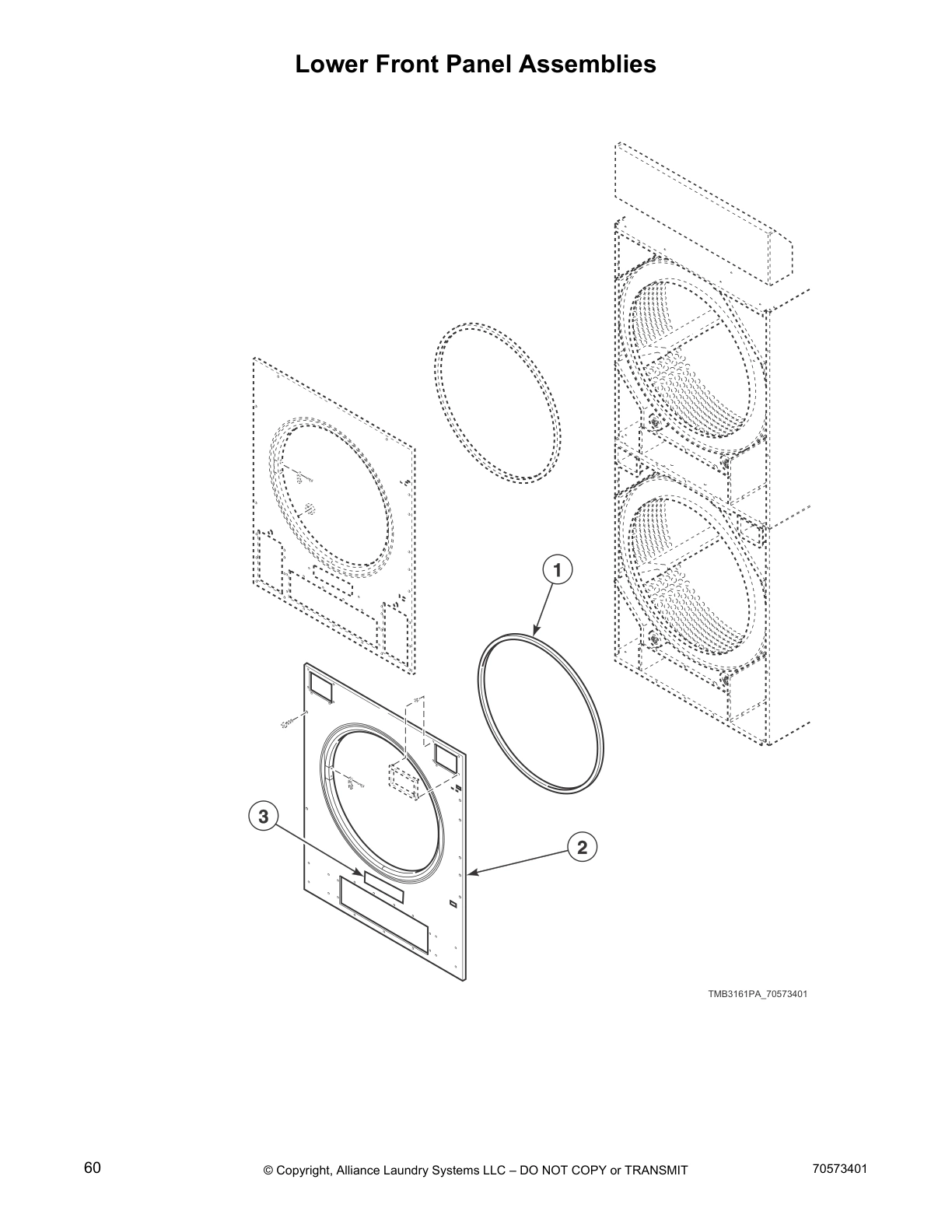

Lower Front Panel Assemblies

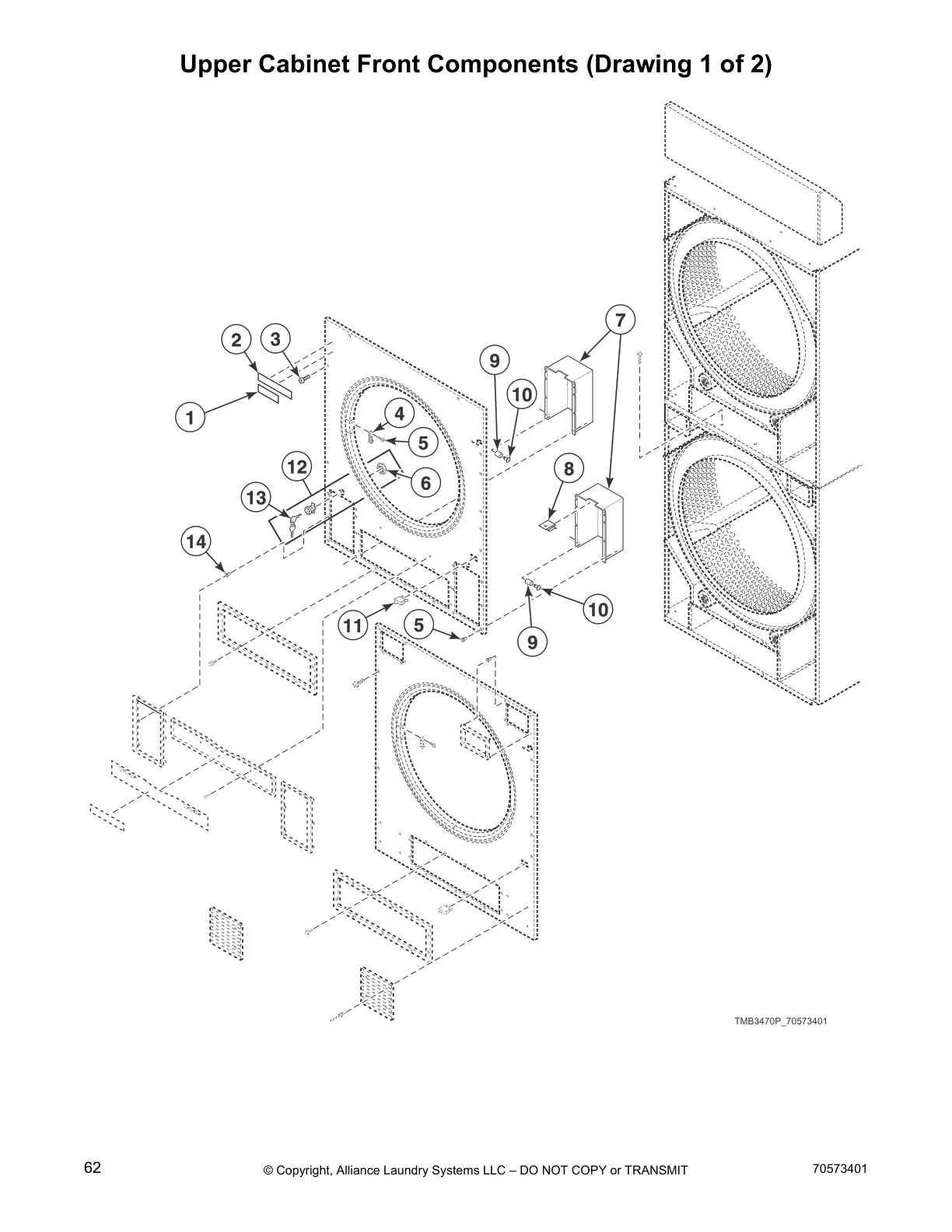

Upper Cabinet Front Components (Drawing 1 of 2)

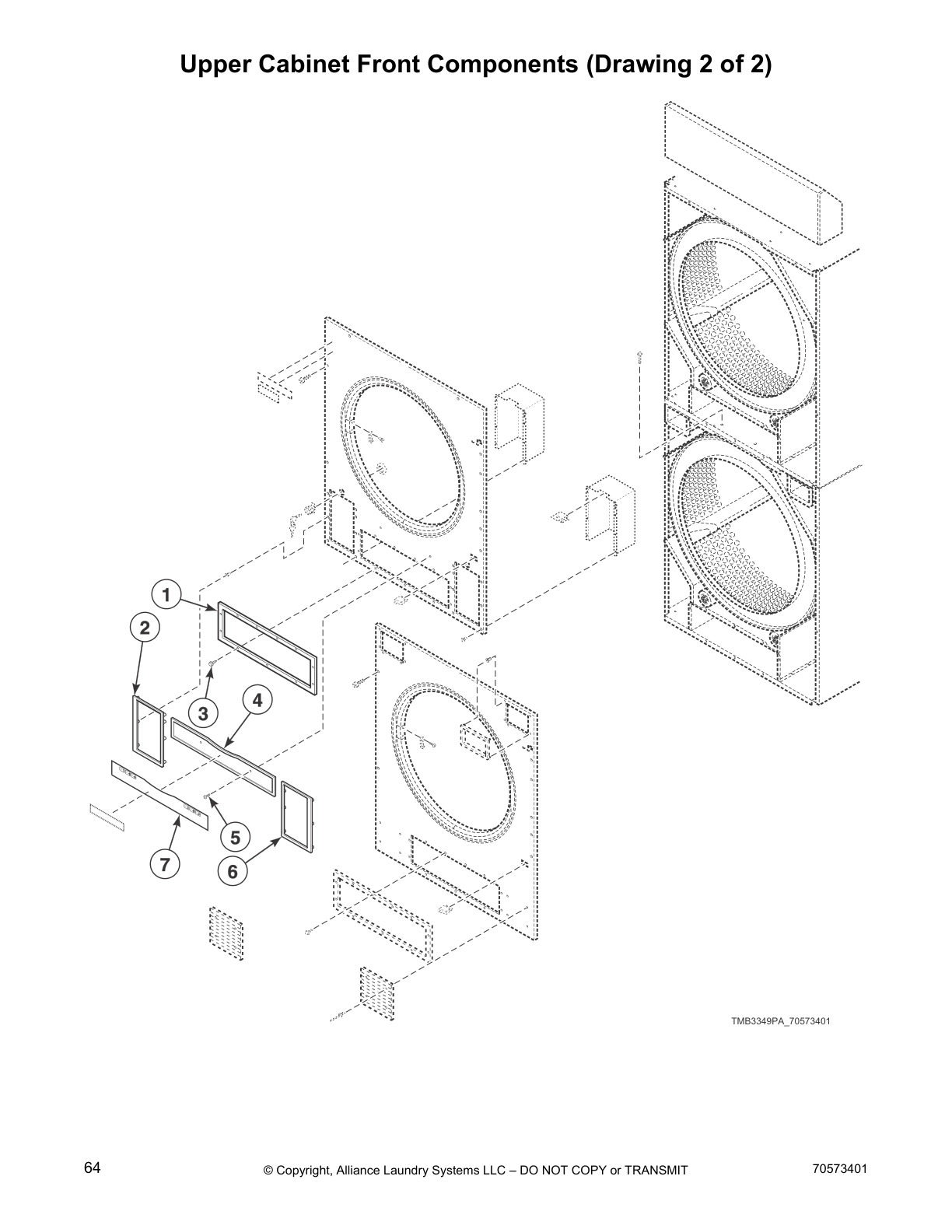

Upper Cabinet Front Components (Drawing 2 of 2)

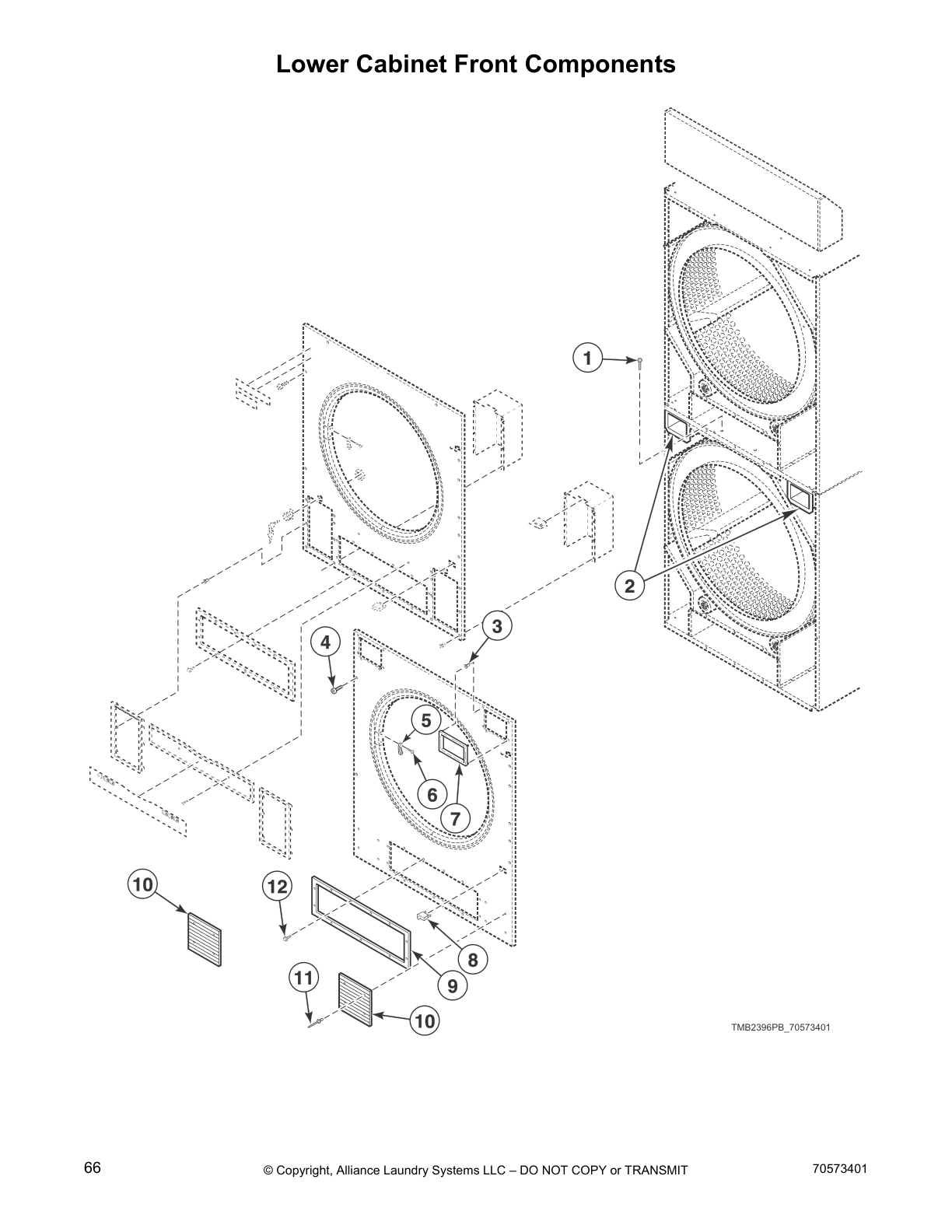

Lower Cabinet Front Components

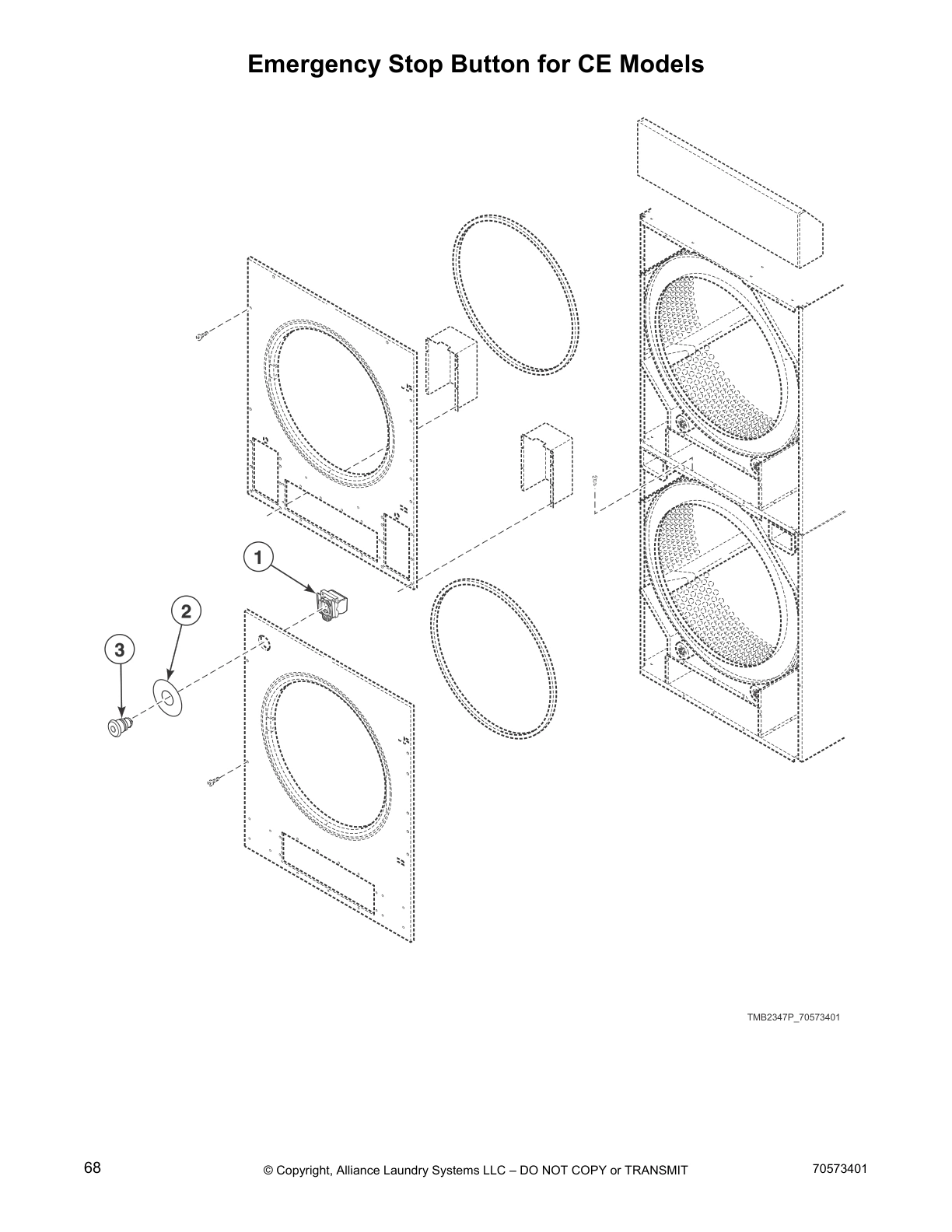

Emergency Stop Button for CE Models

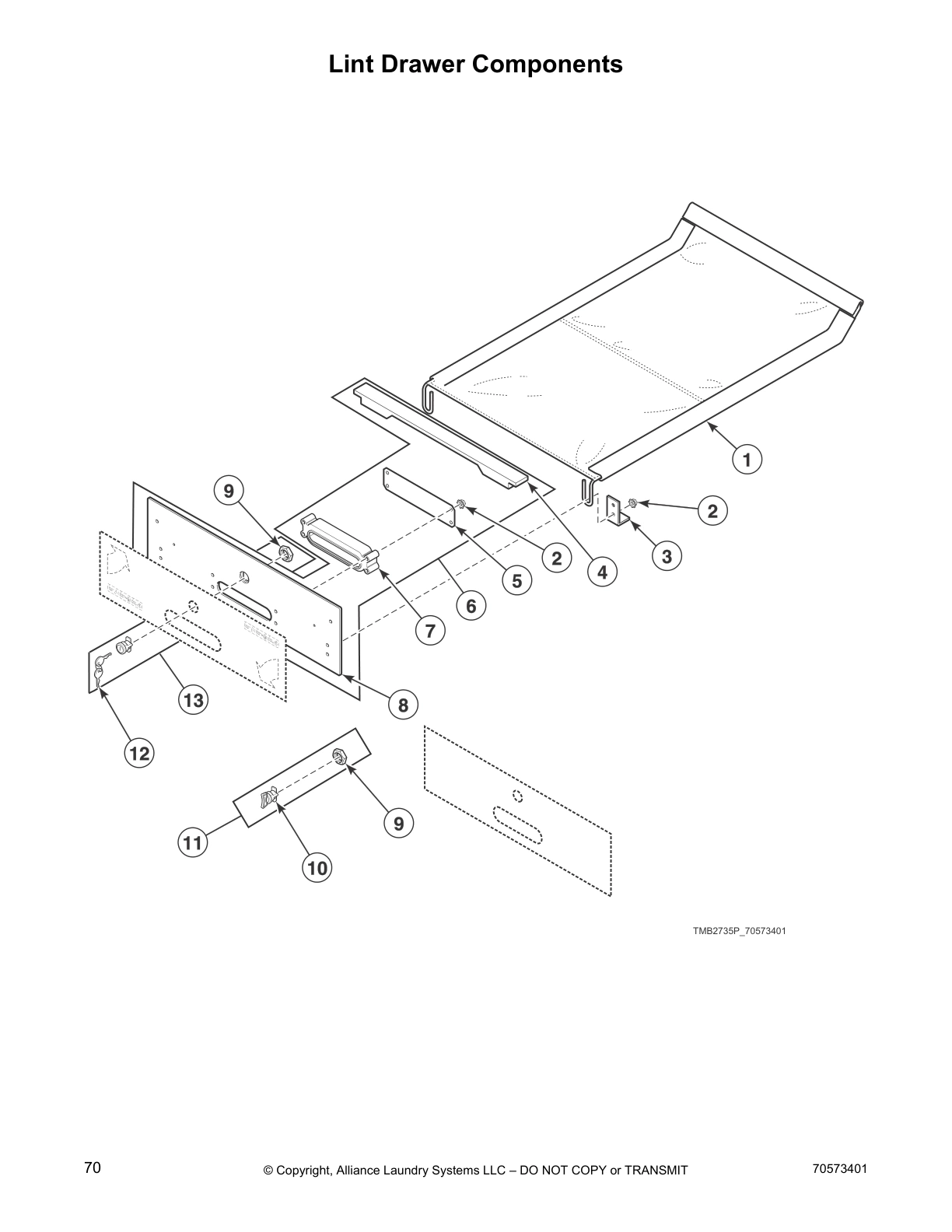

Lint Drawer Components

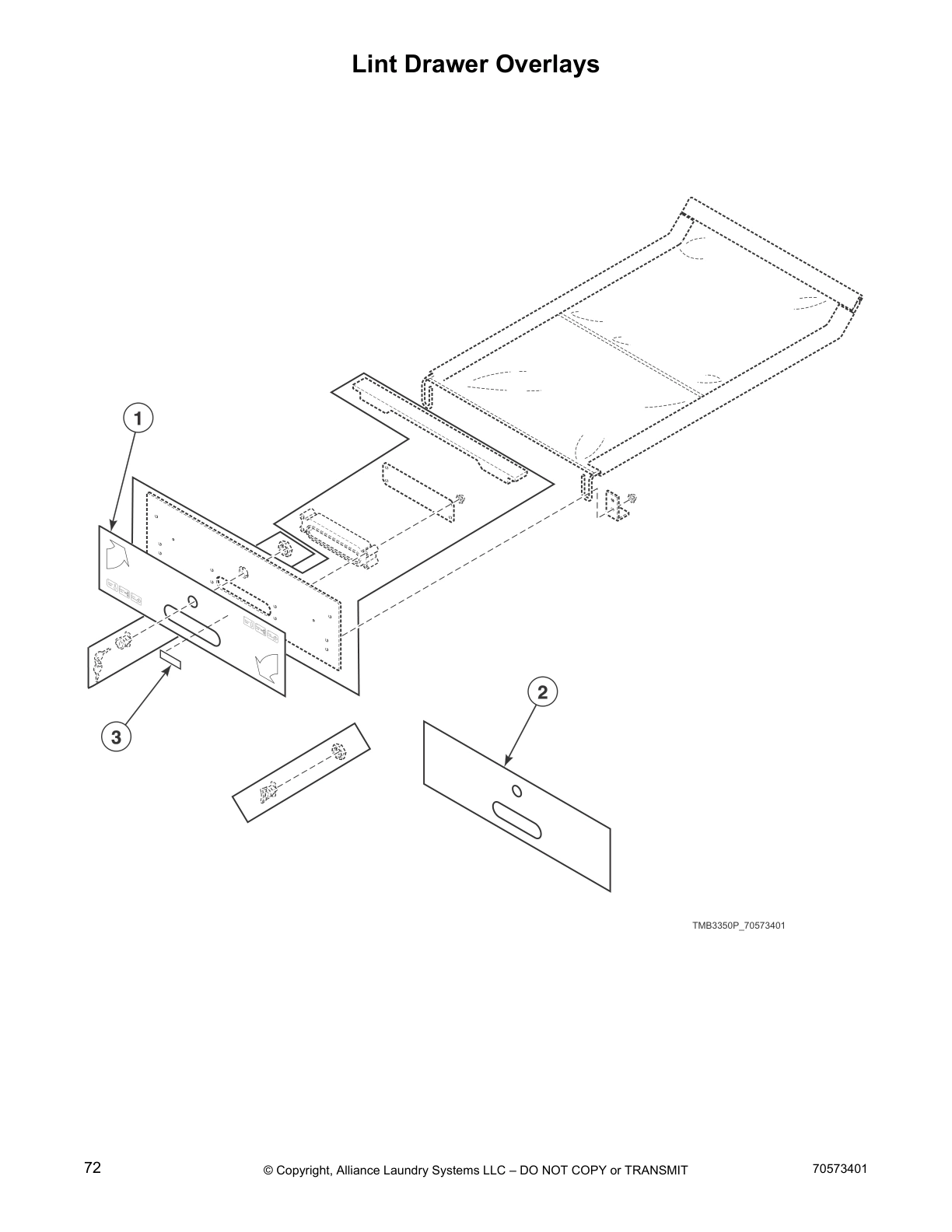

Lint Drawer Overlays

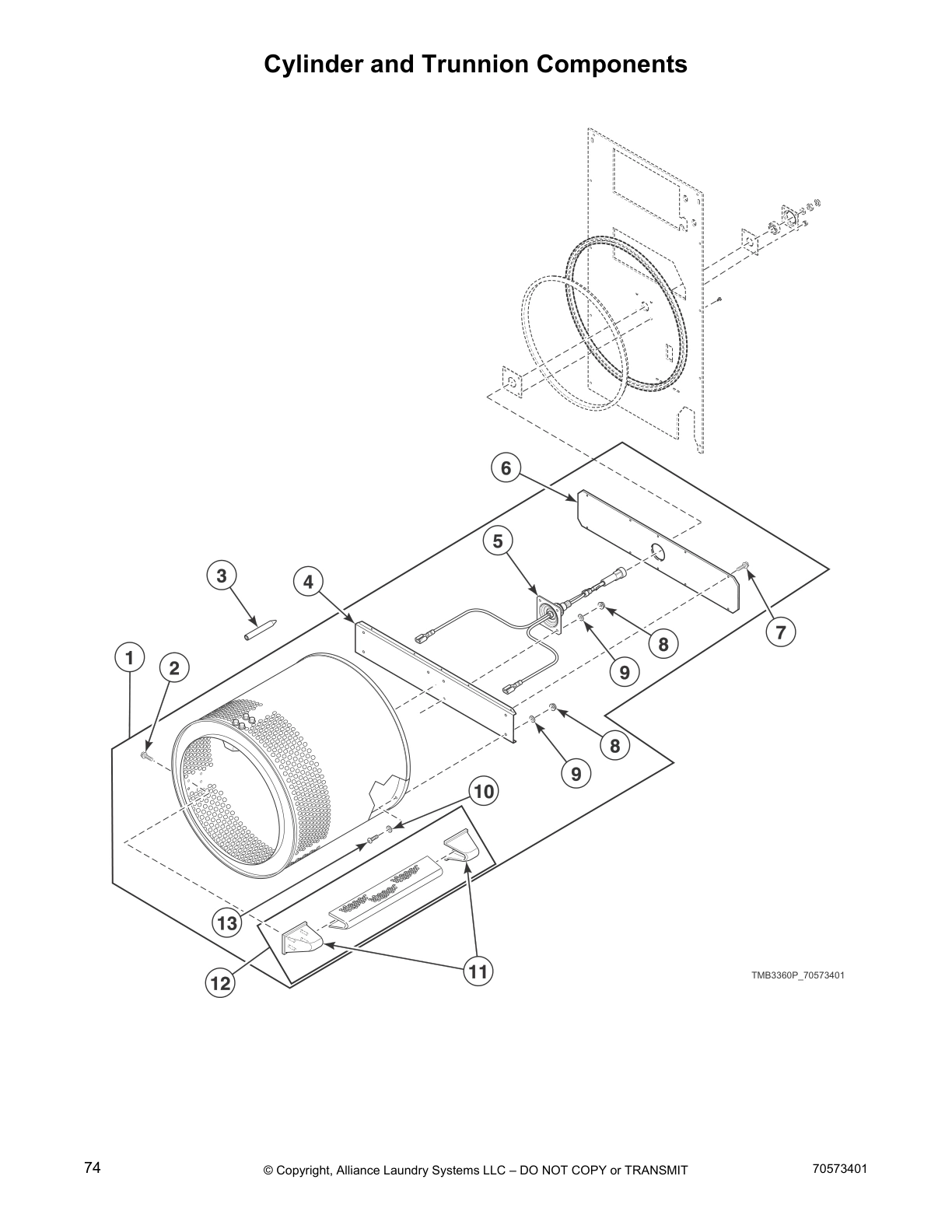

Cylinder and Trunnion Components

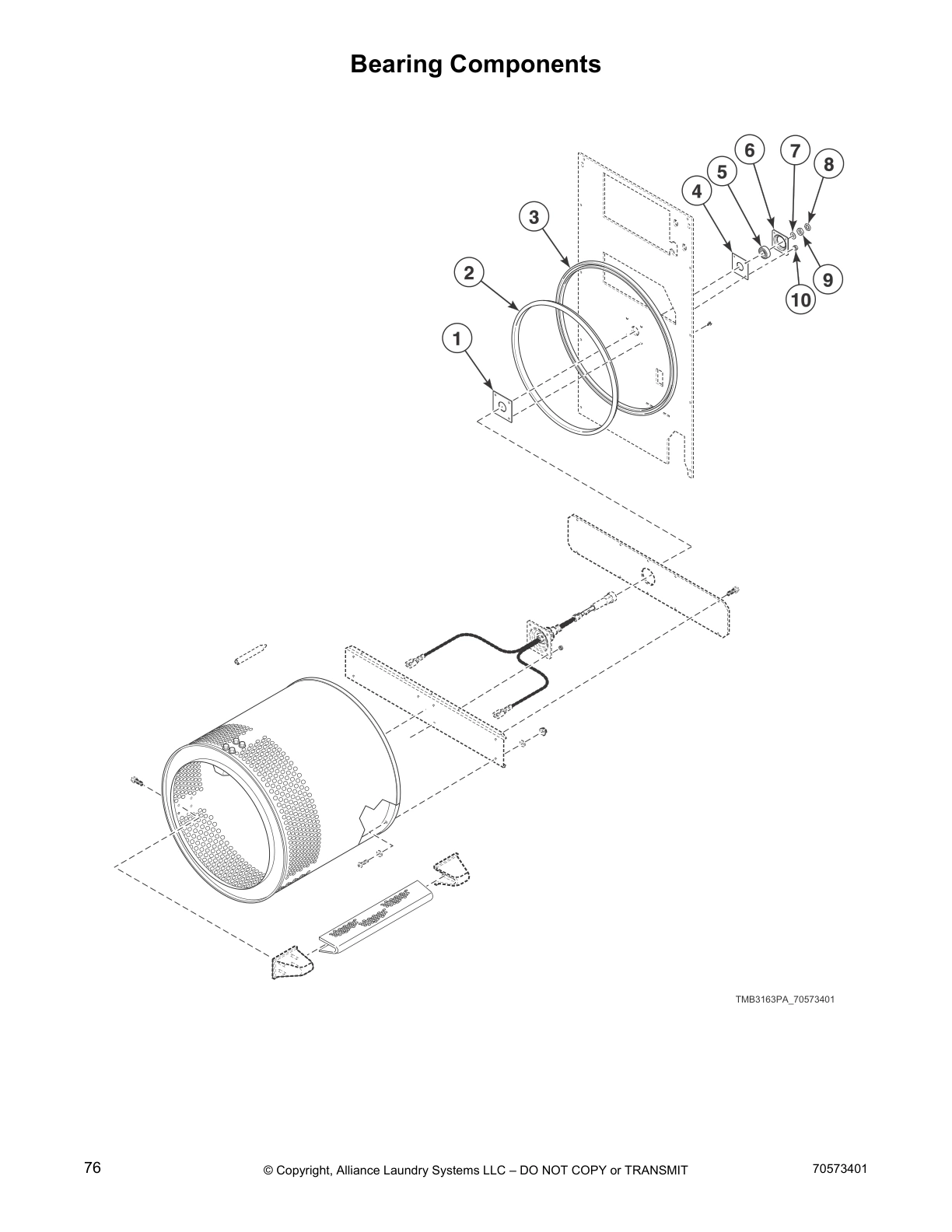

Bearing Components

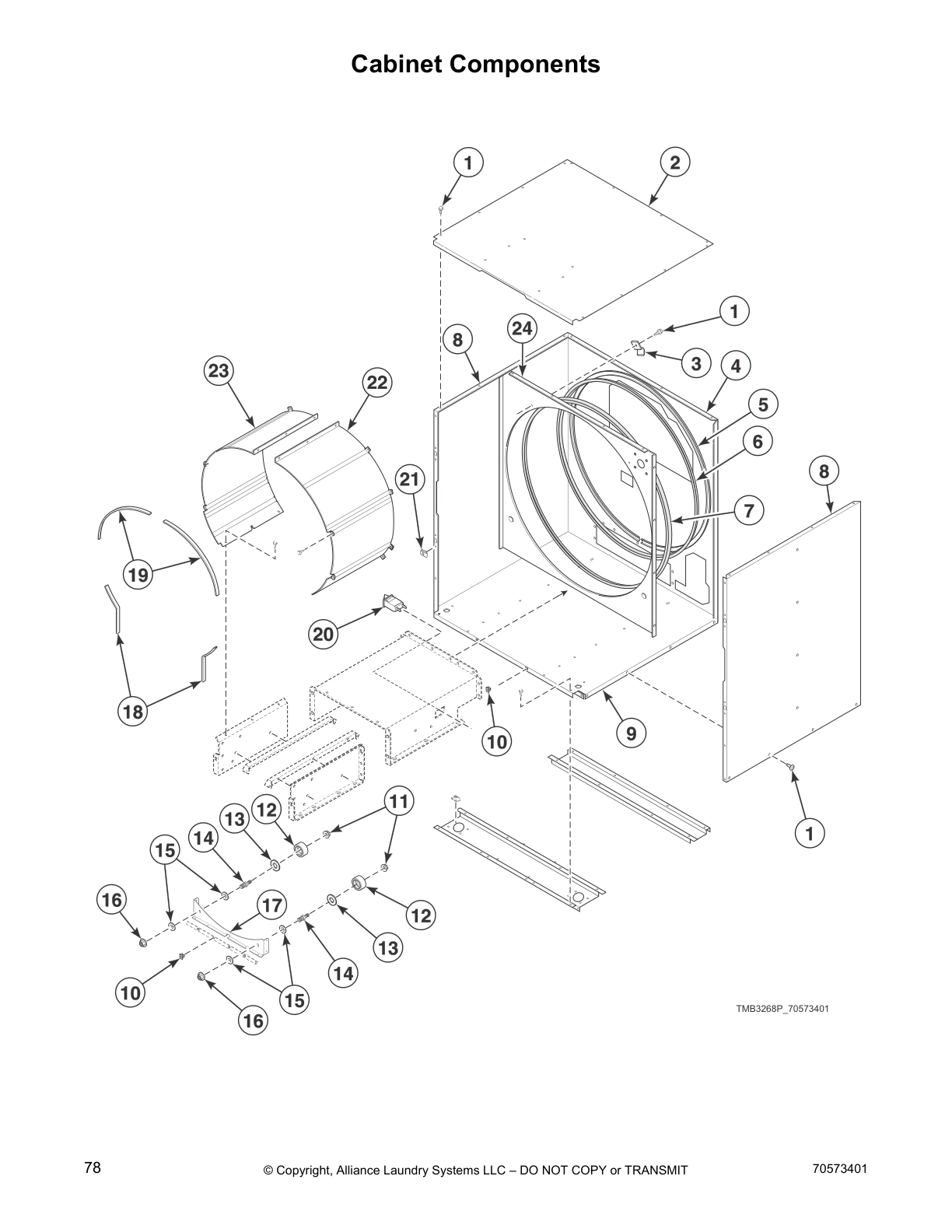

Cabinet Components

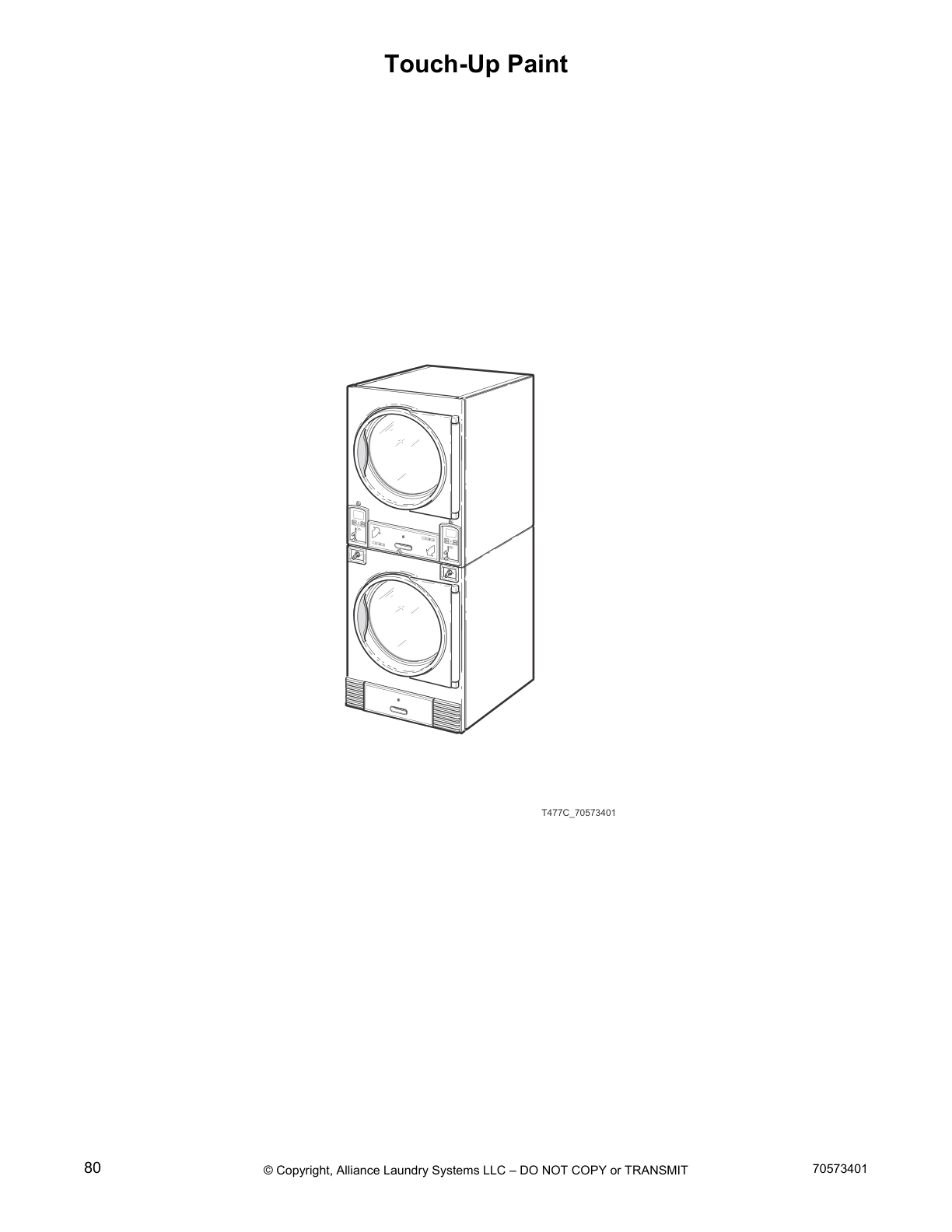

Touch-Up Paint

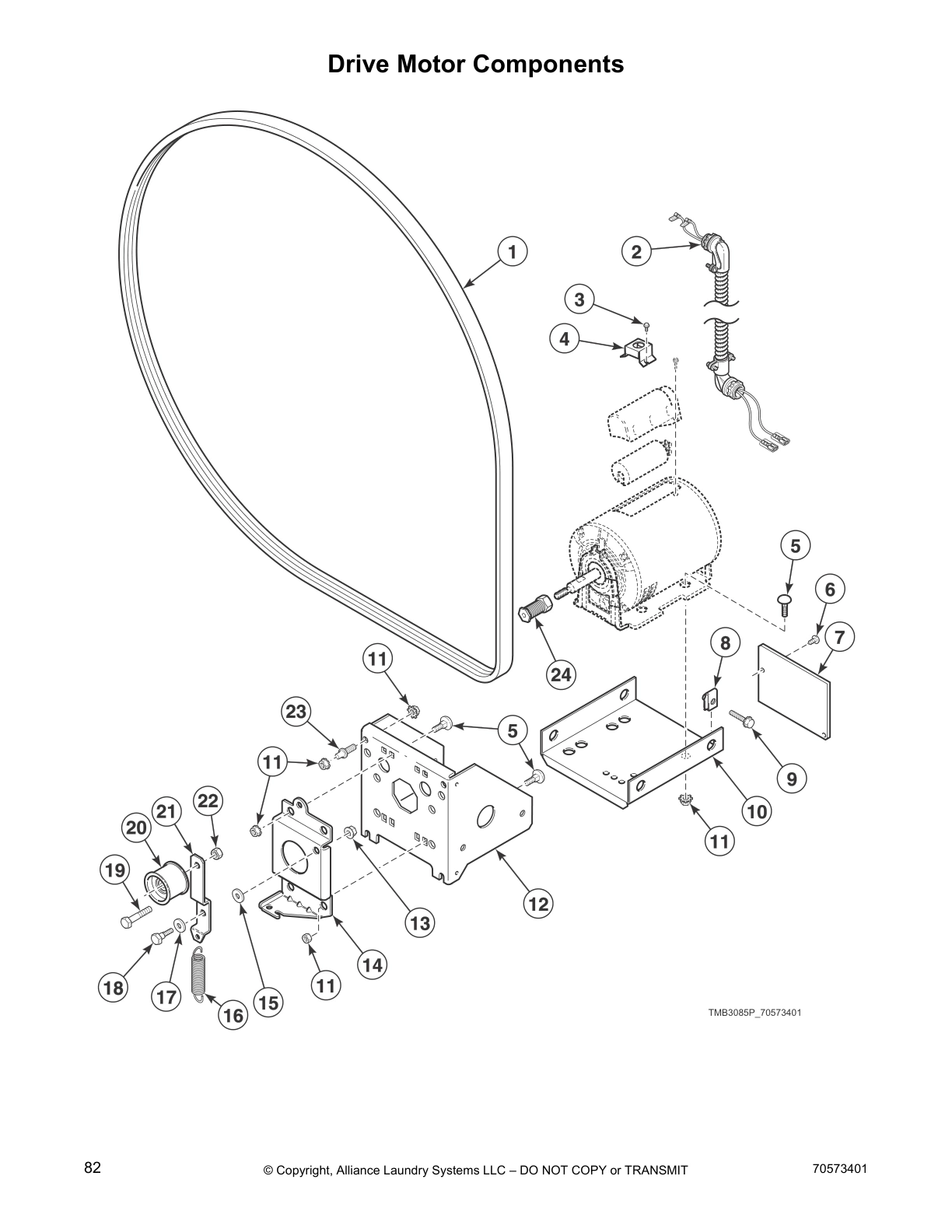

Drive Motor Components

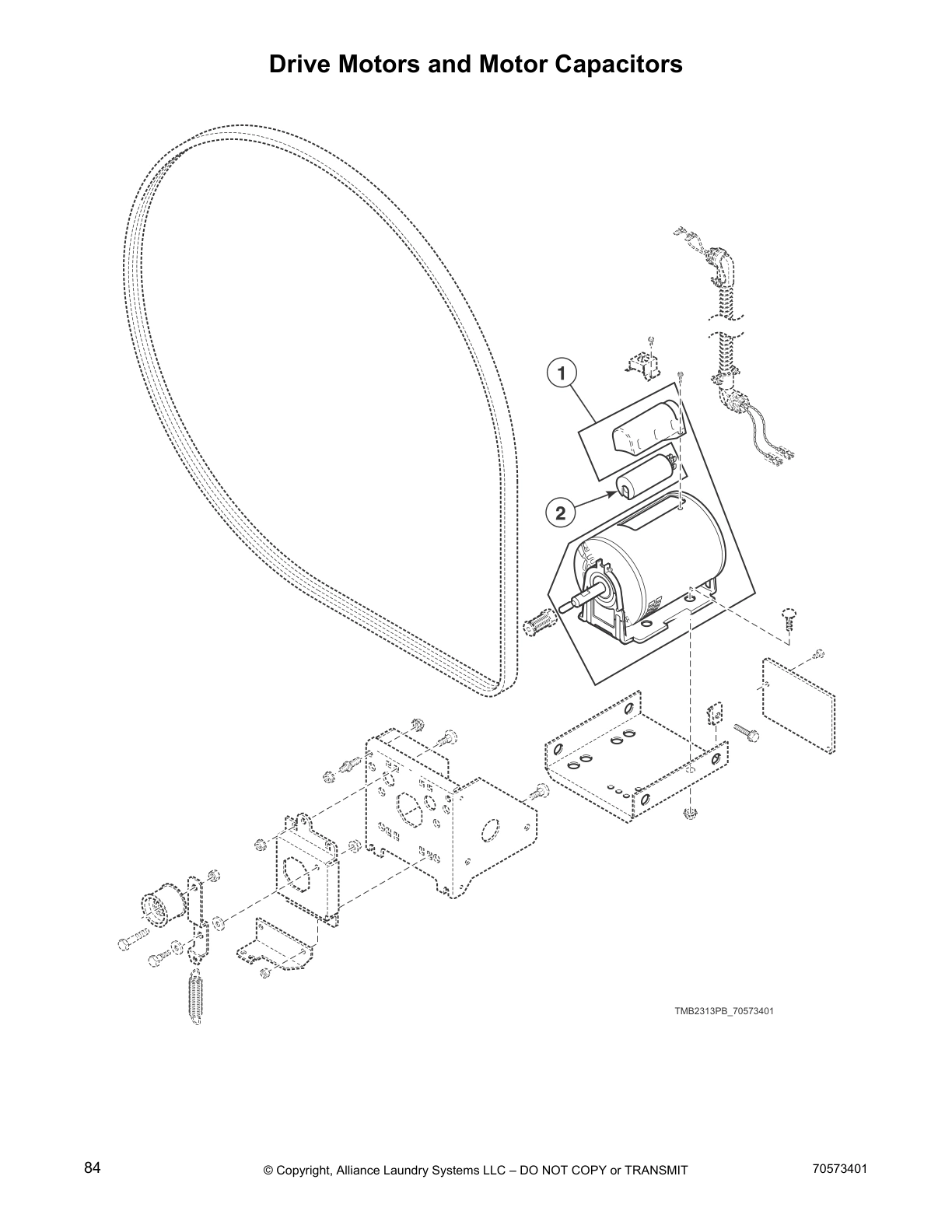

Drive Motors and Motor Capacitors

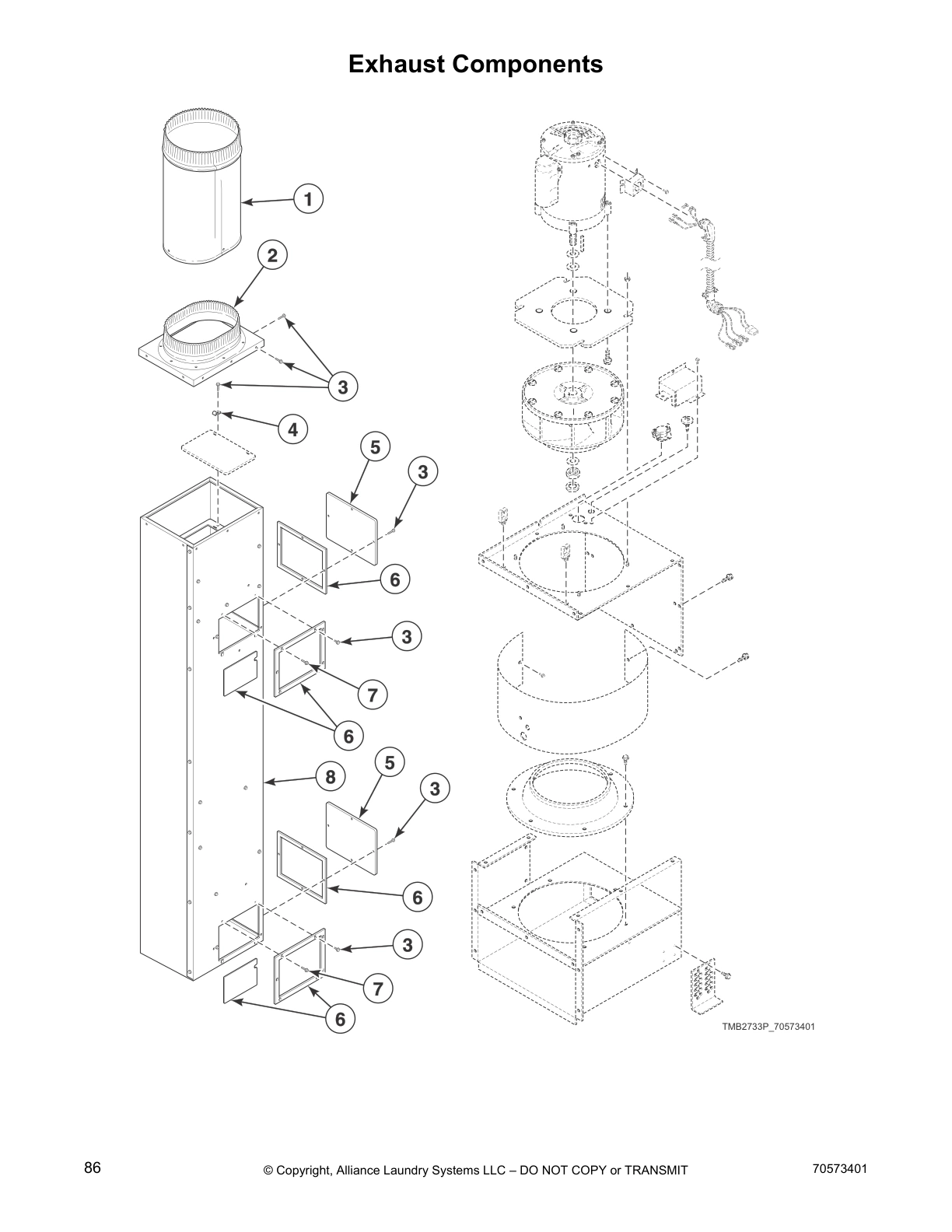

Exhaust Components

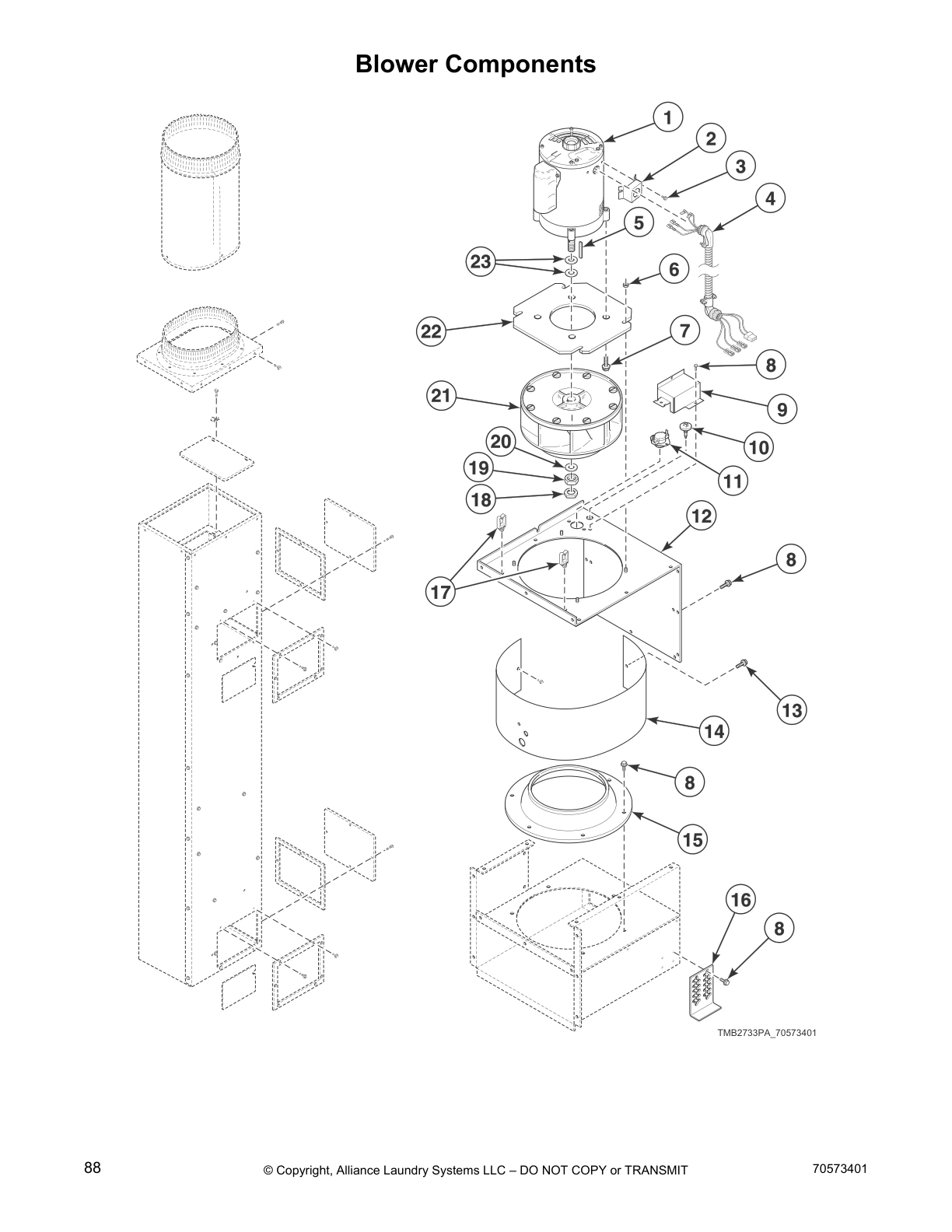

Blower Components

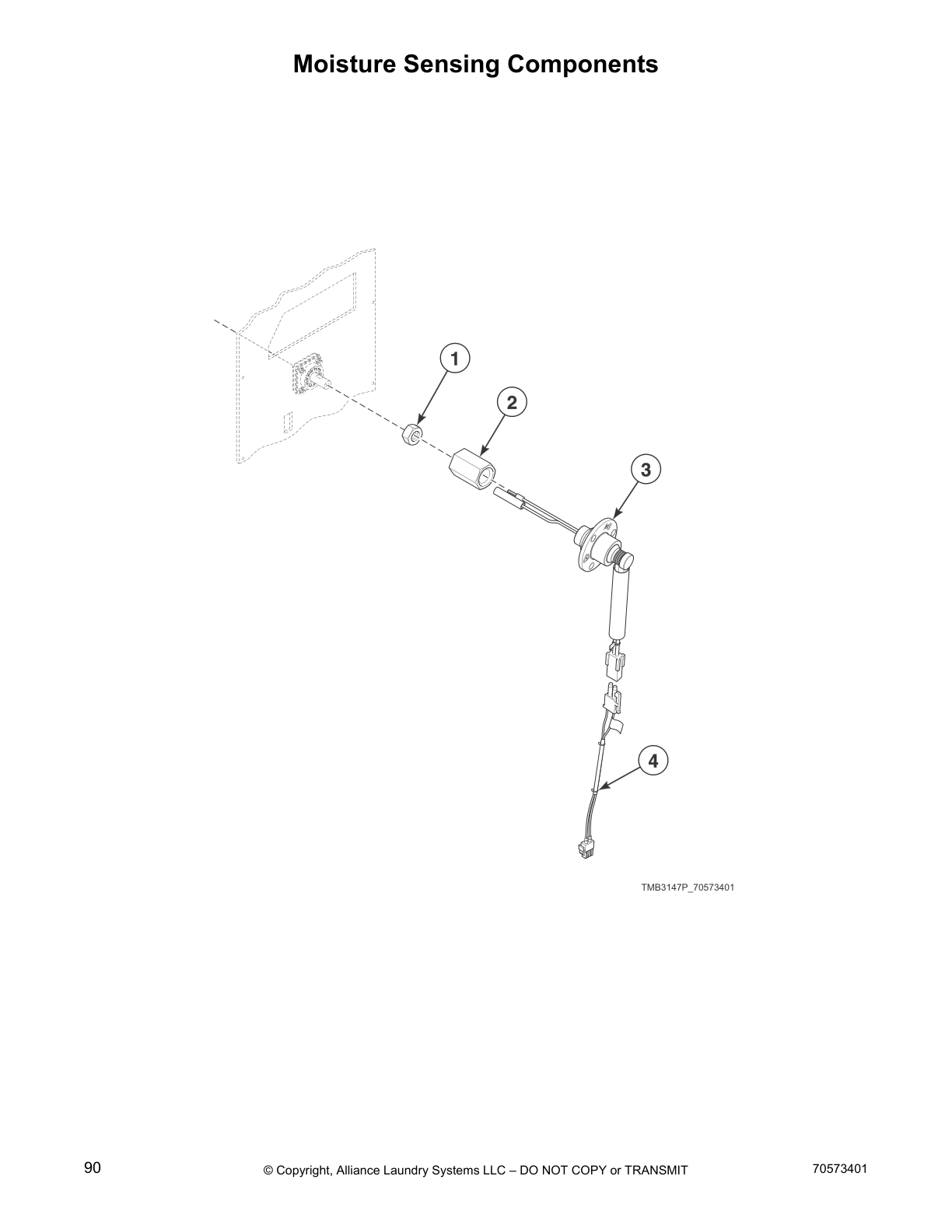

Moisture Sensing Components

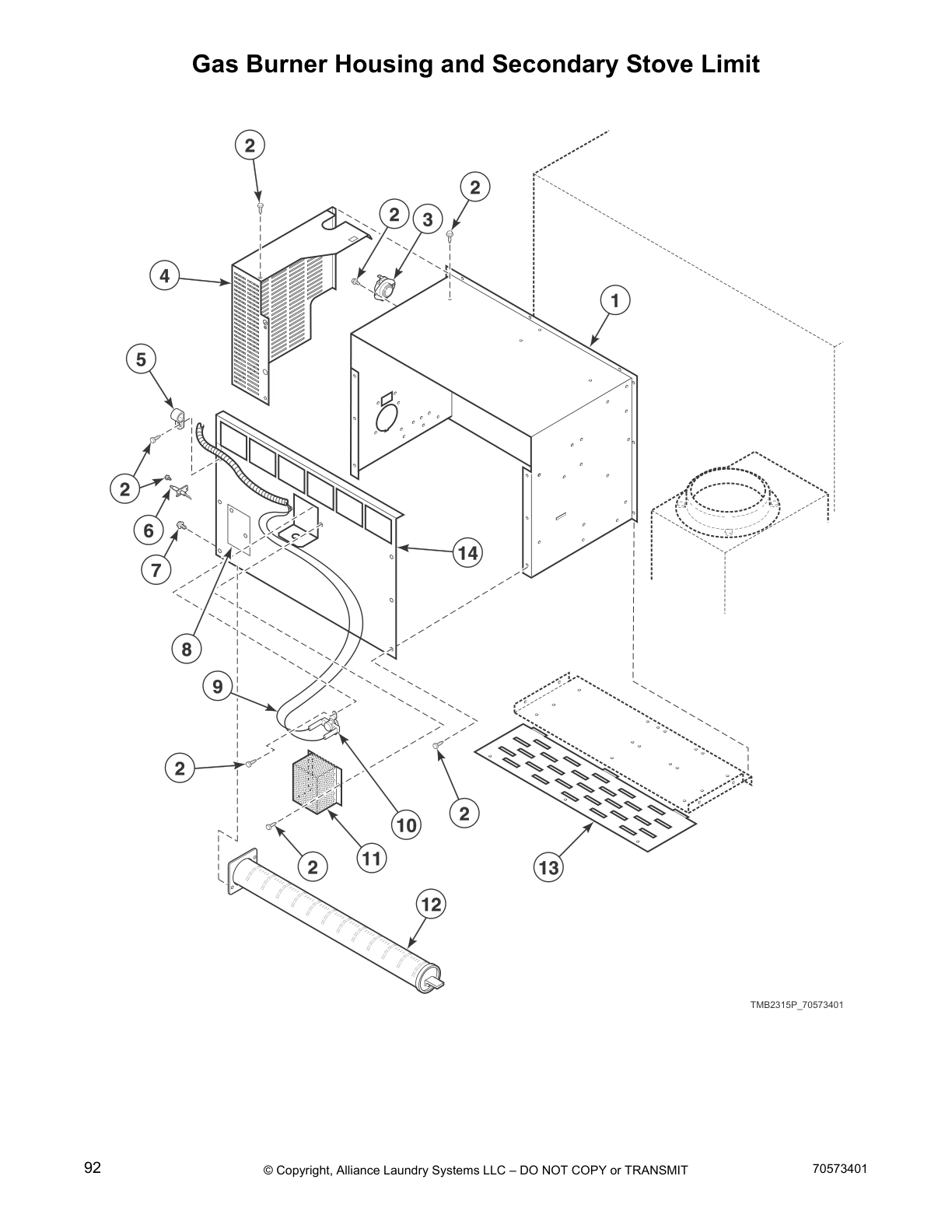

Gas Burner Housing and Secondary Stove Limit

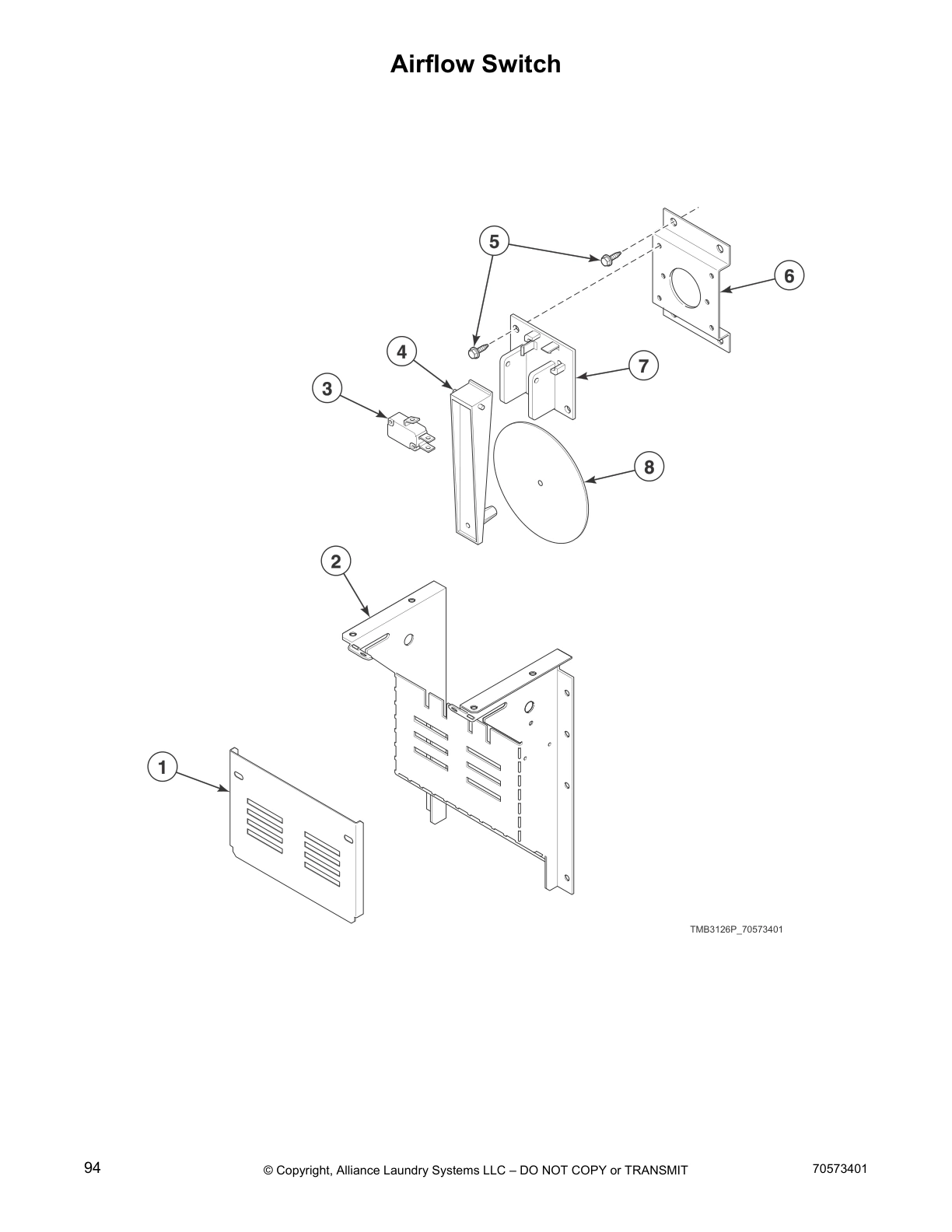

Airflow Switch

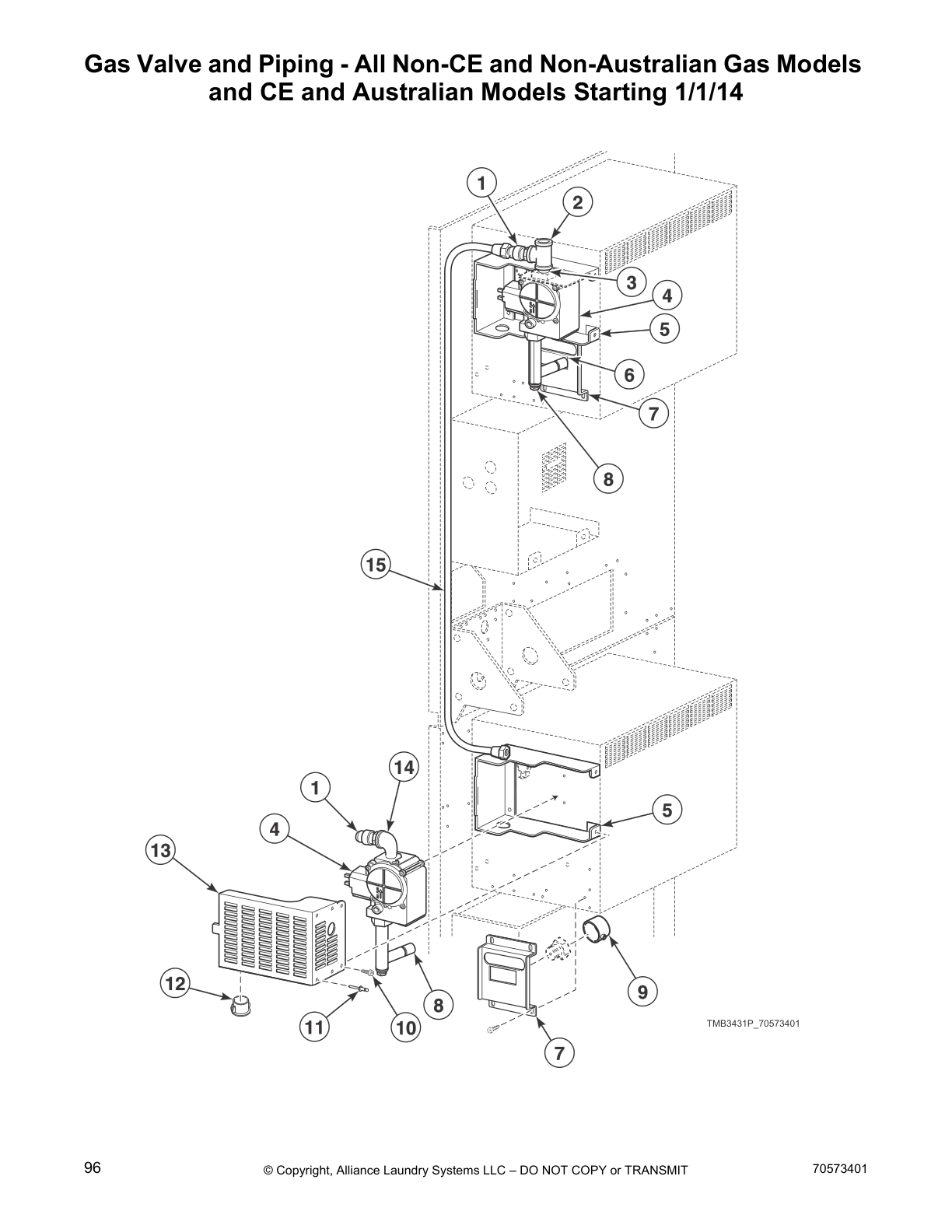

Gas Valve and Piping - All Non-CE and Non-Australian Gas Models
and CE and Australian Models Starting 1/1/14

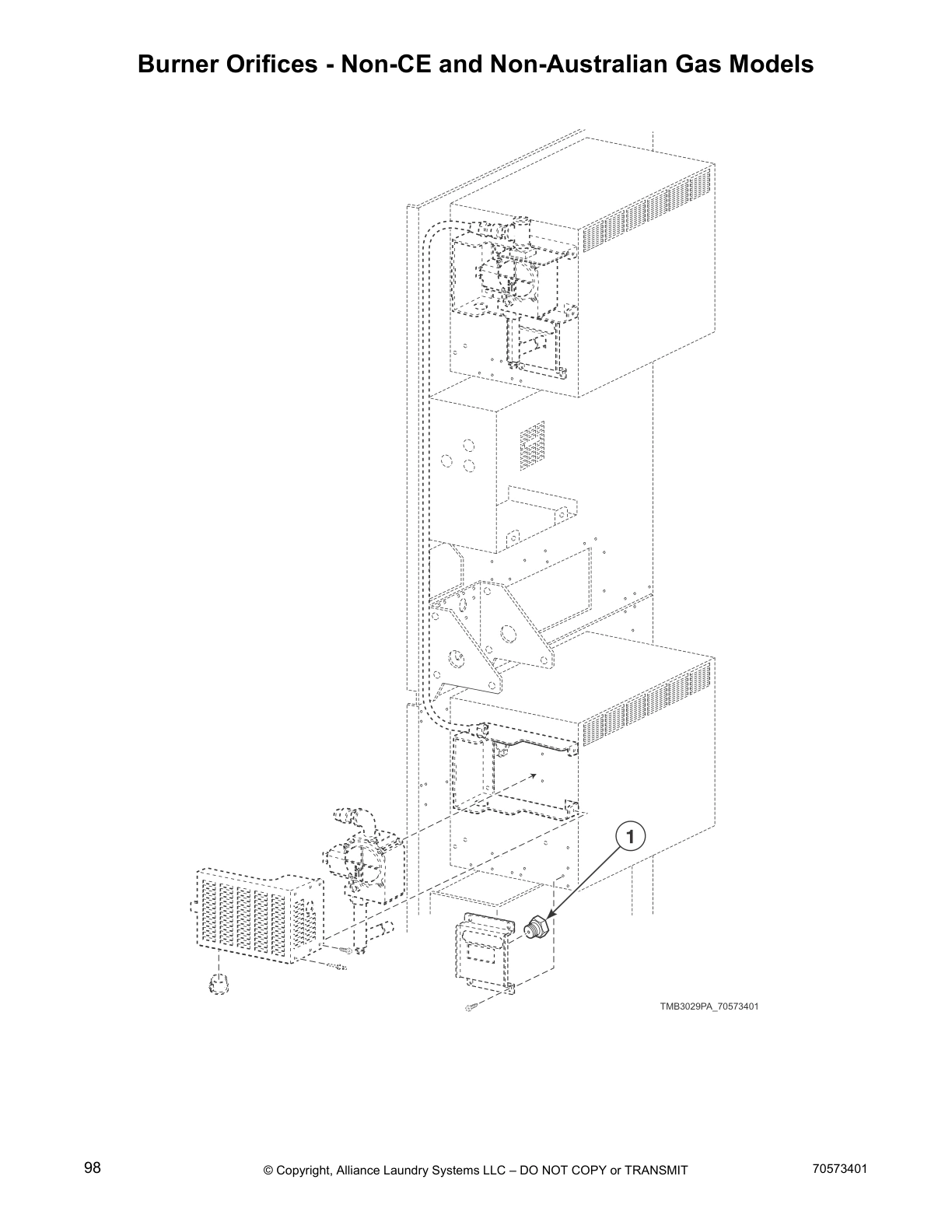

Burner Orifices - Non-CE and Non-Australian Gas Models

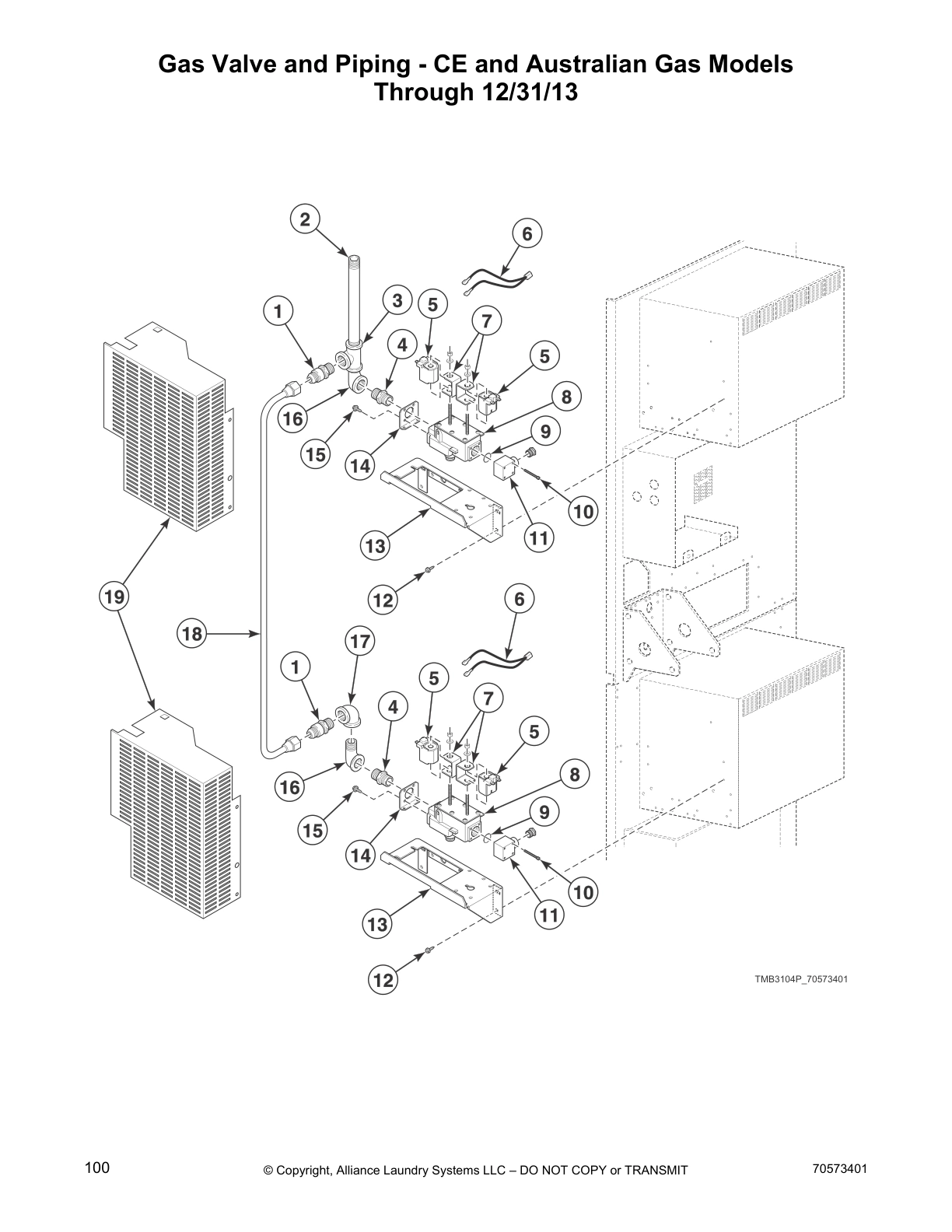

Gas Valve and Piping - CE and Australian Gas Models
Through 12/31/13

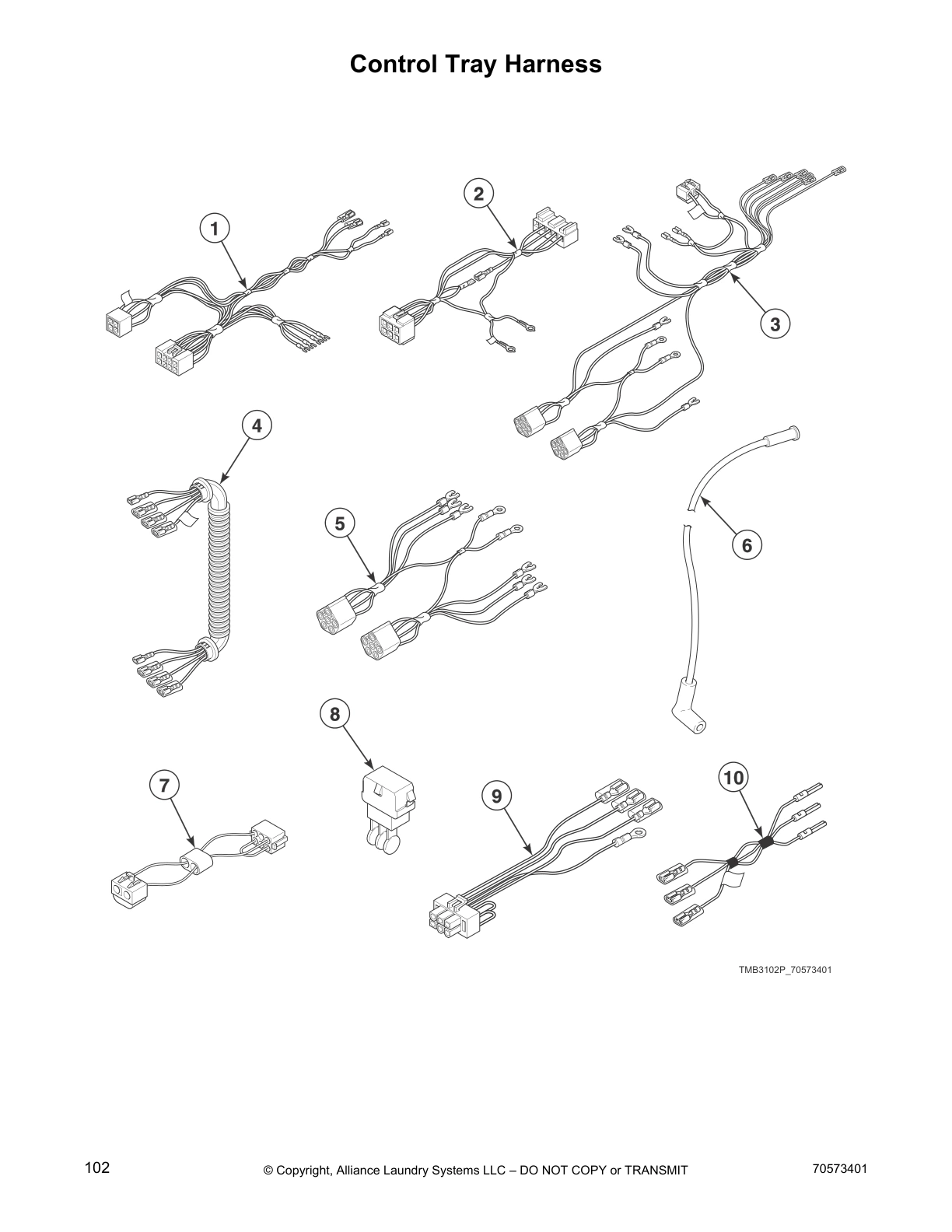

Control Tray Harness

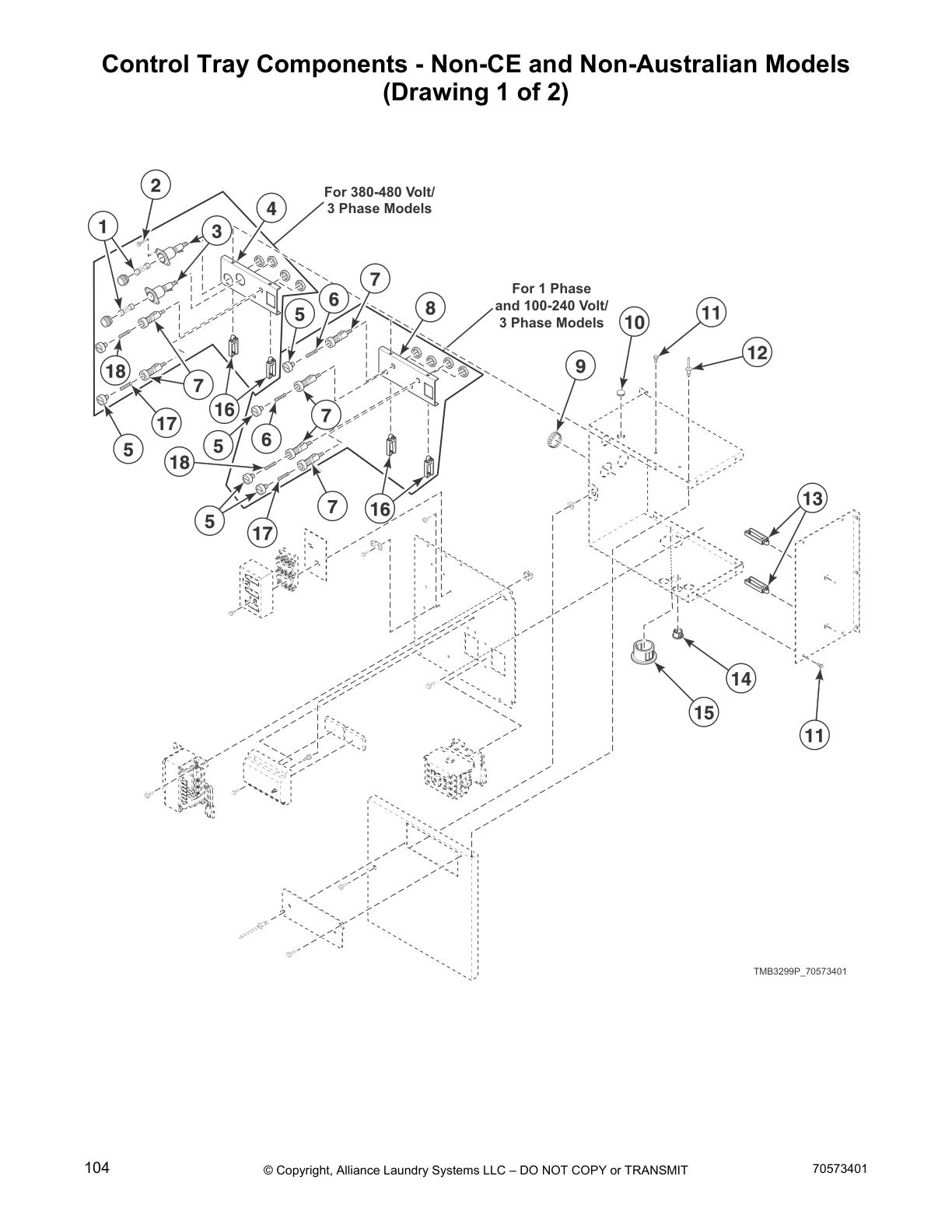

Control Tray Components - Non-CE and Non-Australian Models
(Drawing 1 of 2)

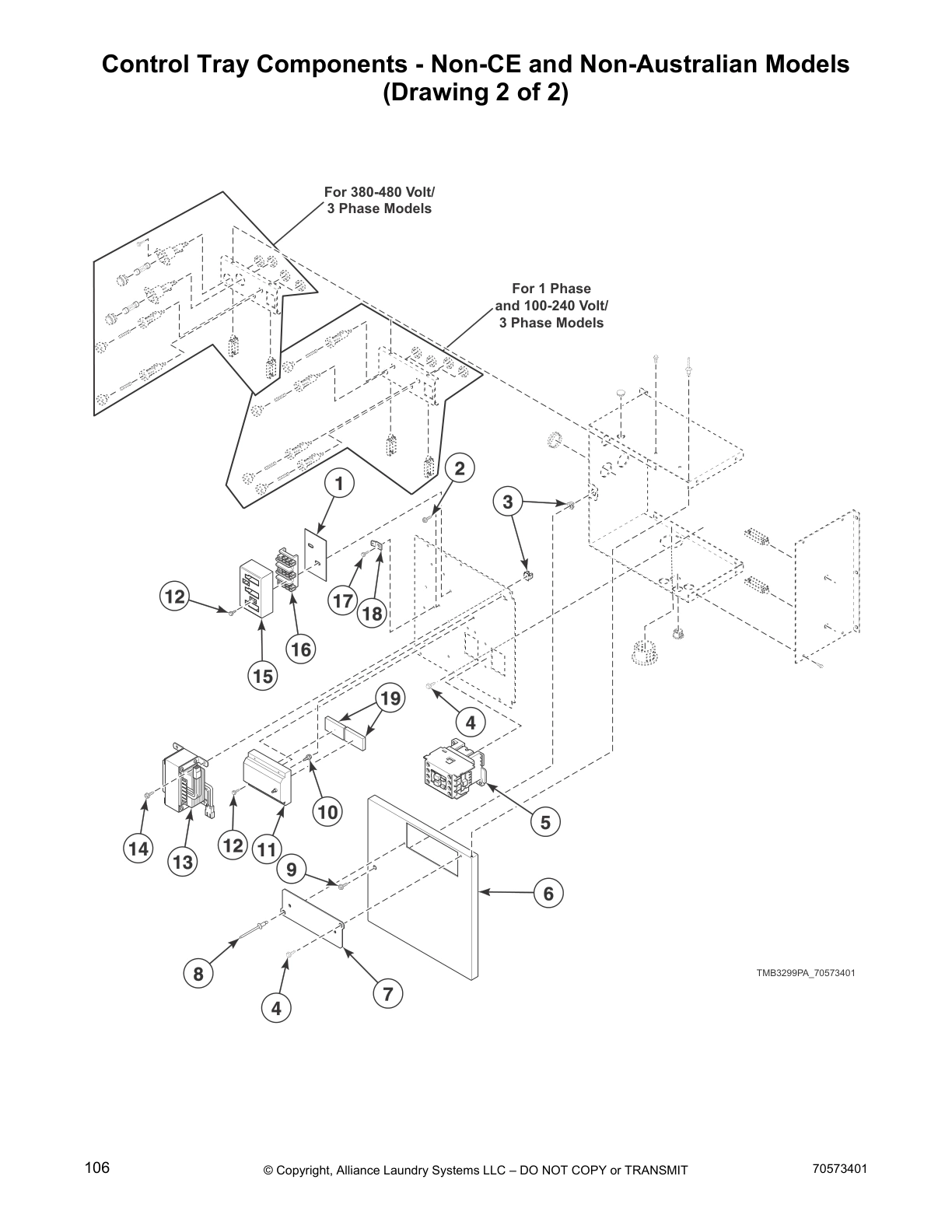

Control Tray Components - Non-CE and Non-Australian Models
(Drawing 2 of 2)

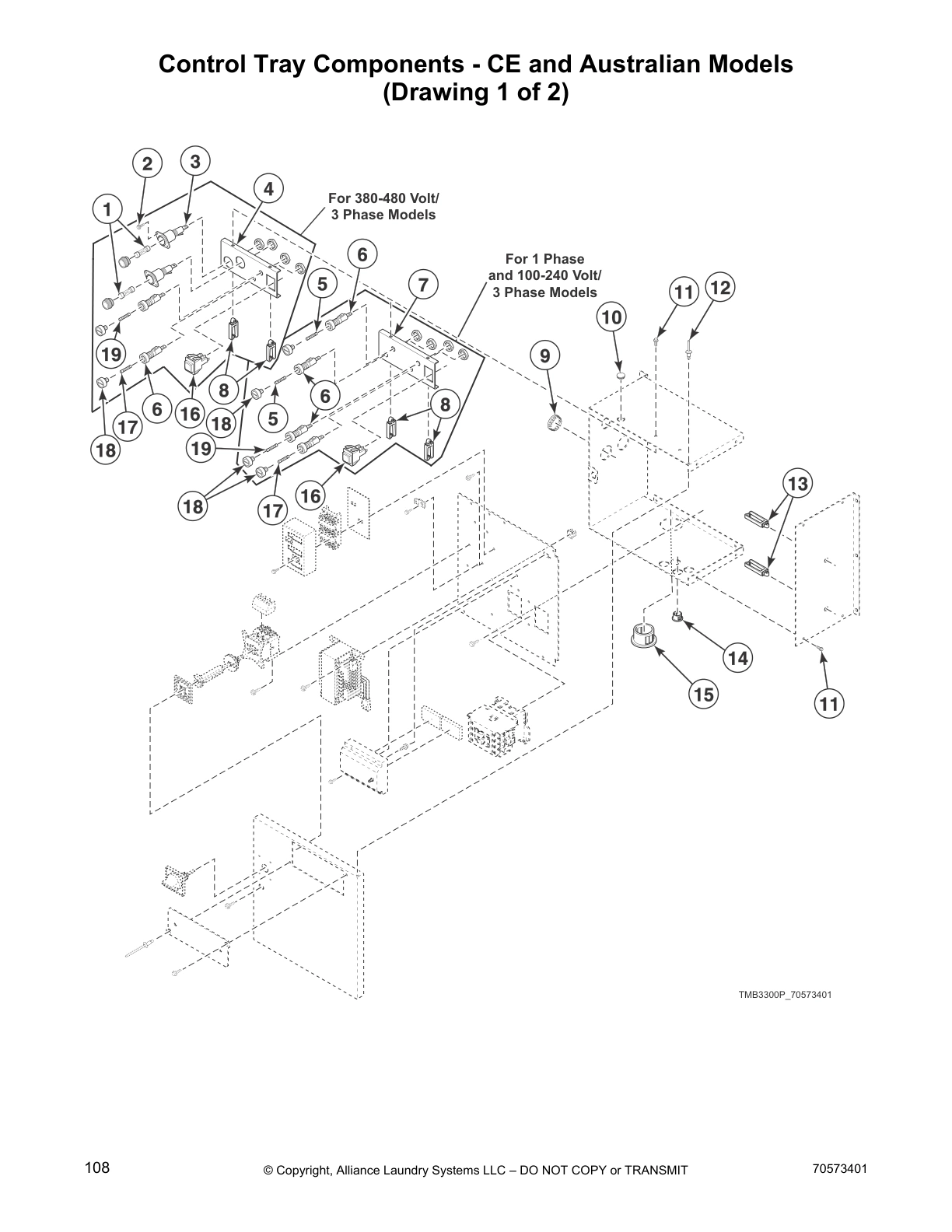

Control Tray Components - CE and Australian Models
(Drawing 1 of 2)

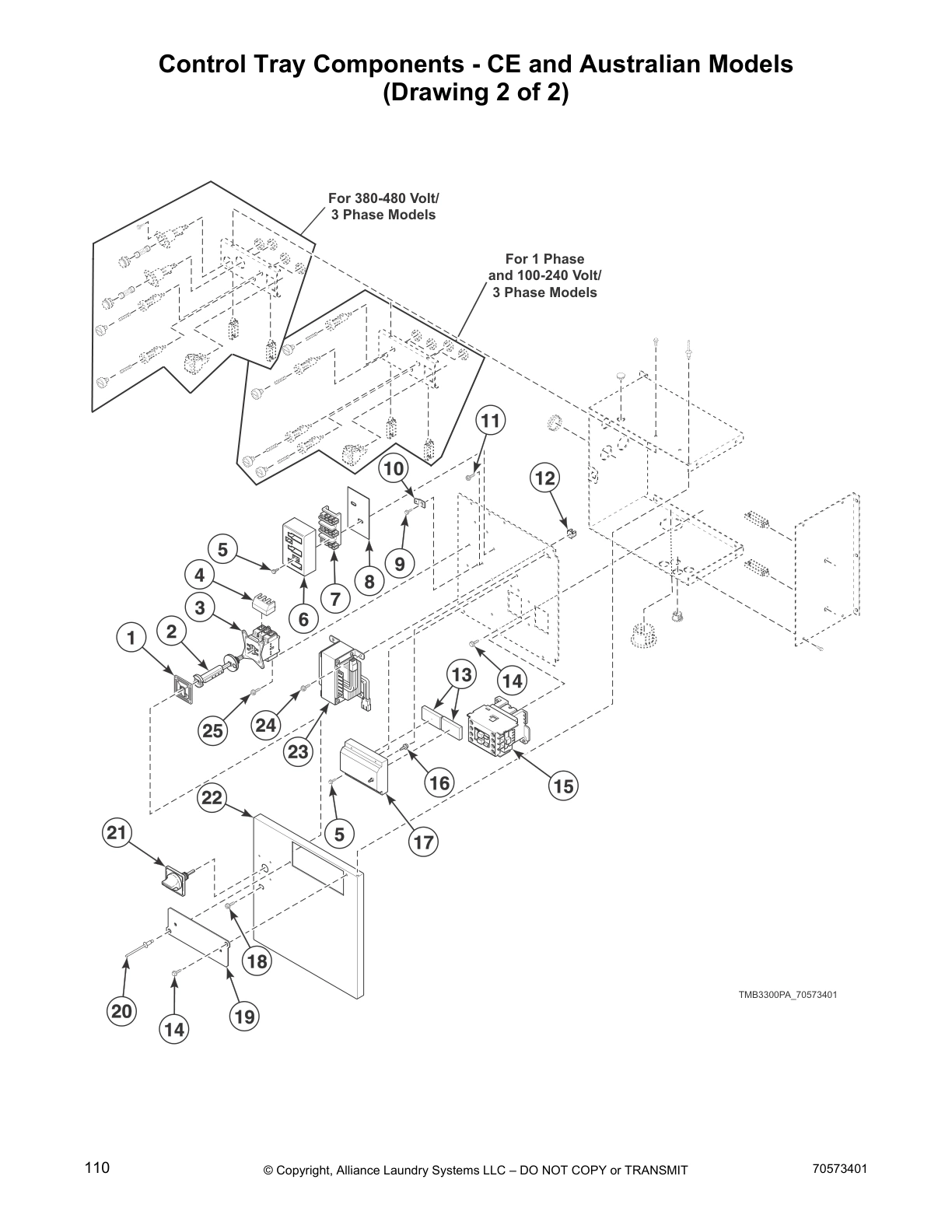

Control Tray Components - CE and Australian Models
(Drawing 2 of 2)
Common parts from model Alliance NTT45L Dryer
Coin Drop Kit SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK121 SPQ CK121 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ CK116 SPQ CK116 Contact Us For Availability
SPQ 70449001 SPQ 70449001 Contact Us For Availability
SPQ 70305301 SPQ 70305301 Contact Us For Availability
SPQ 297P4 SPQ 297P4 Contact Us For Availability
SPQ 70566401 SPQ 70566401 Contact Us For Availability
SPQ 70401501 SPQ 70401501 Contact Us For Availability
SPQ 70298401P SPQ 70298401P Contact Us For Availability
SPQ 70413101 SPQ 70413101 Contact Us For Availability
SPQ 70346301 SPQ 70346301 Contact Us For Availability
Primary Air Adjustment Sleeve SPQ 70552801P Contact Us For Availability
L.P. Conversion Kit SPQ M4972P3 Contact Us For Availability
SPQ 70684123 SPQ 70684123 Contact Us For Availability
Jumper Harness Assembly SPQ 70323601 Contact Us For Availability
Network Capacitor Harness Assembly SPQ M413510 Contact Us For Availability
SPQ M413505 SPQ M413505 Contact Us For Availability
1
Door Ring Gasket SPQ 44008201P Contact Us For Availability
1
Belt SPQ 70276204P Contact Us For Availability
1
Lint Drawer Gasket SPQ 70300201P Contact Us For Availability
1
Lint Screen Assembly SPQ 70301201 Contact Us For Availability
1
Main Harness SPQ 70346001P Contact Us For Availability
1
Overlay SPQ 70472302 Contact Us For Availability
1
Door Handle SPQ 44007901 Contact Us For Availability
1
Front Cylinder Seal SPQ 70173402 Contact Us For Availability
1
Screw SPQ 70069901 Contact Us For Availability
1
Contact Switch SPQ F8069501 Contact Us For Availability
1
Overlay SPQ 70408002 Contact Us For Availability
1
Cylinder Assembly SPQ 70372902P Contact Us For Availability
1
Drive Motor SPQ 70401801 Contact Us For Availability
1
Blower Motor SPQ 70401401 Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Stove Top and Sides SPQ 70306001 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Pipe SPQ 70262601 Contact Us For Availability
1
Junction Box Harness SPQ 70315801 Contact Us For Availability
2
Bypass Harness SPQ 70315501P Contact Us For Availability
2
Control Door and Studs Assembly SPQ 70441001 Contact Us For Availability
2
Door Assembly SPQ 44028902P Contact Us For Availability
2
Door Hinge Assembly SPQ 44075209B Contact Us For Availability
2
Upper Front Panel Assembly SPQ 70391502P Contact Us For Availability
2
Lower Front Panel Assembly SPQ 70391404P Contact Us For Availability
2
Control Trim SPQ 70116902 Contact Us For Availability
2
Shadow Box Clip SPQ 70180101 Contact Us For Availability
2
Contact Base SPQ F8538101 Contact Us For Availability
2
Nut SPQ 44087101 Contact Us For Availability
2
SPQ 70428702 SPQ 70428702 Contact Us For Availability
2
Screw SPQ 70070101 Contact Us For Availability
2
Washer SPQ 70411301 Contact Us For Availability
2
Cylinder Shroud SPQ 70357801 Contact Us For Availability
2
Cylinder Idler Arm SPQ 70440301 Contact Us For Availability
2
Motor Capacitor SPQ 70401701 Contact Us For Availability
2
Duct Cover SPQ 70307601 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Stove Back SPQ 70375201 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Pipe Tee SPQ 70267501 Contact Us For Availability
2
Ignition Control Harness SPQ 44186701 Contact Us For Availability
3
Screw SPQ D501524 Contact Us For Availability
3
Door Glass SPQ 44088001 Contact Us For Availability
3
Screw SPQ 70442101 Contact Us For Availability
3
Upper Front Panel SPQ 70617801W Contact Us For Availability
3
Instruction Label SPQ 70418101 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Lint Screen Bracket SPQ 70026901 Contact Us For Availability
3
Cylinder Guide Tool SPQ 70070102 Contact Us For Availability
3
Belt Tension Tool Kit SPQ 70334701 Contact Us For Availability
3
Blower Motor Mounting Plate SPQ 70302201P Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
L.P. Conversion Kit SPQ 70071801 Contact Us For Availability
3
Power Harness SPQ 70445501 Contact Us For Availability
3
Fuse Bracket SPQ M413544P Contact Us For Availability
4
Washer SPQ 70292801 Contact Us For Availability
4
Control Assembly SPQ 70437105P Contact Us For Availability
4
Door Seal Kit SPQ M414215 Contact Us For Availability
4
Hinge Cam Kit SPQ M4773P3 Contact Us For Availability
4
Pop Rivet SPQ 70182601 Contact Us For Availability
4
Center Trim SPQ 70299601 Contact Us For Availability
4
Lint Frame Gasket SPQ 70333103 Contact Us For Availability
4
Rear Cylinder Channel SPQ 70433001 Contact Us For Availability
4
Clip SPQ 70226701 Contact Us For Availability
4
Top Panel SPQ 70301701 Contact Us For Availability
4
SPQ 70284208 SPQ 70284208 Contact Us For Availability
4
Fan Motor Harness SPQ 70303401 Contact Us For Availability
4
Moisture Sensor Harness Assembly SPQ 70448902 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Pipe Nipple SPQ 431486 Contact Us For Availability
4
Power Harness SPQ 70439001 Contact Us For Availability
4
Plug SPQ 44155601P Contact Us For Availability
5
Hinge Cam Kit SPQ M4772P3 Contact Us For Availability
5
Pipe Clip SPQ M409219 Contact Us For Availability
5
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
5
Control Door Latch SPQ 431318 Contact Us For Availability
5
SPQ 44008401P SPQ 44008401P Contact Us For Availability
5
Coin Vault Trim SPQ 70033502 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70323201 Contact Us For Availability
5
Trunnion and Seal Kit SPQ 70391101 Contact Us For Availability
5
Pop Rivet SPQ 70506403 Contact Us For Availability
5
SPQ 70284204 SPQ 70284204 Contact Us For Availability
5
Duct Access Cover SPQ 70308701 Contact Us For Availability
5
SPQ M411072 SPQ M411072 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
Gas Valve SPQ 44154502P Contact Us For Availability
5
Motor Contactor Harness SPQ 70438901 Contact Us For Availability
5
SPQ 70313602 SPQ 70313602 Contact Us For Availability
6
Support Bearing SPQ 70448701 Contact Us For Availability
6
L.P. Valve SPQ 44154501P Contact Us For Availability
6
Control Housing SPQ M400003 Contact Us For Availability
6
Screw SPQ 44349101 Contact Us For Availability
6
Pushbutton Switch SPQ M401223 Contact Us For Availability
6
Center Trim Overlay SPQ 70116901 Contact Us For Availability
6
Lint Drawer Front Assembly SPQ 70323002 Contact Us For Availability
6
Cylinder Bearing Stud Plate Asse SPQ 70013703 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70302801P Contact Us For Availability
6
Thermistor Cover SPQ 70440401 Contact Us For Availability
6
Spark Electrode SPQ 70203701 Contact Us For Availability
6
High Voltage Lead SPQ 70347701P Contact Us For Availability
6
SPQ 70313601 SPQ 70313601 Contact Us For Availability
6
SPQ 51783 SPQ 51783 Contact Us For Availability
7
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
7
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
7
Output Harness SPQ 44223101 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 70407301 Contact Us For Availability
7
Front Panel Baffle Seal SPQ 70362701 Contact Us For Availability
7
Lint Drawer Gasket SPQ 44166601 Contact Us For Availability
7
Lint Drawer Handle SPQ 70323001 Contact Us For Availability
7
Lower Pan SPQ 70066005 Contact Us For Availability
7
Gasket SPQ 70440001P Contact Us For Availability
7
Igniter Cover SPQ 70032801P Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
N.G. Valve SPQ 44154504 Contact Us For Availability
7
High Voltage Suppression Cable SPQ 70316101P Contact Us For Availability
7
SPQ 70333001 SPQ 70333001 Contact Us For Availability
8
SPQ 70144101 SPQ 70144101 Contact Us For Availability
8
SPQ 430642 SPQ 430642 Contact Us For Availability
8
SPQ 70406701 SPQ 70406701 Contact Us For Availability
8
SPQ D512218P SPQ D512218P Contact Us For Availability
8
Mounting Plate SPQ 70208801 Contact Us For Availability
8
Control Panel Harness SPQ 44186101 Contact Us For Availability
8
Spacer SPQ 70119901 Contact Us For Availability
8
Front Panel Baffle Seal SPQ 70117502 Contact Us For Availability
8
Lint Panel and Studs Assembly SPQ 70320802 Contact Us For Availability
8
Nut SPQ 70305201 Contact Us For Availability
8
SPQ 70062401 SPQ 70062401 Contact Us For Availability
8
Stove Limit Harness SPQ 70548701P Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Forward Valve Cover SPQ 44154503 Contact Us For Availability
8
Jumper Configuration Assembly SPQ 70439501 Contact Us For Availability
8
SPQ 70329401P SPQ 70329401P Contact Us For Availability
9
SPQ M400991 SPQ M400991 Contact Us For Availability
9
Base Harness SPQ 70413301 Contact Us For Availability
9
Coin Vault Switch Harness SPQ 70364104P Contact Us For Availability
9
USB IR Interface Kit SPQ 44240301 Contact Us For Availability
9
Pin SPQ 44035002 Contact Us For Availability
9
SPQ 70320801 SPQ 70320801 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70305202 Contact Us For Availability
9
SPQ 70302001 SPQ 70302001 Contact Us For Availability
9
SPQ 05161 SPQ 05161 Contact Us For Availability
9
Orifice Keeper Bracket SPQ 70328201 Contact Us For Availability
9
Jumper Harness Assembly SPQ 70316201 Contact Us For Availability
9
SPQ 70306901 SPQ 70306901 Contact Us For Availability
9
SPQ M413862 SPQ M413862 Contact Us For Availability
10
Audit Switch Bracket SPQ 70292601 Contact Us For Availability
10
Main Harness SPQ 70441401 Contact Us For Availability
10
Central Pay Harness SPQ 70484501 Contact Us For Availability
10
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
10
Pop Rivet SPQ 44251101 Contact Us For Availability
10
Kickplate SPQ 70117605 Contact Us For Availability
10
Panel Latch SPQ 70399201 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372901P Contact Us For Availability
10
Motor Mount Bracket SPQ 70312001 Contact Us For Availability
10
Blower Motor SPQ 70342601P Contact Us For Availability
10
Limit Thermostat SPQ 70299001 Contact Us For Availability
10
Bushing SPQ M406124 Contact Us For Availability
10
Male Tab Terminal SPQ 00177 Contact Us For Availability
11
Ignition Control Kit SPQ 70492501 Contact Us For Availability
11
Control Plate Kit SPQ 70705401 Contact Us For Availability
11
Audit Switch Bracket SPQ 70183901 Contact Us For Availability
11
Bypass Harness SPQ 70364103 Contact Us For Availability
11
Pop Rivet SPQ 70126301 Contact Us For Availability
11
Screw SPQ M400661 Contact Us For Availability
11
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
11
Panel Latch Kit SPQ 70399201P Contact Us For Availability
11
Washer SPQ 70444001P Contact Us For Availability
11
Thermistor SPQ 70297901P Contact Us For Availability
11
Thermostat Cover SPQ M414477 Contact Us For Availability
11
Screw SPQ M402917 Contact Us For Availability
12
Key SPQ 70155602 Contact Us For Availability
12
Card Reader Overlay SPQ 70497401 Contact Us For Availability
12
Latch Mounting Bracket SPQ 70184501 Contact Us For Availability
12
Jumper Calibration Wire SPQ 70324603 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Coin Vault Assembly SPQ 70275801 Contact Us For Availability
12
End Cap SPQ 70444002 Contact Us For Availability
12
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
12
Motor Channel SPQ 70261701 Contact Us For Availability
12
Anti-Rattle Burner Assembly SPQ 70546701 Contact Us For Availability
12
Snap Bushing SPQ M400770 Contact Us For Availability
12
Pop Rivet SPQ 70058502 Contact Us For Availability
12
Ignition Control SPQ 70458601P Contact Us For Availability
13
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
13
Key SPQ 70155601 Contact Us For Availability
13
Wire Clip SPQ 70366201 Contact Us For Availability
13
Pop Rivet SPQ 70334201 Contact Us For Availability
13
Roller Seal SPQ 70443601 Contact Us For Availability
13
Blower Housing Cover Assembly SPQ M411307 Contact Us For Availability
13
Gas Burner SPQ 70229801P Contact Us For Availability
13
Rear Valve Cover SPQ 70282401 Contact Us For Availability
14
Temperature Knob SPQ 44104601 Contact Us For Availability
14
Burner Grill SPQ 70306501 Contact Us For Availability
14
Transformer SPQ M414312P Contact Us For Availability
14
Roller Shaft SPQ 70249501 Contact Us For Availability
14
Washer SPQ 70443301 Contact Us For Availability
14
Screw SPQ 70322801 Contact Us For Availability
14
Snap Bushing SPQ 70178701 Contact Us For Availability
15
Washer SPQ 70261401 Contact Us For Availability
15
Control Panel Harness SPQ 70368001P Contact Us For Availability
15
Street Elbow SPQ 23222 Contact Us For Availability
15
Drum Idler Spring SPQ 70270301 Contact Us For Availability
15
Tube SPQ 70281602 Contact Us For Availability
15
Transformer SPQ M414230P Contact Us For Availability
16
Roller Support Bracket SPQ 70288801 Contact Us For Availability
16
Screw SPQ 70045301 Contact Us For Availability
16
Blower Inlet Cone SPQ 70303201 Contact Us For Availability
16
Tee SPQ H86070034 Contact Us For Availability
17
Fuse Holder Cap SPQ 70406601 Contact Us For Availability
17
Sheet Metal Edge Gasket SPQ 70301401 Contact Us For Availability
17
Cylinder Motor Harness SPQ 70265901 Contact Us For Availability
17
Rear Stabilizer Bracket SPQ 70303101 Contact Us For Availability
18
Top Panel Assembly SPQ 70015707 Contact Us For Availability
18
Fuse Bracket SPQ 70329501 Contact Us For Availability
19
Switch SPQ 70015708 Contact Us For Availability
19
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
19
Wire Clip SPQ 70200301 Contact Us For Availability
19
Fuse SPQ 70406501 Contact Us For Availability
19
Transformer SPQ 70313301 Contact Us For Availability
20
Motor Conduit Mounting Bracket SPQ M400022 Contact Us For Availability
20
Double Ended Stud SPQ 70439901 Contact Us For Availability
21
Rear Panel SPQ 70030401 Contact Us For Availability
21
Washer SPQ 70321701 Contact Us For Availability
21
Motor Pulley SPQ 70316701P Contact Us For Availability
22
Rear Cylinder Seal Support SPQ 70301901 Contact Us For Availability
22
Motor Conduit Mounting Bracket SPQ 70050401P Contact Us For Availability
22
Blower Assembly SPQ F431131 Contact Us For Availability
23
Rear Cylinder Seal SPQ 70301902 Contact Us For Availability
23
Bolt SPQ 70259901 Contact Us For Availability
23
Terminal Block SPQ M414229P Contact Us For Availability
24
Insulator SPQ M414228P Contact Us For Availability
NI
SPQ 70211902P SPQ 70211902P Contact Us For Availability
NI
Network Capacitor Assembly SPQ 44239701 Contact Us For Availability
NI
SPQ 44035001 SPQ 44035001 Contact Us For Availability
NI
SPQ 70392901P SPQ 70392901P Contact Us For Availability
NI
Wire Guard SPQ 39157 Contact Us For Availability
NI
SPQ 38519 SPQ 38519 Contact Us For Availability
NI
SPQ 38467 SPQ 38467 Contact Us For Availability
NI
SPQ 210196 SPQ 210196 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ CK123 SPQ CK123 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
SPQ 70294120 SPQ 70294120 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK122 SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
SPQ 70119001 SPQ 70119001 Contact Us For Availability
NI
Control Door Latch Kit SPQ 70559502 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Door Assembly SPQ 44028903 Contact Us For Availability
NI
Door Ring Assembly SPQ 44326004B Contact Us For Availability
NI
SPQ 70071401 SPQ 70071401 Contact Us For Availability
NI
SPQ 44088801 SPQ 44088801 Contact Us For Availability
NI
SPQ 431264 SPQ 431264 Contact Us For Availability
NI
SPQ 70017301 SPQ 70017301 Contact Us For Availability
NI
SPQ 70362301 SPQ 70362301 Contact Us For Availability
NI
SPQ 70299701 SPQ 70299701 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
NI
SPQ 70323004 SPQ 70323004 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70560601 SPQ 70560601 Contact Us For Availability
NI
Spray Paint SPQ 381P4 Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 298P4P Contact Us For Availability
NI
SPQ 215P4P SPQ 215P4P Contact Us For Availability
NI
SPQ 70202501 SPQ 70202501 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
SPQ 70401601 SPQ 70401601 Contact Us For Availability
NI
SPQ 70413201 SPQ 70413201 Contact Us For Availability
NI
SPQ 70435702 SPQ 70435702 Contact Us For Availability
NI
SPQ 70435701 SPQ 70435701 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 70126101 SPQ 70126101 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ 70159601 SPQ 70159601 Contact Us For Availability
NI
SPQ 70316501 SPQ 70316501 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
Primary Air Adjustment Sleeve SPQ M4880P3 Contact Us For Availability
NI
Orifice Holder Bracket SPQ 70249001 Contact Us For Availability
NI
Orifice Adapter SPQ 70248901 Contact Us For Availability
NI
SPQ 70239801 SPQ 70239801 Contact Us For Availability
NI
Harness Assembly SPQ M4970P3 Contact Us For Availability
NI
SPQ M412997 SPQ M412997 Contact Us For Availability
NI
Burner Orifice SPQ 70684118 Contact Us For Availability
NI
SPQ 70684116 SPQ 70684116 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ 70320201 Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
SPQ M413863 SPQ M413863 Contact Us For Availability
NI
SPQ 44143401P SPQ 44143401P Contact Us For Availability
NI
SPQ 70347601 SPQ 70347601 Contact Us For Availability
NI
SPQ M400985 SPQ M400985 Contact Us For Availability
NI
SPQ 70313401 SPQ 70313401 Contact Us For Availability
× ![]()
