Model Alliance NT030S Dryer – Common Parts & Diagrams

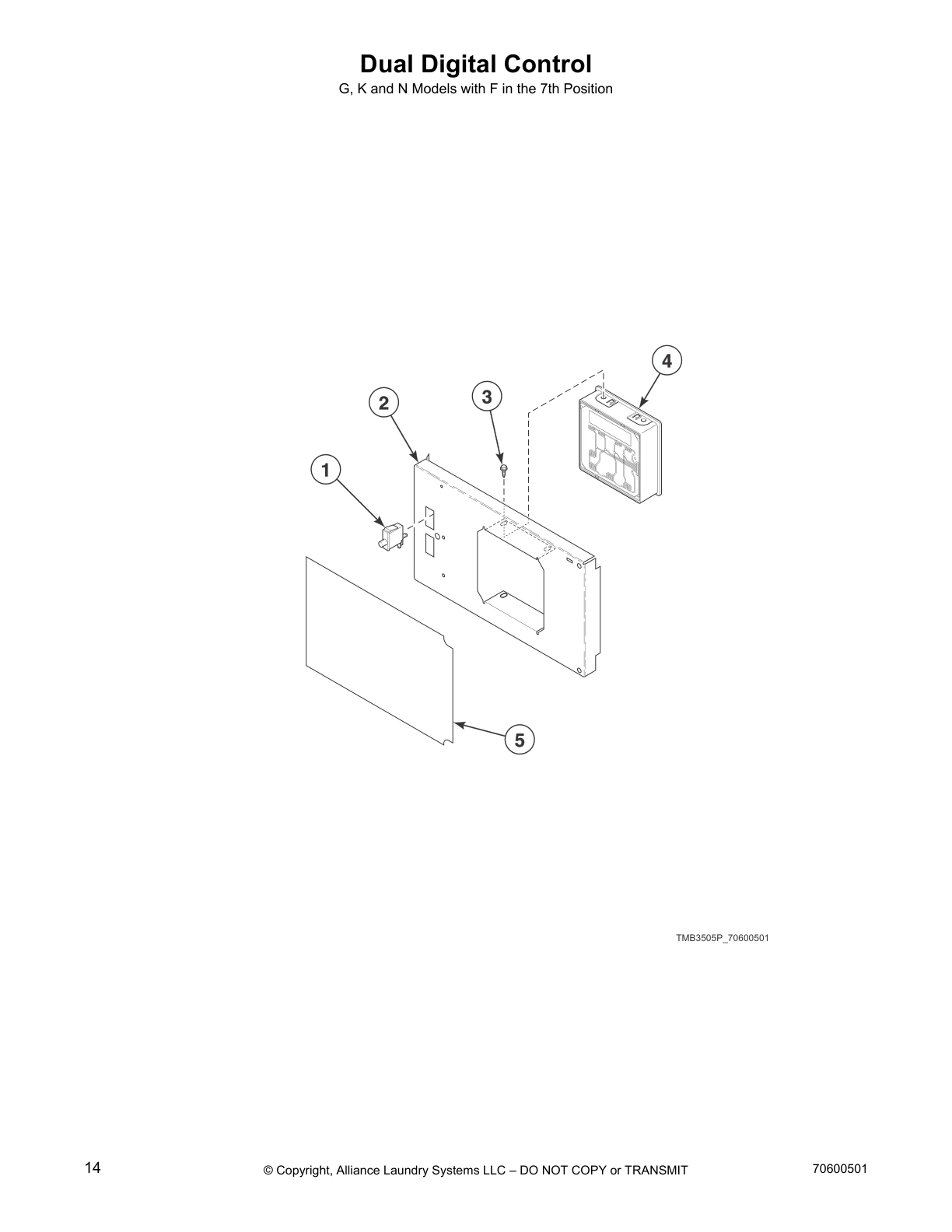

Dual Digital Control

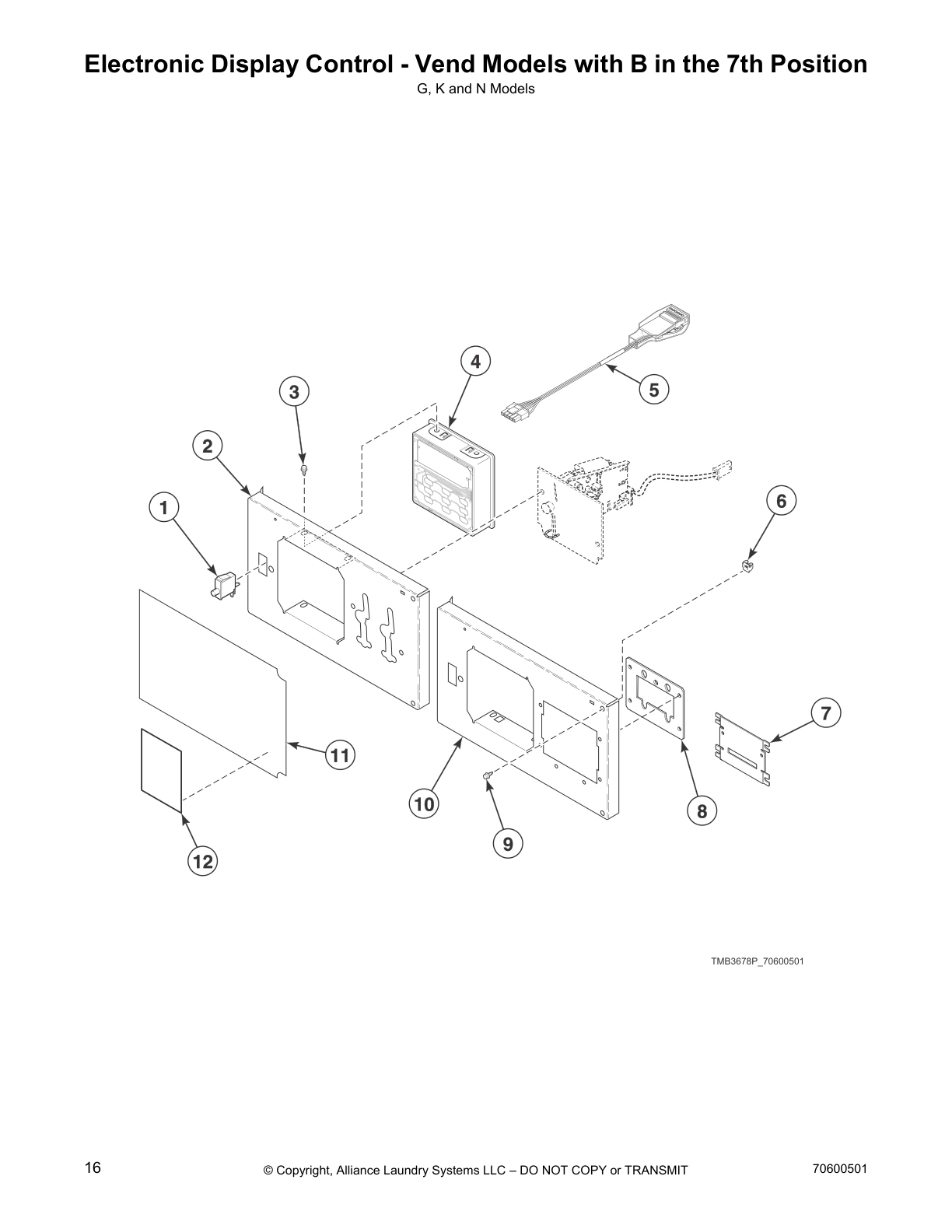

Electronic Display Control - Vend Models with B in the 7th Position

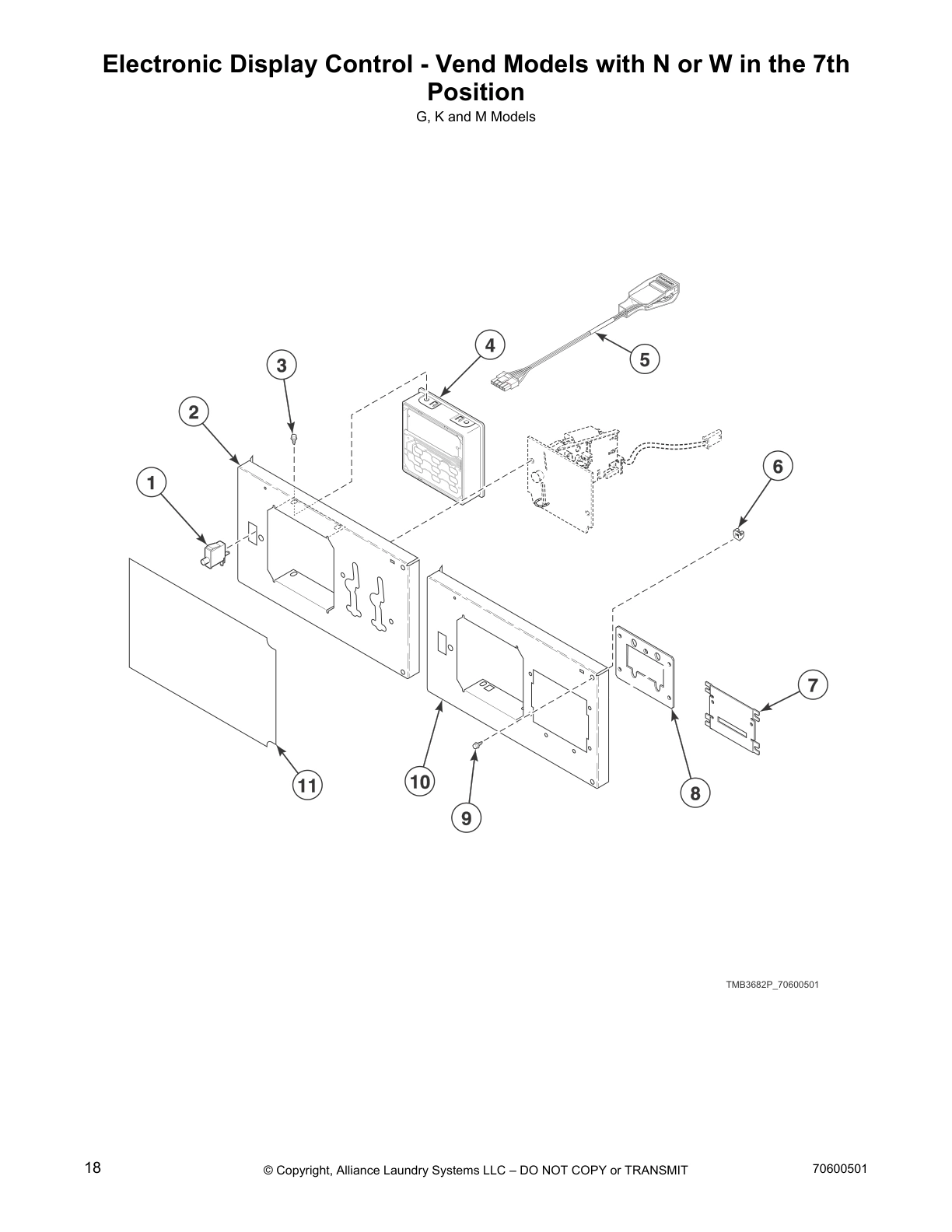

Electronic Display Control - Vend Models with N or W in the 7th
Position
Electronic Display Control - OPL Models with N in the 7th Position

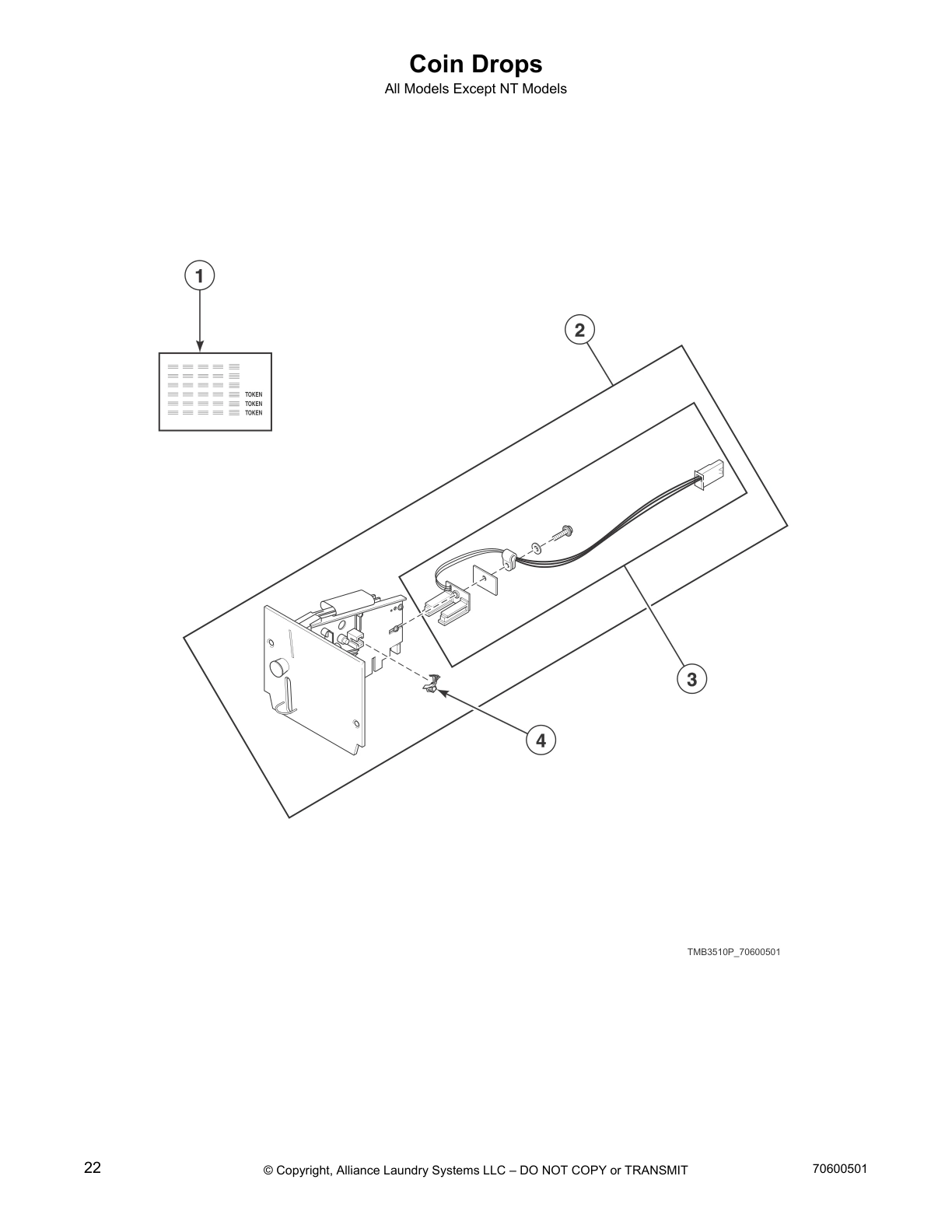

Coin Drops
Coin Drop Kits

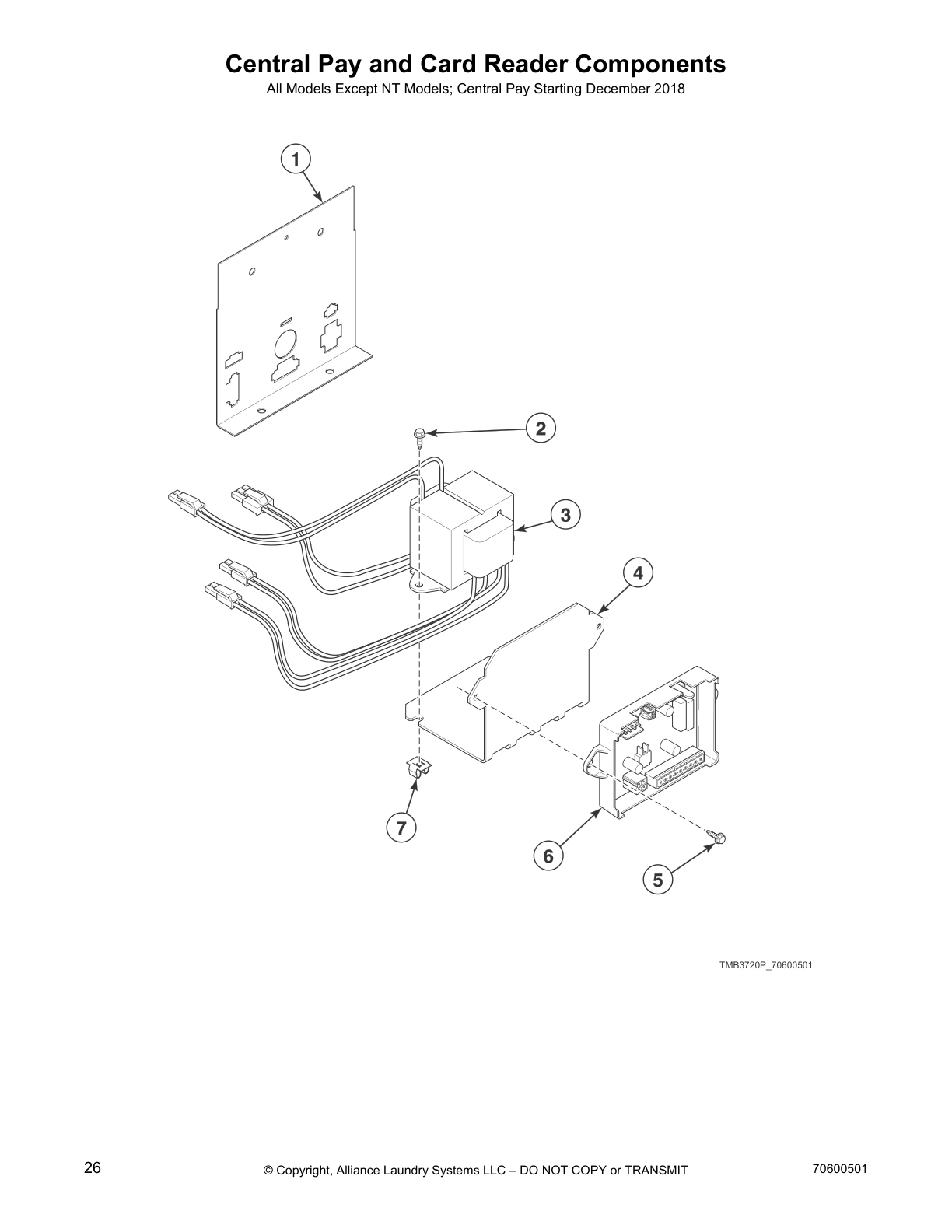

Central Pay and Card Reader Components
Door Assemblies

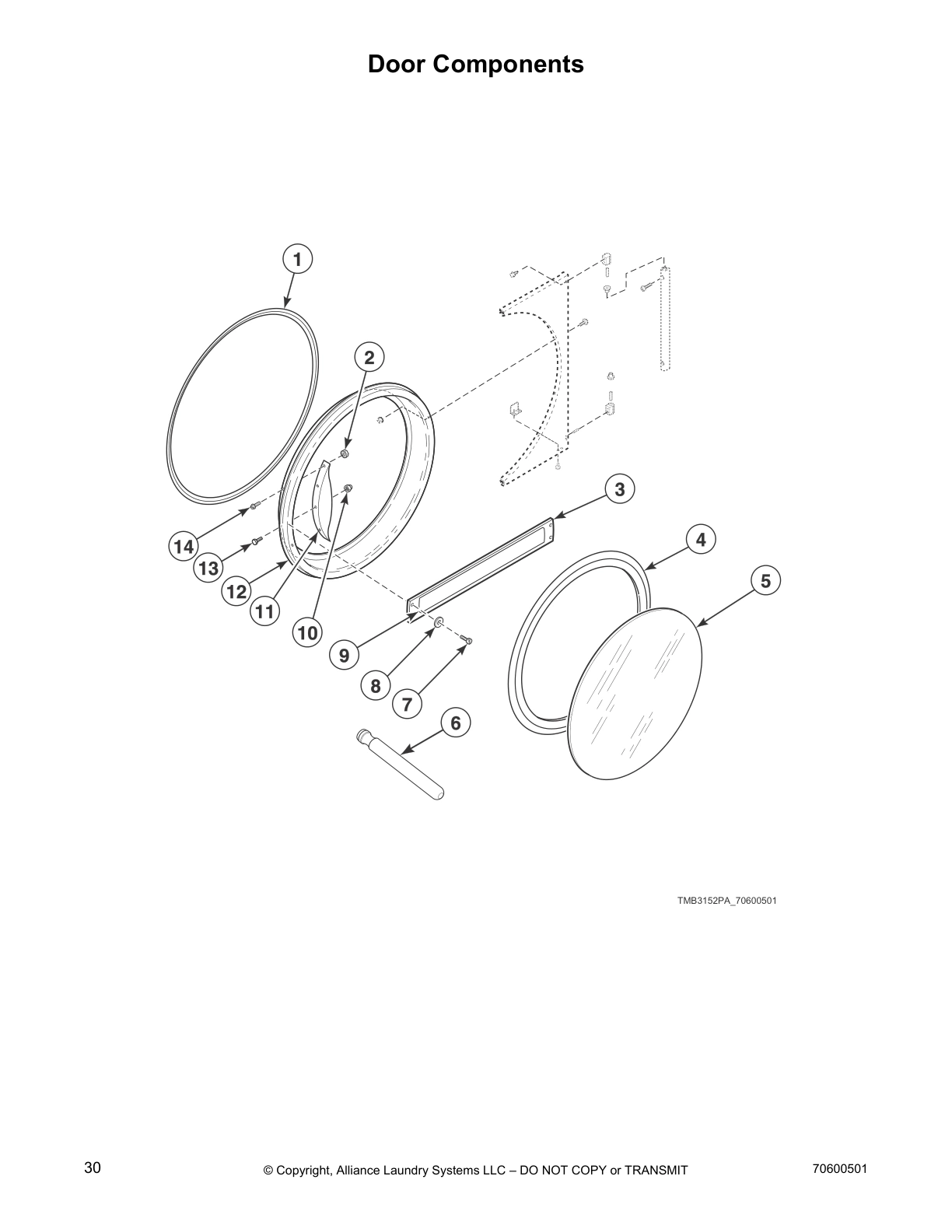

Door Components

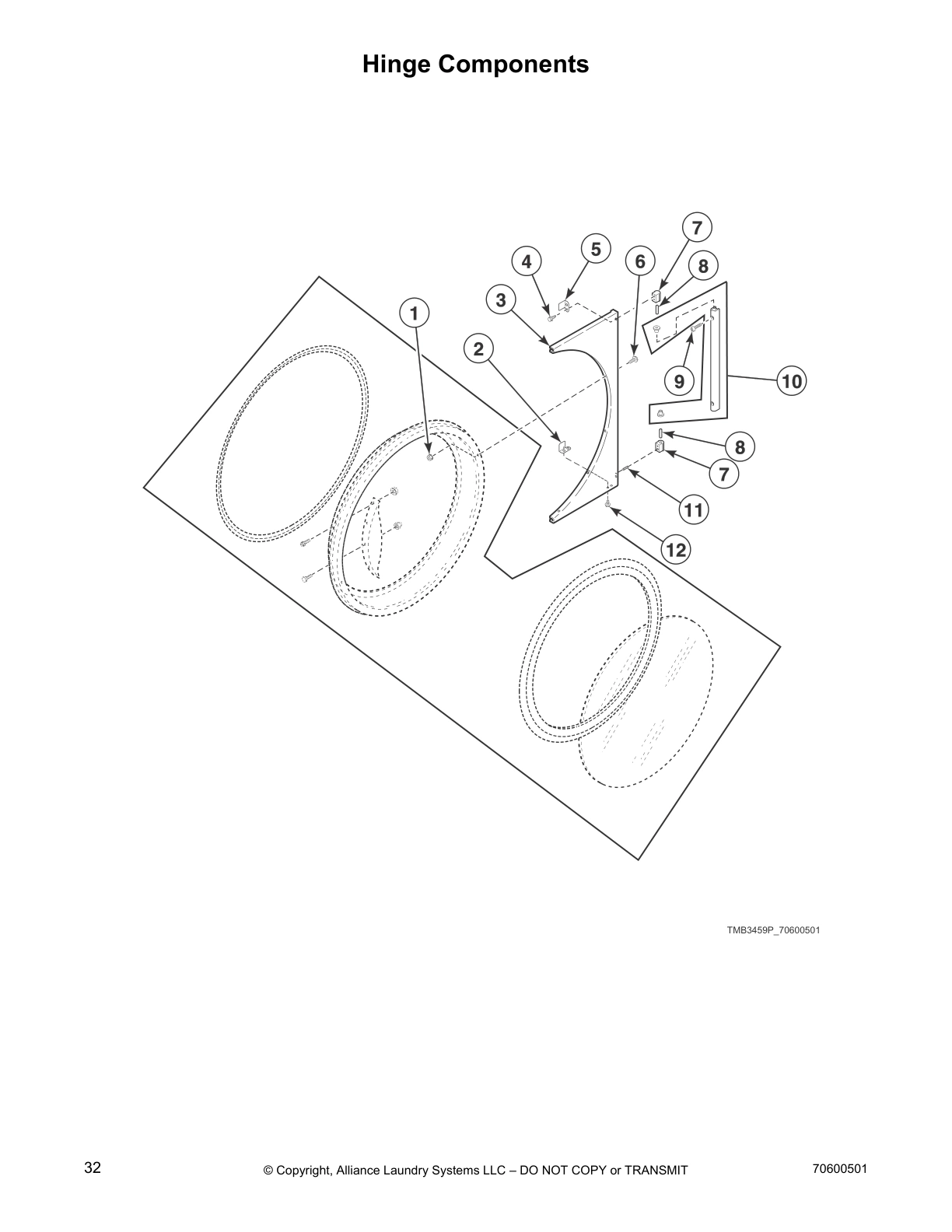

Hinge Components
False Fronts
Control Panels

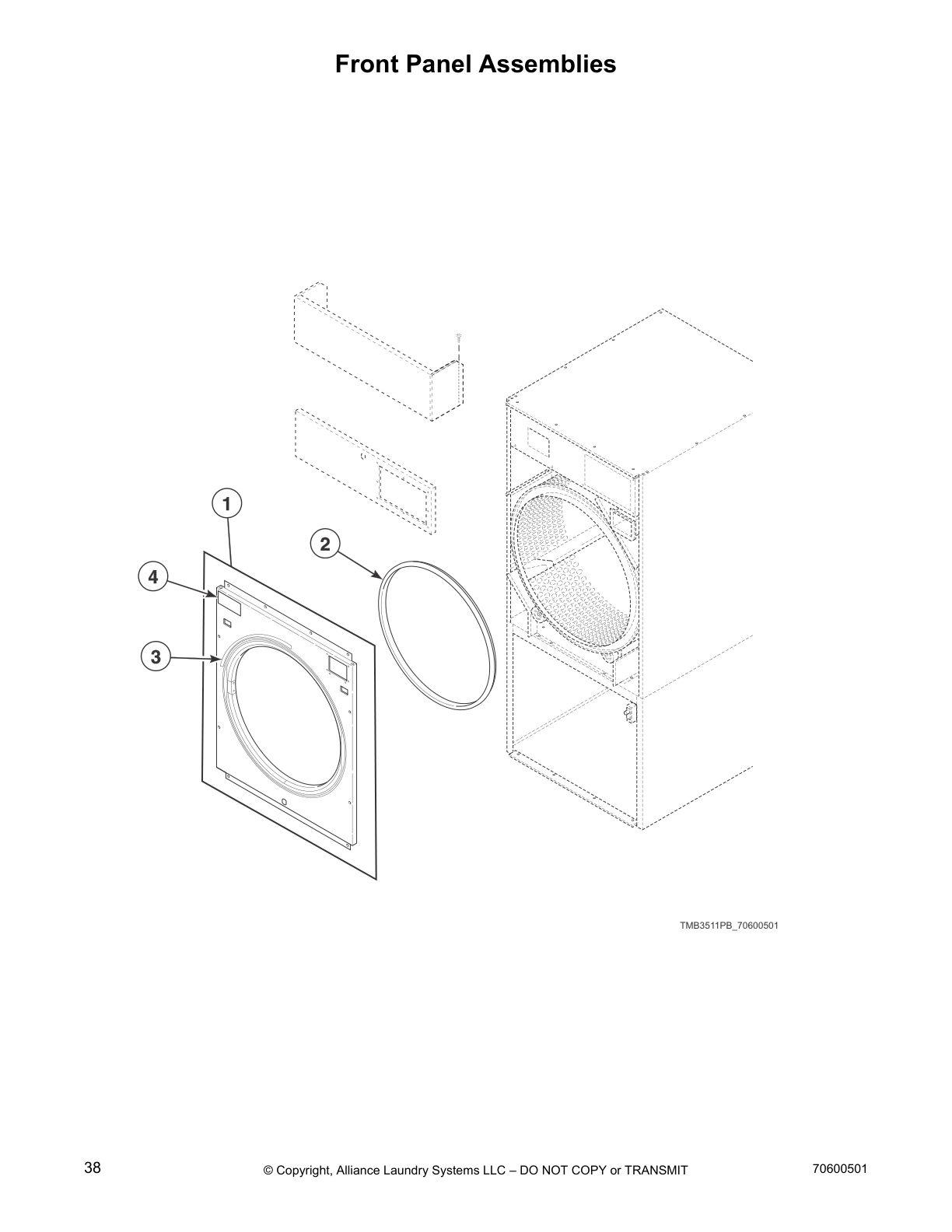

Front Panel Assemblies

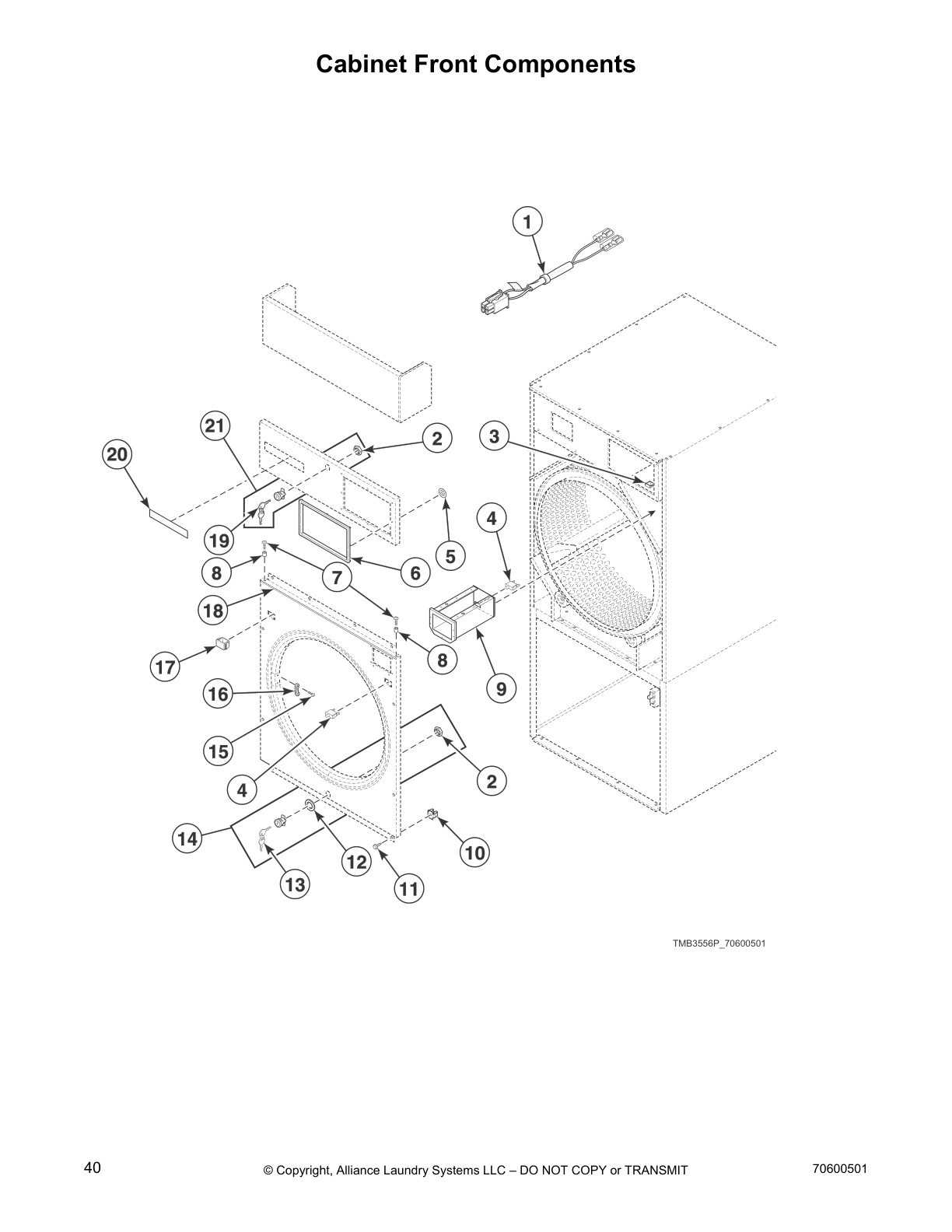

Cabinet Front Components

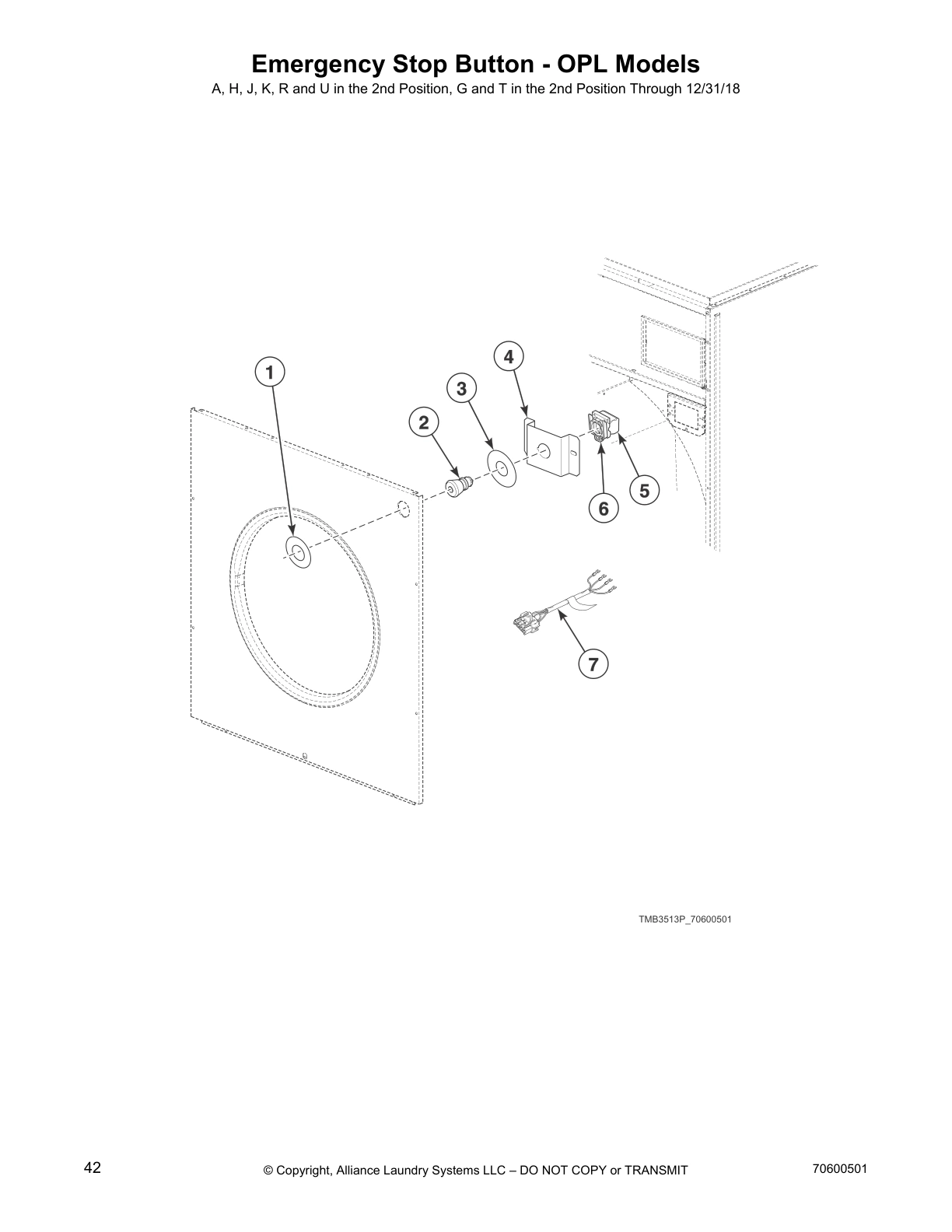

Emergency Stop Button - OPL Models
Lower Cabinet Components
Cylinder and Trunnion Assembly

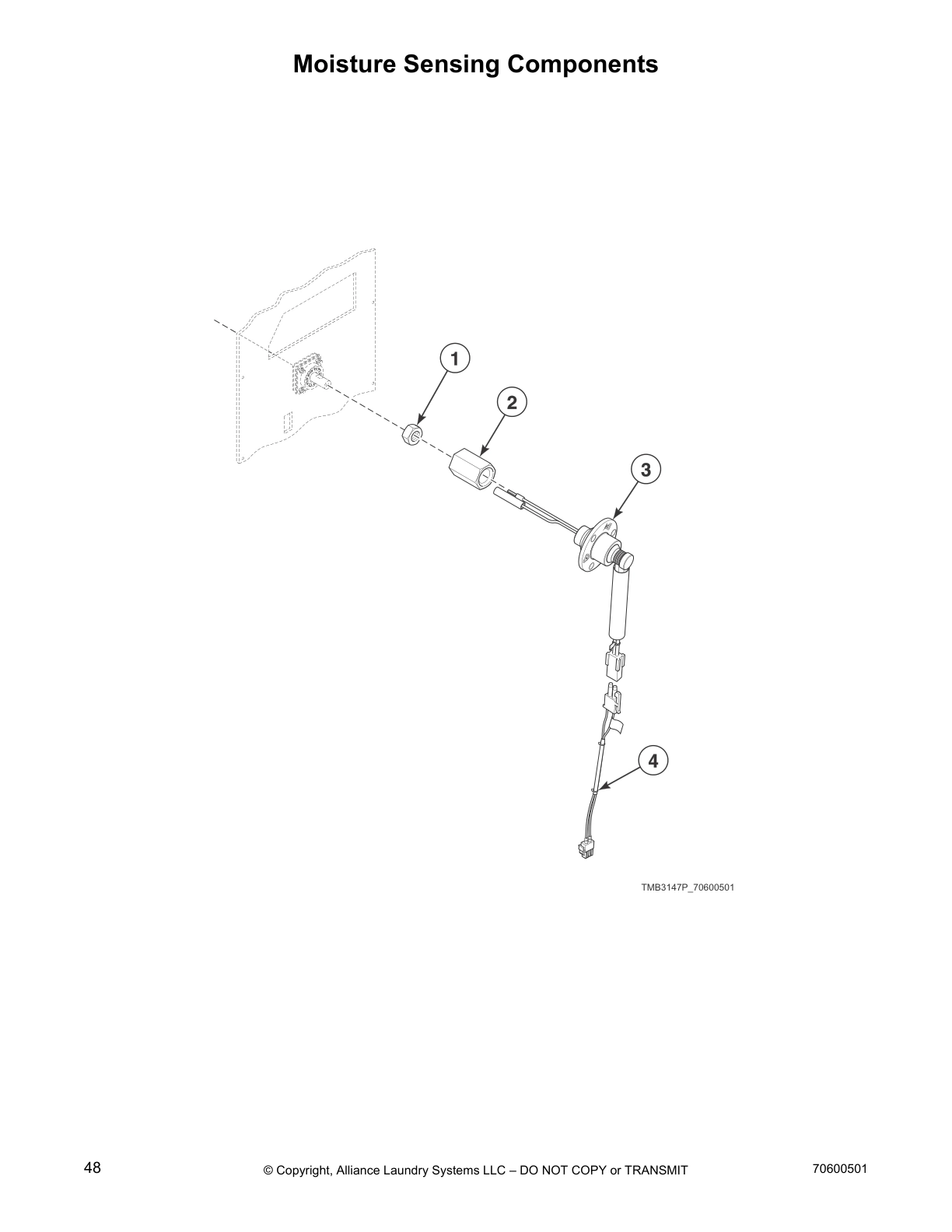

Moisture Sensing Components
Cylinder Components

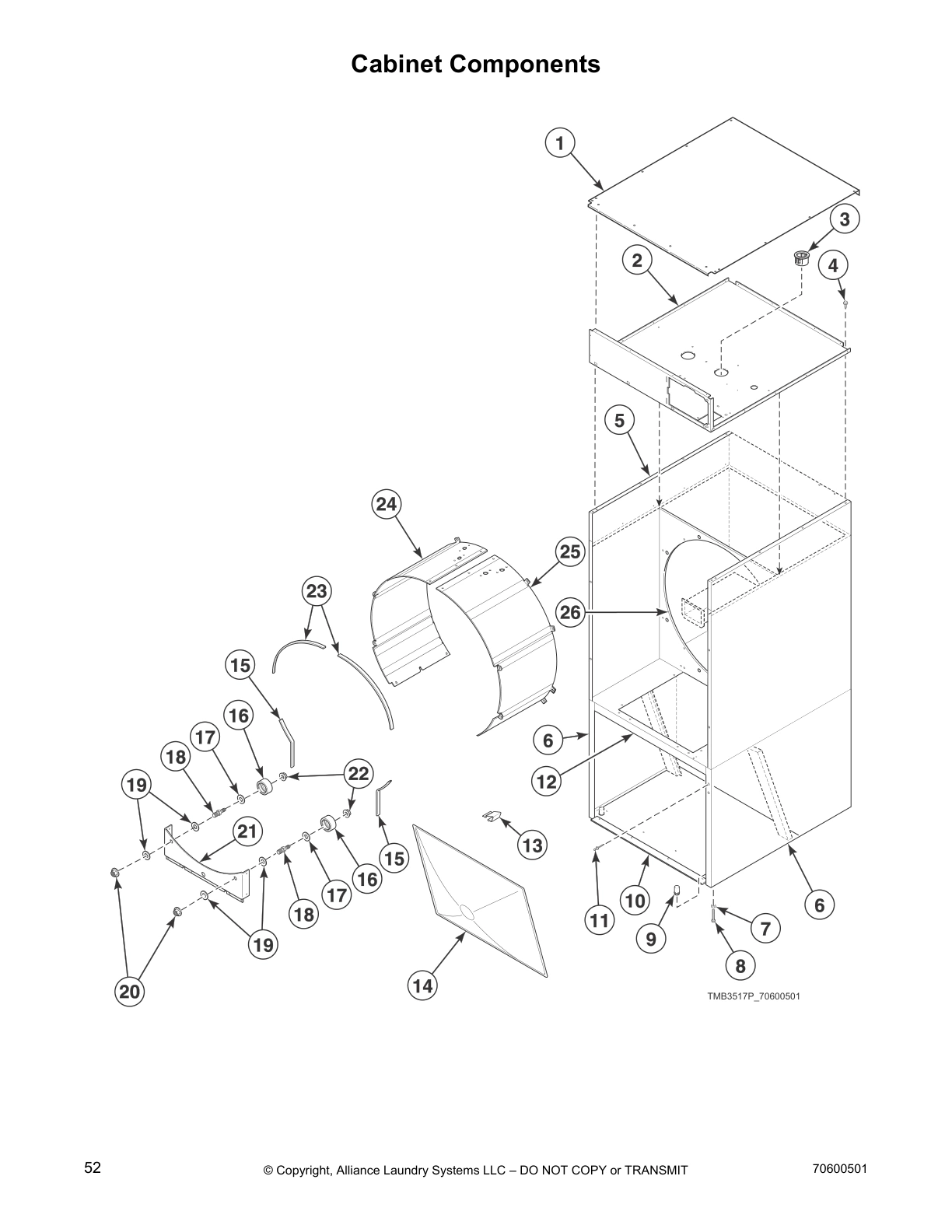

Cabinet Components

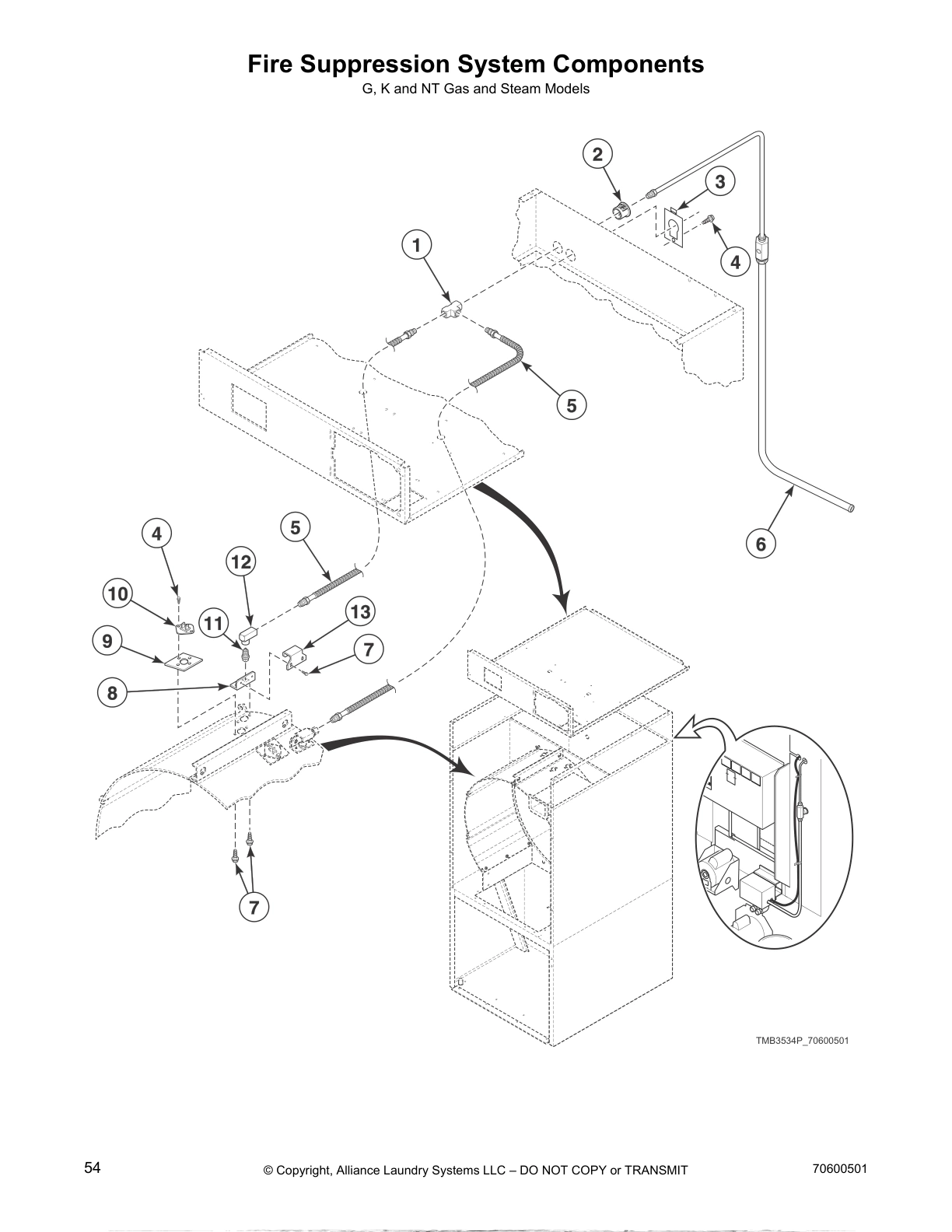

Fire Suppression System Components

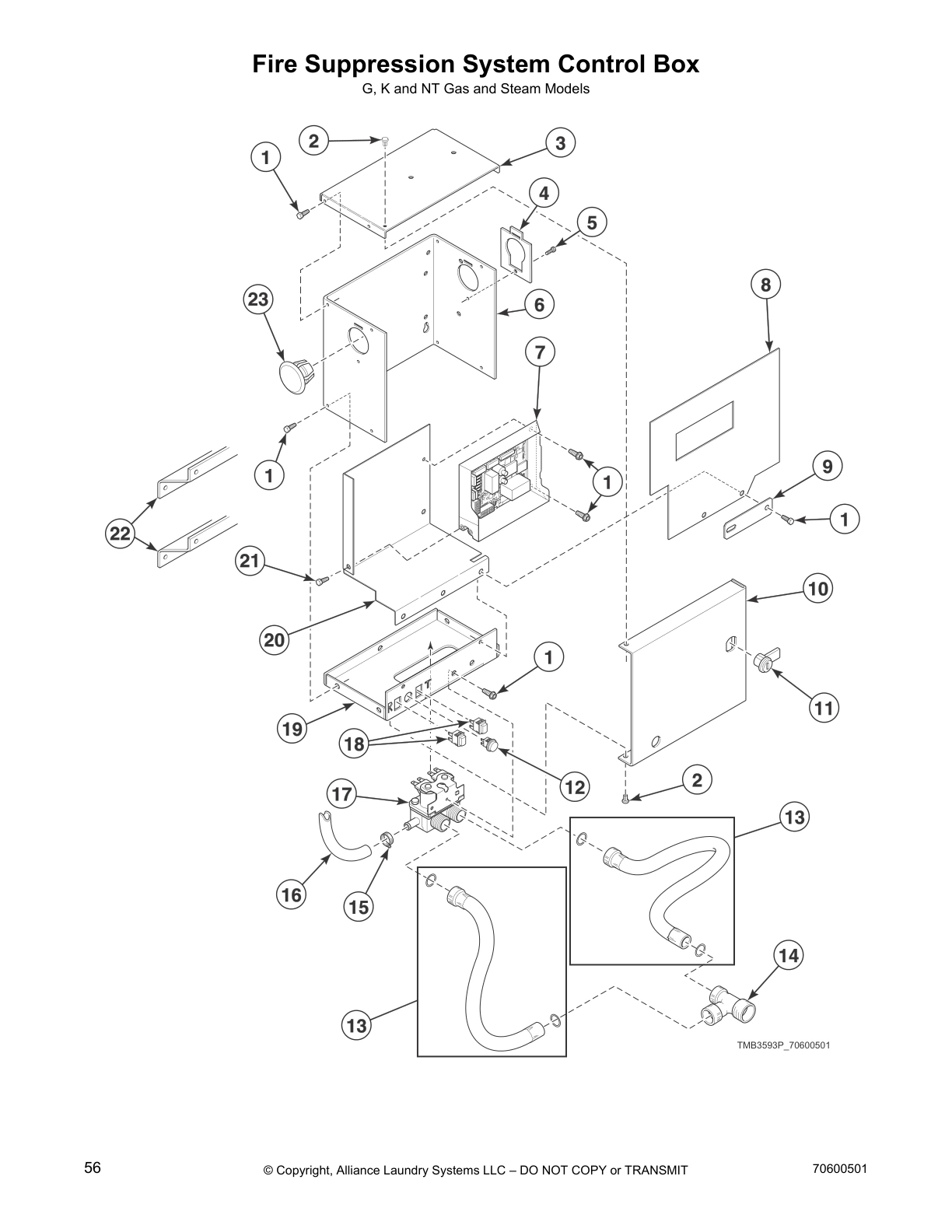

Fire Suppression System Control Box

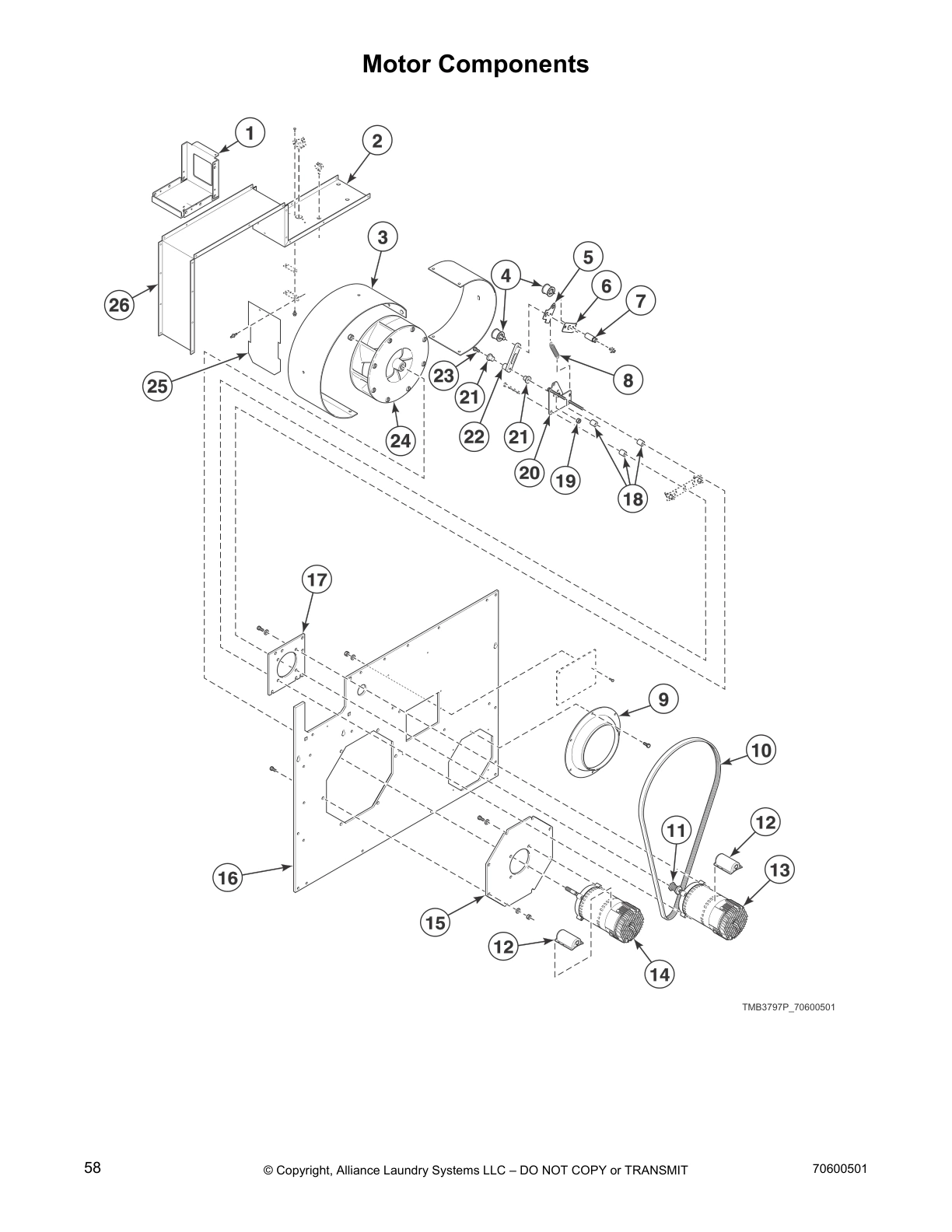

Motor Components
Blower and Exhaust Components
Airflow Switch
Gas Heater Components
Electric Heater Components
Steam Heater Components
Control Tray
Accessory Box - Electric 200-240 Volt Models
Accessory Box - Electric 380-480 Volt Models
Common parts from model Alliance NT030S Dryer
Coin Drop Kit SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK121 SPQ CK121 Contact Us For Availability
SPQ CK119 SPQ CK119 Contact Us For Availability
SPQ CK116 SPQ CK116 Contact Us For Availability
SPQ 70407301 SPQ 70407301 Contact Us For Availability
SPQ 70411301 SPQ 70411301 Contact Us For Availability
SPQ 70257302 SPQ 70257302 Contact Us For Availability
SPQ 381P4 SPQ 381P4 Contact Us For Availability
Strain Relief SPQ F8382301 Contact Us For Availability
SPQ 70507501 SPQ 70507501 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Door Assembly SPQ 70212300 Contact Us For Availability
1
False Front SPQ 70024204 Contact Us For Availability
1
Control Panel SPQ 70121509 Contact Us For Availability
1
Front Panel Assembly SPQ 70601901 Contact Us For Availability
1
Cylinder Assembly SPQ 70372702P Contact Us For Availability
1
Union Tee SPQ 70427901 Contact Us For Availability
1
Blower Housing SPQ 70554701 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Clevis Pin SPQ 70389201 Contact Us For Availability
2
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
2
Screw SPQ 70000504 Contact Us For Availability
2
Front Panel SPQ 70524106 Contact Us For Availability
2
Coin Chute Assembly SPQ 44057801B Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Handle and Caps Assembly SPQ 70117601 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70443801 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Drive Rivet SPQ M400713 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Hairpin Cotter SPQ 70389301 Contact Us For Availability
3
Support Bearing SPQ 70448701 Contact Us For Availability
3
Control Trim SPQ 44088801 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Screw SPQ 70070101 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Spray Paint SPQ 70432304 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Steam Filter Holder SPQ 70369301 Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
4
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Door Glass SPQ 70211901P Contact Us For Availability
4
Hinge Cam Kit SPQ 70116005B Contact Us For Availability
4
SPQ 70017901 SPQ 70017901 Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70070102 Contact Us For Availability
4
Moisture Sensor Harness SPQ 44333903 Contact Us For Availability
4
Porcelain Touch-Up Paint SPQ 70252601 Contact Us For Availability
4
Exhaust Thimble SPQ 70016301 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Steam Coil SPQ 70369101P Contact Us For Availability
5
Washer SPQ M400991 Contact Us For Availability
5
Door Glass Installation Tool SPQ M400784P Contact Us For Availability
5
Coin Box SPQ 70296401 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70433001 Contact Us For Availability
5
Spray Nozzle Hose SPQ 70427701 Contact Us For Availability
5
Blower Inlet Cone SPQ 70554901 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
Air Filter SPQ 70036001 Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
5
Pop Rivet SPQ 685837 Contact Us For Availability
6
Warning Label SPQ 44088001 Contact Us For Availability
6
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
6
Pin SPQ 70576101 Contact Us For Availability
6
Jumper Harness SPQ 70413301 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Tube Assembly SPQ 70427601 Contact Us For Availability
6
Fan Motor SPQ 70392701P Contact Us For Availability
6
Coil SPQ F8514601P Contact Us For Availability
7
SPQ M400044 SPQ M400044 Contact Us For Availability
7
SPQ M400977 SPQ M400977 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
Washer SPQ 70564802 Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Steam Valve SPQ F8514701 Contact Us For Availability
7
Conversion Kit SPQ 70335601 Contact Us For Availability
8
SPQ M4773P3 SPQ M4773P3 Contact Us For Availability
8
SPQ 44016401 SPQ 44016401 Contact Us For Availability
8
SPQ 70132301 SPQ 70132301 Contact Us For Availability
8
Rear Cylinder Channel SPQ 70564801 Contact Us For Availability
8
Control Tray Cover SPQ 70346501 Contact Us For Availability
8
SPQ 70424201 SPQ 70424201 Contact Us For Availability
8
SPQ 70014101 SPQ 70014101 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Valve SPQ F8322904P Contact Us For Availability
9
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
9
SPQ 70030301 SPQ 70030301 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70506401 Contact Us For Availability
9
SPQ 70424401 SPQ 70424401 Contact Us For Availability
9
Key SPQ 70050401P Contact Us For Availability
9
SPQ 70484901P SPQ 70484901P Contact Us For Availability
10
Nut SPQ M414215 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035002 Contact Us For Availability
10
Roller Catch Wheel SPQ 70297601 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372701P Contact Us For Availability
10
Rear Cylinder Seal SPQ 70013702 Contact Us For Availability
10
Lower Pan SPQ 70332401P Contact Us For Availability
10
Control Box Cover SPQ 44065201 Contact Us For Availability
10
Belt SPQ 70276205P Contact Us For Availability
10
Blower Motor Mounting Plate SPQ 70349601 Contact Us For Availability
11
Screw SPQ 44035001 Contact Us For Availability
11
Door Handle SPQ 44007902P Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
11
End Cap SPQ 70443802 Contact Us For Availability
11
Spray Nozzle SPQ 70427801 Contact Us For Availability
11
Motor Pulley SPQ 70559101 Contact Us For Availability
11
Screw SPQ 70126101 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
12
Pop Rivet SPQ 70436301 Contact Us For Availability
12
Lock Shim SPQ 70342401 Contact Us For Availability
12
Screw SPQ 70072801 Contact Us For Availability
12
Elbow SPQ 70428101 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Center Cylinder Seal SPQ 70066004 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Nozzle Bracket SPQ 70428601 Contact Us For Availability
13
Drive Motor SPQ 70478601P Contact Us For Availability
14
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
14
Lint Screen SPQ 70325601 Contact Us For Availability
14
Nut SPQ 70442101 Contact Us For Availability
14
Magnet SPQ 70343101 Contact Us For Availability
14
Nut SPQ M400022 Contact Us For Availability
14
Hose Fitting SPQ 44069101 Contact Us For Availability
14
End Stop SPQ F8449801 Contact Us For Availability
15
Pop Rivet SPQ 44166601 Contact Us For Availability
15
Sheet Metal Edge Gasket SPQ 70015709 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
16
Door Latch SPQ M401223 Contact Us For Availability
16
Pop Rivet SPQ 70126401 Contact Us For Availability
16
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
16
Hose SPQ 44073304 Contact Us For Availability
16
Damper and Hinge Exhaust Assembly SPQ 70215101 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
17
Screw SPQ F8206901 Contact Us For Availability
17
Switch Hole Plug SPQ 44057801W Contact Us For Availability
17
Panel Locator SPQ 70126301 Contact Us For Availability
17
Roller Seal SPQ 70443601 Contact Us For Availability
17
Damper Spacer SPQ 70209501 Contact Us For Availability
18
Roller Shaft SPQ 70249501 Contact Us For Availability
18
Thermistor SPQ 70020301 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
19
Washer SPQ 70261401 Contact Us For Availability
19
Nut SPQ 44057801Q Contact Us For Availability
19
Control Box Base SPQ 44065301 Contact Us For Availability
19
Nut SPQ 70493301 Contact Us For Availability
19
Limit Access Bracket SPQ 70220901 Contact Us For Availability
19
Snap Bushing SPQ F8449502 Contact Us For Availability
20
Gasket SPQ F8245101 Contact Us For Availability
20
Steam Control Assembly SPQ 70178701 Contact Us For Availability
20
Ground Lug Connector SPQ M411283 Contact Us For Availability
21
Roller Support Bracket SPQ 70328301 Contact Us For Availability
22
Lint Panel Pivot Plate SPQ 70154401 Contact Us For Availability
22
DIN Rail SPQ M412690 Contact Us For Availability
22
Screw SPQ 70501801 Contact Us For Availability
23
Center Partition SPQ 70015710 Contact Us For Availability
23
Plug SPQ 70180001 Contact Us For Availability
23
Screw SPQ 70542801 Contact Us For Availability
24
SPQ 70289101P SPQ 70289101P Contact Us For Availability
24
Bushing SPQ 70347202 Contact Us For Availability
24
Blower Assembly SPQ 70501301 Contact Us For Availability
25
Screw SPQ 70432303 Contact Us For Availability
26
Hole Plug SPQ 70347201 Contact Us For Availability
28
Terminal Block SPQ M400003 Contact Us For Availability
NI
Front Panel Seal SPQ 70173401P Contact Us For Availability
NI
SPQ 70155601 SPQ 70155601 Contact Us For Availability
NI
SPQ 70144101 SPQ 70144101 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ 70482401 SPQ 70482401 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK122 SPQ CK122 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
SPQ 70212301 SPQ 70212301 Contact Us For Availability
NI
SPQ 70071401 SPQ 70071401 Contact Us For Availability
NI
SPQ 70033502 SPQ 70033502 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ F8519403 Contact Us For Availability
NI
SPQ 70257401 SPQ 70257401 Contact Us For Availability
NI
SPQ 70257301 SPQ 70257301 Contact Us For Availability
NI
SPQ 70391101 SPQ 70391101 Contact Us For Availability
NI
Support Housing Bearing Assembly SPQ 70343101P Contact Us For Availability
NI
SPQ 430260P SPQ 430260P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70063201 SPQ 70063201 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 44340301 SPQ 44340301 Contact Us For Availability
NI
SPQ 70478701P SPQ 70478701P Contact Us For Availability
NI
Limit Access Bracket SPQ 70017801 Contact Us For Availability
NI
SPQ 44333202 SPQ 44333202 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
Pop Rivet SPQ F8322906P Contact Us For Availability
NI
Steam Valve Harness SPQ 44304801 Contact Us For Availability
NI
SPQ F8520703 SPQ F8520703 Contact Us For Availability
NI
SPQ 70559301 SPQ 70559301 Contact Us For Availability
NI
SPQ 44357401 SPQ 44357401 Contact Us For Availability
NI
SPQ F8611601 SPQ F8611601 Contact Us For Availability
× ![]()
