Model GE NG7319 General Electric Model NG7319 – Common Parts & Diagrams

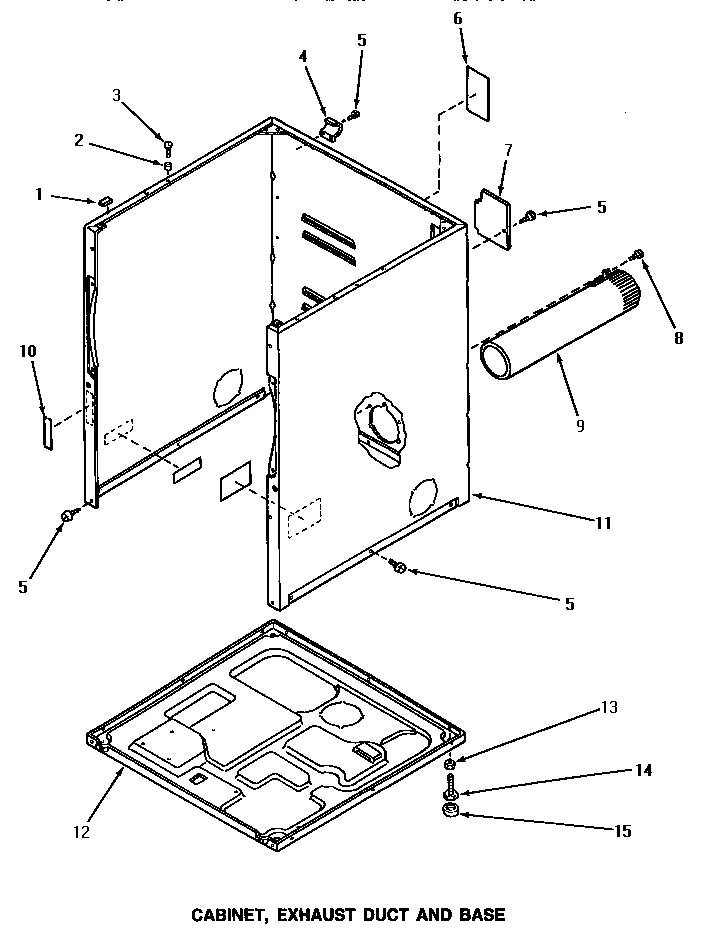

Cabinet, Exhaust Duct and Base

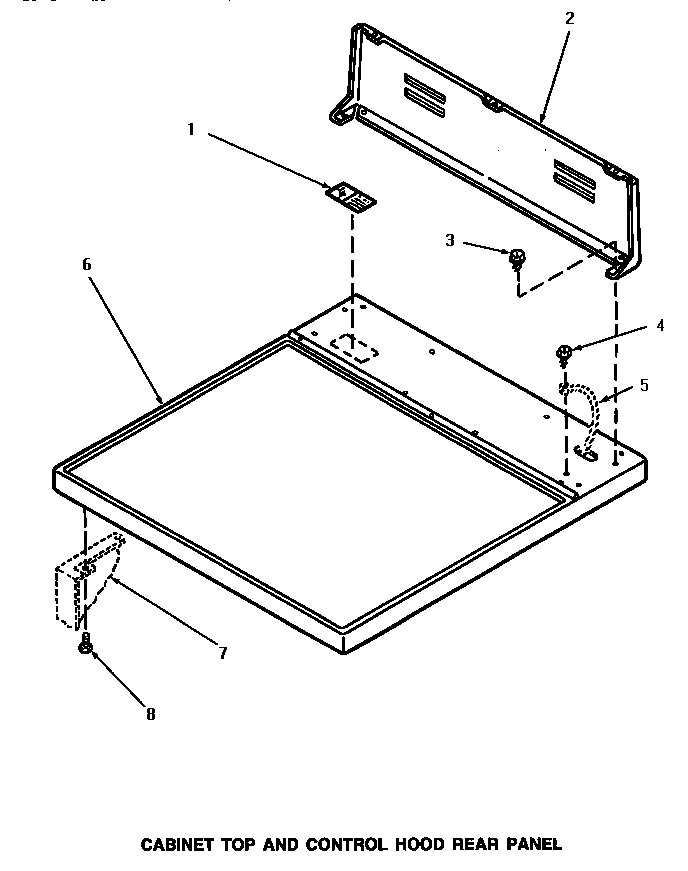

Cabinet Top and Control Hood Back Panel

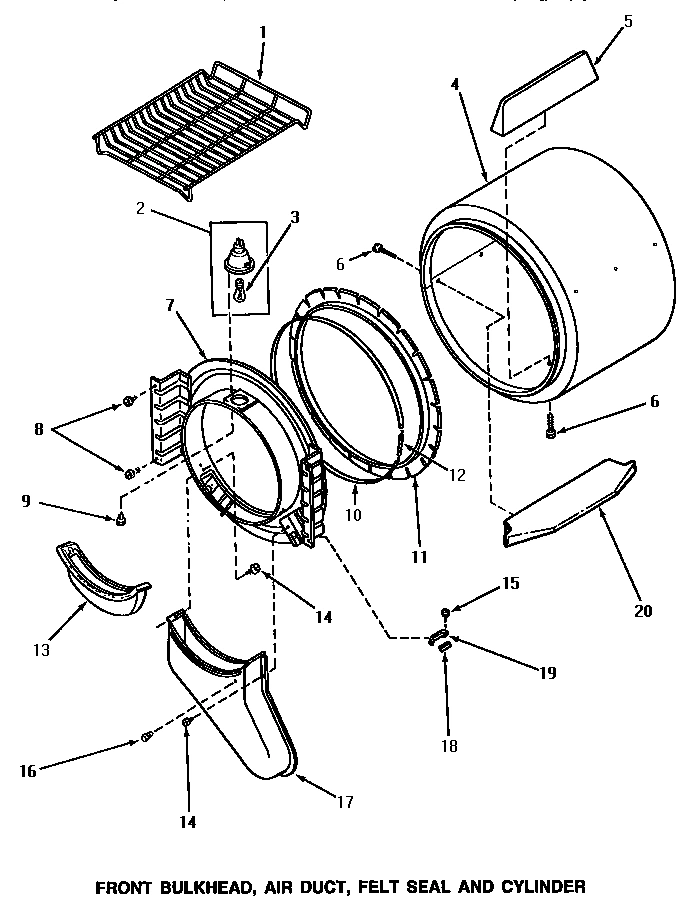

Front Bulkhead, Air Duct, Felt Seal and Cylinder

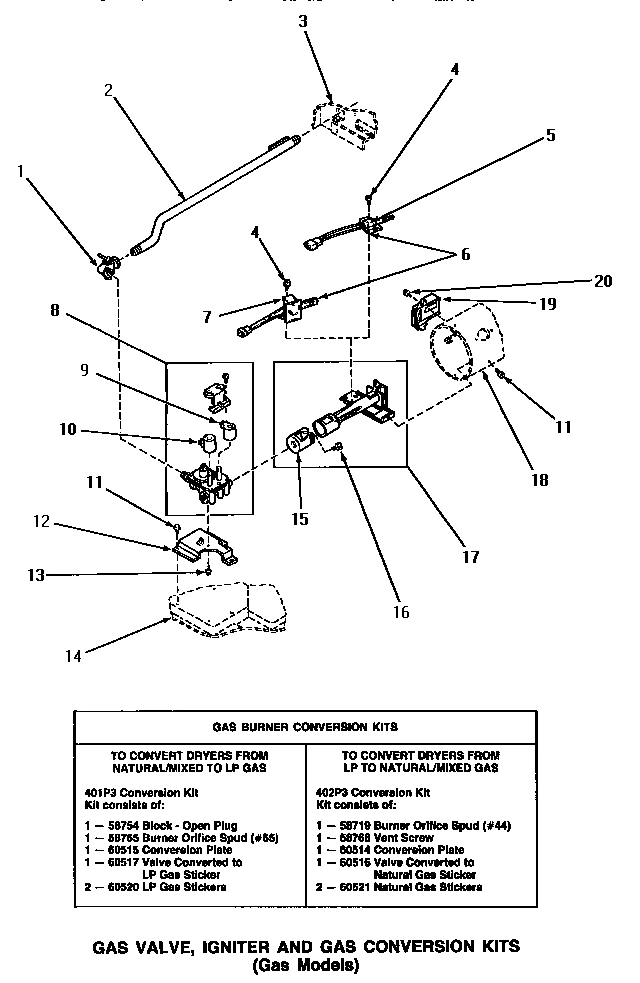

Gas Valve, Igniter and Gas Conversion Kits

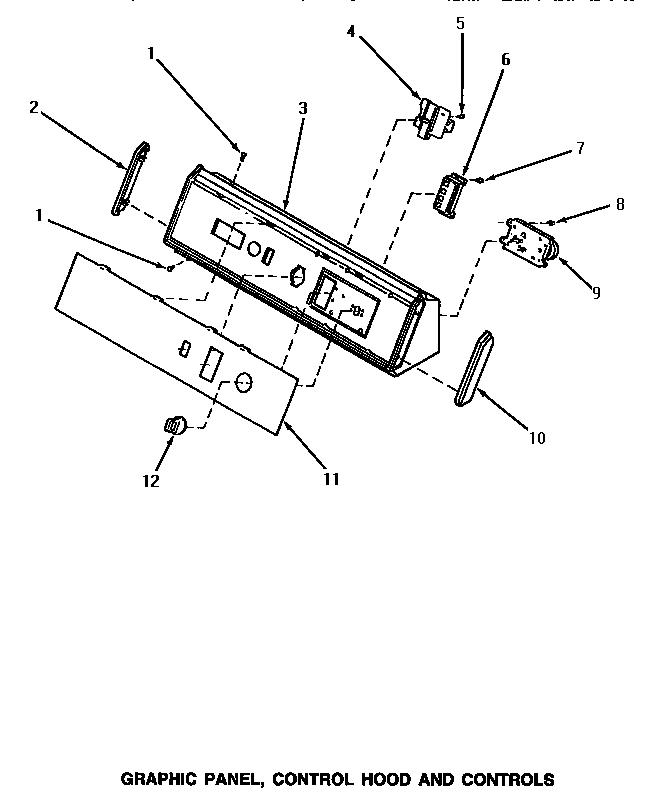

Graphic Panel, Control Hood and Controls (Drawing 2 of 7)

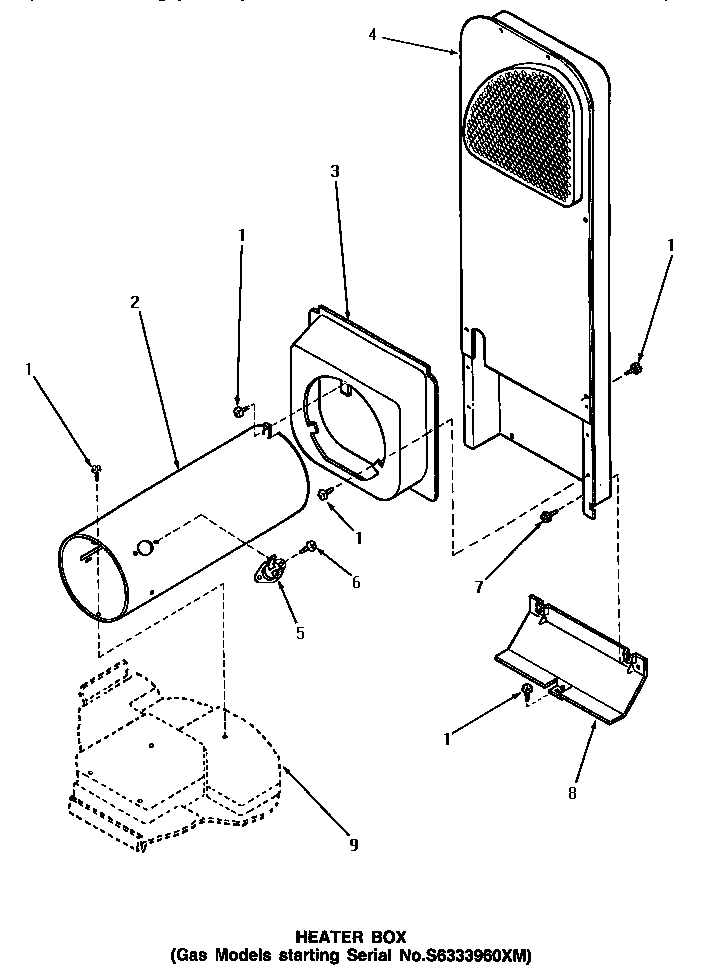

Heater Duct - Gas Models Starting Serial No. S6333960XM

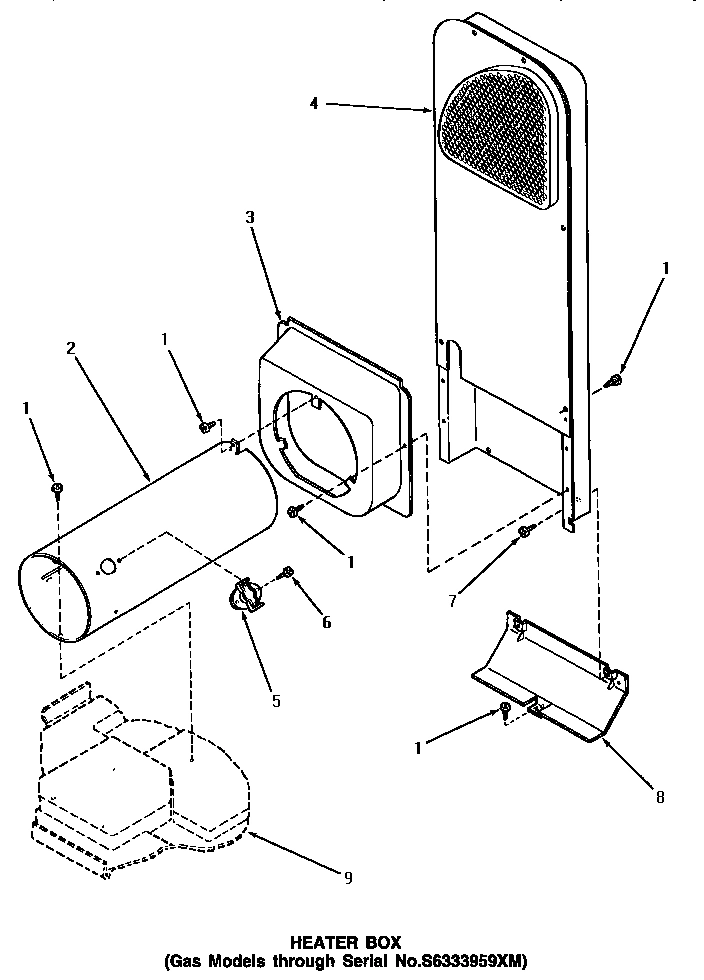

Heater Duct - Gas Models Through Serial No. S6333959XM

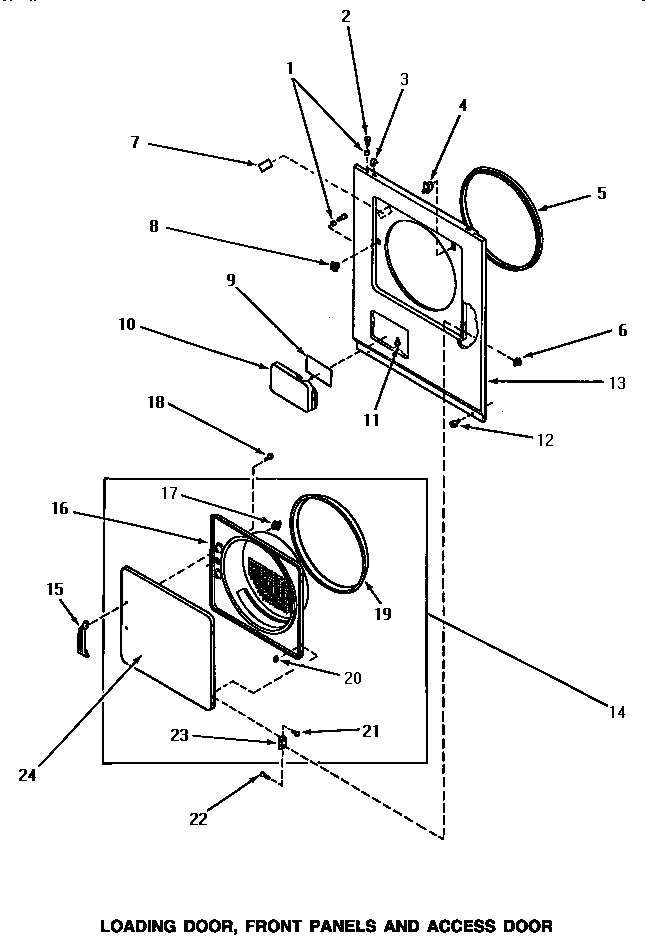

Loading Door, Front Panels and Access Door

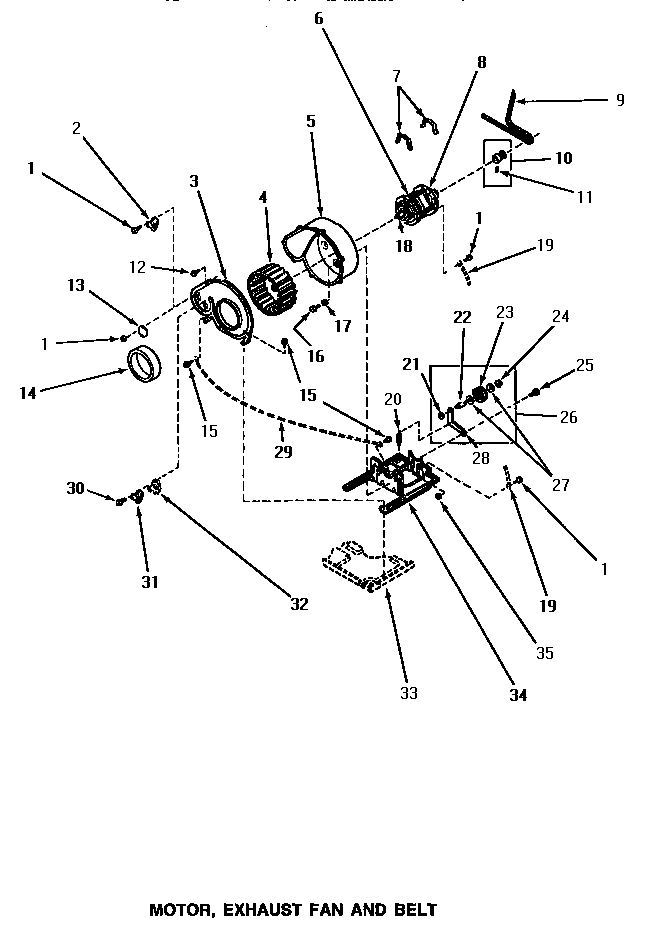

Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)

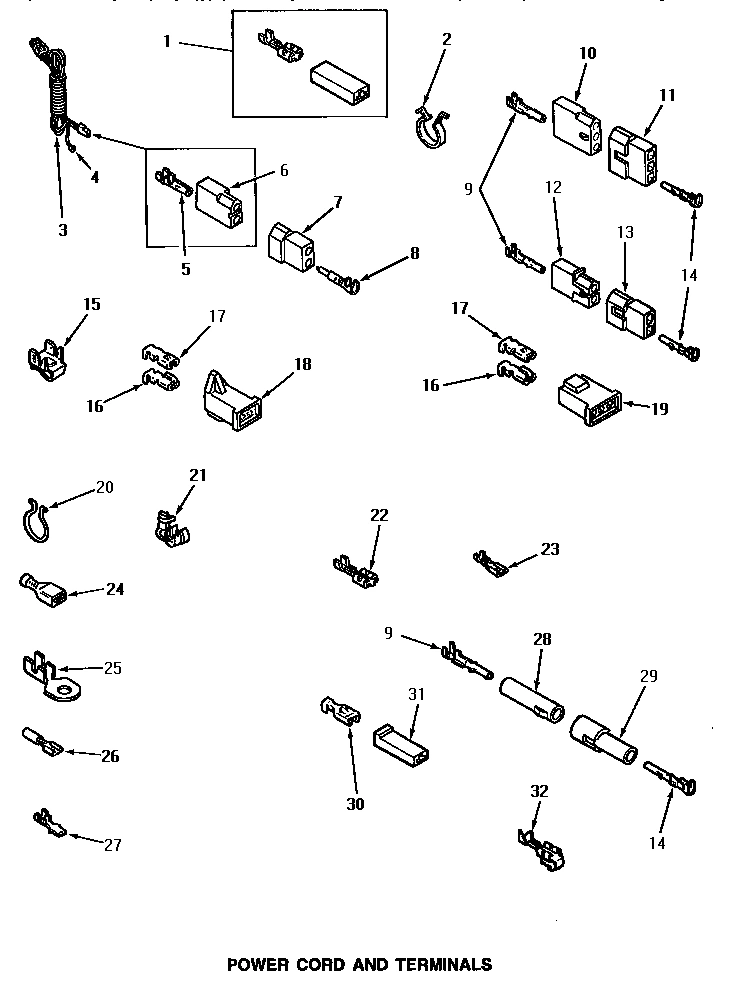

Power Cord and Terminals
Common parts from model GE NG7319 General Electric Model NG7319
1
Bumper Pad GEN 56128 Contact Us For Availability
1
Screw GEN 33562 Contact Us For Availability
1
Top Panel Kit (Comment: Almond) GEN D510029LP Contact Us For Availability
1
Top Panel Kit (Comment: White) GEN D510029WP Contact Us For Availability
1
Elbow Shut-Off Valve GEN D510205 Contact Us For Availability
1
Screw GEN 31752 Contact Us For Availability
1
Screw GEN 51780 Contact Us For Availability
1
Warning/Caution Label GEN D500281 Contact Us For Availability
1
Seal GEN 56065 Contact Us For Availability
1
Lead-In Cord GEN 56222 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
2
Cylinder Assembly (Comment: Includes baffles) GEN 60645P Contact Us For Availability
2
End Cap (Comment: Left) GEN 31249 Contact Us For Availability
2
Idler Spring GEN D510185 Contact Us For Availability
2
Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 GEN 00360 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Cylinder Baffle (Comment: Short, 2 required) GEN 61399 Contact Us For Availability
3
Screw GEN 56693 Contact Us For Availability
3
Heat Duct Shroud GEN D510101 Contact Us For Availability
3
Nut GEN 56156 Contact Us For Availability
4
Hood Back Panel GEN D510099 Contact Us For Availability
4
Screw GEN 62588 Contact Us For Availability
4
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
4
Heater Duct and Screw Assembly GEN D510025P Contact Us For Availability
4
Speed Clip GEN 28835 Contact Us For Availability
4
Thermostat GEN 56410 Contact Us For Availability
4
Shaft GEN 56461 Contact Us For Availability
5
Screw GEN 23962 Contact Us For Availability
5
Screw GEN 20530 Contact Us For Availability
5
Cylinder Baffle (Comment: Extended, 1 require GEN 61027 Contact Us For Availability
5
Screw GEN 31260 Contact Us For Availability
5
Switch GEN D512973 Contact Us For Availability
5
Washer GEN 52549 Contact Us For Availability
6
Seal Assembly GEN 56088 Contact Us For Availability
6
Sensor GEN D510213 Contact Us For Availability
6
Switch Assembly GEN 59618 Contact Us For Availability
6
Heat Duct Shield GEN 60952 Contact Us For Availability
6
Front Panel Seal GEN 61380 Contact Us For Availability
6
Blower Housing and Cover Kit GEN D511969WP Contact Us For Availability
6
Idler Wheel and Bearing Assembly GEN D510142 Contact Us For Availability
7
Access Cover Plate GEN 60821 Contact Us For Availability
7
Spring GEN 52310 Contact Us For Availability
7
Screw GEN 51782 Contact Us For Availability
7
Nut GEN 51236 Contact Us For Availability
7
Motor (Comment: Includes switch) GEN 58044 Contact Us For Availability
7
Retaining Ring GEN 23748 Contact Us For Availability
8
Seal Strap GEN 56090 Contact Us For Availability
8
Burner Assembly GEN D510149P Contact Us For Availability
8
Screw GEN D501086 Contact Us For Availability
8
Thermostat and Plate Kit GEN 489P3 Contact Us For Availability
8
Motor Mount Clamp GEN D510180 Contact Us For Availability
8
Motor Mount and Idler Assembly GEN D511227 Contact Us For Availability
9
Screw GEN N/A Contact Us For Availability
9
Timer GEN D502967 Contact Us For Availability
9
Screw GEN D503661 Contact Us For Availability
10
Cylinder Glide GEN 61448 Contact Us For Availability
10
Screw GEN 23222 Contact Us For Availability
10
End Cap (Comment: Right) GEN 31248 Contact Us For Availability
10
Support Barrel GEN 56534 Contact Us For Availability
10
Cylinder Belt GEN D511255 Contact Us For Availability
10
Male Pin Terminal GEN 00127 Contact Us For Availability
11
Thin Pad GEN 58049 Contact Us For Availability
11
Screw GEN 56124 Contact Us For Availability
11
Door Assembly (Comment: Models starting Seria GEN 62300WP Contact Us For Availability
11
Screw GEN 62541 Contact Us For Availability
11
Nut GEN 52566 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
12
Nut GEN 20274 Contact Us For Availability
12
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
12
Door Seal GEN 61379 Contact Us For Availability
12
Motor Mount GEN D510060 Contact Us For Availability
12
2 Circuit Receptacle GEN 56265 Contact Us For Availability
13
Screw GEN 52696 Contact Us For Availability
13
Air Duct Assembly GEN 60786 Contact Us For Availability
13
Booster and Holding Coil GEN 58804A Contact Us For Availability
13
Nut GEN 23407 Contact Us For Availability
13
Washer GEN 20492 Contact Us For Availability
13
Female Pin Terminal GEN 00130 Contact Us For Availability
14
Rubber Foot GEN 70282 Contact Us For Availability
14
Secondary Coil GEN 58804B Contact Us For Availability
14
Screw GEN 52864 Contact Us For Availability
14
Blower Fan Assembly GEN D510139 Contact Us For Availability
14
Grounding Clip GEN 00161 Contact Us For Availability
15
Lint Filter GEN 61376P Contact Us For Availability
15
Gas Valve Assembly (Comment: N.G. or Mixed Ga GEN 58804 Contact Us For Availability
15
Gas Valve Assembly (Comment: N.G. or Mixed Ga GEN 59063 Contact Us For Availability
15
Valve Assembly (Comment: N.G. or Mixed Gas, 2 GEN 60443 Contact Us For Availability
15
Screw GEN 22649 Contact Us For Availability
15
Female Piggyback Terminal GEN 00361 Contact Us For Availability
16
Hinge GEN 56045 Contact Us For Availability
16
Thermostat Heater (Comment: Use with 61372 Th GEN 61401 Contact Us For Availability
16
Female Spade Terminal GEN 00189 Contact Us For Availability
17
Thermostat (Comment: starting Serial No. S627 GEN 61372 Contact Us For Availability
17
2 Circuit Connector GEN 58799 Contact Us For Availability
18
Screw (Comment: For 61372 Thermostat) GEN 33561 Contact Us For Availability
18
Door Pull GEN 61925 Contact Us For Availability
18
3 Circuit Connector GEN 58800 Contact Us For Availability
19
Drum Light Lamp (Comment: Use with 60953P Cyl GEN 60954 Contact Us For Availability
19
Wire Clip GEN 51291 Contact Us For Availability
20
Strain Relief GEN 38384 Contact Us For Availability
21
Door Strike GEN D510181 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00222 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
22
Access Door (Comment: White) GEN 60795W Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, (2 GEN 00209 Contact Us For Availability
23
Gas Clearance Label GEN D511004 Contact Us For Availability
23
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
23
Ultra Pod Terminal (Comment: 1/4 inch) GEN 00359 Contact Us For Availability
24
Door Catch Assembly GEN D510177 Contact Us For Availability
24
Molex Receptacle GEN 26301 Contact Us For Availability
25
1 Circuit Plug GEN 26302 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
L.P. Conversion Kit (Comment: Used to convert GEN 401P3 Contact Us For Availability
NA
N.G. Conversion Kit (Comment: Used to convert GEN 402P3 Contact Us For Availability
NA
Washer (Comment: Used on front panel to faste GEN 21147 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
