Model Alliance NG030L Dryer – Common Parts & Diagrams

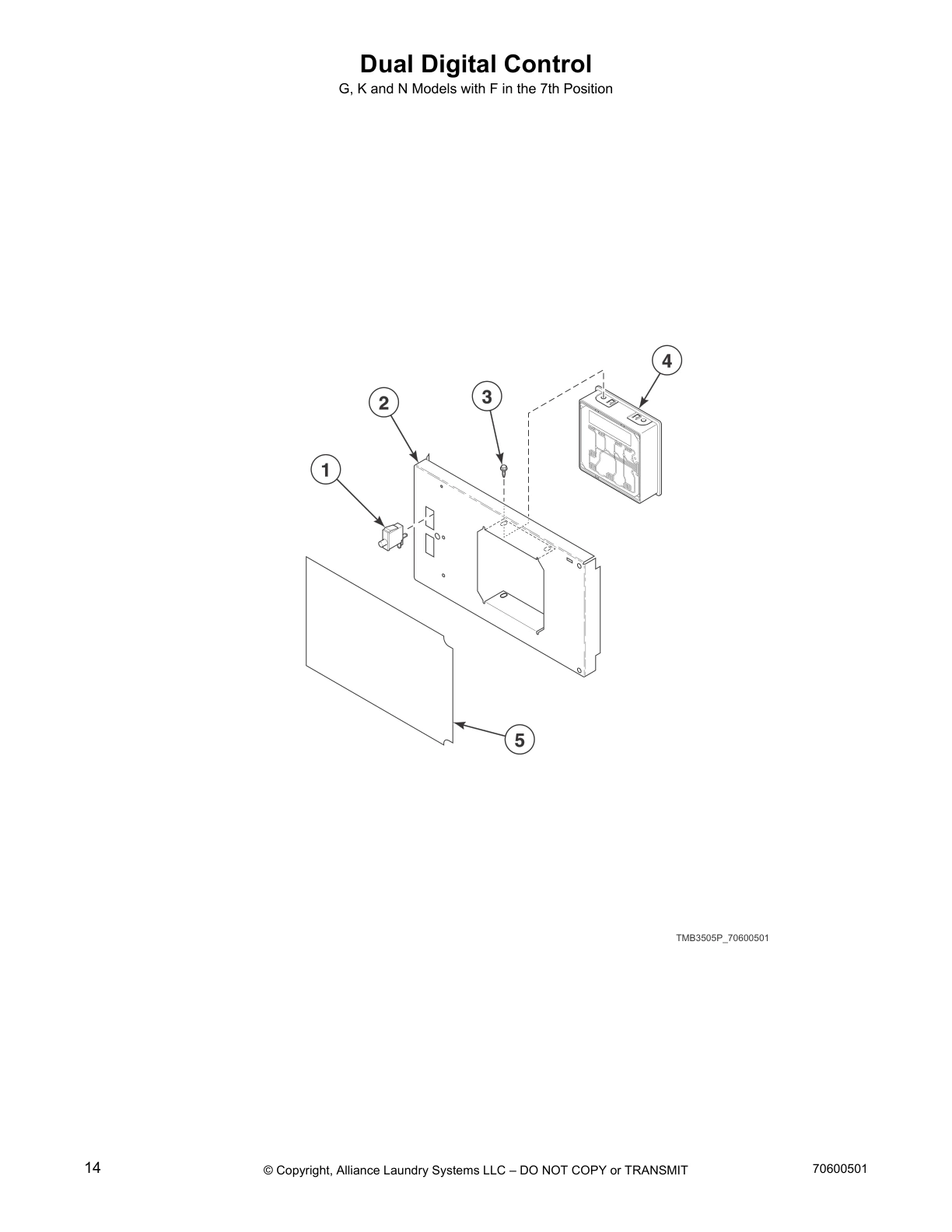

Dual Digital Control

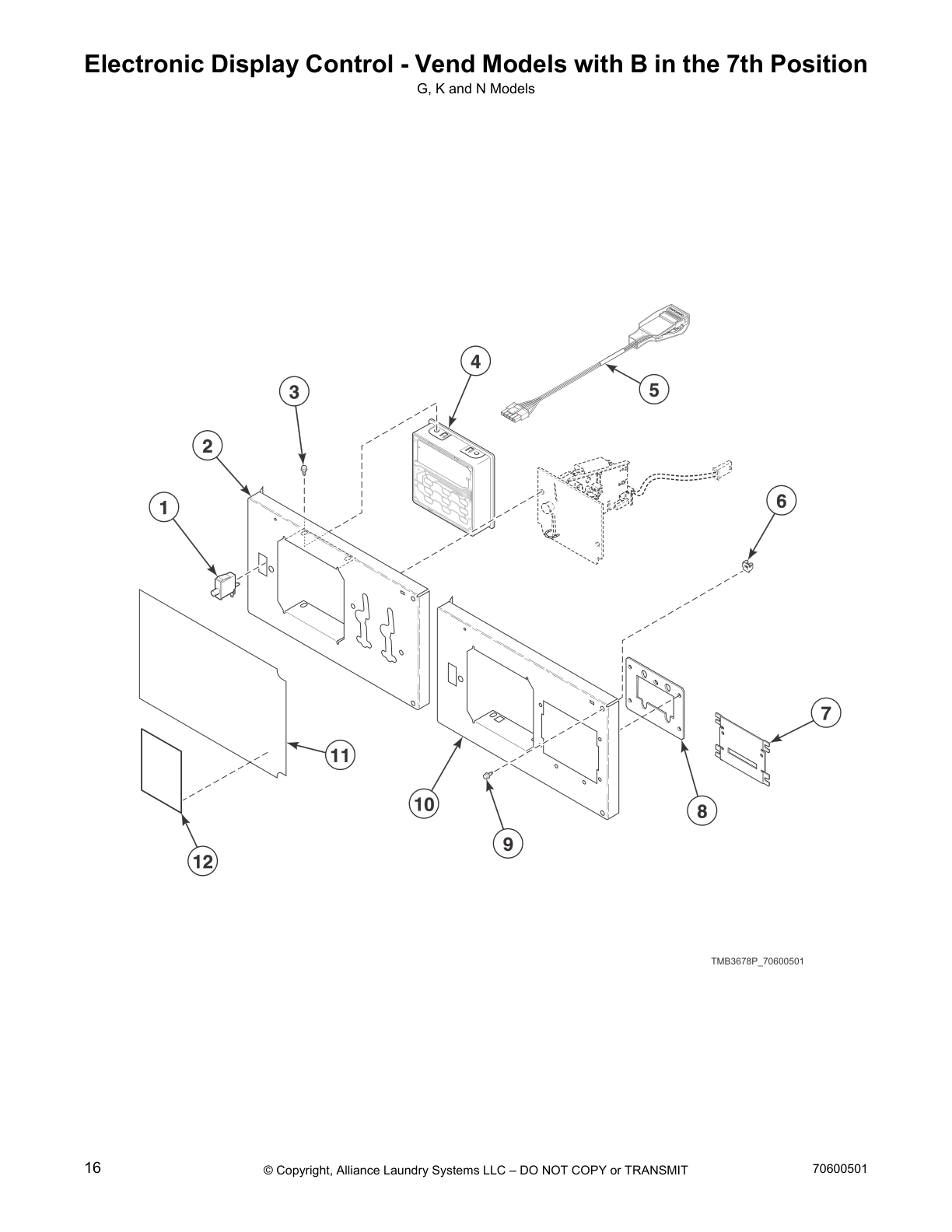

Electronic Display Control - Vend Models with B in the 7th Position
Electronic Display Control - Vend Models with N or W in the 7th
Position
Electronic Display Control - OPL Models with N in the 7th Position
Coin Drops
Coin Drop Kits
Central Pay and Card Reader Components
Door Assemblies
Door Components
Hinge Components
False Fronts
Control Panels
Front Panel Assemblies
Cabinet Front Components
Emergency Stop Button - OPL Models
Lower Cabinet Components
Cylinder and Trunnion Assembly
Moisture Sensing Components
Cylinder Components
Cabinet Components
Fire Suppression System Components
Fire Suppression System Control Box
Motor Components
Blower and Exhaust Components
Airflow Switch
Gas Heater Components
Burner Orifices
Electric Heater Components
Steam Heater Components
Control Tray
Accessory Box - Electric 200-240 Volt Models
Accessory Box - Electric 380-480 Volt Models
Common parts from model Alliance NG030L Dryer
SPQ 70513316 SPQ 70513316 Contact Us For Availability
SPQ 70513314 SPQ 70513314 Contact Us For Availability
SPQ 70513312 SPQ 70513312 Contact Us For Availability
SPQ 70513310 SPQ 70513310 Contact Us For Availability
SPQ 70513308 SPQ 70513308 Contact Us For Availability
SPQ 70513304 SPQ 70513304 Contact Us For Availability
SPQ 70513302 SPQ 70513302 Contact Us For Availability
SPQ 70482401 SPQ 70482401 Contact Us For Availability
Coin Drop Kit SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
SPQ CK122 SPQ CK122 Contact Us For Availability
SPQ CK120 SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ 70612701 SPQ 70612701 Contact Us For Availability
Front Panel Seal SPQ 70524106 Contact Us For Availability
SPQ 70411301 SPQ 70411301 Contact Us For Availability
SPQ 70257302 SPQ 70257302 Contact Us For Availability
SPQ 381P4 SPQ 381P4 Contact Us For Availability
High Voltage Suppression Cable SPQ 70346801 Contact Us For Availability
SPQ 70684113 SPQ 70684113 Contact Us For Availability
SPQ 70684111 SPQ 70684111 Contact Us For Availability
SPQ 70507501 SPQ 70507501 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Door Assembly SPQ 70212301 Contact Us For Availability
1
False Front SPQ 70024204 Contact Us For Availability
1
Control Panel SPQ 70273313 Contact Us For Availability
1
Front Panel Assembly SPQ 70601901 Contact Us For Availability
1
Cylinder Assembly SPQ 70372702P Contact Us For Availability
1
Union Tee SPQ 70427901 Contact Us For Availability
1
Blower Housing SPQ 70554701 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Street Elbow SPQ F422304 Contact Us For Availability
1
Burner Orifice SPQ 70684139 Contact Us For Availability
2
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
2
Coin Drop Kit SPQ CK077 Contact Us For Availability
2
Screw SPQ 70000504 Contact Us For Availability
2
Front Panel Assembly SPQ 70601601 Contact Us For Availability
2
Coin Chute Assembly SPQ 44057801B Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Handle and Caps Assembly SPQ 70117601 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70443801 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
L.P. Valve SPQ 70159601 Contact Us For Availability
3
Support Bearing SPQ 70448701 Contact Us For Availability
3
Coin Drop Assembly SPQ 70447301 Contact Us For Availability
3
Door Hinge SPQ 70116005B Contact Us For Availability
3
Control Trim SPQ 44088801 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Screw SPQ 70070101 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Spray Paint SPQ 70432304 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Stove Top and Sides SPQ 70239801 Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
4
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Door Glass SPQ 70211901P Contact Us For Availability
4
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
4
SPQ 70017901 SPQ 70017901 Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70070102 Contact Us For Availability
4
Moisture Sensor Harness SPQ 44333903 Contact Us For Availability
4
Porcelain Touch-Up Paint SPQ 70252601 Contact Us For Availability
4
Exhaust Thimble SPQ 70016301 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Gas Line Assembly SPQ 70333401 Contact Us For Availability
5
Washer SPQ M400991 Contact Us For Availability
5
Door Glass Installation Tool SPQ M400784P Contact Us For Availability
5
Coin Box SPQ 70296401 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70433001 Contact Us For Availability
5
Spray Nozzle Hose SPQ 70427701 Contact Us For Availability
5
Blower Inlet Cone SPQ 70554901 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
Snap Bushing SPQ 70271201 Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
5
Pop Rivet SPQ 685837 Contact Us For Availability
6
Warning Label SPQ 44088001 Contact Us For Availability
6
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
6
Pin SPQ M400044 Contact Us For Availability
6
Jumper Harness SPQ 70413301 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Tube Assembly SPQ 70427601 Contact Us For Availability
6
Fan Motor SPQ 70392701P Contact Us For Availability
7
Central Pay Kit SPQ 204779 Contact Us For Availability
7
SPQ M4773P3 SPQ M4773P3 Contact Us For Availability
7
SPQ M400977 SPQ M400977 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
7
Washer SPQ 70564802 Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Pop Rivet SPQ 70429901 Contact Us For Availability
7
Conversion Kit SPQ 70335601 Contact Us For Availability
8
SPQ 70071401 SPQ 70071401 Contact Us For Availability
8
SPQ 44016401 SPQ 44016401 Contact Us For Availability
8
SPQ 70132301 SPQ 70132301 Contact Us For Availability
8
Rear Cylinder Channel SPQ 70564801 Contact Us For Availability
8
Control Tray Cover SPQ 70346501 Contact Us For Availability
8
SPQ 70424201 SPQ 70424201 Contact Us For Availability
8
SPQ 70014101 SPQ 70014101 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Gas Valve Bracket SPQ M405750 Contact Us For Availability
9
SPQ 70407301 SPQ 70407301 Contact Us For Availability
9
SPQ 70030301 SPQ 70030301 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70506401 Contact Us For Availability
9
SPQ 70424401 SPQ 70424401 Contact Us For Availability
9
Key SPQ 70050401P Contact Us For Availability
9
SPQ 70484901P SPQ 70484901P Contact Us For Availability
10
Nut SPQ M414215 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035002 Contact Us For Availability
10
Roller Catch Wheel SPQ 70297601 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70372701P Contact Us For Availability
10
Rear Cylinder Seal SPQ 70013702 Contact Us For Availability
10
Lower Pan SPQ 70332401P Contact Us For Availability
10
Control Box Cover SPQ 44065201 Contact Us For Availability
10
Belt SPQ 70276205P Contact Us For Availability
10
Blower Motor Mounting Plate SPQ 70349601 Contact Us For Availability
11
Door Handle SPQ 44007902P Contact Us For Availability
11
Screw SPQ 70436301 Contact Us For Availability
11
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Roller Catch Spacer SPQ 70030201 Contact Us For Availability
11
End Cap SPQ 70443802 Contact Us For Availability
11
Spray Nozzle SPQ 70427801 Contact Us For Availability
11
Motor Pulley SPQ 70559101 Contact Us For Availability
11
Screw SPQ 70126101 Contact Us For Availability
11
Stove Back SPQ 70371501 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
12
Lock Shim SPQ 70342401 Contact Us For Availability
12
Screw SPQ 70072801 Contact Us For Availability
12
Elbow SPQ 70428101 Contact Us For Availability
12
Burner Grill SPQ 70188801 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Center Cylinder Seal SPQ 70066004 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Nozzle Bracket SPQ 70428601 Contact Us For Availability
13
Anti-Rattle Burner Assembly SPQ 70546701 Contact Us For Availability
14
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
14
Lint Screen SPQ 70325601 Contact Us For Availability
14
Nut SPQ 70442101 Contact Us For Availability
14
Magnet SPQ 70343101 Contact Us For Availability
14
Nut SPQ M400022 Contact Us For Availability
14
Hose Fitting SPQ 44069101 Contact Us For Availability
14
Gas Burner SPQ 70229801P Contact Us For Availability
15
Pop Rivet SPQ 44166601 Contact Us For Availability
15
Sheet Metal Edge Gasket SPQ 70015709 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
16
Door Latch SPQ M401223 Contact Us For Availability
16
Pop Rivet SPQ 70126401 Contact Us For Availability
16
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
16
Hose SPQ 44073304 Contact Us For Availability
16
Damper and Hinge Exhaust Assembly SPQ 70215101 Contact Us For Availability
16
Thermostat Cover SPQ M414477 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
17
Screw SPQ F8206901 Contact Us For Availability
17
Switch Hole Plug SPQ 44057801W Contact Us For Availability
17
Panel Locator SPQ 70126301 Contact Us For Availability
17
Roller Seal SPQ 70443601 Contact Us For Availability
17
Damper Spacer SPQ 70209501 Contact Us For Availability
18
Roller Shaft SPQ 70249501 Contact Us For Availability
18
Thermistor SPQ 70020301 Contact Us For Availability
18
Stove Limit Harness SPQ 70564301 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
19
Washer SPQ 70261401 Contact Us For Availability
19
Nut SPQ 44057801Q Contact Us For Availability
19
Control Box Base SPQ 44065301 Contact Us For Availability
19
Nut SPQ 70493301 Contact Us For Availability
19
Limit Access Bracket SPQ 70220901 Contact Us For Availability
19
Igniter Cover SPQ 05161 Contact Us For Availability
19
Snap Bushing SPQ F8449502 Contact Us For Availability
20
Gasket SPQ F8245101 Contact Us For Availability
20
Screw SPQ 70178701 Contact Us For Availability
20
N.G. Valve SPQ 44154504 Contact Us For Availability
20
Ground Lug Connector SPQ M411283 Contact Us For Availability
21
Roller Support Bracket SPQ 70328301 Contact Us For Availability
21
Spark Electrode SPQ 44154503 Contact Us For Availability
22
Lint Panel Pivot Plate SPQ 70154401 Contact Us For Availability
22
DIN Rail SPQ M412690 Contact Us For Availability
23
Center Partition SPQ 70015710 Contact Us For Availability
23
Plug SPQ 70180001 Contact Us For Availability
23
Screw SPQ 70542801 Contact Us For Availability
23
Pipe Clip SPQ 70548701P Contact Us For Availability
24
SPQ 70289101P SPQ 70289101P Contact Us For Availability
24
Bushing SPQ 70347202 Contact Us For Availability
24
Blower Assembly SPQ 70501301 Contact Us For Availability
24
Snap Bushing SPQ M400770 Contact Us For Availability
24
Orifice Adapter SPQ 70203701 Contact Us For Availability
25
Screw SPQ 70432303 Contact Us For Availability
25
Elbow SPQ 70379301 Contact Us For Availability
26
Hole Plug SPQ 70347201 Contact Us For Availability
26
Orifice Holder Bracket SPQ 70208701 Contact Us For Availability
27
Primary Air Adjustment Sleeve SPQ 70248901 Contact Us For Availability
28
Terminal Block SPQ M400003 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
SPQ 70155601 SPQ 70155601 Contact Us For Availability
NI
SPQ 70144101 SPQ 70144101 Contact Us For Availability
NI
Opto Coupler SPQ 70283102 Contact Us For Availability
NI
SPQ 39748 SPQ 39748 Contact Us For Availability
NI
SPQ 38519 SPQ 38519 Contact Us For Availability
NI
SPQ 38467 SPQ 38467 Contact Us For Availability
NI
SPQ 210196 SPQ 210196 Contact Us For Availability
NI
SPQ 201141 SPQ 201141 Contact Us For Availability
NI
SPQ 70513315 SPQ 70513315 Contact Us For Availability
NI
SPQ 70513313 SPQ 70513313 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ 70513309 SPQ 70513309 Contact Us For Availability
NI
SPQ 70513303 SPQ 70513303 Contact Us For Availability
NI
SPQ 70471601 SPQ 70471601 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ CK121 SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ 70612703 SPQ 70612703 Contact Us For Availability
NI
SPQ 44272302 SPQ 44272302 Contact Us For Availability
NI
SPQ 44272301 SPQ 44272301 Contact Us For Availability
NI
SPQ 70121509 SPQ 70121509 Contact Us For Availability
NI
Front Panel SPQ 70601501 Contact Us For Availability
NI
SPQ F160673P SPQ F160673P Contact Us For Availability
NI
SPQ D511476 SPQ D511476 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ F8519403 Contact Us For Availability
NI
SPQ 70257401 SPQ 70257401 Contact Us For Availability
NI
SPQ 70257301 SPQ 70257301 Contact Us For Availability
NI
SPQ 70391101 SPQ 70391101 Contact Us For Availability
NI
Support Housing Bearing Assembly SPQ 70343101P Contact Us For Availability
NI
SPQ 430260P SPQ 430260P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 70063201 SPQ 70063201 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 44340301 SPQ 44340301 Contact Us For Availability
NI
SPQ 70478701P SPQ 70478701P Contact Us For Availability
NI
Limit Access Bracket SPQ 70017801 Contact Us For Availability
NI
SPQ 44333202 SPQ 44333202 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
Pipe Plug SPQ 70504101 Contact Us For Availability
NI
Plug SPQ 70609904 Contact Us For Availability
NI
SPQ 70167601 SPQ 70167601 Contact Us For Availability
NI
SPQ 44239702 SPQ 44239702 Contact Us For Availability
NI
Burner Orifice SPQ 70684114 Contact Us For Availability
NI
SPQ 70684109 SPQ 70684109 Contact Us For Availability
NI
SPQ 70684116 SPQ 70684116 Contact Us For Availability
NI
SPQ 70559301 SPQ 70559301 Contact Us For Availability
NI
SPQ 44357401 SPQ 44357401 Contact Us For Availability
NI
SPQ F8611601 SPQ F8611601 Contact Us For Availability
× ![]()
