Model GE NE4613 General Electric Model NE4613 – Common Parts & Diagrams

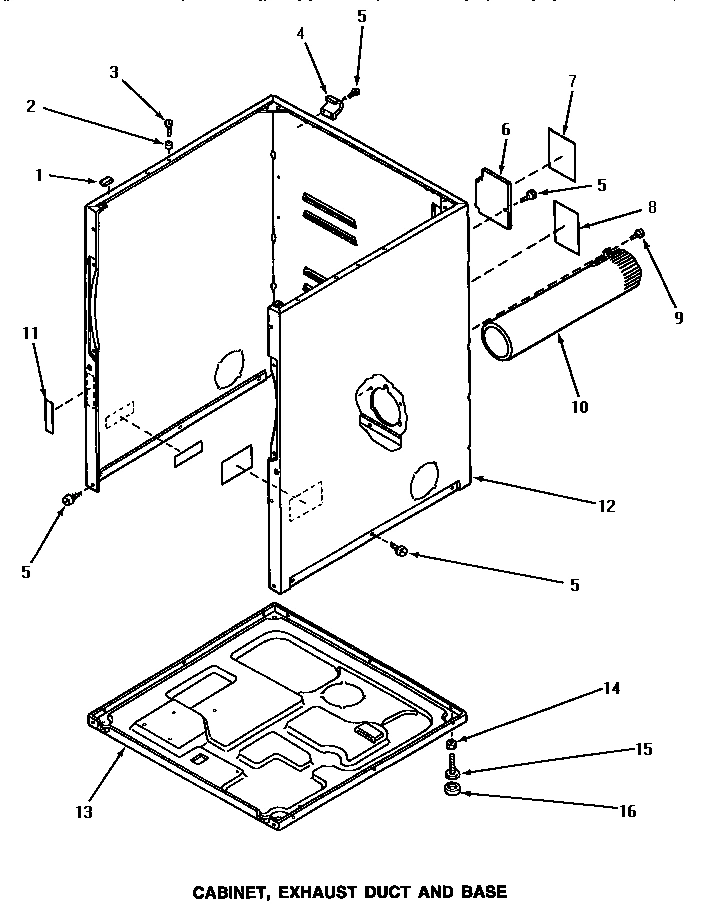

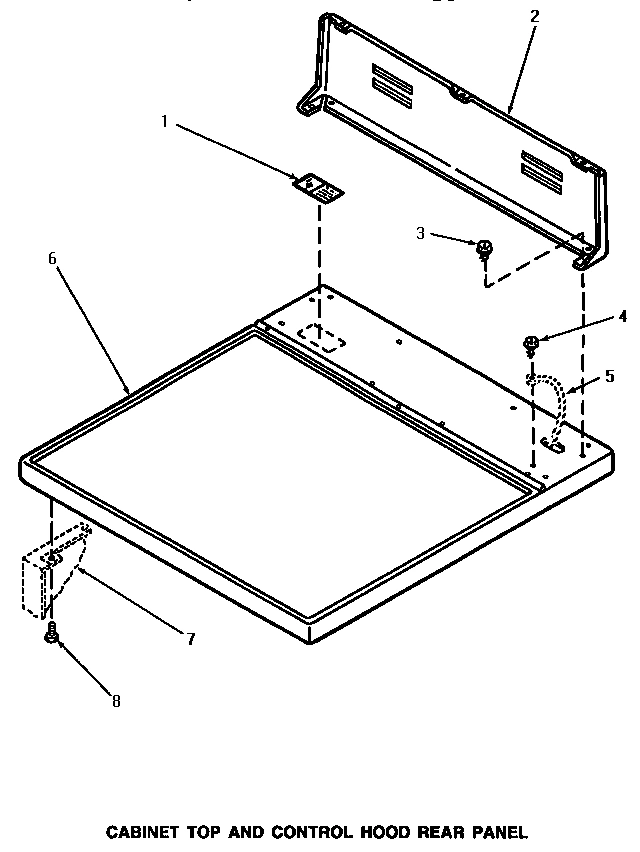

Cabinet, Exhaust Duct and Base

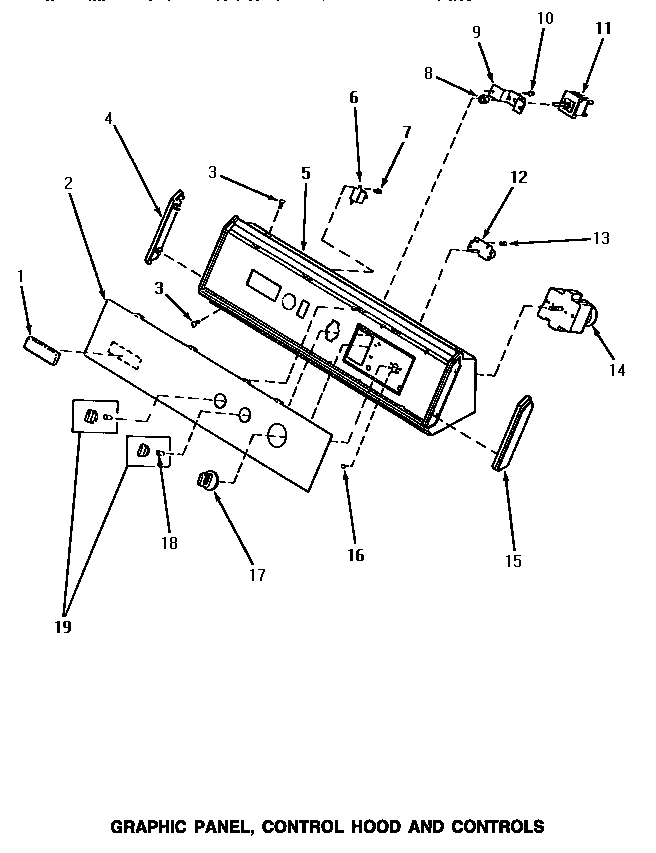

Graphic Panel, Control Hood and Controls (Drawing 5 of 7)

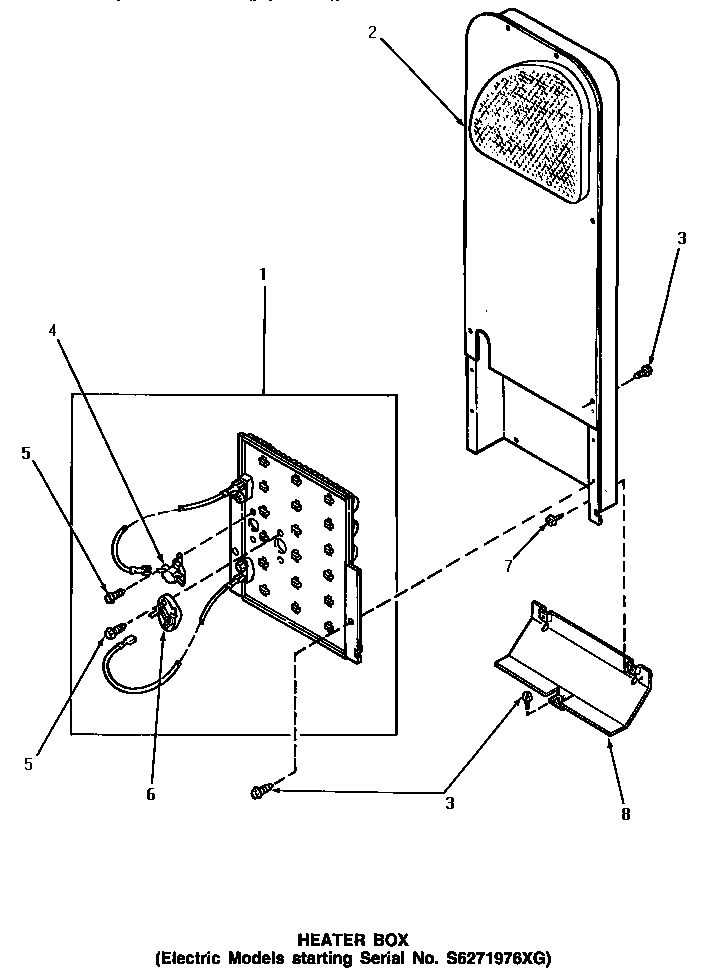

Heater Duct - Electric Models Starting Serial No. S6271976XG

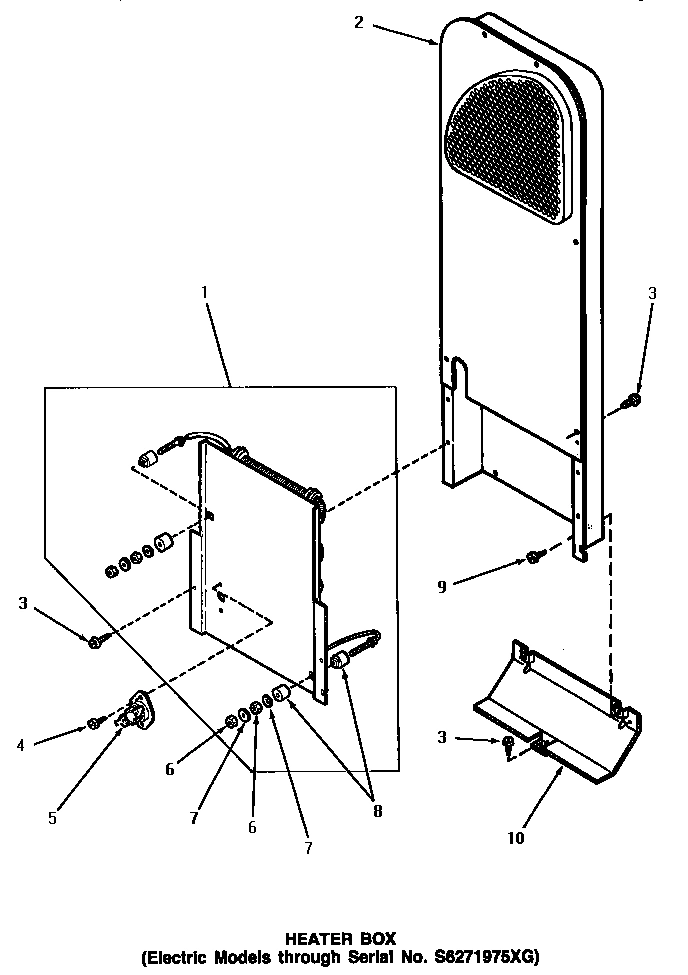

Heater Duct - Electric Models Through Serial No. S6271975XG

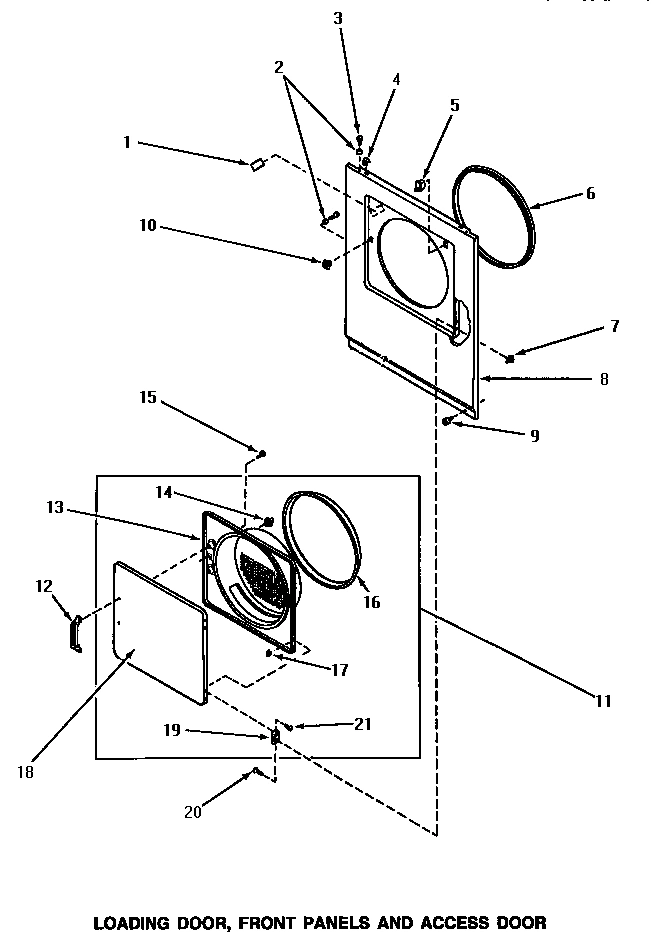

Loading Door, Front Panels and Access Door

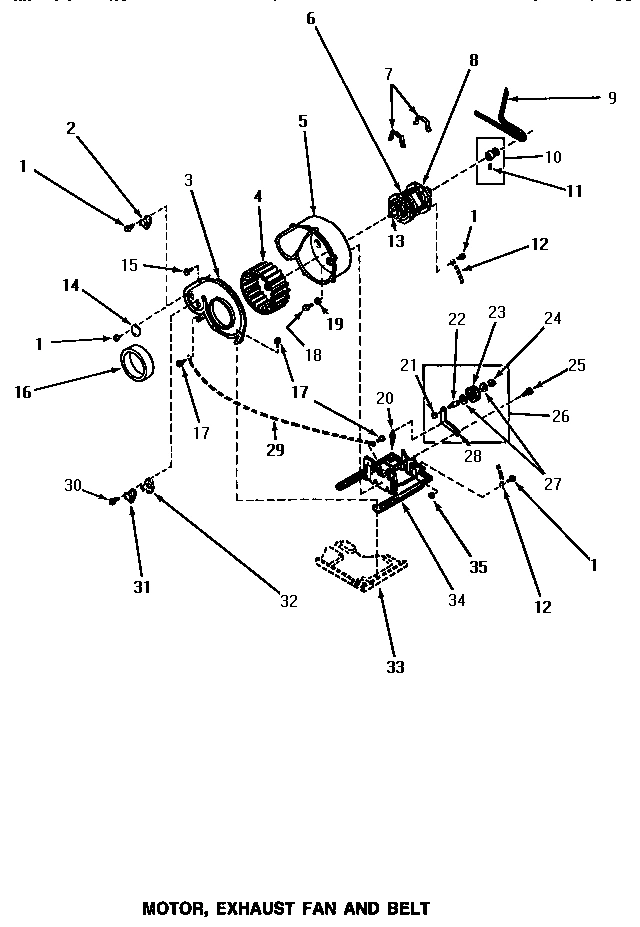

Motor, Exhaust Fan and Belt (Drawing 1 of 2)
Motor, Exhaust Fan and Belt (Drawing 2 of 2)

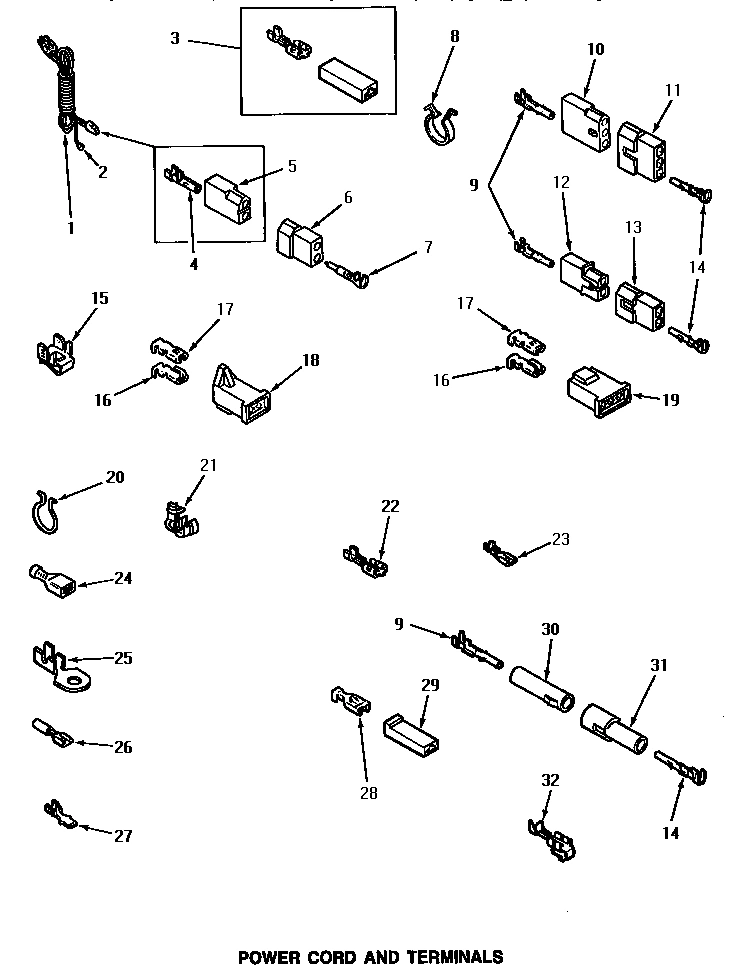

Power Cord and Terminals

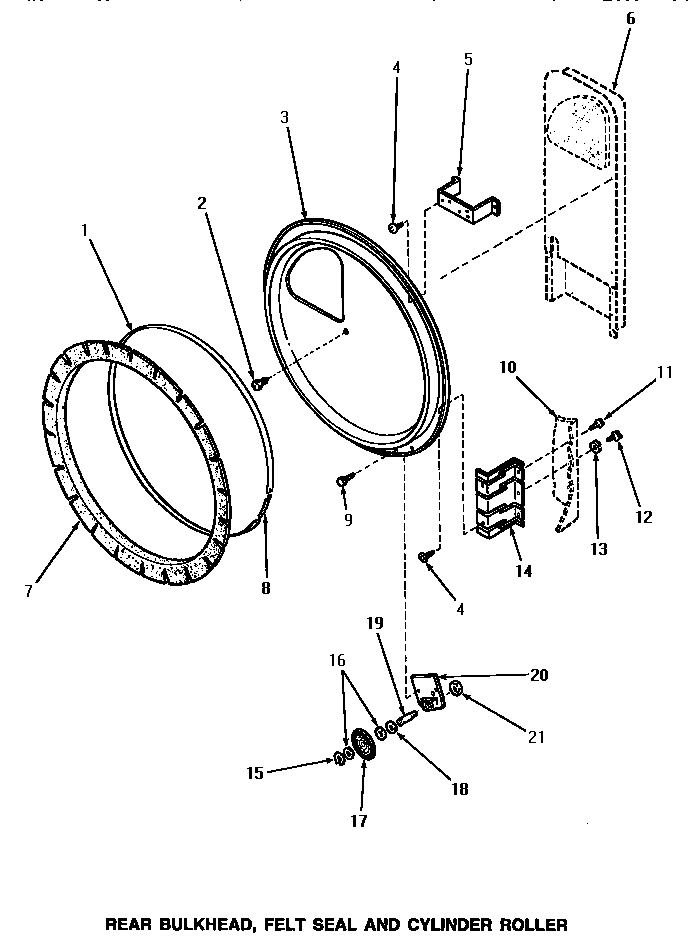

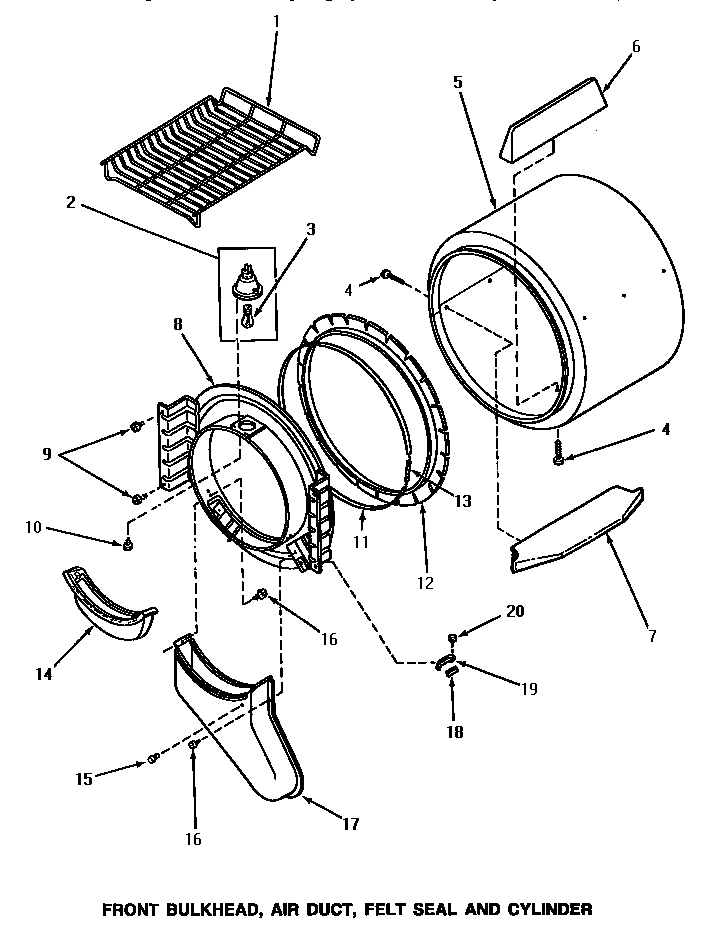

Rear Bulkhead, Felt Seal and Cylinder Roller

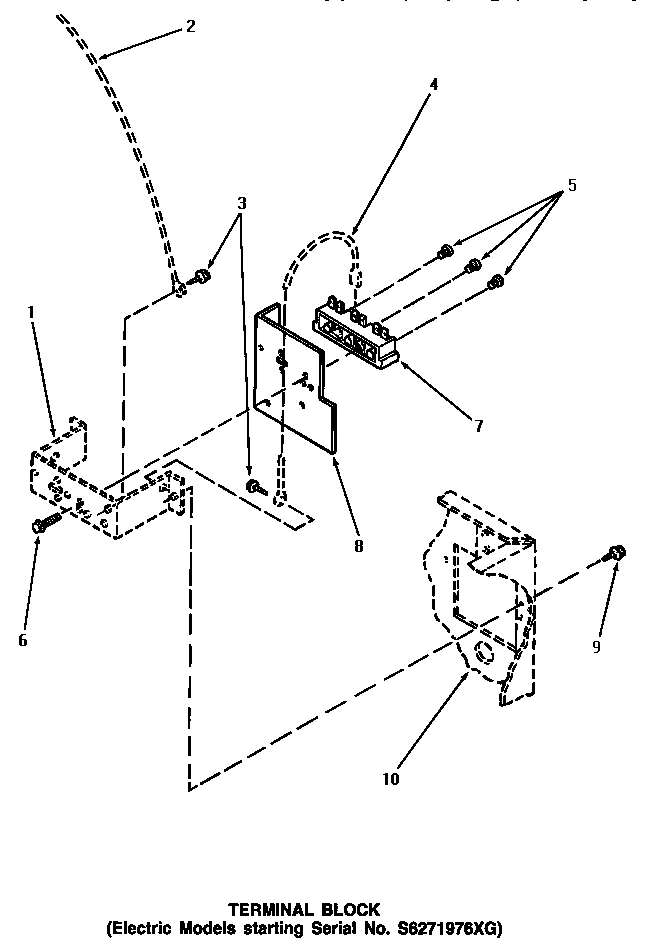

Terminal Block - Electric Models Starting Serial No. S6271976XG

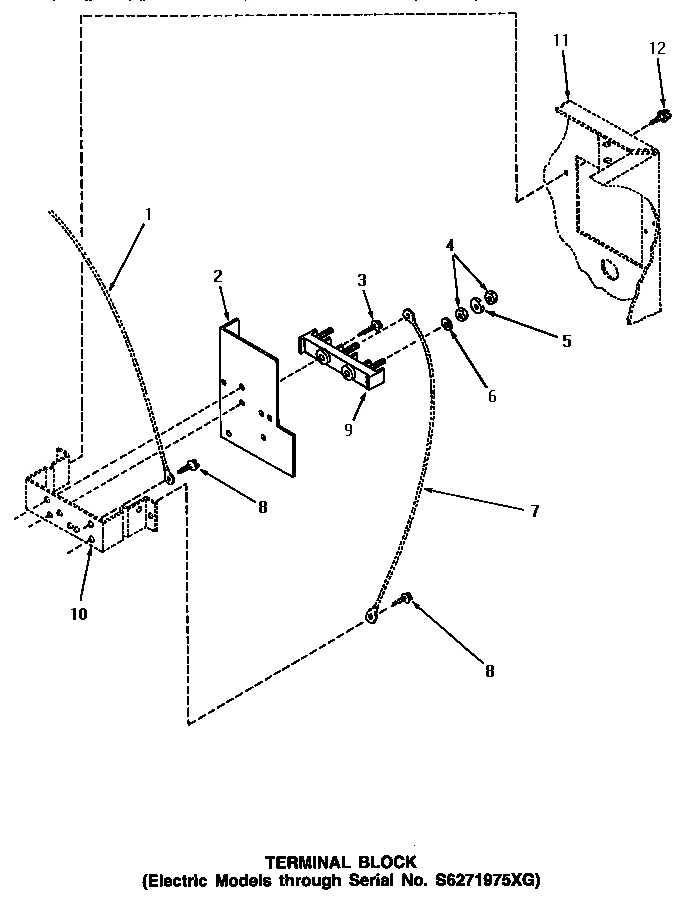

Terminal Block - Electric Models Through Serial No. S6271975XG
Common parts from model GE NE4613 General Electric Model NE4613
1
Bumper Pad GEN 56128 Contact Us For Availability
1
NOT ON YOUR MODEL GEN - Contact Us For Availability
1
Limit Thermostat GEN D510701 Contact Us For Availability
1
Heater Kit Assembly (Comment: 230 Volt, 5000 GEN 61927 Contact Us For Availability
1
Heater Kit Assembly (Comment: 208 Volt, 4750 GEN 61928 Contact Us For Availability
1
Heater Kit Assembly (Comment: 240 Volt/50 Her GEN 61929 Contact Us For Availability
1
Heater Kit Assembly (Comment: 240 Volt/50 Her GEN 61930 Contact Us For Availability
1
Heater Kit Assembly (Comment: 240 Volt, 3.1 k GEN 61931 Contact Us For Availability
1
Warning/Caution Label GEN D500281 Contact Us For Availability
1
Seal GEN 56065 Contact Us For Availability
1
Seal Strap GEN 56090 Contact Us For Availability
1
Terminal Block Shield GEN 56087 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Heater Duct and Screw Assembly GEN D510025P Contact Us For Availability
2
Screw GEN 33561 Contact Us For Availability
2
Idler Spring GEN D510185 Contact Us For Availability
2
Ultra Pod Terminal (Comment: 1/4 inch, (1) 12 GEN 00360 Contact Us For Availability
2
Screw GEN 61199 Contact Us For Availability
2
Screw GEN Q6535 Contact Us For Availability
3
Screw GEN 39733 Contact Us For Availability
3
Screw GEN 31752 Contact Us For Availability
3
Washer GEN 56552 Contact Us For Availability
3
Wire Clip GEN D504034 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes rol GEN 61135P Contact Us For Availability
3
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
4
Nut GEN Q6163 Contact Us For Availability
4
Speed Clip GEN 28835 Contact Us For Availability
4
Thermostat GEN 56410 Contact Us For Availability
4
Female Pin Terminal GEN 00117 Contact Us For Availability
4
Screw GEN M400664 Contact Us For Availability
5
Screw GEN 33562 Contact Us For Availability
5
Screw GEN 23962 Contact Us For Availability
5
Heat Duct Shield GEN 60952 Contact Us For Availability
5
Switch GEN D512973 Contact Us For Availability
5
3 Circuit Receptacle GEN 23039 Contact Us For Availability
6
Electric Clearance Label GEN D511005 Contact Us For Availability
6
Front Panel Seal GEN 61380 Contact Us For Availability
6
Blower Housing and Cover Kit GEN D511969WP Contact Us For Availability
6
Idler Wheel and Bearing Assembly GEN D510142 Contact Us For Availability
6
Plug GEN 23040 Contact Us For Availability
6
Washer GEN 51474 Contact Us For Availability
6
Screw GEN D501285 Contact Us For Availability
7
Nut GEN 57584 Contact Us For Availability
7
Thermal Fuse Kit (Comment: Includes items 1 a GEN 490P3 Contact Us For Availability
7
Nut GEN 51236 Contact Us For Availability
7
Motor (Comment: Includes switch) GEN 58044 Contact Us For Availability
7
Male Pin Terminal GEN 00116 Contact Us For Availability
7
Screw (Comment: Green) GEN 52909 Contact Us For Availability
7
Terminal Block Assembly GEN 50854A Contact Us For Availability
8
Front Panel Assembly (Comment: White) GEN 62420WP Contact Us For Availability
8
Motor Mount Clamp GEN D510180 Contact Us For Availability
8
Motor Mount and Idler Assembly GEN D511227 Contact Us For Availability
8
2 Circuit Plug GEN 56448 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Screw GEN 31260 Contact Us For Availability
9
Limit Thermostat GEN 56082 Contact Us For Availability
9
Screw GEN D503661 Contact Us For Availability
9
2 Circuit Receptacle GEN 56451 Contact Us For Availability
10
Cylinder Roller Bracket (Comment: Models star GEN N/A Contact Us For Availability
10
Screw GEN 23222 Contact Us For Availability
10
Support Barrel GEN 56534 Contact Us For Availability
10
Cylinder Belt GEN D511255 Contact Us For Availability
10
Male Pin Terminal GEN 00127 Contact Us For Availability
11
Door Assembly (Comment: Models starting Seria GEN 62300WP Contact Us For Availability
11
Screw GEN 62541 Contact Us For Availability
11
Nut GEN 56156 Contact Us For Availability
11
Nut GEN 52566 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
12
Nut GEN 20274 Contact Us For Availability
12
Door Seal GEN 61379 Contact Us For Availability
12
Motor Mount GEN D510060 Contact Us For Availability
12
2 Circuit Receptacle GEN 56265 Contact Us For Availability
12
Washer GEN 23886 Contact Us For Availability
13
Screw GEN 52696 Contact Us For Availability
13
Nut GEN 23407 Contact Us For Availability
13
Washer GEN 20492 Contact Us For Availability
13
Female Pin Terminal GEN 00130 Contact Us For Availability
13
Cylinder Roller GEN 62649 Contact Us For Availability
14
Rubber Foot GEN 70282 Contact Us For Availability
14
Screw GEN 52864 Contact Us For Availability
14
Blower Fan Assembly GEN D510139 Contact Us For Availability
14
Retaining Ring GEN 23748 Contact Us For Availability
14
Grounding Clip GEN 00161 Contact Us For Availability
15
Screw GEN 22649 Contact Us For Availability
15
Washer GEN 52549 Contact Us For Availability
15
Female Piggyback Terminal GEN 00361 Contact Us For Availability
16
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
16
Hinge GEN 56045 Contact Us For Availability
16
Thermostat Heater (Comment: Use with 61372 Th GEN 61401 Contact Us For Availability
16
Shaft GEN 56461 Contact Us For Availability
16
Female Spade Terminal GEN 00189 Contact Us For Availability
17
Screw GEN 51780 Contact Us For Availability
17
Thermostat (Comment: starting Serial No. S627 GEN 61372 Contact Us For Availability
17
2 Circuit Connector GEN 58799 Contact Us For Availability
18
Door Pull GEN 61925 Contact Us For Availability
18
3 Circuit Connector GEN 58800 Contact Us For Availability
18
Spring GEN 52310 Contact Us For Availability
19
Wire Clip GEN 51291 Contact Us For Availability
19
Seal Assembly GEN 56088 Contact Us For Availability
20
Strain Relief GEN 38384 Contact Us For Availability
21
Door Strike GEN D510181 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00222 Contact Us For Availability
21
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
22
Female Spade Terminal (Comment: 3/16 inch, (2 GEN 00209 Contact Us For Availability
23
Gas Clearance Label GEN D511004 Contact Us For Availability
23
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
23
Ultra Pod Terminal (Comment: 1/4 inch) GEN 00359 Contact Us For Availability
24
Door Catch Assembly GEN D510177 Contact Us For Availability
24
Molex Receptacle GEN 26301 Contact Us For Availability
25
1 Circuit Plug GEN 26302 Contact Us For Availability
26
Ring Terminal (Comment: No. 10, (1) 18 gauge GEN 00110 Contact Us For Availability
26
Ring Terminal (Comment: No. 10, (2) 18 gauge GEN 00111 Contact Us For Availability
27
GEN 00115 GEN 00115 Contact Us For Availability
27
GEN 00321 GEN 00321 Contact Us For Availability
28
GEN 00215 GEN 00215 Contact Us For Availability
29
GEN 90789 GEN 90789 Contact Us For Availability
30
GEN 00139 GEN 00139 Contact Us For Availability
31
GEN 00114 GEN 00114 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
Washer (Comment: Used on front panel to faste GEN 21147 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
