Model Alliance NC80NPV Washer – Common Parts & Diagrams

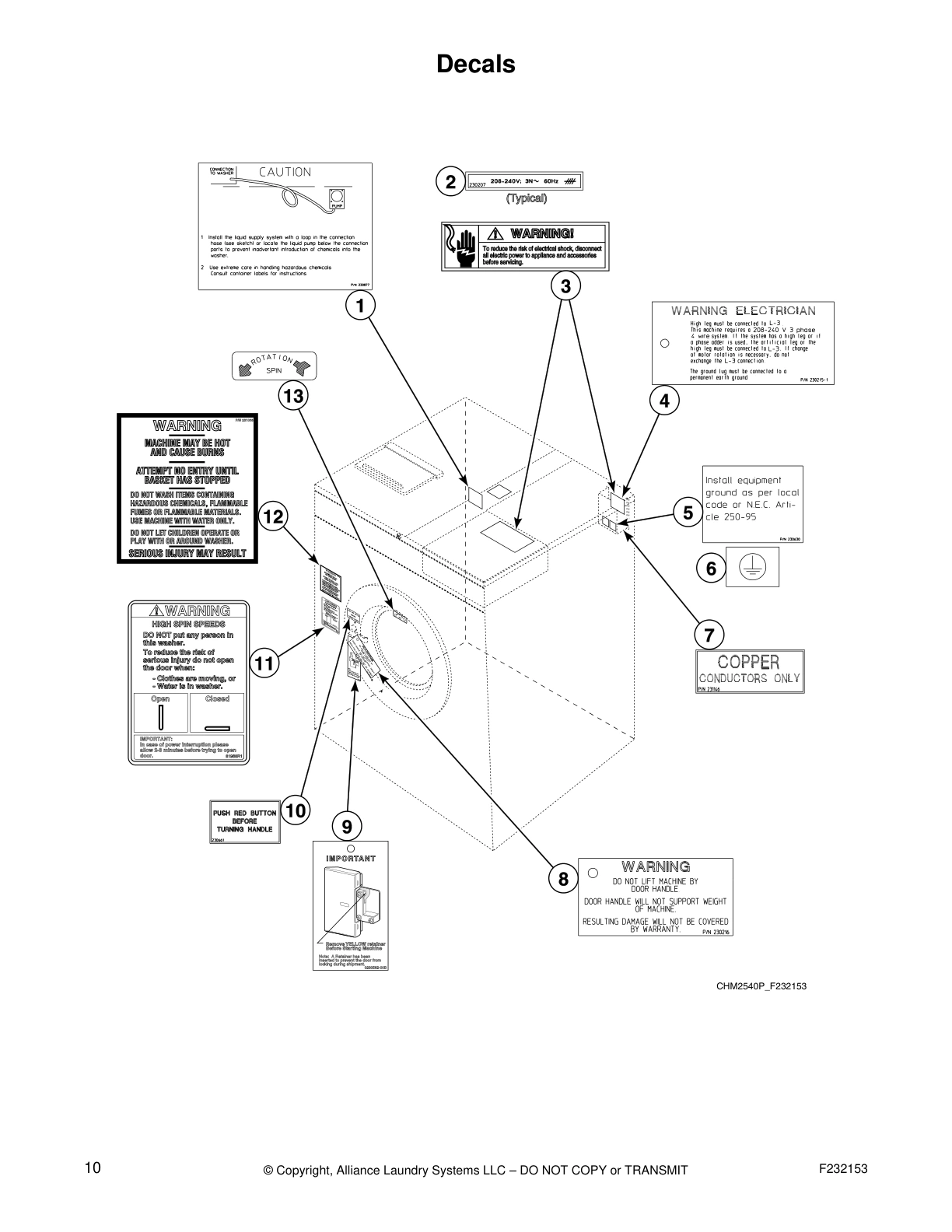

Decals

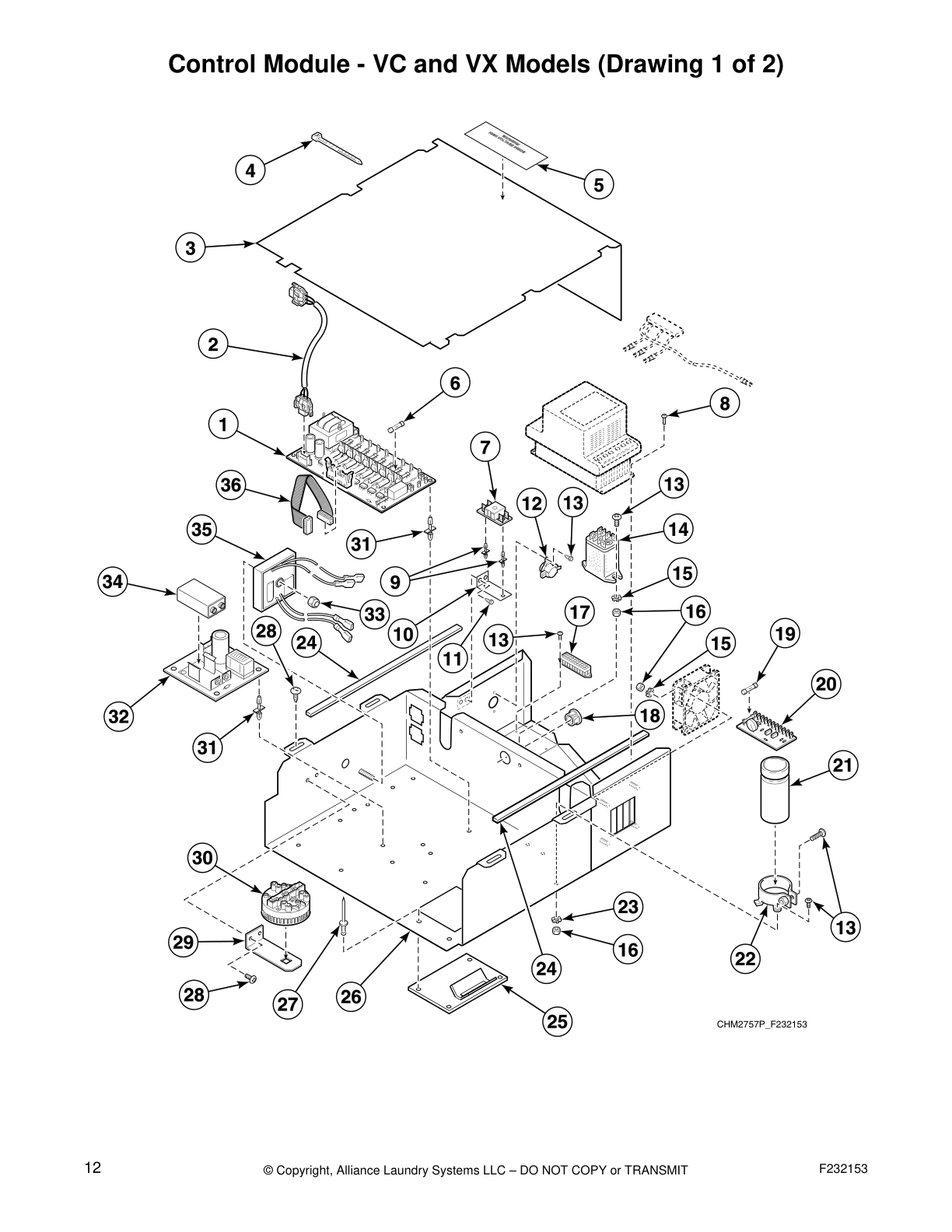

Control Module - VC and VX Models (Drawing 1 of 2)

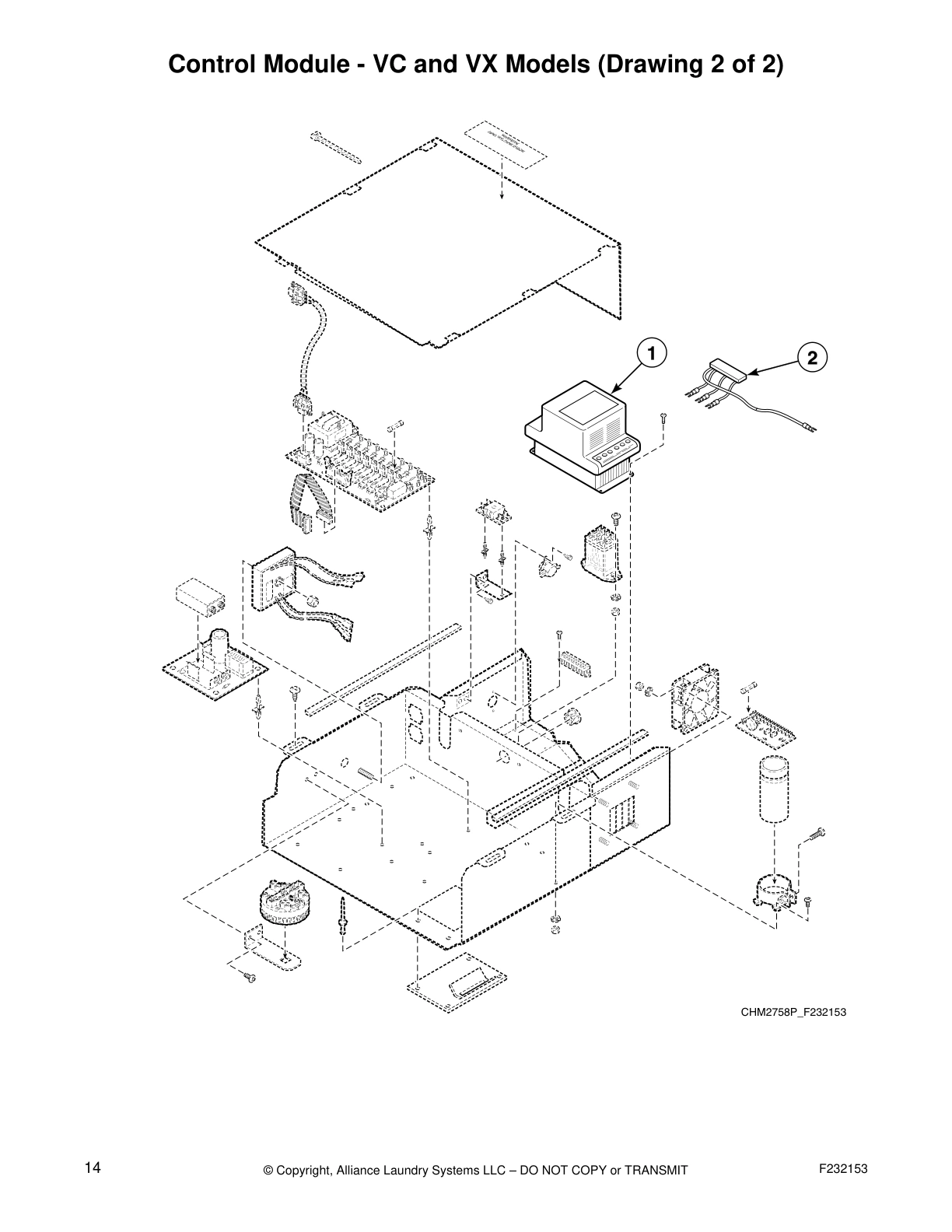

Control Module - VC and VX Models (Drawing 2 of 2)

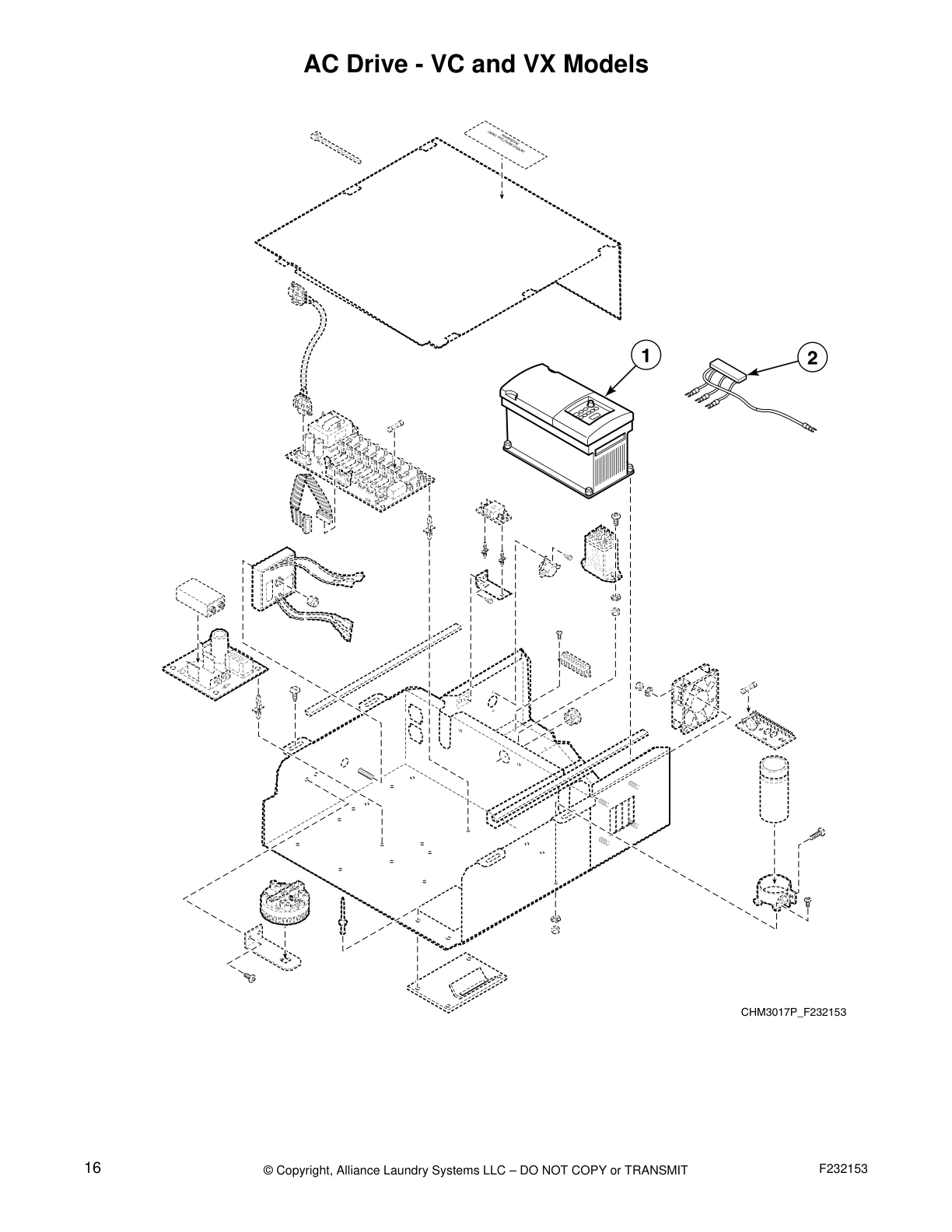

AC Drive - VC and VX Models

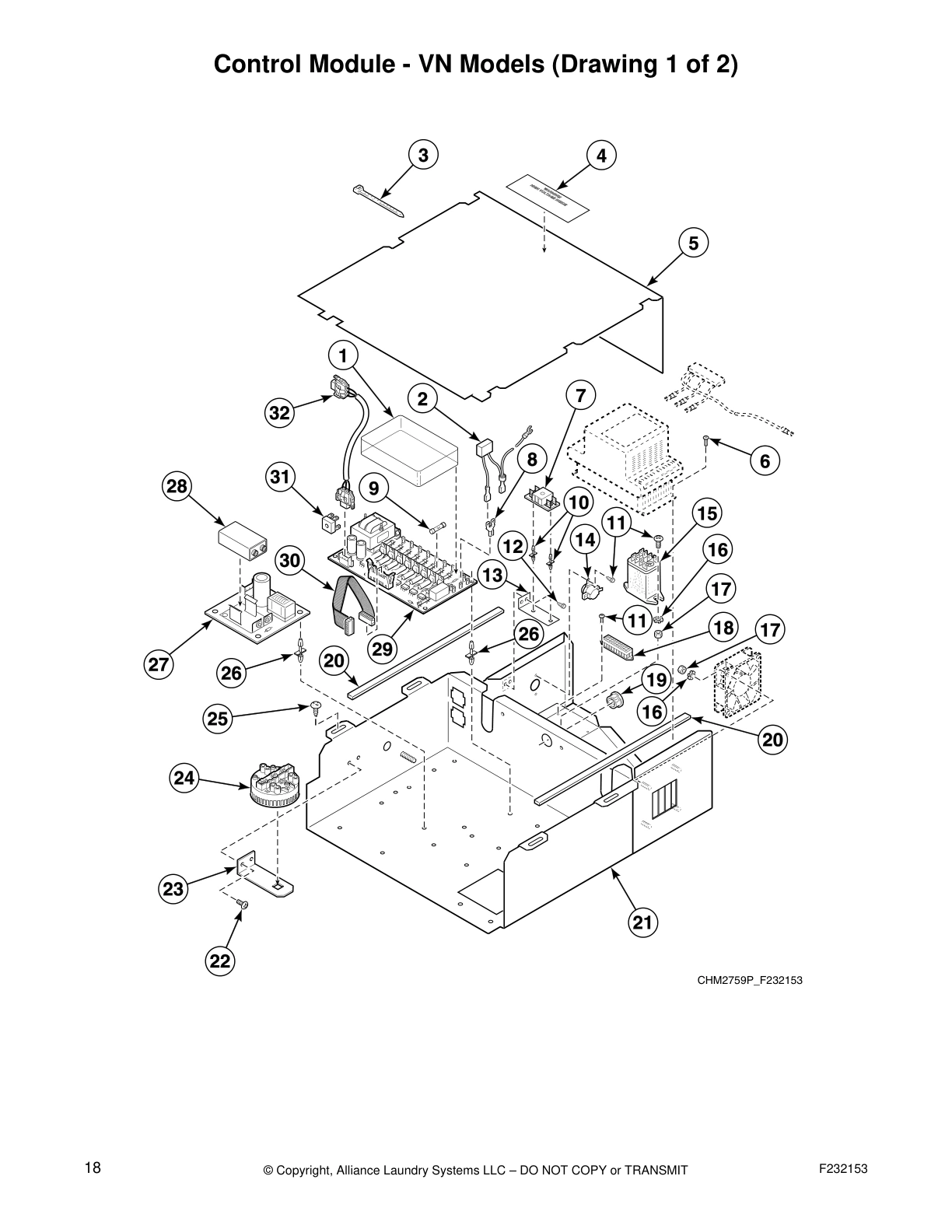

Control Module - VN Models (Drawing 1 of 2)

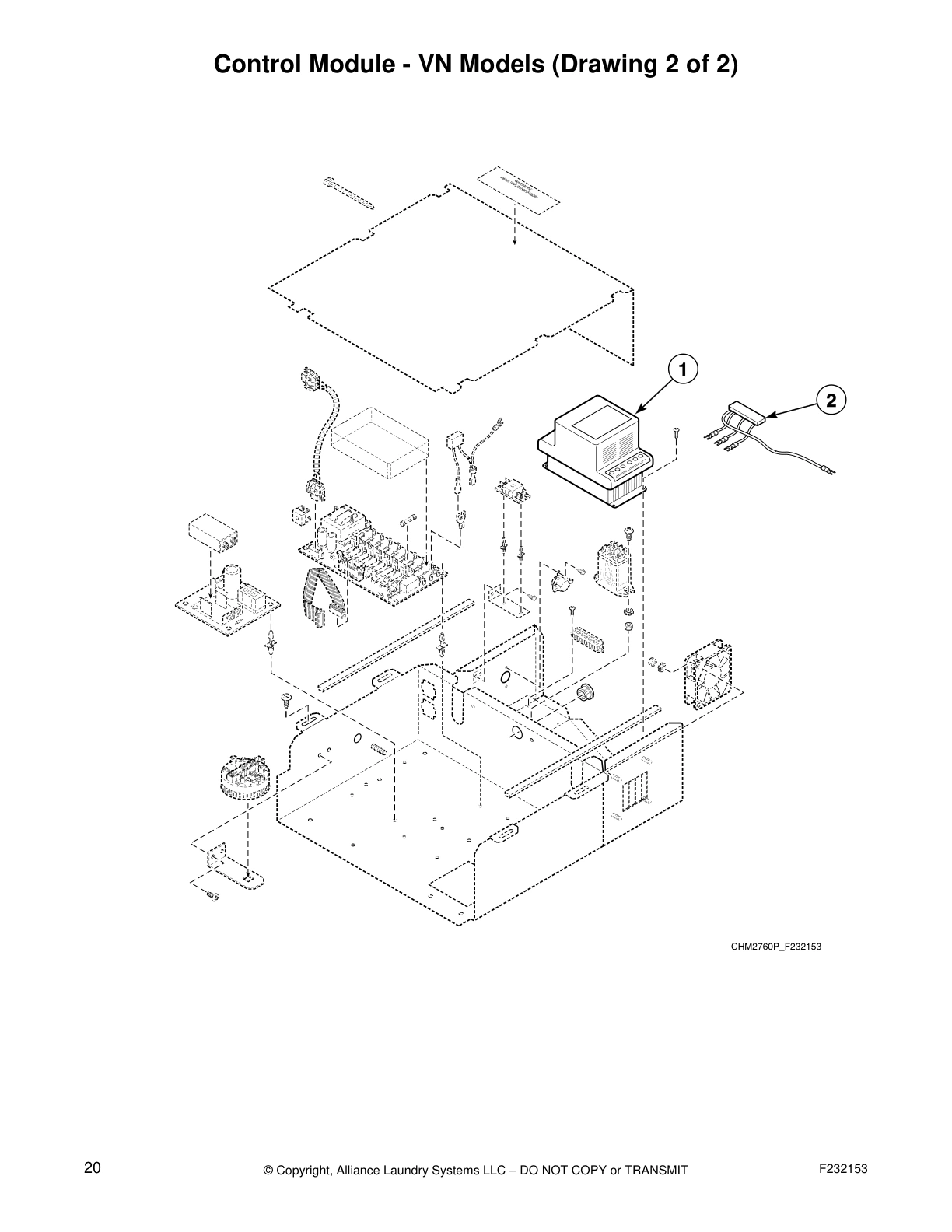

Control Module - VN Models (Drawing 2 of 2)

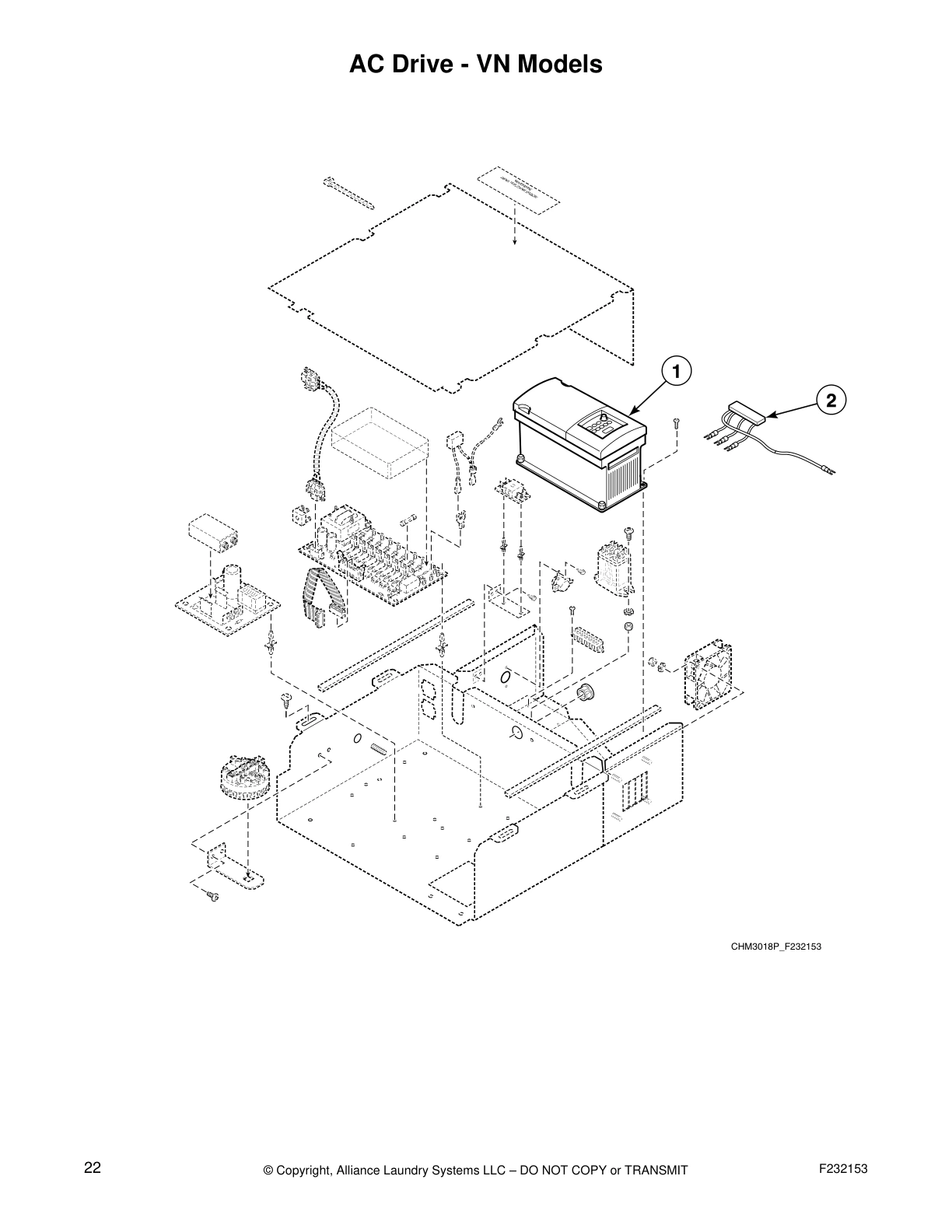

AC Drive - VN Models

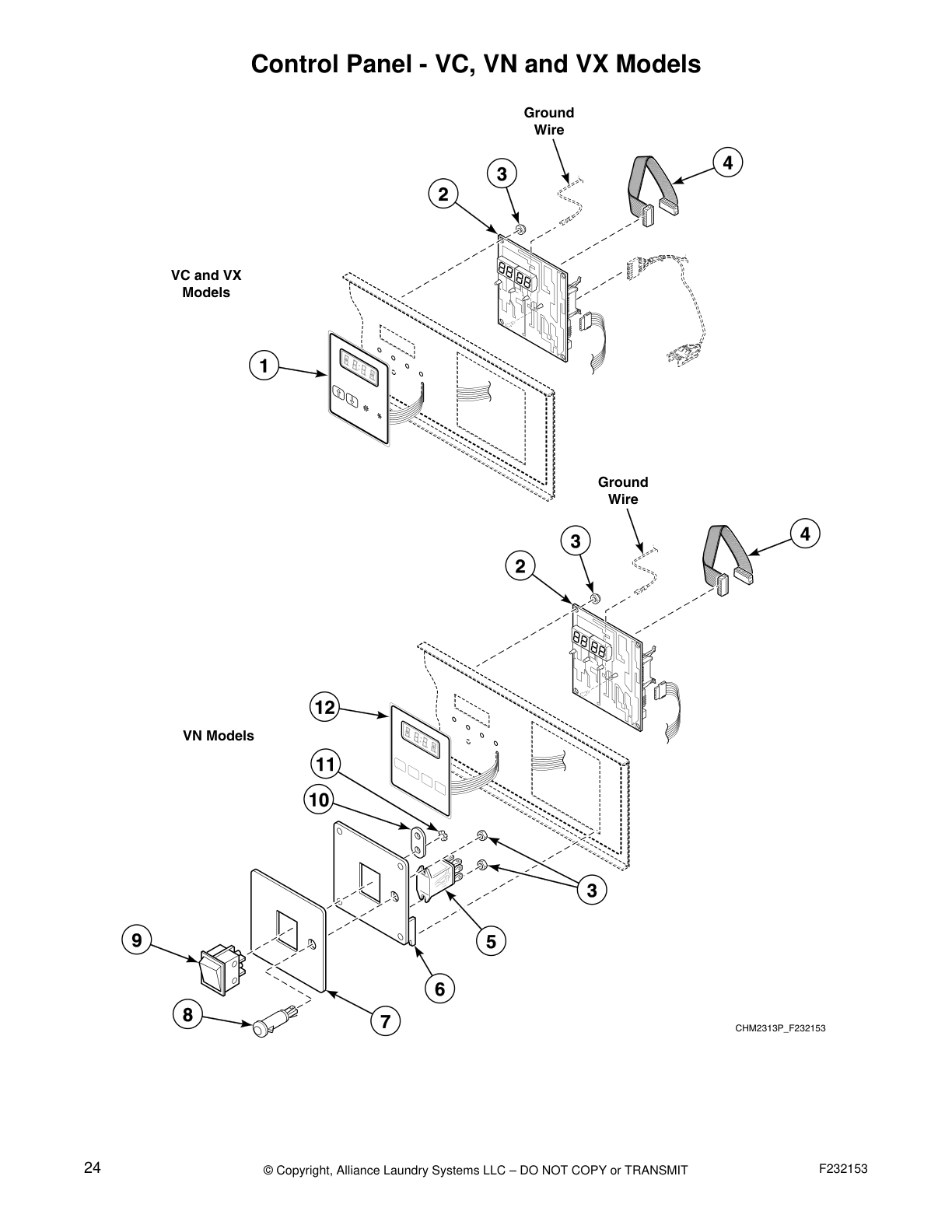

Control Panel - VC, VN and VX Models

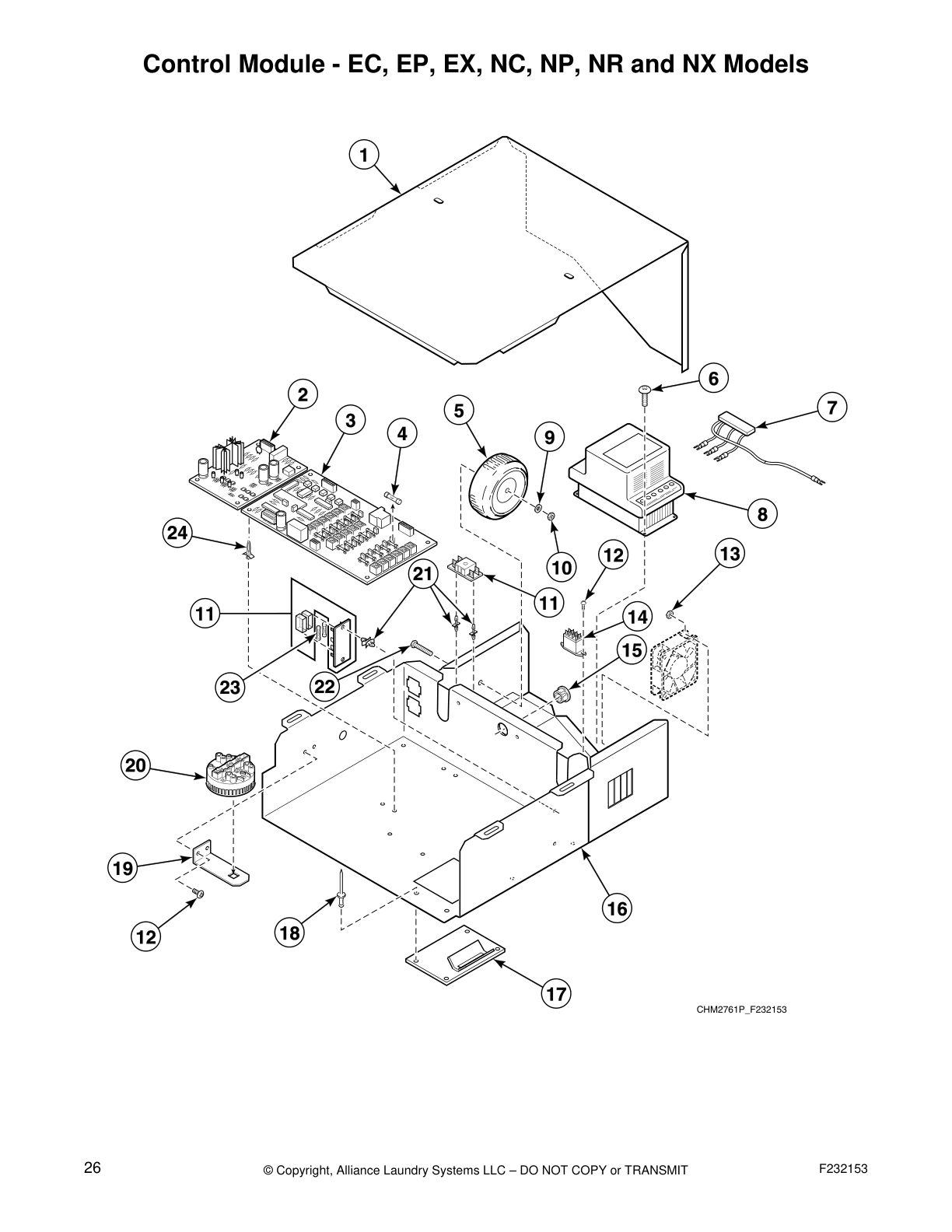

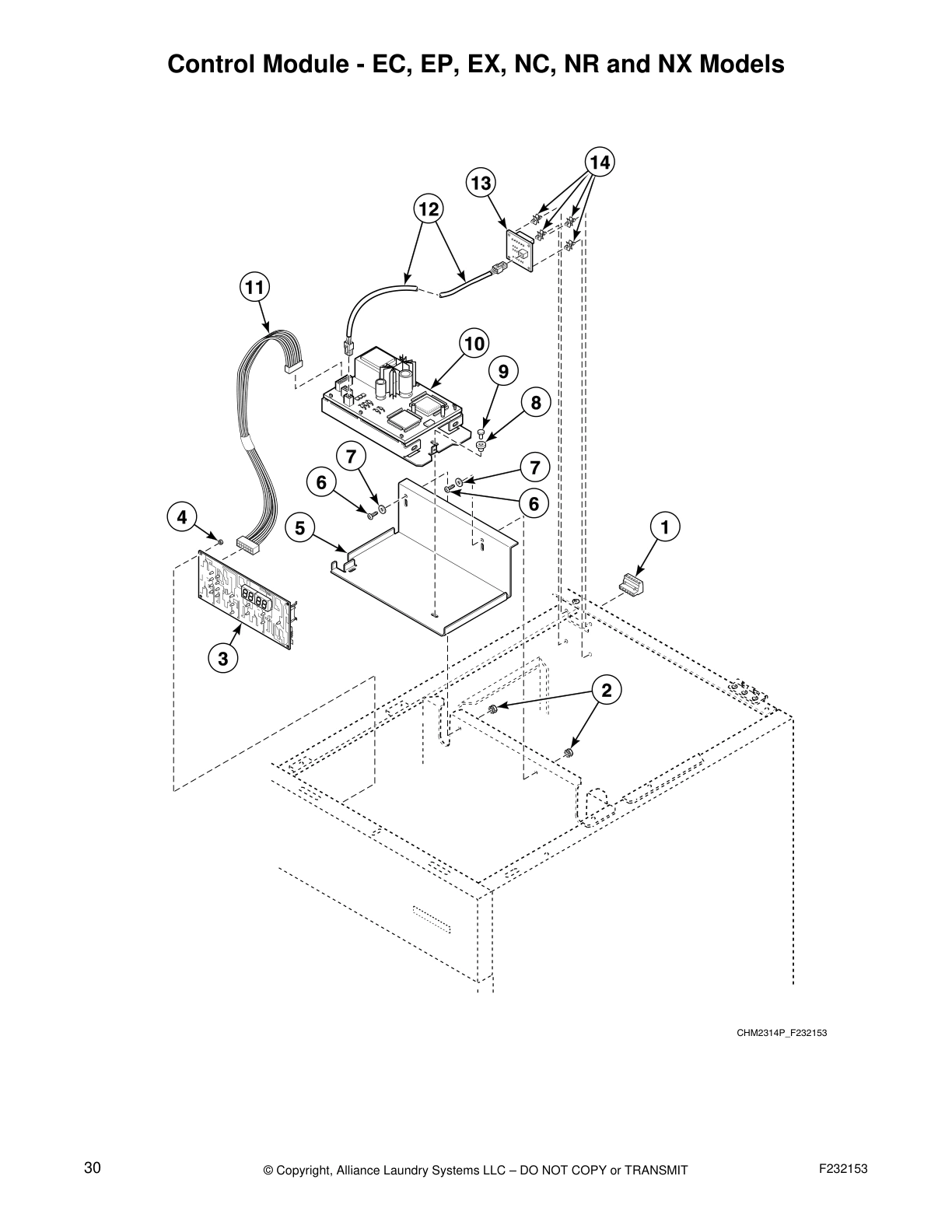

Control Module - EC, EP, EX, NC, NP, NR and NX Models

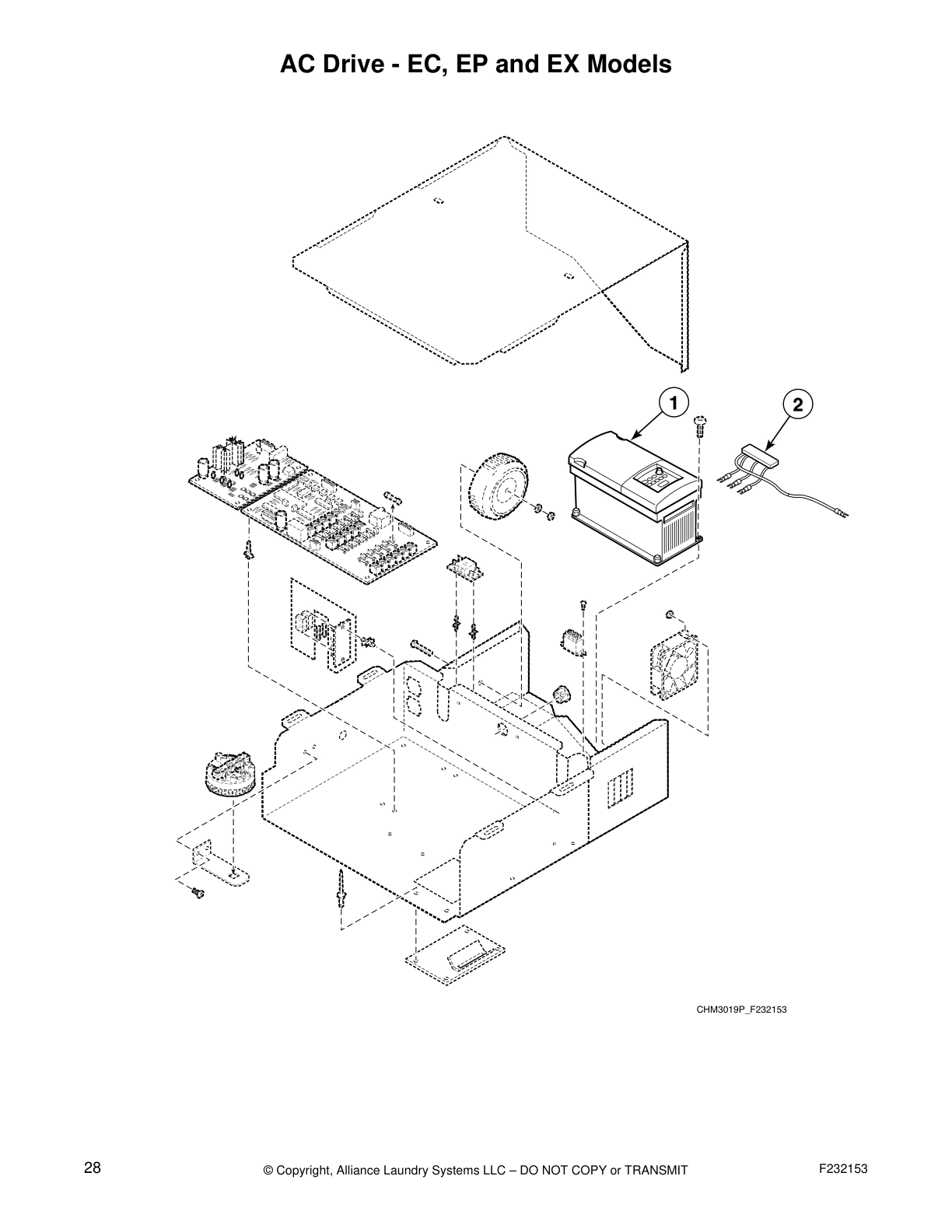

AC Drive - EC, EP and EX Models
Control Module - EC, EP, EX, NC, NR and NX Models
W2000 Coin Meter Assembly - EC, EP, EX, VC and VX Models;

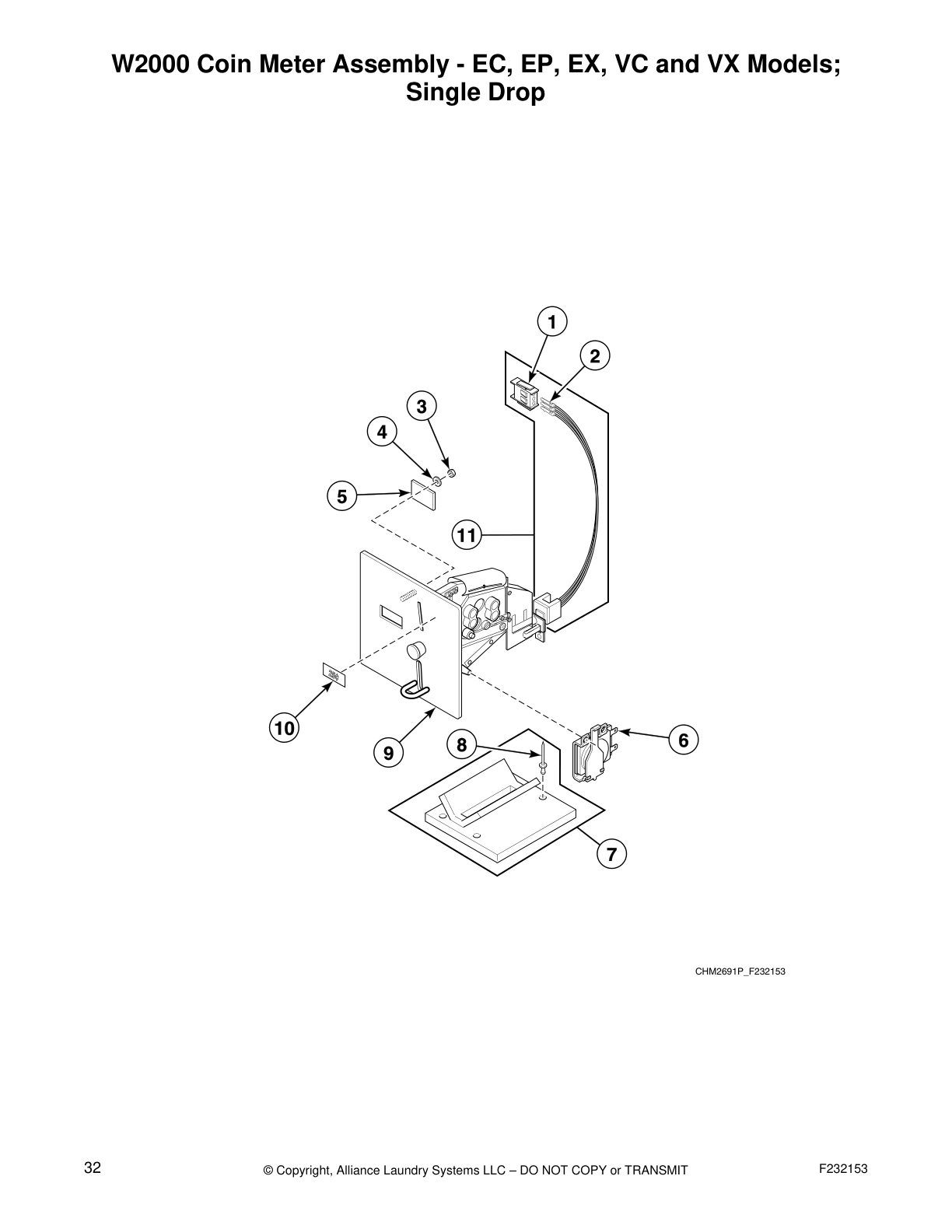

Single Drop

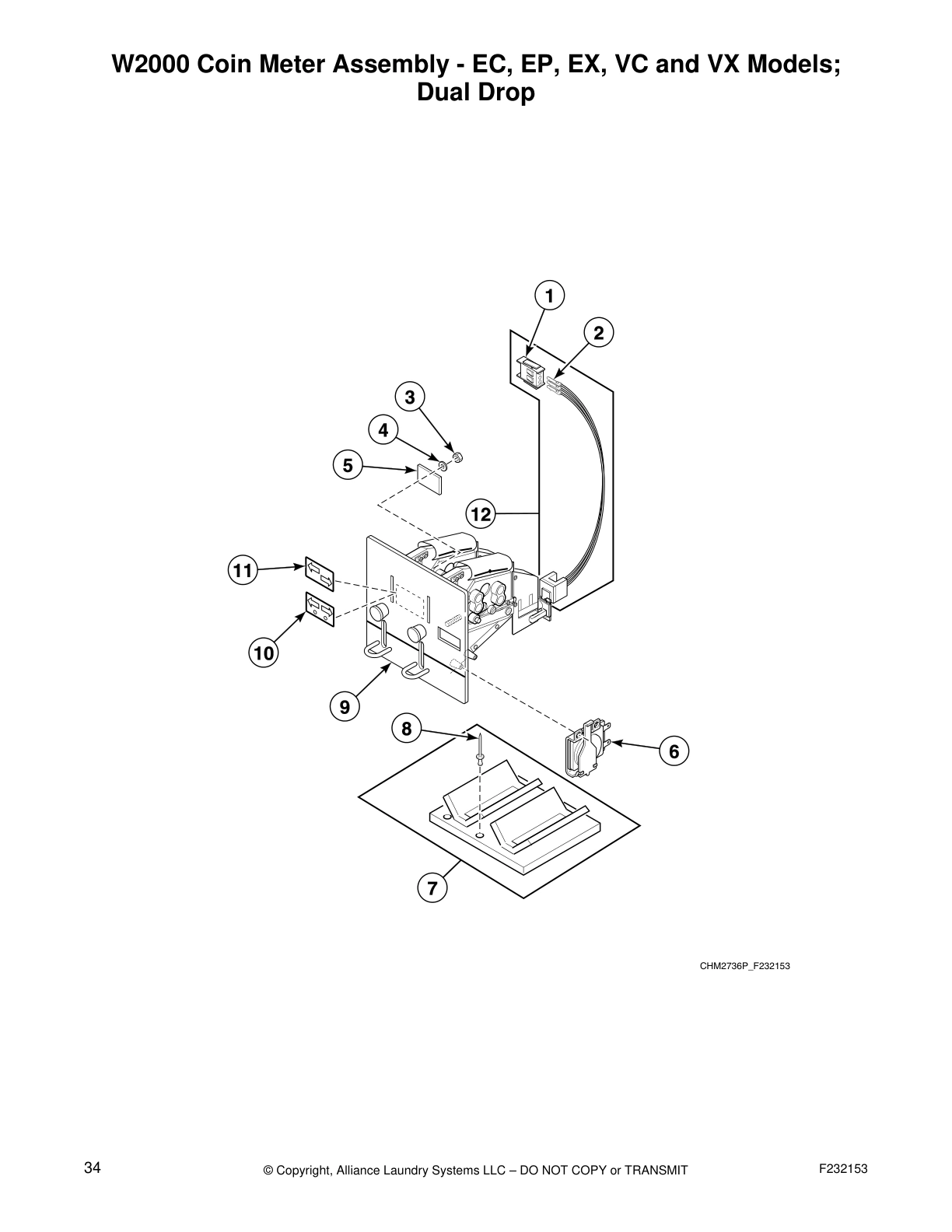

W2000 Coin Meter Assembly - EC, EP, EX, VC and VX Models;
Dual Drop
Flush Mount Coin Meter Assembly - NC and NX Models;

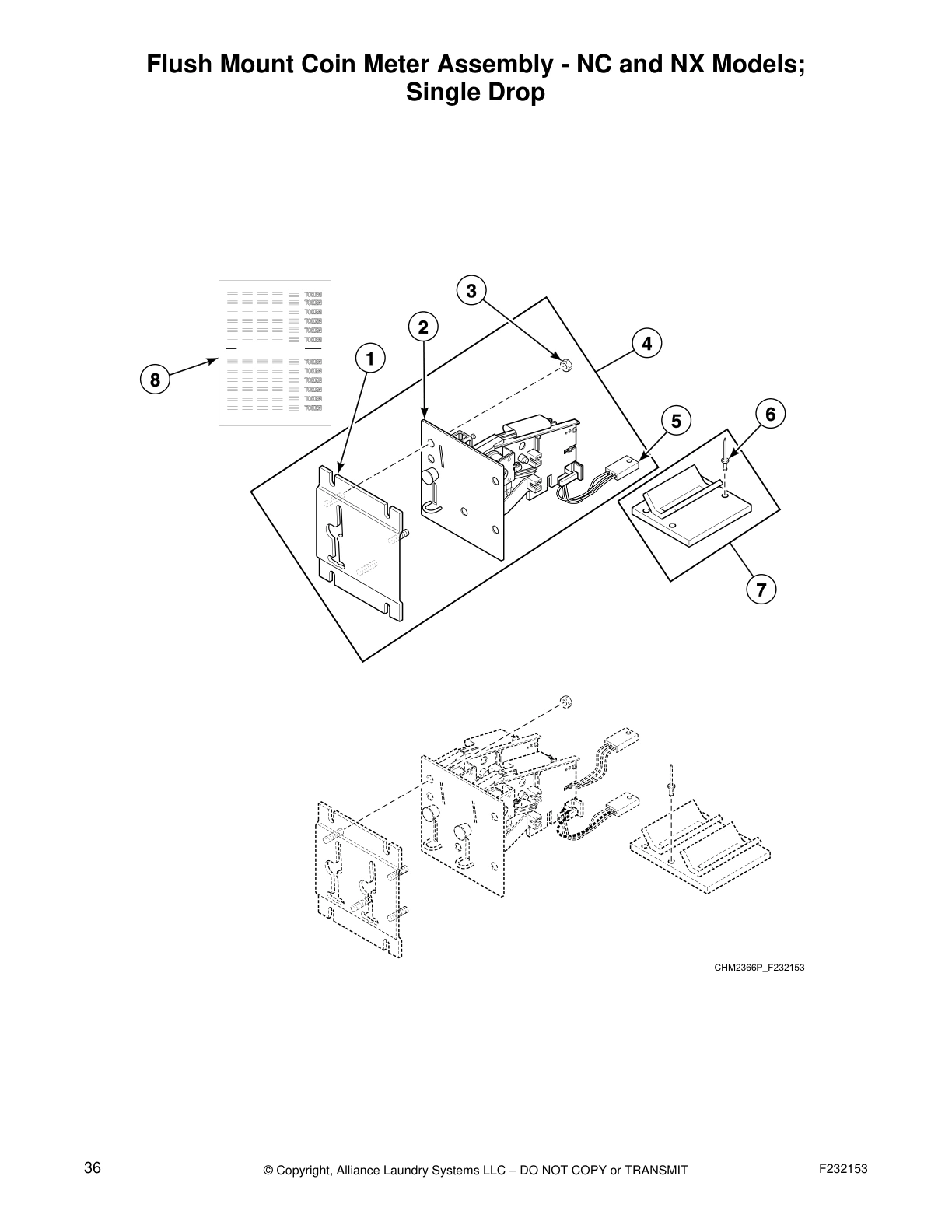

Single Drop

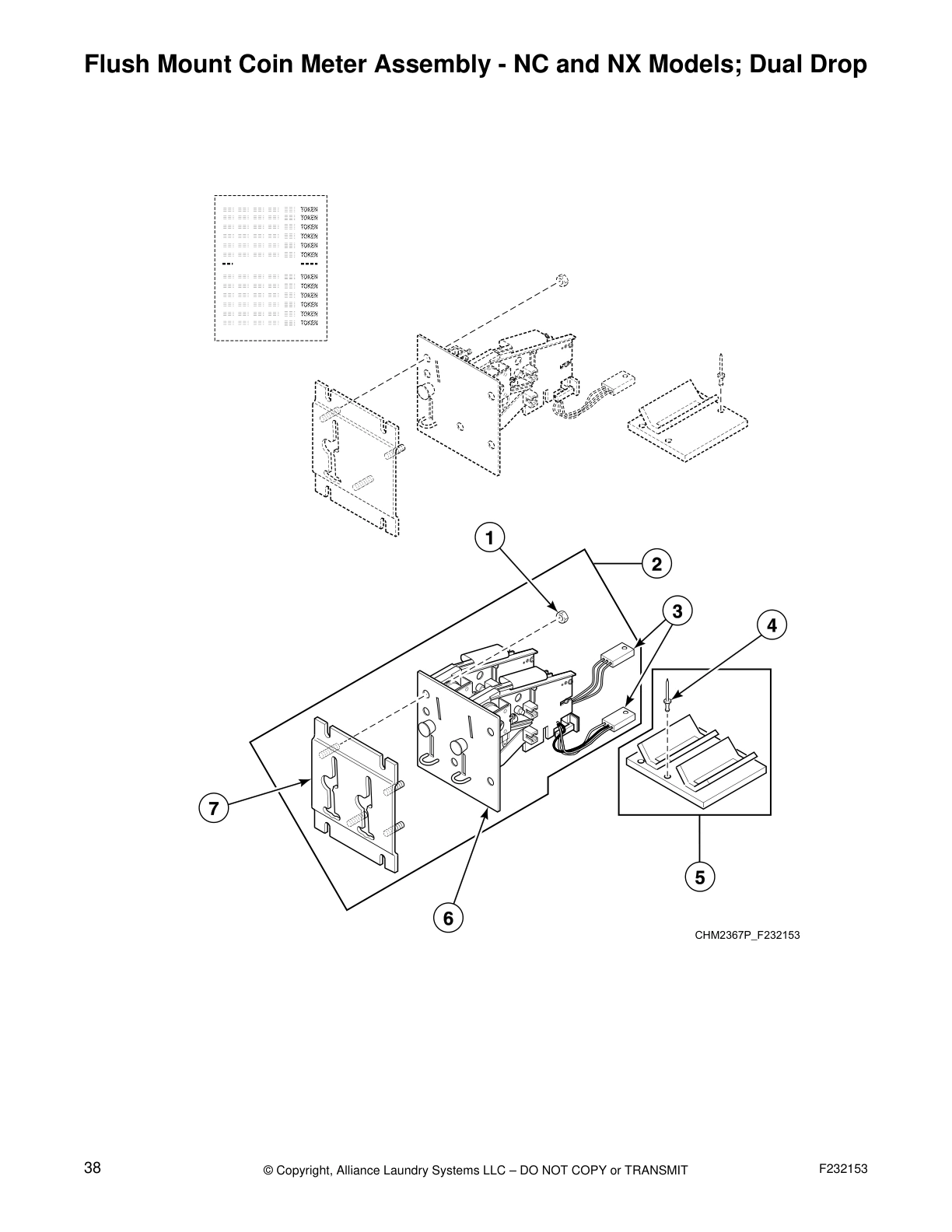

Flush Mount Coin Meter Assembly - NC and NX Models; Dual Drop

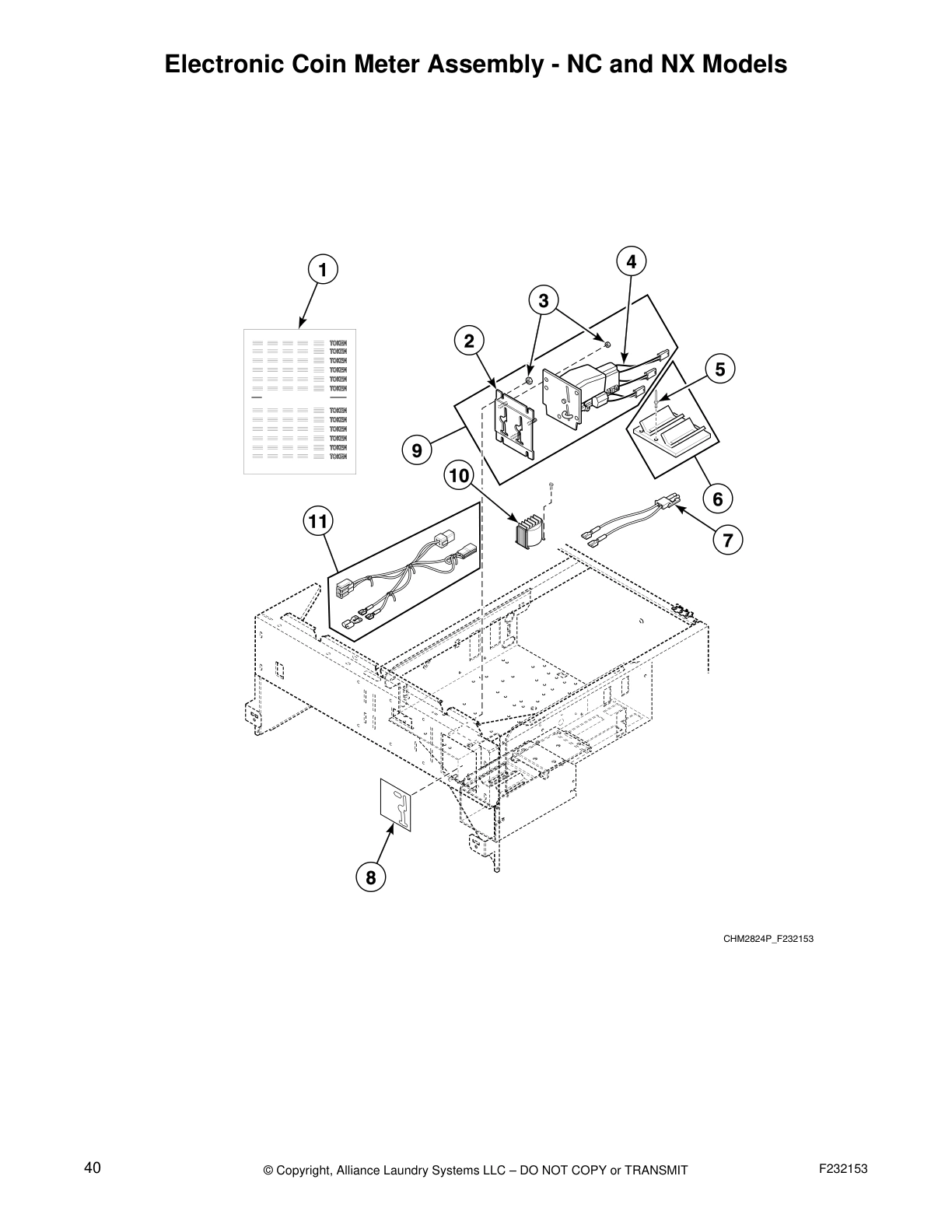

Electronic Coin Meter Assembly - NC and NX Models

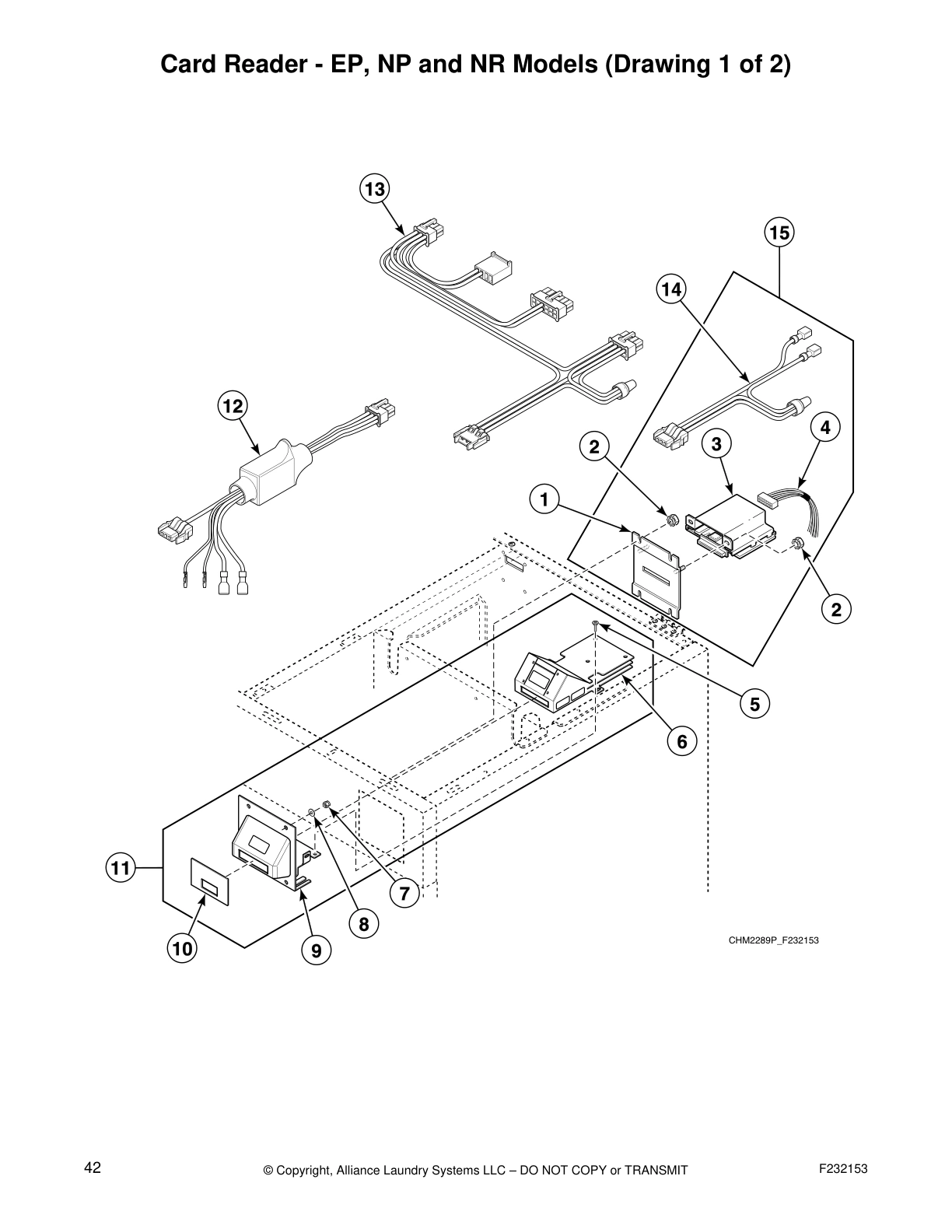

Card Reader - EP, NP and NR Models (Drawing 1 of 2)

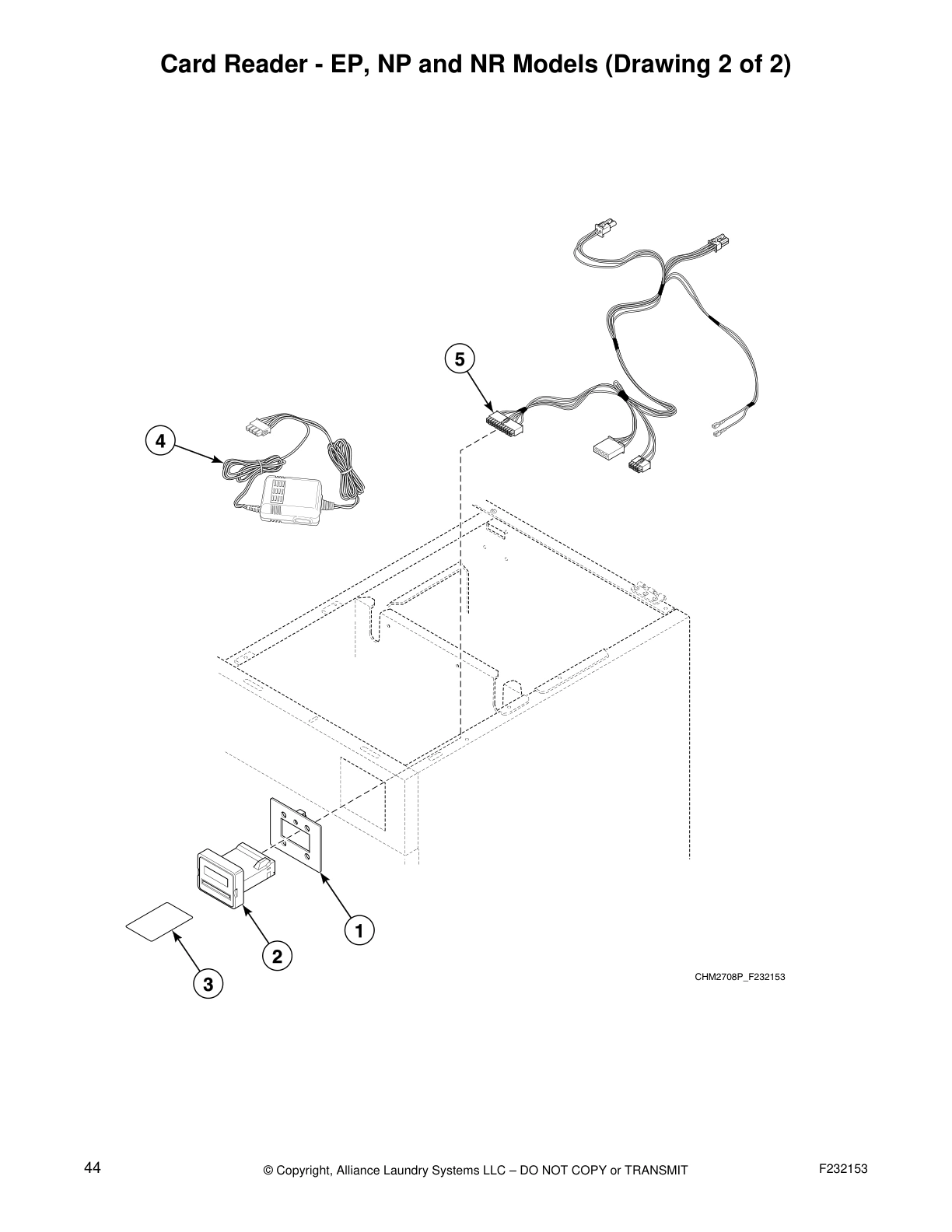

Card Reader - EP, NP and NR Models (Drawing 2 of 2)

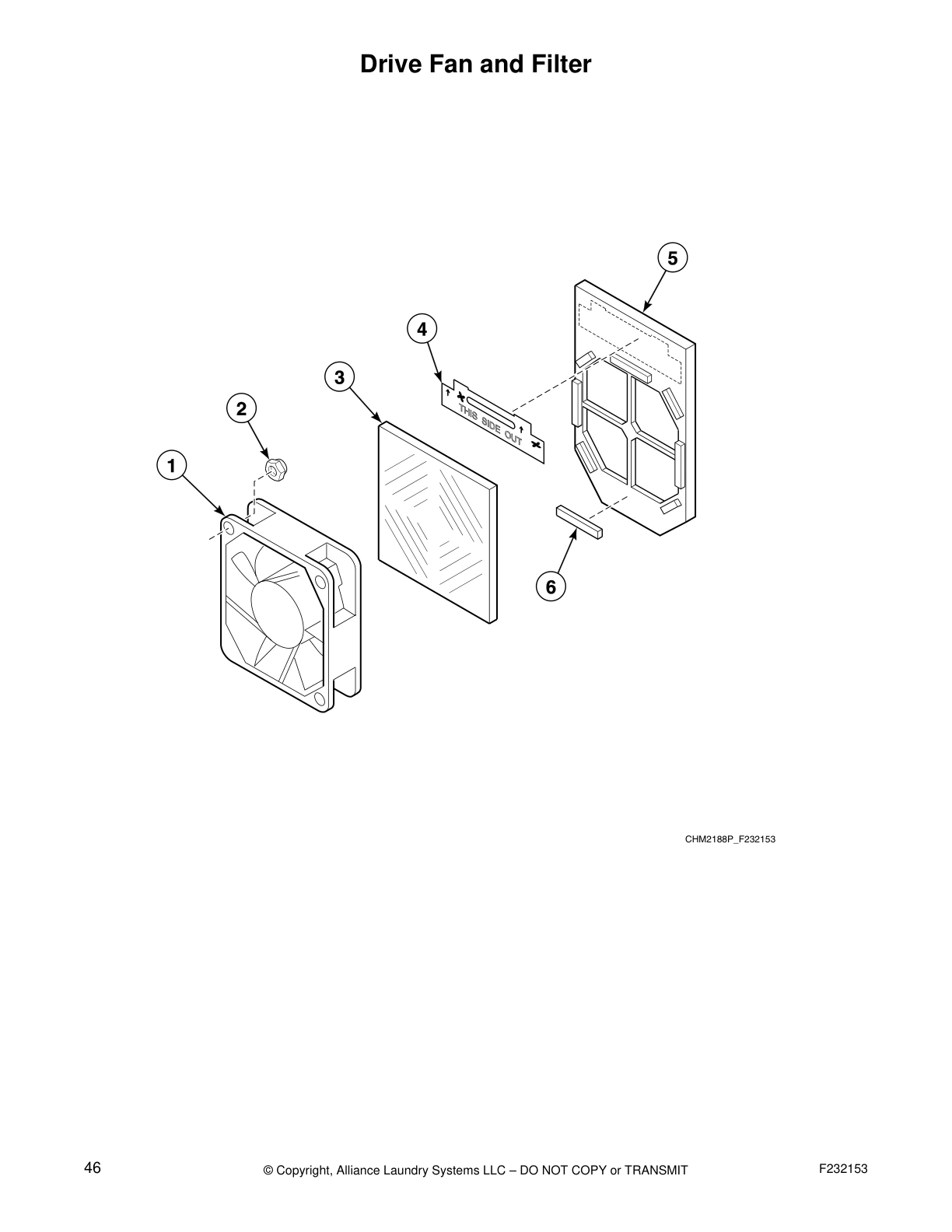

Drive Fan and Filter

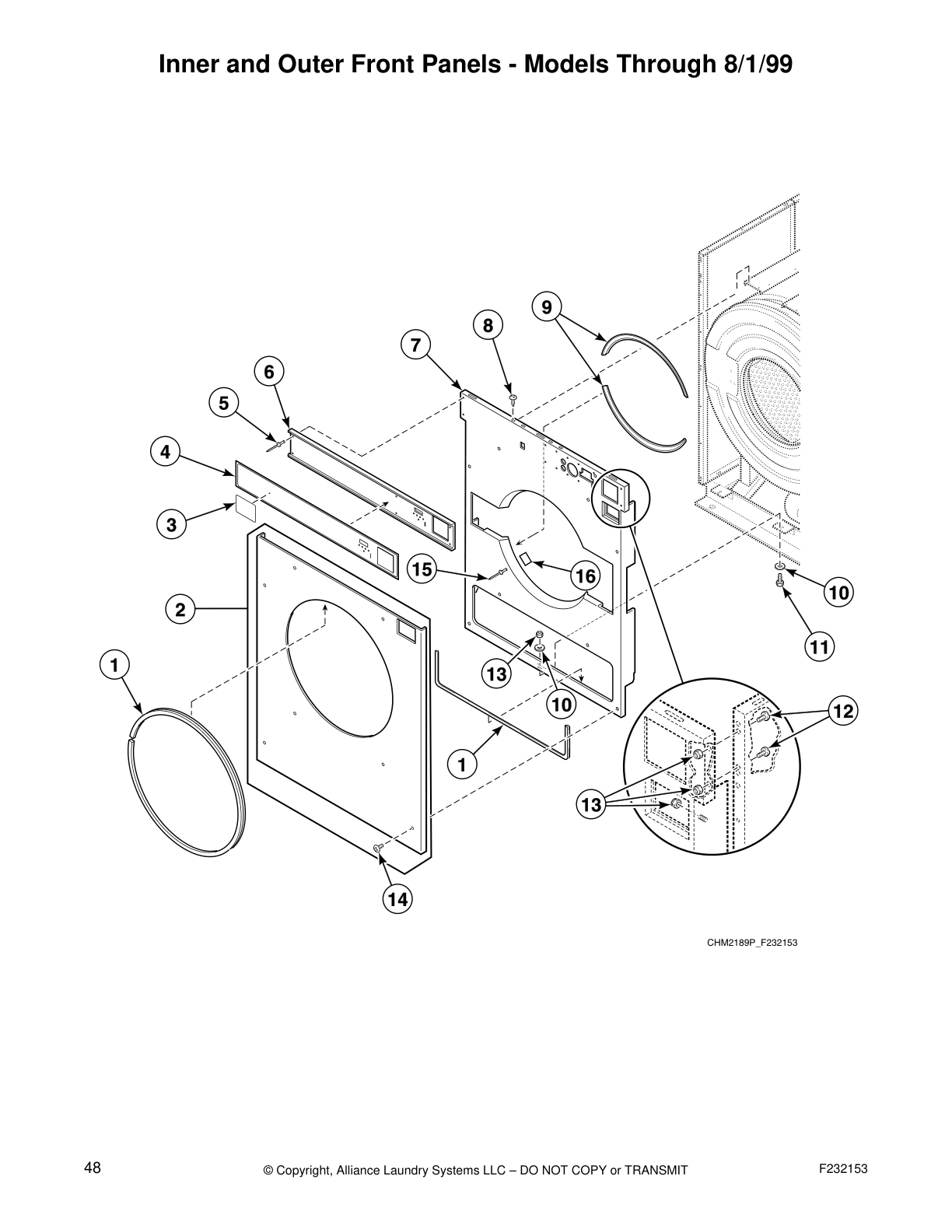

Inner and Outer Front Panels - Models Through 8/1/99

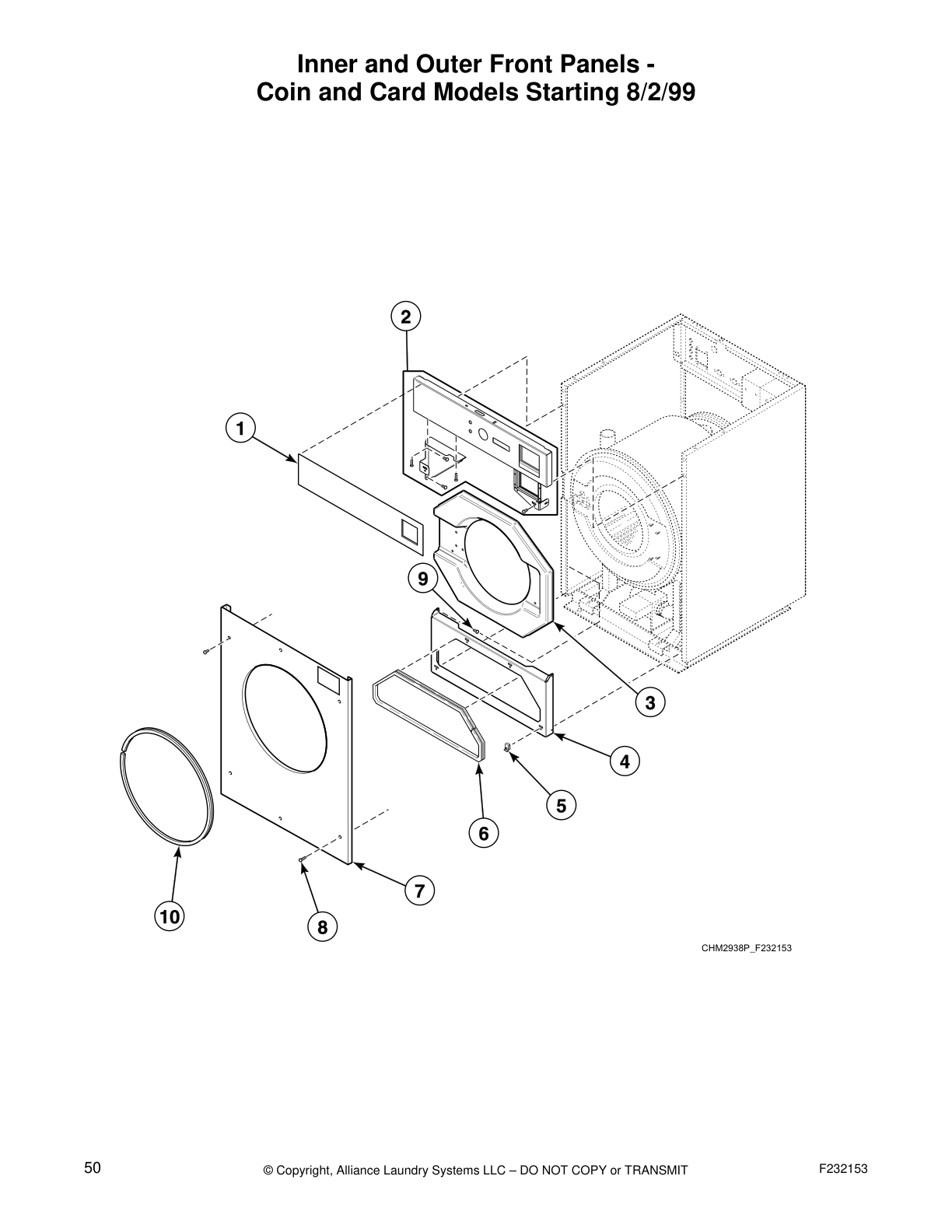

Inner and Outer Front Panels -
Coin and Card Models Starting 8/2/99

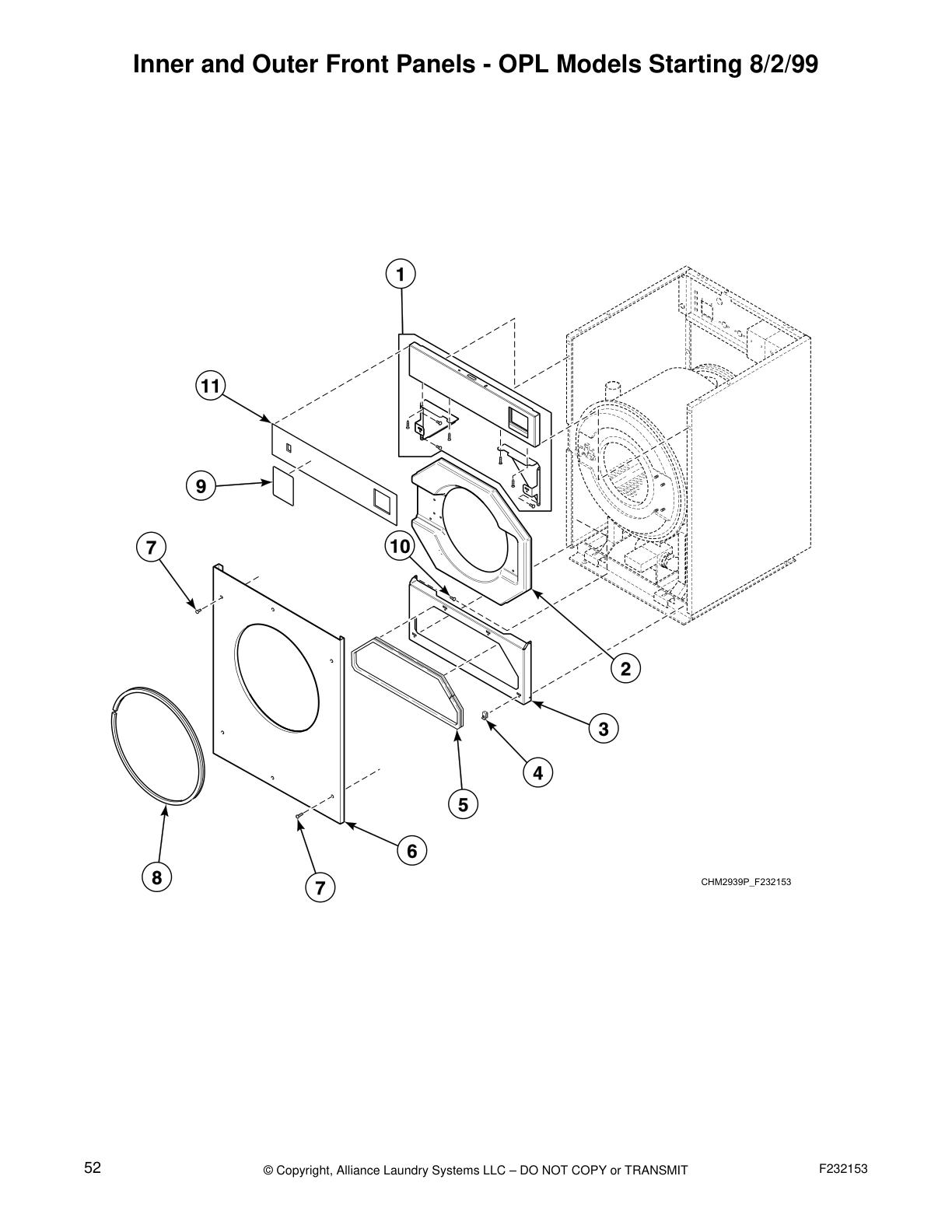

Inner and Outer Front Panels - OPL Models Starting 8/2/99

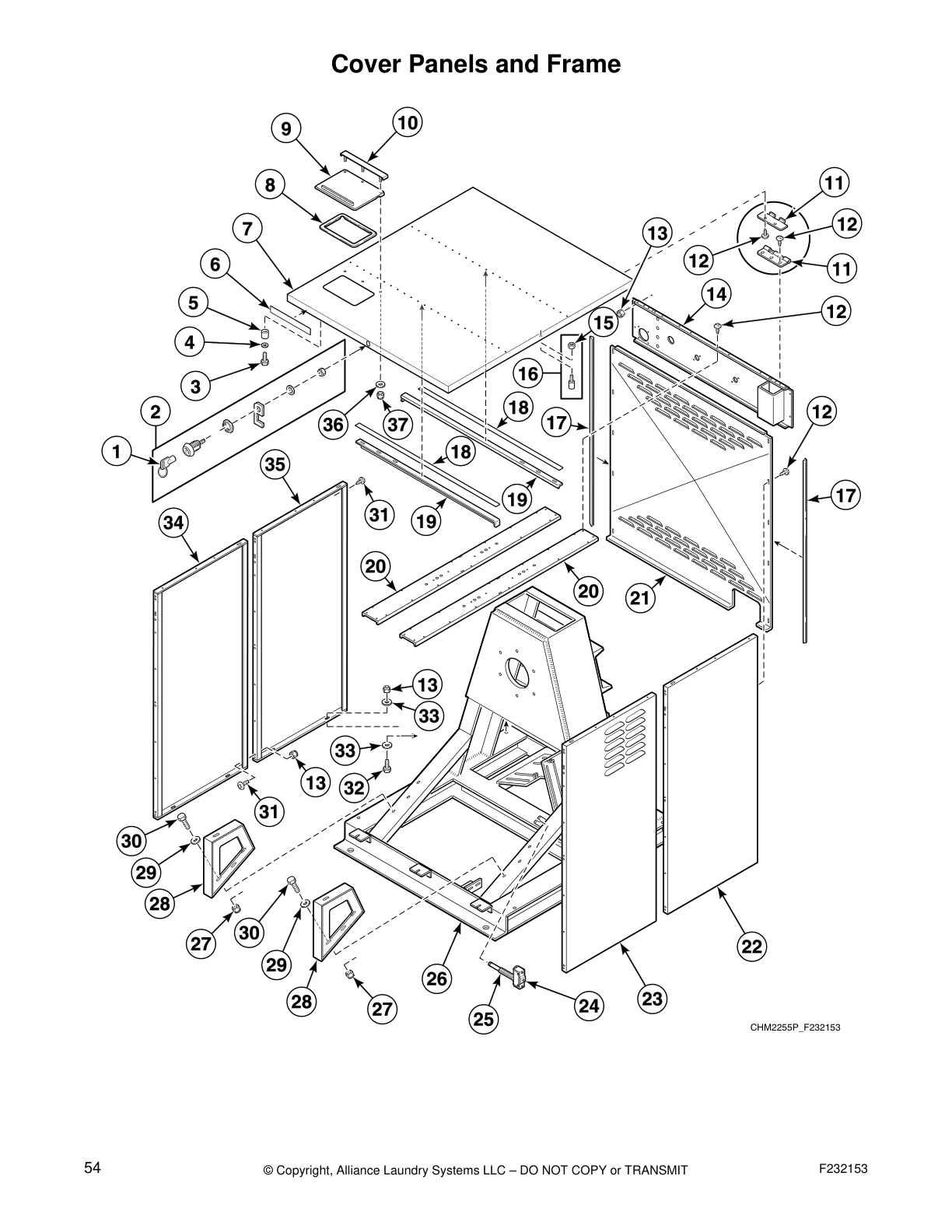

Cover Panels and Frame

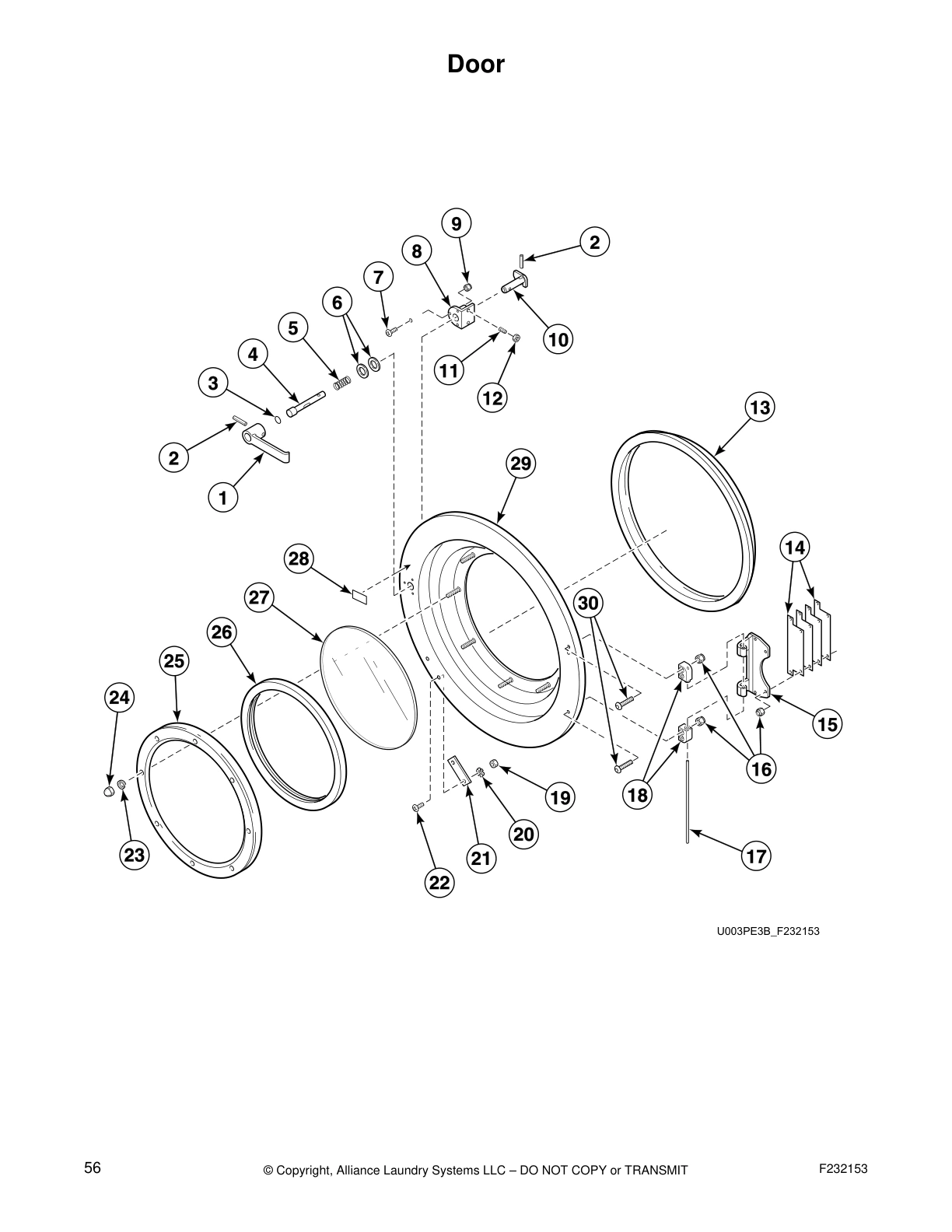

Door

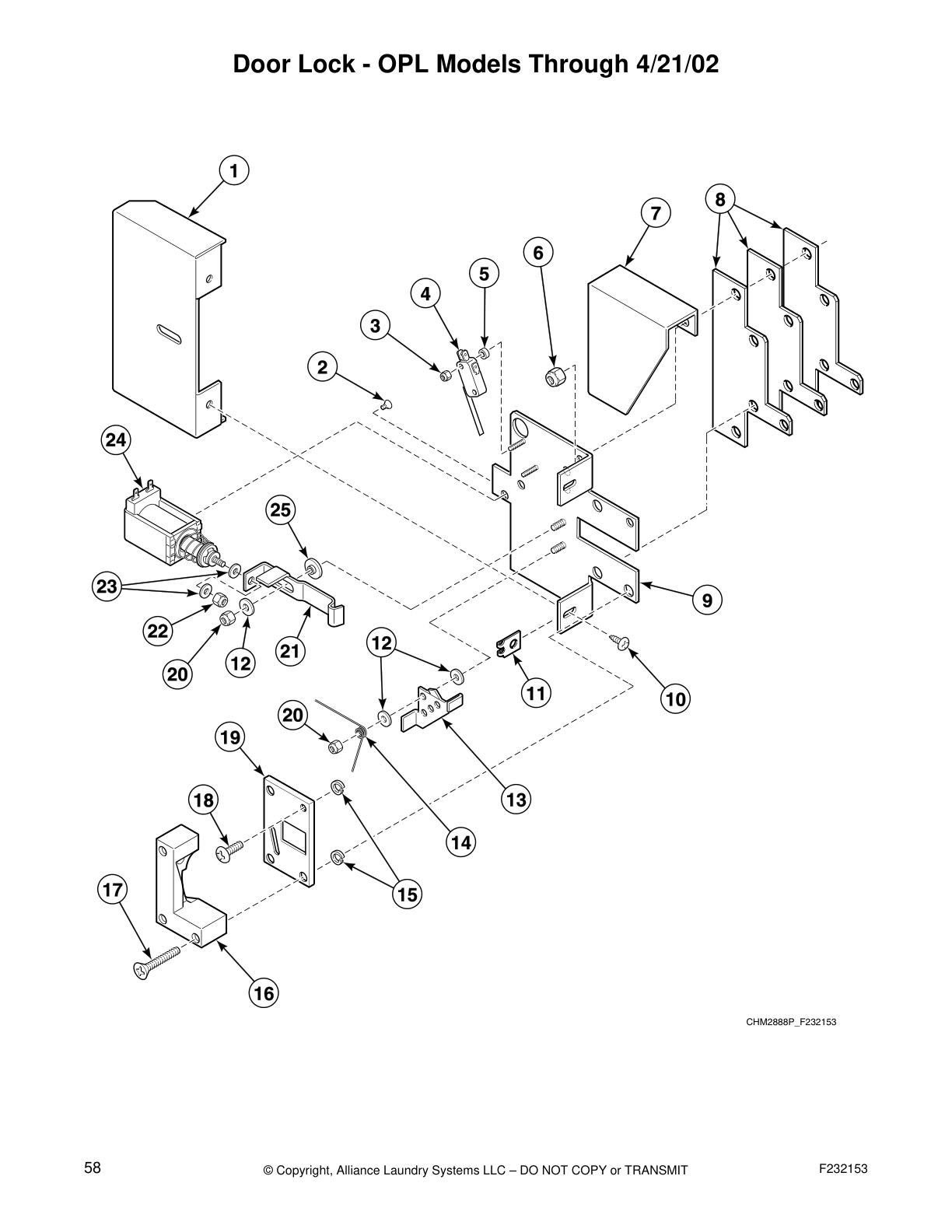

Door Lock - OPL Models Through 4/21/02

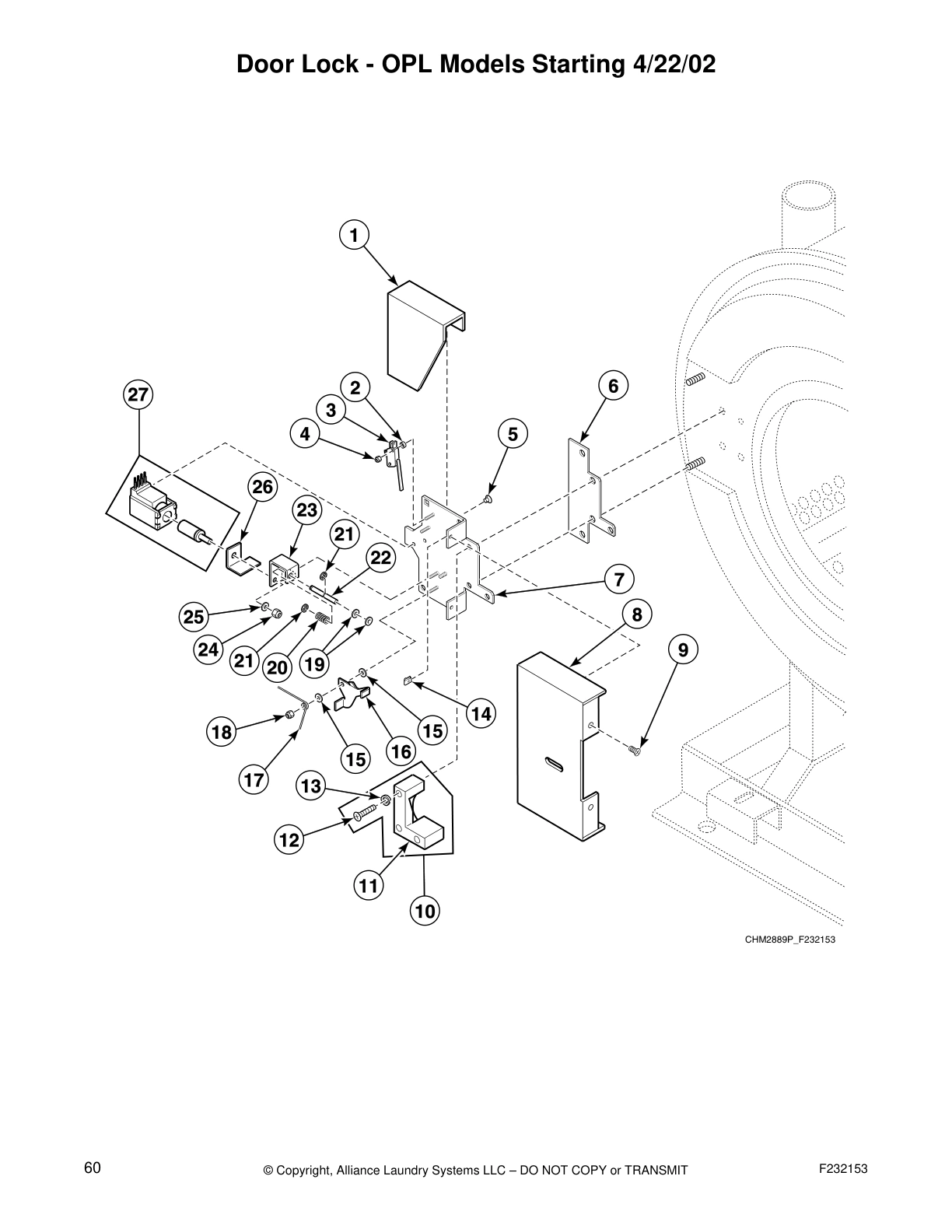

Door Lock - OPL Models Starting 4/22/02

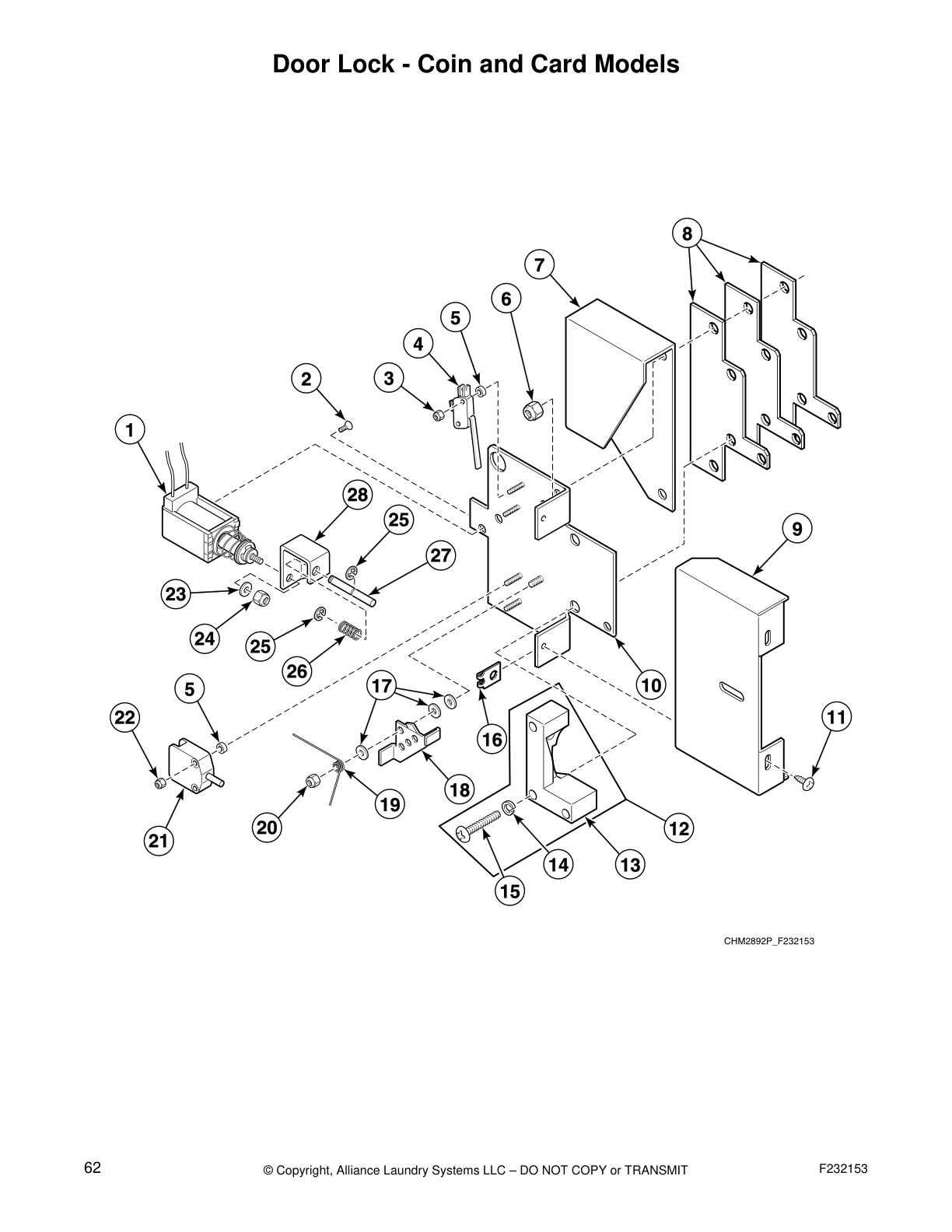

Door Lock - Coin and Card Models

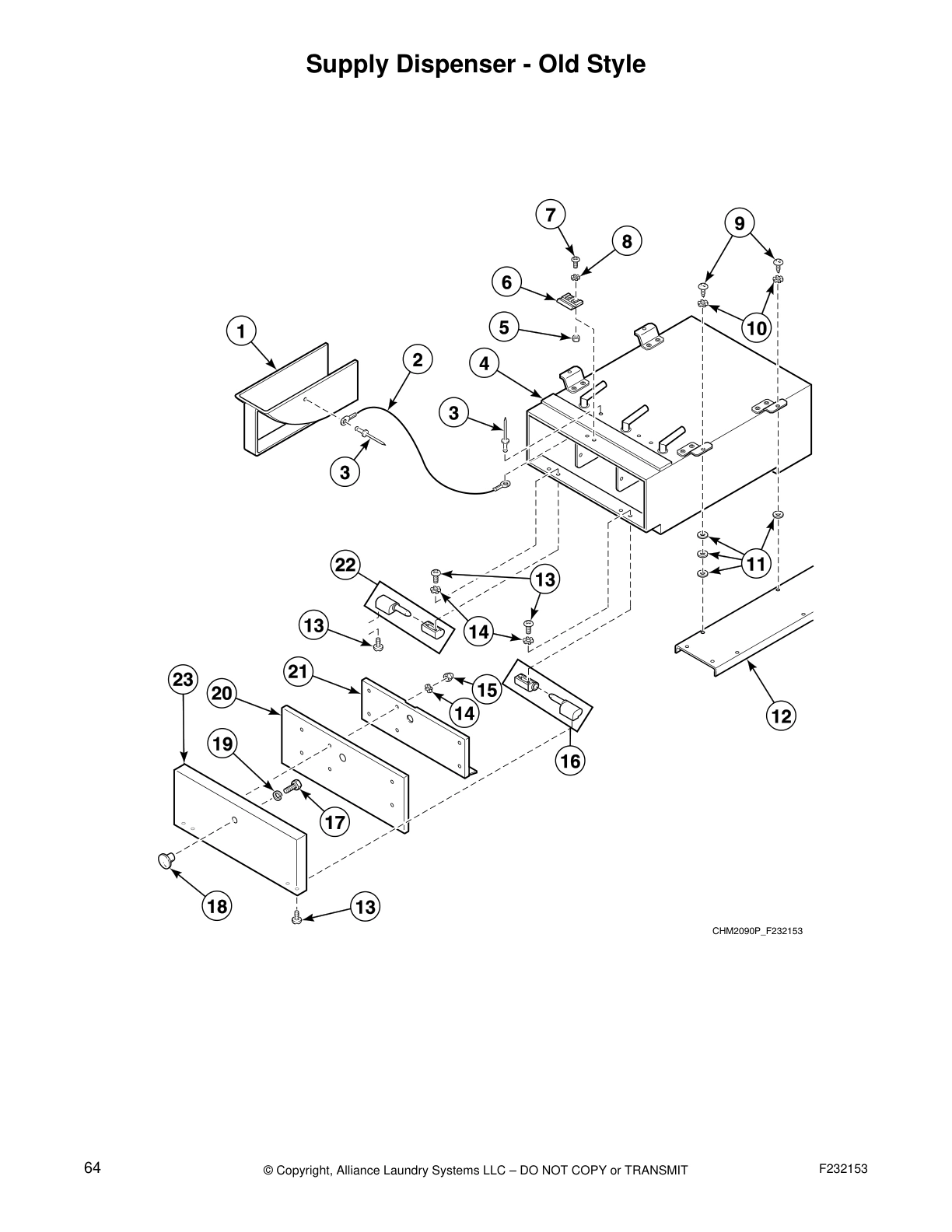

Supply Dispenser - Old Style

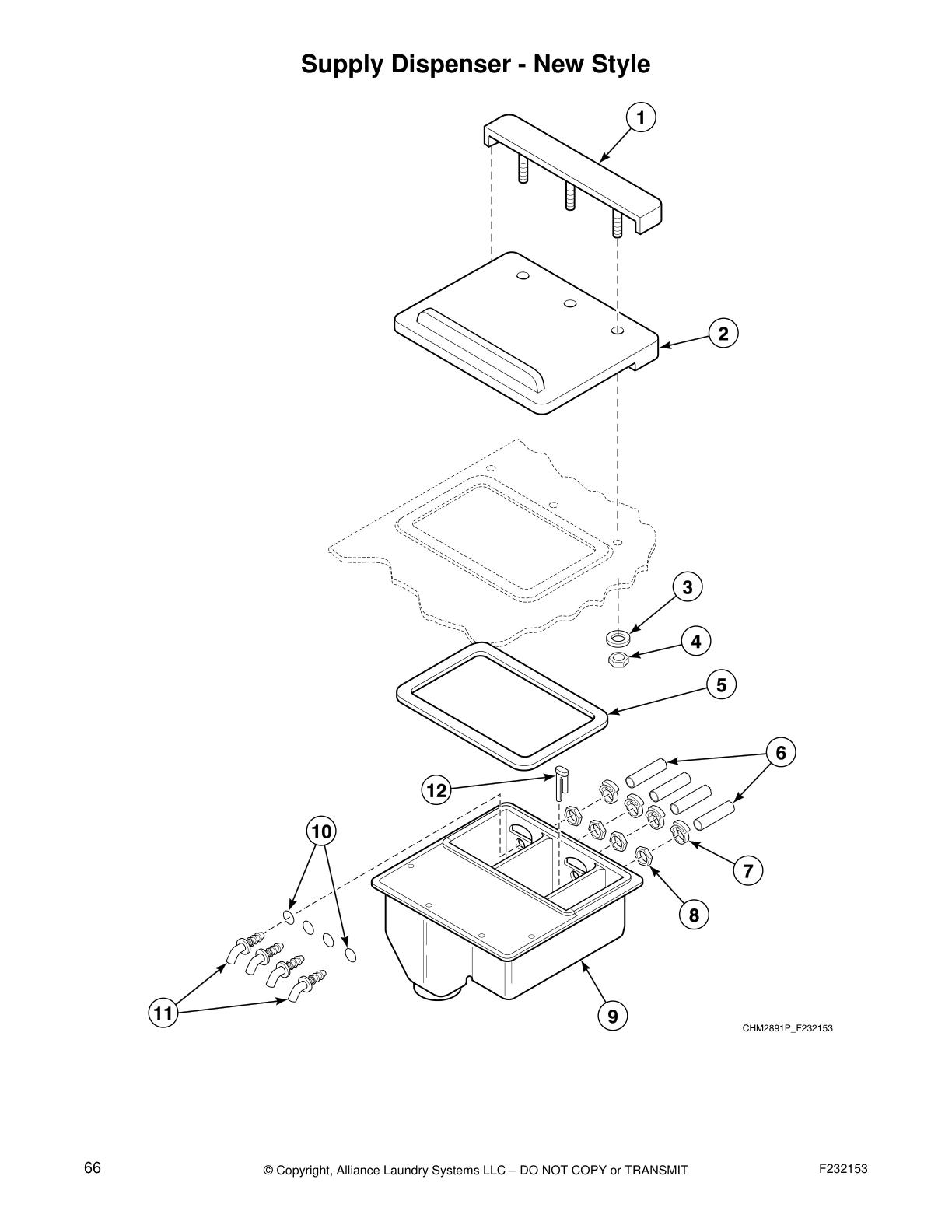

Supply Dispenser - New Style

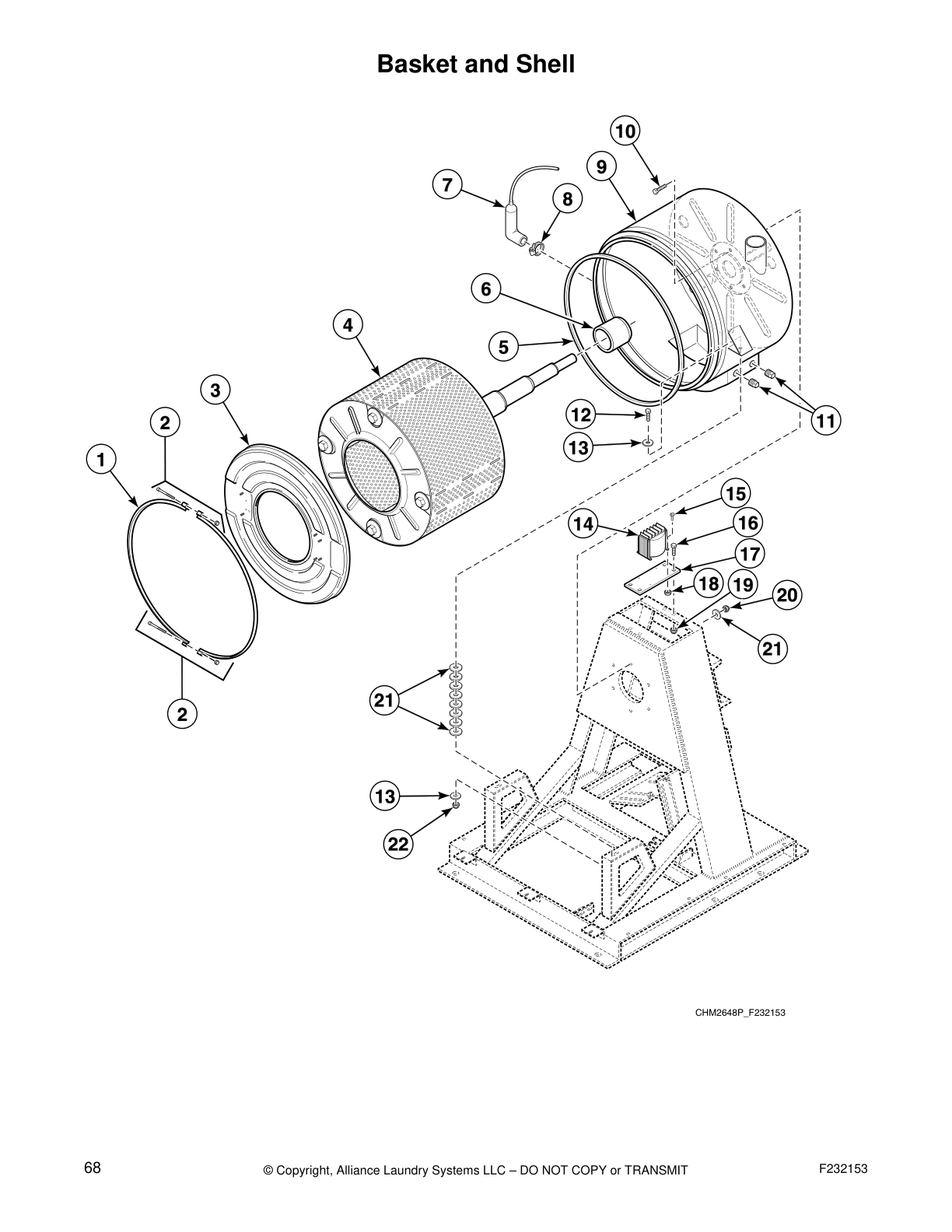

Basket and Shell

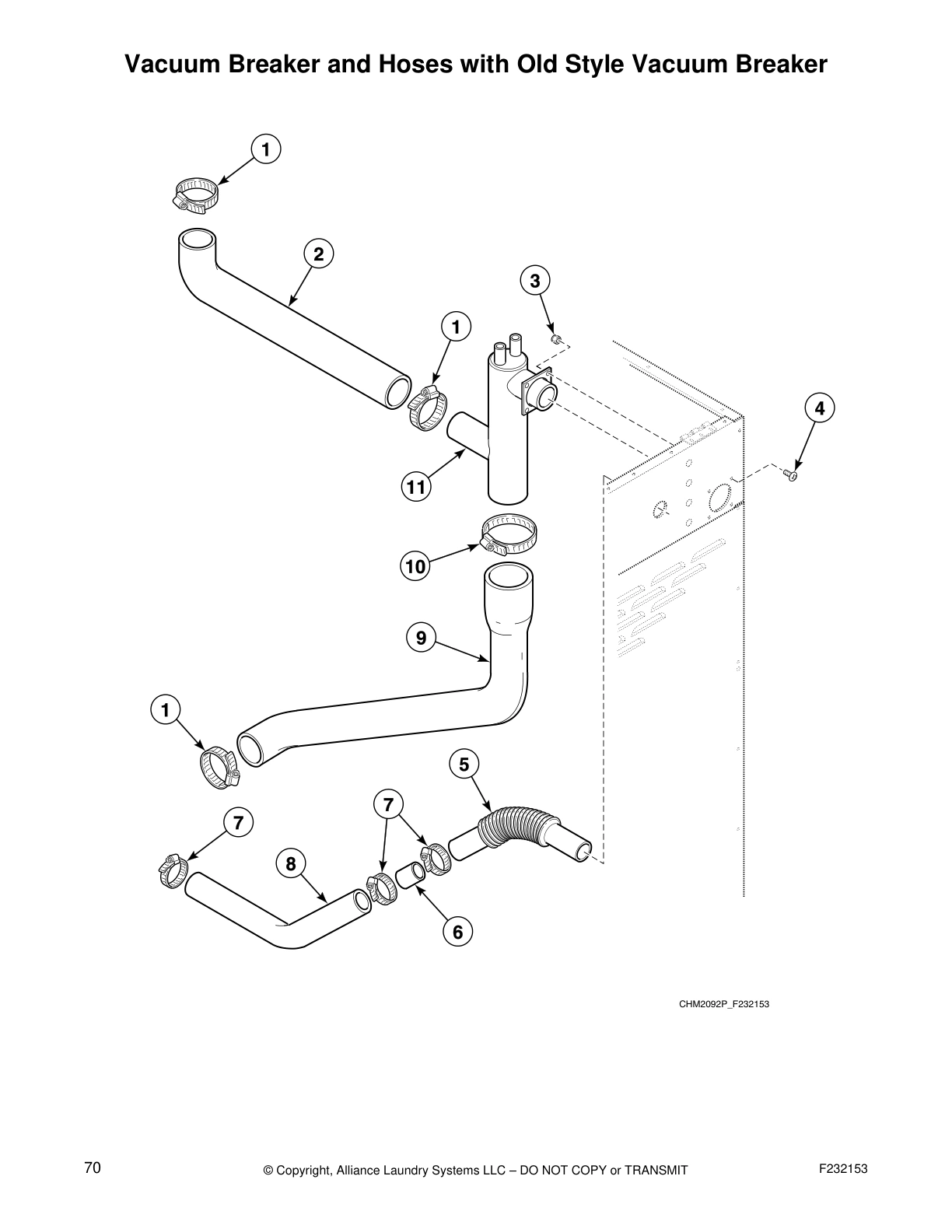

Vacuum Breaker and Hoses with Old Style Vacuum Breaker

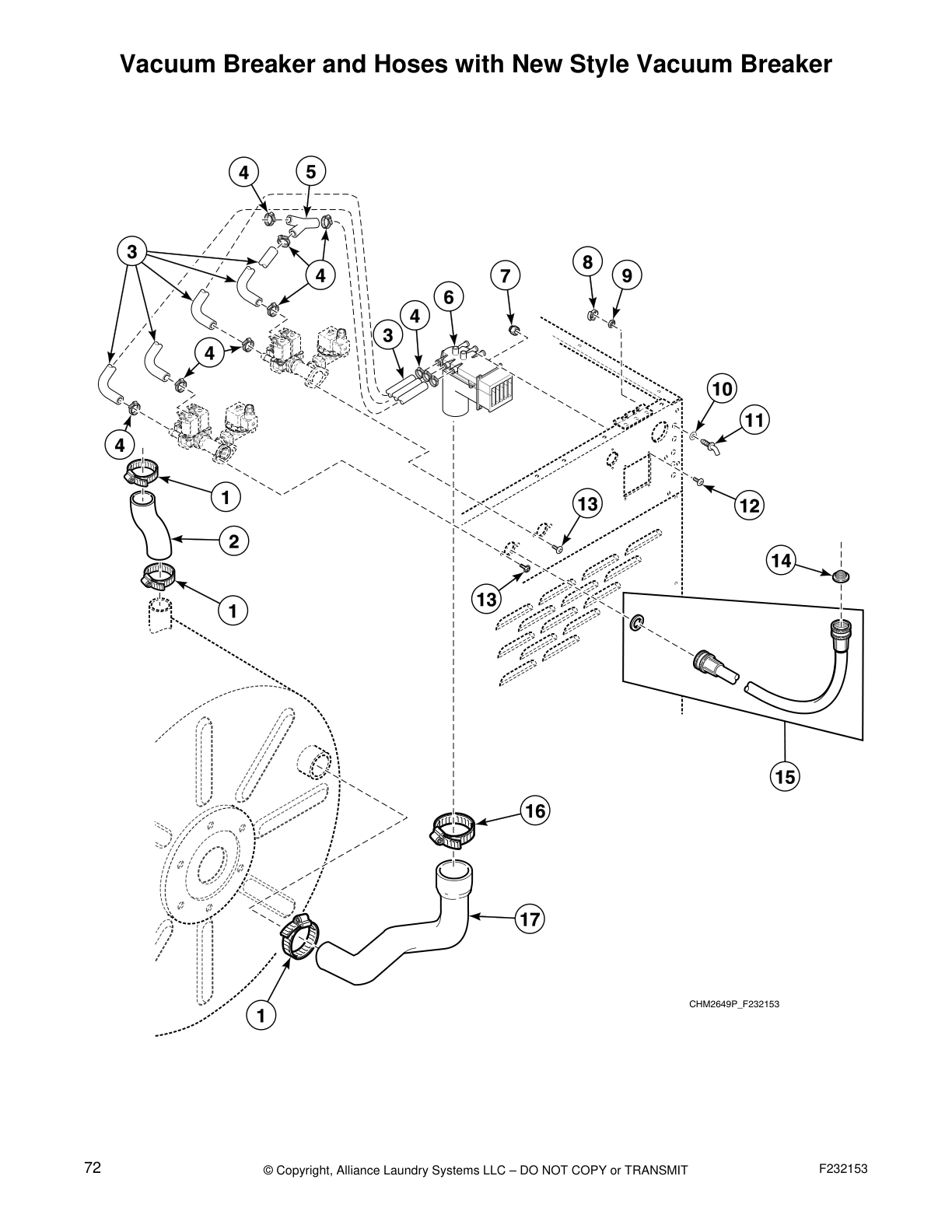

Vacuum Breaker and Hoses with New Style Vacuum Breaker

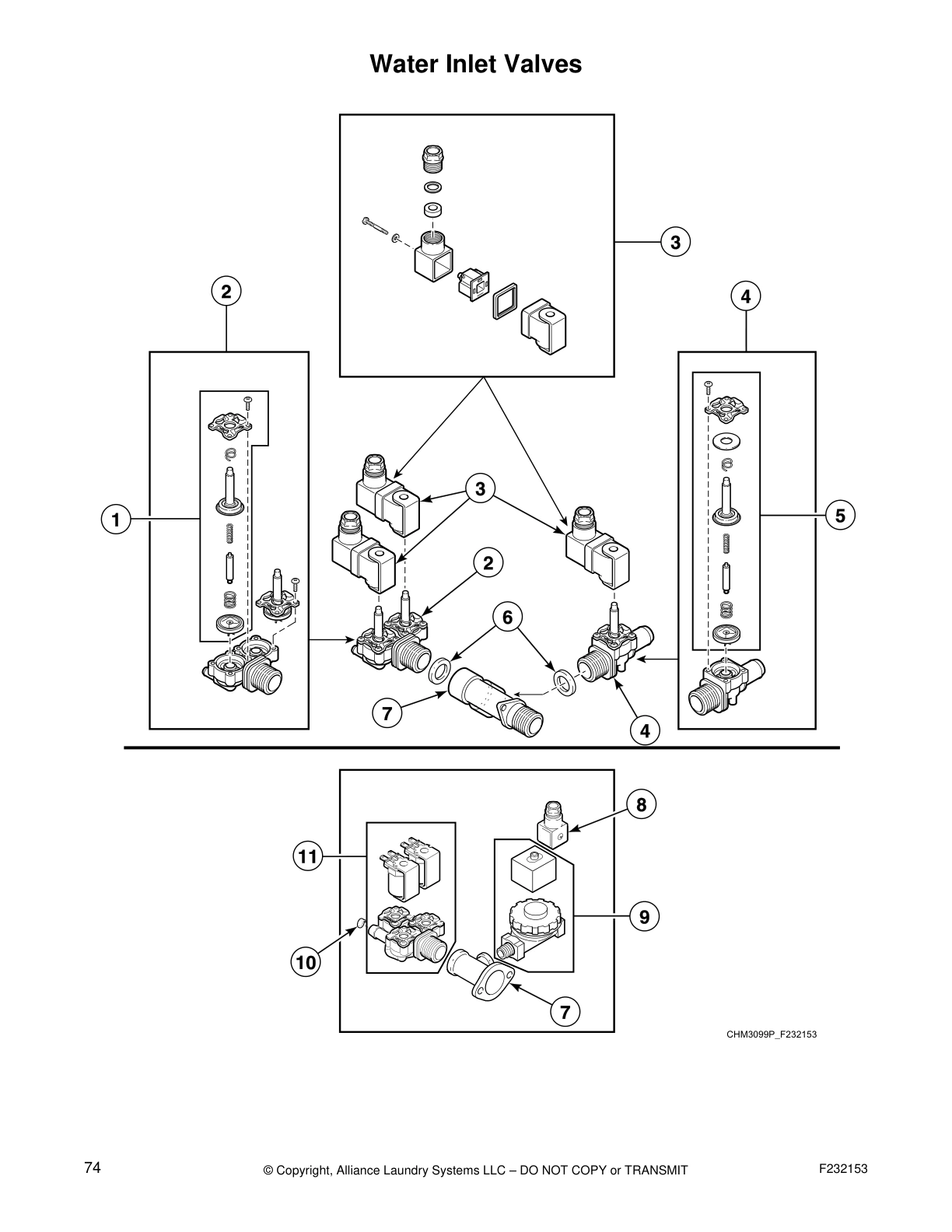

Water Inlet Valves

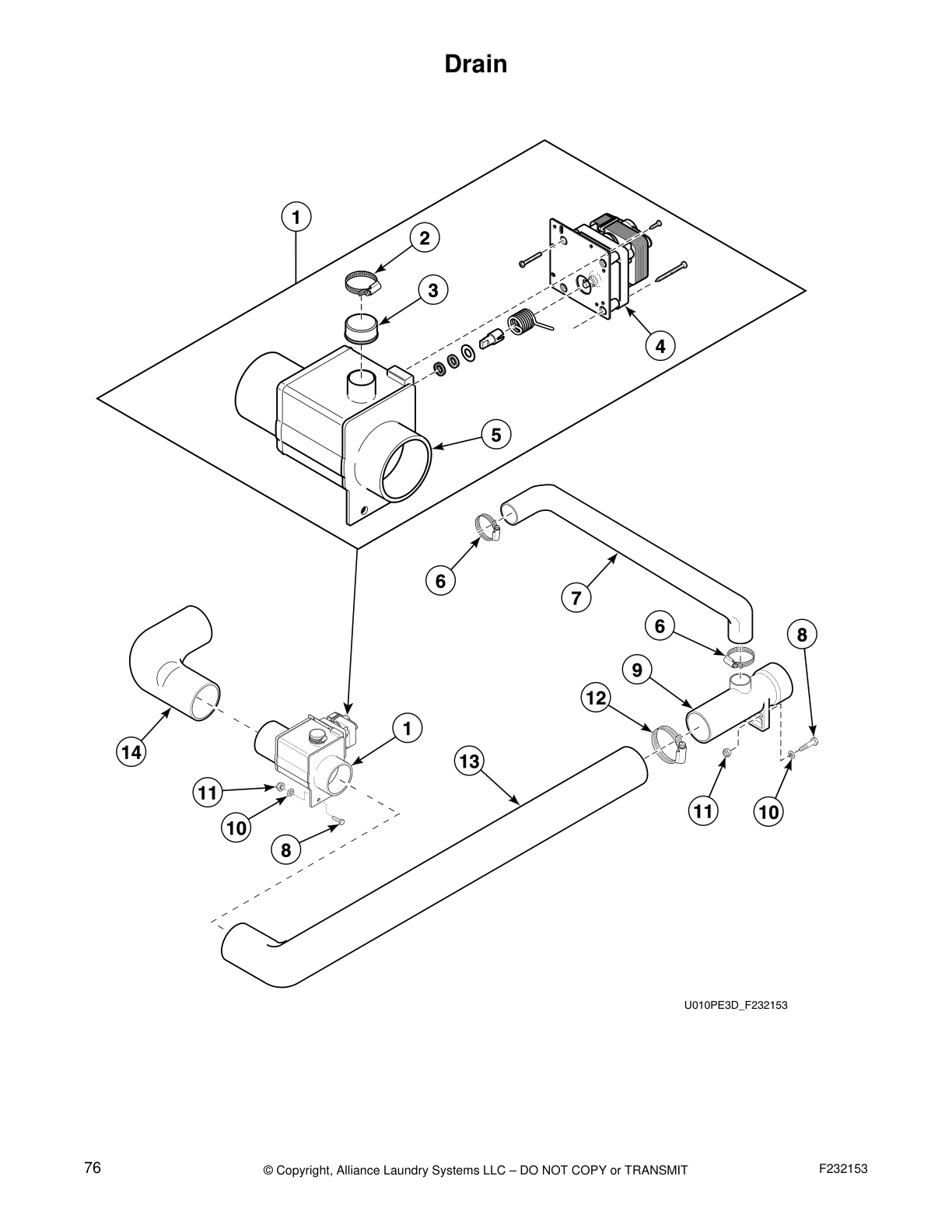

Drain

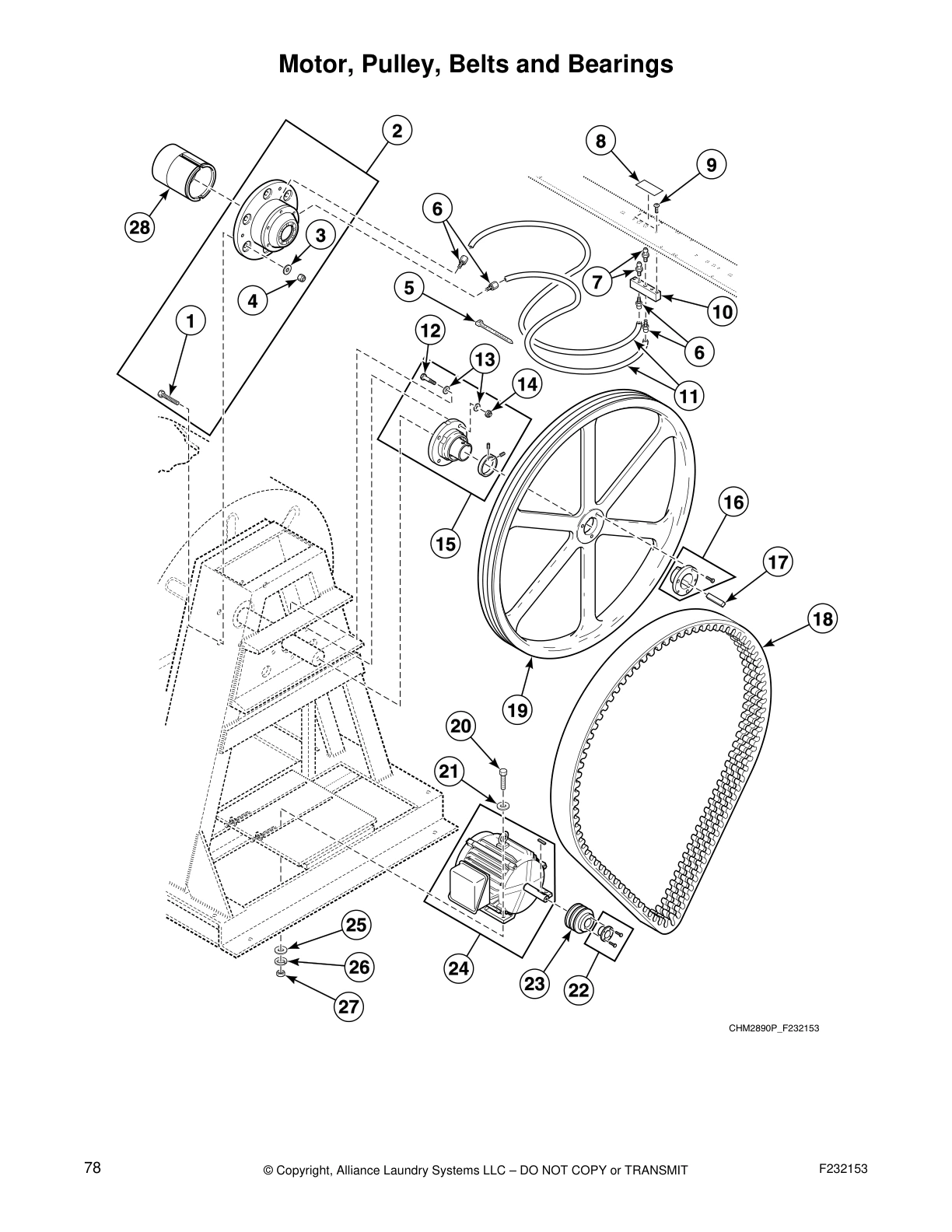

Motor, Pulley, Belts and Bearings

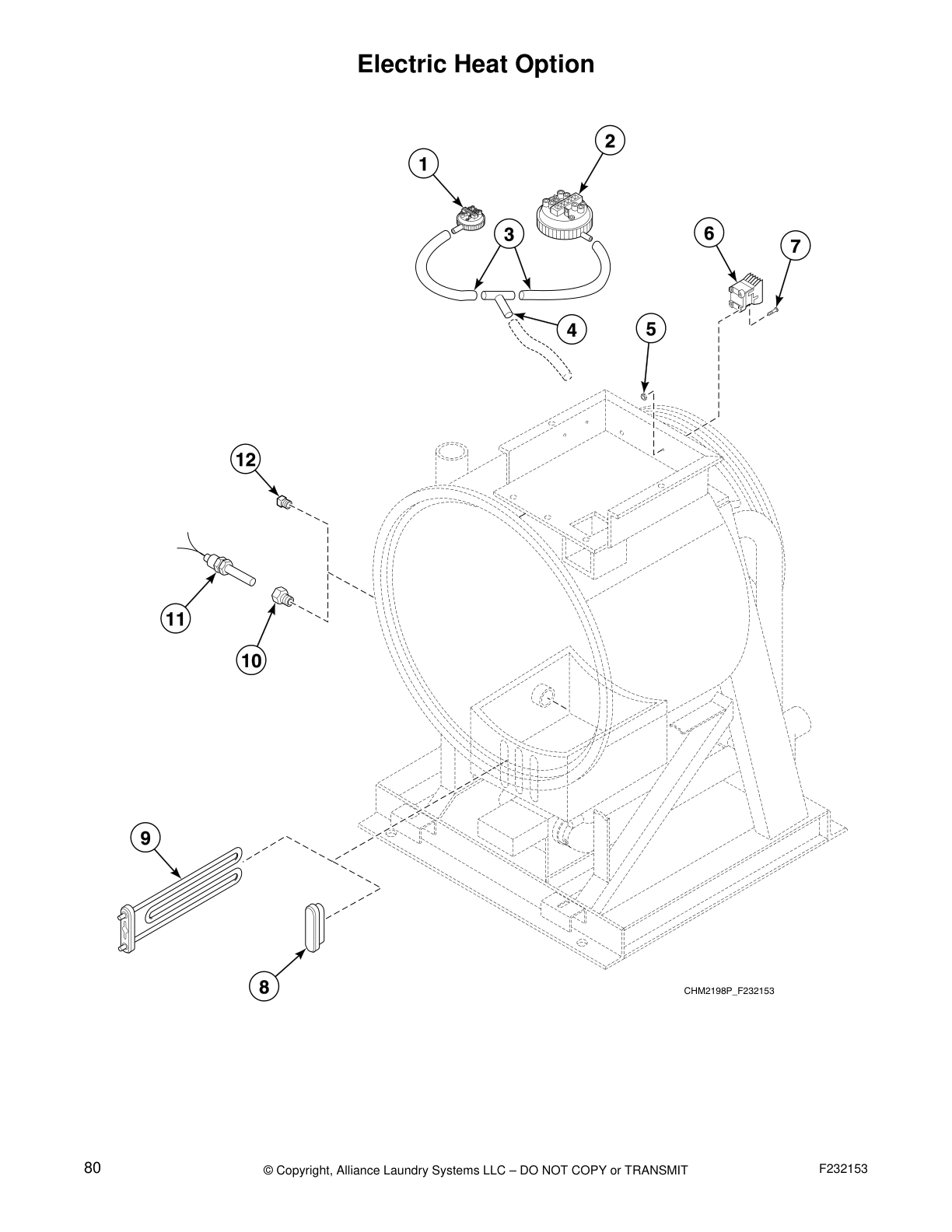

Electric Heat Option

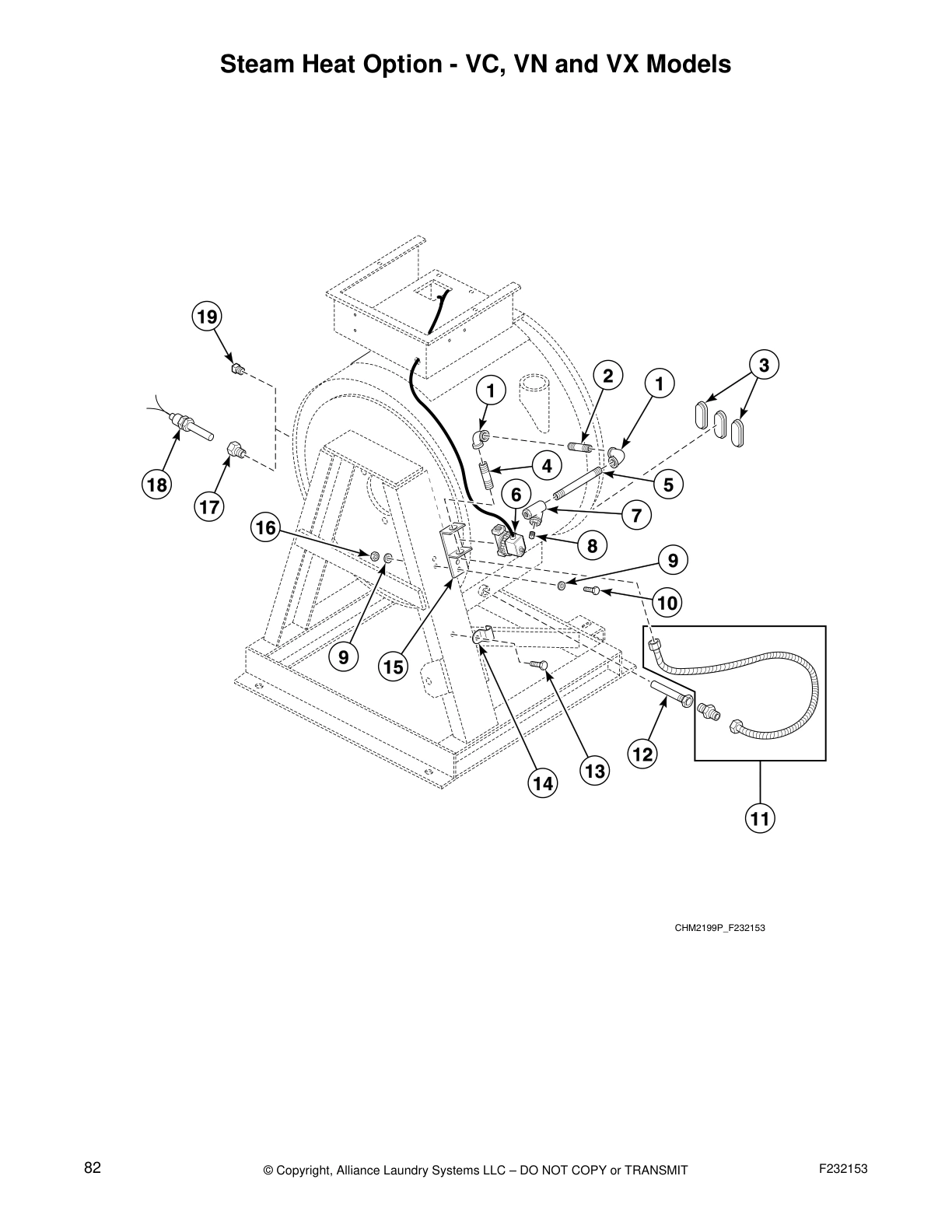

Steam Heat Option - VC, VN and VX Models

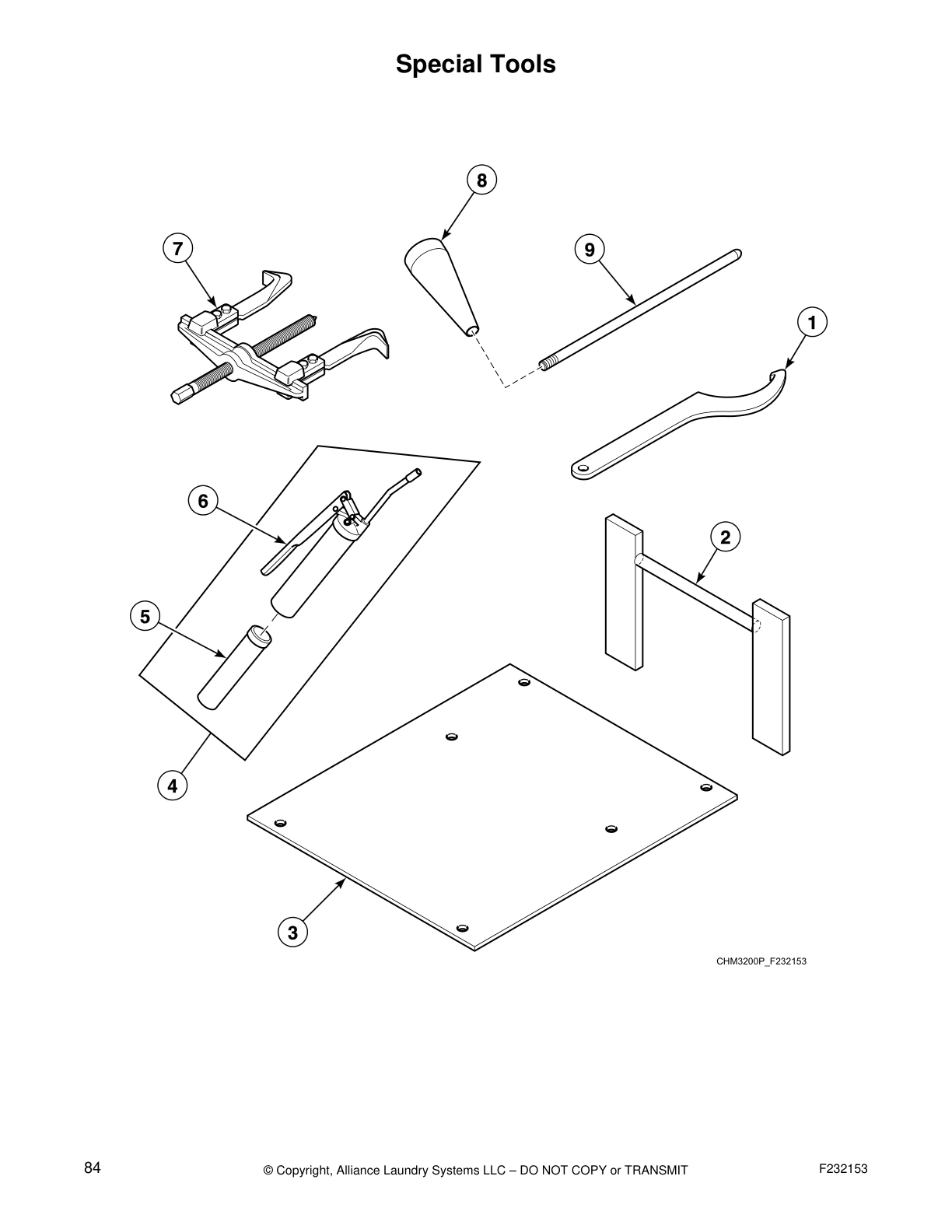

Special Tools
Common parts from model Alliance NC80NPV Washer
SPQ F150246 SPQ F150246 Contact Us For Availability
1
Trim SPQ F015050100P Contact Us For Availability
1
Mounting Bracket Assembly SPQ F635320 Contact Us For Availability
1
Mounting Plate Assembly SPQ D512506 Contact Us For Availability
1
Muffin Fan SPQ F110105 Contact Us For Availability
1
Key SPQ F160562 Contact Us For Availability
1
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
1
Door Handle SPQ F150225 Contact Us For Availability
1
Solenoid SPQ F300125P Contact Us For Availability
1
Supply Dispenser Cup SPQ F150368 Contact Us For Availability
1
Shell Band Kit SPQ F8537808 Contact Us For Availability
1
Screw SPQ F430947 Contact Us For Availability
1
Drain Valve Kit SPQ F200166300 Contact Us For Availability
1
Locknut Spanner Wrench SPQ F703654 Contact Us For Availability
2
Siphon Tube SPQ F150390 Contact Us For Availability
2
Magnet SPQ F431222 Contact Us For Availability
2
Water Level Switch SPQ F0340351-10P Contact Us For Availability
2
AC Drive Radio Filter Assembly SPQ F200320900 Contact Us For Availability
2
Nut SPQ F200019900 Contact Us For Availability
2
Card Reader SPQ D512473 Contact Us For Availability
2
Gasket SPQ F200321200 Contact Us For Availability
2
Control Panel Assembly SPQ F635349 Contact Us For Availability
2
Door Bezel SPQ F170419-1 Contact Us For Availability
2
Top Brace SPQ F603980 Contact Us For Availability
2
Door Lock Pin Release Spring SPQ F430977 Contact Us For Availability
2
Shell Front Assembly SPQ F791001 Contact Us For Availability
2
Top Fill Hose SPQ F150413 Contact Us For Availability
2
Y Connector SPQ F200164 Contact Us For Availability
2
Coil SPQ F381721P Contact Us For Availability
2
Hose Clamp SPQ F200215 Contact Us For Availability
2
Front Bearing Kit SPQ F150268 Contact Us For Availability
2
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
3
Filter SPQ F0270321-00P Contact Us For Availability
3
Programming Card SPQ D512499P Contact Us For Availability
3
Front Cabinet Brace SPQ F634804 Contact Us For Availability
3
Supply Dispenser Lid SPQ F603947 Contact Us For Availability
3
Supply Dispenser Lid SPQ F200270500 Contact Us For Availability
3
Door Lock Spring SPQ F608782-2 Contact Us For Availability
3
SPQ F430225 SPQ F430225 Contact Us For Availability
3
SPQ F749803 SPQ F749803 Contact Us For Availability
3
Air Trap Hose SPQ F603988P Contact Us For Availability
3
1-Way Valve SPQ F380952P Contact Us For Availability
3
Overflow Plug SPQ F150352 Contact Us For Availability
3
SPQ F100307 SPQ F100307 Contact Us For Availability
3
Tubing SPQ F422404P Contact Us For Availability
3
Heating Element Plug SPQ F360202 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F609692 Contact Us For Availability
4
SPQ F200203200 SPQ F200203200 Contact Us For Availability
4
Power Supply SPQ D512497 Contact Us For Availability
4
Filter Handle Decal SPQ F231377 Contact Us For Availability
4
Washer SPQ F431147 Contact Us For Availability
4
SPQ F430974 SPQ F430974 Contact Us For Availability
4
SPQ F431223 SPQ F431223 Contact Us For Availability
4
Hose Clamp SPQ F8407401 Contact Us For Availability
4
SPQ F430325 SPQ F430325 Contact Us For Availability
4
Nut SPQ F150492 Contact Us For Availability
4
Valve Repair Kit SPQ F380790 Contact Us For Availability
4
Drain Motor SPQ F380943P Contact Us For Availability
4
Tee SPQ F422806 Contact Us For Availability
4
Grease Gun Kit SPQ F798700 Contact Us For Availability
5
Shell Weldment SPQ F792000 Contact Us For Availability
5
Nut SPQ F430231 Contact Us For Availability
5
Pop Rivet SPQ F431215 Contact Us For Availability
5
Screw SPQ F141889 Contact Us For Availability
5
Harness SPQ D512496 Contact Us For Availability
5
Cooling Fan Filter Slide SPQ F633321 Contact Us For Availability
5
Nut SPQ F431024 Contact Us For Availability
5
SPQ F320300 SPQ F320300 Contact Us For Availability
5
SPQ F431901 SPQ F431901 Contact Us For Availability
5
SPQ F608800-1 SPQ F608800-1 Contact Us For Availability
5
SPQ F430201 SPQ F430201 Contact Us For Availability
5
Vent Hose SPQ F200170 Contact Us For Availability
5
SPQ F150493 SPQ F150493 Contact Us For Availability
5
Washer SPQ F380983P Contact Us For Availability
5
Drain Valve Motor SPQ F8618901P Contact Us For Availability
5
Bearing Grease SPQ F210206P Contact Us For Availability
6
Contactor SPQ F330175P Contact Us For Availability
6
Drain Valve SPQ F8406303 Contact Us For Availability
6
Washer SPQ F180501 Contact Us For Availability
6
Coin Guide Kit SPQ F200002505 Contact Us For Availability
6
Velcro SPQ F140639 Contact Us For Availability
6
Front Panel SPQ F8200702P Contact Us For Availability
6
SPQ F310125 SPQ F310125 Contact Us For Availability
6
SPQ F8312007P SPQ F8312007P Contact Us For Availability
6
Pipe SPQ F608237 Contact Us For Availability
6
SPQ F200108P SPQ F200108P Contact Us For Availability
6
Water Connection Inlet Manifold SPQ F380900 Contact Us For Availability
6
SPQ F140605 SPQ F140605 Contact Us For Availability
6
Grease Gun SPQ F210207P Contact Us For Availability
7
Tubing SPQ F200168P Contact Us For Availability
7
SPQ F370433P SPQ F370433P Contact Us For Availability
7
Coin Guide Assembly SPQ F200002504P Contact Us For Availability
7
Washer SPQ F141887 Contact Us For Availability
7
Trim SPQ F634818-5P Contact Us For Availability
7
SPQ F431103 SPQ F431103 Contact Us For Availability
7
SPQ F431916 SPQ F431916 Contact Us For Availability
7
SPQ F320200 SPQ F320200 Contact Us For Availability
7
SPQ F432223 SPQ F432223 Contact Us For Availability
7
SPQ F020014200 SPQ F020014200 Contact Us For Availability
7
Overflow Hose SPQ F200213 Contact Us For Availability
7
DIN Connector SPQ F380953P Contact Us For Availability
7
SPQ J1408004 SPQ J1408004 Contact Us For Availability
7
Screw SPQ F430917 Contact Us For Availability
7
Basket Puller Tool SPQ F460129P Contact Us For Availability
8
Valve SPQ F380939 Contact Us For Availability
8
SPQ F350142 SPQ F350142 Contact Us For Availability
8
SPQ F757476 SPQ F757476 Contact Us For Availability
8
SPQ F430416 SPQ F430416 Contact Us For Availability
8
SPQ F431907 SPQ F431907 Contact Us For Availability
8
SPQ F8059701 SPQ F8059701 Contact Us For Availability
8
Overflow Hose SPQ F150317 Contact Us For Availability
8
SPQ F422808 SPQ F422808 Contact Us For Availability
8
Screw SPQ F150401 Contact Us For Availability
8
SPQ F190701 SPQ F190701 Contact Us For Availability
8
Cone SPQ 399P4 Contact Us For Availability
9
SPQ F603031 SPQ F603031 Contact Us For Availability
9
SPQ F0360170-00P SPQ F0360170-00P Contact Us For Availability
9
SPQ F635398 SPQ F635398 Contact Us For Availability
9
Washer SPQ F430317 Contact Us For Availability
9
SPQ F8535601 SPQ F8535601 Contact Us For Availability
9
SPQ F431113 SPQ F431113 Contact Us For Availability
9
SPQ F603003 SPQ F603003 Contact Us For Availability
9
SPQ F634696 SPQ F634696 Contact Us For Availability
9
Bottom Fill Hose SPQ F150414 Contact Us For Availability
9
Drain Tee SPQ F430103 Contact Us For Availability
9
SPQ F231078 SPQ F231078 Contact Us For Availability
9
Element SPQ F360205P Contact Us For Availability
9
Basket Installation Tool Rod SPQ 401P4 Contact Us For Availability
10
Washer SPQ M405535 Contact Us For Availability
10
Lid Clamp Assembly SPQ 70155603 Contact Us For Availability
10
Screw SPQ F430108 Contact Us For Availability
10
Door Handle Kit SPQ F730155 Contact Us For Availability
10
Door Lock Plate Sub-Assembly SPQ F633084 Contact Us For Availability
10
Washer SPQ F150369 Contact Us For Availability
10
Grease Manifold Kit SPQ F761900 Contact Us For Availability
11
Fuse Holder SPQ F0350312-10 Contact Us For Availability
11
Screw SPQ F430935 Contact Us For Availability
11
Screw SPQ F430532 Contact Us For Availability
11
Supply Dispenser Mounting Bracket SPQ F431123 Contact Us For Availability
11
Vacuum Breaker Weldment SPQ F608347 Contact Us For Availability
11
2-Way Valve SPQ F381722P Contact Us For Availability
11
Grease Manifold SPQ F320326 Contact Us For Availability
11
Thermistor Sensor SPQ F370609 Contact Us For Availability
12
L-Catch Kit SPQ F746808 Contact Us For Availability
12
Injection Nozzle Kit SPQ F730168 Contact Us For Availability
12
Screw SPQ F190203P Contact Us For Availability
12
Nut SPQ F431041 Contact Us For Availability
12
Screw SPQ F430928 Contact Us For Availability
12
Screw SPQ F431125 Contact Us For Availability
12
Washer SPQ F430144 Contact Us For Availability
12
Tubing SPQ C000628P Contact Us For Availability
13
Door Lock Catch Casting SPQ F150261 Contact Us For Availability
13
Door Gasket SPQ F8440801P Contact Us For Availability
13
Nut SPQ F608282 Contact Us For Availability
13
Washer SPQ F430929 Contact Us For Availability
13
Rear Drain Hose SPQ F0150399-00 Contact Us For Availability
13
Washer SPQ F430185 Contact Us For Availability
14
Insulator Bushing SPQ M412534 Contact Us For Availability
14
Standoff SPQ F180506 Contact Us For Availability
14
Harness SPQ F631973-2 Contact Us For Availability
14
Magnetic Switch SPQ F430986 Contact Us For Availability
14
Door Hinge Shim Kit SPQ F200131000P Contact Us For Availability
14
Washer SPQ F431100 Contact Us For Availability
14
Lift-Off Hinge SPQ F432229 Contact Us For Availability
14
Drain Hose SPQ F150400 Contact Us For Availability
14
Nut SPQ F430339 Contact Us For Availability
15
Control Box Assembly SPQ F140909 Contact Us For Availability
15
Card Reader Assembly SPQ F200019901 Contact Us For Availability
15
Magnetic Switch Assembly SPQ J1111905 Contact Us For Availability
15
Stud SPQ F608797 Contact Us For Availability
15
Door Hinge SPQ F190216P Contact Us For Availability
15
Nut SPQ F430982 Contact Us For Availability
15
Push-Pull Knob SPQ F431106 Contact Us For Availability
15
Rear Fill Hose SPQ F200166 Contact Us For Availability
15
Rear Bearing Kit SPQ F430239 Contact Us For Availability
16
Door Lock Lever SPQ F430264 Contact Us For Availability
16
Nut SPQ F430215 Contact Us For Availability
16
Coin Guide Kit SPQ F0635628-01 Contact Us For Availability
16
Front Panel Kit SPQ F0340723-00 Contact Us For Availability
16
Supply Dispenser Cover Gasket SPQ F431028 Contact Us For Availability
16
Basket Pulley Bushing SPQ F745016-1 Contact Us For Availability
17
Top Cover Stiffener SPQ F390300 Contact Us For Availability
17
Door Mount SPQ F602813-3 Contact Us For Availability
17
Door Lock Torsion Spring SPQ F431902 Contact Us For Availability
17
Gasket Retaining Plate SPQ F190205P Contact Us For Availability
17
Supply Dispenser Hose SPQ F200165 Contact Us For Availability
17
Key SPQ F280290 Contact Us For Availability
17
Reducer Bushing SPQ F421936 Contact Us For Availability
18
Spring Pin SPQ F150271 Contact Us For Availability
18
Nut SPQ F431017 Contact Us For Availability
18
Door Switch SPQ F605381 Contact Us For Availability
18
Supply Dispenser Cover Kit SPQ F430907 Contact Us For Availability
18
Belt SPQ F608824-1 Contact Us For Availability
19
E-Ring Retainer SPQ F310110 Contact Us For Availability
19
Lid Lock SPQ F170402P Contact Us For Availability
19
Washer SPQ F431022 Contact Us For Availability
19
Pop Rivet SPQ F190101 Contact Us For Availability
19
Plug SPQ F421507 Contact Us For Availability
19
Basket Pulley SPQ F200140300P Contact Us For Availability
20
Water Level Switch SPQ F370432P Contact Us For Availability
20
Supply Dispenser Assembly SPQ F431137 Contact Us For Availability
20
Door Locking Linkage Pin SPQ F430232 Contact Us For Availability
20
Rear Panel SPQ F190805P Contact Us For Availability
20
Motor Pulley Bushing SPQ F745015-1 Contact Us For Availability
21
Door Glass Retainer SPQ F8390801 Contact Us For Availability
21
Door Lock Pin Linkage SPQ F340200 Contact Us For Availability
21
Side Panel SPQ F190802P Contact Us For Availability
21
Supply Dispenser Lid Latch SPQ F608705 Contact Us For Availability
21
Drive Motor Pulley SPQ F430993 Contact Us For Availability
22
Switch SPQ F603972 Contact Us For Availability
22
SPQ F608703 SPQ F608703 Contact Us For Availability
23
Fuse SPQ F430996 Contact Us For Availability
23
Glass SPQ F430916 Contact Us For Availability
23
Switch Extension SPQ F603976 Contact Us For Availability
23
SPQ F190202P SPQ F190202P Contact Us For Availability
23
Bearing Adapter Sleeve SPQ F280211P Contact Us For Availability
24
Output Relay CCA SPQ F350146 Contact Us For Availability
24
Frame Assembly SPQ F634308 Contact Us For Availability
24
Cable Tie SPQ F280289P Contact Us For Availability
25
Support SPQ F633334 Contact Us For Availability
25
Door Lock Plate Shim SPQ F310205 Contact Us For Availability
25
Connector SPQ F220236P Contact Us For Availability
26
Door Weldment SPQ F8504901 Contact Us For Availability
26
Door Lock Assembly Cover SPQ F310137 Contact Us For Availability
26
Grease Fitting SPQ F430300 Contact Us For Availability
27
Door Bumper Bushing SPQ F340913 Contact Us For Availability
27
Red Dot Decal SPQ F170115 Contact Us For Availability
27
Door Lock Assembly SPQ F431231 Contact Us For Availability
28
Top Cover Assembly SPQ F633673 Contact Us For Availability
28
Bolt SPQ F290210P Contact Us For Availability
28
SPQ F150455 SPQ F150455 Contact Us For Availability
29
Pushbutton Rod SPQ F230661 Contact Us For Availability
30
Door Spacer SPQ F230662 Contact Us For Availability
31
SPQ F430923 SPQ F430923 Contact Us For Availability
36
SPQ F603969P SPQ F603969P Contact Us For Availability
37
SPQ F634310 SPQ F634310 Contact Us For Availability
NI
SPQ F170170 SPQ F170170 Contact Us For Availability
NI
SPQ F370843 SPQ F370843 Contact Us For Availability
NI
SPQ F430311 SPQ F430311 Contact Us For Availability
NI
SPQ F430174 SPQ F430174 Contact Us For Availability
NI
Card Reader Kit SPQ D512502 Contact Us For Availability
NI
SPQ F886P3 SPQ F886P3 Contact Us For Availability
NI
SPQ F884P3 SPQ F884P3 Contact Us For Availability
NI
SPQ F430925 SPQ F430925 Contact Us For Availability
NI
SPQ F170401P SPQ F170401P Contact Us For Availability
NI
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
NI
SPQ F0636698-01P SPQ F0636698-01P Contact Us For Availability
NI
SPQ F0636698-03 SPQ F0636698-03 Contact Us For Availability
NI
SPQ F200202201P SPQ F200202201P Contact Us For Availability
NI
SPQ F150247 SPQ F150247 Contact Us For Availability
NI
SPQ F140609P SPQ F140609P Contact Us For Availability
NI
SPQ F8322806 SPQ F8322806 Contact Us For Availability
NI
SPQ F150398 SPQ F150398 Contact Us For Availability
× ![]()
