Model Alliance NC50NP2 Washer – Common Parts & Diagrams
Decals
Control Module - Terminal Strip Style (Drawing 1 of 2)

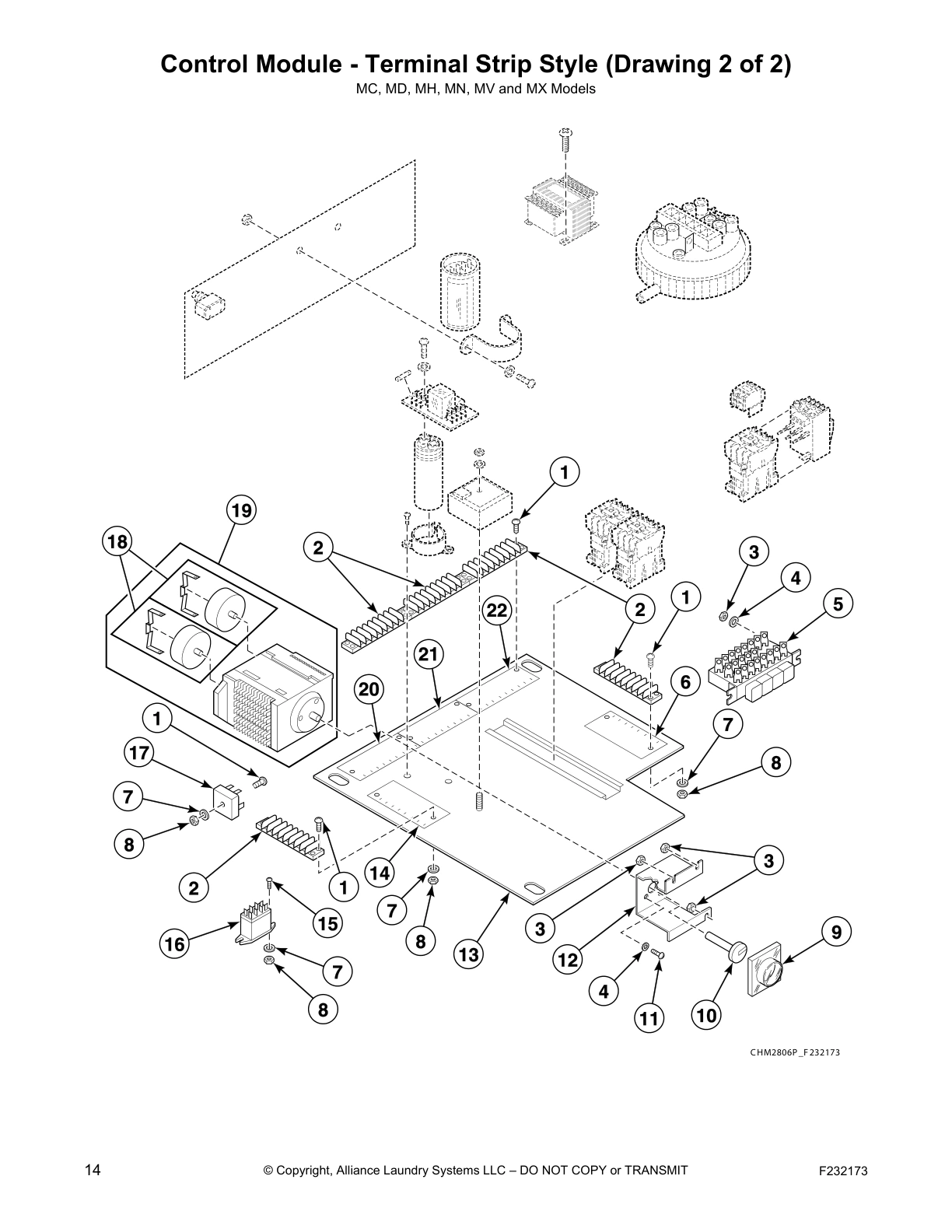

Control Module - Terminal Strip Style (Drawing 2 of 2)

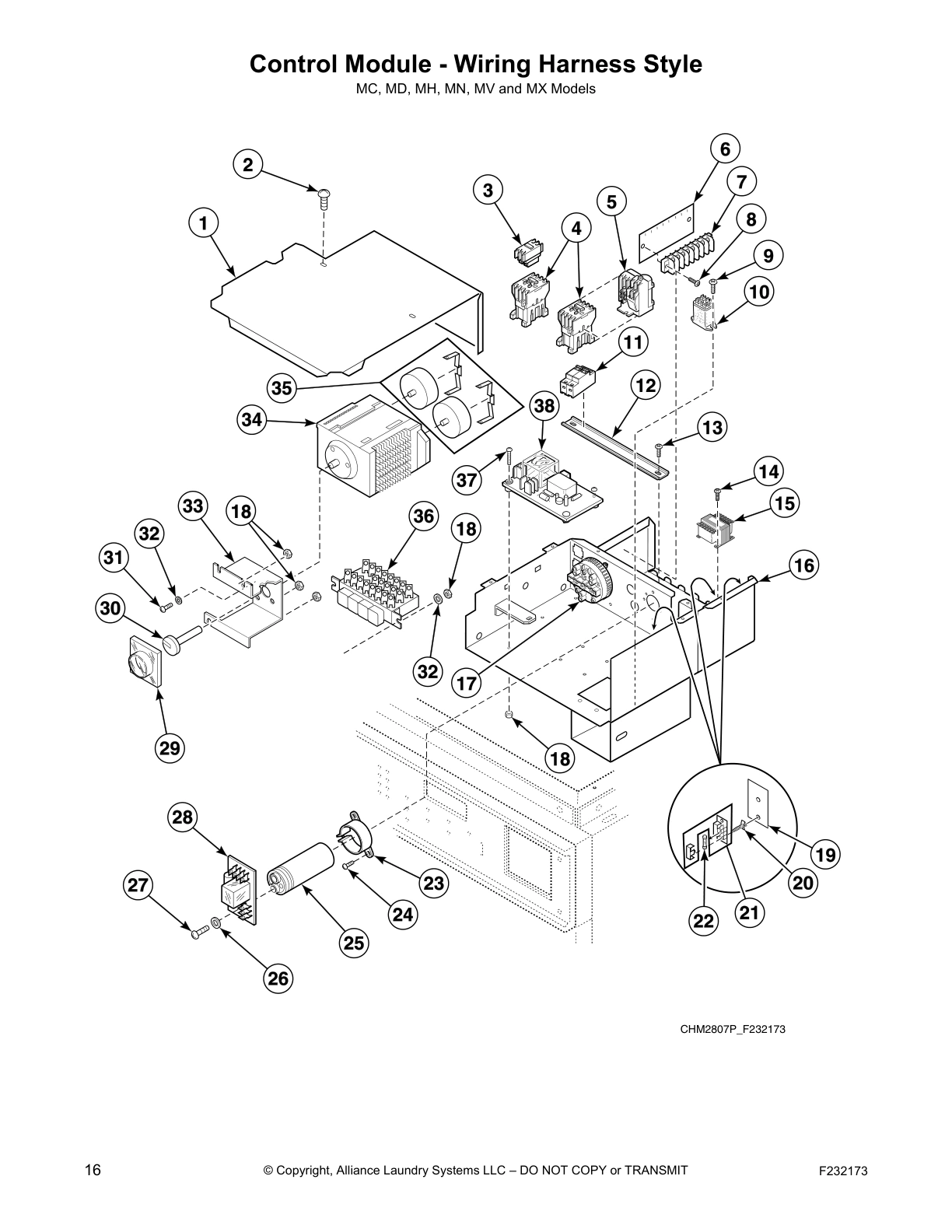

Control Module - Wiring Harness Style

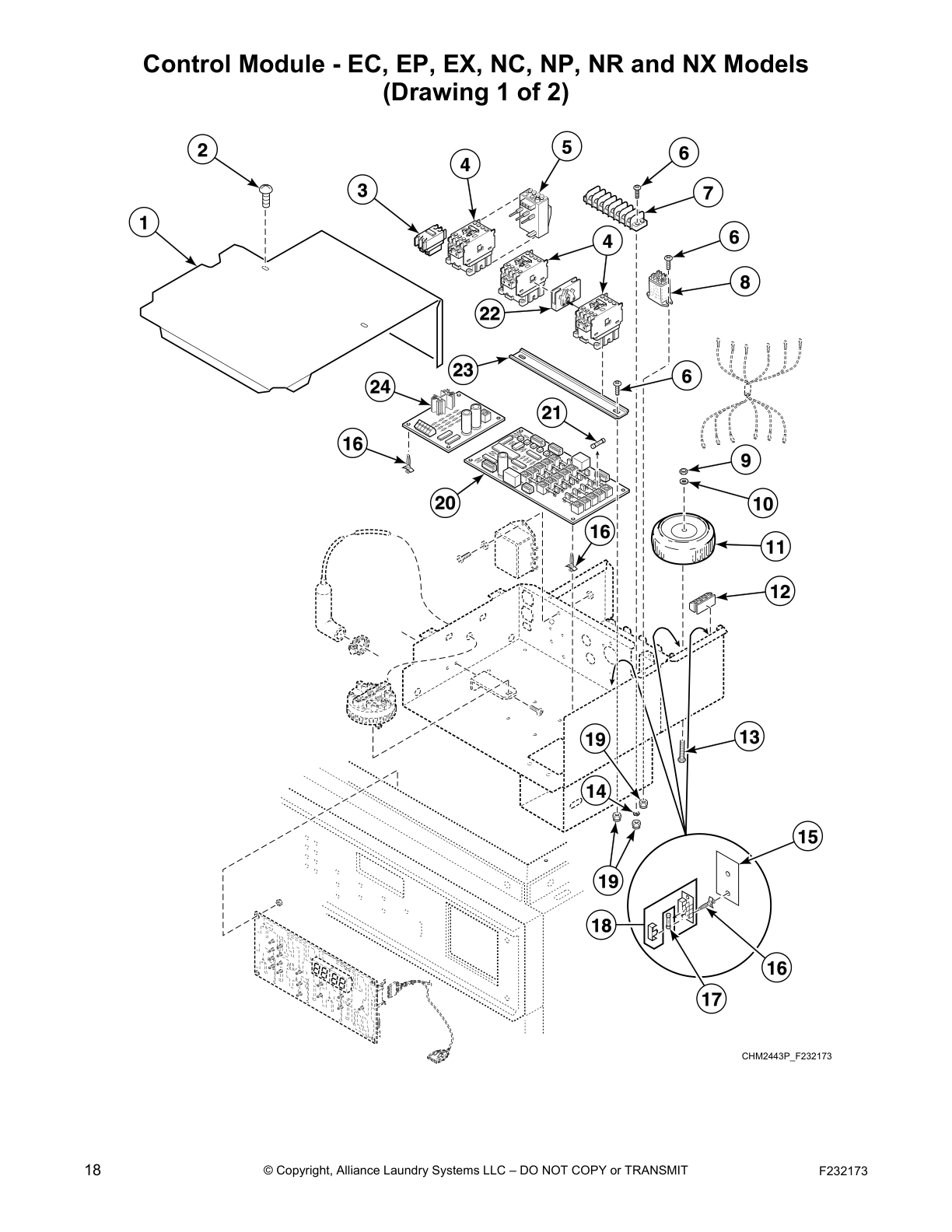

Control Module - EC, EP, EX, NC, NP, NR and NX Models
(Drawing 1 of 2)

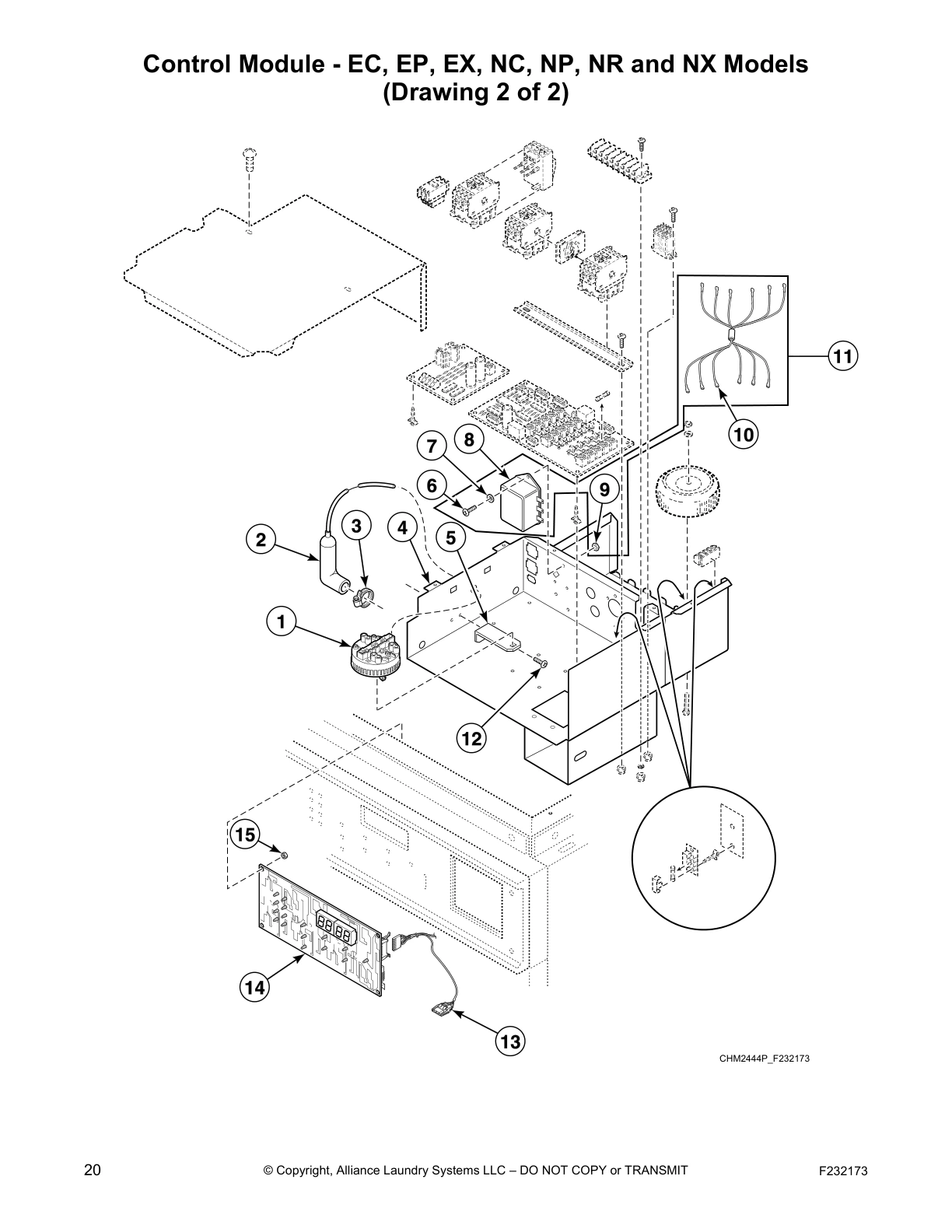

Control Module - EC, EP, EX, NC, NP, NR and NX Models
(Drawing 2 of 2)

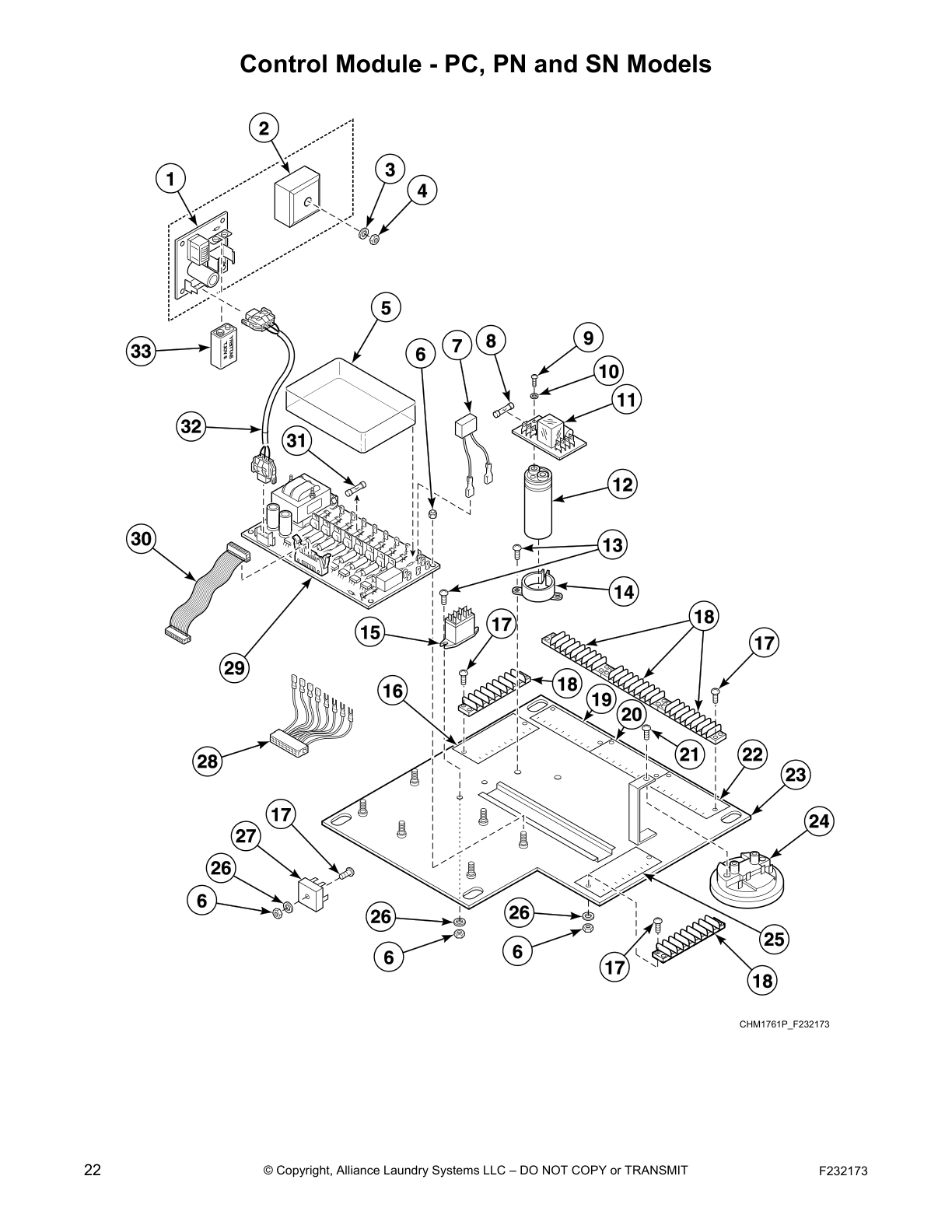

Control Module - PC, PN and SN Models

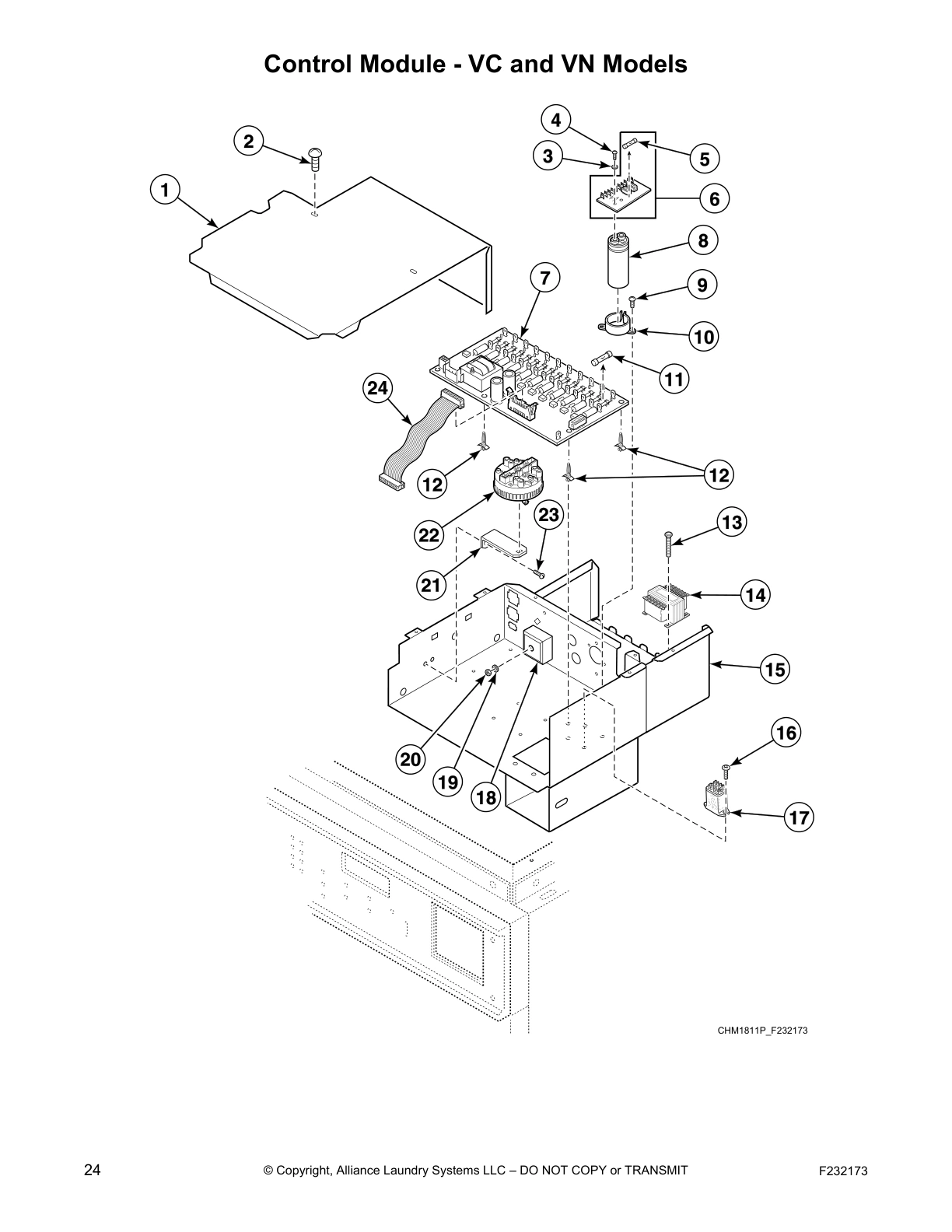

Control Module - VC and VN Models

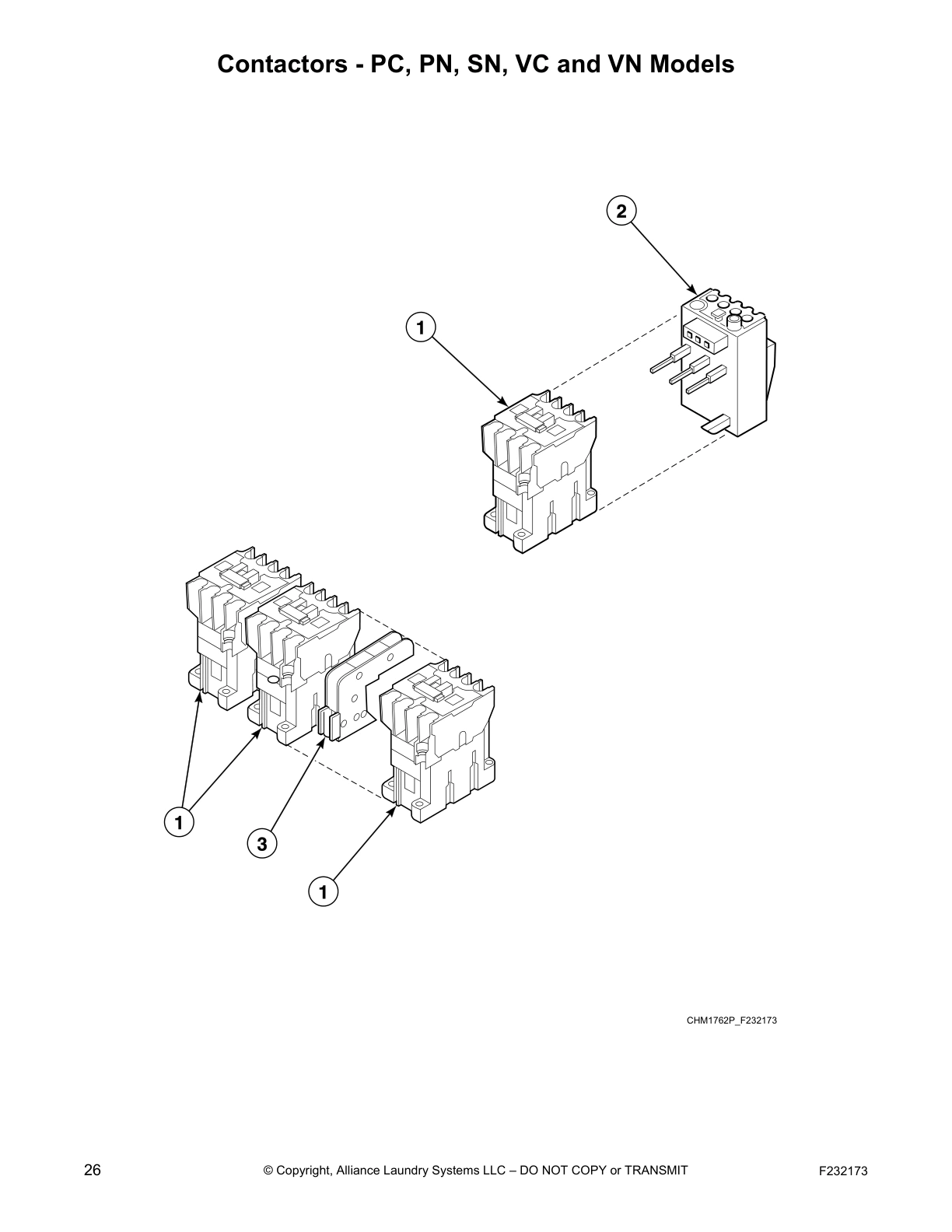

Contactors - PC, PN, SN, VC and VN Models

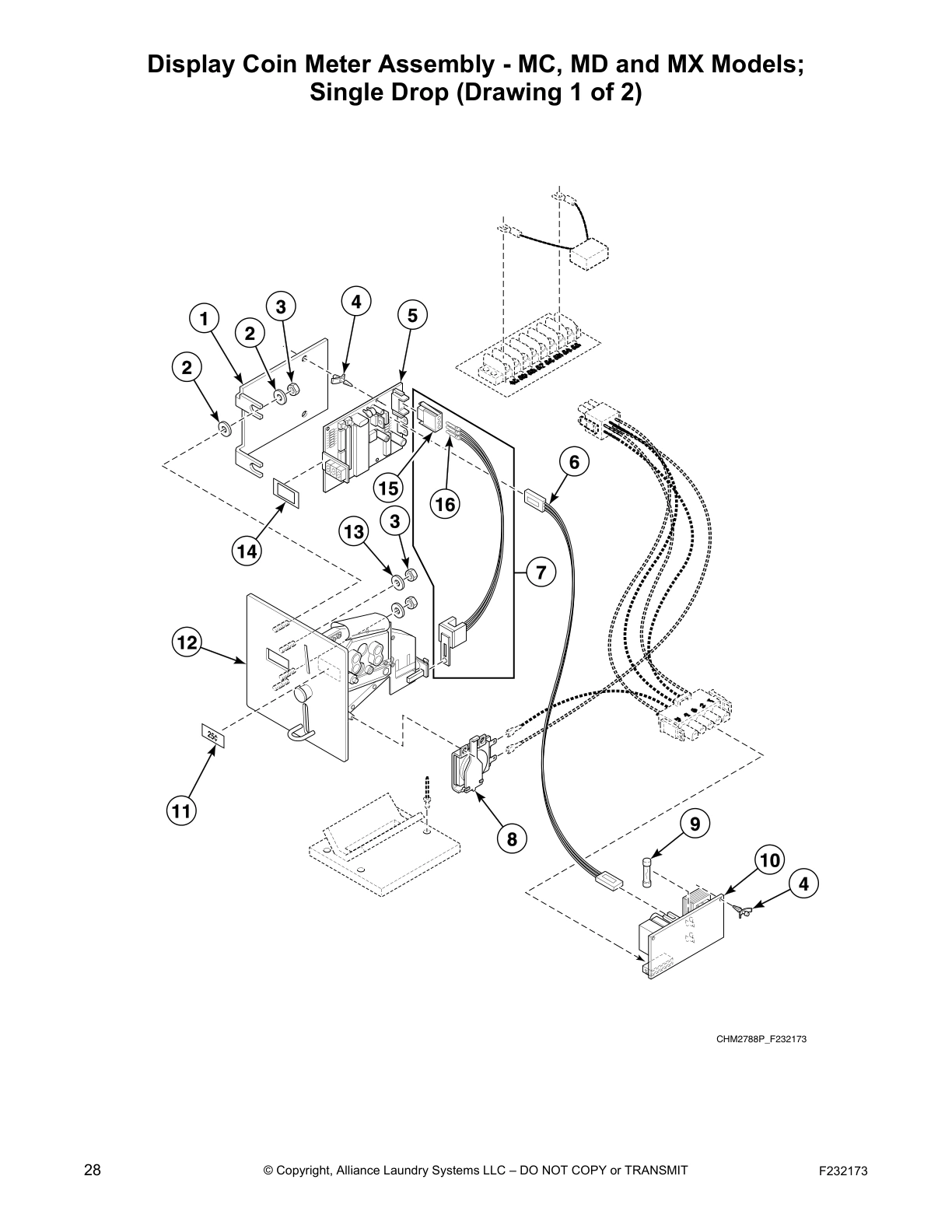

Display Coin Meter Assembly - MC, MD and MX Models;
Single Drop (Drawing 1 of 2)

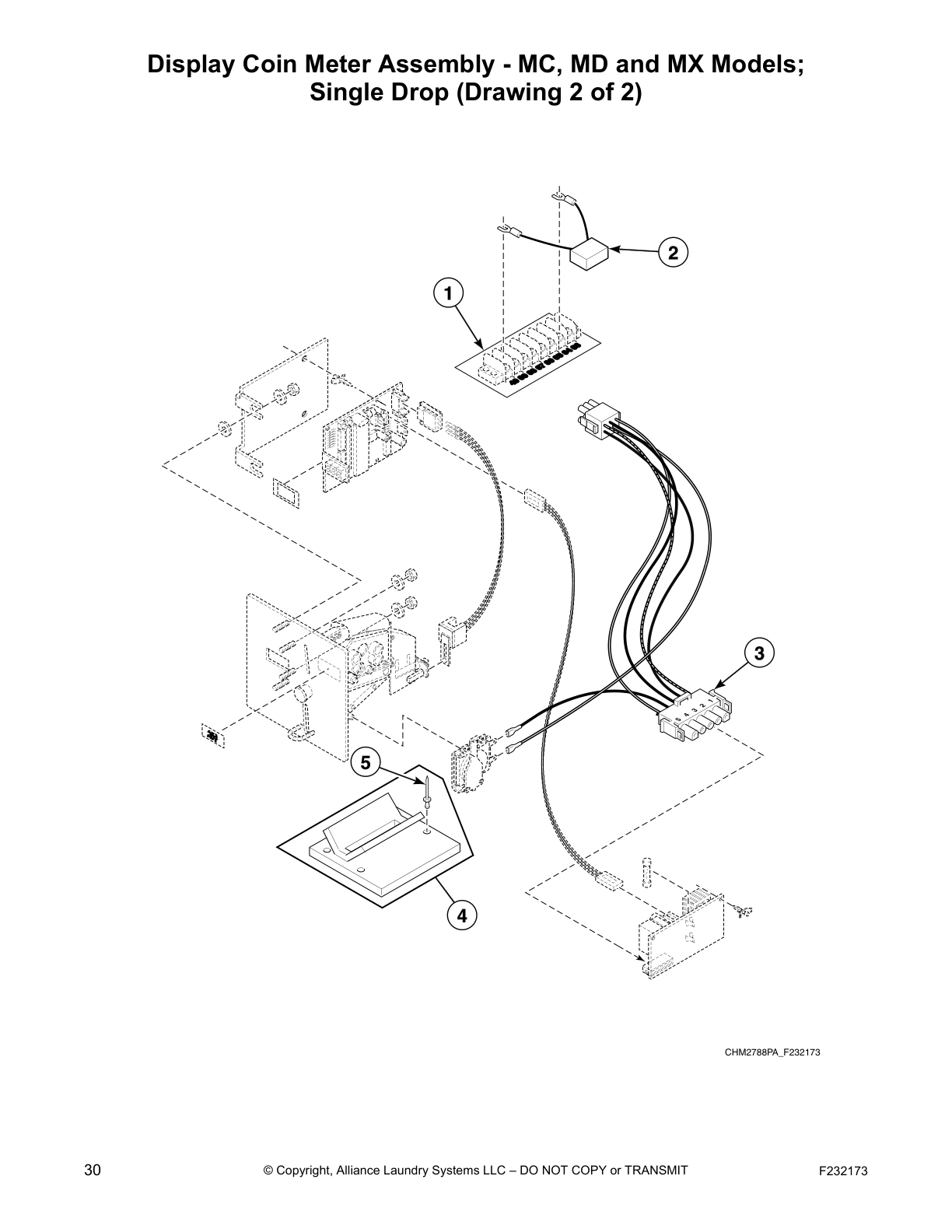

Display Coin Meter Assembly - MC, MD and MX Models;
Single Drop (Drawing 2 of 2)

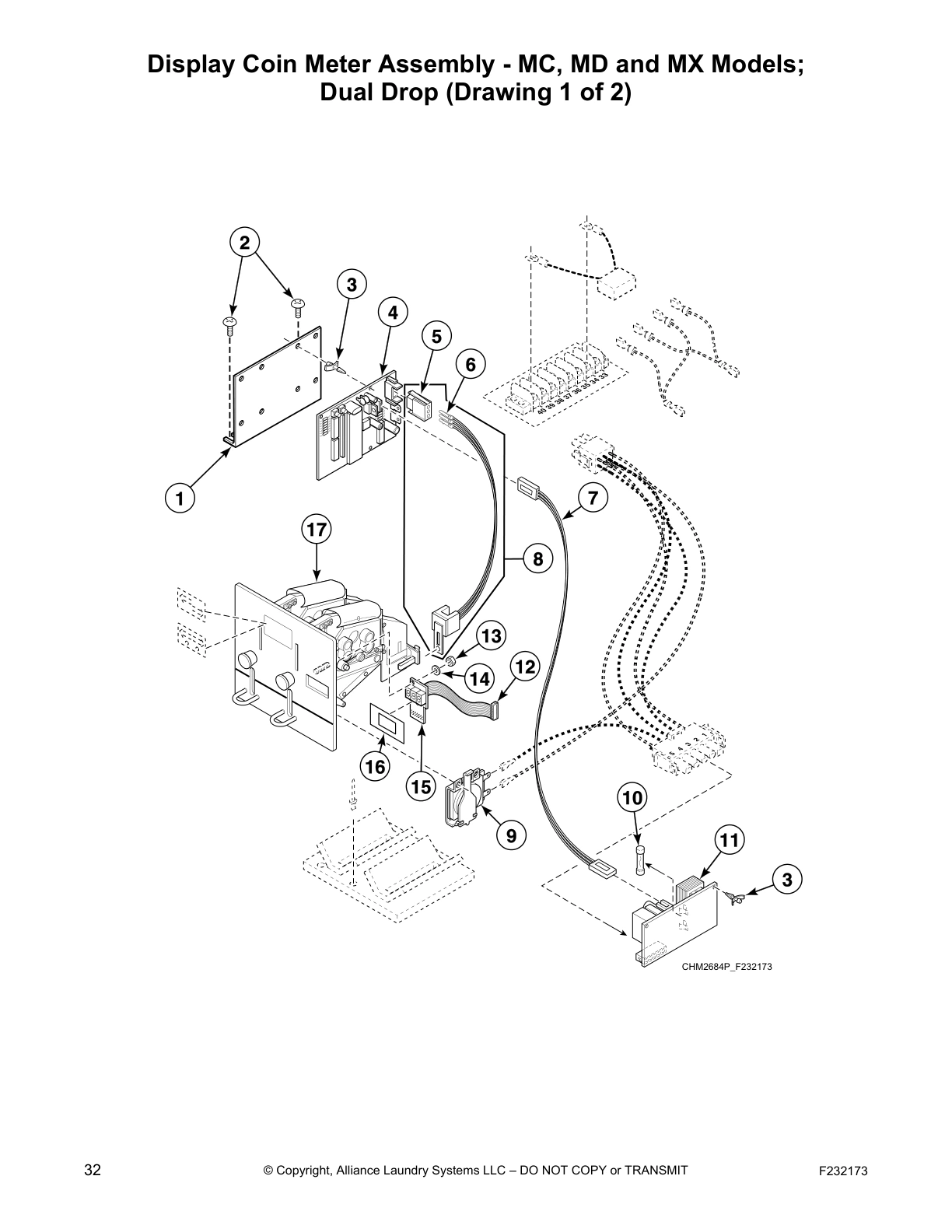

Display Coin Meter Assembly - MC, MD and MX Models;
Dual Drop (Drawing 1 of 2)

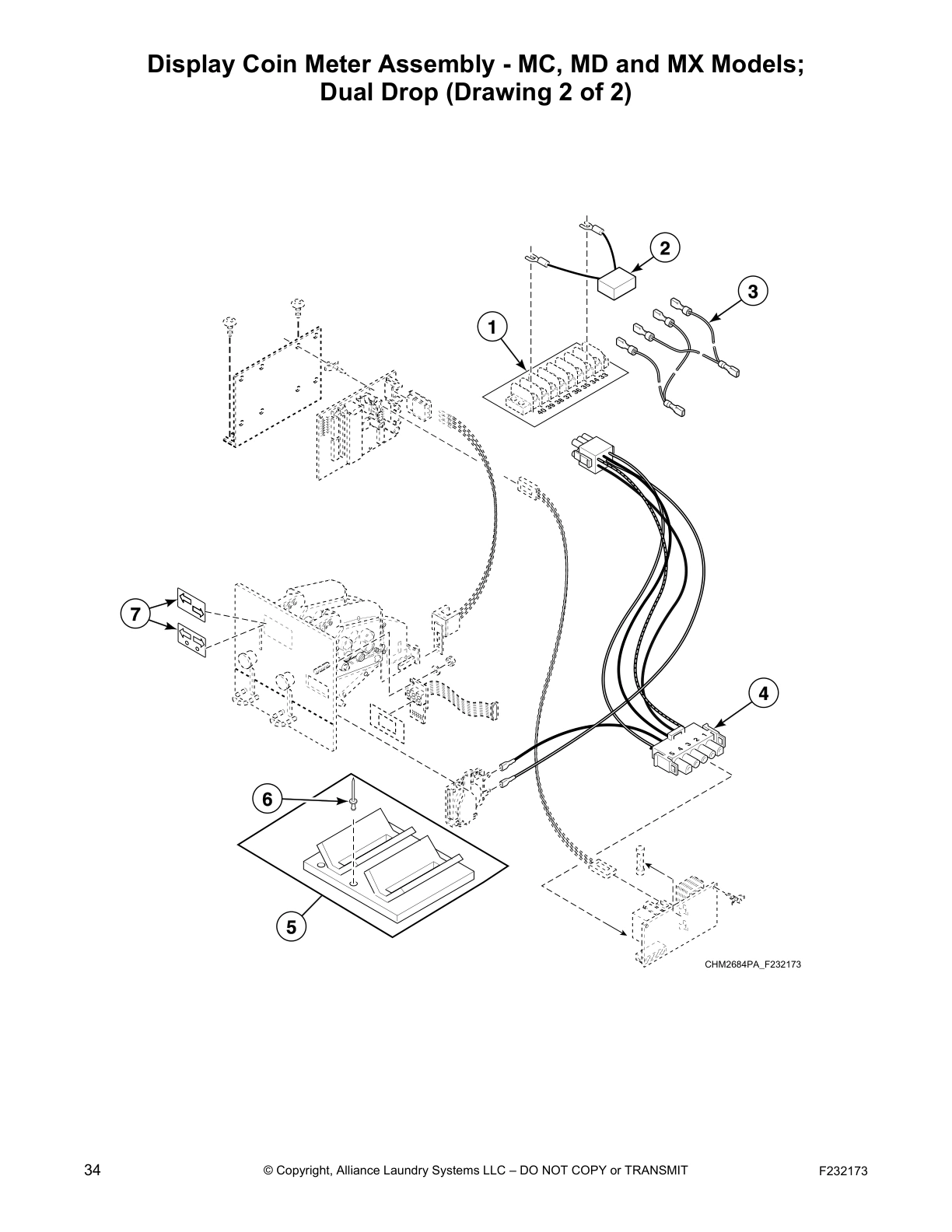

Display Coin Meter Assembly - MC, MD and MX Models;
Dual Drop (Drawing 2 of 2)

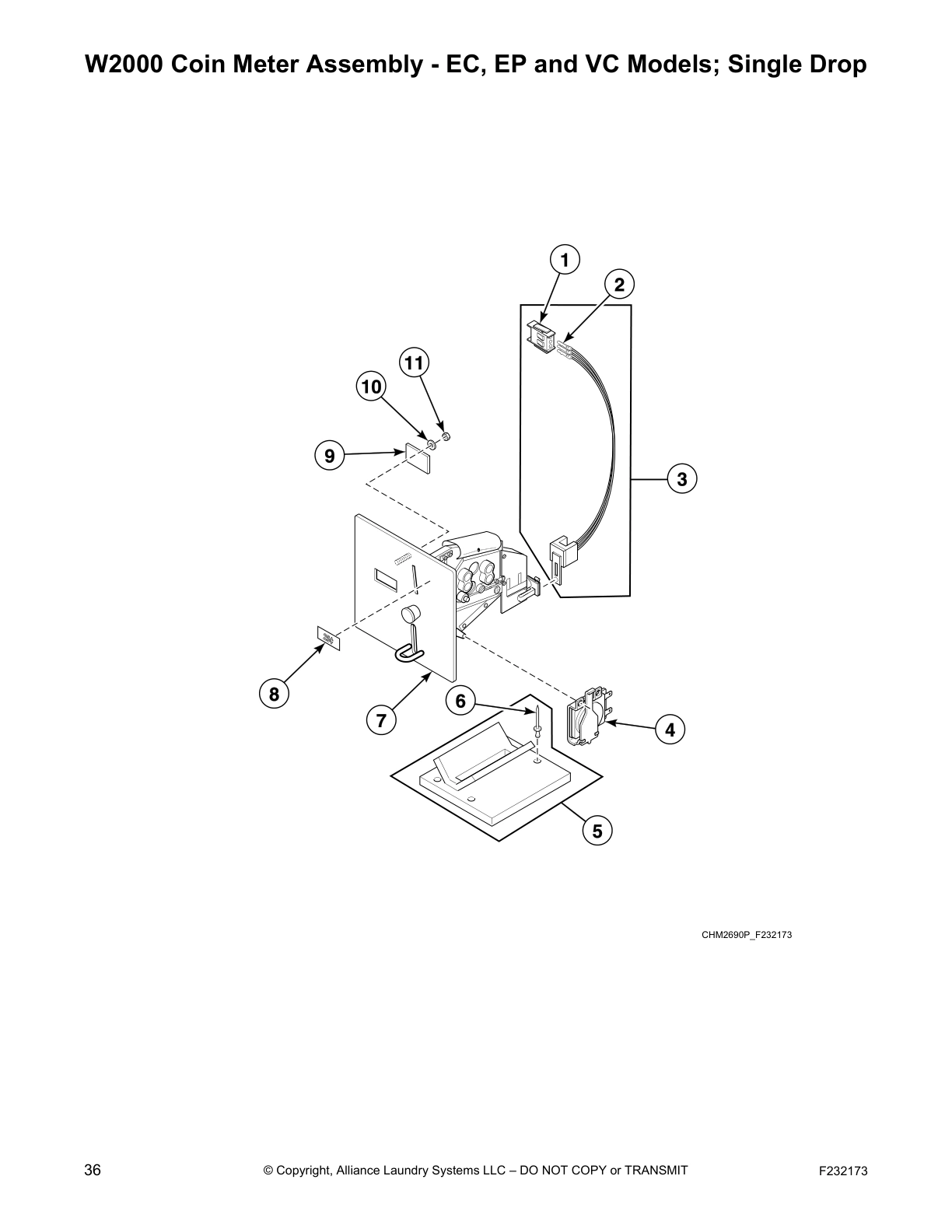

W2000 Coin Meter Assembly - EC, EP and VC Models; Single Drop

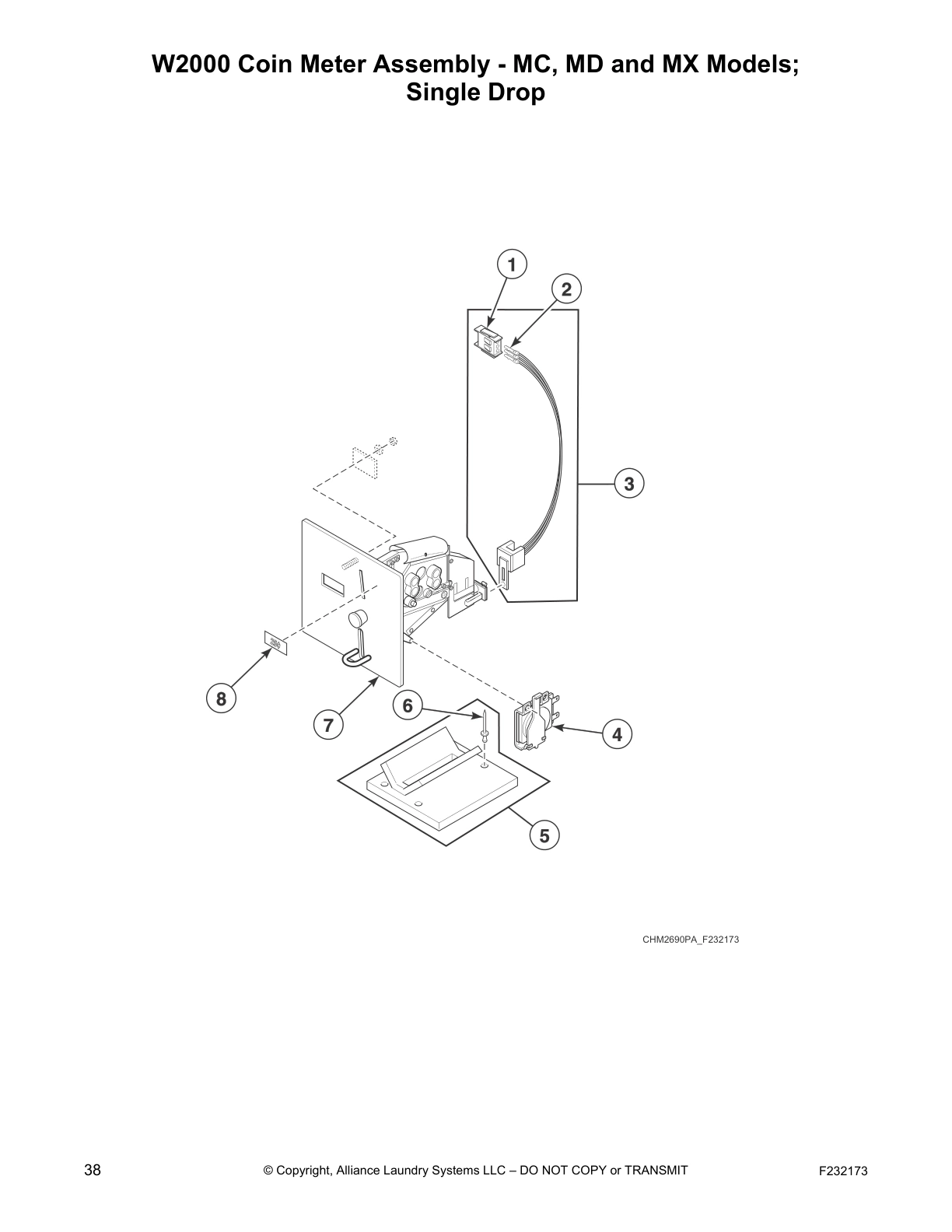

W2000 Coin Meter Assembly - MC, MD and MX Models;
Single Drop

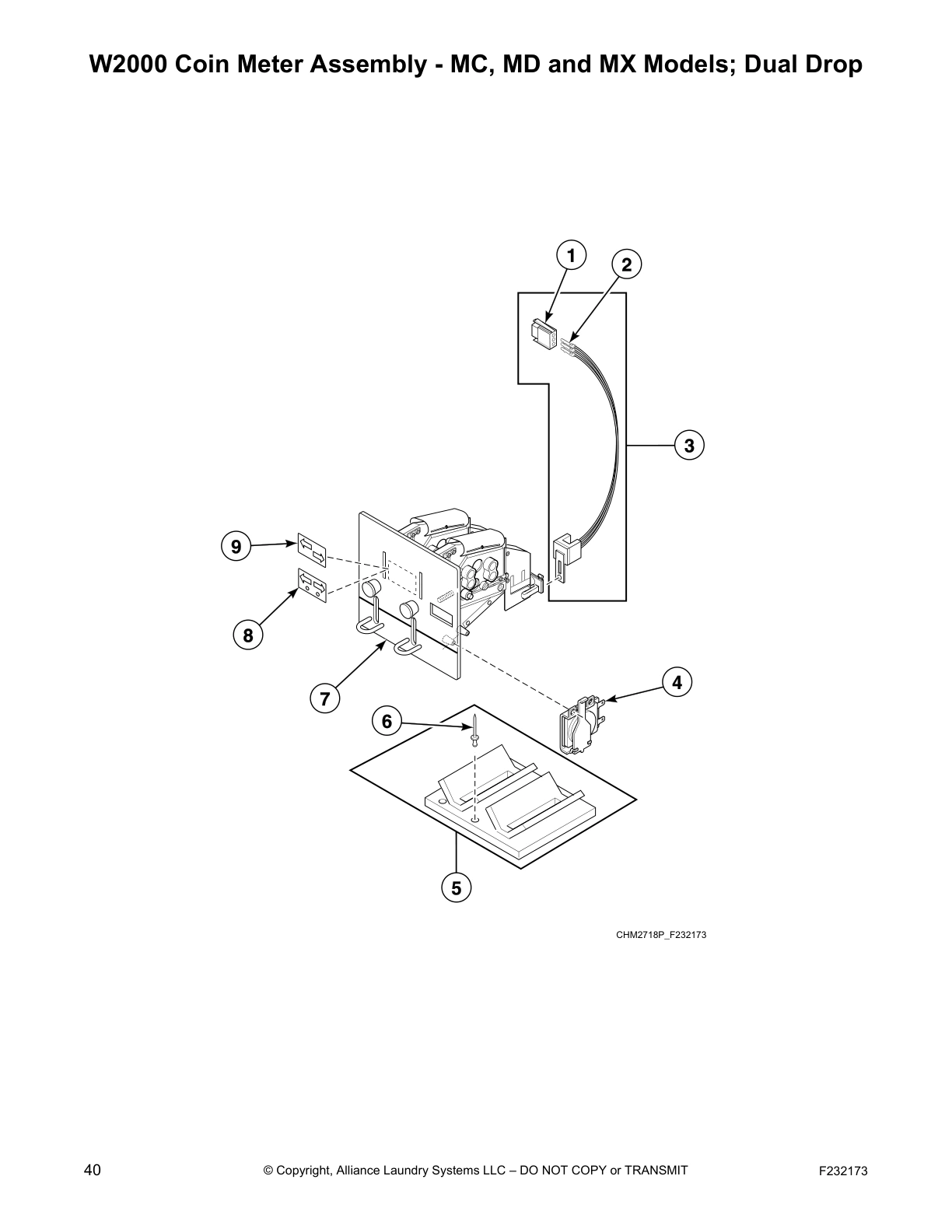

W2000 Coin Meter Assembly - MC, MD and MX Models; Dual Drop

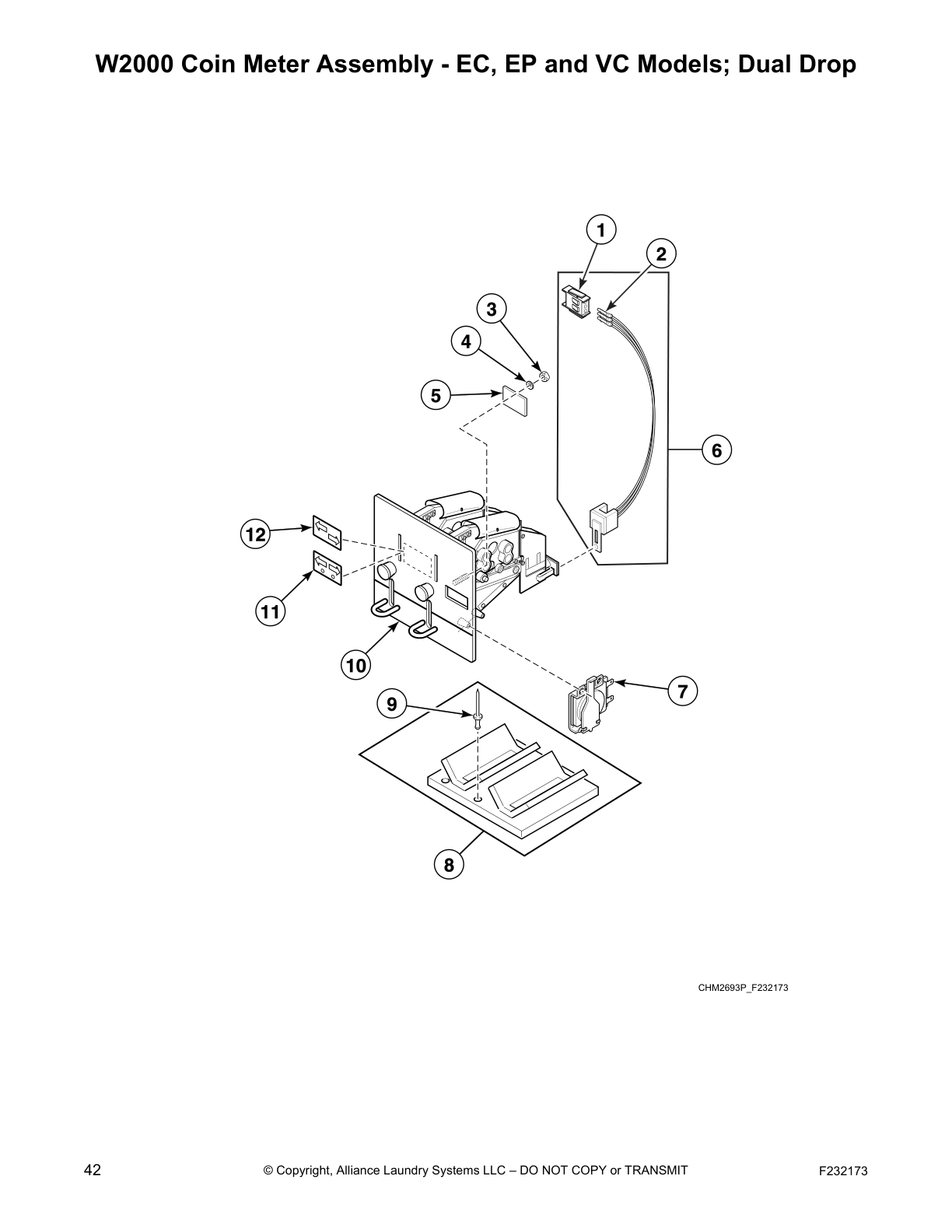

W2000 Coin Meter Assembly - EC, EP and VC Models; Dual Drop

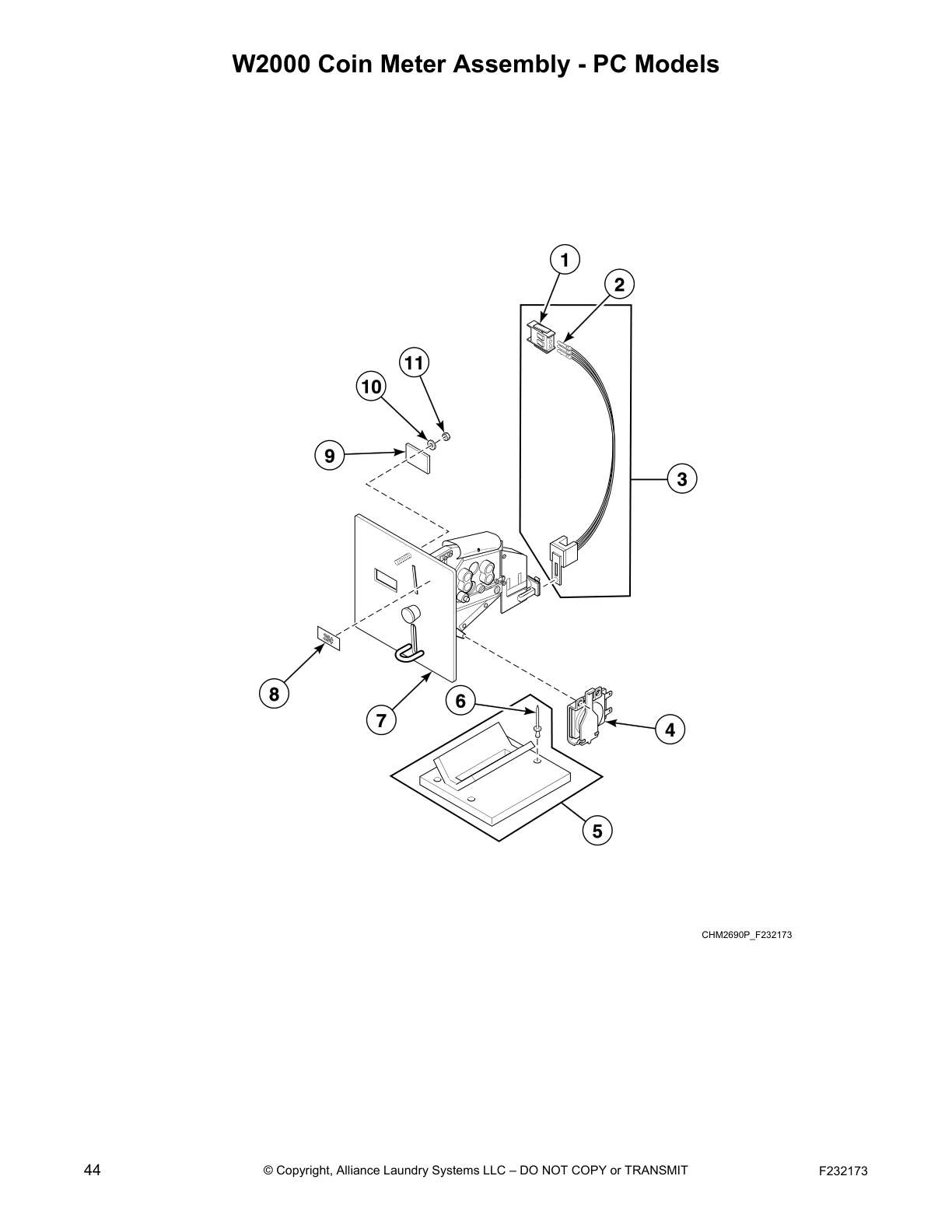

W2000 Coin Meter Assembly - PC Models

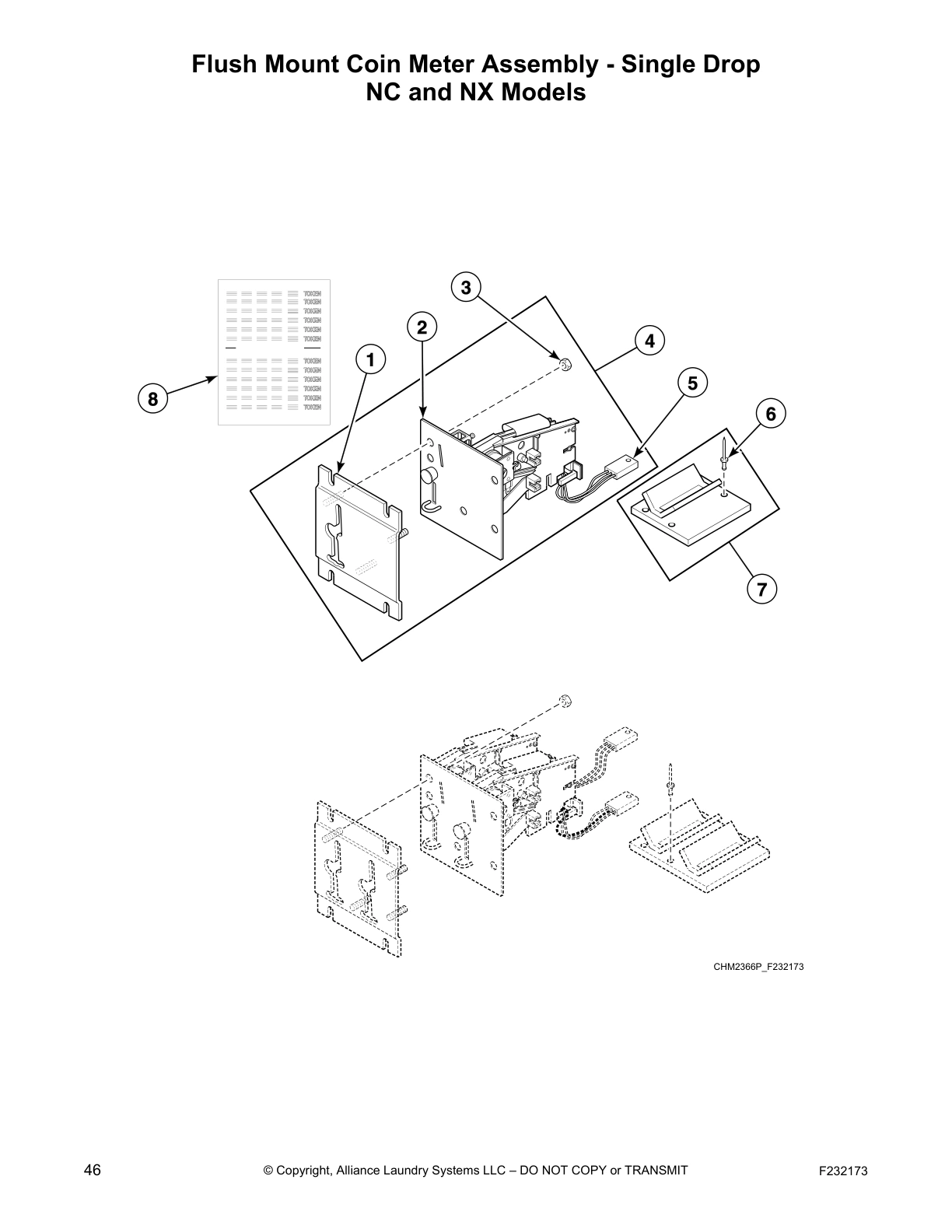

Flush Mount Coin Meter Assembly - Single Drop
NC and NX Models

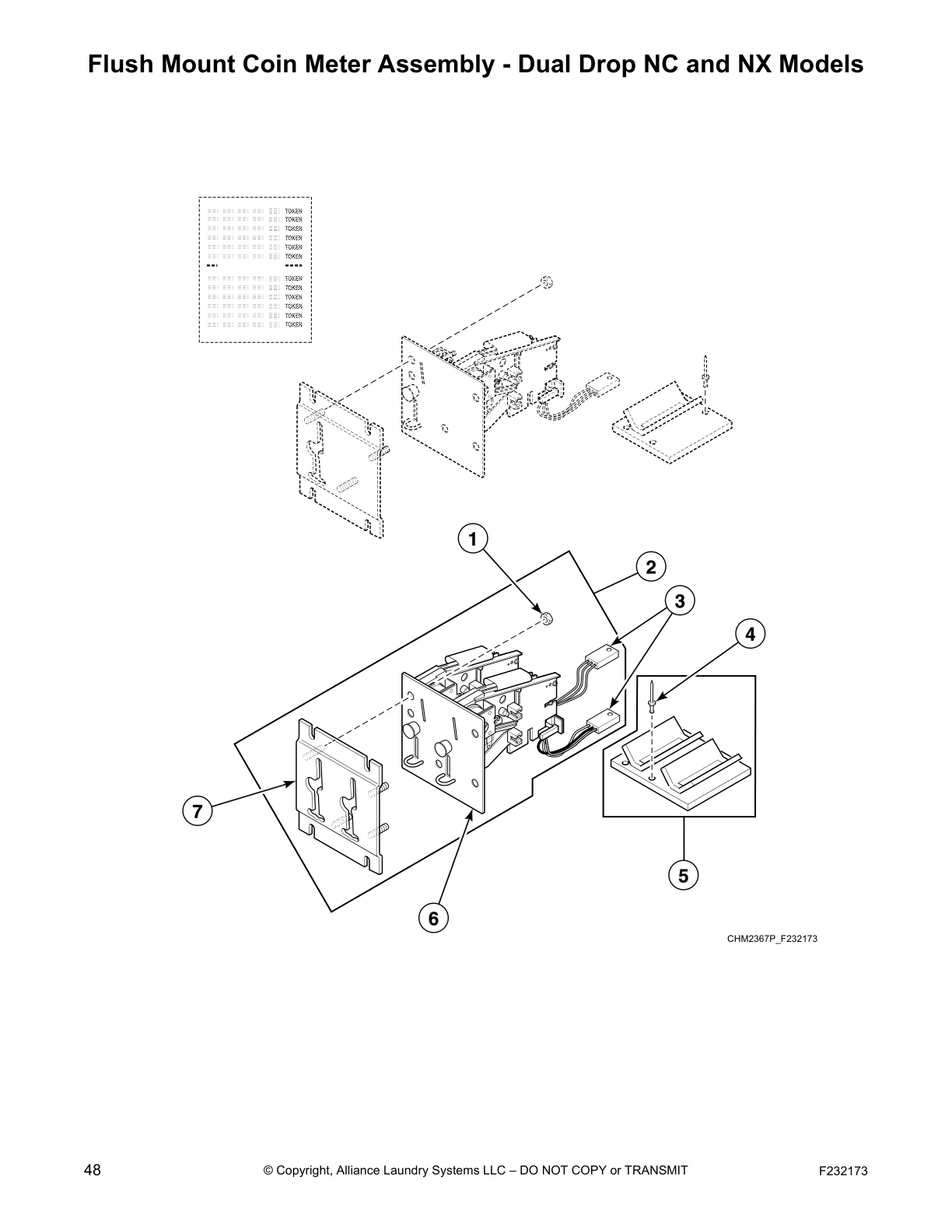

Flush Mount Coin Meter Assembly - Dual Drop NC and NX Models

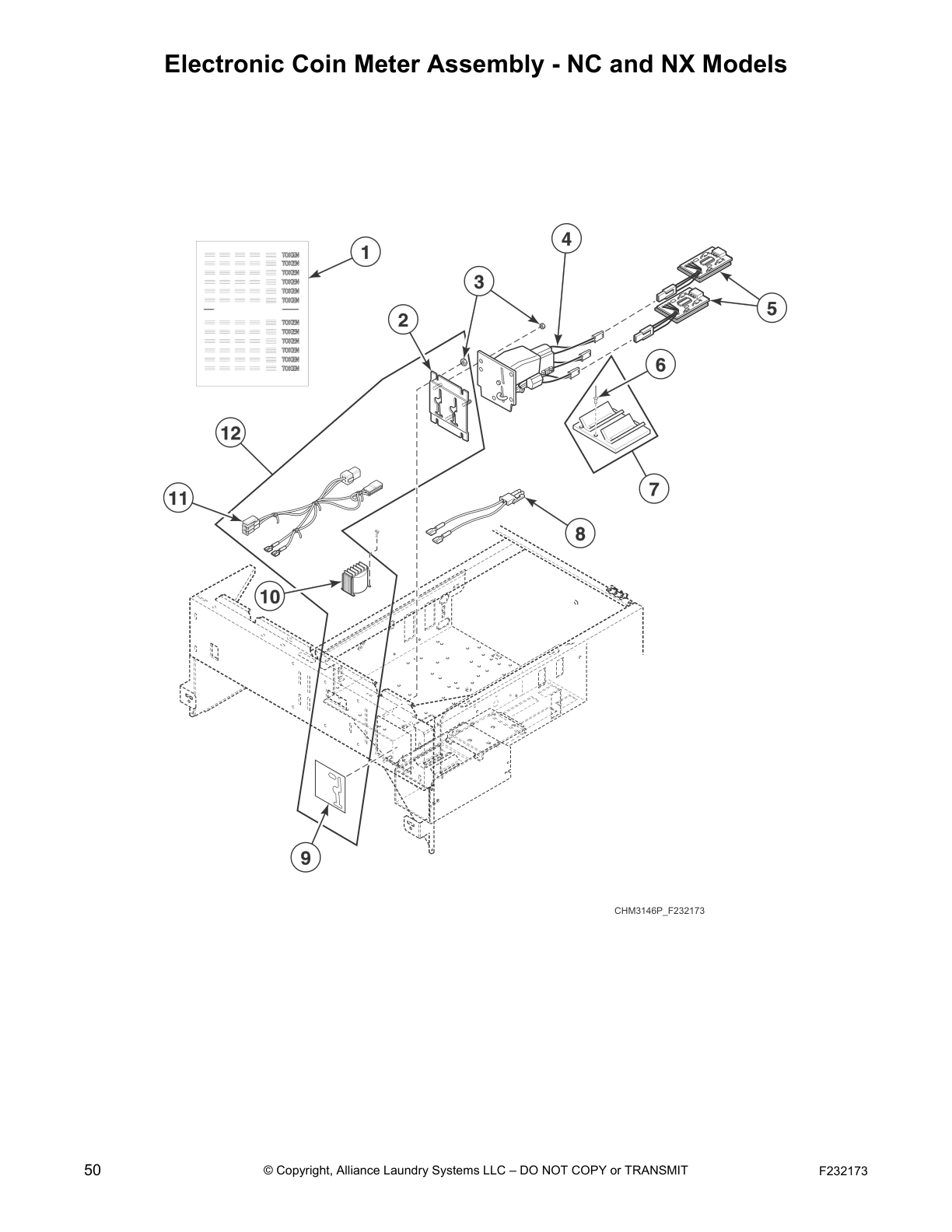

Electronic Coin Meter Assembly - NC and NX Models

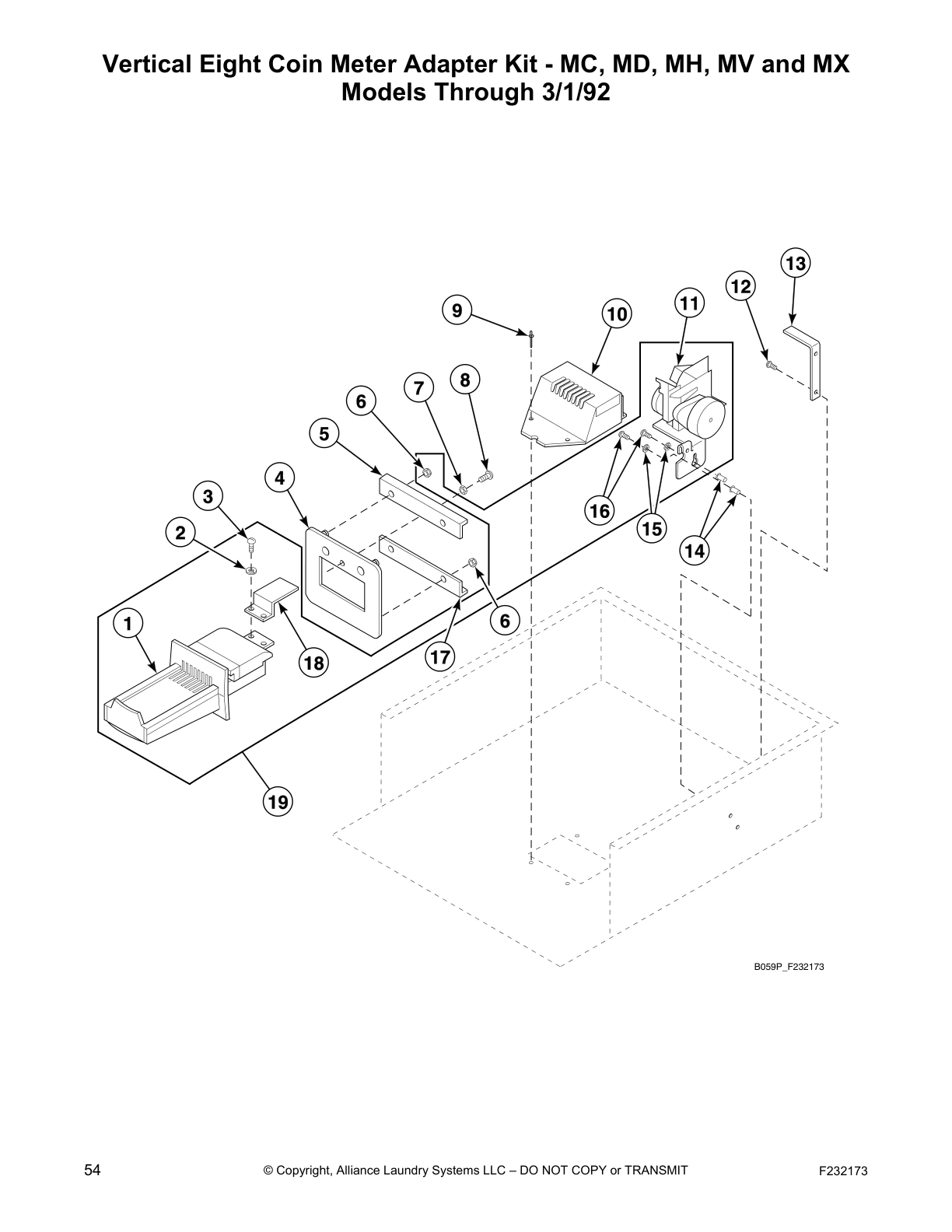

Vertical Eight Coin Meter Adapter Kit - MC, MD, MH, MV and MX
Models Through 3/1/92

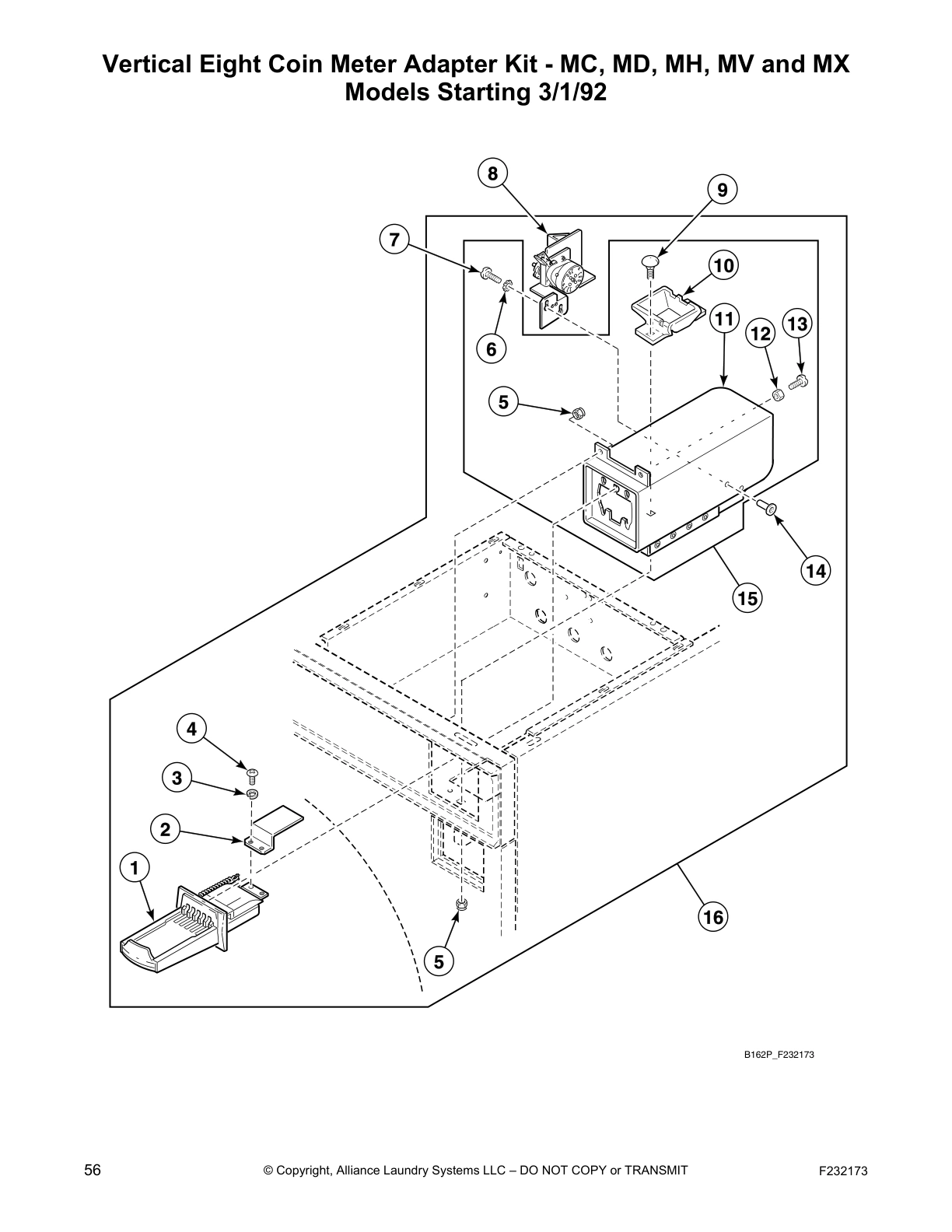

Vertical Eight Coin Meter Adapter Kit - MC, MD, MH, MV and MX
Models Starting 3/1/92

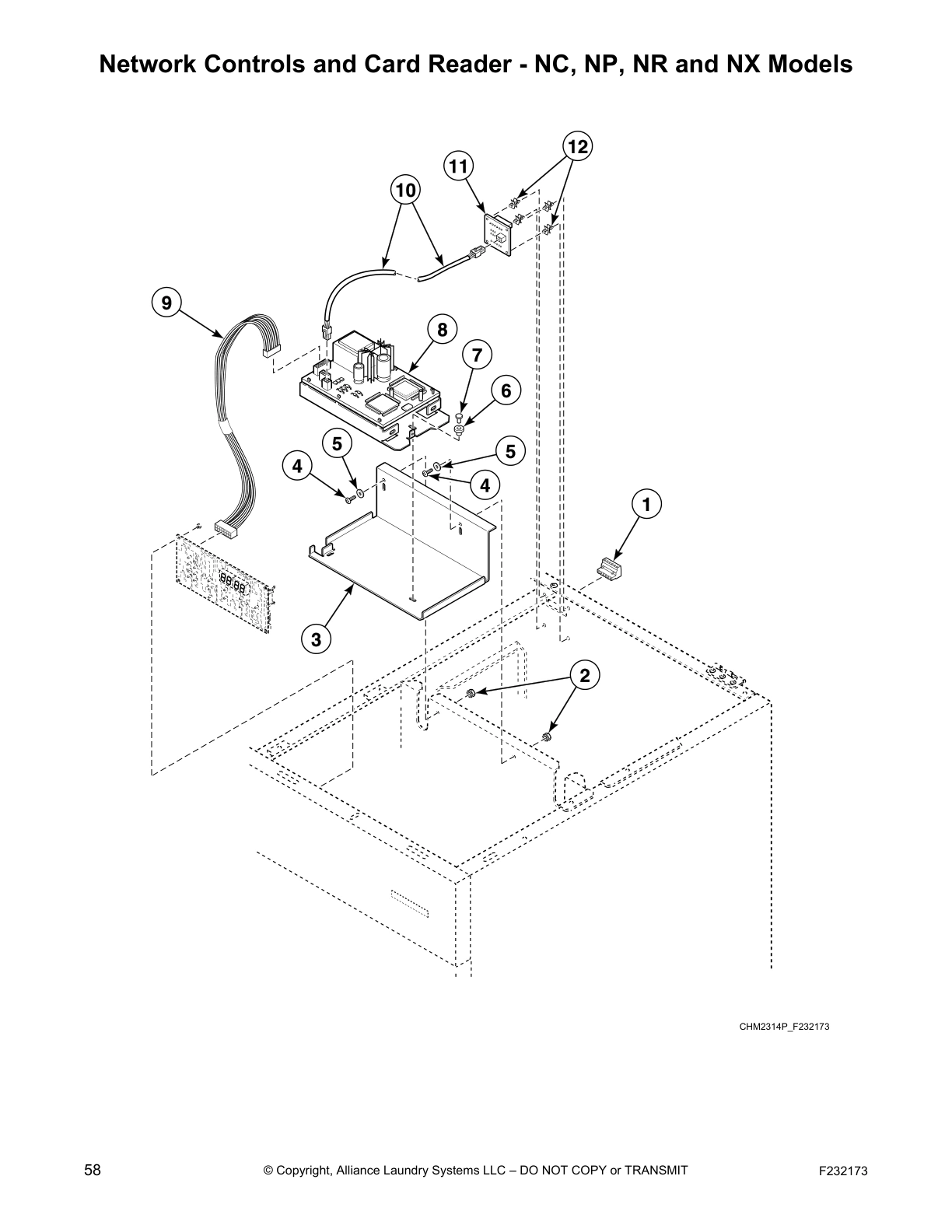

Network Controls and Card Reader - NC, NP, NR and NX Models

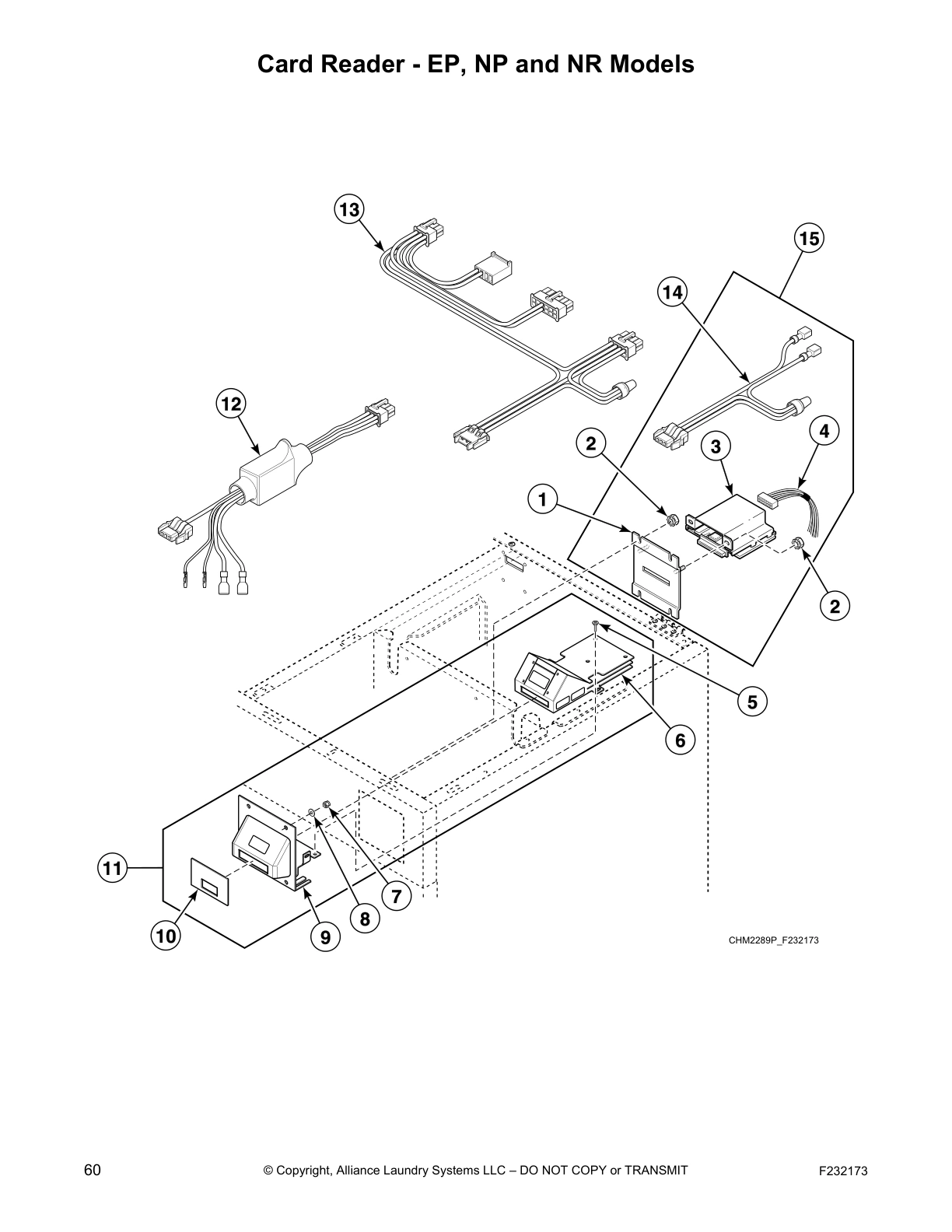

Card Reader - EP, NP and NR Models

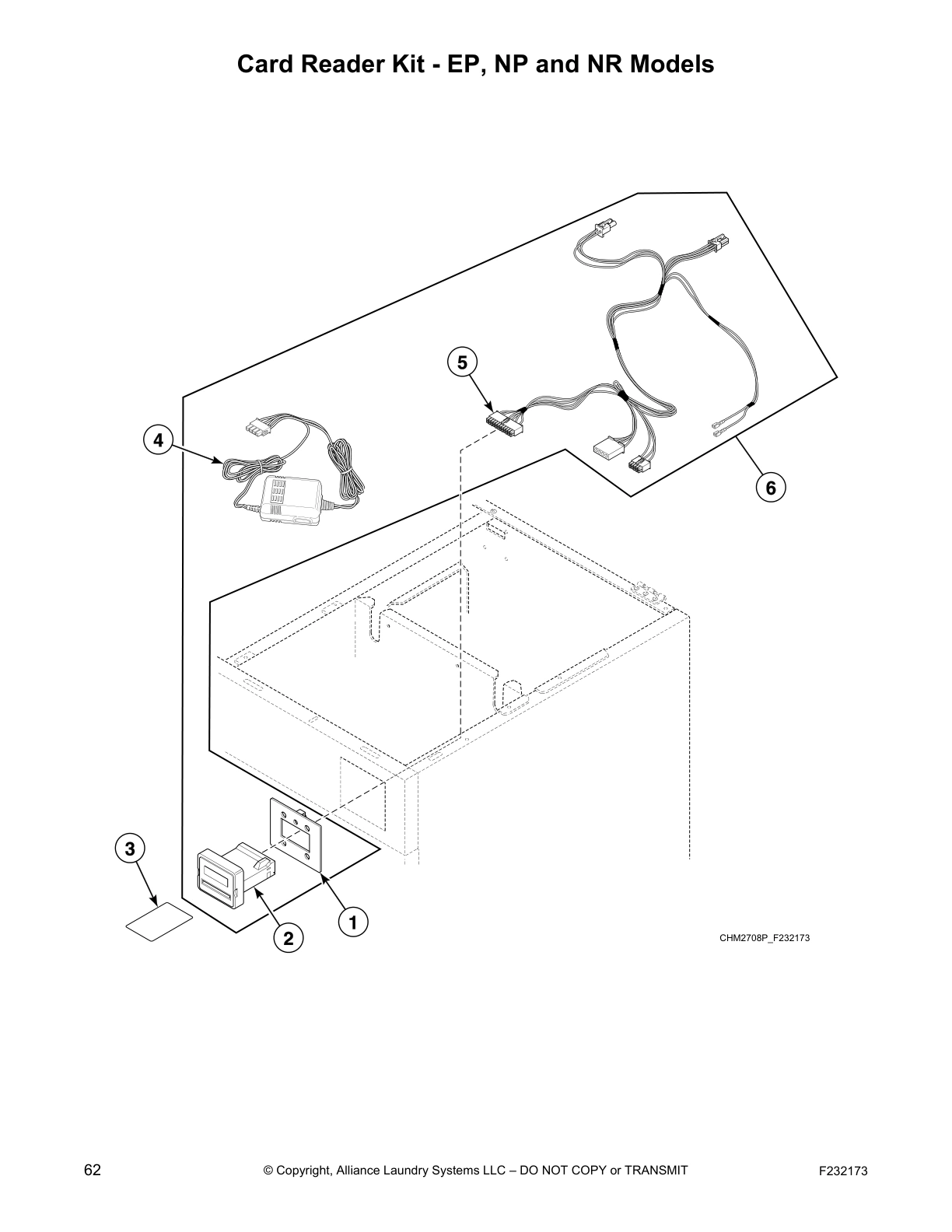

Card Reader Kit - EP, NP and NR Models

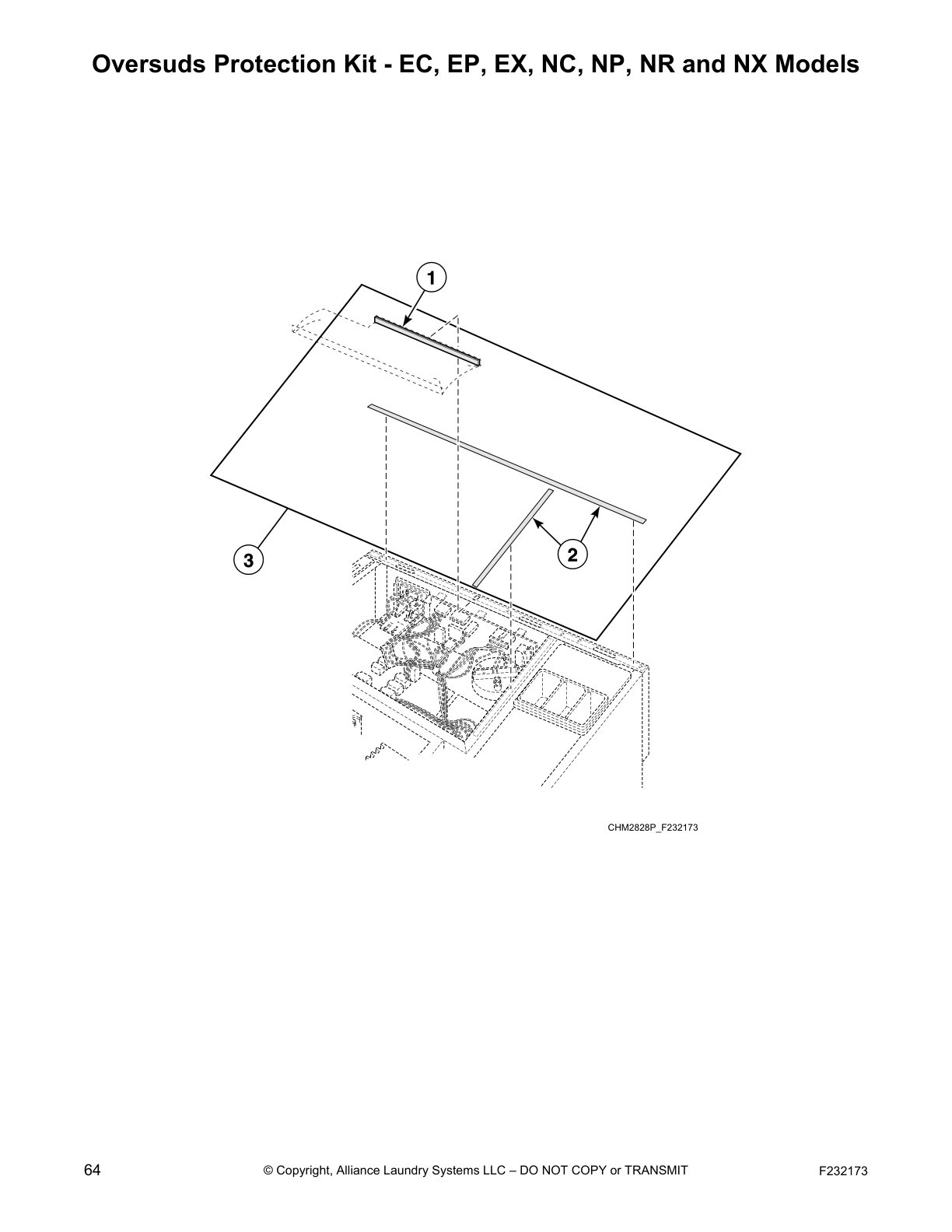

Oversuds Protection Kit - EC, EP, EX, NC, NP, NR and NX Models

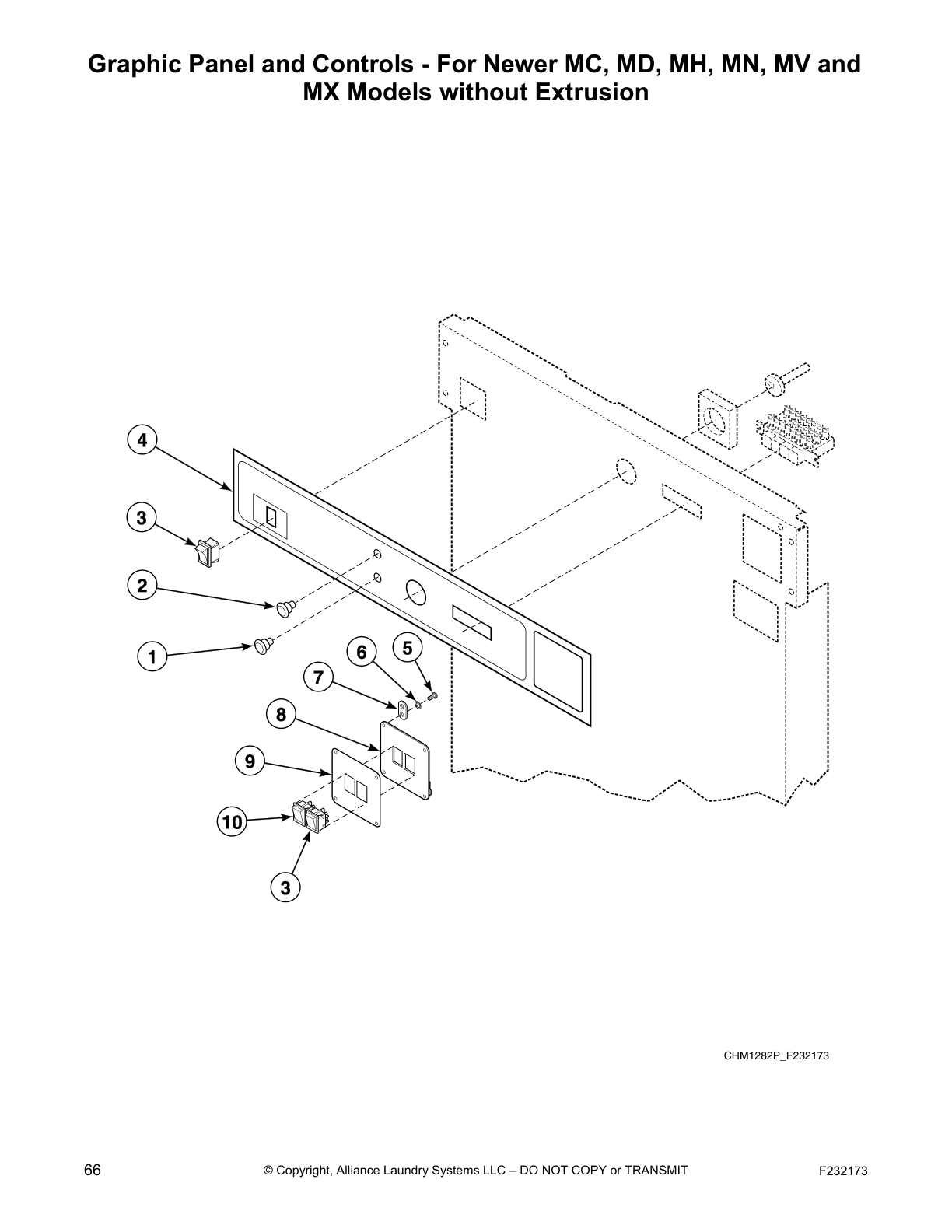

Graphic Panel and Controls - For Newer MC, MD, MH, MN, MV and
MX Models without Extrusion

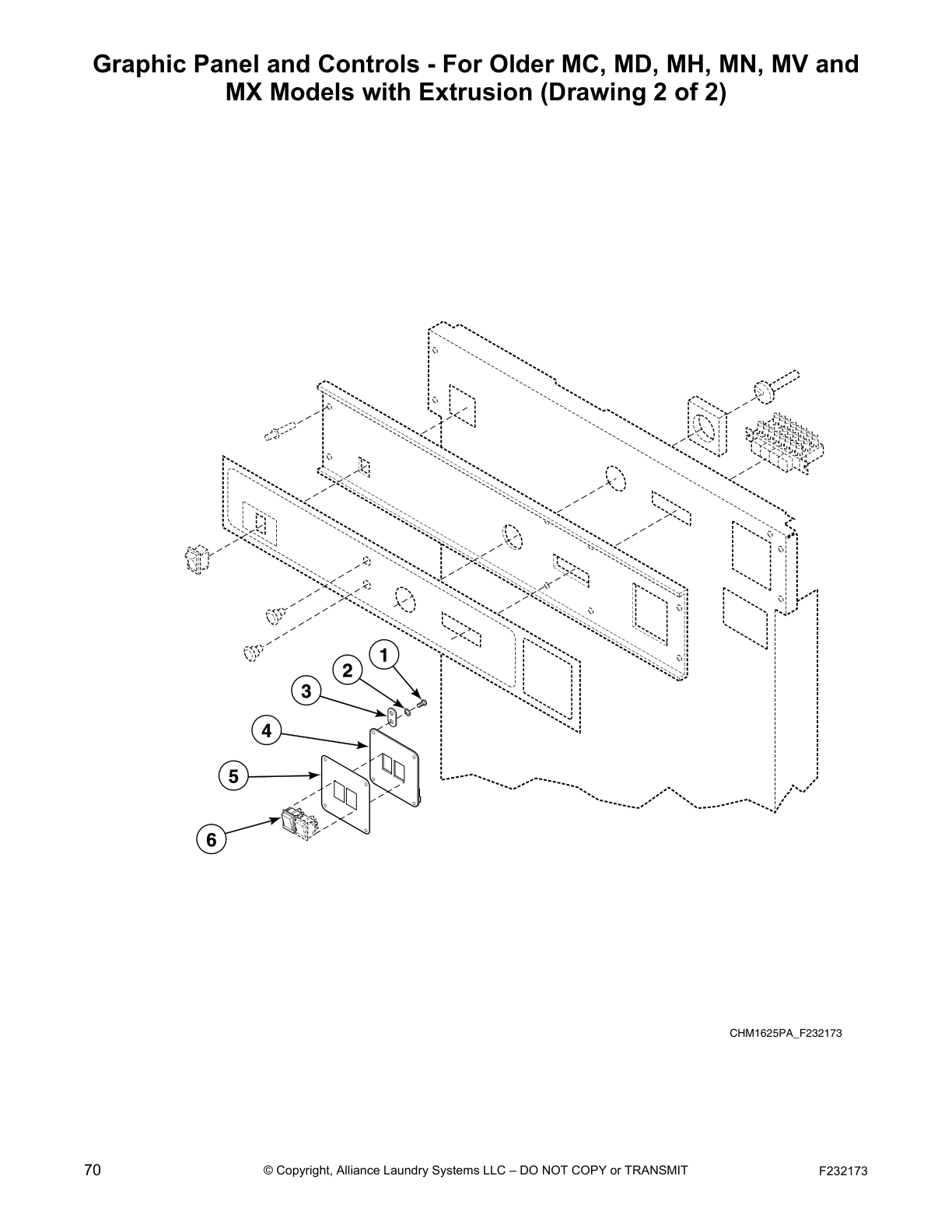

Graphic Panel and Controls - For Older MC, MD, MH, MN, MV and
MX Models with Extrusion (Drawing 2 of 2)

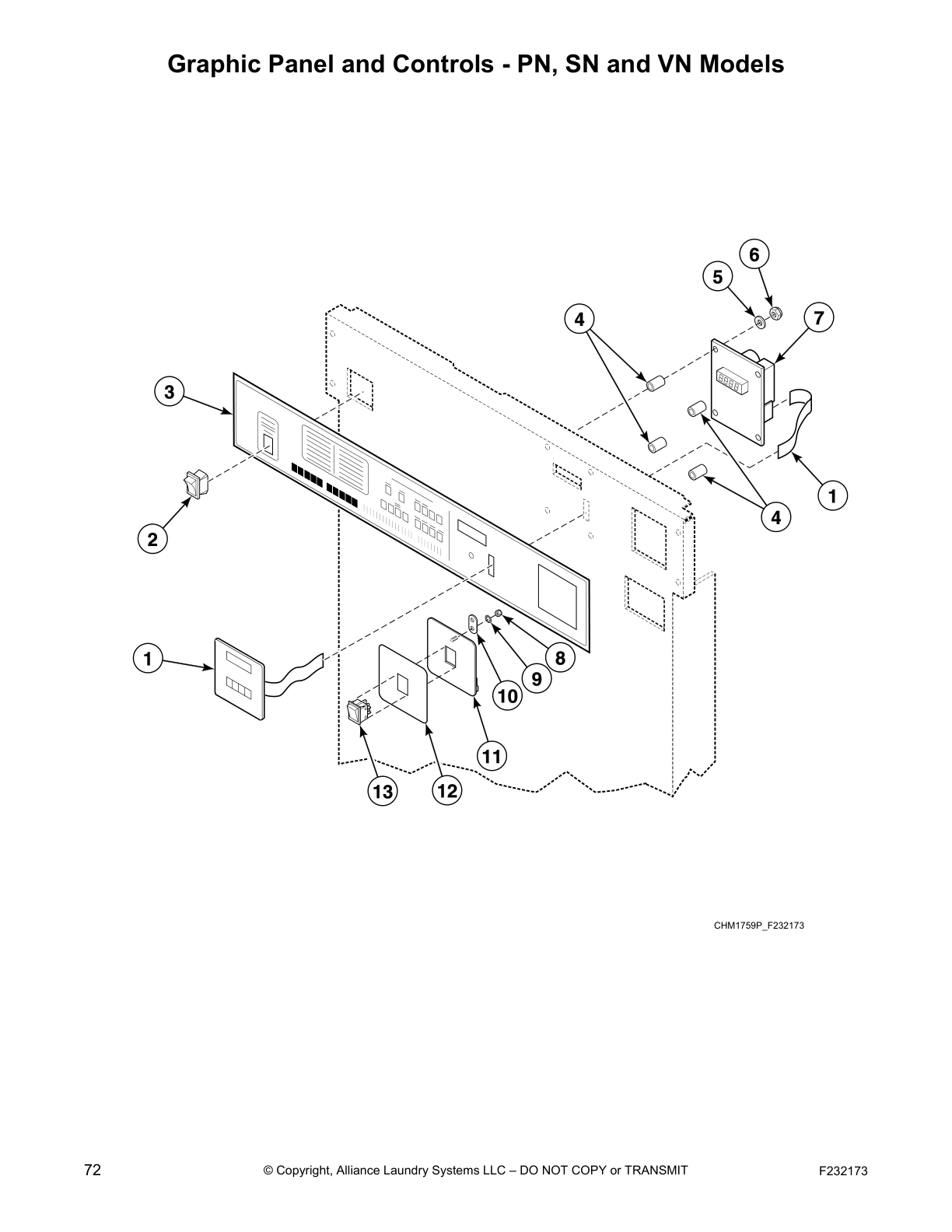

Graphic Panel and Controls - PN, SN and VN Models

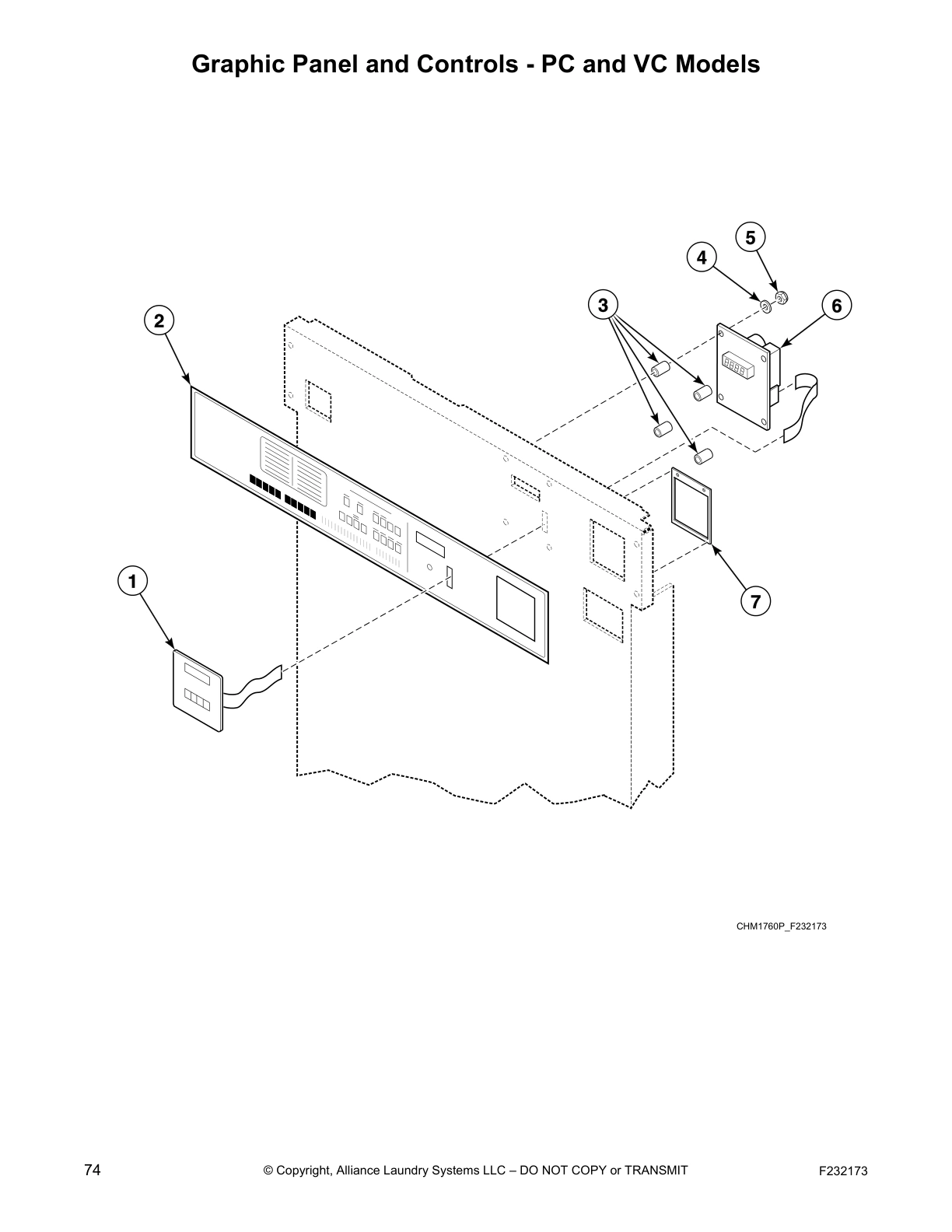

Graphic Panel and Controls - PC and VC Models

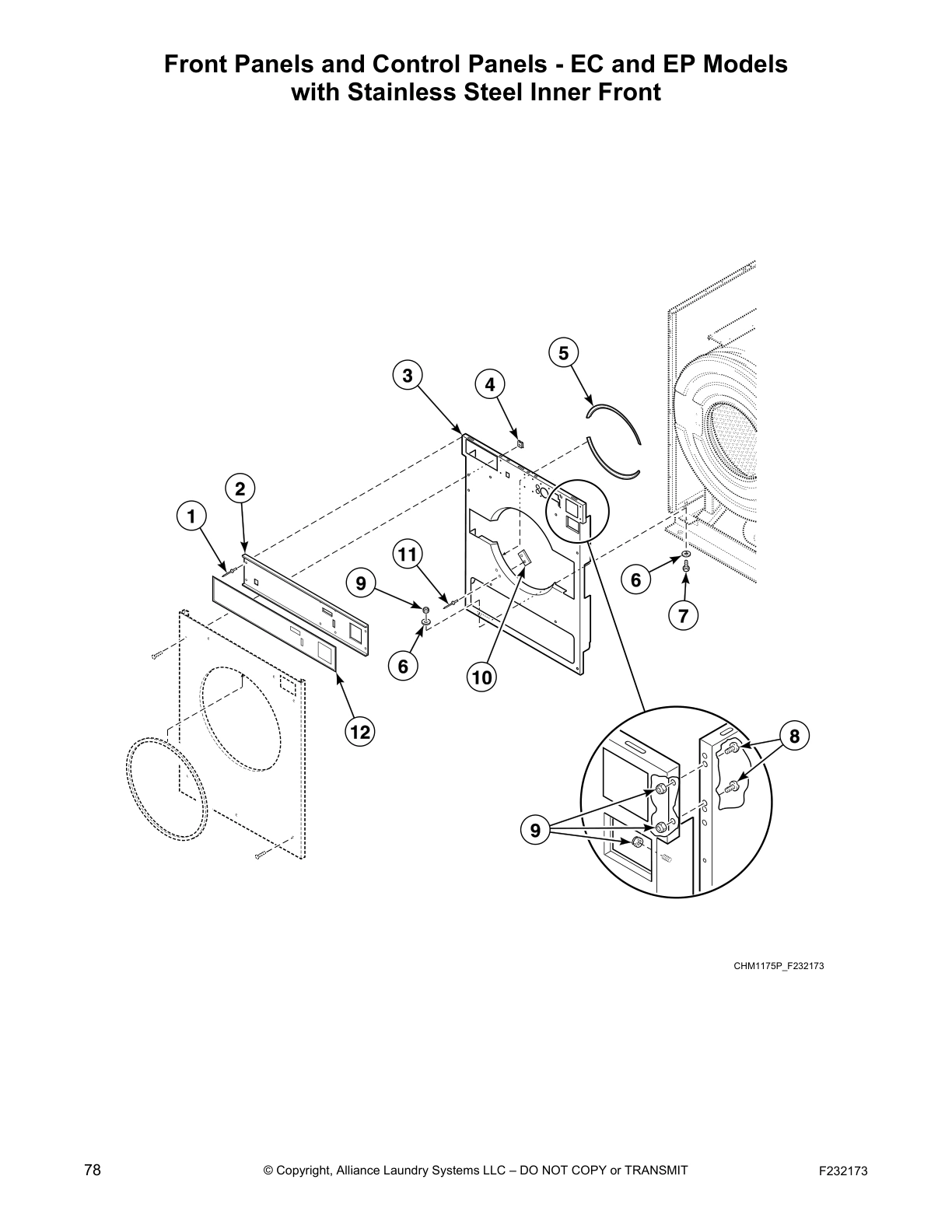

Front Panels and Control Panels - EC and EP Models
with Stainless Steel Inner Front

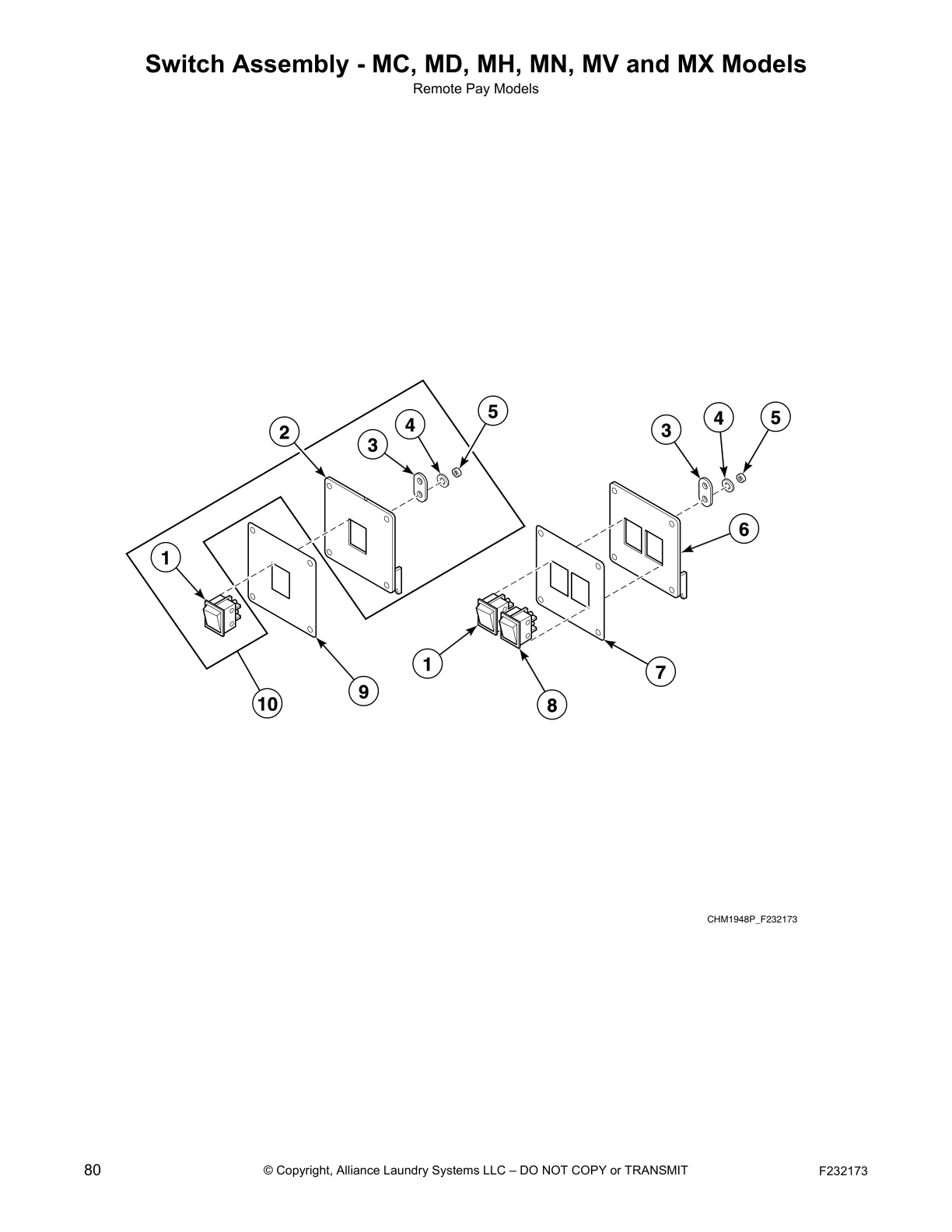

Switch Assembly - MC, MD, MH, MN, MV and MX Models

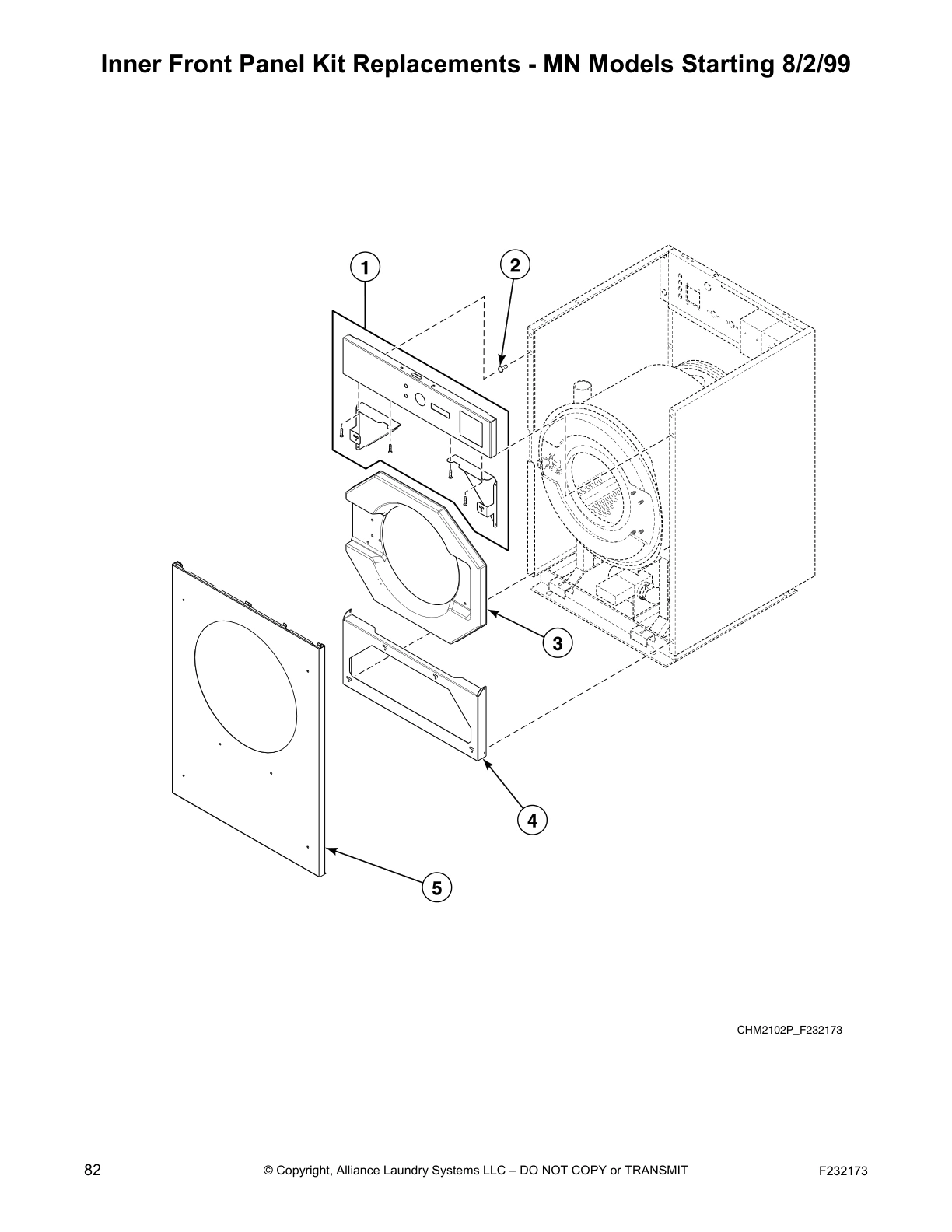

Inner Front Panel Kit Replacements - MN Models Starting 8/2/99

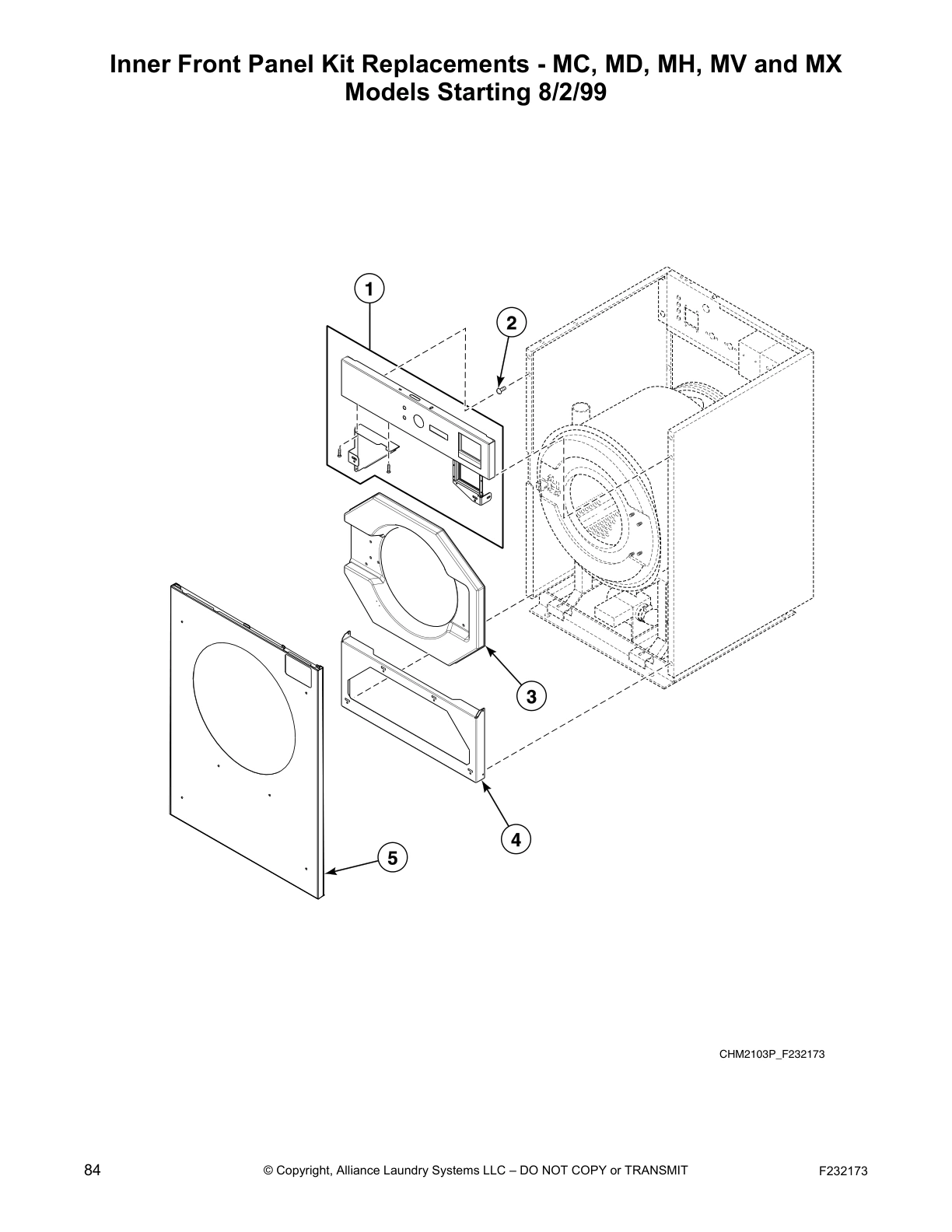

Inner Front Panel Kit Replacements - MC, MD, MH, MV and MX
Models Starting 8/2/99

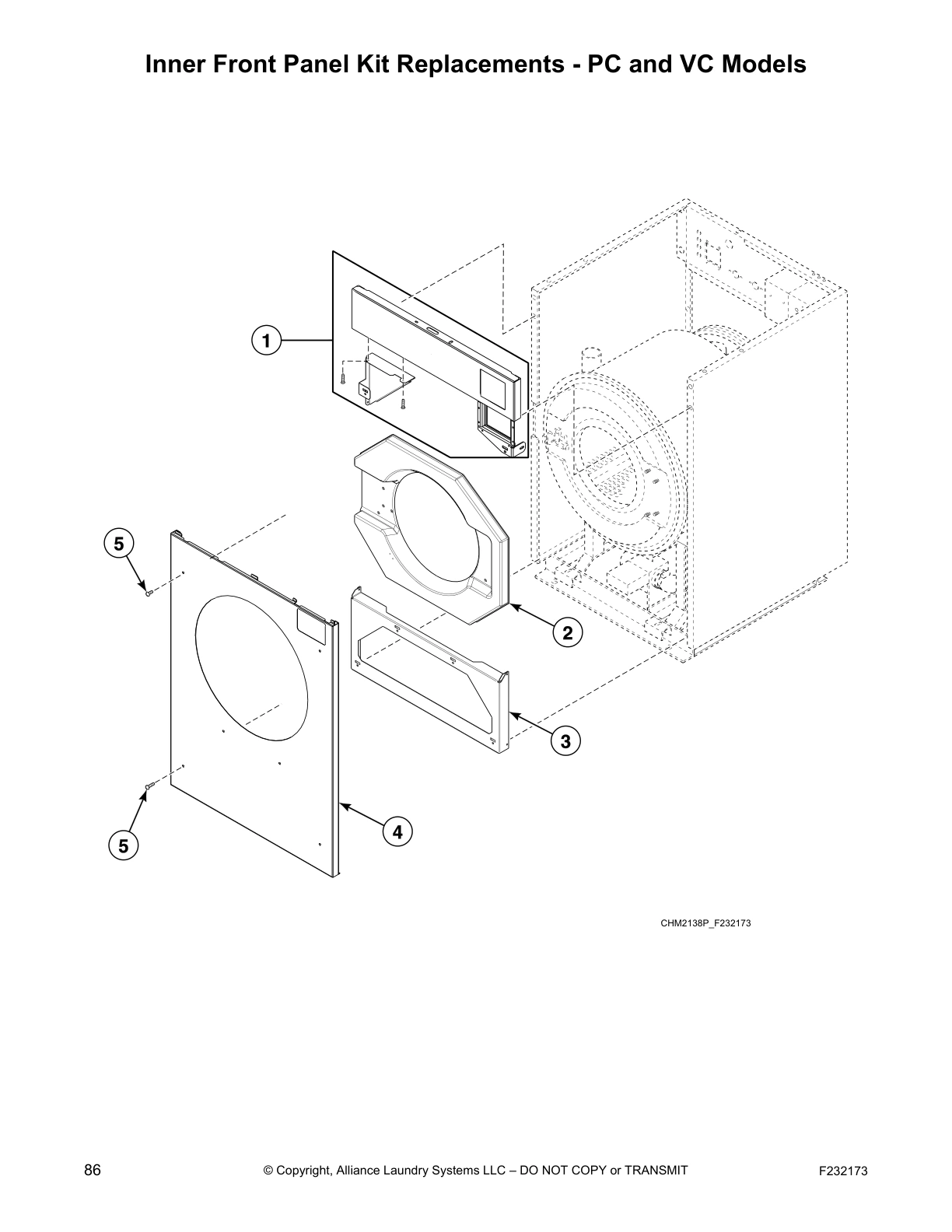

Inner Front Panel Kit Replacements - PC and VC Models

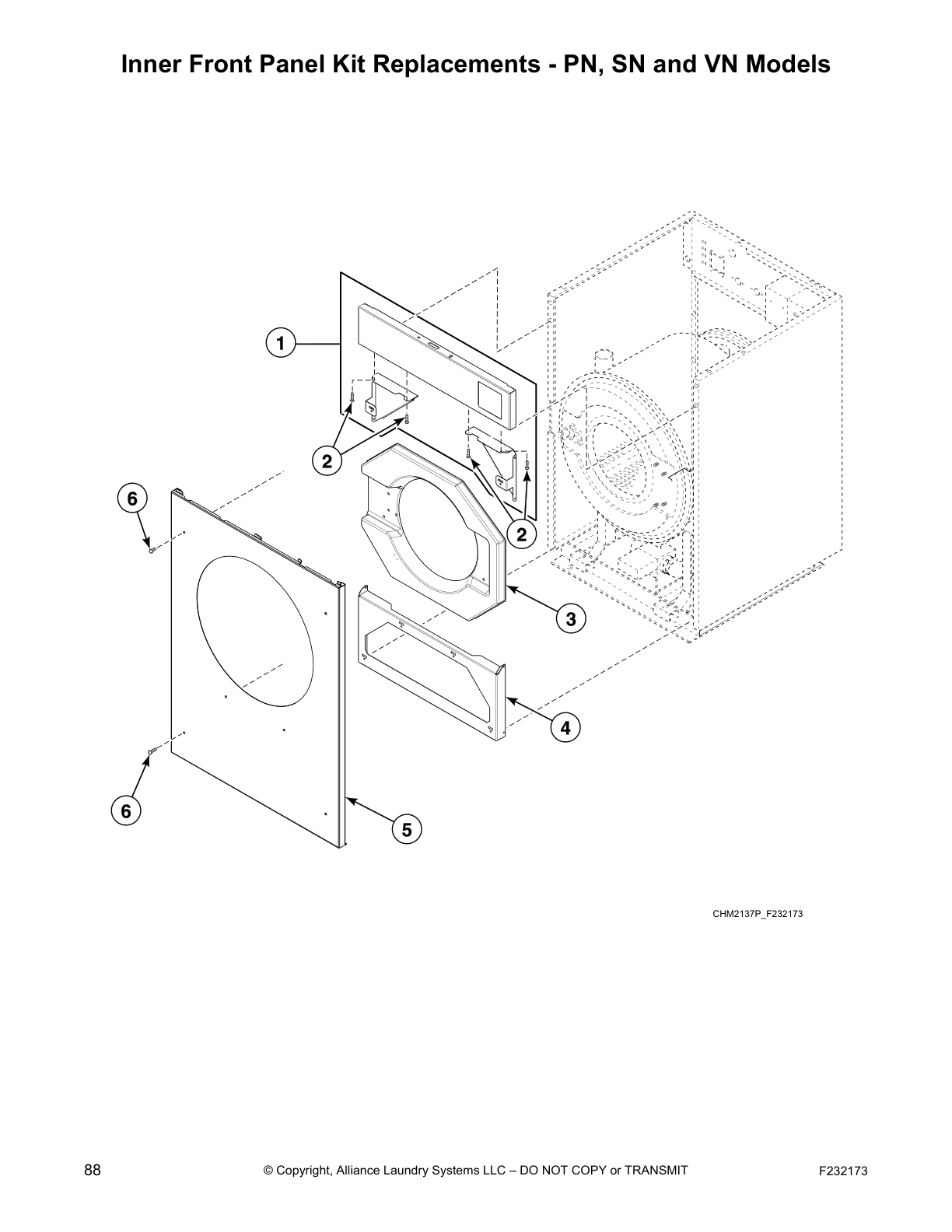

Inner Front Panel Kit Replacements - PN, SN and VN Models

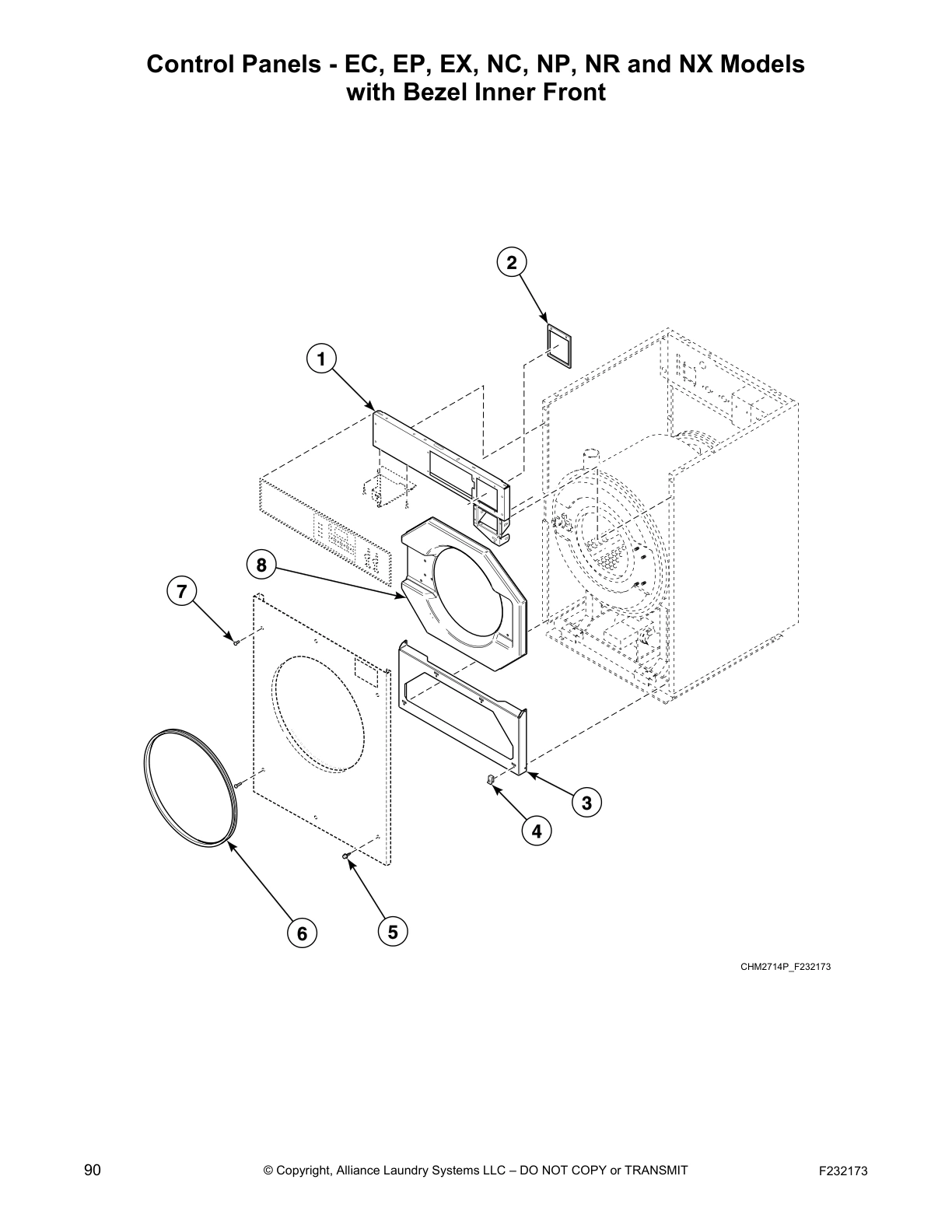

Control Panels - EC, EP, EX, NC, NP, NR and NX Models
with Bezel Inner Front

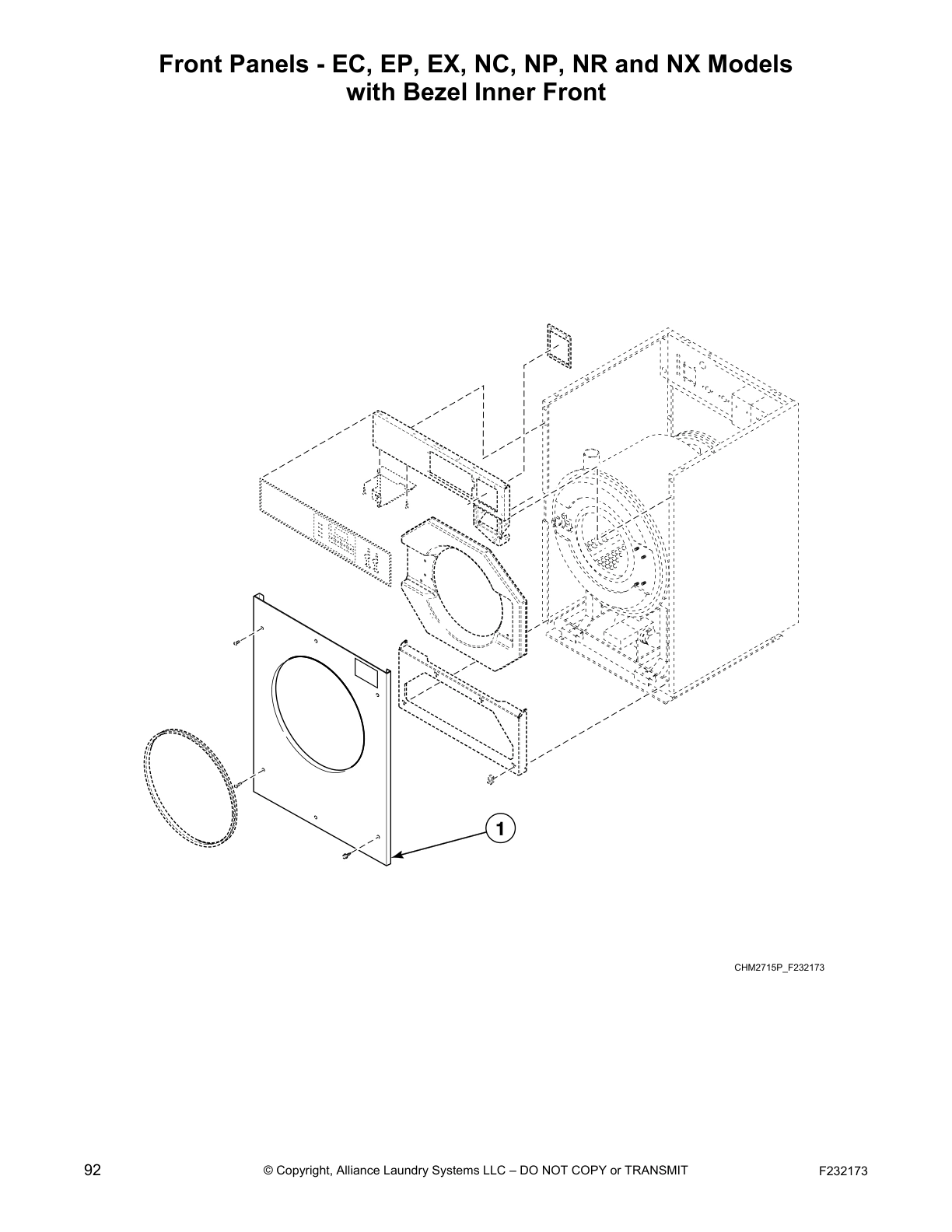

Front Panels - EC, EP, EX, NC, NP, NR and NX Models
with Bezel Inner Front

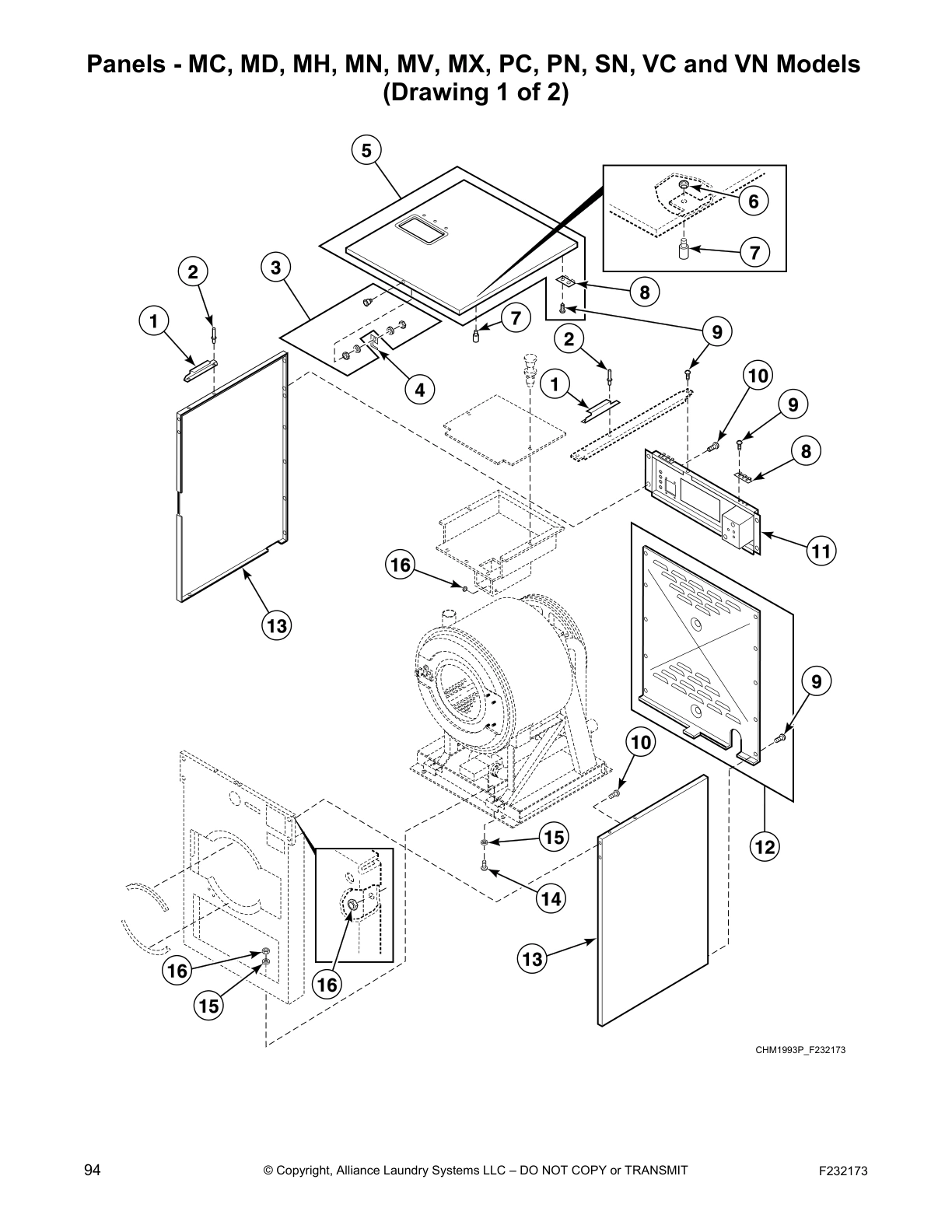

Panels - MC, MD, MH, MN, MV, MX, PC, PN, SN, VC and VN Models
(Drawing 1 of 2)

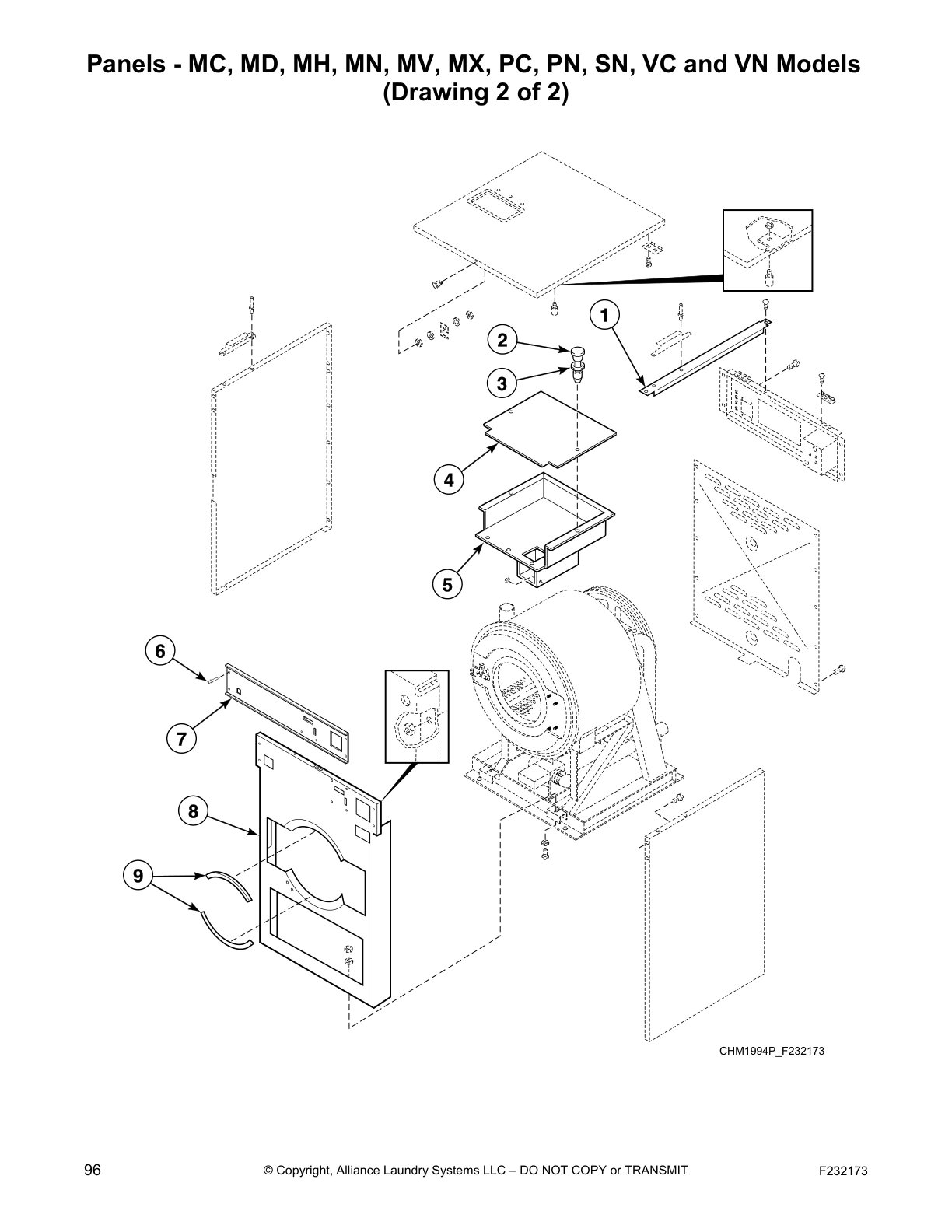

Panels - MC, MD, MH, MN, MV, MX, PC, PN, SN, VC and VN Models
(Drawing 2 of 2)

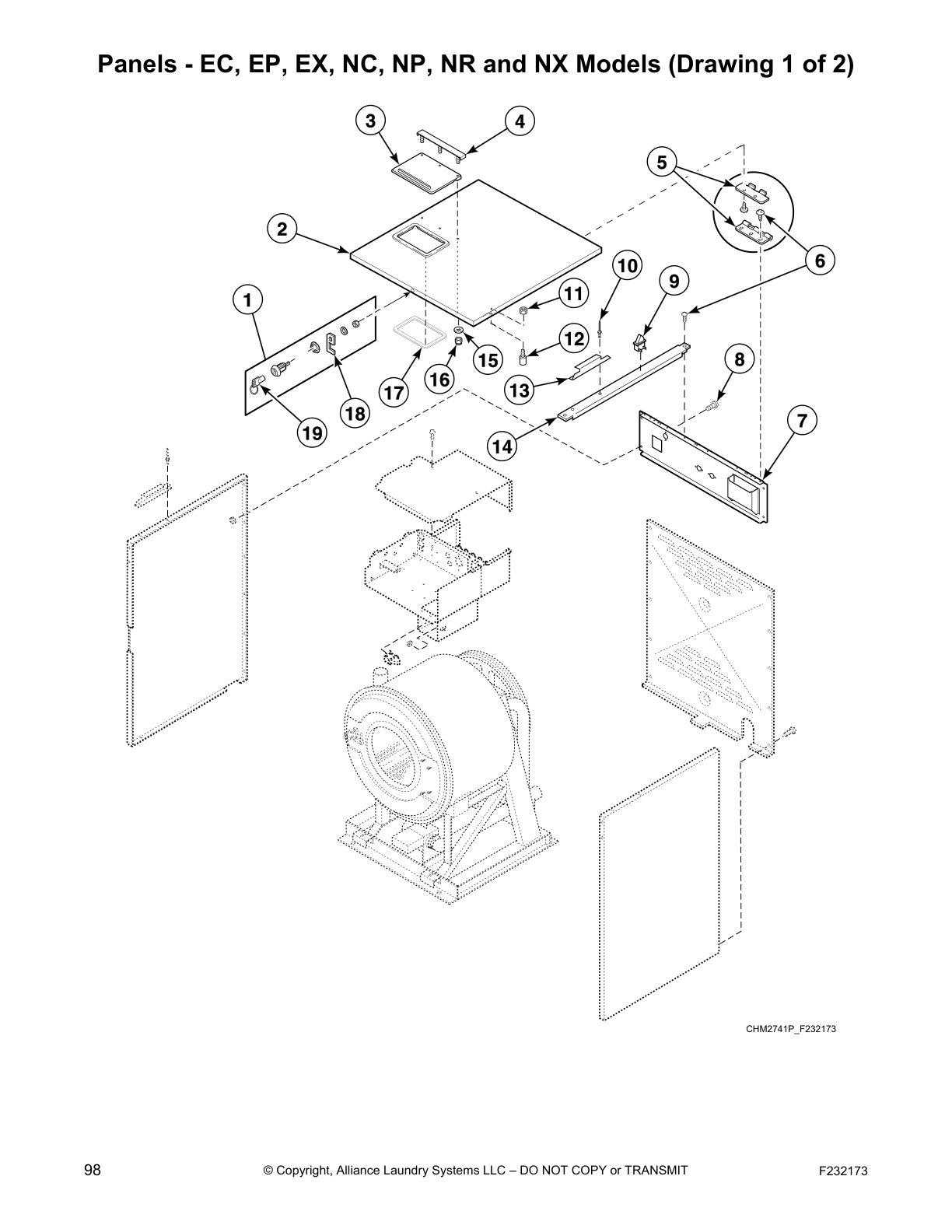

Panels - EC, EP, EX, NC, NP, NR and NX Models (Drawing 1 of 2)

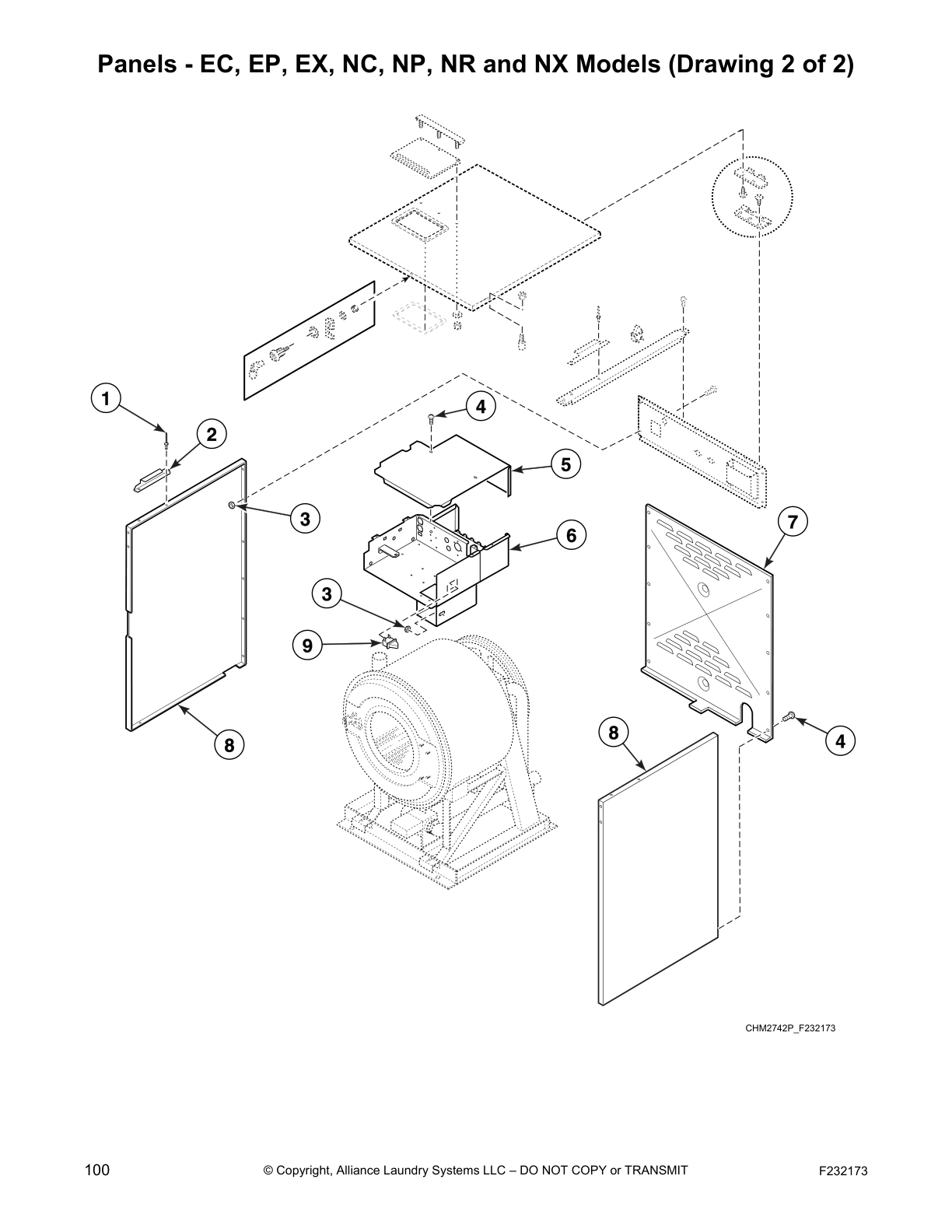

Panels - EC, EP, EX, NC, NP, NR and NX Models (Drawing 2 of 2)

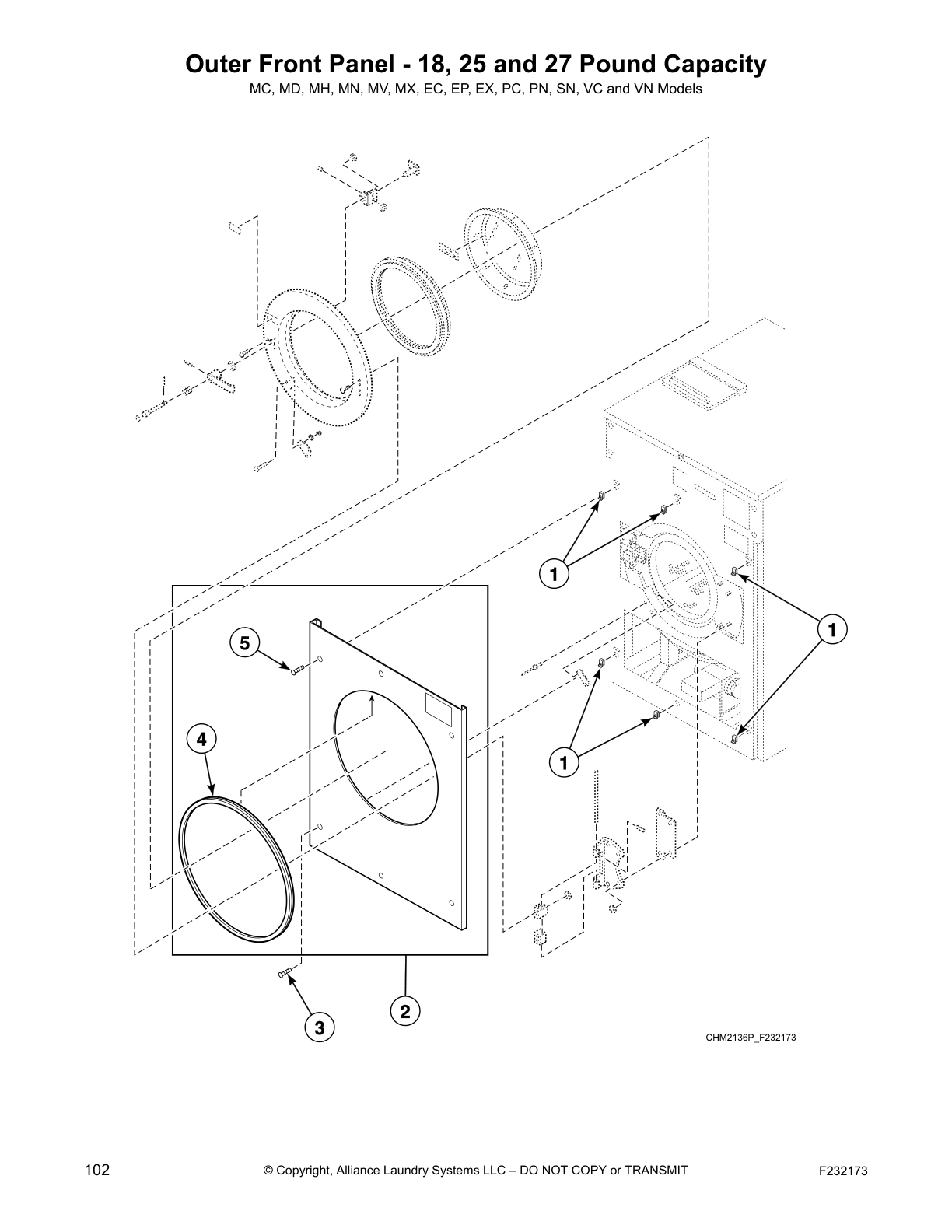

Outer Front Panel - 18, 25 and 27 Pound Capacity

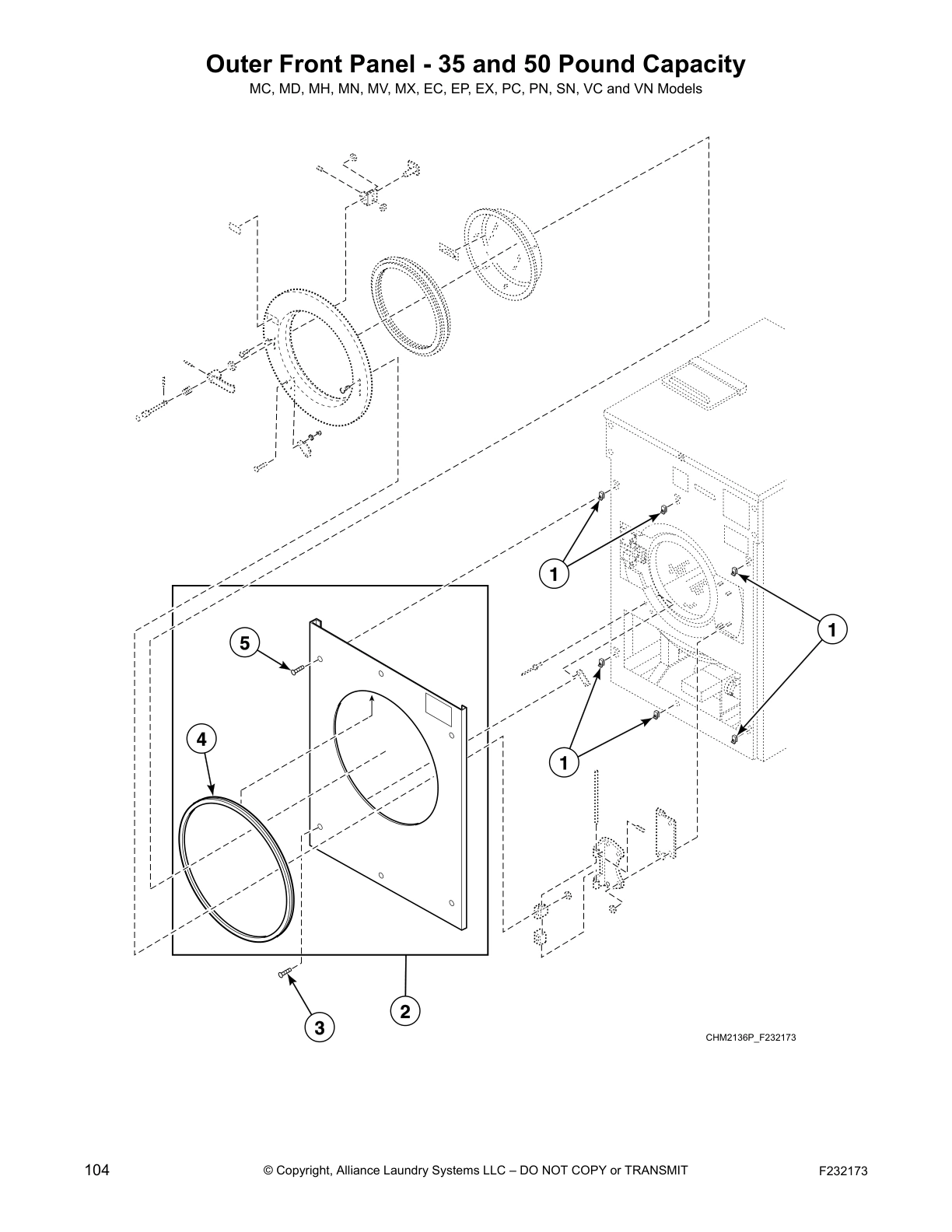

Outer Front Panel - 35 and 50 Pound Capacity

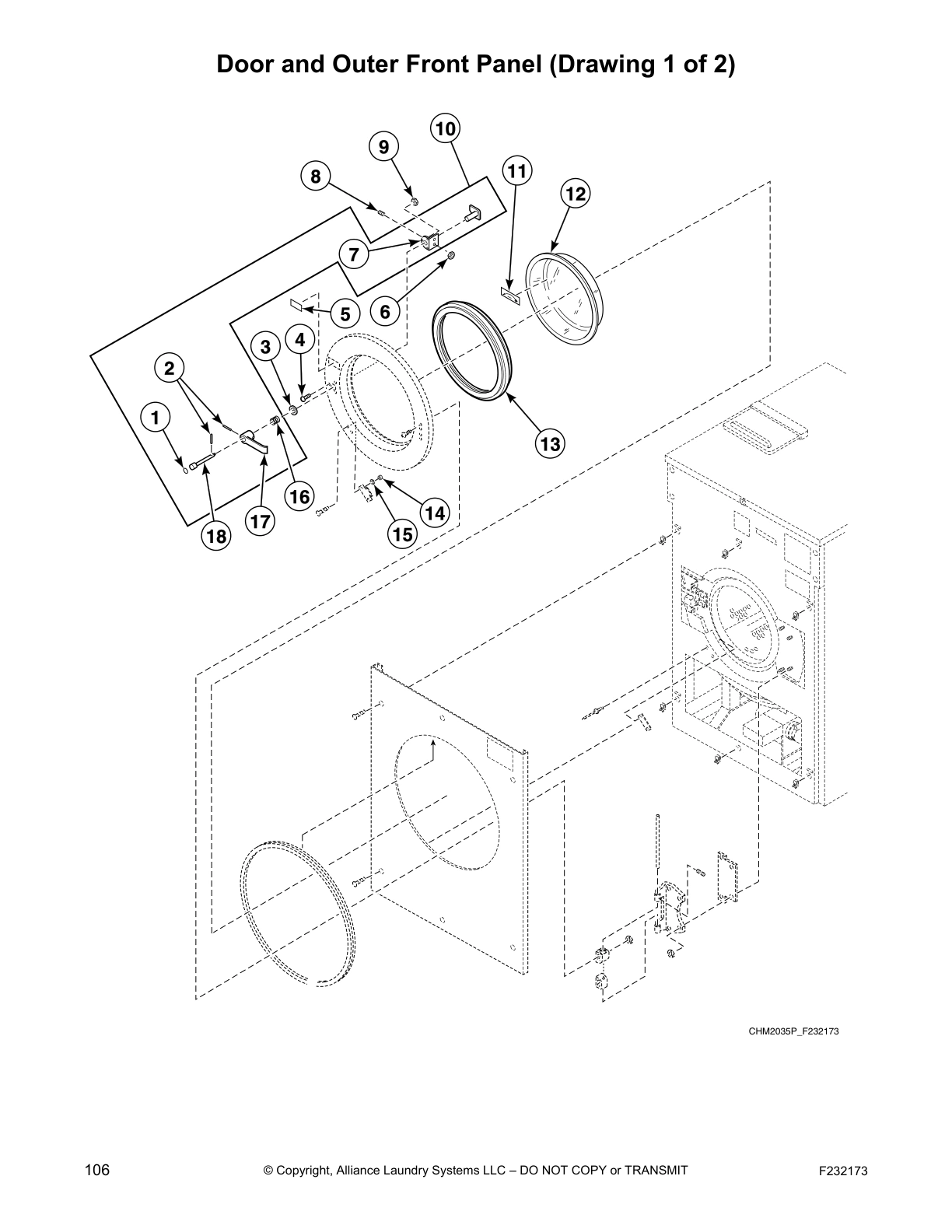

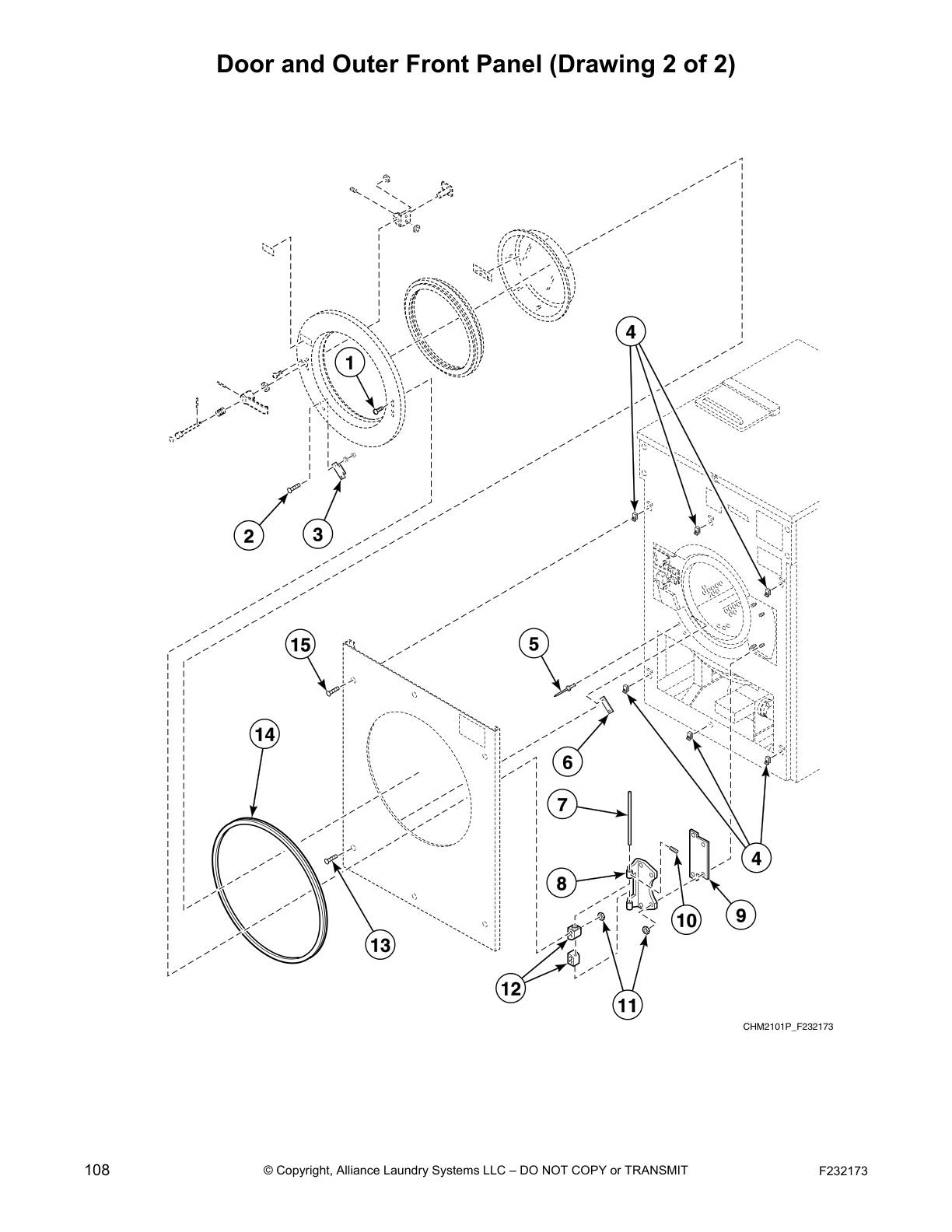

Door and Outer Front Panel (Drawing 1 of 2)
Door and Outer Front Panel (Drawing 2 of 2)

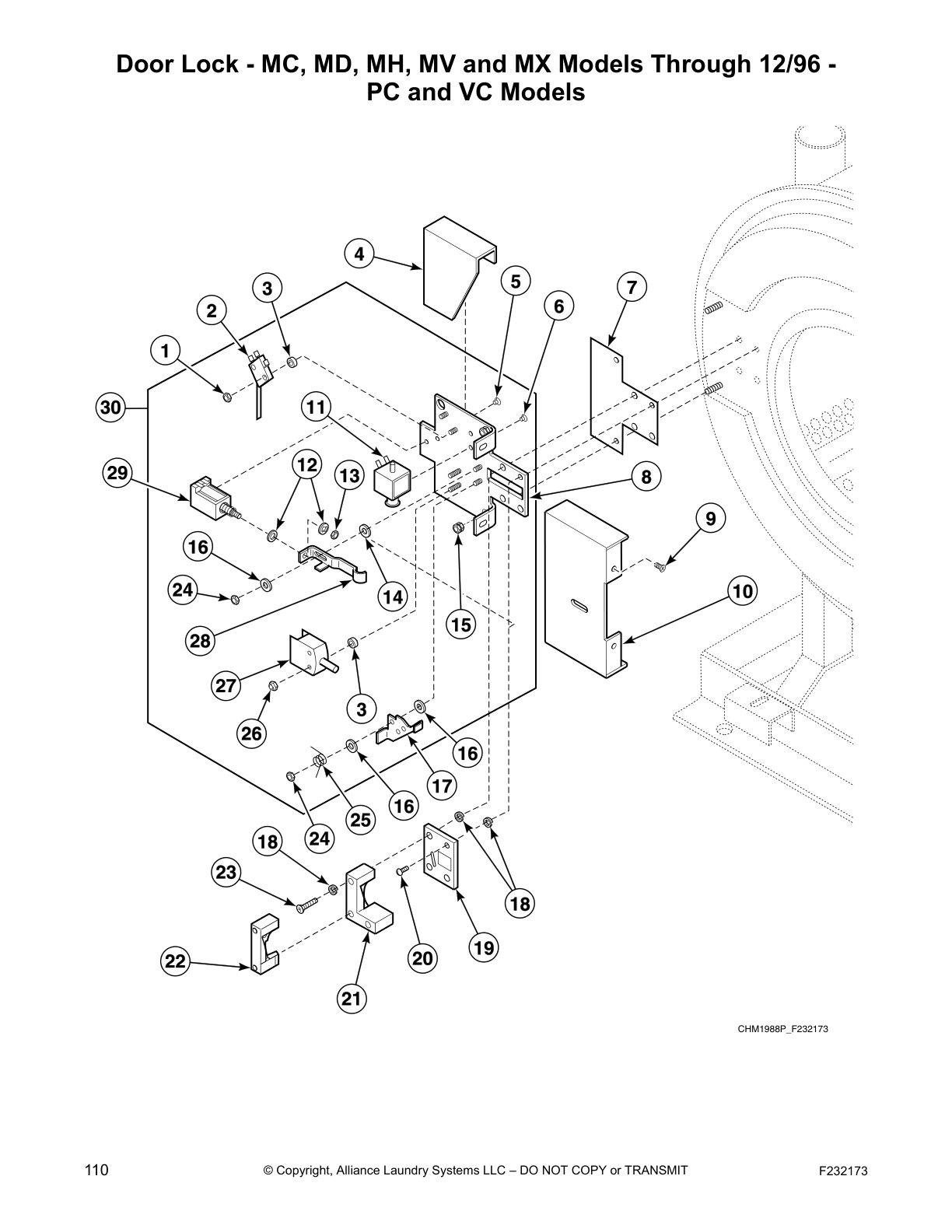

Door Lock - MC, MD, MH, MV and MX Models Through 12/96 -
PC and VC Models

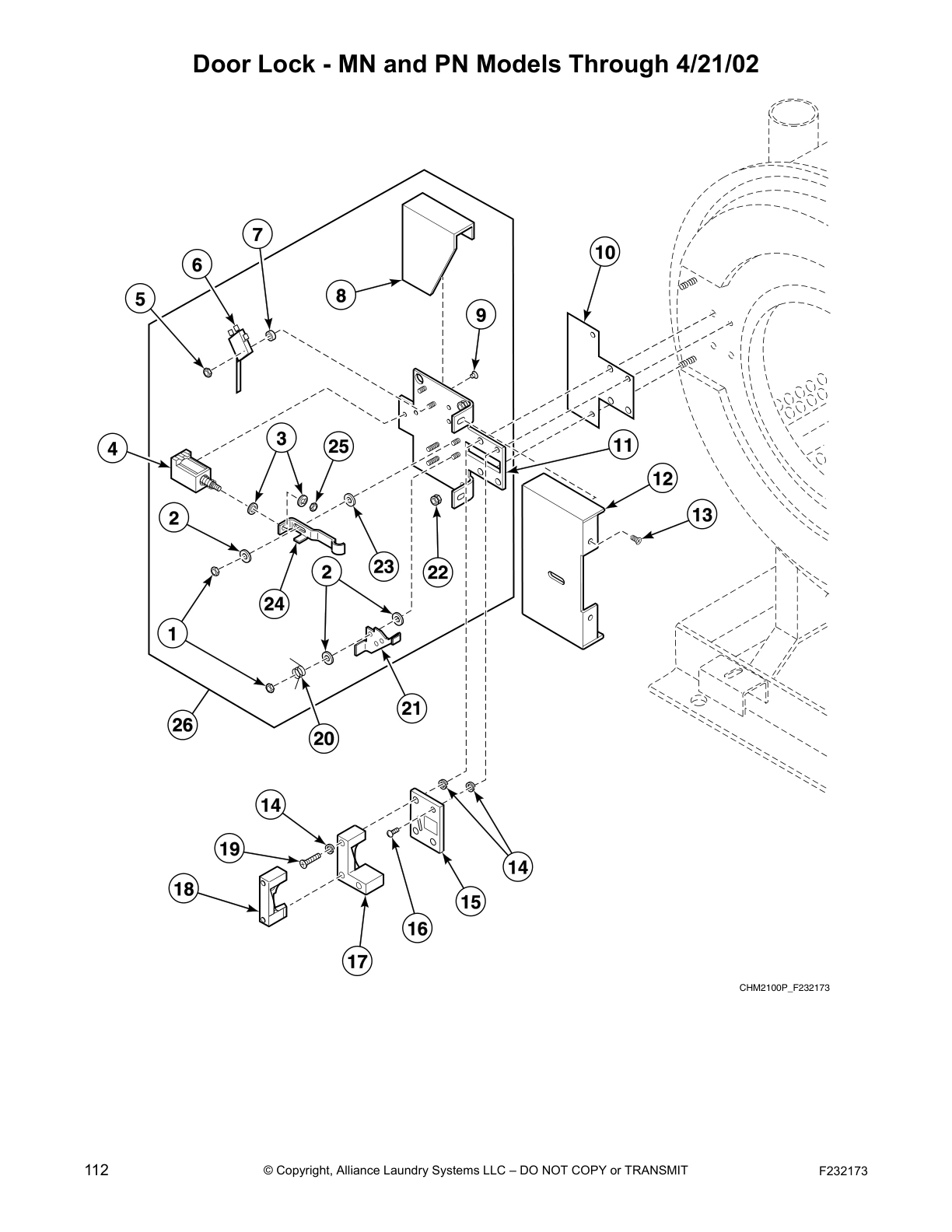

Door Lock - MN and PN Models Through 4/21/02

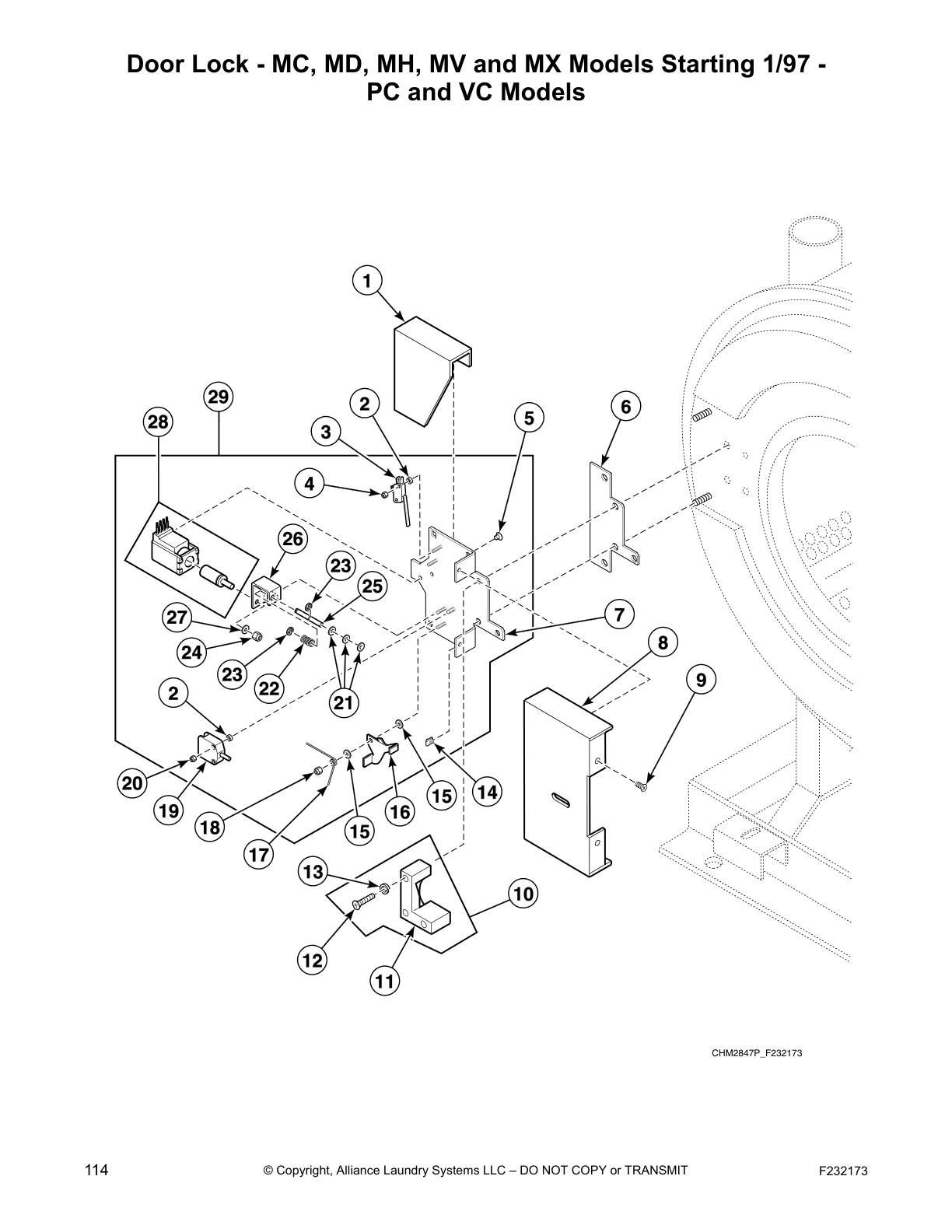

Door Lock - MC, MD, MH, MV and MX Models Starting 1/97 -
PC and VC Models

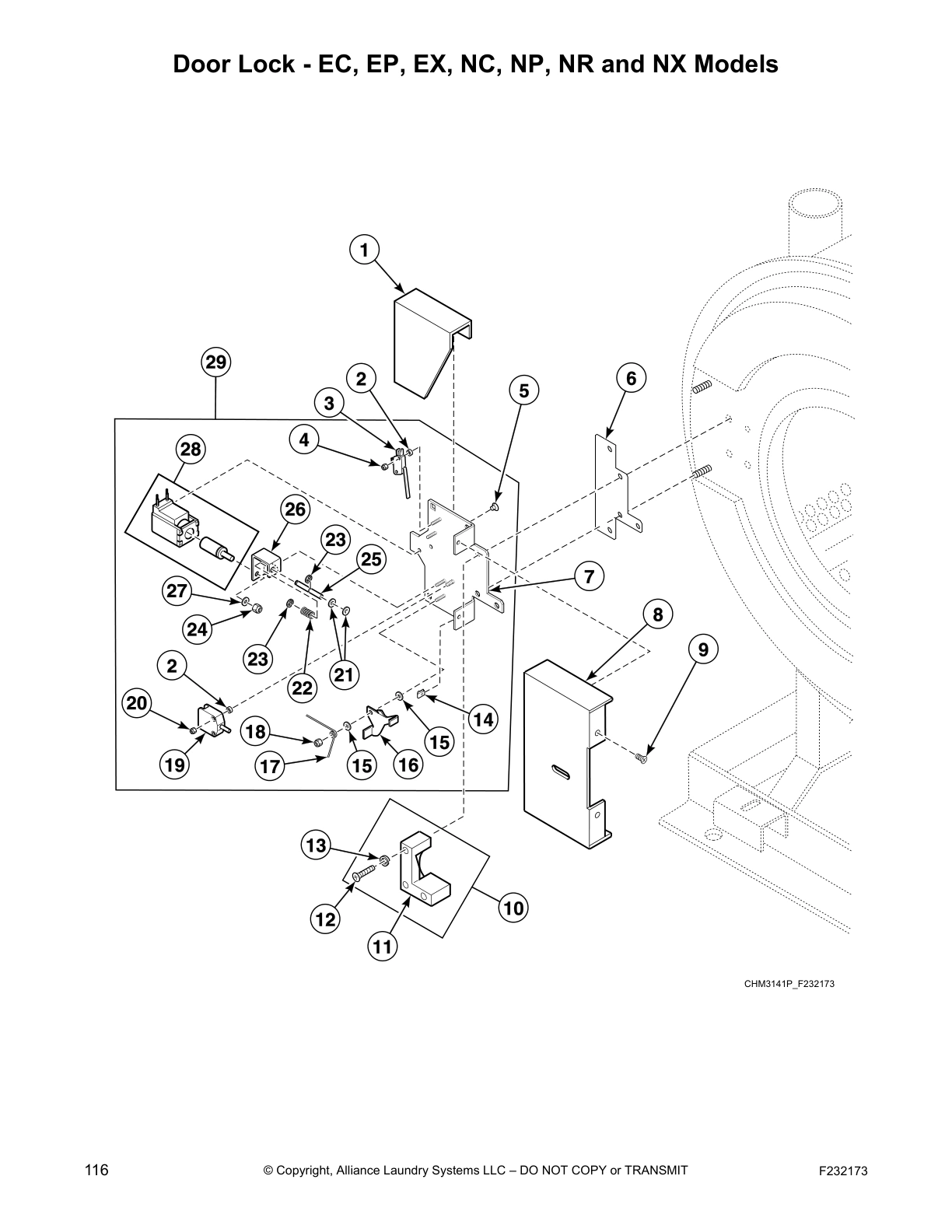

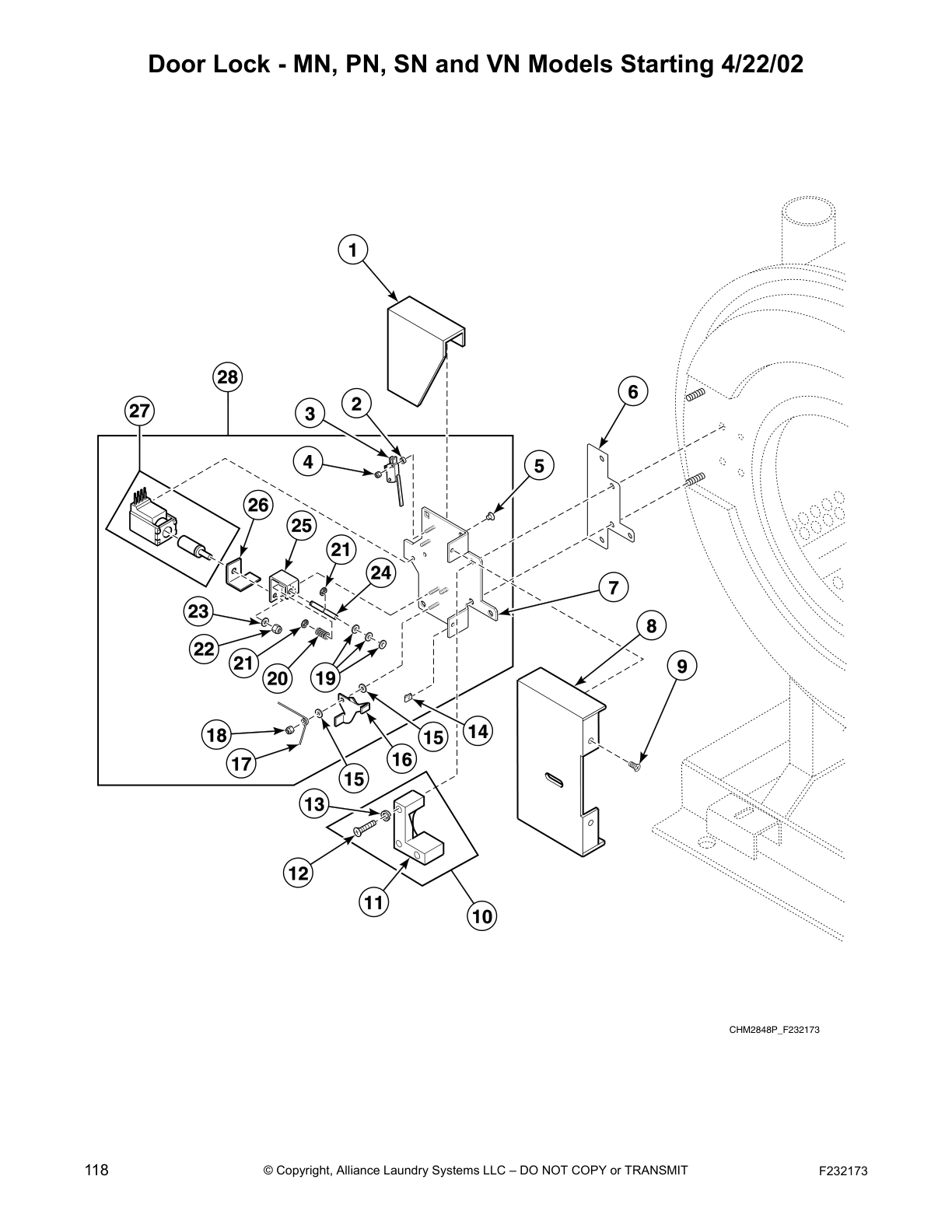

Door Lock - EC, EP, EX, NC, NP, NR and NX Models
Door Lock - MN, PN, SN and VN Models Starting 4/22/02

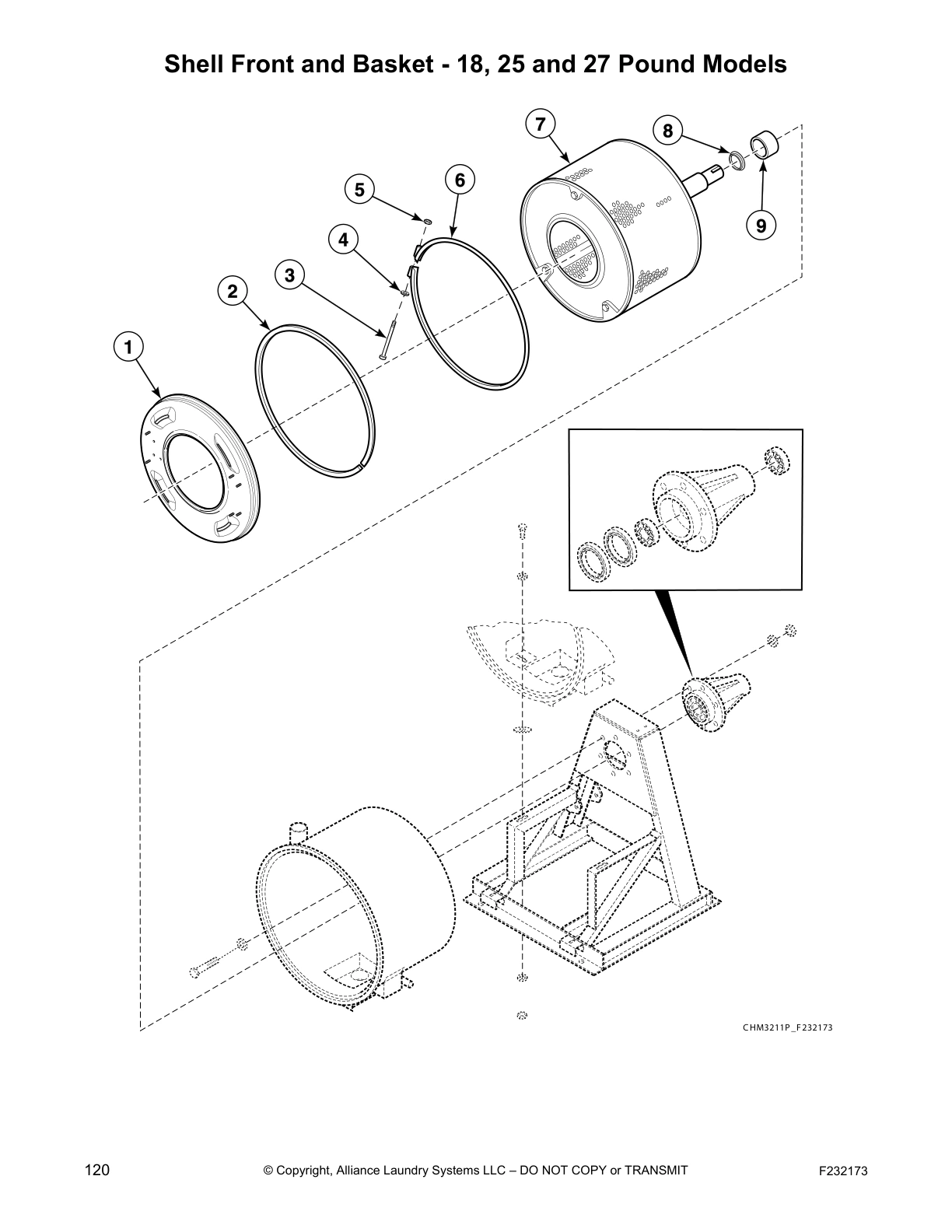

Shell Front and Basket - 18, 25 and 27 Pound Models

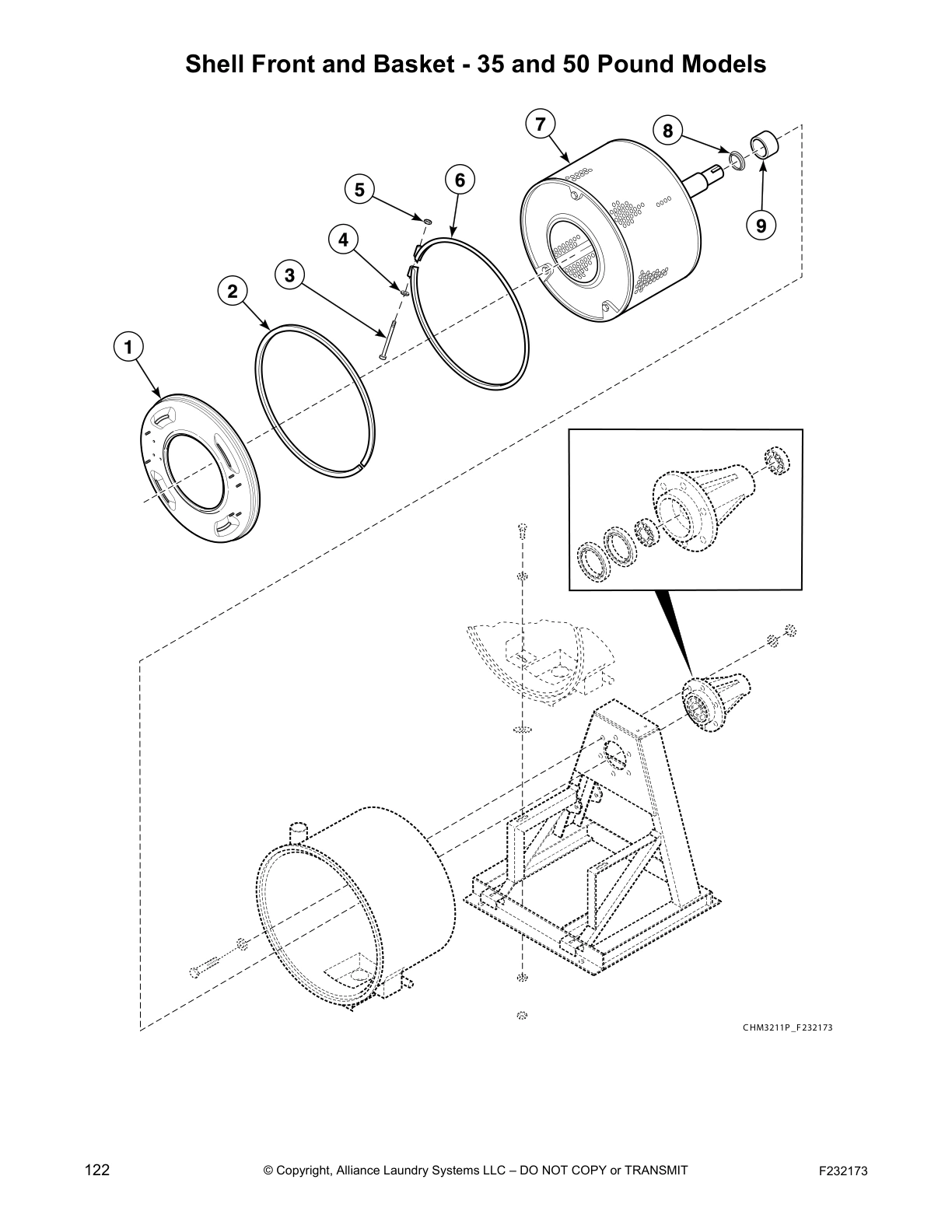

Shell Front and Basket - 35 and 50 Pound Models

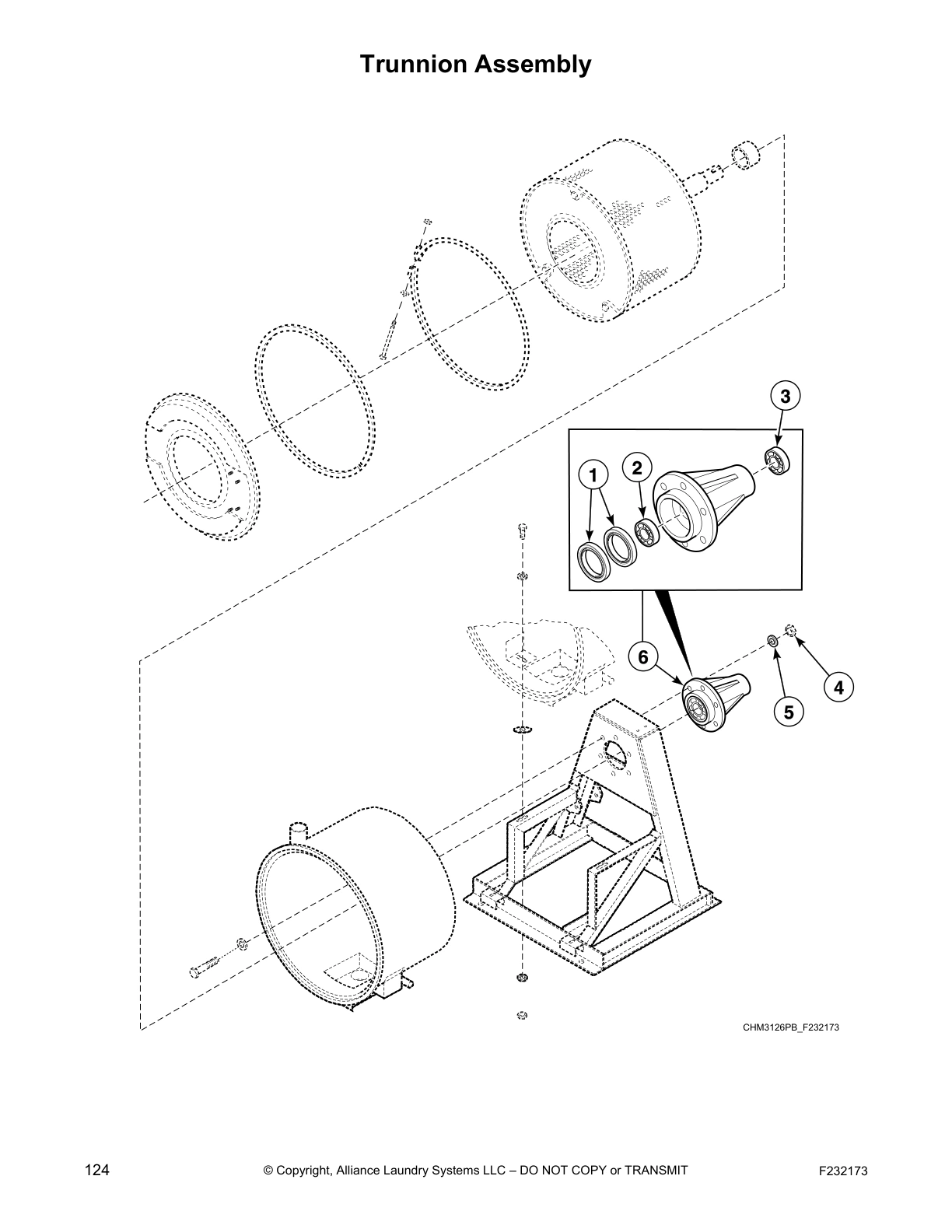

Trunnion Assembly

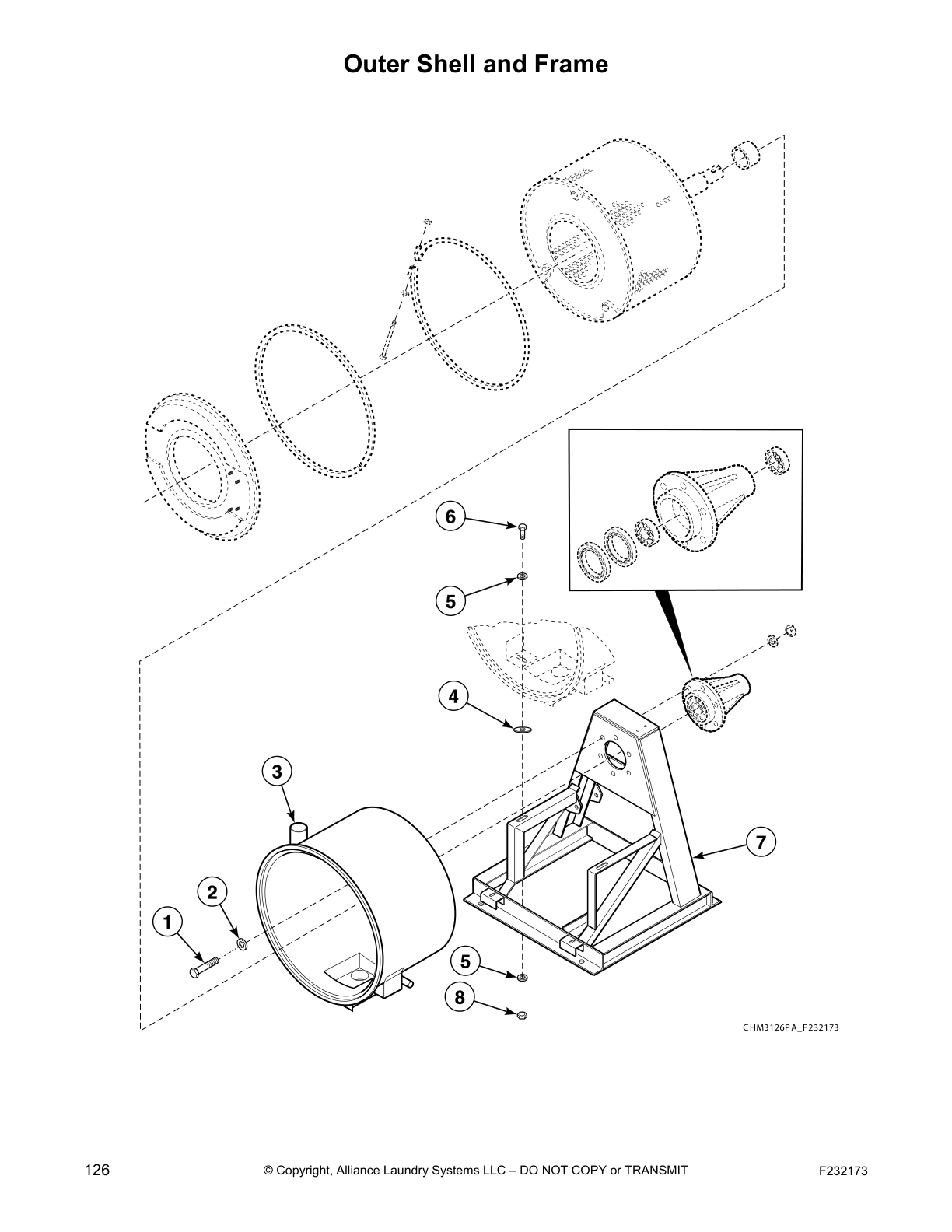

Outer Shell and Frame

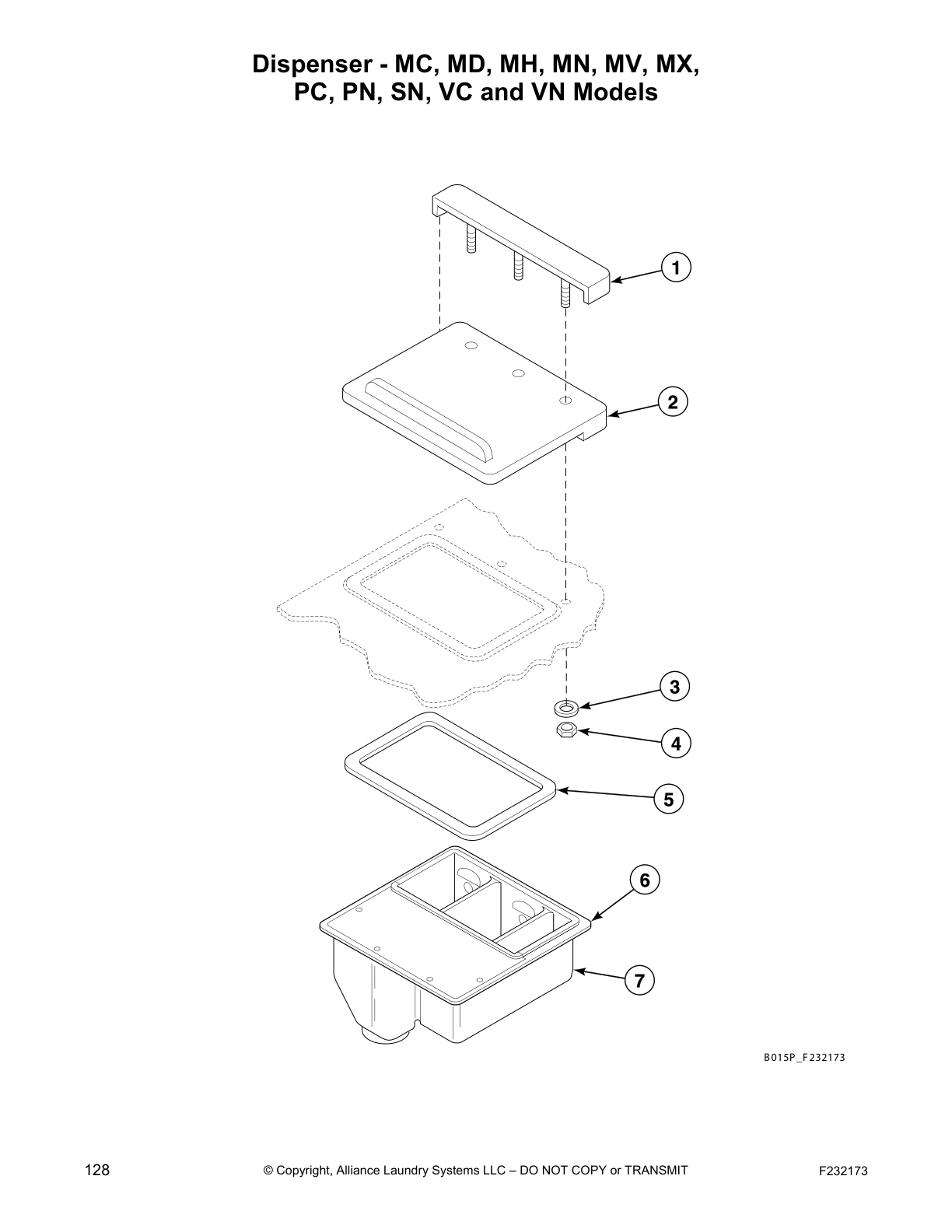

Dispenser - MC, MD, MH, MN, MV, MX,
PC, PN, SN, VC and VN Models

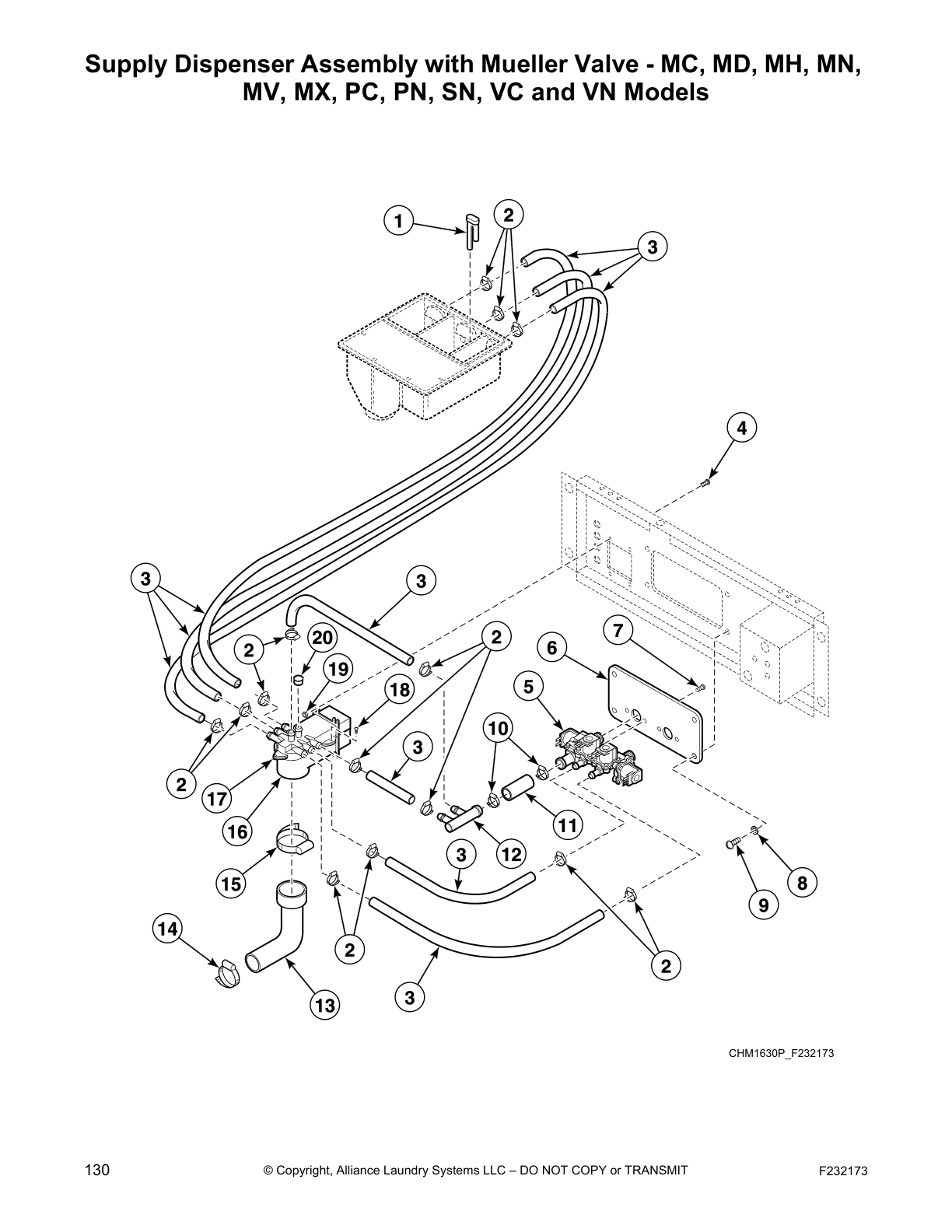

Supply Dispenser Assembly with Mueller Valve - MC, MD, MH, MN,
MV, MX, PC, PN, SN, VC and VN Models

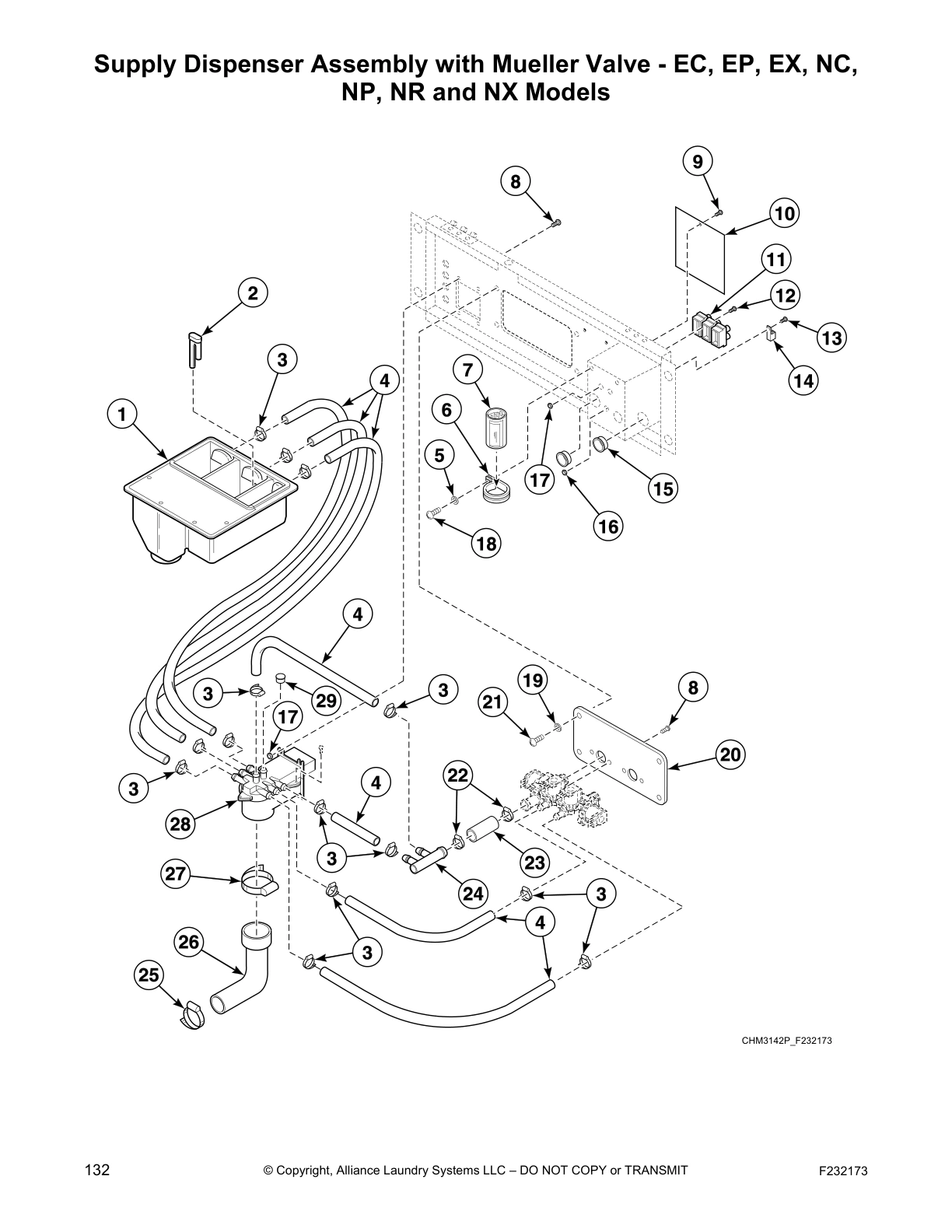

Supply Dispenser Assembly with Mueller Valve - EC, EP, EX, NC,
NP, NR and NX Models

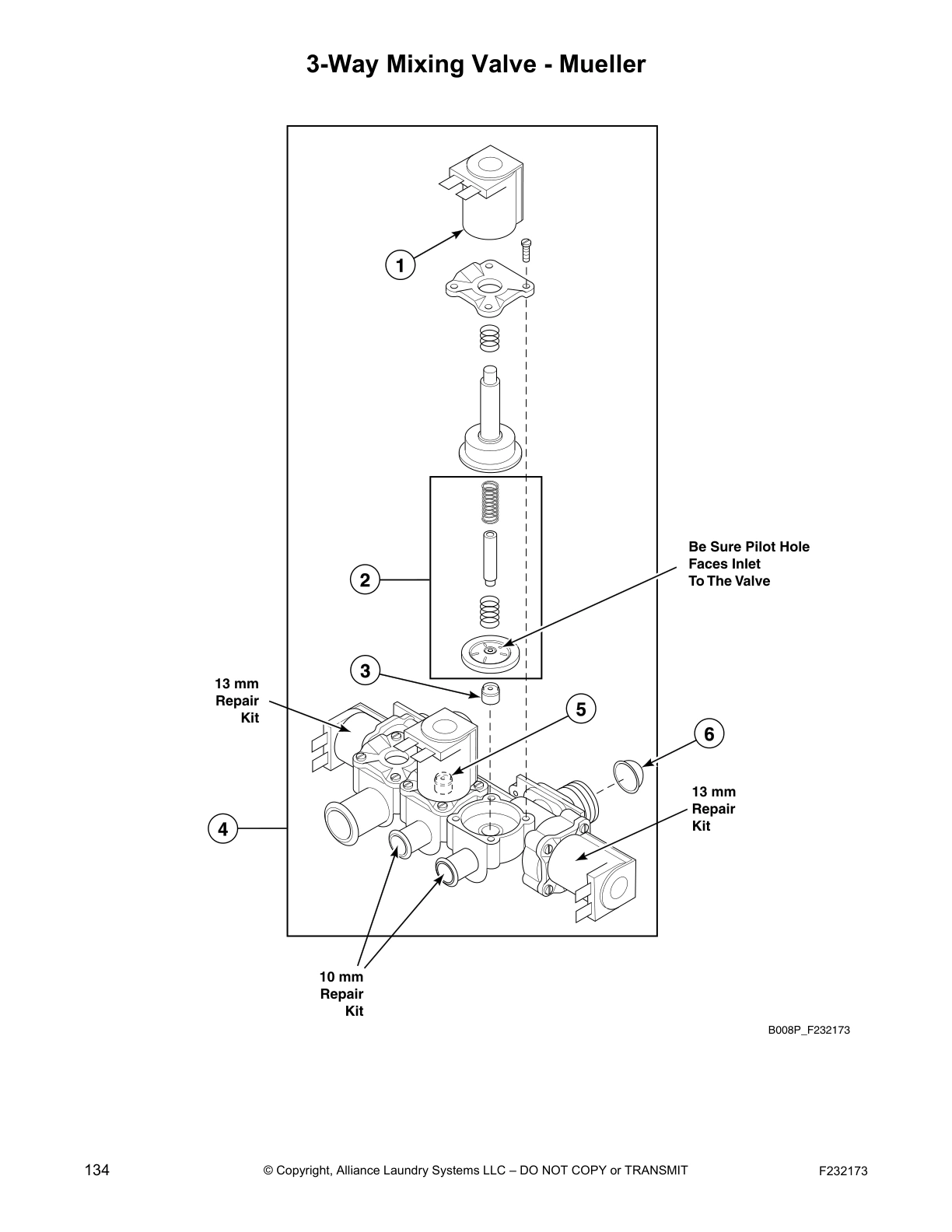

3-Way Mixing Valve - Mueller

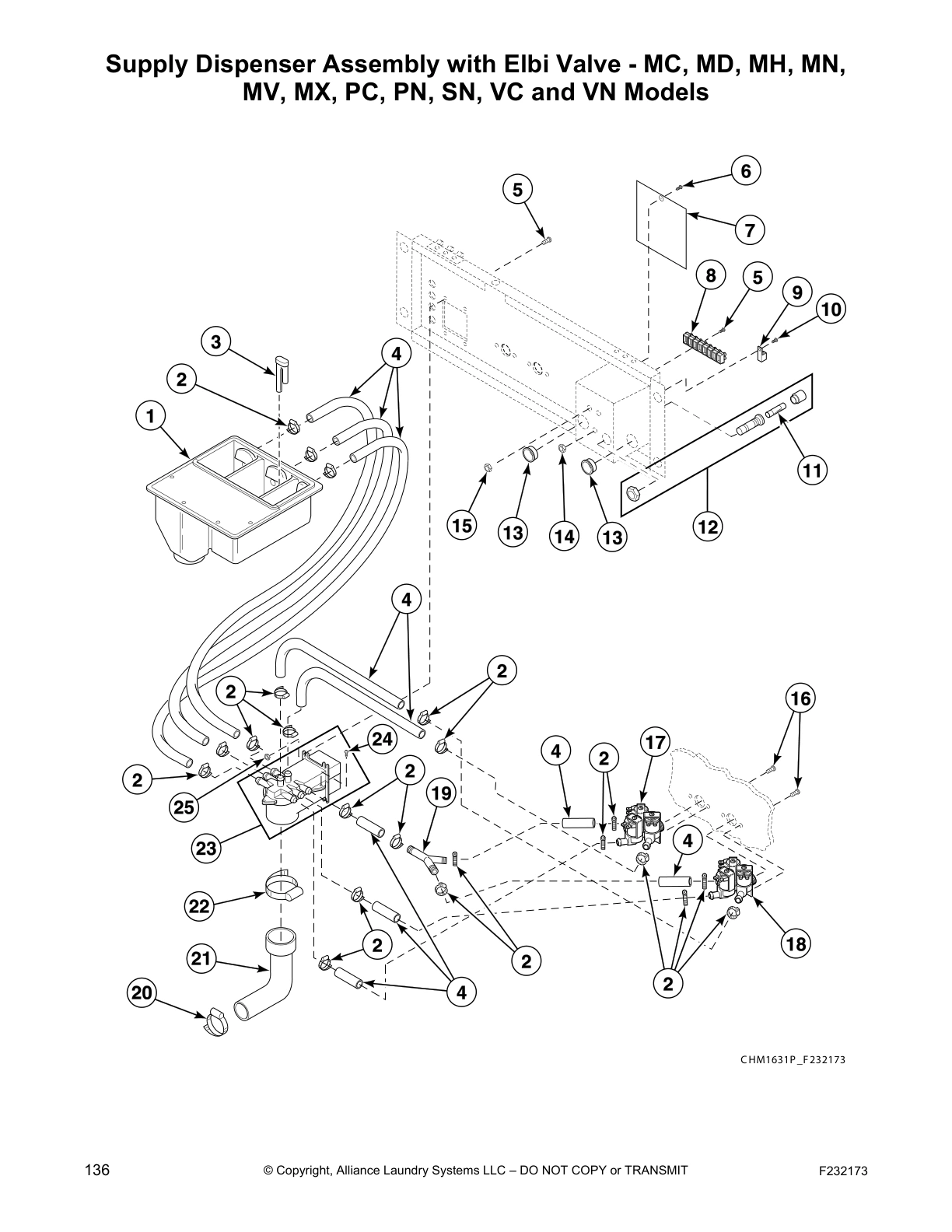

Supply Dispenser Assembly with Elbi Valve - MC, MD, MH, MN, MV,
MX, PC, PN, SN, VC and VN Models

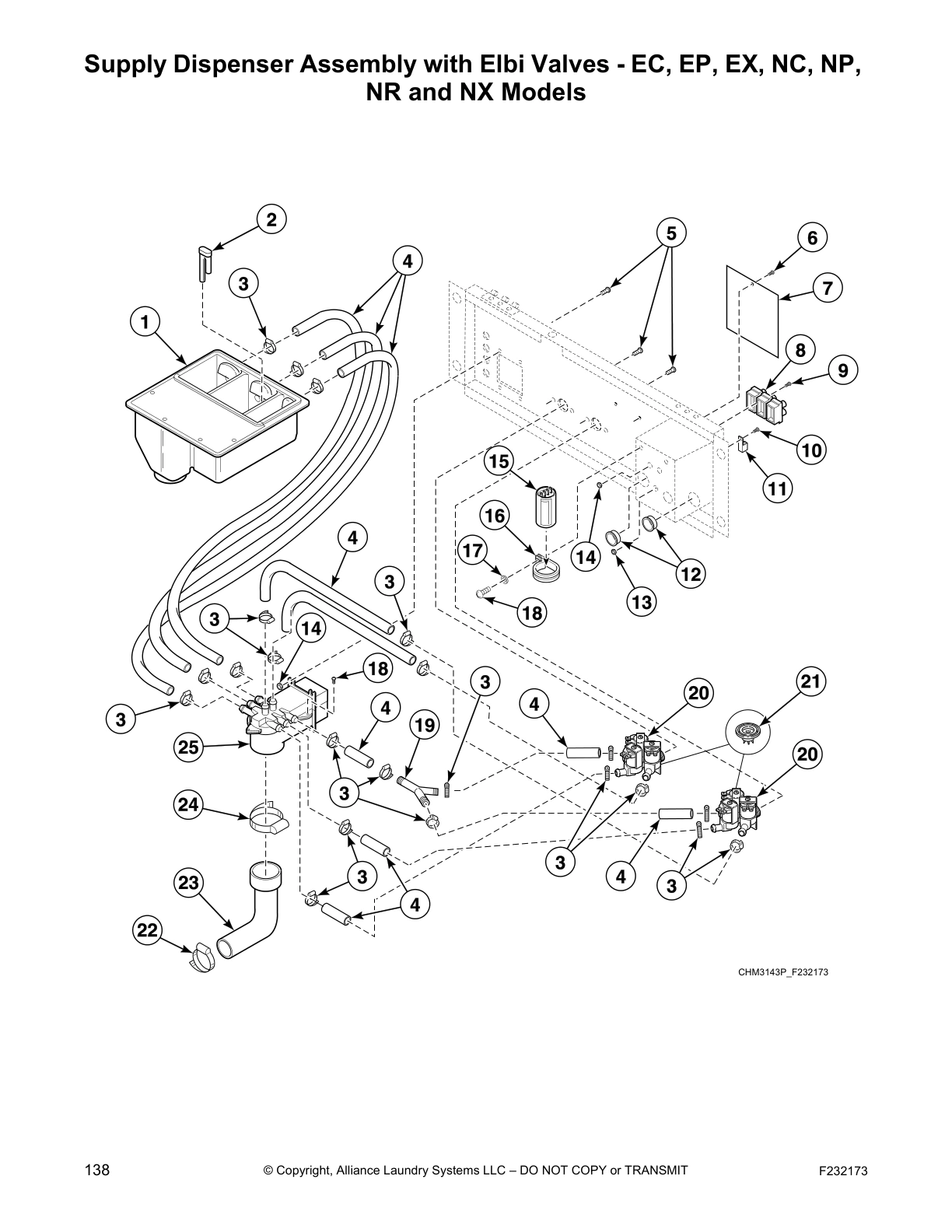

Supply Dispenser Assembly with Elbi Valves - EC, EP, EX, NC, NP,
NR and NX Models

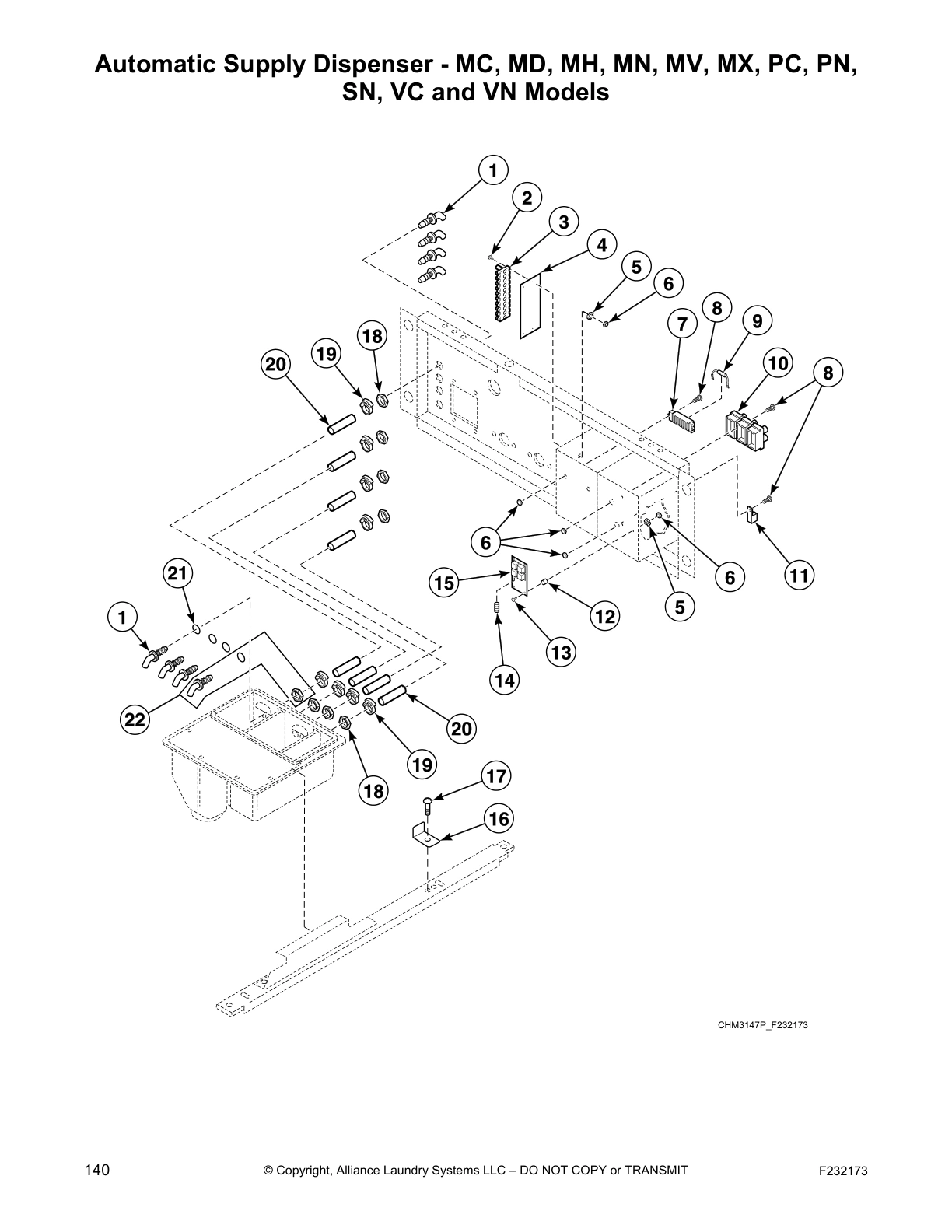

Automatic Supply Dispenser - MC, MD, MH, MN, MV, MX, PC, PN,
SN, VC and VN Models

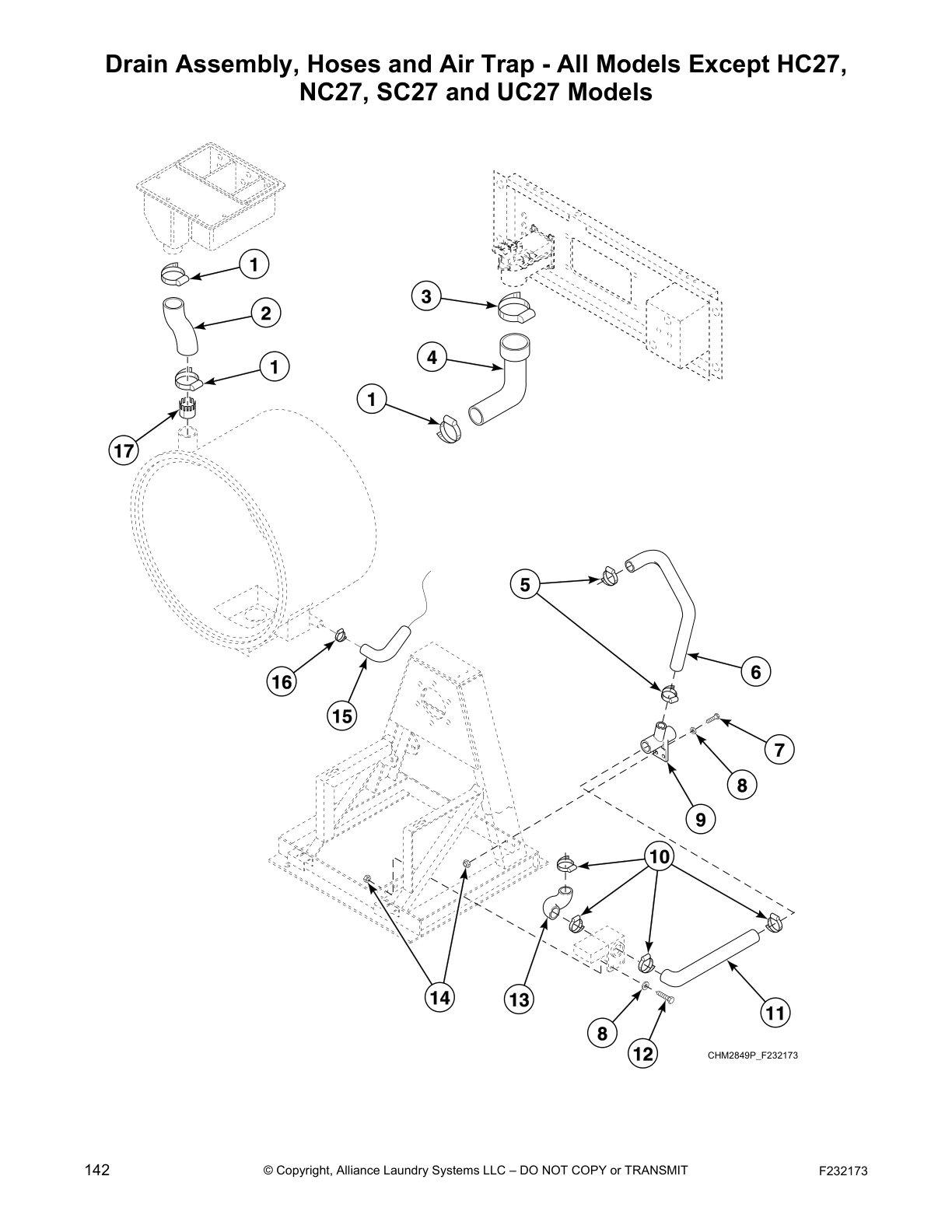

Drain Assembly, Hoses and Air Trap - All Models Except HC27,
NC27, SC27 and UC27 Models

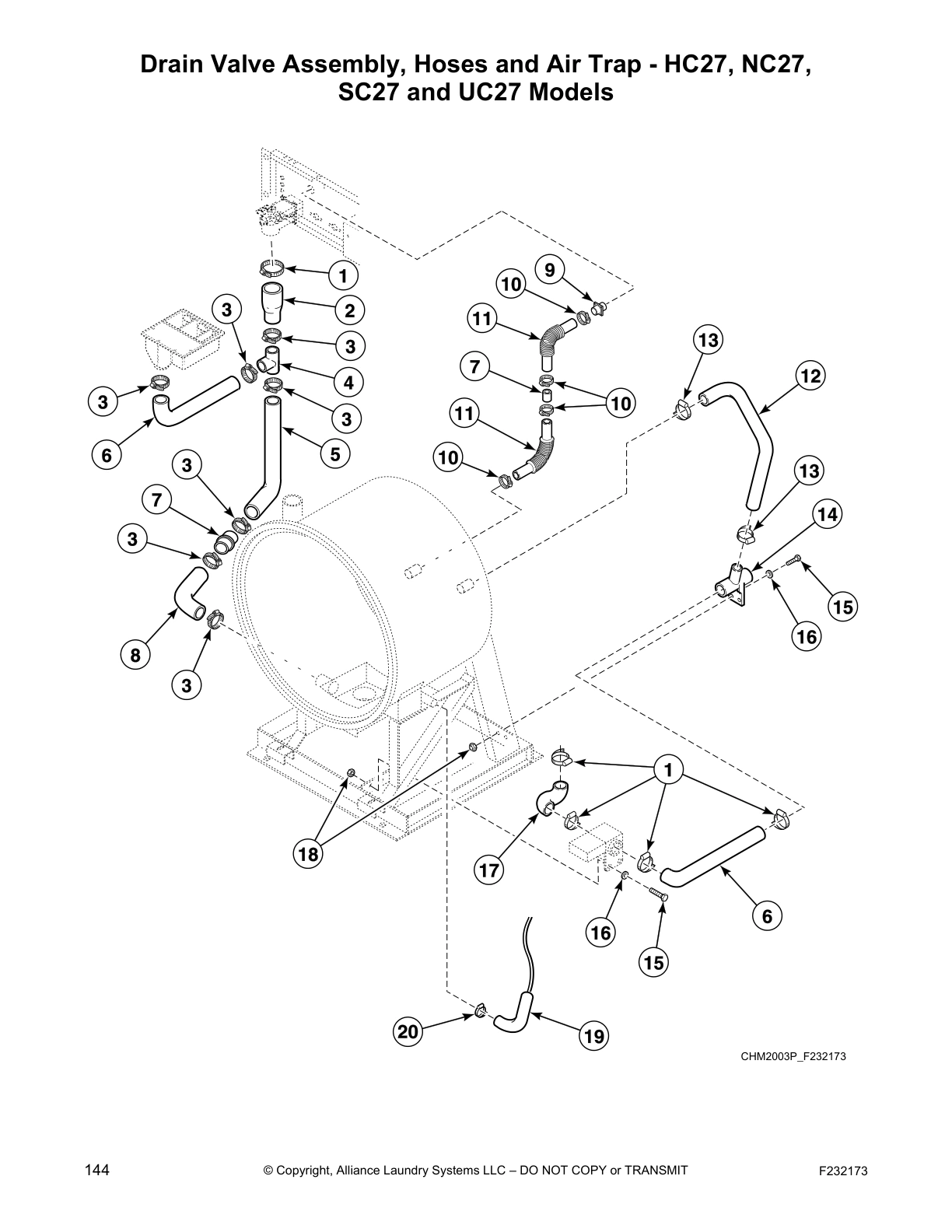

Drain Valve Assembly, Hoses and Air Trap - HC27, NC27,
SC27 and UC27 Models

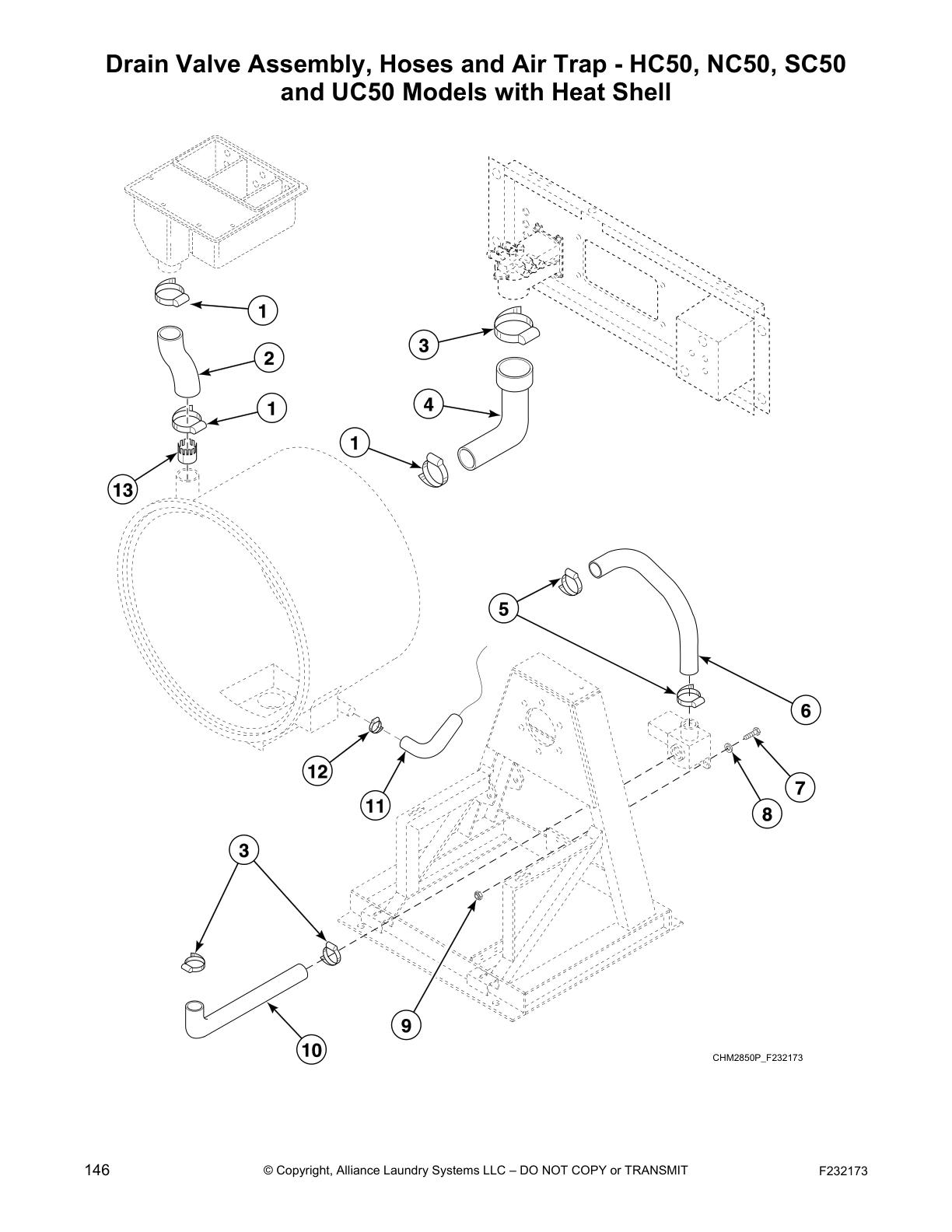

Drain Valve Assembly, Hoses and Air Trap - HC50, NC50, SC50
and UC50 Models with Heat Shell

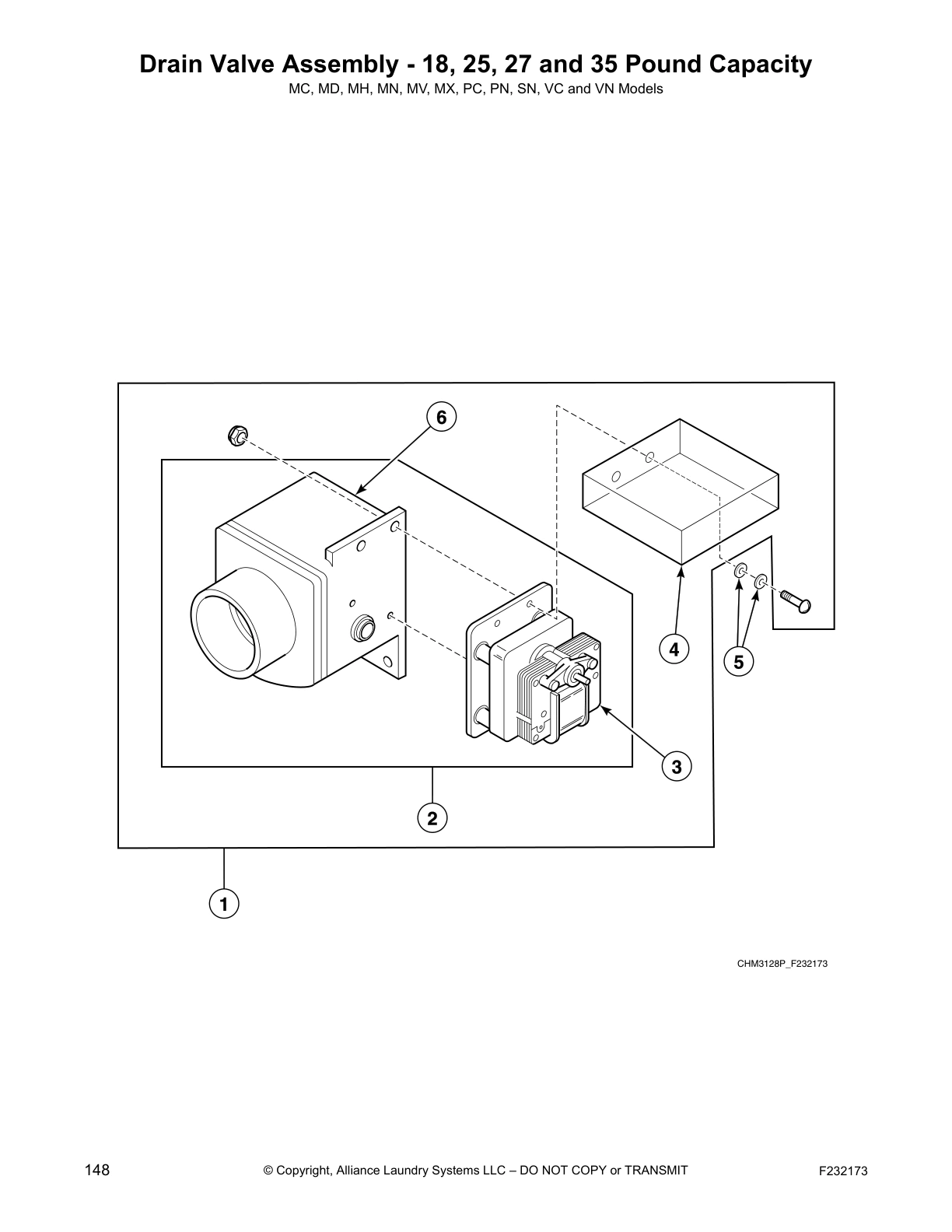

Drain Valve Assembly - 18, 25, 27 and 35 Pound Capacity

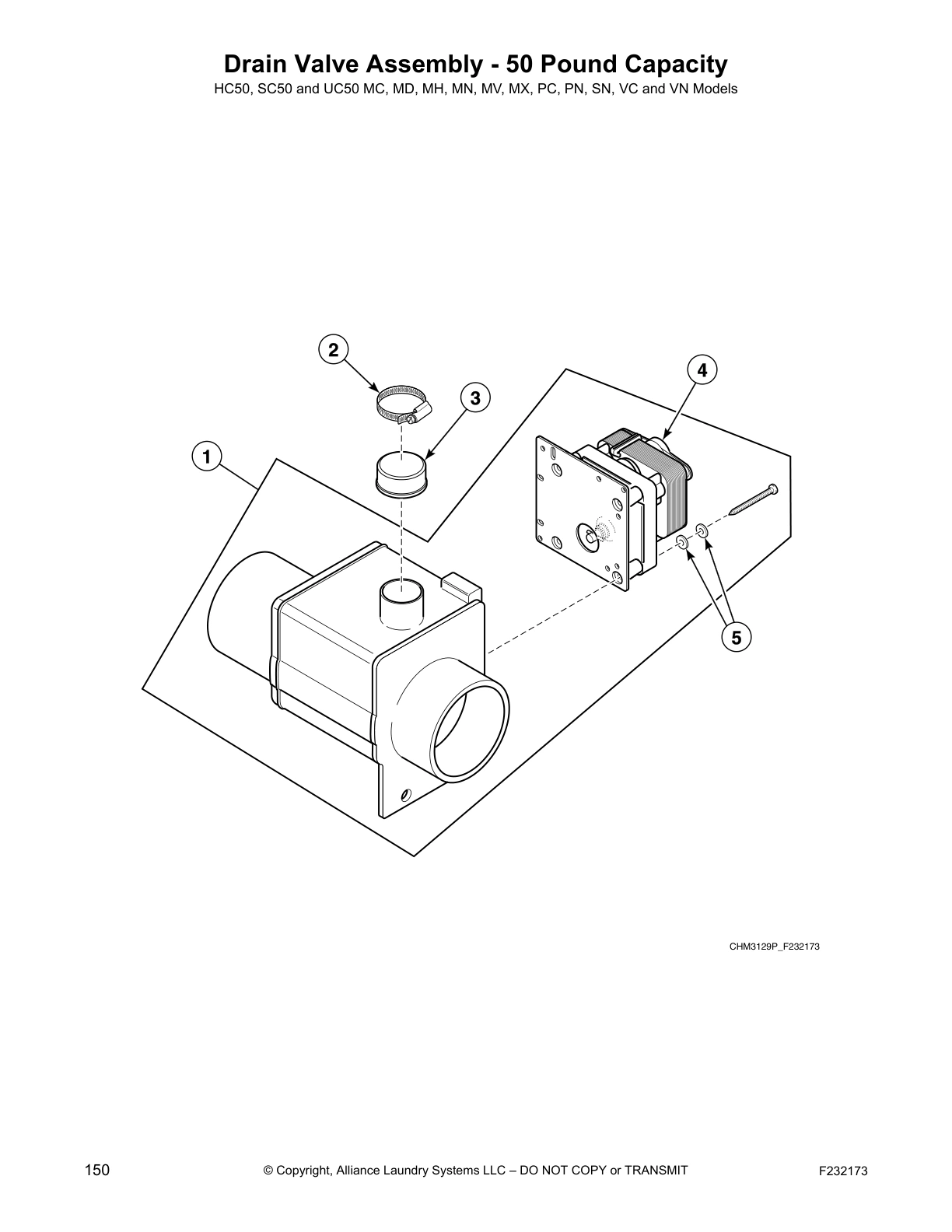

Drain Valve Assembly - 50 Pound Capacity

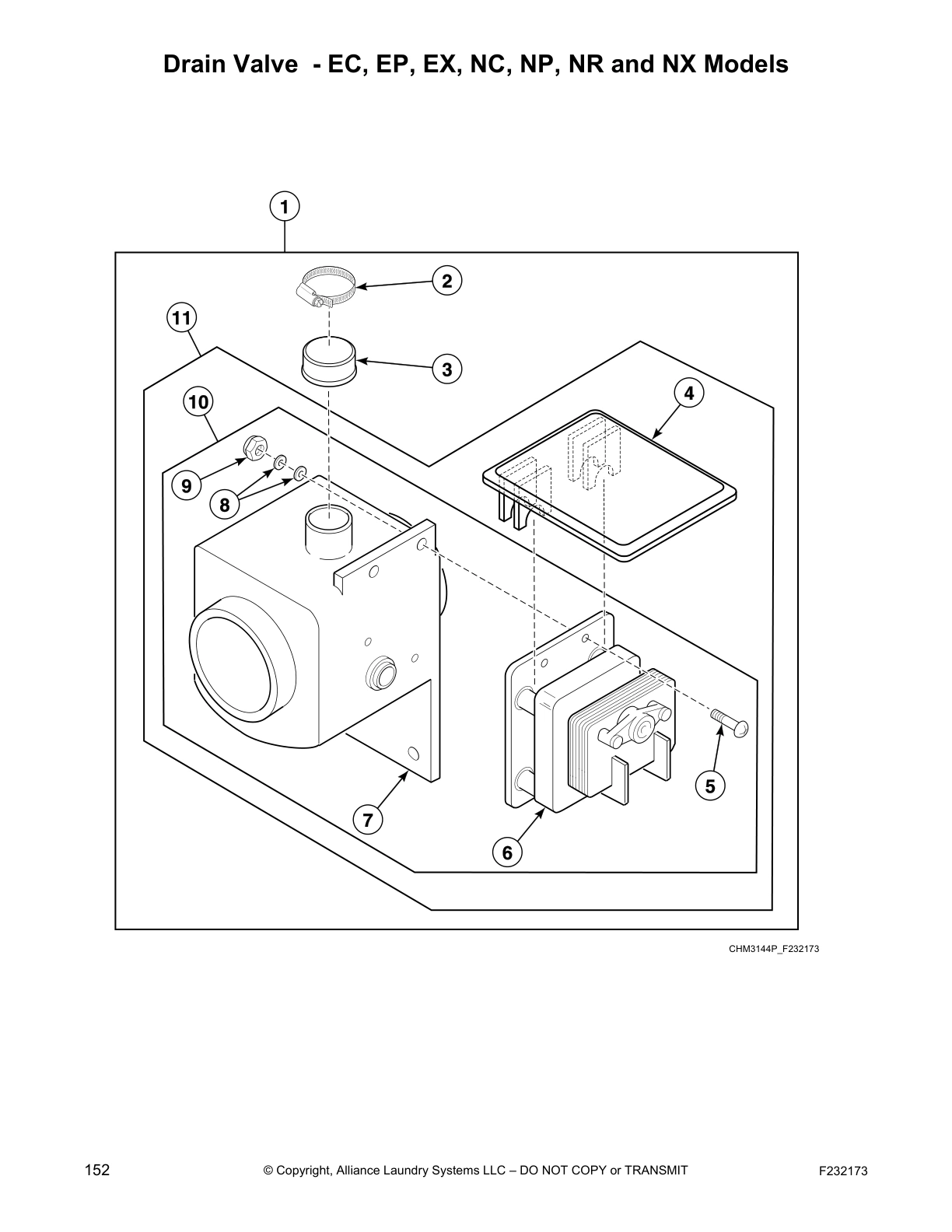

Drain Valve - EC, EP, EX, NC, NP, NR and NX Models

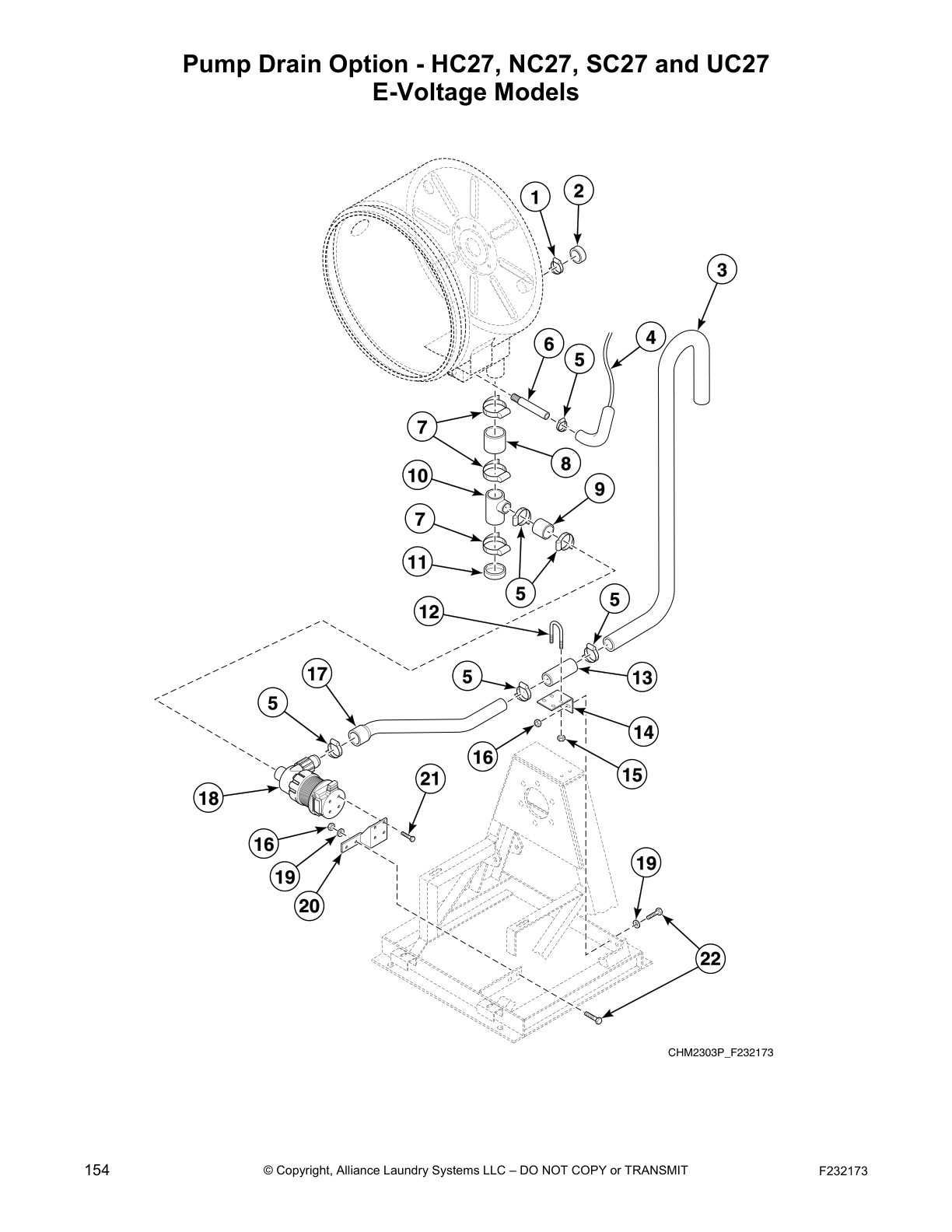

Pump Drain Option - HC27, NC27, SC27 and UC27
E-Voltage Models

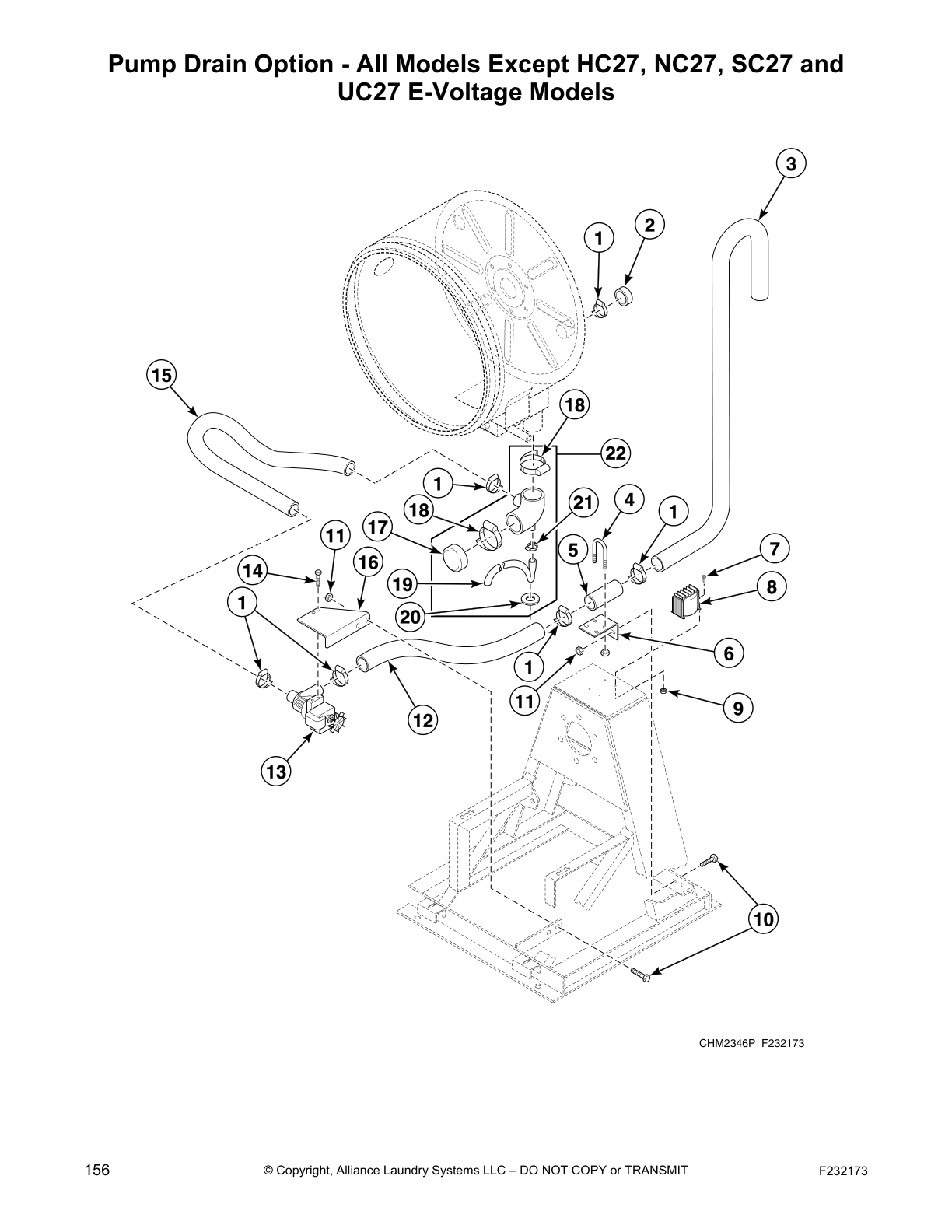

Pump Drain Option - All Models Except HC27, NC27, SC27 and
UC27 E-Voltage Models

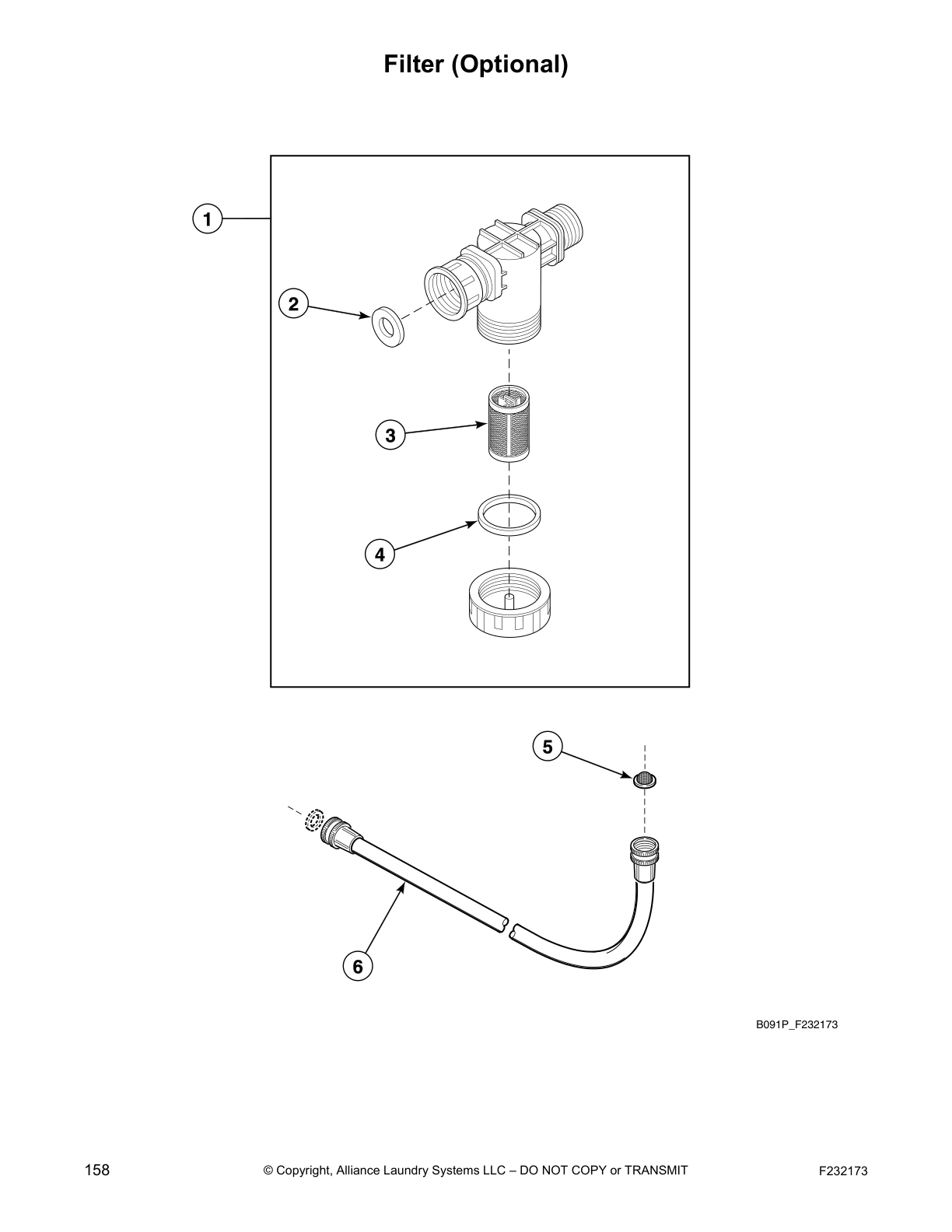

Filter (Optional)

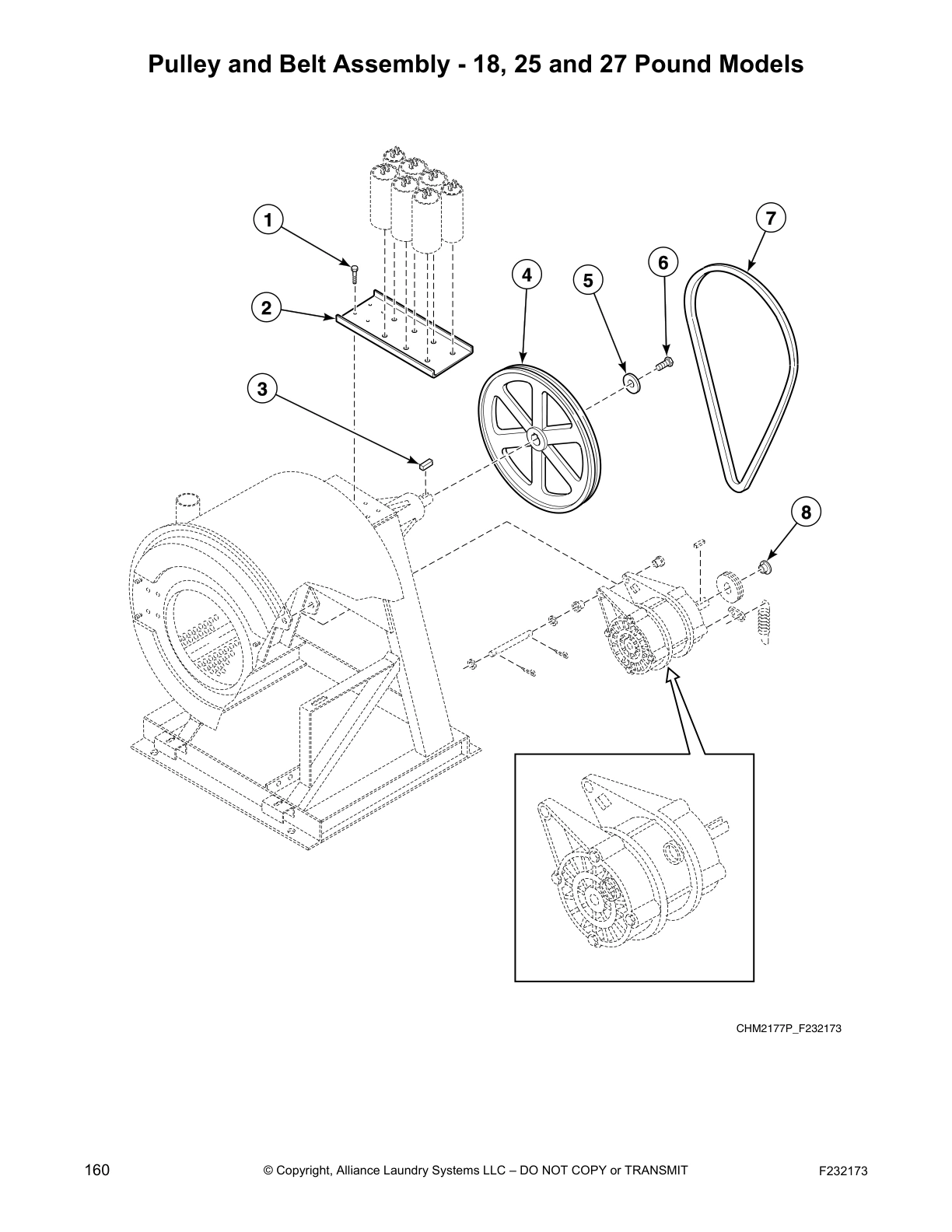

Pulley and Belt Assembly - 18, 25 and 27 Pound Models

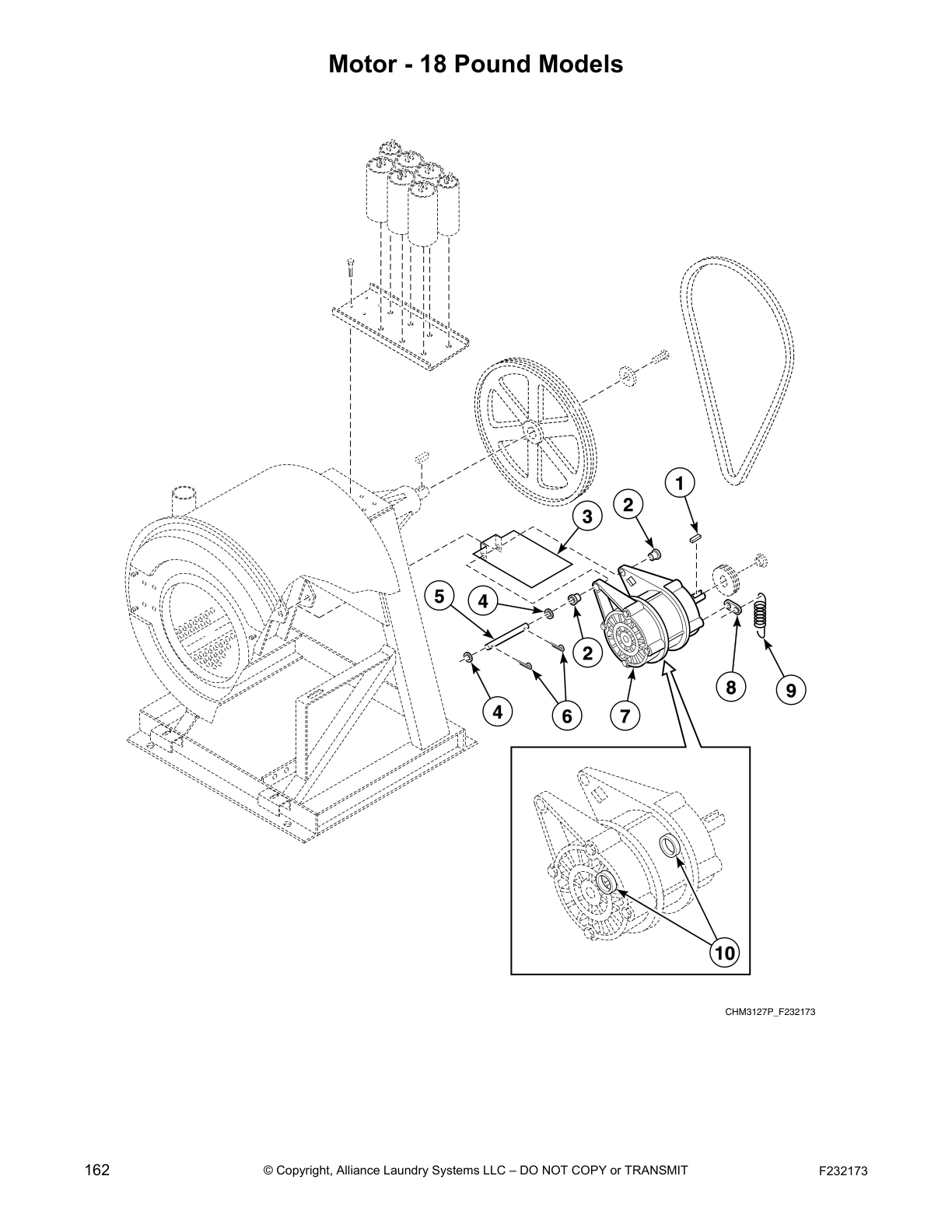

Motor - 18 Pound Models

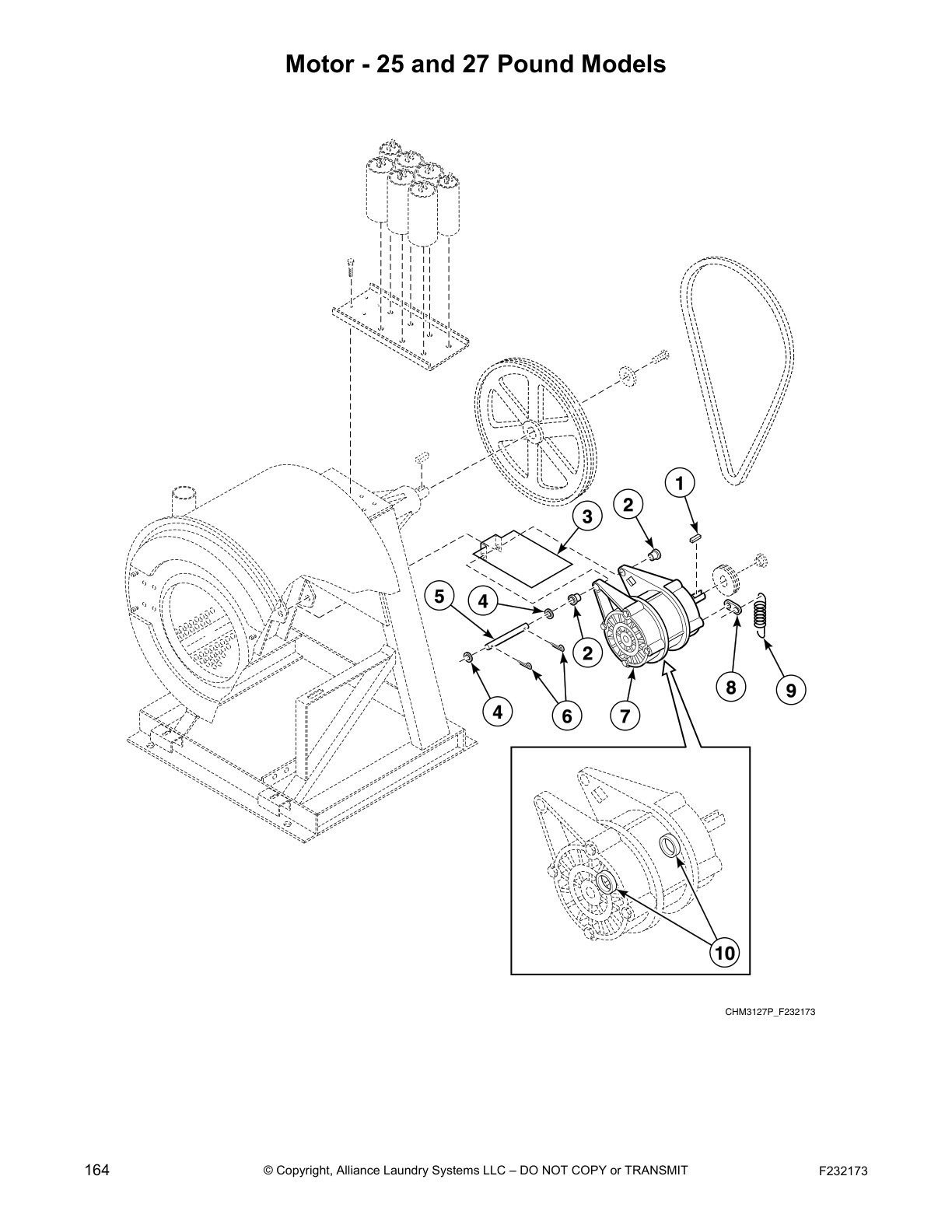

Motor - 25 and 27 Pound Models

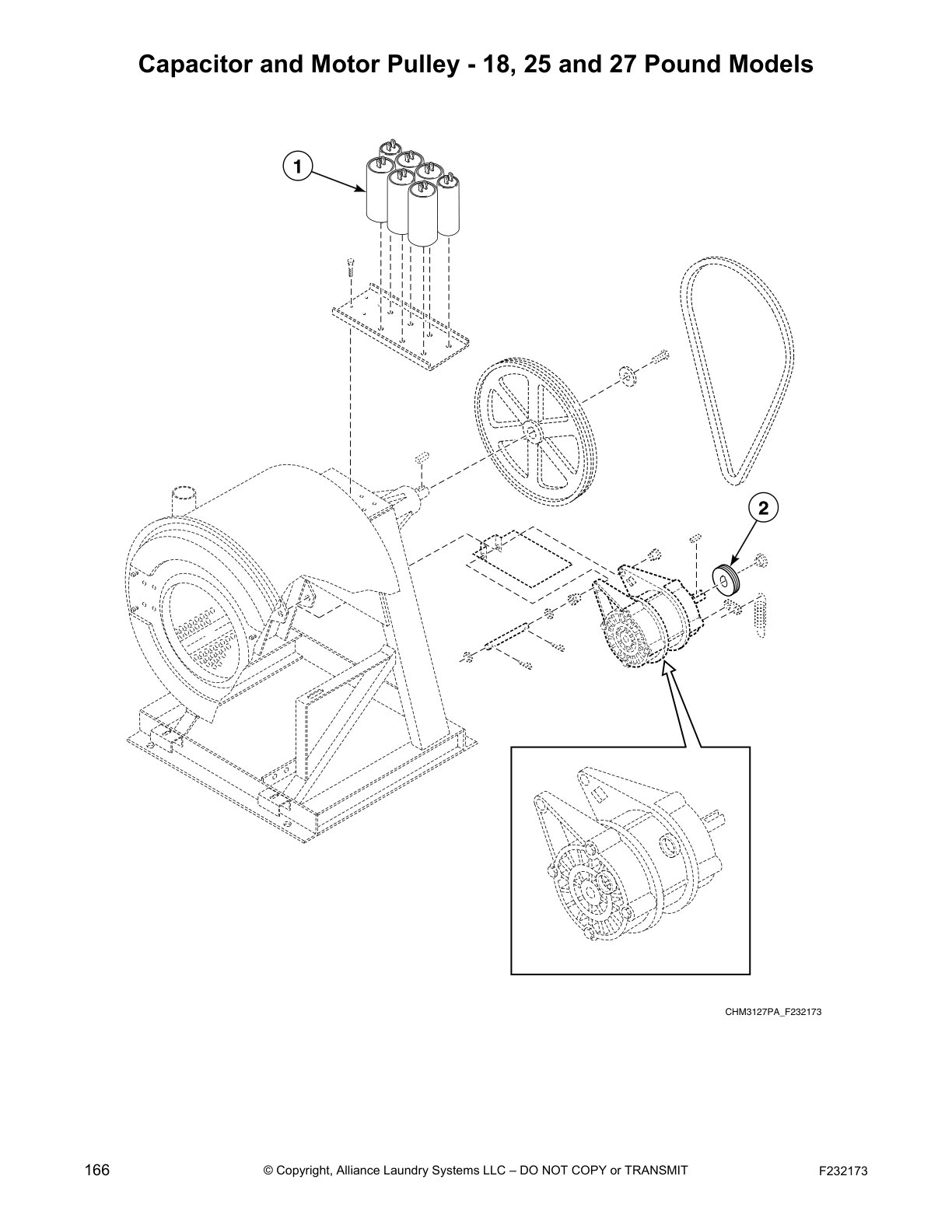

Capacitor and Motor Pulley - 18, 25 and 27 Pound Models

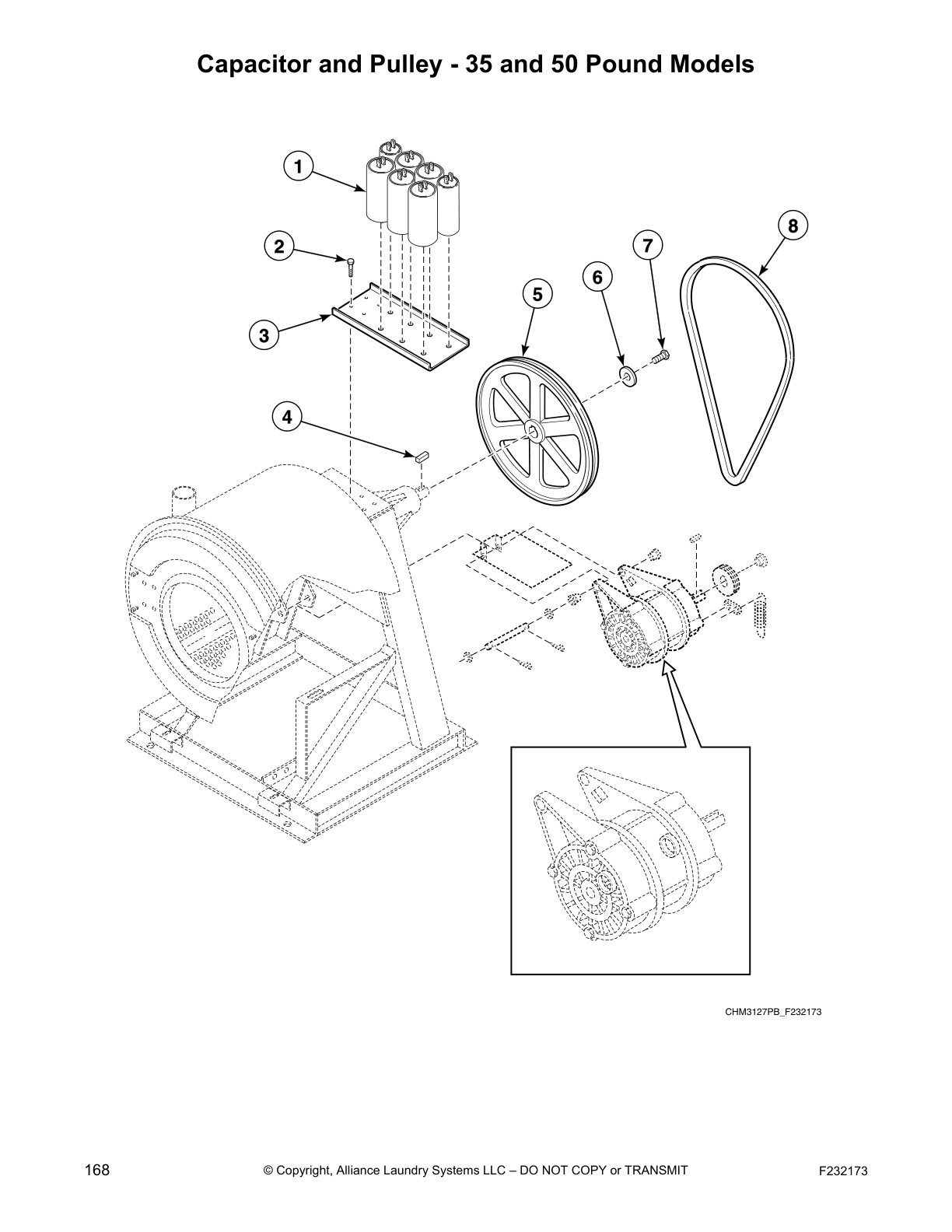

Capacitor and Pulley - 35 and 50 Pound Models

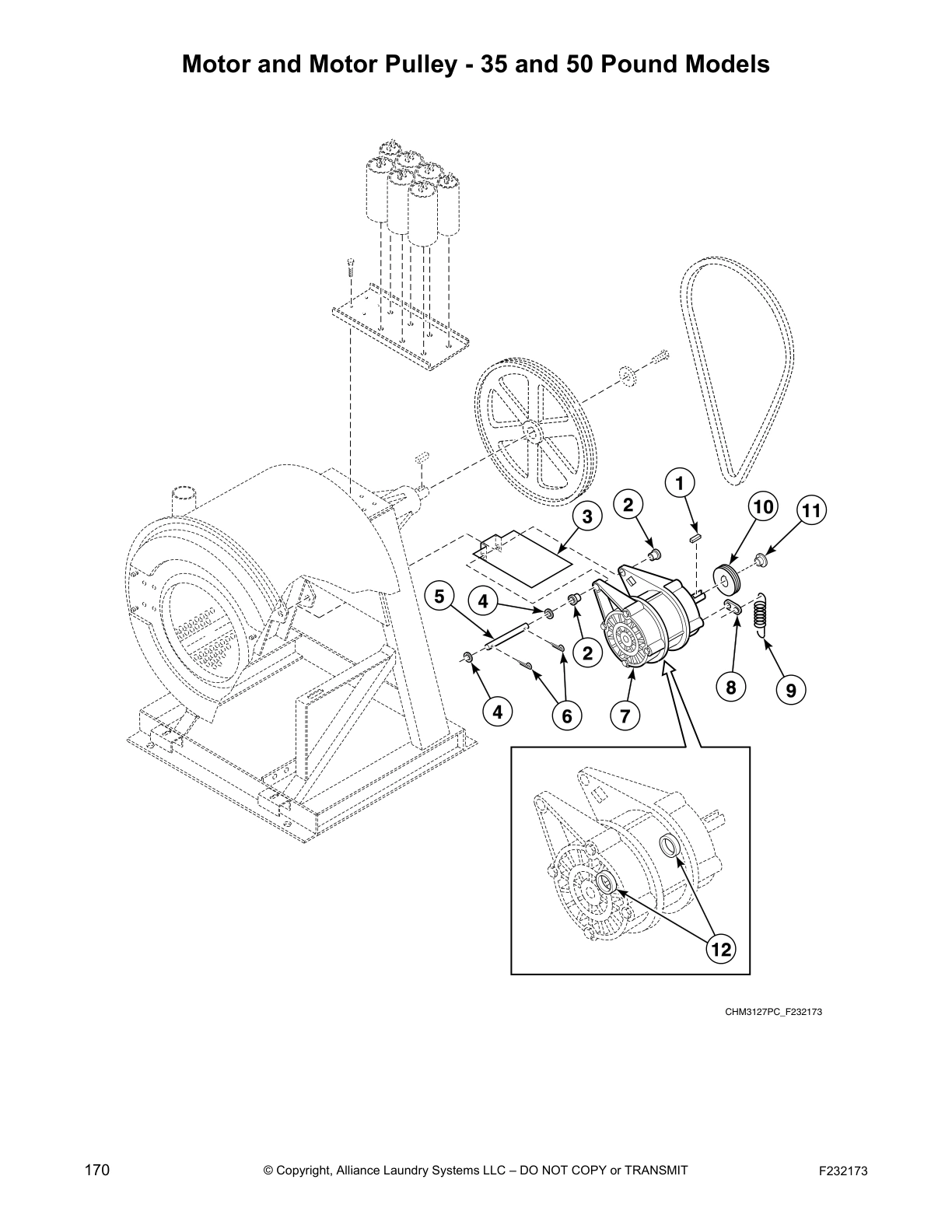

Motor and Motor Pulley - 35 and 50 Pound Models

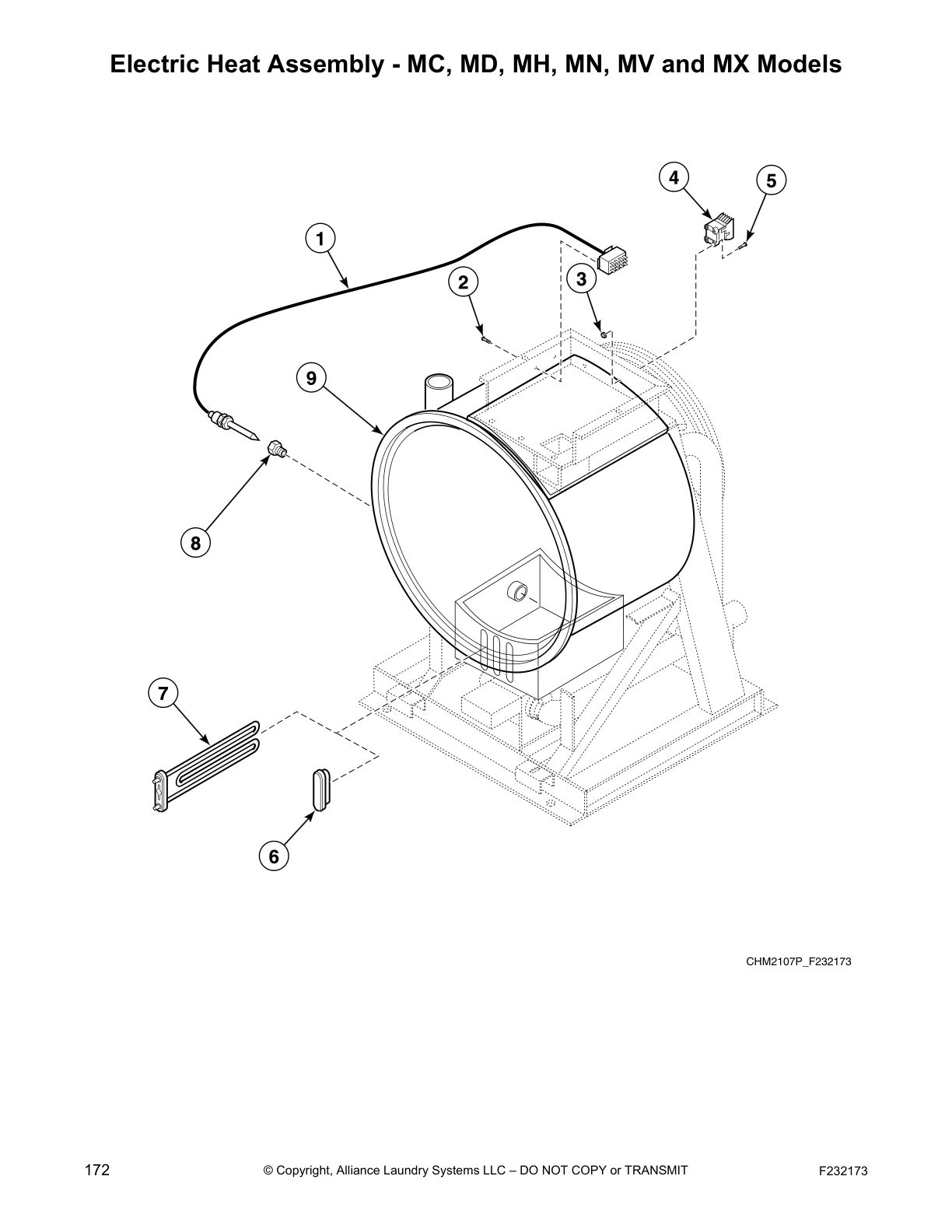

Electric Heat Assembly - MC, MD, MH, MN, MV and MX Models

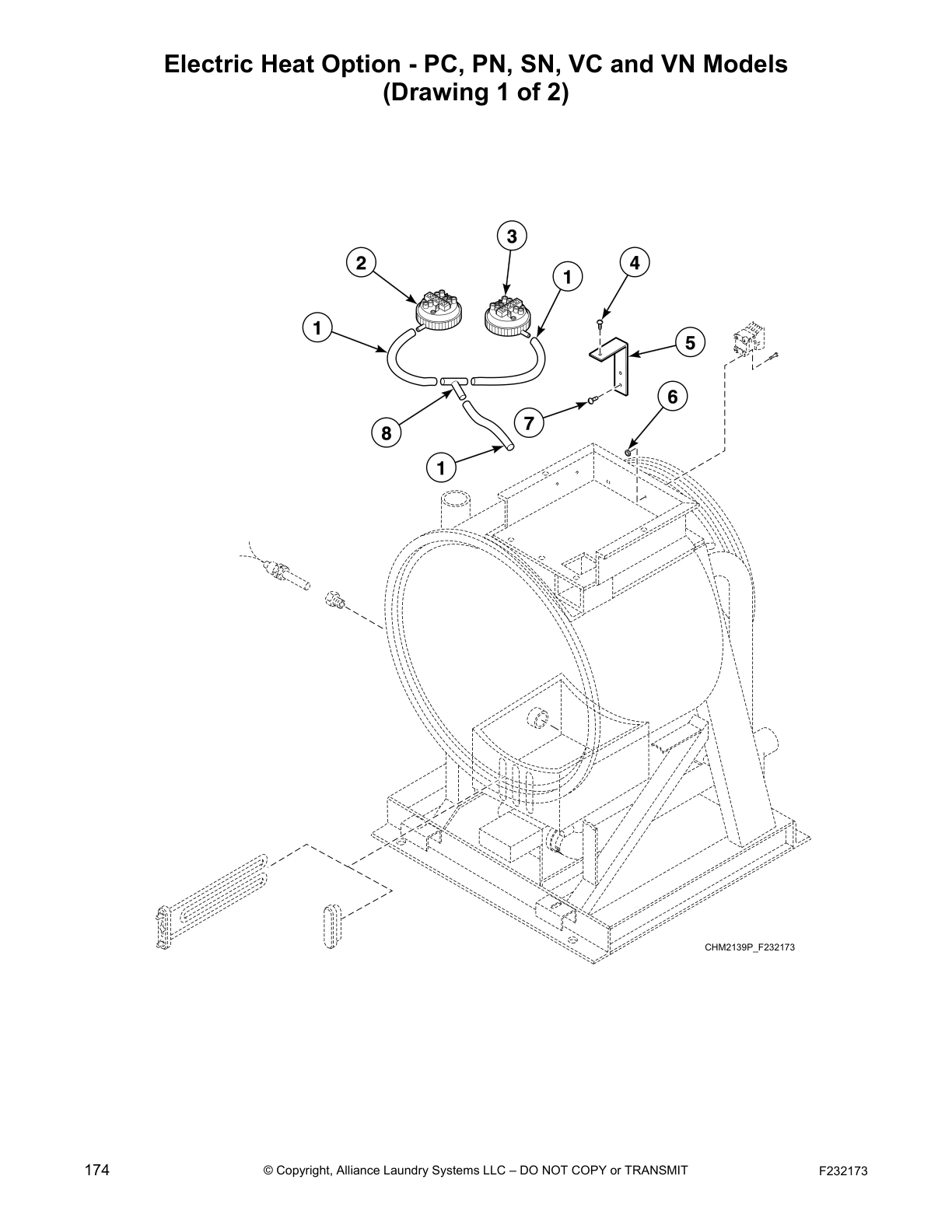

Electric Heat Option - PC, PN, SN, VC and VN Models
(Drawing 1 of 2)

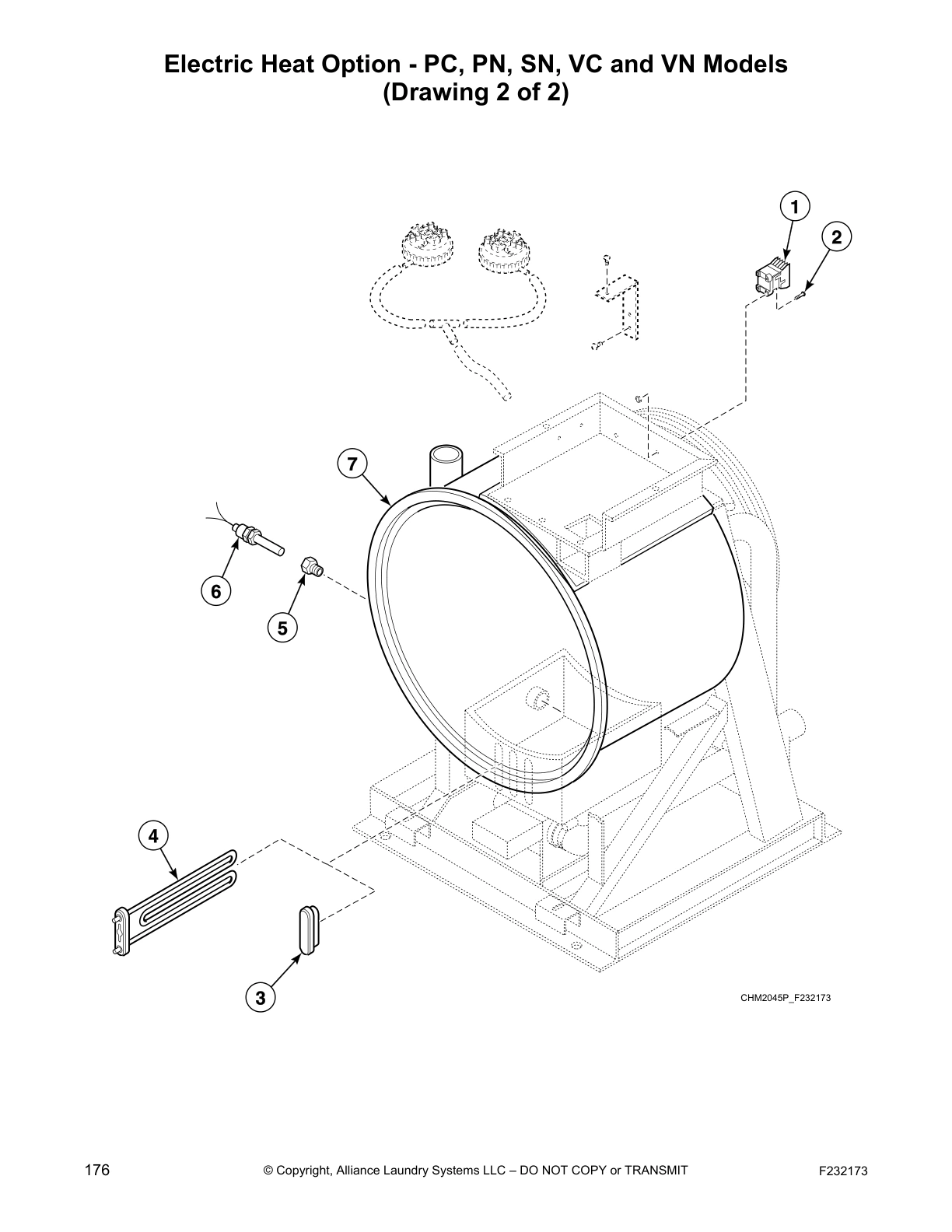

Electric Heat Option - PC, PN, SN, VC and VN Models
(Drawing 2 of 2)

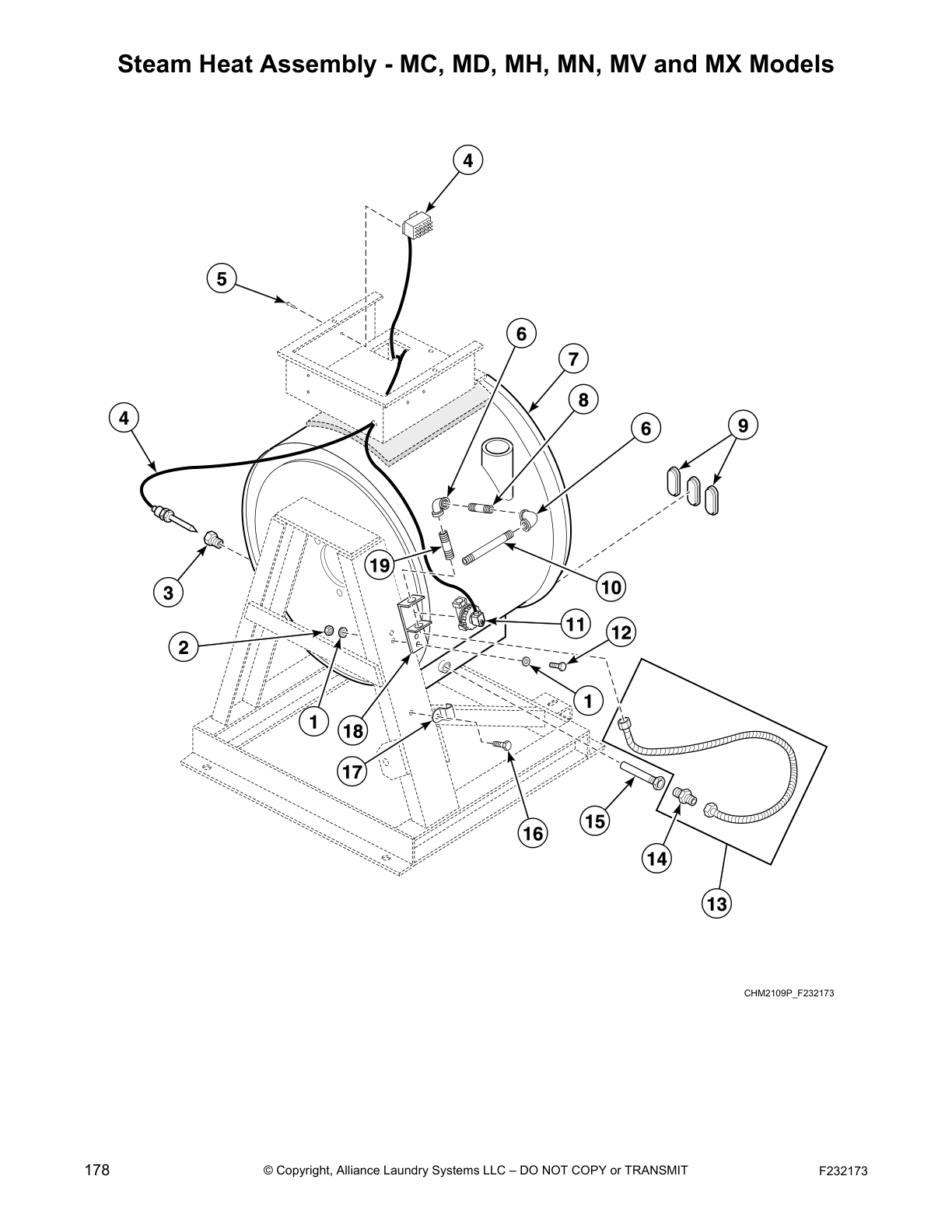

Steam Heat Assembly - MC, MD, MH, MN, MV and MX Models

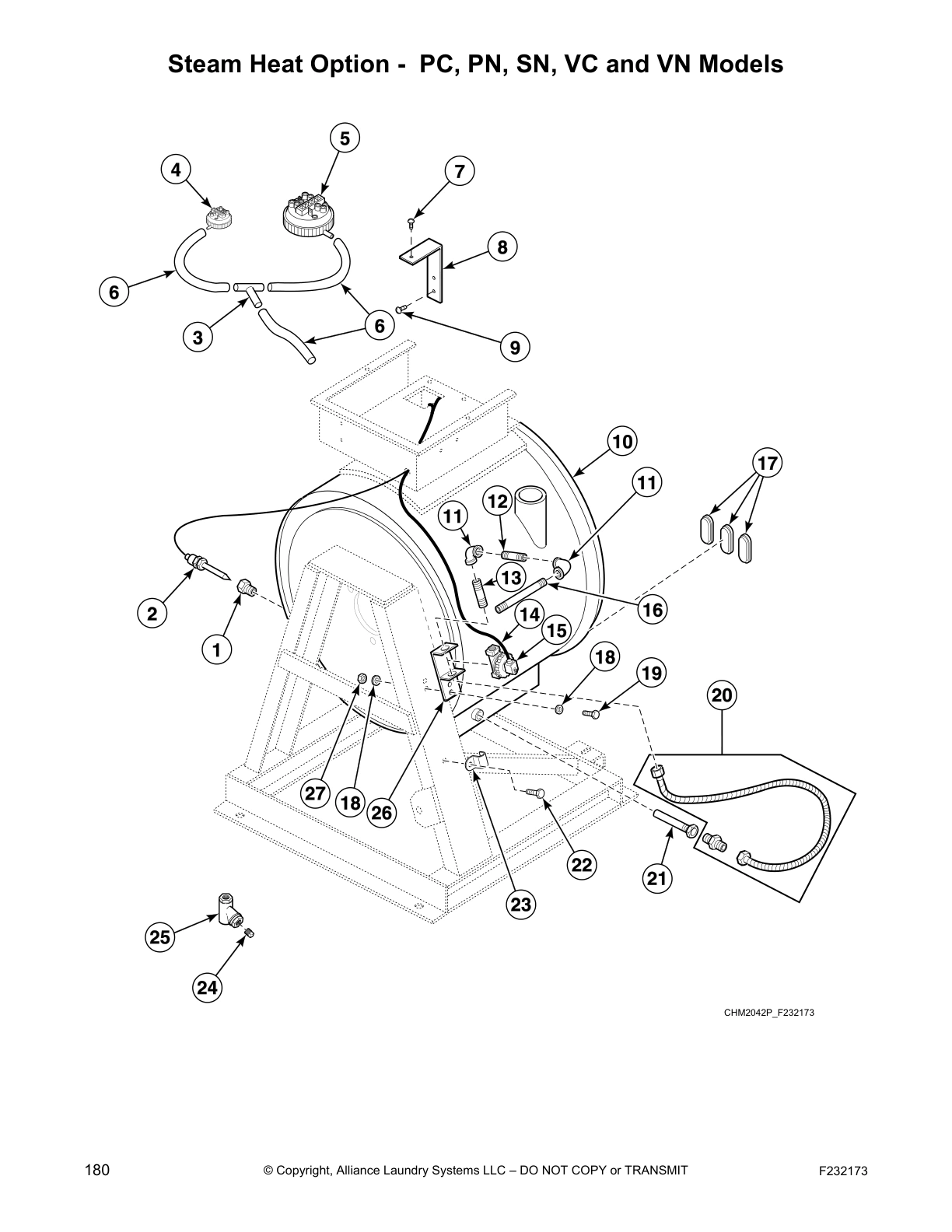

Steam Heat Option - PC, PN, SN, VC and VN Models

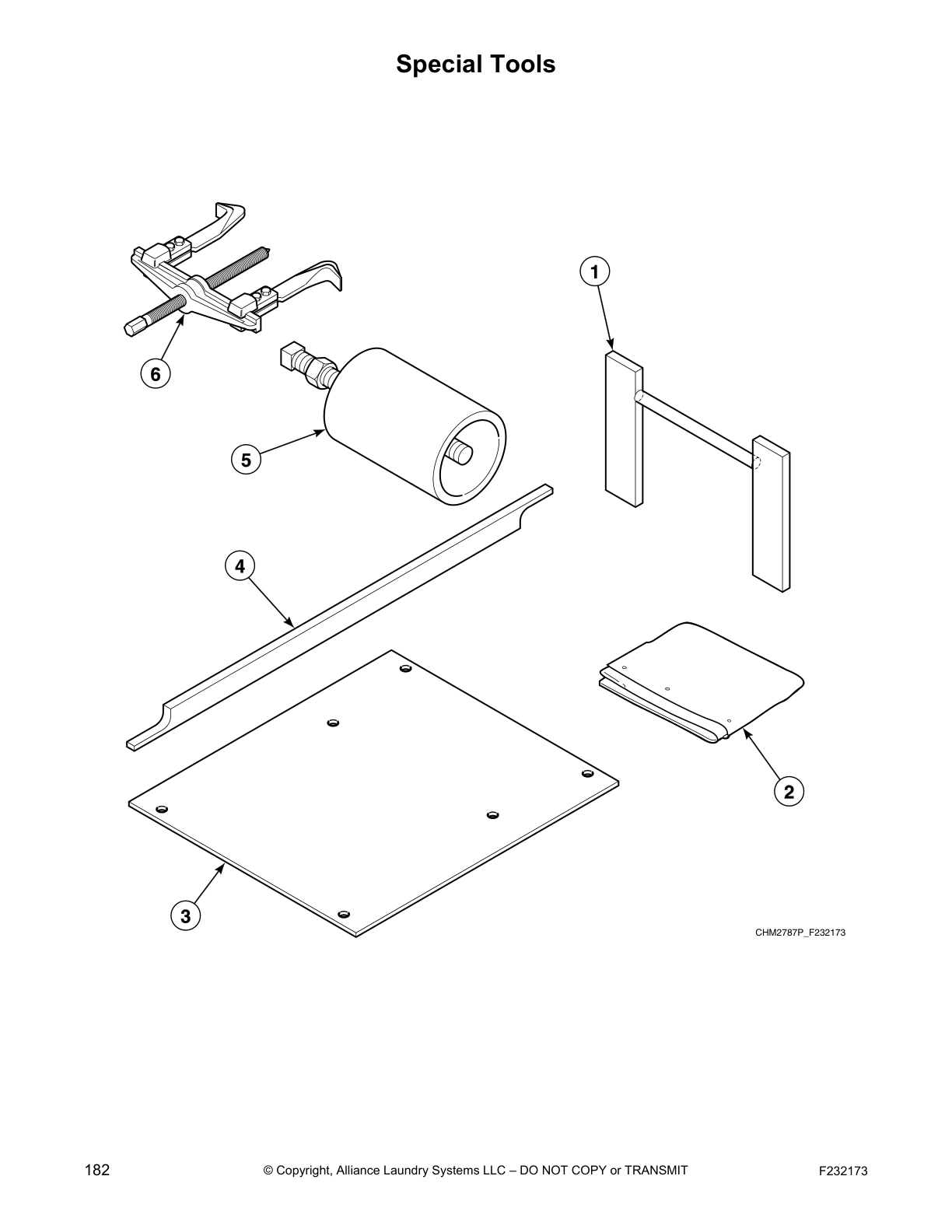

Special Tools
Common parts from model Alliance NC50NP2 Washer
SPQ F601515 SPQ F601515 Contact Us For Availability
SPQ F604118 SPQ F604118 Contact Us For Availability
SPQ F798711 SPQ F798711 Contact Us For Availability
SPQ F380957 SPQ F380957 Contact Us For Availability
SPQ F380943P SPQ F380943P Contact Us For Availability
SPQ F380920 SPQ F380920 Contact Us For Availability
SPQ F200166 SPQ F200166 Contact Us For Availability
SPQ F200164 SPQ F200164 Contact Us For Availability
Extension Spring SPQ F8597801P Contact Us For Availability
1
Nut SPQ F430264 Contact Us For Availability
1
Filter SPQ F270306P Contact Us For Availability
1
Drain Valve SPQ F8406304 Contact Us For Availability
1
Water Level Switch SPQ F0340345-10P Contact Us For Availability
1
Pop Rivet SPQ F431215 Contact Us For Availability
1
Communication Connector SPQ 210099 Contact Us For Availability
1
Mounting Bracket Assembly SPQ F635320 Contact Us For Availability
1
Mounting Plate Assembly SPQ D512506 Contact Us For Availability
1
Drip Shield SPQ F0140439-00 Contact Us For Availability
1
Front Panel SPQ F8200602P Contact Us For Availability
1
Control Panel Assembly SPQ F635348 Contact Us For Availability
1
Lid Lock SPQ F190805P Contact Us For Availability
1
Lid Clamp Assembly SPQ F630430 Contact Us For Availability
1
Red Dot Decal SPQ F230662 Contact Us For Availability
1
Bolt SPQ F430974 Contact Us For Availability
1
Door Lock Splash Shield SPQ F320200 Contact Us For Availability
1
Shell Front Assembly SPQ F609272-1P Contact Us For Availability
1
Screw SPQ F430987 Contact Us For Availability
1
Supply Dispenser Assembly SPQ F200202201P Contact Us For Availability
1
Coil SPQ F380983P Contact Us For Availability
1
Hose Clamp SPQ F200215 Contact Us For Availability
1
Drain Valve Kit SPQ F200166300 Contact Us For Availability
1
Key SPQ F430802 Contact Us For Availability
1
Capacitor SPQ F370224P Contact Us For Availability
1
Basket Pulley Puller Tool SPQ F460131P Contact Us For Availability
2
Shell Front Gasket Kit SPQ F792000 Contact Us For Availability
2
Drain Valve SPQ F8406303 Contact Us For Availability
2
Bearing SPQ F100123P Contact Us For Availability
2
Valve Repair Kit SPQ F380939 Contact Us For Availability
2
Spring Pin SPQ F431222 Contact Us For Availability
2
Capacitor SPQ F370220 Contact Us For Availability
2
Screw SPQ F430916 Contact Us For Availability
2
Overload Contactor SPQ F8176101P Contact Us For Availability
2
Rivet SPQ F432005 Contact Us For Availability
2
Card Reader SPQ D512473 Contact Us For Availability
2
Sponge Rubber SPQ F170128 Contact Us For Availability
2
Coin Meter Mounting Shim SPQ F0634819-00 Contact Us For Availability
2
Mounting Bracket SPQ F602722 Contact Us For Availability
2
Supply Dispenser Lid SPQ F160562 Contact Us For Availability
2
Supply Dispenser Lid SPQ F200270501 Contact Us For Availability
2
Door Locking Linkage Pin SPQ F431901 Contact Us For Availability
2
Washer SPQ F431131 Contact Us For Availability
2
Washer SPQ F0350312-10 Contact Us For Availability
2
Vacuum Breaker Hose SPQ F150309 Contact Us For Availability
2
Rear Pump Drain Hose SPQ F150352 Contact Us For Availability
2
Washer SPQ F270305 Contact Us For Availability
2
Motor Bearing SPQ F100124 Contact Us For Availability
3
SPQ F200203200 SPQ F200203200 Contact Us For Availability
3
Elbi Conversion Kit SPQ F603031 Contact Us For Availability
3
Magnetic Switch SPQ F8390801 Contact Us For Availability
3
Screw SPQ F8411901 Contact Us For Availability
3
Interlock Contactor SPQ F330186P Contact Us For Availability
3
Network Interface Control Mounting Bracket SPQ F634769 Contact Us For Availability
3
Grommet SPQ F170607 Contact Us For Availability
3
Programming Card SPQ D512499P Contact Us For Availability
3
Oversuds Protection Kit SPQ F798813 Contact Us For Availability
3
Cabinet Brace SPQ F634803P Contact Us For Availability
3
Lid Clamp Assembly SPQ 70155603 Contact Us For Availability
3
Screw SPQ F431916 Contact Us For Availability
3
SPQ F0636698-03 SPQ F0636698-03 Contact Us For Availability
3
Screw SPQ F8513501 Contact Us For Availability
3
Nut SPQ F100122 Contact Us For Availability
3
Shell Weldment SPQ F634644 Contact Us For Availability
3
Flow Restrictor SPQ F380938 Contact Us For Availability
3
Vacuum Breaker Bottom SPQ G582P3 Contact Us For Availability
3
Pump Drain Rear Connecting Bracket SPQ F150343 Contact Us For Availability
3
Motor Support Bushing SPQ F200186100 Contact Us For Availability
3
Bolt Layout Mounting Template SPQ F608710 Contact Us For Availability
4
SPQ F0150329-00 SPQ F0150329-00 Contact Us For Availability
4
Card Reader Harness SPQ F141889 Contact Us For Availability
4
Power Supply SPQ D512497 Contact Us For Availability
4
Take-Apart Hinge SPQ F603801P Contact Us For Availability
4
Push Red Button Decal SPQ F8535601 Contact Us For Availability
4
SPQ F430225 SPQ F430225 Contact Us For Availability
4
Washer SPQ F430518 Contact Us For Availability
4
Washer SPQ F430240 Contact Us For Availability
4
Nut SPQ F430303 Contact Us For Availability
4
Overflow Hose SPQ F150340 Contact Us For Availability
4
Elbi Conversion Kit SPQ F380958 Contact Us For Availability
4
SPQ F020014200 SPQ F020014200 Contact Us For Availability
4
Transformer SPQ F200401P Contact Us For Availability
4
Motor Drip Shield SPQ F200216900 Contact Us For Availability
5
Control Module Cover SPQ F634175 Contact Us For Availability
5
Screw SPQ F141887 Contact Us For Availability
5
Harness SPQ D512496 Contact Us For Availability
5
Door Hinge SPQ J1111905 Contact Us For Availability
5
Door Spacer SPQ F230661 Contact Us For Availability
5
SPQ F430977 SPQ F430977 Contact Us For Availability
5
Input Power Connection Box Cover SPQ F0150340-01 Contact Us For Availability
5
SPQ F603827-1 SPQ F603827-1 Contact Us For Availability
5
Key SPQ F200033500 Contact Us For Availability
5
Washer SPQ F430325 Contact Us For Availability
5
Basket Puller Kit SPQ F798003 Contact Us For Availability
6
Control Box Assembly SPQ F634236-1 Contact Us For Availability
6
Nut SPQ F430231 Contact Us For Availability
6
SPQ F140738 SPQ F140738 Contact Us For Availability
6
Card Reader Kit SPQ D512502 Contact Us For Availability
6
Door Assembly SPQ F431041 Contact Us For Availability
6
Door Hinge Shim Kit
As required SPQ F0340723-00 Contact Us For Availability
6
SPQ F8059701 SPQ F8059701 Contact Us For Availability
6
SPQ F430942 SPQ F430942 Contact Us For Availability
6
SPQ F190301 SPQ F190301 Contact Us For Availability
6
Washer SPQ F150417 Contact Us For Availability
6
Drain Valve Motor SPQ F200133600 Contact Us For Availability
6
SPQ F604147 SPQ F604147 Contact Us For Availability
6
SPQ F270407 SPQ F270407 Contact Us For Availability
6
Pulley SPQ F430801 Contact Us For Availability
6
Motor Support Rod SPQ F603897 Contact Us For Availability
6
Basket Puller Tool SPQ F460129P Contact Us For Availability
7
SPQ F430928 SPQ F430928 Contact Us For Availability
7
Washer SPQ F431125 Contact Us For Availability
7
SPQ F431113 SPQ F431113 Contact Us For Availability
7
SPQ F190203P SPQ F190203P Contact Us For Availability
7
Rear Panel SPQ F200022800P Contact Us For Availability
7
SPQ F0150273-00 SPQ F0150273-00 Contact Us For Availability
7
SPQ F602813-3 SPQ F602813-3 Contact Us For Availability
7
SPQ F8066701 SPQ F8066701 Contact Us For Availability
7
Basket Assembly SPQ F8537804 Contact Us For Availability
7
SPQ F607005 SPQ F607005 Contact Us For Availability
7
Drain Tee SPQ F150398 Contact Us For Availability
7
Nut SPQ F430103 Contact Us For Availability
7
SPQ F430910 SPQ F430910 Contact Us For Availability
7
Cotter Pin SPQ F430401 Contact Us For Availability
7
Washer SPQ F280173 Contact Us For Availability
8
Filter SPQ 801255P Contact Us For Availability
8
Right Side Panel Kit SPQ F757606 Contact Us For Availability
8
SPQ F190216P SPQ F190216P Contact Us For Availability
8
SPQ F603003 SPQ F603003 Contact Us For Availability
8
SPQ F015033000 SPQ F015033000 Contact Us For Availability
8
Drain Valve Body SPQ F380933P Contact Us For Availability
8
Belt SPQ F431115 Contact Us For Availability
8
Motor SPQ F8597902P Contact Us For Availability
9
SPQ F430174 SPQ F430174 Contact Us For Availability
9
Network Board Harness SPQ F141886 Contact Us For Availability
9
Left Side Panel Kit SPQ F757603 Contact Us For Availability
9
SPQ F200131000P SPQ F200131000P Contact Us For Availability
9
Shaft Seal Sleeve SPQ F603900-1 Contact Us For Availability
9
Motor SPQ F8597803P Contact Us For Availability
10
L-Catch Kit SPQ F746808 Contact Us For Availability
10
Filter Harness SPQ F0637649-00P Contact Us For Availability
10
Screw SPQ F430903 Contact Us For Availability
10
Pop Rivet SPQ F190802P Contact Us For Availability
10
Door Handle Kit SPQ F730155 Contact Us For Availability
10
Screw SPQ F430536 Contact Us For Availability
10
Hose Clamp SPQ F200123500 Contact Us For Availability
10
Drain Hose SPQ F150356 Contact Us For Availability
10
Drain Valve SPQ F8577201 Contact Us For Availability
10
Screw SPQ F430107 Contact Us For Availability
10
Pulley SPQ F280422P Contact Us For Availability
11
Input Power Block SPQ F140748 Contact Us For Availability
11
EMI Filter Kit SPQ F0798913-00 Contact Us For Availability
11
Fuse SPQ F350110 Contact Us For Availability
11
Communication Board SPQ 210095P Contact Us For Availability
11
Counterclockwise Spin Rotation Decal SPQ F230693 Contact Us For Availability
11
Ground Terminal Lug SPQ F140747 Contact Us For Availability
11
Sheave SPQ F0280385-00 Contact Us For Availability
12
Door Mount SPQ F150271 Contact Us For Availability
12
Standoff SPQ F180506 Contact Us For Availability
12
Door Glass SPQ F8485401P Contact Us For Availability
12
Screw SPQ F430982 Contact Us For Availability
12
Supply Dispenser Baffle SPQ F200205 Contact Us For Availability
12
Insulator Bushing SPQ F140909 Contact Us For Availability
12
Screw SPQ F200123900 Contact Us For Availability
12
Bushing SPQ F280225P Contact Us For Availability
13
Door Gasket SPQ F170124 Contact Us For Availability
13
Pump SPQ F200000900P Contact Us For Availability
13
Harness Assembly SPQ F141893 Contact Us For Availability
13
Washer SPQ F431100 Contact Us For Availability
13
Trim
F8142701 Adhesive required for installat SPQ F432293 Contact Us For Availability
13
Mounting Bracket SPQ F390300 Contact Us For Availability
13
Screw SPQ F140746 Contact Us For Availability
13
Soap Dispenser Hose SPQ F150419 Contact Us For Availability
14
Logic Control Assembly SPQ F160203P Contact Us For Availability
14
Harness SPQ F631973-2 Contact Us For Availability
14
Magnet
OPL models and CE coin models SPQ F8679201P Contact Us For Availability
14
Fuse SPQ F140734 Contact Us For Availability
14
Pump Drain Trap Mounting Bracket SPQ F430519 Contact Us For Availability
15
Fuse Holder SPQ F430917 Contact Us For Availability
15
Nut SPQ F430232 Contact Us For Availability
15
Nut
Tinnerman SPQ F430986 Contact Us For Availability
15
Washer SPQ F603227 Contact Us For Availability
15
Door Lock Switch Lever SPQ F431902 Contact Us For Availability
15
Switch Clamp SPQ F340002 Contact Us For Availability
16
Door Lock Torsion Spring SPQ F0636636-00 Contact Us For Availability
16
Door Lock Catch Casting SPQ F430925 Contact Us For Availability
16
Supply Dispenser Gasket SPQ F431105 Contact Us For Availability
16
Door Lock Spring SPQ F310125 Contact Us For Availability
16
Washer SPQ F0340722-00 Contact Us For Availability
16
Plug SPQ F609694 Contact Us For Availability
17
Door Lock Torsion Spring SPQ F150261 Contact Us For Availability
17
Y Connector SPQ F430311 Contact Us For Availability
17
Top Cover Latch SPQ F431005 Contact Us For Availability
17
Door Handle SPQ F150225 Contact Us For Availability
17
Terminal Strip SPQ F350115 Contact Us For Availability
17
Tubing SPQ F150443 Contact Us For Availability
18
Key SPQ F170170 Contact Us For Availability
18
Washer SPQ F430317 Contact Us For Availability
18
Pushbutton Rod SPQ F320300 Contact Us For Availability
18
Overflow Plug SPQ F200213 Contact Us For Availability
18
Siphon Tube SPQ F430177 Contact Us For Availability
19
Door Lock Pin Release Spring SPQ F340200 Contact Us For Availability
19
Screw SPQ F430108 Contact Us For Availability
19
Top Cover Sub-Assembly SPQ F602753 Contact Us For Availability
19
3-Way Valve SPQ F422808 Contact Us For Availability
19
Washer SPQ F606192-5 Contact Us For Availability
20
SPQ F310110 SPQ F310110 Contact Us For Availability
20
Door Lock Pin Linkage SPQ F310137 Contact Us For Availability
20
Diaphragm and Guide Kit SPQ F381729P Contact Us For Availability
20
U-Bolt Clamp SPQ 901690 Contact Us For Availability
21
Water Level Switch SPQ F631920 Contact Us For Availability
21
Door Lock Microswitch SPQ F310205 Contact Us For Availability
21
Vacuum Breaker Fill Hose SPQ F430322 Contact Us For Availability
21
Hose Clamp SPQ F381719P Contact Us For Availability
21
Pipe SPQ F200217 Contact Us For Availability
22
Vacuum Breaker Assembly SPQ F150390 Contact Us For Availability
22
Screw SPQ F431017 Contact Us For Availability
22
Vacuum Breaker Fill Hose SPQ F0381734-00P Contact Us For Availability
23
Door Lock Plate Shim SPQ F431123 Contact Us For Availability
23
Vacuum Breaker Top SPQ F430929 Contact Us For Availability
23
Vacuum Breaker Assembly SPQ F0381735-00P Contact Us For Availability
24
Door Lock Plate Assembly SPQ F431231 Contact Us For Availability
24
Vacuum Breaker Bottom SPQ F200222 Contact Us For Availability
25
Door Lock Assembly Cover SPQ F150455 Contact Us For Availability
25
Cap Plug SPQ F606816-1 Contact Us For Availability
25
Vacuum Breaker Top SPQ G300202 Contact Us For Availability
26
Water Hose SPQ F8333201 Contact Us For Availability
27
Nut SPQ F430215 Contact Us For Availability
28
Door Lock Wire Harness SPQ F300125P Contact Us For Availability
29
SPQ F0636698-01P SPQ F0636698-01P Contact Us For Availability
NI
SPQ F431022 SPQ F431022 Contact Us For Availability
NI
SPQ F886P3 SPQ F886P3 Contact Us For Availability
NI
SPQ F884P3 SPQ F884P3 Contact Us For Availability
NI
SPQ F0170426-00 SPQ F0170426-00 Contact Us For Availability
NI
SPQ F633494-4 SPQ F633494-4 Contact Us For Availability
NI
Momentary Switch SPQ F340435 Contact Us For Availability
NI
SPQ F060390106 SPQ F060390106 Contact Us For Availability
NI
SPQ F431147 SPQ F431147 Contact Us For Availability
NI
SPQ F0631986-02 SPQ F0631986-02 Contact Us For Availability
NI
Basket Tool Kit SPQ 389P4 Contact Us For Availability
NI
Bearing Kit SPQ F8312008P Contact Us For Availability
NI
SPQ RB100005 SPQ RB100005 Contact Us For Availability
NI
SPQ F200108P SPQ F200108P Contact Us For Availability
NI
SPQ F798709 SPQ F798709 Contact Us For Availability
NI
SPQ F430948 SPQ F430948 Contact Us For Availability
NI
SPQ F602533 SPQ F602533 Contact Us For Availability
NI
SPQ F430938 SPQ F430938 Contact Us For Availability
NI
SPQ F380794P SPQ F380794P Contact Us For Availability
NI
Nut SPQ F380972P Contact Us For Availability
NI
SPQ F8618901P SPQ F8618901P Contact Us For Availability
NI
SPQ F200165 SPQ F200165 Contact Us For Availability
NI
Pulley Kit SPQ F430100 Contact Us For Availability
NI
SPQ F310124 SPQ F310124 Contact Us For Availability
NI
SPQ F280304 SPQ F280304 Contact Us For Availability
NI
SPQ F748003 SPQ F748003 Contact Us For Availability
NI
Clip SPQ F8597802P Contact Us For Availability
NI
SPQ F8597502P SPQ F8597502P Contact Us For Availability
× ![]()
