Model Maytag MTN1854VRW01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

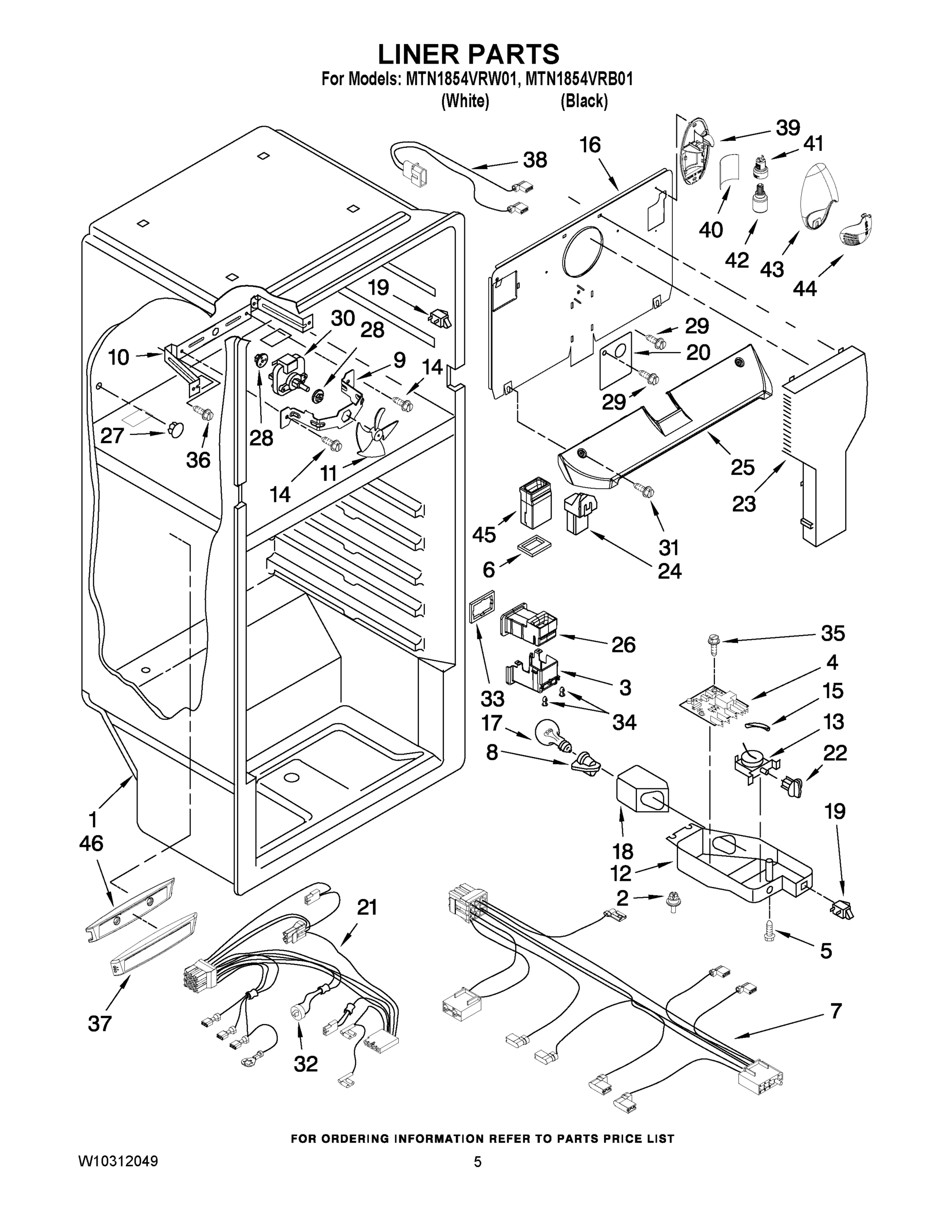

03 - LINER PARTS

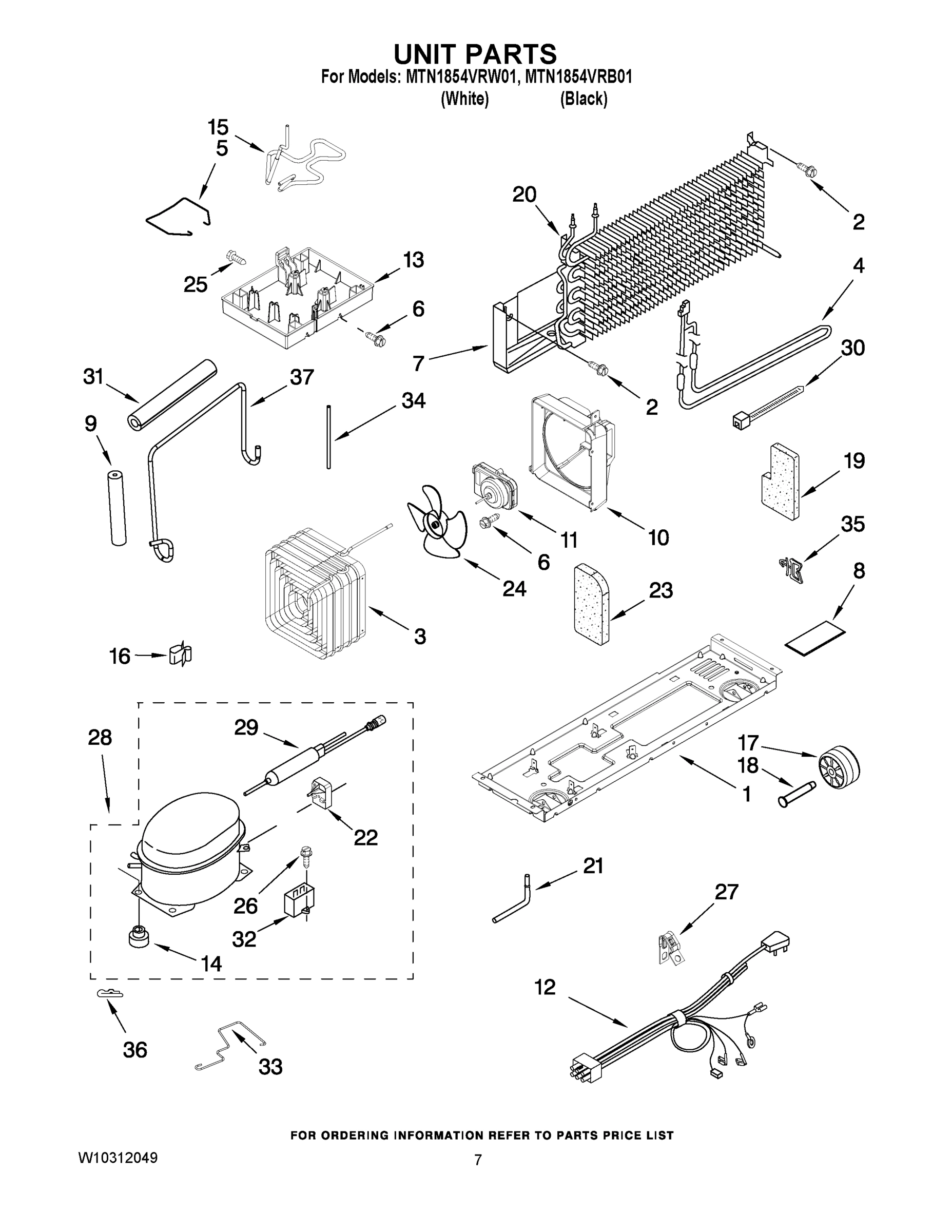

04 - UNIT PARTS

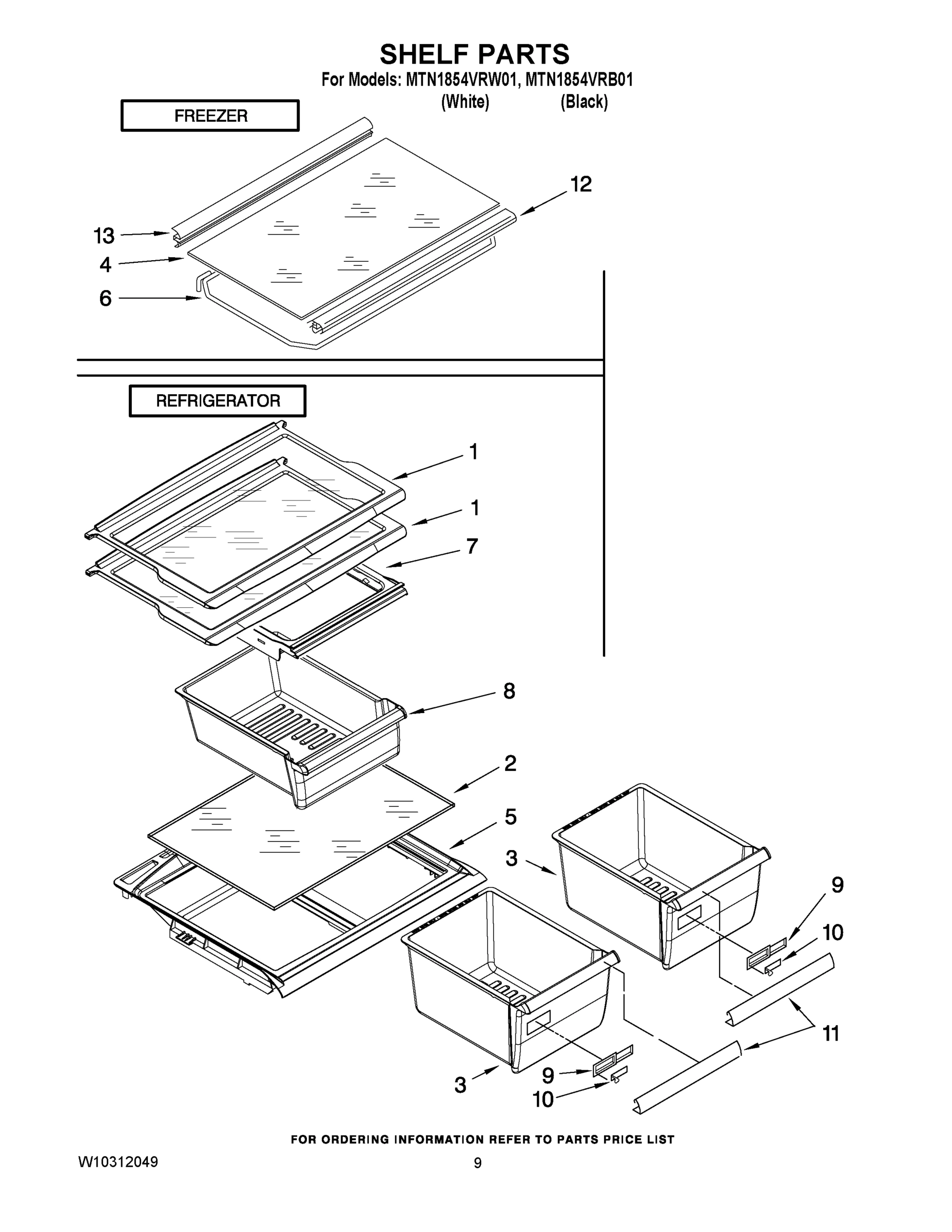

05 - SHELF PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MTN1854VRW01 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10182817 MAY W10182817 Contact Us For Availability
1
MAY W10214132 MAY W10214132 Contact Us For Availability
1
MAY W10283801 MAY W10283801 Contact Us For Availability
1
MAY 2264716B MAY 2264716B Contact Us For Availability
1
MAY 2264716W MAY 2264716W Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
MAY 2263640 MAY 2263640 Contact Us For Availability
2
Hinge Butt, Top MAY 2261963 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
GLASS, COVER MAY 2262441 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
3
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
3
MAY 2252837 MAY 2252837 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
CRISPER PAN (INCLUDES ITEMS 9, 10 & 11) MAY 2256704 Contact Us For Availability
4
CAP BUSHING MAY 487996 Contact Us For Availability
4
MAY 2266150 MAY 2266150 Contact Us For Availability
4
MAY 2303825 MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2262442 MAY 2262442 Contact Us For Availability
5
MAY 489341 MAY 489341 Contact Us For Availability
5
Handle, Refrigerator (Black) MAY 2222045 Contact Us For Availability
5
Handle, Refrigerator (White) MAY 2265645W Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
Clip, Condensor MAY 2264835 Contact Us For Availability
5
MAY 2222031 MAY 2222031 Contact Us For Availability
6
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
6
MAY 2213363 MAY 2213363 Contact Us For Availability
6
Endcap, Bottom (Black) MAY 2222048 Contact Us For Availability
6
Endcap, Bottom (White) MAY 2265647W Contact Us For Availability
6
MAY 2263075 MAY 2263075 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2252848 MAY 2252848 Contact Us For Availability
7
MAY 487576 MAY 487576 Contact Us For Availability
7
TRIM, DOOR MAY W10234241 Contact Us For Availability
7
MAY 2265603 MAY 2265603 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 2256601 MAY 2256601 Contact Us For Availability
8
MAY 2264132 MAY 2264132 Contact Us For Availability
8
Door, Compartment MAY 2264478 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
Electrical Shield MAY 2266360 Contact Us For Availability
8
MEAT PAN MAY 2261934 Contact Us For Availability
9
Leveler Screw 45mm MAY W10133299 Contact Us For Availability
9
Door Gasket, Magnetic (Black) MAY 2264723 Contact Us For Availability
9
MAY 2264727 MAY 2264727 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY 2161302 MAY 2161302 Contact Us For Availability
9
MAY 2212446 MAY 2212446 Contact Us For Availability
10
MAY 2266057 MAY 2266057 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
10
Slide, Humidity Control MAY 2176222 Contact Us For Availability
11
SPACER, BACK CB MAY 2266506 Contact Us For Availability
11
MAY 2324038 MAY 2324038 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
Motor, Condensor MAY 2188875 Contact Us For Availability
11
MAY 2326140 MAY 2326140 Contact Us For Availability
12
MAY 2174760 MAY 2174760 Contact Us For Availability
12
FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18 MAY 2264717B Contact Us For Availability
12
FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18 MAY 2264717W Contact Us For Availability
12
MAY 2264733 MAY 2264733 Contact Us For Availability
12
Wire Assy. Unit MAY W10151677 Contact Us For Availability
12
MAY 2215011 MAY 2215011 Contact Us For Availability
13
HOLE PLUG (BLACK) MAY 2183998 Contact Us For Availability
13
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
13
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
13
MAY 2264726 MAY 2264726 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
Evaporator Tray MAY 2263928 Contact Us For Availability
13
MAY 2215010 MAY 2215010 Contact Us For Availability
14
Seal MAY 1106508 Contact Us For Availability
14
MAY 2266146 MAY 2266146 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
15
MAY 2262176 MAY 2262176 Contact Us For Availability
15
MAY 2189202 MAY 2189202 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
TUBE, DISCHARGE MAY W10209728 Contact Us For Availability
16
MAY 2166086 MAY 2166086 Contact Us For Availability
16
MAY 8533904 MAY 8533904 Contact Us For Availability
16
MAY 2264715 MAY 2264715 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
17
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
17
Hole Plug (White) MAY 2212648 Contact Us For Availability
17
Hole Plug (Black) MAY 2212651 Contact Us For Availability
17
MAY 2311792 MAY 2311792 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 489497 MAY 489497 Contact Us For Availability
18
Endcap, Top (Black) MAY 2252863 Contact Us For Availability
18
Endcap, Top (White) MAY 2265644W Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
Hinge Butt, Bottom MAY 2325482 Contact Us For Availability
19
MAY 2266148 MAY 2266148 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
20
MAY 2217784 MAY 2217784 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
MAY 2201567 MAY 2201567 Contact Us For Availability
21
MAY W10164673 MAY W10164673 Contact Us For Availability
21
MAY VS20001 MAY VS20001 Contact Us For Availability
22
MAY 2166003 MAY 2166003 Contact Us For Availability
22
Corner Filler (Black) MAY 2215384 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
START-DEVICE, COMBINATION (START RELAY AND OV MAY 2320150 Contact Us For Availability
22
START-DEVICE, COMBINATION (START RELAY AND OV MAY 2320151 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
MAY 2256715 MAY 2256715 Contact Us For Availability
26
MAY 8533919 MAY 8533919 Contact Us For Availability
27
MAY 941839 MAY 941839 Contact Us For Availability
27
MAY 549193 MAY 549193 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 22, & 29) MAY 2320132 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY W10234465 MAY W10234465 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
MAY 2266067 MAY 2266067 Contact Us For Availability
32
Capacitor (Production) MAY 2264017 Contact Us For Availability
33
MAY W10129686 MAY W10129686 Contact Us For Availability
33
BALE STRAP MAY 2263628 Contact Us For Availability
34
MAY 2256983 MAY 2256983 Contact Us For Availability
34
MAY 2264278 MAY 2264278 Contact Us For Availability
35
Screw MAY 488693 Contact Us For Availability
35
CLIP-HARNESS MAY 2266467 Contact Us For Availability
36
MAY 24364001 MAY 24364001 Contact Us For Availability
37
MAY 2252828 MAY 2252828 Contact Us For Availability
37
MAY W10209727 MAY W10209727 Contact Us For Availability
38
Wiring Harness Freezer Light MAY 2261879 Contact Us For Availability
39
MAY 2256949 MAY 2256949 Contact Us For Availability
40
MAY 2256948 MAY 2256948 Contact Us For Availability
41
MAY 2263413 MAY 2263413 Contact Us For Availability
42
MAY R-31244 MAY R-31244 Contact Us For Availability
43
MAY 2256946 MAY 2256946 Contact Us For Availability
44
MAY 2256947 MAY 2256947 Contact Us For Availability
45
MAY 2252831 MAY 2252831 Contact Us For Availability
46
Insulation (4) MAY W10208150 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.75 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ICE MAKER FIELD INSTALLABLE (ECKMF94) MAY 2155469 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 4392899 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, BISCUIT (1 QT. MAY 4392900 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
