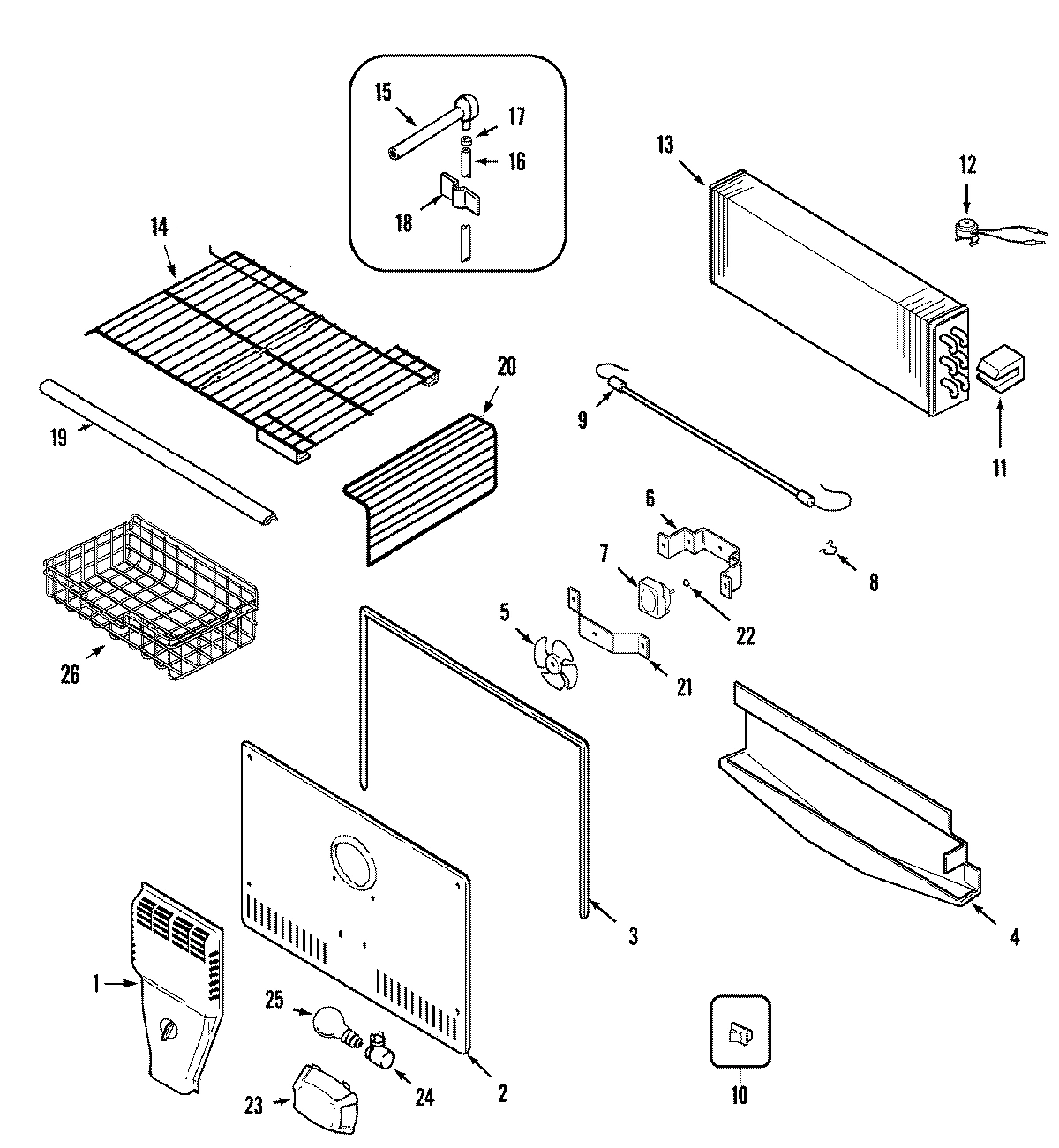

Model Whirlpool MTF1956GEW REFRIGERATOR – Common Parts &amp; Diagrams

1

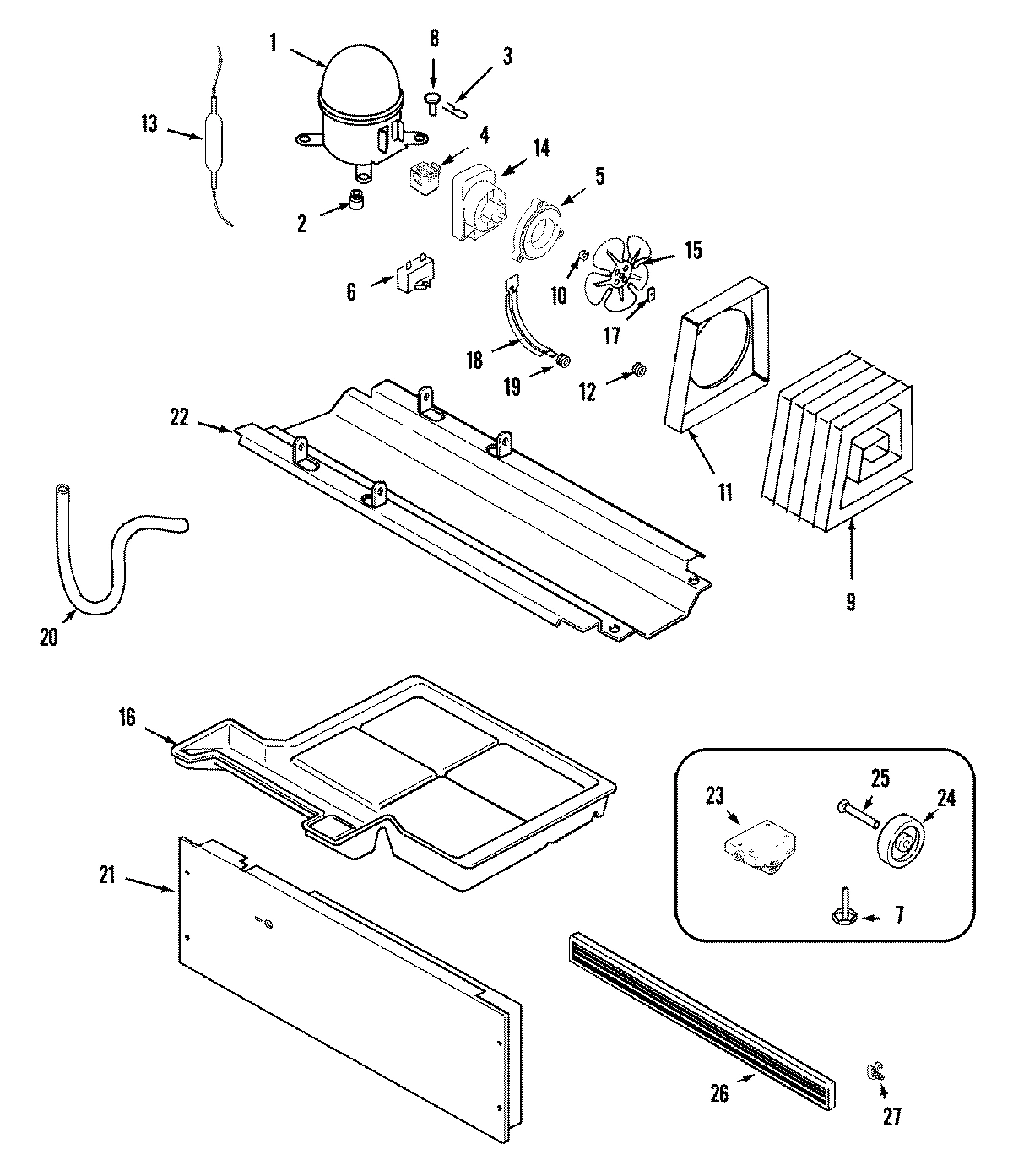

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

1

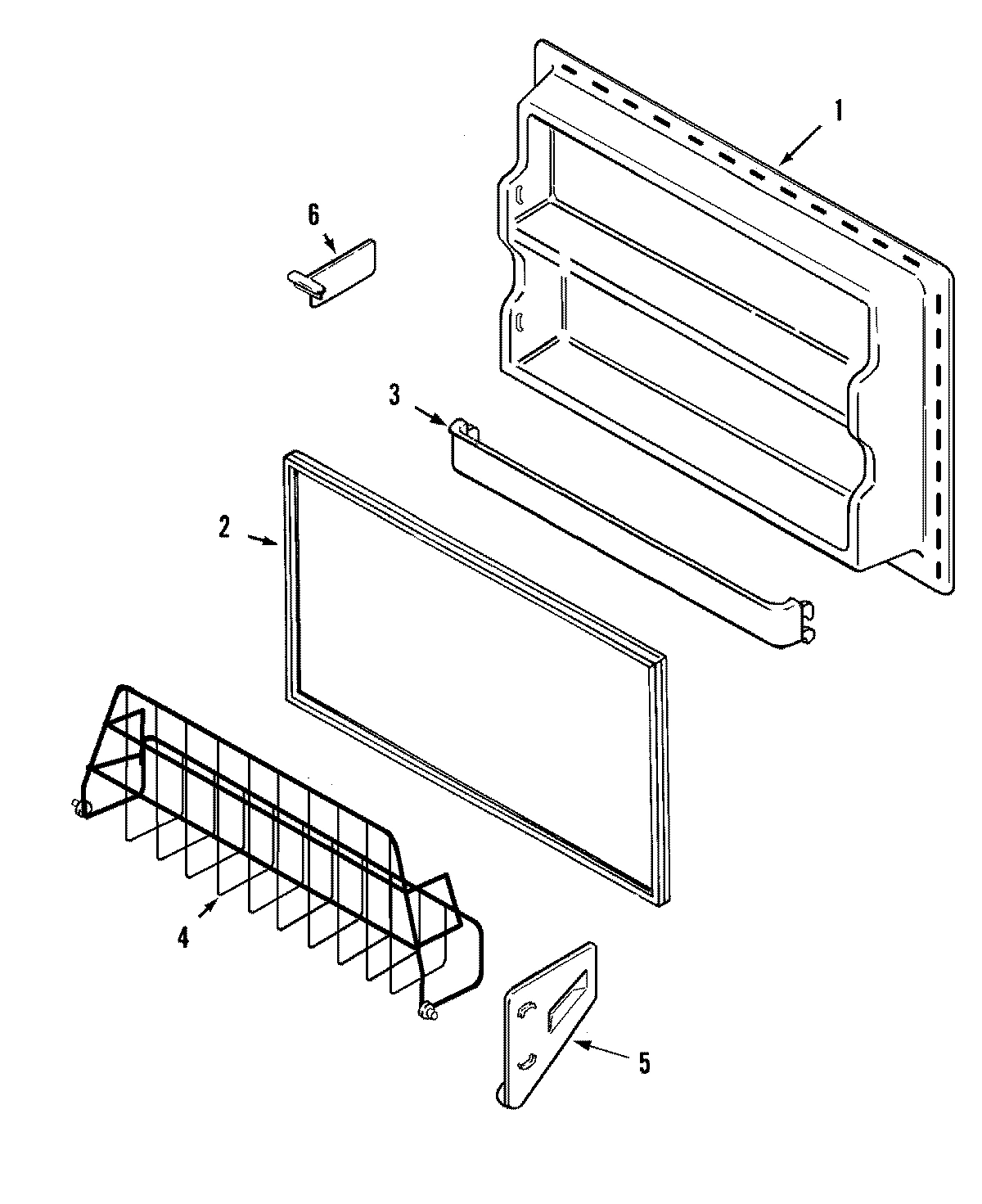

LINER. FRZ. DOOR WPL 61002261 Contact Us For Availability

1

SCREW WPL 61005749 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61005927 Contact Us For Availability

1

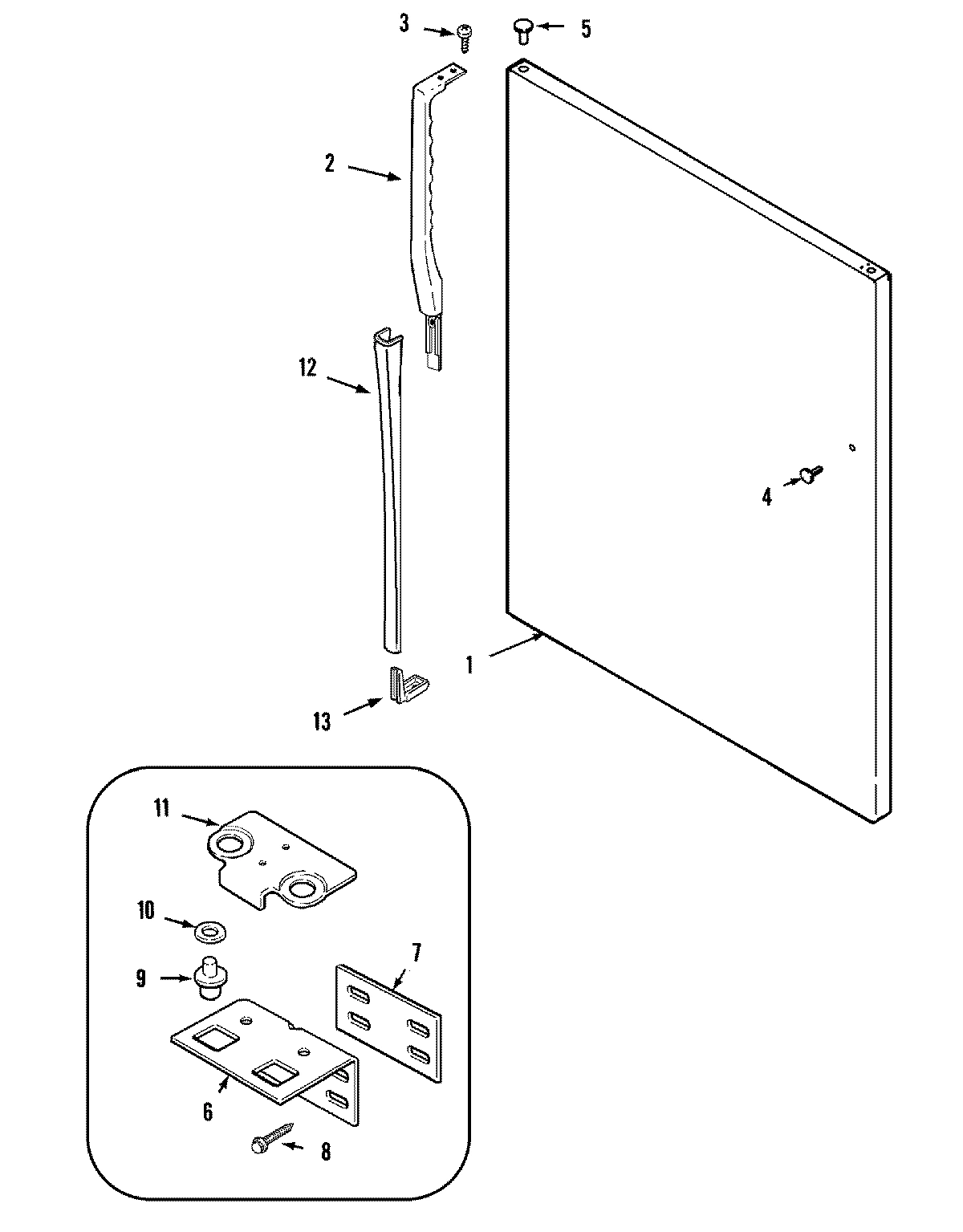

PANEL, F.F. DOOR (WHT) WPL 61002397 Contact Us For Availability

1

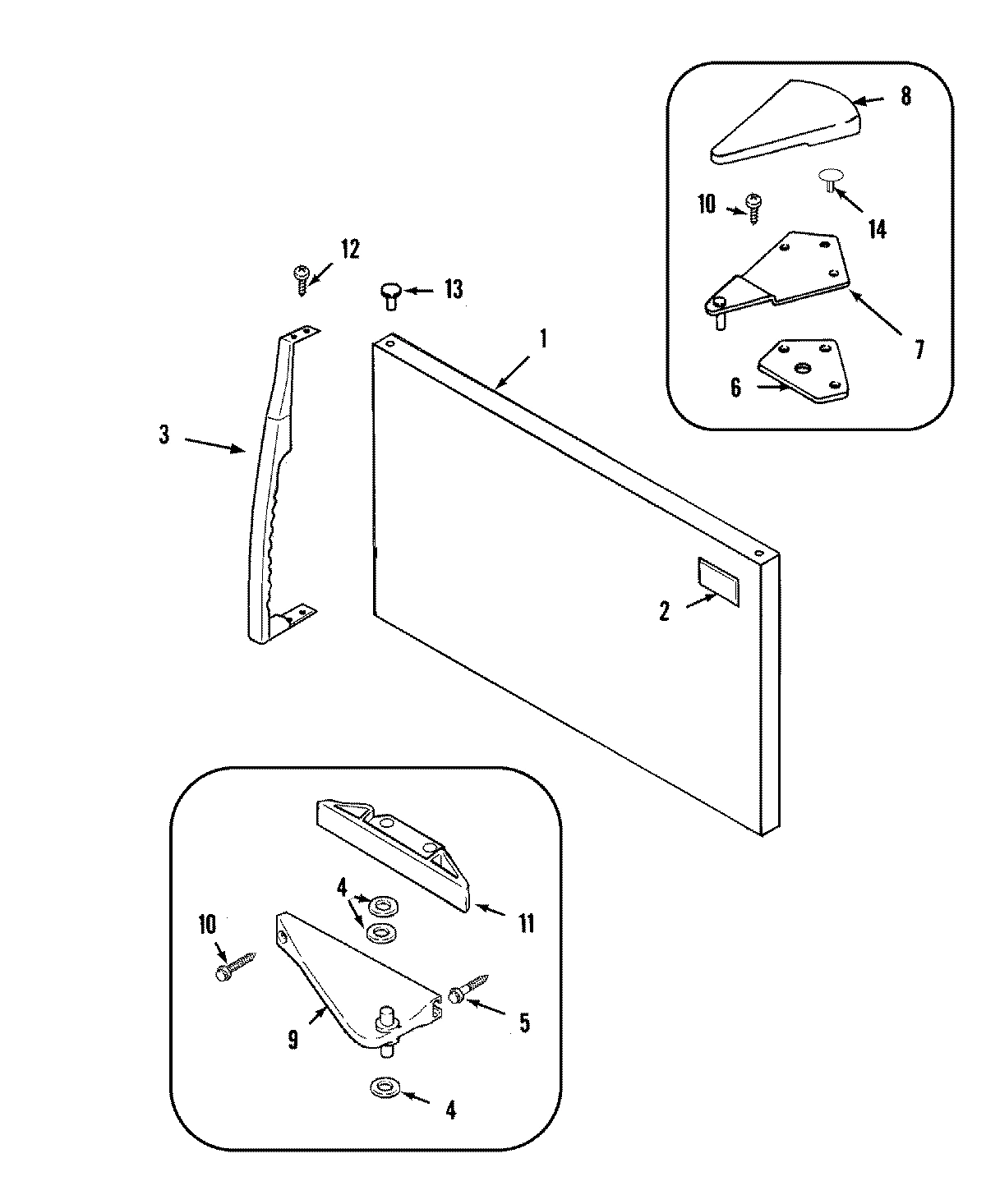

PANEL, FRZ. DOOR (WHT) WPL 61002402 Contact Us For Availability

1

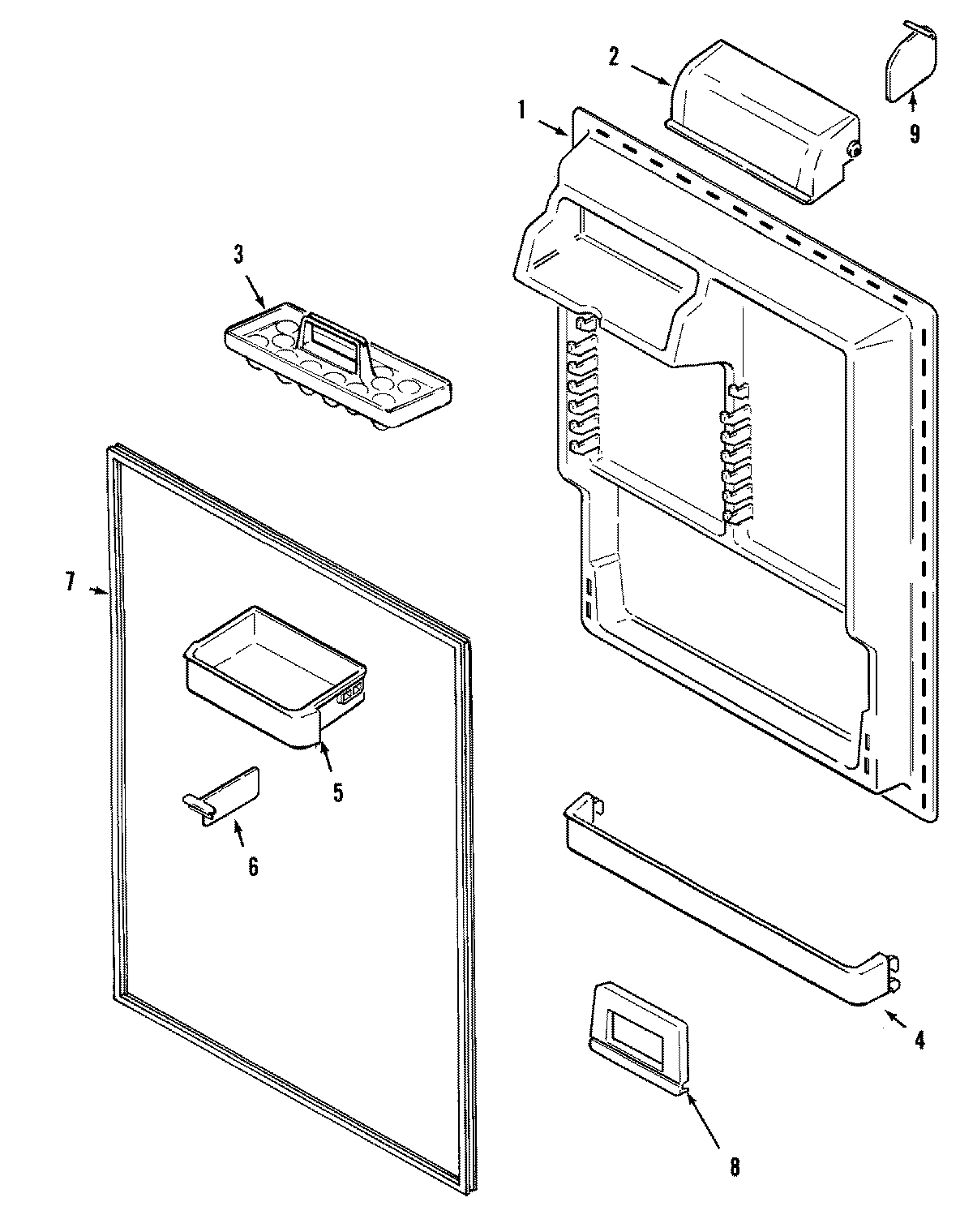

LINER, F.F. DOOR WPL 61002452 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61005938 Contact Us For Availability

1

INSERT, LINER SUPPORT WPL 61005939 Contact Us For Availability

1

KIT, COMPRESSOR WPL 12002059 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61006023 Contact Us For Availability

1

WIRE HARNESS, COMPRESSOR WPL 61005322 Contact Us For Availability

1

TUNNEL, AIR WPL 61002266 Contact Us For Availability

1

SCREW WPL 4000311 Contact Us For Availability

1

MANUAL, USE & CARE (TRILNGUL) WPL 16010376 Contact Us For Availability

1

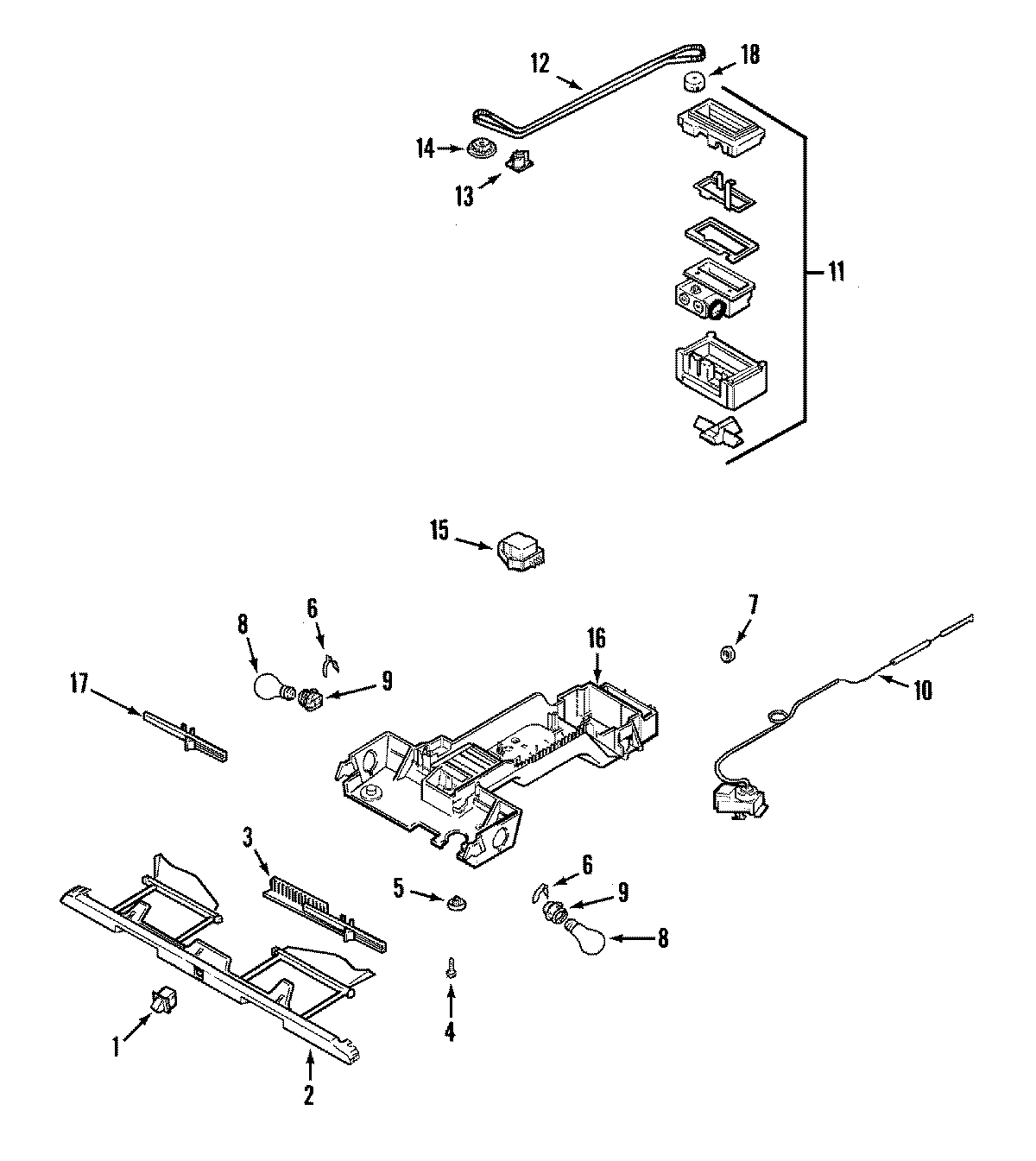

SWITCH, LIGHT WPL 61006075 Contact Us For Availability

1

SLIDE, CONTROL WPL 61002302 Contact Us For Availability

1

SCREW WPL 61002584 Contact Us For Availability

2

61005484 Whirlpool Refrigerator White F.F. Do Backorder WPL 61005484 $96.12

2

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.84

2

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.85

2

WP61004007 Whirlpool Refrigerator Seal Backorder WPL WP61004007 $131.61

2

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

2

NAMEPLATE (WHT) WPL 61003616 Contact Us For Availability

2

DOOR, DAIRY WPL 61002160 Contact Us For Availability

2

PLUG BUTTON, EVAP. COVER WPL 61001952 Contact Us For Availability

2

COVER, EVAPORATOR WPL 61002454 Contact Us For Availability

2

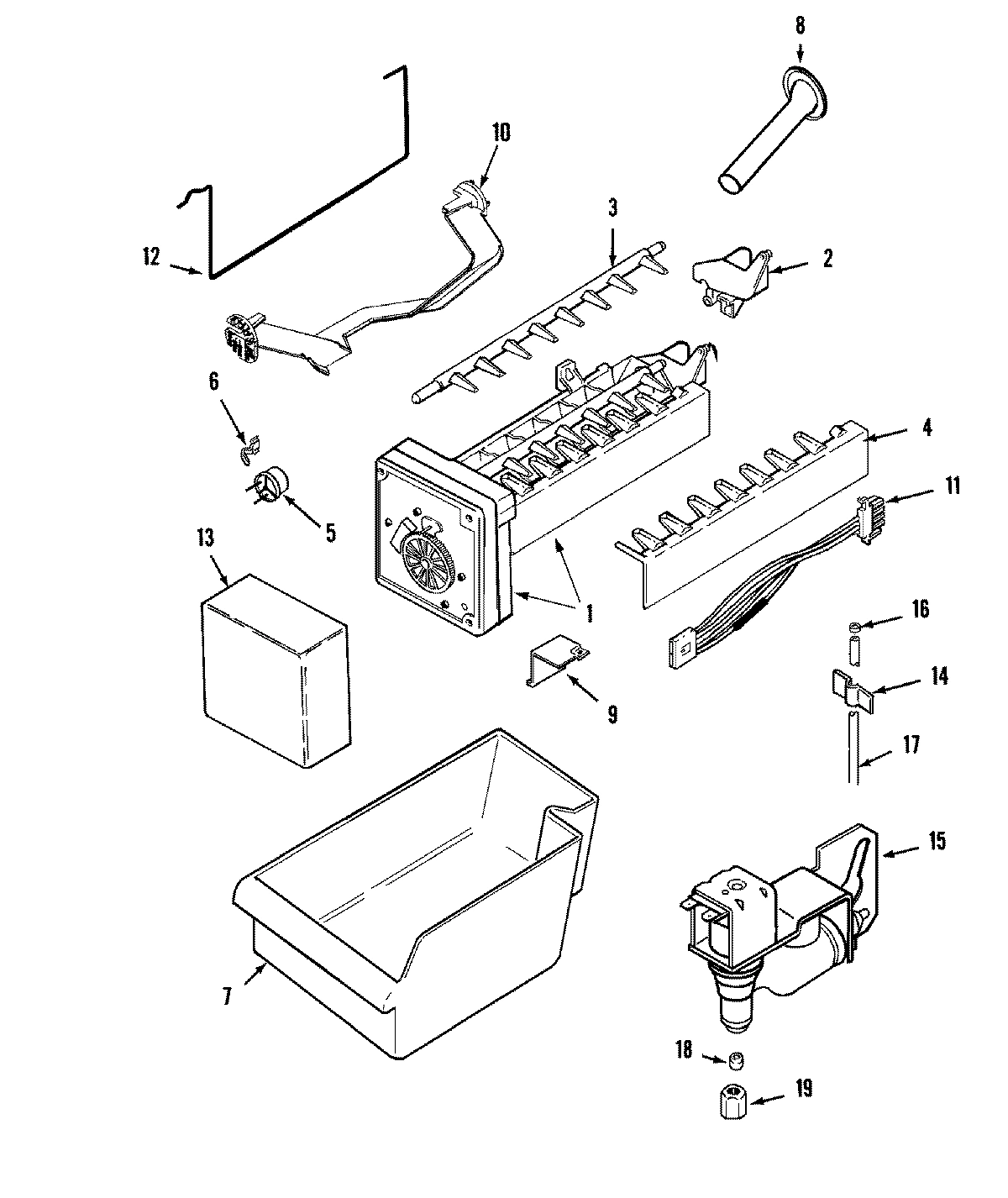

INLET, WATER WPL 951001 Contact Us For Availability

2

MANUAL, SERVICE-NO REFUND WPL 16008248 Contact Us For Availability

2

PANEL, CONTROL WPL 61002448 Contact Us For Availability

2

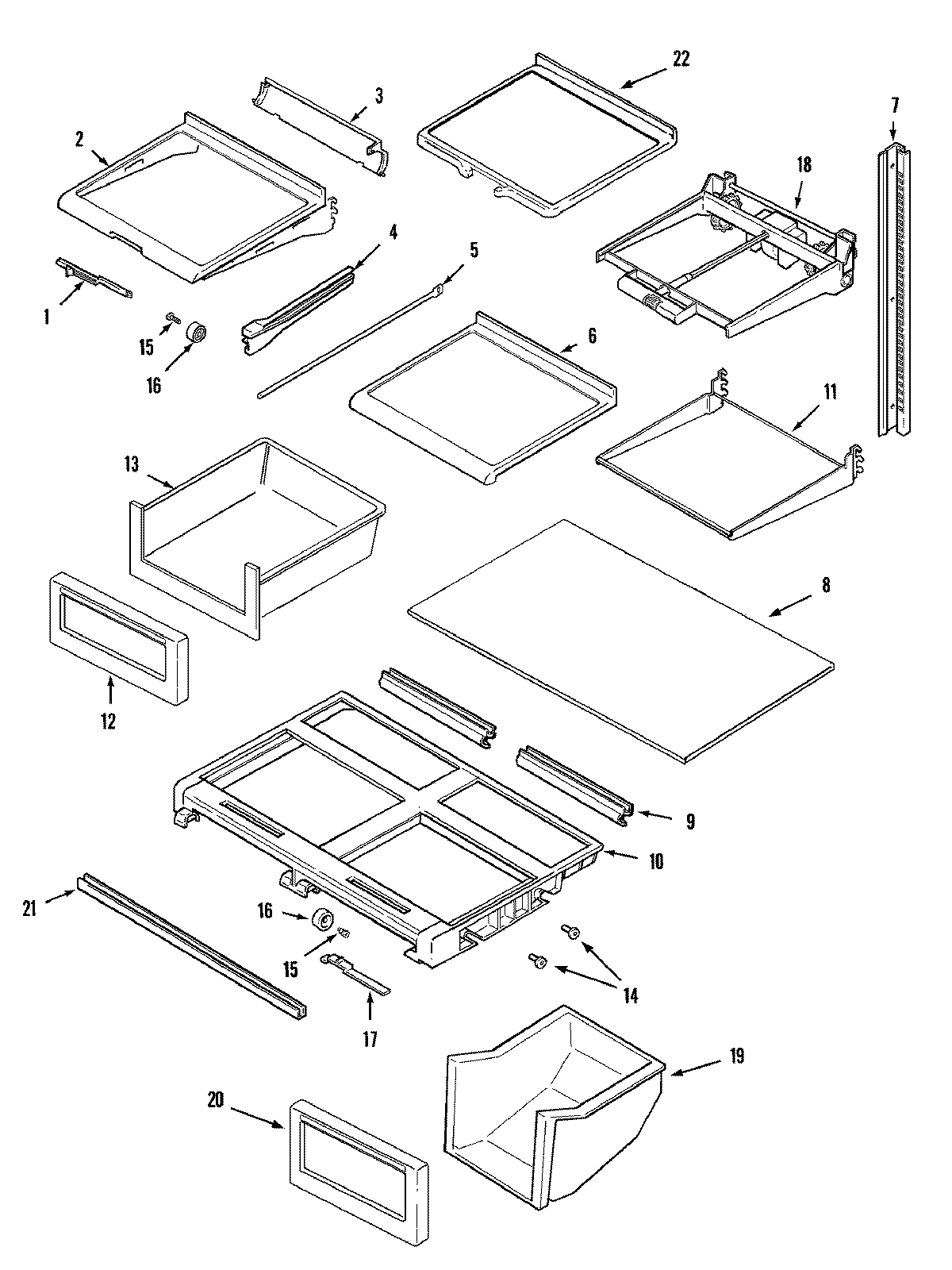

SHELF, MEAT PAN WPL 61005889 Contact Us For Availability

3

61005399 Whirlpool Refrigerator White Door Ha Backorder WPL 61005399 $112.10

3

PLUG BUTTON (WHT) WPL 61001795 Contact Us For Availability

3

TRAY, EGG WPL 600661 Contact Us For Availability

3

CLIP, COMPRESSOR WPL 61005561 Contact Us For Availability

3

SEAL, EVAPORATOR COVER WPL 61004625 Contact Us For Availability

3

SEAL, FOAM (CTR) WPL 61005920 Contact Us For Availability

3

EJECTOR, ICE WPL 951011 Contact Us For Availability

3

LABEL, DUAL ENERGY GUIDE WPL 61005700 Contact Us For Availability

3

SLIDE, CONTROL (FRZ.) WPL 61002295 Contact Us For Availability

3

SCOOP, MEAT PAN WPL 61004731 Contact Us For Availability

4

12002794 Whirlpool Refrigerator Overload Rela Backorder WPL 12002794 $104.64

4

WP61002231 Whirlpool Refrigerator Washer Hing Backorder WPL WP61002231 $5.21

4

WP67002191 Whirlpool Refrigerator Crisper Mea Backorder WPL WP67002191 $13.13

4

BASKET, TILT-OUT WPL 61002264 Contact Us For Availability

4

PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability

4

FRONT, PICK-OFF WPL 61005104 Contact Us For Availability

4

RELAY/OVERLOAD ASSY. WPL 61006022 Contact Us For Availability

4

CLIP, RETAINER WPL 61006029 Contact Us For Availability

4

CLIP, RELAY/OVERLOAD ASSY. WPL 61006187 Contact Us For Availability

4

BARRIER, FOIL WPL 61004832 Contact Us For Availability

4

TRAY, DRIP WPL 61004838 Contact Us For Availability

4

STRIPPER, ICE WPL 951021 Contact Us For Availability

4

SCREW WPL 61004485 Contact Us For Availability

4

RAIL, MEAT PAN (LT) WPL 61002304 Contact Us For Availability

5

STOP, BASKET (LT) WPL 61004465 Contact Us For Availability

5

STOP, BASKET (RT) WPL 61004466 Contact Us For Availability

5

SCREW WPL 61002025 Contact Us For Availability

5

SHELF, PICK-OFF WPL 61005105 Contact Us For Availability

5

ADAPTER, FAN MOTOR WPL 61005325 Contact Us For Availability

5

SCREW WPL 61005934 Contact Us For Availability

5

BLADE, EVAPORATOR FAN WPL 61005066 Contact Us For Availability

5

THERMOSTAT WPL 950921 Contact Us For Availability

5

CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability

5

GEAR, CONTROL (F.F.) WPL 61002288 Contact Us For Availability

5

LINKAGE, ACTUATOR WPL 61004732 Contact Us For Availability

6

CAPACITOR, RUN WPL 658894 Contact Us For Availability

6

ORGANIZER, SHELF WPL 61002274 Contact Us For Availability

6

HINGE, LOWER (WHT) WPL 61001918 Contact Us For Availability

6

SHIM, UPPER HINGE WPL 61001922 Contact Us For Availability

6

BRACKET, EVAPORATOR FAN WPL 61001930 Contact Us For Availability

6

RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability

6

CLIP, RECEPTACLE WPL 61002117 Contact Us For Availability

6

SHELF, SPILLPROOF WPL 61002453 Contact Us For Availability

7

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

7

WP61004008 Whirlpool Refrigerator Seal Backorder WPL WP61004008 $168.74

7

SEAL, DRAIN WPL 61001977 Contact Us For Availability

7

LEG, LEVELING WPL 61002014 Contact Us For Availability

7

SHIM, LOWER HINGE WPL 61001926 Contact Us For Availability

7

HINGE, UPPER WPL 61004896 Contact Us For Availability

7

MOTOR, EVAPORATOR FAN (W/LEAD) WPL 61005935 Contact Us For Availability

7

PAN, ICE WPL 61001886 Contact Us For Availability

7

SCREW WPL 40003728 Contact Us For Availability

7

RAIL, SHELF SUPPORT (CTR) WPL 61004705 Contact Us For Availability

7

RAIL, SHELF SUPPORT (LT/RT) WPL 61004706 Contact Us For Availability

8

W10887190 Whirlpool Refrigerator Light Bulb In Stock WPL W10887190 $7.33

8

PLUG, COMPRESSOR WPL 526562 Contact Us For Availability

8

COVER, UPPER HINGE (WHT) WPL 61002076 Contact Us For Availability

8

RETAINER, BOTTLE WPL 61002273 Contact Us For Availability

8

CLIP, DEFROST HEATER WPL 61004834 Contact Us For Availability

8

GROMMET, FILL TUBE WPL 61005940 Contact Us For Availability

8

GLASS, CRISPER SHELF WPL 61002255 Contact Us For Availability

9

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

9

WP61001925 Whirlpool Refrigerator Lower Pin Backorder WPL WP61001925 $18.83

9

WP61002045 Whirlpool Refrigerator Defrost Hea In Stock WPL WP61002045 $81.40

9

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $39.05

9

CONDENSER WPL 61005427 Contact Us For Availability

9

HINGE, CENTER (WHT) WPL 61001920 Contact Us For Availability

9

ORGANIZER, DAIRY COMPT. WPL 61002367 Contact Us For Availability

9

BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability

9

SCREW, BRACKET WPL 951081 Contact Us For Availability

9

SEAL, REAR WPL 61002311 Contact Us For Availability

3400112 Whirlpool Refrigerator Screw Backorder WPL 3400112 $33.29

WP61002043 Whirlpool Refrigerator Control Backorder WPL WP61002043 $113.94

WASHER, FAN BLADE WPL 61001686 Contact Us For Availability

SWITCH, LIGHT WPL 61006157 Contact Us For Availability

SWITCH, LIGHT WPL 669871 Contact Us For Availability

ADJUSTER, ICE LEVEL WPL 61005174 Contact Us For Availability

SCREW WPL 6527581 Contact Us For Availability

SHELF, CRISPER WPL 61002306 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.60

SHROUD, CONDENSER WPL 61001941 Contact Us For Availability

SCREW WPL 61001876 Contact Us For Availability

STOP, DOOR WPL 61005602 Contact Us For Availability

STOP, DOOR (WHT) WPL 61004481 Contact Us For Availability

SUPPORT, EVAPORATOR (LT) WPL 61004835 Contact Us For Availability

SUPPORT, EVAPORATOR (RT) WPL 61004836 Contact Us For Availability

WIRE HARNESS, ICE MAKER WPL 61001882 Contact Us For Availability

DAMPER/INSULATION KIT WPL 61002092 Contact Us For Availability

FRAME, SPILLPROOF SHELF WPL 67002450 Contact Us For Availability

WP61005254 Whirlpool Refrigerator Thermostat In Stock WPL WP61005254 $57.89

GROMMET, CONDENSER TUBING WPL 61002033 Contact Us For Availability

EXTENSION, HANDLE (WHT) WPL 61005487 Contact Us For Availability

SCREW WPL 61005394 Contact Us For Availability

ARM, SENSOR WPL 61005173 Contact Us For Availability

CLIP, SENSOR ARM WPL 61005175 Contact Us For Availability

BELT, DAMPER WPL 61002290 Contact Us For Availability

FRONT, MEAT PAN WPL 61002317 Contact Us For Availability

EVAP/HEAT EXCH. ASSY. 19` WPL 12001397 Contact Us For Availability

DRIER WPL 139001 Contact Us For Availability

PLUG BUTTON, HINGE CUP (WHT) WPL 61001908 Contact Us For Availability

BRACKET, HANDLE EXT. (WHT) WPL 61005490 Contact Us For Availability

COVER, ICE MAKER WPL 61005374 Contact Us For Availability

TENSIONER, BELT WPL 61002289 Contact Us For Availability

PAN, MEAT WPL 61002313 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

SCREW WPL 4000171 Contact Us For Availability

MOTOR, CONDENSER FAN WPL 61005323 Contact Us For Availability

PLUG BUTTON, HINGE (WHT) WPL 61001923 Contact Us For Availability

SHELF, FRZ. WPL 61002383 Contact Us For Availability

CLIP, WATER LINE (ADHESIVE) WPL 61004913 Contact Us For Availability

SCREW WPL 4000161 Contact Us For Availability

CLAMP, TUBING WPL 535168 Contact Us For Availability

GEAR, DAMPER BELT (FRT) WPL 61002291 Contact Us For Availability

SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability

WP61002308 Whirlpool Refrigerator Screw Backorder WPL WP61002308 $2.60

WP61005273 Whirlpool Refrigerator Inlet Valve In Stock WPL WP61005273 $36.49

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.75

BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability

SCREW WPL 4050071 Contact Us For Availability

TIMER, DEFROST WPL 682333 Contact Us For Availability

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $5.00

PAN, DRAIN WPL 61004095 Contact Us For Availability

SHIELD, HEAT (LT) WPL 61002296 Contact Us For Availability

SHIELD, HEAT (RT) WPL 61002297 Contact Us For Availability

HOUSING, CONTROL WPL 61004643 Contact Us For Availability

ROLLER WPL 61002307 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.84

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.68

SLIDE, CONTROL (F.F.) WPL 61002294 Contact Us For Availability

SLIDE, CONTROL WPL 61002310 Contact Us For Availability

BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability

SLEEVE, BRASS WPL 694311 Contact Us For Availability

GEAR, DAMPER BELT (REAR) WPL 61002292 Contact Us For Availability

FRAME ASSY., ELEVATOR SHELF WPL 61005390 Contact Us For Availability

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.05

GROMMET, BRACKET WPL 61004743 Contact Us For Availability

TRIM, FRZ. SHELF WPL 61002271 Contact Us For Availability

WIRE HARNESS, CONTROLS WPL 61002316 Contact Us For Availability

PAN, CRISPER WPL 61002256 Contact Us For Availability

TUBE, DRAIN TRAP WPL 61002214 Contact Us For Availability

LEG, FRZ. SHELF WPL 61002270 Contact Us For Availability

FRONT, CRISPER PAN (RT) WPL 61002257 Contact Us For Availability

FRONT, CRISPER PAN (LT) WPL 61002258 Contact Us For Availability

21

COVER, COMPRESSOR COMPARTMENT WPL 61005913 Contact Us For Availability

21

RETAINER, EVAPORATOR FAN WPL 61005340 Contact Us For Availability

21

RAIL, CRISPER SUPPORT WPL 61005012 Contact Us For Availability

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.84

BUSHING, EVAPORATOR FAN WPL 61005341 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 61005272 Contact Us For Availability

SHELF, ELEVATOR WPL 61004734 Contact Us For Availability

23

SCREW WPL 6527550 Contact Us For Availability

23

WHEEL ASSY. (FRT) WPL 61005232 Contact Us For Availability

23

SHIELD, LIGHT WPL 61002272 Contact Us For Availability

24

WP61003826 Whirlpool Wheel Backorder WPL WP61003826 $3.84

24

RECEPTACLE, BULB WPL 61005748 Contact Us For Availability

25

BULB, LIGHT WPL 319561 Contact Us For Availability

26

KICKPLATE W/CLIPS (WHT) WPL 61002427 Contact Us For Availability

26

BASKET, FRZ. WPL 61002355 Contact Us For Availability

26

CLIP, BASKET WPL 61002356 Contact Us For Availability

27

CLIP, KICKPLATE WPL 61001975 Contact Us For Availability

27

WIRE HARNESS, FRZ. WPL 61005544 Contact Us For Availability

27

WIRE HARNESS, FRZ. WPL 61005937 Contact Us For Availability

28

YODER LOOP HEATER REPAIR (115V WPL 12001492 Contact Us For Availability

NI

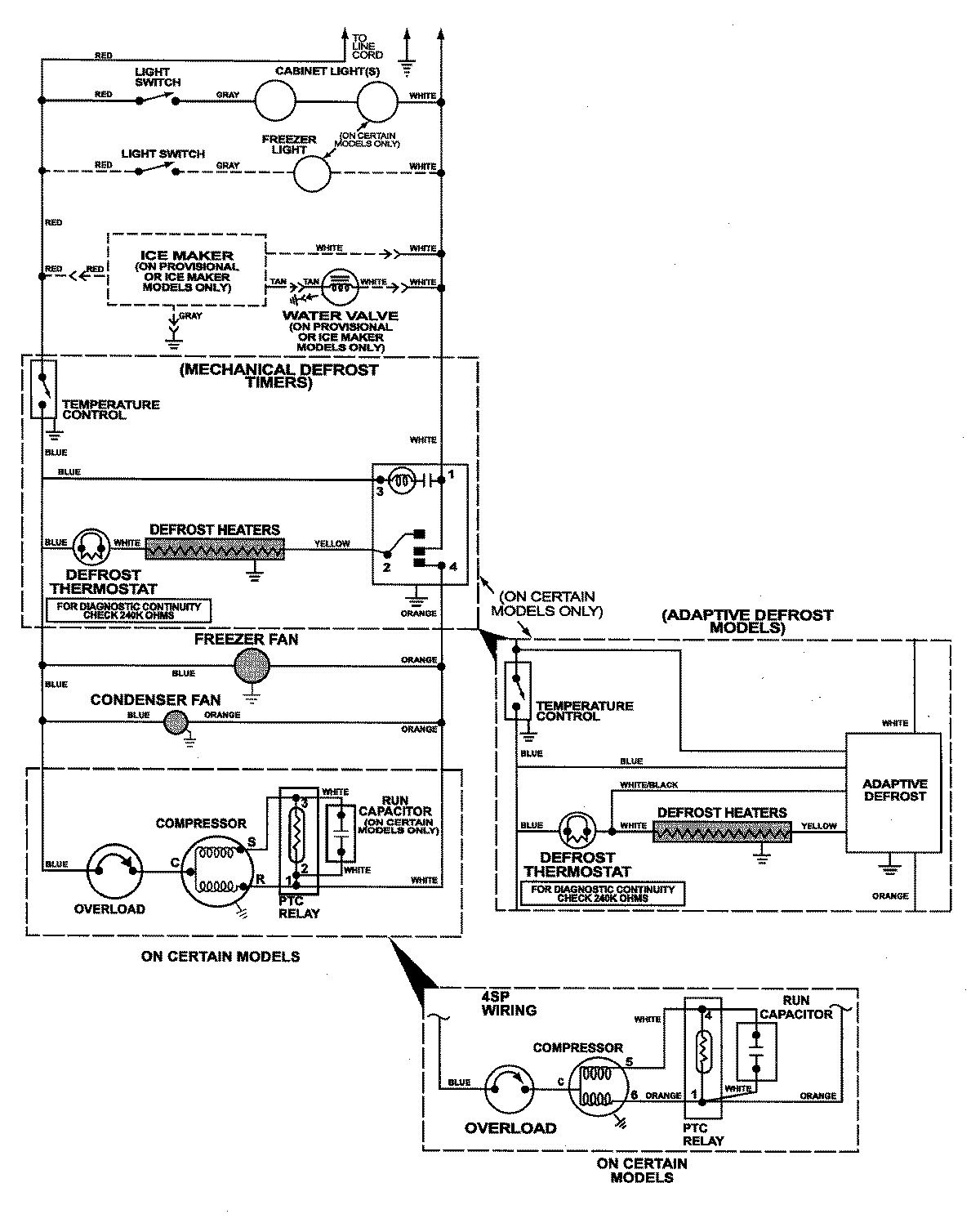

WIRING INFORMATION WPL 15002787 Contact Us For Availability
