Model Maytag MTB1452VRW00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

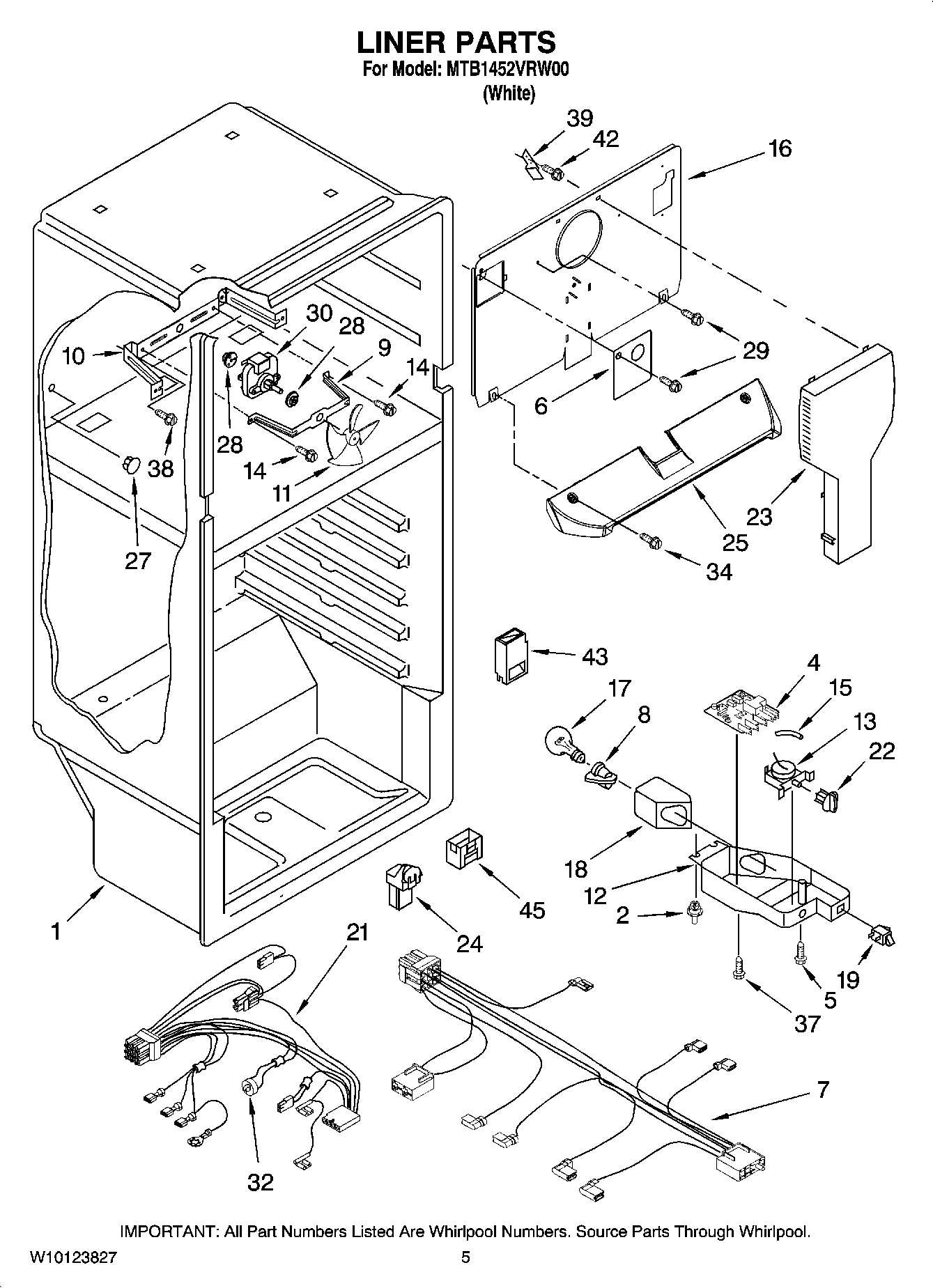

03 - LINER PARTS

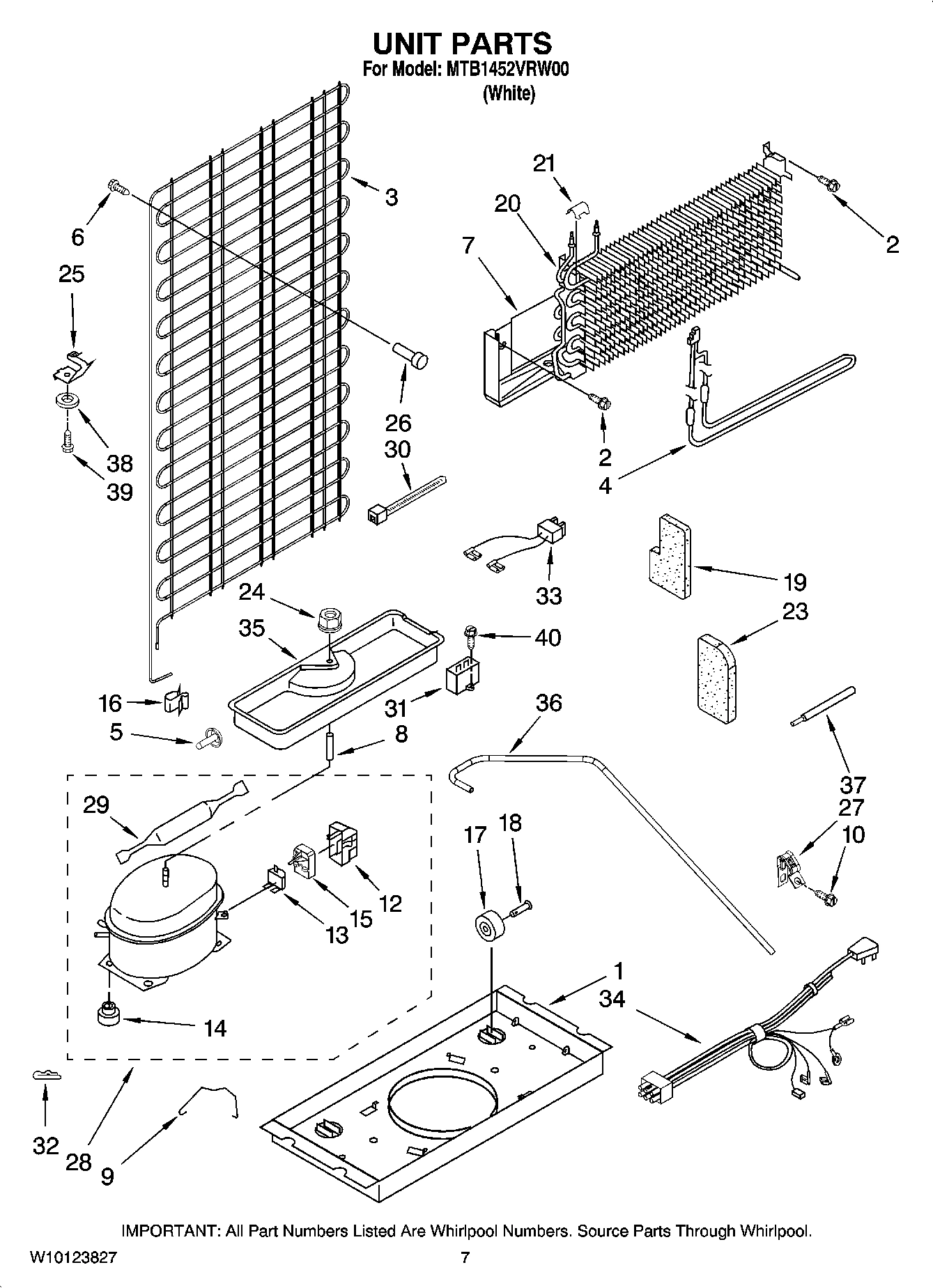

04 - UNIT PARTS

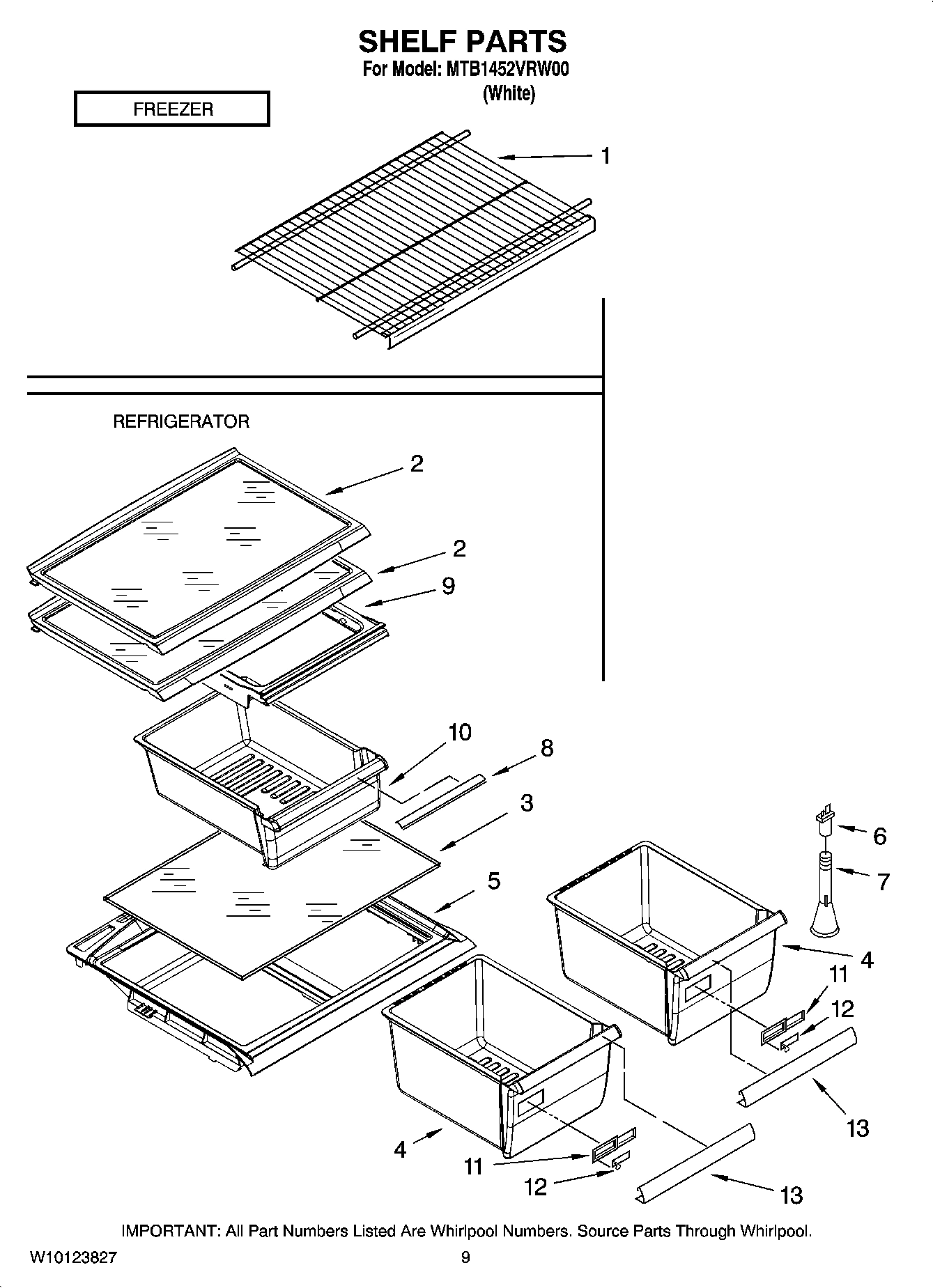

05 - SHELF PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MTB1452VRW00 REFRIGERATOR
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
FIELD INSTALLABLE ICE MAKER (ECKMF94) MAY 2155469 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
MAY 606755 MAY 606755 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
MAY 799832 MAY 799832 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 876029 MAY 876029 Contact Us For Availability
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
MAY 978941 MAY 978941 Contact Us For Availability
1
MAY 2265209 MAY 2265209 Contact Us For Availability
1
MAY 2325391 MAY 2325391 Contact Us For Availability
1
MAY 2326159 MAY 2326159 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY 2316020W MAY 2316020W Contact Us For Availability
1
MAY 2221886 MAY 2221886 Contact Us For Availability
1
Shelf, Wire MAY 2192514 Contact Us For Availability
2
Hinge Butt, Top MAY 2261963 Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
MAY 2263643 MAY 2263643 Contact Us For Availability
3
Roller-Front MAY 2324094 Contact Us For Availability
3
MAY 2258681W MAY 2258681W Contact Us For Availability
3
MAY 2252730 MAY 2252730 Contact Us For Availability
3
GLASS, COVER MAY 2262441 Contact Us For Availability
4
CAP BUSHING MAY 487996 Contact Us For Availability
4
Trim, Door Shelf (Narrow) MAY 2266727 Contact Us For Availability
4
MAY 2188371 MAY 2188371 Contact Us For Availability
4
MAY 2263749 MAY 2263749 Contact Us For Availability
4
MAY 2326139 MAY 2326139 Contact Us For Availability
5
Washer, Plain MAY 488296 Contact Us For Availability
5
Handle, Endcap Refrigerator MAY 2265645W Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
Snap Rivet MAY 2264516 Contact Us For Availability
5
MAY 2222031 MAY 2222031 Contact Us For Availability
6
Cover, Hinge MAY 2213360 Contact Us For Availability
6
MAY 2265647W MAY 2265647W Contact Us For Availability
6
MAY 2217784 MAY 2217784 Contact Us For Availability
6
MAY 8533892 MAY 8533892 Contact Us For Availability
6
MAY 9791824 MAY 9791824 Contact Us For Availability
7
Trim, Door Shelf (Wide) MAY 2266738 Contact Us For Availability
7
WIRE ASSEMBLY, CONTROL BOX MAY 2265929 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 836410 MAY 836410 Contact Us For Availability
8
SCREW MAY 2222100 Contact Us For Availability
8
END CAP, TRIM MAY 2195916 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2176844 MAY 2176844 Contact Us For Availability
8
MAY 2176356 MAY 2176356 Contact Us For Availability
9
MAY 2166086 MAY 2166086 Contact Us For Availability
9
Door Gasket, Magnetic MAY 2264728 Contact Us For Availability
9
MAY 2197404 MAY 2197404 Contact Us For Availability
9
MAY 2263622 MAY 2263622 Contact Us For Availability
9
MAY 2256601 MAY 2256601 Contact Us For Availability
10
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
10
MAY 2266729 MAY 2266729 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 489442 MAY 489442 Contact Us For Availability
10
MAY 2326186 MAY 2326186 Contact Us For Availability
11
MAY 489497 MAY 489497 Contact Us For Availability
11
Plug-Trim MAY 2156007 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
MAY 2212446 MAY 2212446 Contact Us For Availability
12
Hinge Butt, Btm MAY 2221926 Contact Us For Availability
12
END CAP, TRIM MAY 2156003 Contact Us For Availability
12
MAY 2264051 MAY 2264051 Contact Us For Availability
12
Cover (Production) MAY 2162358 Contact Us For Availability
12
Cover (Service) MAY 4387731 Contact Us For Availability
12
Slide, Humidity Control MAY 2176222 Contact Us For Availability
13
Hinge-Pin, Btm MAY 9791682 Contact Us For Availability
13
MAY 2324038 MAY 2324038 Contact Us For Availability
13
MAY 2325700 MAY 2325700 Contact Us For Availability
13
Overload (Production) MAY 2154760 Contact Us For Availability
13
OVERLOAD (SERVICE (INCLUDES RELAY) MAY 4387938 Contact Us For Availability
13
MAY 2326140 MAY 2326140 Contact Us For Availability
14
MAY 3428970 MAY 3428970 Contact Us For Availability
14
MAY 2207942 MAY 2207942 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
14
Grommet (Service) MAY 4387558 Contact Us For Availability
15
MAY 2201567 MAY 2201567 Contact Us For Availability
15
MAY 2265366W MAY 2265366W Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY 2262186 MAY 2262186 Contact Us For Availability
16
MAY 2174760 MAY 2174760 Contact Us For Availability
16
Door Gasket, Magnetic MAY 2264726 Contact Us For Availability
16
MAY 2264669 MAY 2264669 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 2201012 MAY 2201012 Contact Us For Availability
17
MAY 2189202 MAY 2189202 Contact Us For Availability
17
MAY 2252970 MAY 2252970 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
Seal MAY 1106508 Contact Us For Availability
18
MAY 8533904 MAY 8533904 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
MAY 2262176 MAY 2262176 Contact Us For Availability
19
MAY 2212648 MAY 2212648 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
Corner Filler MAY 2166003 Contact Us For Availability
20
MAY 2265644W MAY 2265644W Contact Us For Availability
20
MAY 2263919 MAY 2263919 Contact Us For Availability
21
MAY 489341 MAY 489341 Contact Us For Availability
21
Wiring, Freezer (Includes Item 32) MAY 2192096 Contact Us For Availability
21
Clip, Evaporator Tube MAY 9791833 Contact Us For Availability
22
Washer 7/64 MAY 487576 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
MAY 2316186 MAY 2316186 Contact Us For Availability
24
MAY 489153 MAY 489153 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2172892 MAY 2172892 Contact Us For Availability
26
MAY 2258452 MAY 2258452 Contact Us For Availability
27
MAY 941839 MAY 941839 Contact Us For Availability
27
Clamp MAY 549193 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
Compressor (Includes Items 12,13,14 & 29) MAY 2256541 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
30
Evaporator, Fan Motor MAY 2201212 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2264017 MAY 2264017 Contact Us For Availability
32
Defrost, BI-Metal Air Diffuser MAY 2183073 Contact Us For Availability
32
MAY 24364001 MAY 24364001 Contact Us For Availability
33
MAY 2172890 MAY 2172890 Contact Us For Availability
34
MAY 2262178 MAY 2262178 Contact Us For Availability
34
MAY 2258530 MAY 2258530 Contact Us For Availability
35
Evaporator Tray MAY 2176668 Contact Us For Availability
36
MAY 2264563 MAY 2264563 Contact Us For Availability
37
Screw MAY 488693 Contact Us For Availability
37
MAY 2320728 MAY 2320728 Contact Us For Availability
38
MAY VS611 MAY VS611 Contact Us For Availability
39
MAY 2262195 MAY 2262195 Contact Us For Availability
39
MAY 2256637 MAY 2256637 Contact Us For Availability
40
MAY 8533919 MAY 8533919 Contact Us For Availability
40
MAY 876764 MAY 876764 Contact Us For Availability
40
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
40
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
40
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
40
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
40
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
40
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
42
Screw MAY 487415 Contact Us For Availability
43
AIR DIFFUSER ASSY MAY 2221992 Contact Us For Availability
45
Air Diffuser Cover MAY 2183061 Contact Us For Availability
× ![]()
