Model Alliance MT075L Dryer – Common Parts & Diagrams
Control Box
Fire Suppression System Control Box

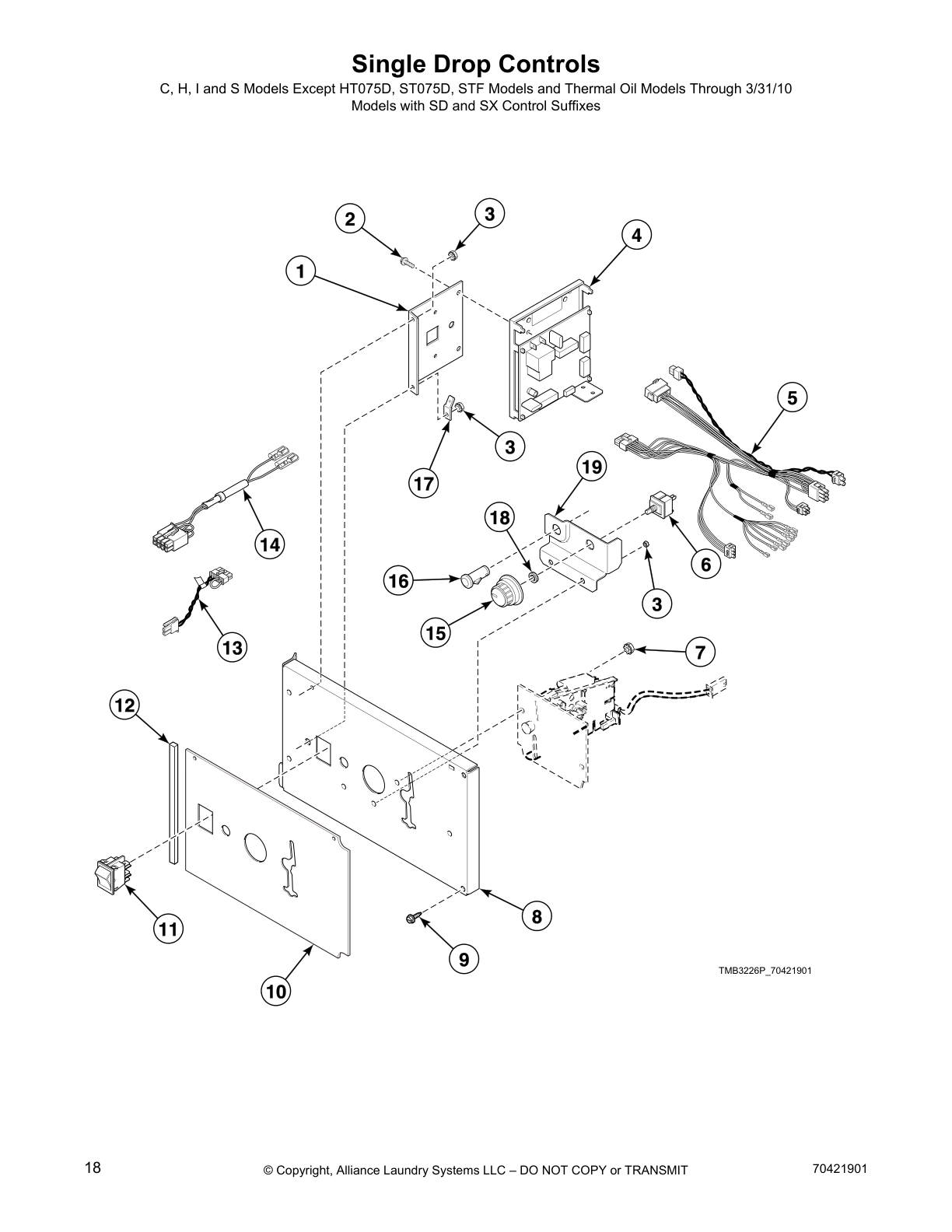

Single Drop Controls

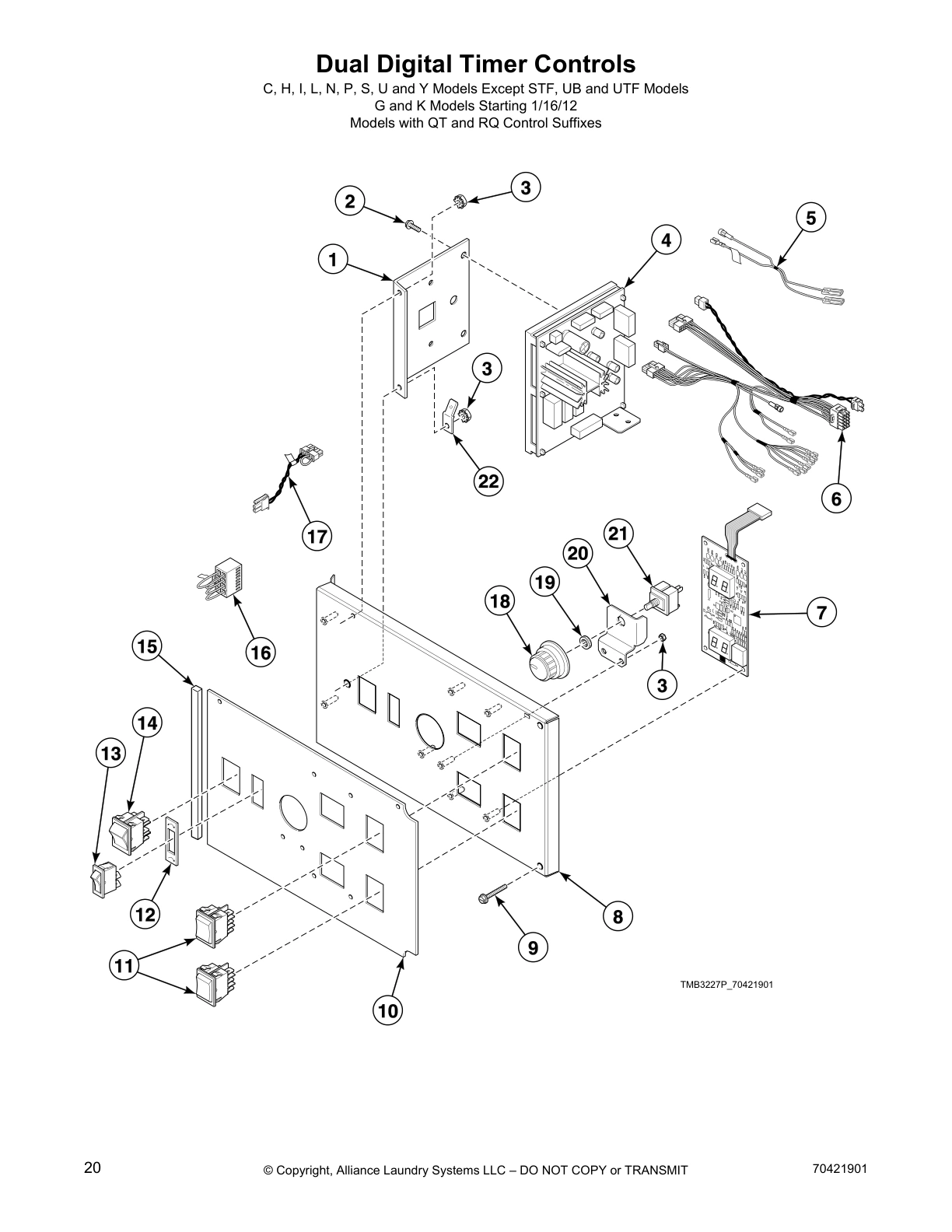

Dual Digital Timer Controls

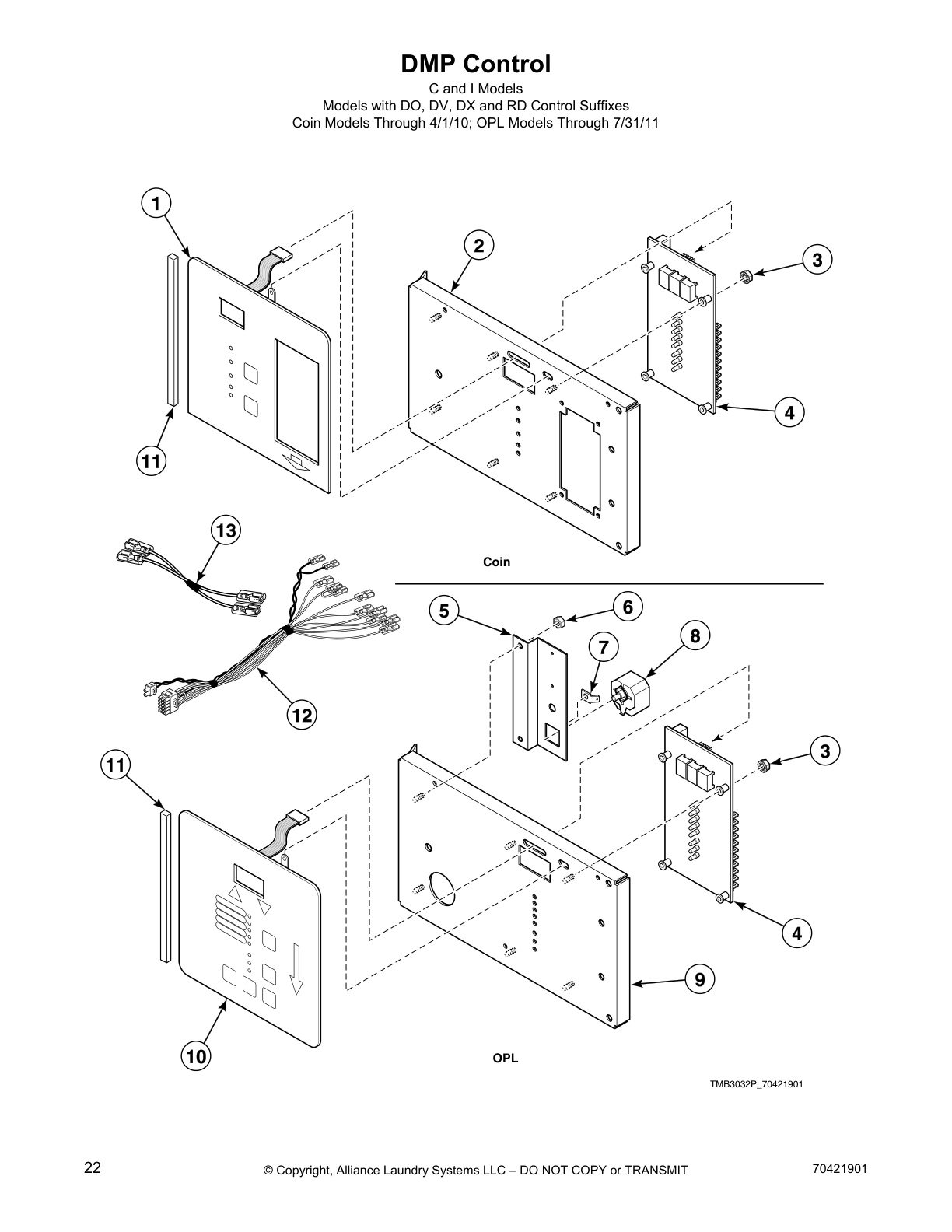

DMP Control

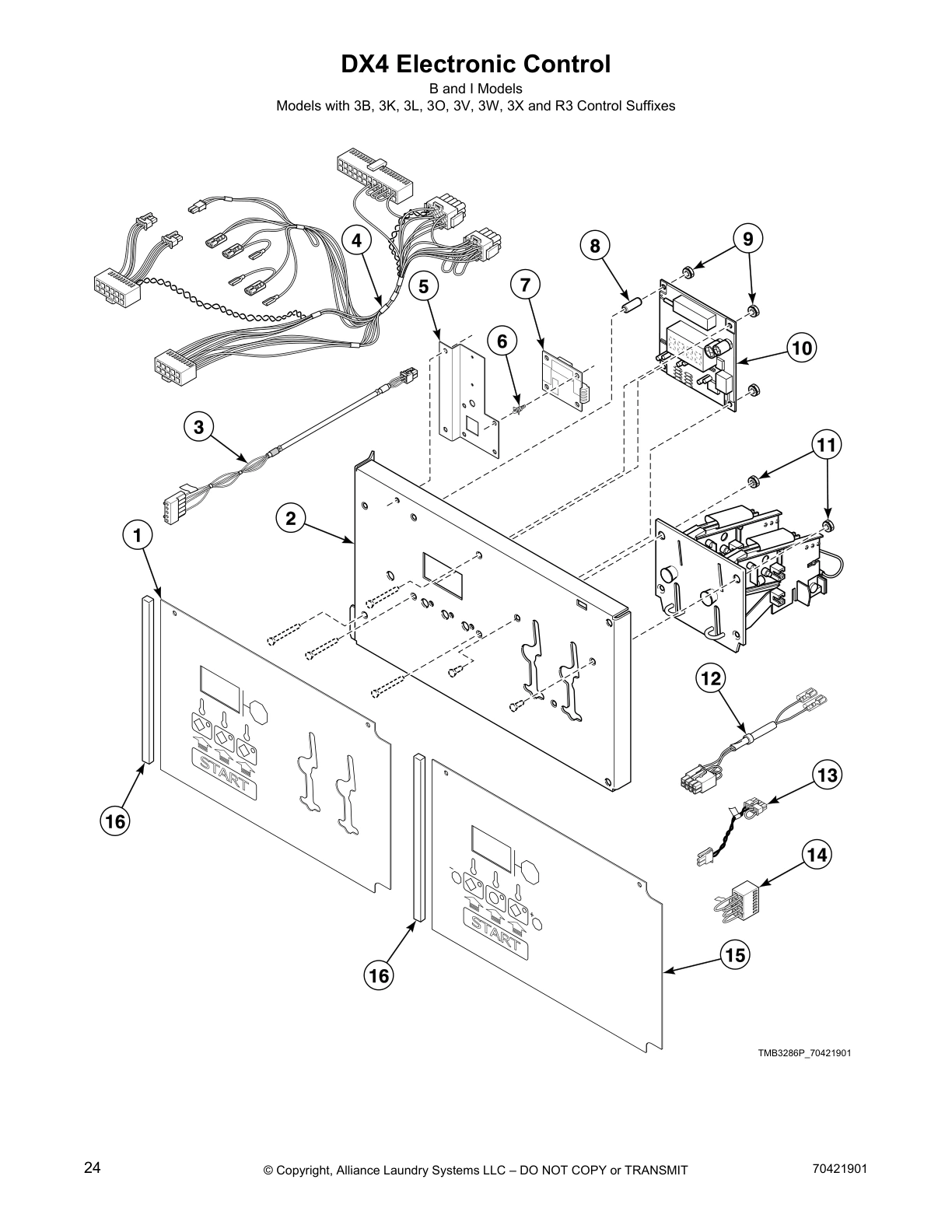

DX4 Electronic Control

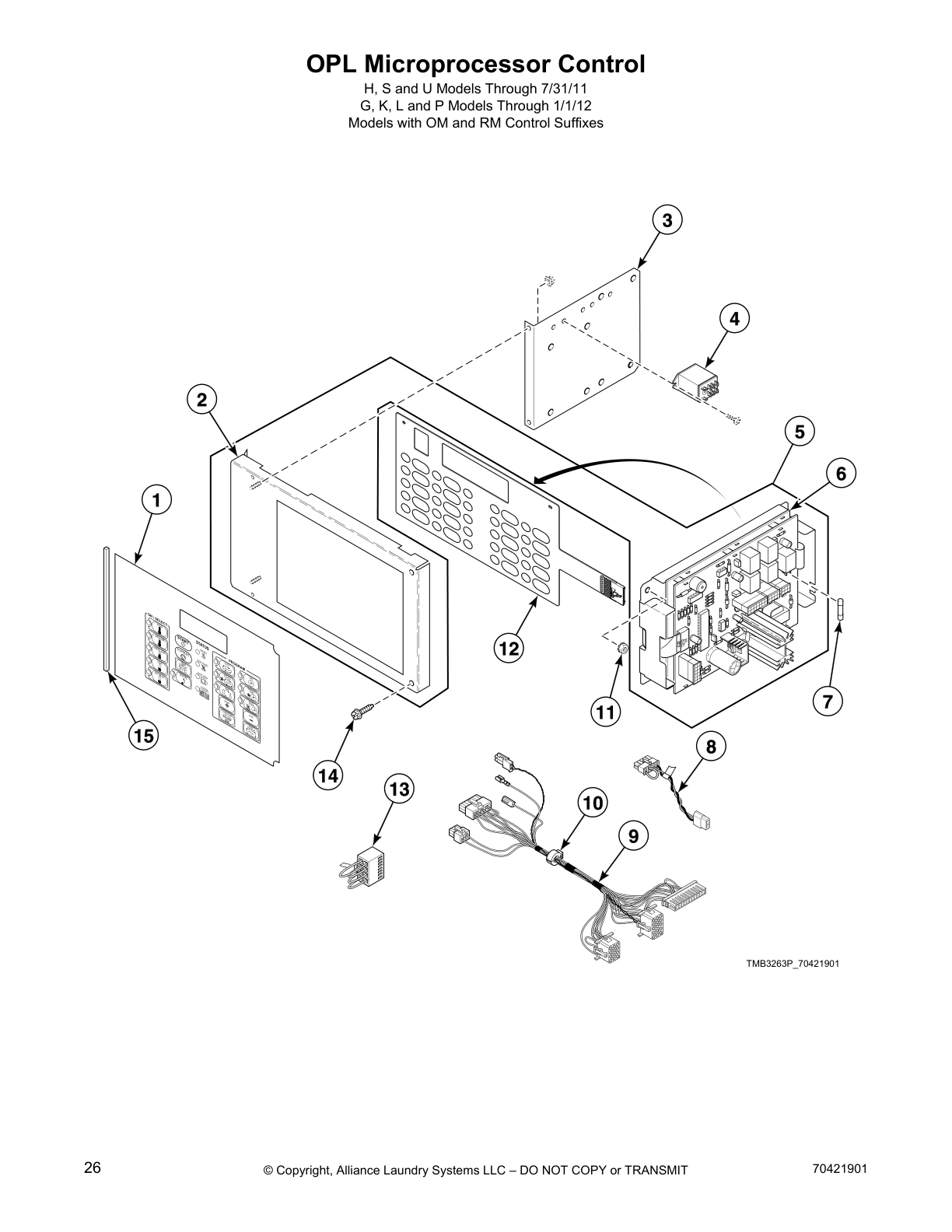

OPL Microprocessor Control

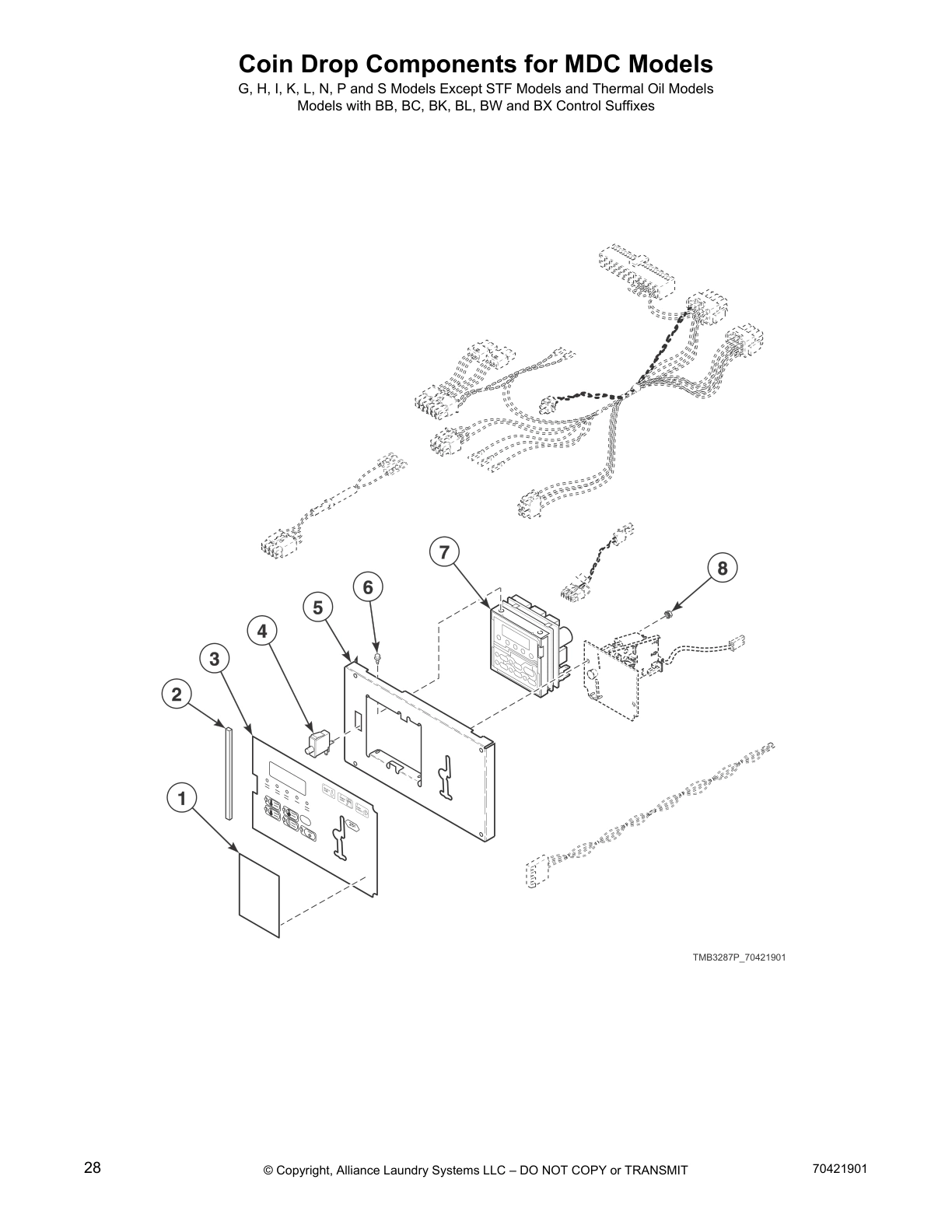

Coin Drop Components for MDC Models

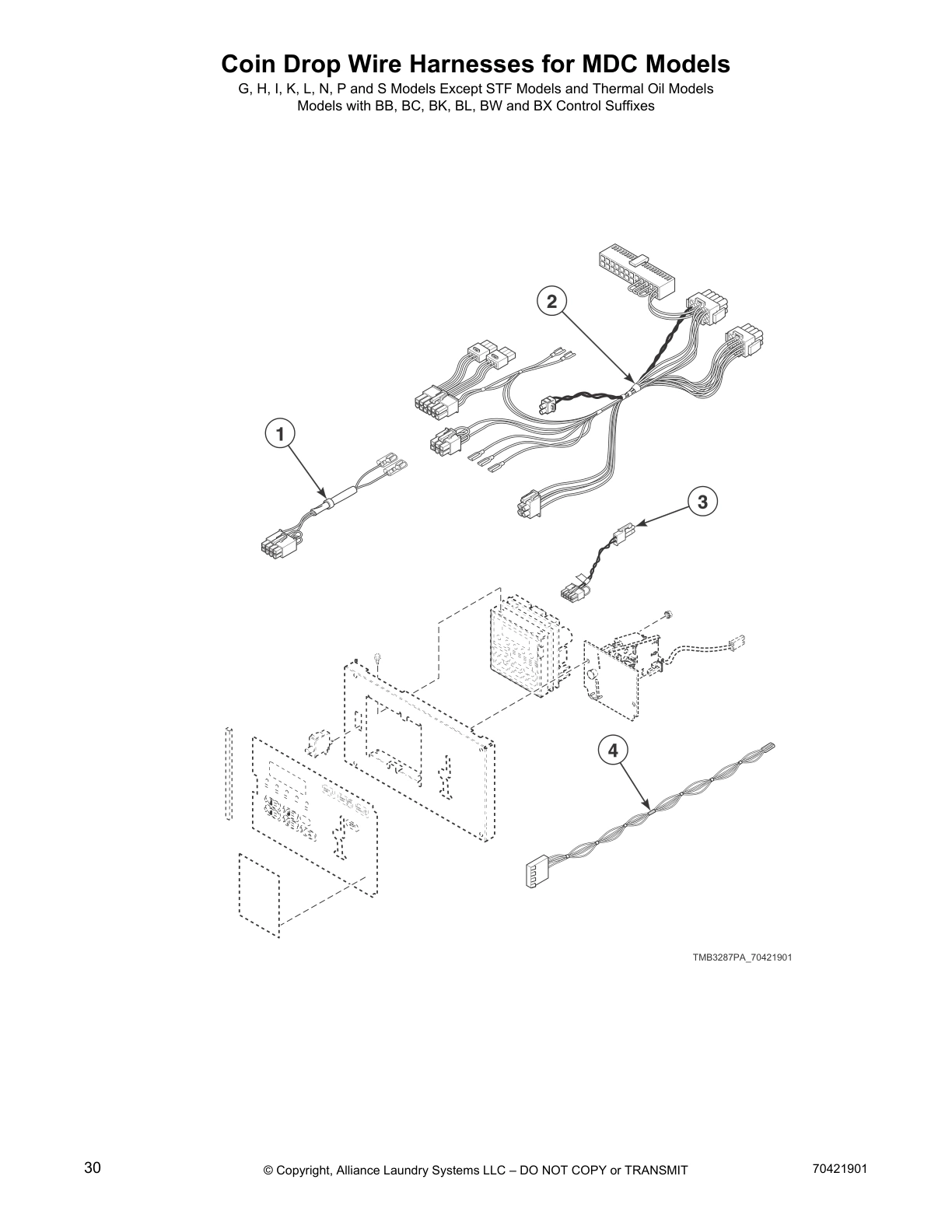

Coin Drop Wire Harnesses for MDC Models

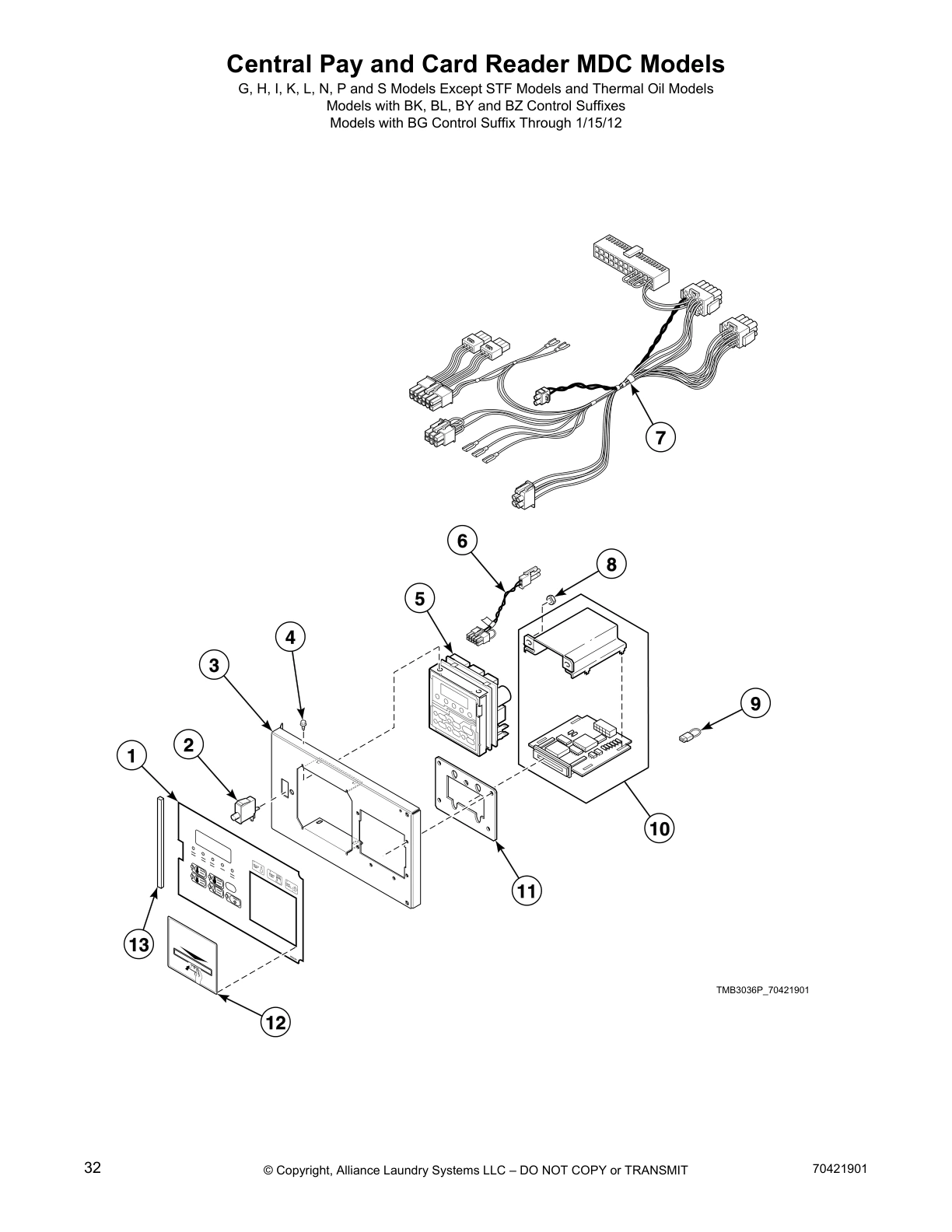

Central Pay and Card Reader MDC Models

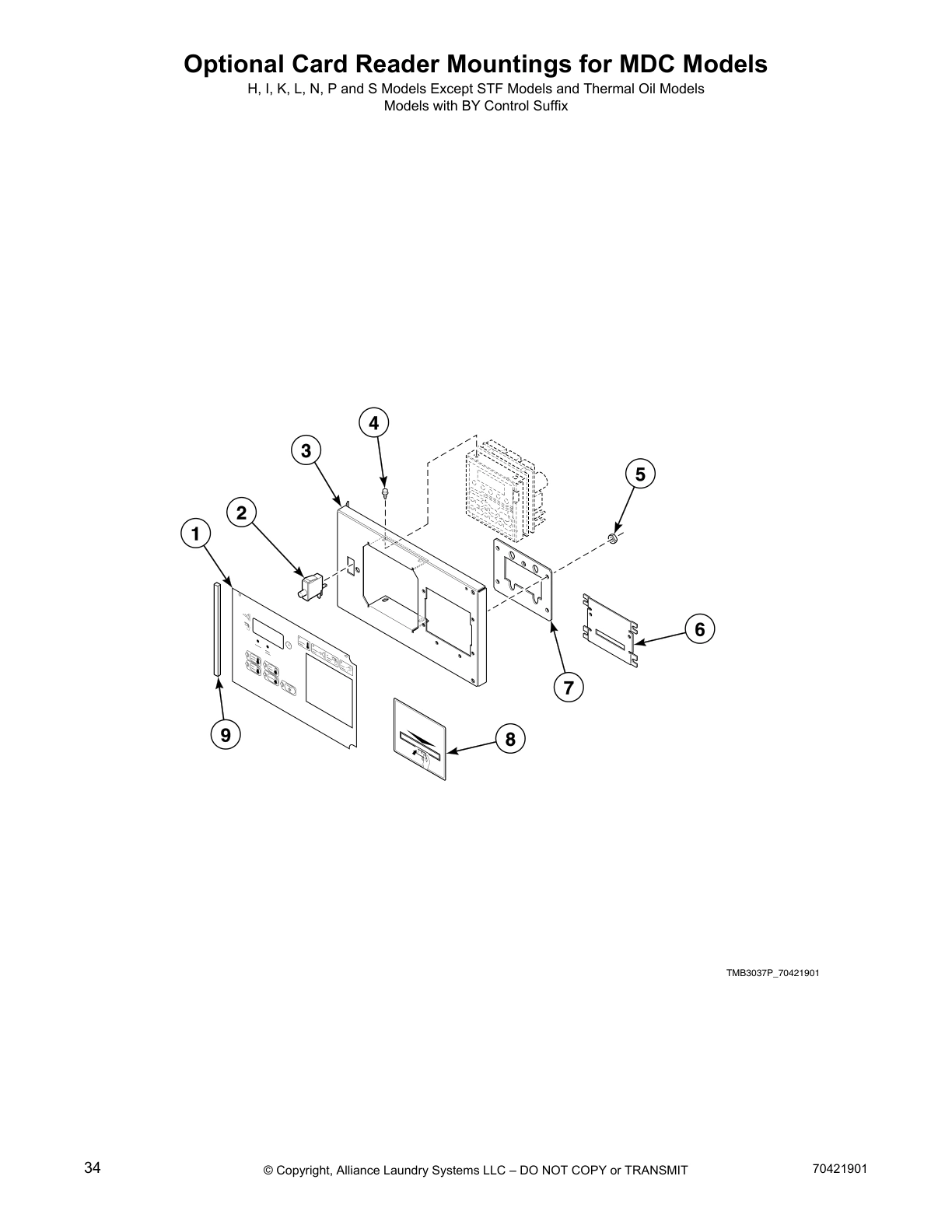

Optional Card Reader Mountings for MDC Models

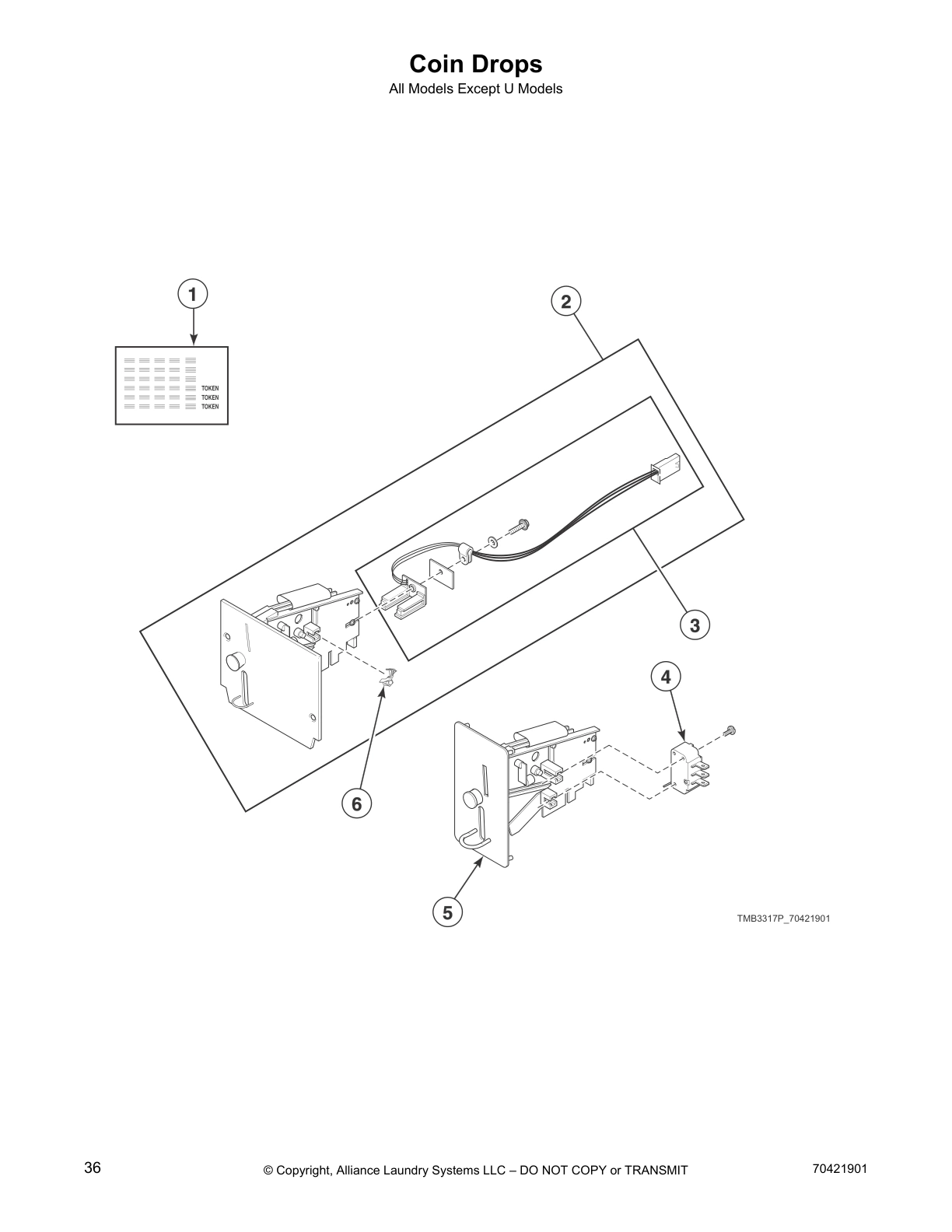

Coin Drops

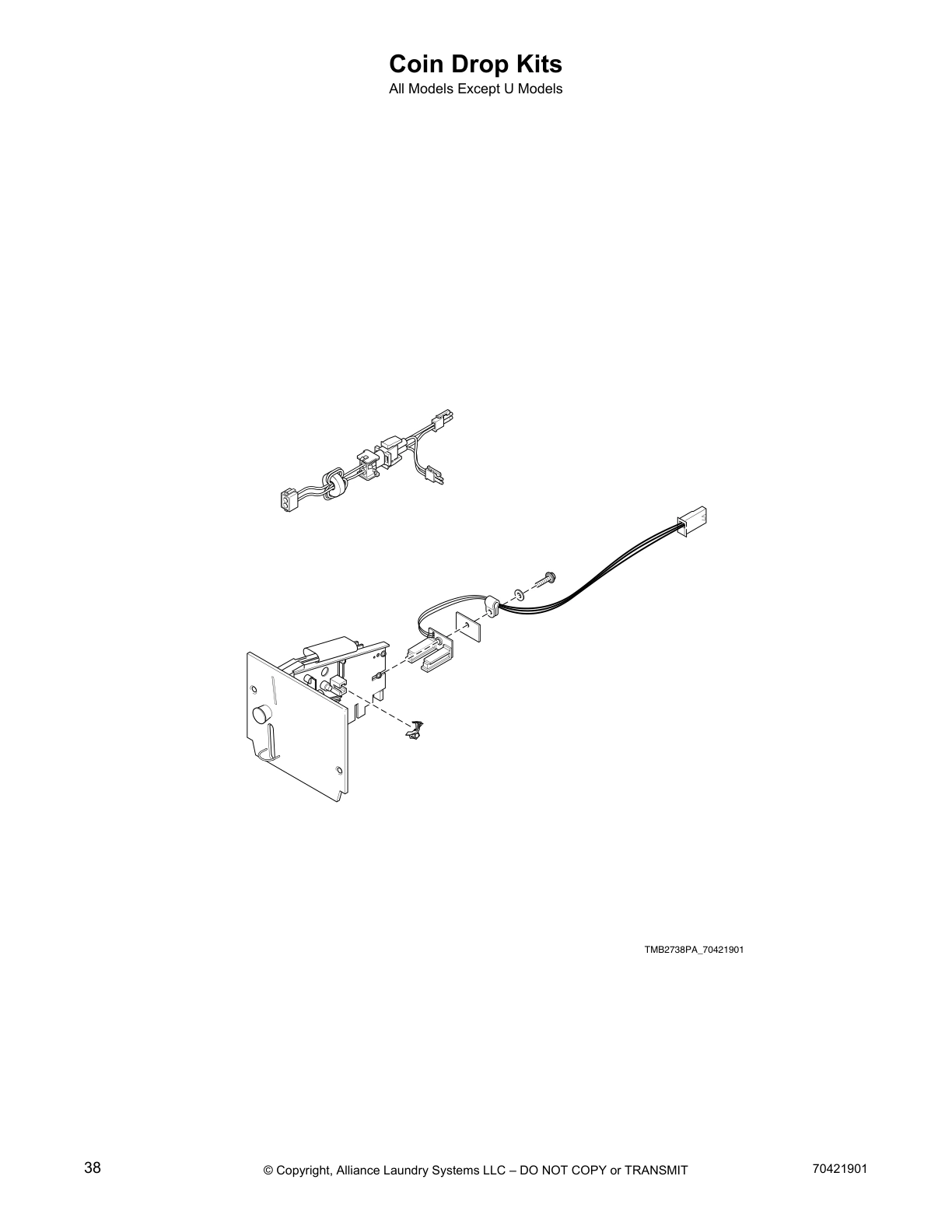

Coin Drop Kits

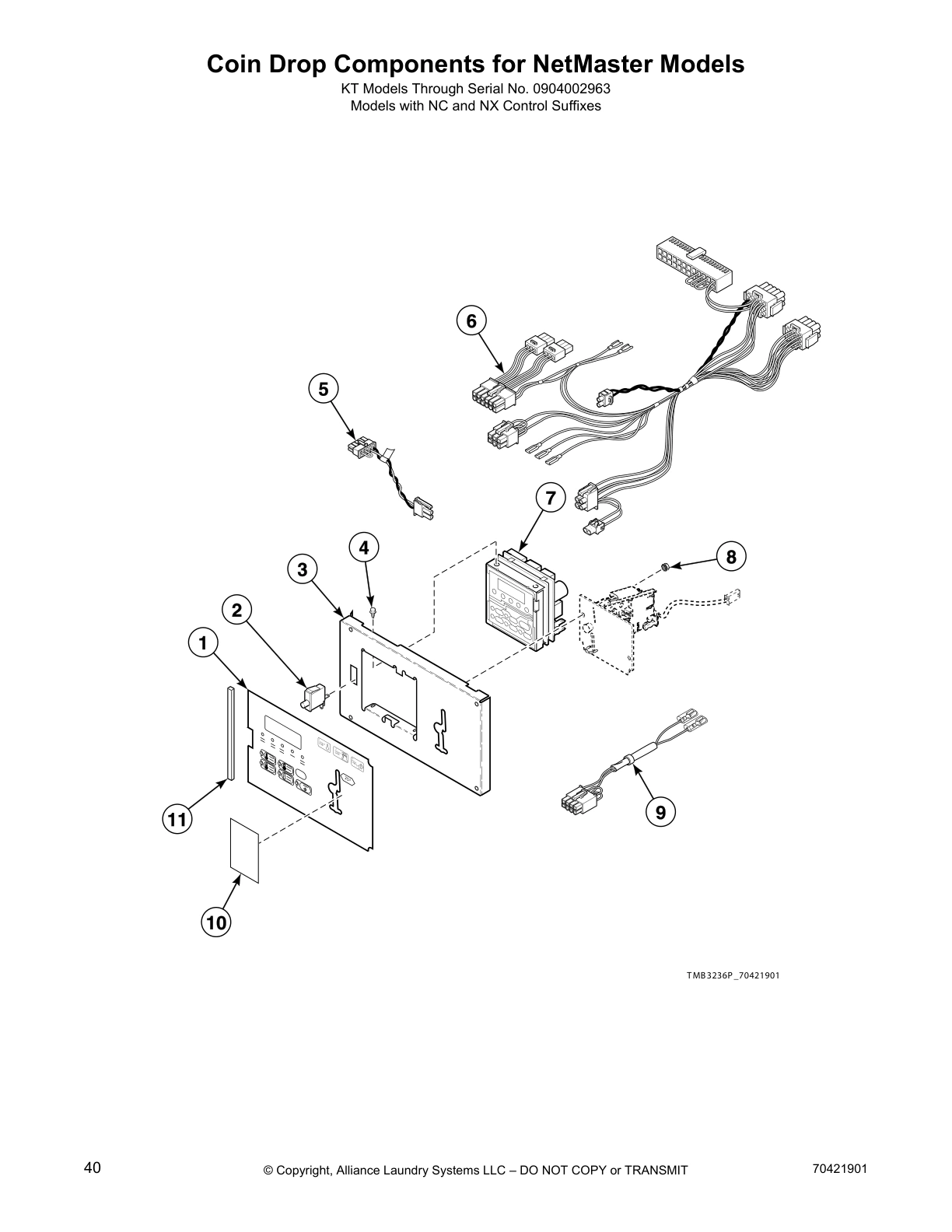

Coin Drop Components for NetMaster Models

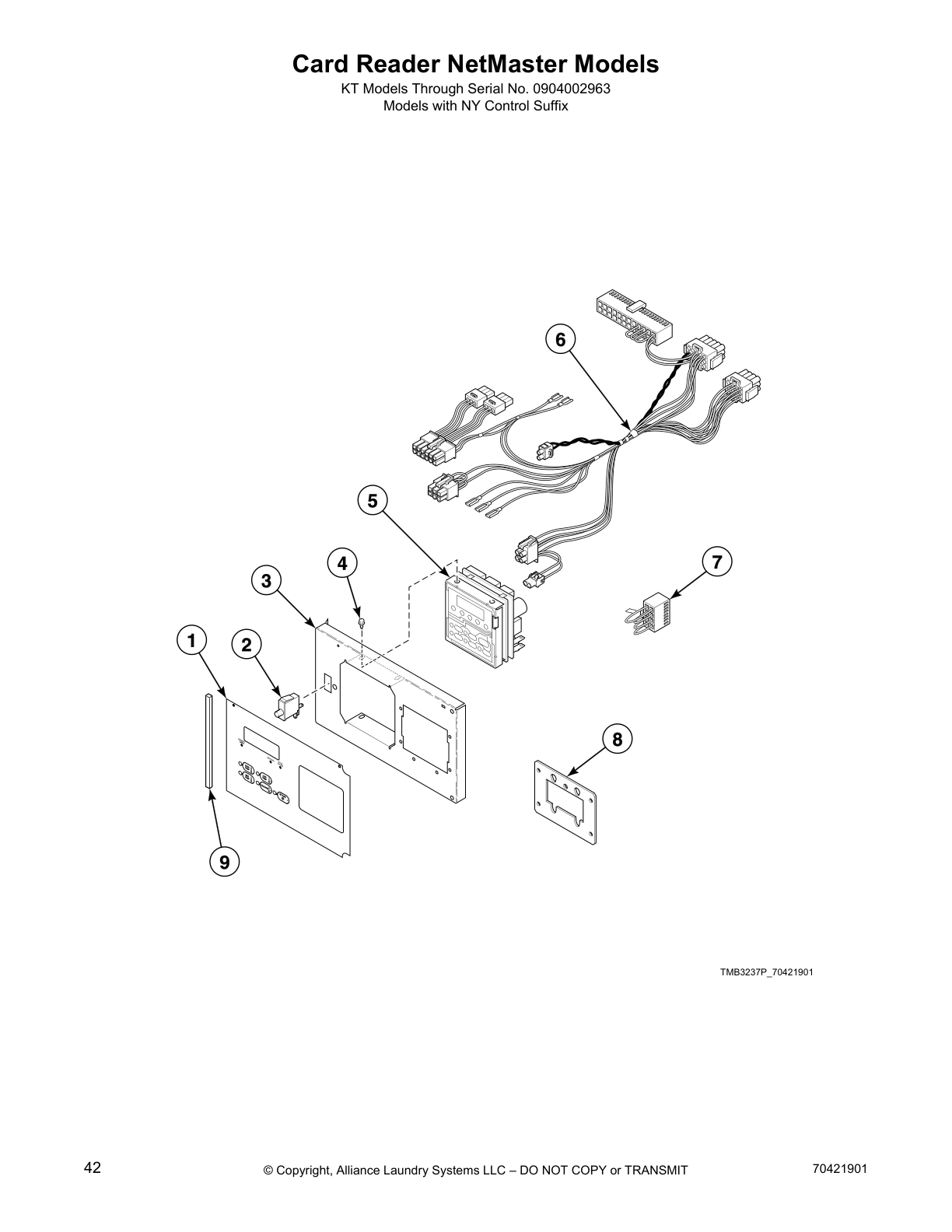

Card Reader NetMaster Models

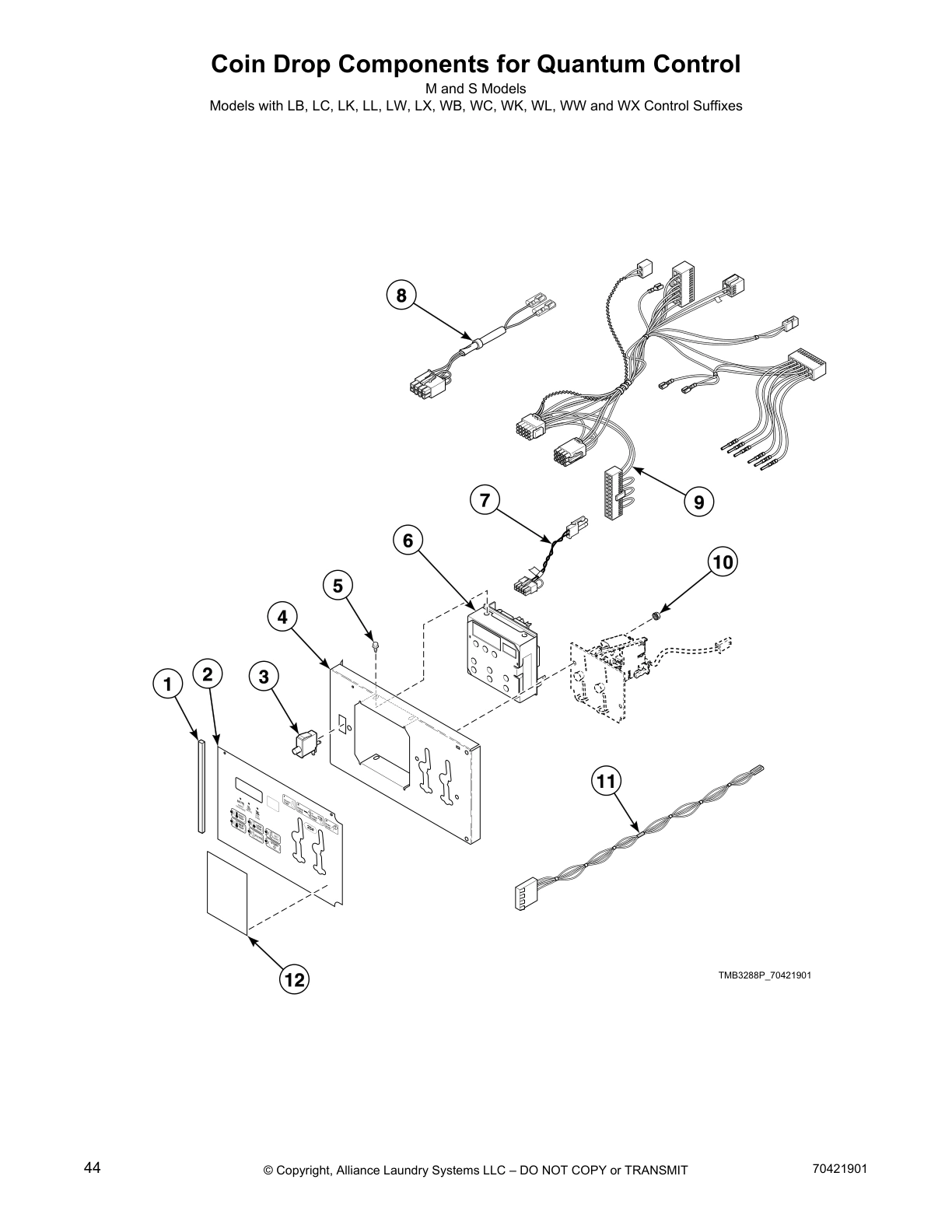

Coin Drop Components for Quantum Control

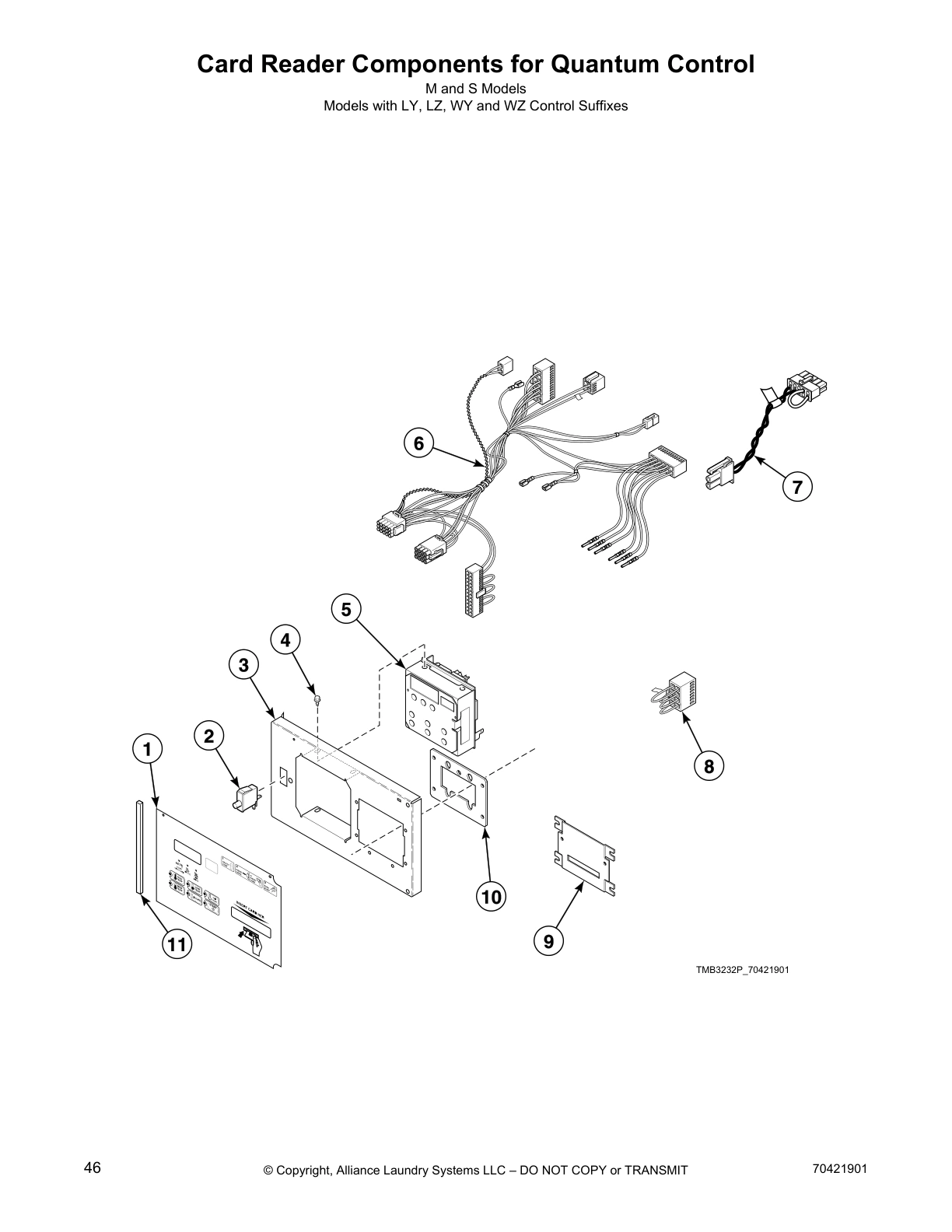

Card Reader Components for Quantum Control

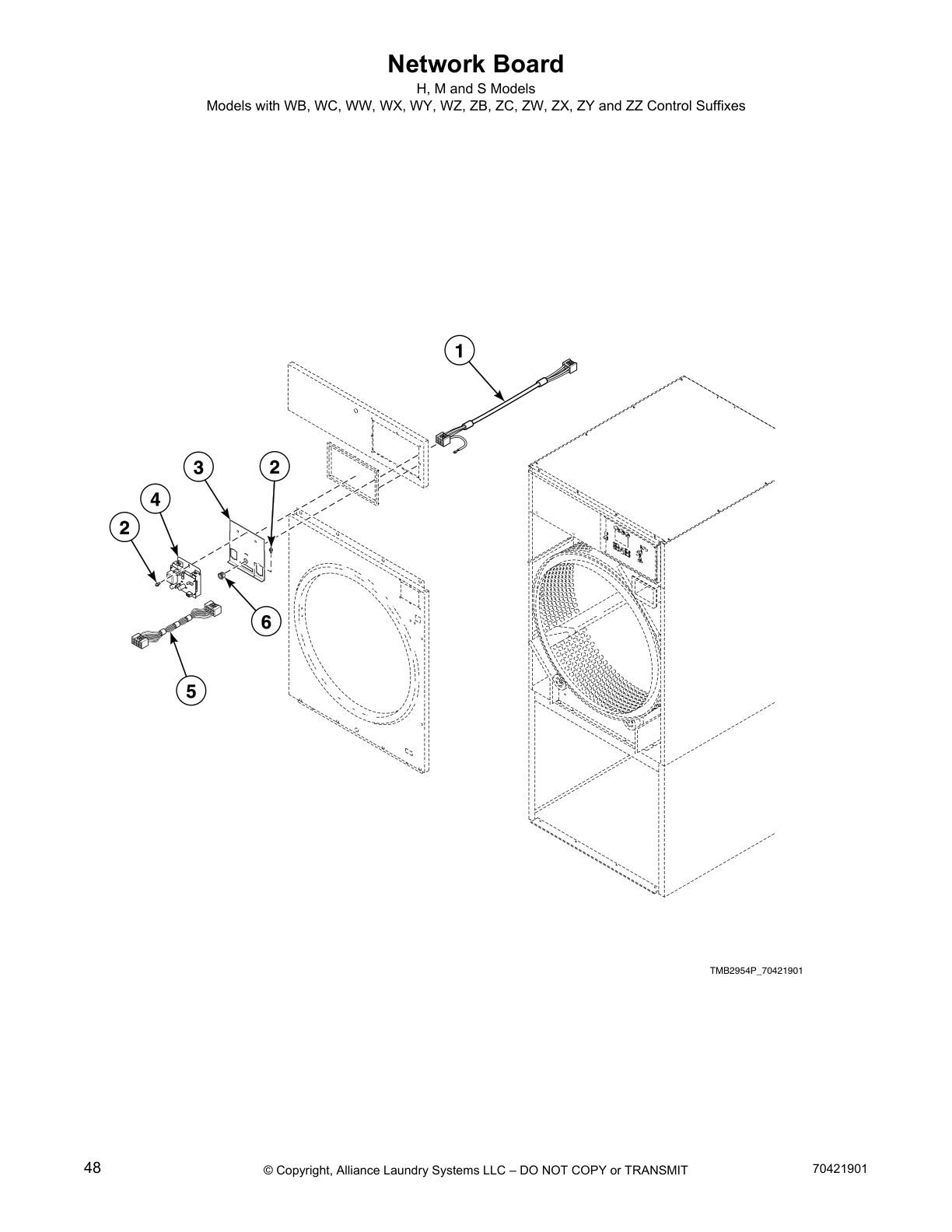

Network Board

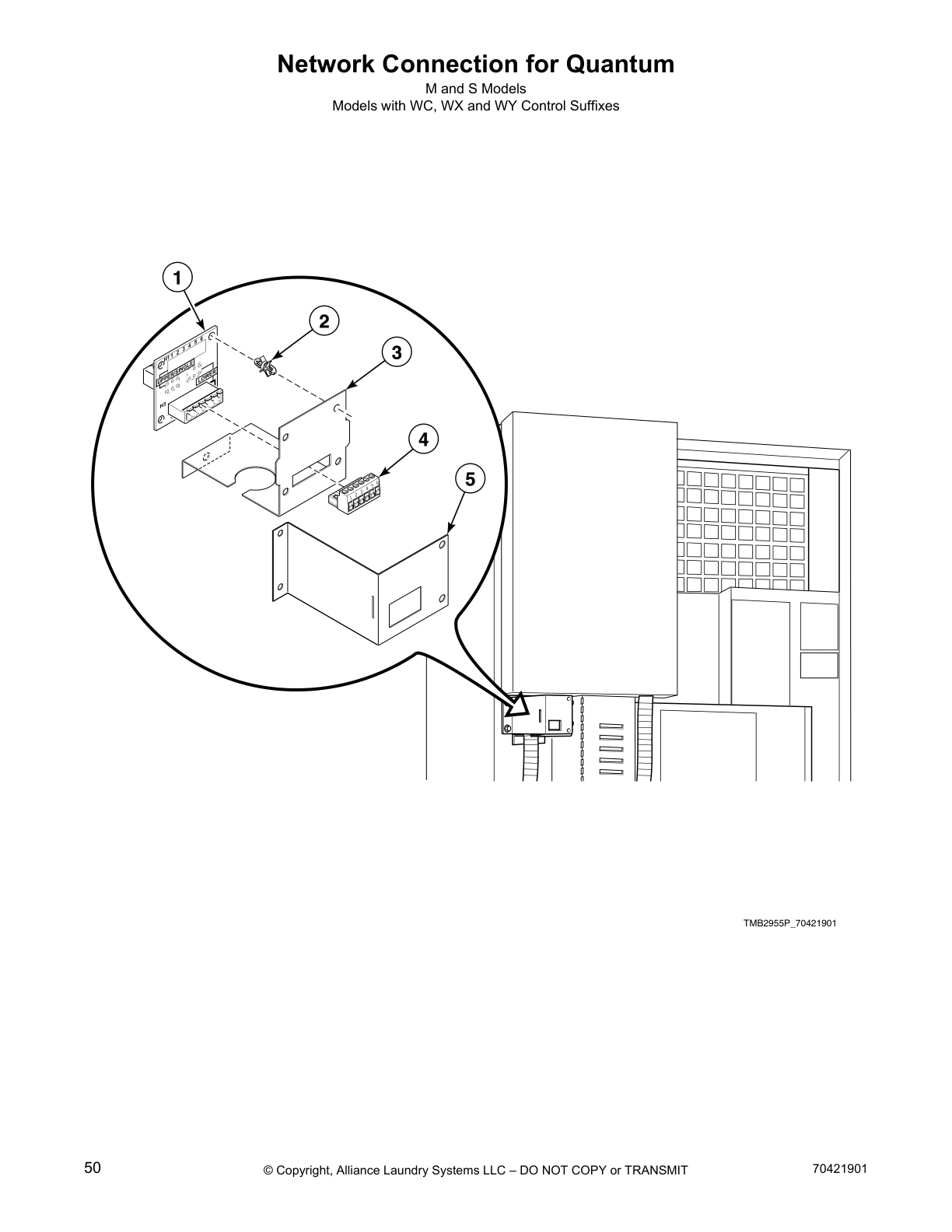

Network Connection for Quantum

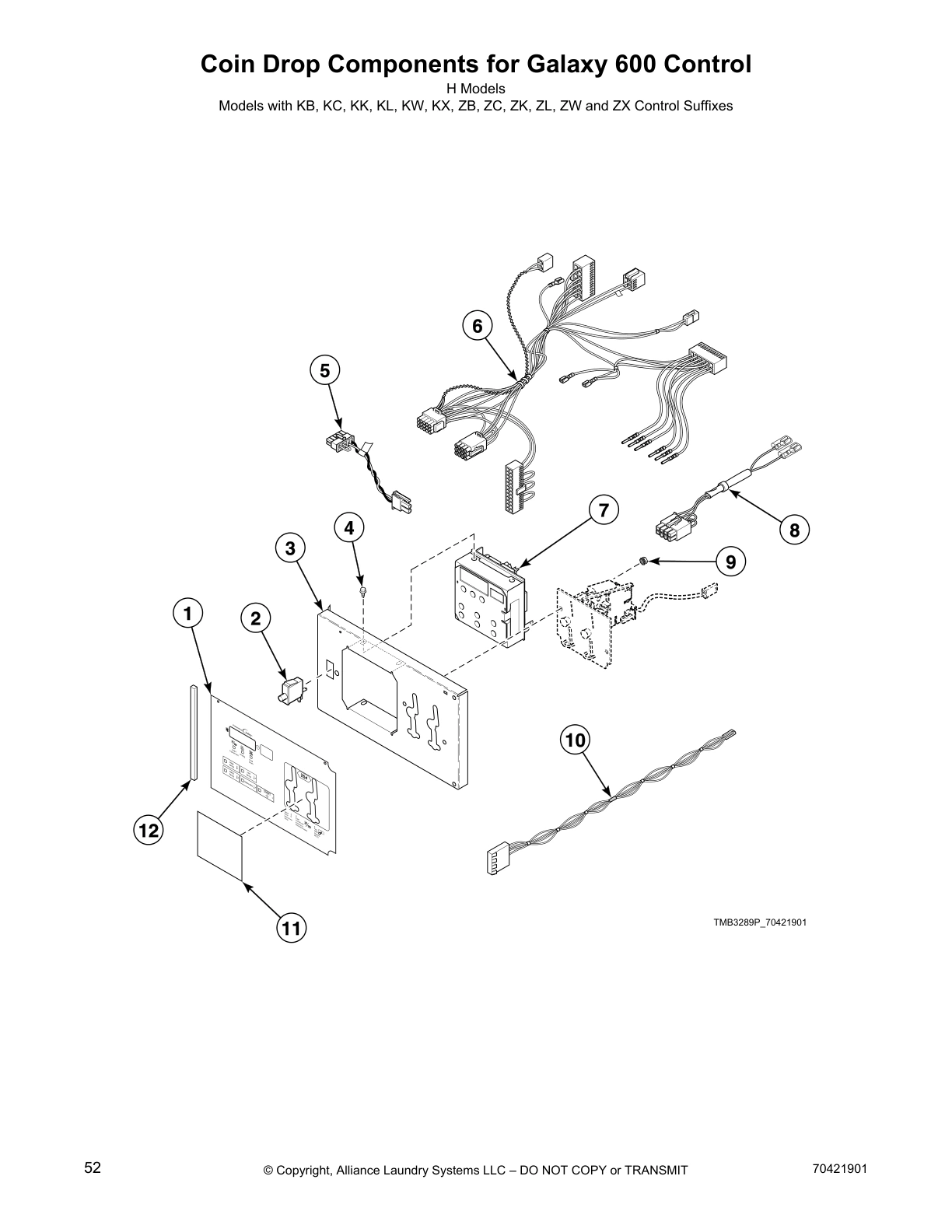

Coin Drop Components for Galaxy 600 Control

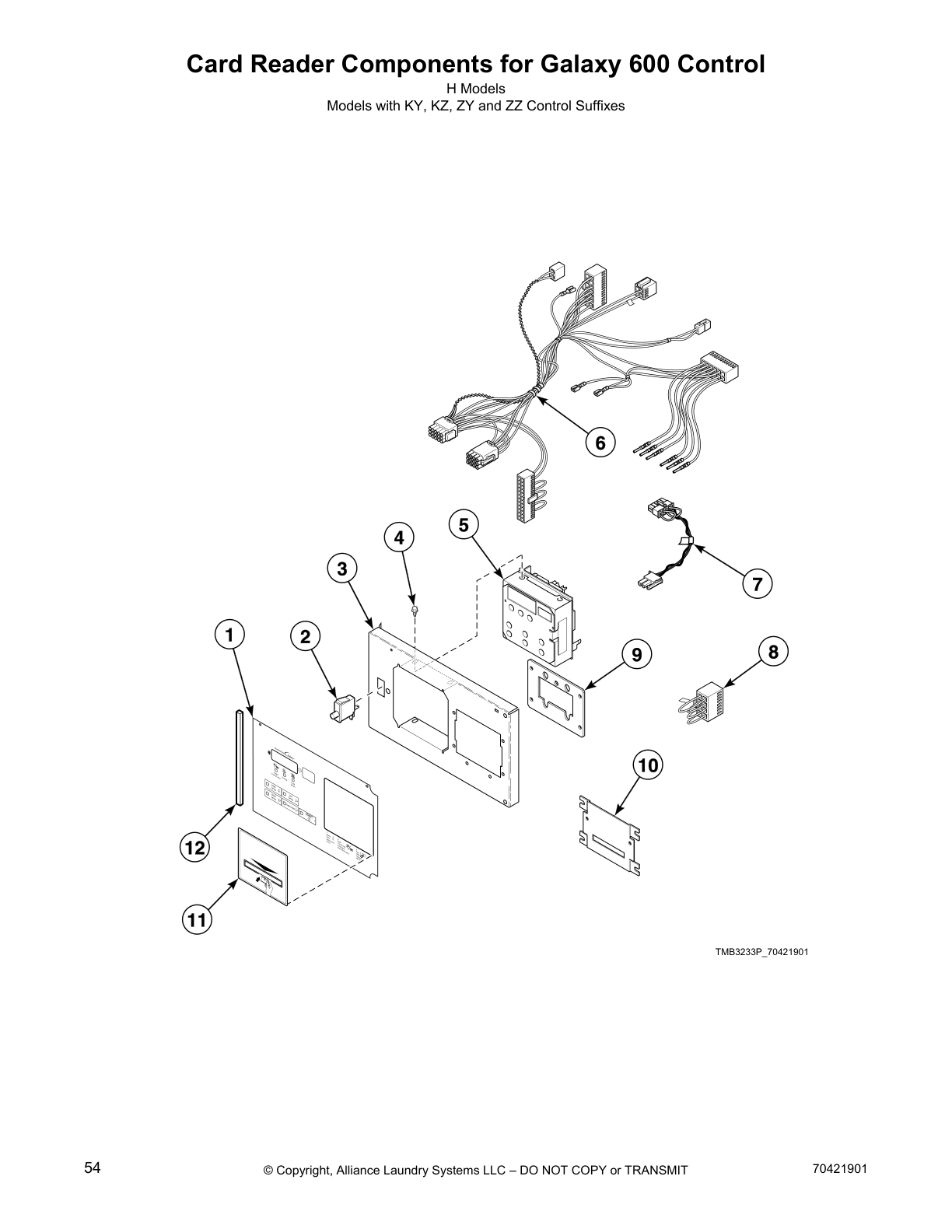

Card Reader Components for Galaxy 600 Control

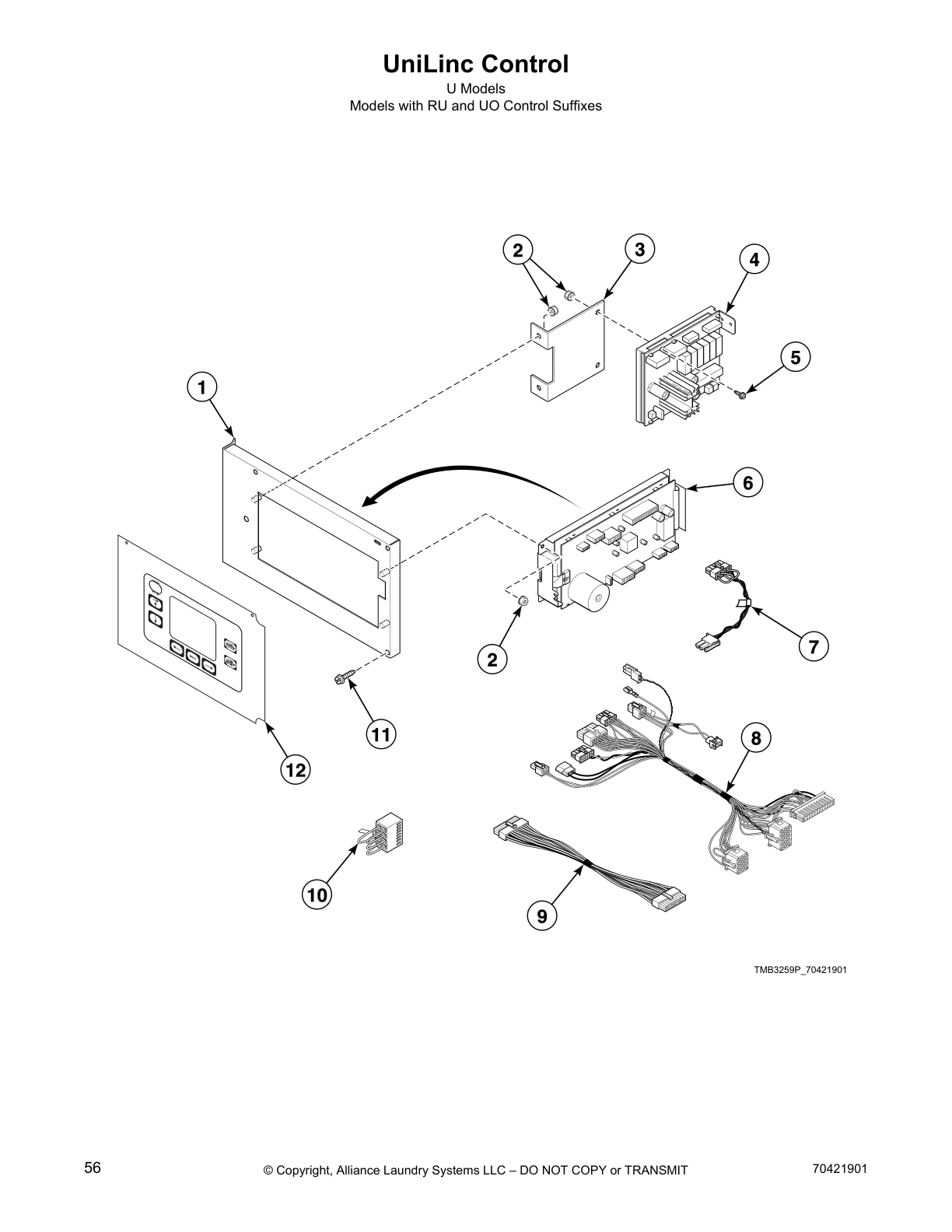

UniLinc Control

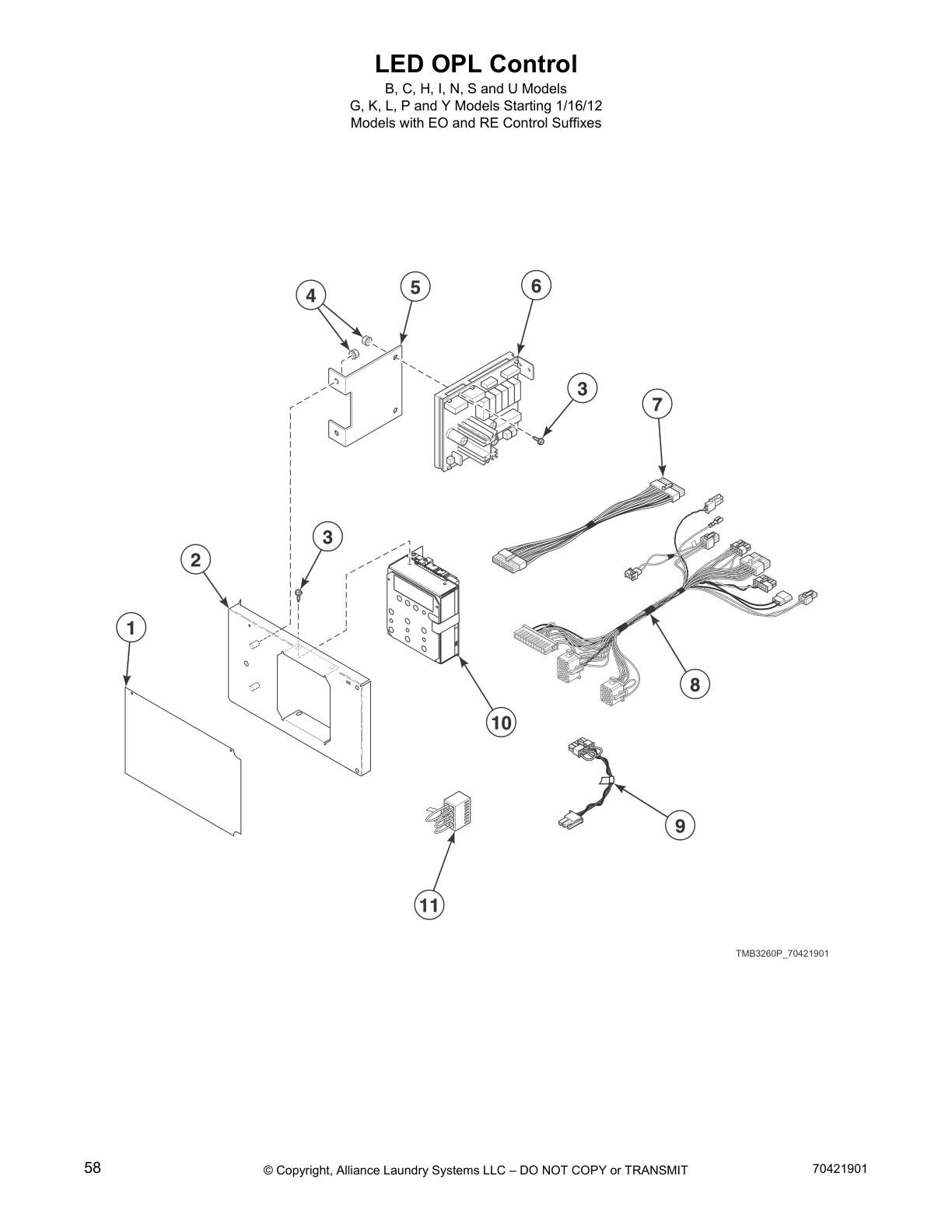

LED OPL Control

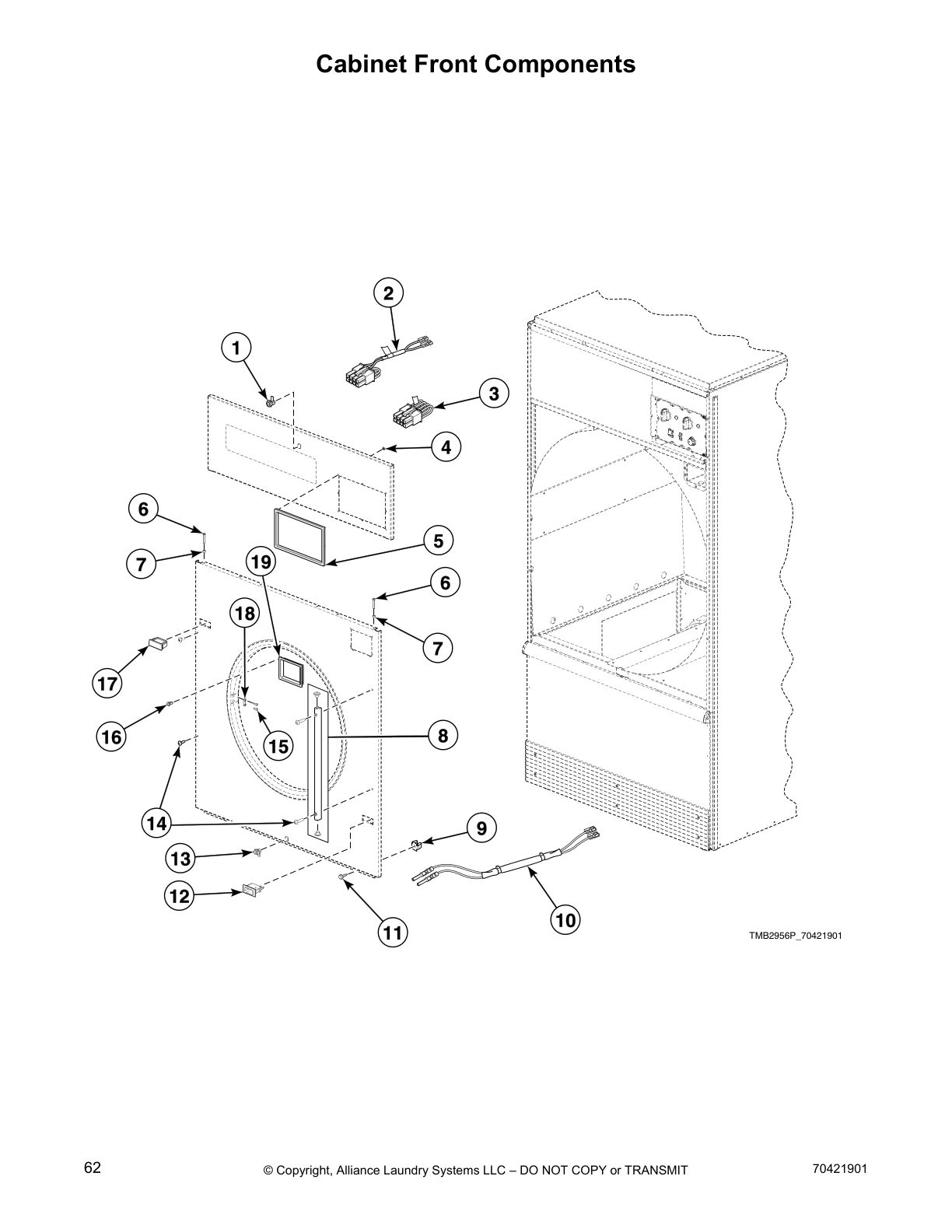

Cabinet Front Components

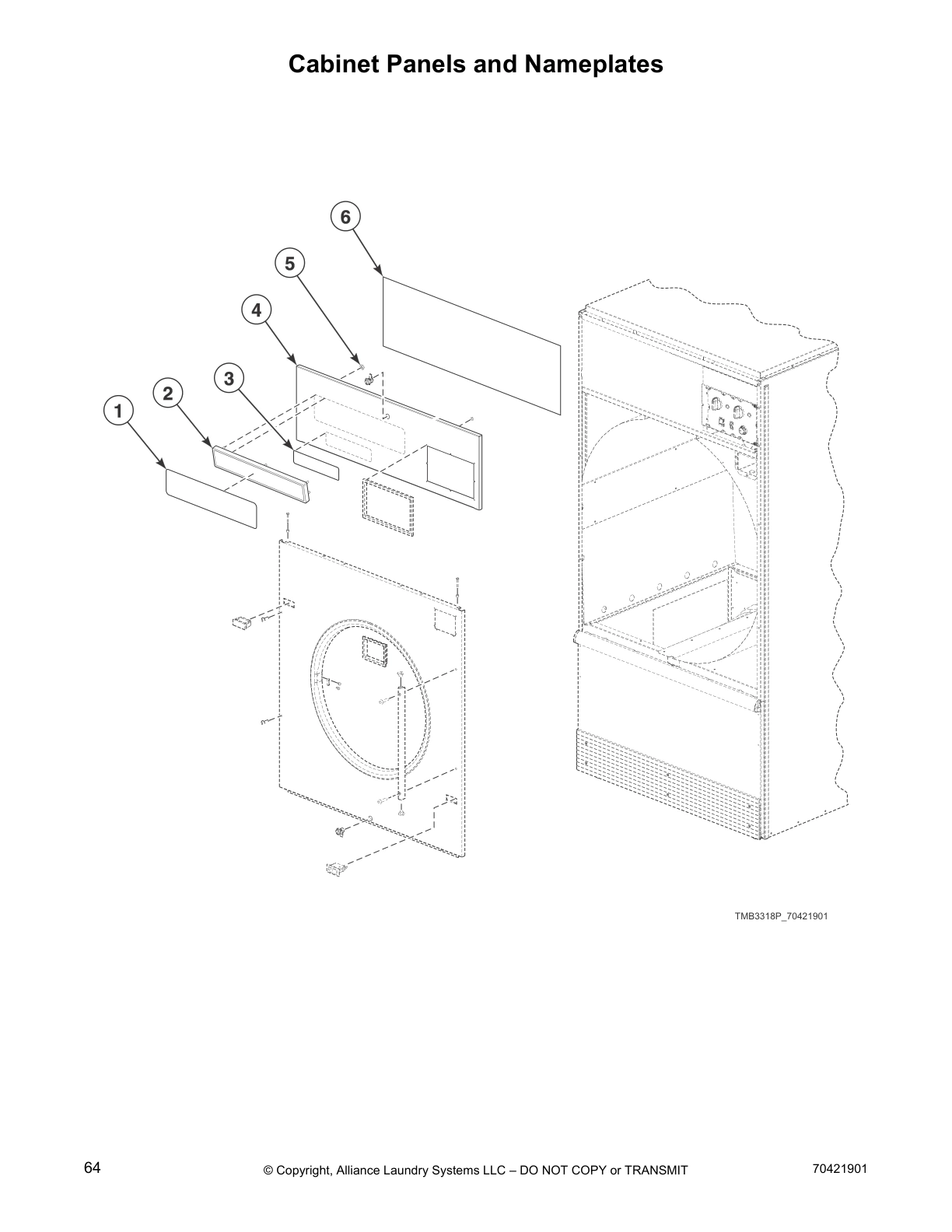

Cabinet Panels and Nameplates

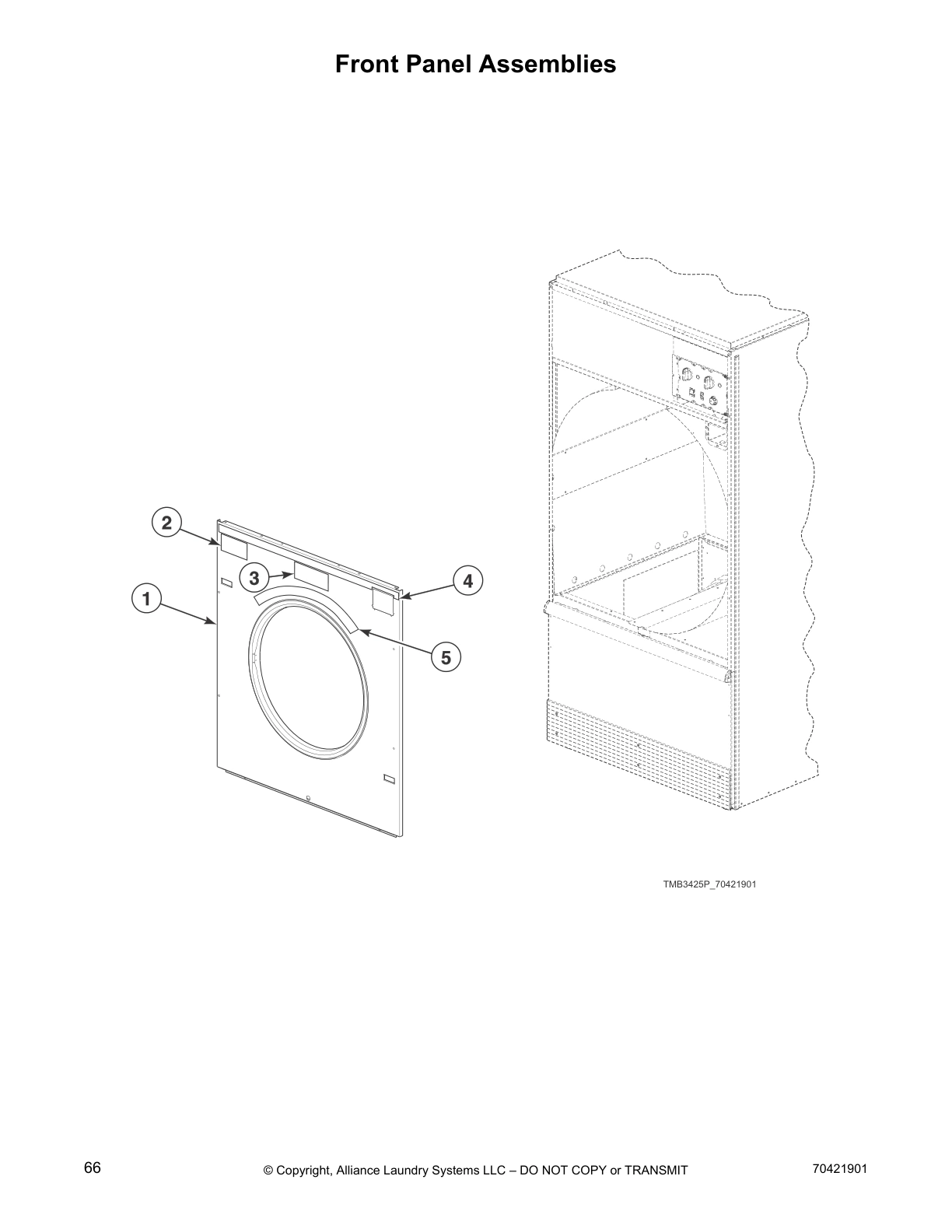

Front Panel Assemblies

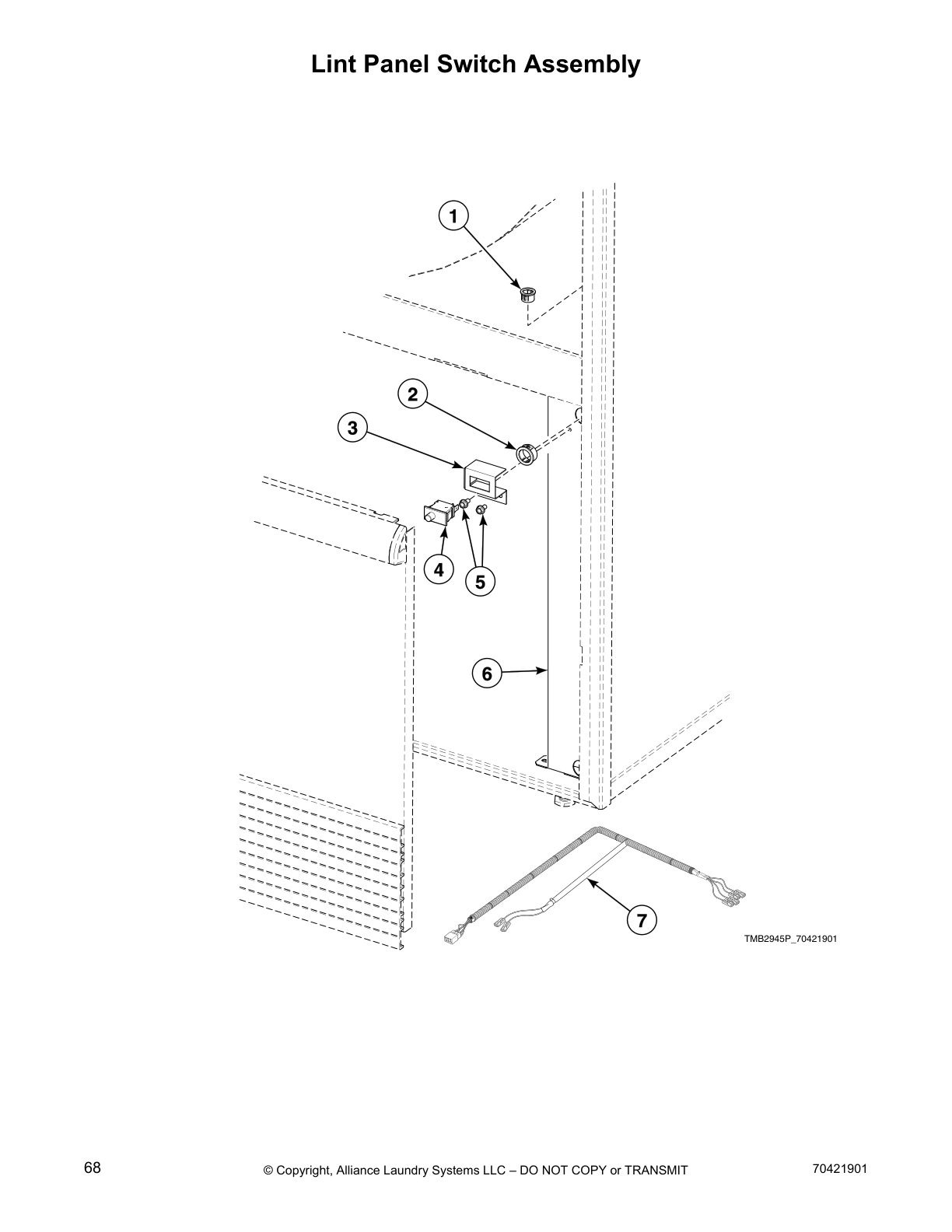

Lint Panel Switch Assembly

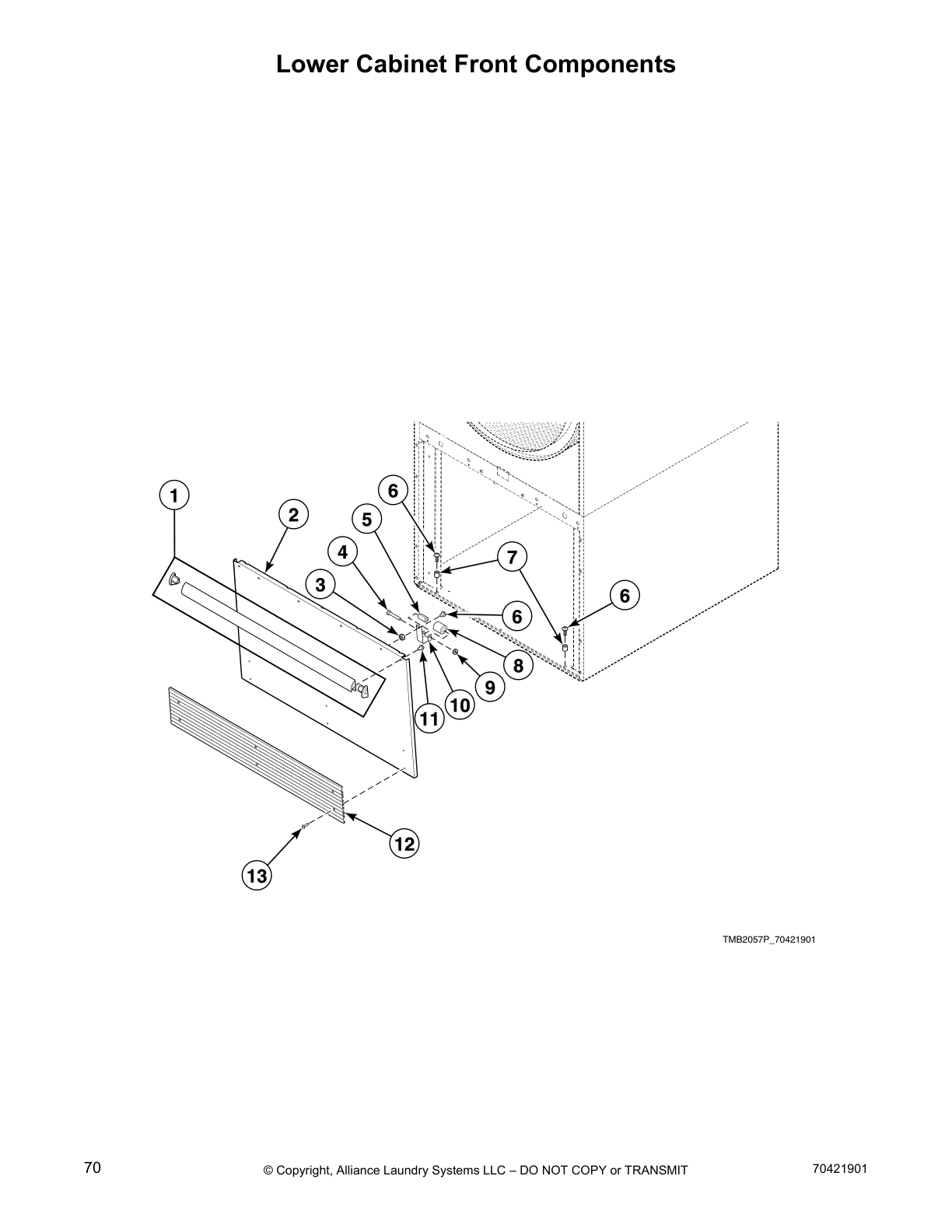

Lower Cabinet Front Components

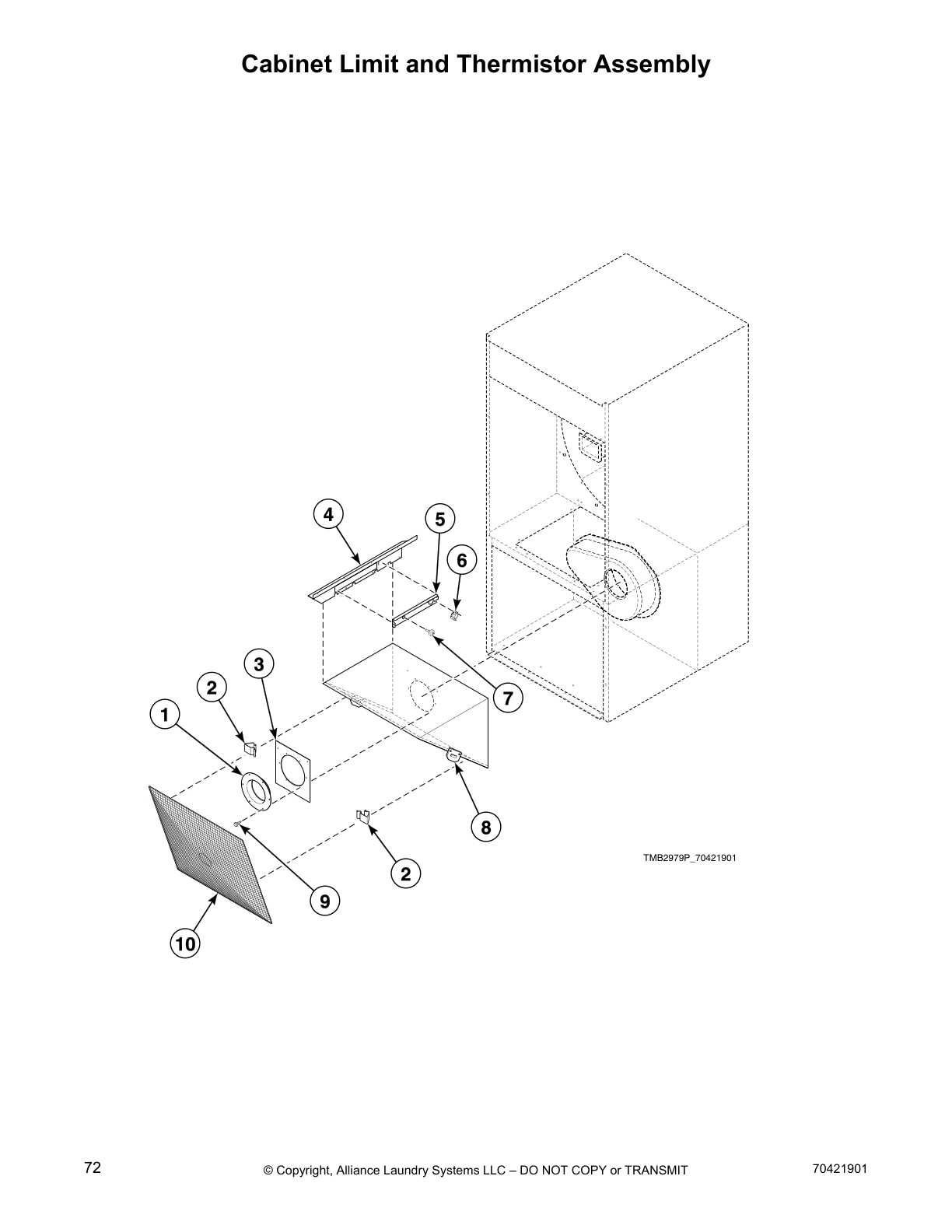

Cabinet Limit and Thermistor Assembly

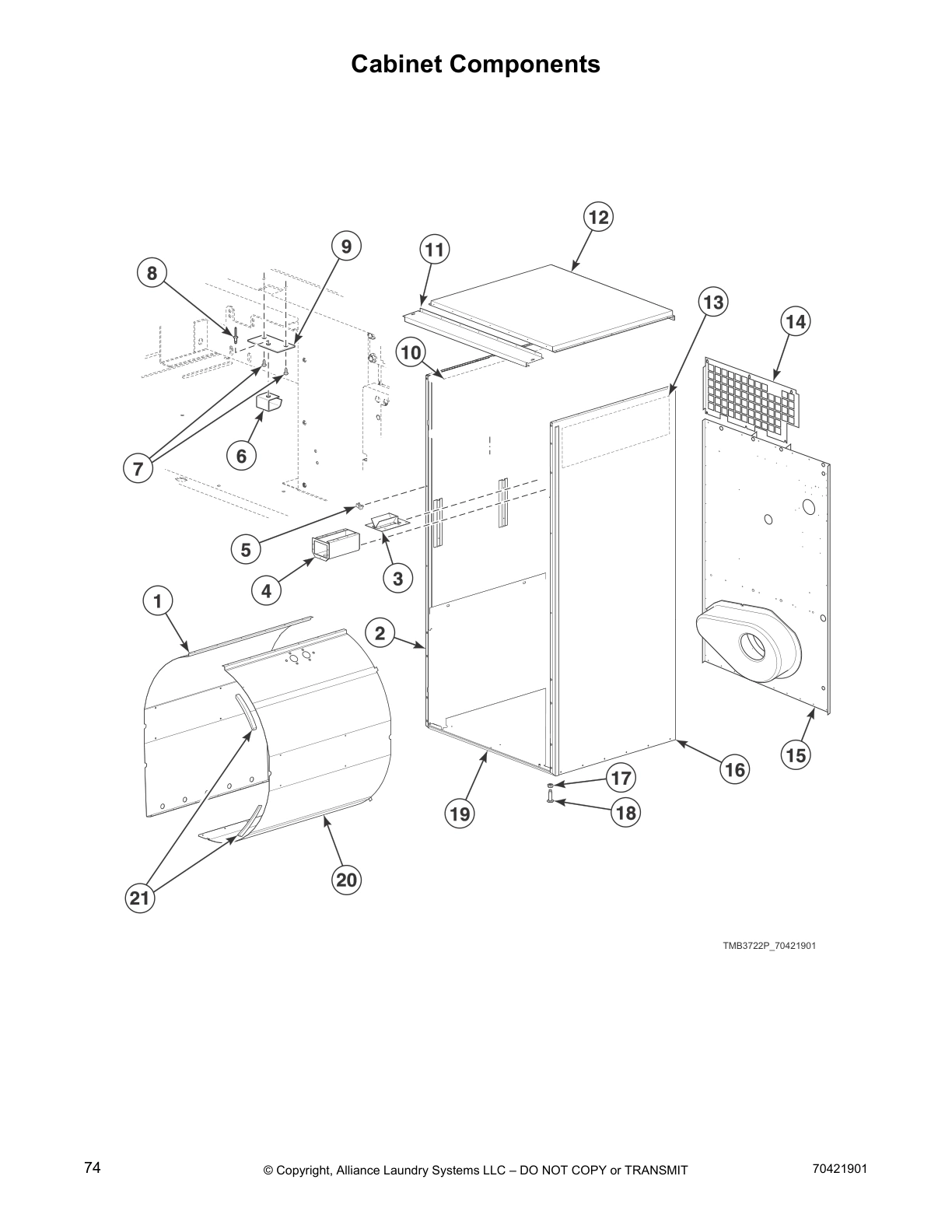

Cabinet Components

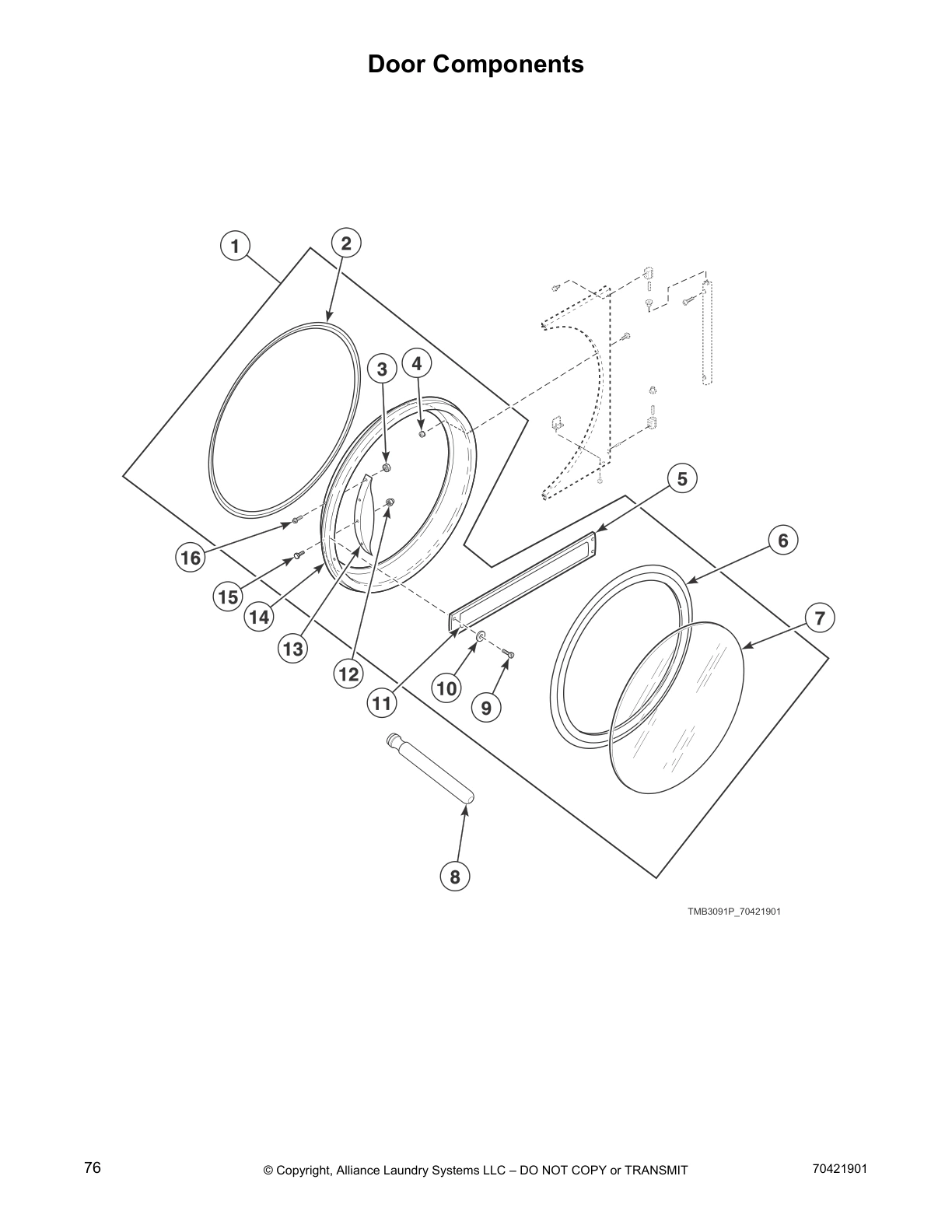

Door Components

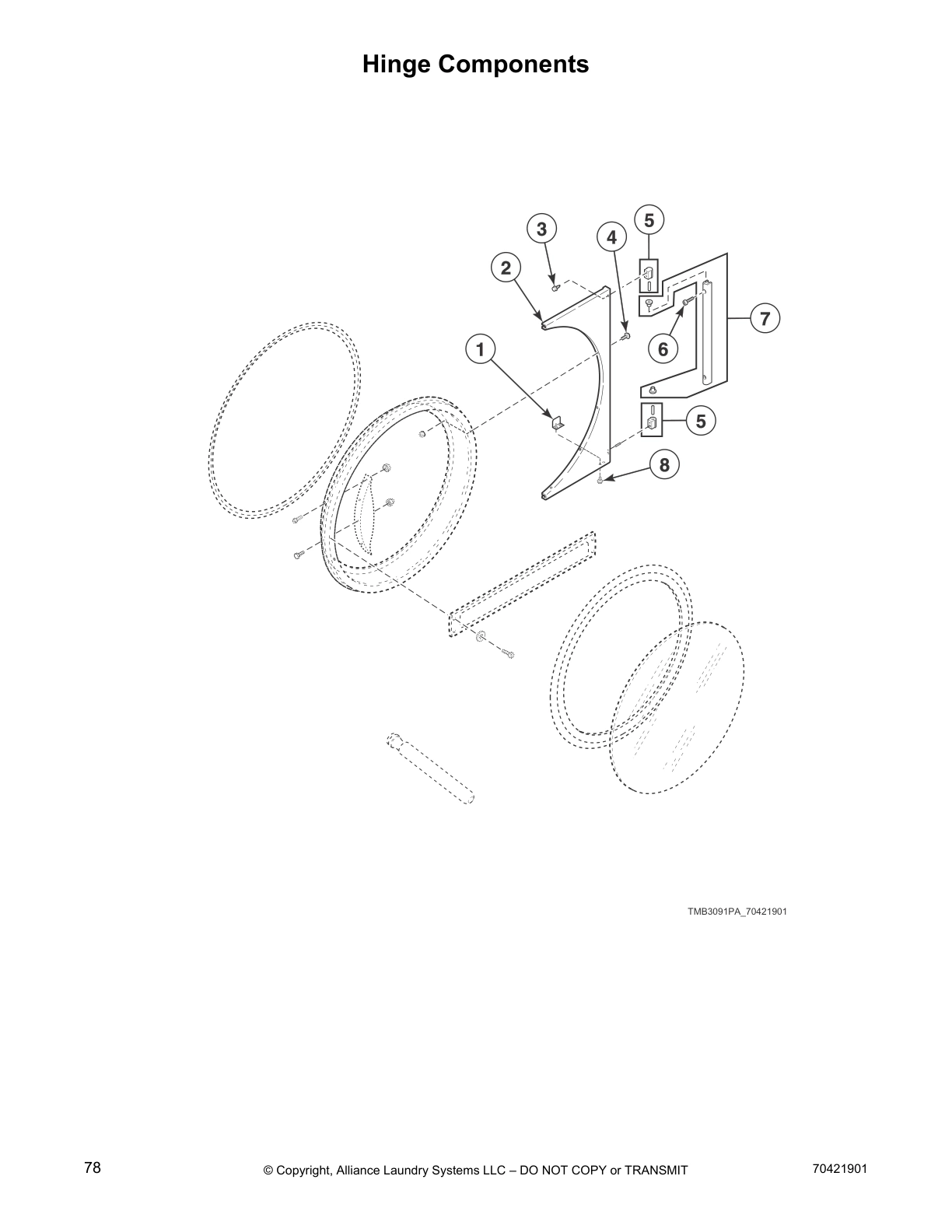

Hinge Components

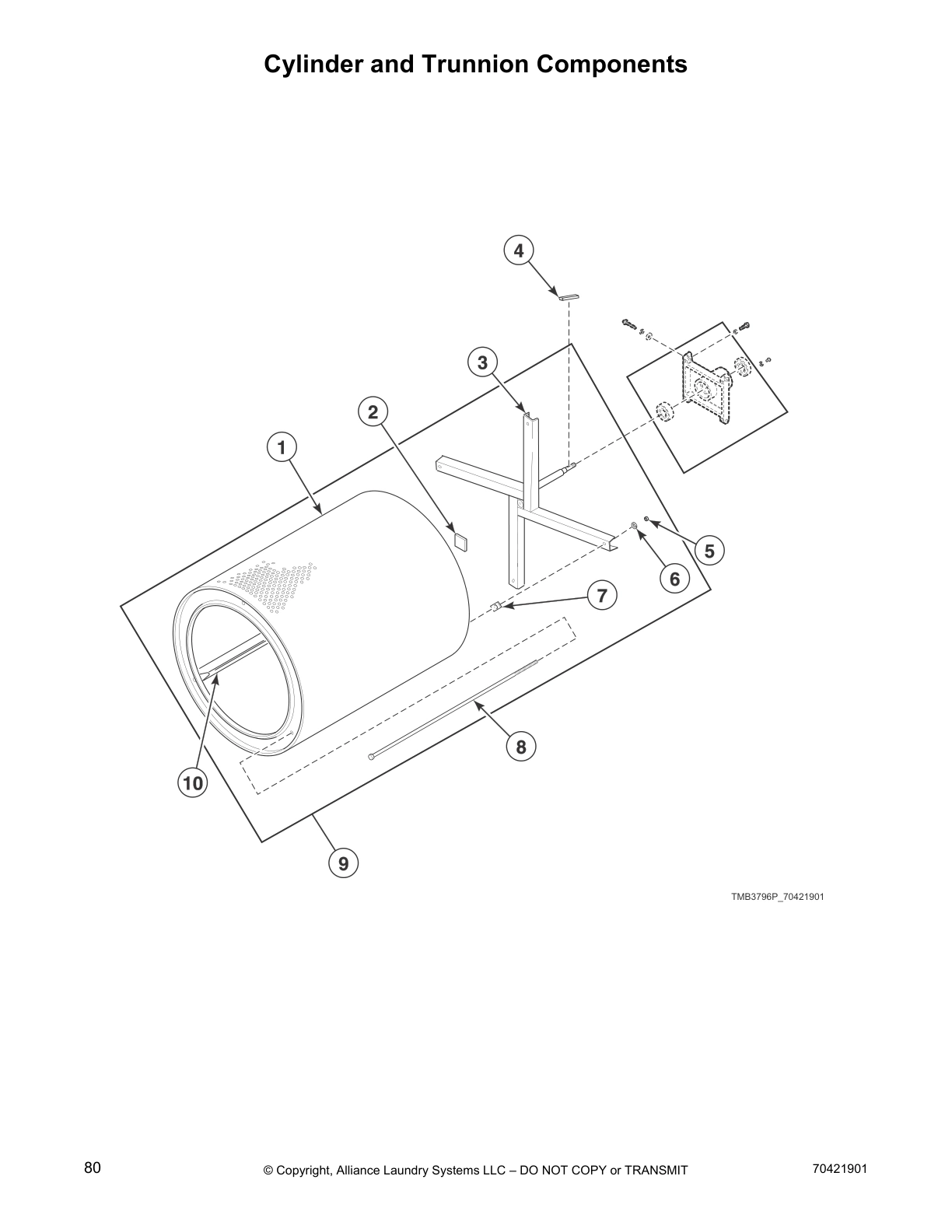

Cylinder and Trunnion Components

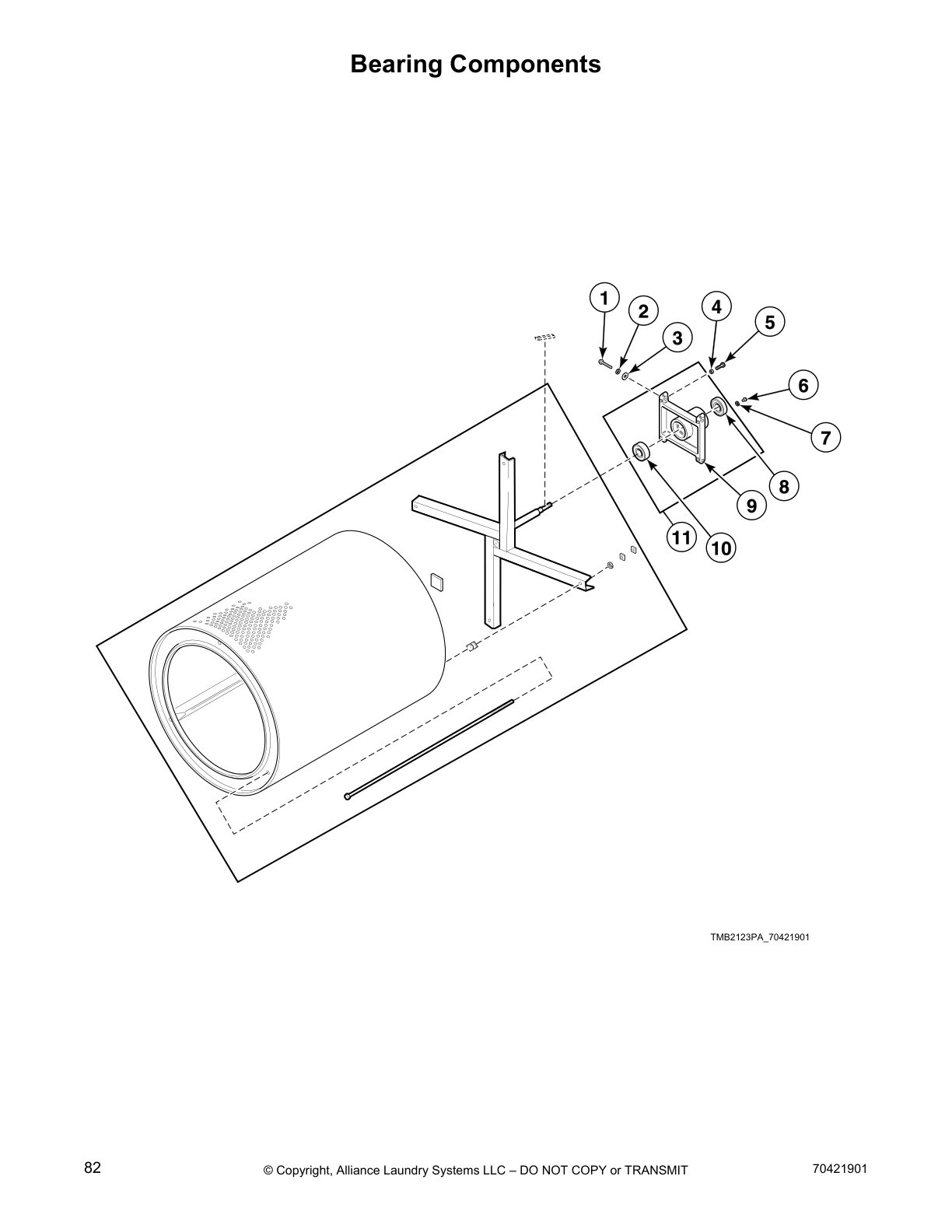

Bearing Components

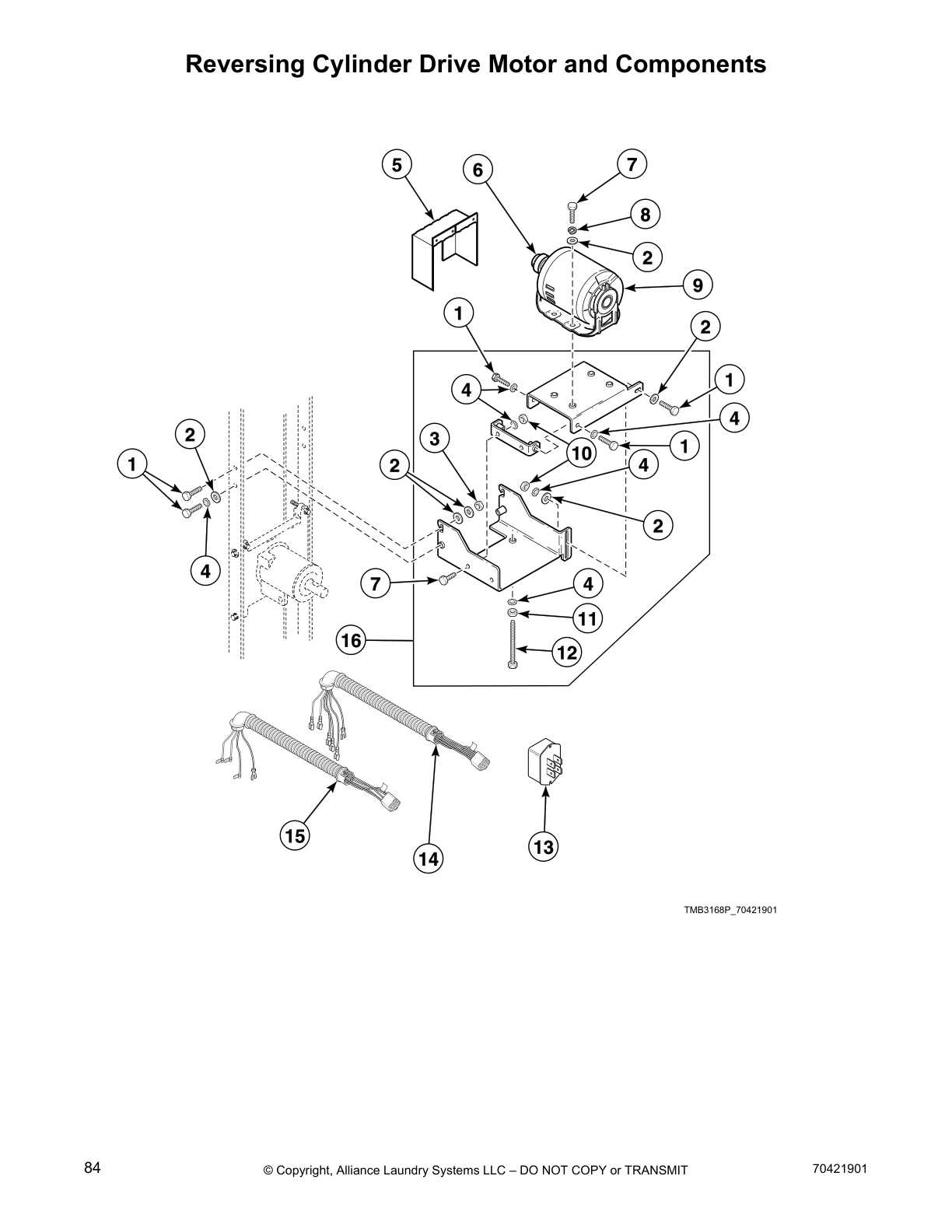

Reversing Cylinder Drive Motor and Components

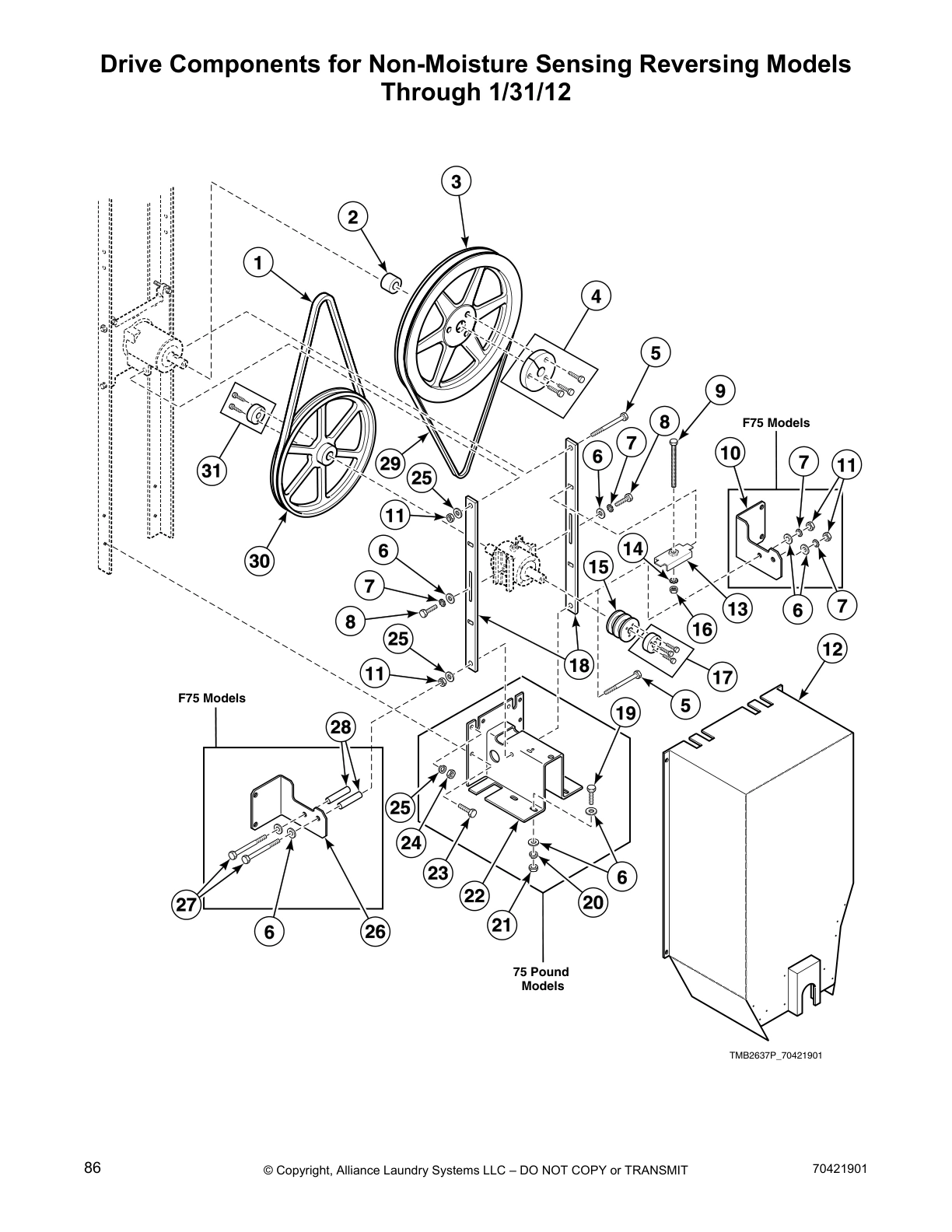

Drive Components for Non-Moisture Sensing Reversing Models
Through 1/31/12

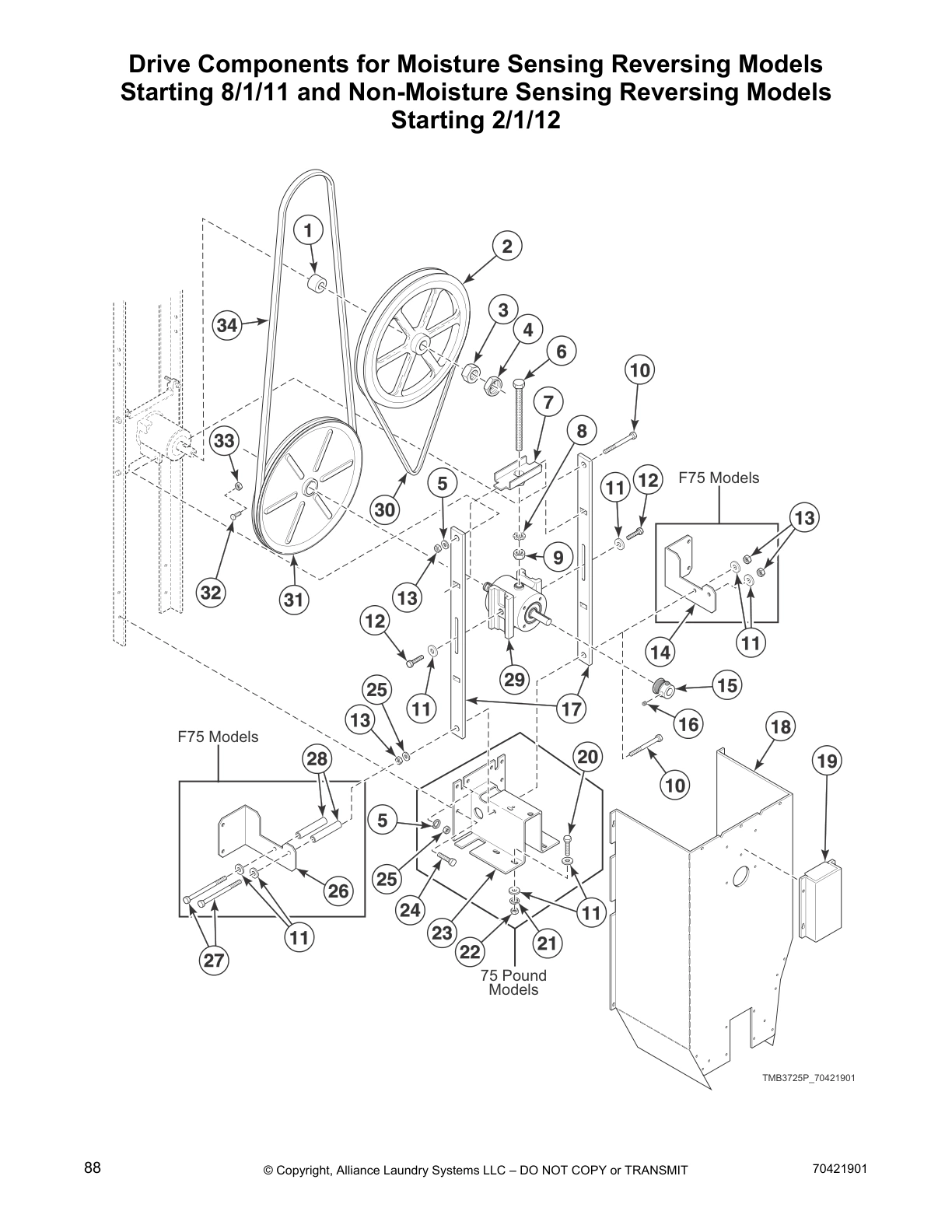

Drive Components for Moisture Sensing Reversing Models
Starting 8/1/11 and Non-Moisture Sensing Reversing Models
Starting 2/1/12

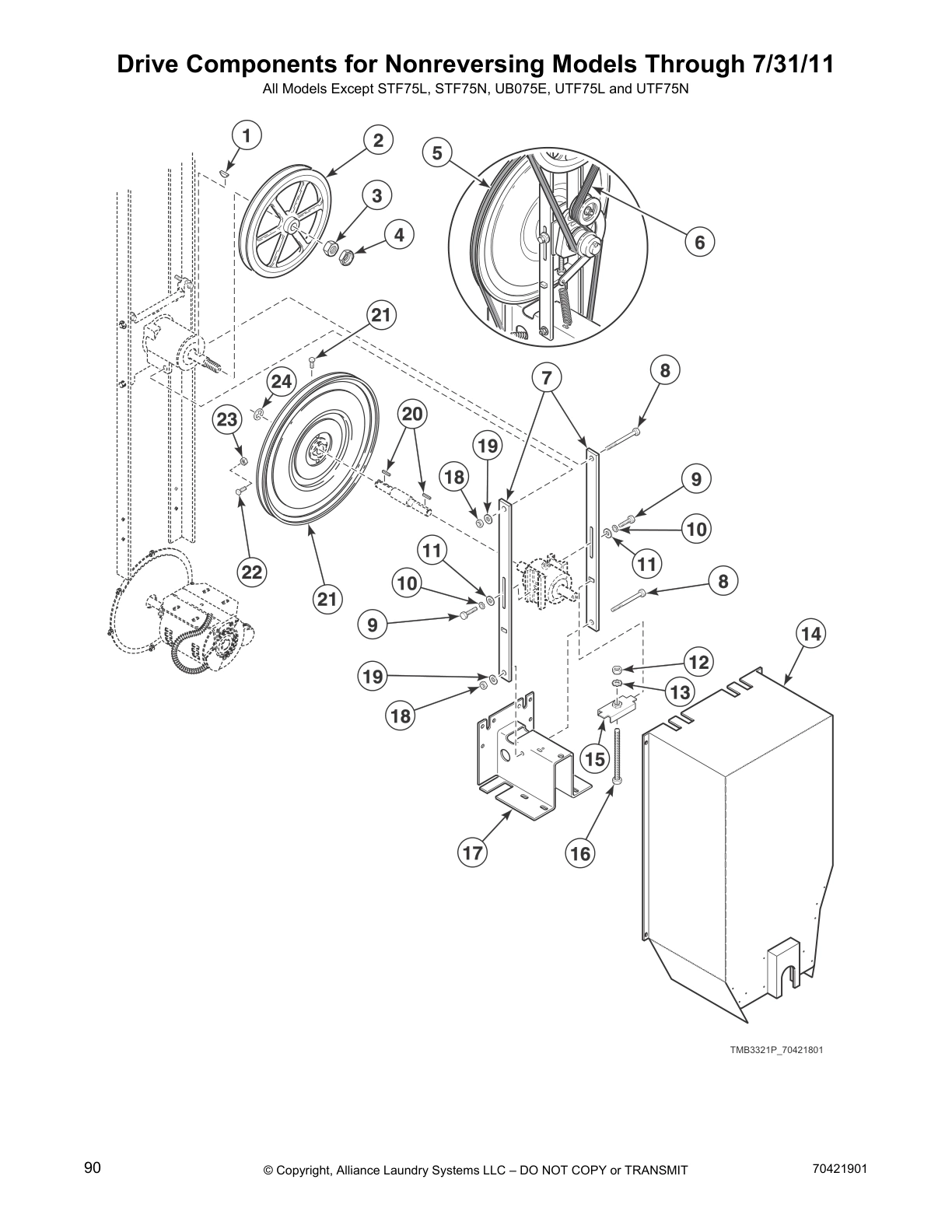

Drive Components for Nonreversing Models Through 7/31/11

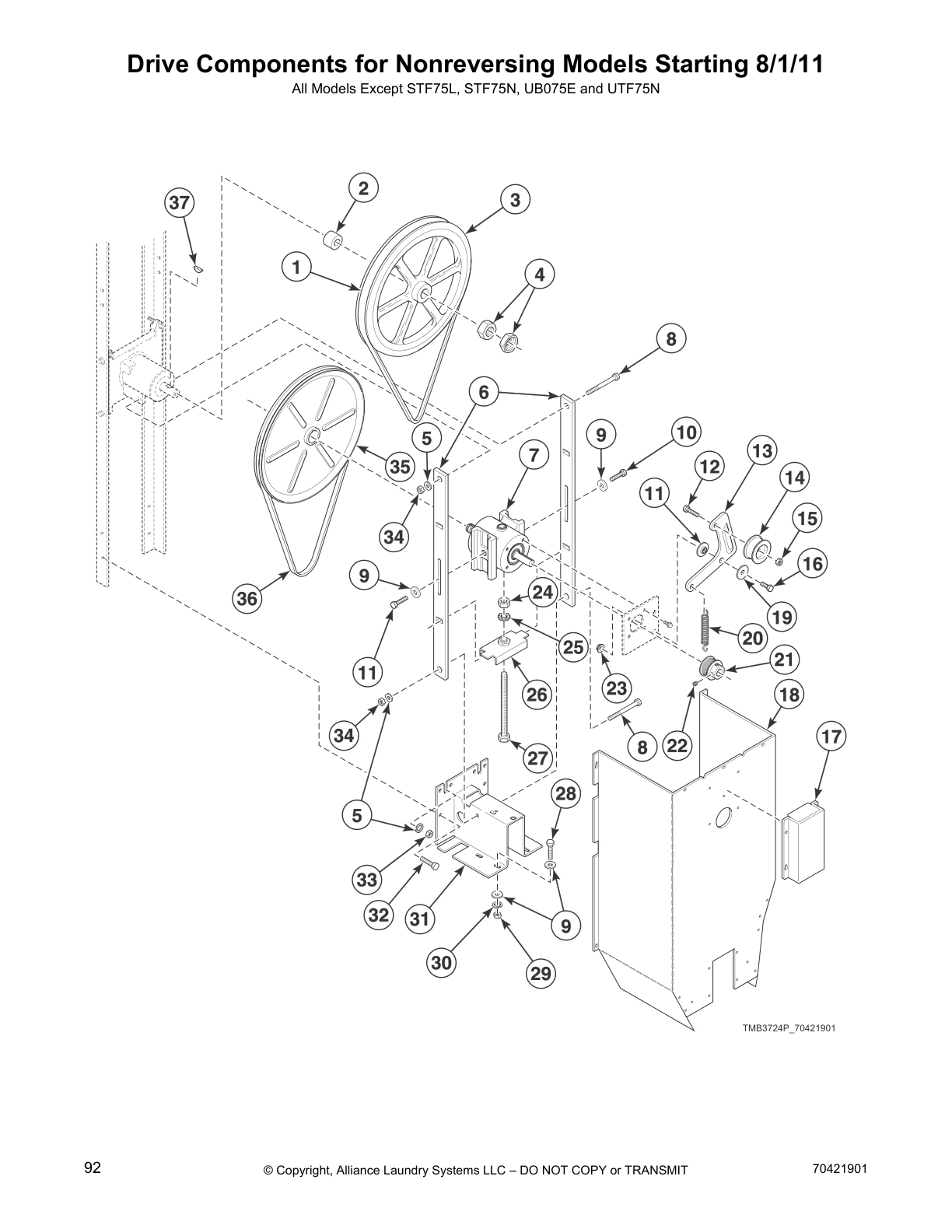

Drive Components for Nonreversing Models Starting 8/1/11

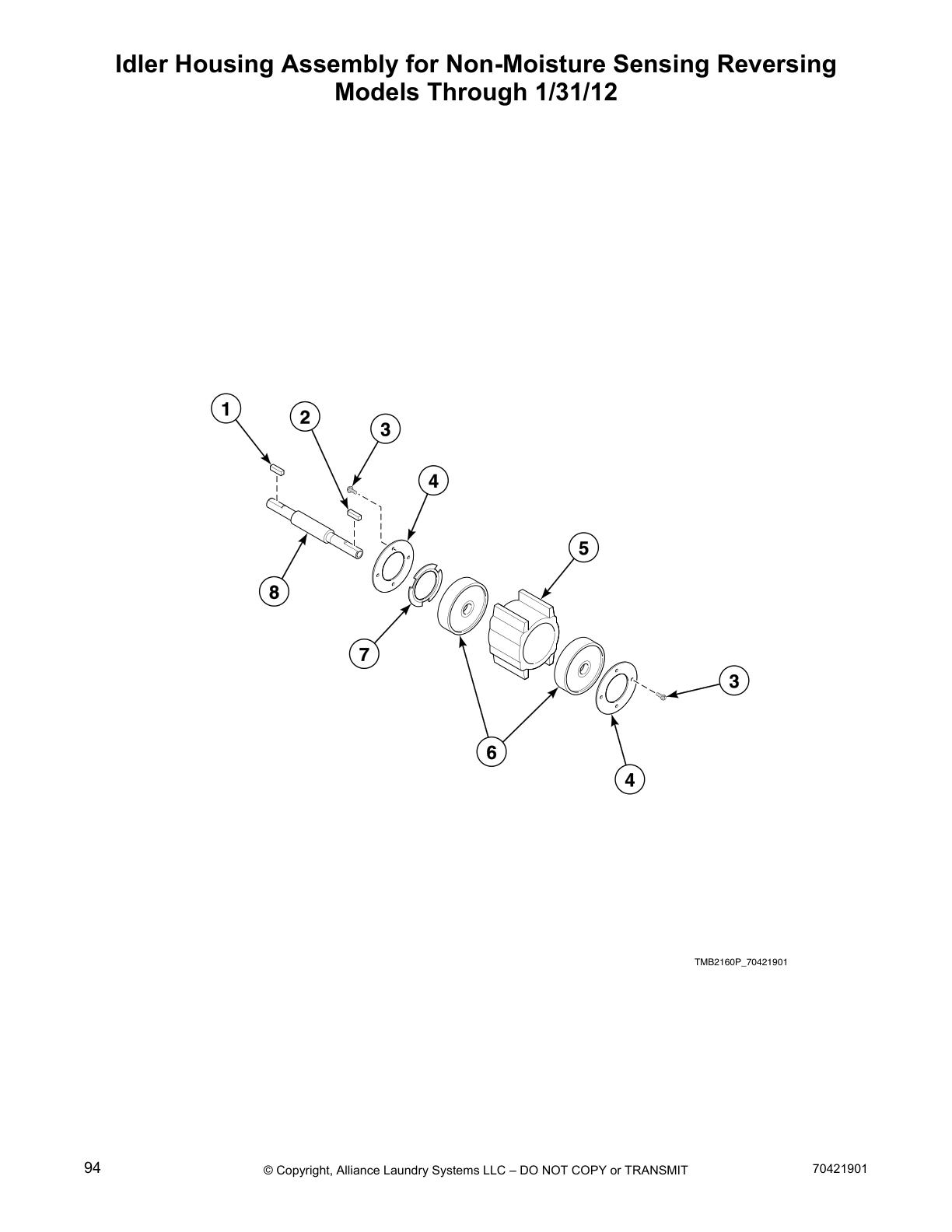

Idler Housing Assembly for Non-Moisture Sensing Reversing
Models Through 1/31/12

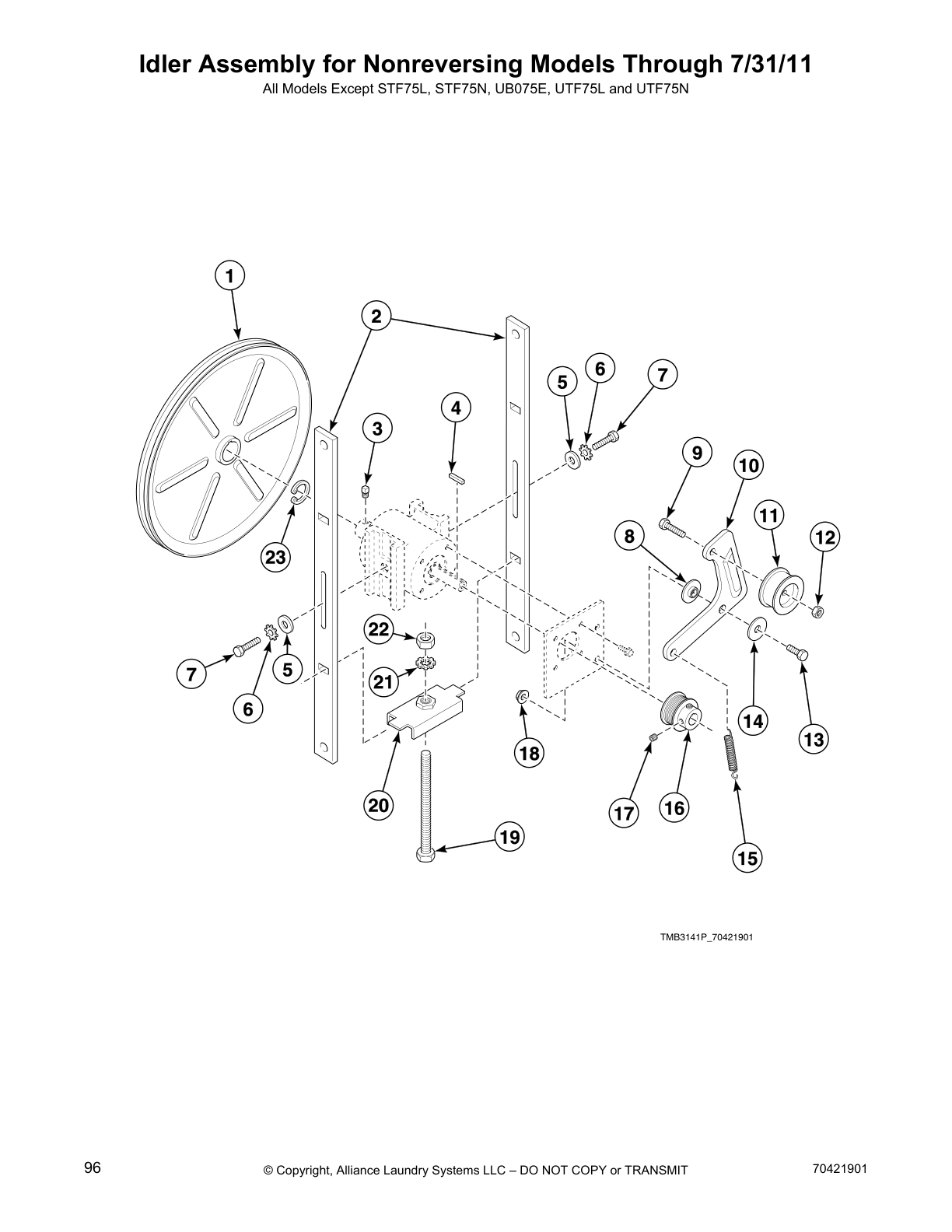

Idler Assembly for Nonreversing Models Through 7/31/11

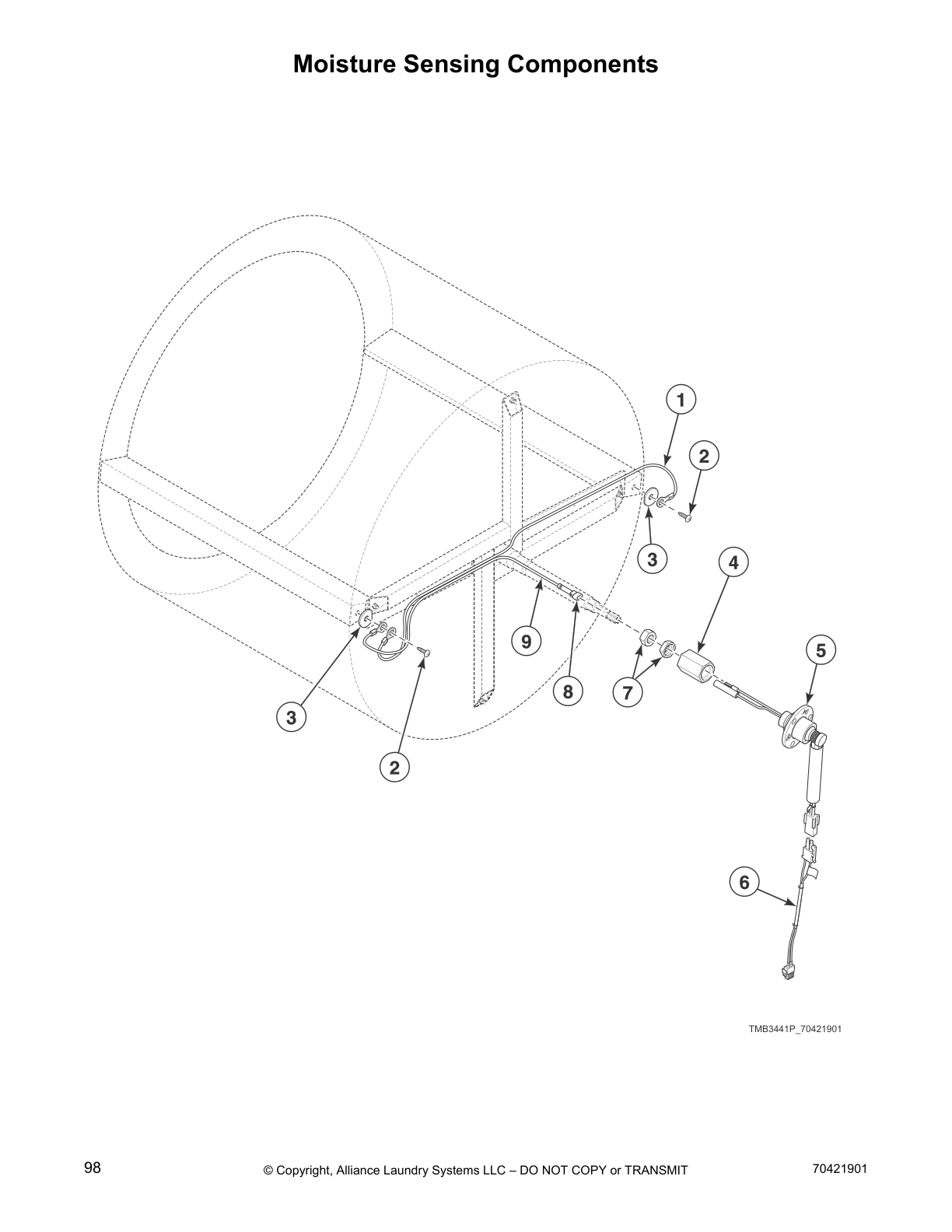

Moisture Sensing Components

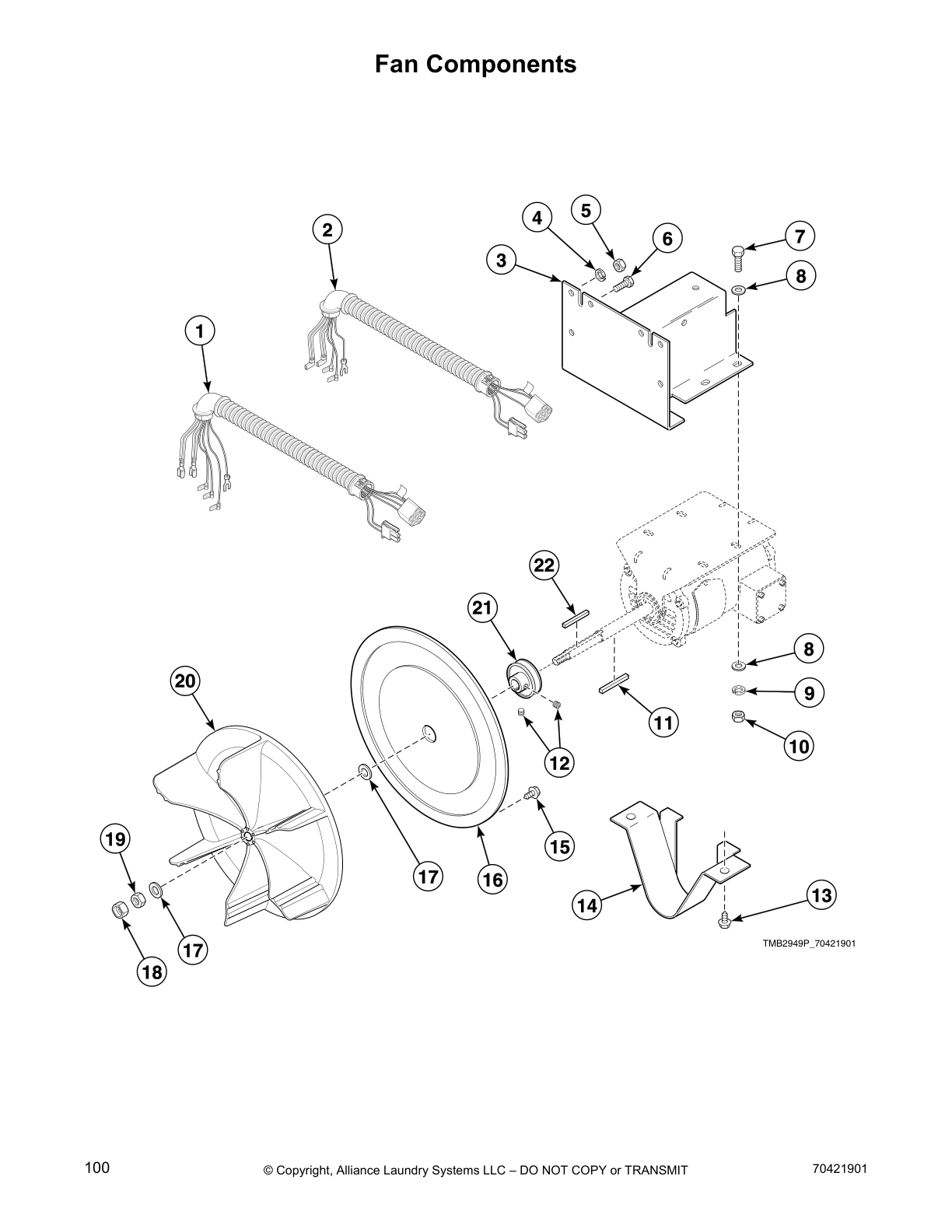

Fan Components

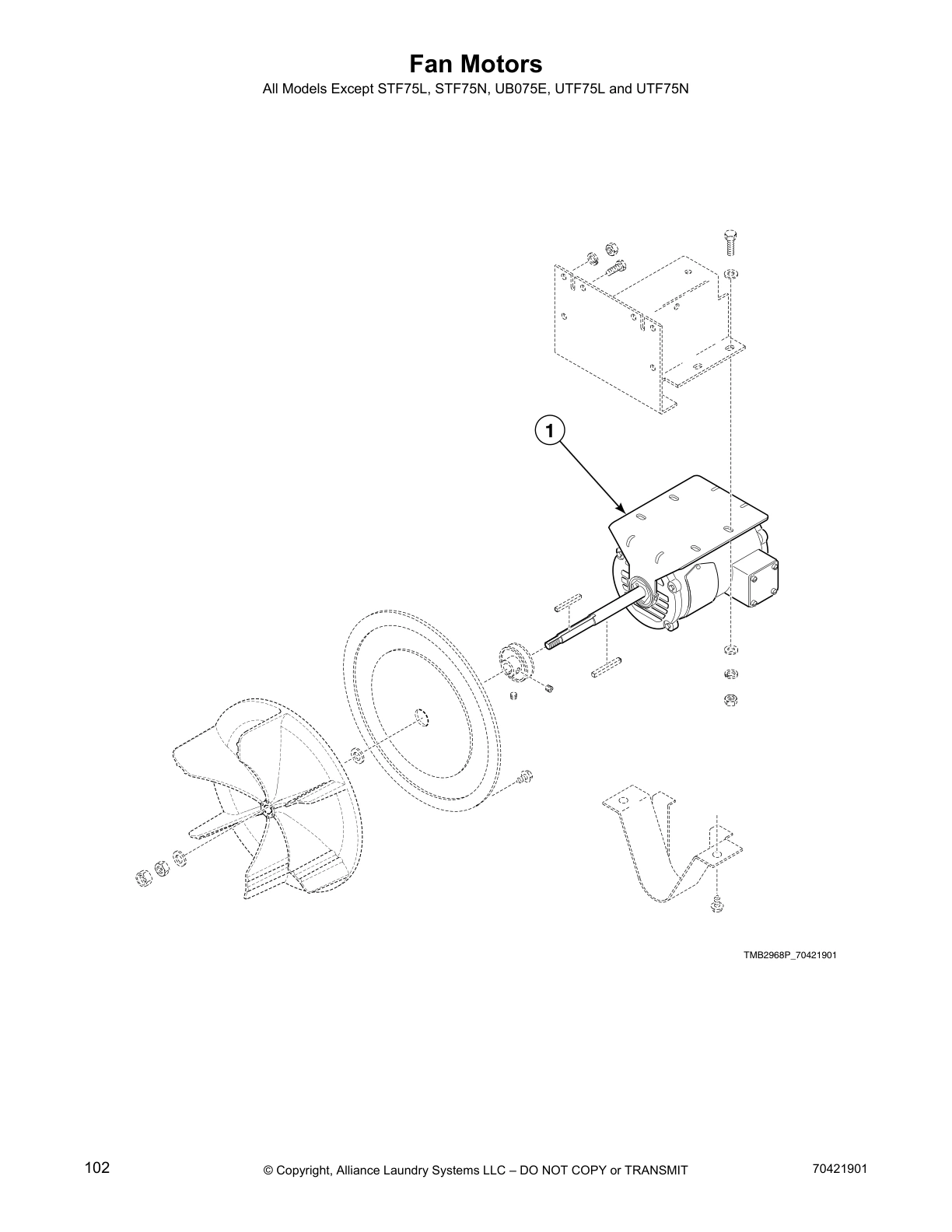

Fan Motors

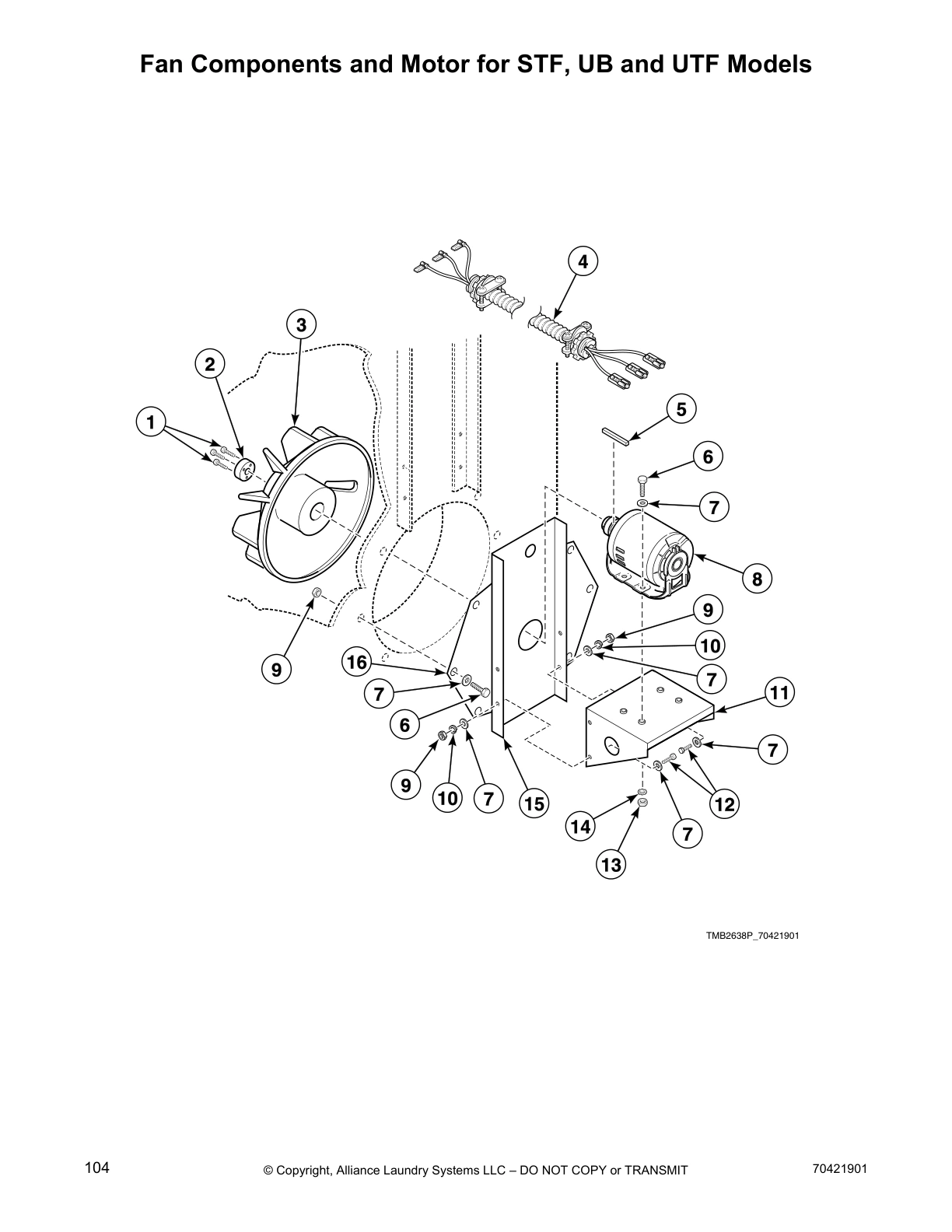

Fan Components and Motor for STF, UB and UTF Models

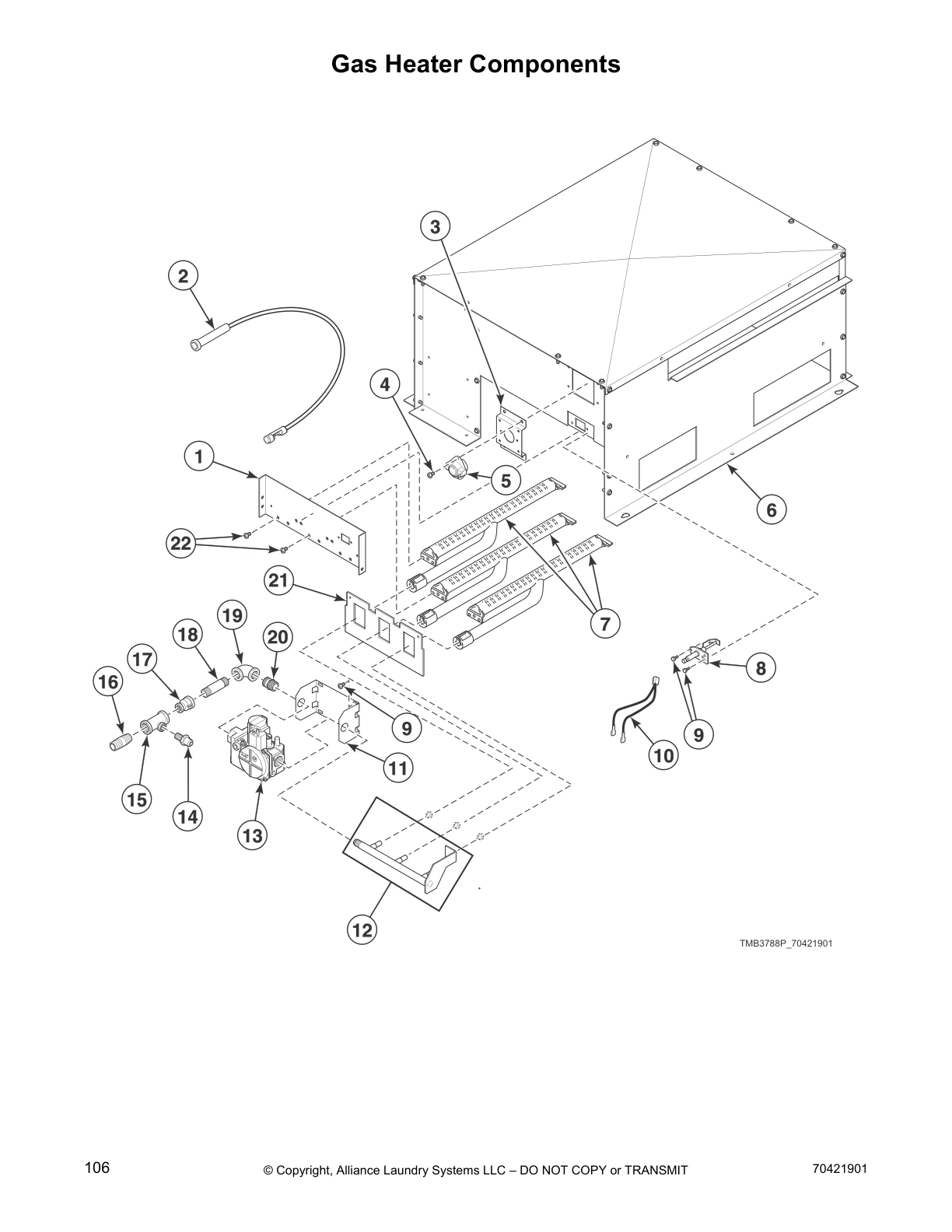

Gas Heater Components

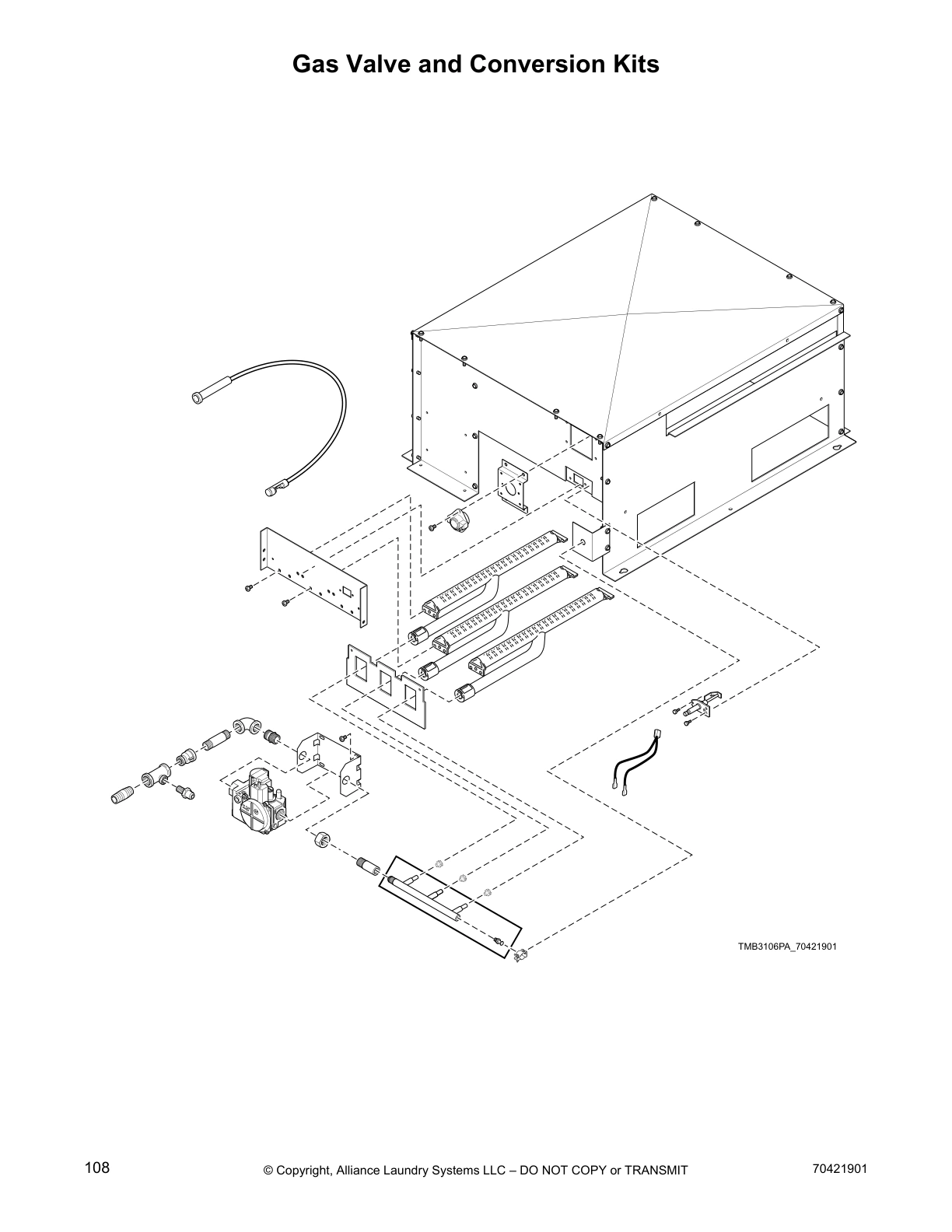

Gas Valve and Conversion Kits

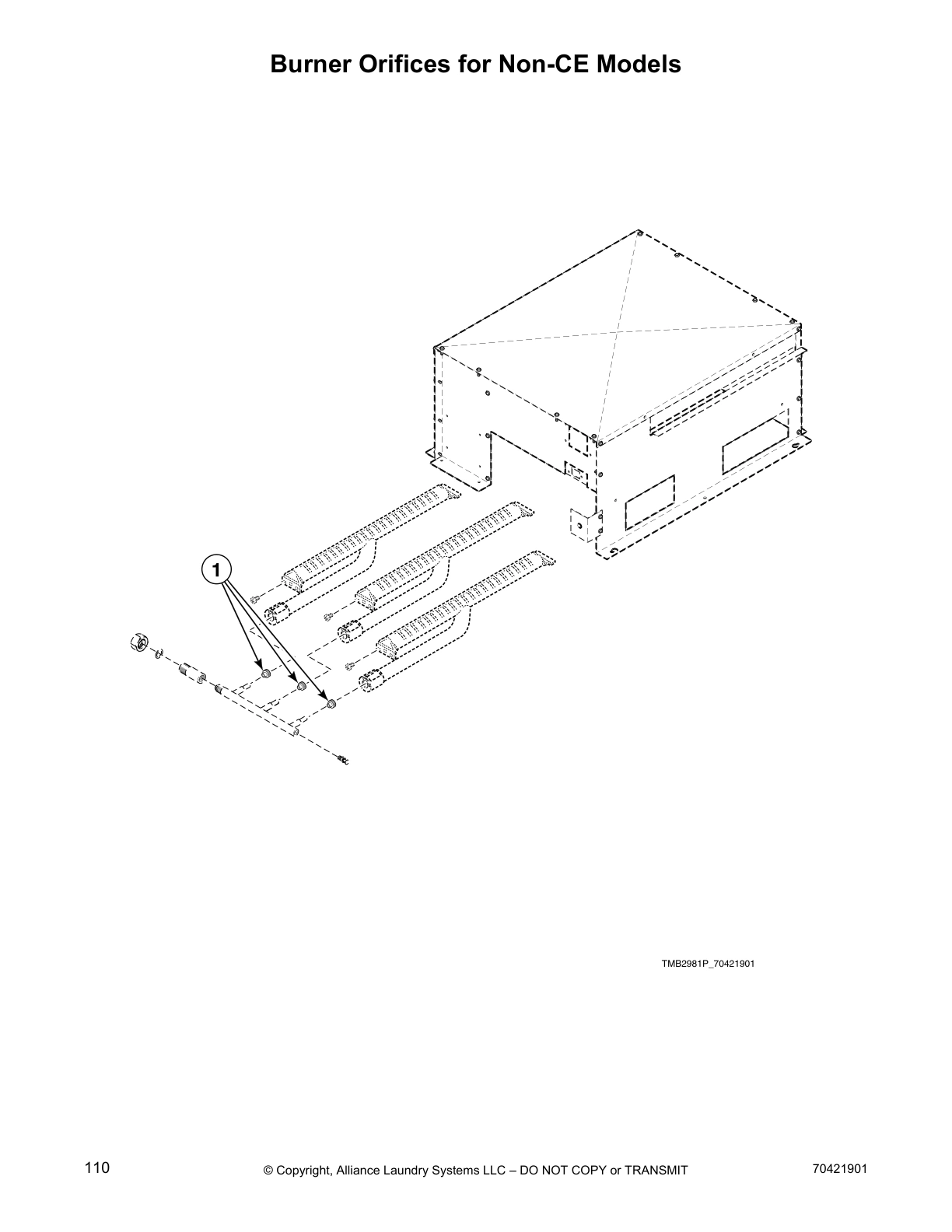

Burner Orifices for Non-CE Models

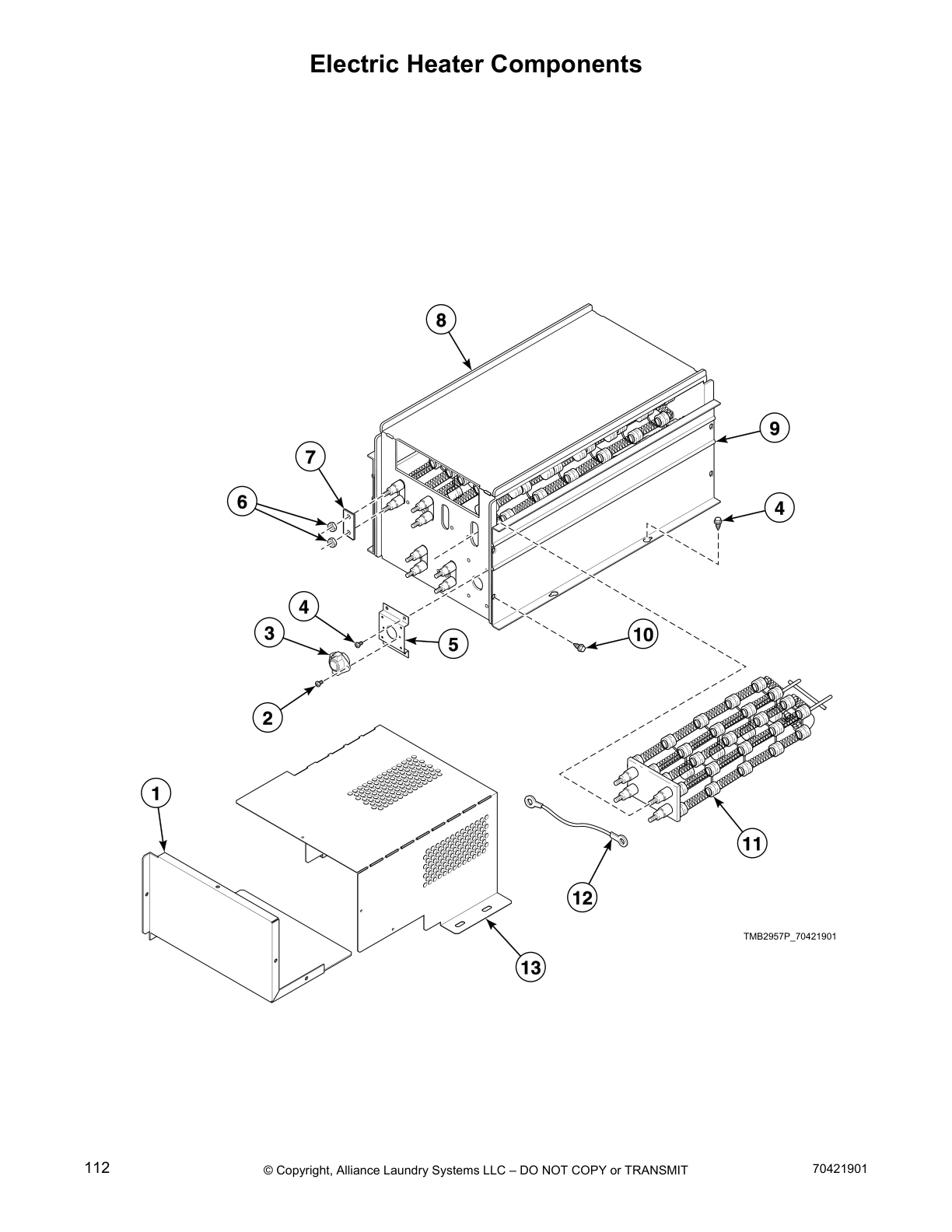

Electric Heater Components

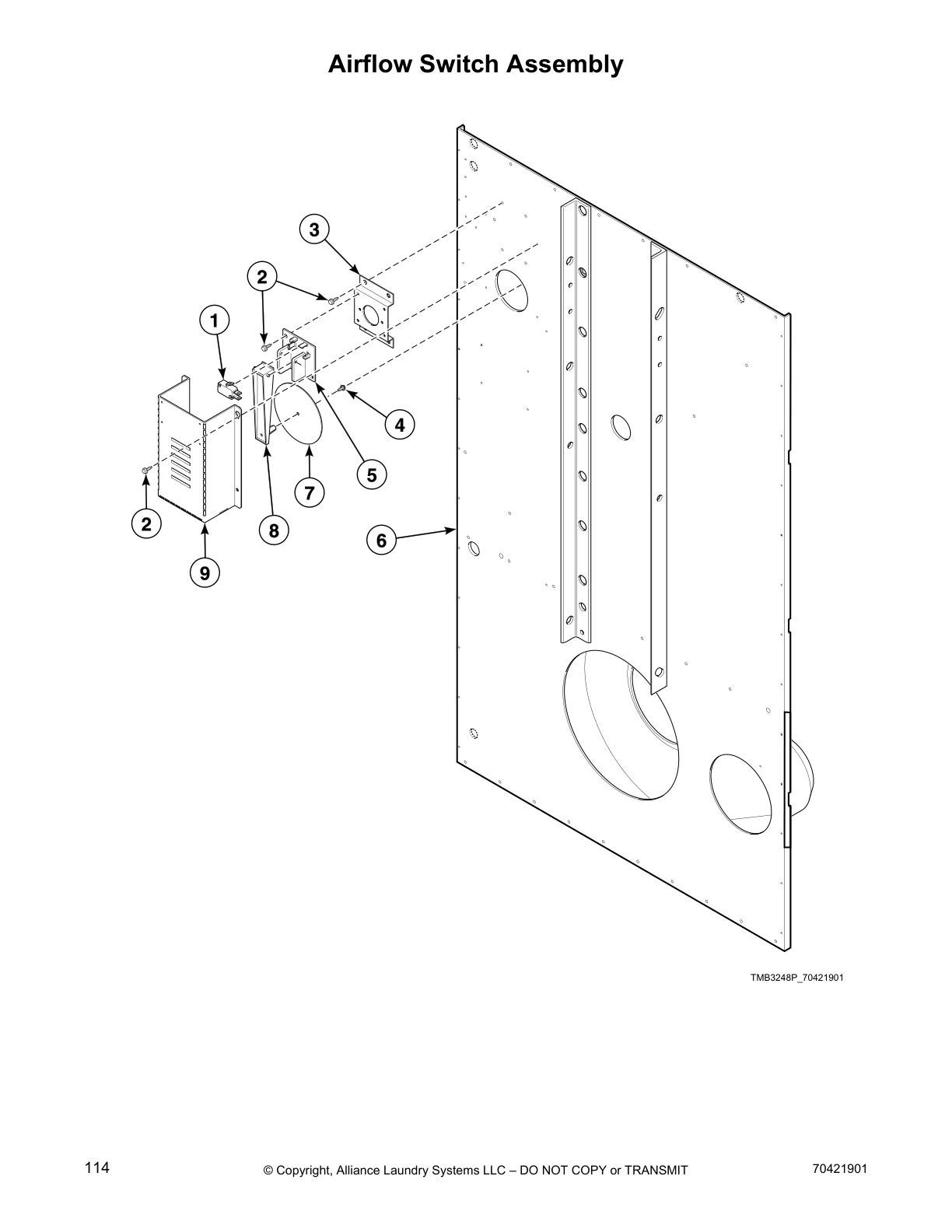

Airflow Switch Assembly

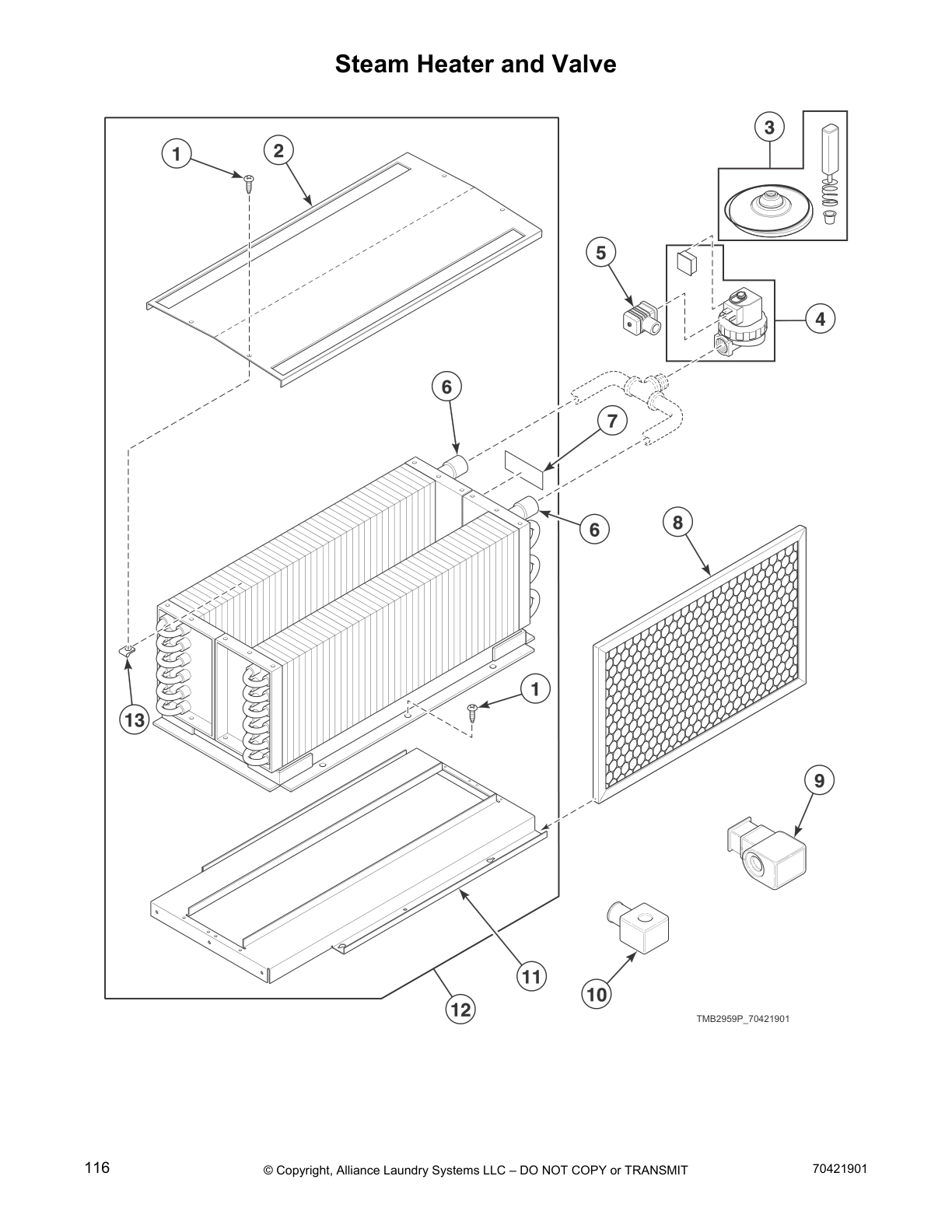

Steam Heater and Valve
Rotation Sensor

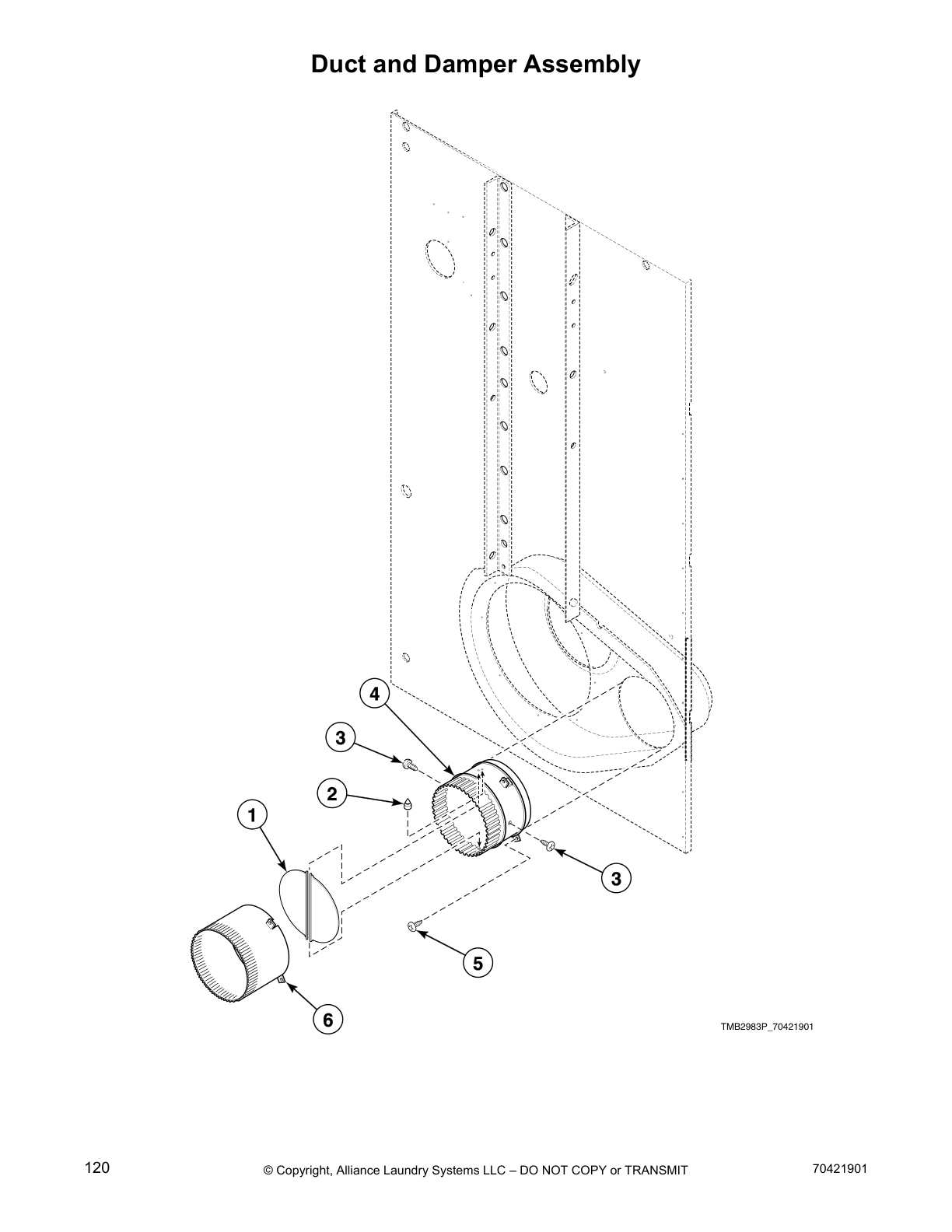

Duct and Damper Assembly

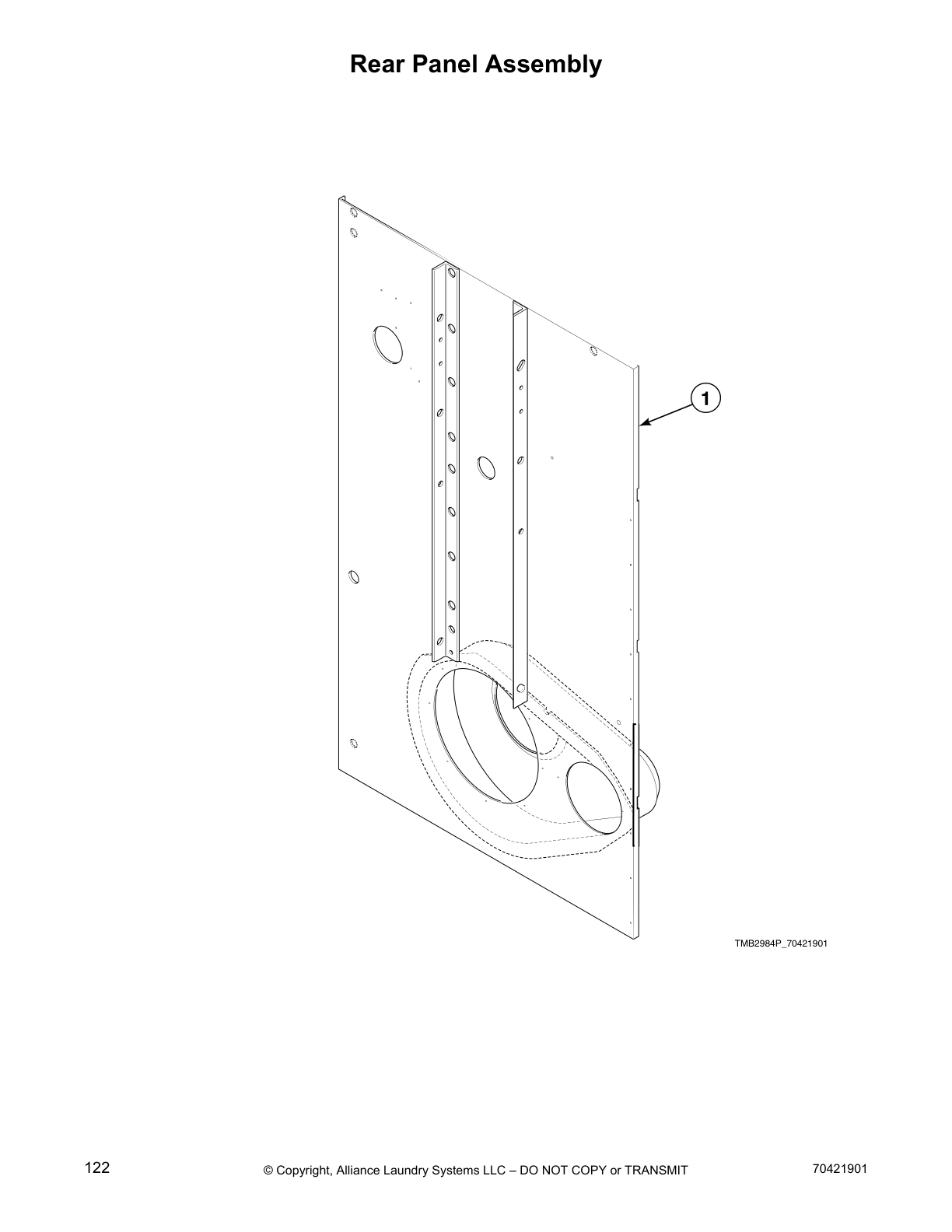

Rear Panel Assembly

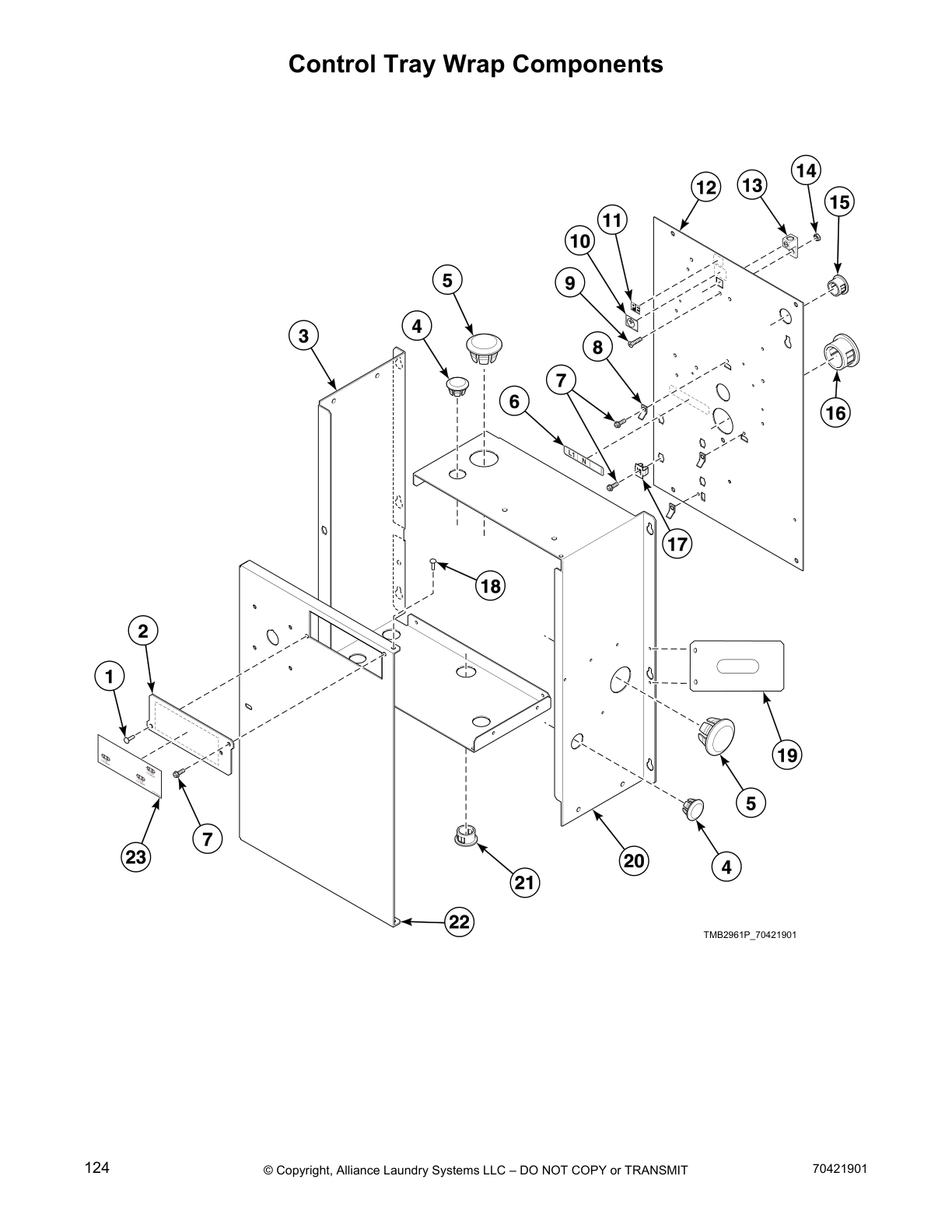

Control Tray Wrap Components

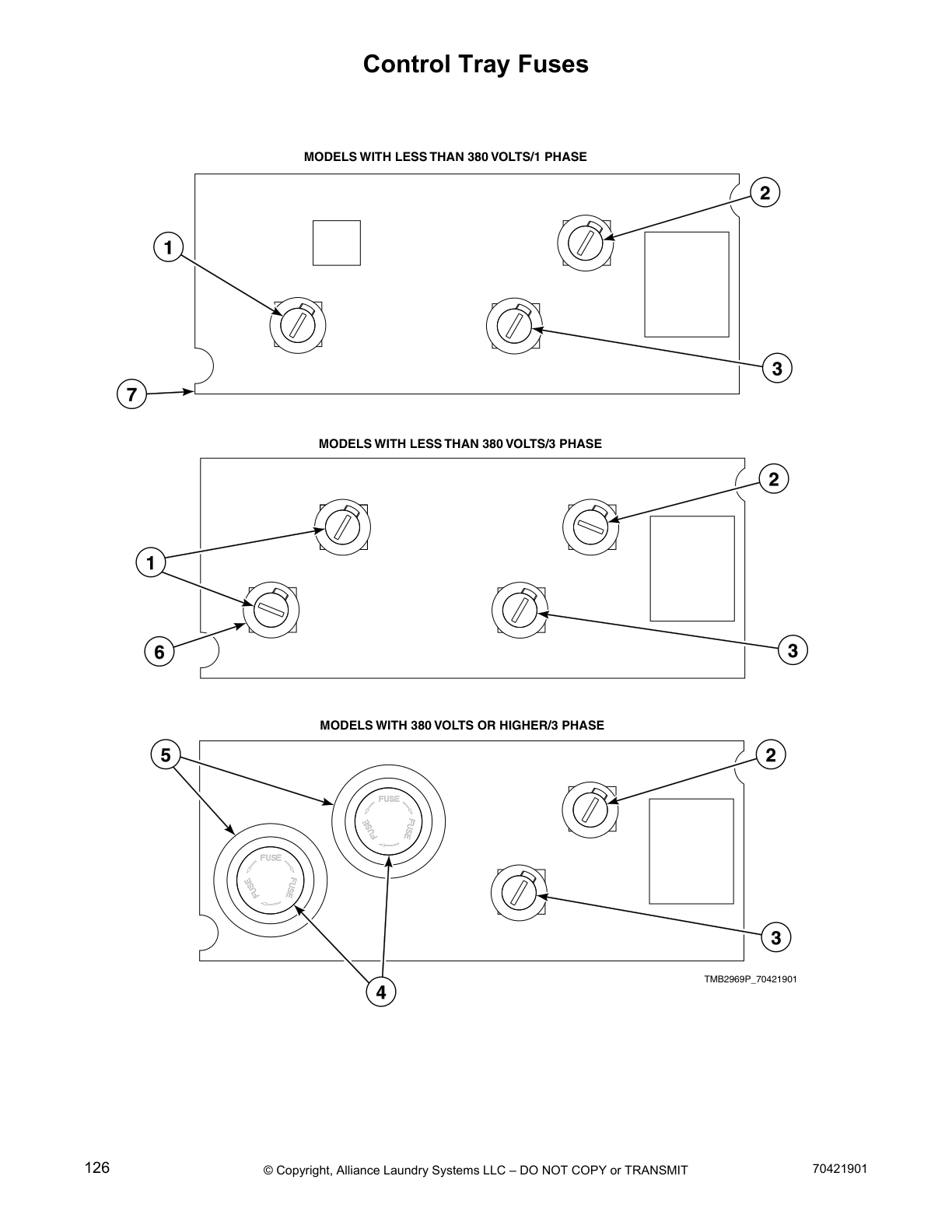

Control Tray Fuses

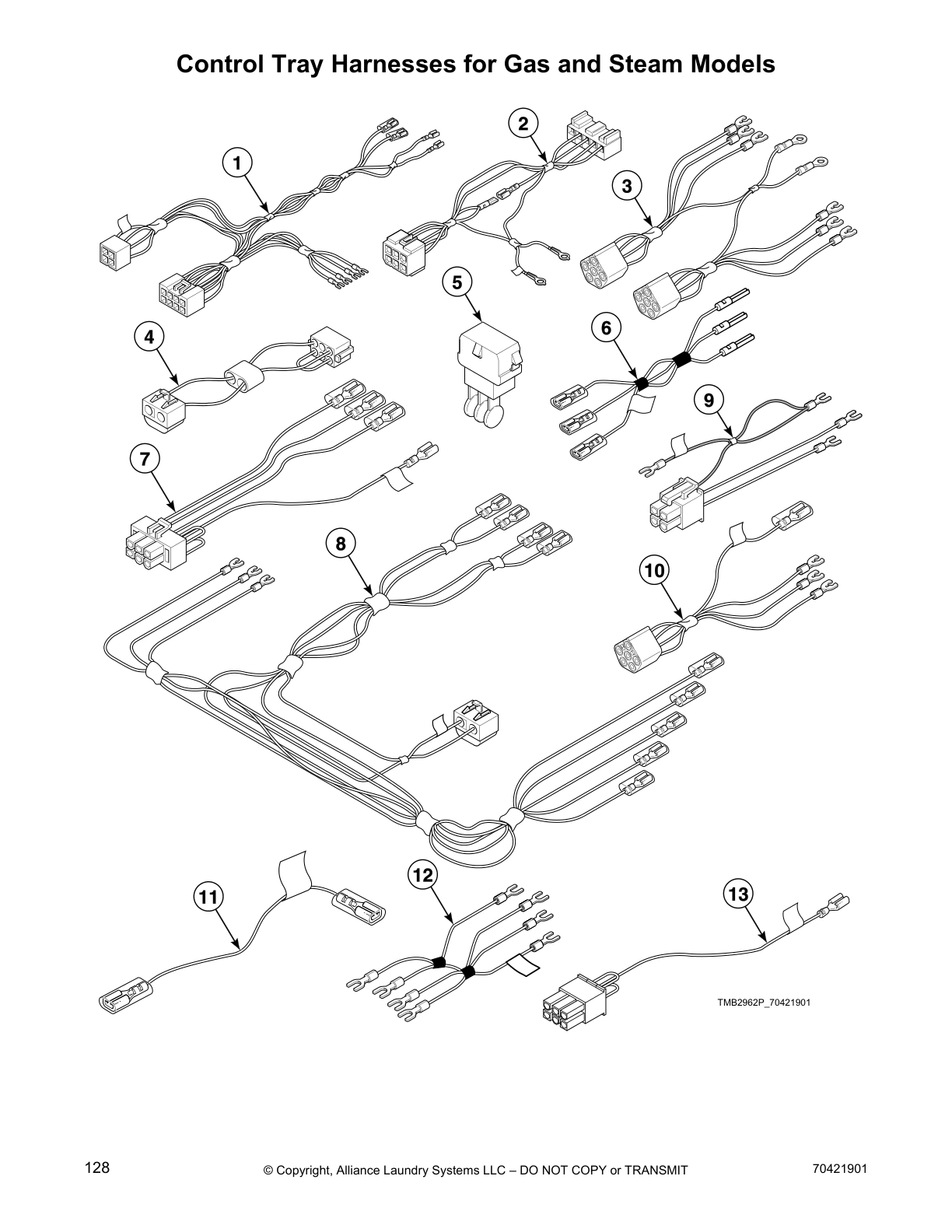

Control Tray Harnesses for Gas and Steam Models

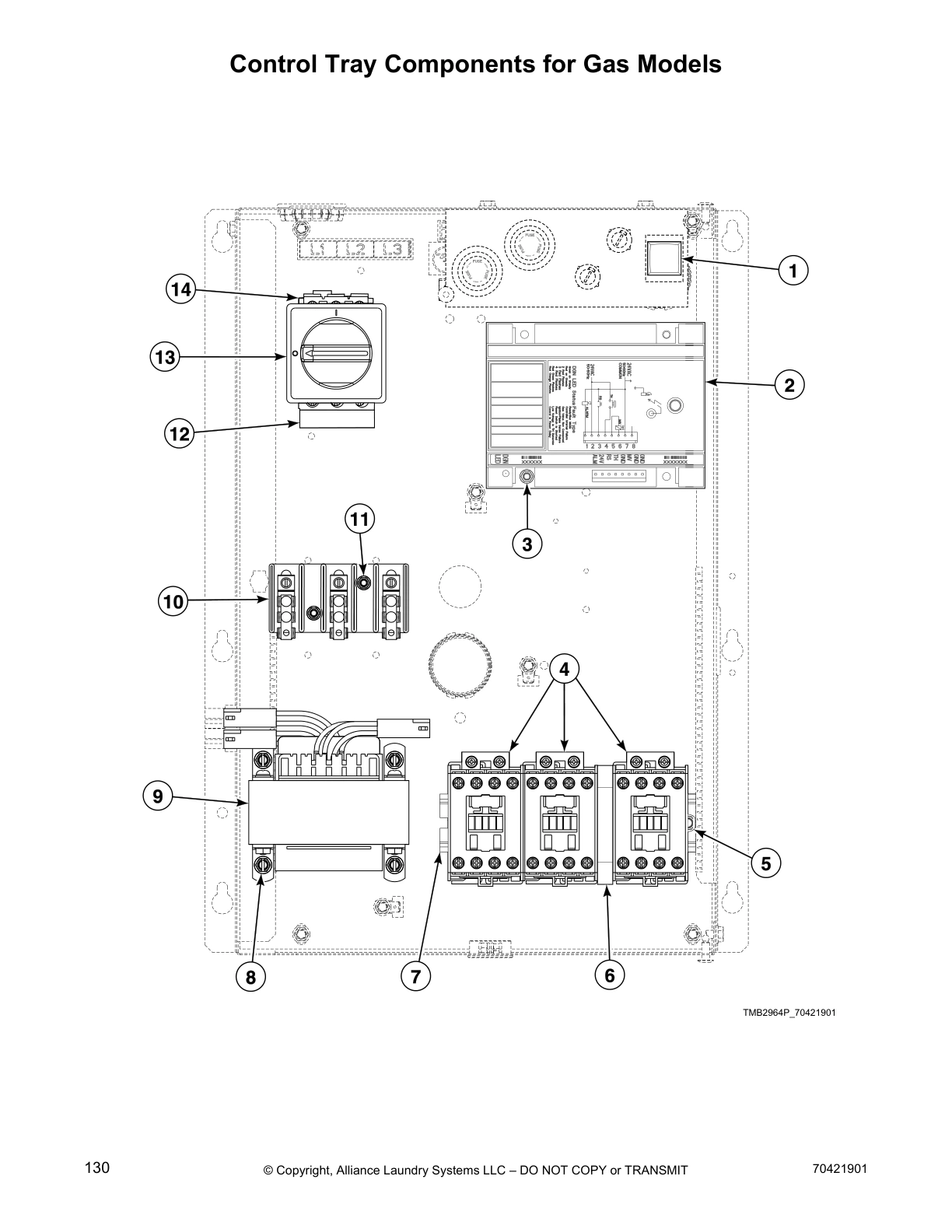

Control Tray Components for Gas Models

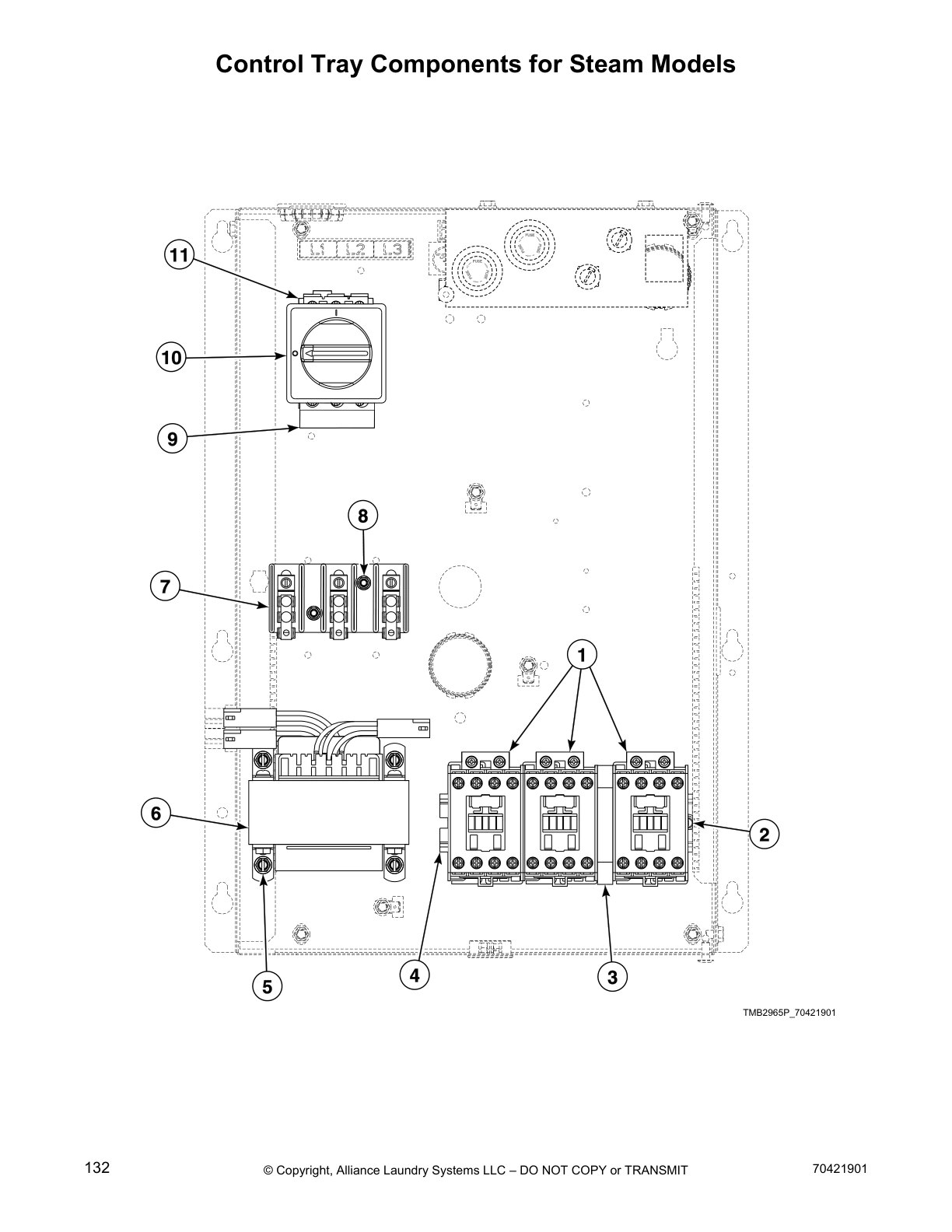

Control Tray Components for Steam Models

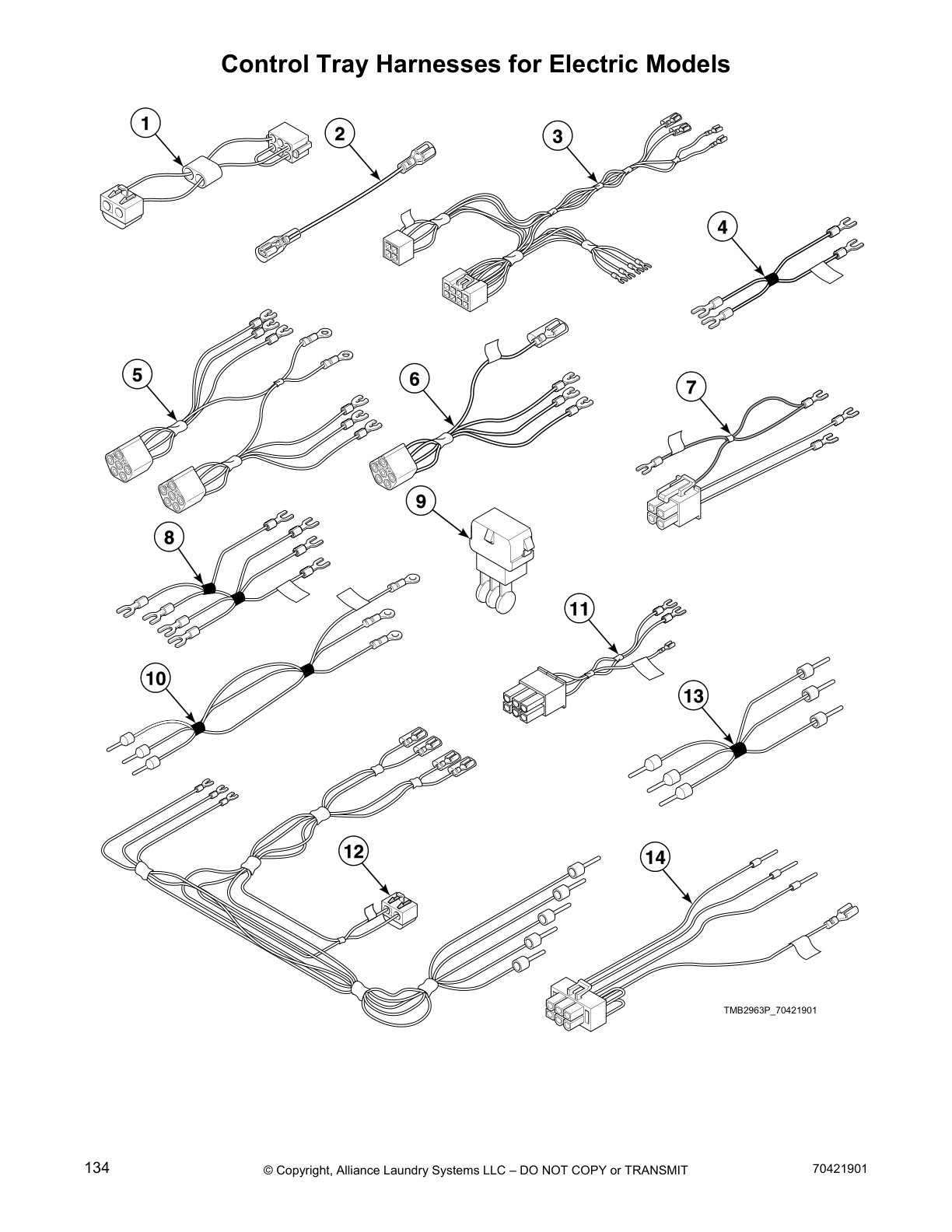

Control Tray Harnesses for Electric Models

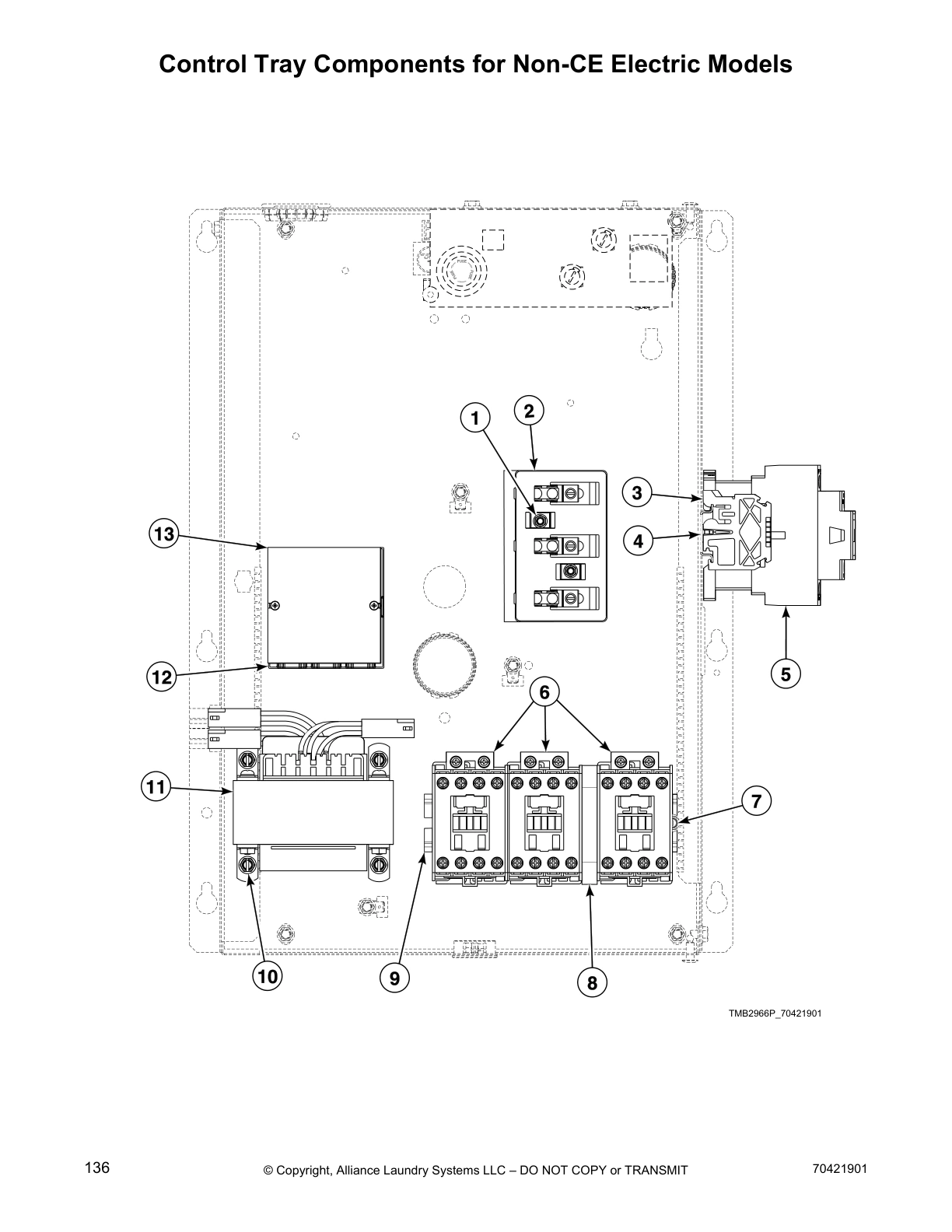

Control Tray Components for Non-CE Electric Models

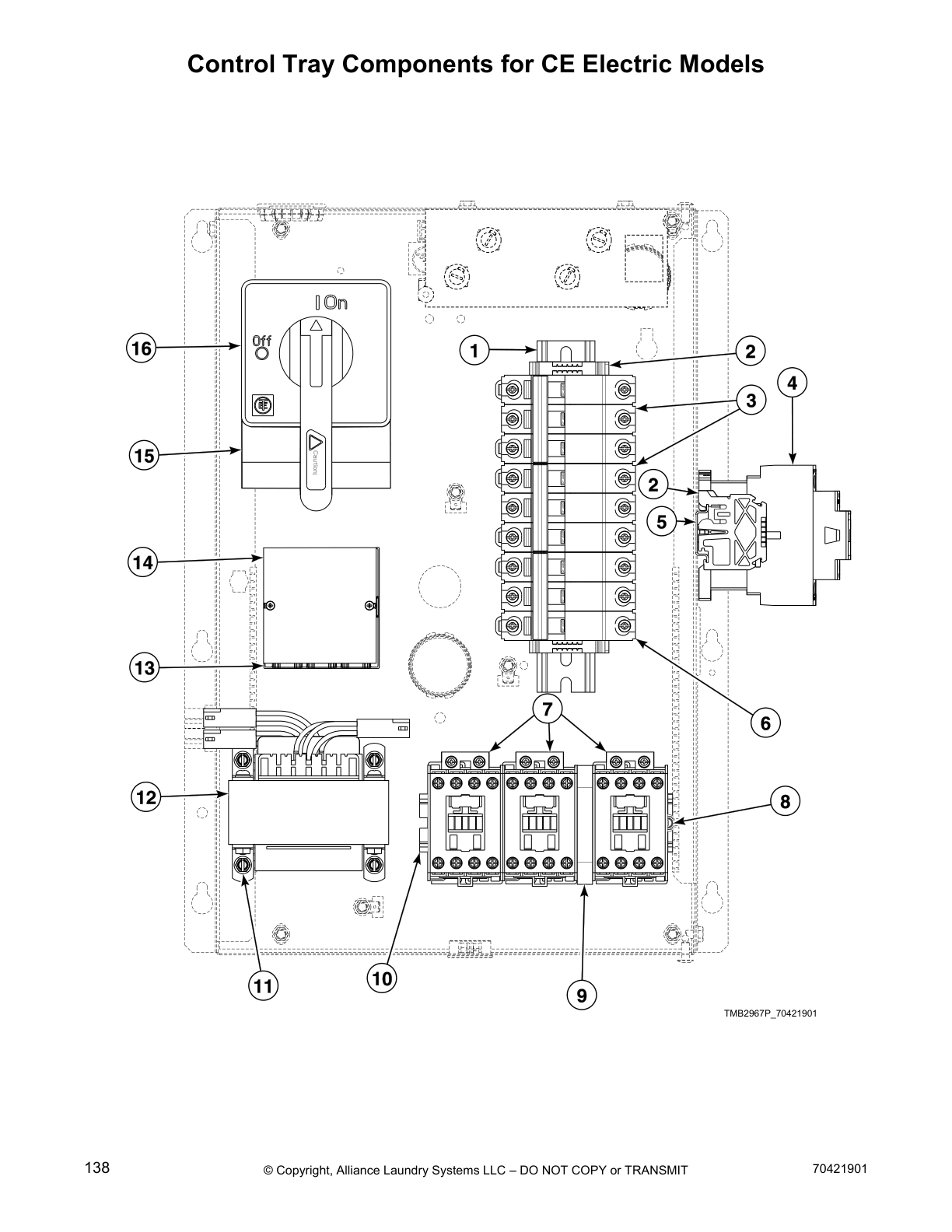

Control Tray Components for CE Electric Models
Common parts from model Alliance MT075L Dryer
Fan Motor SPQ 44046001P Contact Us For Availability
SPQ M414312P SPQ M414312P Contact Us For Availability
SPQ 298P4P SPQ 298P4P Contact Us For Availability
SPQ M404992 SPQ M404992 Contact Us For Availability
SPQ 44057502 SPQ 44057502 Contact Us For Availability
SPQ 44195702P SPQ 44195702P Contact Us For Availability
SPQ M4641P3 SPQ M4641P3 Contact Us For Availability
SPQ 44336302 SPQ 44336302 Contact Us For Availability
SPQ M412520P SPQ M412520P Contact Us For Availability
SPQ 44209002 SPQ 44209002 Contact Us For Availability
Motor SPQ 44045701P Contact Us For Availability
SPQ 44136201P SPQ 44136201P Contact Us For Availability
SPQ 44250001 SPQ 44250001 Contact Us For Availability
SPQ 44139501 SPQ 44139501 Contact Us For Availability
SPQ 44136801 SPQ 44136801 Contact Us For Availability
Network Capacitor Assembly SPQ 44139601P Contact Us For Availability
1
Fuse SPQ 70406701 Contact Us For Availability
1
Overlay SPQ 70410003 Contact Us For Availability
1
Network Harness SPQ 44141801P Contact Us For Availability
1
Communication Board SPQ 210095P Contact Us For Availability
1
Front Panel SPQ 44052521 Contact Us For Availability
1
Snap Bushing SPQ M411826 Contact Us For Availability
1
Handle and Caps Assembly SPQ 70154405P Contact Us For Availability
1
Baffle SPQ 44005301P Contact Us For Availability
1
Rear Panel Assembly SPQ 44171201 Contact Us For Availability
1
Door Assembly SPQ 44028902P Contact Us For Availability
1
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
1
Cylinder Kit SPQ 44057301P Contact Us For Availability
1
Screw SPQ M400063 Contact Us For Availability
1
Rib Wire SPQ 44208601 Contact Us For Availability
1
Motor SPQ 44048801P Contact Us For Availability
1
Burner Support SPQ 44110301 Contact Us For Availability
1
Burner Orifice SPQ 70684110 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Rotation Sensor SPQ F8066201 Contact Us For Availability
1
Jumper Configuration Assembly SPQ M413510 Contact Us For Availability
1
Screw SPQ 51783 Contact Us For Availability
2
Door Seal Kit SPQ 44008201P Contact Us For Availability
2
High Voltage Suppression Cable SPQ 44061603 Contact Us For Availability
2
Control Overlay SPQ 70449501 Contact Us For Availability
2
Lint Panel Switch Bracket SPQ M400770 Contact Us For Availability
2
Coin Vault Switch Harness SPQ 44057801W Contact Us For Availability
2
Door Hinge Assembly SPQ 44075204 Contact Us For Availability
2
Washer SPQ M400015 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 44198301P Contact Us For Availability
2
Key SPQ M412476 Contact Us For Availability
2
Micro V Sheave SPQ 44132411 Contact Us For Availability
2
Blower SPQ M400022 Contact Us For Availability
2
Bracket SPQ 44207501 Contact Us For Availability
2
Contactor Box Side SPQ 70313301 Contact Us For Availability
2
Fuse Holder SPQ 70406501 Contact Us For Availability
2
Reversing Contactor Jumper SPQ 44245301 Contact Us For Availability
2
Extension Handle SPQ 44160701 Contact Us For Availability
3
Limit Thermostat SPQ M410542 Contact Us For Availability
3
Fuse Holder Cap SPQ 70406601 Contact Us For Availability
3
Nut SPQ 70261401 Contact Us For Availability
3
Control Plate Assembly SPQ 70497201 Contact Us For Availability
3
Network Board Bracket SPQ 44143601 Contact Us For Availability
3
Bypass Harness SPQ 44057801Q Contact Us For Availability
3
Switch Assembly SPQ 44118601 Contact Us For Availability
3
Nut SPQ 44000002P Contact Us For Availability
3
Control Door Latch SPQ 70015701 Contact Us For Availability
3
Screw SPQ 70442101 Contact Us For Availability
3
Felt Pad SPQ 44198302 Contact Us For Availability
3
SPQ M412916 SPQ M412916 Contact Us For Availability
3
Washer SPQ 44238902 Contact Us For Availability
3
Bolt SPQ M414566 Contact Us For Availability
3
Switch Bracket SPQ 70356301 Contact Us For Availability
3
Proximity Bracket SPQ 44044501 Contact Us For Availability
3
Screw SPQ 44159001 Contact Us For Availability
4
Network Board Assembly SPQ 70307002 Contact Us For Availability
4
Communication Connector SPQ 210099 Contact Us For Availability
4
Nut SPQ 44057801B Contact Us For Availability
4
Control Panel SPQ 44000123 Contact Us For Availability
4
Screw SPQ 70413401 Contact Us For Availability
4
Roller Catch Spacer SPQ 44293603W Contact Us For Availability
4
Lint Screen Deflector SPQ 44162201 Contact Us For Availability
4
Pop Rivet SPQ 70296401 Contact Us For Availability
4
Hinge Cam Kit SPQ M400044 Contact Us For Availability
4
SPQ M400008 SPQ M400008 Contact Us For Availability
4
Trunnion Assembly SPQ 44191202 Contact Us For Availability
4
SPQ M412086P SPQ M412086P Contact Us For Availability
4
SPQ M400033 SPQ M400033 Contact Us For Availability
4
SPQ M401327 SPQ M401327 Contact Us For Availability
4
Idler Housing SPQ M401370 Contact Us For Availability
4
Slip Ring Holder SPQ 44224401 Contact Us For Availability
4
Key SPQ 44169901 Contact Us For Availability
4
Resilient Ring Kit SPQ M414564 Contact Us For Availability
4
Gas Stove Assembly SPQ M402797 Contact Us For Availability
4
Exhaust Thimble Assembly SPQ M412288 Contact Us For Availability
4
Male Tab Terminal SPQ M400985 Contact Us For Availability
4
Ignition Control SPQ 70458601P Contact Us For Availability
5
SPQ M401182P SPQ M401182P Contact Us For Availability
5
Screw SPQ M4772P3 Contact Us For Availability
5
Ball Bearing SPQ M412612 Contact Us For Availability
5
Control Assembly SPQ 70450503 Contact Us For Availability
5
Network Board Cover SPQ 44143701 Contact Us For Availability
5
Control Trim SPQ M401223 Contact Us For Availability
5
Nut SPQ M400977 Contact Us For Availability
5
Panel Locator SPQ 44293602 Contact Us For Availability
5
Deflector Cover SPQ 44162301 Contact Us For Availability
5
Latch Mounting Bracket SPQ 70180101 Contact Us For Availability
5
Trunnion Assembly SPQ M402144 Contact Us For Availability
5
Bearing SPQ M400650 Contact Us For Availability
5
Drive Motor SPQ M413541 Contact Us For Availability
5
Screw SPQ H8752006H Contact Us For Availability
5
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
5
Motor Hardware Kit SPQ M400994P Contact Us For Availability
5
Burner Assembly SPQ M401404 Contact Us For Availability
5
Rear Panel Assembly SPQ 70319602 Contact Us For Availability
5
SPQ F8223801 SPQ F8223801 Contact Us For Availability
5
Fuse Bracket SPQ 44155601P Contact Us For Availability
5
Junction Box Harness SPQ M413506 Contact Us For Availability
6
Pop Rivet SPQ 70211902P Contact Us For Availability
6
Loading Spring SPQ M401375P Contact Us For Availability
6
SPQ M414567 SPQ M414567 Contact Us For Availability
6
Control Panel Harness SPQ 70450501P Contact Us For Availability
6
Control Panel Harness SPQ 70410401P Contact Us For Availability
6
Network Wire Harness Assembly SPQ 202335 Contact Us For Availability
6
Panel Locator SPQ 70117502 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ 70033502 Contact Us For Availability
6
Insulation SPQ 44020601 Contact Us For Availability
6
Base Harness Assembly SPQ 44001201 Contact Us For Availability
6
Spray Paint SPQ 70030401 Contact Us For Availability
6
Key SPQ M413836 Contact Us For Availability
6
SPQ 44117201 SPQ 44117201 Contact Us For Availability
6
Moisture Sensor Harness Assembl SPQ 70448902 Contact Us For Availability
6
Spark Electrode SPQ 44135605 Contact Us For Availability
6
SPQ 70329501 SPQ 70329501 Contact Us For Availability
6
Motor Contactor Harness SPQ 44139801P Contact Us For Availability
7
SPQ M410541P SPQ M410541P Contact Us For Availability
7
Pop Rivet SPQ 44035001 Contact Us For Availability
7
Key SPQ 44261801 Contact Us For Availability
7
Door Hinge Lug Assembly SPQ 70364104P Contact Us For Availability
7
SPQ 44137501P SPQ 44137501P Contact Us For Availability
7
Clean Lint Compartment Sticker SPQ 70072801 Contact Us For Availability
7
Porcelain Touch-Up Paint SPQ 431318 Contact Us For Availability
7
SPQ 44008401P SPQ 44008401P Contact Us For Availability
7
SPQ M414565 SPQ M414565 Contact Us For Availability
7
Nut SPQ M400035 Contact Us For Availability
7
Idler Shaft SPQ M400401 Contact Us For Availability
7
Airflow Switch Arm SPQ 70319202 Contact Us For Availability
7
SPQ F8206901 SPQ F8206901 Contact Us For Availability
7
SPQ 70329401P SPQ 70329401P Contact Us For Availability
7
Reversing Contactor Harness SPQ 44136701P Contact Us For Availability
7
Contactor SPQ M414228P Contact Us For Availability
8
Housing and Trunnion Assembly SPQ F100136P Contact Us For Availability
8
Expansion Clip SPQ 70364103 Contact Us For Availability
8
Roller Bracket Assembly SPQ 70030201 Contact Us For Availability
8
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
8
Nut SPQ 44208001 Contact Us For Availability
8
SPQ 44233601 SPQ 44233601 Contact Us For Availability
8
SPQ 44107101 SPQ 44107101 Contact Us For Availability
8
SPQ 70265901 SPQ 70265901 Contact Us For Availability
8
Idler Housing Kit SPQ M414241 Contact Us For Availability
8
1 Circuit Plug Housing SPQ 44370401 Contact Us For Availability
8
Airflow Switch Cover SPQ 70319401 Contact Us For Availability
8
SPQ 00177 SPQ 00177 Contact Us For Availability
8
Jumper Harness Assembly SPQ 44255001 Contact Us For Availability
8
Reversing Contactor Jumper Wire SPQ 44139901P Contact Us For Availability
8
SPQ M414230P SPQ M414230P Contact Us For Availability
8
Interlock Contactor SPQ 44074401 Contact Us For Availability
9
Jumper Calibration Wire SPQ 70324604 Contact Us For Availability
9
Mounting Plate SPQ 70208801 Contact Us For Availability
9
SPQ M400003 SPQ M400003 Contact Us For Availability
9
SPQ 70126301 SPQ 70126301 Contact Us For Availability
9
SPQ 70132301 SPQ 70132301 Contact Us For Availability
9
Temperature Sensor Assembly SPQ B12308601 Contact Us For Availability
9
Washer SPQ 44207901 Contact Us For Availability
9
Trunnion and Bearing Assembly SPQ M413826 Contact Us For Availability
9
SPQ 430648 SPQ 430648 Contact Us For Availability
9
Shaft Wire SPQ 44208702 Contact Us For Availability
9
SPQ 44143501 SPQ 44143501 Contact Us For Availability
9
SPQ F430909 SPQ F430909 Contact Us For Availability
9
Network Capacitor Assembly SPQ 44186701 Contact Us For Availability
9
Reversing Contactor Jumper SPQ 44137001P Contact Us For Availability
10
Key SPQ 70155601 Contact Us For Availability
10
Ball Bearing SPQ 44041901P Contact Us For Availability
10
Terminal Block SPQ 430642 Contact Us For Availability
10
Central Pay Harness SPQ 70484601 Contact Us For Availability
10
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
10
Roller Catch Arm SPQ 70030301 Contact Us For Availability
10
Insulation SPQ 44150101 Contact Us For Availability
10
Cylinder Assembly SPQ 44057201P Contact Us For Availability
10
Nut SPQ 70142 Contact Us For Availability
10
Screw SPQ 70126103 Contact Us For Availability
10
Idler Arm SPQ 44102701 Contact Us For Availability
10
Ground Decal SPQ F230739 Contact Us For Availability
10
Door Interlock SPQ M412368 Contact Us For Availability
11
Door Switch Harness SPQ 44137601 Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Top Panel Bracket SPQ 44368201 Contact Us For Availability
11
Key SPQ M400993 Contact Us For Availability
11
Gas Valve Bracket SPQ 44175701 Contact Us For Availability
12
Foam Gasket SPQ 70414101 Contact Us For Availability
12
Kickplate SPQ 70117607 Contact Us For Availability
12
Top Cover Pan SPQ 44129301P Contact Us For Availability
12
Nut SPQ M414215 Contact Us For Availability
12
Cylinder Motor Harness SPQ M413565 Contact Us For Availability
12
Key SPQ 44132301 Contact Us For Availability
12
Contactor Box Base SPQ 44133701 Contact Us For Availability
12
Jumper Harness Assembly SPQ M413508 Contact Us For Availability
12
Transformer SPQ M414229P Contact Us For Availability
13
Pushbutton Switch SPQ 70413301 Contact Us For Availability
13
Pop Rivet SPQ 70126401 Contact Us For Availability
13
Top Rear Panel SPQ 44150102 Contact Us For Availability
13
Door Handle SPQ 44007901 Contact Us For Availability
13
Nut SPQ 02428 Contact Us For Availability
13
Motor Mount Assembly SPQ M414563 Contact Us For Availability
13
Screw SPQ M400077 Contact Us For Availability
13
Gas Valve SPQ 44154502P Contact Us For Availability
13
Ground Lug Connector SPQ M411283 Contact Us For Availability
14
Screw SPQ 70155602 Contact Us For Availability
14
Rear Panel Assembly SPQ 44176201 Contact Us For Availability
14
Door Ring Assembly SPQ 44326001 Contact Us For Availability
14
Washer SPQ 44139701P Contact Us For Availability
14
Fan Motor Harness SPQ M400013 Contact Us For Availability
14
Washer SPQ 70270301 Contact Us For Availability
14
Nut SPQ F430232 Contact Us For Availability
15
Pop Rivet SPQ 44089302P Contact Us For Availability
15
Pulley SPQ M412884 Contact Us For Availability
15
Screw SPQ M400661 Contact Us For Availability
15
Belt Guard SPQ 44137101P Contact Us For Availability
15
Extension Spring SPQ M412120 Contact Us For Availability
15
Cover Plate SPQ M413008 Contact Us For Availability
15
Snap Bushing SPQ 44071501 Contact Us For Availability
16
Shadow Box Clip SPQ 70182601 Contact Us For Availability
16
Pulley SPQ M413617 Contact Us For Availability
16
Micro V Pulley SPQ M411466P Contact Us For Availability
16
Guide Rail SPQ 44338601 Contact Us For Availability
16
Washer SPQ M410059 Contact Us For Availability
16
Pipe Nipple SPQ 431486 Contact Us For Availability
17
Guide Rail SPQ M412917P Contact Us For Availability
17
Extension Spring SPQ 44222501 Contact Us For Availability
18
Bottom Pan SPQ 70247701 Contact Us For Availability
18
Micro V Pulley SPQ 44132405 Contact Us For Availability
18
Elbow SPQ 70210201 Contact Us For Availability
18
Pipe Bracket SPQ 70058502 Contact Us For Availability
19
Motor Harness SPQ M400991 Contact Us For Availability
19
Baffle Gasket SPQ 44000701 Contact Us For Availability
19
Ring SPQ M412627 Contact Us For Availability
19
Guard Extension SPQ 44132404 Contact Us For Availability
19
Tension Plate Assembly SPQ 44132410 Contact Us For Availability
19
High Temperature Lead SPQ 70079601 Contact Us For Availability
19
Fuse Cover SPQ 44175801 Contact Us For Availability
20
Coin Chute Assembly SPQ 44065601P Contact Us For Availability
20
Idler Housing Kit SPQ M414405 Contact Us For Availability
20
Pulley SPQ 44137201P Contact Us For Availability
20
Rear Access Plate SPQ 44239704 Contact Us For Availability
20
Contactor Box Cover SPQ 44158901 Contact Us For Availability
21
SPQ 44086901P SPQ 44086901P Contact Us For Availability
21
Coin Vault Assembly SPQ 44005001P Contact Us For Availability
21
Idler/Belt Assembly Kit SPQ M412188 Contact Us For Availability
21
Key and Instruction Kit SPQ 44245201 Contact Us For Availability
21
Screw SPQ 44135201 Contact Us For Availability
21
Plug SPQ 70178701 Contact Us For Availability
22
Motor Bracket SPQ 44127401P Contact Us For Availability
22
SPQ H88412101 SPQ H88412101 Contact Us For Availability
22
SPQ F430533 SPQ F430533 Contact Us For Availability
22
Bolt SPQ 44338701 Contact Us For Availability
22
Hole Plug SPQ 44134001 Contact Us For Availability
23
SPQ M400399 SPQ M400399 Contact Us For Availability
29
SPQ M412090 SPQ M412090 Contact Us For Availability
30
SPQ M412931 SPQ M412931 Contact Us For Availability
30
SPQ M412156 SPQ M412156 Contact Us For Availability
31
SPQ M412885P SPQ M412885P Contact Us For Availability
35
SPQ M400026 SPQ M400026 Contact Us For Availability
NI
SPQ 943P3P SPQ 943P3P Contact Us For Availability
NI
Motor Kit SPQ 44245501 Contact Us For Availability
NI
Gas Valve Kit SPQ M413468P Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
L.P. Gas Valve Kit SPQ M4897P3 Contact Us For Availability
NI
L.P. Conversion Kit SPQ M4454P3 Contact Us For Availability
NI
SPQ CK120 SPQ CK120 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
USB Gateway Kit SPQ NK330 Contact Us For Availability
NI
Snap Bushing SPQ 44088501P Contact Us For Availability
NI
Network Board Assembly SPQ 210097 Contact Us For Availability
NI
Tumbler Dolly Kit SPQ 44016401 Contact Us For Availability
NI
SPQ 70275801 SPQ 70275801 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70297601 SPQ 70297601 Contact Us For Availability
NI
SPQ 70114001 SPQ 70114001 Contact Us For Availability
NI
SPQ 70404001 SPQ 70404001 Contact Us For Availability
NI
SPQ 44003201 SPQ 44003201 Contact Us For Availability
NI
SPQ 381P4 SPQ 381P4 Contact Us For Availability
NI
Spacer SPQ M405232 Contact Us For Availability
NI
SPQ M401402 SPQ M401402 Contact Us For Availability
NI
SPQ 44057503P SPQ 44057503P Contact Us For Availability
NI
SPQ 44057501P SPQ 44057501P Contact Us For Availability
NI
SPQ 44195705P SPQ 44195705P Contact Us For Availability
NI
SPQ 44195706 SPQ 44195706 Contact Us For Availability
NI
SPQ 44057504P SPQ 44057504P Contact Us For Availability
NI
Trunnion and Bearing Assembly SPQ M4645P3 Contact Us For Availability
NI
SPQ M4644P3 SPQ M4644P3 Contact Us For Availability
NI
SPQ M4640P3 SPQ M4640P3 Contact Us For Availability
NI
SPQ 44336301 SPQ 44336301 Contact Us For Availability
NI
SPQ 44253201P SPQ 44253201P Contact Us For Availability
NI
SPQ 44341501 SPQ 44341501 Contact Us For Availability
NI
SPQ 44107202 SPQ 44107202 Contact Us For Availability
NI
SPQ 44209001 SPQ 44209001 Contact Us For Availability
NI
SPQ 917P3 SPQ 917P3 Contact Us For Availability
NI
SPQ 942P3P SPQ 942P3P Contact Us For Availability
NI
Moisture Sensing Harness Kit SPQ 44344702 Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
Motor SPQ 44046201P Contact Us For Availability
NI
Fan Motor SPQ 44045901P Contact Us For Availability
NI
Motor SPQ 44242501P Contact Us For Availability
NI
Harness Assembly SPQ M412997 Contact Us For Availability
NI
Burner Orifice SPQ 70684100 Contact Us For Availability
NI
Rotation Sensor Harness SPQ F8066401 Contact Us For Availability
NI
Rotation Sensor Harness SPQ 70476101 Contact Us For Availability
NI
Rotation Sensor Kit SPQ 7009P Contact Us For Availability
NI
SPQ 70313602 SPQ 70313602 Contact Us For Availability
NI
SPQ 70306901 SPQ 70306901 Contact Us For Availability
NI
SPQ M413863 SPQ M413863 Contact Us For Availability
NI
SPQ 44157401 SPQ 44157401 Contact Us For Availability
NI
SPQ 44136901 SPQ 44136901 Contact Us For Availability
NI
Reversing Contactor Jumper Assembly SPQ 44136401 Contact Us For Availability
NI
SPQ 44143401P SPQ 44143401P Contact Us For Availability
NI
SPQ 44136301P SPQ 44136301P Contact Us For Availability
NI
SPQ 44266501 SPQ 44266501 Contact Us For Availability
NI
SPQ F330186P SPQ F330186P Contact Us For Availability
× ![]()
