Model Electrolux MRT18SJFW0 REFRIGERATOR – Common Parts & Diagrams

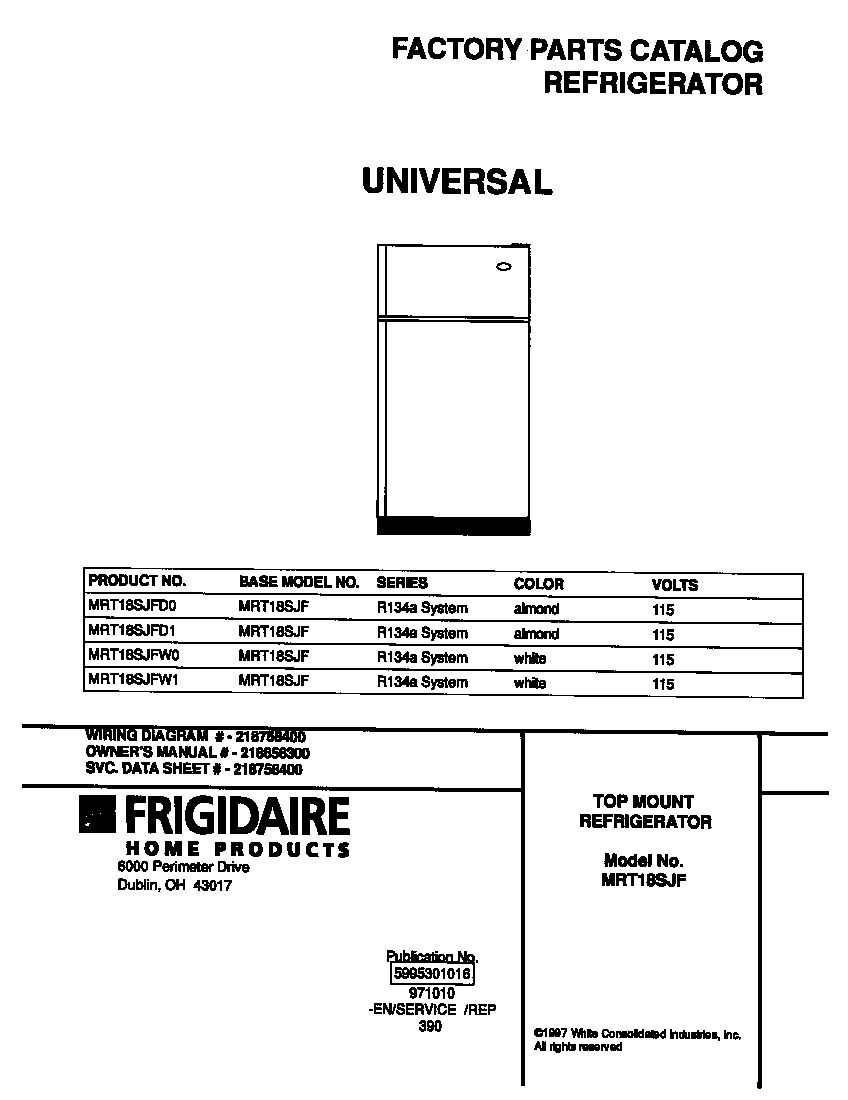

01 - COVER

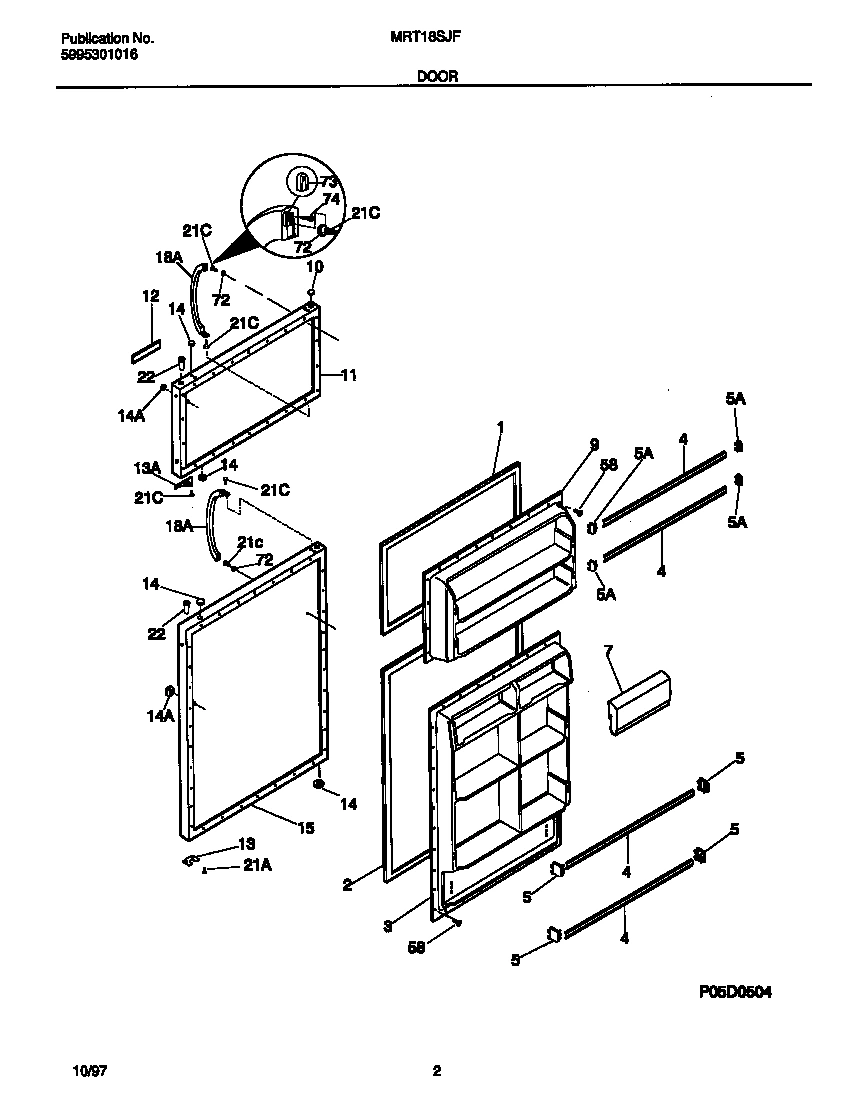

02 - DOOR

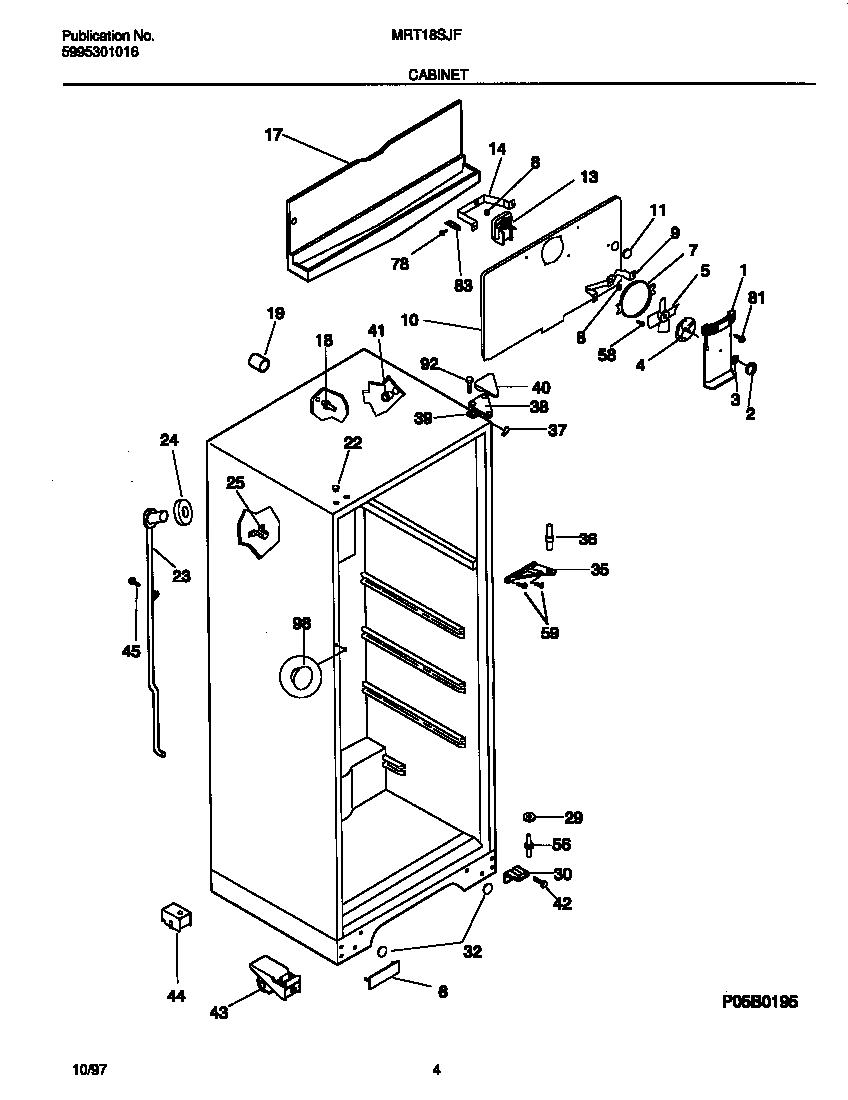

03 - CABINET

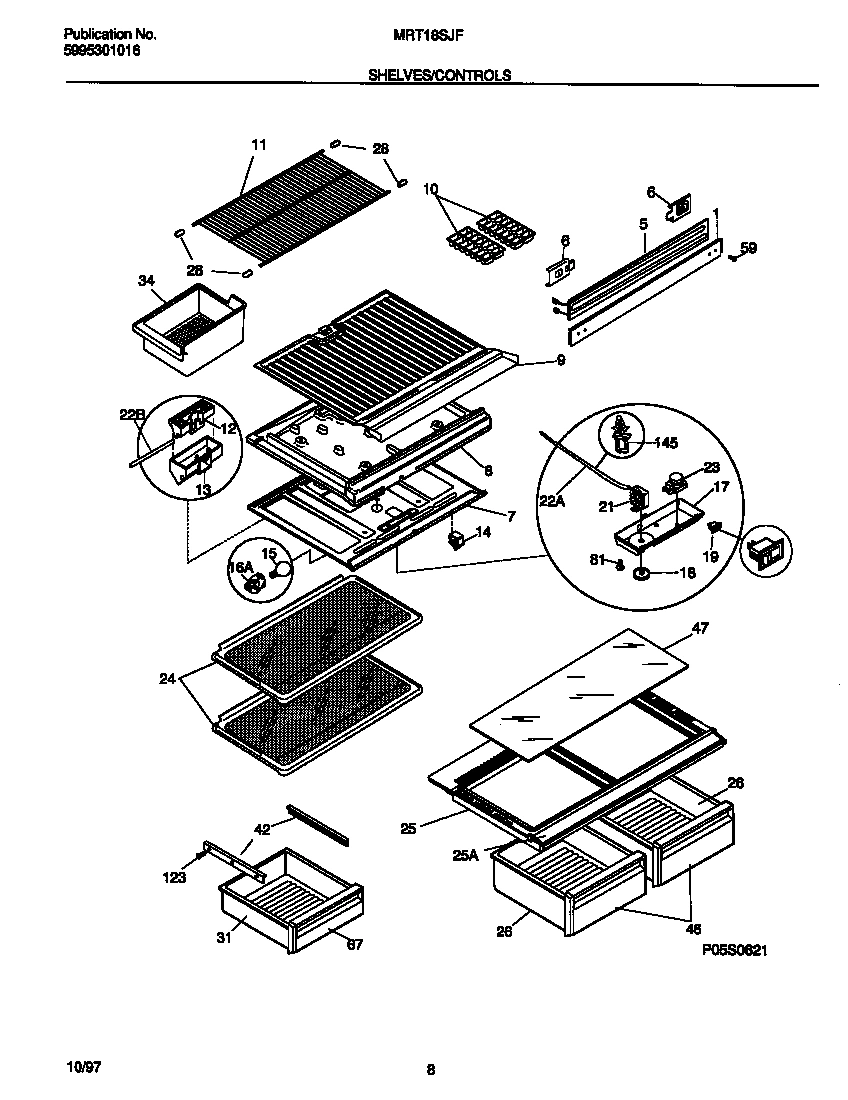

05 - SHELVES/CONTROLS

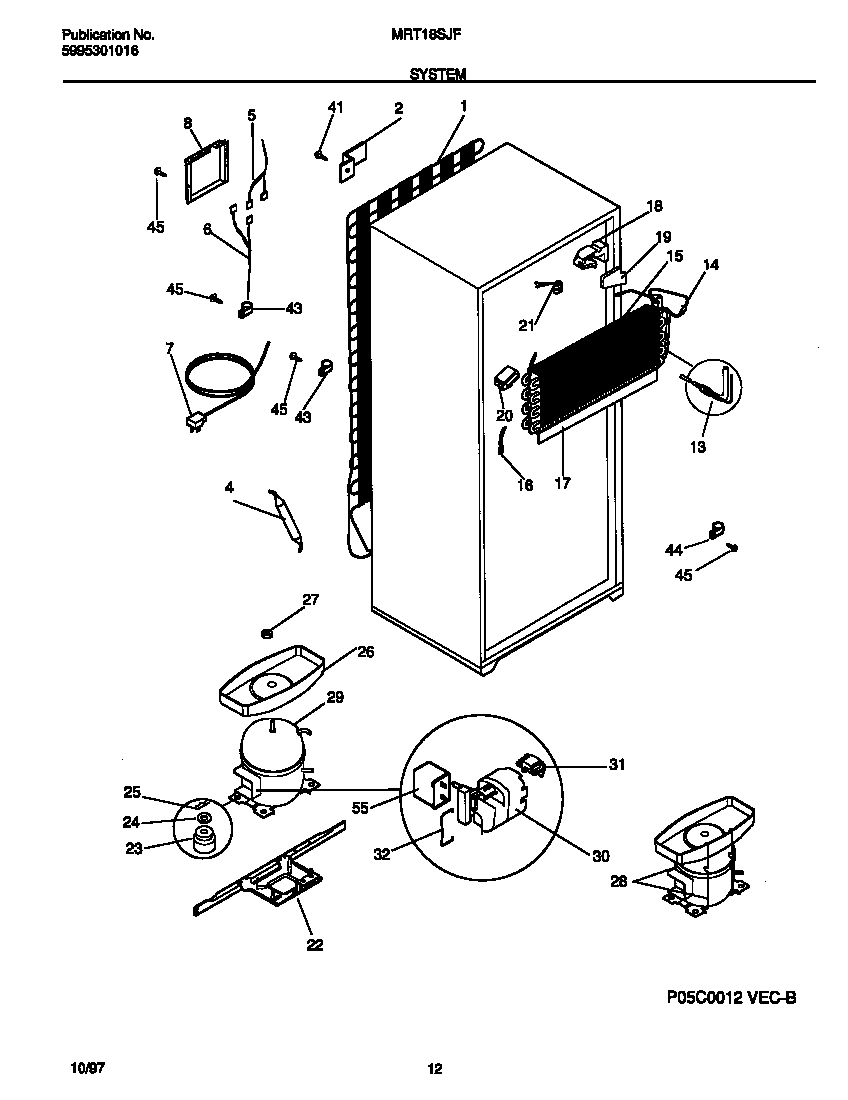

07 - SYSTEM
Common parts from model Electrolux MRT18SJFW0 REFRIGERATOR
*20200
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*20201
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*20205
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 215608916 WCI 215608916 Contact Us For Availability
1
WCI 218430801 WCI 218430801 Contact Us For Availability
1
WCI 218173900 WCI 218173900 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 218360001 WCI 218360001 Contact Us For Availability
5
WCI 218781003 WCI 218781003 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257003 WCI 215257003 Contact Us For Availability
7
WCI 218740500 WCI 218740500 Contact Us For Availability
7
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218778900 WCI 218778900 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR, FRZR SECTION WCI 3206455 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11A
SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303288242 Contact Us For Availability
12A
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 218429300 WCI 218429300 Contact Us For Availability
15
EVAPORATOR WCI 3206452 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
17A
WCI 5303321455 WCI 5303321455 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32CA X .625, CROSS WCI 218251900 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731101 WCI 218731101 Contact Us For Availability
22A
WCI 3206126 WCI 3206126 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF-``SPILL-SAFE``, (3) WCI 218770902 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5303207340 WCI 5303207340 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, UPPER FZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30C
SHIM, LOWER HINGE (NOT ILLUSTRATED) WCI 218368500 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WCI 3018945 WCI 3018945 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
42C
TAB-MEAT PAN HANGER, FRONT (NOT ILLUSTRATED) WCI 218780800 Contact Us For Availability
42D
TAB-MEAT PAN HANGER, REAR (NOT ILLUSTRATED) WCI 218780900 Contact Us For Availability
43E
WASHER, .34 X .62 X .02, NYLON (NOT ILLUSTRAT WCI 5308011326 Contact Us For Availability
44
ROLLER ASSY, METAL HOUSING WCI 5303283014 Contact Us For Availability
46
WCI 5303319069 WCI 5303319069 Contact Us For Availability
47
WCI 218390558 WCI 218390558 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
67
WCI 5303323258 WCI 5303323258 Contact Us For Availability
72
WCI 218397000 No Longer Available
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
