Model Electrolux MRT16FRGW2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR
03 - CABINET
04 - SHELVES

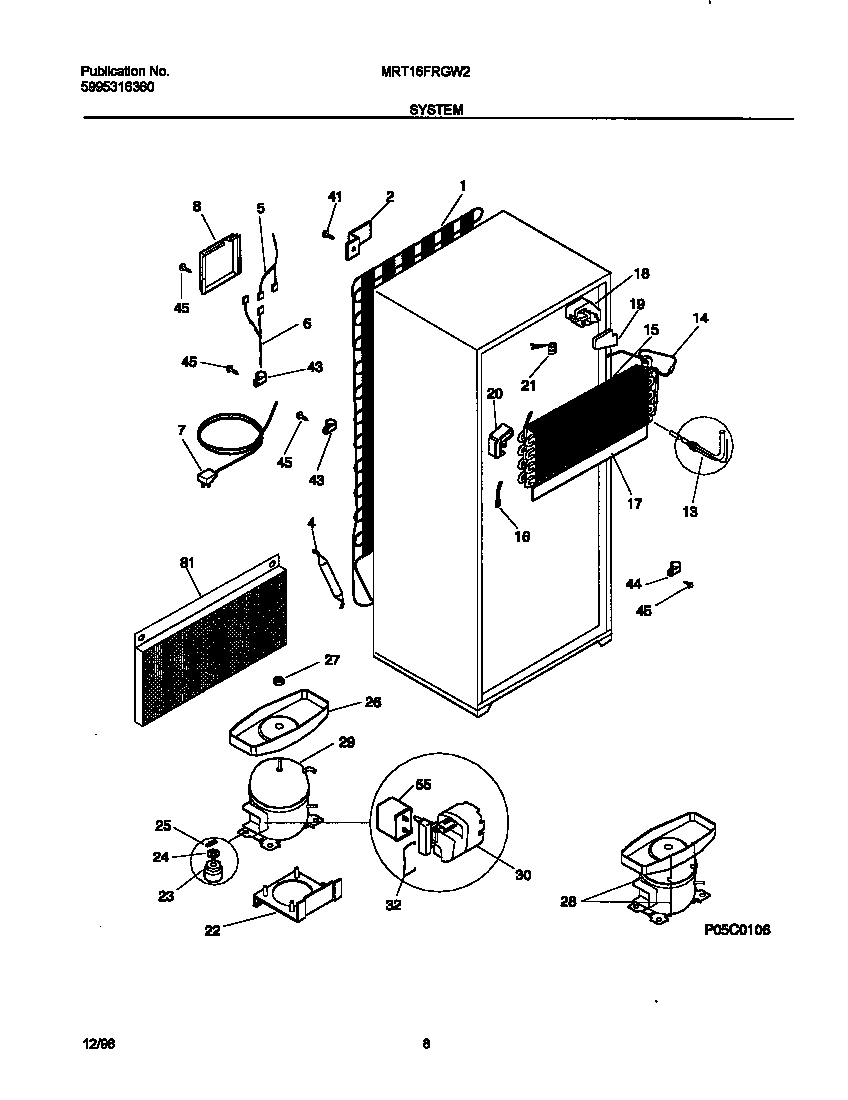

05 - SYSTEM

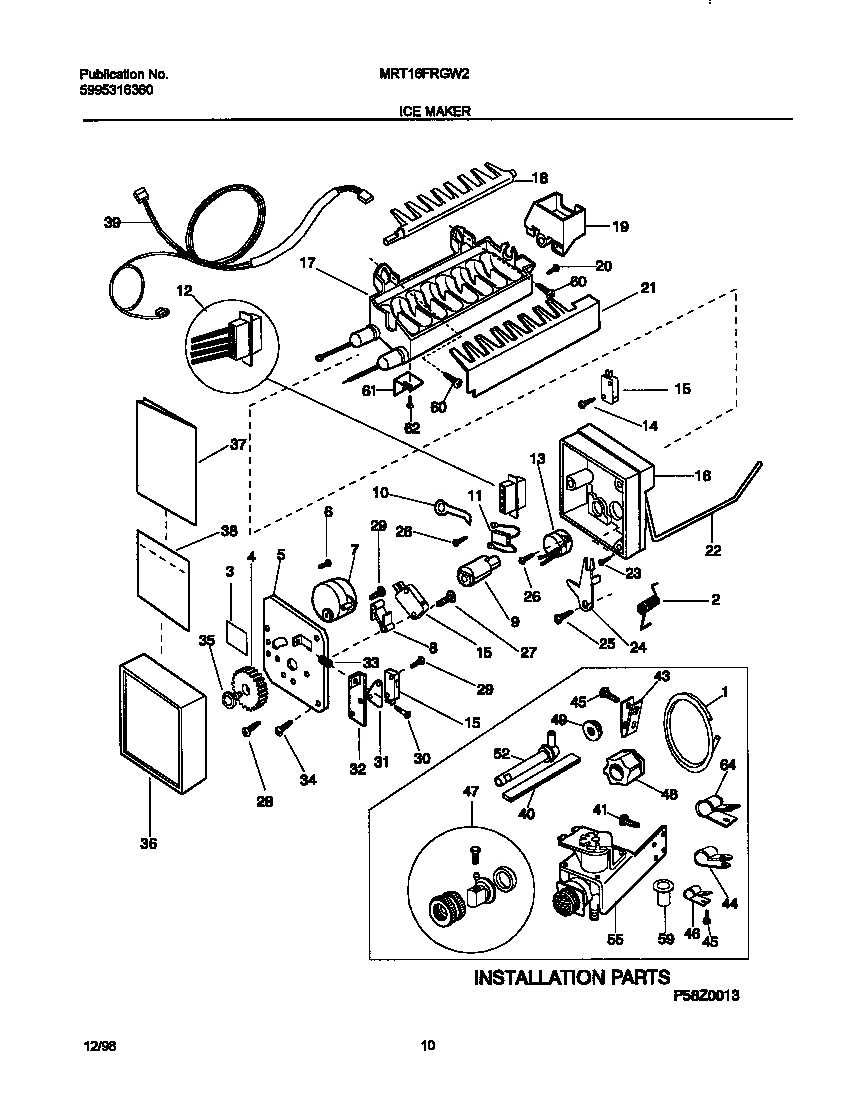

06 - ICE MAKER
07 - WIRING DIAGRAM
08 - WIRING DIAGRAM
Common parts from model Electrolux MRT16FRGW2 REFRIGERATOR
*58841
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*58860
SPACER-TUBE,5/8 OD X .81``LG WCI 5304406721 Contact Us For Availability
*58861
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*58862
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
*58863
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5308003607 Contact Us For Availability
*58867
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*58869
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
*58870
WCI 5303015102 WCI 5303015102 Contact Us For Availability
*58871
WCI 08000185 WCI 08000185 Contact Us For Availability
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
WCI 218781001 WCI 218781001 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 218845602 WCI 218845602 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
TOP PANEL-REFR WCI 218865801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218865700 WCI 218865700 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 218865600 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303283107 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
14
WCI 5308009754 No Longer Available
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218818701 WCI 218818701 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218821301 WCI 218821301 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 218821201 WCI 218821201 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218272501 WCI 218272501 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218314102 WCI 218314102 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW&SPCR/PLATE,4-40 X 1 WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, UPPER FZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 218366101 WCI 218366101 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
WCI 5303285319 WCI 5303285319 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
46
WCI 5303307450 WCI 5303307450 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 218390598 WCI 218390598 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
55
WCI 218720300 WCI 218720300 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
67
WCI 5303307877 WCI 5303307877 Contact Us For Availability
72
WCI 218397000 WCI 218397000 Contact Us For Availability
81
COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE CO WCI 218750100 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
