Model Electrolux MRT16DRGW2 REFRIGERATOR – Common Parts & Diagrams

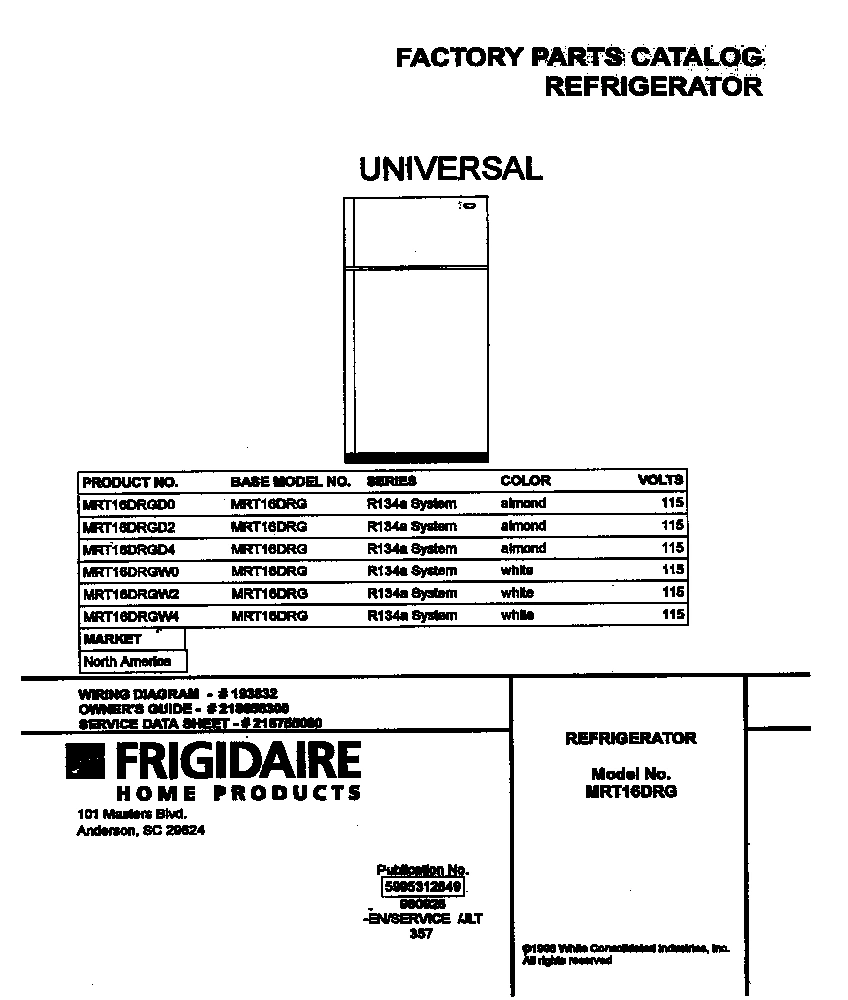

01 - COVER

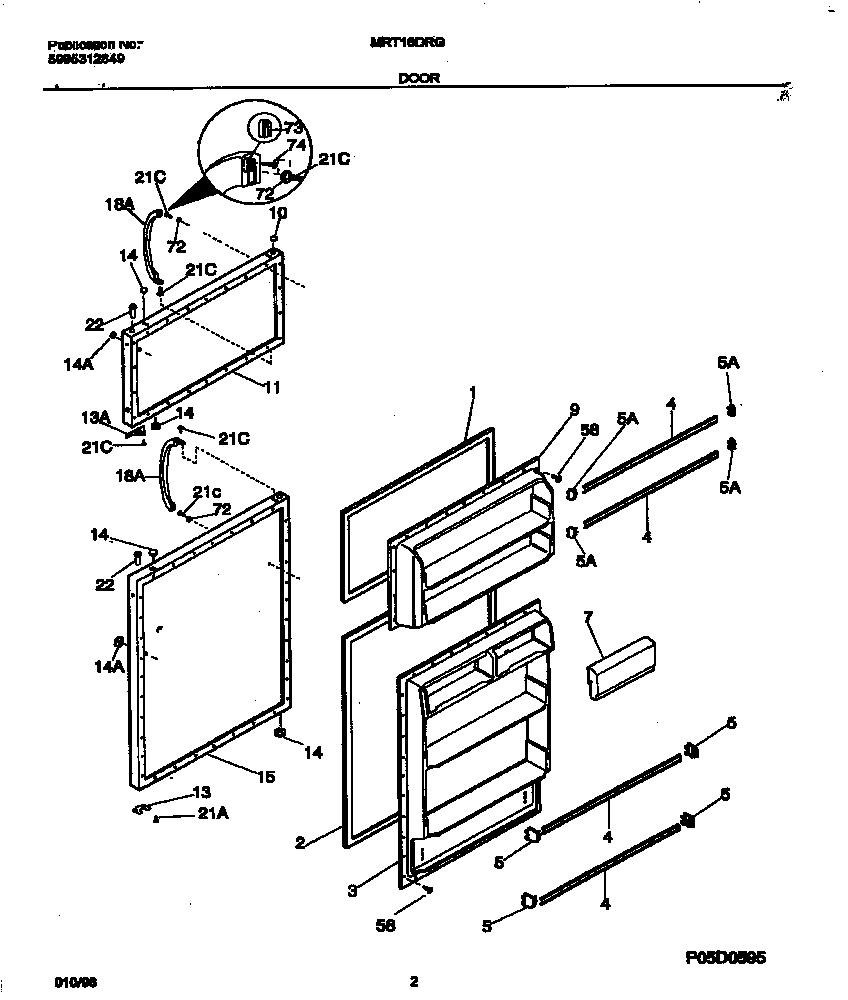

02 - DOOR

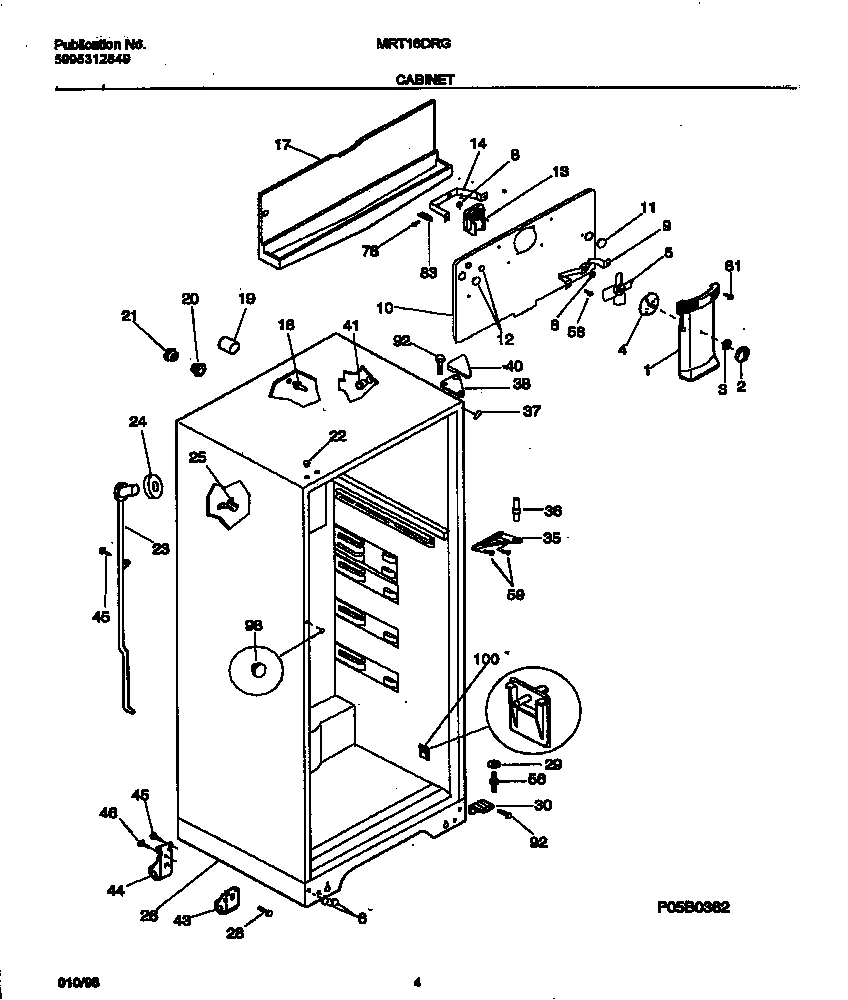

03 - CABINET

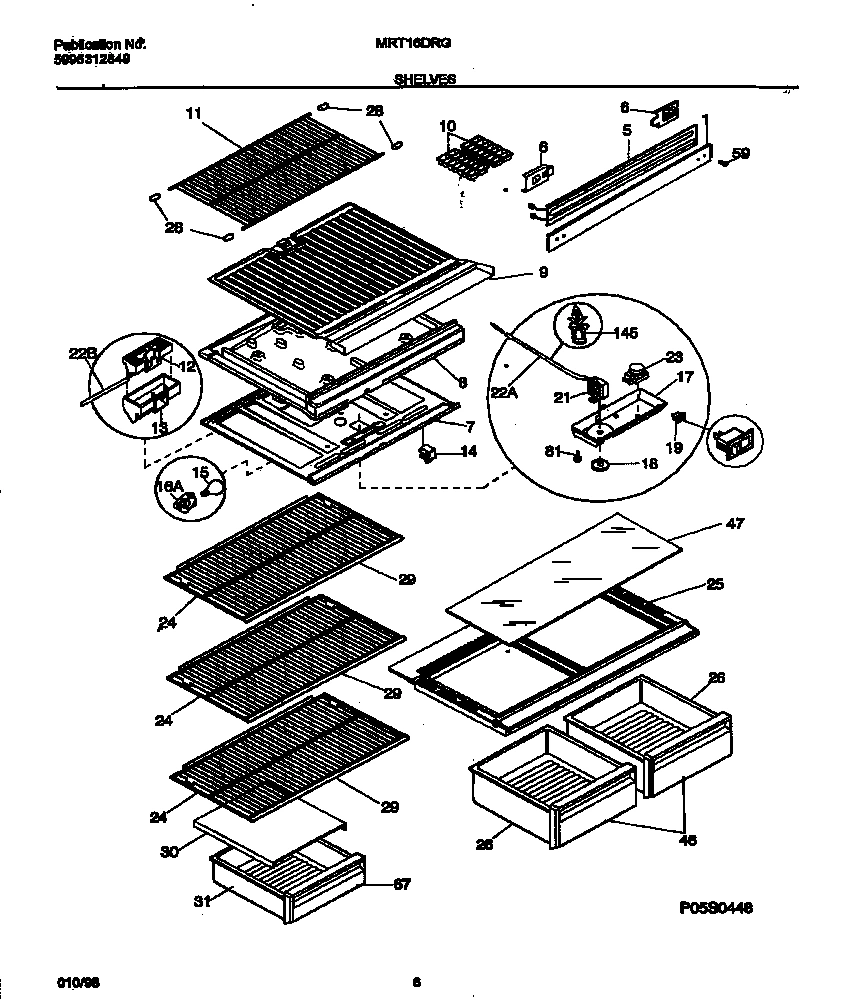

04 - SHELVES

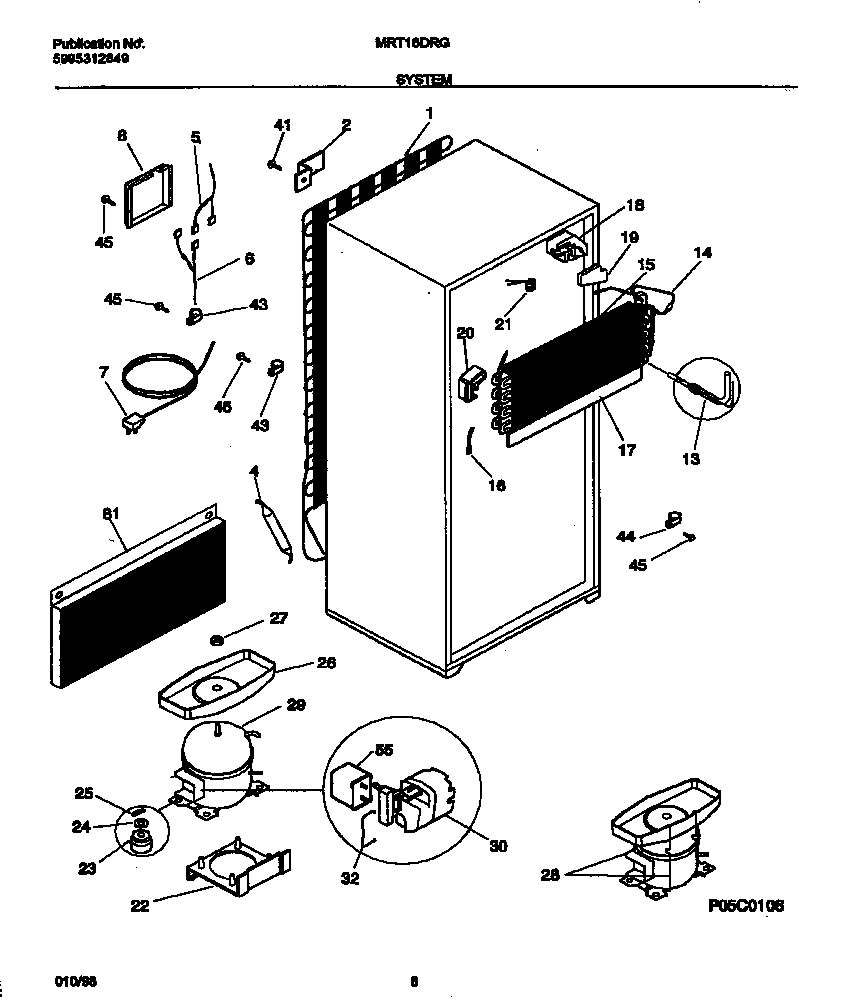

05 - SYSTEM

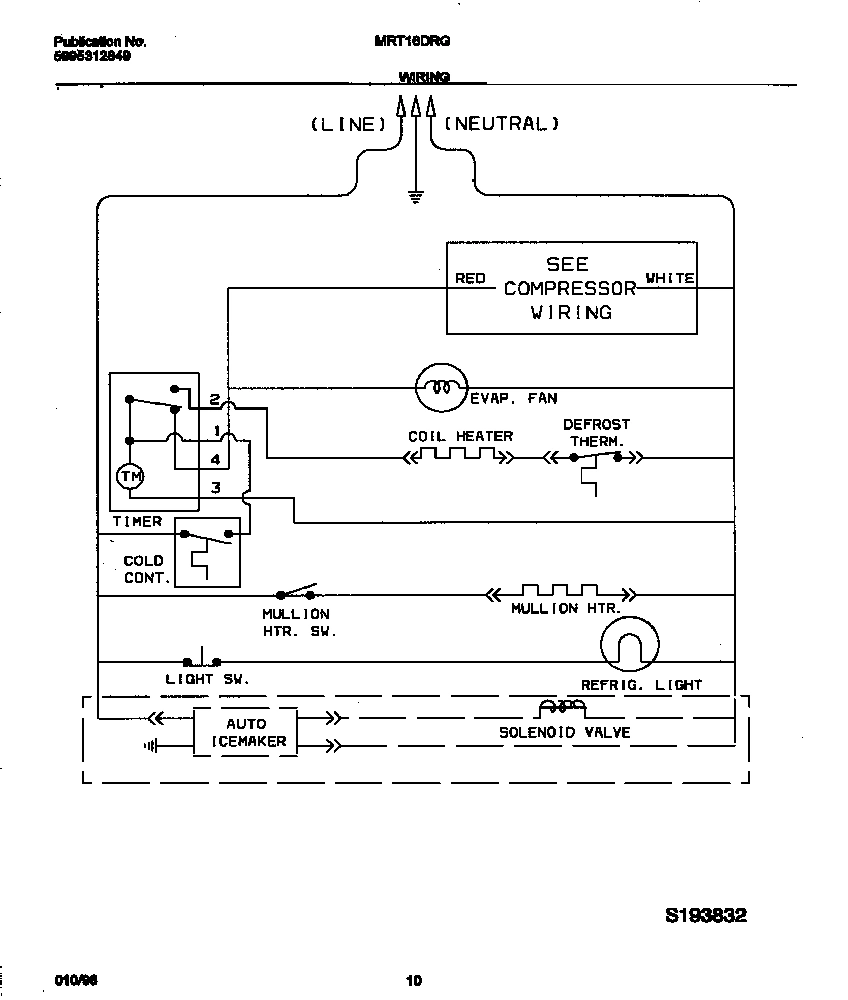

06 - WIRING DIAGRAM

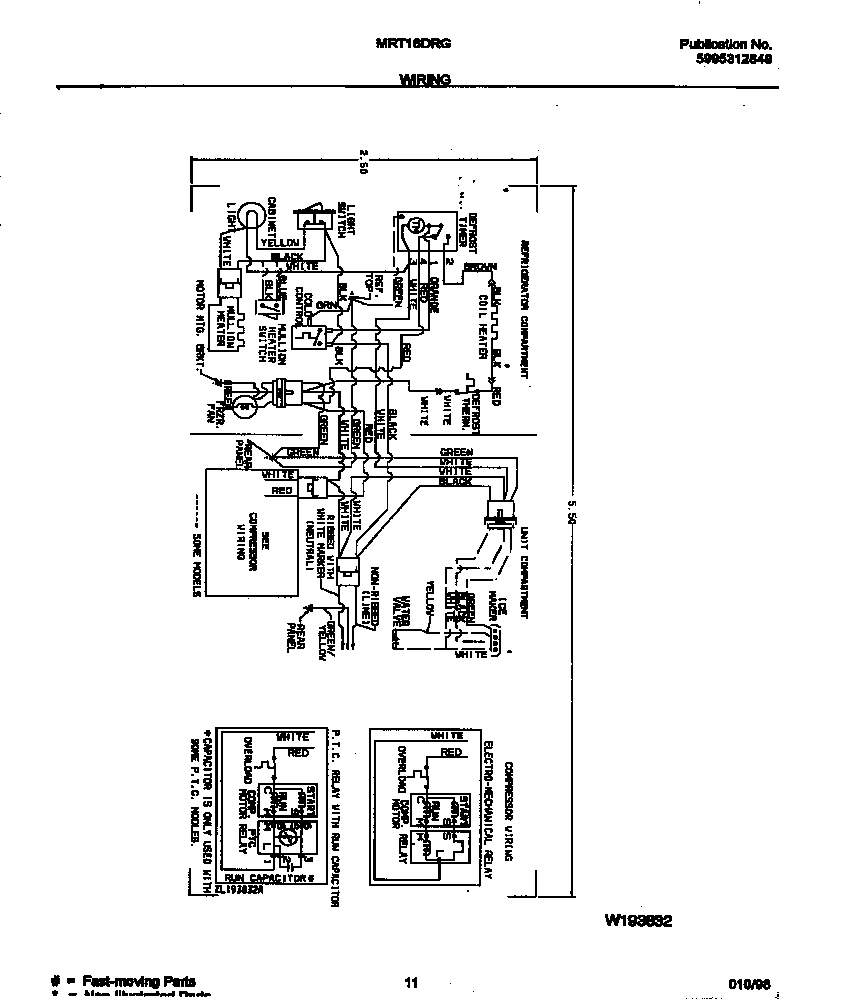

07 - WIRING DIAGRAM
Common parts from model Electrolux MRT16DRGW2 REFRIGERATOR
*05920
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*05929
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*05930
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*05934
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*05935
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*05938
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*05939
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability
1
WCI 218651800 WCI 218651800 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781001 WCI 218781001 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218845602 WCI 218845602 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
TOP PANEL-REFR WCI 218865801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218865700 WCI 218865700 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 218865600 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH WCI 5303283107 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
PLUG-HARNESS HOLE,(OPTIONAL) ,ROUND WCI 215079000 Contact Us For Availability
12B
PLUG-WTR INLET TUBE,(OPTIONAL) ,ROUND WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, FOR 2-PC COVER WCI 5303200590 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15A
WCI 218818701 WCI 218818701 Contact Us For Availability
15B
WCI 5303917951 WCI 5303917951 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218821301 WCI 218821301 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 218821201 WCI 218821201 Contact Us For Availability
21
SCREW,8 OVAL HEAD ,10-32CA X .625 , WCI 218251900 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
TUBE, PVC, WHITE, @ AIR DEFLECTOR, WCI 218731104 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218272501 WCI 218272501 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218314102 WCI 218314102 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 No Longer Available
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 218366101 WCI 218366101 Contact Us For Availability
30
WCI 5303285319 WCI 5303285319 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
40
WCI 3206101 WCI 3206101 Contact Us For Availability
45A
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
46
WCI 5303307450 WCI 5303307450 Contact Us For Availability
47
WCI 218390598 WCI 218390598 Contact Us For Availability
67
WCI 5303307877 WCI 5303307877 Contact Us For Availability
72
WCI 218397000 No Longer Available
81
COVER-SOUND INSUL,PRESSBOARD/FOAM , WCI 218750100 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
