Model Electrolux MRT15DRED2 REFRIGERATOR – Common Parts & Diagrams

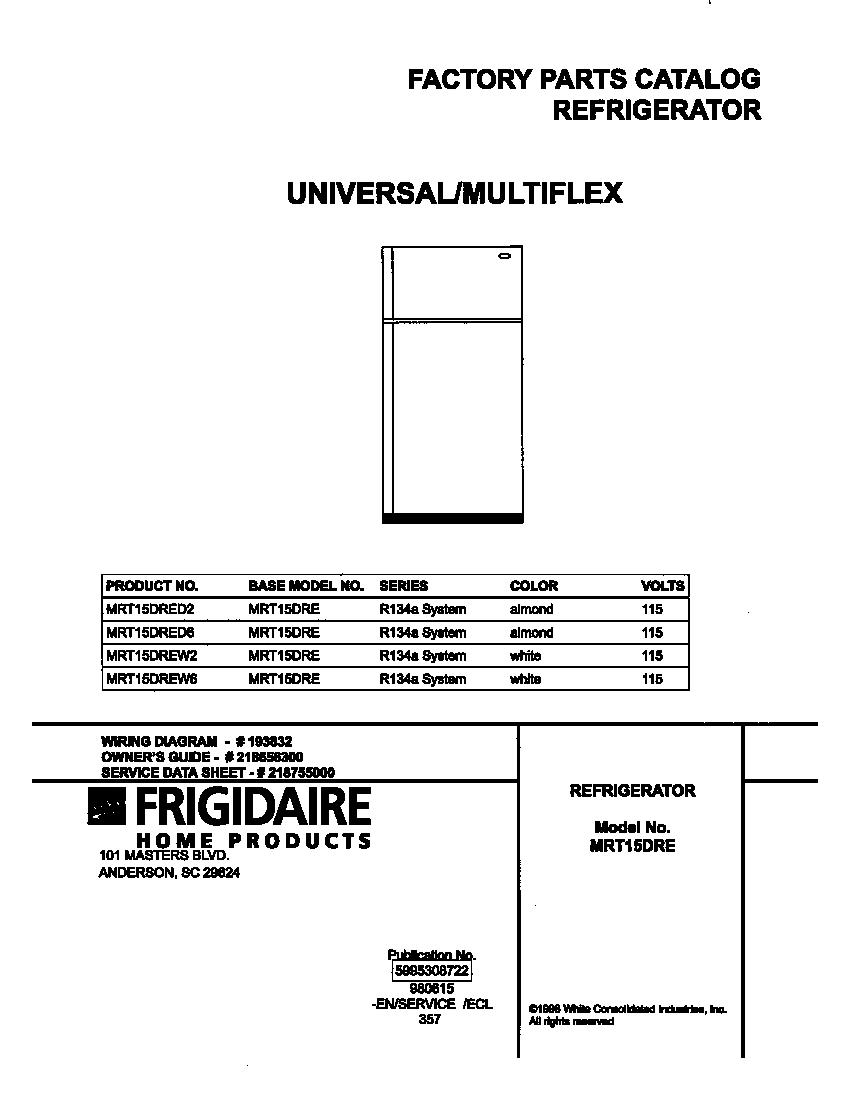

01 - COVER

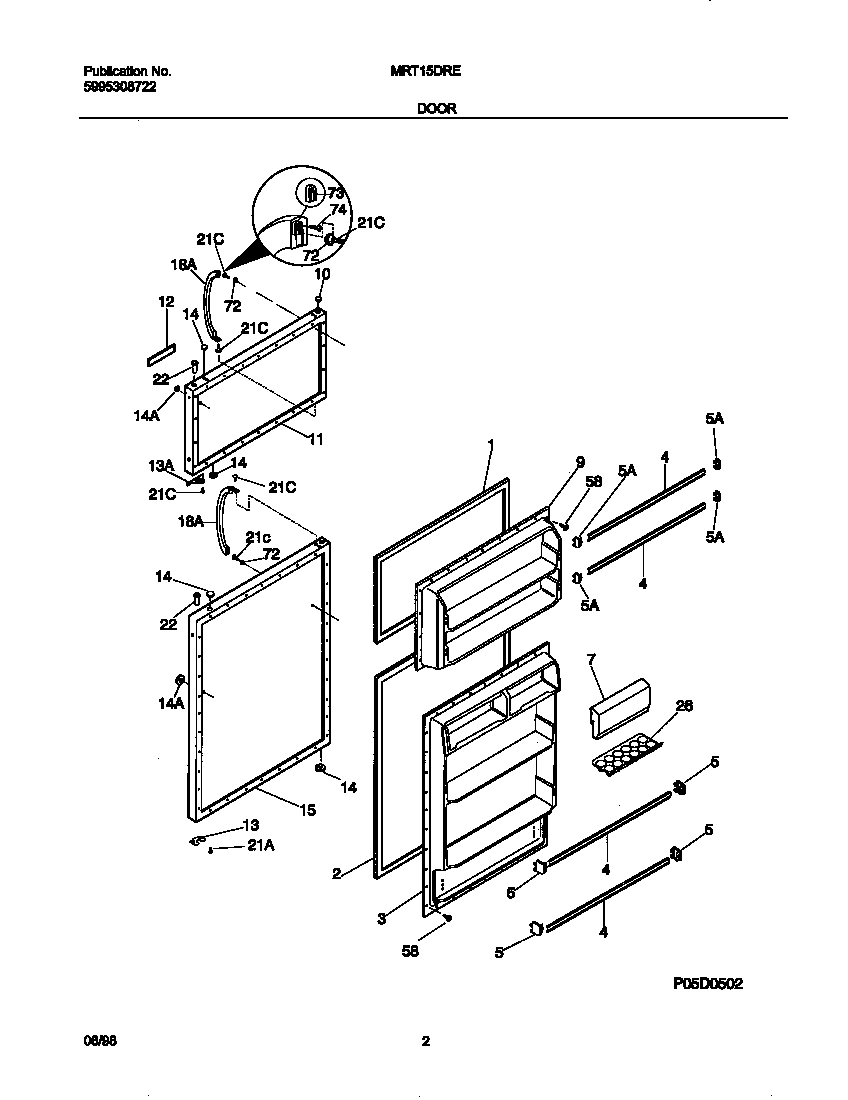

02 - DOOR

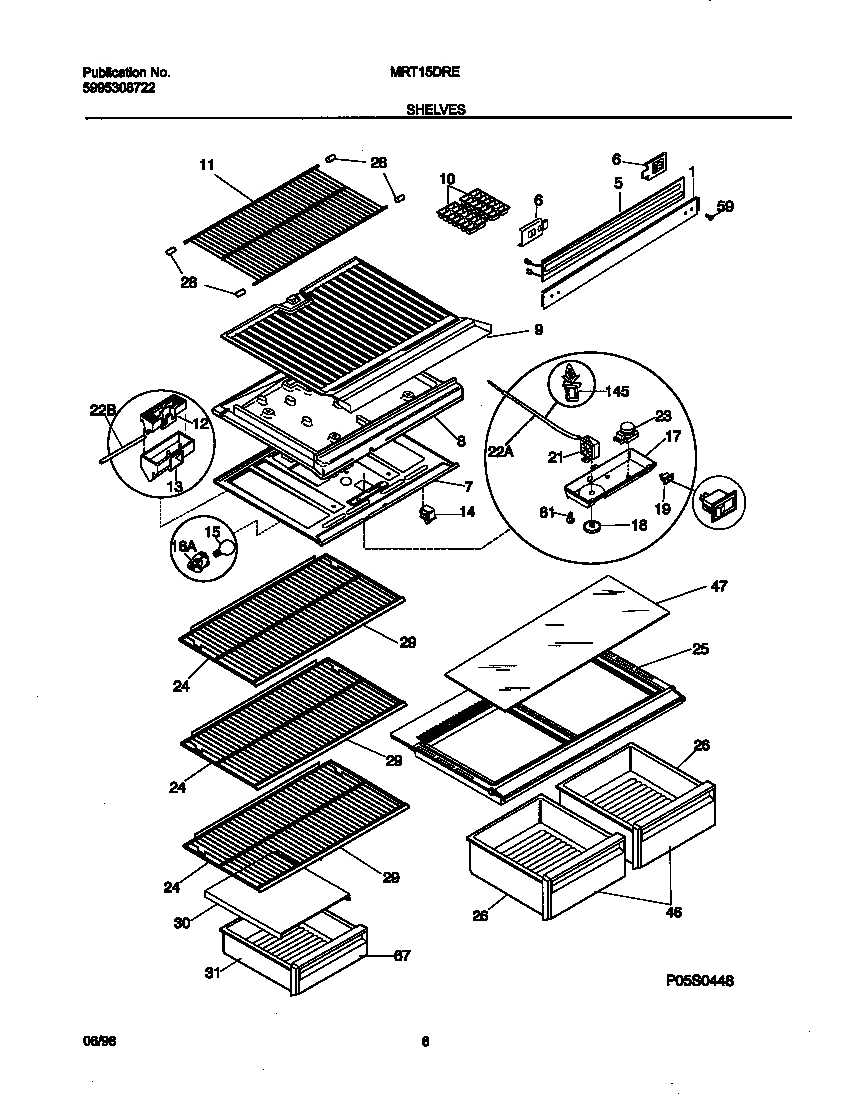

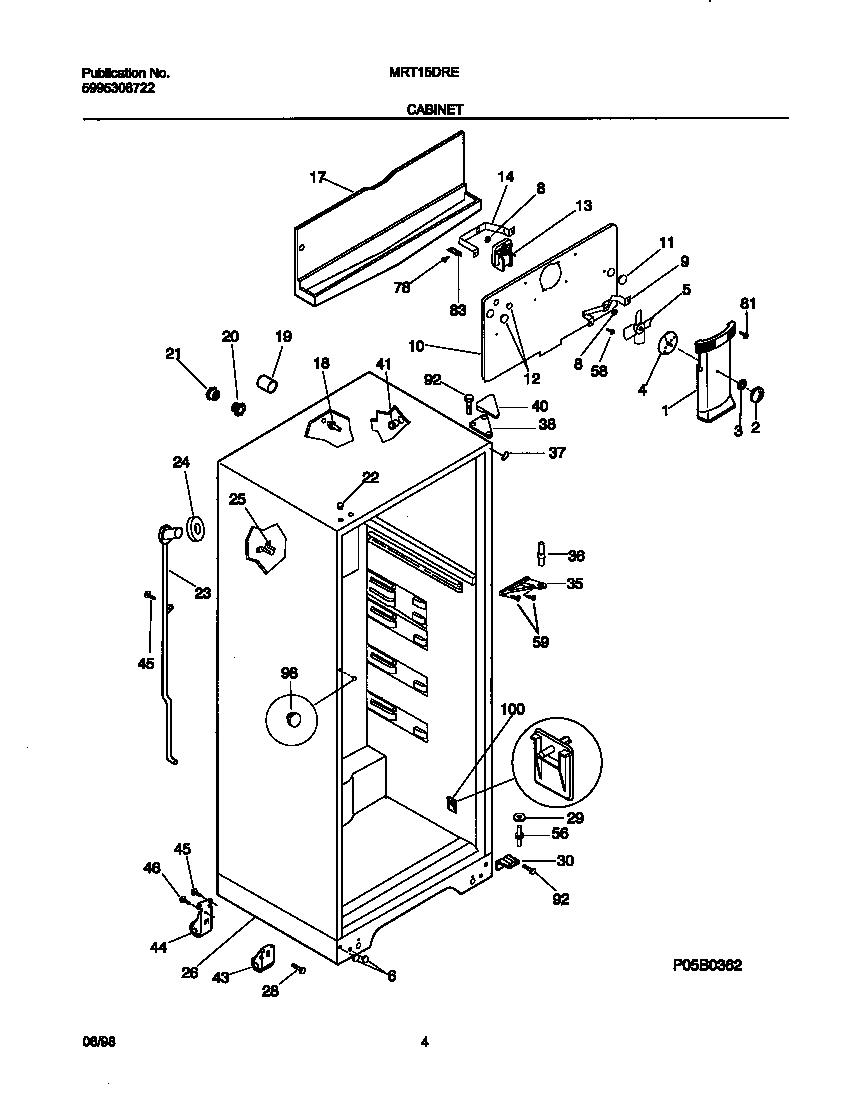

03 - CABINET
04 - SHELVES

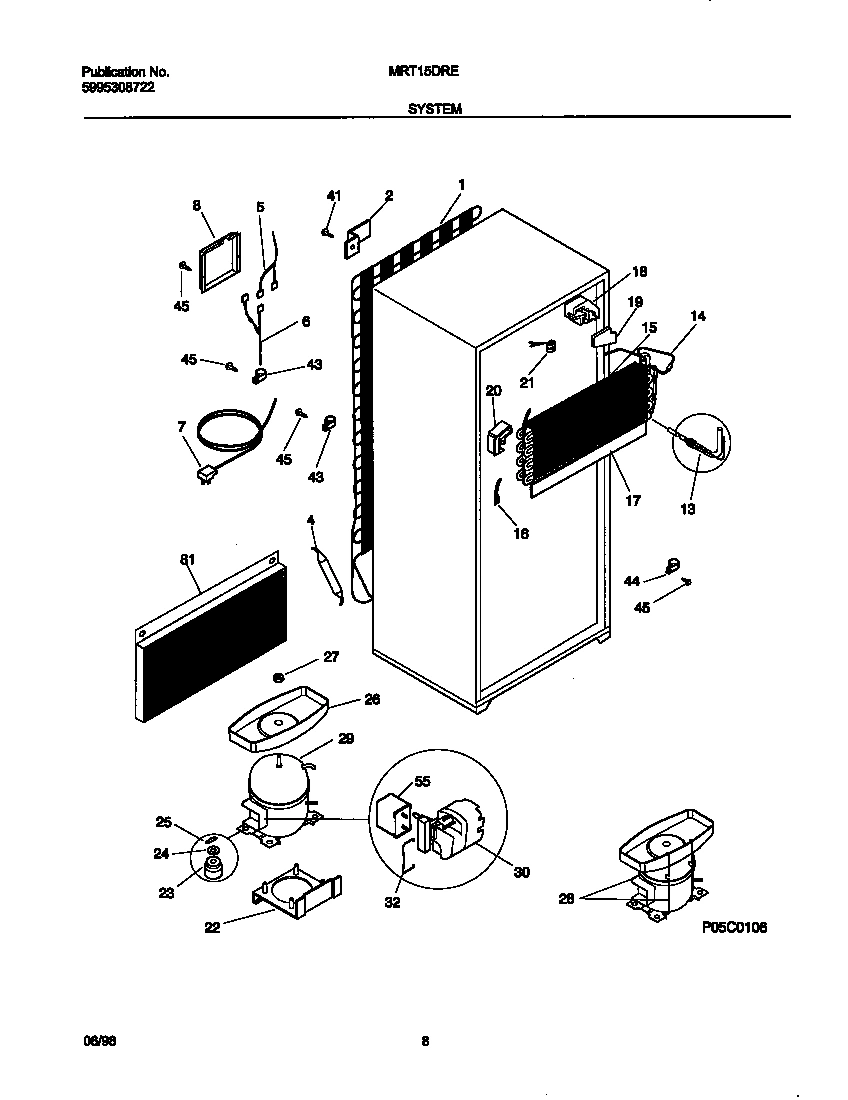

05 - SYSTEM

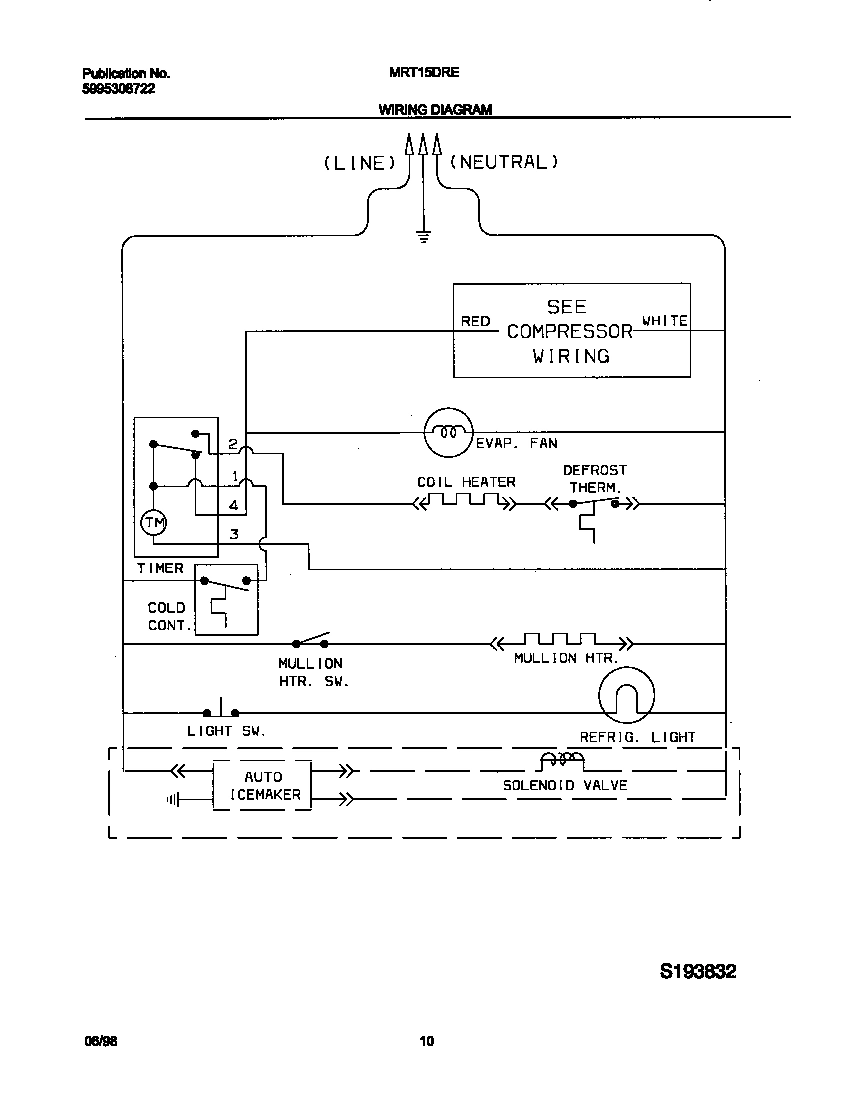

06 - WIRING DIAGRAM

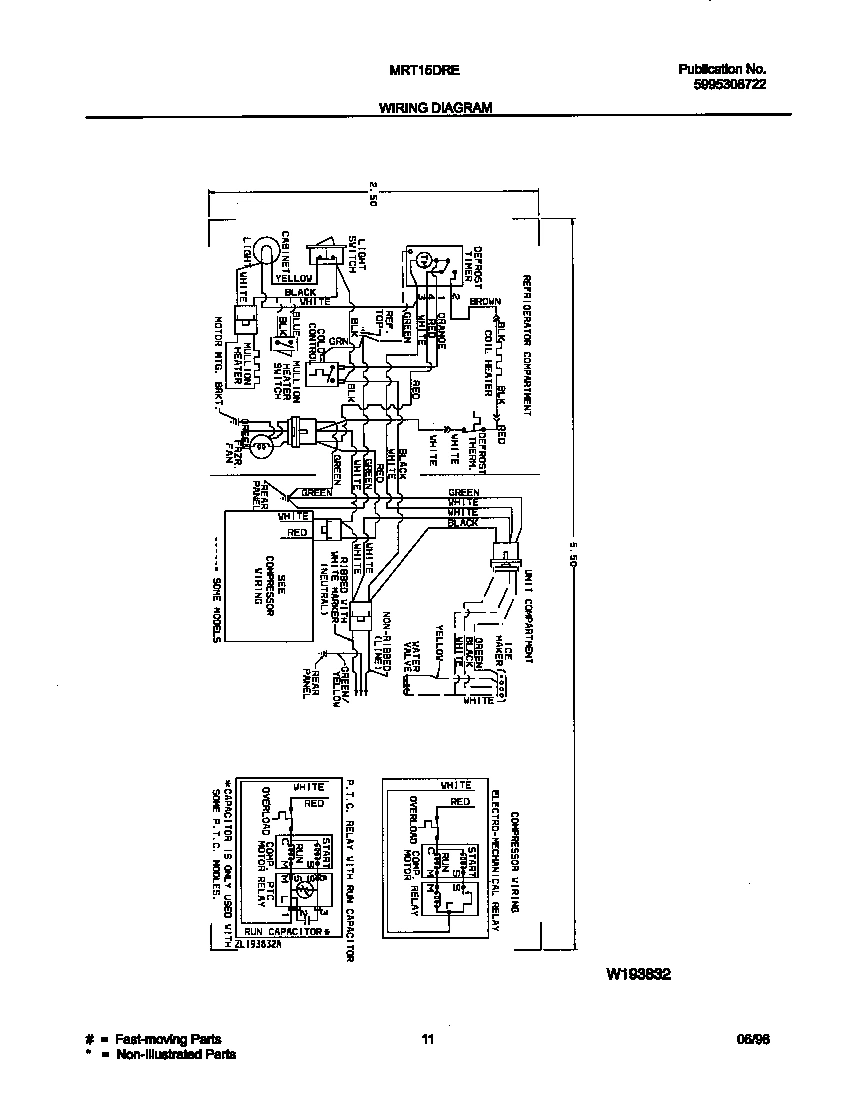

07 - WIRING DIAGRAM
Common parts from model Electrolux MRT15DRED2 REFRIGERATOR
*21081
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*21088
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*21091
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*21095
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*21096
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*21099
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*21100
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, ALMOND, MAGNETIC WCI 5303288856 Contact Us For Availability
1
WCI 218651801 WCI 218651801 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781001 WCI 218781001 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
TOP PANEL-REFR WCI 218740400 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218781300 WCI 218781300 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 3206187 WCI 3206187 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE WCI 5303283107 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
14
WCI 5308009754 No Longer Available
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW,8 OVAL HEAD ,10-32CA X .625 ,CROSS RECE WCI 218251900 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218272501 WCI 218272501 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218314102 WCI 218314102 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, UPPER FZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 218366101 WCI 218366101 Contact Us For Availability
29
WCI 218374509 WCI 218374509 Contact Us For Availability
30
WCI 5303285319 WCI 5303285319 Contact Us For Availability
30
WCI 218721100 WCI 218721100 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
43
ROLLER ASSY,FRONT ,(2) WCI 218703001 Contact Us For Availability
44
ROLLER ASSY,REAR ,(2) WCI 218713600 Contact Us For Availability
45B
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
46
WCI 5303309849 WCI 5303309849 Contact Us For Availability
46
BOLT-ROLLER MTG,HEX WSHR HD ,1/4-28 X .5,(2) WCI 5308009762 Contact Us For Availability
47
WCI 218390598 WCI 218390598 Contact Us For Availability
67
WCI 5303309850 WCI 5303309850 Contact Us For Availability
72
WCI 218397000 WCI 218397000 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
