Model Electrolux MRT15CSED8 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

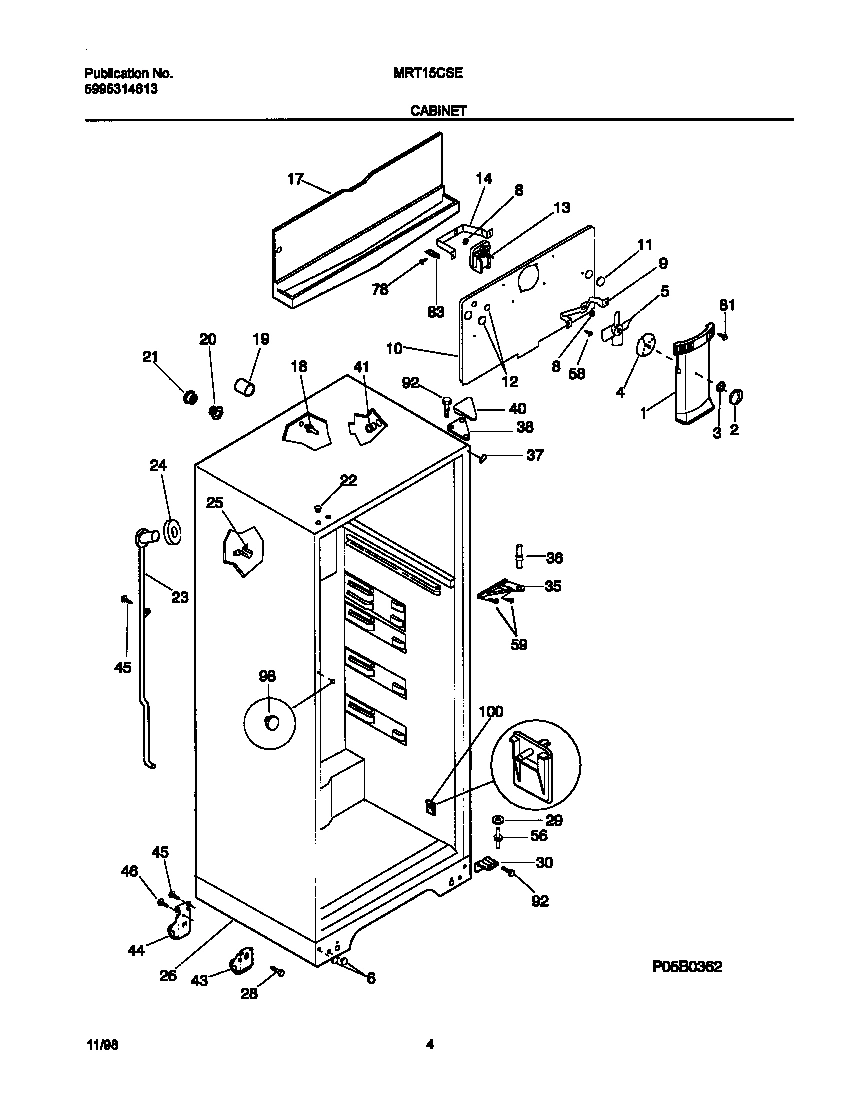

03 - CABINET

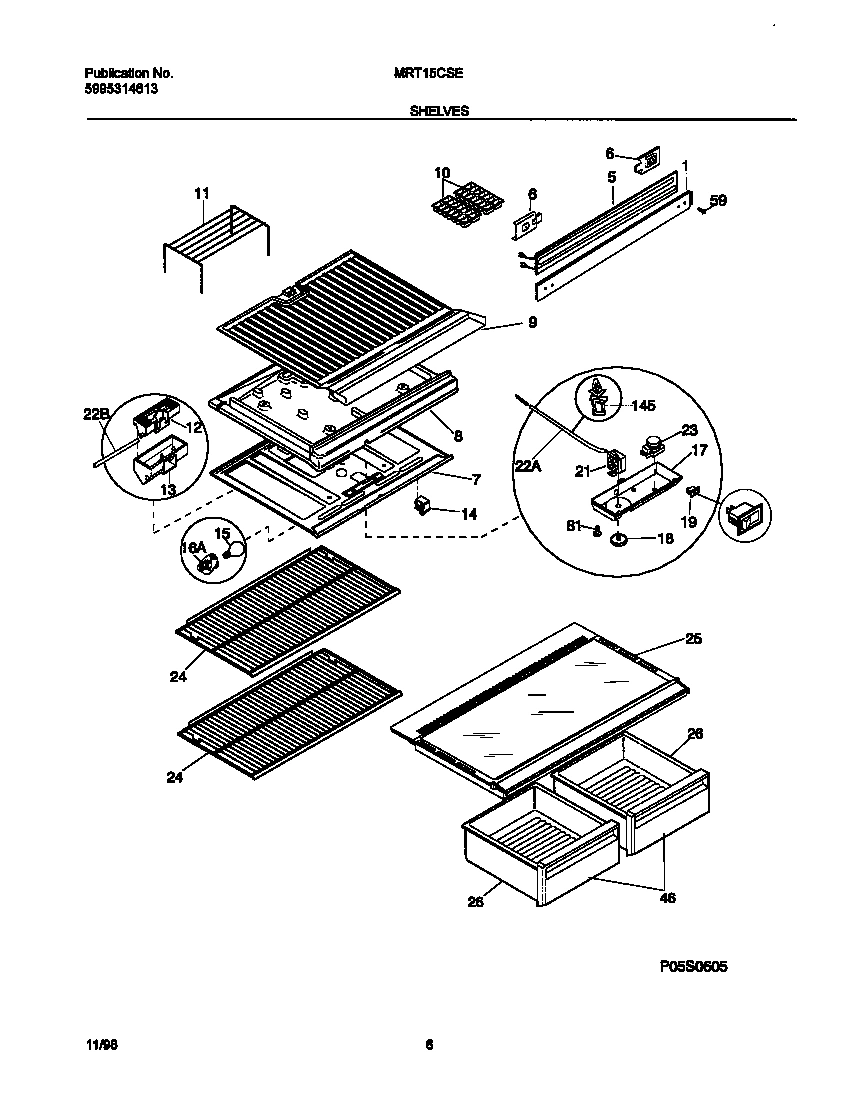

04 - SHELVES

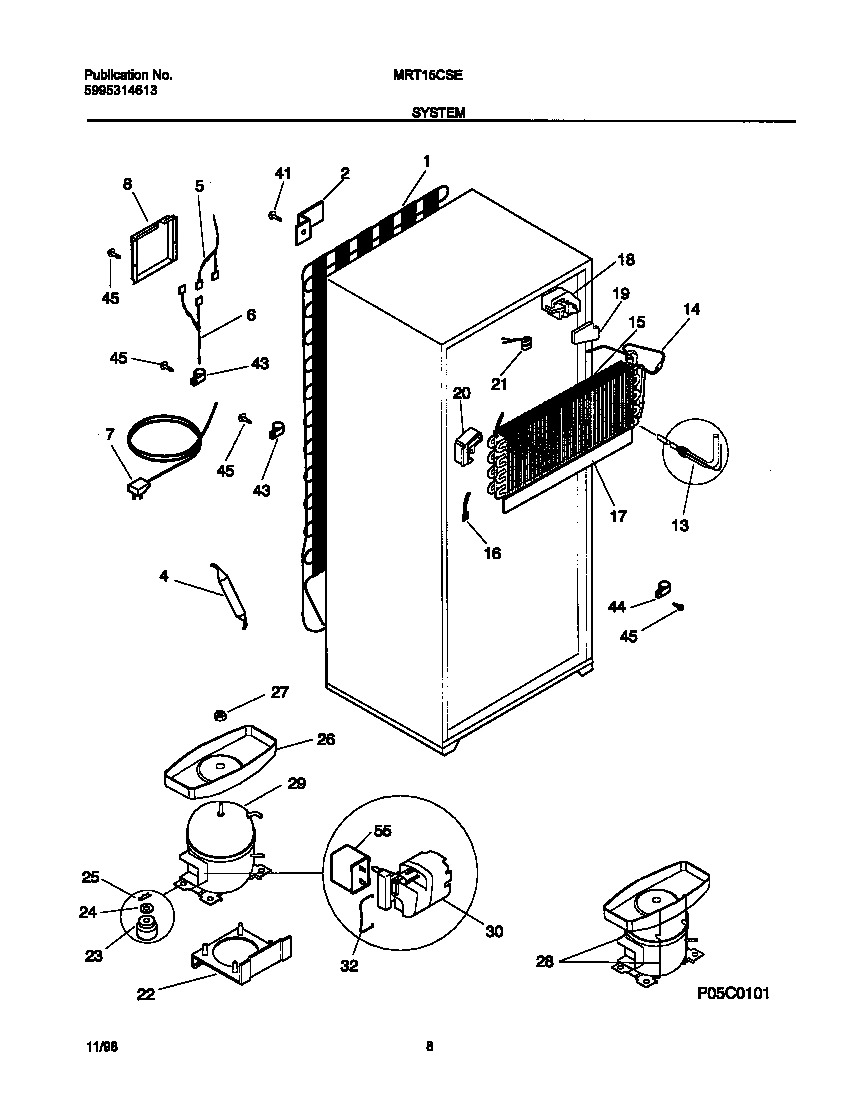

05 - SYSTEM

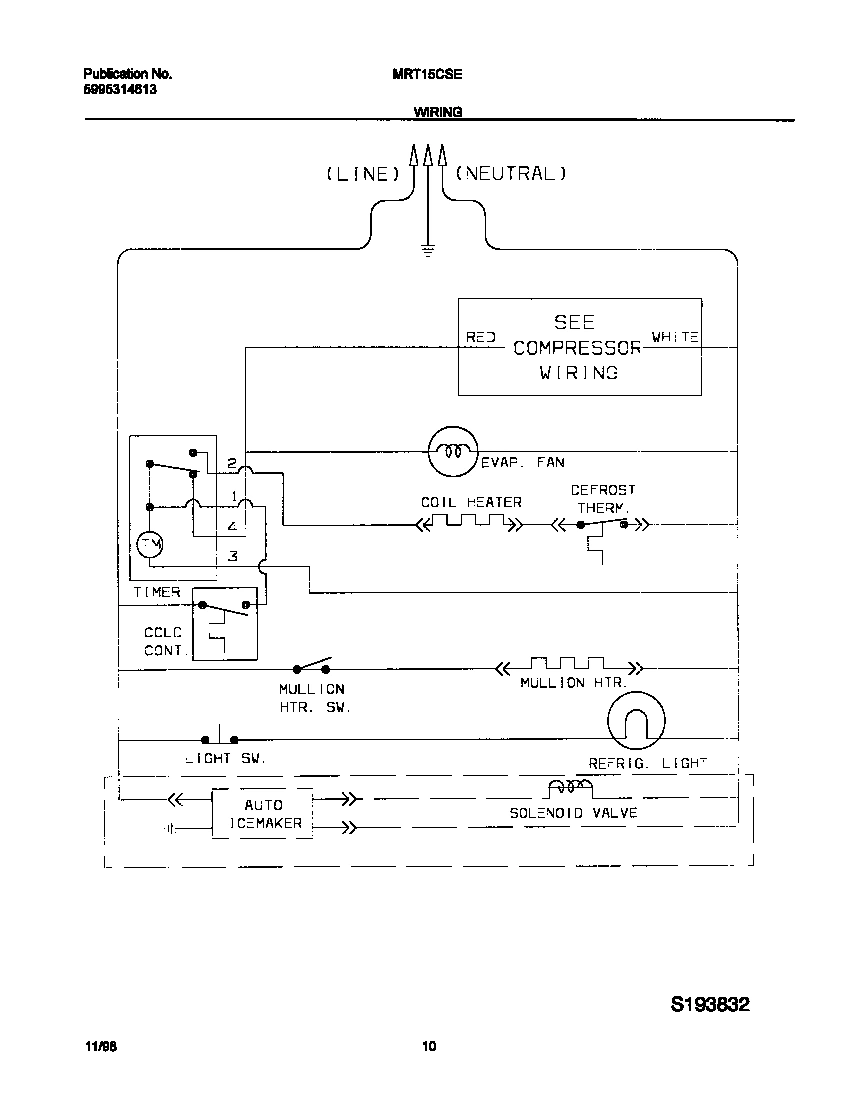

06 - WIRING DIAGRAM

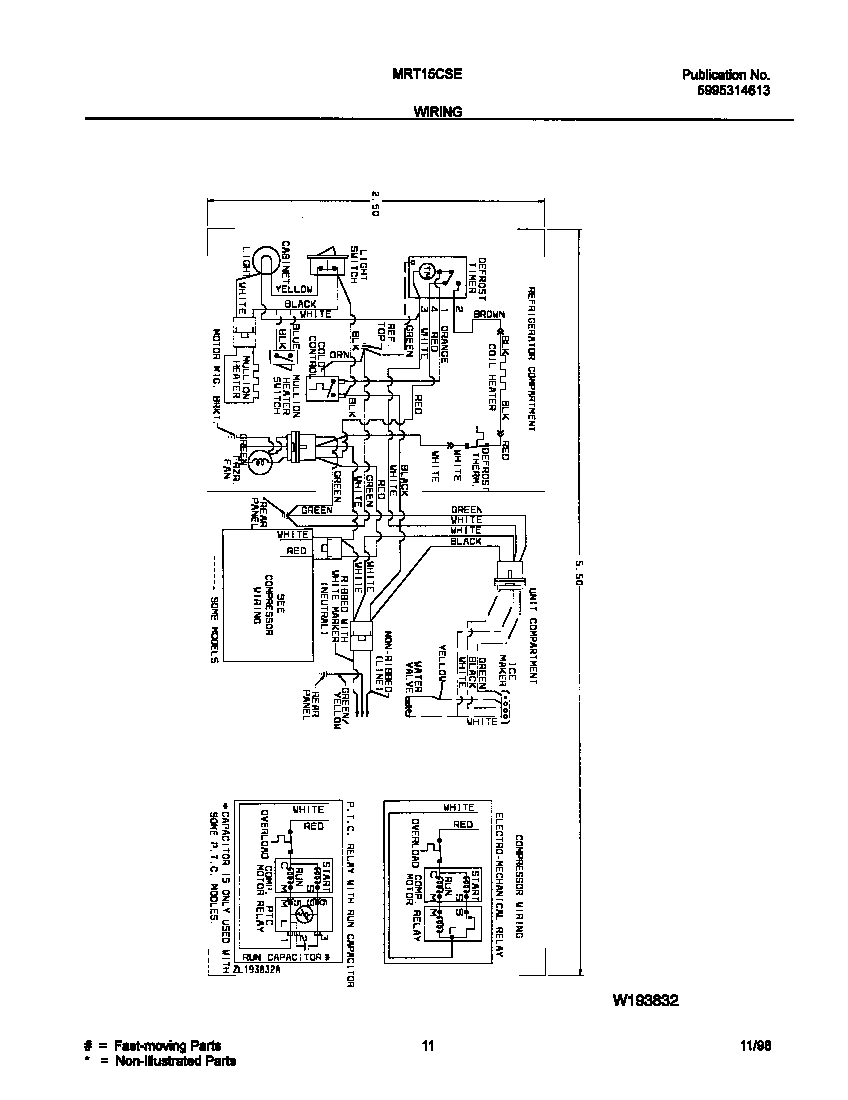

07 - WIRING DIAGRAM
Common parts from model Electrolux MRT15CSED8 REFRIGERATOR
*17121
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*17138
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*17139
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*17141
HARNESS-WIRING,CONTROL/DIVIDER WCI 218878500 Contact Us For Availability
*17143
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*17144
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*17147
WCI 218755000 WCI 218755000 Contact Us For Availability
*17149
SPACER-TUBE,5/8 OD X .81``LG WCI 5304406721 Contact Us For Availability
*17150
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
*17151
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5308003607 Contact Us For Availability
*17155
COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE CO WCI 218750100 Contact Us For Availability
*17156
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*17157
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, ALMOND, MAGNETIC WCI 5303288856 Contact Us For Availability
1
WCI 218651801 WCI 218651801 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781001 WCI 218781001 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
6
WCI 218845600 WCI 218845600 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
DOOR-DAIRY, 10.71`` WIDE WCI 218287801 Contact Us For Availability
7
TOP PANEL-REFR WCI 218865801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218865700 WCI 218865700 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 218865600 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
SHELF-FREEZER, ``TABLE TYPE`` WCI 5303283280 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
PLUG-HARNESS HOLE,ROUN (OPTIONAL) WCI 215079000 Contact Us For Availability
12B
PLUG-WTR INLET TUBE,ROUND(OPTIONAL) WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
WCI 5303917951 WCI 5303917951 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW,8 OVAL HEAD ,10-32CA X .625 ,CROSS RECE WCI 218251900 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 218272502 WCI 218272502 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218227301 WCI 218227301 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 No Longer Available
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29A
WCI 218666700 WCI 218666700 Contact Us For Availability
29B
WCI 218875801 WCI 218875801 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
35
WCI 218220102 WCI 218220102 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
43
ROLLER ASSY,FRONT ,(2) WCI 218703001 Contact Us For Availability
44
ROLLER ASSY,REAR ,(2) WCI 218713600 Contact Us For Availability
46
FRONT, CRISPER PAN WCI 5303303588 Contact Us For Availability
46
BOLT-ROLLER MTG,HEX WSHR HD ,1/4-28 X .5,(2) WCI 5308009762 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
72
WCI 218397000 No Longer Available
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
