Model Whirlpool MOED6027LZ00 WALL OVEN, ELECTRIC – Common Parts &amp; Diagrams

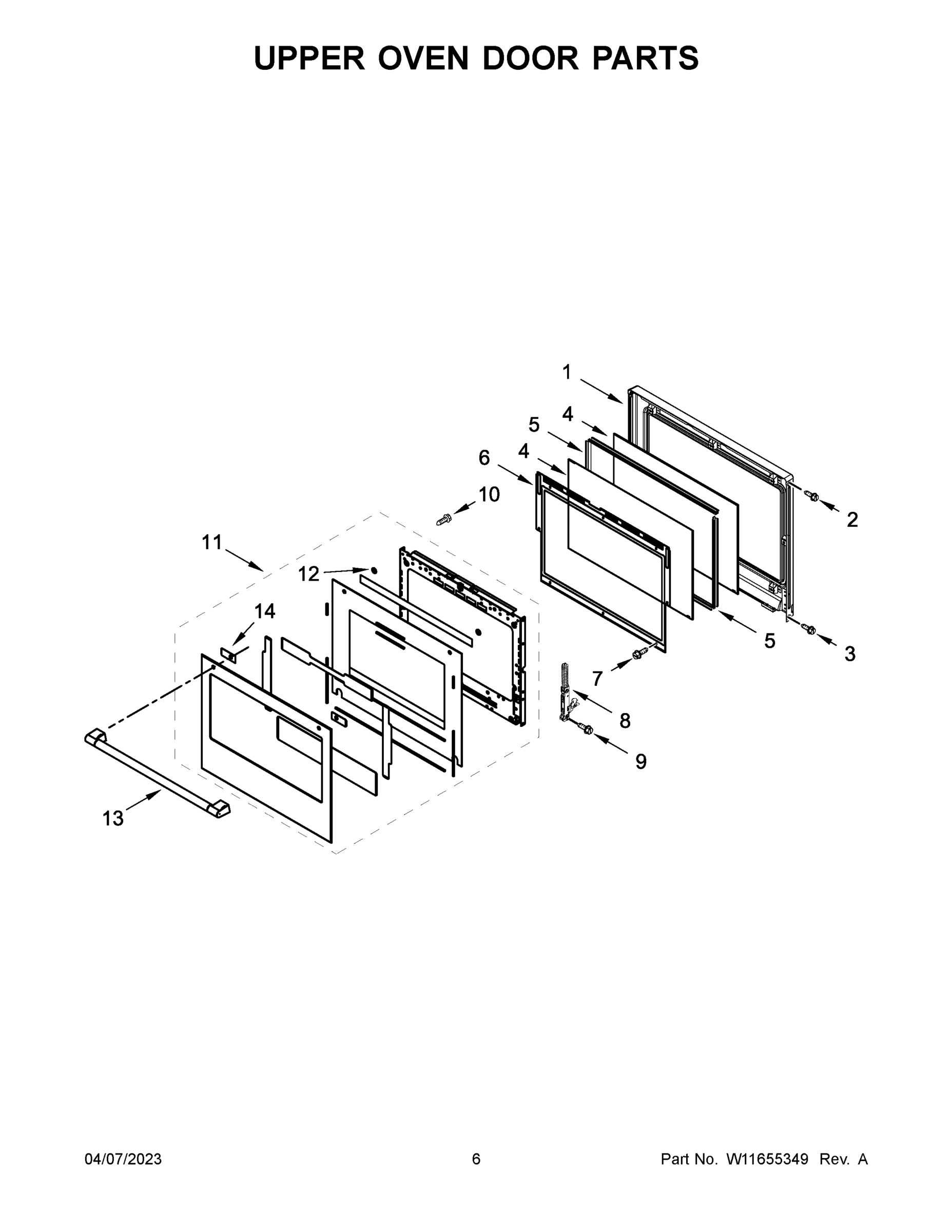

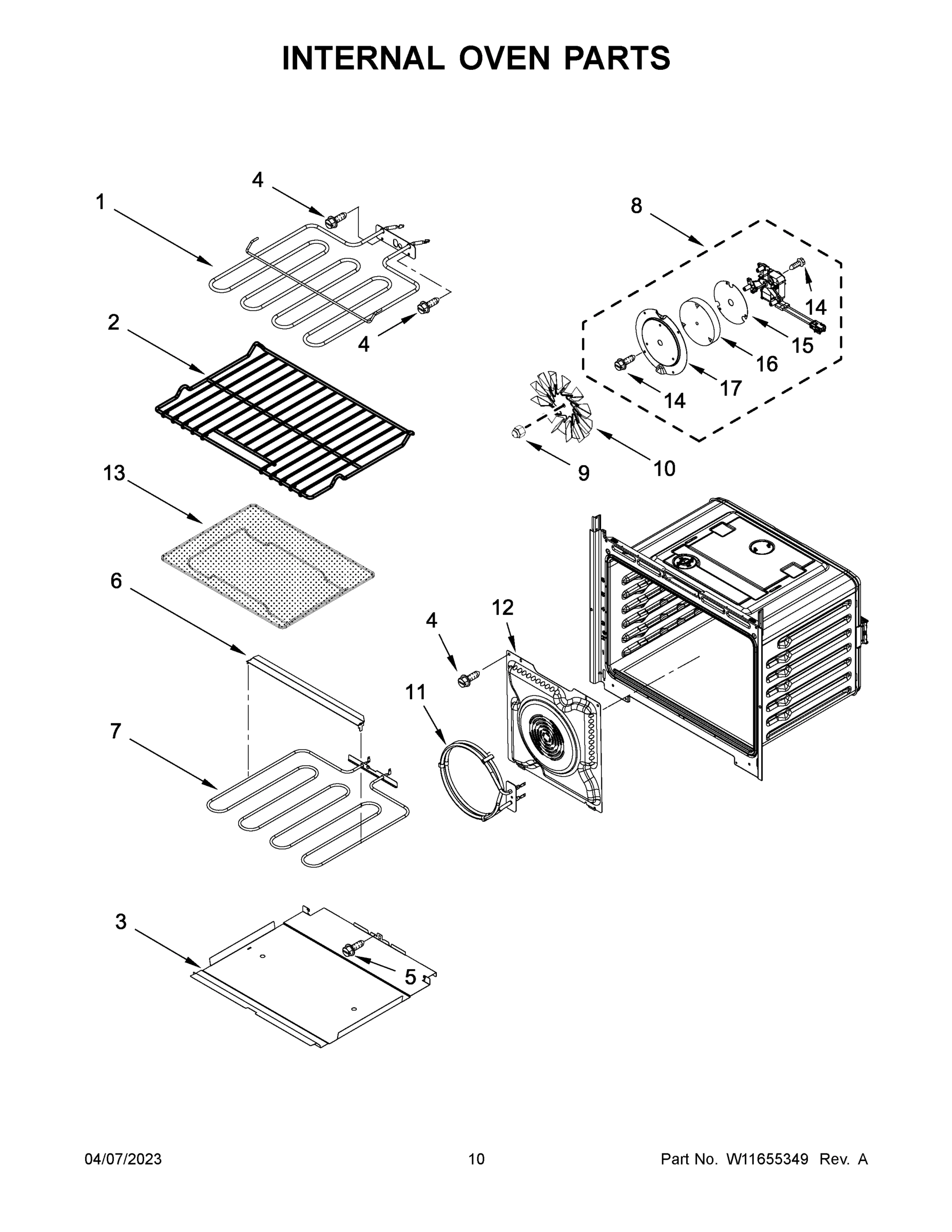

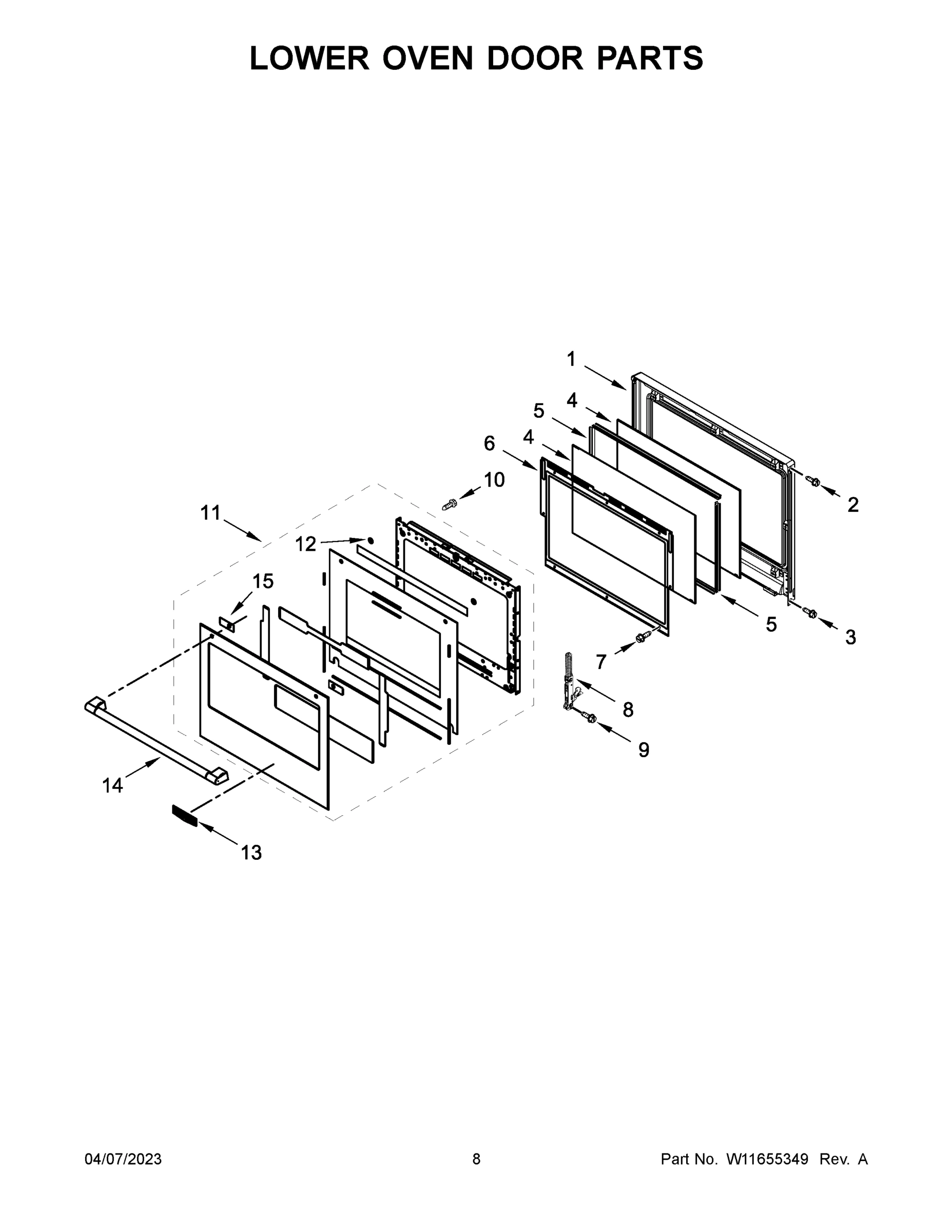

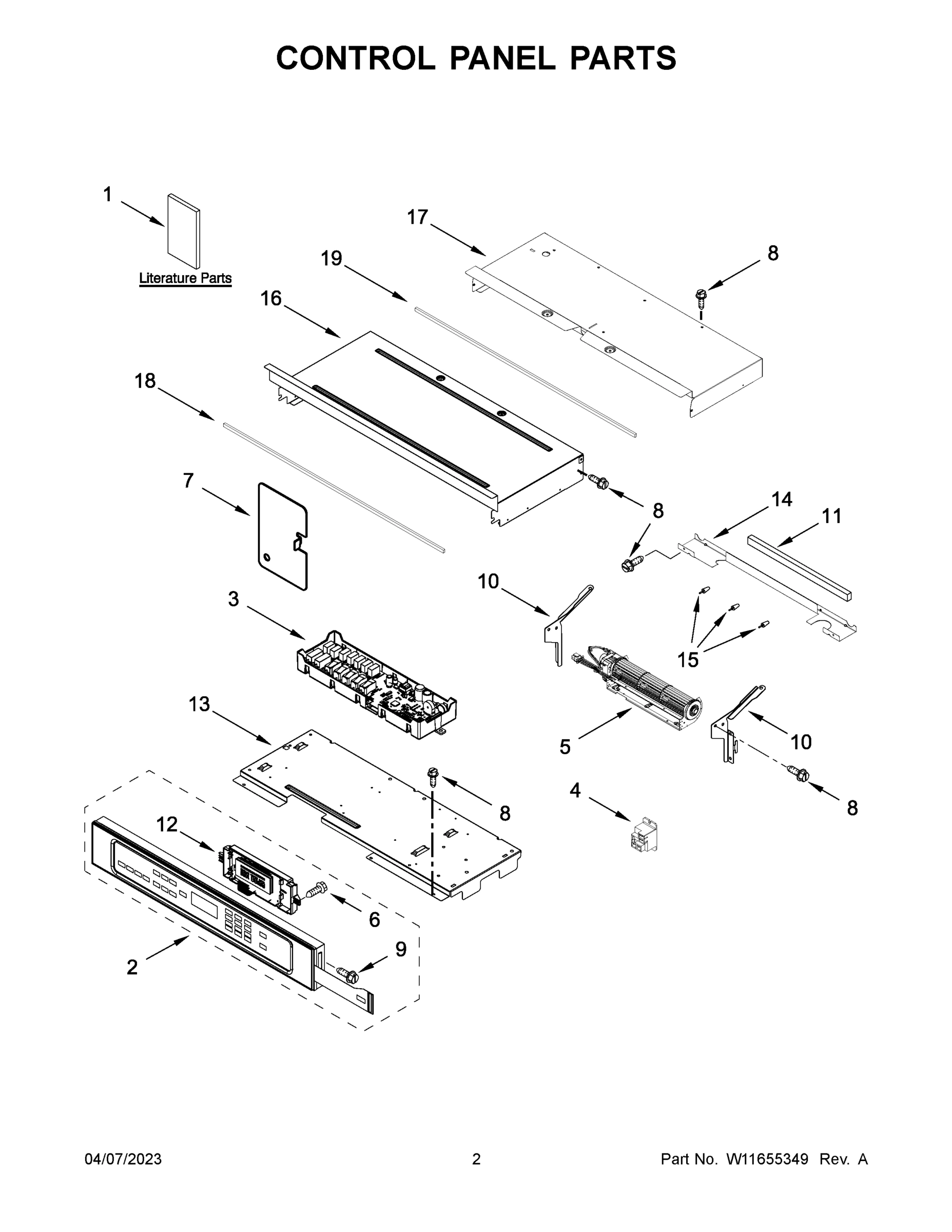

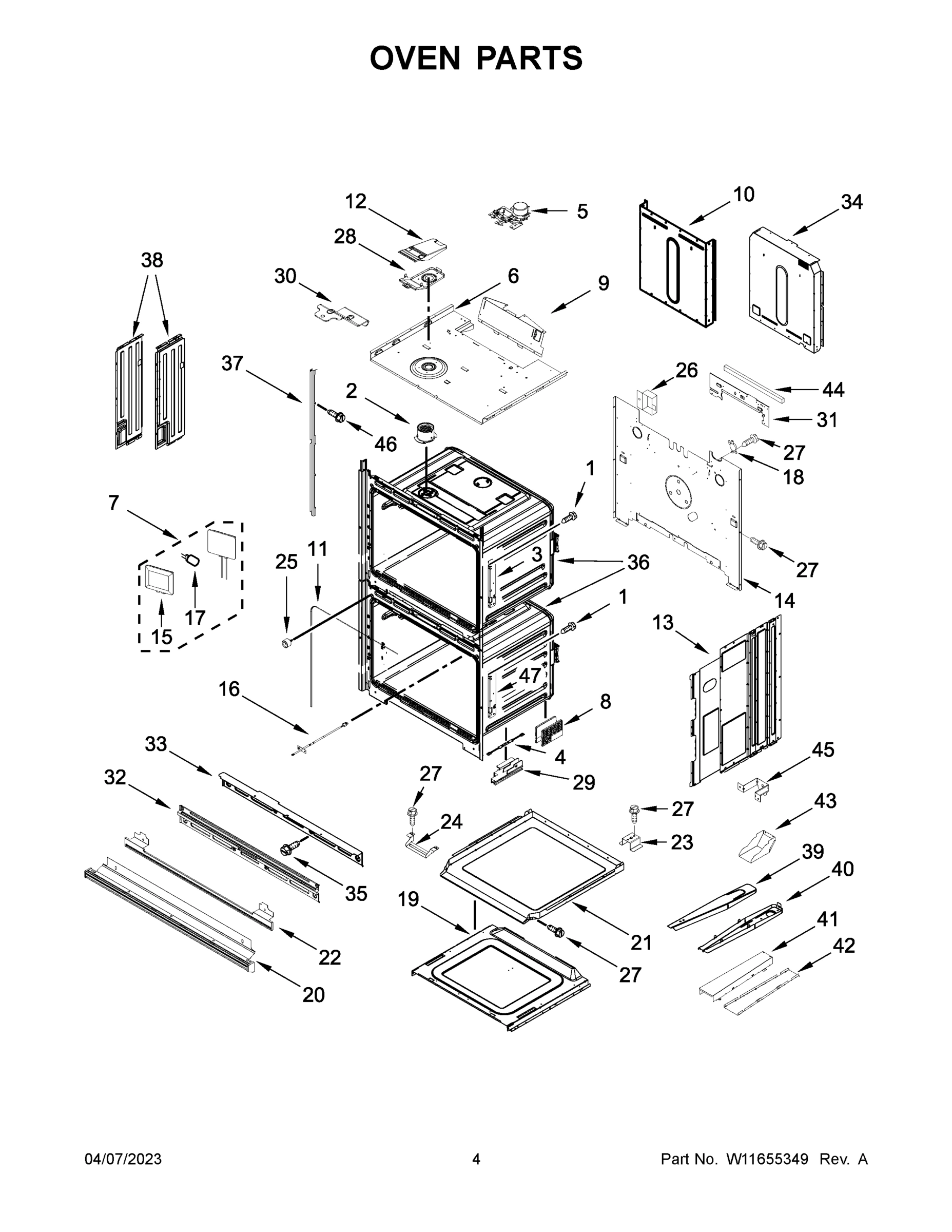

1

W11617232 Whirlpool Broil Element Backorder WPL W11617232 $44.43

1

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

2

WPW10554529 Whirlpool Oven Rack Backorder WPL WPW10554529 $65.23

2

SCREW WPL 7101P37560 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

3

W11752201 Whirlpool Hinge Receiver Backorder WPL W11752201 $16.14

4

W10874478 Whirlpool Power Relay Backorder WPL W10874478 $145.44

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.24

4

WPW10284902 Whirlpool Door Glass Backorder WPL WPW10284902 $87.51

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W11598187 Whirlpool Bracket Assembly Backorder WPL W11598187 $31.35

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $28.95

5

SCREW WPL 7101P42660 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W11598188 Whirlpool Retainer Backorder WPL W11598188 $26.74

6

TOP, CHASSIS WPL W11244456 Contact Us For Availability

7

W11292252 Whirlpool Oven Light Backorder WPL W11292252 $35.81

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

8

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

8

W11617222 Whirlpool Oven Door Hinge Backorder WPL W11617222 $34.66

8

W11617227 Whirlpool Fan Motor Backorder WPL W11617227 $92.22

8A

W11617231 Whirlpool Oven Door Hinge Backorder WPL W11617231 $34.66

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

9

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

10

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $49.54

10

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

10

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $9.59

11

W11608109 Whirlpool Gasket Backorder WPL W11608109 $39.24

11

WPW10260248 Whirlpool Element Assembly Backorder WPL WPW10260248 $112.03

11

DOOR ASSEMBLY (STAINLESS) WPL W11470090 Contact Us For Availability

12

W10359278 Whirlpool Baffle Conv Backorder WPL W10359278 $83.28

12

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

12

COVER, VENT EXHAUST WPL W11256424 Contact Us For Availability

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $43.17

13

W11648754 Whirlpool Nameplate Backorder WPL W11648754 $20.99

13

W11692811 Whirlpool Fryer Basket Backorder WPL W11692811 $54.30

14

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

14

HANDLE ASSEMBLY (STAINLESS) WPL W11496834 Contact Us For Availability

W10351295 Whirlpool Bumper Assembly Backorder WPL W10351295 $10.76

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

16

W11598120 Whirlpool Thermostat In Stock WPL W11598120 $14.26

16

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

17

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

17

COVER, CONVECT PLATE WPL W11398057 Contact Us For Availability

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

BASE, CHASSIS WPL W11244454 Contact Us For Availability

20

W11658445 Whirlpool Vent Backorder WPL W11658445 $113.46

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $46.67

22

TRIM, BOTTOM VENT (BLACK) WPL W11560860 Contact Us For Availability

23

SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

26

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

28

BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability

29

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

29A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

30

BRACKET, TOP FRONT WPL W11342780 Contact Us For Availability

31

BRACKET, U-SHAPE WPL W11186652 Contact Us For Availability

32

W11235483 Whirlpool Exhaust Vent Backorder WPL W11235483 $61.47

33

W11334858 Whirlpool Vent Exhaust Backorder WPL W11334858 $49.78

34

W11165250 Whirlpool Rear Cover Backorder WPL W11165250 $49.54

35

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

37

W11235460 Whirlpool Mounting Rail In Stock WPL W11235460 $42.53

37A

W11235461 Whirlpool Rail Mounting In Stock WPL W11235461 $42.53

38

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $26.15

38A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

39

COVER, TOP BACK EXHAUST WPL W11256421 Contact Us For Availability

40

BASE, TOP BACK EXHAUST WPL W11256420 Contact Us For Availability

41

COVER, LOWER BACK EXHAUST WPL W11256431 Contact Us For Availability

42

BASE, LOWER BACK EXHAUST WPL W11256430 Contact Us For Availability

43

DEFLECTOR, LOWER BACK EXHAUST WPL W11256432 Contact Us For Availability

44

FOAM, U-BRACKET WPL W11211345 Contact Us For Availability

45

HAT BRACKET, VENT WPL W11344645 Contact Us For Availability

46

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

47

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $30.05

47A

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $30.05

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W11157775 Whirlpool Wire Harness Backorder WPL W11157775 $112.26

W11233570 Whirlpool Wire Harness Backorder WPL W11233570 $112.26

W11570326 Whirlpool Trim Backorder WPL W11570326 $99.55

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

PE WPL NP Contact Us For Availability

HARNESS, SIGNAL WPL W11249912 Contact Us For Availability

HARNESS, MAIN WPL W11476030 Contact Us For Availability

WPL W11244474 WPL W11244474 Contact Us For Availability

WPL W11244475 WPL W11244475 Contact Us For Availability

ACCESSORIES, VENT, DEFLECTOR (STAINLESS) WPL W11551865 Contact Us For Availability

ACCESSORIES, TRIM, BOTTOM VENT (STAINLESS) WPL W11570322 Contact Us For Availability

ACCESSORIES, TRIM, TALL VENT (STAINLESS) WPL W11570324 Contact Us For Availability
