Model Maytag MMV5219DS0 MICROWAVE – Common Parts & Diagrams

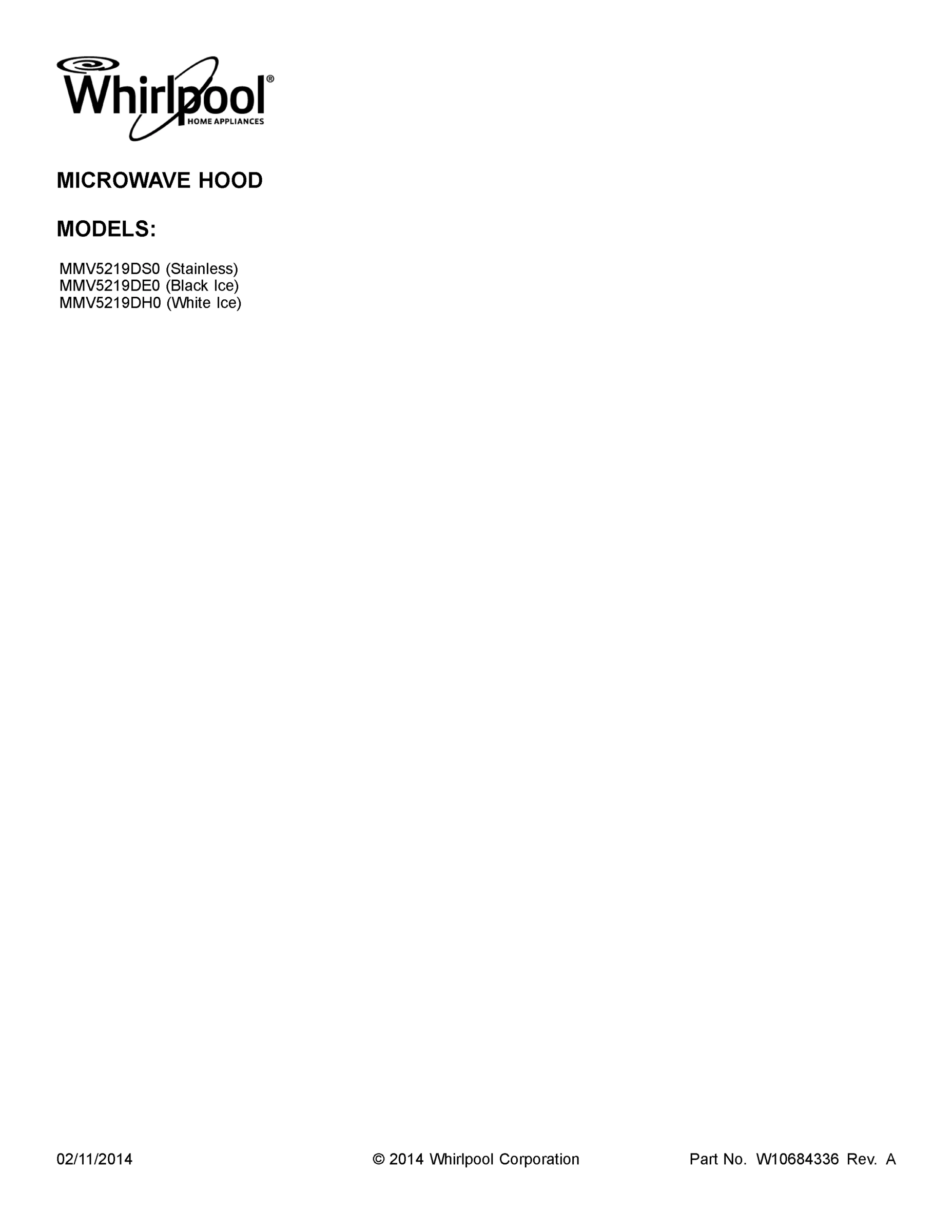

01 - COVER SHEET

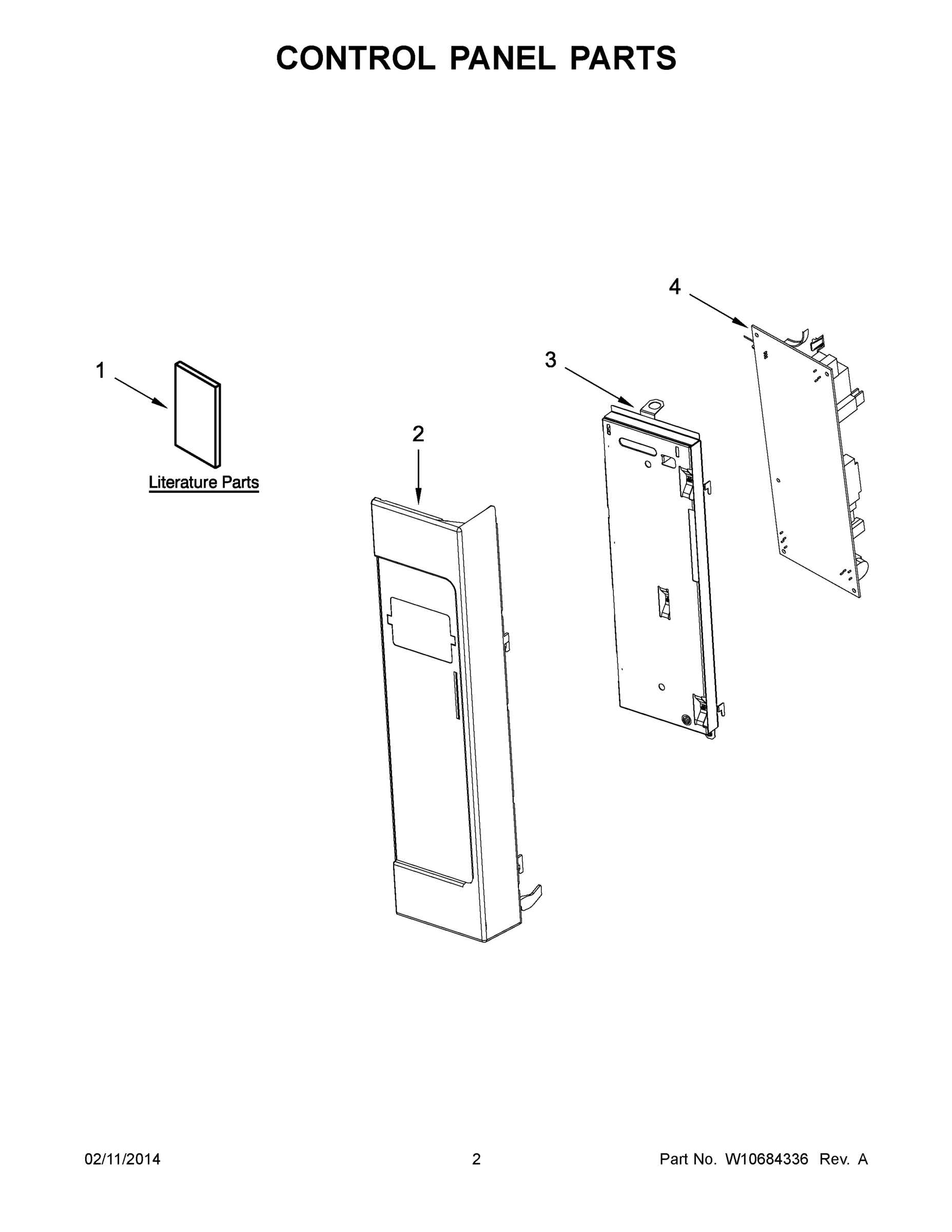

02 - CONTROL PANEL PARTS

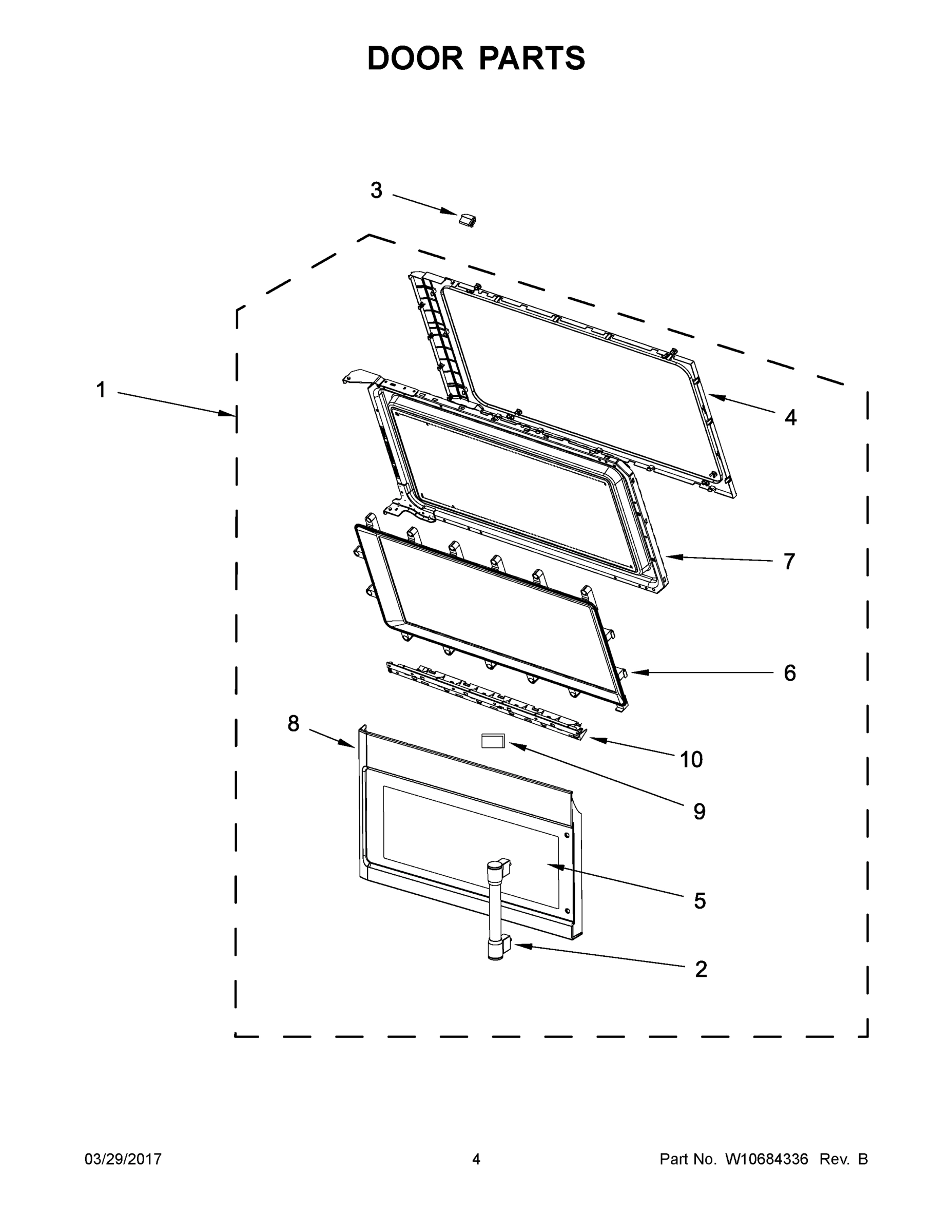

03 - DOOR PARTS

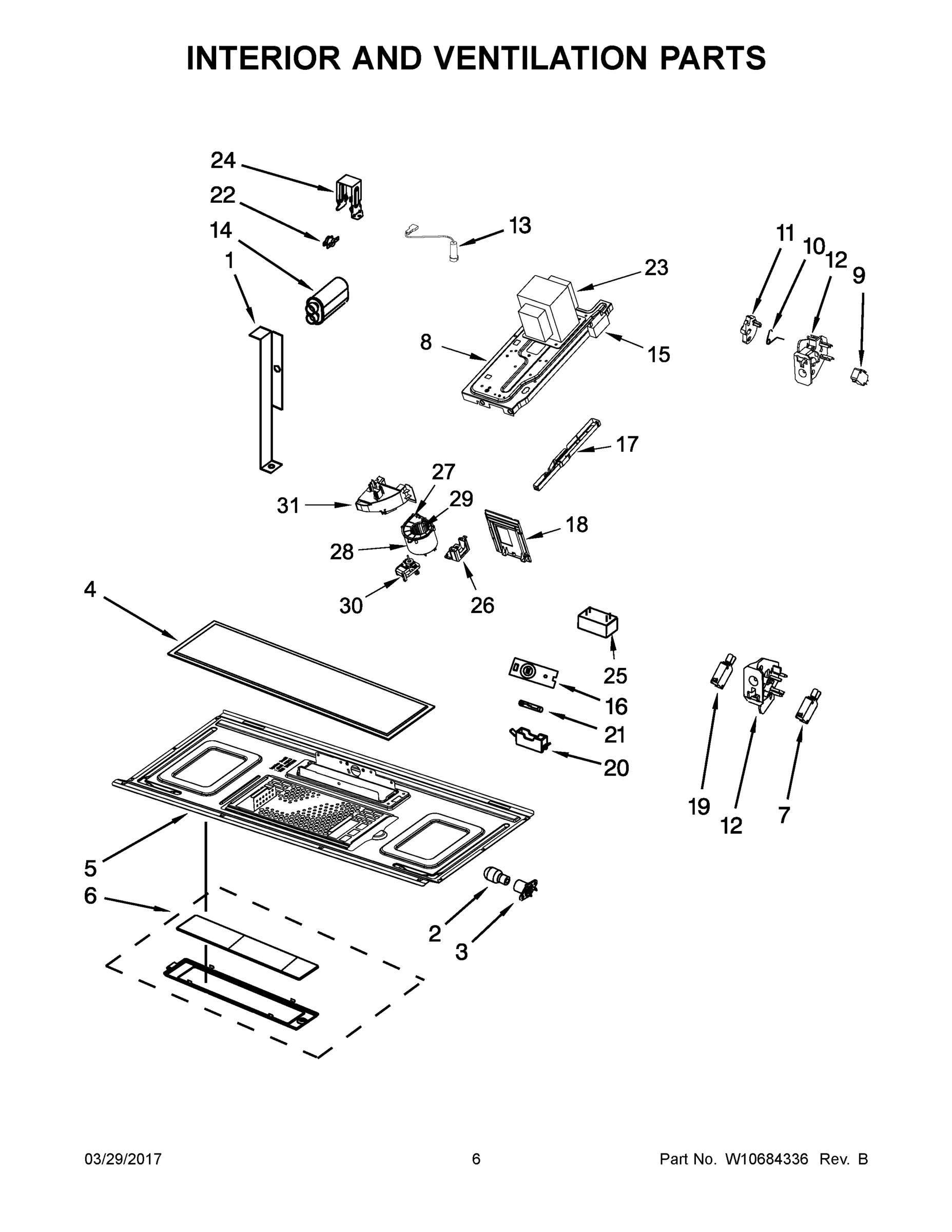

04 - INTERIOR AND VENTILATION PARTS

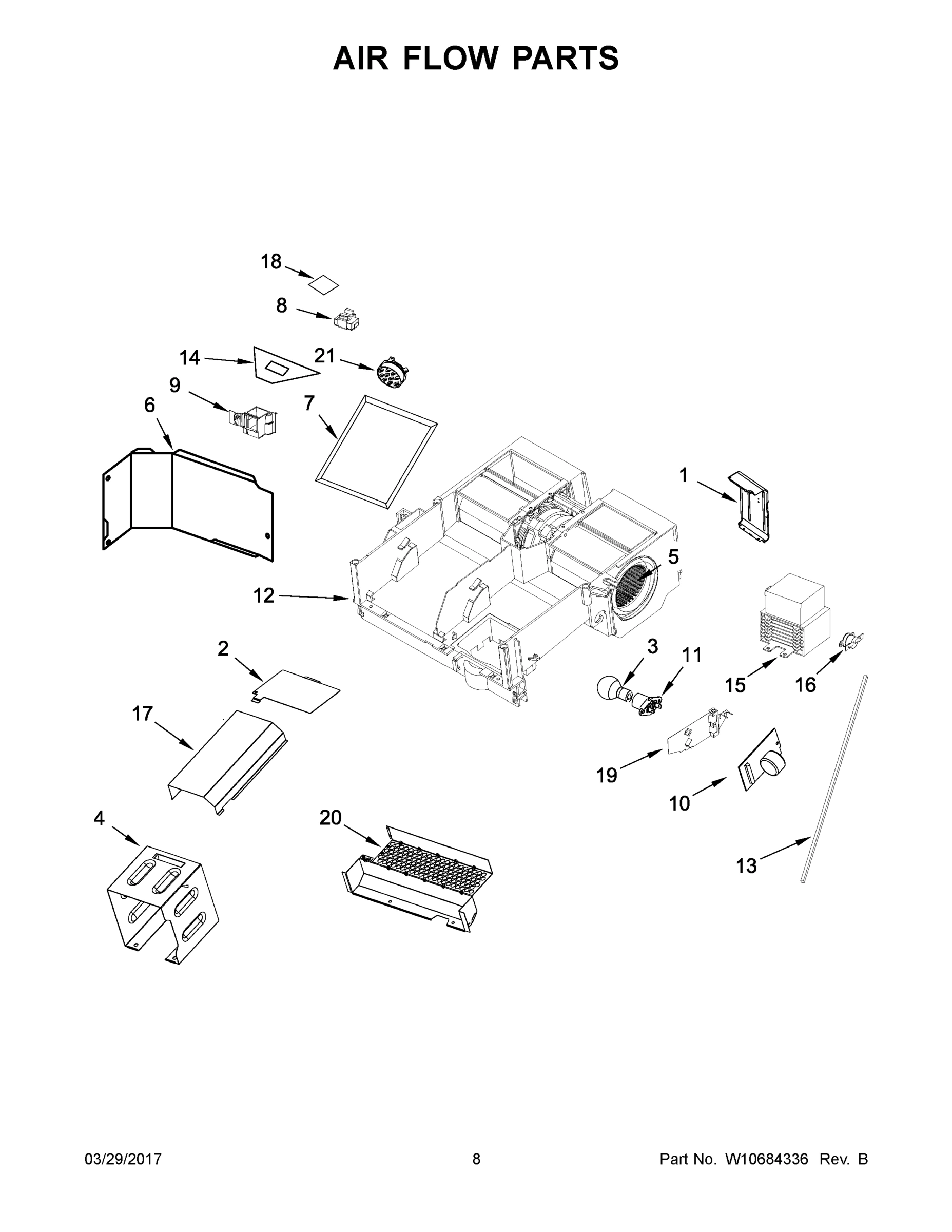

05 - AIR FLOW PARTS

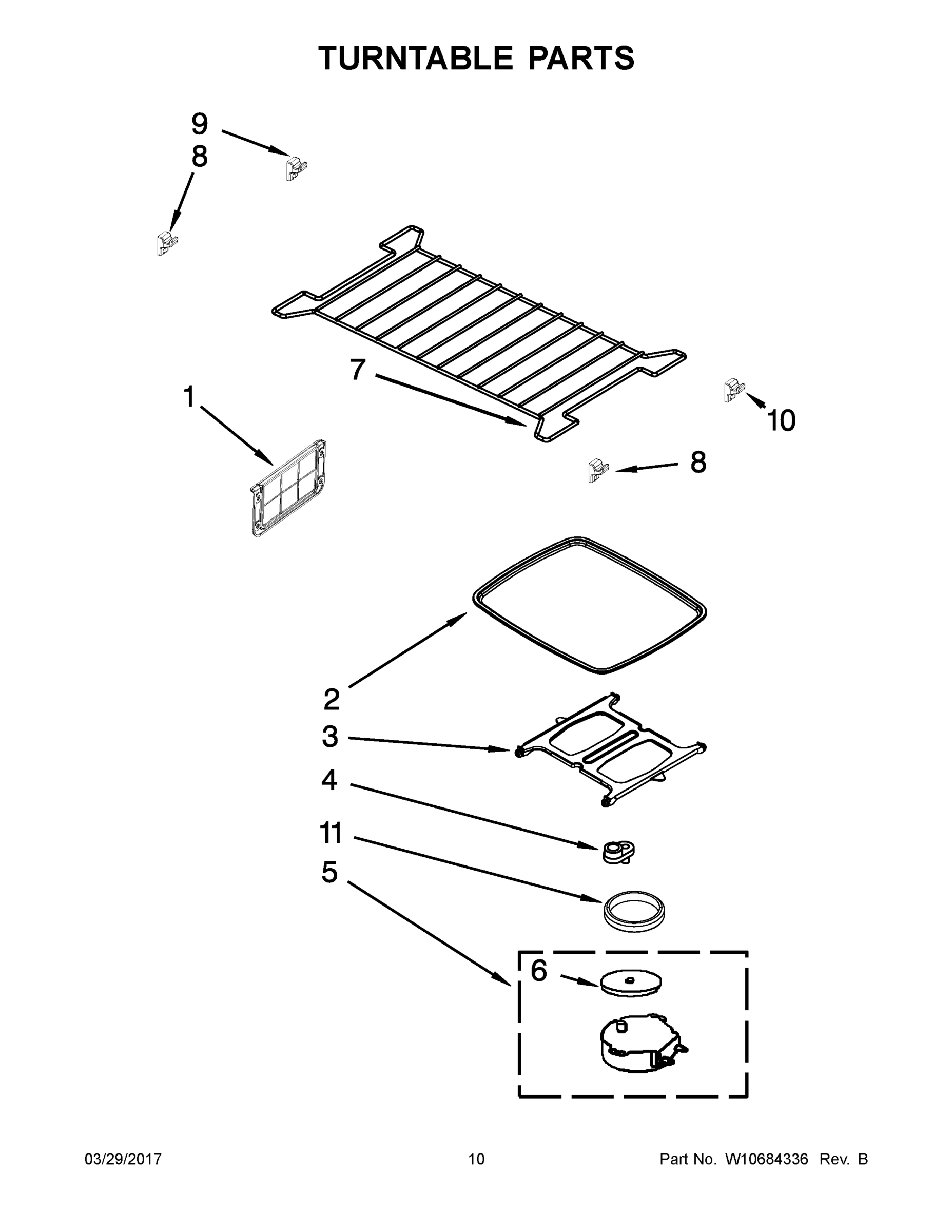

06 - TURNTABLE PARTS

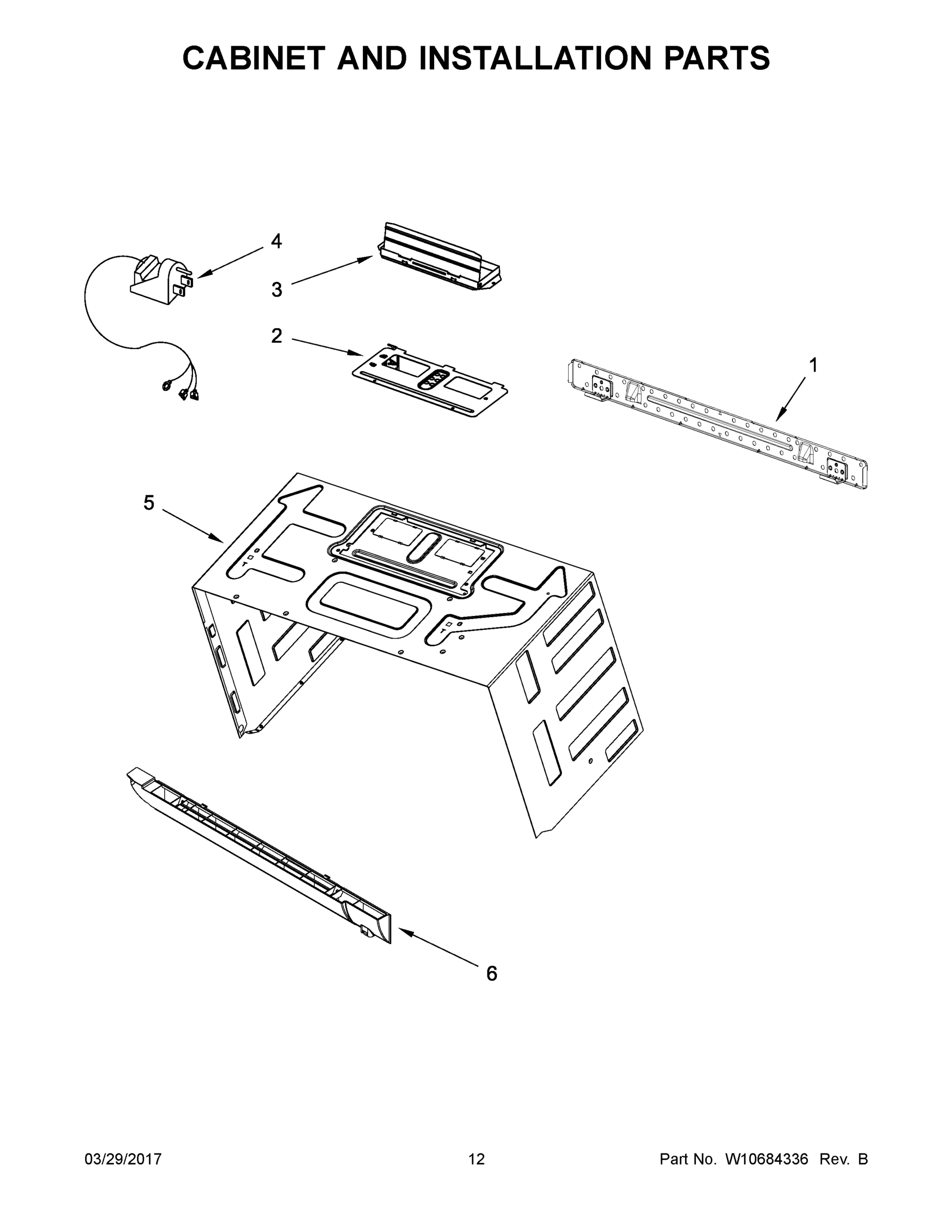

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag MMV5219DS0 MICROWAVE
1
USE & CARE GUIDE MAY W10598179 Contact Us For Availability
1
DOOR, COMPLETE (STAINLESS) MAY W10672721 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10540715 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10631697 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10533497 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
TECH SHEET MAY W10598190 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK ICE) MAY W10672725 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10666959 Contact Us For Availability
1B

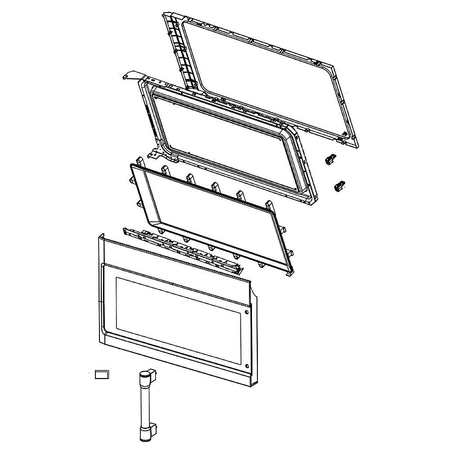

DOOR, COMPLETE (WHITE ICE) MAY W10672724 Contact Us For Availability
1C
INSTRUCTIONS, INSTALLATION MAY W10652353 Contact Us For Availability
2
ASSEMBLY, CONTROL PANEL (STAINLESS) MAY W10609181 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10646732 Contact Us For Availability
2
LAMP 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10289909 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
2A
ASSEMBLY, CONTROL PANEL (BLACK ICE) MAY W10672731 Contact Us For Availability
2B
ASSEMBLY, CONTROL PANEL (WHITE ICE) MAY W10672730 Contact Us For Availability
3
BACKER, CONTROL PANEL MAY W10639186 Contact Us For Availability
3
STOPPER, DOOR MAY W10643974 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability

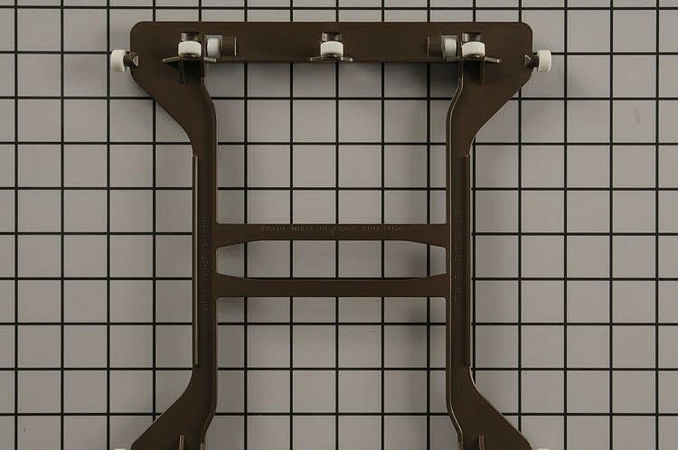

3
RING, TURNTABLE MAY W10640954 Contact Us For Availability
3
DAMPER MAY 8206442 Contact Us For Availability
4
CONTROL, ELECTRONIC MAY W10559270 Contact Us For Availability
4
FRAME, INNER MAY W10648086 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
HOUSING, DAMPER MAY W10556824 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10640953 Contact Us For Availability
4
CORD, POWER MAY W10269470 Contact Us For Availability

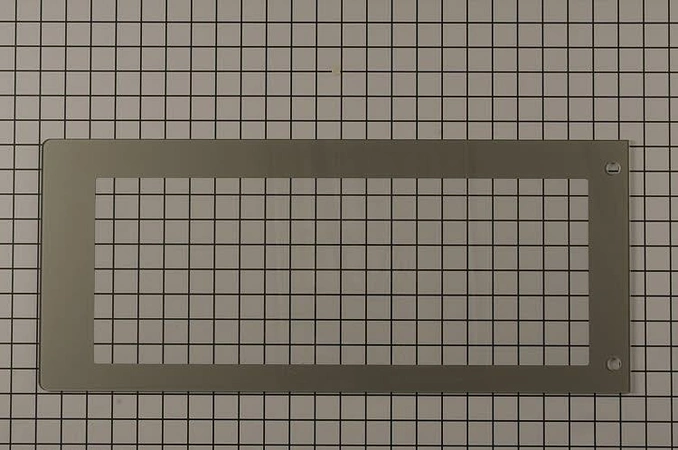

5
GLASS, OUTER DOOR (STAINLESS) MAY W10578515 Contact Us For Availability
5
PLATE, BOTTOM MAY W10571127 Contact Us For Availability
5
MOTOR, FAN MAY W10479847 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10466421 Contact Us For Availability
5
CASE, OUTER (BLACK) MAY W10571405 Contact Us For Availability
5A
GLASS, OUTER DOOR (BLACK) MAY W10544436 Contact Us For Availability
5A
CASE, OUTER (WHITE) MAY W10571410 Contact Us For Availability
5B
GLASS, OUTER DOOR (WHITE) MAY W10578513 Contact Us For Availability
6
PLATE, STEAM PROTECTION MAY W10514243 Contact Us For Availability
6
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
6
PLATE, AIR DEFLECTOR MAY W10533116 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (BLACK) MAY W10533491 Contact Us For Availability
6A
GRILLE, VENT (WHITE) MAY W10578334 Contact Us For Availability
7
FOIL, DOOR MAY W10647793 Contact Us For Availability
7
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10637159 Contact Us For Availability
8
FRAME, DOOR (STAINLESS) MAY W10593886 Contact Us For Availability
8
CHASSIS MAY W10631826 Contact Us For Availability
8
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) MAY W10626726 Contact Us For Availability
8A
FRAME, DOOR (BLACK) MAY W10544426 Contact Us For Availability
8B
FRAME, DOOR (WHITE) MAY W10589106 Contact Us For Availability
9
BADGE MAY W10612925 Contact Us For Availability
9
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
9
OUTLET, CAVITY (FRONT) (FOR STAINLESS & BLACK MAY W10570208 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR) MAY W10560724 Contact Us For Availability
9A
OUTLET, CAVITY (FRONT) (FOR WHITE ICE MODELS) MAY W10627064 Contact Us For Availability
10
TRIM, DOOR (BLACK) MAY W10560421 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
HOOK, MICROWAVE (RIGHT REAR) MAY W10505536 Contact Us For Availability
10A
TRIM, DOOR (WHITE) MAY W10589124 Contact Us For Availability
11
PLATE, CAM MAY W10156811 Contact Us For Availability
11
HOLDER, LAMP CAVITY MAY W10210878 Contact Us For Availability
11
SEAL, TURNTABLE BLOCK MAY W10568148 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
BASEPLATE, AIR GUIDE MAY W10533096 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W10575765 Contact Us For Availability
13
SEAL MAY W10626457 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10561770 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10139750 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W10626122 Contact Us For Availability
16
THERMISTOR PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT MAY W10479657 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533111 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533481 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
19
COVER, DUCT (RIGHT) MAY W10533484 Contact Us For Availability
20
HOLDER, FUSE MAY W10245194 Contact Us For Availability
20
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
21
FUSE MAY W10138793 Contact Us For Availability
21
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
22
THERMOSTAT, MAGNETRON MAY W10598693 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W10622243 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10518719 Contact Us For Availability
25
RESISTOR, CEMENT MAY W10568805 Contact Us For Availability
26
HOLDER, NTC MAY W10533480 Contact Us For Availability
27
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
28
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
29
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
30
MOTOR, COOLING MAY W10536556 Contact Us For Availability
31
MAGNETRON, AIR GUIDE MAY W10631700 Contact Us For Availability
NI
MISCELLANEOUS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS, INSTALLATION, HARDWARE MAY 8206614 Contact Us For Availability
NI
MISCELLANEOUS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, HOOD LAMP AND TURNTAB MAY W10530091 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, PCBA GROUND WIRE MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, MAIN MAY W10629733 Contact Us For Availability
× ![]()
