Model Maytag MLR1110AJW GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL/TOP ASSEMBLY

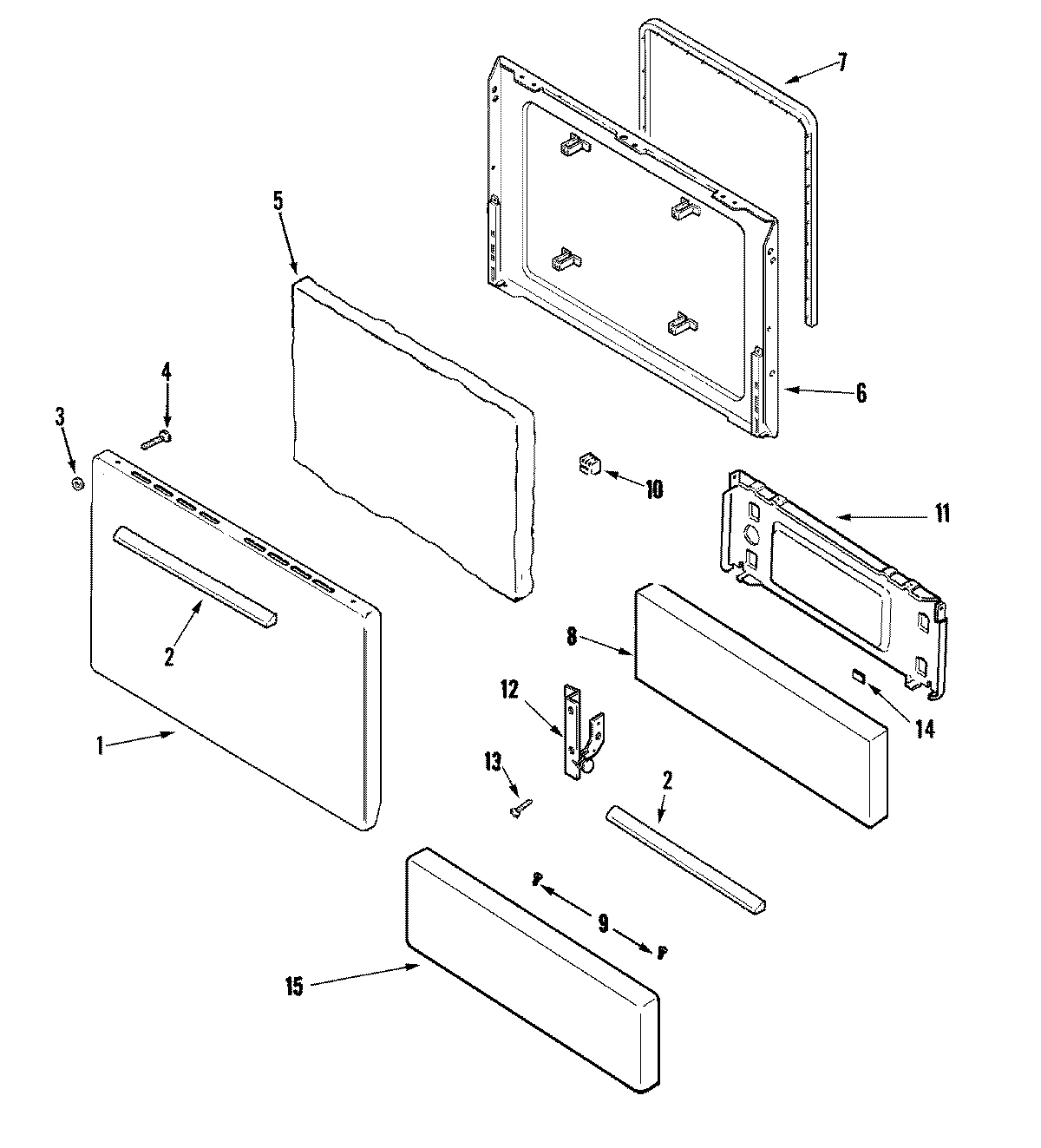

03 - DOOR/DRAWER

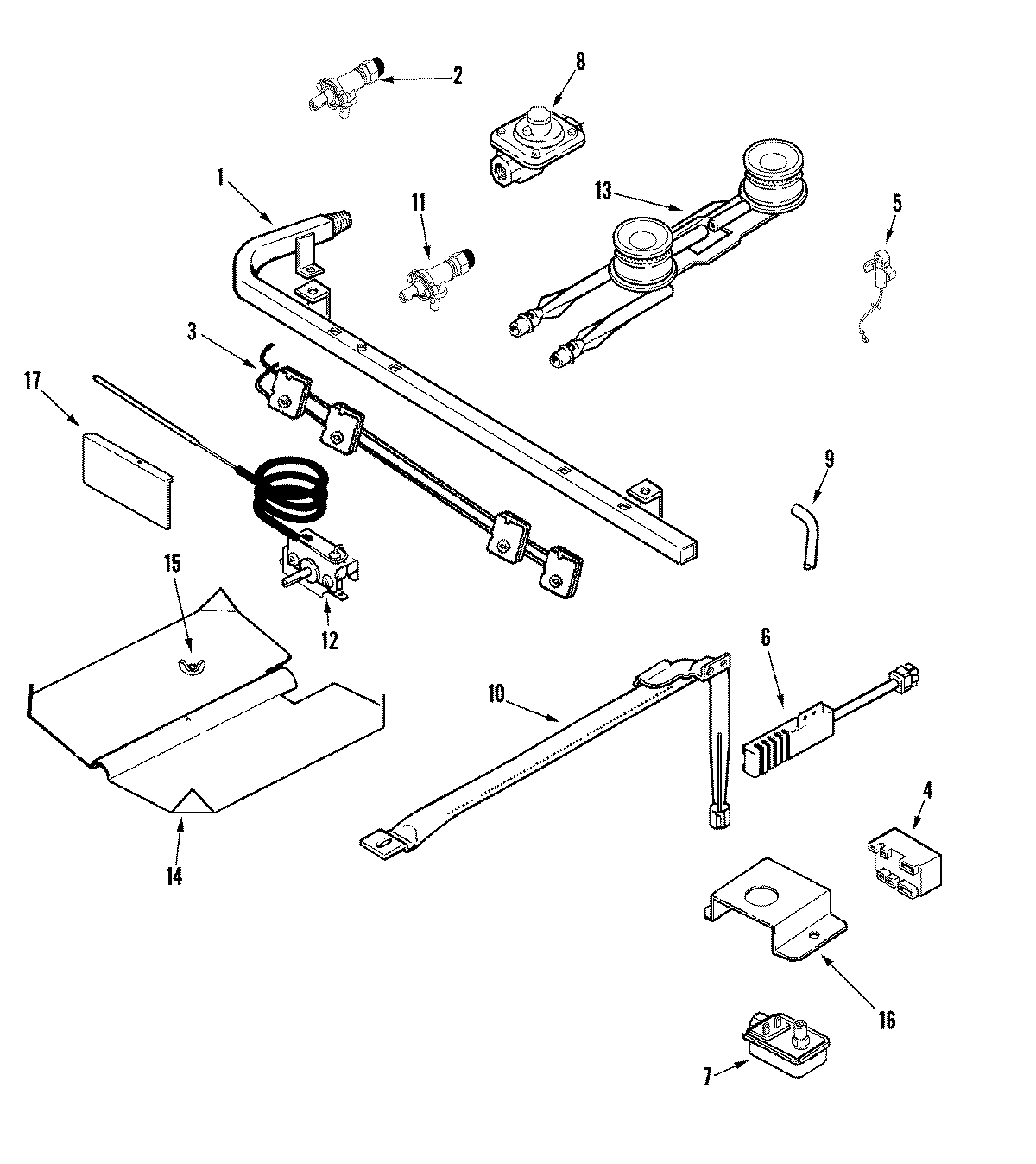

04 - GAS CONTROLS

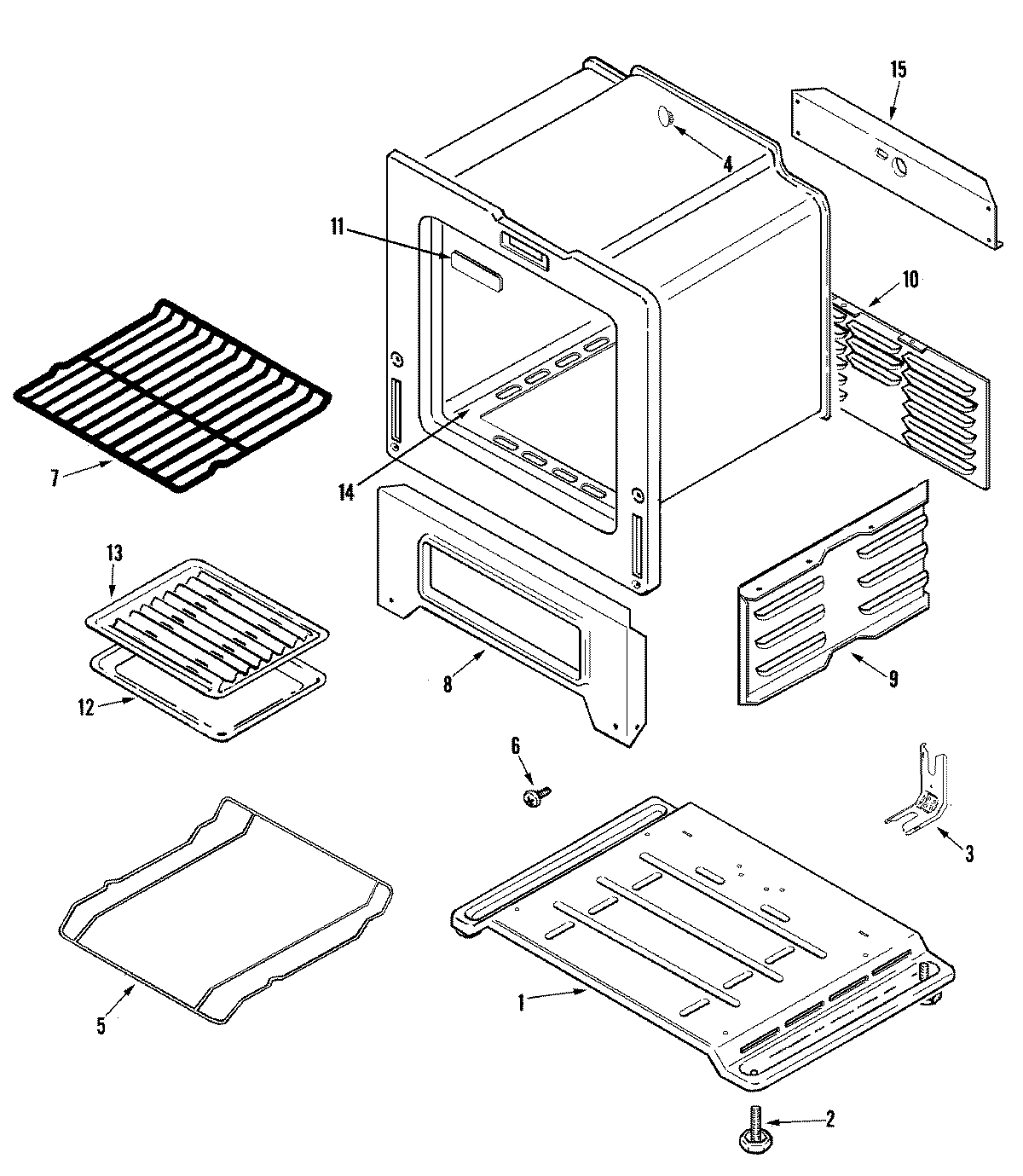

05 - OVEN/BASE
06 - SUPPLEMENTAL INFORMATION
07 - WIRING INFORMATION
Common parts from model Maytag MLR1110AJW GAS RANGE
1
MAY 74010449 MAY 74010449 Contact Us For Availability
1
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
1
MAY 74003137 MAY 74003137 Contact Us For Availability
1
MAY 74003913 MAY 74003913 Contact Us For Availability
1
MAY 74010140 MAY 74010140 Contact Us For Availability
1
MAY 8113P472-60 MAY 8113P472-60 Contact Us For Availability
1
MAY 8113P514-60 MAY 8113P514-60 Contact Us For Availability
2
MAY 74010646 MAY 74010646 Contact Us For Availability
2
MAY 74010424 MAY 74010424 Contact Us For Availability
2
MAY 74010643 MAY 74010643 Contact Us For Availability
2
MAY 74006786 MAY 74006786 Contact Us For Availability
3
MAY 74002497 MAY 74002497 Contact Us For Availability
3
MAY 74009461 MAY 74009461 Contact Us For Availability
3
MAY 74006924 MAY 74006924 Contact Us For Availability
4
MAY 74004282 MAY 74004282 Contact Us For Availability
4
MAY 74002380 MAY 74002380 Contact Us For Availability
4
MAY 74007262 MAY 74007262 Contact Us For Availability
5
MAY 74009708 MAY 74009708 Contact Us For Availability
5
MAY 4804F050-60 MAY 4804F050-60 Contact Us For Availability
5
MAY 74002386 MAY 74002386 Contact Us For Availability
5
MAY 74004483 MAY 74004483 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
5
MAY 74009330 MAY 74009330 Contact Us For Availability
6
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
6
MAY 2001F098-81 MAY 2001F098-81 Contact Us For Availability
6
MAY 74003240 MAY 74003240 Contact Us For Availability
6
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
6
MAY 16023522 MAY 16023522 Contact Us For Availability
7
COVER, BROIL ACCESS FITTING MAY 74009653 Contact Us For Availability
7
MAY 74010707 MAY 74010707 Contact Us For Availability
7
MAY 74010466 MAY 74010466 Contact Us For Availability
7
MAY 16026480 MAY 16026480 Contact Us For Availability
8
SPACER, HINGE (MAIN TOP) MAY 8010P069-60 Contact Us For Availability
8
MAY 74001814 MAY 74001814 Contact Us For Availability
8
MAY 74007524 MAY 74007524 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
9
MAY 74006417 MAY 74006417 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74001663 MAY 74001663 Contact Us For Availability
10
MAY 74002379 MAY 74002379 Contact Us For Availability
11
MAY 74007476 MAY 74007476 Contact Us For Availability
11
MAY 74007553 MAY 74007553 Contact Us For Availability
11
MAY 74009460 MAY 74009460 Contact Us For Availability
11
PLUG, LOCK SLOT MAY 74003406 Contact Us For Availability
12
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 74010148 MAY 74010148 Contact Us For Availability
13
MAY 74010149 MAY 74010149 Contact Us For Availability
13
MAY 74009897 MAY 74009897 Contact Us For Availability
13
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
MAY 74004591 MAY 74004591 Contact Us For Availability
14
MAY 74002393 MAY 74002393 Contact Us For Availability
14
MAY 71001394 MAY 71001394 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
14
MAY 74011347 MAY 74011347 Contact Us For Availability
15
MAY 74007556 MAY 74007556 Contact Us For Availability
15
MAY 74001729 MAY 74001729 Contact Us For Availability
15
NUT, WING MAY 7103P030-60 Contact Us For Availability
15
MAY 74010139 MAY 74010139 Contact Us For Availability
16
MAY 74005051 MAY 74005051 Contact Us For Availability
17
MAY 74002391 MAY 74002391 Contact Us For Availability
NI
MAY 15001767 MAY 15001767 Contact Us For Availability
× ![]()
