Model Whirlpool MHE14XMB0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

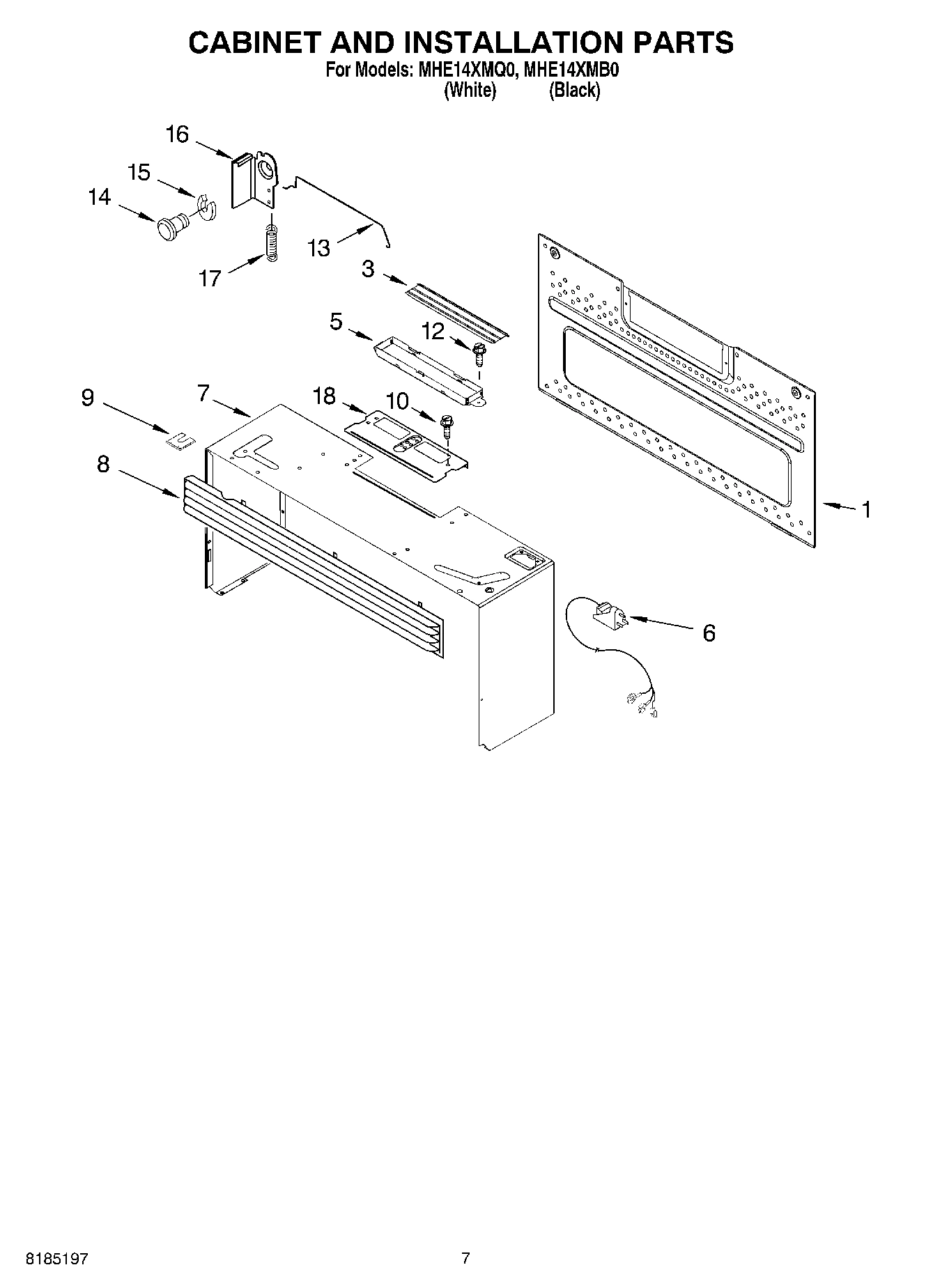

06 - CABINET AND INSTALLATION PARTS

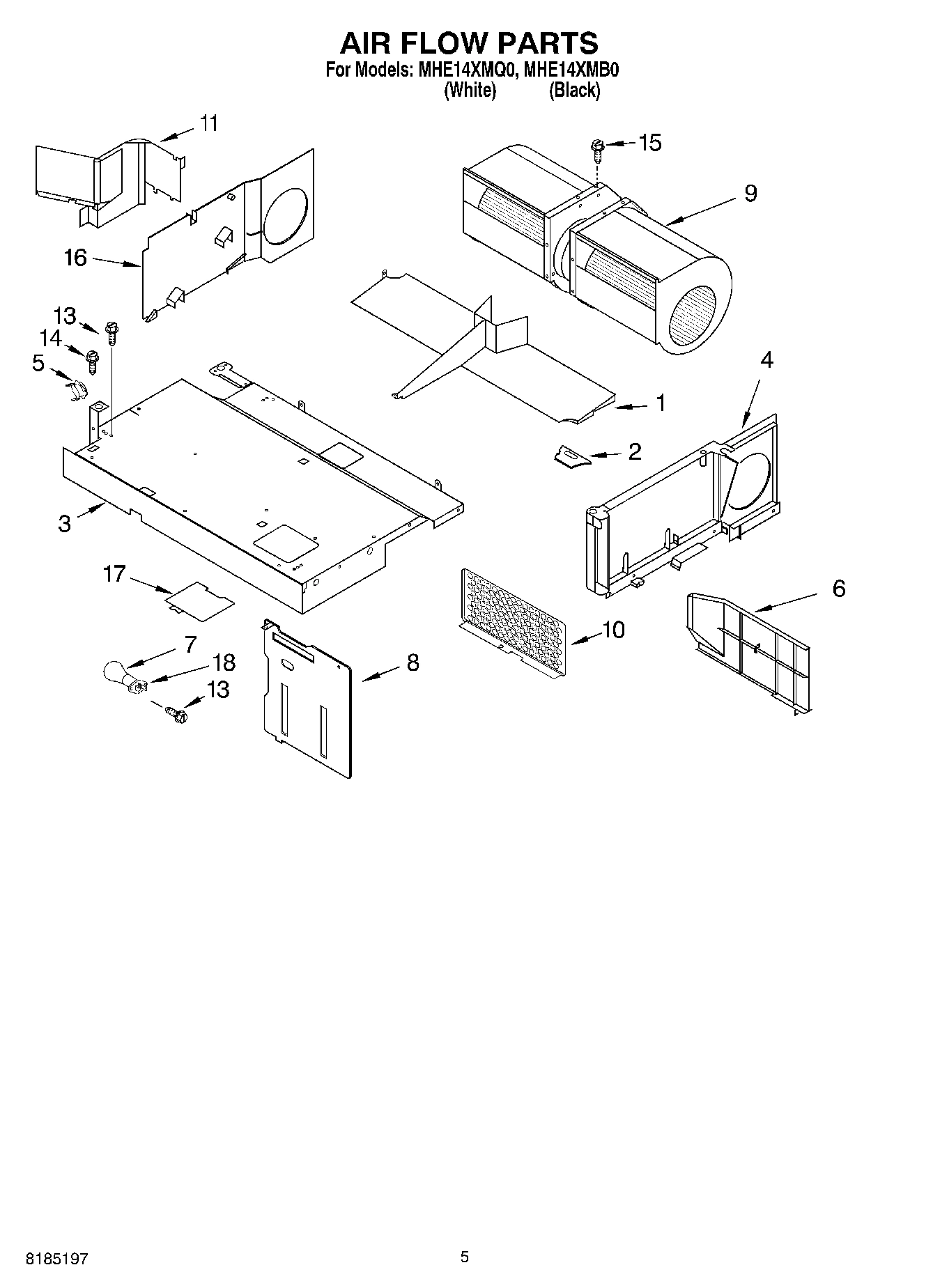

04 - AIR FLOW PARTS
01 - CONTROL PANEL PARTS
02 - DOOR PARTS
03 - INTERIOR AND VENTILATION PARTS
05 - MAGNETRON AND TURNTABLE PARTS
Common parts from model Whirlpool MHE14XMB0 MICROWAVE HOOD COMBINATION
1
Literature Parts (Installation Instructions) WPL LIT8184732 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8184985 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8184993 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185205 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Cover, Inlet WPL 8185117 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8185218 Contact Us For Availability
3
Panel, Control (Black) WPL 8185219 Contact Us For Availability
3
Nail, Plastic WPL 4393291 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Body, Door (Includes 1) (White) WPL 8185107 Contact Us For Availability
4
Body, Door (Includes 1) (Black) WPL 8185109 Contact Us For Availability
5
Glass, Outer WPL 4393725 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Plate, Bottom WPL 8185105 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
Deflector, Cooling Air WPL 8185099 Contact Us For Availability
6
PCB Assembly WPL 8185220 Contact Us For Availability
6
Frame, Outer (Includes 5) (White) WPL 8185216 Contact Us For Availability
6
Frame, Outer (Includes 5) (Black) WPL 8185217 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
Cooling Air Guide WPL 8185215 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8184586 Contact Us For Availability
9
Motor, Fan WPL 8184825 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
9
Cover, Terminal WPL 4393756 Contact Us For Availability
10
SHIELD WPL 8185101 Contact Us For Availability
10
Switch, Membrane (White) WPL 8185223 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8185224 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Air Guide, Sealing Plate WPL 8185114 Contact Us For Availability
11
Thermostat WPL 8184829 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Screw WPL 4393838 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Air Guide (Left) WPL 8185115 Contact Us For Availability
16
Bushing, Nail WPL 4393290 Contact Us For Availability
17
Cover, Light WPL 8185118 Contact Us For Availability
17
Chassis WPL 8185104 Contact Us For Availability
18
Holder, Lamp WPL 8169539 Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
21
Transformer, H.V. WPL 8184826 Contact Us For Availability
25
Bracket, Right WPL 8185100 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
