Model Whirlpool MH2155XPQ3 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

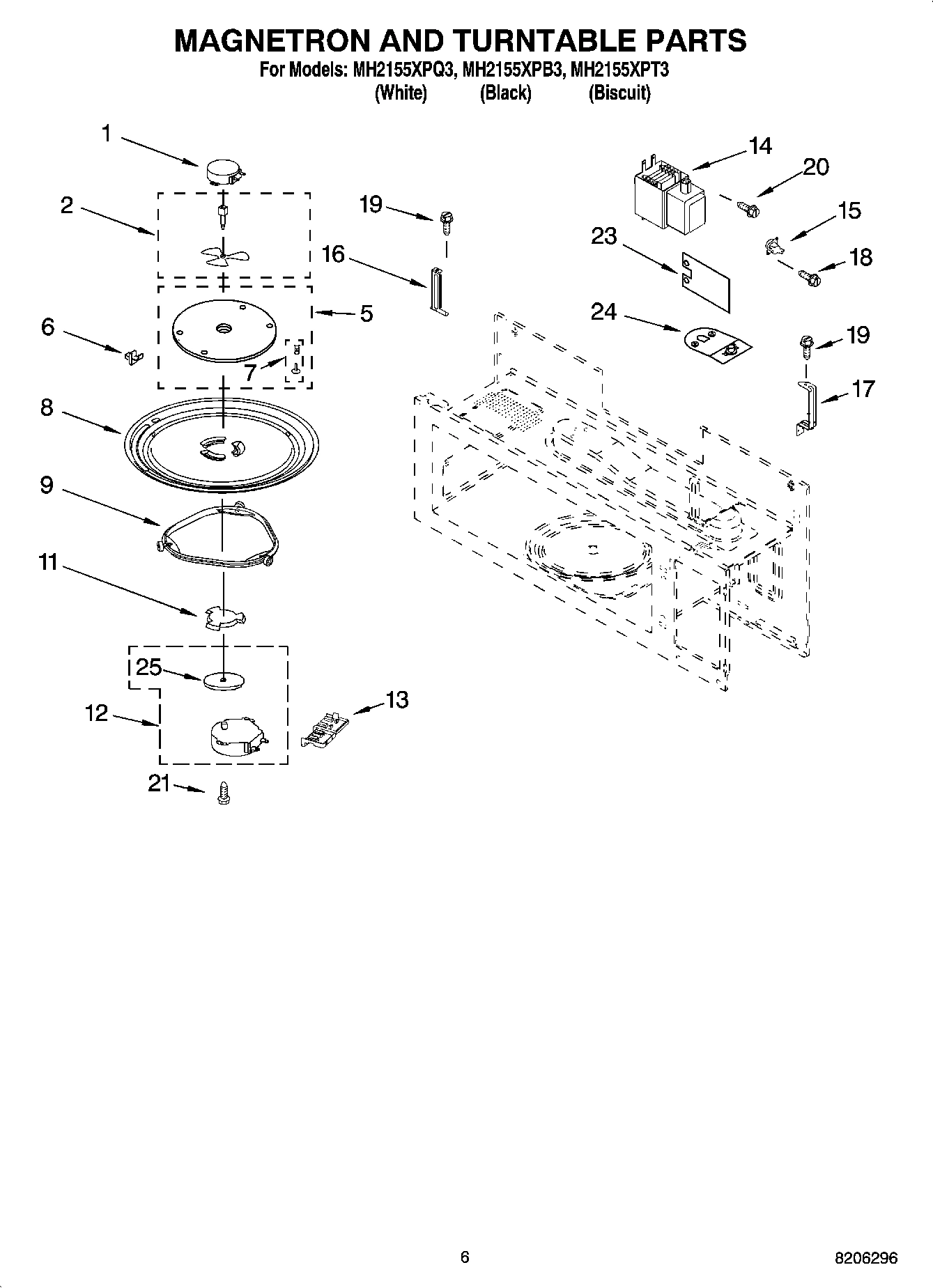

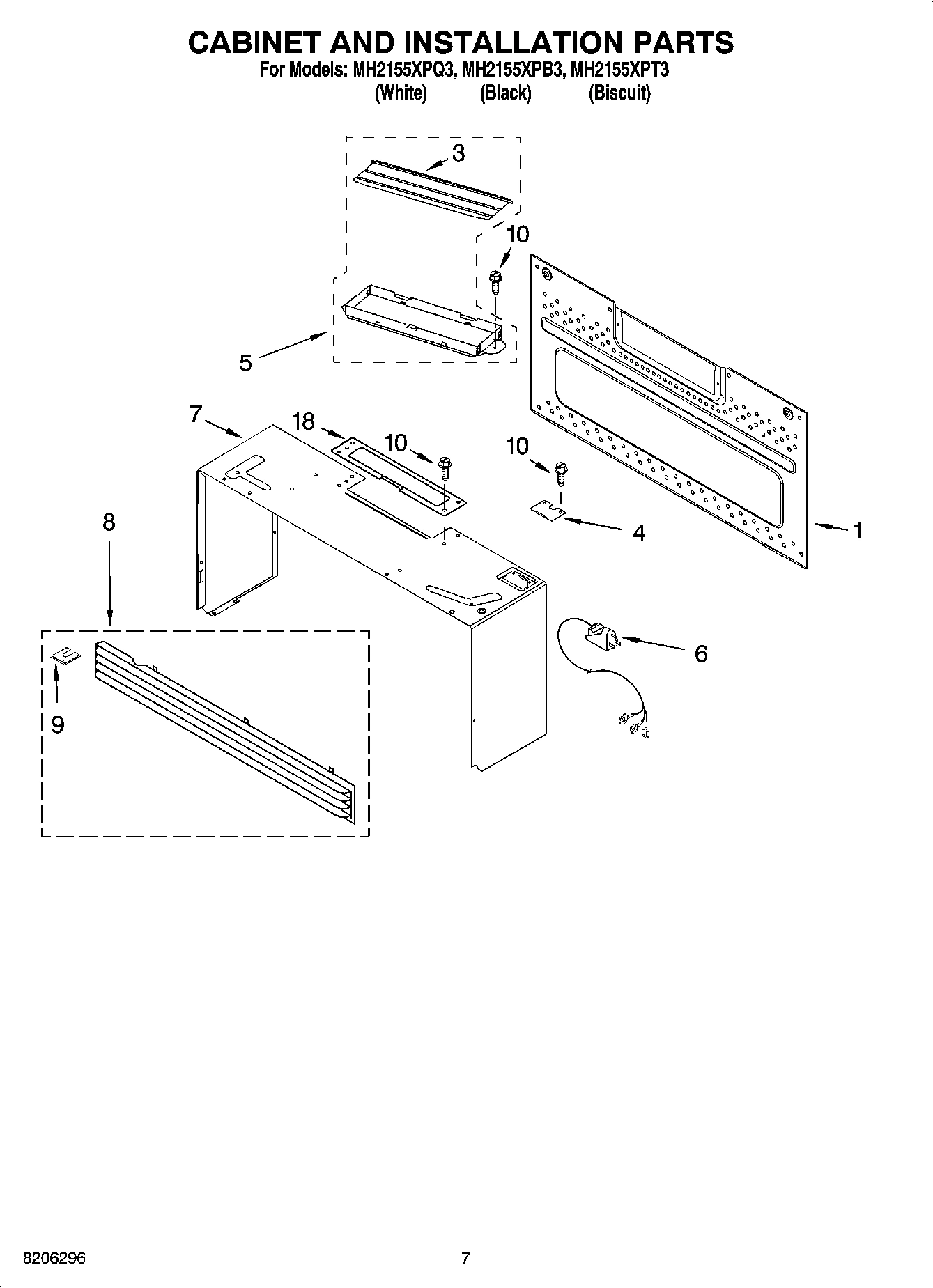

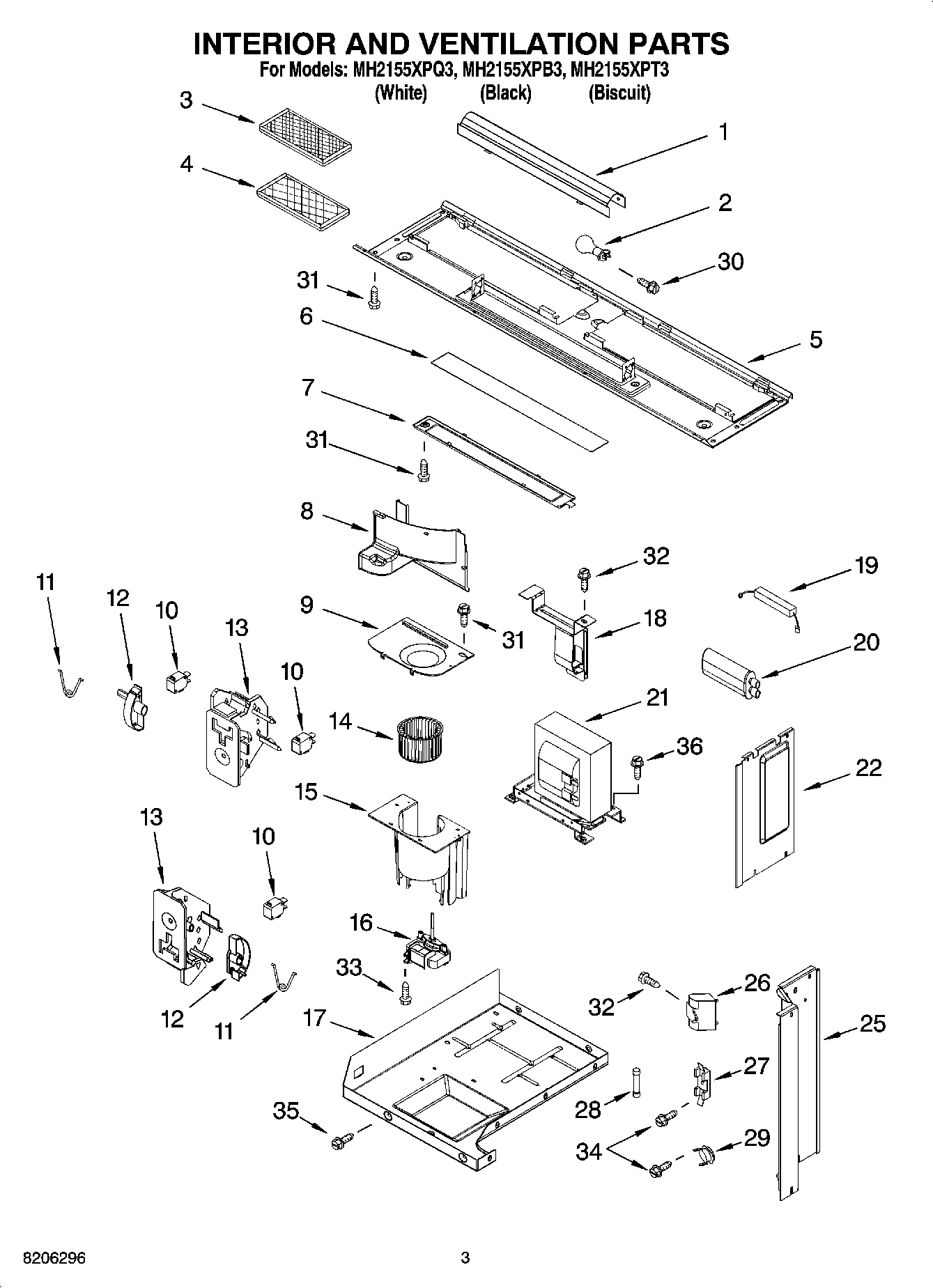

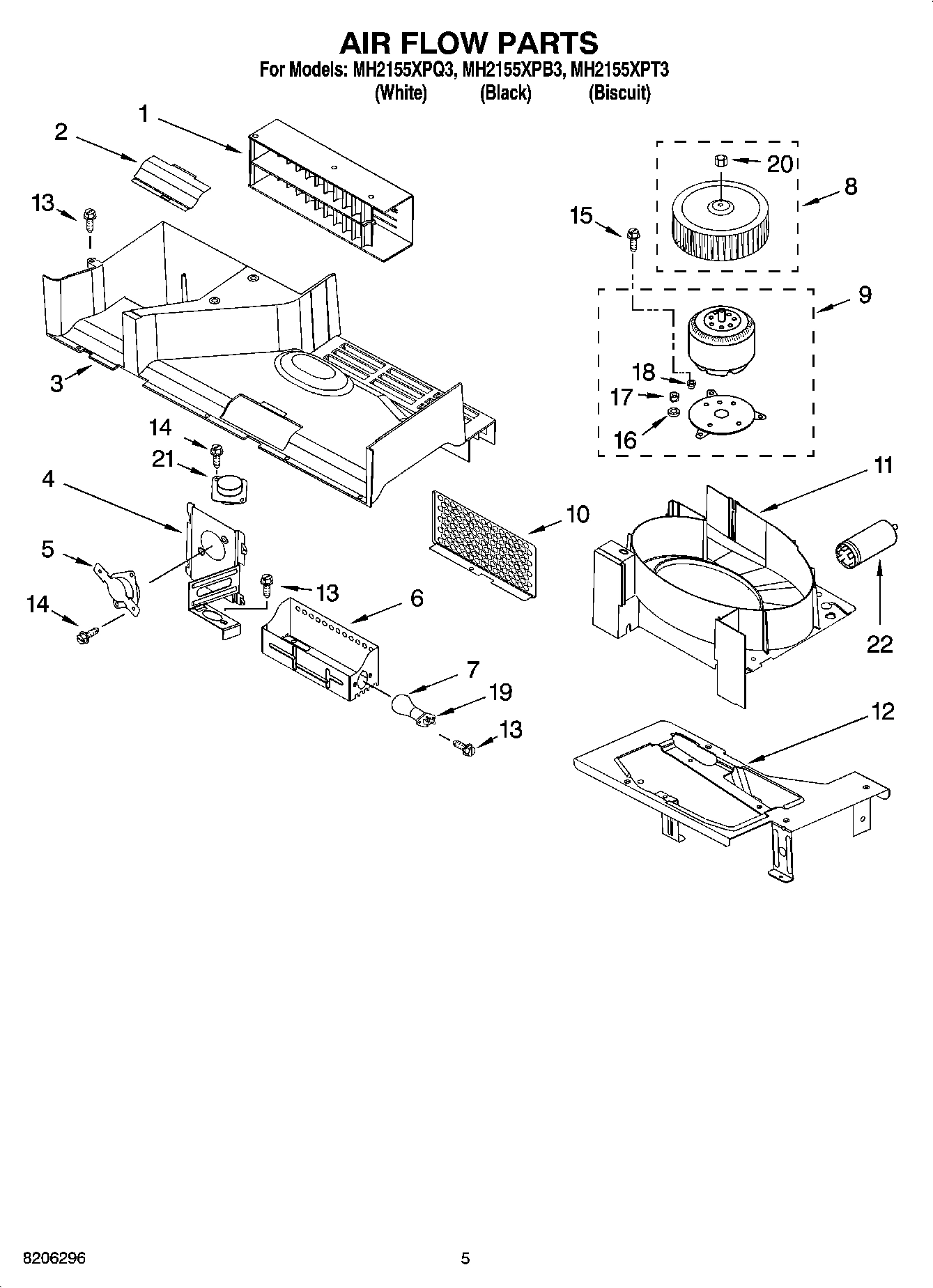

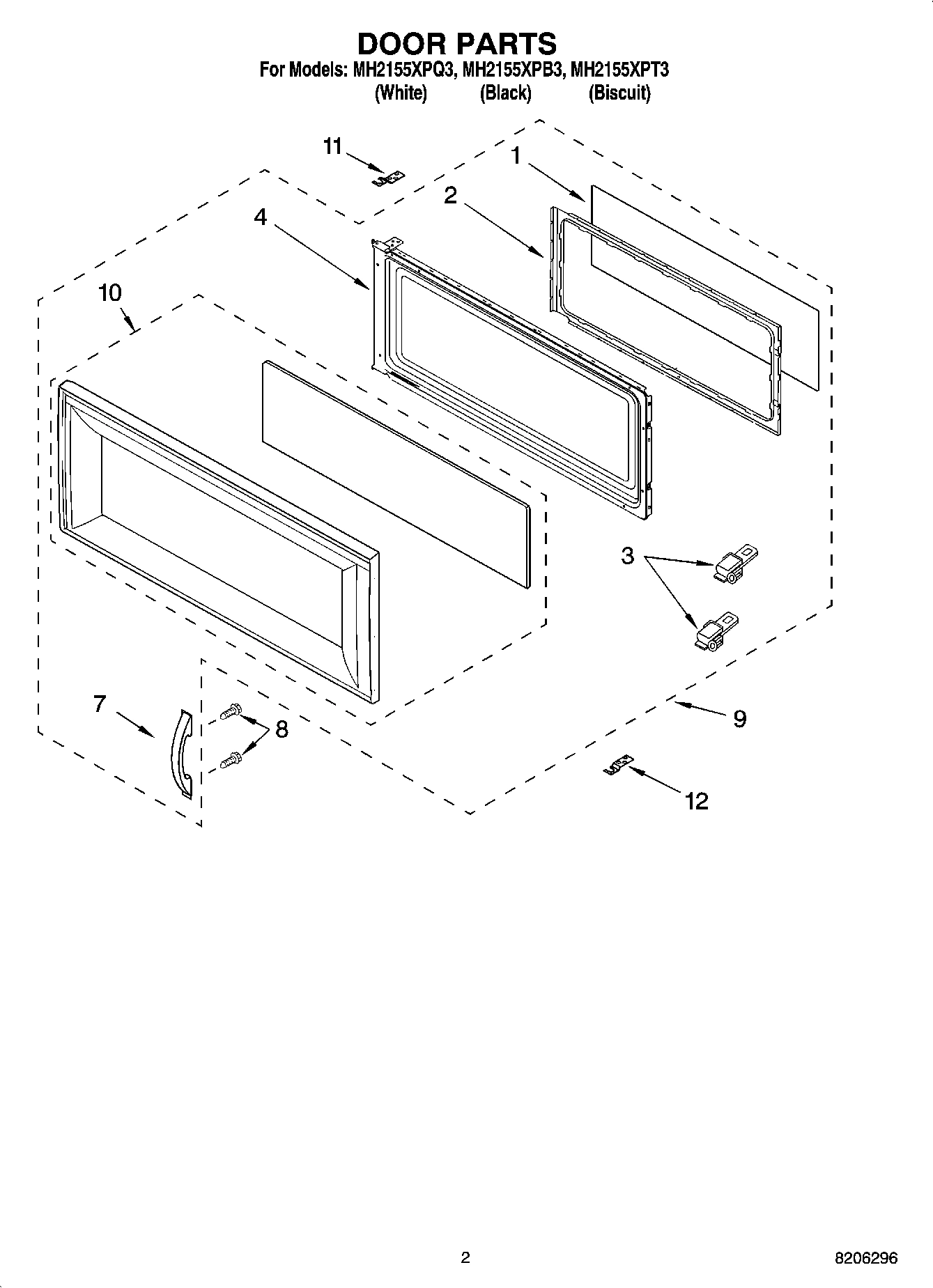

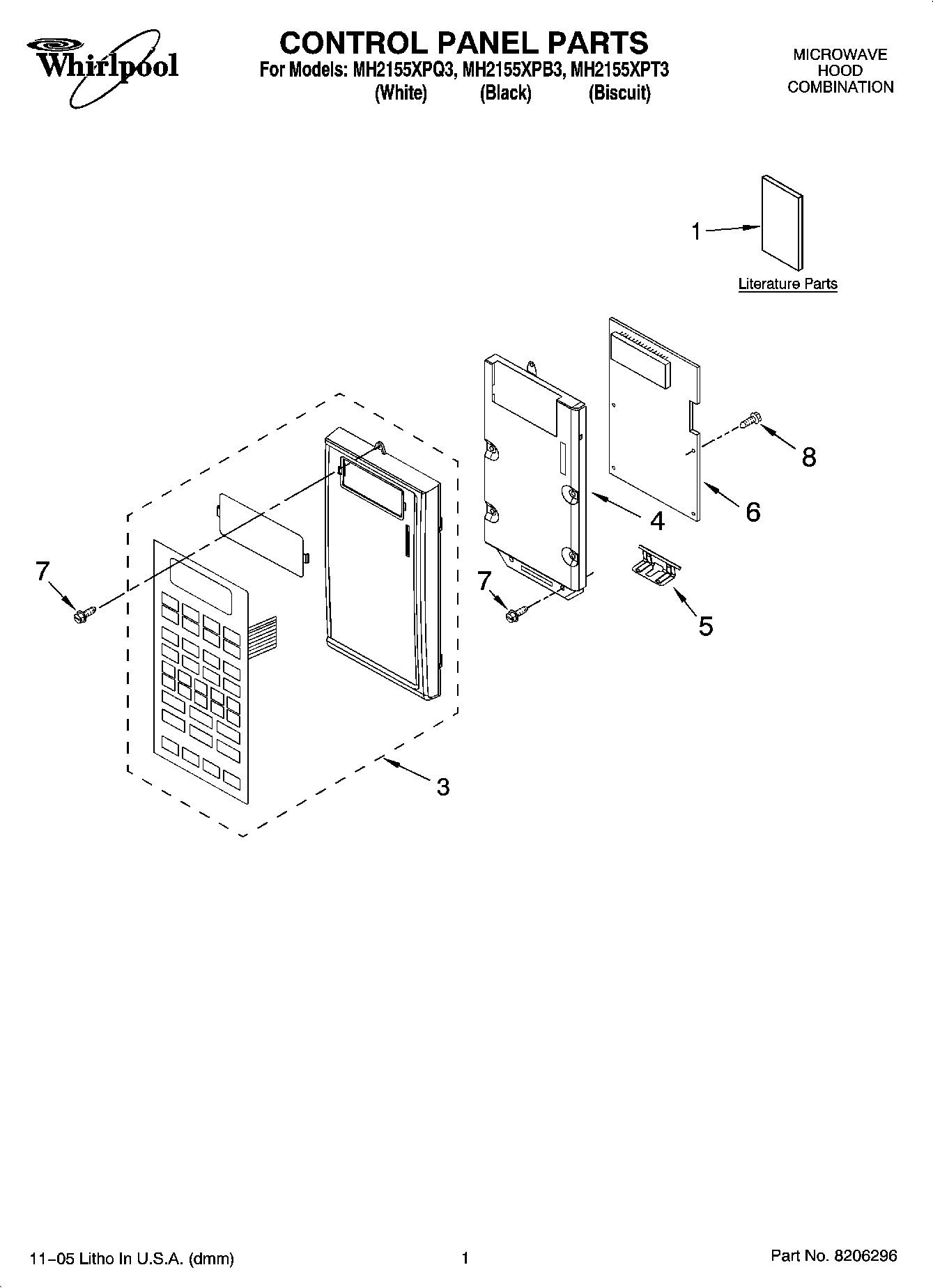

1

Deflector, Air WPL 8184638 Contact Us For Availability

1

Motor, Stirrer WPL 8205044 Contact Us For Availability

2

Frame, Inner WPL 8169545 Contact Us For Availability

2

Reflector, Air WPL 8169557 Contact Us For Availability

2

Stirrer Shaft/Blade WPL 8205315 Contact Us For Availability

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $44.05

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Duct, Air WPL 8185083 Contact Us For Availability

4

Bracket, Thermostat WPL 8204653 Contact Us For Availability

4

Lid, Power Cord WPL 8184313 Contact Us For Availability

5

Thermostat WPL 8183697 Contact Us For Availability

5

Cover, Inlet WPL 8184476 Contact Us For Availability

6

Hook, Rack (4) WPL 8204662 Contact Us For Availability

6

Housing, Lamp WPL 8184745 Contact Us For Availability

6

Cord, Power WPL 8184898 Contact Us For Availability

7

4393777 Whirlpool Microwave Door Handle - Whi In Stock WPL 4393777 $54.52

7

4393782 Whirlpool Microwave Door Handle In Stock WPL 4393782 $64.78

7

8206232A Whirlpool Microwave 40W 125V Incande In Stock WPL 8206232A $2.76

7

Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability

7

Case, Outer (White) WPL 8169660 Contact Us For Availability

7

Case, Outer (Black) WPL 8169661 Contact Us For Availability

7

Case, Outer (Biscuit) WPL 8169664 Contact Us For Availability

7

Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability

8

Turntable WPL 4393799 No Longer Available

8

8183851 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183851 $28.15

8

8183852 Whirlpool Microwave Primary Vent Gril In Stock WPL 8183852 $23.92

8

8183948 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183948 $28.15

8

Wheel, Fan WPL 8204694 Contact Us For Availability

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $2.73

9

W11252182 Whirlpool Glass Tray Support In Stock WPL W11252182 $20.42

9

Motor, Fan WPL 8204751 Contact Us For Availability

8185233 Whirlpool Microwave Door Panel In Stock WPL 8185233 $136.45

8185234 Whirlpool Microwave Door Panel Backorder WPL 8185234 $170.90

Screw WPL 4393833 Contact Us For Availability

Shield WPL 8204754 Contact Us For Availability

11

W10435116 Whirlpool Microwave Turntable Rolle Backorder WPL W10435116 $12.02

11

Spring, Interlock (2) WPL 8169438 Contact Us For Availability

11

Housing, Fan WPL 8184624 Contact Us For Availability

12

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

12

Plate, Cam (2) WPL 8183824 Contact Us For Availability

12

Bracket, Fan (Not Serviced) WPL ARI118054A Contact Us For Availability

13

Cover, Terminal WPL 4393756 Contact Us For Availability

14

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

14

Screw WPL 8169478 Contact Us For Availability

15

Thermostat WPL 8183698 Contact Us For Availability

15

Screw WPL 4393830 Contact Us For Availability

16

Motor, Fan WPL 8185211 Contact Us For Availability

16

Plate, Damper WPL 4393874 Contact Us For Availability

16

Holder, Connector (L) WPL 8205792 Contact Us For Availability

17

Spacer, Copper Pipe WPL 8184129 Contact Us For Availability

17

Chassis WPL 8185212 Contact Us For Availability

17

Holder, Connector (R) WPL 8169705 Contact Us For Availability

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $2.85

Cushion, Mtr WPL 8169635 Contact Us For Availability

Filler Kit (Black) WPL 8171337 Contact Us For Availability

Filler Kit (White) WPL 8171336 Contact Us For Availability

Hardware, Installation WPL 8205947 Contact Us For Availability

Holder, Capacitor WPL 8184311 Contact Us For Availability

Plate, Damper WPL 8169697 Contact Us For Availability

Filler Kit WPL 8171338 Contact Us For Availability

(Biscuit) WPL 8184781 Contact Us For Availability

Rack WPL 8204725 Contact Us For Availability

Ground Wire Assy. WPL 8205635 Contact Us For Availability

Cavity Lamp Wiring WPL 8205843 Contact Us For Availability

Fan Motor Wiring WPL 8205844 Contact Us For Availability

Stirrer Motor Wire WPL 8205845 Contact Us For Availability

Lamp Wire Assembly WPL 8205846 Contact Us For Availability

H.V. Wire Assembly WPL 8205847 Contact Us For Availability

ACCESSORY PARTS WPL ARI118055A Contact Us For Availability

Miscellaneous WPL ARI118056A Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

19

8169539 Whirlpool Microwave Light Bulb Socket Backorder WPL 8169539 $30.93

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $10.01

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $118.69

20

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $2.51

20

Nut WPL 8184404 Contact Us For Availability

21

Transformer, H.V. WPL 8204844 Contact Us For Availability

21

Humidity, Sensor WPL 4393808 Contact Us For Availability

22

Plate, Side (R) WPL 8204657 Contact Us For Availability

22

Filter WPL 8169561 Contact Us For Availability

23

WP8184485 Whirlpool Microwave Shield Backorder WPL WP8184485 $40.26

24

Thermostat And Bracket WPL 8184585 Contact Us For Availability

25

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $3.70

25

Plate, Side (L) WPL 8204658 Contact Us For Availability

26

Capacitor WPL 4393709 Contact Us For Availability

27

Holder, Fuse WPL 8184312 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

29

Thermostat WPL 8183703 Contact Us For Availability

30

Screw WPL 8169474 Contact Us For Availability

31

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $2.51

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

33

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $2.51

35

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59
