Model Whirlpool MH1150XMS3 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
05 - MAGNETRON AND TURNTABLE PARTS
06 - CABINET AND INSTALLATION PARTS

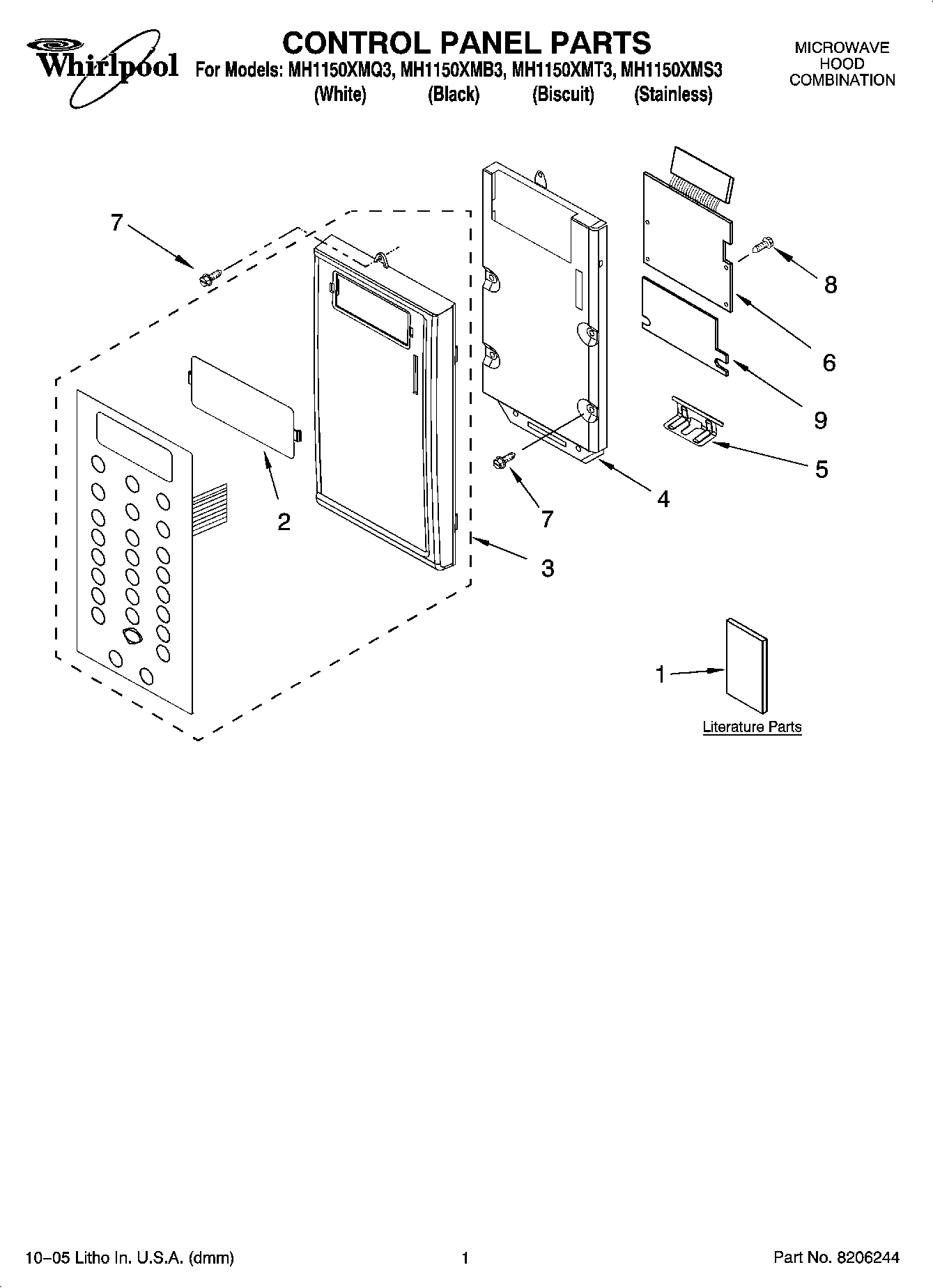

01 - CONTROL PANEL PARTS

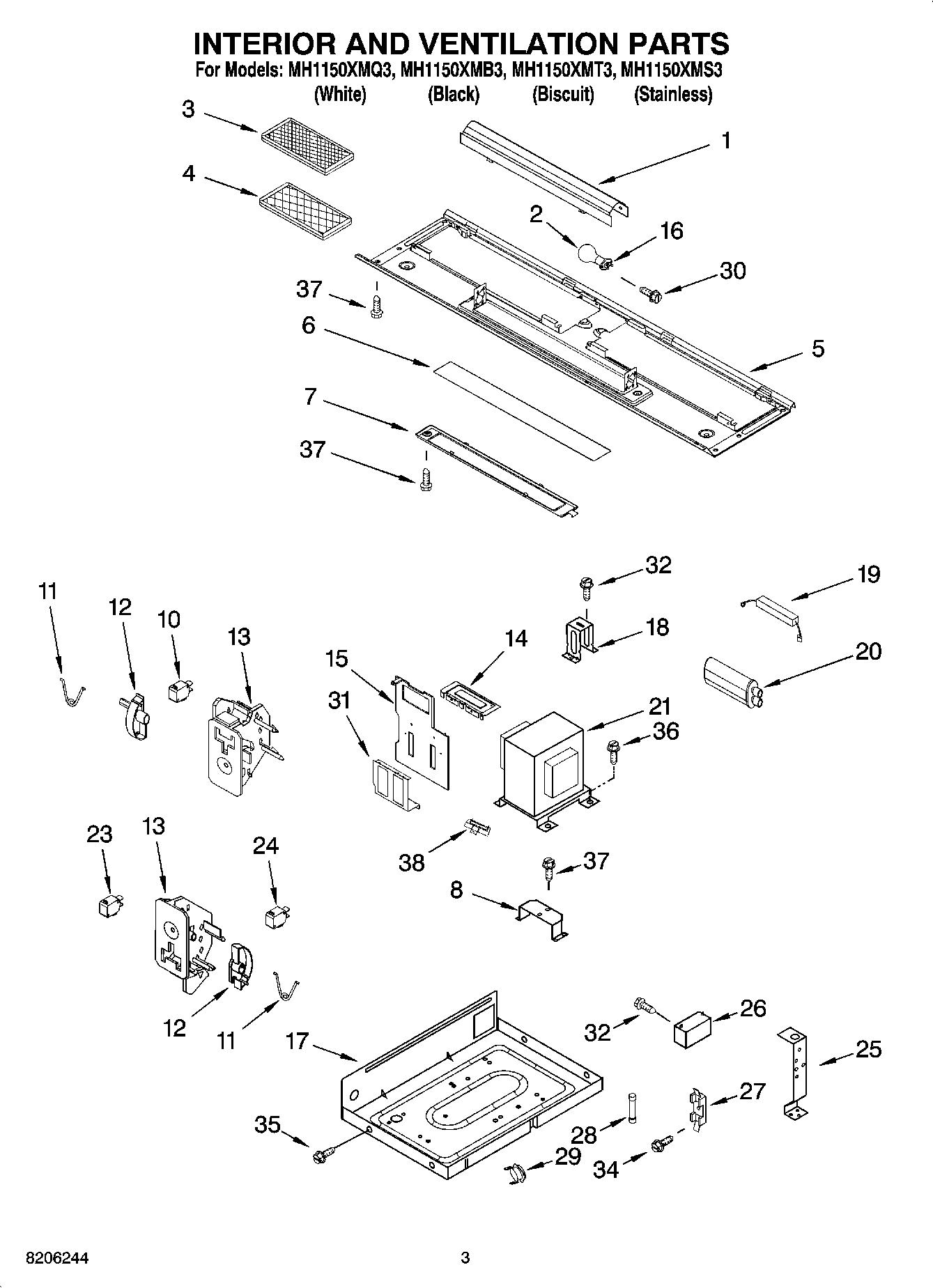

03 - INTERIOR AND VENTILATION PARTS

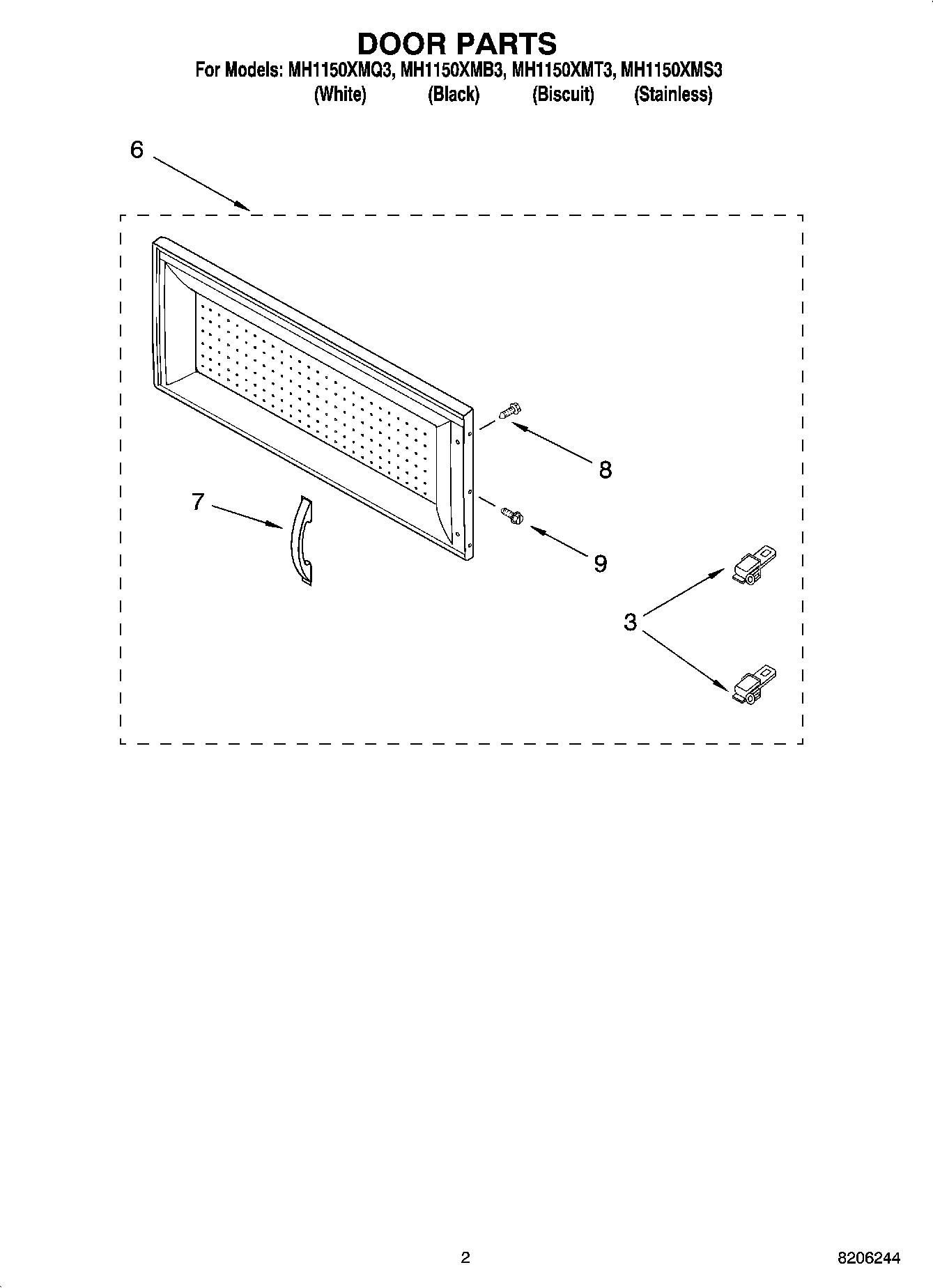

02 - DOOR PARTS

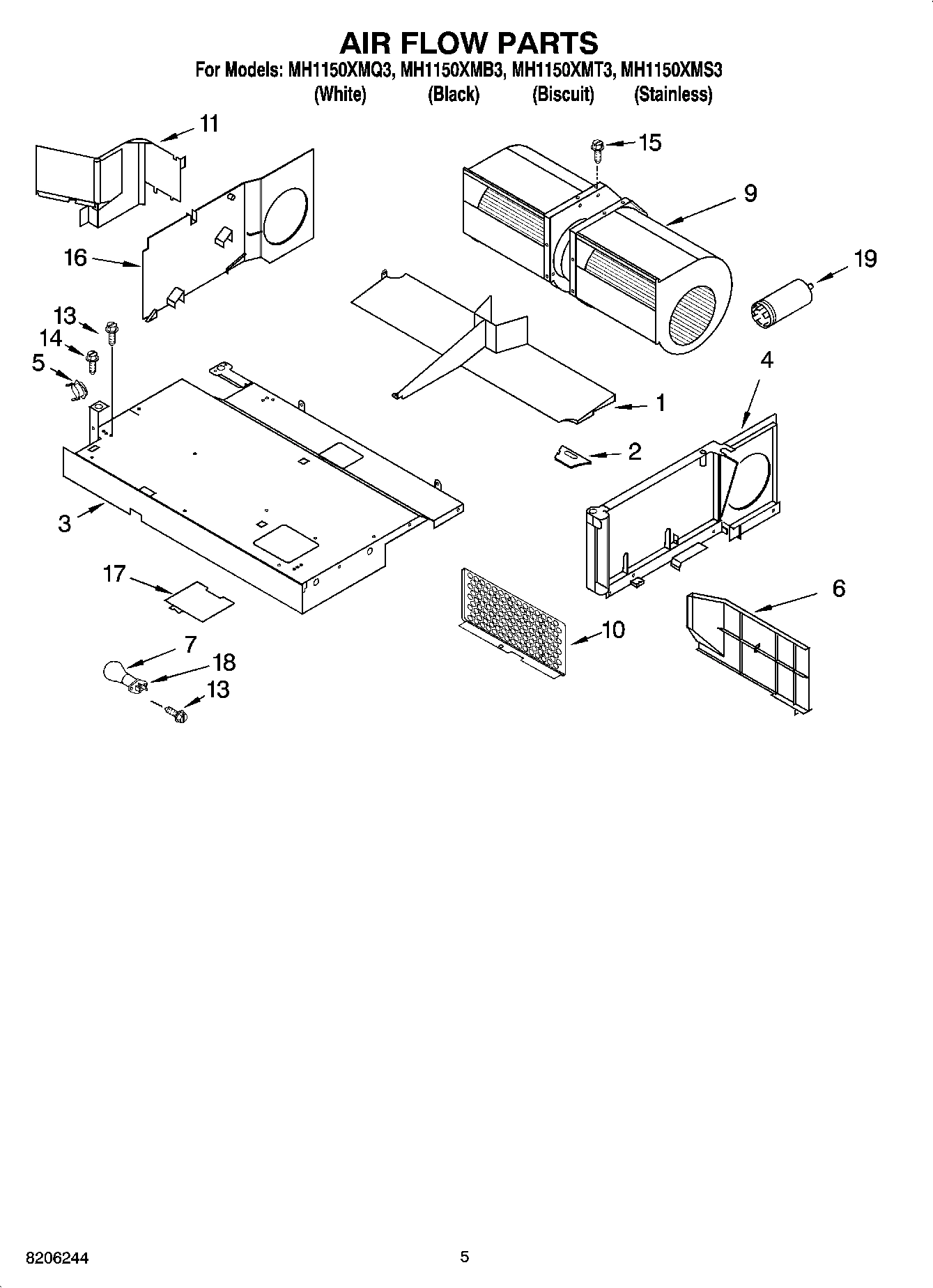

04 - AIR FLOW PARTS
Common parts from model Whirlpool MH1150XMS3 MICROWAVE HOOD COMBINATION
1
Tech Sheet WPL 8205616 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Deflector, Air WPL 8185096 Contact Us For Availability
2
Hook, Rack (4) WPL 8204662 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
2
Socket, Motor Wire WPL 8185097 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8185286 Contact Us For Availability
3
Panel, Control (Black) WPL 8185287 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8185288 Contact Us For Availability
3
Panel, Control (Stainless (Inlcudes 10)) WPL 8204739 Contact Us For Availability
3
Base Plate WPL 8205563 Contact Us For Availability
4
Turntable WPL 4393799 No Longer Available
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Air Guide (Right) WPL 8185098 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Plate, Bottom WPL 8185105 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
6
Complete, Door (Black) WPL 8185239 Contact Us For Availability
6
Complete Door (White) WPL 8185238 Contact Us For Availability
6
PCB Assembly WPL 8204740 Contact Us For Availability
6
Glass, Lamp WPL 8185210 Contact Us For Availability
6
Complete Door (Stainless) WPL 8204741 Contact Us For Availability
6
Complete Door (Biscuit) WPL 8204788 Contact Us For Availability
6
Deflector, Cooling Air WPL 8185099 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8205578 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
9
Motor, Fan WPL 8184825 Contact Us For Availability
10
Shield WPL 8205355 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Thermostat WPL 8183698 Contact Us For Availability
11
Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
14
Block, Transformer WPL 8205579 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Air Guide, Cooling WPL 8205580 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Socket, Light WPL 8169539 Contact Us For Availability
16
Air Guide (Left) WPL 8185115 Contact Us For Availability
17
Chassis (Includes 29) WPL 8205582 Contact Us For Availability
17
Cover, Light WPL 8185118 Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
19
Filter WPL 8169561 Contact Us For Availability
21
Transformer, H.V. WPL 8205560 Contact Us For Availability
25
Bracket, Right WPL 8205559 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 8183703 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
31
Block, Air Guide Magnetron WPL 8205581 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
38
Resistor WPL 8205152 Contact Us For Availability
× ![]()
