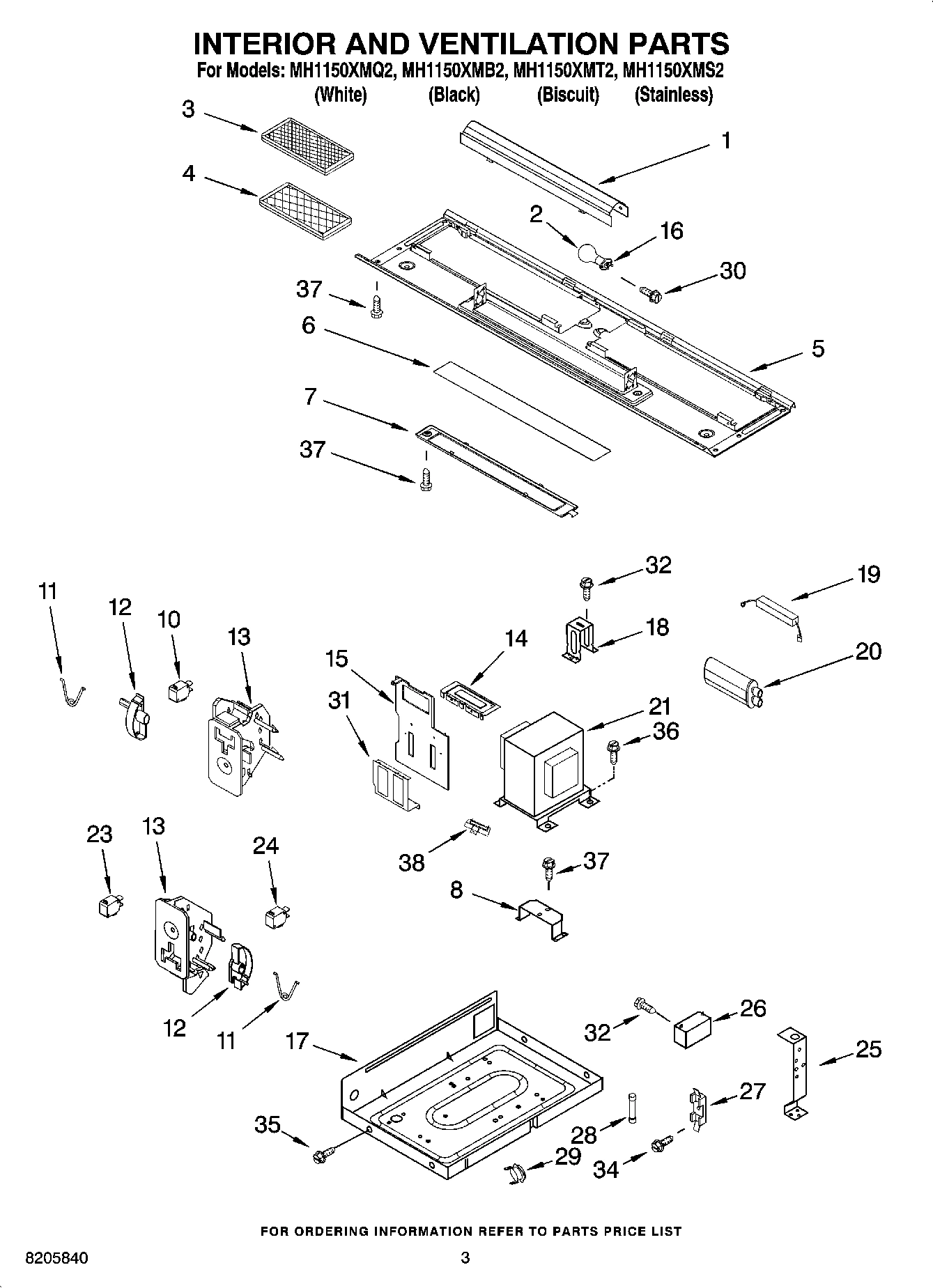

Model Whirlpool MH1150XMS2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

1
Installation Instructions
Installation Instructions WPL 8184732 Contact Us For Availability
View on Model
1
Cook Guide Label
Cook Guide Label WPL 8184989 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 8185379 Contact Us For Availability
View on Model
1
Tech Sheet
Tech Sheet WPL 8205616 Contact Us For Availability
View on Model
1
Deflector, Air
Deflector, Air WPL 8185096 Contact Us For Availability
View on Model
1
Cover, Inlet
Cover, Inlet WPL 8185255 Contact Us For Availability
View on Model
2
Hook, Rack (4)
Hook, Rack (4) WPL 8204662 Contact Us For Availability
View on Model
2
Lens
Lens WPL 4393739 Contact Us For Availability
View on Model
2
Socket, Motor Wire
Socket, Motor Wire WPL 8185097 Contact Us For Availability
View on Model
3
Latch, Door
Latch, Door WPL 4393913 Contact Us For Availability
View on Model
3
Panel, Control (White)
Panel, Control (White) WPL 8185286 Contact Us For Availability
View on Model
3
Panel, Control (Black)
Panel, Control (Black) WPL 8185287 Contact Us For Availability
View on Model
3
Panel, Control (Biscuit)
Panel, Control (Biscuit) WPL 8185288 Contact Us For Availability
View on Model
3
Panel, Control (Stainless (Inlcudes 10))
Panel, Control (Stainless (Inlcudes 10)) WPL 8204739 Contact Us For Availability
View on Model
3
Base Plate
Base Plate WPL 8205563 Contact Us For Availability
View on Model
3
Nails/Bushings (5 of each)
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
View on Model
4
Turntable
Turntable WPL 4393799 No Longer Available
View on Model
4
Bracket, Control
Bracket, Control WPL 8183821 Contact Us For Availability
View on Model
4
Air Guide (Right)
Air Guide (Right) WPL 8185098 Contact Us For Availability
View on Model
5
Plate, Hinge
Plate, Hinge WPL 4393744 Contact Us For Availability
View on Model
5
Thermostat
Thermostat WPL 4393945 Contact Us For Availability
View on Model
6
Complete, Door (Black)
Complete, Door (Black) WPL 8185239 Contact Us For Availability
View on Model
6
Complete Door (White)
Complete Door (White) WPL 8185238 Contact Us For Availability
View on Model
6
PCB Assembly
PCB Assembly WPL 8204740 Contact Us For Availability
View on Model
6
Deflector, Cooling Air
Deflector, Cooling Air WPL 8185099 Contact Us For Availability
View on Model
7
Handle, Door (Biscuit)
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
View on Model
7
Case, Outer (White)
Case, Outer (White) WPL 8185091 Contact Us For Availability
View on Model
7
Case, Outer (Biscuit)
Case, Outer (Biscuit) WPL 8185092 Contact Us For Availability
View on Model
7
Case, Outer (Stainless)
Case, Outer (Stainless) WPL 8185093 Contact Us For Availability
View on Model
7
Screw
Screw WPL 4393828 Contact Us For Availability
View on Model
8
Screw
Screw WPL 4393346 Contact Us For Availability
View on Model
9
Foil, PCB
Foil, PCB WPL 8185122 Contact Us For Availability
View on Model
9
Motor, Fan
Motor, Fan WPL 8184825 Contact Us For Availability
View on Model
9
Cover, Terminal
Cover, Terminal WPL 4393756 Contact Us For Availability
View on Model
10
Shield
Shield WPL 8205355 Contact Us For Availability
View on Model
11
Spring, Interlock (2)
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
View on Model
11
Thermostat
Thermostat WPL 8183698 Contact Us For Availability
View on Model
11
Air Guide, Sealing Plate
Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability
View on Model
12
Plate, Cam (2)
Plate, Cam (2) WPL 8183824 Contact Us For Availability
View on Model
12
Rack
Rack WPL 8204725 Contact Us For Availability
View on Model
13
Screw
Screw WPL 8169474 Contact Us For Availability
View on Model
13
Rod
Rod WPL 8169318 Contact Us For Availability
View on Model
13
Screw
Screw WPL 4393838 Contact Us For Availability
View on Model
14
Screw
Screw WPL 8169478 Contact Us For Availability
View on Model
14
Latch, Pivot
Latch, Pivot WPL 8169319 Contact Us For Availability
View on Model
15
Screw
Screw WPL 4393833 Contact Us For Availability
View on Model
15
E-Ring
E-Ring WPL 8169320 Contact Us For Availability
View on Model
15
Screw
Screw WPL 4393830 Contact Us For Availability
View on Model
16
Catch
Catch WPL 8185033 Contact Us For Availability
View on Model
16
Air Guide (Left)
Air Guide (Left) WPL 8185115 Contact Us For Availability
View on Model
16
Left Block, Magnetron
Left Block, Magnetron WPL 8205583 Contact Us For Availability
View on Model
17
Spring
Spring WPL 8169374 Contact Us For Availability
View on Model
17
Cover, Light
Cover, Light WPL 8185118 Contact Us For Availability
View on Model
17
Middle Block, Magnetron
Middle Block, Magnetron WPL 8205584 Contact Us For Availability
View on Model
18
Holder, Lamp
Holder, Lamp WPL 8169539 Contact Us For Availability
View on Model
18
Wall Template
Wall Template WPL 8183743 Contact Us For Availability
View on Model
18
Upper Template
Upper Template WPL 8184731 Contact Us For Availability
View on Model
18
Cover, Motor
Cover, Motor WPL 8185090 Contact Us For Availability
View on Model
18
Main Harness
Main Harness WPL 8205632 Contact Us For Availability
View on Model
18
Lamp Wire Assy.
Lamp Wire Assy. WPL 8205633 Contact Us For Availability
View on Model
18
H.V. Wire Assy.
H.V. Wire Assy. WPL 8205634 Contact Us For Availability
View on Model
18
Ground Wire Assy.
Ground Wire Assy. WPL 8205635 Contact Us For Availability
View on Model
18
Installation, Hardware
Installation, Hardware WPL 8205893 Contact Us For Availability
View on Model
18
Miscellaneous
Miscellaneous WPL ARI118007A Contact Us For Availability
View on Model
18
Right Block, Magnetron
Right Block, Magnetron WPL 8205585 Contact Us For Availability
View on Model
19
Filter
Filter WPL 8169561 Contact Us For Availability
View on Model
37
Screw
Screw WPL 4393839 Contact Us For Availability
View on Model
38
Resistor
Resistor WPL 8205152 Contact Us For Availability
View on Model
