Model Whirlpool MH1150XMQ0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
04 - AIR FLOW PARTS
06 - CABINET AND INSTALLATION PARTS

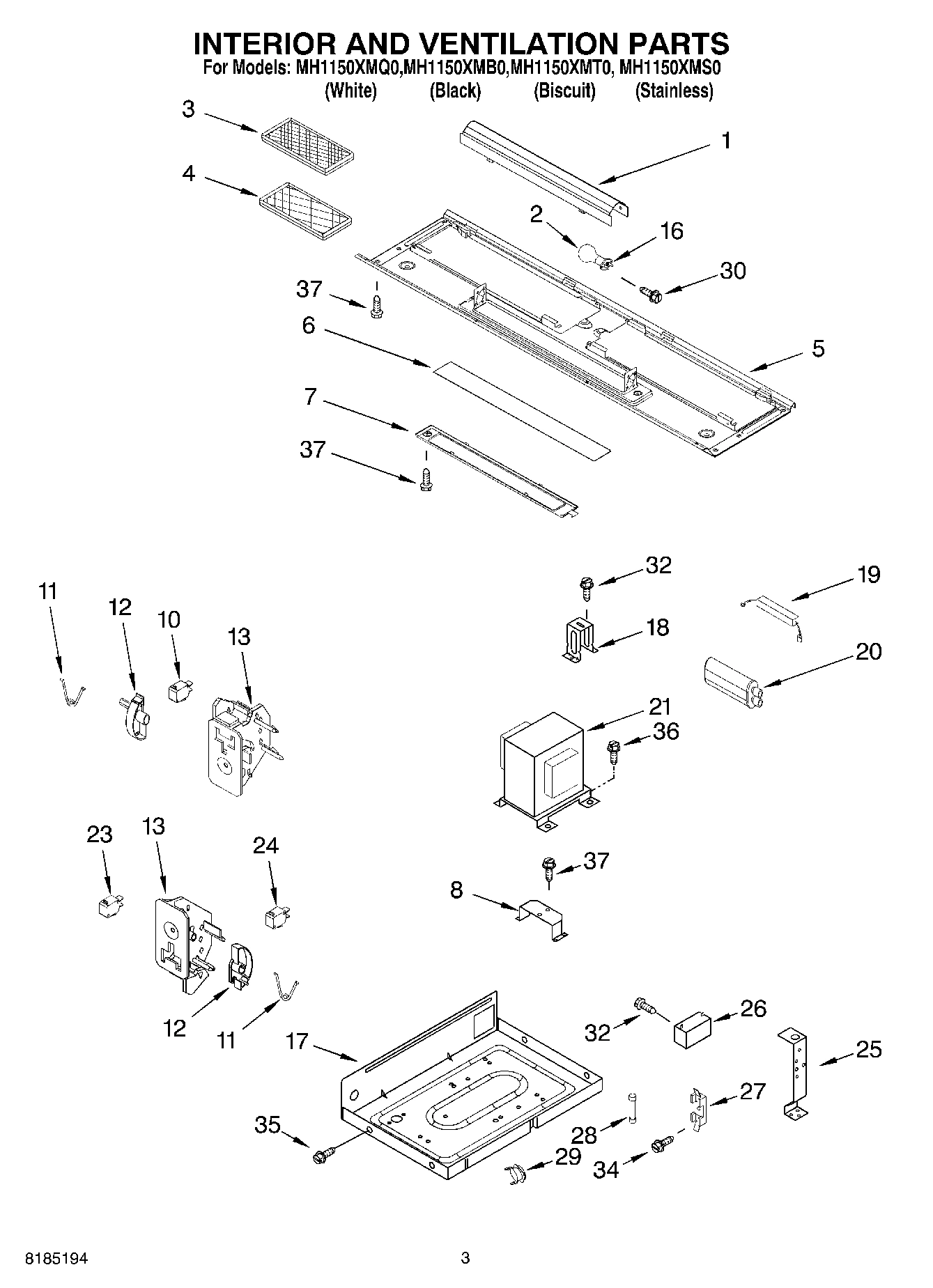

03 - INTERIOR AND VENTILATION PARTS

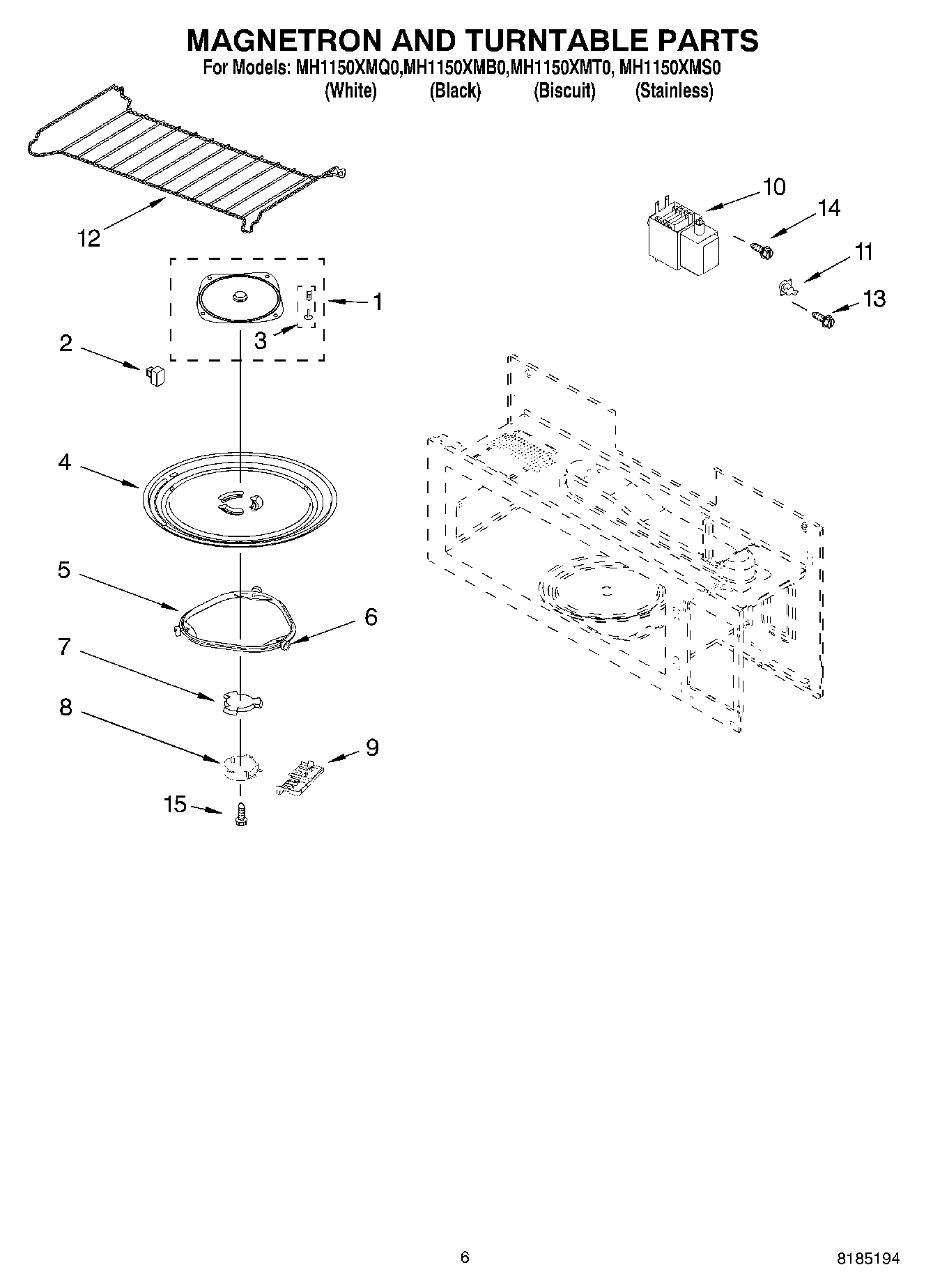

05 - MAGNETRON AND TURNTABLE PARTS

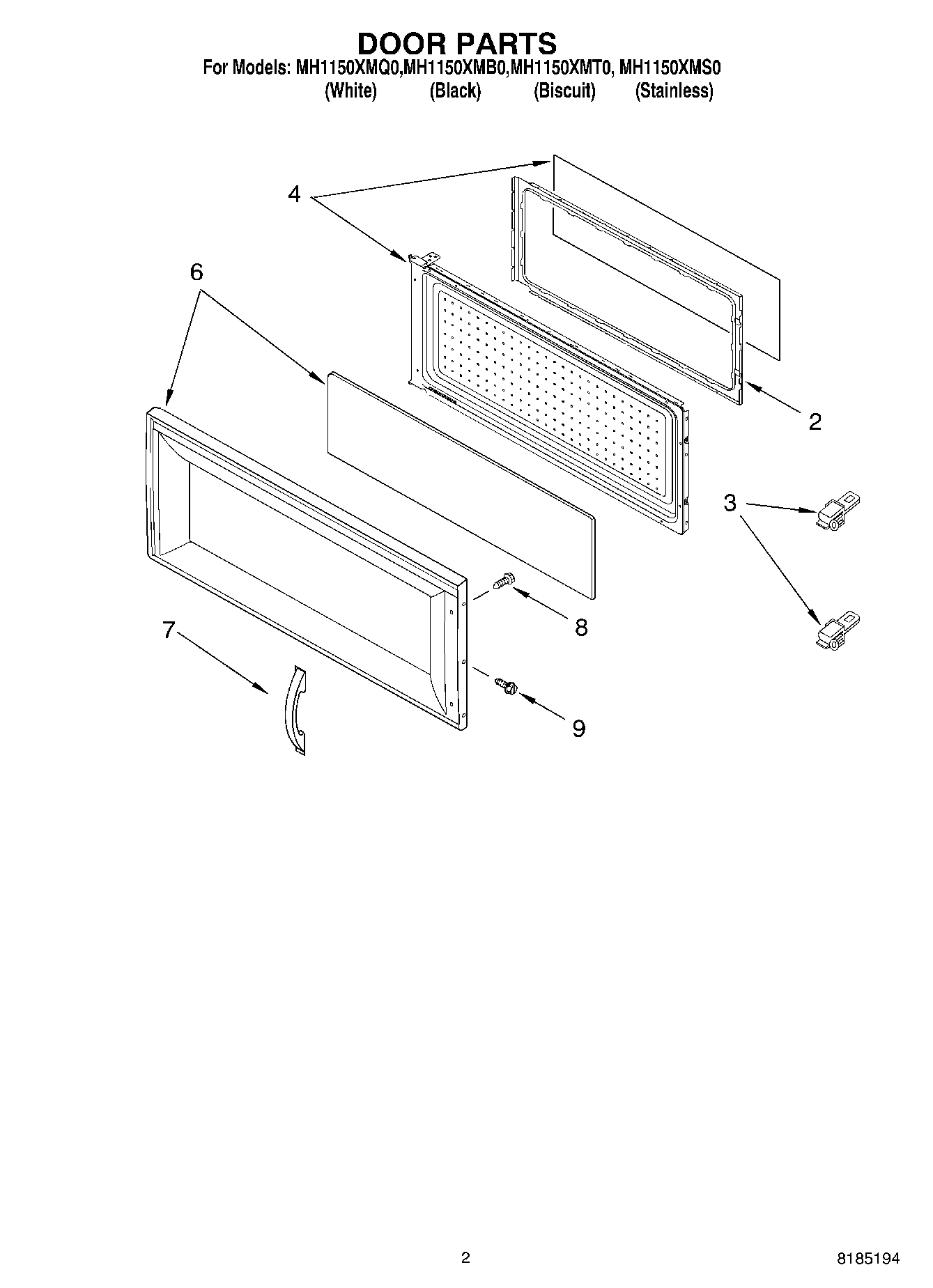

02 - DOOR PARTS

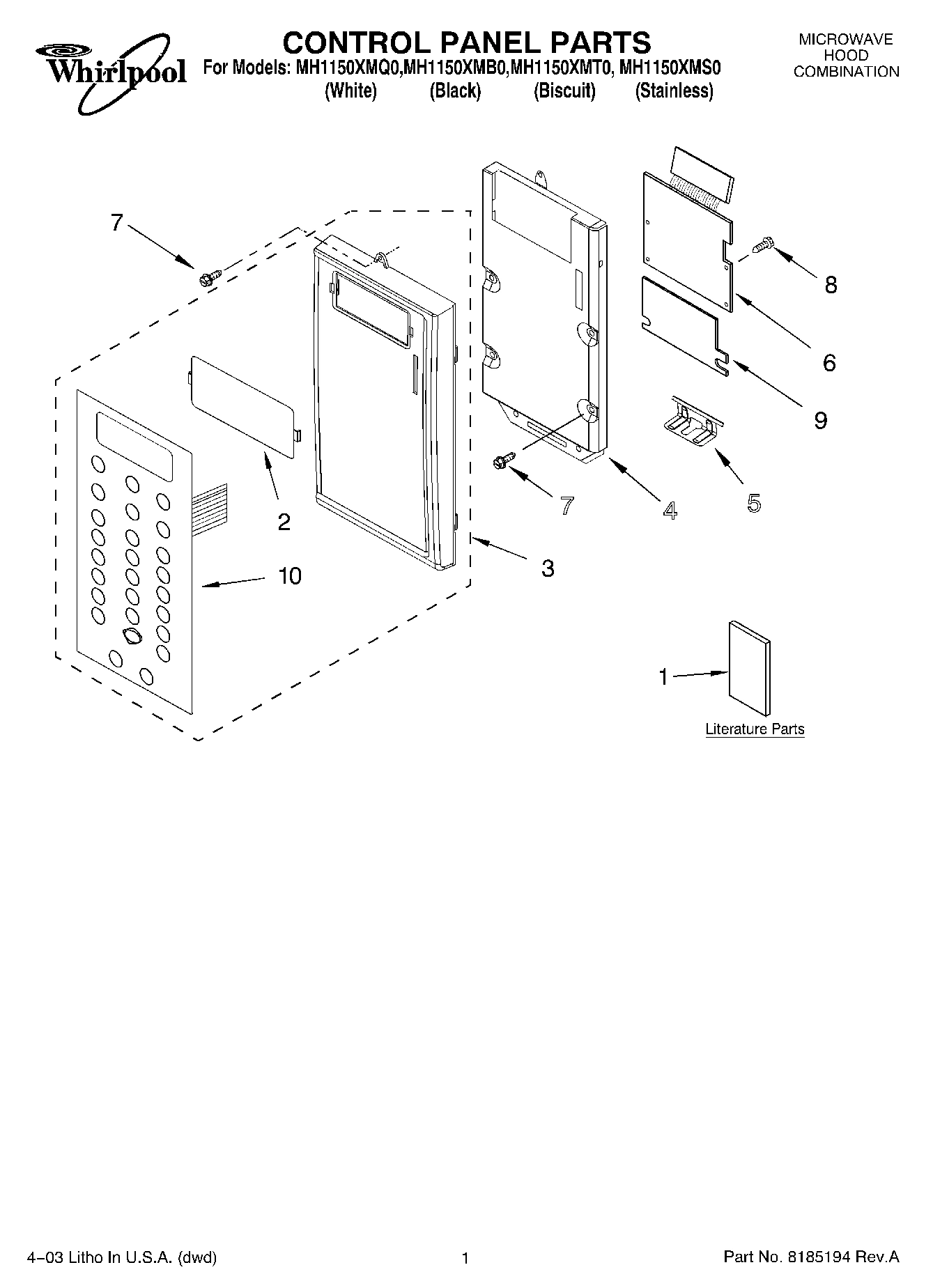

01 - CONTROL PANEL PARTS
Common parts from model Whirlpool MH1150XMQ0 MICROWAVE HOOD COMBINATION
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
1
Cover, Inlet WPL 8204738 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8184732 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8184989 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184997 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8204750 Contact Us For Availability
2
Hook, Rack (4) WPL 8204662 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 8185286 Contact Us For Availability
3
Panel, Control (Black) WPL 8185287 Contact Us For Availability
3
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8185288 Contact Us For Availability
3
Panel, Control (Stainless (Inlcudes 10)) WPL 8204739 Contact Us For Availability
4
Turntable WPL 4393799 Contact Us For Availability
4
Body, Door (Includes Film) (White) WPL 8185107 Contact Us For Availability
4
Body, Door (Includes Film) (Biscuit) WPL 8185108 Contact Us For Availability
4
Body, Door (Includes Film) (Black/Stainless) WPL 8185109 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
5
Plate, Bottom WPL 8185105 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Frame, Outer (Includes Glass) (White) WPL 8185233 Contact Us For Availability
6
Frame, Outer (Includes Glass) (Biscuit) WPL 8185285 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
6
Frame, Outer (Includes Glass) (Stainless) WPL 8204737 Contact Us For Availability
6
PCB Assembly WPL 8204740 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8184586 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
9
Cover, Terminal WPL 4393756 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
10
Switch, Membrane (White) WPL 8185289 Contact Us For Availability
10
Switch, Membrane (Black Stainless (Not Servic WPL 8185290 Contact Us For Availability
10
Switch, Membrane (Biscuit) WPL 8185291 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Thermostat WPL 8184829 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Rack WPL 8204725 Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Screw WPL 4393838 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
17
Chassis WPL 8185104 Contact Us For Availability
18
Holder, Lamp WPL 8169539 Contact Us For Availability
18
Upper Template WPL 8184731 Contact Us For Availability
18
Cover, Motor WPL 8185090 Contact Us For Availability
18
Miscellaneous WPL ARI118000A Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
21
Transformer, H.V. WPL 8184826 Contact Us For Availability
25
Bracket, Right WPL 8185100 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
