Model Whirlpool MH1141XMQ0 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

Film, Back WPL 4393870 Contact Us For Availability

1

Reflector, Lamp WPL 4393688 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8184732 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8184980 Contact Us For Availability

1

Literature Parts (Cook Guide Label) WPL LIT8184988 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8184996 Contact Us For Availability

2

8206232A Whirlpool Microwave 40W 125V Incande In Stock WPL 8206232A $2.76

2

Frame, Inner WPL 8169545 Contact Us For Availability

2

Lens WPL 4393739 Contact Us For Availability

3

8206444A Whirlpool Microwave Charcoal Filter In Stock WPL 8206444A $7.01

3

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $44.05

3

Latch, Door WPL 4393913 Contact Us For Availability

3

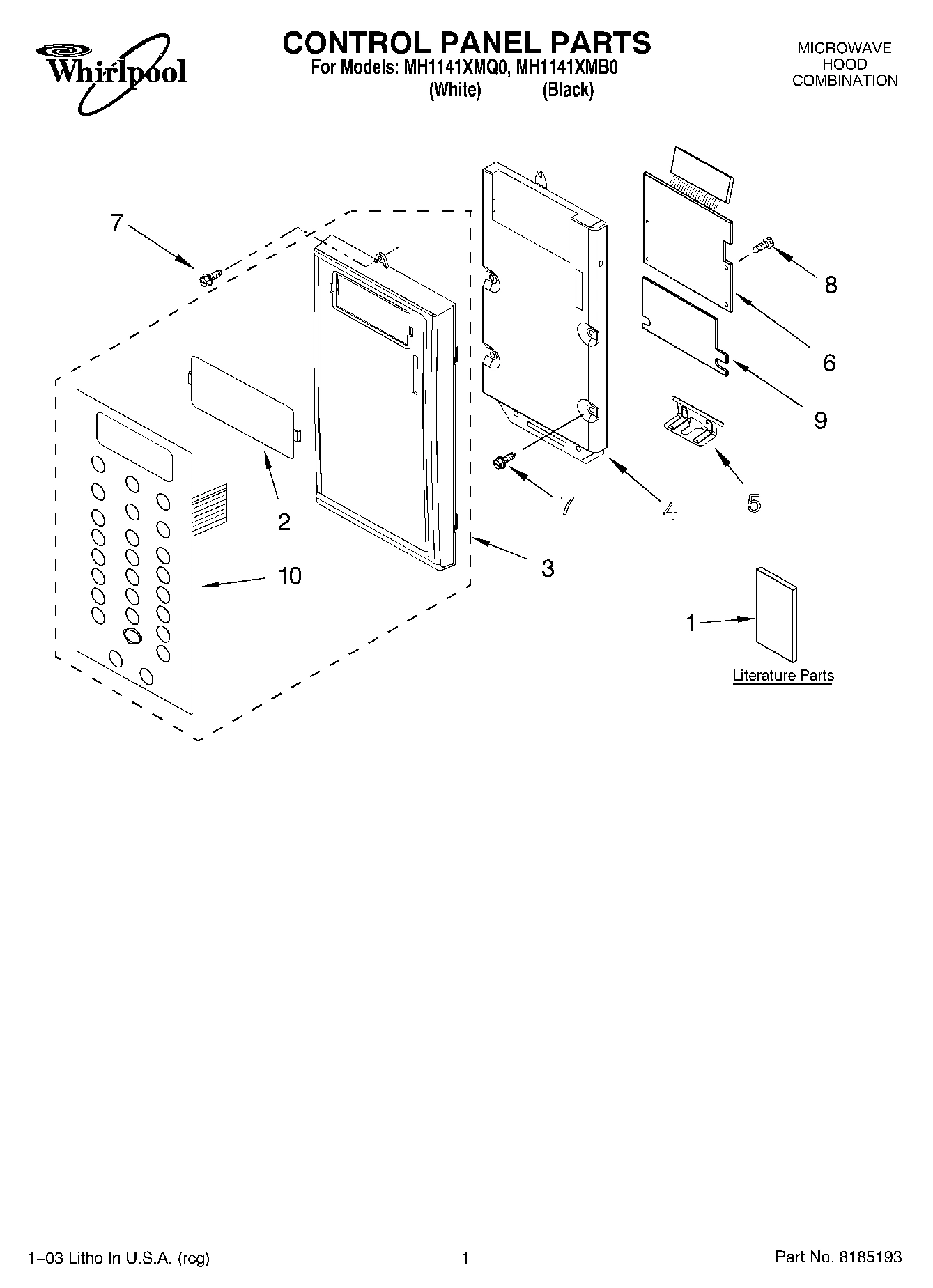

Panel, Control (White) WPL 8185242 Contact Us For Availability

3

Panel, Control (Black) WPL 8185243 Contact Us For Availability

4

Turntable WPL 4393799 No Longer Available

4

6802A Whirlpool Grease Filter In Stock WPL 6802A $12.48

4

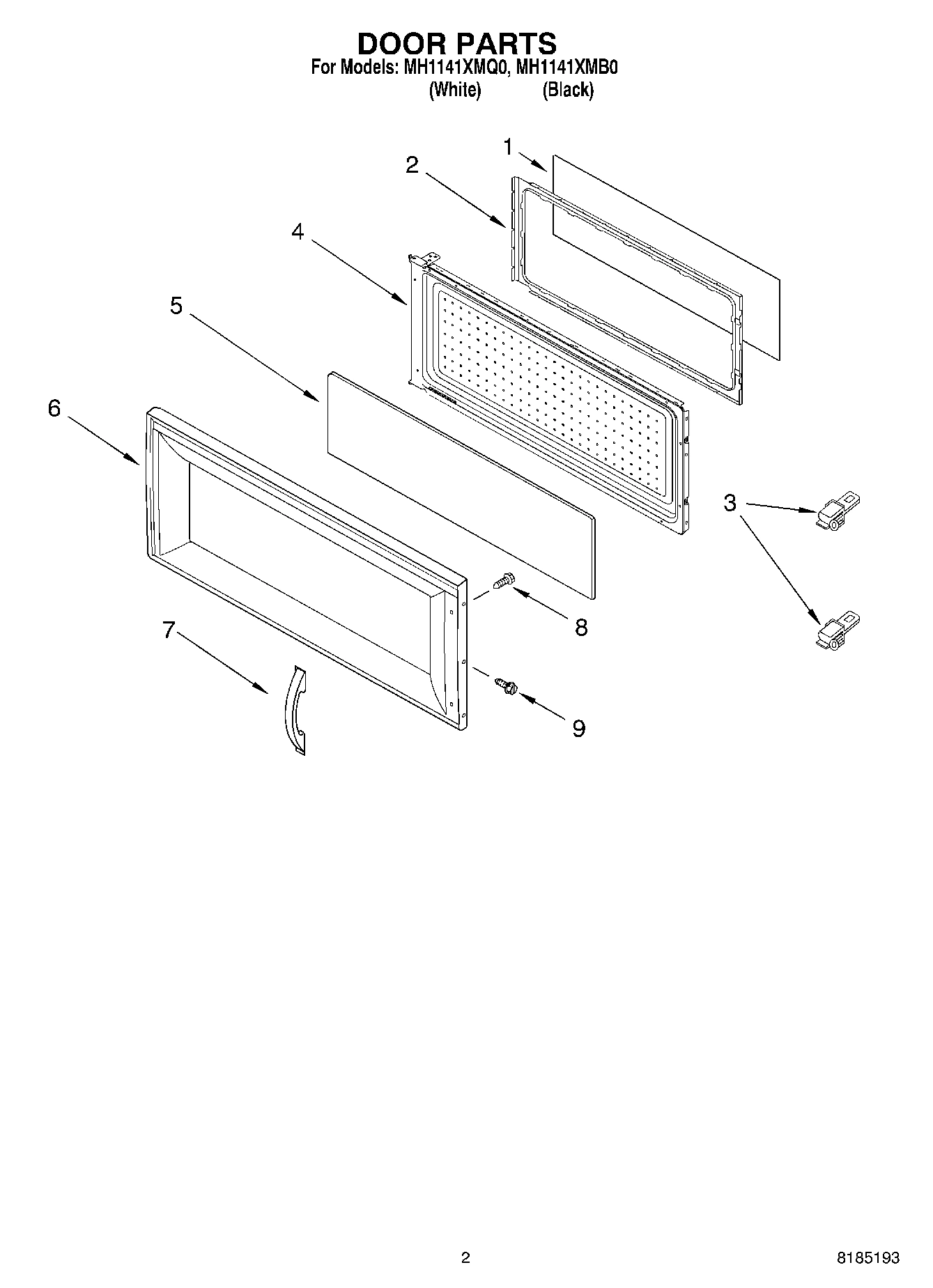

Body, Door (Includes 1) (White) WPL 8185107 Contact Us For Availability

4

Body, Door (Includes 1) (Black) WPL 8185109 Contact Us For Availability

4

Bracket, Control WPL 8183821 Contact Us For Availability

5

Glass, Outer WPL 4393725 Contact Us For Availability

5

Plate, Bottom WPL 8185105 Contact Us For Availability

5

Plate, Hinge WPL 4393744 Contact Us For Availability

6

8185233 Whirlpool Microwave Door Panel In Stock WPL 8185233 $136.45

6

8185234 Whirlpool Microwave Door Panel Backorder WPL 8185234 $170.90

6

W10708076 Whirlpool Microwave Power Cord In Stock WPL W10708076 $5.20

6

Wheel, Plastic WPL 4393861 Contact Us For Availability

6

Glass, Lamp WPL 8169564 Contact Us For Availability

6

PCB Assembly WPL 8185237 Contact Us For Availability

7

4393777 Whirlpool Microwave Door Handle - Whi In Stock WPL 4393777 $54.52

7

4393782 Whirlpool Microwave Door Handle In Stock WPL 4393782 $64.78

7

Holder, Glass WPL 8184308 Contact Us For Availability

7

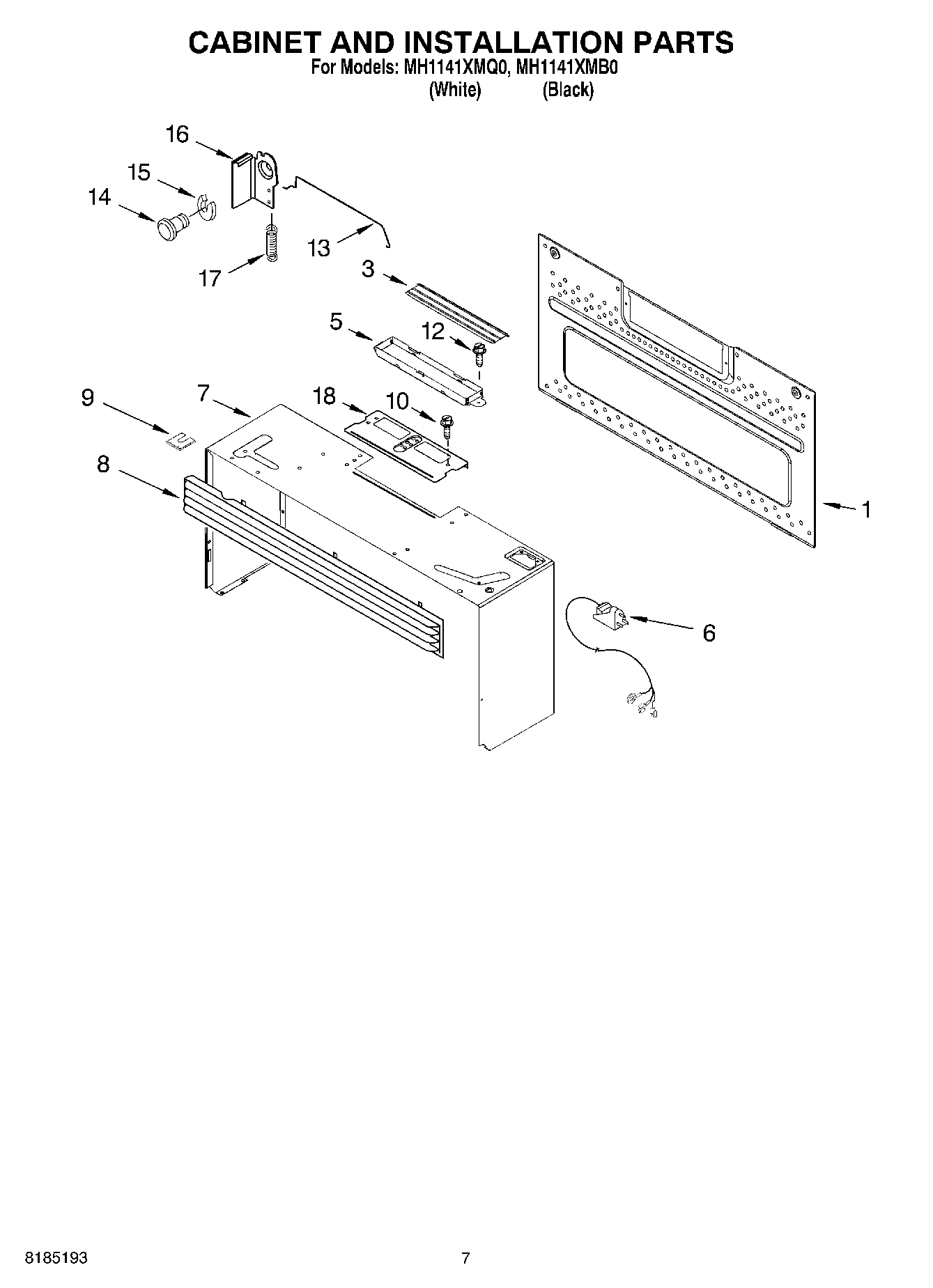

Case, Outer (White) WPL 8185091 Contact Us For Availability

7

Case, Outer (Black) WPL 8185093 Contact Us For Availability

7

Screw WPL 4393828 Contact Us For Availability

8

8183851 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183851 $28.15

8

8183948 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183948 $28.15

8

TCO, Bracket Assembly WPL 8184586 Contact Us For Availability

8

Screw WPL 4393346 Contact Us For Availability

9

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $2.51

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $2.73

9

Foil, PCB WPL 8185122 Contact Us For Availability

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $2.51

Switch, Membrane (White) WPL 8185244 Contact Us For Availability

Switch, Membrane (Black) WPL 8185245 Contact Us For Availability

11

Spring, Interlock (2) WPL 8169438 Contact Us For Availability

11

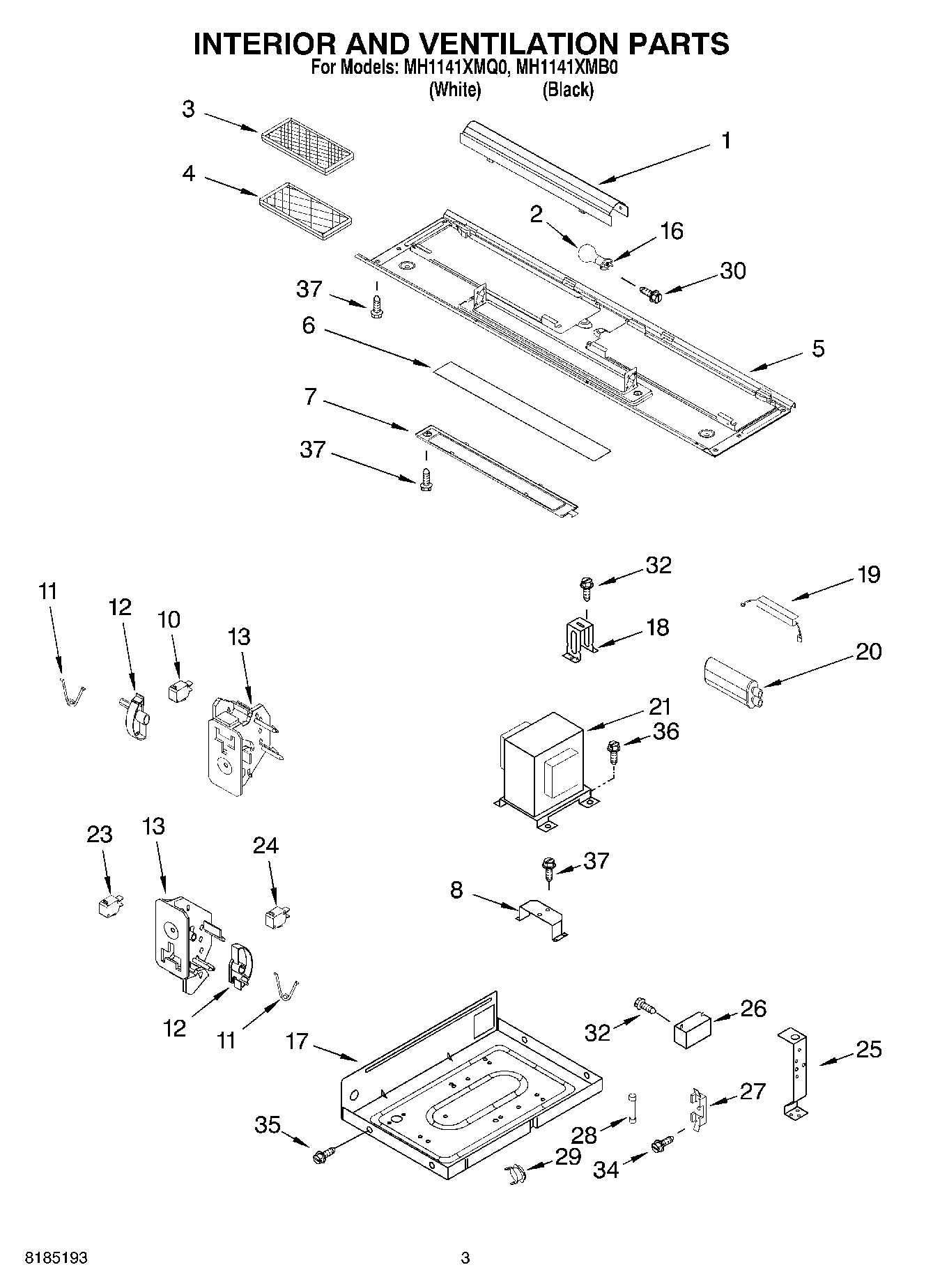

Thermostat WPL 8184829 Contact Us For Availability

12

Plate, Cam (2) WPL 8183824 Contact Us For Availability

8205572 Whirlpool Microwave Interlock Backorder WPL 8205572 $3.70

Screw WPL 8169474 Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

Rod WPL 8169318 Contact Us For Availability

14

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $2.51

14

Latch, Pivot WPL 8169319 Contact Us For Availability

15

Screw WPL 4393833 Contact Us For Availability

15

E-Ring WPL 8169320 Contact Us For Availability

16

Bushing, Nail WPL 4393290 Contact Us For Availability

16

Catch WPL 8185033 Contact Us For Availability

17

Chassis WPL 8185104 Contact Us For Availability

17

Spring WPL 8169374 Contact Us For Availability

8169539 Whirlpool Microwave Light Bulb Socket Backorder WPL 8169539 $30.93

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $2.85

Holder, Capacitor WPL 8185102 Contact Us For Availability

Installation, Hardware WPL 8169659 Contact Us For Availability

Wall Template WPL 8183743 Contact Us For Availability

Upper Template WPL 8184731 Contact Us For Availability

Cover, Motor WPL 8185090 Contact Us For Availability

Miscellaneous WPL ARI117990A Contact Us For Availability

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $10.01

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $118.69

21

Transformer, H.V. WPL 8184826 Contact Us For Availability

23

W10269458 Whirlpool Microwave Door Switch In Stock WPL W10269458 $15.87

24

W10211974 Whirlpool Microwave Door Interlock In Stock WPL W10211974 $24.34

25

Bracket, Right WPL 8185100 Contact Us For Availability

26

Capacitor WPL 8184091 Contact Us For Availability

27

Holder, Fuse WPL 8184312 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

29

Thermostat WPL 4393710 Contact Us For Availability

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

34

Screw WPL 8169478 Contact Us For Availability

36

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

37

Screw WPL 4393839 Contact Us For Availability
