Model Maytag MGRH865QDQ1 GAS RANGE – Common Parts & Diagrams

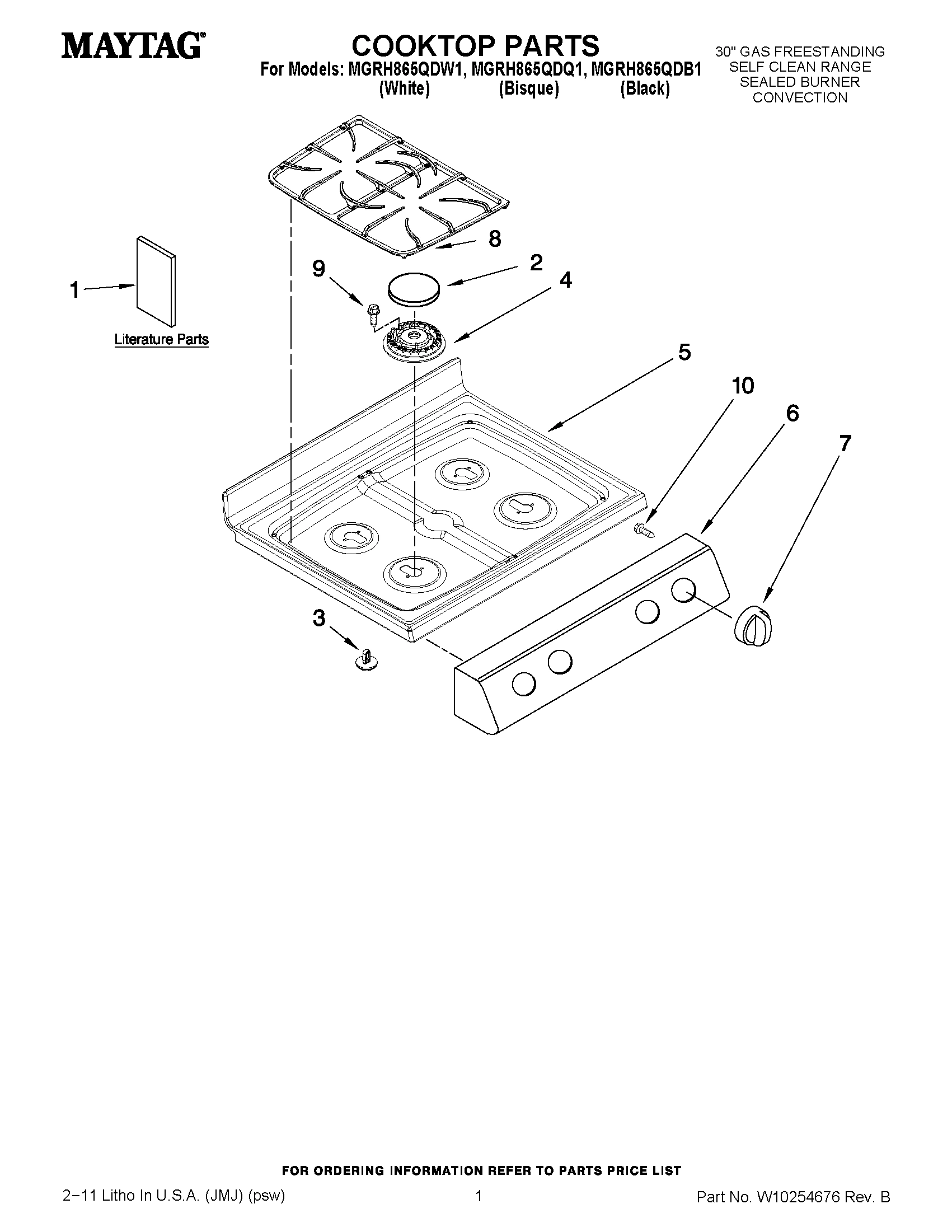

01 - COOKTOP PARTS

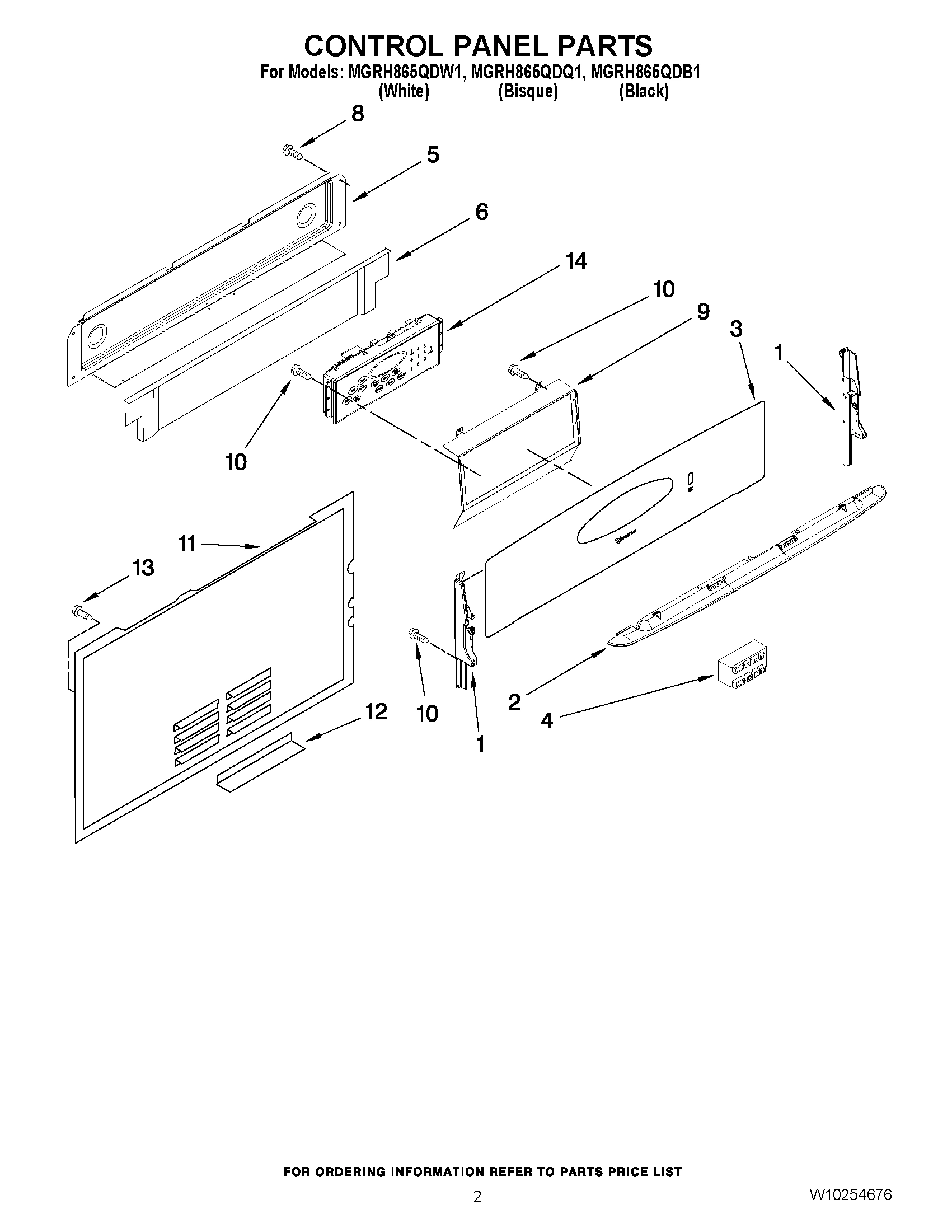

02 - CONTROL PANEL PARTS

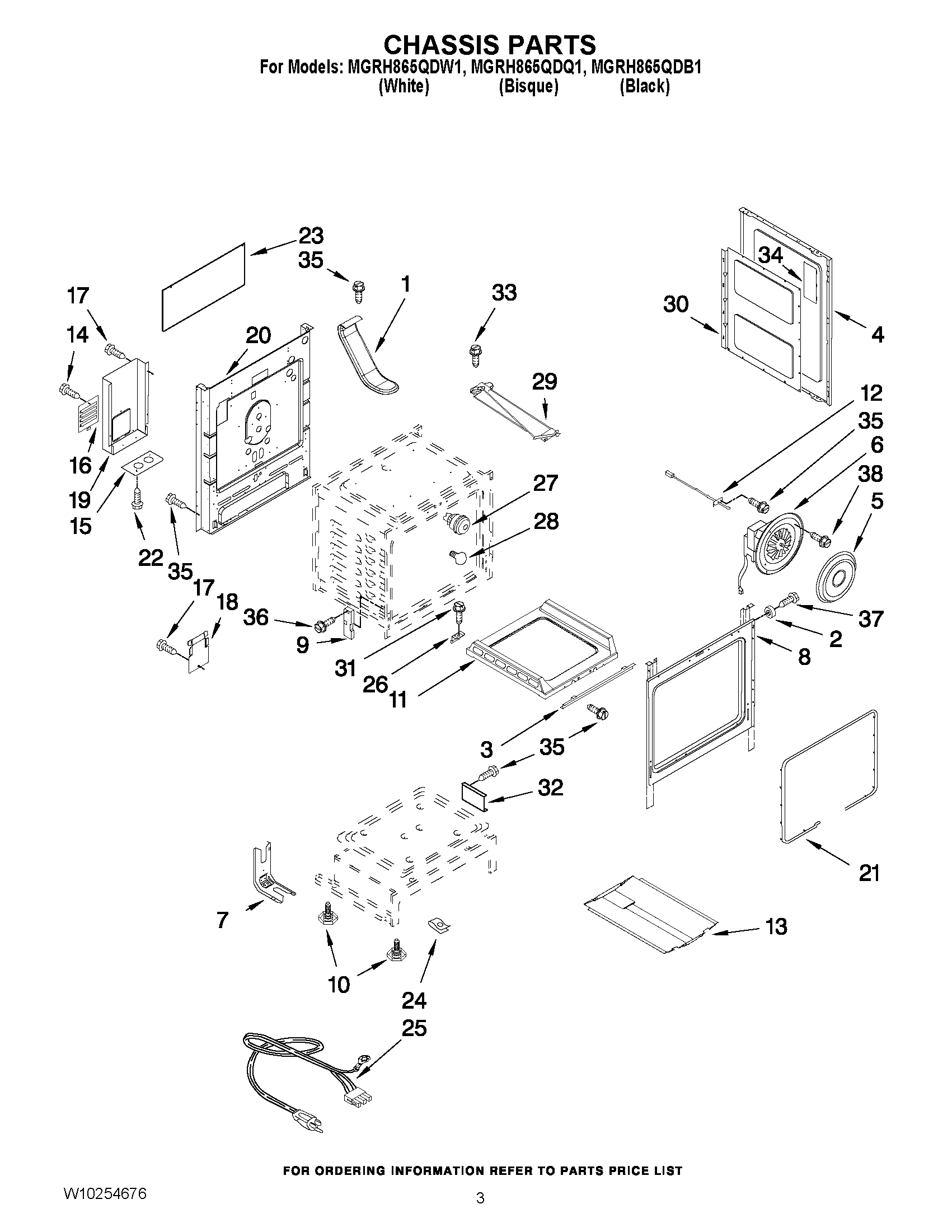

03 - CHASSIS PARTS

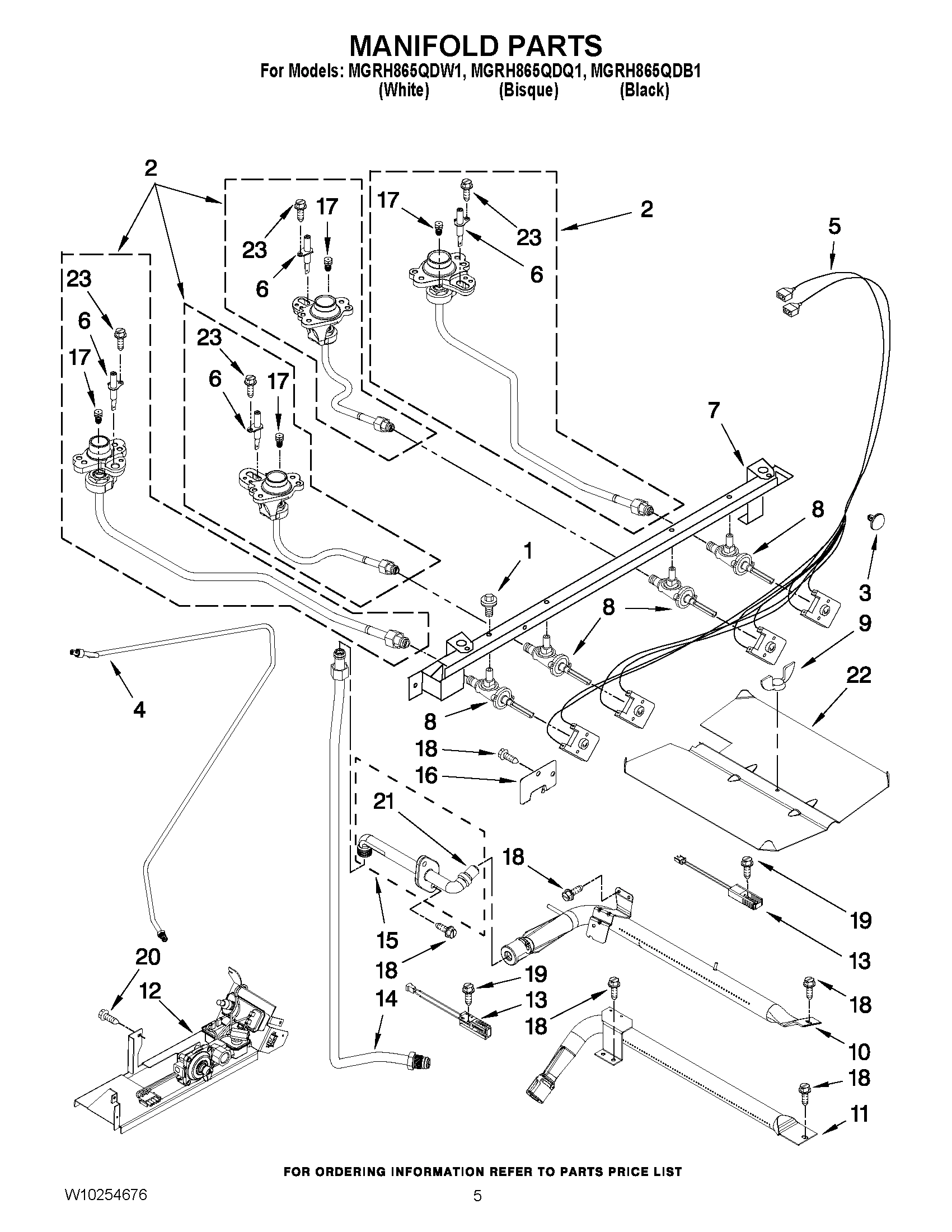

04 - MANIFOLD PARTS

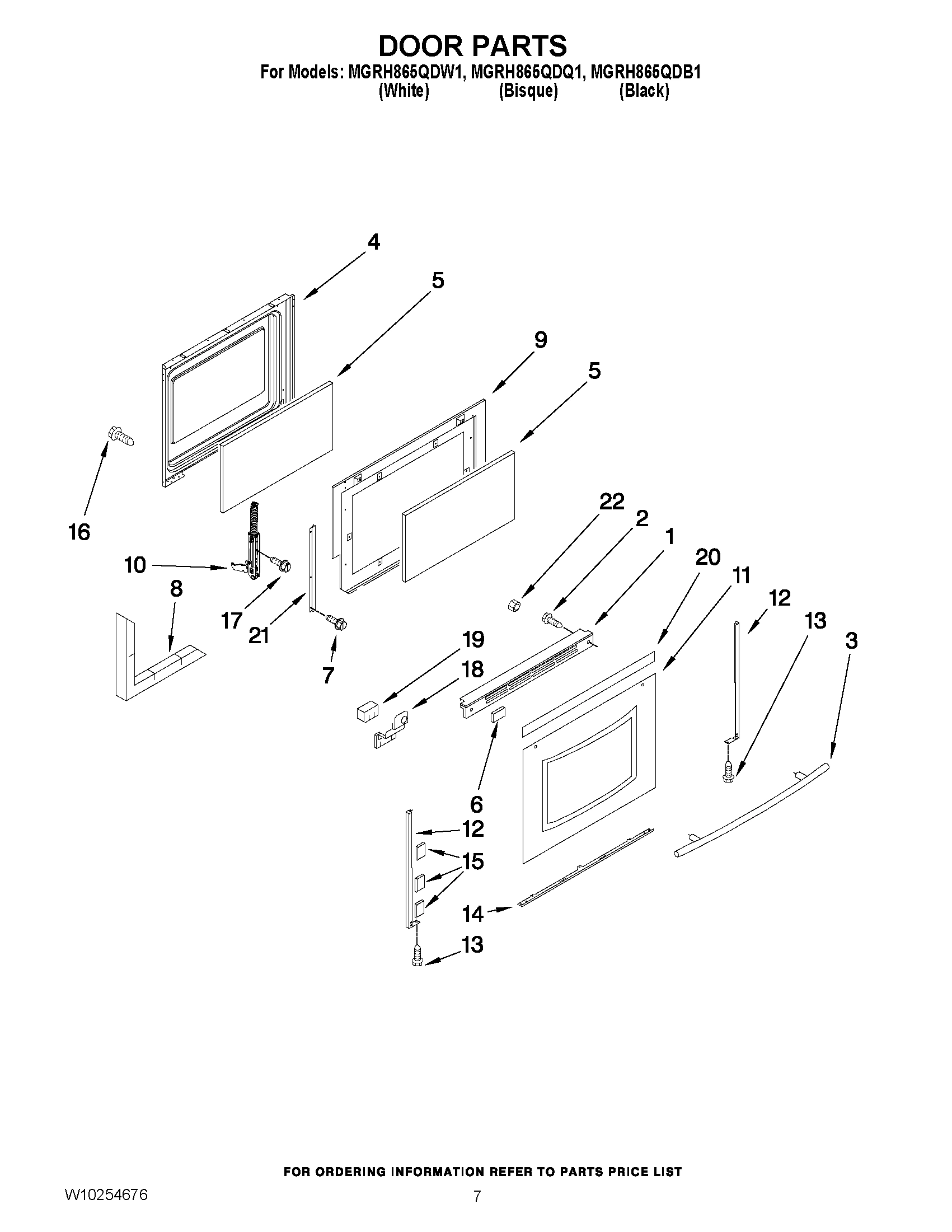

05 - DOOR PARTS

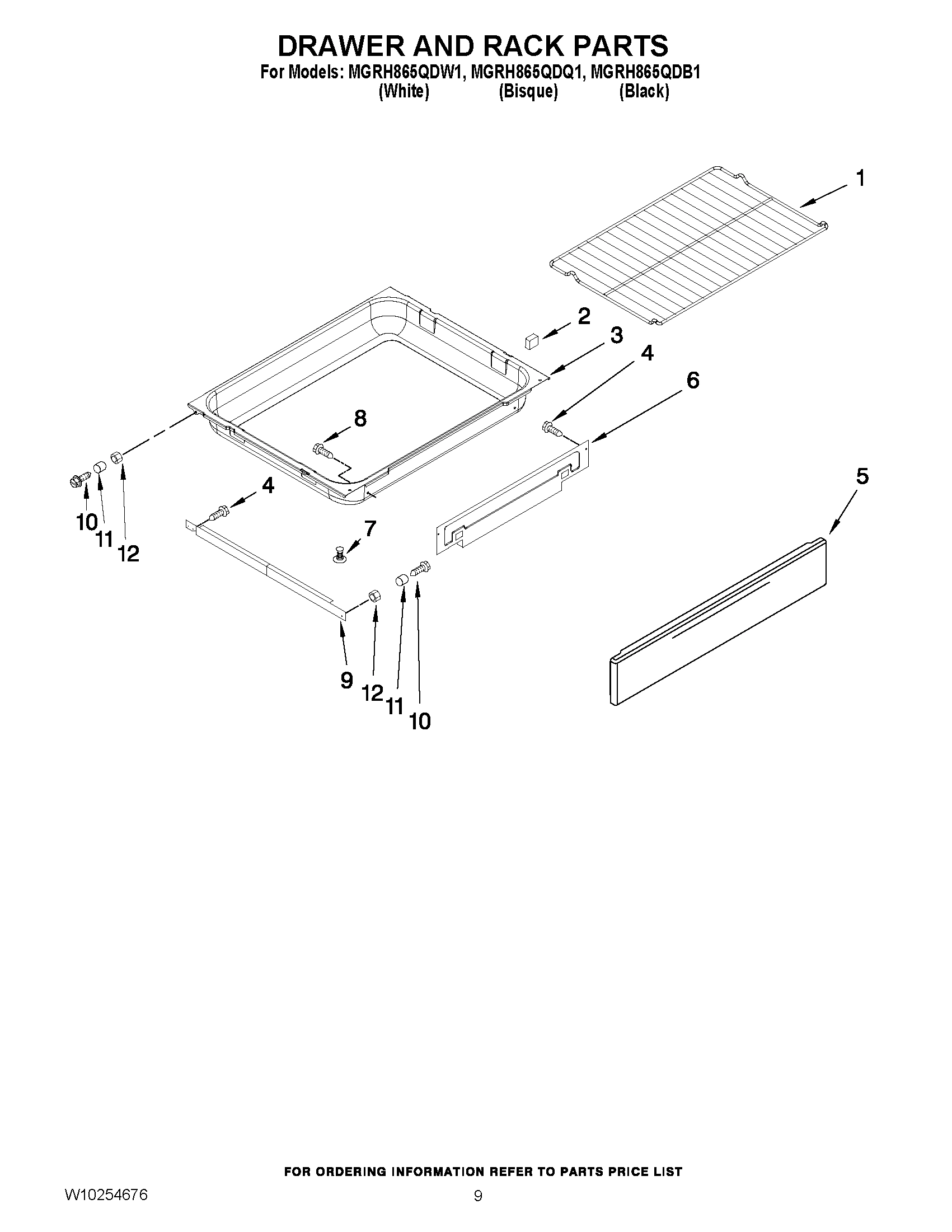

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGRH865QDQ1 GAS RANGE
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY 3807F702-70 Contact Us For Availability
1
Endcap, Right Hand (White) MAY 3807F702-71 Contact Us For Availability
1
Endcap, Right Hand (Bisque) MAY 3807F702-78 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY 3807F703-70 Contact Us For Availability
1
Endcap, Left Hand (White) MAY 3807F703-71 Contact Us For Availability
1
Endcap, Left Hand (Bisque) MAY 3807F703-78 Contact Us For Availability
1
MAY 8026P080-60 MAY 8026P080-60 Contact Us For Availability
1
Screw, Valve MAY 7101P651-60 Contact Us For Availability
1
Trim, Top (Black) MAY 3608F140-70 Contact Us For Availability
1
Trim, Top (White) MAY 3608F140-71 Contact Us For Availability
1
Trim, Top (Bisque) MAY 3608F140-78 Contact Us For Availability
1
MAY W10179196 MAY W10179196 Contact Us For Availability
2
CAP, BURNER LR (BLACK) MAY 7504P136-60 Contact Us For Availability
2
Cap, Burner (RR & LF) (Black) MAY 7504P137-60 Contact Us For Availability
2
CAP, BURNER RF (BLACK) MAY 7504P138-60 Contact Us For Availability
2
Cap, Burner (LR) (Gray) MAY 7504P139-60 Contact Us For Availability
2
Cap, Burner (RR & LF) (Gray) MAY 7504P140-60 Contact Us For Availability
2
Cap, Burner (RF) (Gray) MAY 7504P141-60 Contact Us For Availability
2
CAP, BURNER LR (TAUPE) MAY 7504P142-60 Contact Us For Availability
2
Cap, Burner (RR & LF) (Taupe) MAY 7504P143-60 Contact Us For Availability
2
CAP, BURNER RF (TAUPE) MAY 7504P144-60 Contact Us For Availability
2
HEAT SHIELD,VISOR (BLACK) MAY 3604F382-09 Contact Us For Availability
2
Heat Shield, Visor (White) MAY 3604F382-81 Contact Us For Availability
2
HEAT SHIELD,VISOR (BISQUE) MAY 3604F382-88 Contact Us For Availability
2
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
2
MAY 7527P095-60 MAY 7527P095-60 Contact Us For Availability
2
MAY 7527P098-60 MAY 7527P098-60 Contact Us For Availability
2
MAY 7527P123-60 MAY 7527P123-60 Contact Us For Availability
2
MAY 7527P124-60 MAY 7527P124-60 Contact Us For Availability
2
MAY 7010P636-60 MAY 7010P636-60 Contact Us For Availability
2
MAY 7101P528-60 MAY 7101P528-60 Contact Us For Availability
2
Spacer, Bumper MAY 8010P130-60 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
MAY 2601N981-09 MAY 2601N981-09 Contact Us For Availability
3
MAY 2601N981-81 MAY 2601N981-81 Contact Us For Availability
3
MAY 2601N981-88 MAY 2601N981-88 Contact Us For Availability
3
Support, Oven Bottom MAY 3807P680-45 Contact Us For Availability
3
MAY 7701P522-60 MAY 7701P522-60 Contact Us For Availability
3
MAY 7701P523-60 MAY 7701P523-60 Contact Us For Availability
3
MAY 7701P524-60 MAY 7701P524-60 Contact Us For Availability
3
Drawer MAY 3405F037-80 Contact Us For Availability
4
Burner (RR & LF) MAY 7540P043-60 Contact Us For Availability
4
Burner (RF) MAY 8286181 Contact Us For Availability
4
Burner (LR) MAY 8286183 Contact Us For Availability
4
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
4
MAY 7431P054-60 MAY 7431P054-60 Contact Us For Availability
4
Panel, Side (2) (Bisque) MAY 2618F172-57 Contact Us For Availability
4
Panel, Side (2) (White) MAY 2618F172-58 Contact Us For Availability
4
Panel, Side (2) (Black) MAY 2618F172-69 Contact Us For Availability
4
MAY 7506P361-60 MAY 7506P361-60 Contact Us For Availability
4
Liner, Door MAY 2402W297-19 Contact Us For Availability
5
MAY 2001F284-09 MAY 2001F284-09 Contact Us For Availability
5
MAY 2001F284-81 MAY 2001F284-81 Contact Us For Availability
5
MAY 2001F284-88 MAY 2001F284-88 Contact Us For Availability
5
Cover, Upper MAY 4005F803-51 Contact Us For Availability
5
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
5
MAY 7403P982-60 MAY 7403P982-60 Contact Us For Availability
5
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
5
MAY 2416F104-70 MAY 2416F104-70 Contact Us For Availability
5
MAY 2416F104-71 MAY 2416F104-71 Contact Us For Availability
5
MAY 2416F104-78 MAY 2416F104-78 Contact Us For Availability
6
MAY 2616N379-09 MAY 2616N379-09 Contact Us For Availability
6
MAY 2616N379-81 MAY 2616N379-81 Contact Us For Availability
6
MAY 2616N379-88 MAY 2616N379-88 Contact Us For Availability
6
Fan, Convection MAY 7427P106-60 Contact Us For Availability
6
Tape (White) MAY W10208309 Contact Us For Availability
6
MAY 3605F337-51 MAY 3605F337-51 Contact Us For Availability
7
MAY 7733P421-60 MAY 7733P421-60 Contact Us For Availability
7
MAY 7733P422-60 MAY 7733P422-60 Contact Us For Availability
7
MAY 7733P427-60 MAY 7733P427-60 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
MAY 7513P523-60 MAY 7513P523-60 Contact Us For Availability
7
Drawer, Stop MAY 8038P037-60 Contact Us For Availability
8
Grate, Burner (2) (Black) MAY 7518P193-60 Contact Us For Availability
8
Grate, Burner (2) (Gray) MAY 7518P194-60 Contact Us For Availability
8
Grate, Burner (2) (Taupe) MAY 7518P195-60 Contact Us For Availability
8
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
8
MAY 7502P499-60 MAY 7502P499-60 Contact Us For Availability
8
Valve (LF/RR) MAY 7502P500-60 Contact Us For Availability
8
MAY 7502P501-60 MAY 7502P501-60 Contact Us For Availability
8
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
9
MAY 3801F844-51 MAY 3801F844-51 Contact Us For Availability
9
Hinge, Receiver MAY 7106P125-60 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
Retainer, Insulation MAY 3601F380-51 Contact Us For Availability
9
Rail, Drawer MAY 3406F034-51 Contact Us For Availability
10
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
10
MAY 7505P311-60 MAY 7505P311-60 Contact Us For Availability
10
Hinge, Door MAY 7106P124-60 Contact Us For Availability
10
Shaft, Storage Drawer Roller MAY 7118P032-60 Contact Us For Availability
11
MAY 4005F748-51 MAY 4005F748-51 Contact Us For Availability
11
MAY 2205F053-19 MAY 2205F053-19 Contact Us For Availability
11
MAY 7505P331-60 MAY 7505P331-60 Contact Us For Availability
11
MAY 7902M674-60 MAY 7902M674-60 Contact Us For Availability
11
MAY 7902M781-60 MAY 7902M781-60 Contact Us For Availability
11
Glass, Outer Door (Black) MAY 7902P791-60 Contact Us For Availability
11
MAY 8014P022-60 MAY 8014P022-60 Contact Us For Availability
12
MAY 4005F711-51 MAY 4005F711-51 Contact Us For Availability
12
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
12
MAY 7501P233-60 MAY 7501P233-60 Contact Us For Availability
12
MAY 3608F126-70 MAY 3608F126-70 Contact Us For Availability
12
MAY 3608F126-71 MAY 3608F126-71 Contact Us For Availability
12
Trim, Door Side (Bisque) MAY 3608F126-78 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
Igniter (Broil) MAY 7432P106-60 Contact Us For Availability
13
MAY 7432P136-60 MAY 7432P136-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
14
MAY 5702M028-60 MAY 5702M028-60 Contact Us For Availability
14
MAY 5702M029-60 MAY 5702M029-60 Contact Us For Availability
14
MAY 5702M030-60 MAY 5702M030-60 Contact Us For Availability
14
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
14
MAY 7506P368-60 MAY 7506P368-60 Contact Us For Availability
14
Trim, Lower Door (Black) MAY 3608F092-70 Contact Us For Availability
14
Trim, Lower Door (White) MAY 3608F092-71 Contact Us For Availability
14
Trim, Lower Door (Bisque) MAY 3608F092-78 Contact Us For Availability
15
MAY 3605F146-51 MAY 3605F146-51 Contact Us For Availability
15
MAY 7507P357-60 MAY 7507P357-60 Contact Us For Availability
15
MAY W10208307 MAY W10208307 Contact Us For Availability
15
Tape, Double Sided (White) MAY W10208308 Contact Us For Availability
16
MAY 4005F704-51 MAY 4005F704-51 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY 7101P427-60 MAY 7101P427-60 Contact Us For Availability
17
Screw (2) MAY 7101P434-60 Contact Us For Availability
17
Screw MAY 7101P282-60 Contact Us For Availability
17
MAY 7509P117-60 MAY 7509P117-60 Contact Us For Availability
17
MAY 7509P118-60 MAY 7509P118-60 Contact Us For Availability
17
MAY 7509P119-60 MAY 7509P119-60 Contact Us For Availability
17
MAY 7509P121-60 MAY 7509P121-60 Contact Us For Availability
18
MAY 4005F753-45 MAY 4005F753-45 Contact Us For Availability
18
MAY 3801F857-45 MAY 3801F857-45 Contact Us For Availability
18
MAY 3801F858-45 MAY 3801F858-45 Contact Us For Availability
19
Cover, Lower Wire MAY 4005F703-51 Contact Us For Availability
19
MAY 7002P484-60 MAY 7002P484-60 Contact Us For Availability
20
Back, Main MAY 4002F347-51 Contact Us For Availability
20
TAPE, FOIL 3`` MAY W10208311 Contact Us For Availability
21
Seal, Oven MAY W10162385 Contact Us For Availability
21
MAY 7507P366-60 MAY 7507P366-60 Contact Us For Availability
21
BRACKET, WINDOW (2) MAY 3801F886-51 Contact Us For Availability
22
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
22
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
23
Shield, Vent Ext MAY 3604F381-19 Contact Us For Availability
23
MAY 8273062 MAY 8273062 Contact Us For Availability
24
Clip (4) MAY 7112P158-60 Contact Us For Availability
25
MAY 7402P109-60 MAY 7402P109-60 Contact Us For Availability
26
Bracket, Oven Bottom MAY 3801P822-45 Contact Us For Availability
27
Light Assembly MAY 7407P181-60 Contact Us For Availability
29
Latch, Door Lock MAY 8002P104-60 Contact Us For Availability
30
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
31
Screw (2) MAY 7101P500-60 Contact Us For Availability
32
MAY 3801P798-51 MAY 3801P798-51 Contact Us For Availability
33
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
34
MAY 7002P494-60 MAY 7002P494-60 Contact Us For Availability
37
Screw MAY 7101P618-60 Contact Us For Availability
38
MAY 7101P385-60 MAY 7101P385-60 Contact Us For Availability
NI
MAY 7002P372-60 MAY 7002P372-60 Contact Us For Availability
NI
MAY 7002P424-60 MAY 7002P424-60 Contact Us For Availability
NI
MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
Spuds, LP Gas (Kit of 5) MAY 5789A598-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P730-60 MAY 5171P730-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
Clip, Wire MAY 8019P013-60 Contact Us For Availability
NI
MAY 8019P026-60 MAY 8019P026-60 Contact Us For Availability
NI
MAY W10173437 MAY W10173437 Contact Us For Availability
× ![]()
