Model Maytag MGR6600FB2 RANGE/OVEN, GAS, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

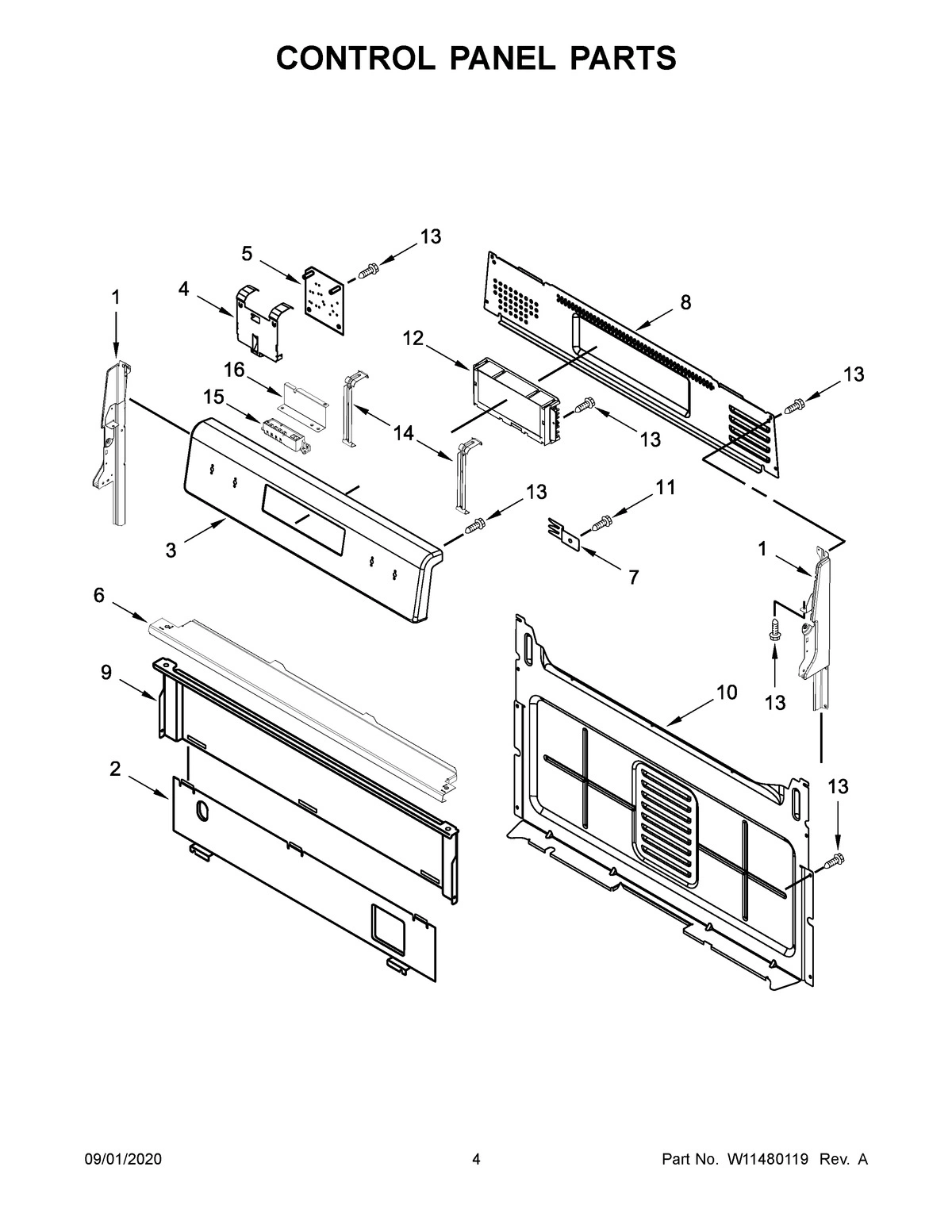

03 - CONTROL PANEL PARTS

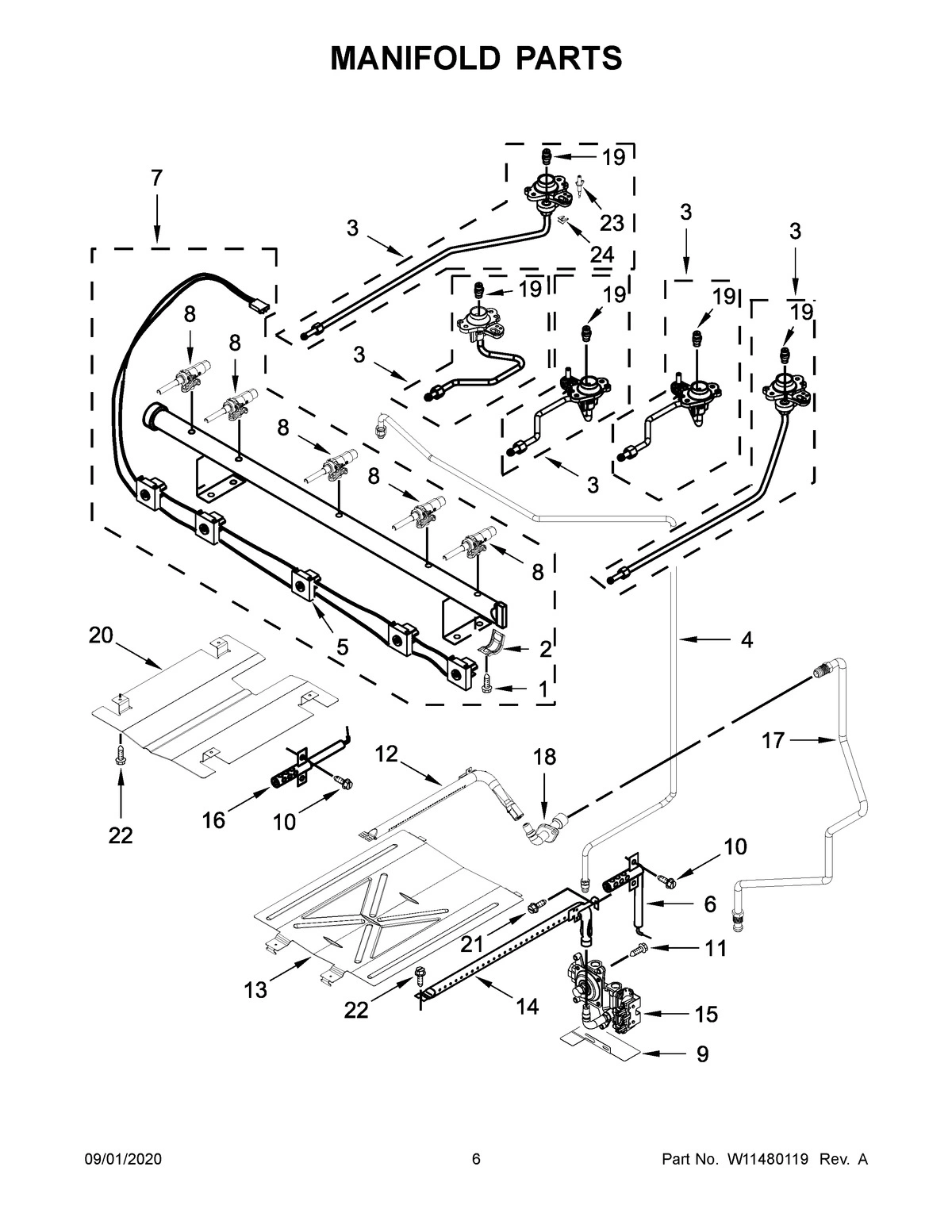

04 - MANIFOLD PARTS

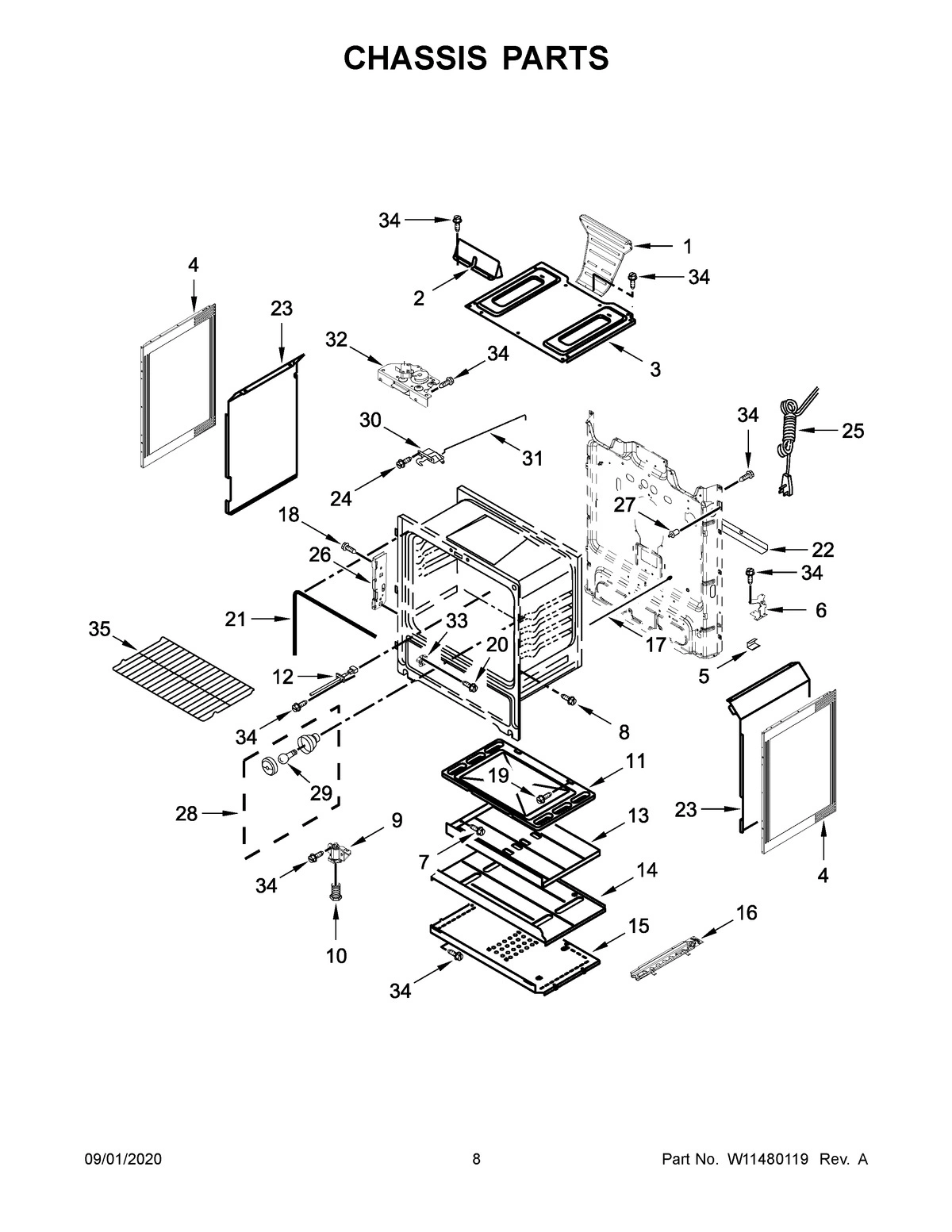

05 - CHASSIS PARTS

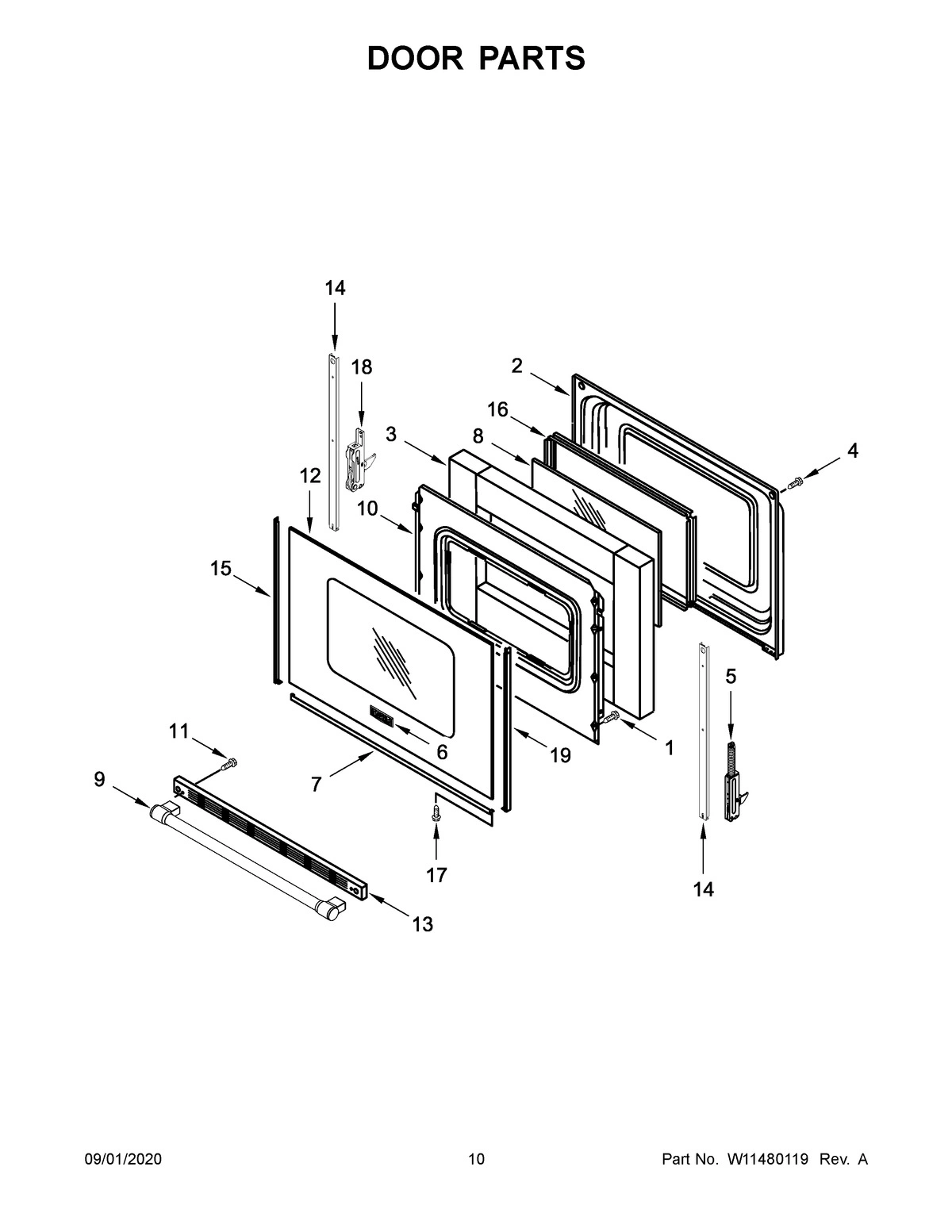

06 - DOOR PARTS

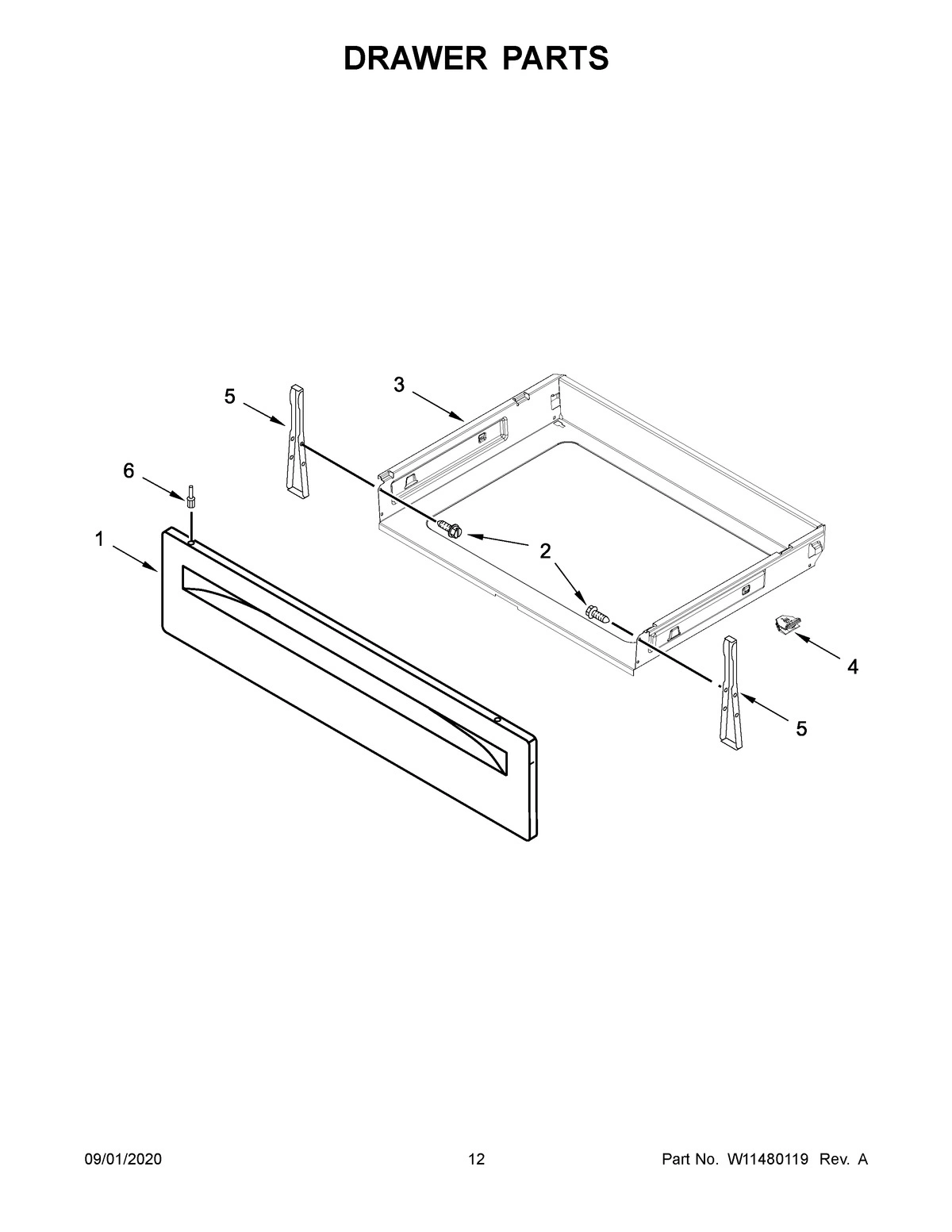

07 - DRAWER PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MGR6600FB2 RANGE/OVEN, GAS, FREESTANDING, 30 INCH
1
INSTALLATION INSTRUCTIONS MAY W11404103 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
SCREW, VALVE MAY W10295997 Contact Us For Availability
1
BOX, FLUE MAY W10153186 Contact Us For Availability
1
SCREW MAY W10031790 Contact Us For Availability
1
PANEL, DRAWER (BLACK) MAY W11123976 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W11404075 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1A
PANEL, DRAWER (WHITE) MAY W11123977 Contact Us For Availability
1B
TECH SHEET MAY W10842032 Contact Us For Availability
1B
ENDCAP WHITE (LEFT) MAY W11130371 Contact Us For Availability
1C
WIRING DIAGRAM MAY W11032799 Contact Us For Availability
1C
ENDCAP WHITE (RIGHT) MAY W11130378 Contact Us For Availability
2
KIT, BURNER CAP (BLACK (SET OF 4)) MAY W11352138 Contact Us For Availability
2
SHIELD, HEAT MAY 8053505 Contact Us For Availability
2
BRACKET, SADDLE VALVE MAY W10295996 Contact Us For Availability
2
SHIELD, FLUE MAY 8272747 Contact Us For Availability
2
LINER, DOOR MAY 9761344 Contact Us For Availability
2
SCREW MAY 3196165 Contact Us For Availability
3
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT) MAY W11352018 Contact Us For Availability
3
PANEL, CONTROL (BLACK) MAY W10885611 Contact Us For Availability
3
ORIFICE HOLDER ASSEMBLY (15K) (LEFT FRONT) MAY W11345008 Contact Us For Availability
3
BOX-BURNER, GAS SEALED MAY W11379351 Contact Us For Availability
3
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3A
SPREADER, FLAME (LEFT REAR) MAY W11352020 Contact Us For Availability
3A
PANEL, CONTROL (WHITE) MAY W10885610 Contact Us For Availability
3A
ORIFICE HOLDER ASSEMBLY (9.5K) LEFT REAR) MAY W11345009 Contact Us For Availability
3B
SPREADER, FLAME (RIGHT REAR) MAY W11352021 Contact Us For Availability
3B
ORIFICE HOLDER ASSEMBLY (15K) (RIGHT FRONT) MAY W11345011 Contact Us For Availability
3C
ORIFICE HOLDER ASSEMBLY (5K) (RIGHT REAR) MAY W11345010 Contact Us For Availability
3D
ORIFICE HOLDER ASSEMBLY (8K) (CENTER) MAY W11345012 Contact Us For Availability
4
COOKTOP (BLACK) MAY W11418086 Contact Us For Availability
4
BRACKET, MOUNTING MAY W10762981 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) MAY W10215439 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
4
SCREW MAY W10200660 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
MAY W11418084 MAY W11418084 Contact Us For Availability
4A
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
5
PANEL, MANIFOLD (BLACK) MAY W10724449 Contact Us For Availability
5
HARNESS, IGNITER (INCLUDES SWITCHES) MAY W10811691 Contact Us For Availability
5
MODULE, SPARK DSI MAY W10920631 Contact Us For Availability
5
CLIP, PANEL MAY W10137382 Contact Us For Availability
5
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
5
BRACKET, MOUNTING MAY W10462911 Contact Us For Availability
5A
PANEL, MANIFOLD (WHITE) MAY W10724448 Contact Us For Availability
6
KNOB, CONTROL (BLACK) MAY W10892253 Contact Us For Availability
6
BRACKET, CONSOLE MOUNTING MAY W10516123 Contact Us For Availability
6
ELECTRODE, BAKE MAY 9758079 Contact Us For Availability
6
BRACKET, MANIFOLD MAY 8523249 Contact Us For Availability
6
BADGE MAY W10612925 Contact Us For Availability
6
RIVET, PUSH (BLACK) MAY 3196813 Contact Us For Availability
6A
KNOB, CONTROL (WHITE) MAY W10892252 Contact Us For Availability
6A
RIVET, PUSH (WHITE) MAY 3196814 Contact Us For Availability
7
GRATE KIT (BLACK) MAY W10911970 Contact Us For Availability
7
BRACKET, REAR COOKTOP MAY 8523412 Contact Us For Availability
7
MANIFOLD ASSEMBLY MAY W11347745 Contact Us For Availability
7
SCREW MAY W10362924 Contact Us For Availability
7
TRIM, LOWER DOOR (BLACK) MAY 8523177 Contact Us For Availability
7A
TRIM, LOWER DOOR (WHITE) MAY 8523175 Contact Us For Availability
8
SCREW MAY W10673618 Contact Us For Availability
8
COVER, UPPER MAY W10198745 Contact Us For Availability
8
VALVE, GAS (LEFT FRONT & RIGHT FRONT) MAY W11352012 Contact Us For Availability
8
GLASS, INNER MAY W11044424 Contact Us For Availability
8A
VALVE, GAS (LEFT REAR, CENTER) MAY W11352013 Contact Us For Availability
8B
VALVE, GAS (RIGHT REAR) MAY W11352015 Contact Us For Availability
9
SCREW MAY 3196557 Contact Us For Availability
9
SHIELD, HEAT MAY W10192841 Contact Us For Availability
9
BRACKET, AEGIS MAY W10224921 Contact Us For Availability
9
FRONT FOOT ASSEMBLY MAY W10341186 Contact Us For Availability
9
HANDLE, OVEN DOOR (BLACK) MAY W10889624 Contact Us For Availability
9A
HANDLE, OVEN DOOR (WHITE) MAY W10889625 Contact Us For Availability
10
BRACKET, ANTI-TIP MAY W11379945 Contact Us For Availability
10
COVER, BACK MAY W10184370 Contact Us For Availability
10
SCREW MAY 3196385 Contact Us For Availability
10
FOOT, LEVELING MAY W10058460 Contact Us For Availability
10
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
11
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
11
SCREW MAY 3196169 Contact Us For Availability
11
SCREW MAY 3400016 Contact Us For Availability
11
BOTTOM, OVEN MAY 3195097 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
12
BEZEL (BLACK) MAY W10894849 Contact Us For Availability
12
CONTROL, ELECTRONIC (LCX) (BLACK) MAY W11204512 Contact Us For Availability
12
BURNER, BROILER MAY 8054078 Contact Us For Availability
12
SENSOR MAY W10586204 Contact Us For Availability
12
GLASS, WINDOW (BLACK) MAY W10884159 Contact Us For Availability
12A
BEZEL (WHITE) MAY W10894848 Contact Us For Availability
12A
CONTROL, ELECTRONIC (LCX) (WHITE) MAY W11204513 Contact Us For Availability
12A
GLASS, WINDOW (WHITE) MAY W10409945 Contact Us For Availability
13
SPREADER, FLAME MAY W11367086 Contact Us For Availability
13
SPREADER, FLAME (OVEN) MAY W10184491 Contact Us For Availability
13
BAFFLE, BURNER OVEN MAY 8053967 Contact Us For Availability
13
TRIM, OVEN DOOR VENT (BLACK) MAY W10875233 Contact Us For Availability
13A
TRIM, OVEN DOOR VENT (WHITE) MAY W10875232 Contact Us For Availability
14
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
14
BURNER, BAKE MAY 9758078 Contact Us For Availability
14
SHIELD, HEAT MAY 8053969 Contact Us For Availability
14
STRAP, DOOR MAY W11379944 Contact Us For Availability
15
MODULE, SPARK (5+0) MAY W10475149 Contact Us For Availability
15
REGULATOR MAY W11370883 Contact Us For Availability
15
SHIELD, LOWER MAY 8053968 Contact Us For Availability
15
TRIM, DOOR (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
15A
TRIM, DOOR (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
16
BRACKET, IGNITOR MAY W10797001 Contact Us For Availability
16
ELECTRODE, BROIL MAY W10333842 Contact Us For Availability
16
BASE RAIL ASSEMBLY (LEFT) MAY W10390008 Contact Us For Availability
16
FRAME, GLASS MAY W10316950 Contact Us For Availability
16A
BASE RAIL ASSEMBLY (RIGHT) MAY W10390007 Contact Us For Availability
17
TUBE, BROILER SUPPLY MAY W10420040 Contact Us For Availability
17
ROD, DOOR SWITCH MAY W11370462 Contact Us For Availability
17
SCREW MAY W10327235 Contact Us For Availability
18
FITTING, BROILER MAY W11435700 Contact Us For Availability
18
SCREW MAY W10031780 Contact Us For Availability
18
HINGE, ACTIVE MAY W10299226 Contact Us For Availability
19
ORIFICE (15K) (LEFT FRONT & RIGHT FRONT) MAY W11428753 Contact Us For Availability
19
SCREW MAY W10379120 Contact Us For Availability
19
TRIM, DOOR (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
19A
ORIFICE (10K) (LEFT REAR) MAY W10849720 Contact Us For Availability
19A
TRIM, DOOR (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
19B
ORIFICE (5K) (RIGHT REAR) MAY W10849719 Contact Us For Availability
19C
ORIFICE (8K) (CENTER) MAY W11429345 Contact Us For Availability
20
SPREADER, FLAME (BROILER) MAY W10137062 Contact Us For Availability
20
SCREW MAY 3400080 Contact Us For Availability
21
SCREW MAY 3196265 Contact Us For Availability
21
SEAL, DOOR MAY W10658354 Contact Us For Availability
22
BRACE, MAIN BACK MAY W10435470 Contact Us For Availability
23
ELECTRODE (LEFT FRONT, LEFT REAR) MAY W11428831 Contact Us For Availability
23
RETAINER, INSULATION (LEFT) MAY W11379353 Contact Us For Availability
23A
ELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER) MAY W11428858 Contact Us For Availability
23A
RETAINER, INSULATION (RIGHT) MAY W11379943 Contact Us For Availability
24
SPRING, ELECTRODE MAY W10827923 Contact Us For Availability
24
SCREW MAY 3196560 Contact Us For Availability
25
CORD, POWER MAY W10624590 Contact Us For Availability
26
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
27
SWITCH, DOOR MAY W10627802 Contact Us For Availability
28
LIGHT ASSEMBLY MAY W11175594 Contact Us For Availability
29
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
30
FRONT DOOR LATCH ASSEMBLY MAY 9761013 Contact Us For Availability
31
ROD, PUSH LATCH MAY W10078370 Contact Us For Availability
32
REAR DOOR LATCH ASSEMBLY MAY W10107820 Contact Us For Availability
33
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
34
SCREW MAY 3196178 Contact Us For Availability
35
RACK, OVEN MAY W10268578 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
CLIP, WIRE MAY 3196896 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
CLIP, GAS WIRING MAY W10334923 Contact Us For Availability
NI
HARNESS, BAKE/BROIL MAY W10753750 Contact Us For Availability
NI
HARNESS, MAIN MAY W10842520 Contact Us For Availability
NI
ORIFICE, LP BAKE MAY W10400495 Contact Us For Availability
NI
ORIFICE, LP BROIL MAY W10465080 Contact Us For Availability
NI
LP BAKE AND BROIL KIT MAY W10566537 Contact Us For Availability
NI
LP 5 ORIFICE CONVERSION KIT MAY W11415424 Contact Us For Availability
NI
INSULATION, WRAP MAY 8524099 Contact Us For Availability
NI
INSULATION, BACK MAY W10180437 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (SPLIT) MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
× ![]()
