Model Electrolux MGF336BGWE RANGE – Common Parts & Diagrams

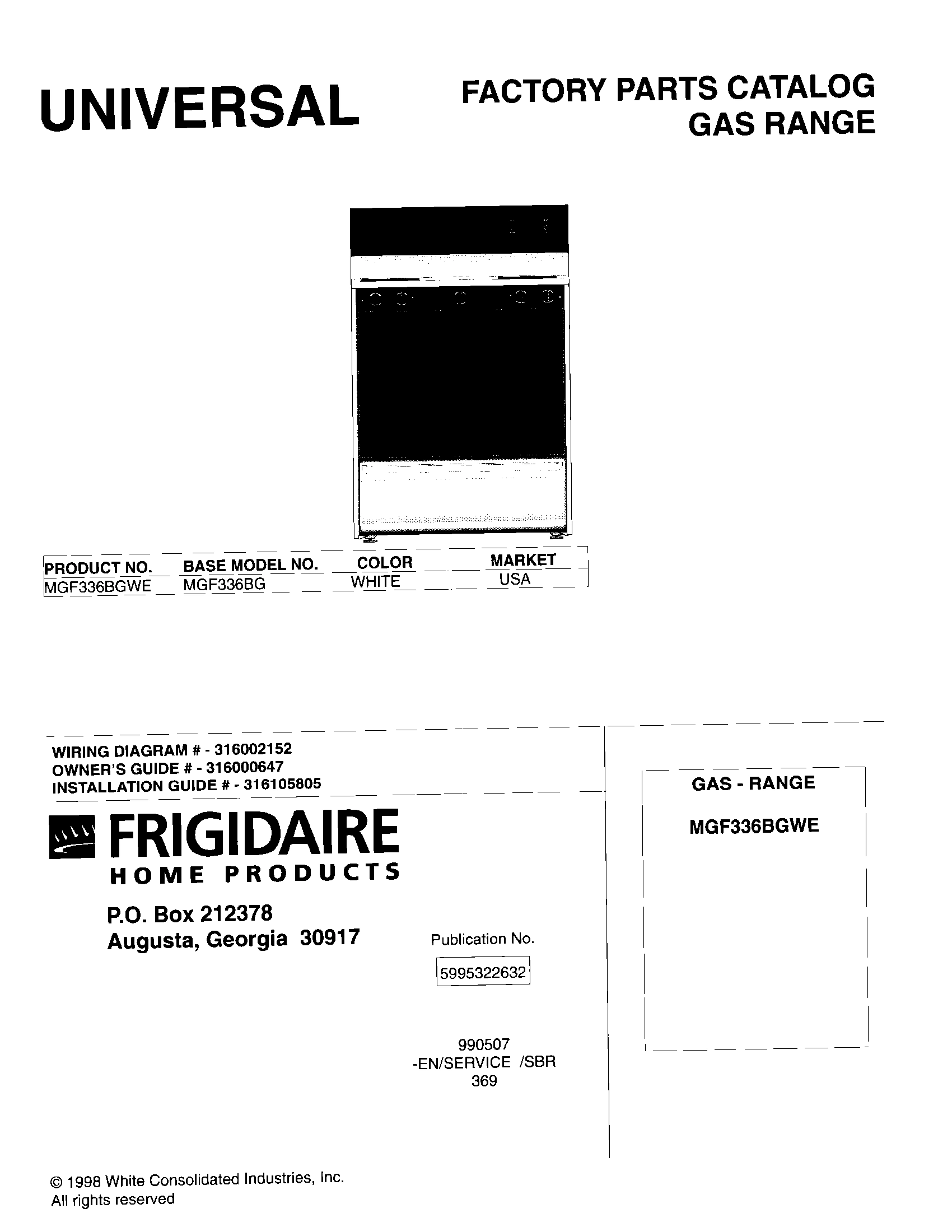

01 - COVER

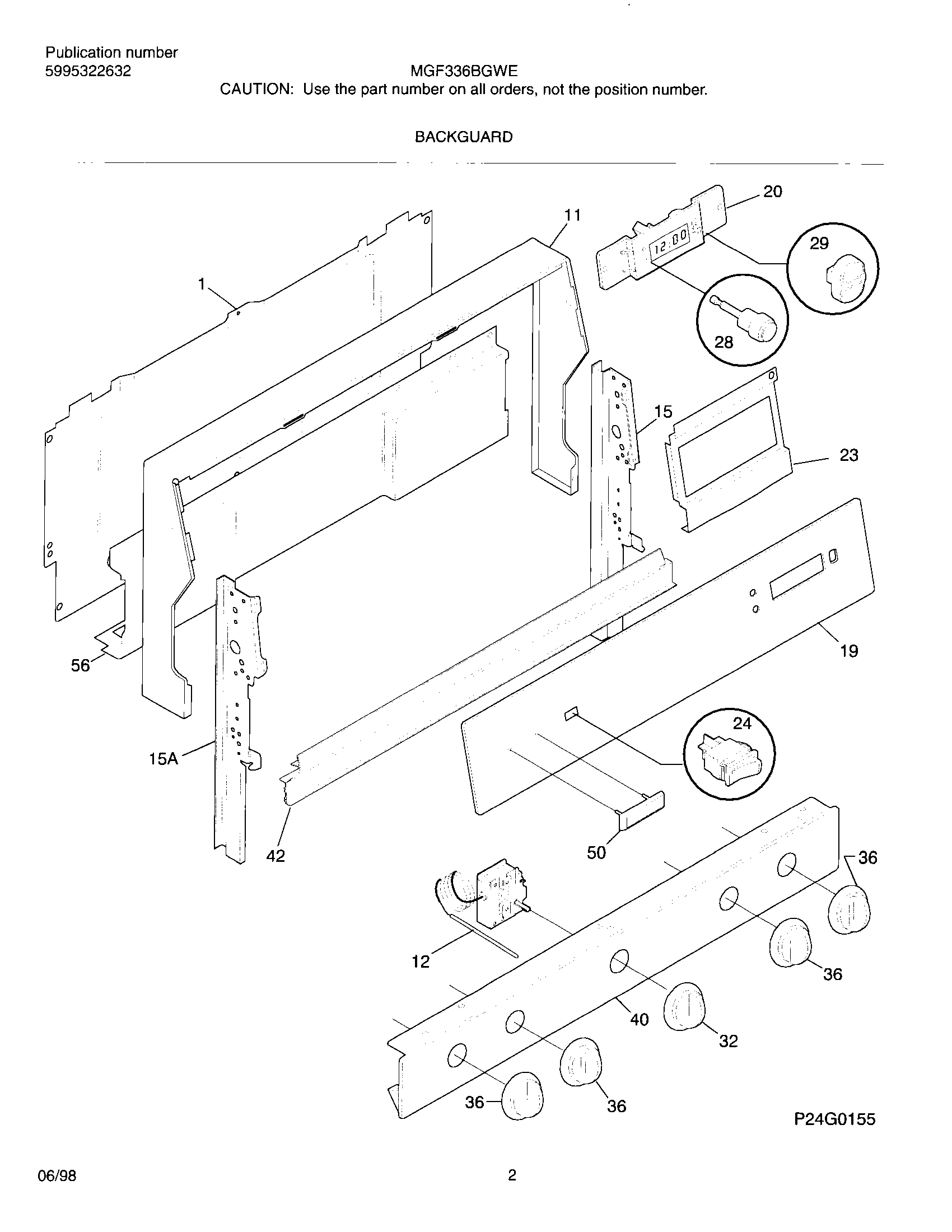

03 - BACKGUARD

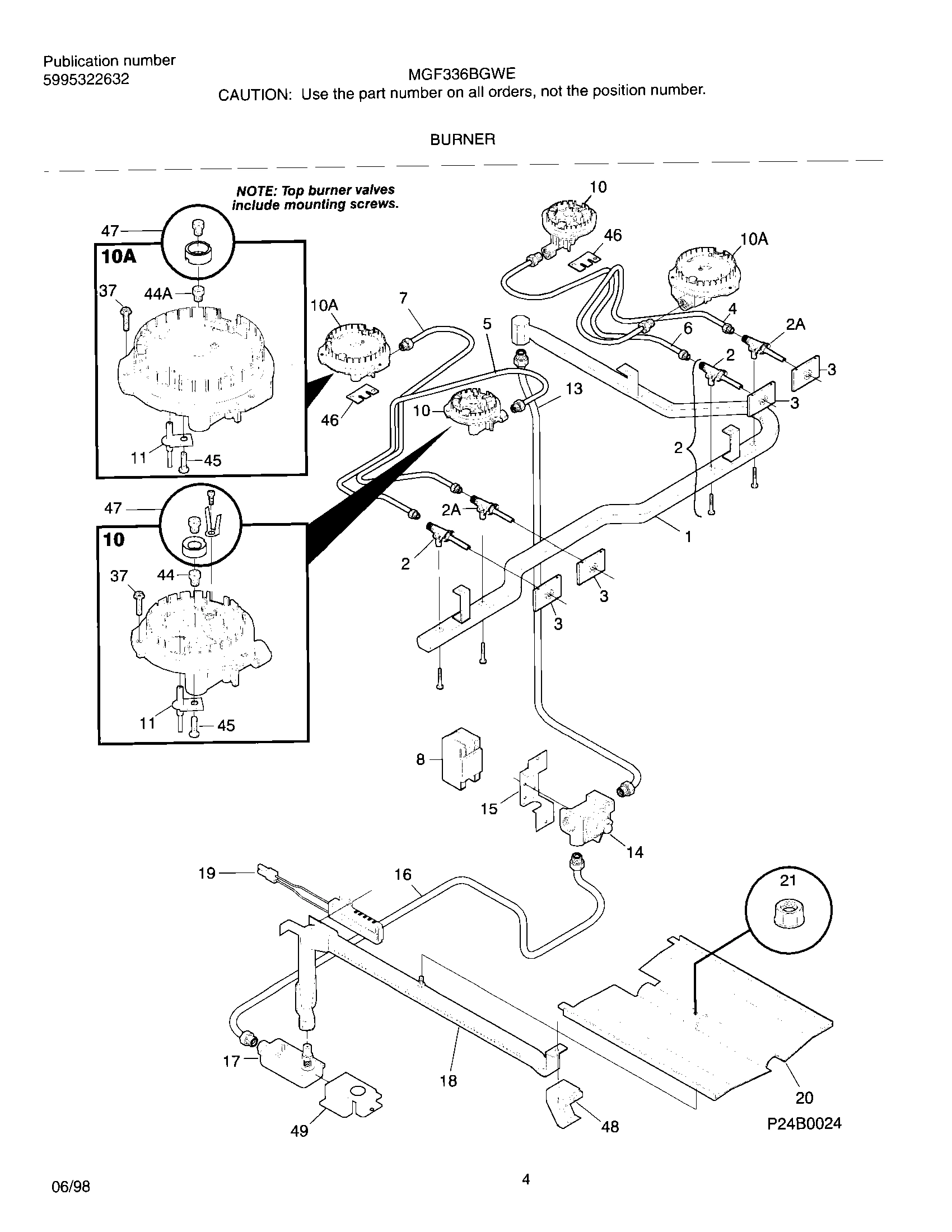

05 - BURNER

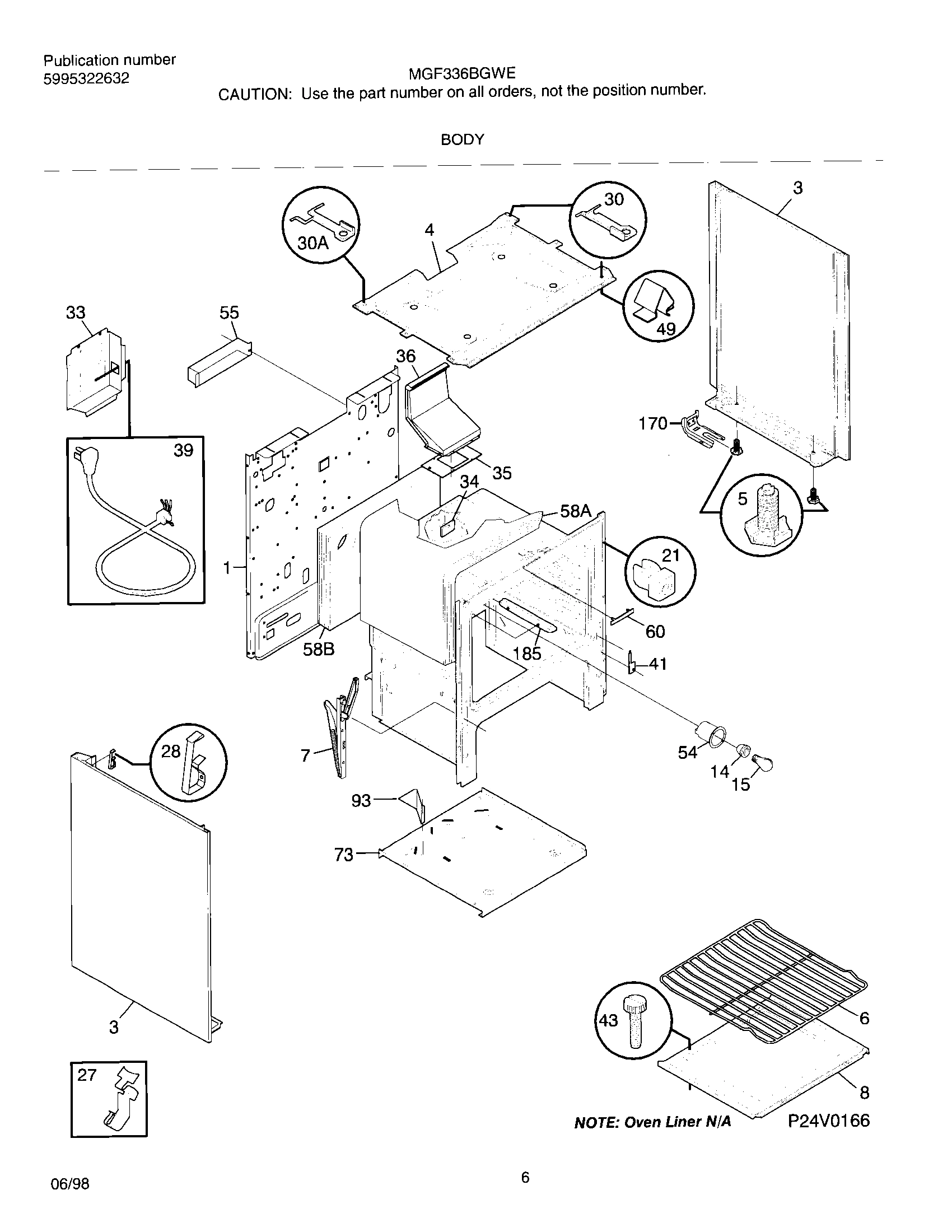

07 - BODY

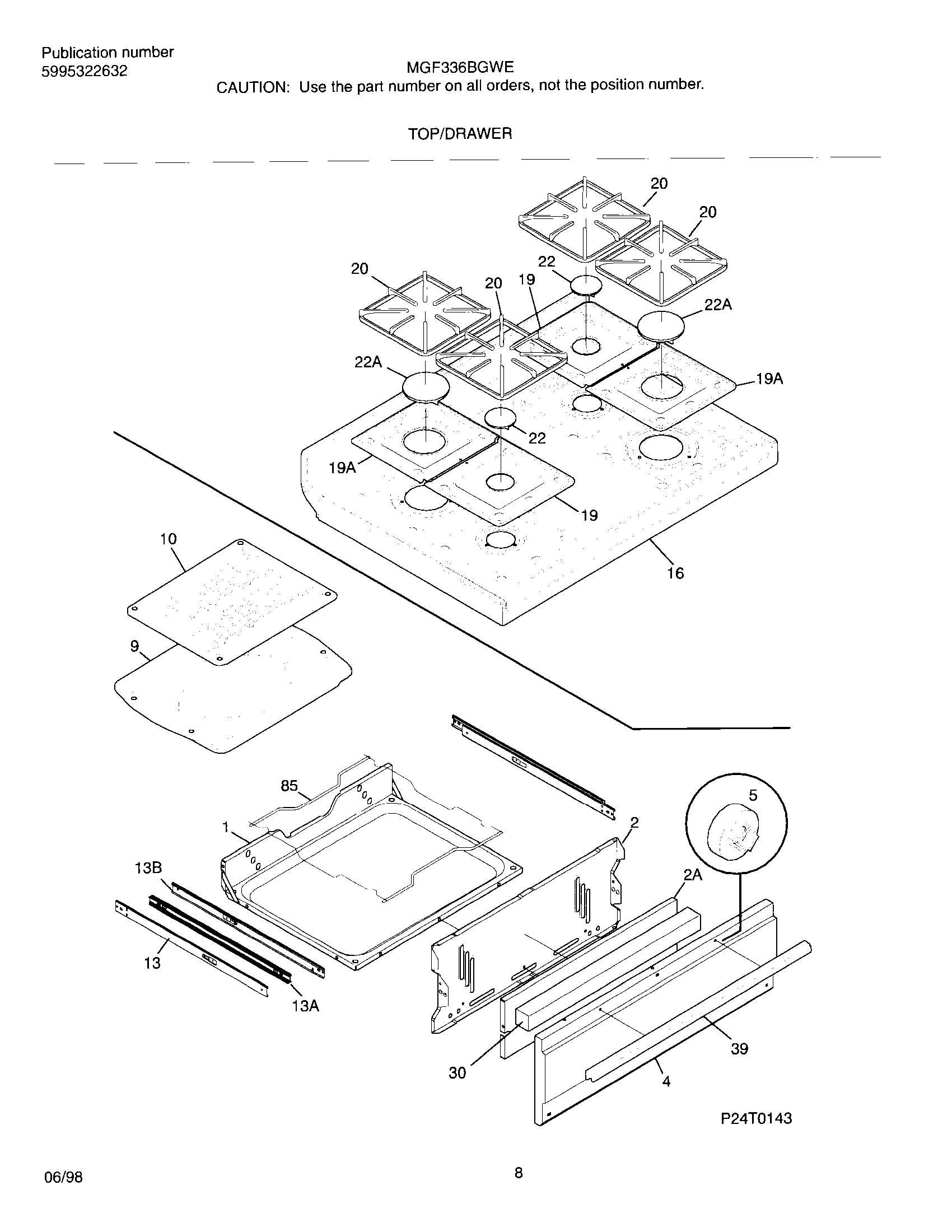

09 - TOP/DRAWER

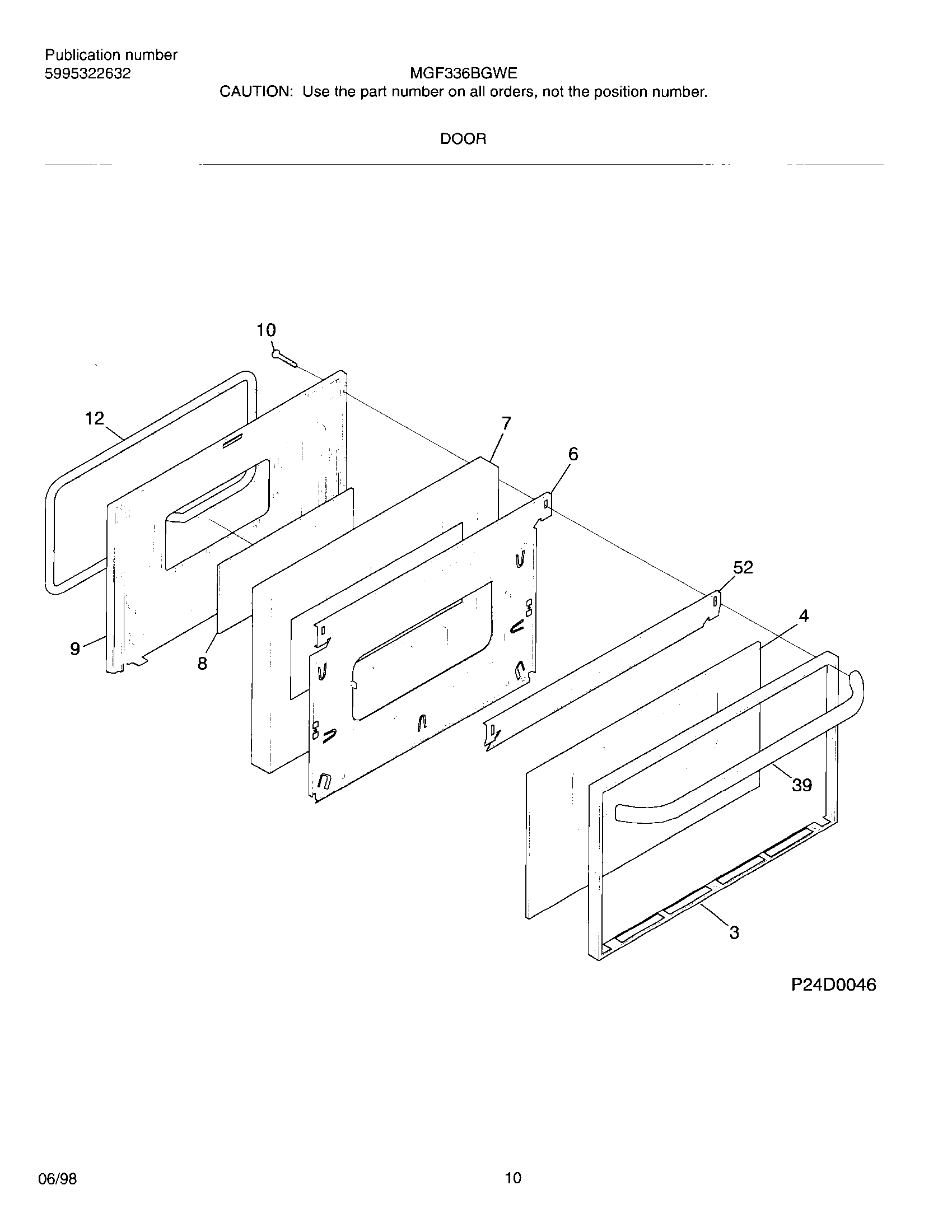

11 - DOOR

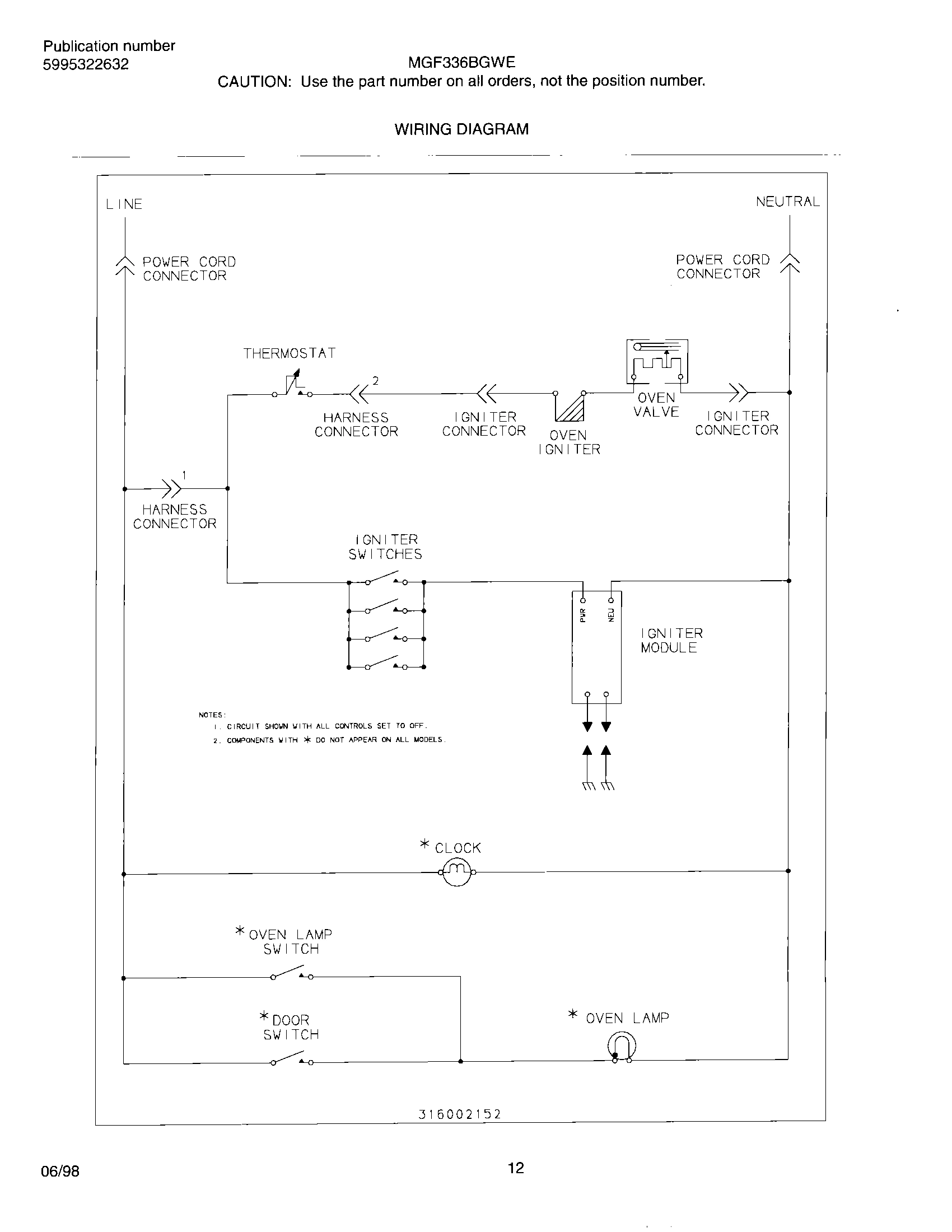

12 - WIRING DIAGRAM
Common parts from model Electrolux MGF336BGWE RANGE
SCREW,CUP PT,8-18X3/8,HINGE,IND LT BRKT,MANF WCI 316021108 Contact Us For Availability
WCI 5303280311 WCI 5303280311 Contact Us For Availability
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
2
WCI 5303935130 No Longer Available
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
WCI 316059613 WCI 316059613 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
6
WCI 316059614 WCI 316059614 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
HINGE-OVEN DOOR WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(T) X 2 WCI 5303280308 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
13
TUBE, ALUMINUM, RGLTR TO MANF, W/FITTINGS WCI 316065005 Contact Us For Availability
13
GLIDE-LOW BROIL, INNER WCI 316111502 Contact Us For Availability
13A
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
13B
WCI 316111501 WCI 316111501 Contact Us For Availability
16
WCI 5303307709 WCI 5303307709 Contact Us For Availability
18
WCI 3131439 WCI 3131439 Contact Us For Availability
19
WCI 316011415 WCI 316011415 Contact Us For Availability
19A
WCI 316011419 WCI 316011419 Contact Us For Availability
20
WCI 316113200 WCI 316113200 Contact Us For Availability
20
GRATE, BLACK WCI 316085201 Contact Us For Availability
21
WCI 3014099 WCI 3014099 Contact Us For Availability
22
CAP-BURNER, POWDER METAL , BLACK ,SMALL WCI 316122100 Contact Us For Availability
22A
CAP-BURNER,BLACK ,LARGE WCI 316098505 Contact Us For Availability
28
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
32
WCI 316109506 WCI 316109506 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
39
WCI 316019506 WCI 316019506 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 No Longer Available
47
WCI 5303286386 WCI 5303286386 Contact Us For Availability
48
SHIELD-MAINTOP WCI 316077401 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
× ![]()
