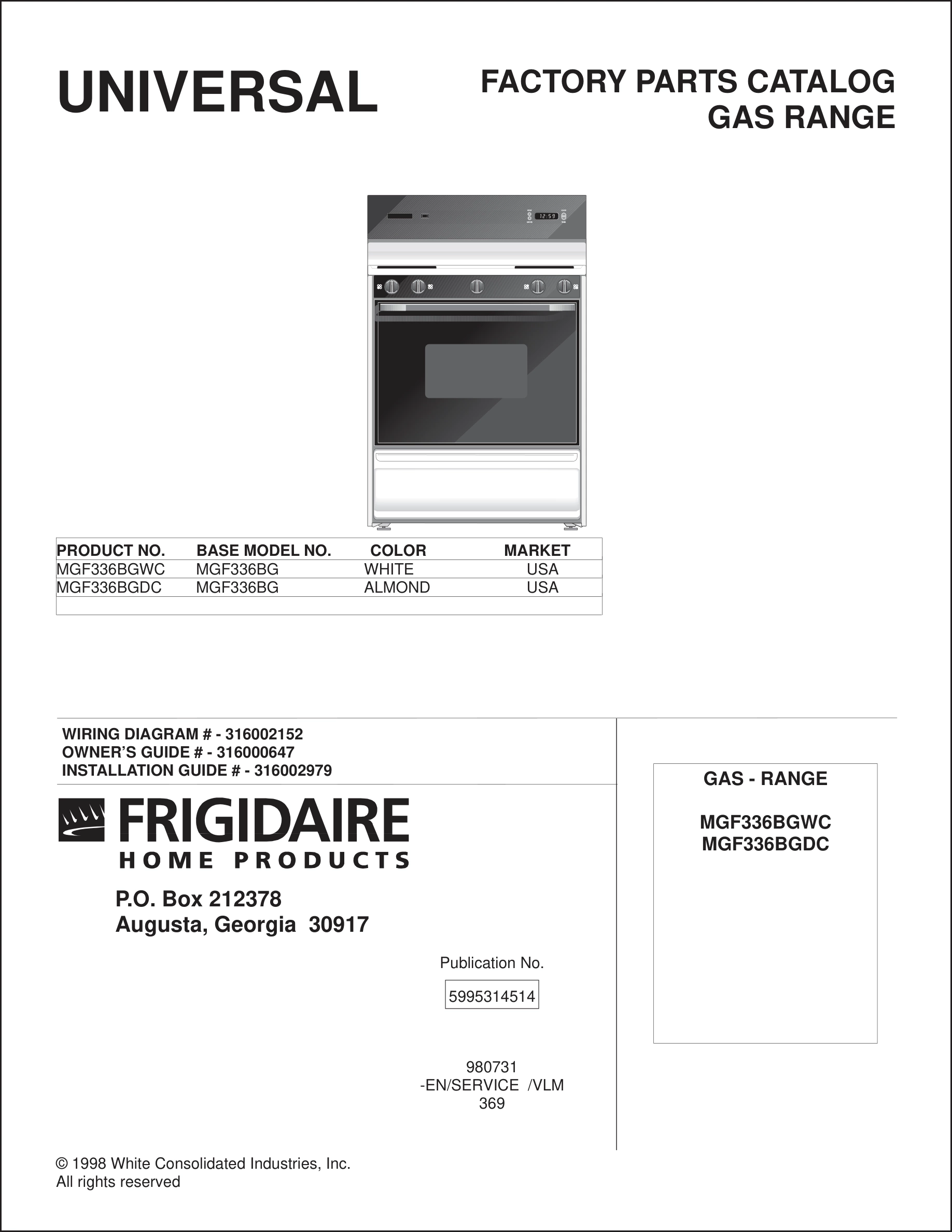

Model Frigidaire MGF336BGWC RANGE – Common Parts & Diagrams

*
Screw,cup pt ,#8-18 x 3/8 ,hinge ,
Screw,cup pt ,#8-18 x 3/8 ,hinge , WCI 316021108 Contact Us For Availability
View on Model
*
Screw,waf hd sdr ,10-32 x 5/16 ,(2)
Screw,waf hd sdr ,10-32 x 5/16 ,(2) WCI 5303280311 Contact Us For Availability
View on Model
*
Screw,cr pan hd sems ,8-32BP x 1.00
Screw,cr pan hd sems ,8-32BP x 1.00 WCI 5303212671 Contact Us For Availability
View on Model
1
Carriage, broiler
Carriage, broiler WCI 316110201 Contact Us For Availability
View on Model
2#
Valve-top burner
Valve-top burner WCI 5303935130 No Longer Available
View on Model
2A
Shield-broiler
Shield-broiler WCI 316110800 Contact Us For Availability
View on Model
3
Trim-oven door,black
Trim-oven door,black WCI 316067802 Contact Us For Availability
View on Model
4
Panel-drawer,white
Panel-drawer,white WCI 316056205 Contact Us For Availability
View on Model
4
Glass-oven door,black ,outer
Glass-oven door,black ,outer WCI 316089000 Contact Us For Availability
View on Model
4#
Tube-burner,red ,RF
Tube-burner,red ,RF WCI 316059612 Contact Us For Availability
View on Model
5
Screw-leveling
Screw-leveling WCI 5303203397 Contact Us For Availability
View on Model
5
Fastener-spacer,push-in nut ,nylon
Fastener-spacer,push-in nut ,nylon WCI 3131387 Contact Us For Availability
View on Model
5#
Tube-burner,green ,LF
Tube-burner,green ,LF WCI 316059613 Contact Us For Availability
View on Model
5*
Anti-tip Kit
Anti-tip Kit WCI 3934058 Contact Us For Availability
View on Model
6
Shield-wool
Shield-wool WCI 316088403 Contact Us For Availability
View on Model
6#
Tube-burner,nat. ,RR
Tube-burner,nat. ,RR WCI 316059614 Contact Us For Availability
View on Model
7
Hinge-oven door,(2)
Hinge-oven door,(2) WCI 316007001 Contact Us For Availability
View on Model
7
Insulation,oven door
Insulation,oven door WCI 316076401 Contact Us For Availability
View on Model
7#
Tube-burner,black ,LR
Tube-burner,black ,LR WCI 316059615 Contact Us For Availability
View on Model
8
Glass-oven door,inner
Glass-oven door,inner WCI 316088600 Contact Us For Availability
View on Model
9
Broiler Pan
Broiler Pan WCI 316081900 Contact Us For Availability
View on Model
9
Liner-oven door
Liner-oven door WCI 316066610 Contact Us For Availability
View on Model
10
Insert-broiler pan
Insert-broiler pan WCI 316082000 Contact Us For Availability
View on Model
13
Glide-drawer,outer
Glide-drawer,outer WCI 316111500 Contact Us For Availability
View on Model
13#
Tube,aluminum ,rgltr to manf ,
Tube,aluminum ,rgltr to manf , WCI 316065005 Contact Us For Availability
View on Model
13A
Glide-drawer,inner
Glide-drawer,inner WCI 316111600 Contact Us For Availability
View on Model
13B
Glide low broil outer
Glide low broil outer WCI 316111501 Contact Us For Availability
View on Model
16
Main Top,white
Main Top,white WCI 5303307709 Contact Us For Availability
View on Model
18#
Burner-oven
Burner-oven WCI 3131439 Contact Us For Availability
View on Model
19#
Pan-burner,black ,small ,(2)
Pan-burner,black ,small ,(2) WCI 316011415 Contact Us For Availability
View on Model
19A#
Pan-burner,black ,large ,(2)
Pan-burner,black ,large ,(2) WCI 316011419 Contact Us For Availability
View on Model
20#
Clock-timer
Clock-timer WCI 316113200 Contact Us For Availability
View on Model
20#
Grate,(4)
Grate,(4) WCI 316085201 Contact Us For Availability
View on Model
21
Spacer-bodyside,(8)
Spacer-bodyside,(8) WCI 3014099 Contact Us For Availability
View on Model
21
Cap-burner,black ,small
Cap-burner,black ,small WCI 316098501 Contact Us For Availability
View on Model
21A#
Cap-burner,black ,large
Cap-burner,black ,large WCI 316098505 Contact Us For Availability
View on Model
29
Button-selector,clock/timer ,black
Button-selector,clock/timer ,black WCI 5303272305 Contact Us For Availability
View on Model
30
Insulation,broiler drawer
Insulation,broiler drawer WCI 316111400 Contact Us For Availability
View on Model
32
Knob thermostat,black
Knob thermostat,black WCI 316109506 Contact Us For Availability
View on Model
34
Cover Plate
Cover Plate WCI 3018607 Contact Us For Availability
View on Model
39
Handle-drawer,white
Handle-drawer,white WCI 316019506 Contact Us For Availability
View on Model
41
Cover-hinge cutout
Cover-hinge cutout WCI 3131570 Contact Us For Availability
View on Model
44
Orifice-top burner,small
Orifice-top burner,small WCI 5303210090 No Longer Available
View on Model
47#
LP Conversion Kit
LP Conversion Kit WCI 5303286386 Contact Us For Availability
View on Model
48
Shield-maintop,(2)
Shield-maintop,(2) WCI 316077401 Contact Us For Availability
View on Model
52
Shield-oven door,black ,top
Shield-oven door,black ,top WCI 316081303 Contact Us For Availability
View on Model
58A
Insulation,oven wrapper
Insulation,oven wrapper WCI 3017142 Contact Us For Availability
View on Model
85
Rack-Low Broil
Rack-Low Broil WCI 316115600 Contact Us For Availability
View on Model
