Model Maytag MFX2570XEB0 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

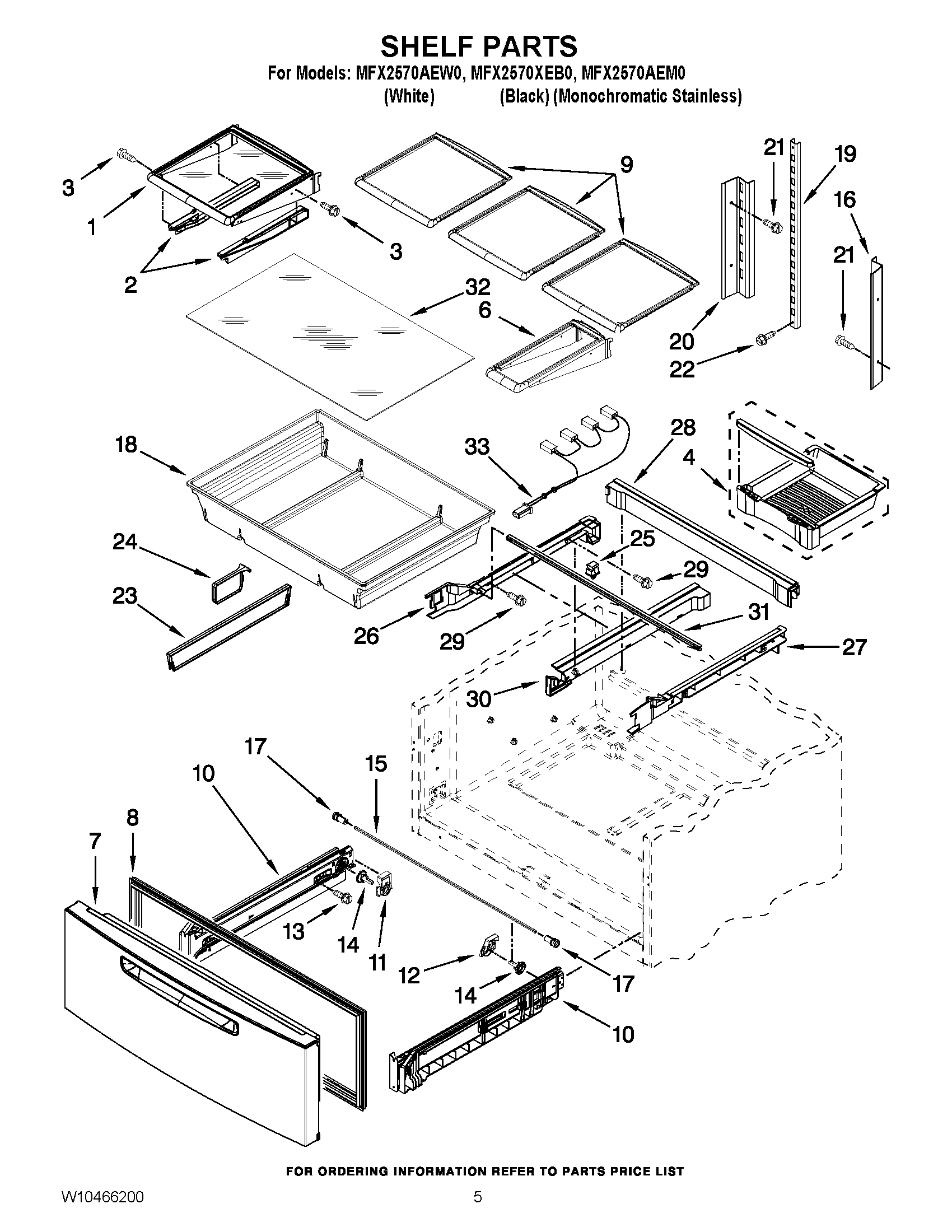

03 - SHELF PARTS

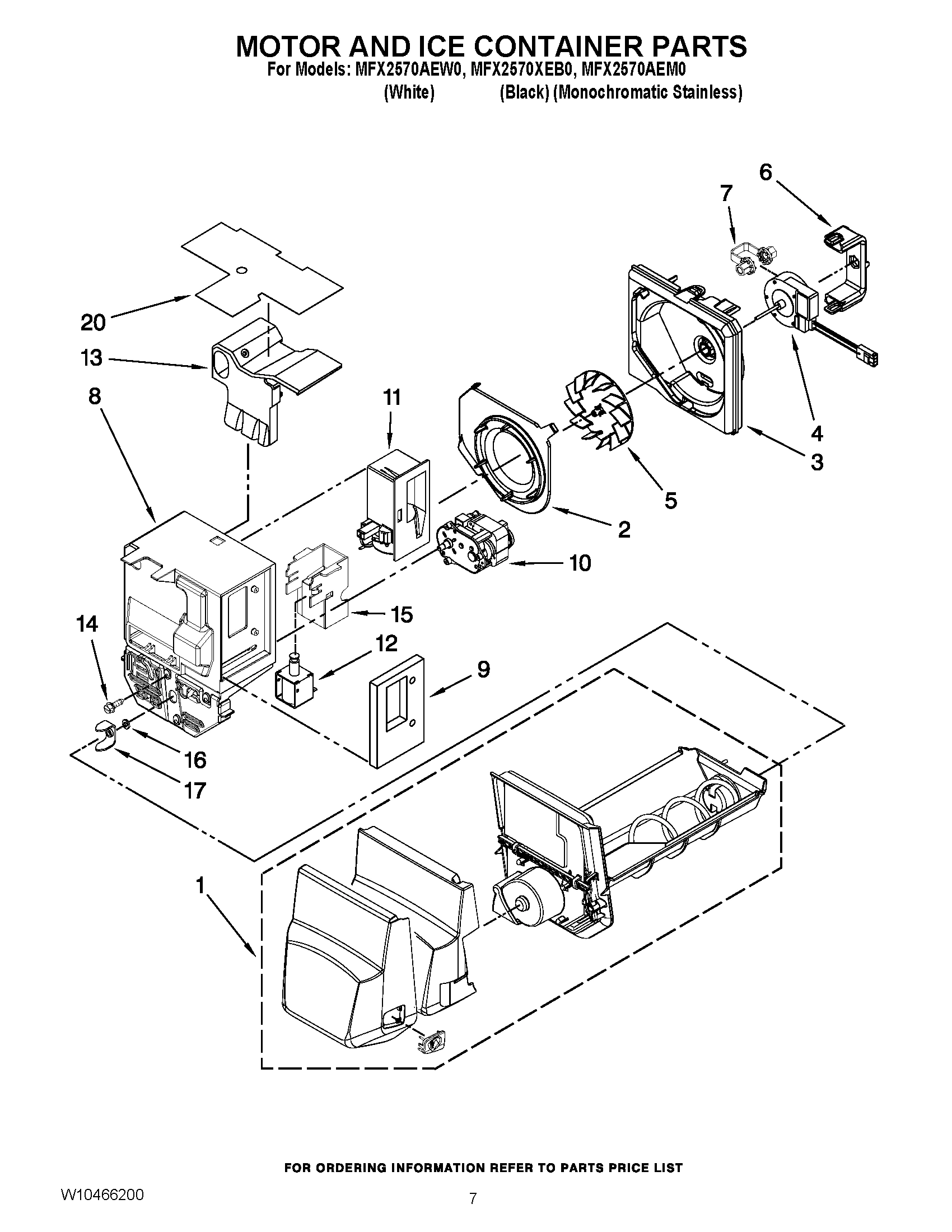

04 - MOTOR AND ICE CONTAINER PARTS

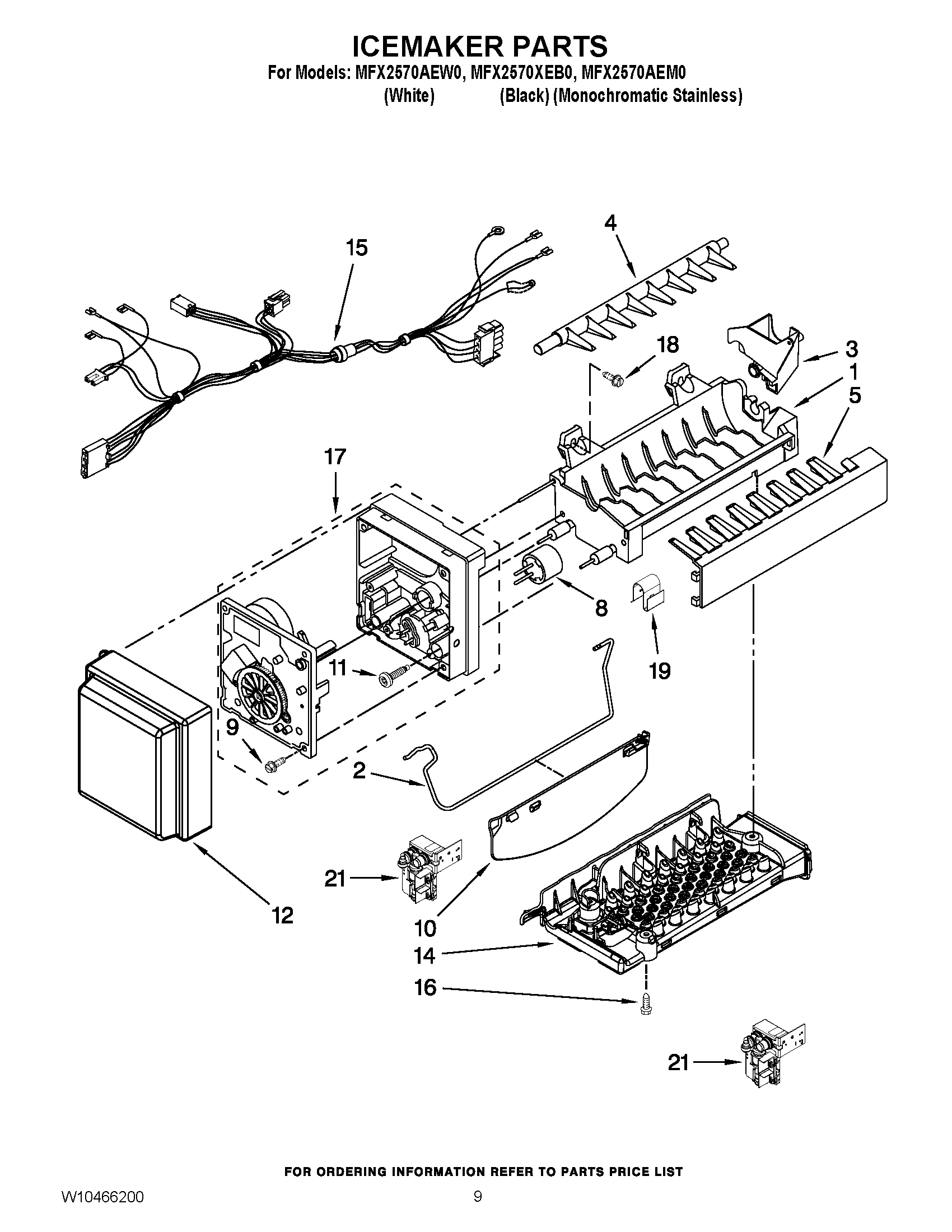

05 - ICEMAKER PARTS

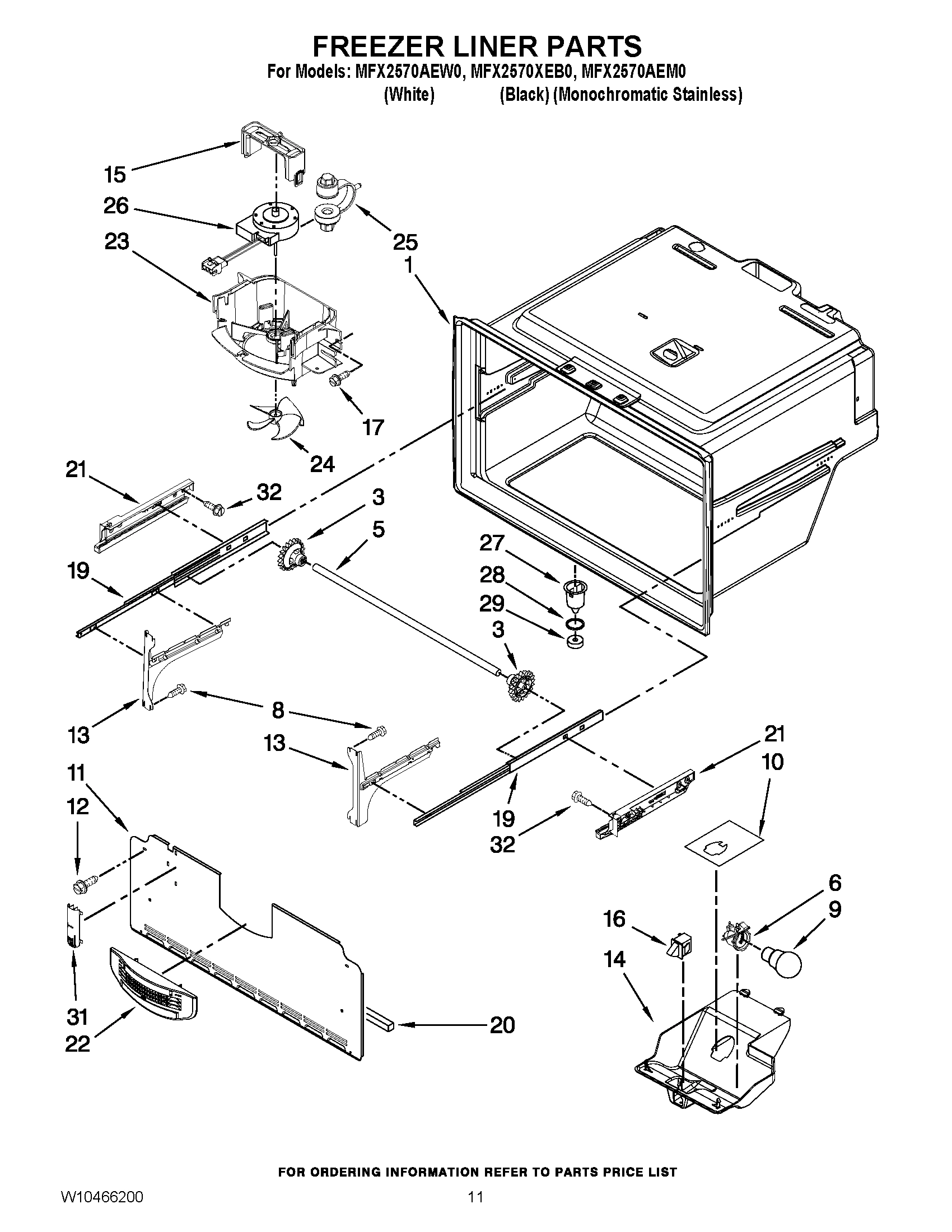

06 - FREEZER LINER PARTS

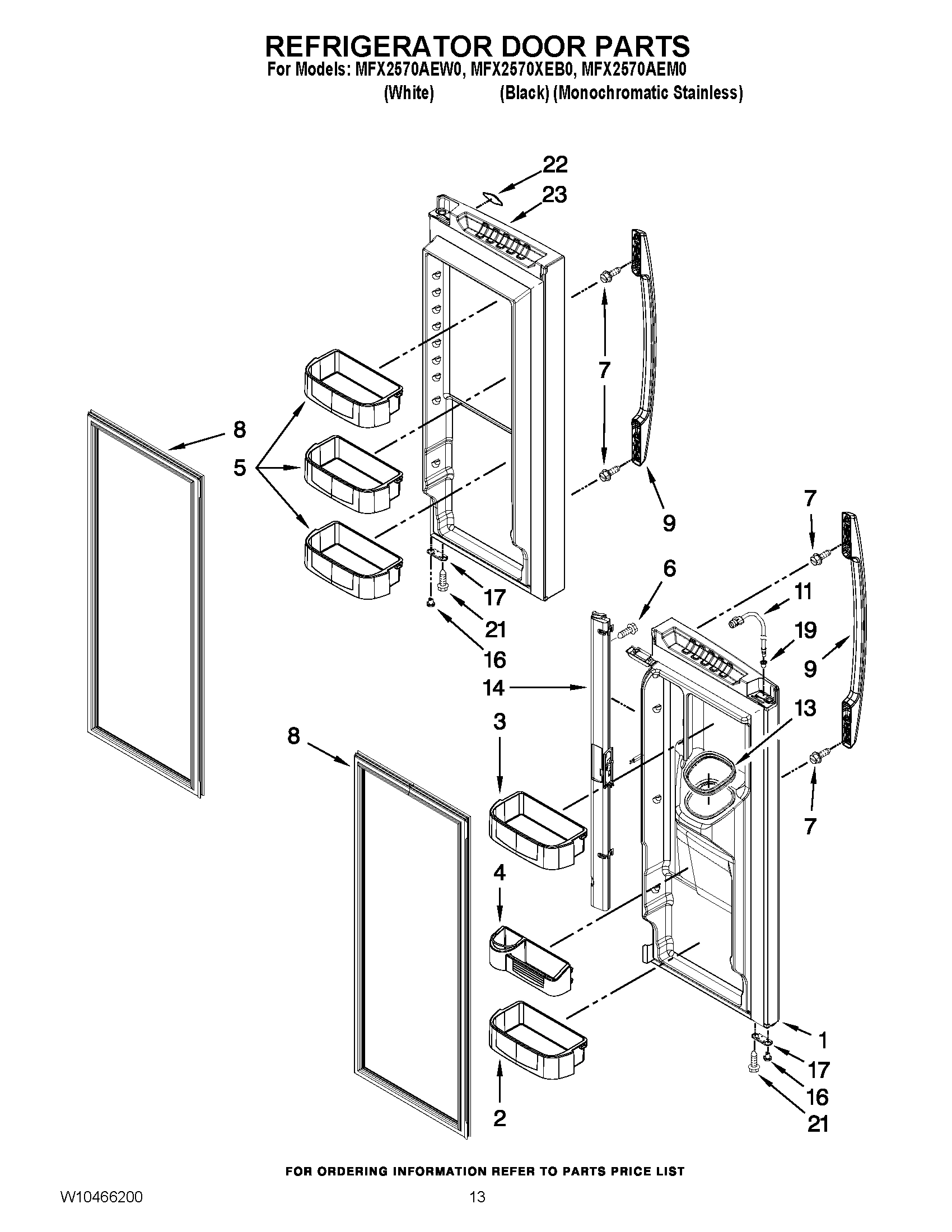

07 - REFRIGERATOR DOOR PARTS

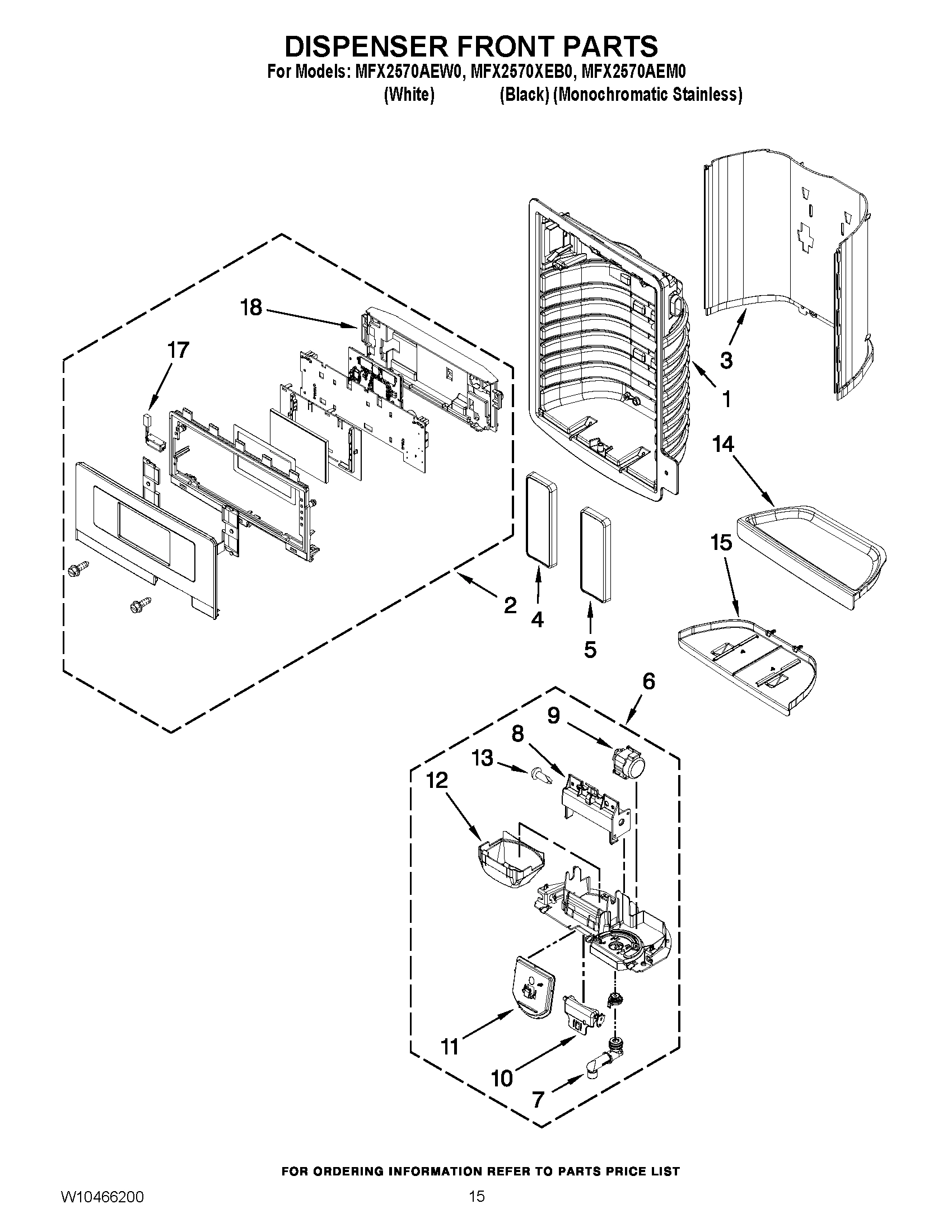

08 - DISPENSER FRONT PARTS

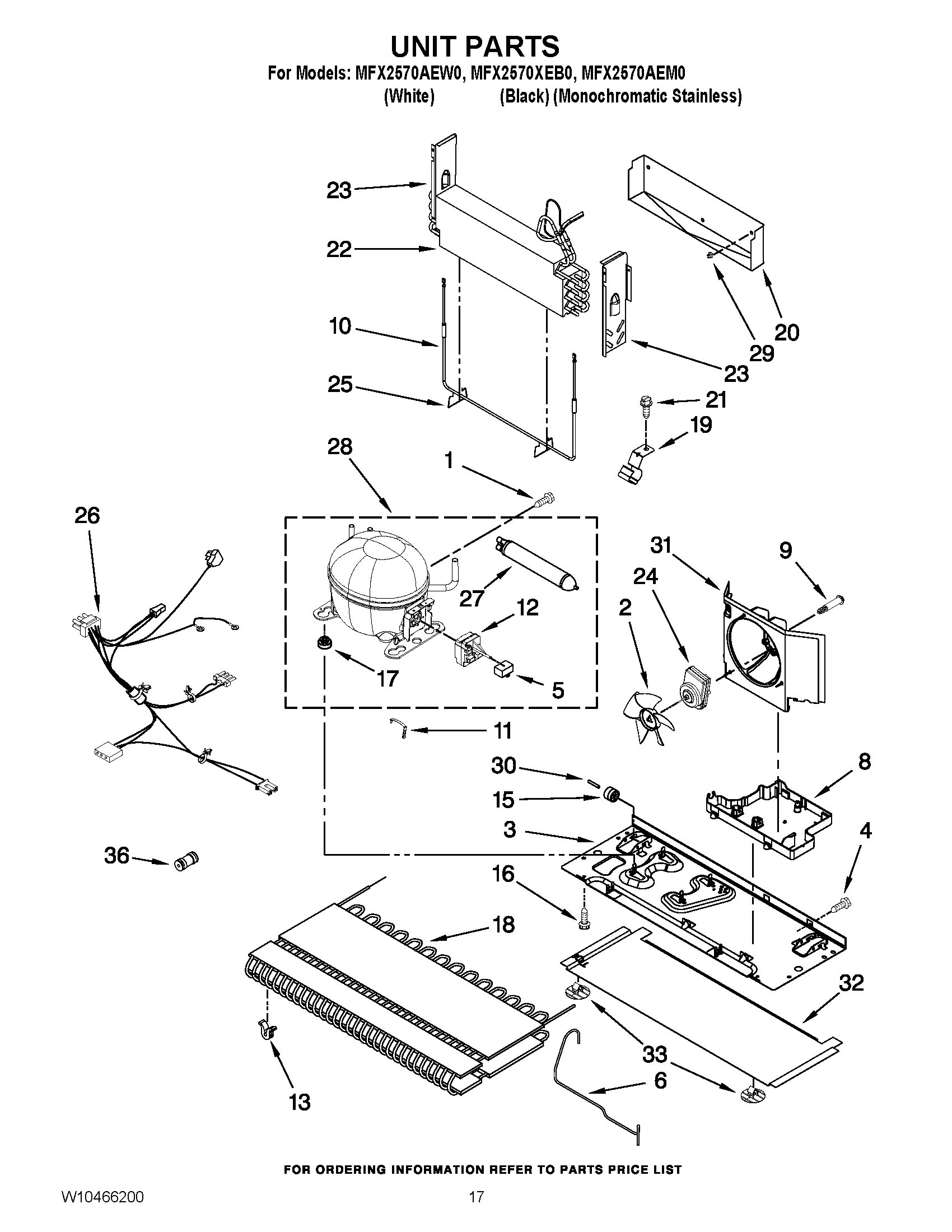

09 - UNIT PARTS

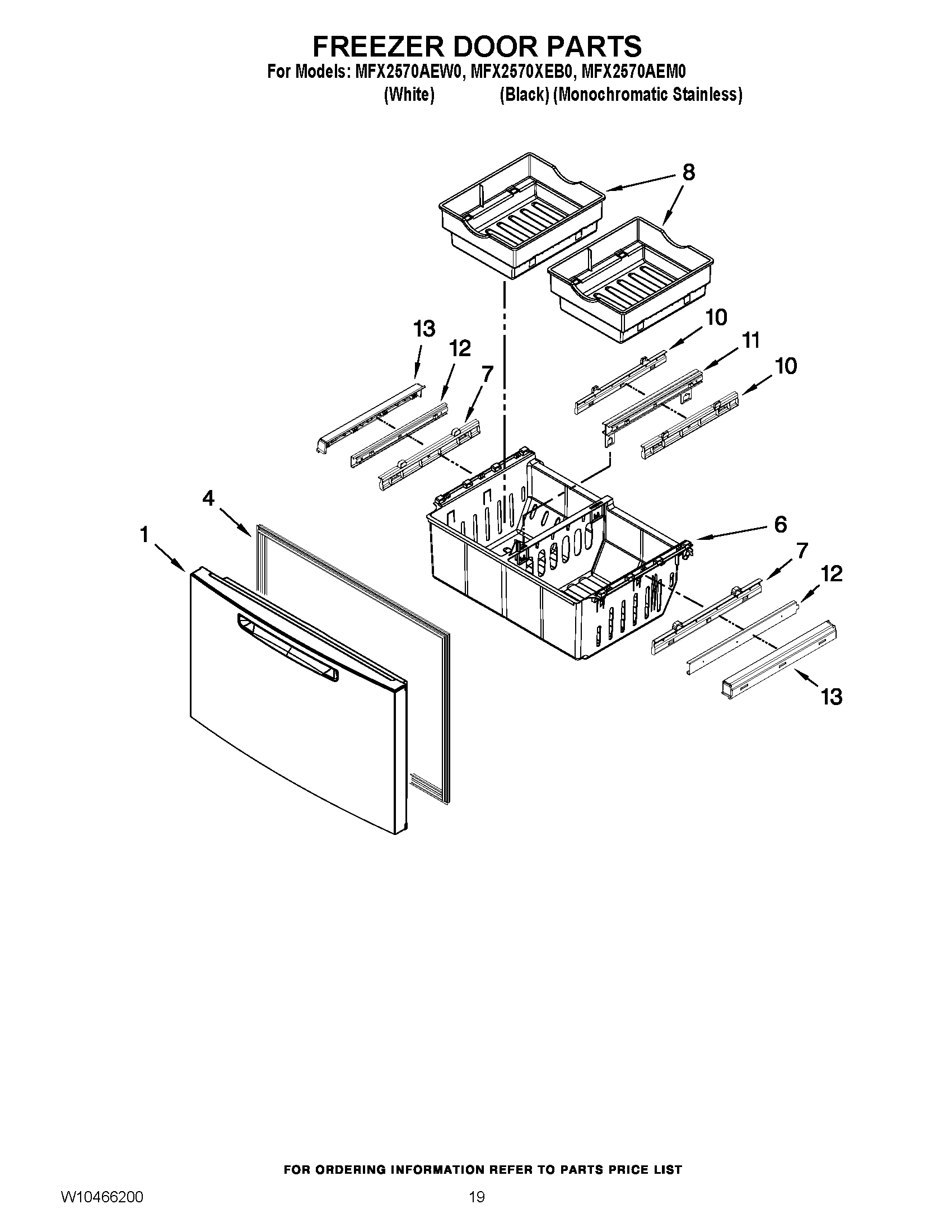

10 - FREEZER DOOR PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFX2570XEB0 REFRIGERATOR
1
SHELF-GLIDE MAY 12883508SP Contact Us For Availability
1
ICE BIN ASSEMBLY (SMALL CUBE) (INCLUDES AUGER MAY W10347671 Contact Us For Availability
1
MAY W10300025 MAY W10300025 Contact Us For Availability
1
MAY 13107317B MAY 13107317B Contact Us For Availability
1
MAY 13107317S MAY 13107317S Contact Us For Availability
1
MAY 13107317W MAY 13107317W Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 13107109B MAY 13107109B Contact Us For Availability
1
MAY 13107109S MAY 13107109S Contact Us For Availability
1
MAY 13107109W MAY 13107109W Contact Us For Availability
2
Tube W/Waterline, Fill-IM MAY 12961401 Contact Us For Availability
2
MAY 12990204 MAY 12990204 Contact Us For Availability
2
GLIDE SNACK PAN-LH MAY W10194031 Contact Us For Availability
2
GLIDE SNACK PAN-RH MAY W10194032 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10378254 MAY W10378254 Contact Us For Availability
2
BUCKET-LOWER-LH MAY W10297151 Contact Us For Availability
2
MAY W10458217 MAY W10458217 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
Block, Pivot MAY 12698403 Contact Us For Availability
3
LENS, RC LED MAY W10311756 Contact Us For Availability
3
SCREW MAY 12990302SP Contact Us For Availability
3
MAY W10309863 MAY W10309863 Contact Us For Availability
3
MAY W10377998 MAY W10377998 Contact Us For Availability
3
BUCKET-UPPER-LH MAY W10290553 Contact Us For Availability
3
FALSE WALL DISP. (WHITE) MAY W10215699 Contact Us For Availability
3
FALSE WALL DISP. (BLACK) MAY W10233560 Contact Us For Availability
3
FALSE WALL DISP. (APOLLO GREY) MAY W10299897 Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
4
GASKET, MC BACK MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAIN LED MODULE MAY W10289592 Contact Us For Availability
4
PAN-SNACK MAY W10319333N Contact Us For Availability
4
MAY W10308033 MAY W10308033 Contact Us For Availability
4
MAY W10318914 MAY W10318914 Contact Us For Availability
4
MAY W10290555 MAY W10290555 Contact Us For Availability
4
PAD, ICE (NICKEL) MAY W10334789 Contact Us For Availability
4
MAY W10334792 MAY W10334792 Contact Us For Availability
4
MAY W10164043 MAY W10164043 Contact Us For Availability
4
MAY W10164044 MAY W10164044 Contact Us For Availability
4
MAY W10164045 MAY W10164045 Contact Us For Availability
5
COVER, TOP HINGE (RIGHT) (APOLLO GREY) MAY 12962302AP Contact Us For Availability
5
MAY 12962302B MAY 12962302B Contact Us For Availability
5
MAY 12962302W MAY 12962302W Contact Us For Availability
5
MAY 13008201 MAY 13008201 Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
ICE STRIPPER MAY W10122563 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
MAY 12840004 MAY 12840004 Contact Us For Availability
5
PAD, WATER (NICKEL) MAY W10334813 Contact Us For Availability
5
MAY W10334816 MAY W10334816 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
6
COVER, FILL TUBE (APOLLO GREY) MAY 12981401AP Contact Us For Availability
6
MAY 12981401B MAY 12981401B Contact Us For Availability
6
MAY 12981401W MAY 12981401W Contact Us For Availability
6
MAY 12466103 MAY 12466103 Contact Us For Availability
6
SHELF-STAT-MINI MAY 12885501N Contact Us For Availability
6
MAY 12990513 MAY 12990513 Contact Us For Availability
6
MAY 12956603 MAY 12956603 Contact Us For Availability
6
SEPARATOR ASSY. MAY W10353552 Contact Us For Availability
6
MAY W10242974 MAY W10242974 Contact Us For Availability
6
MAY 12924801SP MAY 12924801SP Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY 13107110B MAY 13107110B Contact Us For Availability
7
MAY 13107110S MAY 13107110S Contact Us For Availability
7
MAY 13107110W MAY 13107110W Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
SCREW, HANDLE MAY W10288153 Contact Us For Availability
7
SPIGOT BODY ASSY. MAY 2316647 Contact Us For Availability
7
MAY 12925403SP MAY 12925403SP Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
HOUSING-RC-LED MAY W10343359 Contact Us For Availability
8
MAY W10294107 MAY W10294107 Contact Us For Availability
8
MAY W10294113 MAY W10294113 Contact Us For Availability
8
MAY W10294114 MAY W10294114 Contact Us For Availability
8
MAY W10309864 MAY W10309864 Contact Us For Availability
8
THERMOSTAT (ALSO ORDER 542369 CEMENT) MAY W10290336 Contact Us For Availability
8
MAY W10294125 MAY W10294125 Contact Us For Availability
8
MAY W10294126 MAY W10294126 Contact Us For Availability
8
MAY W10294127 MAY W10294127 Contact Us For Availability
8
MAY W10174827 MAY W10174827 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
MAY 12924903 MAY 12924903 Contact Us For Availability
9
Screw, Hinge Cover MAY 12992602 Contact Us For Availability
9
SHELF, GLIDE (3) MAY 12883507 Contact Us For Availability
9
MAY 12920001 MAY 12920001 Contact Us For Availability
9
Screw (3) MAY W10001240 Contact Us For Availability
9
Bulb, Light MAY 2255743 Contact Us For Availability
9
DOOR HANDLE (WHITE) MAY W10252284 Contact Us For Availability
9
DOOR HANDLE (BLACK) MAY W10252285 Contact Us For Availability
9
DOOR HANDLE (STAINLESS) MAY W10252288 Contact Us For Availability
9
MAY W10205979 MAY W10205979 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
MAY 12963205ED MAY 12963205ED Contact Us For Availability
10
MAY W10295155 MAY W10295155 Contact Us For Availability
10
MAY W10295157 MAY W10295157 Contact Us For Availability
10
MAY W10309868 MAY W10309868 Contact Us For Availability
10
MAY W10351019 MAY W10351019 Contact Us For Availability
10
FOIL-FZ LIGHT MAY W10277466 Contact Us For Availability
10
MAY W10346124 MAY W10346124 Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
10
MAY 12925404SP MAY 12925404SP Contact Us For Availability
11
SCREW, CENTER HINGE MAY 489470 Contact Us For Availability
11
Cover, Water Tank (Upper) MAY 12960101 Contact Us For Availability
11
GEAR SPUR-L & R MAY W10277360 Contact Us For Availability
11
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
COVER, EVAP MAY W10308421 Contact Us For Availability
11
MAY W10296451 MAY W10296451 Contact Us For Availability
11
DOOR, ICE MAY W10317279 Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
11
MAY W10235357 MAY W10235357 Contact Us For Availability
12
Lid, Water Filter MAY 12960301 Contact Us For Availability
12
MAY W10284709 MAY W10284709 Contact Us For Availability
12
MAY W10294414 MAY W10294414 Contact Us For Availability
12
SOLENOID ASSY. MAY W10309866 Contact Us For Availability
12
MAY W10388303 MAY W10388303 Contact Us For Availability
12
GUIDE, ICE MAY W10339578 Contact Us For Availability
12
MAY W10197428 MAY W10197428 Contact Us For Availability
12
MAY W10235367 MAY W10235367 Contact Us For Availability
13
COVER, TOP HINGE (LEFT) (APOLLO GREY) MAY 12962301AP Contact Us For Availability
13
MAY 12962301B MAY 12962301B Contact Us For Availability
13
MAY 12962301W MAY 12962301W Contact Us For Availability
13
COVER, WATER TANK(LOWER) MAY 12960001 Contact Us For Availability
13
MAY W10272364 MAY W10272364 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
BRACKET, DOOR SLIDE (LEFT) MAY W10330994 Contact Us For Availability
13
BRACKET, DOOR SLIDE (RIGHT) MAY W10330995 Contact Us For Availability
13
MAY W10287601 MAY W10287601 Contact Us For Availability
13
MAY 4449745 MAY 4449745 Contact Us For Availability
13
GROMMET, COND MAY W10137529 Contact Us For Availability
13
MAY 12925501SP MAY 12925501SP Contact Us For Availability
13
MAY 12925502SP MAY 12925502SP Contact Us For Availability
14
Screw, Top Hinge MAY 12992403 Contact Us For Availability
14
MAY UKF8001 MAY UKF8001 Contact Us For Availability
14
SCREW MAY 12991701 Contact Us For Availability
14
IMPINGER ASSY. MAY W10312691 Contact Us For Availability
14
MODULE, FREEZER LIGHT MAY W10315248 Contact Us For Availability
14
MAY W10311757 MAY W10311757 Contact Us For Availability
14
MAY W10311758 MAY W10311758 Contact Us For Availability
14
MAY W10311759 MAY W10311759 Contact Us For Availability
14
MAY W10267869 MAY W10267869 Contact Us For Availability
14
MAY W10267870 MAY W10267870 Contact Us For Availability
14
TRAY-DISPENSER (APOLLO GREY) MAY W10299895 Contact Us For Availability
15
Hinge, Center (RT) (Apollo Grey) MAY 13000002AP Contact Us For Availability
15
Hinge, Center (RT) (White) MAY 13000002WD Contact Us For Availability
15
HINGE, CENTER (RT) (BLACK) MAY 13000008ED Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
SHAFT, RACK MAY W10298176 Contact Us For Availability
15
MAY W10346971 MAY W10346971 Contact Us For Availability
15
MAY W10404016 MAY W10404016 Contact Us For Availability
15
MAY 12956601 MAY 12956601 Contact Us For Availability
15
SLIDE-TRAY DISP. (WHITE) MAY W10267860 Contact Us For Availability
15
SLIDE-TRAY DISP. (BLACK) MAY W10267861 Contact Us For Availability
15
SLIDE-TRAY DISP. (APOLLO GREY) MAY W10267863 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
MAY W10285271 MAY W10285271 Contact Us For Availability
16
LADDER, SIDE RH MAY W10251965 Contact Us For Availability
16
MAY 420107A700 MAY 420107A700 Contact Us For Availability
16
MAY 12466111SP MAY 12466111SP Contact Us For Availability
16
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
16
MAY 12028505B MAY 12028505B Contact Us For Availability
16
MAY 12028505W MAY 12028505W Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
Cover, Corner (2) (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
COVER, CORNER (2) (BLACK) MAY 12587703B Contact Us For Availability
17
Cover, Corner (2) (White) MAY 12587703W Contact Us For Availability
17
MAY W10365768 MAY W10365768 Contact Us For Availability
17
COLLAR, GEAR MAY W10277361 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
MAY W10377147 MAY W10377147 Contact Us For Availability
17
Screw, Fan Shroud To Basket MAY 12990504 Contact Us For Availability
17
Stop, Door (Apollo Grey) MAY 12968202AP Contact Us For Availability
17
MAY 12968202B MAY 12968202B Contact Us For Availability
17
MAY 12968202W MAY 12968202W Contact Us For Availability
17
LED ASSEMBLY MAY W10238083 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12963204ED MAY 12963204ED Contact Us For Availability
18
MAY W10415891 MAY W10415891 Contact Us For Availability
18
PAN-PANTRY-PO MAY W10457961 Contact Us For Availability
18
SCREW (2) MAY W10068250 Contact Us For Availability
18
MAY W10254277 MAY W10254277 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
19
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
19
MAY W10273464 MAY W10273464 Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY 12996601 MAY 12996601 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY W10349187 MAY W10349187 Contact Us For Availability
20
LADDER, SIDE MAY W10251968 Contact Us For Availability
20
MAY W10142628 MAY W10142628 Contact Us For Availability
20
MAY A3189396 MAY A3189396 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
21
Shim, Top Hinge (Left) MAY 12999501 Contact Us For Availability
21
Shim, Top Hinge (Right) MAY 12999502 Contact Us For Availability
21
MAY 12990702 MAY 12990702 Contact Us For Availability
21
COVER, ICE BOX HARNESS MAY W10309869 Contact Us For Availability
21
MAY 12990521 MAY 12990521 Contact Us For Availability
21
VALVE, SMART MAY W10342318 Contact Us For Availability
21
ADAPTER (LEFT) MAY W10284682 Contact Us For Availability
21
ADAPTER (RIGHT) MAY W10284683 Contact Us For Availability
22
GRILLE, TOE (APOLLO GREY) MAY W10244558 Contact Us For Availability
22
MAY W10244559 MAY W10244559 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
Screw MAY 12990515 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
Nameplate MAY W10170766 Contact Us For Availability
22
MAY W10313899 MAY W10313899 Contact Us For Availability
23
LID, HV CONTROL MAY W10296541 Contact Us For Availability
23
DIVIDER-PANTRY-LRG MAY W10458683 Contact Us For Availability
23
Shroud, Evap Fan MAY 12951401 Contact Us For Availability
23
MAY 13107319B MAY 13107319B Contact Us For Availability
23
MAY 13107319S MAY 13107319S Contact Us For Availability
23
MAY 13107319W MAY 13107319W Contact Us For Availability
23
Dam (Left Side) MAY 12963002SP Contact Us For Availability
23
Dam (Right Side) MAY 12963102SP Contact Us For Availability
24
Hinge, Center (LT) (Apollo Grey) MAY 13000001AP Contact Us For Availability
24
Hinge, Center (LT) (White) MAY 13000001WD Contact Us For Availability
24
HINGE, CENTER (LT) (BLACK) MAY 13000007ED Contact Us For Availability
24
WATERLINE, CABINET (W/NUT) MAY W10444033 Contact Us For Availability
24
GRIPPER, PANTRY MAY W10458684 Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 12986101 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
COVER WATER VALVE MAY W10118193 Contact Us For Availability
25
Grommet, Fan Motor (2) MAY 12951101 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
MAY W10311723 MAY W10311723 Contact Us For Availability
26
MOTOR, EVAPORATOR (INCL. HARNESS) MAY W10276647 Contact Us For Availability
26
MAY W10450103 MAY W10450103 Contact Us For Availability
27
POWER SUPPLY MODUL MAY W10226427 Contact Us For Availability
27
MAY W10311726 MAY W10311726 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
Screw, Block MAY 12990302 Contact Us For Availability
28
RAIL, REAR PANTRY MAY W10311727 Contact Us For Availability
28
SEAL, O RING MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10200250 Contact Us For Availability
29
GASKET-HV CNTRL-2 MAY 12957801K Contact Us For Availability
29
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
COVER, MC BACK MAY W10211854 Contact Us For Availability
30
MAY W10311725 MAY W10311725 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
31
MAY W10210988 MAY W10210988 Contact Us For Availability
31
MAY 12227305 MAY 12227305 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
COVER-WATER VALVE MAY W10208592 Contact Us For Availability
32
GLASS, PANTRY SHELF MAY W10296571 Contact Us For Availability
32
Screw, Adapter MAY 12990501 Contact Us For Availability
32
MAY W10367416 MAY W10367416 Contact Us For Availability
33
Fiber, Acoustic MAY 12820505 Contact Us For Availability
33
HARNESS, RC-LED MAY W10335721 Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
34
Brake, Foot MAY W10141622 Contact Us For Availability
35
MAY W10404689 MAY W10404689 Contact Us For Availability
36
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
36
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
36
CONNECTOR, WATER MAY W10334458 Contact Us For Availability
37
MULLION-INCL.HEATR (WHITE) MAY W10296390 Contact Us For Availability
37
MULLION-INCL.HEATR (BLACK) MAY W10296395 Contact Us For Availability
37
MAY W10296396 MAY W10296396 Contact Us For Availability
38
LENS-ICE BOX COVER MAY W10237349 Contact Us For Availability
39
MODULE LED LIGHTS MAY W10320778 Contact Us For Availability
40
HOUSING, MODULE MAY W10311719 Contact Us For Availability
41
MAY W10323211 MAY W10323211 Contact Us For Availability
42
MAY W10311721 MAY W10311721 Contact Us For Availability
43
SPACER WEDGE-L & R MAY W10316401 Contact Us For Availability
44
MAY W10316403 MAY W10316403 Contact Us For Availability
100
MAY W10377151 MAY W10377151 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
MAY 67007112 MAY 67007112 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
