Model Maytag MFT2771WEM2 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

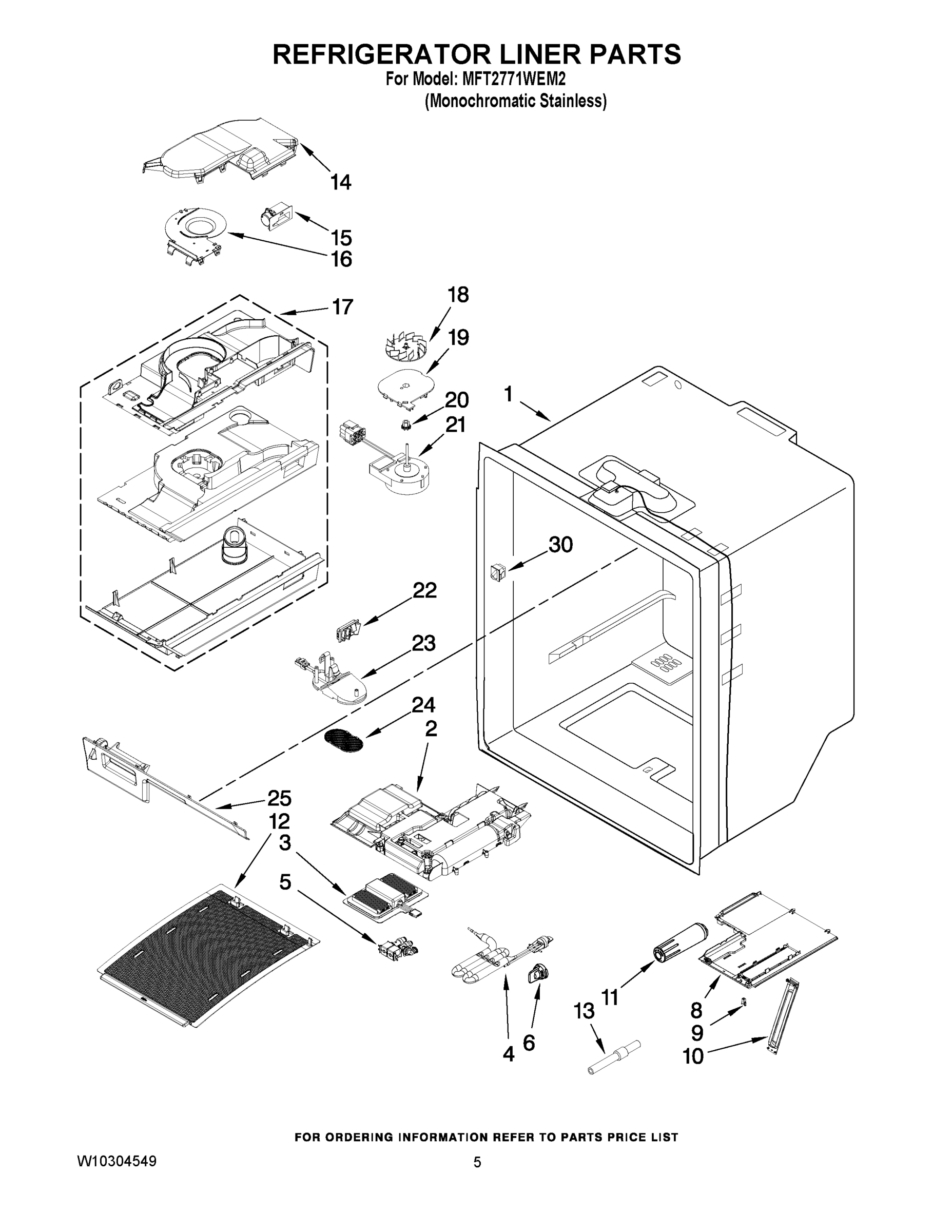

03 - REFRIGERATOR LINER PARTS

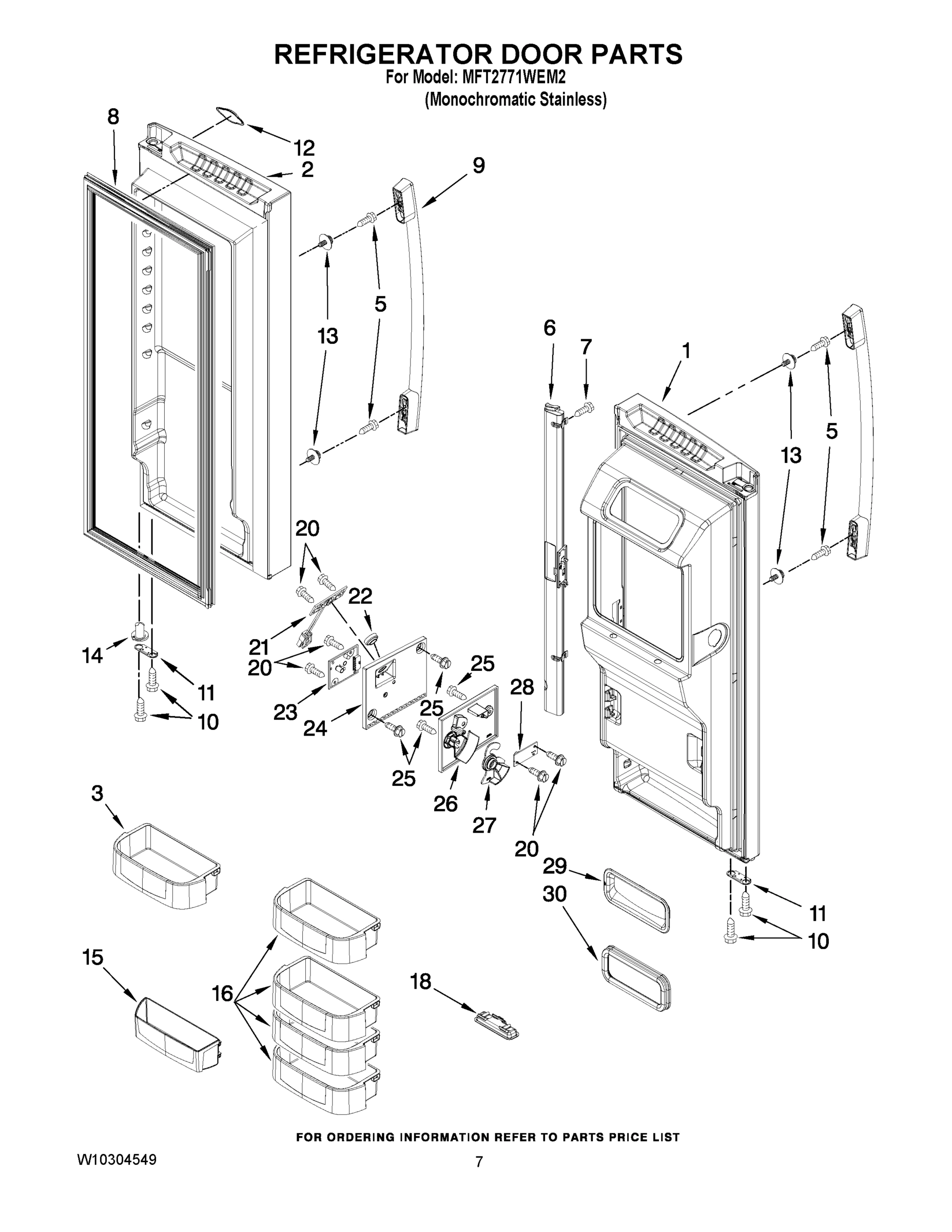

04 - REFRIGERATOR DOOR PARTS

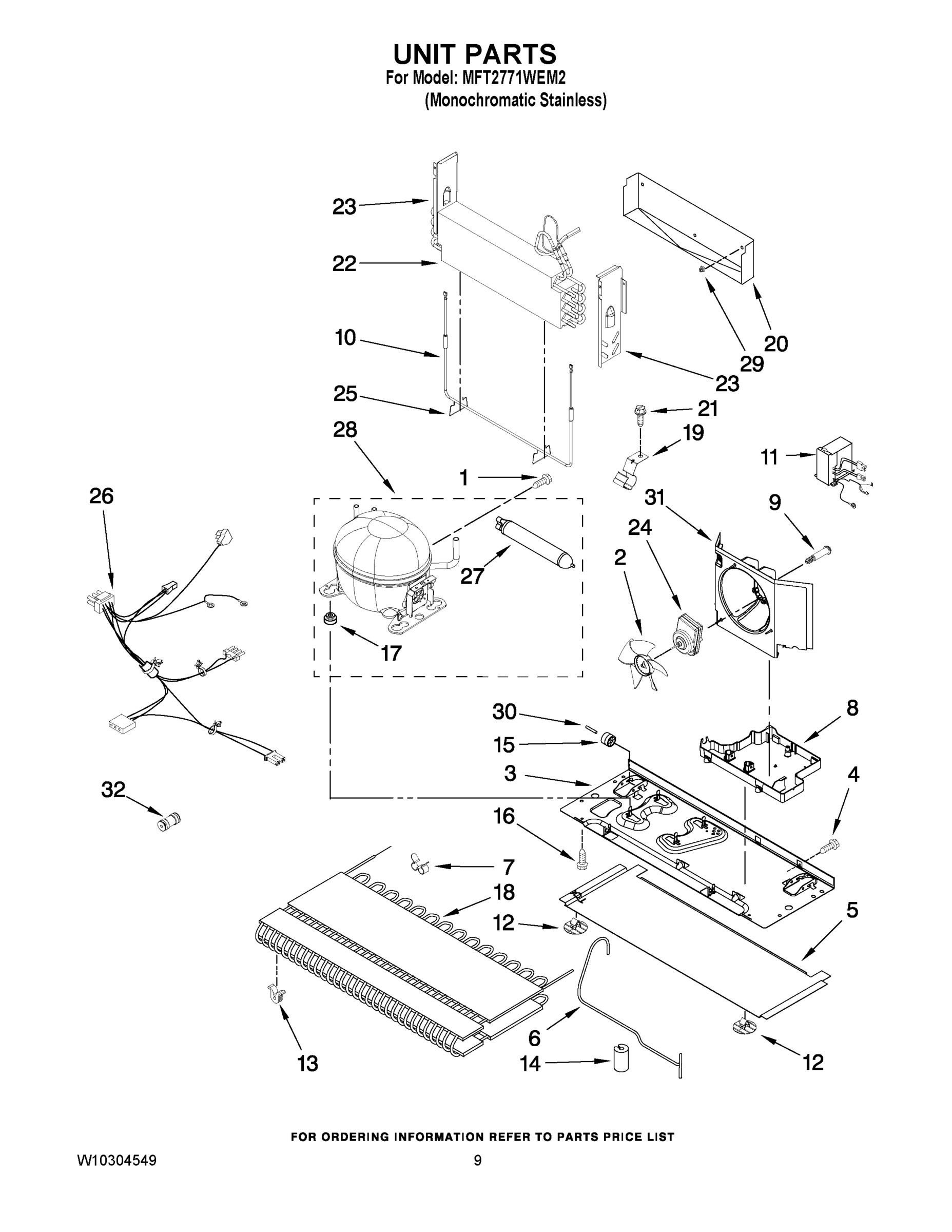

05 - UNIT PARTS

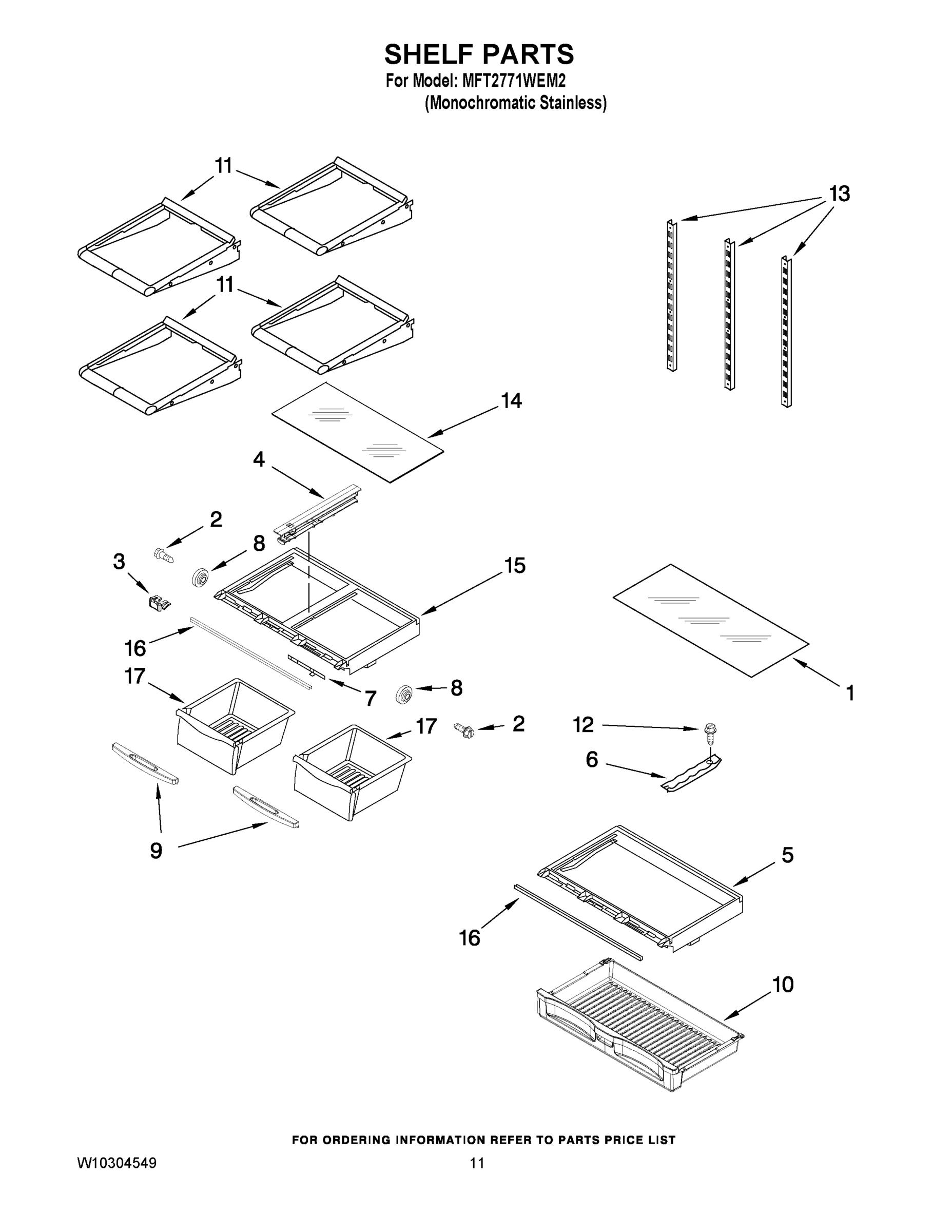

06 - SHELF PARTS

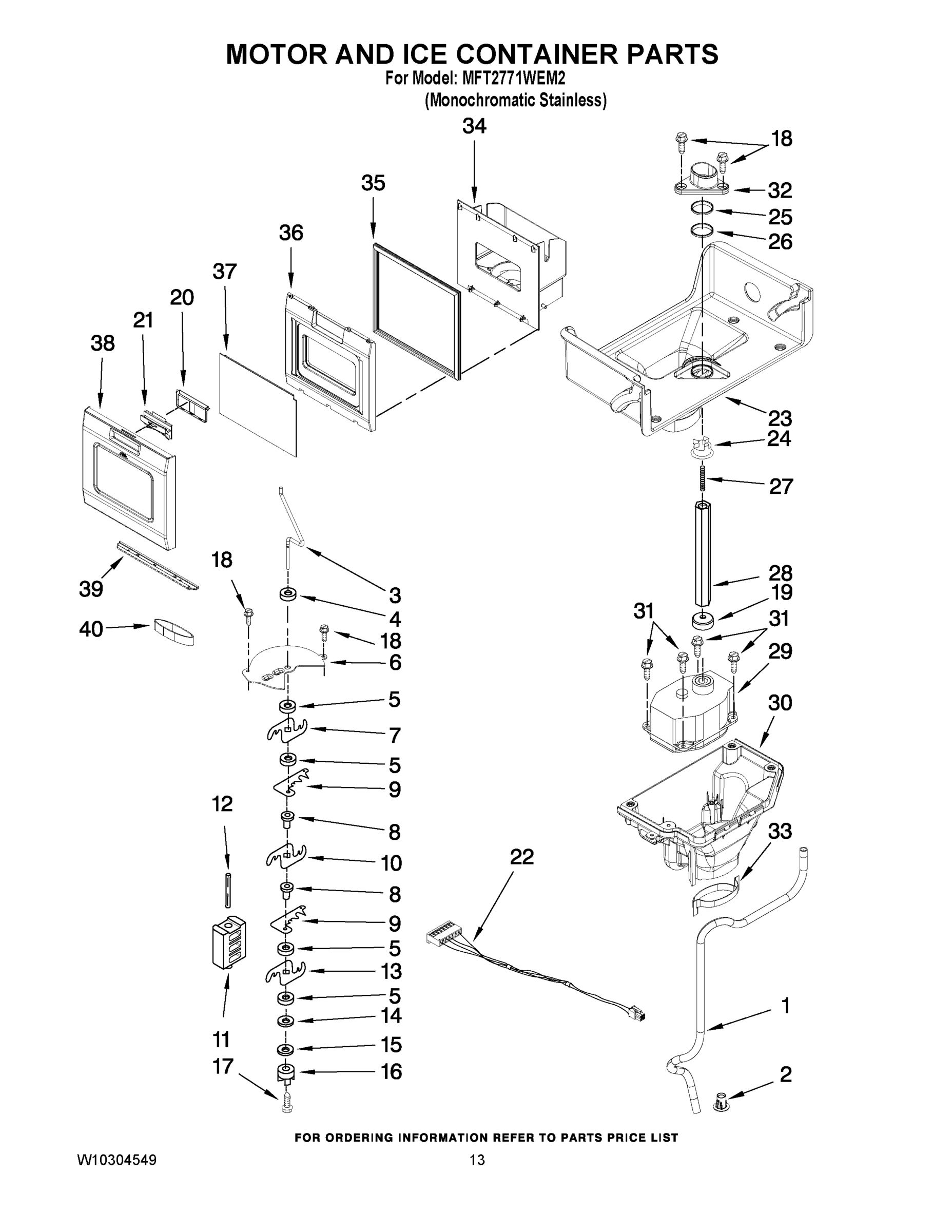

07 - MOTOR AND ICE CONTAINER PARTS

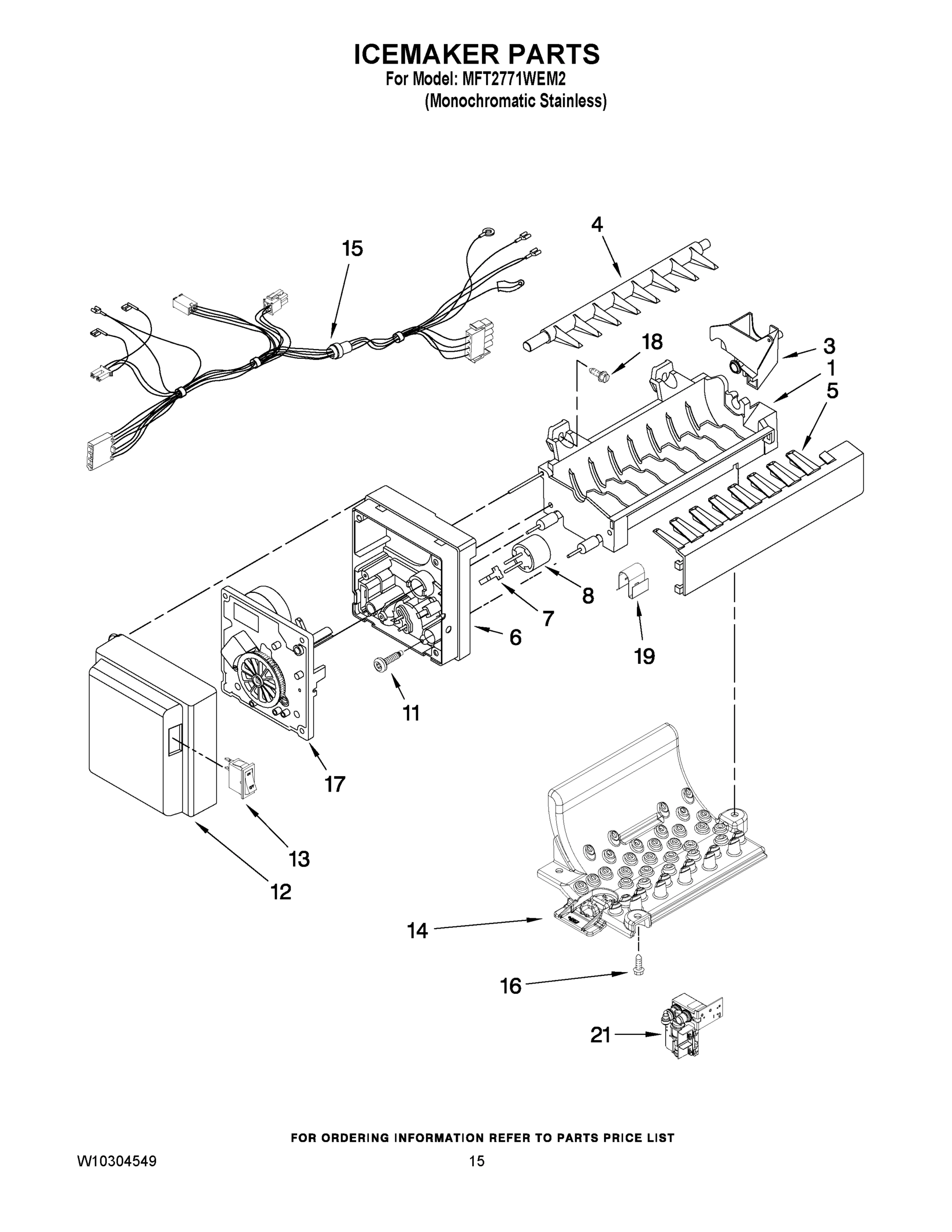

08 - ICEMAKER PARTS

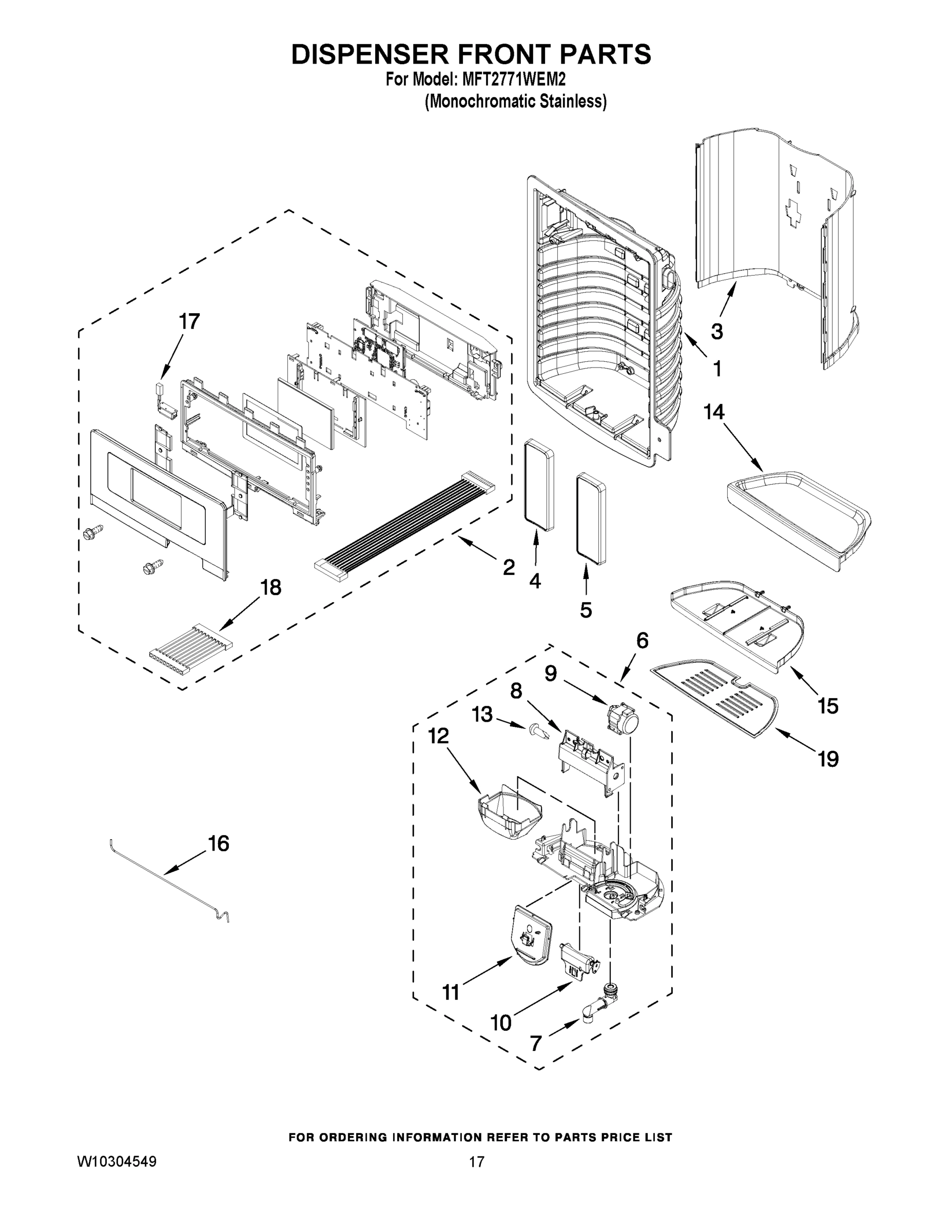

09 - DISPENSER FRONT PARTS

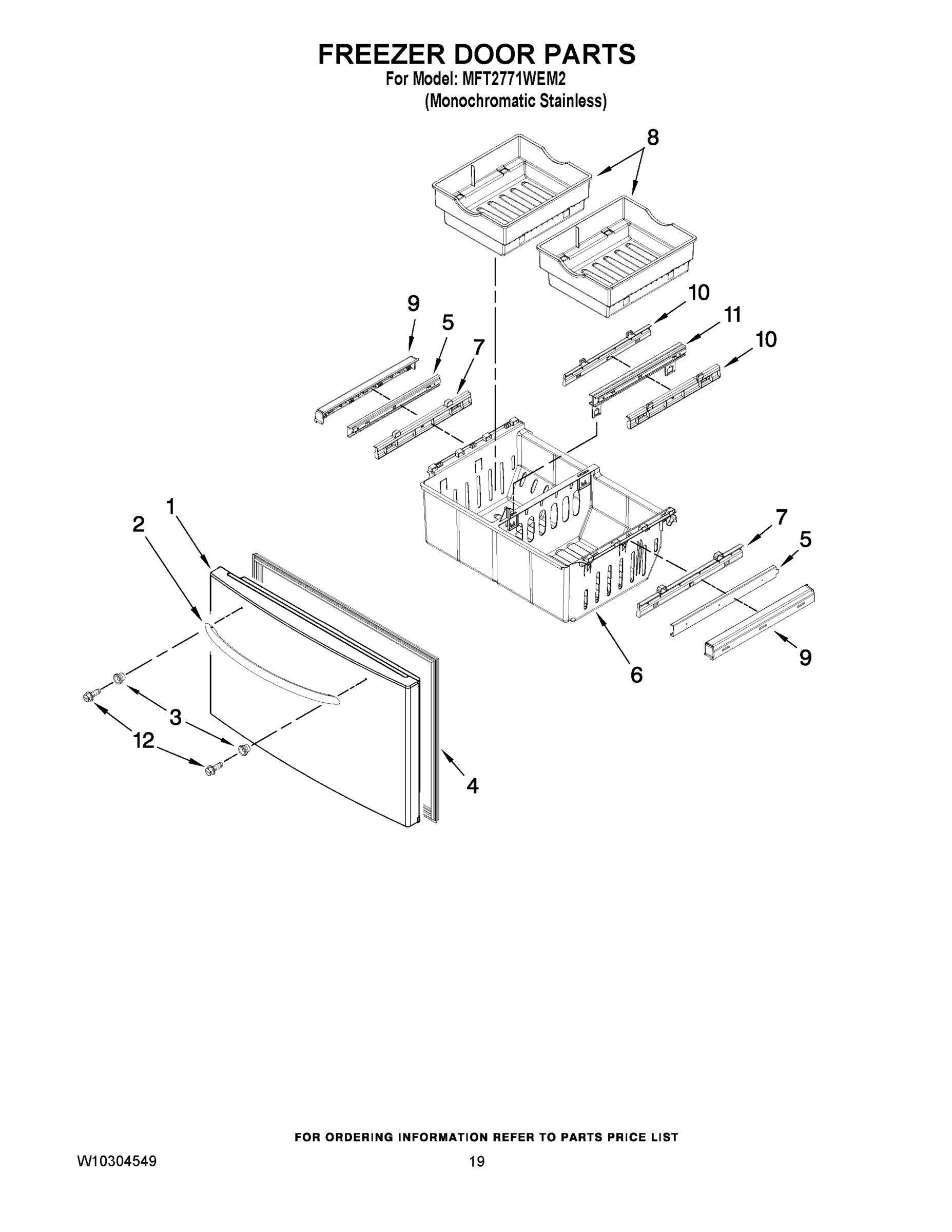

10 - FREEZER DOOR PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MFT2771WEM2 REFRIGERATOR
1
HOUSING, DISPENSER (NOT SERVICED) MAY N/P Contact Us For Availability
1
DOOR, LEFT (APOLLO GREY) MAY 13102611SQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY W10245518 MAY W10245518 Contact Us For Availability
1
MAY W10161596 MAY W10161596 Contact Us For Availability
1
FREEZER DOOR (APOLLO GREY) MAY 12977831SQ Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10214813 MAY W10214813 Contact Us For Availability
2
DOOR, RIGHT (APOLLO GREY) MAY 13102606SQ Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12991401 MAY 12991401 Contact Us For Availability
2
CLIP, DRAIN TUBE MAY W10245516 Contact Us For Availability
2
MAY W10291957 MAY W10291957 Contact Us For Availability
2
HANDLE, DOOR (APOLLO GREY) MAY W10138763 Contact Us For Availability
3
Block, Pivot MAY 12698403 Contact Us For Availability
3
MAY W10223894 MAY W10223894 Contact Us For Availability
3
MAY W10237235 MAY W10237235 Contact Us For Availability
3
MAY 13001201 MAY 13001201 Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
KNOB, HUMIDITY MAY 2223309 Contact Us For Availability
3
AUGER, CRUSHER MAY W10178230 Contact Us For Availability
3
MAY W10160726 MAY W10160726 Contact Us For Availability
3
FALSE WALL, DISPENSER (APOLLO GREY) MAY W10305890 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY W10216070 MAY W10216070 Contact Us For Availability
4
MAY W10209721 MAY W10209721 Contact Us For Availability
4
Washer, Auger MAY 2258220 Contact Us For Availability
4
MAY W10136605 MAY W10136605 Contact Us For Availability
4
MAY W10308362 MAY W10308362 Contact Us For Availability
4
MAY W10164045 MAY W10164045 Contact Us For Availability
5
BOARD, GEMINI (HV, GEMINI) MAY W10267646 Contact Us For Availability
5
SHAFT MAY 12812903WD Contact Us For Availability
5
MAY 12956105 MAY 12956105 Contact Us For Availability
5
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
5
MAY W10303541 MAY W10303541 Contact Us For Availability
5
SPACER, FLAT (4) MAY W10189658 Contact Us For Availability
5
MAY W10267602 MAY W10267602 Contact Us For Availability
5
MAY W10307625 MAY W10307625 Contact Us For Availability
5
MAY W10235367 MAY W10235367 Contact Us For Availability
6
GASKET, HV BOX MAY 12957801K Contact Us For Availability
6
MAY 12570701SP MAY 12570701SP Contact Us For Availability
6
MAY 12664501SP MAY 12664501SP Contact Us For Availability
6
MULLION, DOOR (APOLLO GREY) MAY 12722815AP Contact Us For Availability
6
MAY W10242974 MAY W10242974 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
MAY W10178232 MAY W10178232 Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
SEPARATOR ASSEMBLY (APOLLO GREY) MAY W10307070 Contact Us For Availability
6
MAY 12924801SP MAY 12924801SP Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
MAY W10196187 MAY W10196187 Contact Us For Availability
7
SLIDE, HUMIDITY MAY W10141530 Contact Us For Availability
7
BLADE, ROTARY MAY W10278733 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
SPIGOT MAY 2316647 Contact Us For Availability
7
MAY 12925403SP MAY 12925403SP Contact Us For Availability
8
Brake, Foot MAY W10141622 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY W10215169 MAY W10215169 Contact Us For Availability
8
MAY W10163991 MAY W10163991 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
MAY 12756701 MAY 12756701 Contact Us For Availability
8
SPACER, STEP (2) MAY W10189661 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 628397 Contact Us For Availability
8
MAY W10174827 MAY W10174827 Contact Us For Availability
8
MAY 12924903 MAY 12924903 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light MAY 2255743 Contact Us For Availability
9
MAY 2223877 MAY 2223877 Contact Us For Availability
9
HANDLE, DOOR (APOLLO GREY) MAY W10291144 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
HANDLE, CRISPER MAY W10141531 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
MAY W10205979 MAY W10205979 Contact Us For Availability
9
MAY 12925501SP MAY 12925501SP Contact Us For Availability
9
MAY 12925502SP MAY 12925502SP Contact Us For Availability
10
MAY 12963205ED MAY 12963205ED Contact Us For Availability
10
MAY 12476401SP MAY 12476401SP Contact Us For Availability
10
MAY 12990504 MAY 12990504 Contact Us For Availability
10
MAY W10213297 MAY W10213297 Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
10
MAY W10297982 MAY W10297982 Contact Us For Availability
10
BLADE, ROTARY MAY W10278732 Contact Us For Availability
10
SUPPORT-ICE DOOR MAY W10174809 Contact Us For Availability
10
MAY 12925404SP MAY 12925404SP Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY W10308421 MAY W10308421 Contact Us For Availability
11
MAY UKF8001 MAY UKF8001 Contact Us For Availability
11
Stop, Door (Apollo Grey) MAY 12968202AP Contact Us For Availability
11
BOX, INVERTER MAY W10186719 Contact Us For Availability
11
MAY 12883509 MAY 12883509 Contact Us For Availability
11
BLADE, BLOCK MAY W10178238 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
MAY W10174811 MAY W10174811 Contact Us For Availability
11
MAY W10235357 MAY W10235357 Contact Us For Availability
12
MAY W10272998 MAY W10272998 Contact Us For Availability
12
MAY W10312047 MAY W10312047 Contact Us For Availability
12
SCREW, HANDLE MAY W10290759 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY W10206339 MAY W10206339 Contact Us For Availability
12
MAY 12990513 MAY 12990513 Contact Us For Availability
12
ROLL PIN MAY W10166878 Contact Us For Availability
12
MAY W10212429 MAY W10212429 Contact Us For Availability
12
GUIDE, ICE MAY W10174808 Contact Us For Availability
13
MAY W10272481 MAY W10272481 Contact Us For Availability
13
BRACKET, DOOR (LEFT) MAY W10122147 Contact Us For Availability
13
BRACKET, DOOR (RIGHT) MAY W10122148 Contact Us For Availability
13
MAY W10226186 MAY W10226186 Contact Us For Availability
13
GROMMET, COND MAY W10137529 Contact Us For Availability
13
MAY W10268264 MAY W10268264 Contact Us For Availability
13
BLADE, ROTARY MAY W10278731 Contact Us For Availability
13
MAY W10212431 MAY W10212431 Contact Us For Availability
13
SCREW MAY W10174818 Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
HOUSING, LIGHT MAY 13027902SP Contact Us For Availability
14
MAY W10194596 MAY W10194596 Contact Us For Availability
14
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
GLASS, CRISPER MAY 12204826 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
MAY W10194598 MAY W10194598 Contact Us For Availability
14
TRAY, DISPENSER (APOLLO GREY) MAY W10305897 Contact Us For Availability
15
Hinge, Center (RT) (Apollo Grey) MAY 13000002AP Contact Us For Availability
15
CLIP, EVAP MOTOR MAY 12956601 Contact Us For Availability
15
MAY W10247377 MAY W10247377 Contact Us For Availability
15
MAY W10212139 MAY W10212139 Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
MAY W10303540 MAY W10303540 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY W10292582 MAY W10292582 Contact Us For Availability
15
SLIDE, TRAY DISPENSER (APOLLO GREY) MAY W10267863 Contact Us For Availability
16
MAY W10213219 MAY W10213219 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466111SP Contact Us For Availability
16
MAY W10194595 MAY W10194595 Contact Us For Availability
16
MAY W10237237 MAY W10237237 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
Brace, Crisper MAY W10119258 Contact Us For Availability
16
COUPLING MAY 2220457 Contact Us For Availability
16
MAY 12990511K MAY 12990511K Contact Us For Availability
16
MAY W10314372 MAY W10314372 Contact Us For Availability
17
Cover, Corner (2) (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
MAY W10297807 MAY W10297807 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
Module Assembly MAY 626691 Contact Us For Availability
17
LED MAY W10238083 Contact Us For Availability
18
HINGE, TOP LEFT MAY W10213415 Contact Us For Availability
18
MAY W10123444K MAY W10123444K Contact Us For Availability
18
MAY W10212141 MAY W10212141 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
Screw (3) MAY W10001240 Contact Us For Availability
18
HARNESS-JUMPER MAY W10193350 Contact Us For Availability
19
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
19
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
19
MAY W10120018 MAY W10120018 Contact Us For Availability
19
MAY W10194600 MAY W10194600 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY 2323357 MAY 2323357 Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
MAY W10215957 MAY W10215957 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
MAY 12732801K MAY 12732801K Contact Us For Availability
20
MAY 12993001 MAY 12993001 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY W10215692 MAY W10215692 Contact Us For Availability
21
SHIM, HINGE (LEFT) MAY 12999501 Contact Us For Availability
21
SHIM, HINGE (RIGHT) MAY 12999502 Contact Us For Availability
21
MAY 12990511 MAY 12990511 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT) MAY W10284682 Contact Us For Availability
21
ADAPTER, SLIDE (RIGHT) MAY W10284683 Contact Us For Availability
21
MAY W10281584 MAY W10281584 Contact Us For Availability
21
MAY W10305123 MAY W10305123 Contact Us For Availability
21
MAY W10247077 MAY W10247077 Contact Us For Availability
21
MAY W10270395 MAY W10270395 Contact Us For Availability
22
GRILLE, TOE (APOLLO GREY) MAY W10244558 Contact Us For Availability
22
GRILLE, FZ AIR MAY 12959901 Contact Us For Availability
22
MAY W10216534 MAY W10216534 Contact Us For Availability
22
MAY W10225288 MAY W10225288 Contact Us For Availability
22
MAY 12959803 MAY 12959803 Contact Us For Availability
22
MAY W10291014 MAY W10291014 Contact Us For Availability
23
Shroud, Evap Fan MAY 12951401 Contact Us For Availability
23
MAY W10223895 MAY W10223895 Contact Us For Availability
23
MAY W10273549 MAY W10273549 Contact Us For Availability
23
Dam (Left Side) MAY 12963002SP Contact Us For Availability
23
Dam (Right Side) MAY 12963102SP Contact Us For Availability
23
MAY W10276438 MAY W10276438 Contact Us For Availability
24
Hinge, Center (LT) (Apollo Grey) MAY 13000001AP Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 12986101 Contact Us For Availability
24
MAY W10237349 MAY W10237349 Contact Us For Availability
24
MAY W10251672 MAY W10251672 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
24
Coupling, Bottom MAY 2220458 Contact Us For Availability
25
GROMMET MAY 12951101 Contact Us For Availability
25
MAY W10306094 MAY W10306094 Contact Us For Availability
25
MAY 2198628 MAY 2198628 Contact Us For Availability
26
MAY W10253811 MAY W10253811 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10276647 Contact Us For Availability
26
MAY W10199834 MAY W10199834 Contact Us For Availability
26
MAY W10271463 MAY W10271463 Contact Us For Availability
26
MAY 2212370 MAY 2212370 Contact Us For Availability
27
LID, HV BOX MAY 12957702K Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
MAY W10211511 MAY W10211511 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
SPRING MAY 2198607 Contact Us For Availability
28
MAY 12961602 MAY 12961602 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
BOARD, EMITTER MAY W10180607 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11 AND 27) MAY W10168473 Contact Us For Availability
28
MAY W10258592 MAY W10258592 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY W10247763 MAY W10247763 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 2323603 MAY 2323603 Contact Us For Availability
30
COVER, UNIT MAY W10270394 Contact Us For Availability
30
SWITCH, LIGHT MAY 12466103 Contact Us For Availability
30
MAY W10247668 MAY W10247668 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY W10245601 MAY W10245601 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
Screw MAY 8281163 Contact Us For Availability
32
MAY M0108107 MAY M0108107 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
CONNECTOR, WATER MAY 2209709 Contact Us For Availability
32
MAY W10218551 MAY W10218551 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
MAY 12991604 MAY 12991604 Contact Us For Availability
33
MAY W10247398 MAY W10247398 Contact Us For Availability
34
BOX, HV CONTROL MAY W10159461 Contact Us For Availability
34
MAY W10267558 MAY W10267558 Contact Us For Availability
35
MAY W10210988 MAY W10210988 Contact Us For Availability
35
MAY W10178224 MAY W10178224 Contact Us For Availability
36
MAY W10213615 MAY W10213615 Contact Us For Availability
37
MAY W10236761 MAY W10236761 Contact Us For Availability
37
MAY W10218689 MAY W10218689 Contact Us For Availability
38
MAY W10223786 MAY W10223786 Contact Us For Availability
38
MAY W10277106 MAY W10277106 Contact Us For Availability
39
MAY W10248280 MAY W10248280 Contact Us For Availability
40
MAY W10166865 MAY W10166865 Contact Us For Availability
100
MAY W10293764 MAY W10293764 Contact Us For Availability
100
MAY W10277159 MAY W10277159 Contact Us For Availability
100
MAY W10122559 MAY W10122559 Contact Us For Availability
NI
HARNESS, FZ MODULE (INCLUDES THERMISTOR) MAY 12952005SP Contact Us For Availability
NI
MAY W10187177 MAY W10187177 Contact Us For Availability
NI
MAY W10292583 MAY W10292583 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 10244904SP MAY 10244904SP Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
